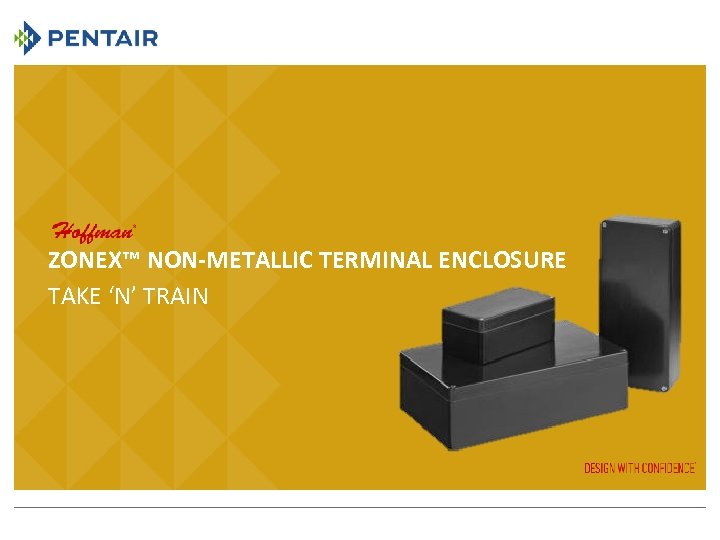

ZONEX™ NON-METALLIC TERMINAL ENCLOSURE TAKE ‘N’ TRAIN ZONEX™ NON-METALLIC TERMINAL ENCLOSURE TAKE ‘N’ TRAIN

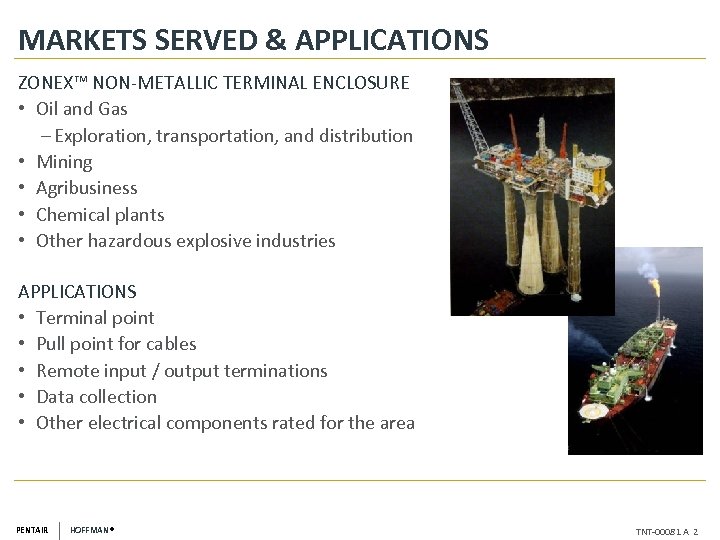

MARKETS SERVED & APPLICATIONS ZONEX™ NON-METALLIC TERMINAL ENCLOSURE • Oil and Gas ‒ Exploration, MARKETS SERVED & APPLICATIONS ZONEX™ NON-METALLIC TERMINAL ENCLOSURE • Oil and Gas ‒ Exploration, transportation, and distribution • Mining • Agribusiness • Chemical plants • Other hazardous explosive industries APPLICATIONS • Terminal point • Pull point for cables • Remote input / output terminations • Data collection • Other electrical components rated for the area PENTAIR HOFFMAN ® TNT-00081 A 2

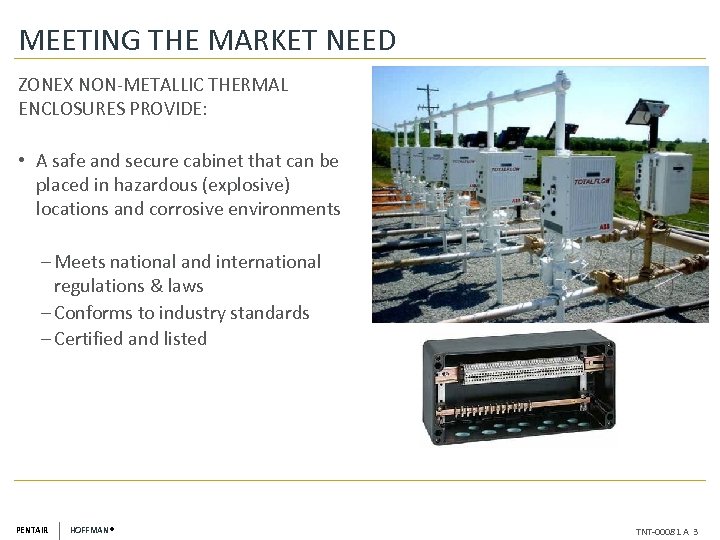

MEETING THE MARKET NEED ZONEX NON-METALLIC THERMAL ENCLOSURES PROVIDE: • A safe and secure MEETING THE MARKET NEED ZONEX NON-METALLIC THERMAL ENCLOSURES PROVIDE: • A safe and secure cabinet that can be placed in hazardous (explosive) locations and corrosive environments ‒ Meets national and international regulations & laws ‒ Conforms to industry standards ‒ Certified and listed PENTAIR HOFFMAN ® TNT-00081 A 3

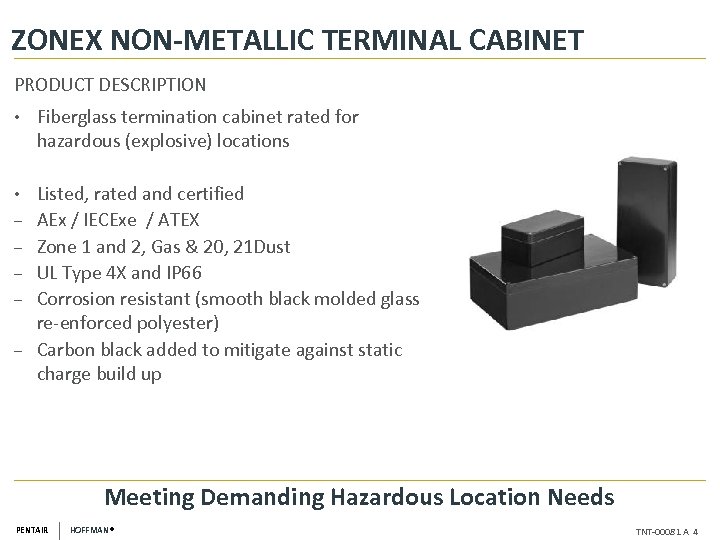

ZONEX NON-METALLIC TERMINAL CABINET PRODUCT DESCRIPTION • Fiberglass termination cabinet rated for hazardous (explosive) ZONEX NON-METALLIC TERMINAL CABINET PRODUCT DESCRIPTION • Fiberglass termination cabinet rated for hazardous (explosive) locations • Listed, rated and certified AEx / IECExe / ATEX Zone 1 and 2, Gas & 20, 21 Dust UL Type 4 X and IP 66 Corrosion resistant (smooth black molded glass re-enforced polyester) Carbon black added to mitigate against static charge build up ‒ ‒ ‒ Meeting Demanding Hazardous Location Needs PENTAIR HOFFMAN ® TNT-00081 A 4

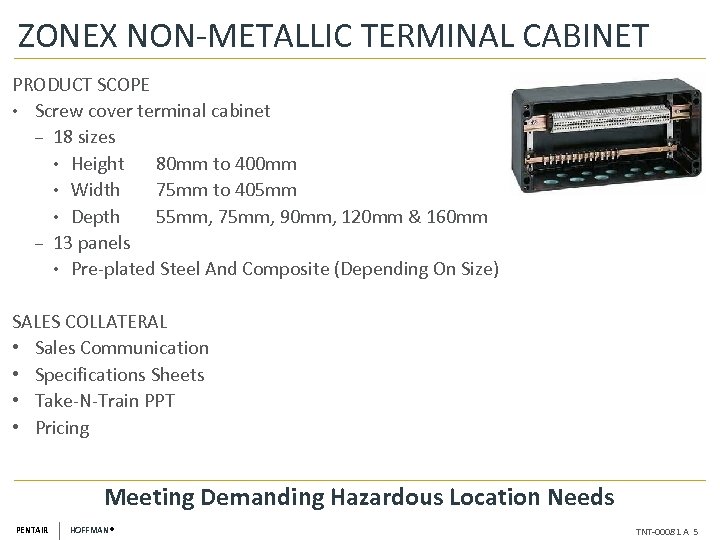

ZONEX NON-METALLIC TERMINAL CABINET PRODUCT SCOPE • Screw cover terminal cabinet ‒ 18 sizes ZONEX NON-METALLIC TERMINAL CABINET PRODUCT SCOPE • Screw cover terminal cabinet ‒ 18 sizes • Height 80 mm to 400 mm • Width 75 mm to 405 mm • Depth 55 mm, 75 mm, 90 mm, 120 mm & 160 mm ‒ 13 panels • Pre-plated Steel And Composite (Depending On Size) SALES COLLATERAL • Sales Communication • Specifications Sheets • Take-N-Train PPT • Pricing Meeting Demanding Hazardous Location Needs PENTAIR HOFFMAN ® TNT-00081 A 5

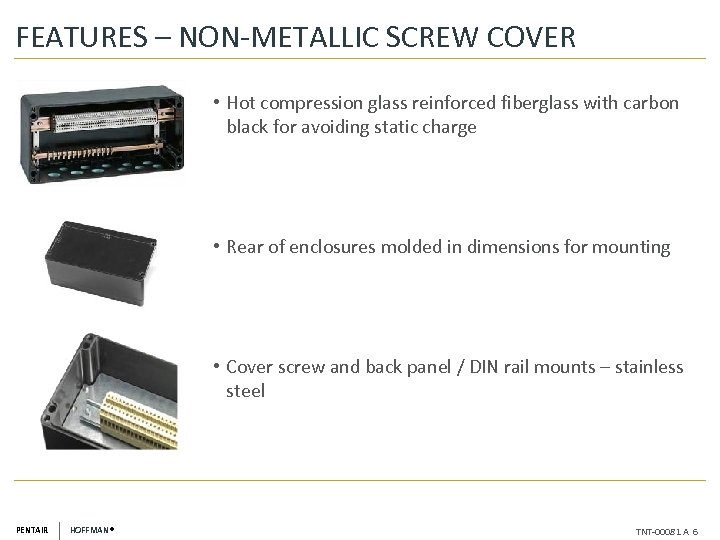

FEATURES – NON-METALLIC SCREW COVER • Hot compression glass reinforced fiberglass with carbon black FEATURES – NON-METALLIC SCREW COVER • Hot compression glass reinforced fiberglass with carbon black for avoiding static charge • Rear of enclosures molded in dimensions for mounting • Cover screw and back panel / DIN rail mounts – stainless steel PENTAIR HOFFMAN ® TNT-00081 A 6

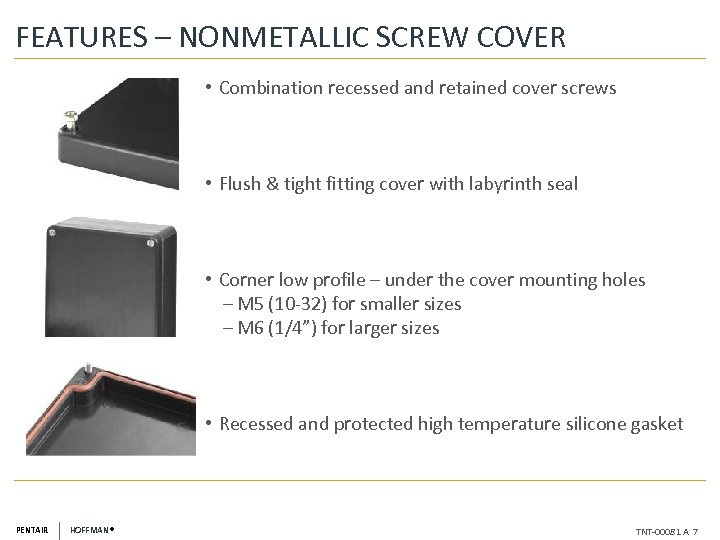

FEATURES – NONMETALLIC SCREW COVER • Combination recessed and retained cover screws • Flush FEATURES – NONMETALLIC SCREW COVER • Combination recessed and retained cover screws • Flush & tight fitting cover with labyrinth seal • Corner low profile – under the cover mounting holes ‒ M 5 (10 -32) for smaller sizes ‒ M 6 (1/4”) for larger sizes • Recessed and protected high temperature silicone gasket PENTAIR HOFFMAN ® TNT-00081 A 7

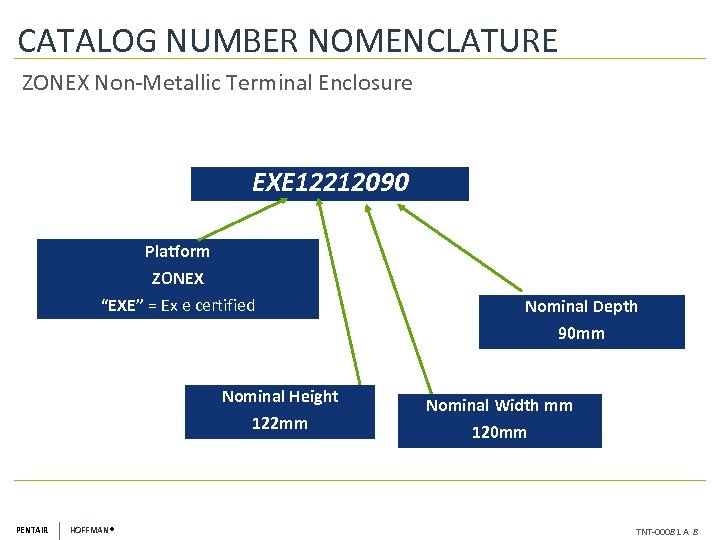

CATALOG NUMBER NOMENCLATURE ZONEX Non-Metallic Terminal Enclosure EXE 12212090 Platform ZONEX “EXE” = Ex CATALOG NUMBER NOMENCLATURE ZONEX Non-Metallic Terminal Enclosure EXE 12212090 Platform ZONEX “EXE” = Ex e certified Nominal Height 122 mm PENTAIR HOFFMAN ® Nominal Depth 90 mm Nominal Width mm 120 mm TNT-00081 A 8

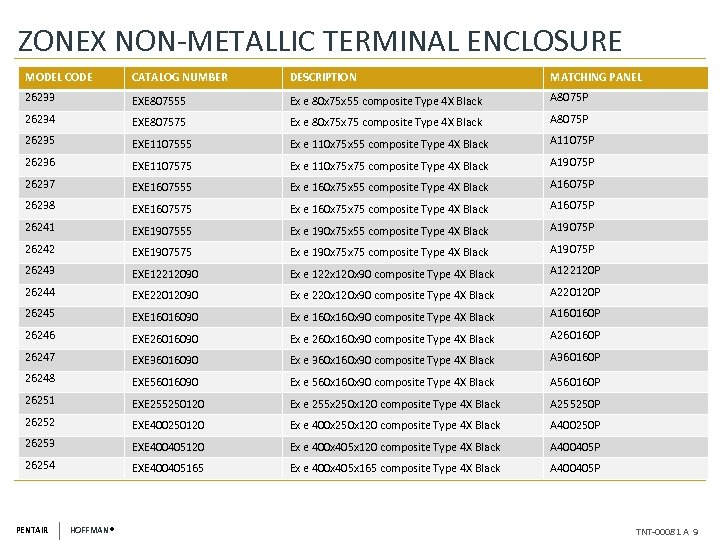

ZONEX NON-METALLIC TERMINAL ENCLOSURE MODEL CODE CATALOG NUMBER DESCRIPTION MATCHING PANEL 26233 EXE 807555 ZONEX NON-METALLIC TERMINAL ENCLOSURE MODEL CODE CATALOG NUMBER DESCRIPTION MATCHING PANEL 26233 EXE 807555 Ex e 80 x 75 x 55 composite Type 4 X Black A 8075 P 26234 EXE 807575 Ex e 80 x 75 composite Type 4 X Black A 8075 P 26235 EXE 1107555 Ex e 110 x 75 x 55 composite Type 4 X Black A 11075 P 26236 EXE 1107575 Ex e 110 x 75 composite Type 4 X Black A 19075 P 26237 EXE 1607555 Ex e 160 x 75 x 55 composite Type 4 X Black A 16075 P 26238 EXE 1607575 Ex e 160 x 75 composite Type 4 X Black A 16075 P 26241 EXE 1907555 Ex e 190 x 75 x 55 composite Type 4 X Black A 19075 P 26242 EXE 1907575 Ex e 190 x 75 composite Type 4 X Black A 19075 P 26243 EXE 12212090 Ex e 122 x 120 x 90 composite Type 4 X Black A 122120 P 26244 EXE 22012090 Ex e 220 x 120 x 90 composite Type 4 X Black A 220120 P 26245 EXE 16016090 Ex e 160 x 90 composite Type 4 X Black A 160160 P 26246 EXE 26016090 Ex e 260 x 160 x 90 composite Type 4 X Black A 260160 P 26247 EXE 36016090 Ex e 360 x 160 x 90 composite Type 4 X Black A 360160 P 26248 EXE 56016090 Ex e 560 x 160 x 90 composite Type 4 X Black A 560160 P 26251 EXE 255250120 Ex e 255 x 250 x 120 composite Type 4 X Black A 255250 P 26252 EXE 400250120 Ex e 400 x 250 x 120 composite Type 4 X Black A 400250 P 26253 EXE 400405120 Ex e 400 x 405 x 120 composite Type 4 X Black A 400405 P 26254 EXE 400405165 Ex e 400 x 405 x 165 composite Type 4 X Black A 400405 P PENTAIR HOFFMAN ® TNT-00081 A 9

BENEFITS OF FEATURES Meets ATEX directive 94/9/EC Meets IECEx, AEx standards UL / c. BENEFITS OF FEATURES Meets ATEX directive 94/9/EC Meets IECEx, AEx standards UL / c. UL listed Type 4 X, 4, 12 Corrosion resistant Light weight Easy to drill and penetrate Retained combination drive cover screws High impact strength molded glass re-enforced polyester • Panel or DIN rail capable • Durable and reusable internal Panel / DIN rail stainless steel insert mounts • • See Feature / Benefit Sheet for details PENTAIR HOFFMAN ® TNT-00081 A 10

COMPETITION ZONEX NONMETALLIC TERMINAL ENCLOSURES COMPETES AGAINST • • Cooper B-Line / Crouse Hinds COMPETITION ZONEX NONMETALLIC TERMINAL ENCLOSURES COMPETES AGAINST • • Cooper B-Line / Crouse Hinds Hubbell / Killark® / HAWKE Rose+Bopla Ab. Tech Emerson / Appleton® R. STAHL Rittal PENTAIR HOFFMAN ® TNT-00081 A 11

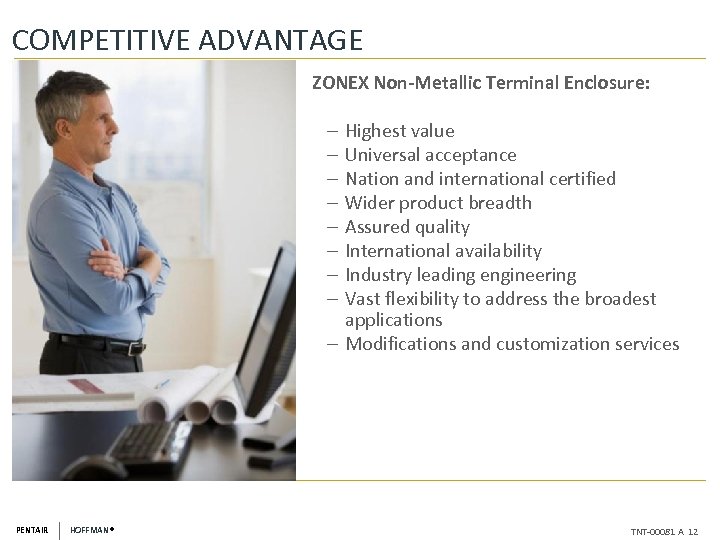

COMPETITIVE ADVANTAGE ZONEX Non-Metallic Terminal Enclosure: Highest value Universal acceptance Nation and international certified COMPETITIVE ADVANTAGE ZONEX Non-Metallic Terminal Enclosure: Highest value Universal acceptance Nation and international certified Wider product breadth Assured quality International availability Industry leading engineering Vast flexibility to address the broadest applications – Modifications and customization services – – – – PENTAIR HOFFMAN ® TNT-##### A TNT-00081 A 12

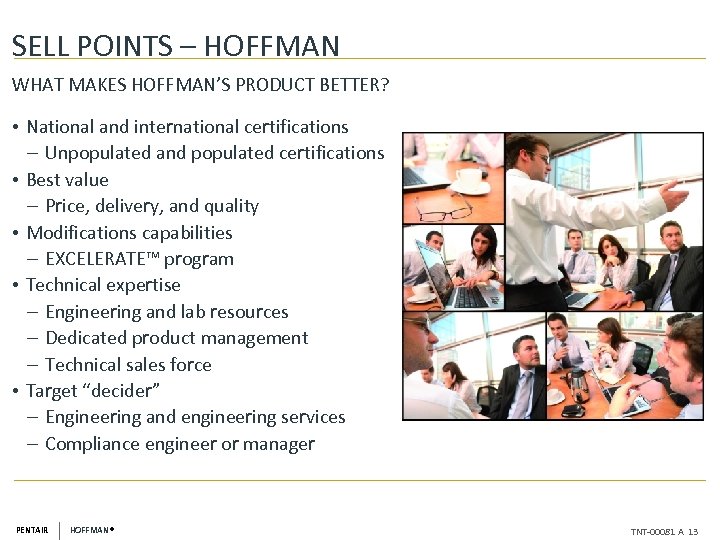

SELL POINTS – HOFFMAN WHAT MAKES HOFFMAN’S PRODUCT BETTER? • National and international certifications SELL POINTS – HOFFMAN WHAT MAKES HOFFMAN’S PRODUCT BETTER? • National and international certifications • • – Unpopulated and populated certifications Best value – Price, delivery, and quality Modifications capabilities – EXCELERATE™ program Technical expertise – Engineering and lab resources – Dedicated product management – Technical sales force Target “decider” – Engineering and engineering services – Compliance engineer or manager PENTAIR HOFFMAN ® TNT-00081 A 13

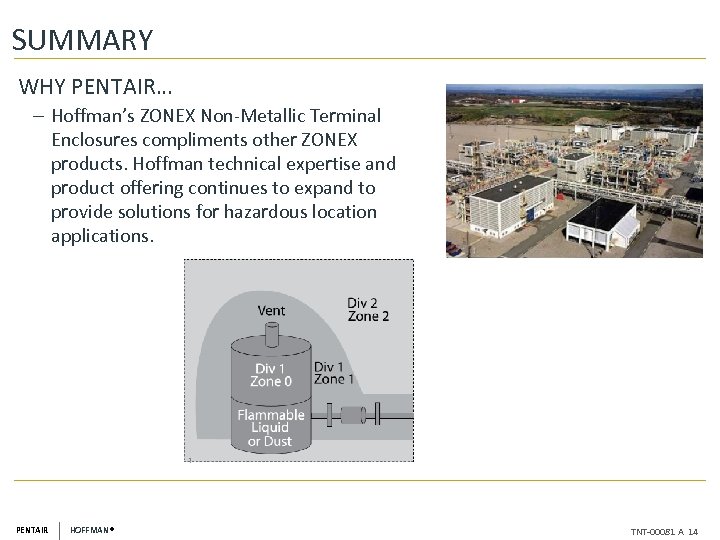

SUMMARY WHY PENTAIR… – Hoffman’s ZONEX Non-Metallic Terminal Enclosures compliments other ZONEX products. Hoffman SUMMARY WHY PENTAIR… – Hoffman’s ZONEX Non-Metallic Terminal Enclosures compliments other ZONEX products. Hoffman technical expertise and product offering continues to expand to provide solutions for hazardous location applications. PENTAIR HOFFMAN ® TNT-00081 A 14

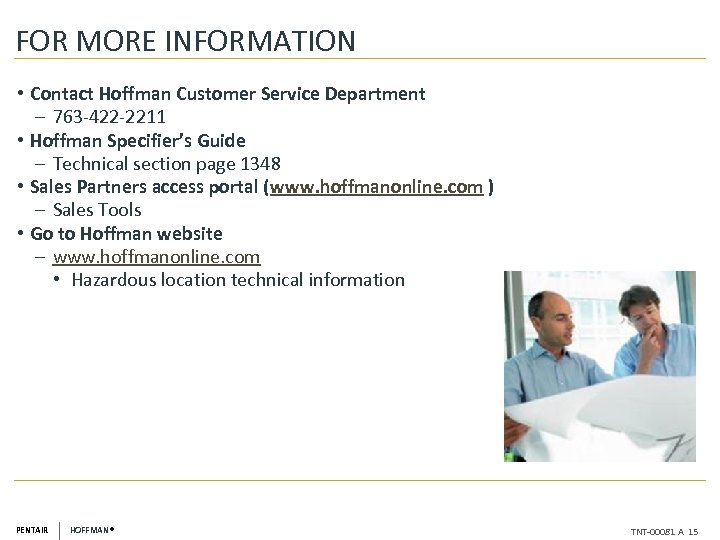

FOR MORE INFORMATION • Contact Hoffman Customer Service Department ‒ 763 -422 -2211 • FOR MORE INFORMATION • Contact Hoffman Customer Service Department ‒ 763 -422 -2211 • Hoffman Specifier’s Guide ‒ Technical section page 1348 • Sales Partners access portal (www. hoffmanonline. com ) ‒ Sales Tools • Go to Hoffman website ‒ www. hoffmanonline. com • Hazardous location technical information PENTAIR HOFFMAN ® TNT-00081 A 15

PENTAIR HOFFMAN ® TNT-00081 A 16 PENTAIR HOFFMAN ® TNT-00081 A 16
