ZKAccess 3. 5 Introduction ZKAccess 3. 5 Introduction

Contents: 1. Why ZKaccess 3. 5 2. Brief Info 3. Installation 4. Simple Using Contents: 1. Why ZKaccess 3. 5 2. Brief Info 3. Installation 4. Simple Using 5. Access Feature 6. More Feature

Why ZKaccess 3. 5 We have several types devices, how to control all of Why ZKaccess 3. 5 We have several types devices, how to control all of them? Control Panel e Time e device ZKTime 5. 0 ZKTime. net ZKAccess 5. 2 ZKAccess 3. 5

Why ZKaccess 3. 5 How to connect all device? Pull Device Exist Button Standalone Why ZKaccess 3. 5 How to connect all device? Pull Device Exist Button Standalone Device FR 1200 TF 1700 SC 700 Access management Real time Monitor C 3 serial Inbio serial Database Shift management Attendance report TCP/IP(LAN) RS 485

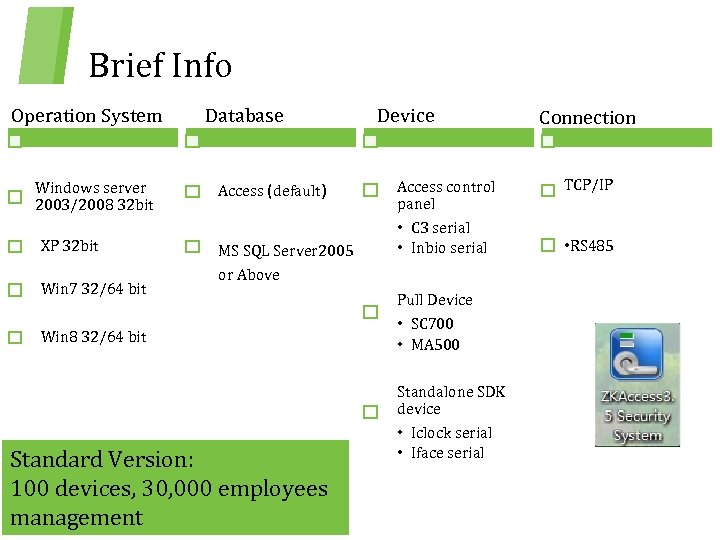

Brief Info Operation System Windows server 2003/2008 32 bit XP 32 bit Win 7 Brief Info Operation System Windows server 2003/2008 32 bit XP 32 bit Win 7 32/64 bit Database Access (default) MS SQL Server 2005 Device Access control panel • C 3 serial • Inbio serial or Above Win 8 32/64 bit Pull Device • SC 700 • MA 500 Standalone SDK device Standard Version: 100 devices, 30, 000 employees management • Iclock serial • Iface serial Connection TCP/IP • RS 485

Installation The S/W request. Net. Framework 2. 0 or above Installation The S/W request. Net. Framework 2. 0 or above

Installation Multiple Language Input Path for backup database Install driver for finger reader Installation Multiple Language Input Path for backup database Install driver for finger reader

Installation Menu Help About Software version Pull SDK version Standalone SDK Version Default User Installation Menu Help About Software version Pull SDK version Standalone SDK Version Default User Name: admin Password: admin Initialize the database once running first time

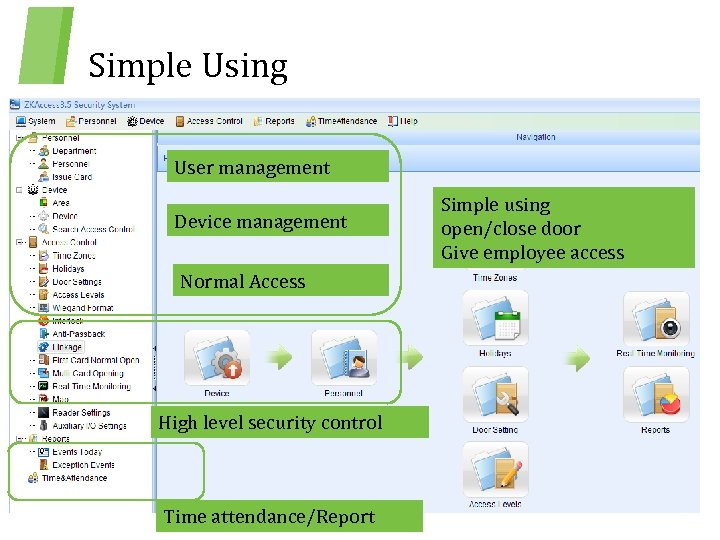

Simple Using User management Device management Normal Access High level security control Time attendance/Report Simple Using User management Device management Normal Access High level security control Time attendance/Report Simple using open/close door Give employee access

Simple Using Reports Add Device Register User Real time Monitor Time Zone Door setting Simple Using Reports Add Device Register User Real time Monitor Time Zone Door setting Holiday Access level

Simple Using/Add Device Lot of device Lot of choice Access also could be vivid Simple Using/Add Device Lot of device Lot of choice Access also could be vivid

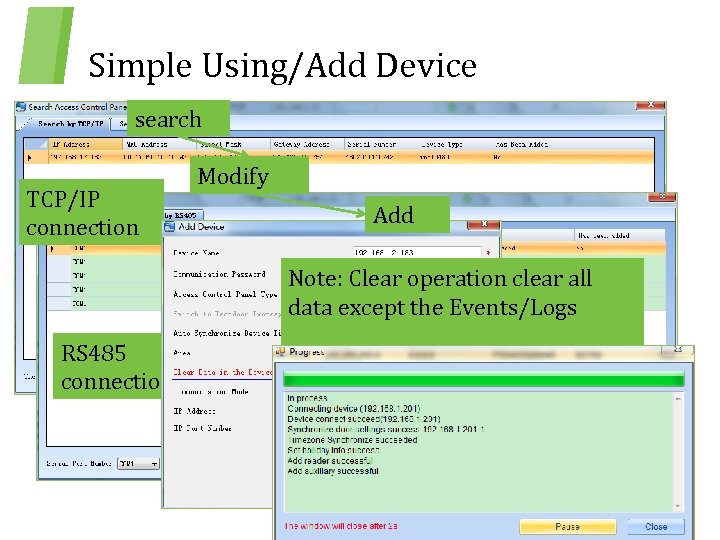

Simple Using/Add Device 4. 1 Add Device search TCP/IP connection Modify Add Note: Clear Simple Using/Add Device 4. 1 Add Device search TCP/IP connection Modify Add Note: Clear operation clear all data except the Events/Logs RS 485 connection

Simple Using/Add Device Have to add the device manually. Pull SDK device Standalone SDK Simple Using/Add Device Have to add the device manually. Pull SDK device Standalone SDK device

Simple Using/Add User Add Device Register User First way: Upload from device Second way. Simple Using/Add User Add Device Register User First way: Upload from device Second way. Register on software

Simple Using/Add User Enroll via Finger Reader Enroll Card Number Punch new card on Simple Using/Add User Enroll via Finger Reader Enroll Card Number Punch new card on reader of C 3/Inbio Punch new card on

Simple Using/Access Control Setting Time Zone Holiday When holiday, does it available access ? Simple Using/Access Control Setting Time Zone Holiday When holiday, does it available access ?

Simple Using/Access Control Setting Simple Using/Access Control Setting

Simple Using/Access Control Setting 1 Available Time Zone 2. Verify. Mode— FP/PWD/Card 3. Lock Simple Using/Access Control Setting 1 Available Time Zone 2. Verify. Mode— FP/PWD/Card 3. Lock open duration time Select door Select employee Door setting Click OK to save setting Access level

Simple Using/Sync Data Every time access Level or time zone change Software will pull Simple Using/Sync Data Every time access Level or time zone change Software will pull out window: Data updated, please SYNC In this way to synchronic the data between device and software

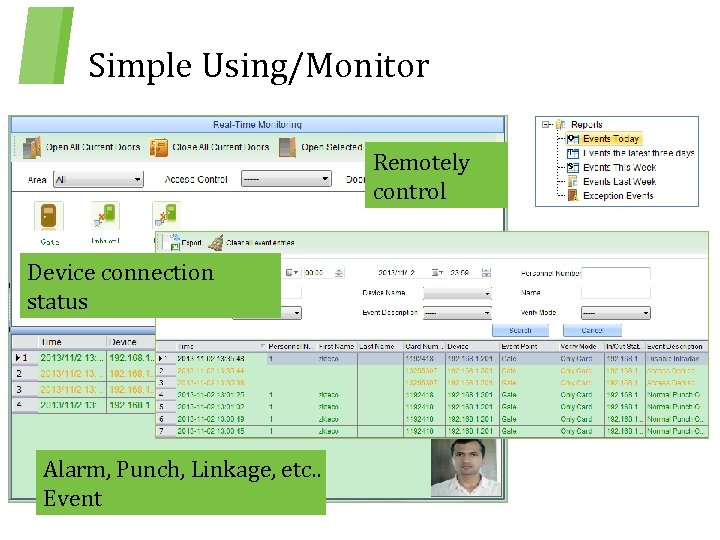

Simple Using/Monitor Remotely control Device connection status Alarm, Punch, Linkage, etc. . Event Simple Using/Monitor Remotely control Device connection status Alarm, Punch, Linkage, etc. . Event

Simple Using/Time Attendance • • Shift management Vacation/leave Attendance rule report Simple Using/Time Attendance • • Shift management Vacation/leave Attendance rule report

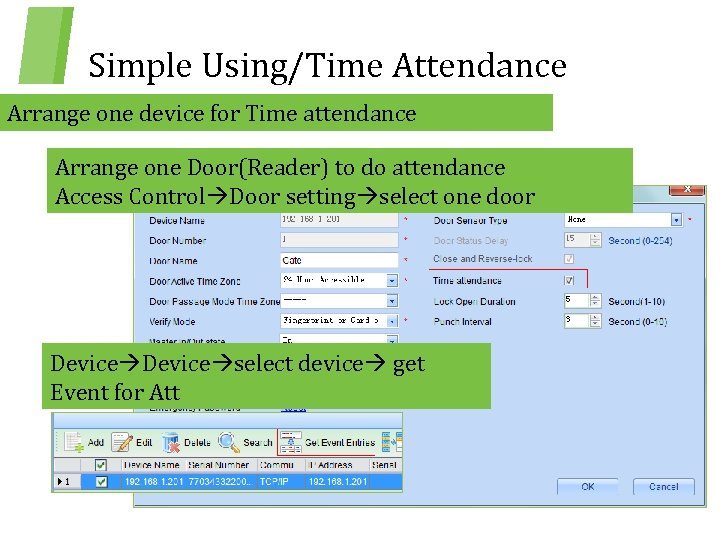

Simple Using/Time Attendance Arrange one device for Time attendance Arrange one Door(Reader) to do Simple Using/Time Attendance Arrange one device for Time attendance Arrange one Door(Reader) to do attendance Access Control Door setting select one door Device select device get Event for Att

Simple Using/Time Attendance • • Shift management Vacation/leave Attendance rule report Simple Using/Time Attendance • • Shift management Vacation/leave Attendance rule report

Access Feature/Mul-Verification Multi-verification: FP/PWD/Card, FP&PWD, only card, etc. . Wiegand reader Card/PWD RS 485 Access Feature/Mul-Verification Multi-verification: FP/PWD/Card, FP&PWD, only card, etc. . Wiegand reader Card/PWD RS 485 reader FP/PWD Face/Vein/FP Card/pwd/FP

Access Feature/Linkage • Linkage: Fire Alarm & open door Duress verify alarm, etc. . Access Feature/Linkage • Linkage: Fire Alarm & open door Duress verify alarm, etc. . Send event to software Alarm Detect fire Door open

Access Feature/Highly Security Access: • Inter Lock: in multi-doors gallery or room, only one Access Feature/Highly Security Access: • Inter Lock: in multi-doors gallery or room, only one door could be opened every time. • Anti-pass back: reject following entry/exist. • Multi-card opening: more than one guys punch together to open door.

Access Feature/Inter Lock Three doors are set as inter lock one door is open Access Feature/Inter Lock Three doors are set as inter lock one door is open At the same time The others cannot open

Access Feature/Anti-Passback When user go out, he must have record of entrance Otherwise he Access Feature/Anti-Passback When user go out, he must have record of entrance Otherwise he cannot open the door We could set linkage When anti-pass back event happen it will give alarm One door is opening One guy enter the place without verify He cannot open the 3 doors because he have no enter record

Access Feature/Multi-Card Opening more than one guys punch together to open door. Hey, guys Access Feature/Multi-Card Opening more than one guys punch together to open door. Hey, guys Let’s go inside and take the gold. I can’t access only by myself. + Security Only Punch one by one, the door will be opened. + Manager Others

Access Feature/Multi-Card Opening multi-card feature on Standalone SDK device 1. How to set? 2. Access Feature/Multi-Card Opening multi-card feature on Standalone SDK device 1. How to set? 2. How does device work?

More Feature • Batch Enroll new user/Issue Card • Multi-Access Level • Time zone More Feature • Batch Enroll new user/Issue Card • Multi-Access Level • Time zone • Passage mode • First card normal open • Emergency PWD • Duress FP/PWD • Electronic Map

More Feature/Batch Add user Personnel Batch Add Personnel Issue Card Step 1. Select Card More Feature/Batch Add user Personnel Batch Add Personnel Issue Card Step 1. Select Card Reader Method 1: Select one device which added in software C 3/Inbio, SC 700, F 18, F 19, etc. . Method 2: use USB card reader to get the card number KR 10 E/KR 10 M Step 2. Input the employee ID from start to end And list here Step 3. Start and Punch Card on reader Here will list register details Employee – Card number

More Feature/Access Level Assign Multi-Access purview for different user. ere h Door W Multi-Access More Feature/Access Level Assign Multi-Access purview for different user. ere h Door W Multi-Access Level n Time he W zone Both in S/W and Device we can assign different access level by changing the details of 3 W+H. Boss FP/PWD/RF w Ho ID W ho user Security Department Normal Employee

More Feature/Time Zone Different Time Zones for Access Arrange Time period Sof t are More Feature/Time Zone Different Time Zones for Access Arrange Time period Sof t are w Available Time Period e vic De Time Zone Deny After work time I cannot enter

More Feature/Passage Mode Special access level for visitor Simple speaking: this is a path More Feature/Passage Mode Special access level for visitor Simple speaking: this is a path for visitor without verification hen W Doors: normal open Time zones Visitors ho W ere h W Second floor n for e area ope Som y you alread ourney od j Have a go

More Feature/Frist-Card Opening Special permission to change the door sensor as normal open. are More Feature/Frist-Card Opening Special permission to change the door sensor as normal open. are w oft S 1. Select door 2. Select Time zone 3. Arrange user Keep door open Continually punch 5 times to close door verify

More Feature/Emergency PWD The user can use Emergency Password to open the door. 1. More Feature/Emergency PWD The user can use Emergency Password to open the door. 1. Set the Emergency PWD via software 2. When someone verify on reader with Emergency pwd My God! Fire! 3. Door Normal Open Note: Emergency password is effective in any time zone and any type of verify mode.

More Feature/Duree Pwd/FP When opening the door with Duress PWD/FP, it will alarm. 1. More Feature/Duree Pwd/FP When opening the door with Duress PWD/FP, it will alarm. 1. Set a Duress PWD/FP via software 4. Trigger Alarm 2. Verify with Duress PWD/FP 3. Door open

More Feature/Duree Pwd/FP This is duress FP More Feature/Duree Pwd/FP This is duress FP

More Feature/Door Sensor Q: what’s Door sensor? A: It’s used to detect statues of More Feature/Door Sensor Q: what’s Door sensor? A: It’s used to detect statues of door, open or close? 3 type of sensor setting: None: S/W didn’t check. Normal Close: door normal close Normal Open: door normal open S/W will wait for 15 s to check door status When verify successful The door should open 5 s. Sof t are w Door close, ok open 5 s le p am Ex After 15 s verify After 5 s it should be closed Door still open, alarm

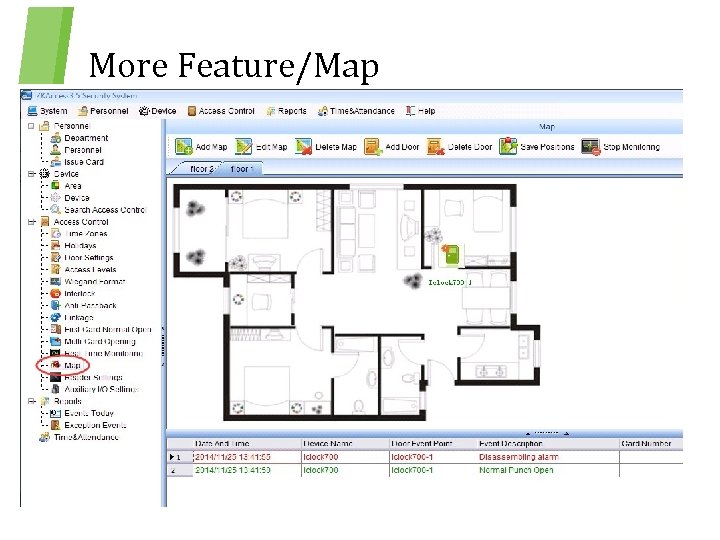

More Feature/Map More Feature/Map
