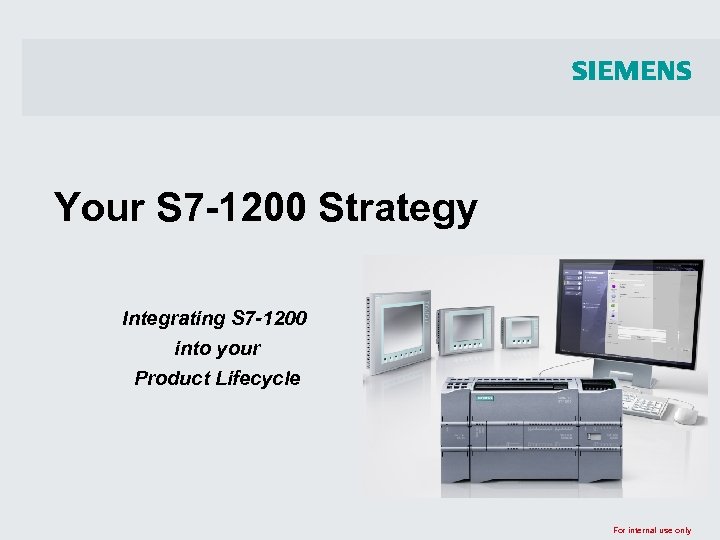

Your S 7 -1200 Strategy Integrating S 7

Your S 7 -1200 Strategy Integrating S 7 -1200 into your Product Lifecycle For internal use only

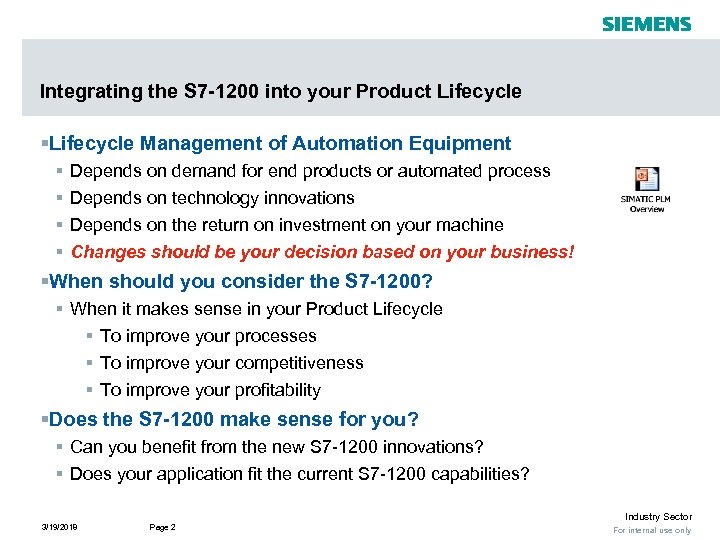

Integrating the S 7 -1200 into your Product Lifecycle §Lifecycle Management of Automation Equipment § § Depends on demand for end products or automated process Depends on technology innovations Depends on the return on investment on your machine Changes should be your decision based on your business! §When should you consider the S 7 -1200? § When it makes sense in your Product Lifecycle § To improve your processes § To improve your competitiveness § To improve your profitability §Does the S 7 -1200 make sense for you? § Can you benefit from the new S 7 -1200 innovations? § Does your application fit the current S 7 -1200 capabilities? Industry Sector 3/19/2018 Page 2 For internal use only

Can you benefit from the new S 7 -1200 innovations? n New S 7 -1200 offers the following benefits over the S 7 -200 n Integrated PROFINET (Industrial Ethernet) èReduces hardware costs n More functionality on the lower end modules èNot forced to buy more expensive controller for additional ports or analog èReduces hardware costs n New I/O modules have stacked terminal blocks èSaves space in the cabinet èReduces panel costs n Removable connectors for all hardware èSimplifies Maintenance n More built in functionality èIncreased number of PID loops èIncreased performance and available memory èHigh Precision Instructions (64 -Bit Real) n STEP 7 Basic - Integrated Software Environment for Controller and HMI èReduces development costs page 3 Protection notice / Copyright notice DABU Marketing / USA / AMD

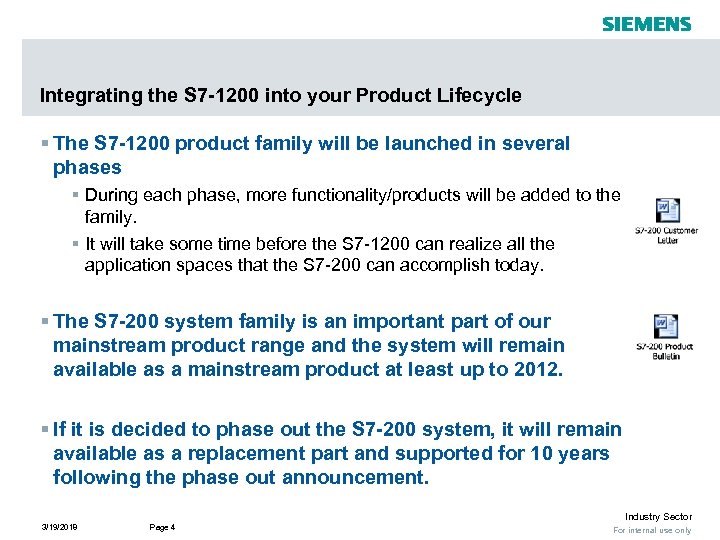

Integrating the S 7 -1200 into your Product Lifecycle § The S 7 -1200 product family will be launched in several phases § During each phase, more functionality/products will be added to the family. § It will take some time before the S 7 -1200 can realize all the application spaces that the S 7 -200 can accomplish today. § The S 7 -200 system family is an important part of our mainstream product range and the system will remain available as a mainstream product at least up to 2012. § If it is decided to phase out the S 7 -200 system, it will remain available as a replacement part and supported for 10 years following the phase out announcement. Industry Sector 3/19/2018 Page 4 For internal use only

Does your application fit the current S 7 -1200 capabilities? n. Overview: S 7 -1200 1 st Release Limitations (in order of importance) n n n page 5 No AC-Inputs No Text Display (TD) compatibility No Temperature (RTD/Thermocouple) modules No High-Density Analog I/O modules No IT module (no e-mail, no std or configurable web server, no ftp) No Profibus Slave, No ASi, No SIWAREX modules No Retentive Data after a program edit/download (every download erases all data “Cold Start”) No Bumpless Runtime Edits No Data Logging or Recipes to/from a *. CSV file No 10 A isolated relay module No High-Density 32 -DI/32 -DO/Rly discrete modules Protection notice / Copyright notice DABU Marketing / USA / AMD

How can Siemens help? n Siemens will offer several tools to aid in S 7 -200/S 7 -1200 migrations n S 7 -200 to S 7 -1200 application code migration utility n This tool will be to convert existing S 7 -200 ladder logic (Oct ’ 09 – SP 1) n S 7 -200 to S 7 -1200 Transition Reference Guide n What’s New; What’s Different; What’s Missing? n Application Engineering Support n Consulting support on when to migrate n Consulting support during actual migration n Solution Partner n Trained Solution Partners in your area to help support or perform migrations Industry Sector 3/19/2018 Page 6 For internal use only
