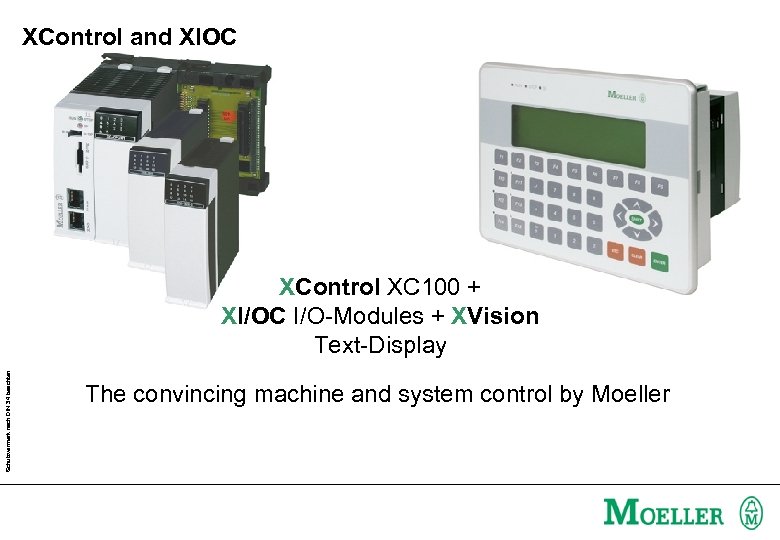

XControl and XIOC Schutzvermerk nach DIN 34 beachten XControl XC 100 + XI/OC I/O-Modules + XVision Text-Display The convincing machine and system control by Moeller
The components for small and medium applications Control XC 100 Visualization XVision Text Display Schutzvermerk nach DIN 34 beachten Input and Output with XI/OC Modules Software XSoft for all Xsystem applications

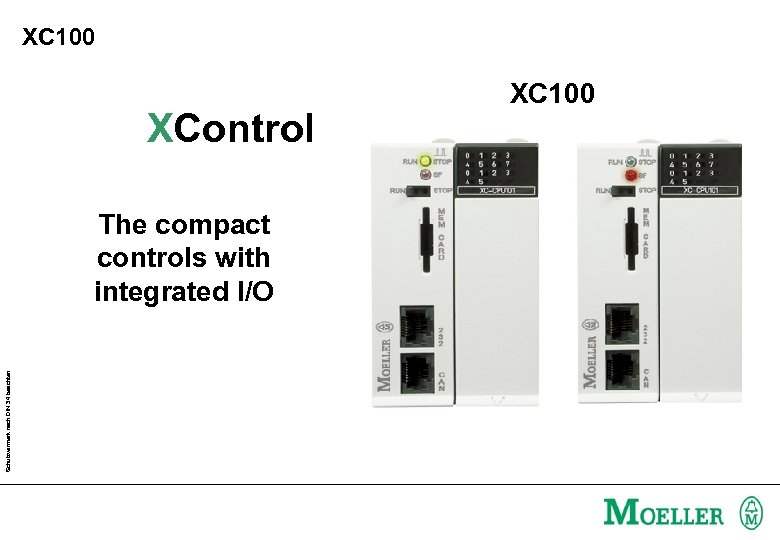

XC 100 XControl Schutzvermerk nach DIN 34 beachten The compact controls with integrated I/O XC 100

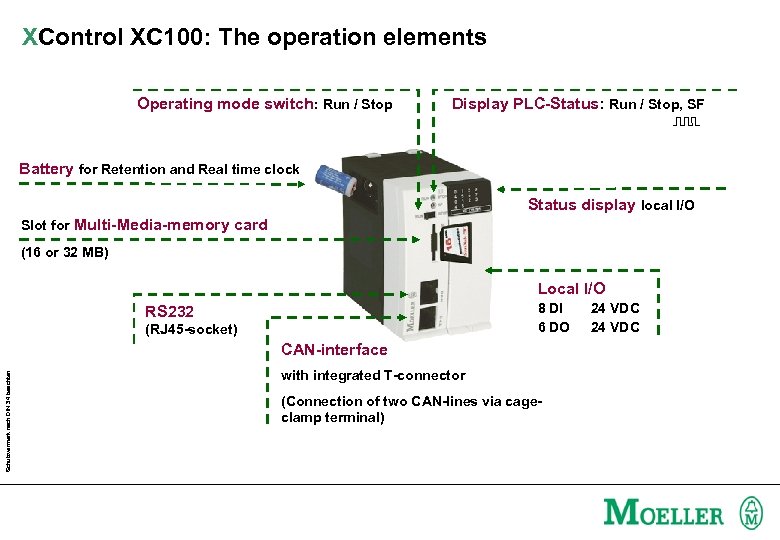

XControl XC 100: The operation elements Operating mode switch: Run / Stop Display PLC-Status: Run / Stop, SF Battery for Retention and Real time clock Status display local I/O LEDs Slot for Multi-Media-memory card (16 or 32 MB) Local I/O 8 DI 6 DO RS 232 (RJ 45 -socket) Schutzvermerk nach DIN 34 beachten CAN-interface with integrated T-connector (Connection of two CAN-lines via cageclamp terminal) 24 VDC

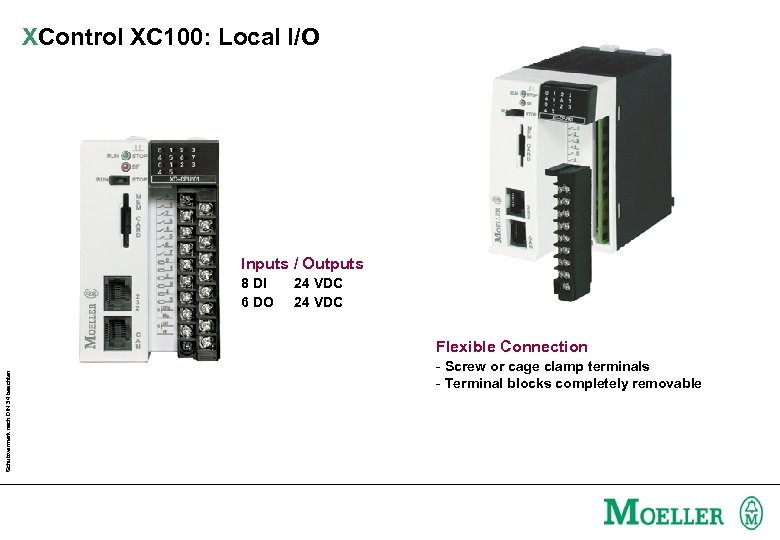

XControl XC 100: Local I/O Inputs / Outputs 8 DI 6 DO 24 VDC Schutzvermerk nach DIN 34 beachten Flexible Connection - Screw or cage clamp terminals - Terminal blocks completely removable

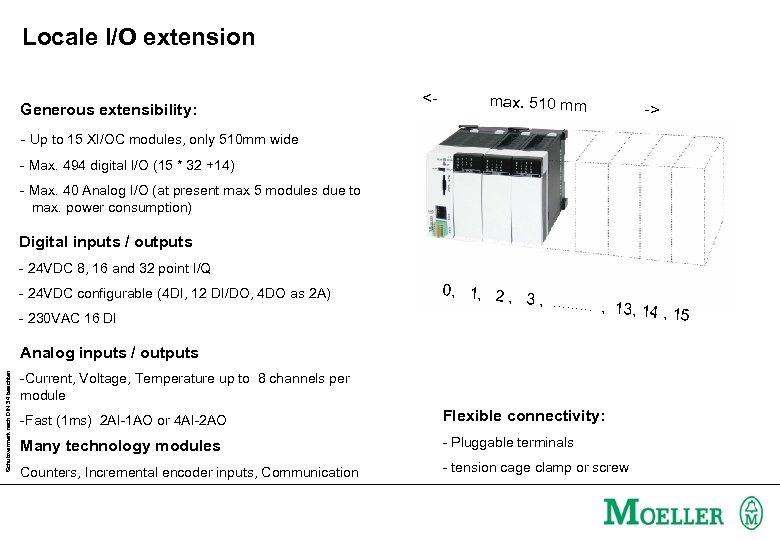

Locale I/O extension Generous extensibility: <- max. 510 mm -> - Up to 15 XI/OC modules, only 510 mm wide - Max. 494 digital I/O (15 * 32 +14) - Max. 40 Analog I/O (at present max 5 modules due to max. power consumption) Digital inputs / outputs - 24 VDC 8, 16 and 32 point I/Q - 24 VDC configurable (4 DI, 12 DI/DO, 4 DO as 2 A) - 230 VAC 16 DI 0, 1, 2 , 3 , . . , 13, 14 , 15 Schutzvermerk nach DIN 34 beachten Analog inputs / outputs -Current, Voltage, Temperature up to 8 channels per module -Fast (1 ms) 2 AI-1 AO or 4 AI-2 AO Flexible connectivity: Many technology modules - Pluggable terminals Counters, Incremental encoder inputs, Communication - tension cage clamp or screw

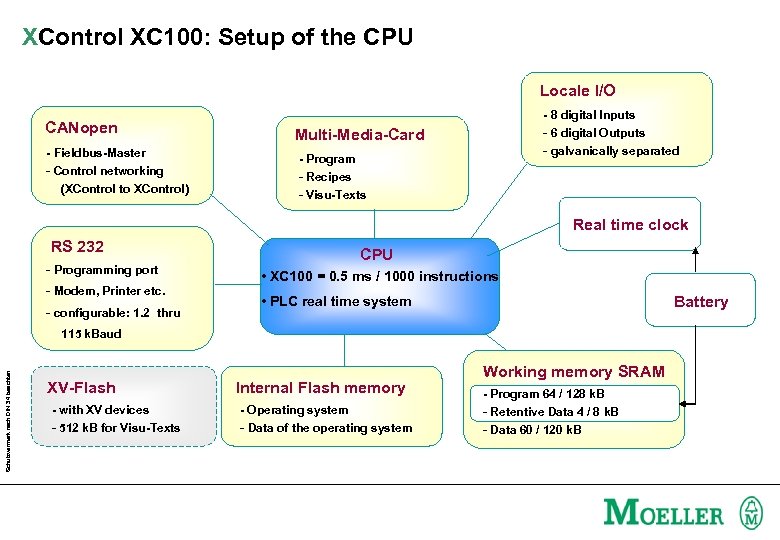

XControl XC 100: Setup of the CPU Locale I/O CANopen - Fieldbus-Master - Control networking (XControl to XControl) - 8 digital Inputs - 6 digital Outputs Multi-Media-Card - galvanically separated - Program - Recipes - Visu-Texts Real time clock RS 232 - Programming port - Modem, Printer etc. - configurable: 1. 2 thru CPU • XC 100 = 0. 5 ms / 1000 instructions Battery • PLC real time system Schutzvermerk nach DIN 34 beachten 115 k. Baud XV-Flash - with XV devices - 512 k. B for Visu-Texts Internal Flash memory - Operating system - Data of the operating system Working memory SRAM - Program 64 / 128 k. B - Retentive Data 4 / 8 k. B - Data 60 / 120 k. B

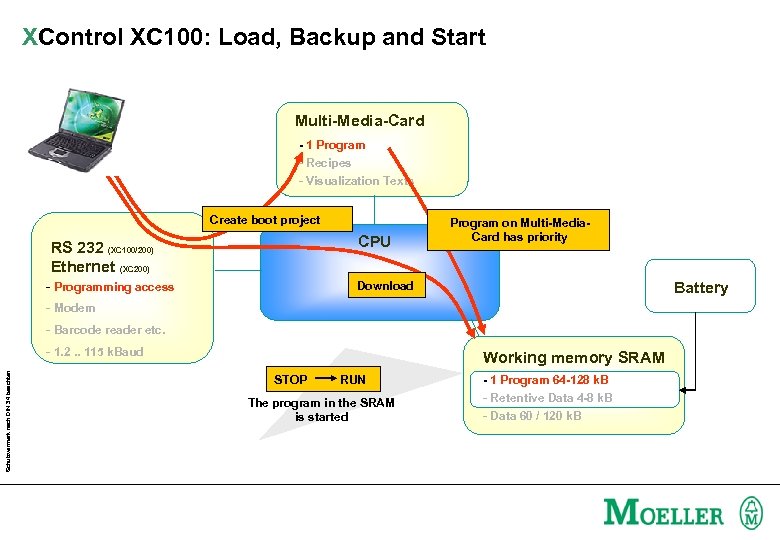

XControl XC 100: Load, Backup and Start Multi-Media-Card - 1 Program - Recipes - Visualization Texts Create boot project CPU RS 232 (XC 100/200) Ethernet (XC 200) Program on Multi-Media. Card has priority Battery Download - Programming access - Modem - Barcode reader etc. Schutzvermerk nach DIN 34 beachten - 1. 2. . 115 k. Baud Working memory SRAM STOP RUN The program in the SRAM is started - 1 Program 64 -128 k. B - Retentive Data 4 -8 k. B - Data 60 / 120 k. B
