www koreaecopia com BATTERY BOOSTER DT-B 1 EK-B 24

www. koreaecopia. com BATTERY BOOSTER (DT-B 1/EK-B 24) 2013. 09. 06 DT-B 1 ECOKOREA EK-B 24

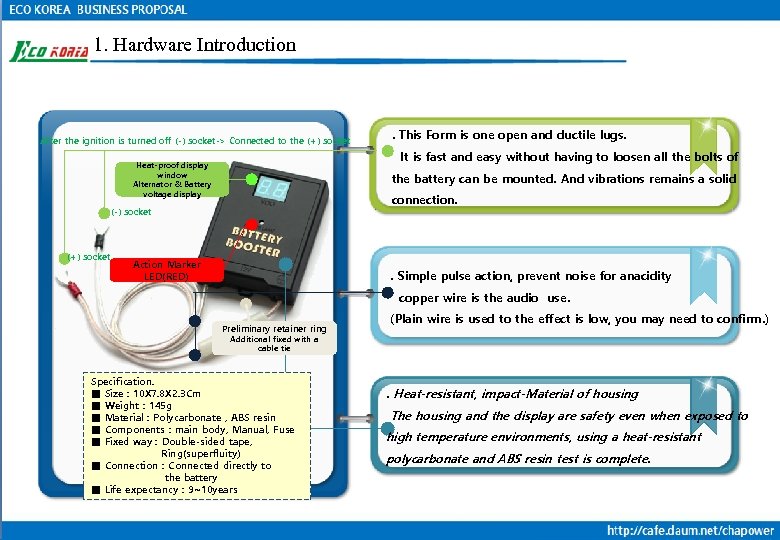

1. Hardware Introduction After the ignition is turned off (-) socket-> Connected to the (+) socket It is fast and easy without having to loosen all the bolts of Heat-proof display window Alternator & Battery voltage display the battery can be mounted. And vibrations remains a solid connection. (-) socket (+) socket . This Form is one open and ductile lugs. Action Marker LED(RED) . Simple pulse action, prevent noise for anacidity copper wire is the audio use. Preliminary retainer ring (Plain wire is used to the effect is low, you may need to confirm. ) Additional fixed with a cable tie Specification. ■ Size : 10 X 7. 8 X 2. 3 Cm ■ Weight : 145 g ■ Material : Polycarbonate , ABS resin ■ Components : main body, Manual, Fuse ■ Fixed way : Double-sided tape, Ring(superfluity) ■ Connection : Connected directly to the battery ■ Life expectancy : 9~10 years . Heat-resistant, impact-Material of housing The housing and the display are safety even when exposed to high temperature environments, using a heat-resistant polycarbonate and ABS resin test is complete.

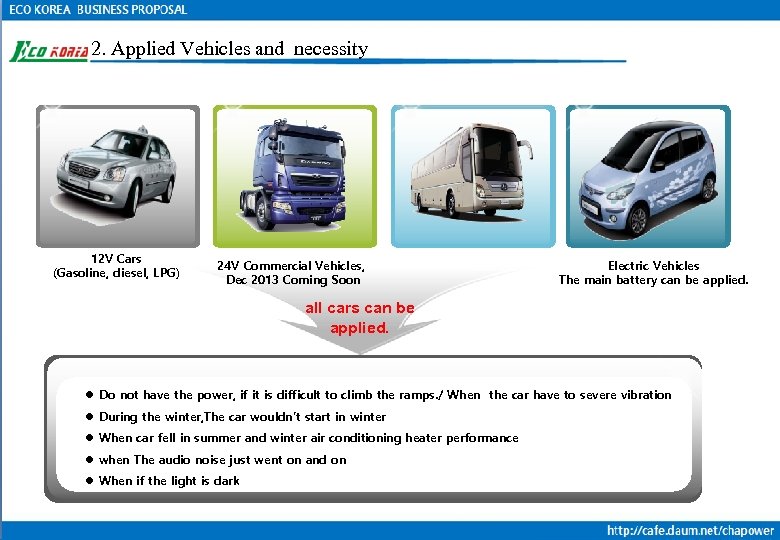

2. Applied Vehicles and necessity 12 V Cars (Gasoline, diesel, LPG) 24 V Commercial Vehicles, Dec 2013 Coming Soon Electric Vehicles The main battery can be applied. all cars can be applied. l Do not have the power, if it is difficult to climb the ramps. / When the car have to severe vibration l During the winter, The car wouldn’t start in winter l When car fell in summer and winter air conditioning heater performance l when The audio noise just went on and on l When if the light is dark

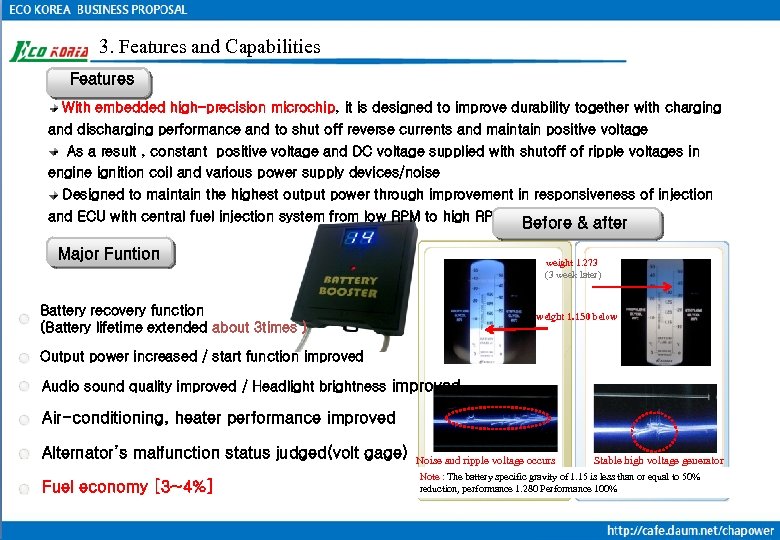

3. Features and Capabilities Features With embedded high-precision microchip, it is designed to improve durability together with charging and discharging performance and to shut off reverse currents and maintain positive voltage As a result , constant positive voltage and DC voltage supplied with shutoff of ripple voltages in engine ignition coil and various power supply devices/noise Designed to maintain the highest output power through improvement in responsiveness of injection and ECU with central fuel injection system from low RPM to high RPM Major Funtion Before & after weight 1. 273 (3 week later) Battery recovery function (Battery lifetime extended about 3 times ) weight 1. 150 below Output power increased / start function improved Audio sound quality improved / Headlight brightness improved Air-conditioning, heater performance improved Alternator’s malfunction status judged(volt gage) Fuel economy [3~4%] Noise and ripple voltage occurs Stable high voltage generator Note : The battery specific gravity of 1. 15 is less than or equal to 50% reduction, performance 1. 280 Performance 100%

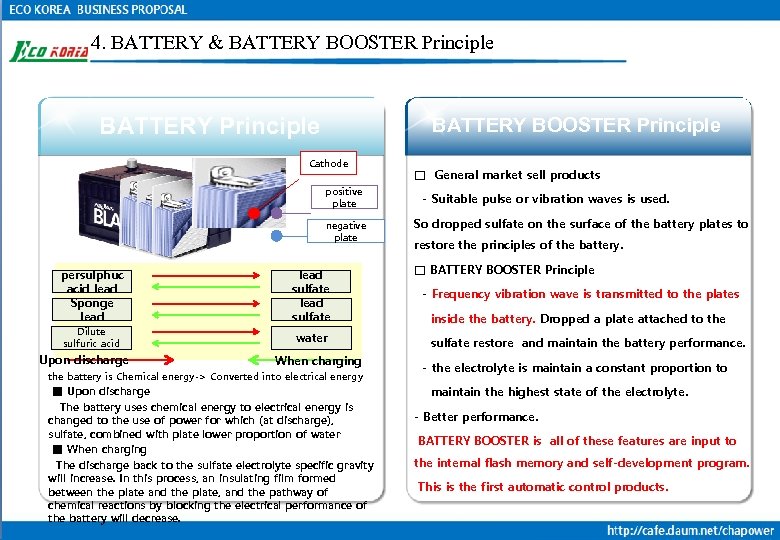

4. BATTERY & BATTERY BOOSTER Principle Cathode positive plate negative plate persulphuc acid lead Sponge lead sulfate Dilute sulfuric acid water Upon discharge When charging the battery is Chemical energy-> Converted into electrical energy ■ Upon discharge The battery uses chemical energy to electrical energy is changed to the use of power for which (at discharge), sulfate, combined with plate lower proportion of water ■ When charging The discharge back to the sulfate electrolyte specific gravity will increase. In this process, an insulating film formed between the plate and the plate, and the pathway of chemical reactions by blocking the electrical performance of the battery will decrease. □ General market sell products - Suitable pulse or vibration waves is used. So dropped sulfate on the surface of the battery plates to restore the principles of the battery. □ BATTERY BOOSTER Principle - Frequency vibration wave is transmitted to the plates inside the battery. Dropped a plate attached to the sulfate restore and maintain the battery performance. - the electrolyte is maintain a constant proportion to maintain the highest state of the electrolyte. - Better performance. BATTERY BOOSTER is all of these features are input to the internal flash memory and self-development program. This is the first automatic control products.

5. 회사 개요 state of business place Company Overview Contents 2007 Established Eco. Korea(Coolant Additive & Battery Booster Development) Jan. 2012 Dana Tech Co. , Ltd. , and M & A Aug. 2012 Cartech Co. , Ltd, . and M&A Jun. 2013 Established Eco. Korea. CEO Lee Donchang Address [Head Office] No 11, Bizwell Business Center, 701/2, Sangdong Plaza, 109, Sangdong-ro, Wonmi-gu, Bucheon-si, Gyeonggi-do, Korea [Factory] 781 -3, Wonsi-dong, Danwon-gu, Ansan-si, Gyeonggi-do, Korea • Besiness Areas - Battery Recovery Device/Coollant Additive • Major Customers - Dream Fuse, Vietnam, Singapore, Brazil, Philippines Russian, Cambodia Tel Homepage E-mail +82 -10 -4409 -0789/070 -7623 -8089 http: //cafe. daum. net/chapower donchang 2@hanmail. net

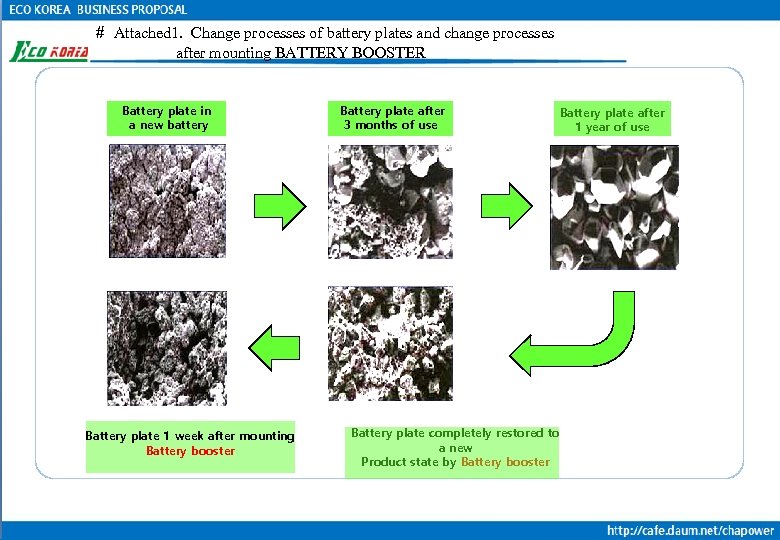

＃ Attached 1. Change processes of battery plates and change processes after mounting BATTERY BOOSTER Battery plate in a new battery Battery plate 1 week after mounting Battery booster Battery plate after 3 months of use Battery plate after 1 year of use Battery plate completely restored to a new Product state by Battery booster

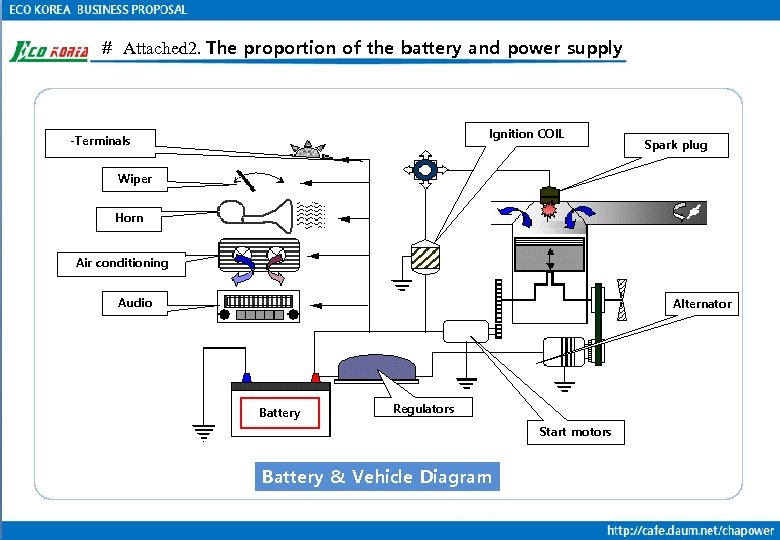

＃ Attached 2. The proportion of the battery and power supply Ignition COIL -Terminals Spark plug Wiper Horn Air conditioning Audio Alternator Battery Regulators Start motors Battery & Vehicle Diagram

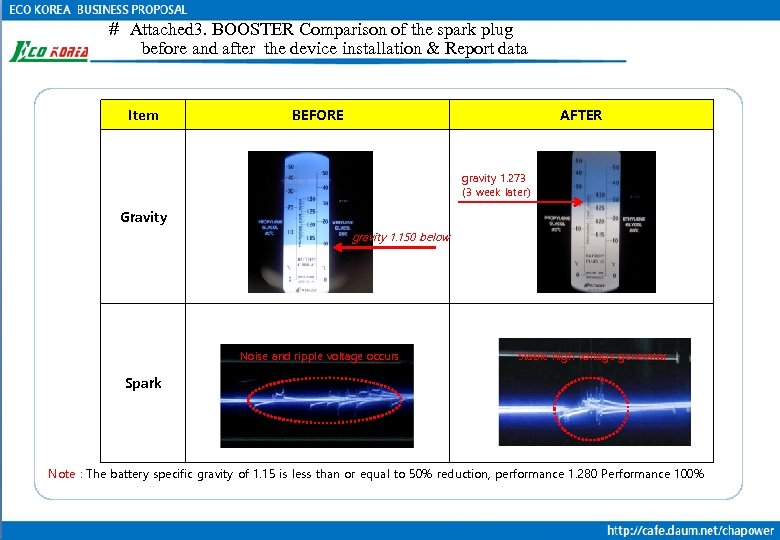

＃ Attached 3. BOOSTER Comparison of the spark plug before and after the device installation & Report data Item BEFORE AFTER gravity 1. 273 (3 week later) Gravity gravity 1. 150 below Noise and ripple voltage occurs Stable high voltage generator Spark Note : The battery specific gravity of 1. 15 is less than or equal to 50% reduction, performance 1. 280 Performance 100%

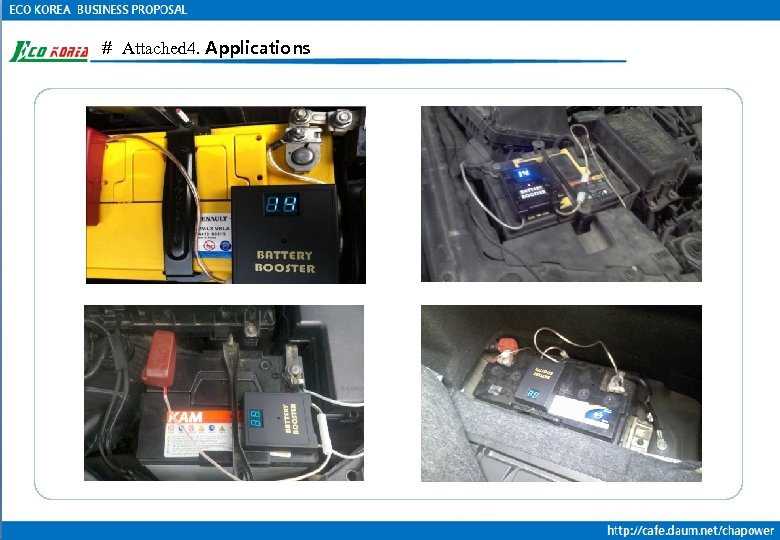

＃ Attached 4. Applications

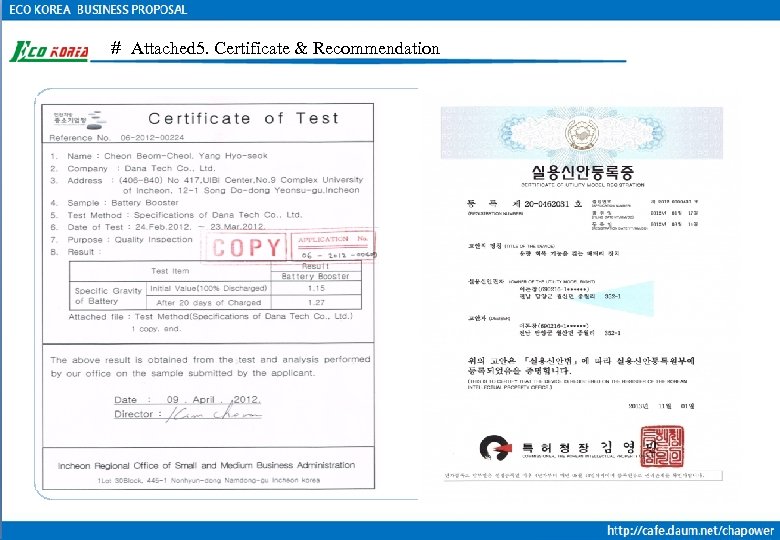

＃ Attached 5. Certificate & Recommendation

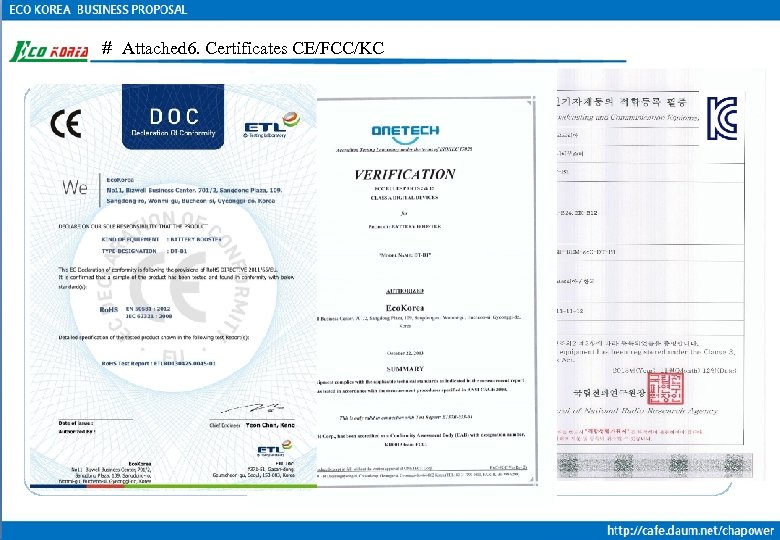

＃ Attached 6. Certificates CE/FCC/KC

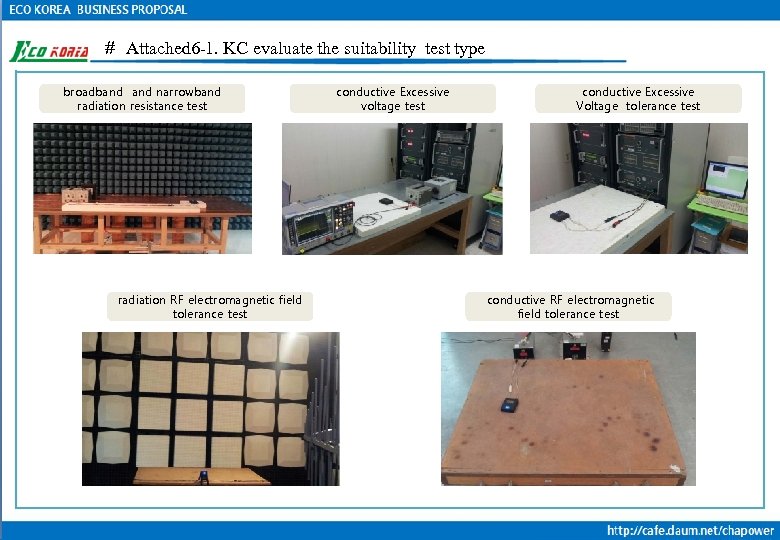

＃ Attached 6 -1. KC evaluate the suitability test type broadband narrowband radiation resistance test radiation RF electromagnetic field tolerance test conductive Excessive voltage test conductive Excessive Voltage tolerance test conductive RF electromagnetic field tolerance test

#Attached 7. Car magazine Advertising

#Attached 8. Newspaper Advertising

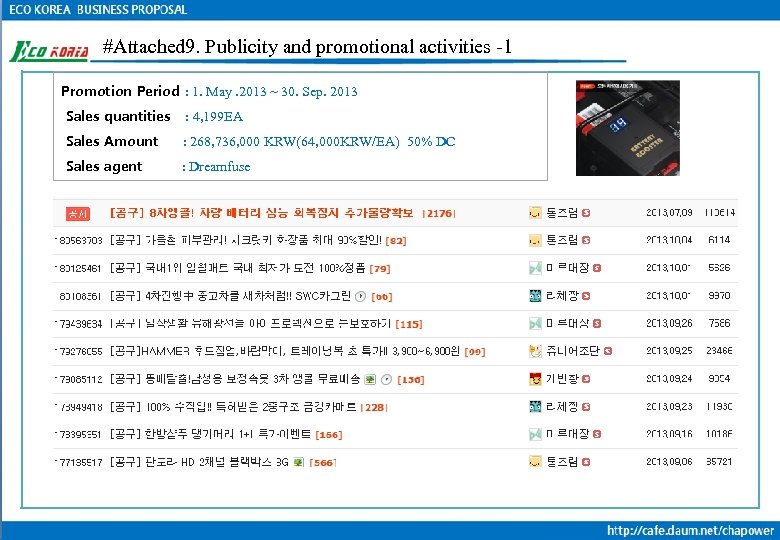

#Attached 9. Publicity and promotional activities -1 Promotion Period : 1. May. 2013 ~ 30. Sep. 2013 Sales quantities : 4, 199 EA Sales Amount : 268, 736, 000 KRW(64, 000 KRW/EA) 50% DC Sales agent : Dreamfuse

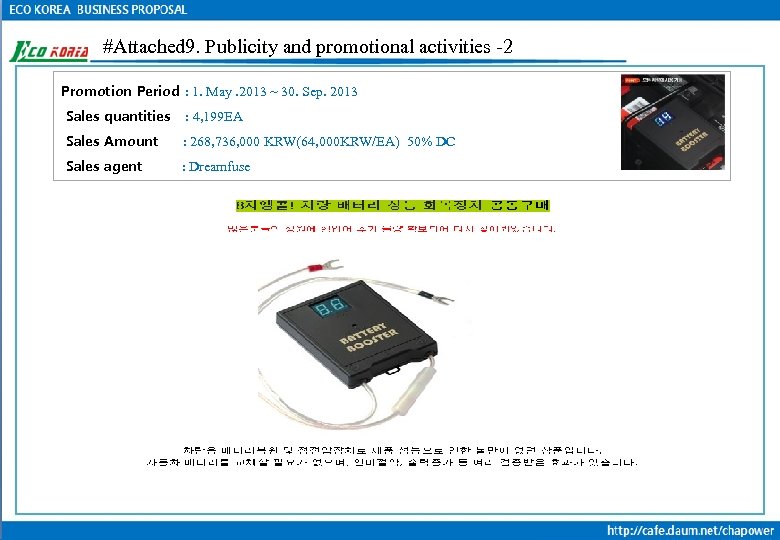

#Attached 9. Publicity and promotional activities -2 Promotion Period : 1. May. 2013 ~ 30. Sep. 2013 Sales quantities : 4, 199 EA Sales Amount : 268, 736, 000 KRW(64, 000 KRW/EA) 50% DC Sales agent : Dreamfuse

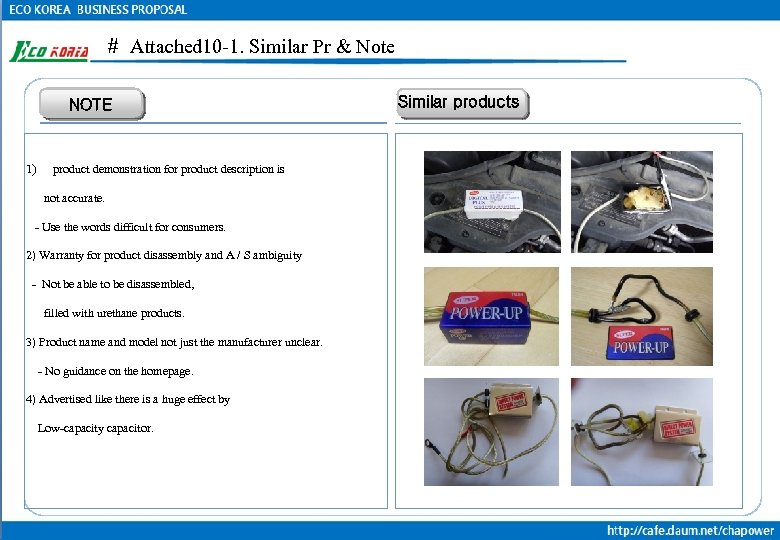

＃ Attached 10 -1. Similar Pr & Note NOTE 1) product demonstration for product description is not accurate. - Use the words difficult for consumers. 2) Warranty for product disassembly and A / S ambiguity - Not be able to be disassembled, filled with urethane products. 3) Product name and model not just the manufacturer unclear. - No guidance on the homepage. 4) Advertised like there is a huge effect by Low-capacity capacitor. Similar products

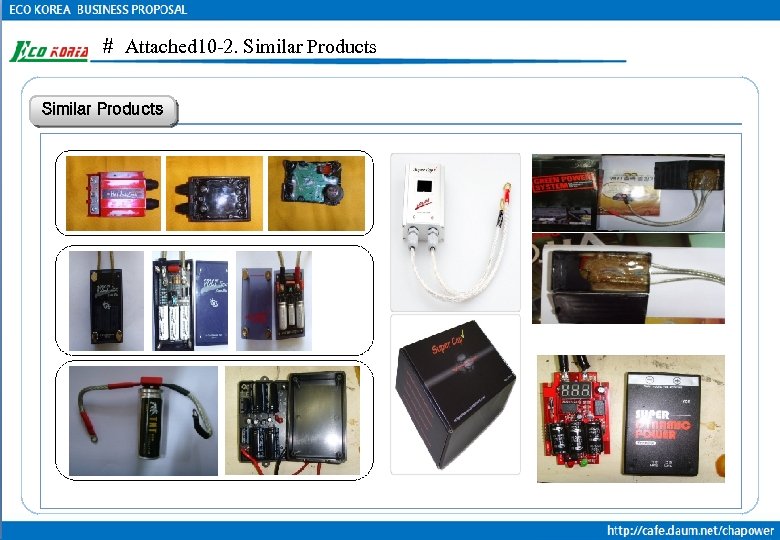

＃ Attached 10 -2. Similar Products
