What is the www. Gas. Badge. com
It is the Next Generation, Calibration Station for the Gas. Badge® Plus Personal Monitor www. Gas. Badge. com

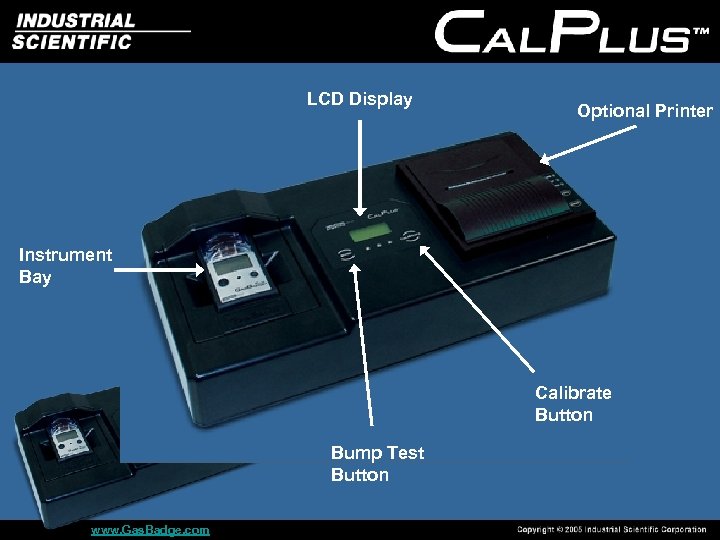

LCD Display Optional Printer Instrument Bay Calibrate Button Bump Test Button www. Gas. Badge. com

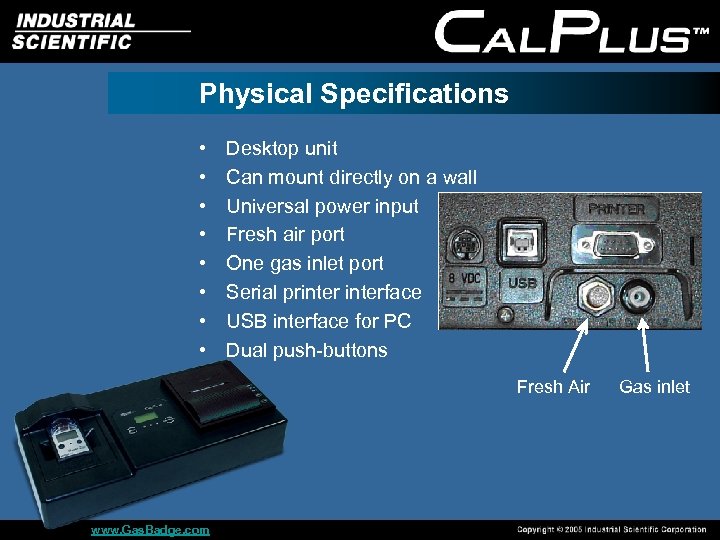

Physical Specifications • • Desktop unit Can mount directly on a wall Universal power input Fresh air port One gas inlet port Serial printerface USB interface for PC Dual push-buttons Fresh Air www. Gas. Badge. com Gas inlet

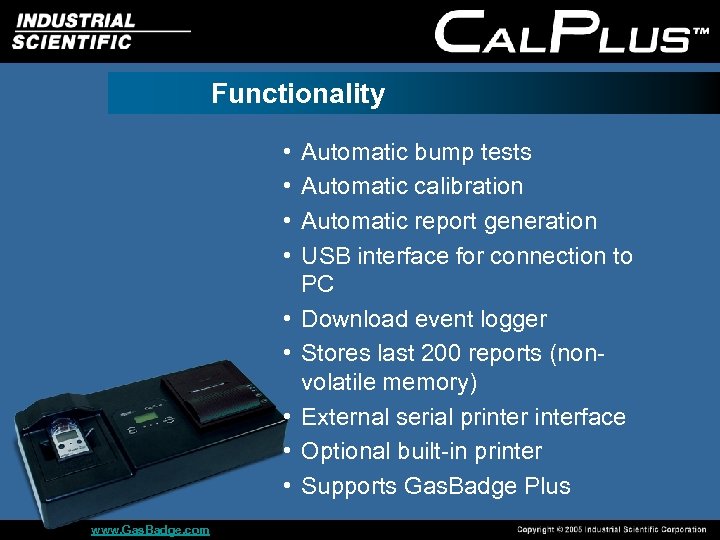

Functionality • • • www. Gas. Badge. com Automatic bump tests Automatic calibration Automatic report generation USB interface for connection to PC Download event logger Stores last 200 reports (nonvolatile memory) External serial printerface Optional built-in printer Supports Gas. Badge Plus

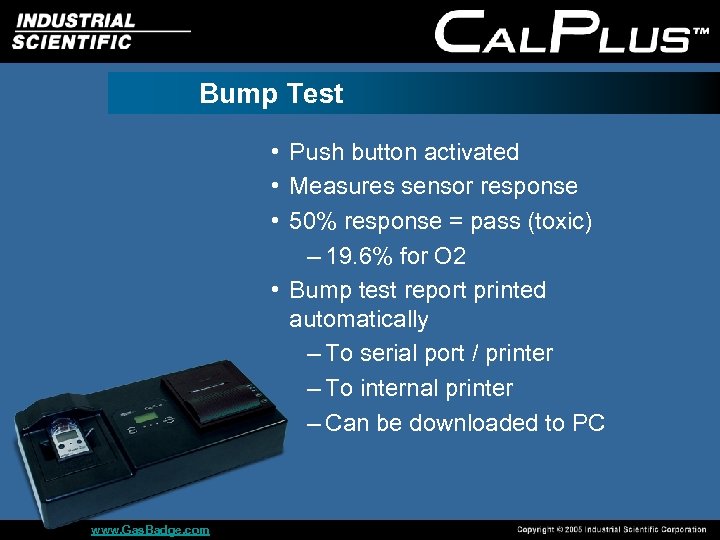

Bump Test • Push button activated • Measures sensor response • 50% response = pass (toxic) – 19. 6% for O 2 • Bump test report printed automatically – To serial port / printer – To internal printer – Can be downloaded to PC www. Gas. Badge. com

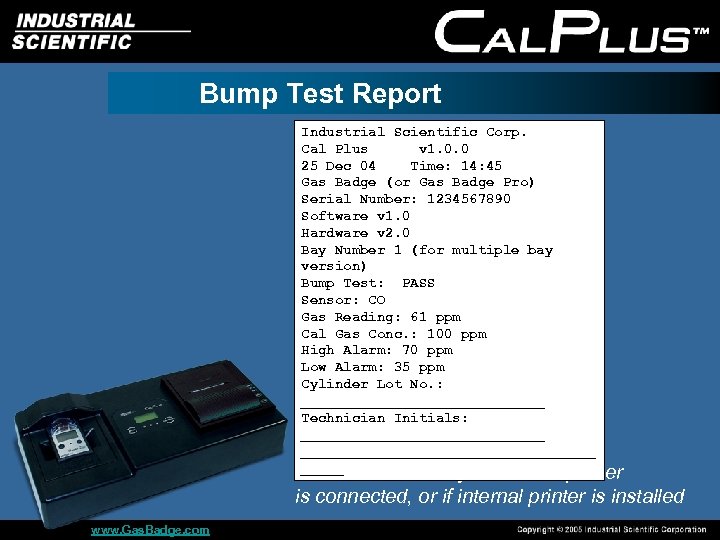

Bump Test Report Industrial Scientific Corp. Cal Plus v 1. 0. 0 25 Dec 04 Time: 14: 45 Gas Badge (or Gas Badge Pro) Serial Number: 1234567890 Software v 1. 0 Hardware v 2. 0 Bay Number 1 (for multiple bay version) Bump Test: PASS Sensor: CO Gas Reading: 61 ppm Cal Gas Conc. : 100 ppm High Alarm: 70 ppm Low Alarm: 35 ppm Cylinder Lot No. : _______________ Technician Initials: ___________________________________ Prints automatically if external printer is connected, or if internal printer is installed www. Gas. Badge. com

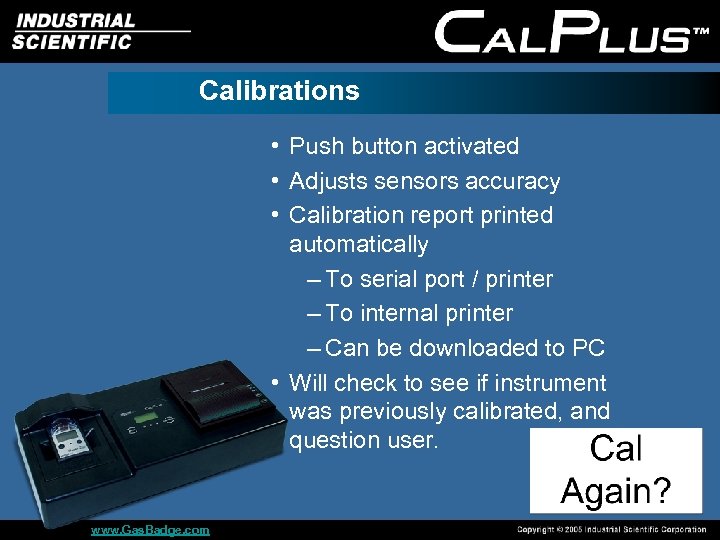

Calibrations • Push button activated • Adjusts sensors accuracy • Calibration report printed automatically – To serial port / printer – To internal printer – Can be downloaded to PC • Will check to see if instrument was previously calibrated, and question user. www. Gas. Badge. com

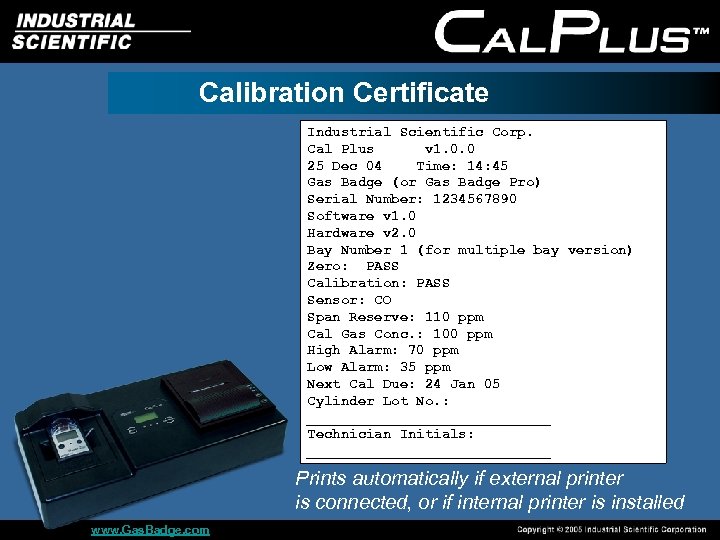

Calibration Certificate Industrial Scientific Corp. Cal Plus v 1. 0. 0 25 Dec 04 Time: 14: 45 Gas Badge (or Gas Badge Pro) Serial Number: 1234567890 Software v 1. 0 Hardware v 2. 0 Bay Number 1 (for multiple bay version) Zero: PASS Calibration: PASS Sensor: CO Span Reserve: 110 ppm Cal Gas Conc. : 100 ppm High Alarm: 70 ppm Low Alarm: 35 ppm Next Cal Due: 24 Jan 05 Cylinder Lot No. : _______________ Technician Initials: _______________ Prints automatically if external printer is connected, or if internal printer is installed www. Gas. Badge. com

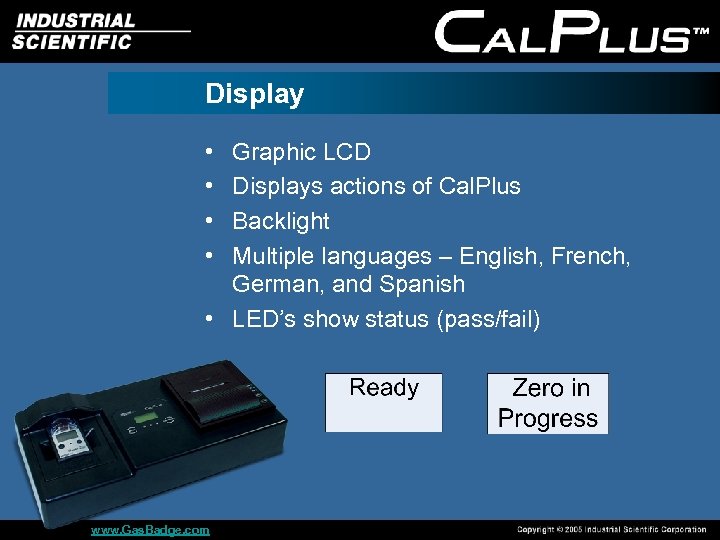

Display • • Graphic LCD Displays actions of Cal. Plus Backlight Multiple languages – English, French, German, and Spanish • LED’s show status (pass/fail) www. Gas. Badge. com

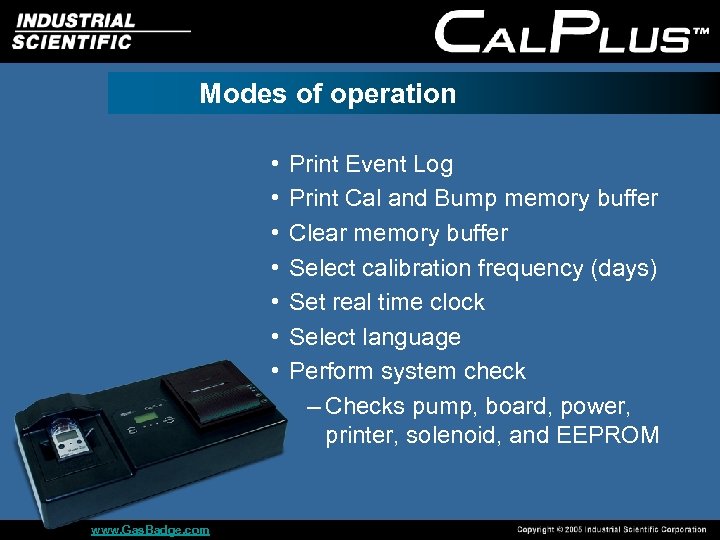

Modes of operation • • www. Gas. Badge. com Print Event Log Print Cal and Bump memory buffer Clear memory buffer Select calibration frequency (days) Set real time clock Select language Perform system check – Checks pump, board, power, printer, solenoid, and EEPROM

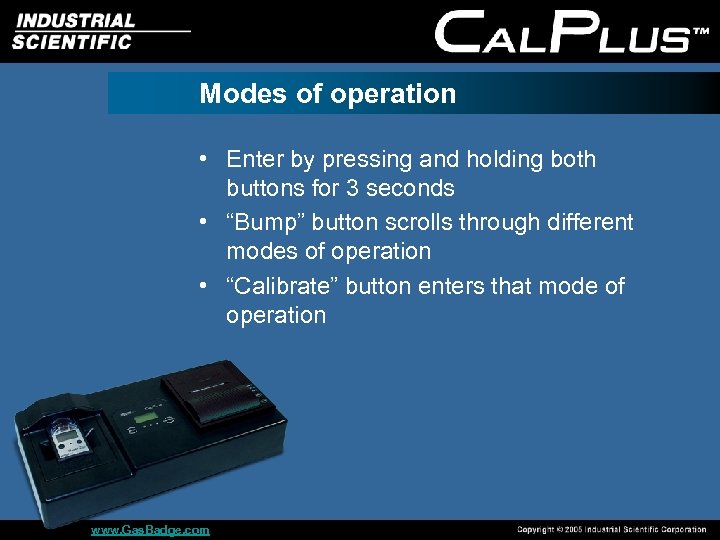

Modes of operation • Enter by pressing and holding both buttons for 3 seconds • “Bump” button scrolls through different modes of operation • “Calibrate” button enters that mode of operation www. Gas. Badge. com

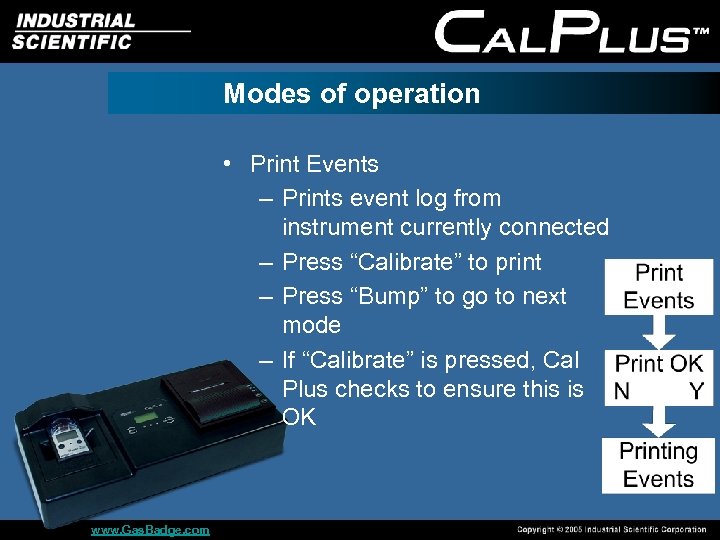

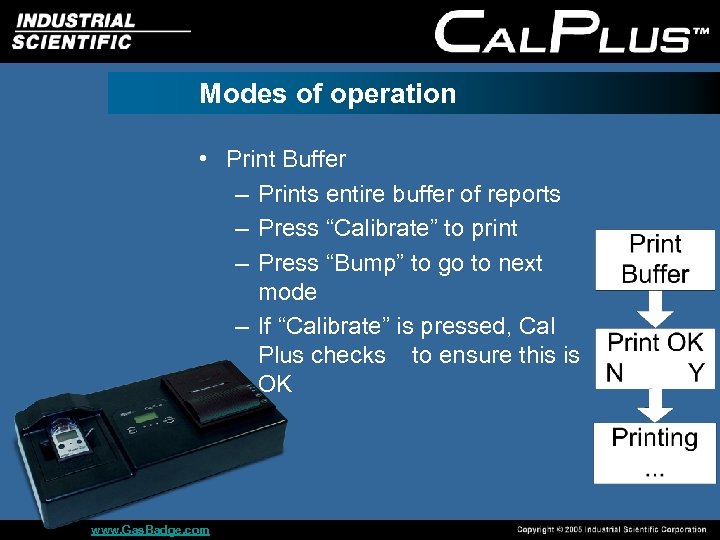

Modes of operation • Print Events – Prints event log from instrument currently connected – Press “Calibrate” to print – Press “Bump” to go to next mode – If “Calibrate” is pressed, Cal Plus checks to ensure this is OK www. Gas. Badge. com
Modes of operation • Print Buffer – Prints entire buffer of reports – Press “Calibrate” to print – Press “Bump” to go to next mode – If “Calibrate” is pressed, Cal Plus checks to ensure this is OK www. Gas. Badge. com

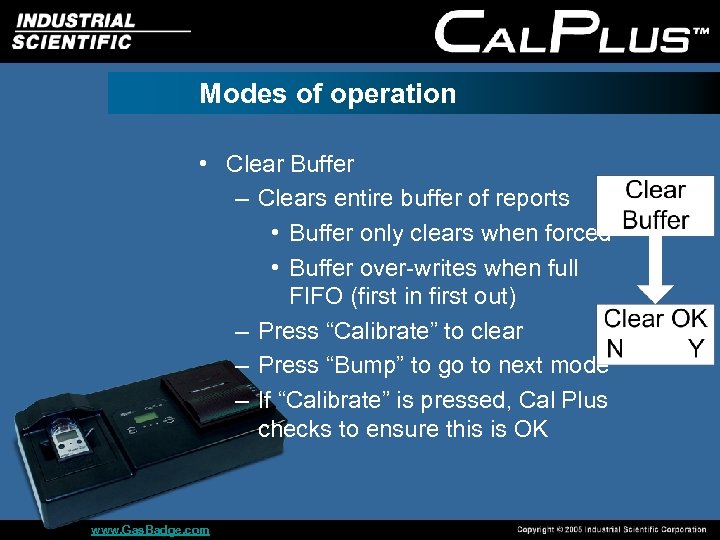

Modes of operation • Clear Buffer – Clears entire buffer of reports • Buffer only clears when forced • Buffer over-writes when full FIFO (first in first out) – Press “Calibrate” to clear – Press “Bump” to go to next mode – If “Calibrate” is pressed, Cal Plus checks to ensure this is OK www. Gas. Badge. com

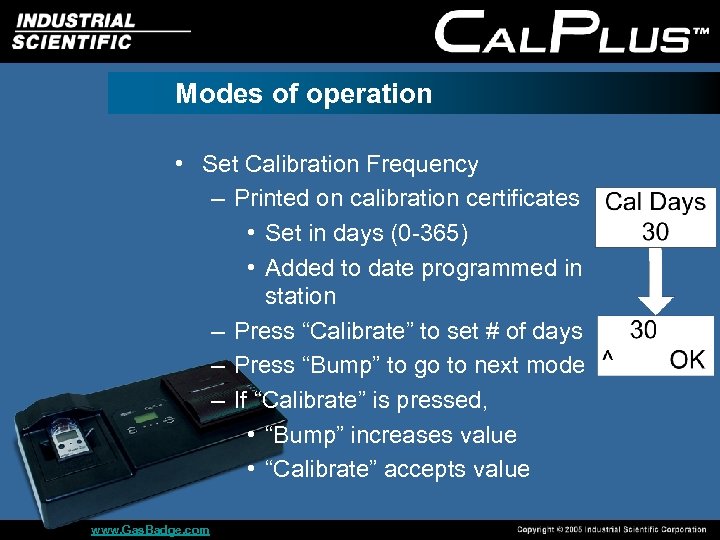

Modes of operation • Set Calibration Frequency – Printed on calibration certificates • Set in days (0 -365) • Added to date programmed in station – Press “Calibrate” to set # of days – Press “Bump” to go to next mode – If “Calibrate” is pressed, • “Bump” increases value • “Calibrate” accepts value www. Gas. Badge. com
Modes of operation • Set Date / Time – Printed on calibration / bump certificates • International format dd/mm/yy • 24 hour clock format – Press “Calibrate” to set date – Press “Bump” to go to next mode – If “Calibrate” is pressed, • “Bump” increases value • “Calibrate” accepts value www. Gas. Badge. com

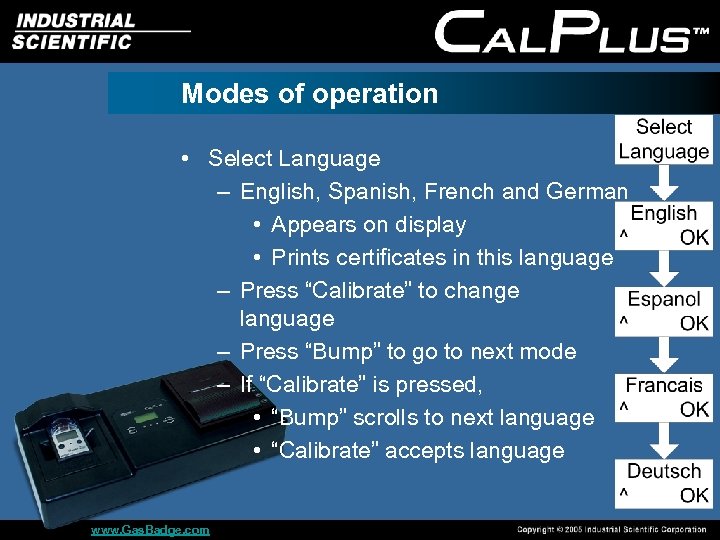

Modes of operation • Select Language – English, Spanish, French and German • Appears on display • Prints certificates in this language – Press “Calibrate” to change language – Press “Bump” to go to next mode – If “Calibrate” is pressed, • “Bump” scrolls to next language • “Calibrate” accepts language www. Gas. Badge. com

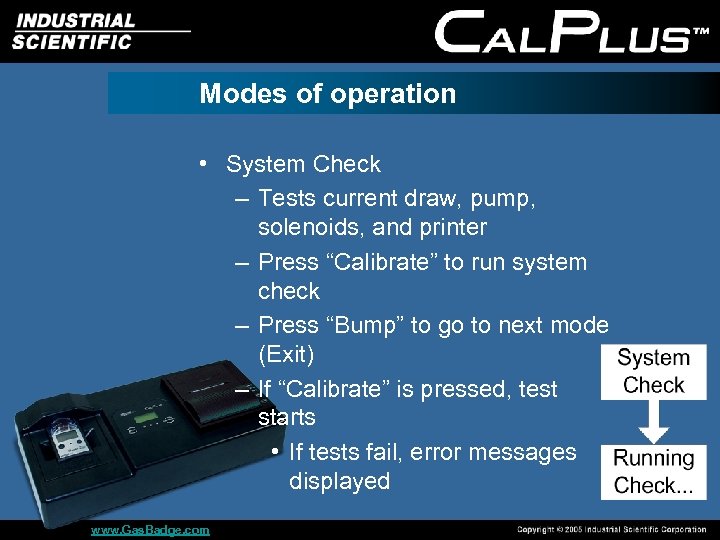

Modes of operation • System Check – Tests current draw, pump, solenoids, and printer – Press “Calibrate” to run system check – Press “Bump” to go to next mode (Exit) – If “Calibrate” is pressed, test starts • If tests fail, error messages displayed www. Gas. Badge. com

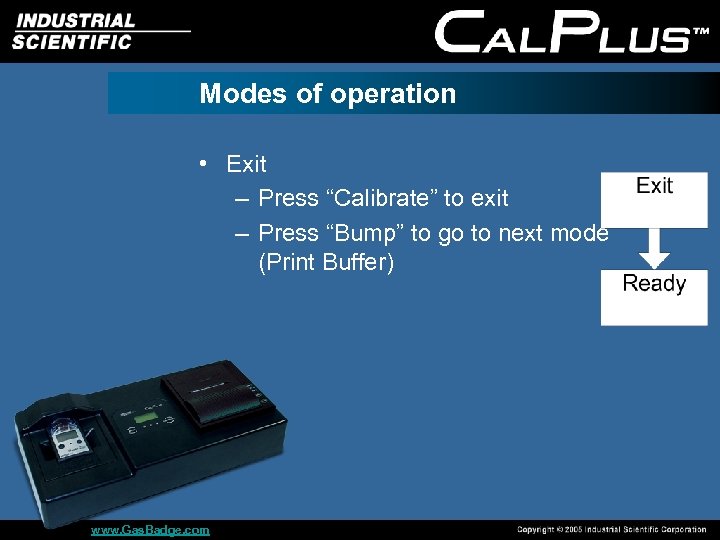

Modes of operation • Exit – Press “Calibrate” to exit – Press “Bump” to go to next mode (Print Buffer) www. Gas. Badge. com

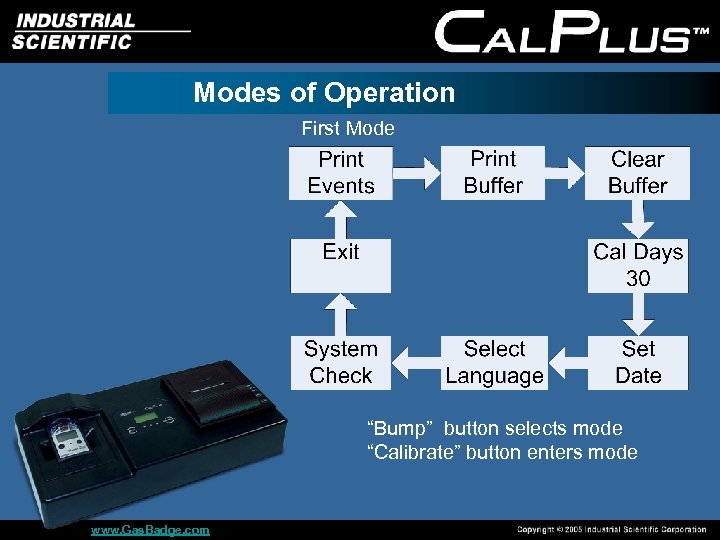

Modes of Operation First Mode “Bump” button selects mode “Calibrate” button enters mode www. Gas. Badge. com

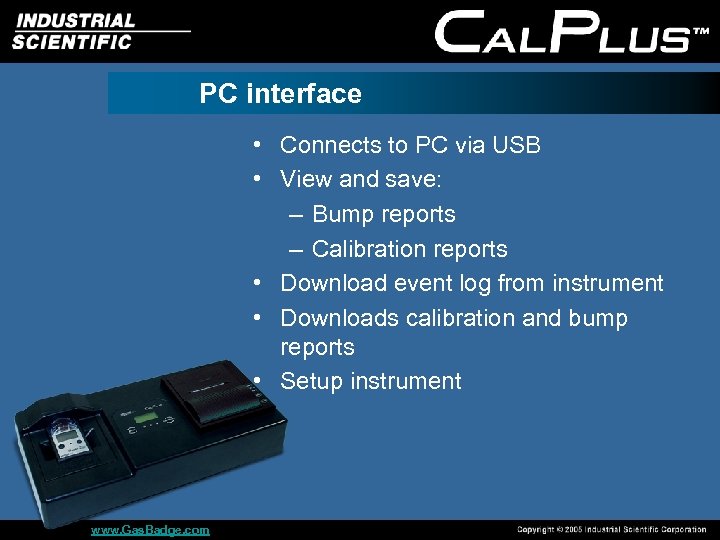

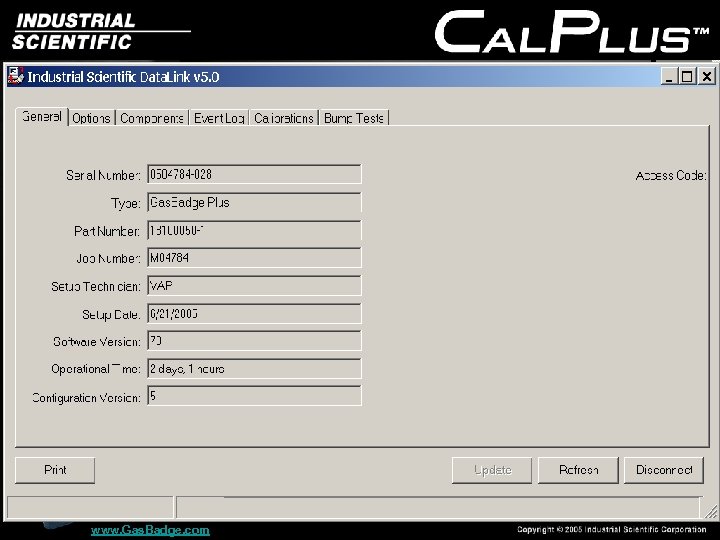

PC interface • Connects to PC via USB • View and save: – Bump reports – Calibration reports • Download event log from instrument • Downloads calibration and bump reports • Setup instrument www. Gas. Badge. com
www. Gas. Badge. com

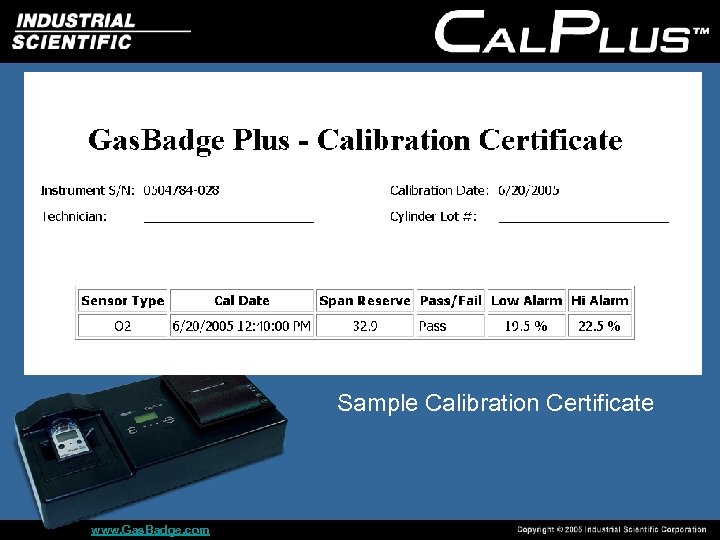

Sample Calibration Certificate www. Gas. Badge. com

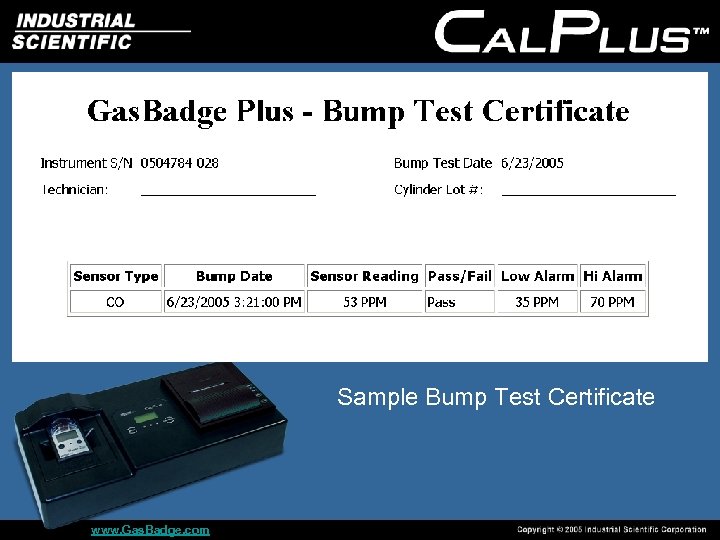

Sample Bump Test Certificate www. Gas. Badge. com

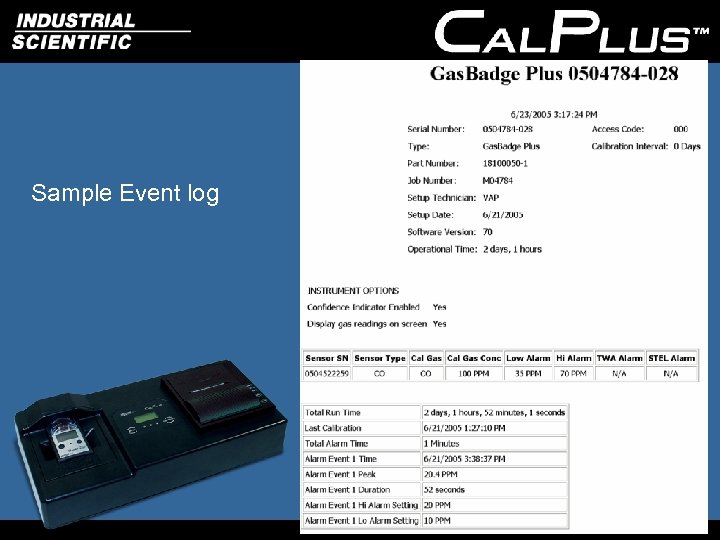

Sample Event log

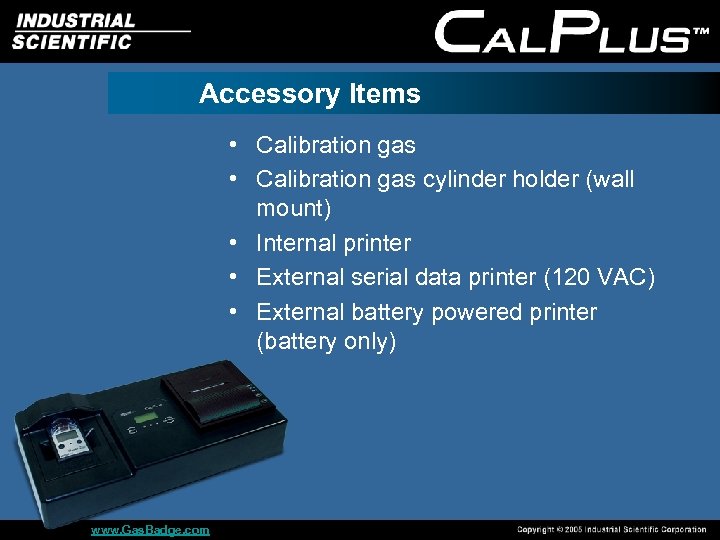

Accessory Items • Calibration gas cylinder holder (wall mount) • Internal printer • External serial data printer (120 VAC) • External battery powered printer (battery only) www. Gas. Badge. com

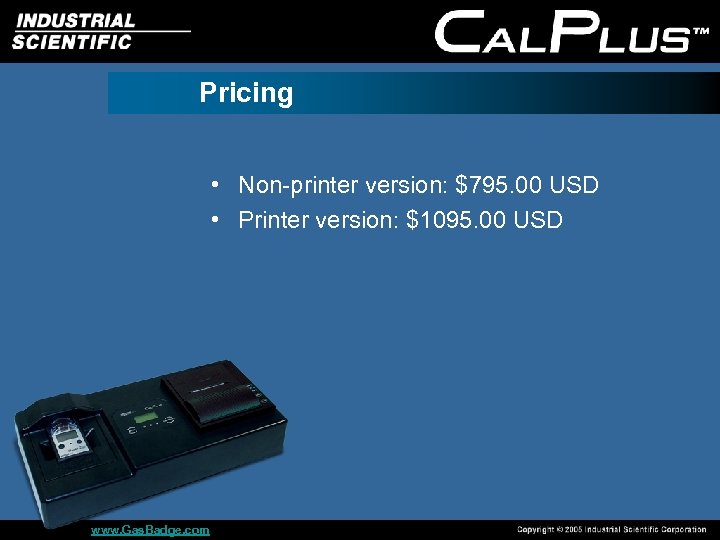

Pricing • Non-printer version: $795. 00 USD • Printer version: $1095. 00 USD www. Gas. Badge. com

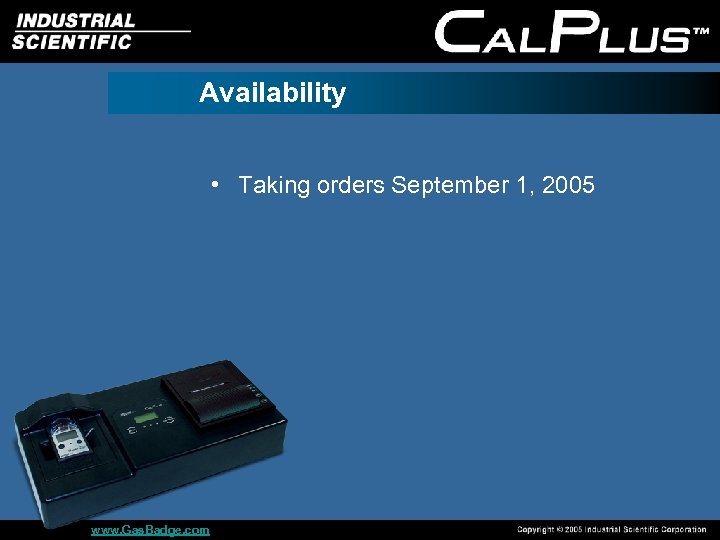

Availability • Taking orders September 1, 2005 www. Gas. Badge. com

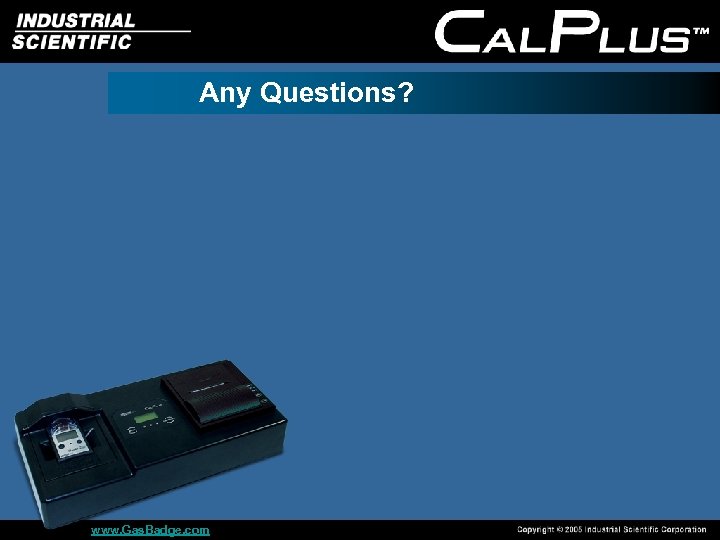

Any Questions? www. Gas. Badge. com
