www. autoflame. com New Product Developments Autoflame Sales Meeting 2011 New Product Developments World Leaders in Combustion Management

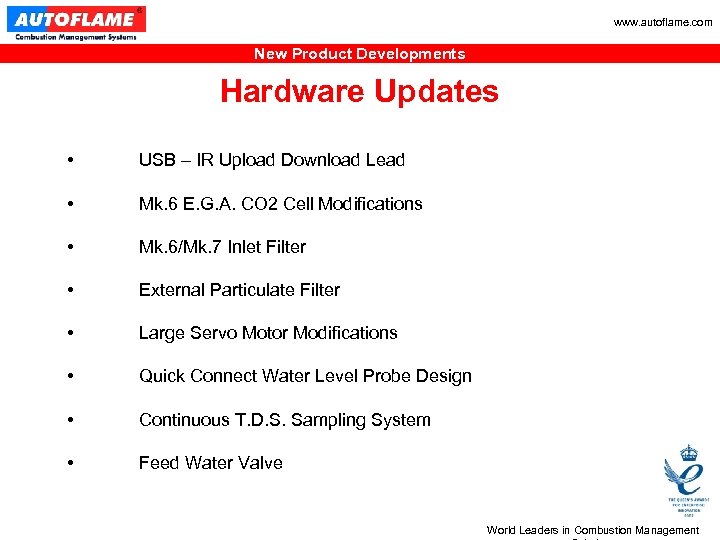

www. autoflame. com New Product Developments Hardware Updates • USB – IR Upload Download Lead • Mk. 6 E. G. A. CO 2 Cell Modifications • Mk. 6/Mk. 7 Inlet Filter • External Particulate Filter • Large Servo Motor Modifications • Quick Connect Water Level Probe Design • Continuous T. D. S. Sampling System • Feed Water Valve World Leaders in Combustion Management

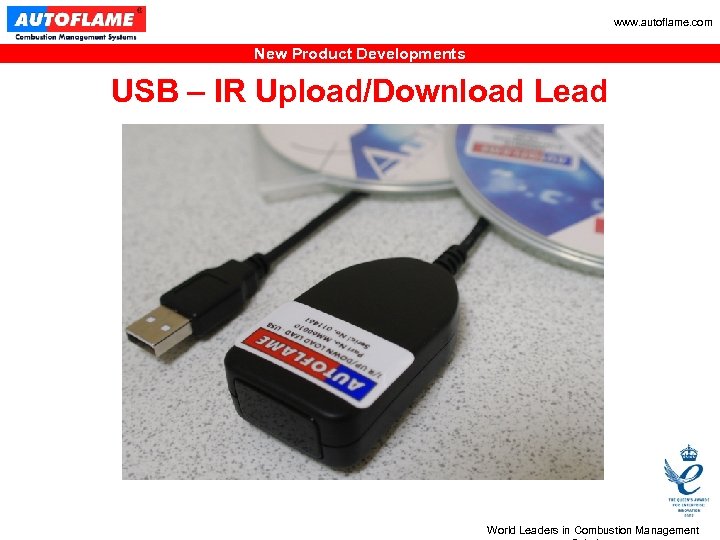

www. autoflame. com New Product Developments USB – IR Upload/Download Lead World Leaders in Combustion Management

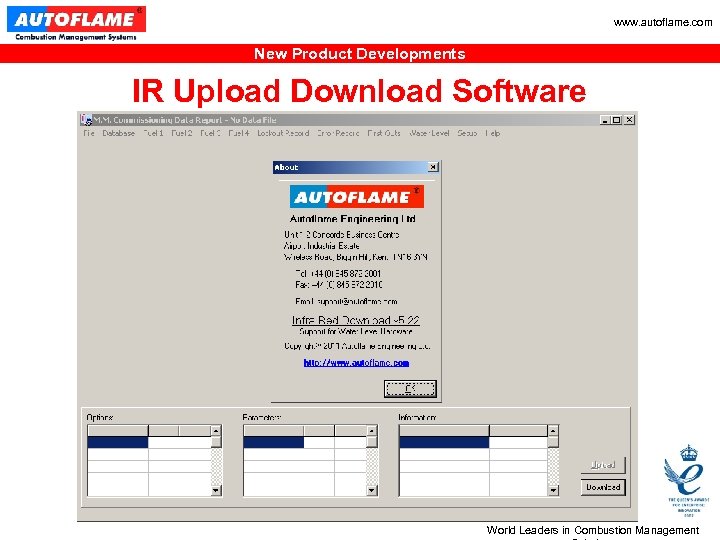

www. autoflame. com New Product Developments IR Upload Download Software World Leaders in Combustion Management

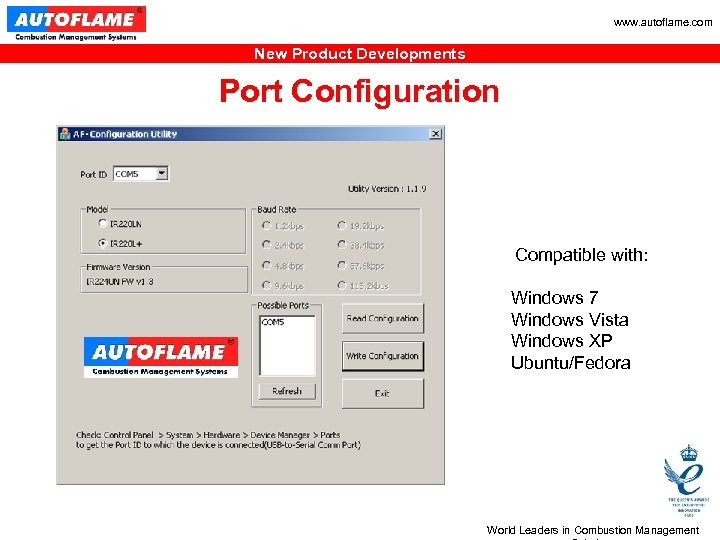

www. autoflame. com New Product Developments Port Configuration Compatible with: Windows 7 Windows Vista Windows XP Ubuntu/Fedora World Leaders in Combustion Management

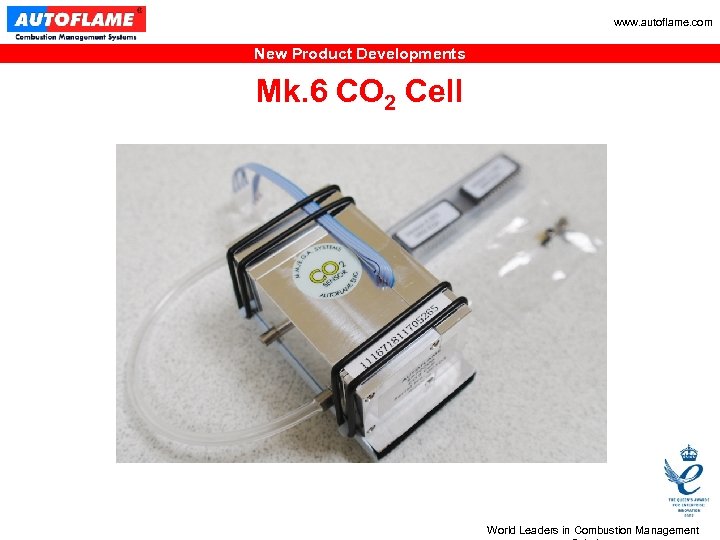

www. autoflame. com New Product Developments Mk. 6 CO 2 Cell World Leaders in Combustion Management

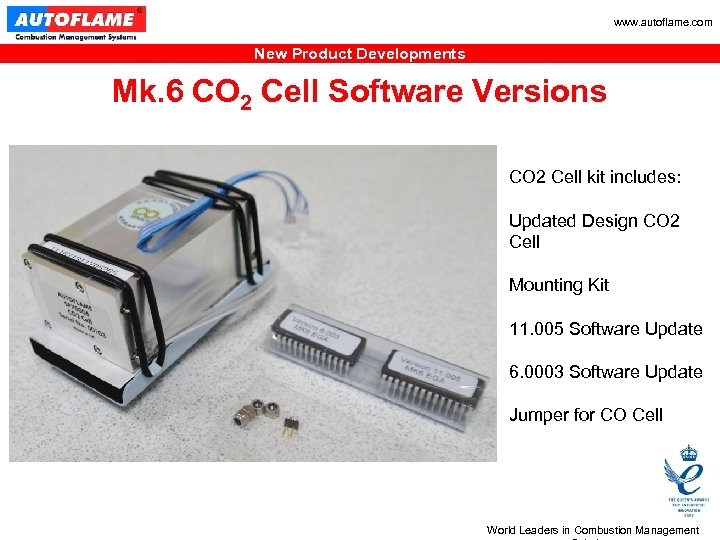

www. autoflame. com New Product Developments Mk. 6 CO 2 Cell Software Versions CO 2 Cell kit includes: Updated Design CO 2 Cell Mounting Kit 11. 005 Software Update 6. 0003 Software Update Jumper for CO Cell World Leaders in Combustion Management

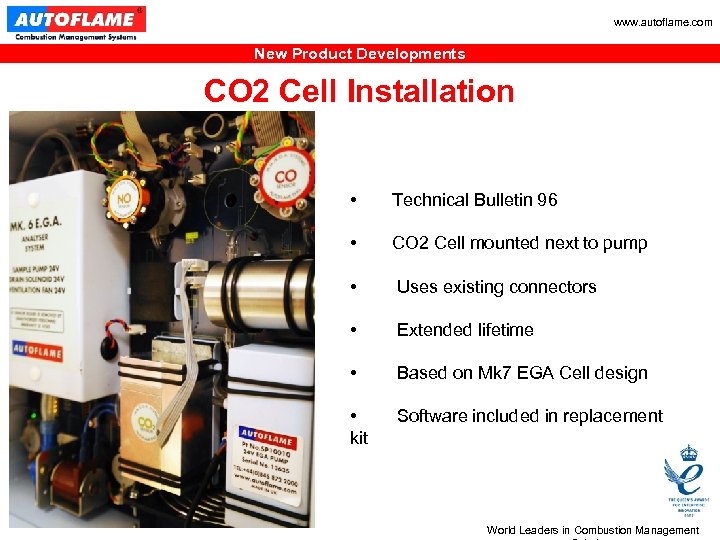

www. autoflame. com New Product Developments CO 2 Cell Installation • Technical Bulletin 96 • CO 2 Cell mounted next to pump • Uses existing connectors • Extended lifetime • Based on Mk 7 EGA Cell design • kit Software included in replacement World Leaders in Combustion Management

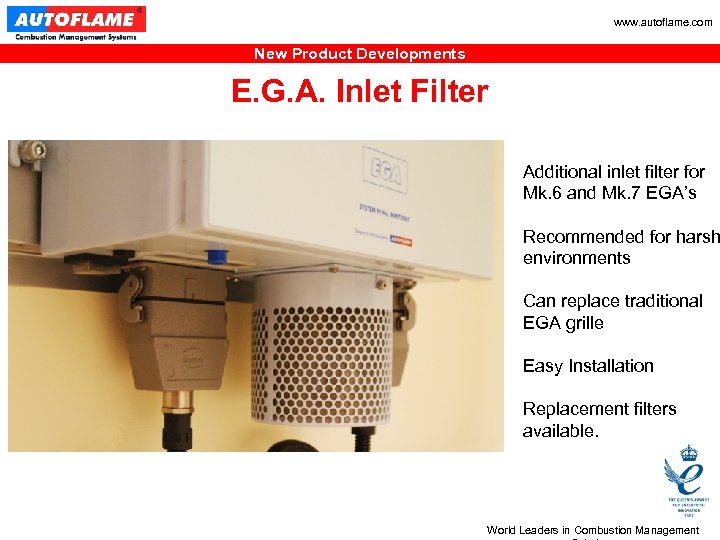

www. autoflame. com New Product Developments E. G. A. Inlet Filter Additional inlet filter for Mk. 6 and Mk. 7 EGA’s Recommended for harsh environments Can replace traditional EGA grille Easy Installation Replacement filters available. World Leaders in Combustion Management

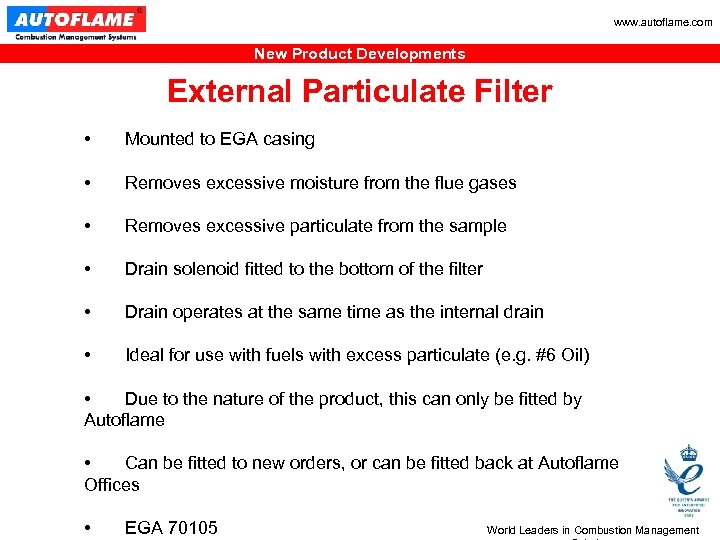

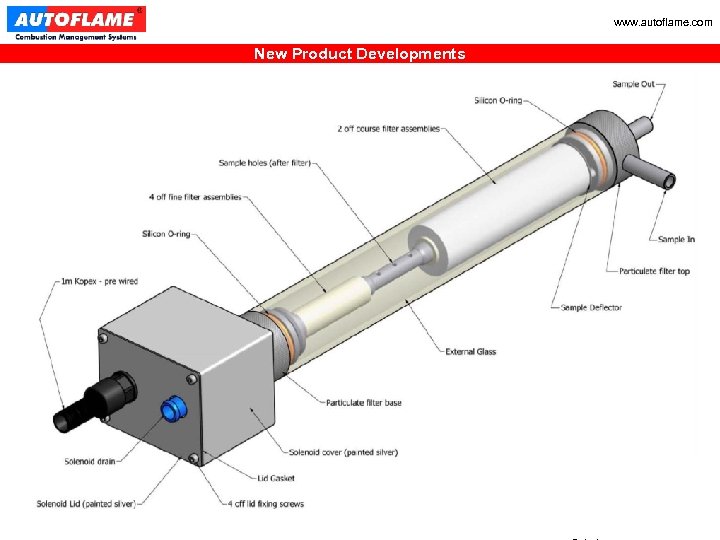

www. autoflame. com New Product Developments External Particulate Filter • Mounted to EGA casing • Removes excessive moisture from the flue gases • Removes excessive particulate from the sample • Drain solenoid fitted to the bottom of the filter • Drain operates at the same time as the internal drain • Ideal for use with fuels with excess particulate (e. g. #6 Oil) • Due to the nature of the product, this can only be fitted by Autoflame • Can be fitted to new orders, or can be fitted back at Autoflame Offices • EGA 70105 World Leaders in Combustion Management
www. autoflame. com New Product Developments World Leaders in Combustion Management

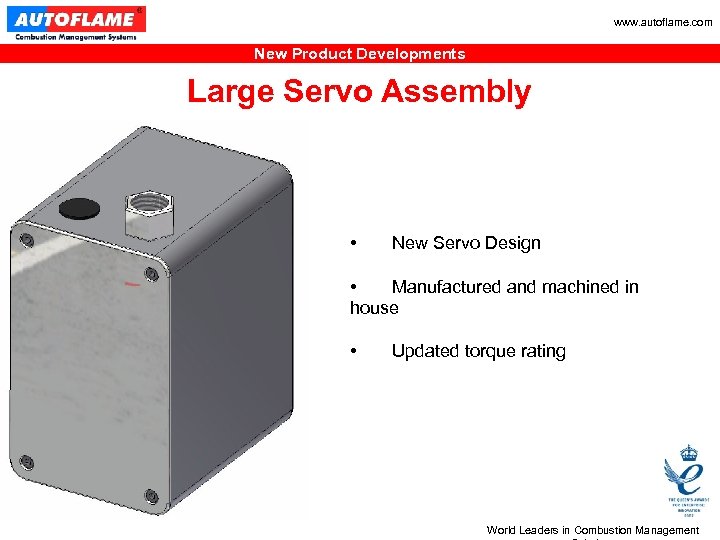

www. autoflame. com New Product Developments Large Servo Assembly • New Servo Design • Manufactured and machined in house • Updated torque rating World Leaders in Combustion Management
www. autoflame. com New Product Developments World Leaders in Combustion Management
www. autoflame. com New Product Developments Quick Connect Water Level Probes World Leaders in Combustion Management

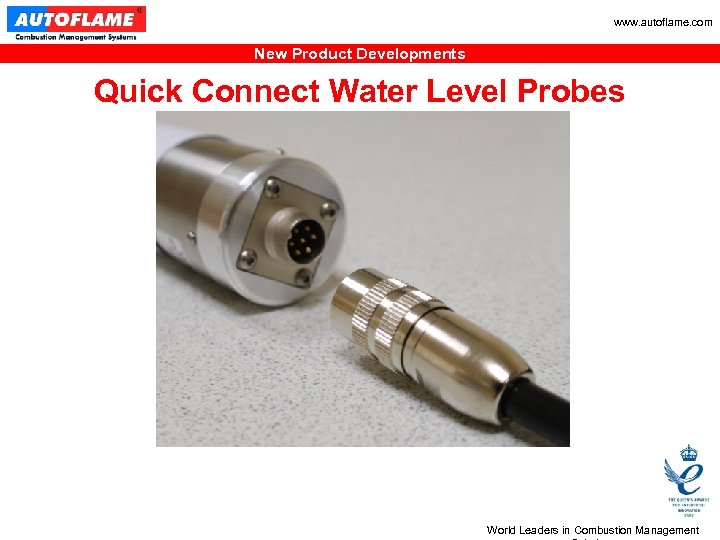

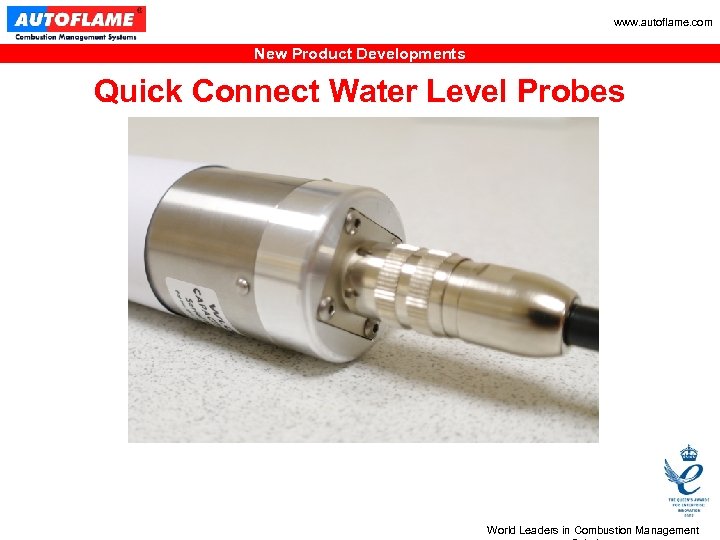

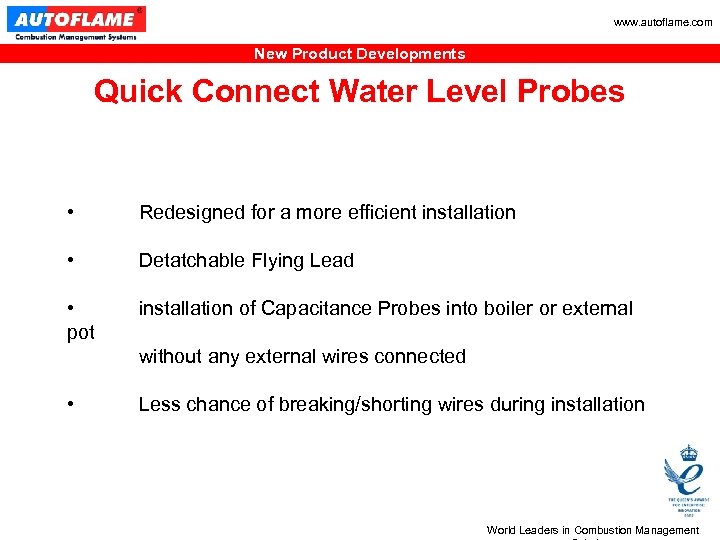

www. autoflame. com New Product Developments Quick Connect Water Level Probes • Redesigned for a more efficient installation • Detatchable Flying Lead • pot installation of Capacitance Probes into boiler or external without any external wires connected • Less chance of breaking/shorting wires during installation World Leaders in Combustion Management
www. autoflame. com New Product Developments Quick Connect Water Level Probes World Leaders in Combustion Management

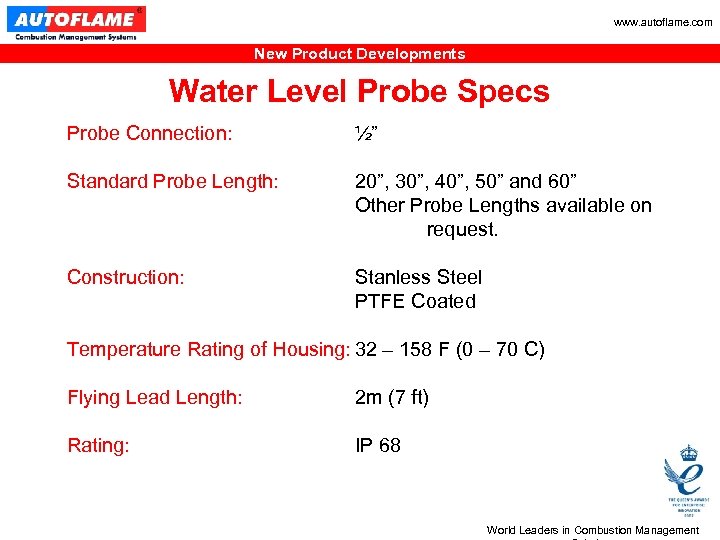

www. autoflame. com New Product Developments Water Level Probe Specs Probe Connection: ½” Standard Probe Length: 20”, 30”, 40”, 50” and 60” Other Probe Lengths available on request. Construction: Stanless Steel PTFE Coated Temperature Rating of Housing: 32 – 158 F (0 – 70 C) Flying Lead Length: 2 m (7 ft) Rating: IP 68 World Leaders in Combustion Management

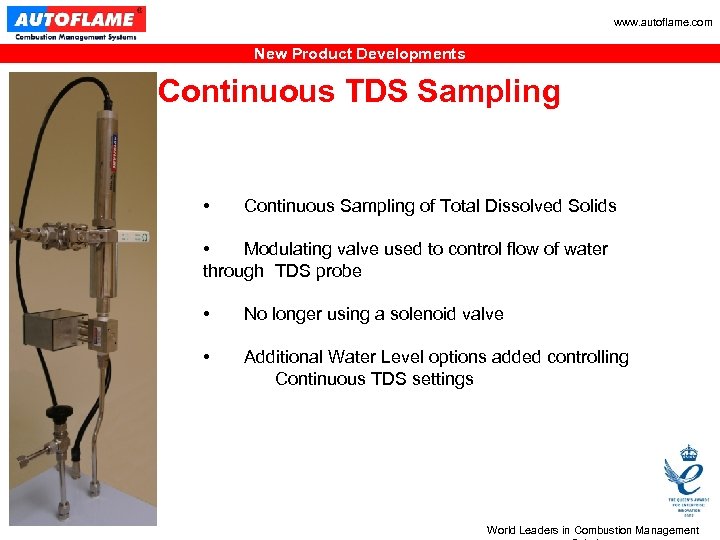

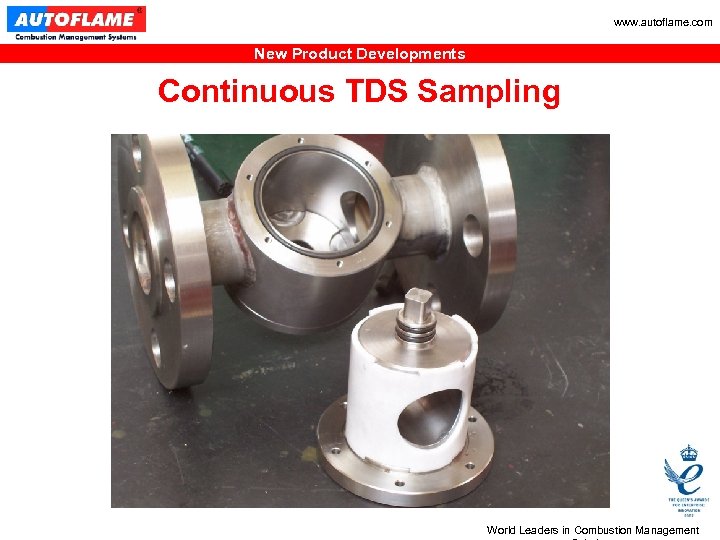

www. autoflame. com New Product Developments Continuous TDS Sampling • Continuous Sampling of Total Dissolved Solids • Modulating valve used to control flow of water through TDS probe • No longer using a solenoid valve • Additional Water Level options added controlling Continuous TDS settings World Leaders in Combustion Management

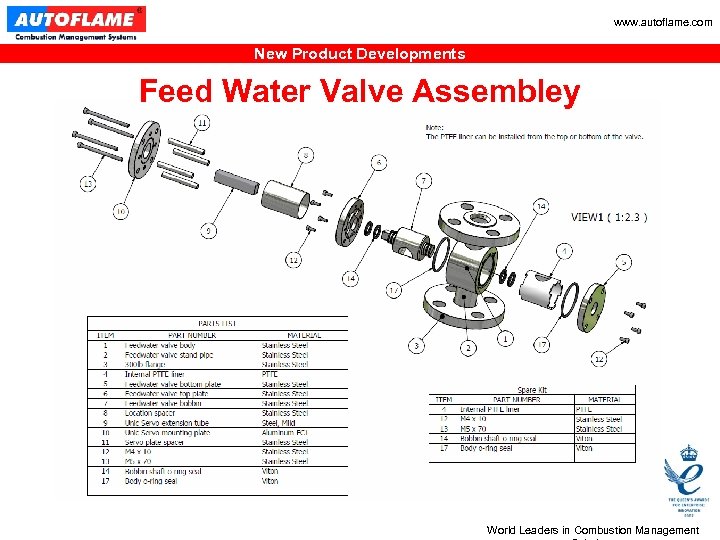

www. autoflame. com New Product Developments Feed Water Valve Assembley World Leaders in Combustion Management
www. autoflame. com New Product Developments PTFE Lined Feed Water Valve • Modified to include PTFE liners. • Assists with high particulate content • Reduces chance of premature valve failure on poorly filtered feed water • Easily replaceable • Always check ratings on tables in the Autoflame Technical Manual World Leaders in Combustion Management
www. autoflame. com New Product Developments Continuous TDS Sampling World Leaders in Combustion Management

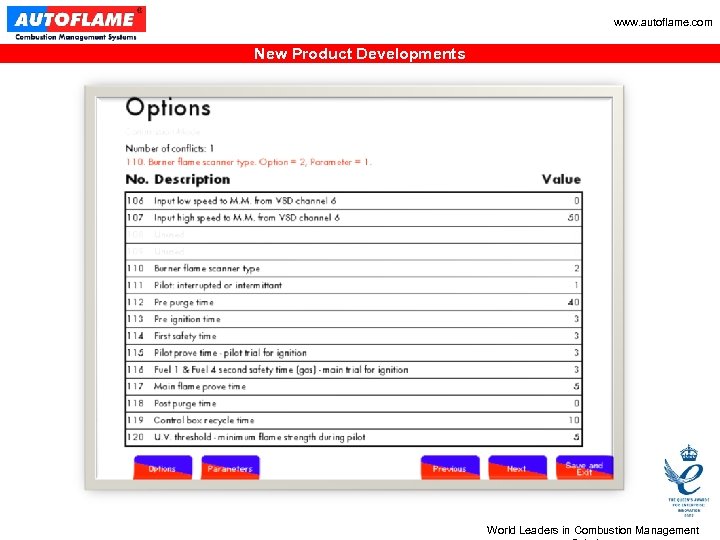

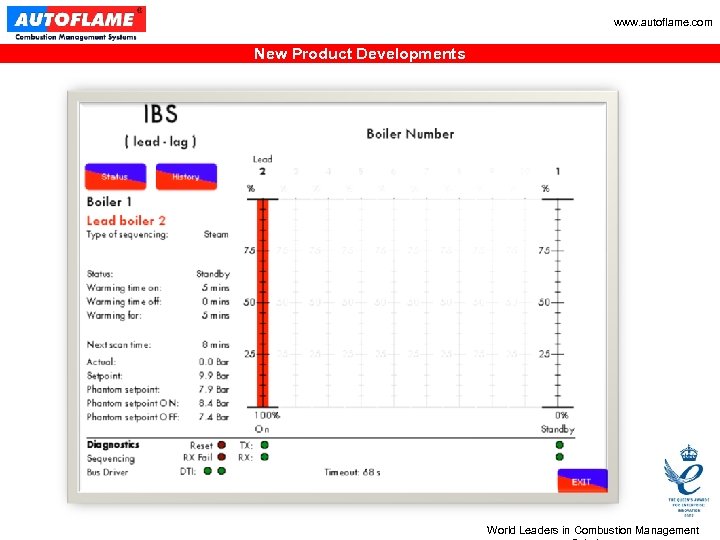

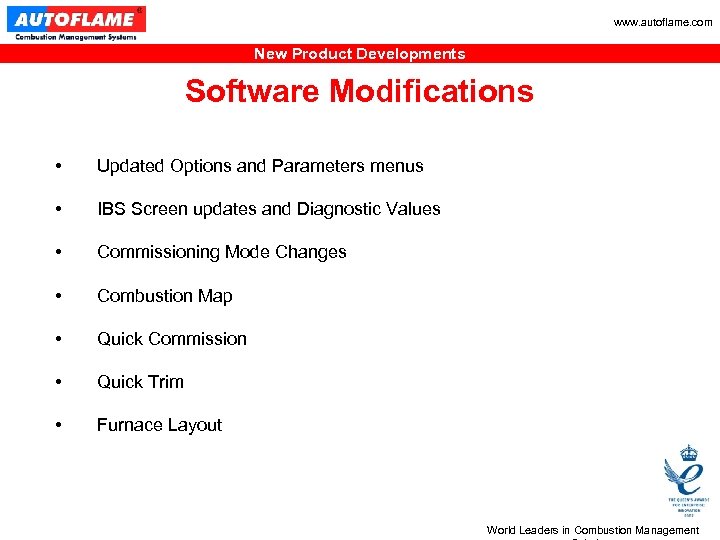

www. autoflame. com New Product Developments Software Modifications • Updated Options and Parameters menus • IBS Screen updates and Diagnostic Values • Commissioning Mode Changes • Combustion Map • Quick Commission • Quick Trim • Furnace Layout World Leaders in Combustion Management

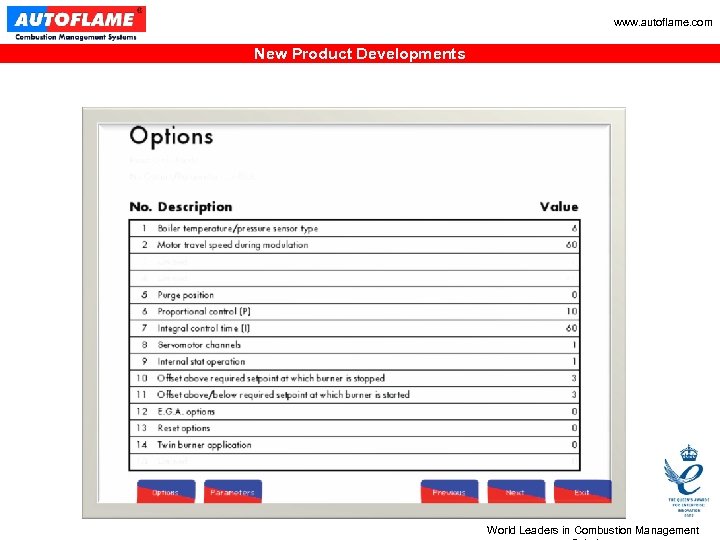

www. autoflame. com New Product Developments World Leaders in Combustion Management

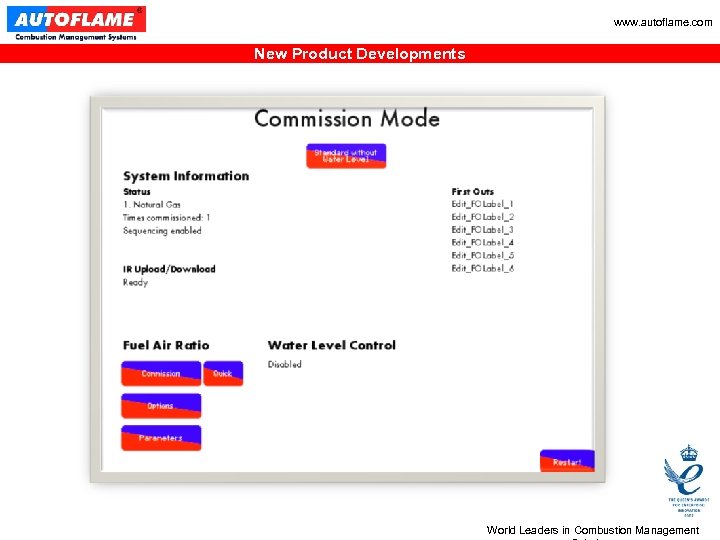

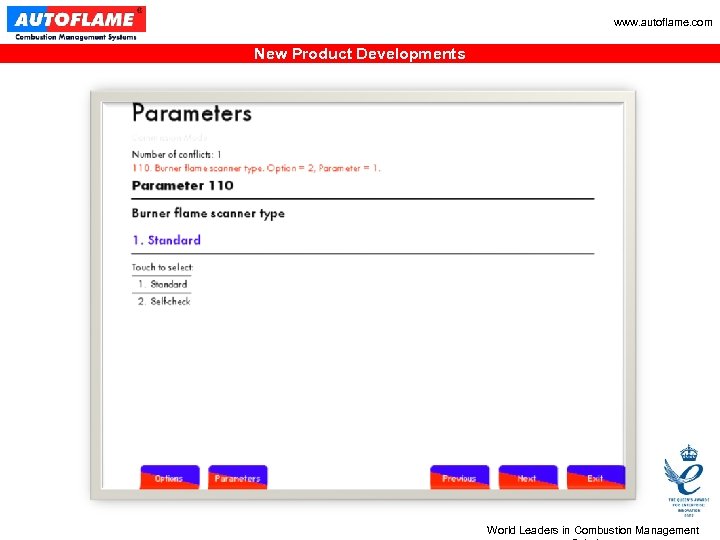

www. autoflame. com New Product Developments World Leaders in Combustion Management
www. autoflame. com New Product Developments World Leaders in Combustion Management

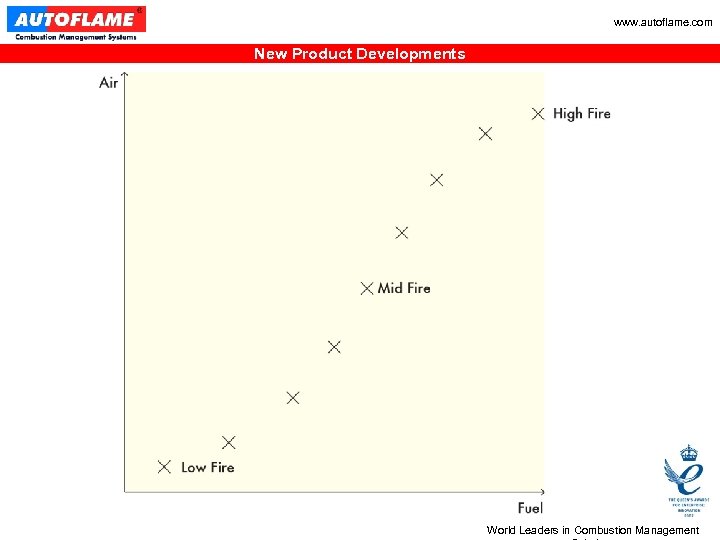

www. autoflame. com New Product Developments World Leaders in Combustion Management
www. autoflame. com New Product Developments World Leaders in Combustion Management

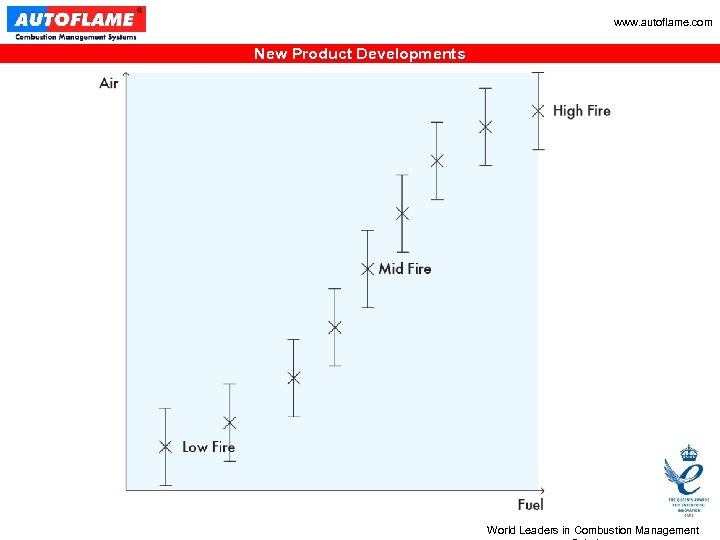

www. autoflame. com New Product Developments World Leaders in Combustion Management

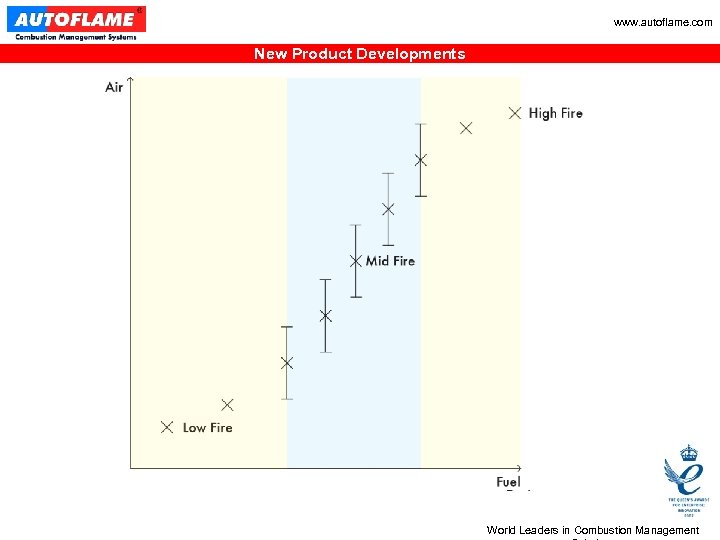

www. autoflame. com New Product Developments World Leaders in Combustion Management

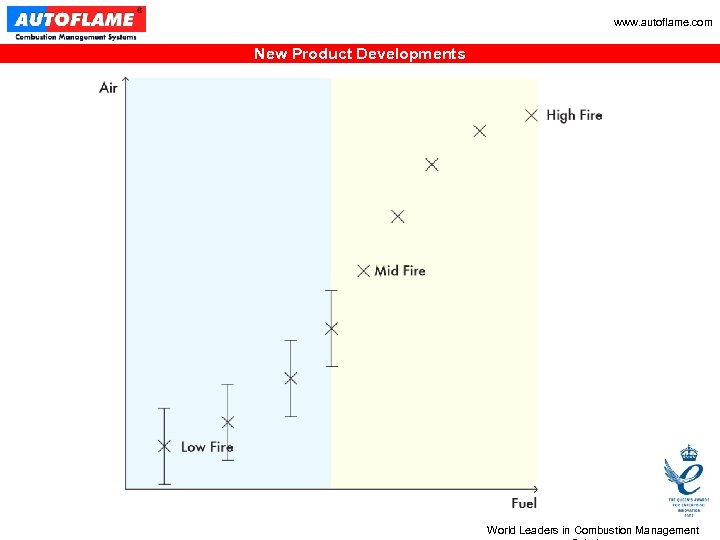

www. autoflame. com New Product Developments World Leaders in Combustion Management
www. autoflame. com New Product Developments World Leaders in Combustion Management
www. autoflame. com New Product Developments World Leaders in Combustion Management
www. autoflame. com New Product Developments World Leaders in Combustion Management
www. autoflame. com New Product Developments World Leaders in Combustion Management

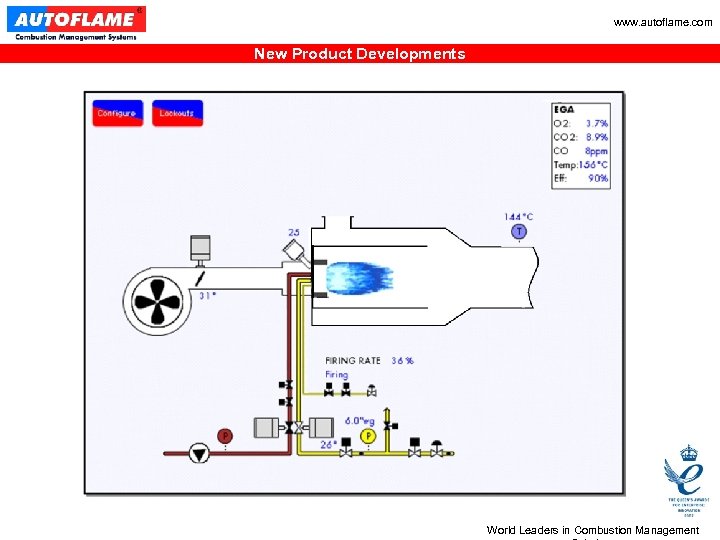

www. autoflame. com New Product Developments World Leaders in Combustion Management

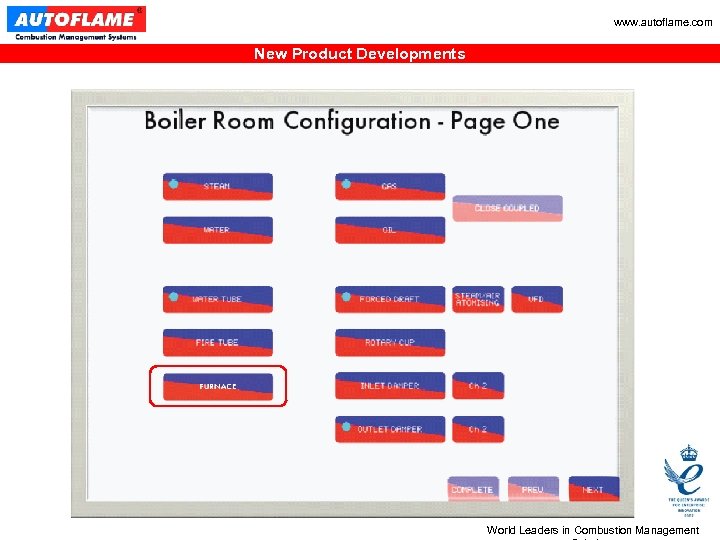

www. autoflame. com New Product Developments World Leaders in Combustion Management

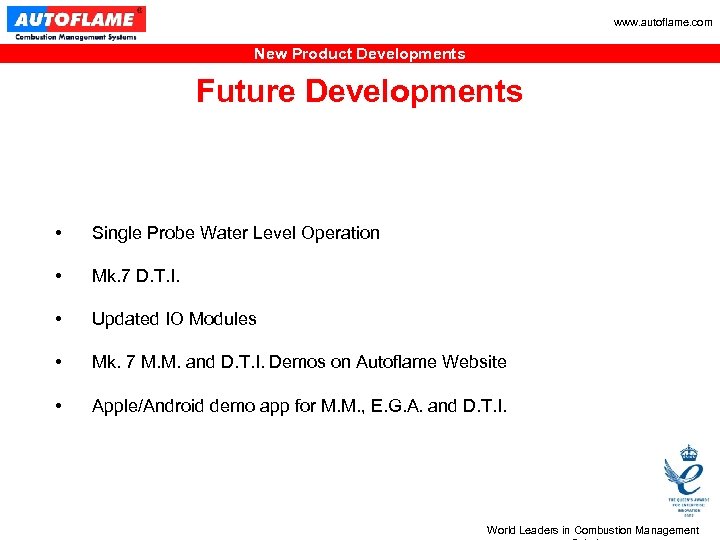

www. autoflame. com New Product Developments Future Developments • Single Probe Water Level Operation • Mk. 7 D. T. I. • Updated IO Modules • Mk. 7 M. M. and D. T. I. Demos on Autoflame Website • Apple/Android demo app for M. M. , E. G. A. and D. T. I. World Leaders in Combustion Management

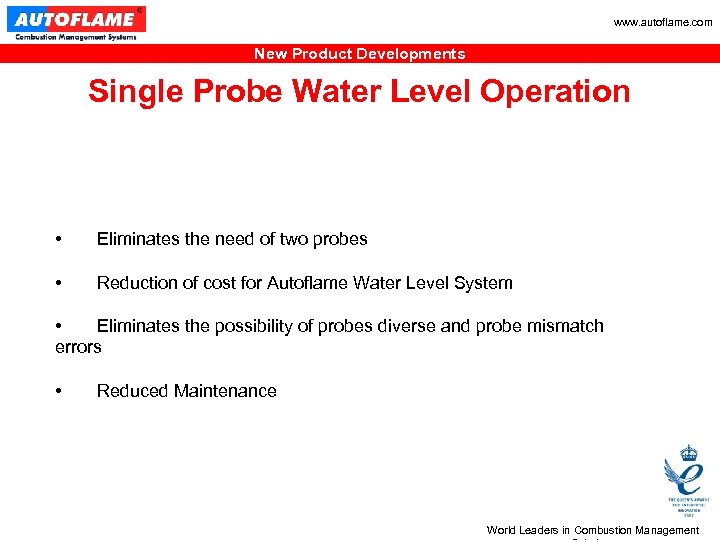

www. autoflame. com New Product Developments Single Probe Water Level Operation • Eliminates the need of two probes • Reduction of cost for Autoflame Water Level System • Eliminates the possibility of probes diverse and probe mismatch errors • Reduced Maintenance World Leaders in Combustion Management

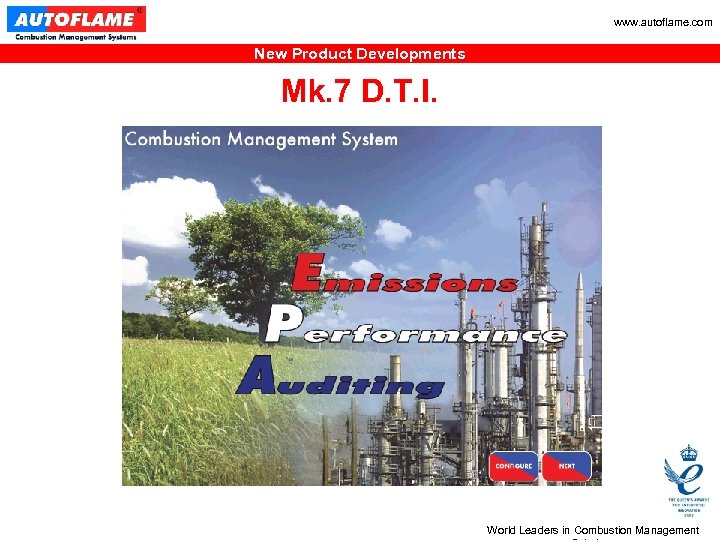

www. autoflame. com New Product Developments Mk. 7 D. T. I. World Leaders in Combustion Management

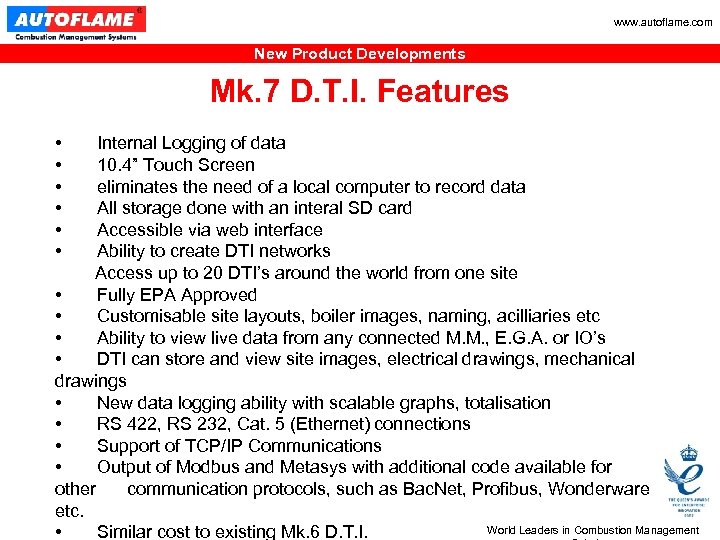

www. autoflame. com New Product Developments Mk. 7 D. T. I. Features • • • Internal Logging of data 10. 4” Touch Screen eliminates the need of a local computer to record data All storage done with an interal SD card Accessible via web interface Ability to create DTI networks Access up to 20 DTI’s around the world from one site • Fully EPA Approved • Customisable site layouts, boiler images, naming, acilliaries etc • Ability to view live data from any connected M. M. , E. G. A. or IO’s • DTI can store and view site images, electrical drawings, mechanical drawings • New data logging ability with scalable graphs, totalisation • RS 422, RS 232, Cat. 5 (Ethernet) connections • Support of TCP/IP Communications • Output of Modbus and Metasys with additional code available for other communication protocols, such as Bac. Net, Profibus, Wonderware etc. World Leaders in Combustion Management • Similar cost to existing Mk. 6 D. T. I.

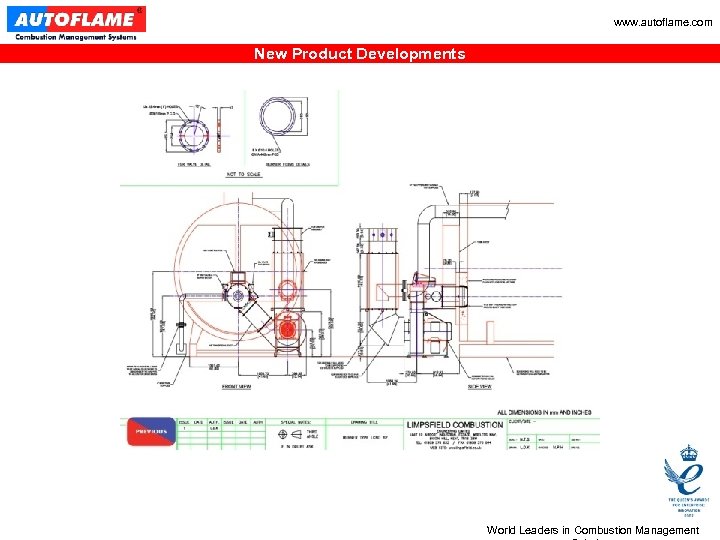

www. autoflame. com New Product Developments World Leaders in Combustion Management

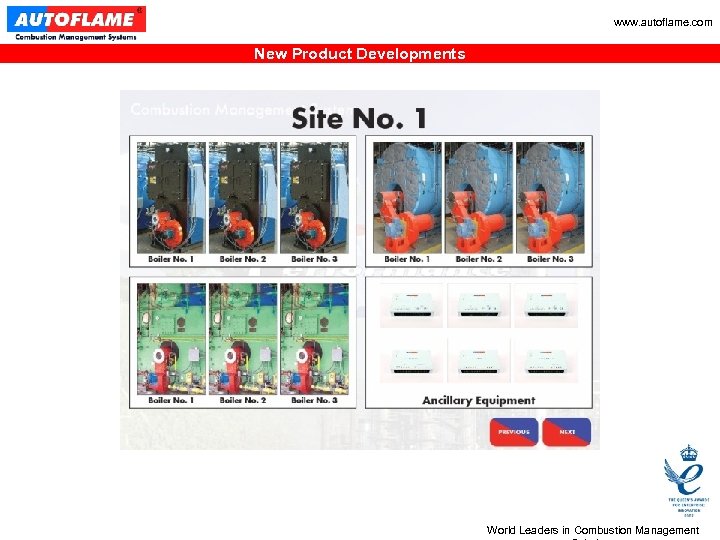

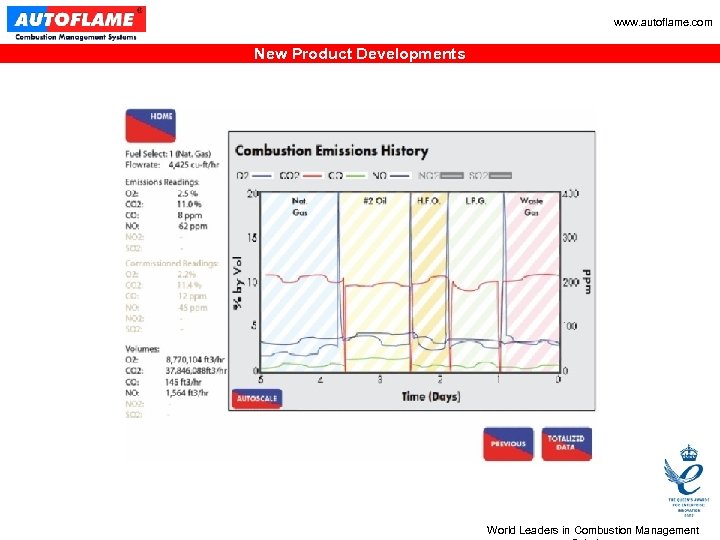

www. autoflame. com New Product Developments World Leaders in Combustion Management

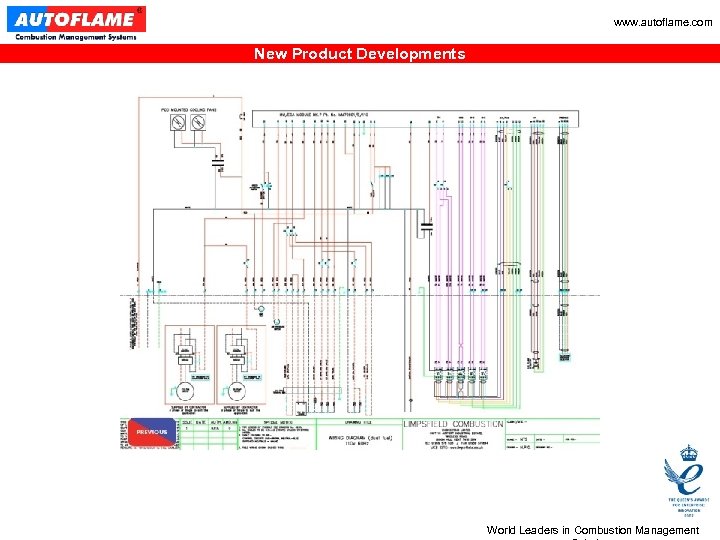

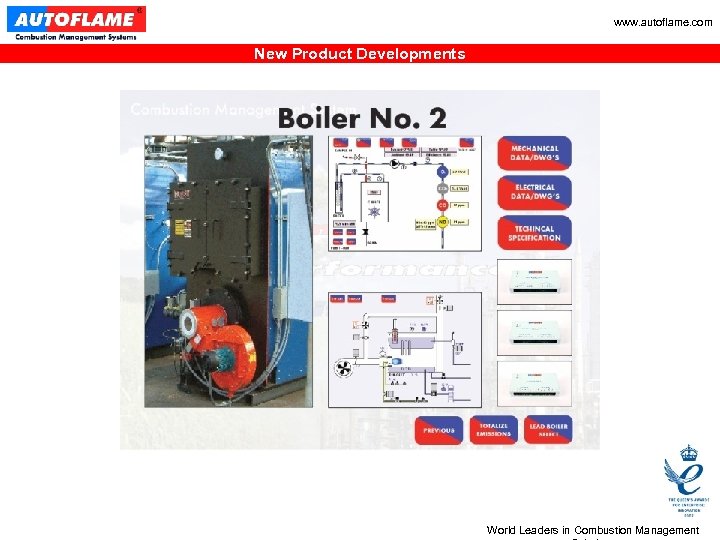

www. autoflame. com New Product Developments World Leaders in Combustion Management
www. autoflame. com New Product Developments World Leaders in Combustion Management
www. autoflame. com New Product Developments World Leaders in Combustion Management
www. autoflame. com New Product Developments World Leaders in Combustion Management

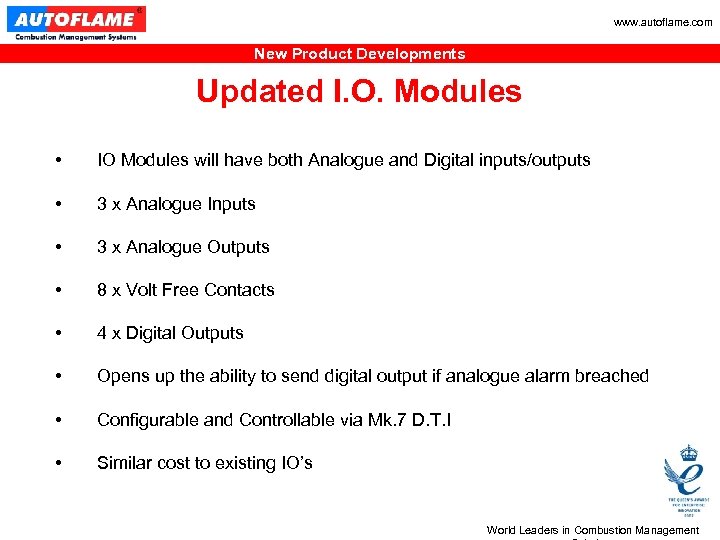

www. autoflame. com New Product Developments Updated I. O. Modules • IO Modules will have both Analogue and Digital inputs/outputs • 3 x Analogue Inputs • 3 x Analogue Outputs • 8 x Volt Free Contacts • 4 x Digital Outputs • Opens up the ability to send digital output if analogue alarm breached • Configurable and Controllable via Mk. 7 D. T. I • Similar cost to existing IO’s World Leaders in Combustion Management

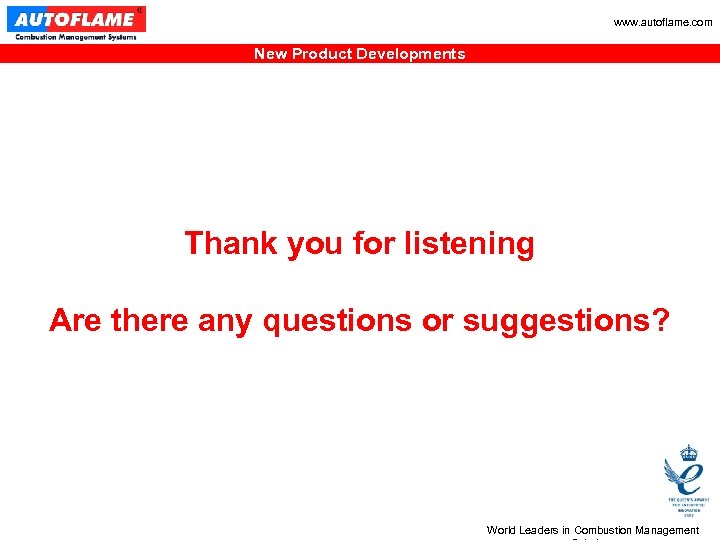

www. autoflame. com New Product Developments Thank you for listening Are there any questions or suggestions? World Leaders in Combustion Management
