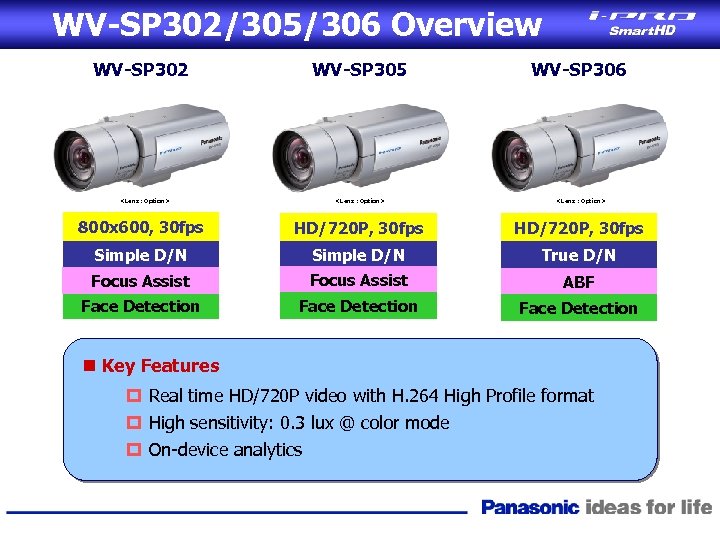

WV-SP 302/305/306 Overview WV-SP 302 <Lens : Option> WV-SP 305 <Lens : Option> WV-SP WV-SP 302/305/306 Overview WV-SP 302 WV-SP 305 WV-SP 306 800 x 600, 30 fps HD/720 P, 30 fps Simple D/N True D/N Focus Assist ABF Face Detection n Key Features p Real time HD/720 P video with H. 264 High Profile format p High sensitivity: 0. 3 lux @ color mode p On-device analytics

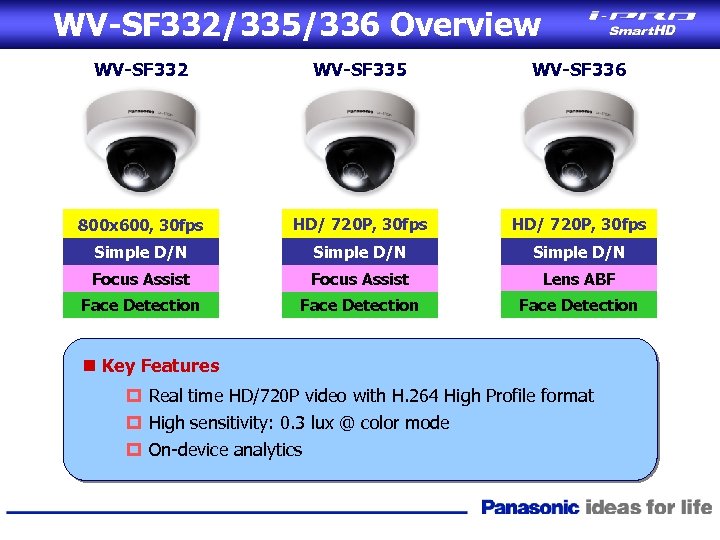

WV-SF 332/335/336 Overview WV-SF 332 WV-SF 335 WV-SF 336 800 x 600, 30 fps WV-SF 332/335/336 Overview WV-SF 332 WV-SF 335 WV-SF 336 800 x 600, 30 fps HD/ 720 P, 30 fps Simple D/N Focus Assist Lens ABF Face Detection n Key Features p Real time HD/720 P video with H. 264 High Profile format p High sensitivity: 0. 3 lux @ color mode p On-device analytics

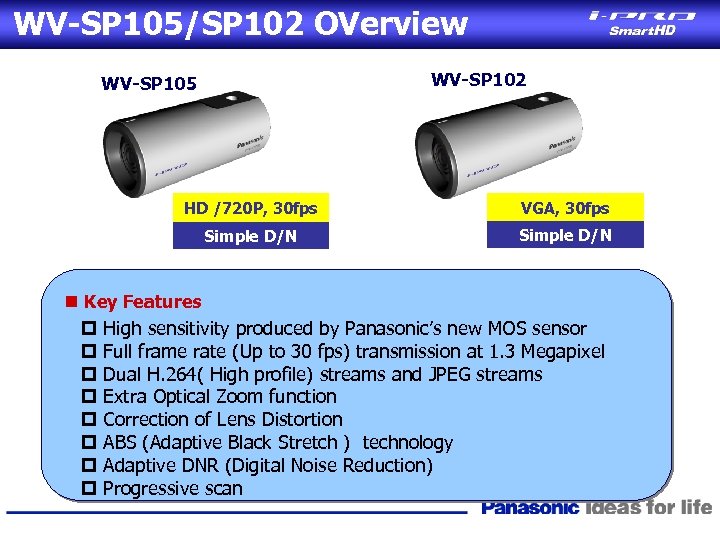

WV-SP 105/SP 102 OVerview  WV-SP 102 WV-SP 105 HD /720 P, 30 fps VGA, WV-SP 105/SP 102 OVerview  WV-SP 102 WV-SP 105 HD /720 P, 30 fps VGA, 30 fps Simple D/N n Key Features p High sensitivity produced by Panasonic’s new MOS sensor p Full frame rate (Up to 30 fps) transmission at 1. 3 Megapixel p Dual H. 264( High profile) streams and JPEG streams p Extra Optical Zoom function p Correction of Lens Distortion p ABS (Adaptive Black Stretch ) technology p Adaptive DNR (Digital Noise Reduction) p Progressive scan

WV-SC 385/SW 395 Overview WV-SC 385 WV-SW 395 HD/720 P, 30 fps True D/N WV-SC 385/SW 395 Overview WV-SC 385 WV-SW 395 HD/720 P, 30 fps True D/N 36 x Zoom Face Detection n Key Features p Real time HD/720 P video with H. 264 High Profile format p High sensitivity: 0. 5 lux @ color mode p Face Detection with Mega Super Dynamic p Progressive output p 18 x zoom lens & 36 x Extra Optional Zoom

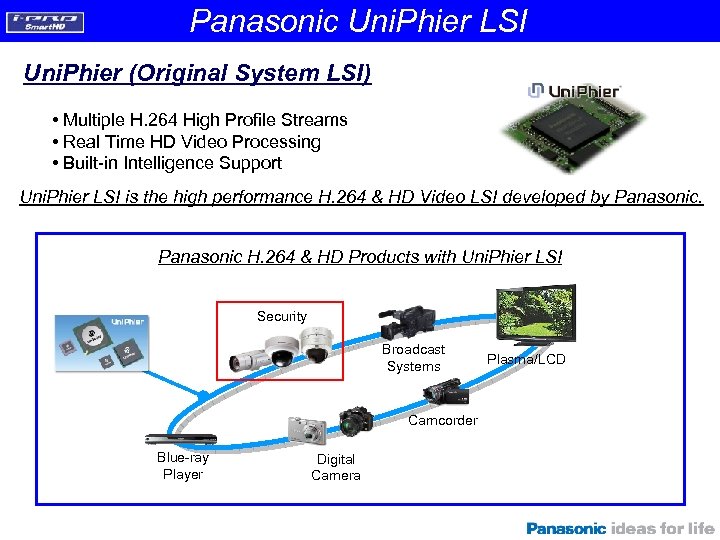

Panasonic Uni. Phier LSI Uni. Phier (Original System LSI) • Multiple H. 264 High Panasonic Uni. Phier LSI Uni. Phier (Original System LSI) • Multiple H. 264 High Profile Streams • Real Time HD Video Processing • Built-in Intelligence Support Uni. Phier LSI is the high performance H. 264 & HD Video LSI developed by Panasonic H. 264 & HD Products with Uni. Phier LSI Security Broadcast Systems Camcorder Blue-ray Player Digital Camera Plasma/LCD

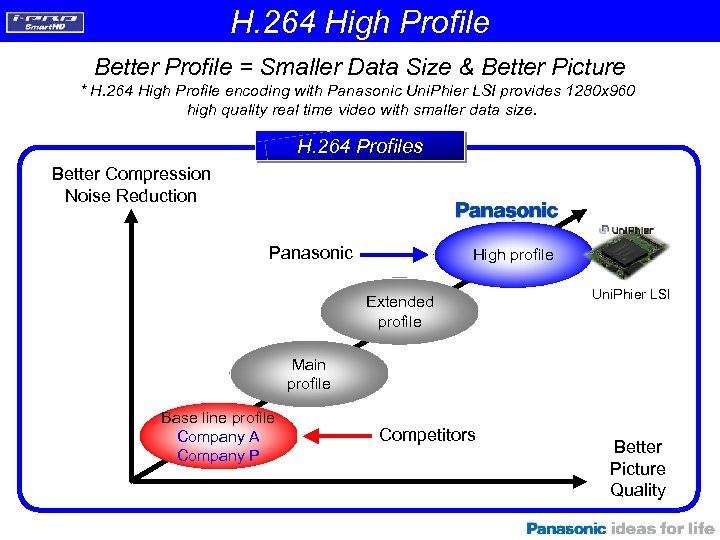

H. 264 High Profile Better Profile = Smaller Data Size & Better Picture * H. 264 High Profile Better Profile = Smaller Data Size & Better Picture * H. 264 High Profile encoding with Panasonic Uni. Phier LSI provides 1280 x 960 high quality real time video with smaller data size. H. 264 Profiles Better Compression Noise Reduction Panasonic High profile Extended profile Uni. Phier LSI Main profile Base line profile Company A Company P Competitors Better Picture Quality

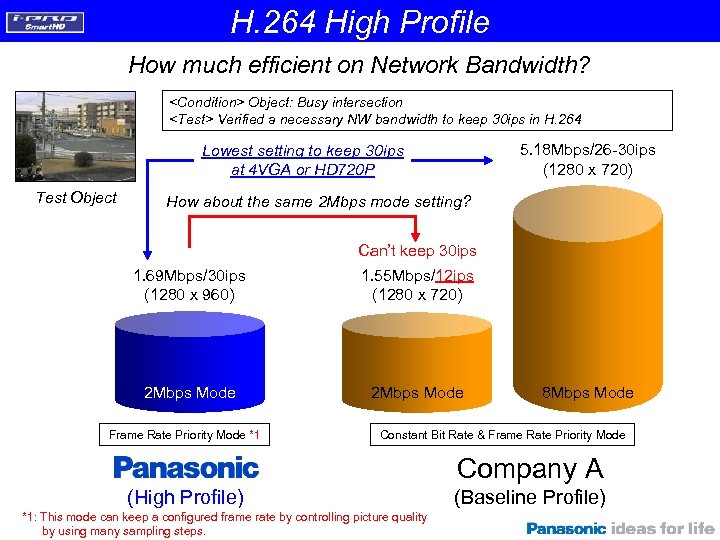

H. 264 High Profile How much efficient on Network Bandwidth? <Condition> Object: Busy intersection H. 264 High Profile How much efficient on Network Bandwidth? Object: Busy intersection Verified a necessary NW bandwidth to keep 30 ips in H. 264 5. 18 Mbps/26 -30 ips (1280 x 720) Lowest setting to keep 30 ips at 4 VGA or HD 720 P Test Object How about the same 2 Mbps mode setting? Can’t keep 30 ips 1. 69 Mbps/30 ips (1280 x 960) 1. 55 Mbps/12 ips (1280 x 720) 2 Mbps Mode Frame Rate Priority Mode *1 8 Mbps Mode Constant Bit Rate & Frame Rate Priority Mode Company A (High Profile) *1: This mode can keep a configured frame rate by controlling picture quality by using many sampling steps. (Baseline Profile)

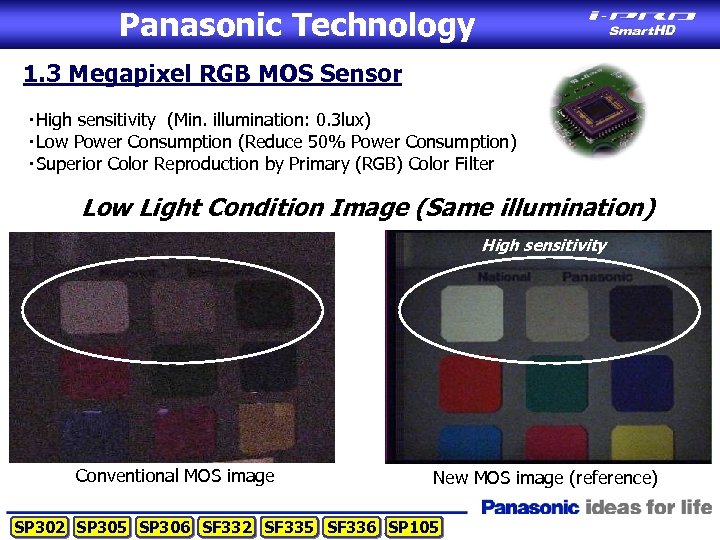

Panasonic Technology 1. 3 Megapixel RGB MOS Sensor ・High sensitivity (Min. illumination: 0. 3 Panasonic Technology 1. 3 Megapixel RGB MOS Sensor ・High sensitivity (Min. illumination: 0. 3 lux) ・Low Power Consumption (Reduce 50% Power Consumption) ・Superior Color Reproduction by Primary (RGB) Color Filter Low Light Condition Image (Same illumination) High sensitivity Conventional MOS image New MOS image (reference) SP 302 SP 305 SP 306 SF 332 SF 335 SF 336 SP 105

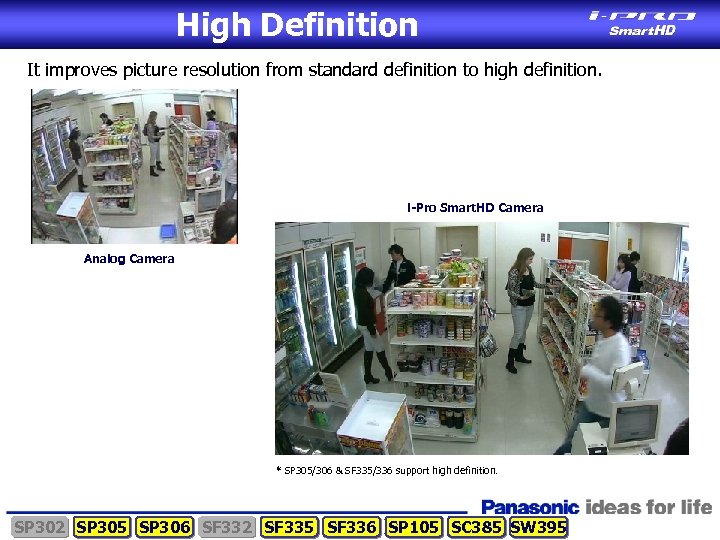

High Definition It improves picture resolution from standard definition to high definition. i-Pro Smart. High Definition It improves picture resolution from standard definition to high definition. i-Pro Smart. HD Camera Analog Camera * SP 305/306 & SF 335/336 support high definition. SP 302 SP 305 SP 306 SF 332 SF 335 SF 336 SP 105 SC 385 SW 395

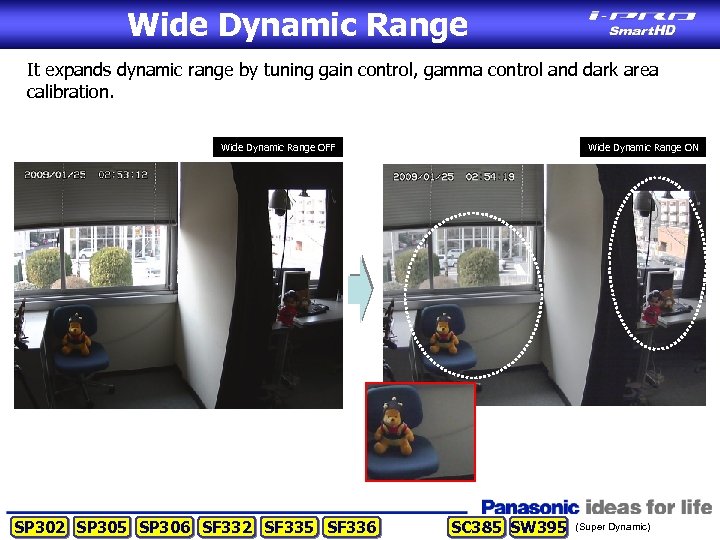

Wide Dynamic Range It expands dynamic range by tuning gain control, gamma control and Wide Dynamic Range It expands dynamic range by tuning gain control, gamma control and dark area calibration. Wide Dynamic Range OFF SP 302 SP 305 SP 306 SF 332 SF 335 SF 336 Wide Dynamic Range ON SC 385 SW 395 (Super Dynamic)

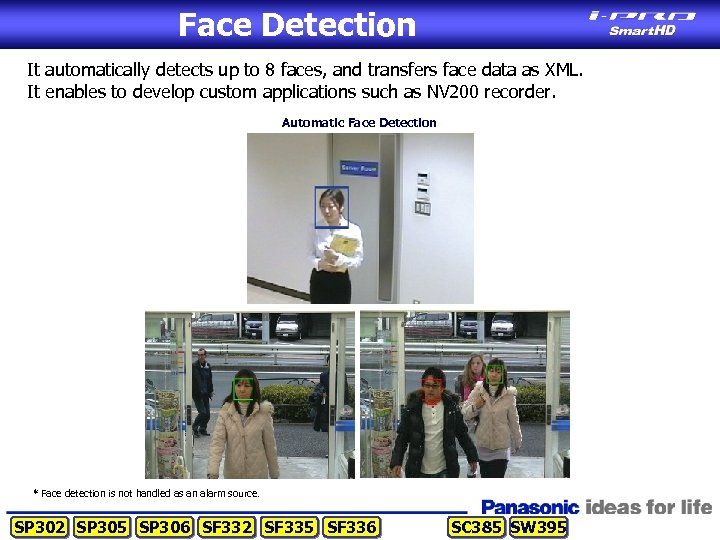

Face Detection It automatically detects up to 8 faces, and transfers face data as Face Detection It automatically detects up to 8 faces, and transfers face data as XML. It enables to develop custom applications such as NV 200 recorder. Automatic Face Detection * Face detection is not handled as an alarm source. SP 302 SP 305 SP 306 SF 332 SF 335 SF 336 SC 385 SW 395

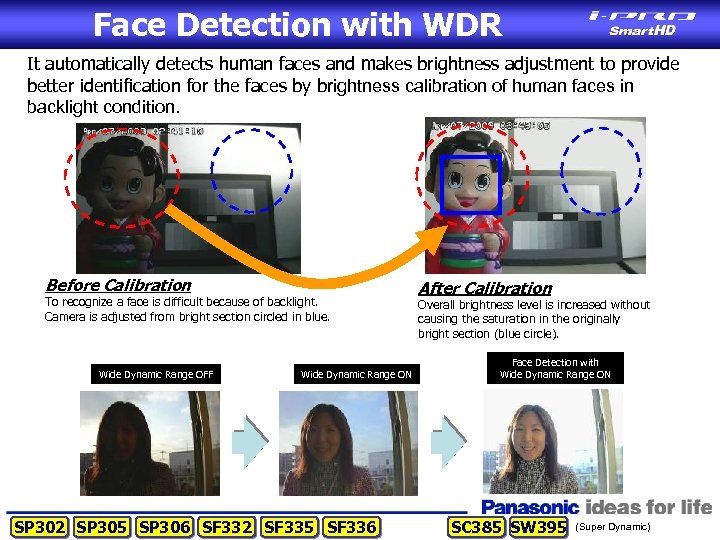

Face Detection with WDR It automatically detects human faces and makes brightness adjustment to Face Detection with WDR It automatically detects human faces and makes brightness adjustment to provide better identification for the faces by brightness calibration of human faces in backlight condition. Before Calibration To recognize a face is difficult because of backlight. Camera is adjusted from bright section circled in blue. Wide Dynamic Range OFF Wide Dynamic Range ON SP 302 SP 305 SP 306 SF 332 SF 335 SF 336 After Calibration Overall brightness level is increased without causing the saturation in the originally bright section (blue circle). Face Detection with Wide Dynamic Range ON SC 385 SW 395 (Super Dynamic)

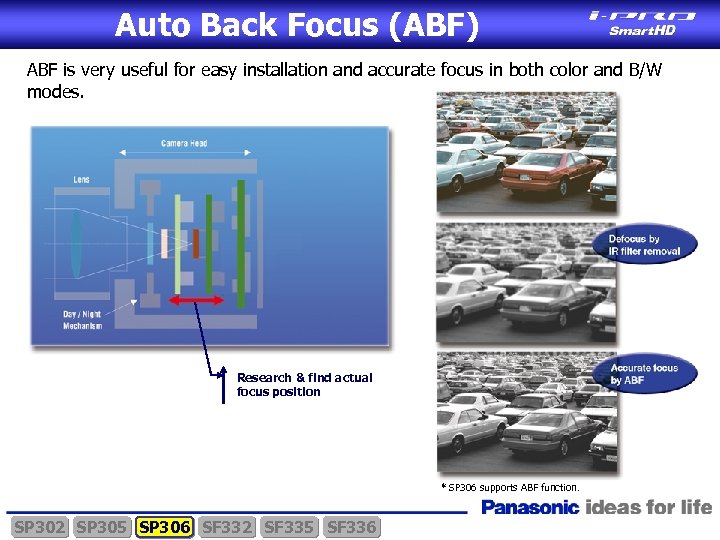

Auto Back Focus (ABF) ABF is very useful for easy installation and accurate focus Auto Back Focus (ABF) ABF is very useful for easy installation and accurate focus in both color and B/W modes. Research & find actual focus position * SP 306 supports ABF function. SP 302 SP 305 SP 306 SF 332 SF 335 SF 336

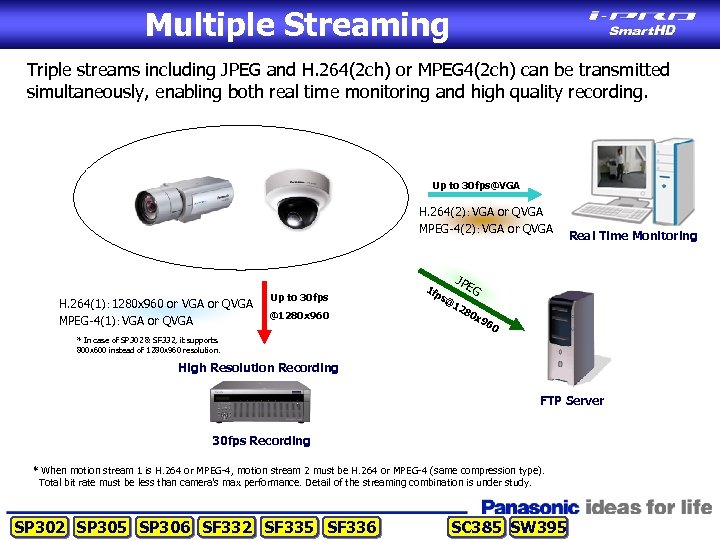

Multiple Streaming Triple streams including JPEG and H. 264(2 ch) or MPEG 4(2 ch) Multiple Streaming Triple streams including JPEG and H. 264(2 ch) or MPEG 4(2 ch) can be transmitted simultaneously, enabling both real time monitoring and high quality recording. Up to 30 [email protected] H. 264(2):VGA or QVGA MPEG-4(2):VGA or QVGA H. 264(1): 1280 x 960 or VGA or QVGA MPEG-4(1):VGA or QVGA Up to 30 fps @1280 x 960 1 f Real Time Monitoring ps JPE G @1 28 0 x 96 0 * In case of SP 302 & SF 332, it supports 800 x 600 instead of 1280 x 960 resolution. High Resolution Recording FTP Server 30 fps Recording * When motion stream 1 is H. 264 or MPEG-4, motion stream 2 must be H. 264 or MPEG-4 (same compression type). Total bit rate must be less than camera’s max performance. Detail of the streaming combination is under study. SP 302 SP 305 SP 306 SF 332 SF 335 SF 336 SC 385 SW 395

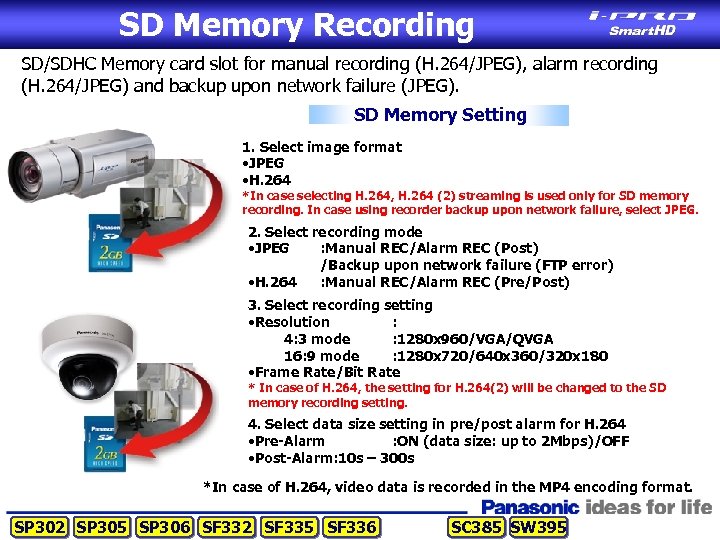

SD Memory Recording SD/SDHC Memory card slot for manual recording (H. 264/JPEG), alarm recording SD Memory Recording SD/SDHC Memory card slot for manual recording (H. 264/JPEG), alarm recording (H. 264/JPEG) and backup upon network failure (JPEG). SD Memory Setting 1. Select image format • JPEG • H. 264 *In case selecting H. 264, H. 264 (2) streaming is used only for SD memory recording. In case using recorder backup upon network failure, select JPEG. 2. Select recording mode • JPEG : Manual REC/Alarm REC (Post) /Backup upon network failure (FTP error) • H. 264 : Manual REC/Alarm REC (Pre/Post) 3. Select recording setting • Resolution : 4: 3 mode : 1280 x 960/VGA/QVGA 16: 9 mode : 1280 x 720/640 x 360/320 x 180 • Frame Rate/Bit Rate * In case of H. 264, the setting for H. 264(2) will be changed to the SD memory recording setting. 4. Select data size setting in pre/post alarm for H. 264 • Pre-Alarm : ON (data size: up to 2 Mbps)/OFF • Post-Alarm: 10 s – 300 s *In case of H. 264, video data is recorded in the MP 4 encoding format. SP 302 SP 305 SP 306 SF 332 SF 335 SF 336 SC 385 SW 395

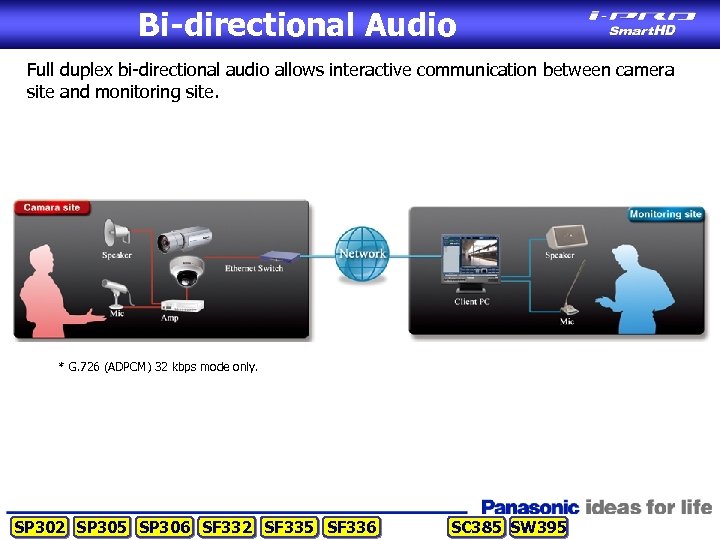

Bi-directional Audio Full duplex bi-directional audio allows interactive communication between camera site and monitoring Bi-directional Audio Full duplex bi-directional audio allows interactive communication between camera site and monitoring site. * G. 726 (ADPCM) 32 kbps mode only. SP 302 SP 305 SP 306 SF 332 SF 335 SF 336 SC 385 SW 395
