WV-ASM 200 Solution NEW Map display i-PRO Management

WV-ASM 200 Solution NEW Map display i-PRO Management Software for Multi-Recorder and Multi-Site System Operation display (Spot / Quad) KEY FEATURES Live display (1 / 4 / 9 / 16 split) WV-CU 950 System Controller u New GUI Design u No dongle with online license management system u 16: 9 video stream and 16: 9 HD monitor support u SDHC H. 264 recording data download support u File Converter included (N 3 R to MP 4 file conversion) u Expansion Kits for advanced functions New GUI Design Release Schedule: Sep/2011 (tentative)

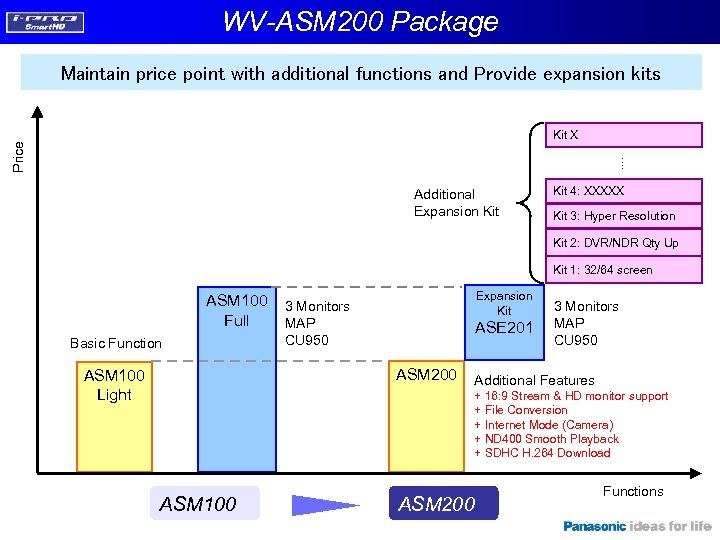

WV-ASM 200 Package Maintain price point with additional functions and Provide expansion kits . . Price Kit X Additional Expansion Kit 4: XXXXX Kit 3: Hyper Resolution Kit 2: DVR/NDR Qty Up Kit 1: 32/64 screen ASM 100 Full Basic Function Expansion Kit 3 Monitors MAP CU 950 ASE 201 ASM 200 ASM 100 Light 3 Monitors MAP CU 950 Additional Features + 16: 9 Stream & HD monitor support + File Conversion + Internet Mode (Camera) + ND 400 Smooth Playback + SDHC H. 264 Download ASM 100 ASM 200 Functions

WV-ASM 200 Specification Basically cover ASM 100 series functions Supported devices Item Functions Item Description Network camera i-PRO series *except WV-NP 472, WV-NS 320, WV-NW 474 Recorder # Up to 100 Camera # Up to 256 Encoder WJ-NT 304/314/GXE 500 User registration Up to 32 Network Disk Recorder WJ-ND 200, ND 300 A, WJ-ND 400, NV 200 User level 5 levels Group registration UP to 400 DVR Device　 Description WJ-HD 616, HD 716, HD 316 A, HD 309 A *Not support WJ-RT 416 Sequence # Up to 10 Map # Up to 100 Alarm log # Up to 30, 000 Device error log # Up to 1, 000 Network error # Up to 1, 000 System log # Up to 1, 000 Access log # Up to 100, 000 Search # Up to 1, 000 Controller WV-CU 950 Video format H. 264、MPEG-4、JPEG Resolution 2, 048 x 1, 536、1, 280 x 960、960 x 720、 640 x 480、320 x 240 Supported OS Item Description Supported OS (*) Microsoft Windows Vista Business SP 2 32 bit/64 bit Microsoft Windows 7 Professional SP 1 32 bit/64 bit (*) Windows. XP is not supported due to UAC(User Account Control) support, which is security infrastructure technology introduced with Microsoft's Windows Vista and Windows 7

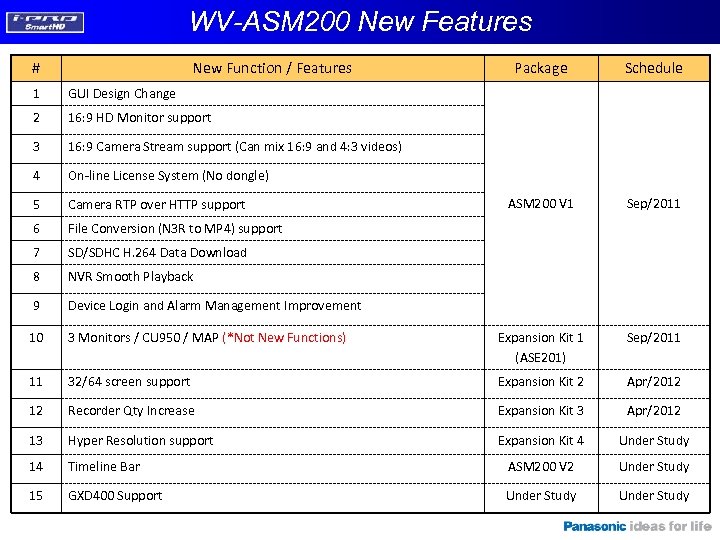

WV-ASM 200 New Features # New Function / Features Package Schedule ASM 200 V 1 Sep/2011 1 GUI Design Change 2 16: 9 HD Monitor support 3 16: 9 Camera Stream support (Can mix 16: 9 and 4: 3 videos) 4 On-line License System (No dongle) 5 Camera RTP over HTTP support 6 File Conversion (N 3 R to MP 4) support 7 SD/SDHC H. 264 Data Download 8 NVR Smooth Playback 9 Device Login and Alarm Management Improvement 10 3 Monitors / CU 950 / MAP (*Not New Functions) Expansion Kit 1 (ASE 201) Sep/2011 11 32/64 screen support Expansion Kit 2 Apr/2012 12 Recorder Qty Increase Expansion Kit 3 Apr/2012 13 Hyper Resolution support Expansion Kit 4 Under Study 14 Timeline Bar ASM 200 V 2 Under Study 15 GXD 400 Support Under Study

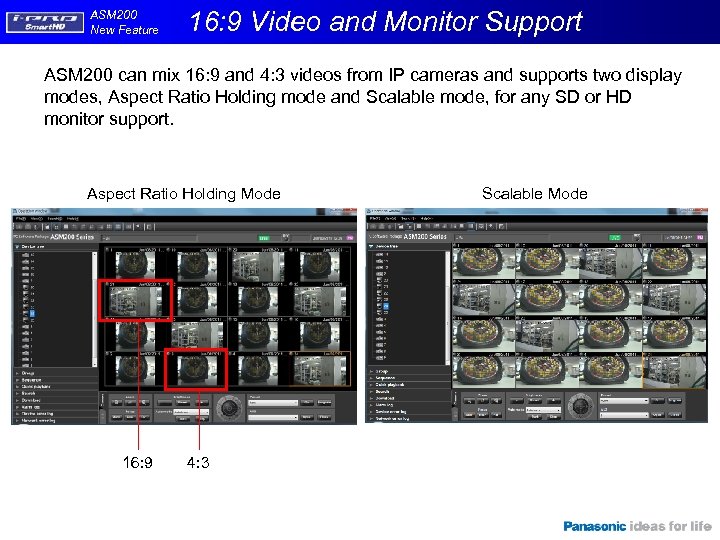

ASM 200 New Feature 16: 9 Video and Monitor Support ASM 200 can mix 16: 9 and 4: 3 videos from IP cameras and supports two display modes, Aspect Ratio Holding mode and Scalable mode, for any SD or HD monitor support. Aspect Ratio Holding Mode 16: 9 4: 3 Scalable Mode

ASM 200 New Feature License Key Activation (No dongle) ASM 200 change the activation way from Dongle, HASP key, to License Key. ASM 100 ASM 200 Key Management System ＨＡＳＰ Key Internet Software install Activate by HASP key connection Activate by registration of “Registration key” issued by Key management System Activation Key Card Activate Software install Future plan Step 1 : License Card Sales without CD-ROM by software download from Web site Step 2 : Web-based sales by software & License download from Web site

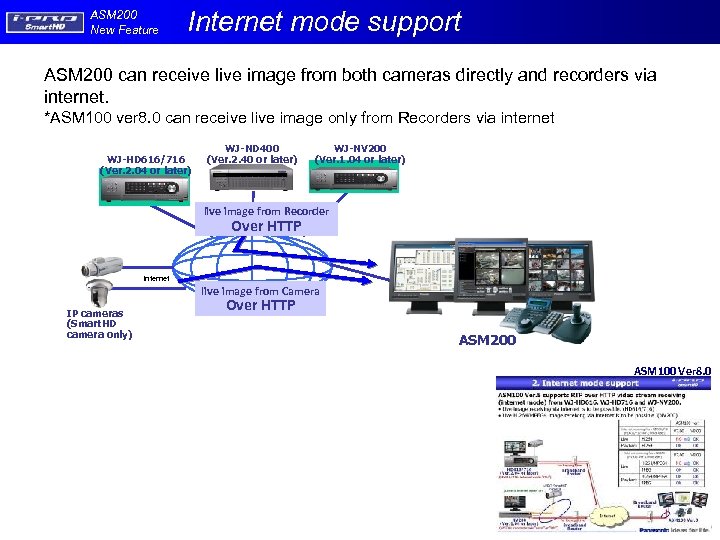

ASM 200 New Feature Internet mode support ASM 200 can receive live image from both cameras directly and recorders via internet. *ASM 100 ver 8. 0 can receive live image only from Recorders via internet WJ-HD 616/716 (Ver. 2. 04 or later) WJ-ND 400 (Ver. 2. 40 or later) WJ-NV 200 (Ver. 1. 04 or later) live image from Recorder Over HTTP Internet IP cameras (Smart. HD camera only) live image from Camera Over HTTP ASM 200 ASM 100 Ver 8. 0

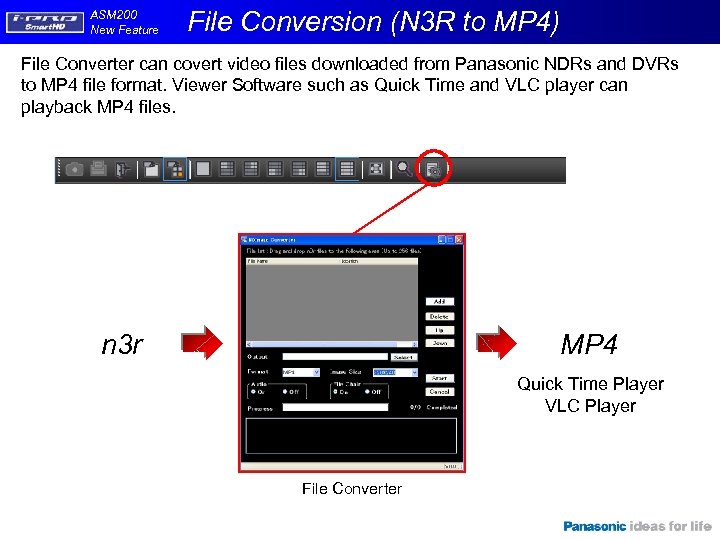

ASM 200 New Feature File Conversion (N 3 R to MP 4) File Converter can covert video files downloaded from Panasonic NDRs and DVRs to MP 4 file format. Viewer Software such as Quick Time and VLC player can playback MP 4 files. n 3 r MP 4 Quick Time Player VLC Player File Converter

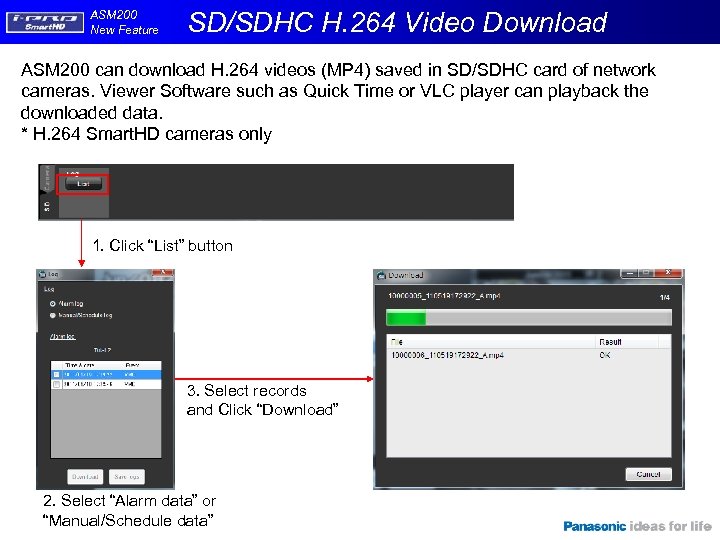

ASM 200 New Feature SD/SDHC H. 264 Video Download ASM 200 can download H. 264 videos (MP 4) saved in SD/SDHC card of network cameras. Viewer Software such as Quick Time or VLC player can playback the downloaded data. * H. 264 Smart. HD cameras only 1. Click “List” button 3. Select records and Click “Download” 2. Select “Alarm data” or “Manual/Schedule data”

ASM 200 New Feature ND 400/NV 200 Smooth Playback ASM 200 supports WJ-ND 400/NV 200 Smooth Playback to avoid skipping important scenes. Step 2 Step 3 Step 4 -7 ASM 100 4 times speed I frame only 8 times speed I frame only 16, 32, 64, 96 I frame only ASM 200 2 times speed I frame + P frame ４ times speed 8, 16, 32, 48 I frame + P frame I frame only (*Increase the number of I frame for smooth playback) * ND 400 V 2. 41 or later needed * NV 200 V 1. 20 or later needed * Available on 1 or 4 split screen

WV-ASM 200 Solution ASM 200 Software Migration? ? When existing ASM 100/ASM 100 L customers want ASM 200, do they need to buy? Yes. They need to buy “ASM 200” since this is not ASM 100 version upgrade and it’s a new software release. After ASM 200 purchase, they will receive ASM 200 free version upgrade benefit.
