WTF-CEOP Project status May 11 2006 Osamu Ochiai

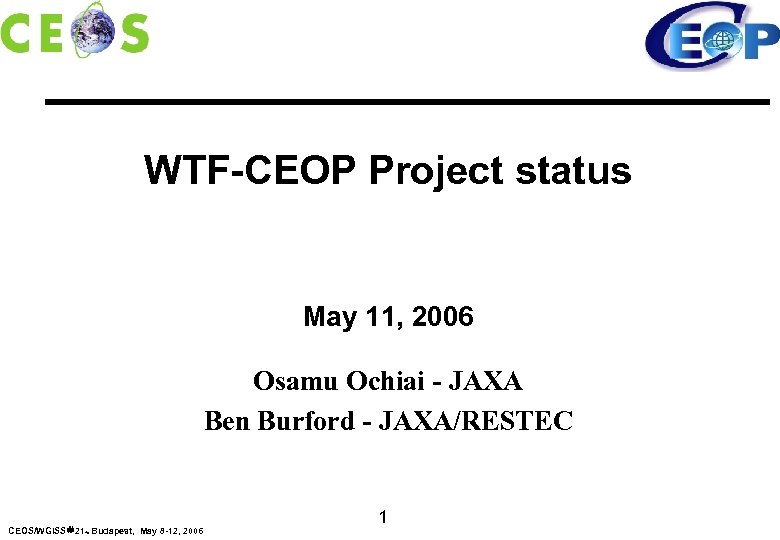

WTF-CEOP Project status May 11, 2006 Osamu Ochiai - JAXA Ben Burford - JAXA/RESTEC CEOS/WGISS＃21、Budapest, May 8 -12, 2006 1

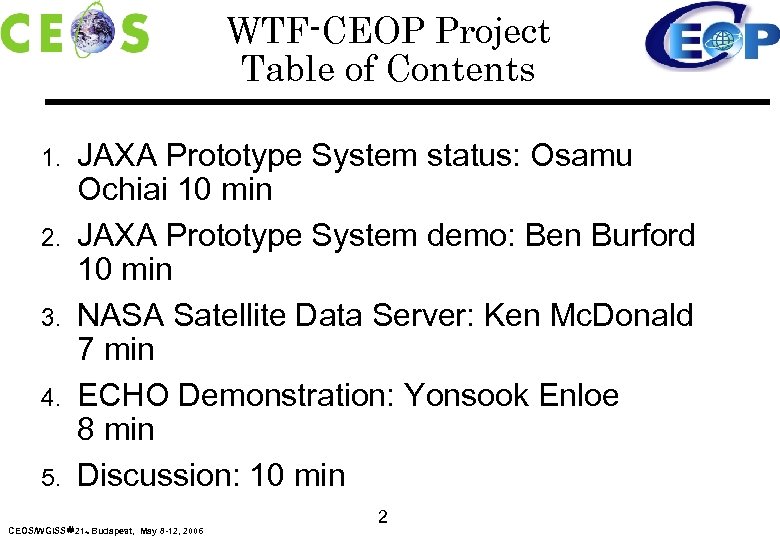

WTF-CEOP Project Table of Contents 1. 2. 3. 4. 5. JAXA Prototype System status: Osamu Ochiai 10 min JAXA Prototype System demo: Ben Burford 10 min NASA Satellite Data Server: Ken Mc. Donald 7 min ECHO Demonstration: Yonsook Enloe 8 min Discussion: 10 min CEOS/WGISS＃21、Budapest, May 8 -12, 2006 2

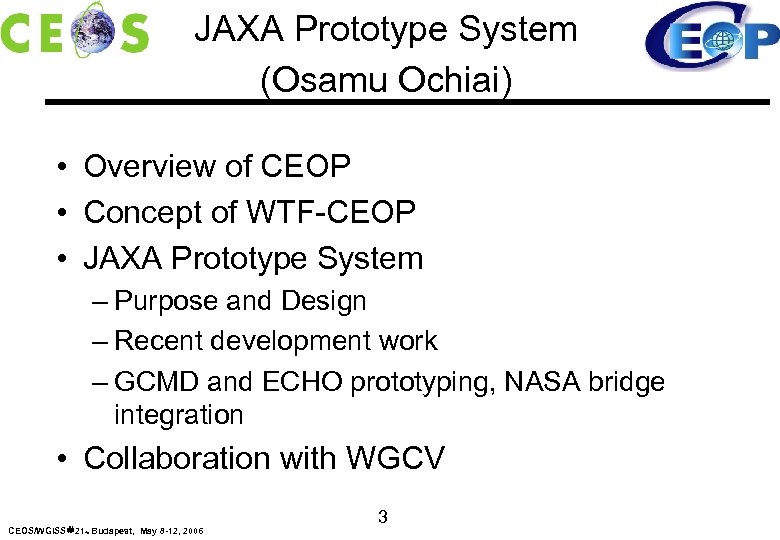

JAXA Prototype System (Osamu Ochiai) • Overview of CEOP • Concept of WTF-CEOP • JAXA Prototype System – Purpose and Design – Recent development work – GCMD and ECHO prototyping, NASA bridge integration • Collaboration with WGCV CEOS/WGISS＃21、Budapest, May 8 -12, 2006 3

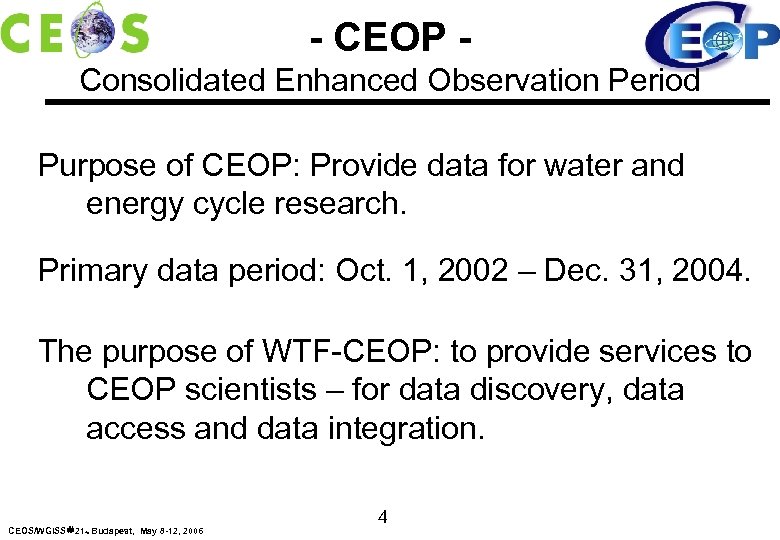

- CEOP Consolidated Enhanced Observation Period Purpose of CEOP: Provide data for water and energy cycle research. Primary data period: Oct. 1, 2002 – Dec. 31, 2004. The purpose of WTF-CEOP: to provide services to CEOP scientists – for data discovery, data access and data integration. CEOS/WGISS＃21、Budapest, May 8 -12, 2006 4

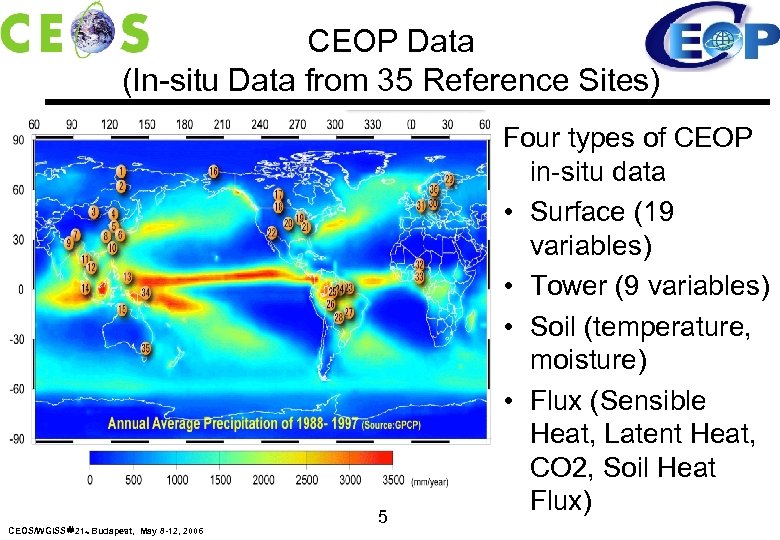

CEOP Data (In-situ Data from 35 Reference Sites) CEOS/WGISS＃21、Budapest, May 8 -12, 2006 5 Four types of CEOP in-situ data • Surface (19 variables) • Tower (9 variables) • Soil (temperature, moisture) • Flux (Sensible Heat, Latent Heat, CO 2, Soil Heat Flux)

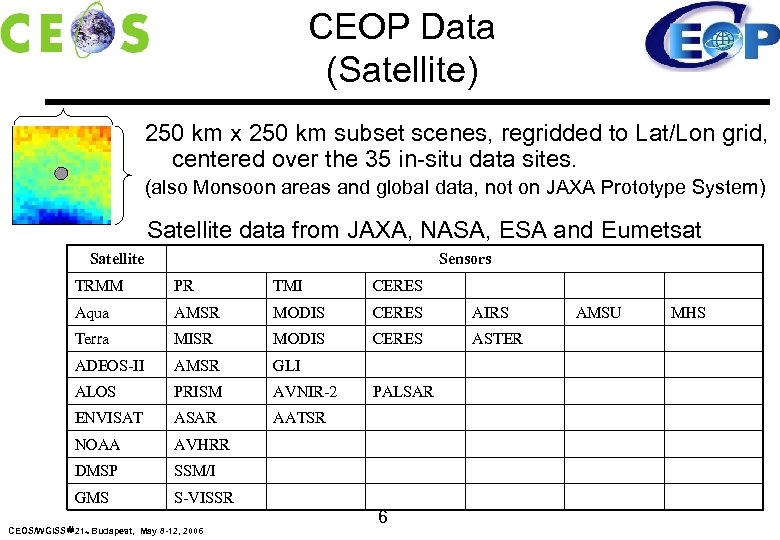

CEOP Data (Satellite) 250 km x 250 km subset scenes, regridded to Lat/Lon grid, centered over the 35 in-situ data sites. (also Monsoon areas and global data, not on JAXA Prototype System) Satellite data from JAXA, NASA, ESA and Eumetsat Satellite Sensors TRMM PR TMI CERES Aqua AMSR MODIS CERES AIRS AMSU MHS Terra MISR MODIS CERES ASTER ADEOS-II AMSR GLI ALOS PRISM AVNIR-2 PALSAR ENVISAT ASAR AATSR NOAA AVHRR DMSP SSM/I GMS S-VISSR CEOS/WGISS＃21、Budapest, May 8 -12, 2006 6

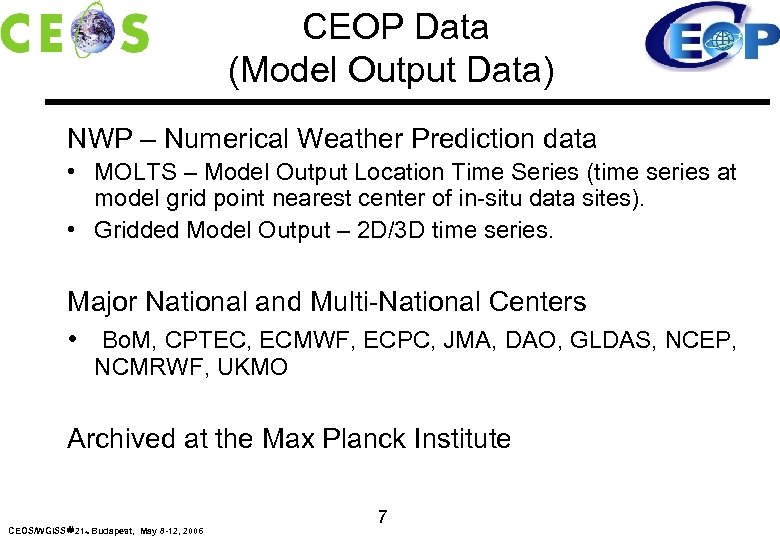

CEOP Data (Model Output Data) NWP – Numerical Weather Prediction data • MOLTS – Model Output Location Time Series (time series at model grid point nearest center of in-situ data sites). • Gridded Model Output – 2 D/3 D time series. Major National and Multi-National Centers • Bo. M, CPTEC, ECMWF, ECPC, JMA, DAO, GLDAS, NCEP, NCMRWF, UKMO Archived at the Max Planck Institute CEOS/WGISS＃21、Budapest, May 8 -12, 2006 7

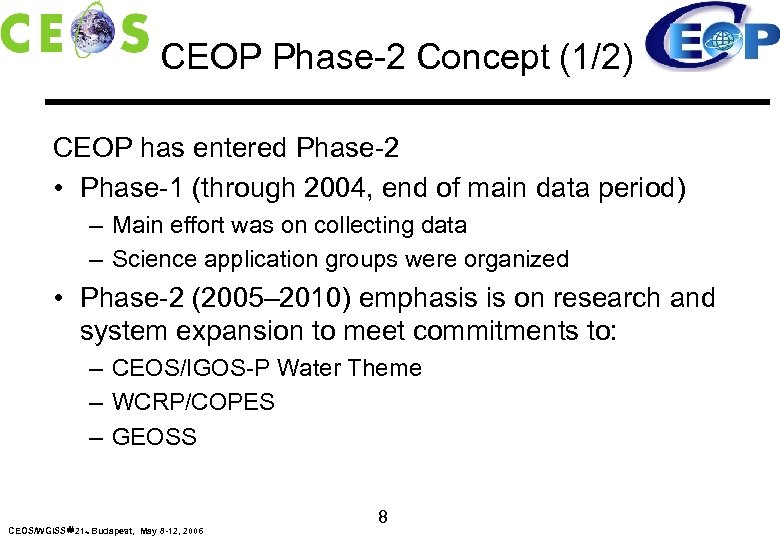

CEOP Phase-2 Concept (1/2) CEOP has entered Phase-2 • Phase-1 (through 2004, end of main data period) – Main effort was on collecting data – Science application groups were organized • Phase-2 (2005– 2010) emphasis is on research and system expansion to meet commitments to: – CEOS/IGOS-P Water Theme – WCRP/COPES – GEOSS CEOS/WGISS＃21、Budapest, May 8 -12, 2006 8

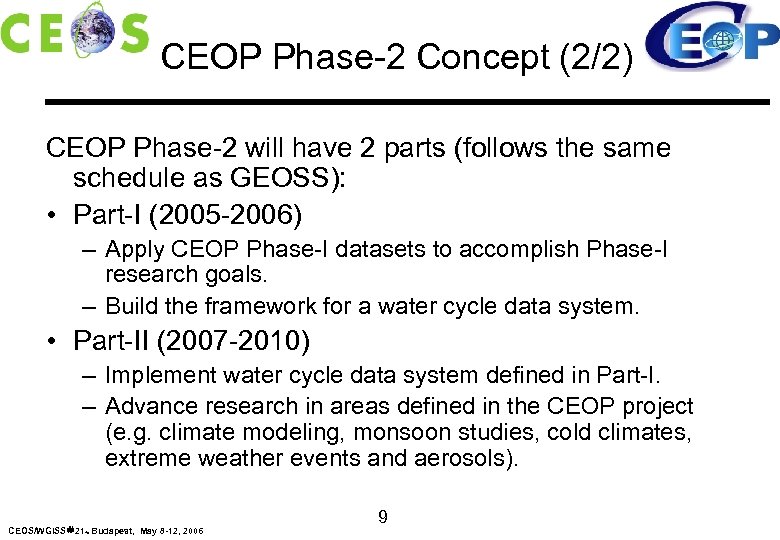

CEOP Phase-2 Concept (2/2) CEOP Phase-2 will have 2 parts (follows the same schedule as GEOSS): • Part-I (2005 -2006) – Apply CEOP Phase-I datasets to accomplish Phase-I research goals. – Build the framework for a water cycle data system. • Part-II (2007 -2010) – Implement water cycle data system defined in Part-I. – Advance research in areas defined in the CEOP project (e. g. climate modeling, monsoon studies, cold climates, extreme weather events and aerosols). CEOS/WGISS＃21、Budapest, May 8 -12, 2006 9

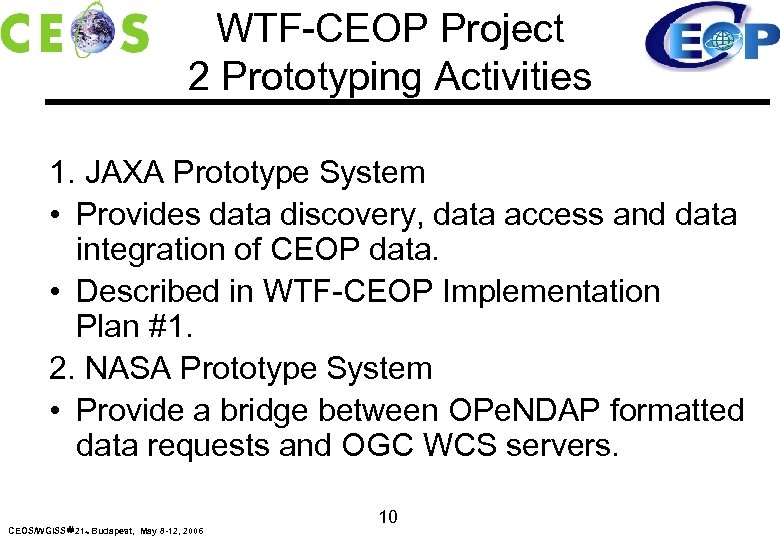

WTF-CEOP Project 2 Prototyping Activities 1. JAXA Prototype System • Provides data discovery, data access and data integration of CEOP data. • Described in WTF-CEOP Implementation Plan #1. 2. NASA Prototype System • Provide a bridge between OPe. NDAP formatted data requests and OGC WCS servers. CEOS/WGISS＃21、Budapest, May 8 -12, 2006 10

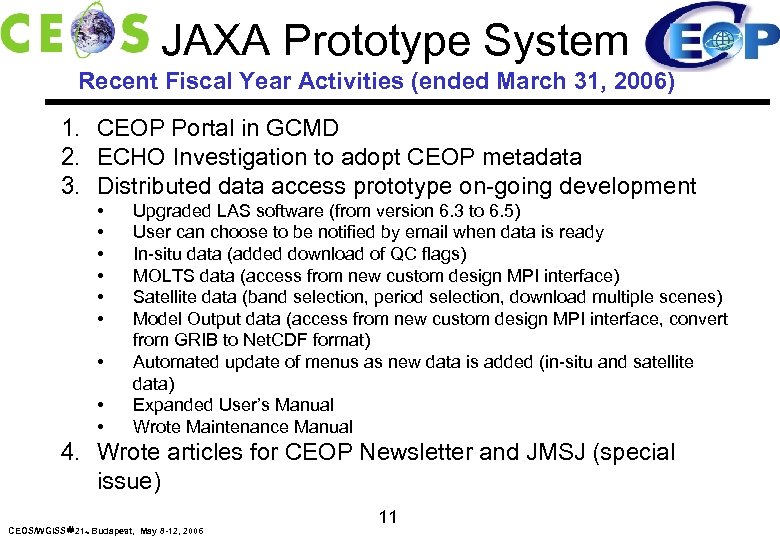

JAXA Prototype System Recent Fiscal Year Activities (ended March 31, 2006) 1. CEOP Portal in GCMD 2. ECHO Investigation to adopt CEOP metadata 3. Distributed data access prototype on-going development • • • Upgraded LAS software (from version 6. 3 to 6. 5) User can choose to be notified by email when data is ready In-situ data (added download of QC flags) MOLTS data (access from new custom design MPI interface) Satellite data (band selection, period selection, download multiple scenes) Model Output data (access from new custom design MPI interface, convert from GRIB to Net. CDF format) Automated update of menus as new data is added (in-situ and satellite data) Expanded User’s Manual Wrote Maintenance Manual 4. Wrote articles for CEOP Newsletter and JMSJ (special issue) CEOS/WGISS＃21、Budapest, May 8 -12, 2006 11

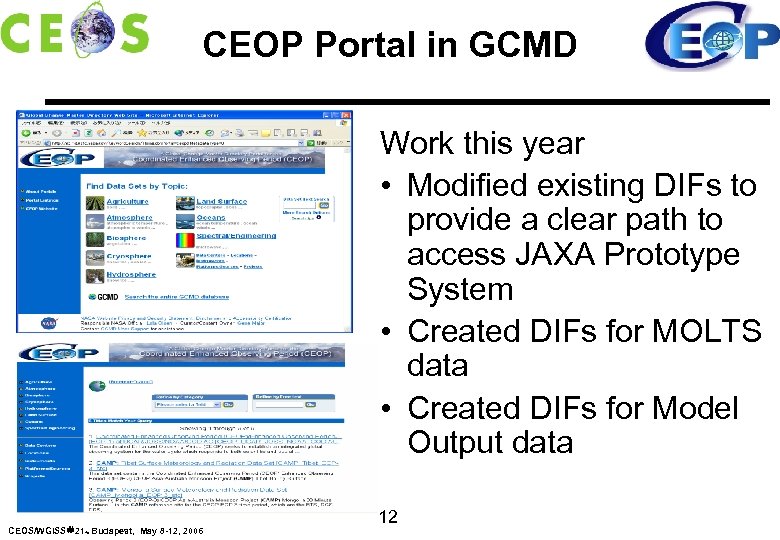

CEOP Portal in GCMD Work this year • Modified existing DIFs to provide a clear path to access JAXA Prototype System • Created DIFs for MOLTS data • Created DIFs for Model Output data CEOS/WGISS＃21、Budapest, May 8 -12, 2006 12

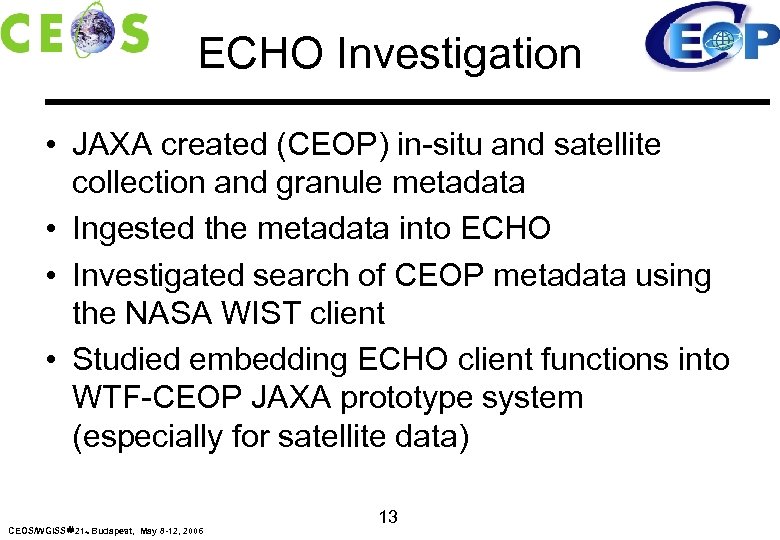

ECHO Investigation • JAXA created (CEOP) in-situ and satellite collection and granule metadata • Ingested the metadata into ECHO • Investigated search of CEOP metadata using the NASA WIST client • Studied embedding ECHO client functions into WTF-CEOP JAXA prototype system (especially for satellite data) CEOS/WGISS＃21、Budapest, May 8 -12, 2006 13

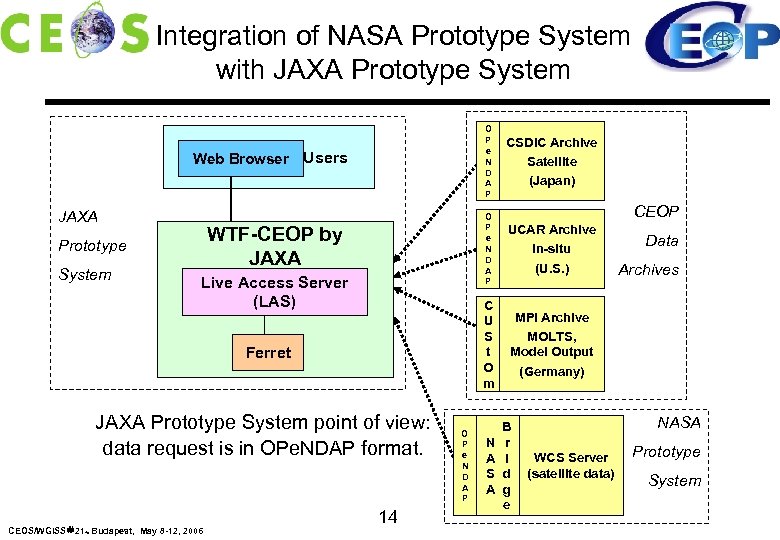

Integration of NASA Prototype System with JAXA Prototype System O P e N D A P 　　　　　　 Web Browser Users JAXA System Ferret JAXA Prototype System point of view: data request is in OPe. NDAP format. 14 O P e N D A P UCAR Archive In-situ (U. S. ) C U S t O m Live Access Server (LAS) CEOS/WGISS＃21、Budapest, May 8 -12, 2006 CEOP O P e N D A P WTF-CEOP by JAXA Prototype CSDIC Archive Satellite (Japan) MPI Archive MOLTS, Model Output (Germany) N A S A B r i d g e Data Archives NASA WCS Server (satellite data) Prototype System

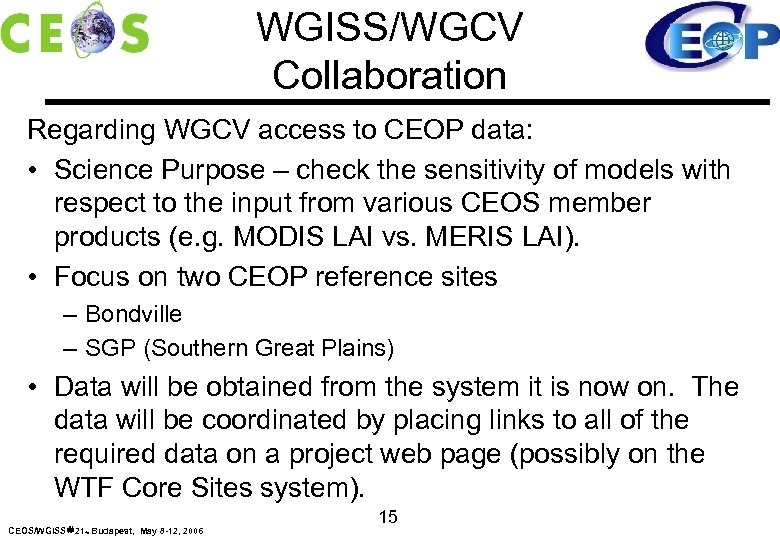

WGISS/WGCV Collaboration Regarding WGCV access to CEOP data: • Science Purpose – check the sensitivity of models with respect to the input from various CEOS member products (e. g. MODIS LAI vs. MERIS LAI). • Focus on two CEOP reference sites – Bondville – SGP (Southern Great Plains) • Data will be obtained from the system it is now on. The data will be coordinated by placing links to all of the required data on a project web page (possibly on the WTF Core Sites system). CEOS/WGISS＃21、Budapest, May 8 -12, 2006 15

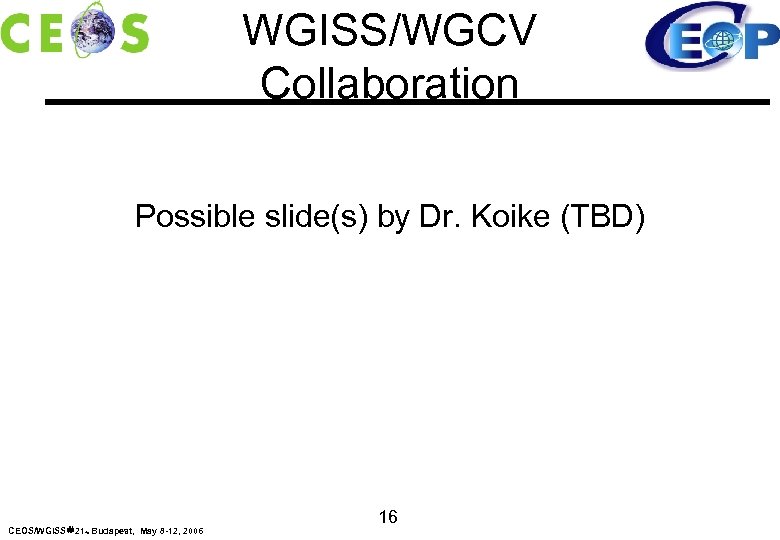

WGISS/WGCV Collaboration Possible slide(s) by Dr. Koike (TBD) CEOS/WGISS＃21、Budapest, May 8 -12, 2006 16

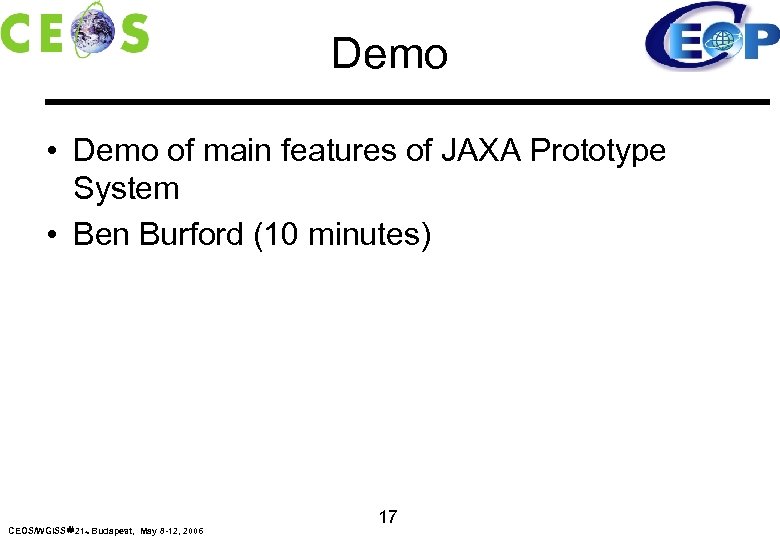

Demo • Demo of main features of JAXA Prototype System • Ben Burford (10 minutes) CEOS/WGISS＃21、Budapest, May 8 -12, 2006 17
