WSC Hardware System and Configuration Management Overview Part 3 of 5 1 WSC Hardware System and Configuration Management Overview Part 3 of 5 1

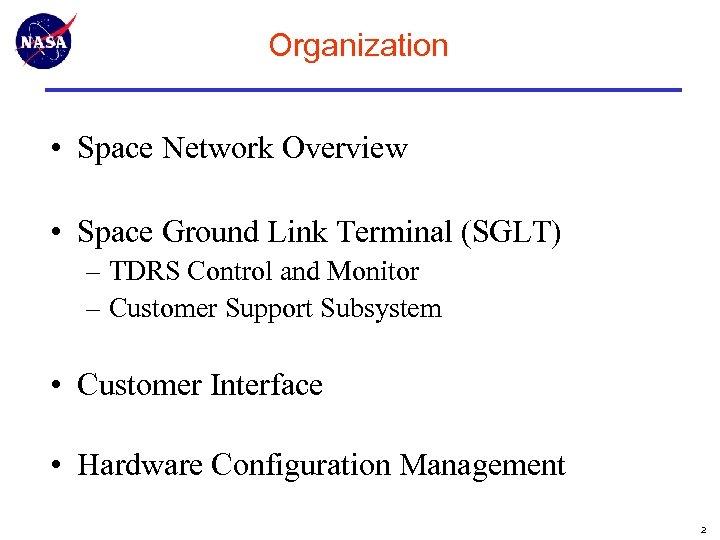

Organization • Space Network Overview • Space Ground Link Terminal (SGLT) – TDRS Control Organization • Space Network Overview • Space Ground Link Terminal (SGLT) – TDRS Control and Monitor – Customer Support Subsystem • Customer Interface • Hardware Configuration Management 2

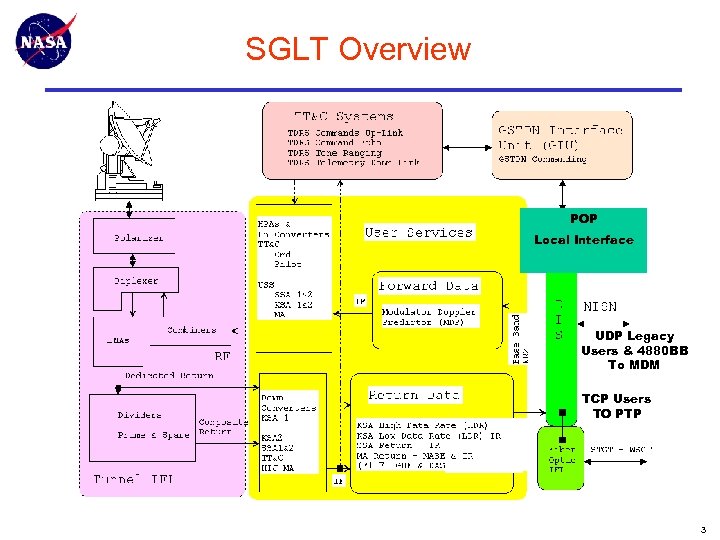

SGLT Overview POP Local Interface UDP Legacy Users & 4880 BB To MDM TCP SGLT Overview POP Local Interface UDP Legacy Users & 4880 BB To MDM TCP Users TO PTP 3

SGLT Architecture CRT & KB EXEC ADPE 4 SGLT Architecture CRT & KB EXEC ADPE 4

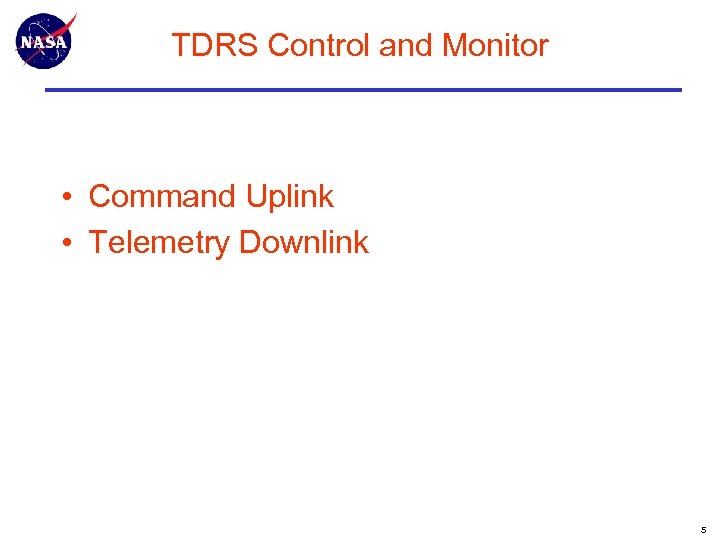

TDRS Control and Monitor • Command Uplink • Telemetry Downlink 5 TDRS Control and Monitor • Command Uplink • Telemetry Downlink 5

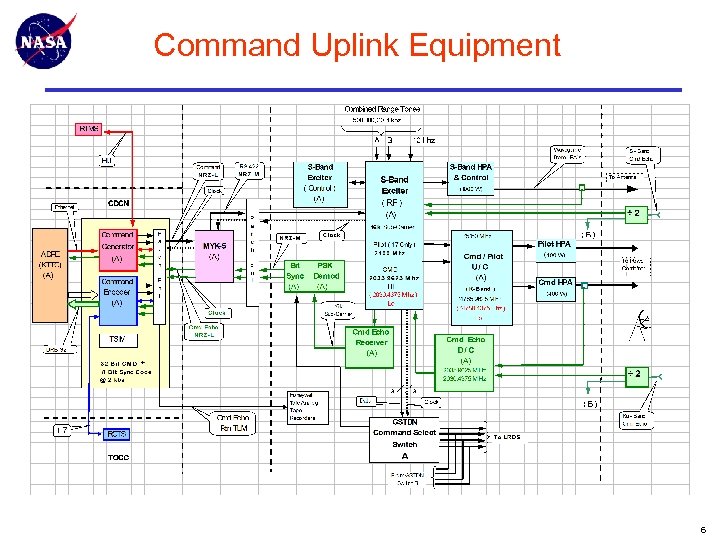

Command Uplink Equipment 6 Command Uplink Equipment 6

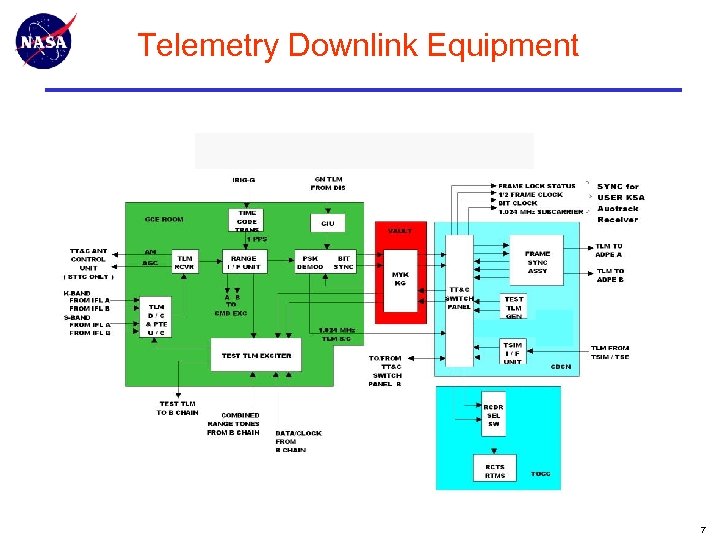

Telemetry Downlink Equipment Vault 7 Telemetry Downlink Equipment Vault 7

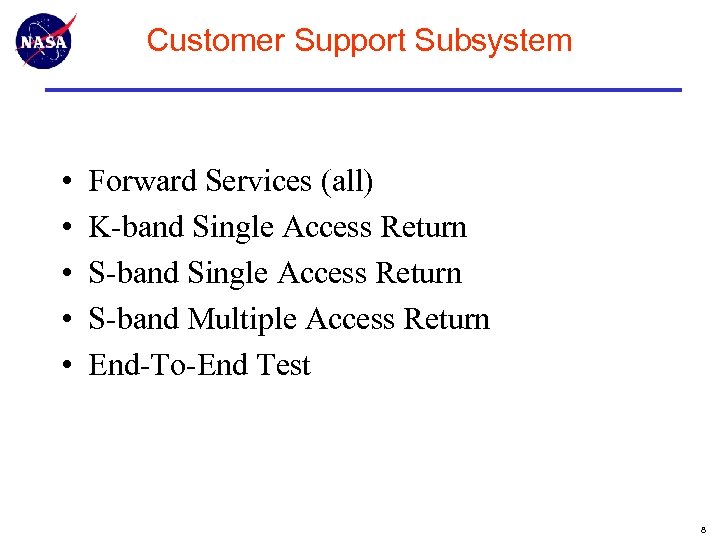

Customer Support Subsystem • • • Forward Services (all) K-band Single Access Return S-band Customer Support Subsystem • • • Forward Services (all) K-band Single Access Return S-band Multiple Access Return End-To-End Test 8

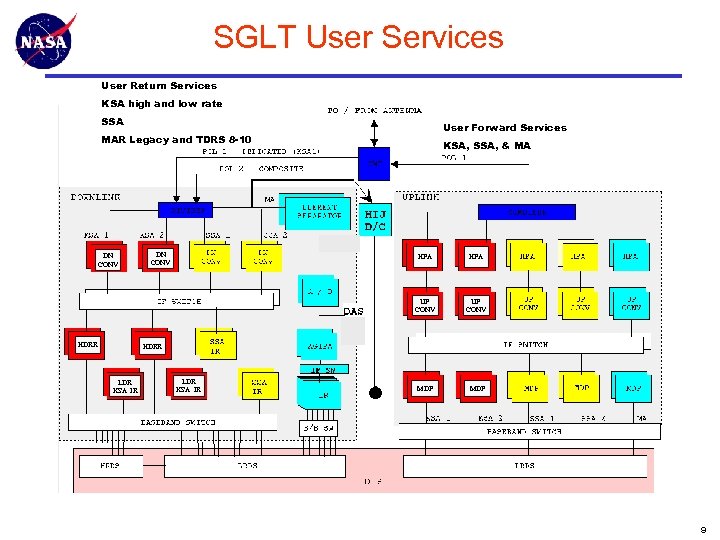

SGLT User Services User Return Services KSA high and low rate SSA User Forward SGLT User Services User Return Services KSA high and low rate SSA User Forward Services MAR Legacy and TDRS 8 -10 DN CONV KSA, SSA, & MA HPA UP CONV HDRR HPA UP CONV MDP HDRR LDR KSA IR 9

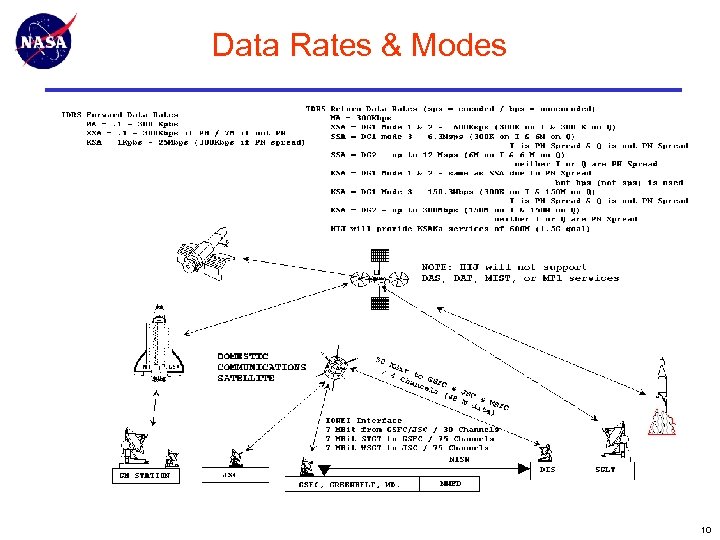

Data Rates & Modes 10 Data Rates & Modes 10

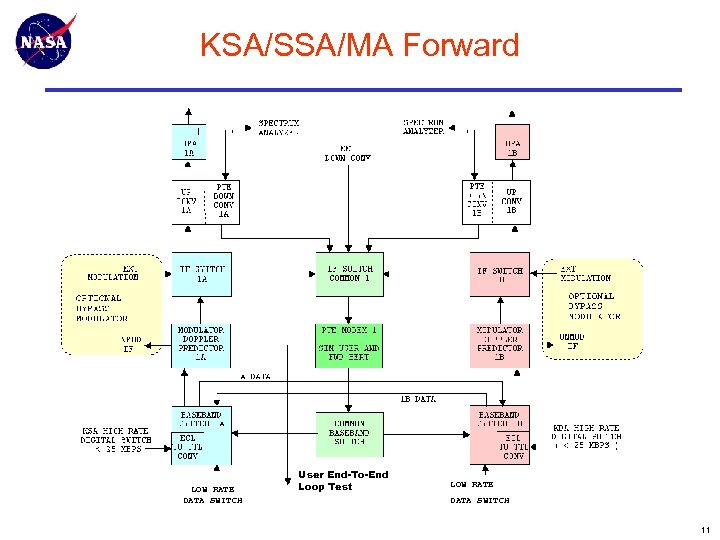

KSA/SSA/MA Forward LOW RATE DATA SWITCH User End-To-End Loop Test LOW RATE DATA SWITCH KSA/SSA/MA Forward LOW RATE DATA SWITCH User End-To-End Loop Test LOW RATE DATA SWITCH 11

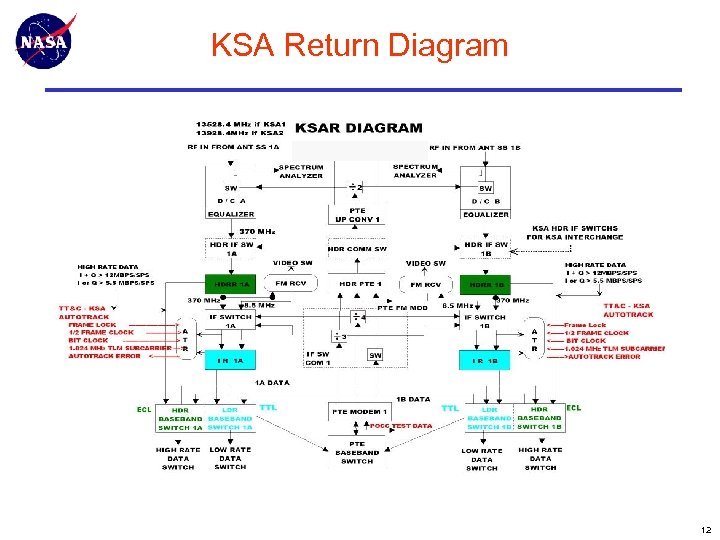

KSA Return Diagram 12 KSA Return Diagram 12

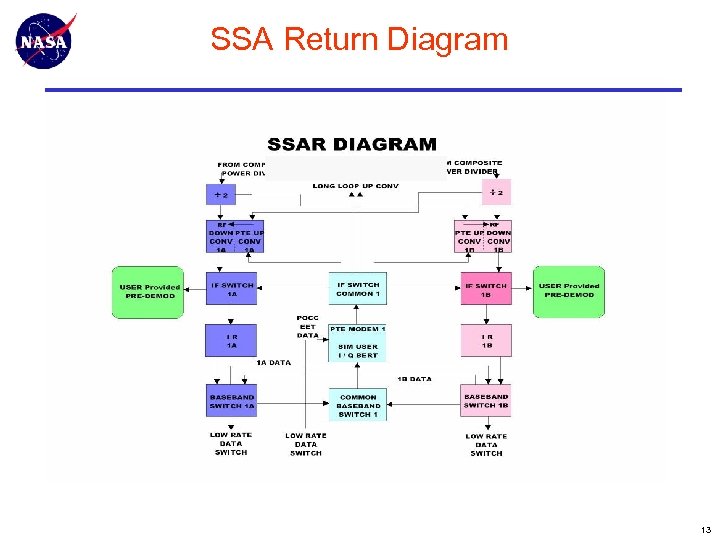

SSA Return Diagram 13 SSA Return Diagram 13

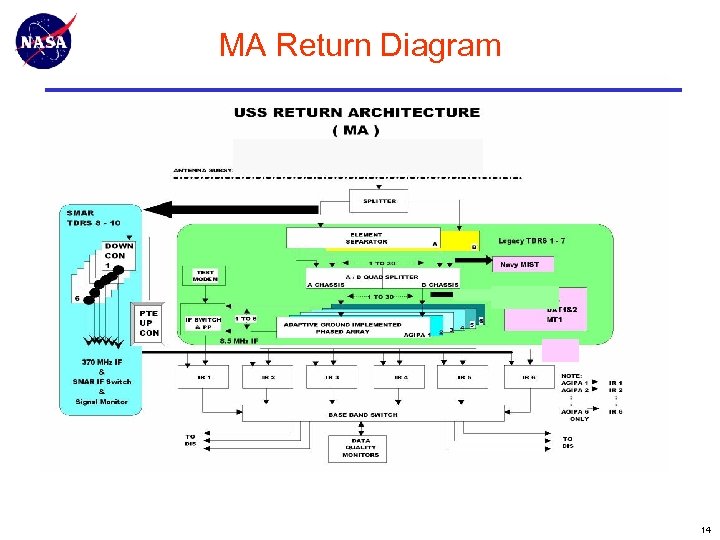

MA Return Diagram 14 MA Return Diagram 14

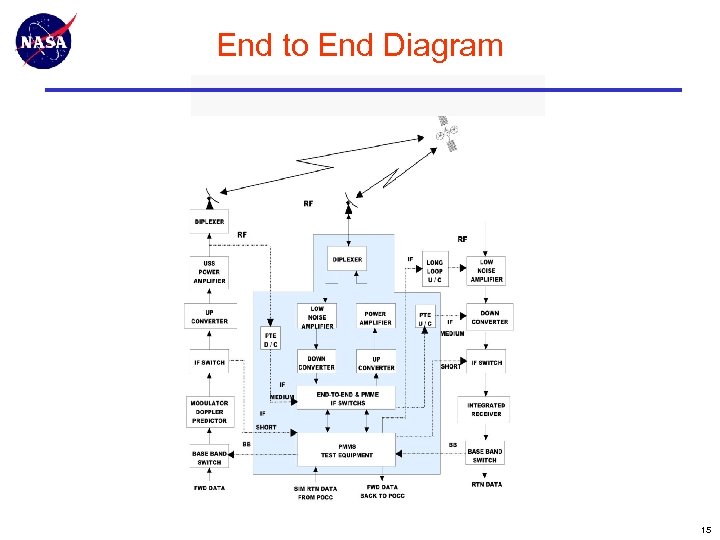

End to End Diagram 15 End to End Diagram 15

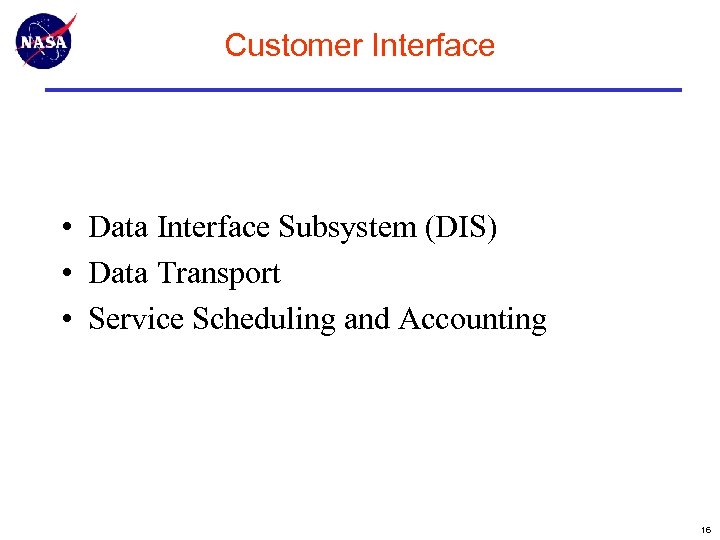

Customer Interface • Data Interface Subsystem (DIS) • Data Transport • Service Scheduling and Customer Interface • Data Interface Subsystem (DIS) • Data Transport • Service Scheduling and Accounting 16

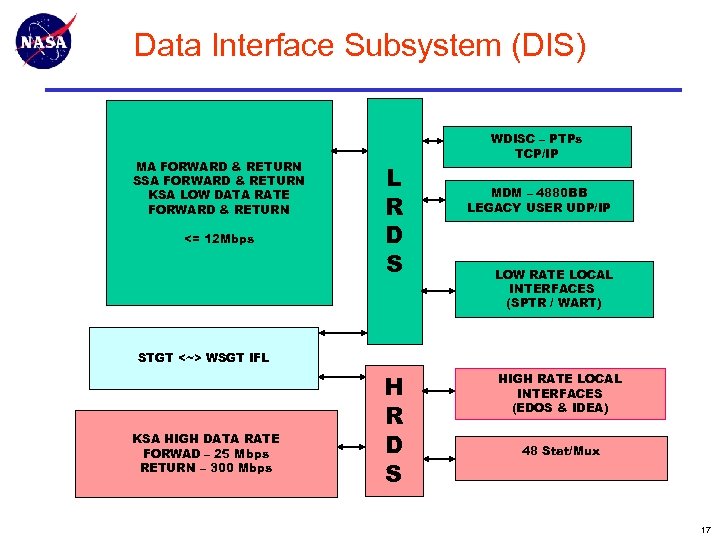

Data Interface Subsystem (DIS) MA FORWARD & RETURN SSA FORWARD & RETURN KSA LOW Data Interface Subsystem (DIS) MA FORWARD & RETURN SSA FORWARD & RETURN KSA LOW DATA RATE FORWARD & RETURN <= 12 Mbps L R D S WDISC – PTPs TCP/IP MDM – 4880 BB LEGACY USER UDP/IP LOW RATE LOCAL INTERFACES (SPTR / WART) STGT <~> WSGT IFL KSA HIGH DATA RATE FORWAD – 25 Mbps RETURN – 300 Mbps H R D S HIGH RATE LOCAL INTERFACES (EDOS & IDEA) 48 Stat/Mux 17

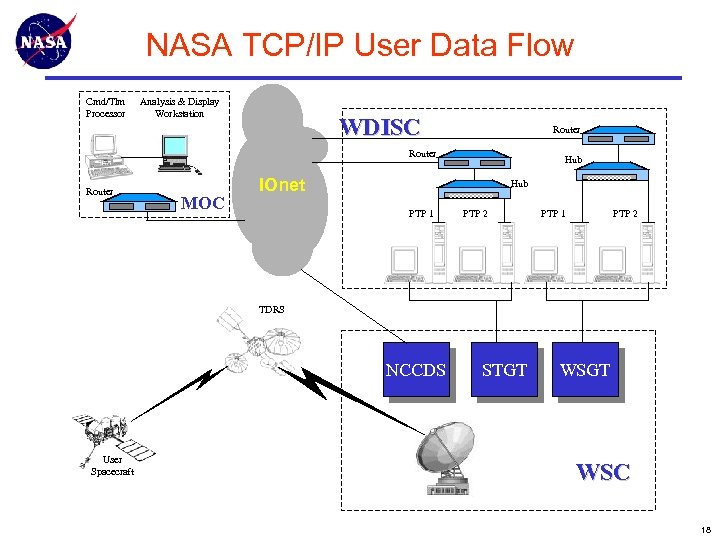

NASA TCP/IP User Data Flow Cmd/Tlm Processor Analysis & Display Workstation WDISC Router MOC NASA TCP/IP User Data Flow Cmd/Tlm Processor Analysis & Display Workstation WDISC Router MOC IOnet Hub ooooooooooo PTP 1 PTP 2 TDRS NCCDS User Spacecraft STGT WSC 18

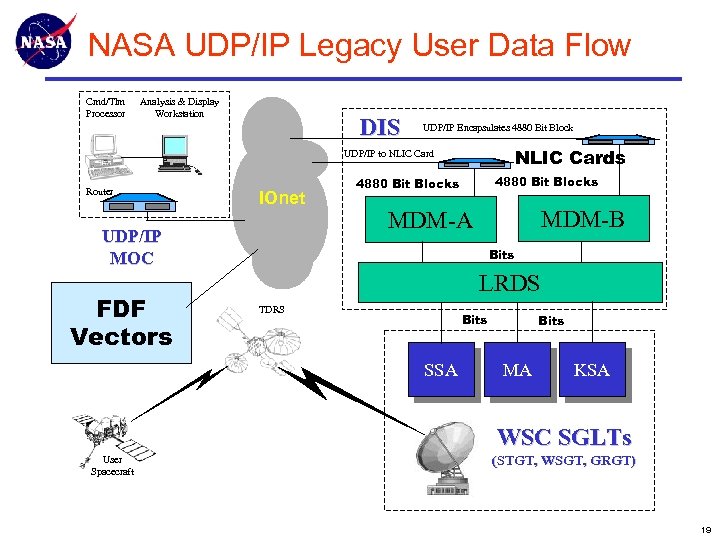

NASA UDP/IP Legacy User Data Flow Cmd/Tlm Processor Analysis & Display Workstation DIS UDP/IP NASA UDP/IP Legacy User Data Flow Cmd/Tlm Processor Analysis & Display Workstation DIS UDP/IP Encapsulates 4880 Bit Block NLIC Cards UDP/IP to NLIC Card Router IOnet UDP/IP MOC FDF Vectors 4880 Bit Blocks MDM-B MDM-A Bits LRDS TDRS Bits SSA Bits MA KSA WSC SGLTs User Spacecraft (STGT, WSGT, GRGT) 19

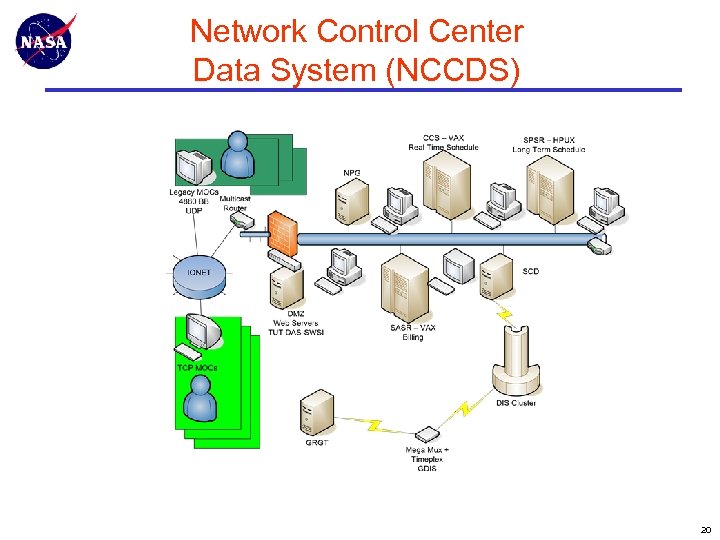

Network Control Center Data System (NCCDS) 20 Network Control Center Data System (NCCDS) 20

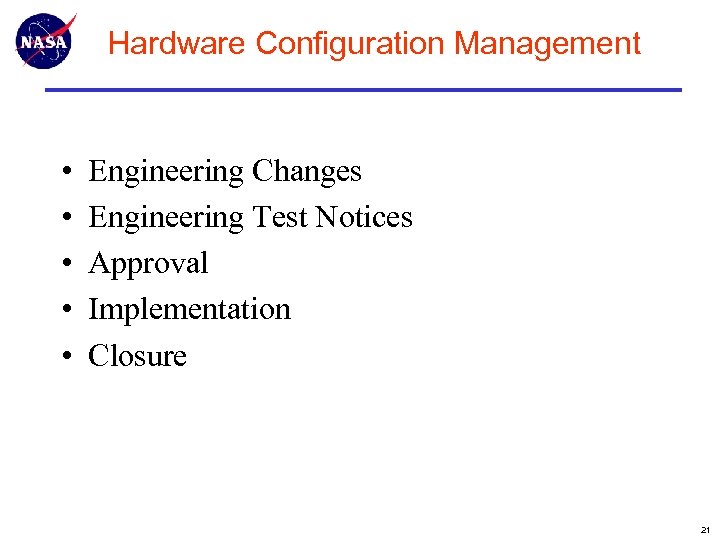

Hardware Configuration Management • • • Engineering Changes Engineering Test Notices Approval Implementation Closure Hardware Configuration Management • • • Engineering Changes Engineering Test Notices Approval Implementation Closure 21

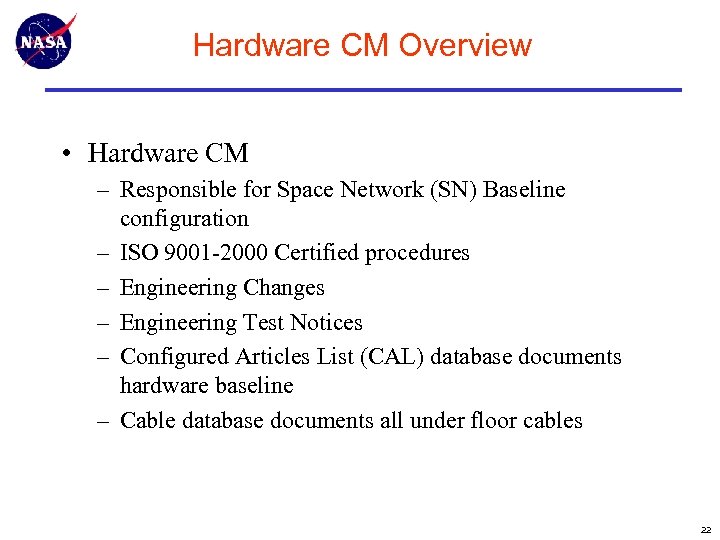

Hardware CM Overview • Hardware CM – Responsible for Space Network (SN) Baseline configuration Hardware CM Overview • Hardware CM – Responsible for Space Network (SN) Baseline configuration – ISO 9001 -2000 Certified procedures – Engineering Changes – Engineering Test Notices – Configured Articles List (CAL) database documents hardware baseline – Cable database documents all under floor cables 22

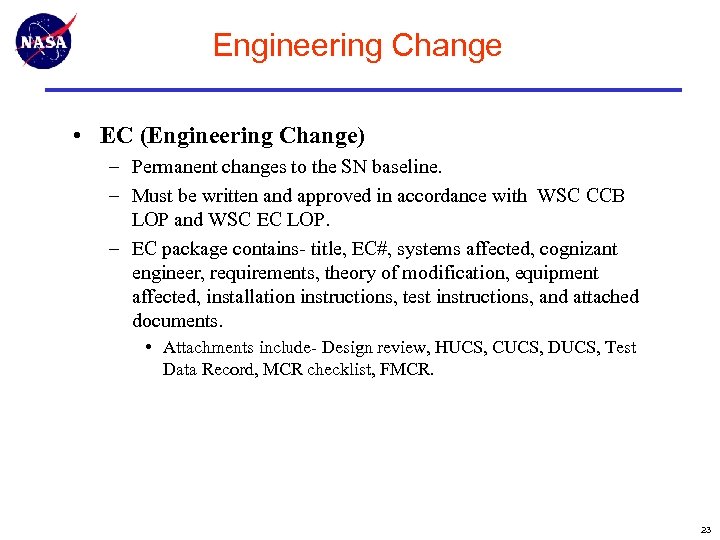

Engineering Change • EC (Engineering Change) – Permanent changes to the SN baseline. – Engineering Change • EC (Engineering Change) – Permanent changes to the SN baseline. – Must be written and approved in accordance with WSC CCB LOP and WSC EC LOP. – EC package contains- title, EC#, systems affected, cognizant engineer, requirements, theory of modification, equipment affected, installation instructions, test instructions, and attached documents. • Attachments include- Design review, HUCS, CUCS, DUCS, Test Data Record, MCR checklist, FMCR. 23

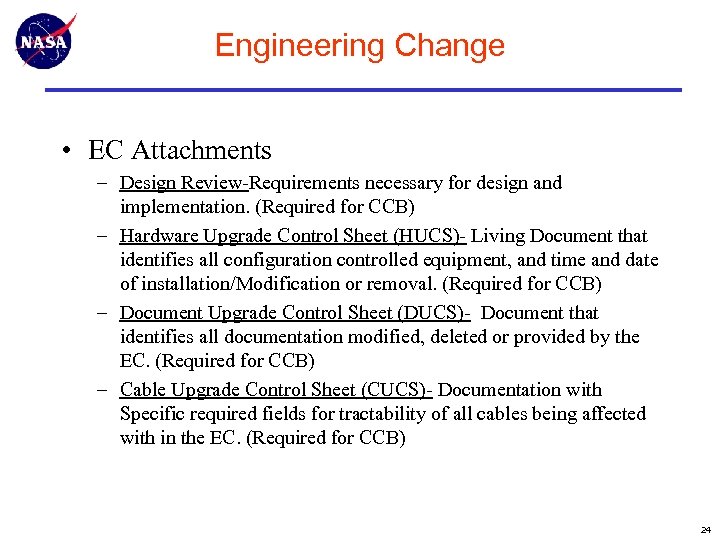

Engineering Change • EC Attachments – Design Review-Requirements necessary for design and implementation. (Required Engineering Change • EC Attachments – Design Review-Requirements necessary for design and implementation. (Required for CCB) – Hardware Upgrade Control Sheet (HUCS)- Living Document that identifies all configuration controlled equipment, and time and date of installation/Modification or removal. (Required for CCB) – Document Upgrade Control Sheet (DUCS)- Document that identifies all documentation modified, deleted or provided by the EC. (Required for CCB) – Cable Upgrade Control Sheet (CUCS)- Documentation with Specific required fields for tractability of all cables being affected with in the EC. (Required for CCB) 24

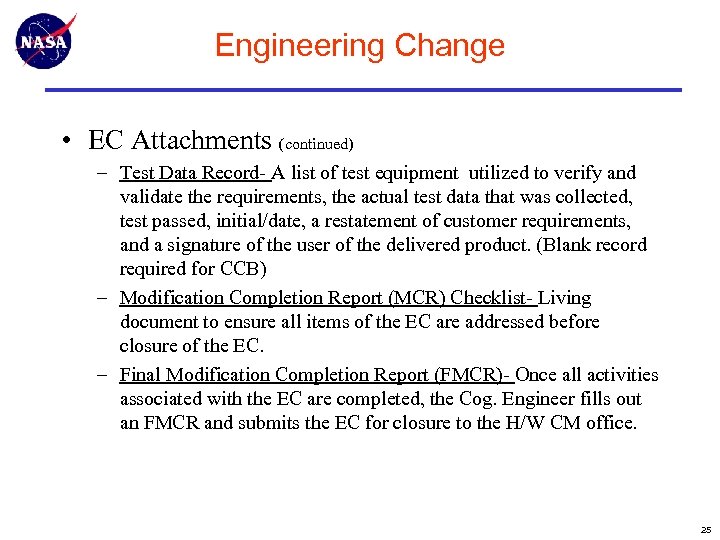

Engineering Change • EC Attachments (continued) – Test Data Record- A list of test Engineering Change • EC Attachments (continued) – Test Data Record- A list of test equipment utilized to verify and validate the requirements, the actual test data that was collected, test passed, initial/date, a restatement of customer requirements, and a signature of the user of the delivered product. (Blank record required for CCB) – Modification Completion Report (MCR) Checklist- Living document to ensure all items of the EC are addressed before closure of the EC. – Final Modification Completion Report (FMCR)- Once all activities associated with the EC are completed, the Cog. Engineer fills out an FMCR and submits the EC for closure to the H/W CM office. 25

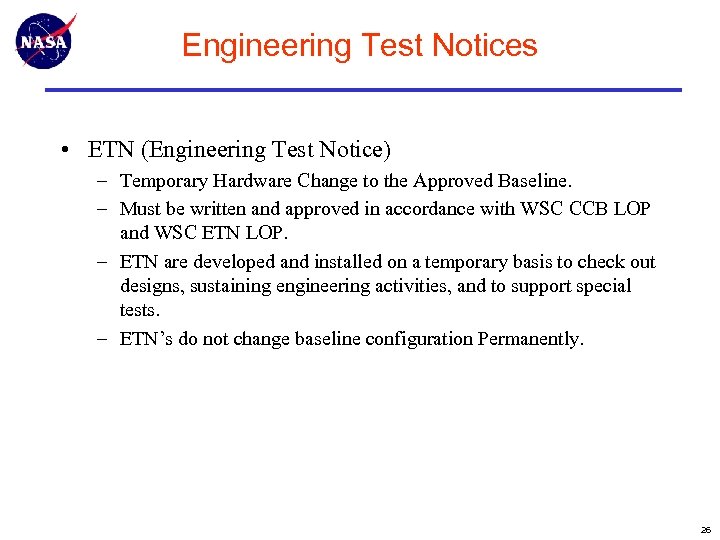

Engineering Test Notices • ETN (Engineering Test Notice) – Temporary Hardware Change to the Engineering Test Notices • ETN (Engineering Test Notice) – Temporary Hardware Change to the Approved Baseline. – Must be written and approved in accordance with WSC CCB LOP and WSC ETN LOP. – ETN are developed and installed on a temporary basis to check out designs, sustaining engineering activities, and to support special tests. – ETN’s do not change baseline configuration Permanently. 26

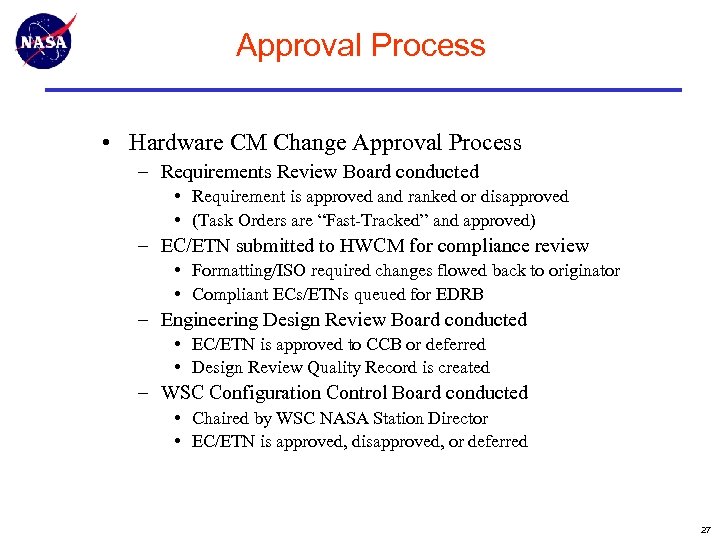

Approval Process • Hardware CM Change Approval Process – Requirements Review Board conducted • Approval Process • Hardware CM Change Approval Process – Requirements Review Board conducted • Requirement is approved and ranked or disapproved • (Task Orders are “Fast-Tracked” and approved) – EC/ETN submitted to HWCM for compliance review • Formatting/ISO required changes flowed back to originator • Compliant ECs/ETNs queued for EDRB – Engineering Design Review Board conducted • EC/ETN is approved to CCB or deferred • Design Review Quality Record is created – WSC Configuration Control Board conducted • Chaired by WSC NASA Station Director • EC/ETN is approved, disapproved, or deferred 27

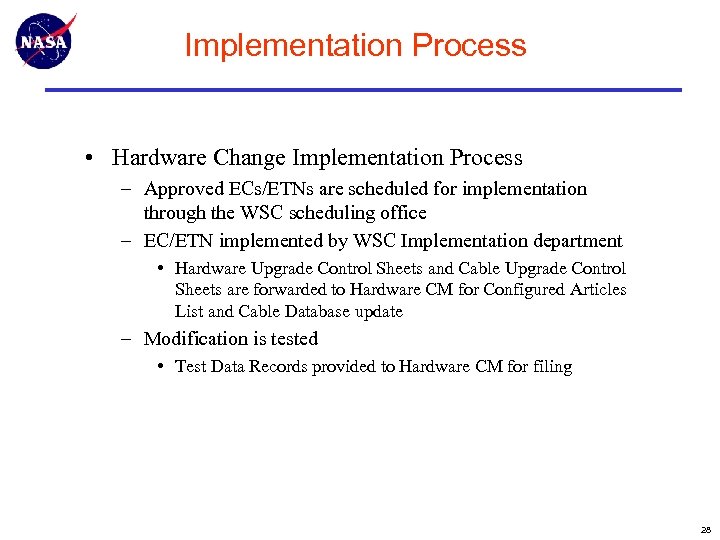

Implementation Process • Hardware Change Implementation Process – Approved ECs/ETNs are scheduled for implementation Implementation Process • Hardware Change Implementation Process – Approved ECs/ETNs are scheduled for implementation through the WSC scheduling office – EC/ETN implemented by WSC Implementation department • Hardware Upgrade Control Sheets and Cable Upgrade Control Sheets are forwarded to Hardware CM for Configured Articles List and Cable Database update – Modification is tested • Test Data Records provided to Hardware CM for filing 28

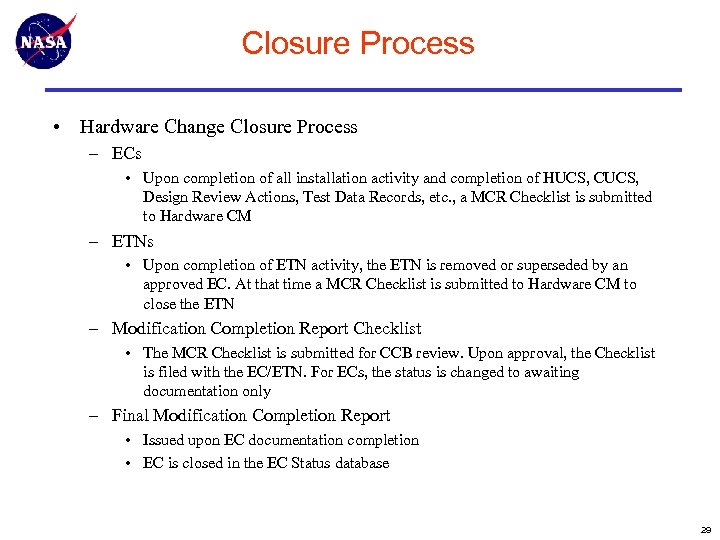

Closure Process • Hardware Change Closure Process – ECs • Upon completion of all Closure Process • Hardware Change Closure Process – ECs • Upon completion of all installation activity and completion of HUCS, CUCS, Design Review Actions, Test Data Records, etc. , a MCR Checklist is submitted to Hardware CM – ETNs • Upon completion of ETN activity, the ETN is removed or superseded by an approved EC. At that time a MCR Checklist is submitted to Hardware CM to close the ETN – Modification Completion Report Checklist • The MCR Checklist is submitted for CCB review. Upon approval, the Checklist is filed with the EC/ETN. For ECs, the status is changed to awaiting documentation only – Final Modification Completion Report • Issued upon EC documentation completion • EC is closed in the EC Status database 29
