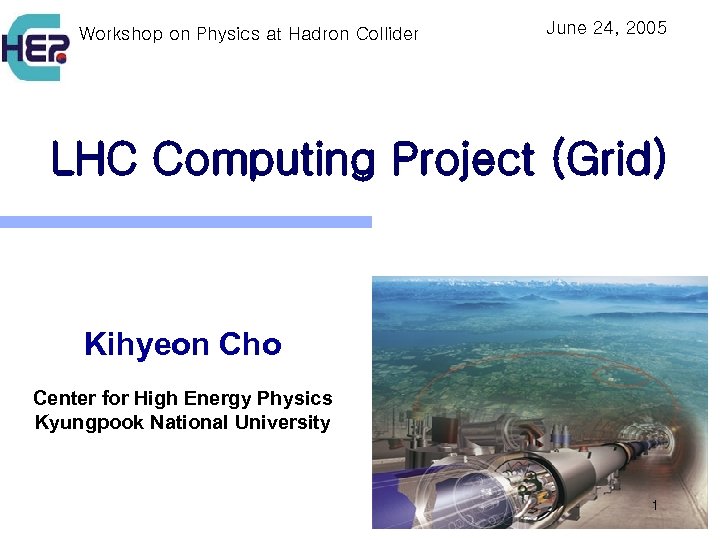

Workshop on Physics at Hadron Collider June 24, 2005 LHC Computing Project (Grid) Kihyeon Workshop on Physics at Hadron Collider June 24, 2005 LHC Computing Project (Grid) Kihyeon Cho Center for High Energy Physics Kyungpook National University 1

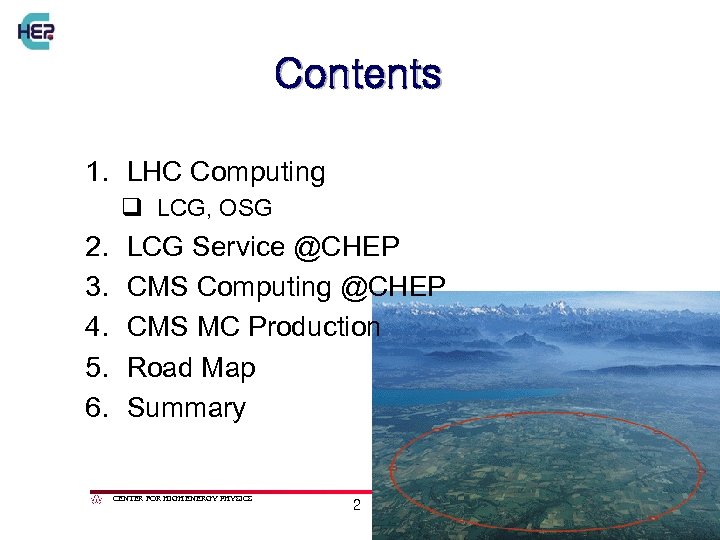

Contents 1. LHC Computing q LCG, OSG 2. 3. 4. 5. 6. LCG Service Contents 1. LHC Computing q LCG, OSG 2. 3. 4. 5. 6. LCG Service @CHEP CMS Computing @CHEP CMS MC Production Road Map Summary CENTER FOR HIGH ENERGY PHYSICS 2 KIHYEON CHO

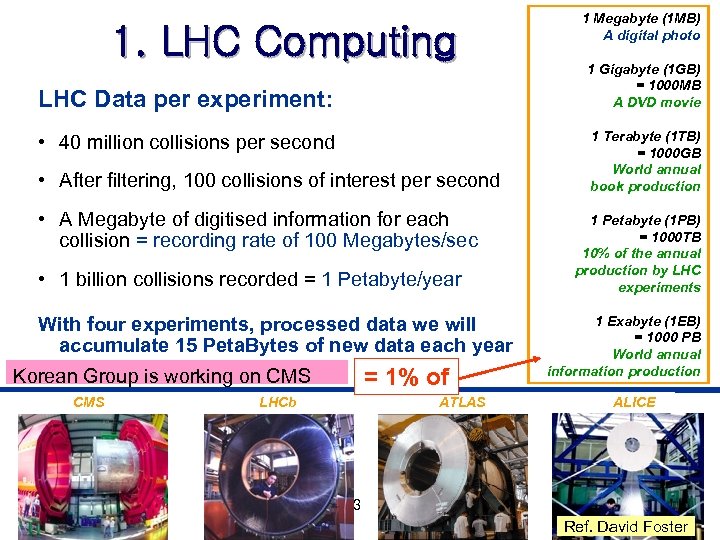

1. LHC Computing LHC Data per experiment: • 40 million collisions per second • 1. LHC Computing LHC Data per experiment: • 40 million collisions per second • After filtering, 100 collisions of interest per second • A Megabyte of digitised information for each collision = recording rate of 100 Megabytes/sec • 1 billion collisions recorded = 1 Petabyte/year With four experiments, processed data we will accumulate 15 Peta. Bytes of new data each year = 1% of Korean Group is working on CMS LHCb ATLAS 1 Megabyte (1 MB) A digital photo 1 Gigabyte (1 GB) = 1000 MB A DVD movie 1 Terabyte (1 TB) = 1000 GB World annual book production 1 Petabyte (1 PB) = 1000 TB 10% of the annual production by LHC experiments 1 Exabyte (1 EB) = 1000 PB World annual information production ALICE 3 Ref. David Foster

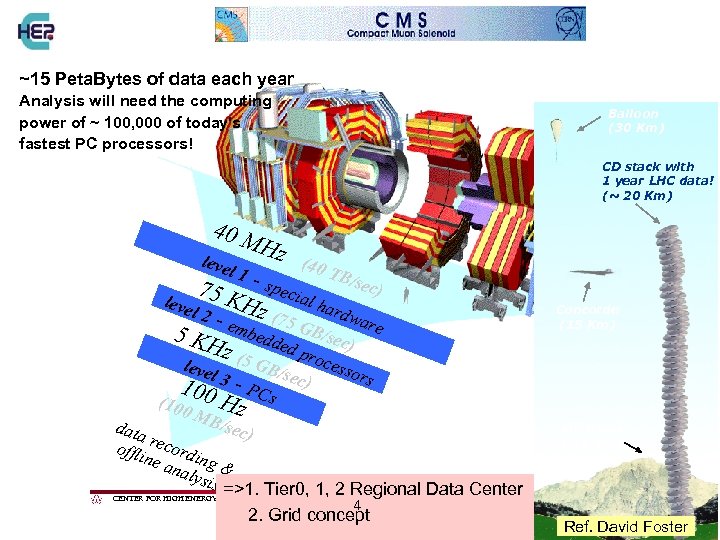

~15 Peta. Bytes of data each year Analysis will need the computing power of ~15 Peta. Bytes of data each year Analysis will need the computing power of ~ 100, 000 of today's fastest PC processors! Balloon (30 Km) CD stack with 1 year LHC data! (~ 20 Km) 40 M leve l 1 Hz (40 TB/ - spe sec) 75 K cial leve hard l 2 - Hz (7 war 5 G emb 5 KH edde B/sec) e d pr z( leve l Concorde (15 Km) o B/se cessor s c) PCs 5 G 100 3 (100 Hz M B/se data c) reco offli ne a rding & naly sis =>1. Tier 0, 1, 2 Regional Data Center CENTER FOR HIGH ENERGY PHYSICS 4 2. Grid concept Mt. Blanc (4. 8 Km) KIHYEON CHO Ref. David Foster

LHC Regional Data Center (2007+) Ø 5000 physicists, 60 countries Ø 10 s of LHC Regional Data Center (2007+) Ø 5000 physicists, 60 countries Ø 10 s of Petabytes/yr by 2008 Ø 1000 Petabytes in < 10 yrs? CMS Experiment Online System 200 - 1500 MB/s Tier 0 Tier 1 Korea CERN Computer Center Russia UK 10 -40 Gb/s USA >10 Gb/s U Florida Tier 2 Caltech UCSD 2. 5 -10 Gb/s Tier 3 Tier 4 FIU Physics caches CENTER FOR HIGH ENERGY PHYSICS PCs 5 Iowa Maryland KIHYEON CHO Ref. Paul Avery

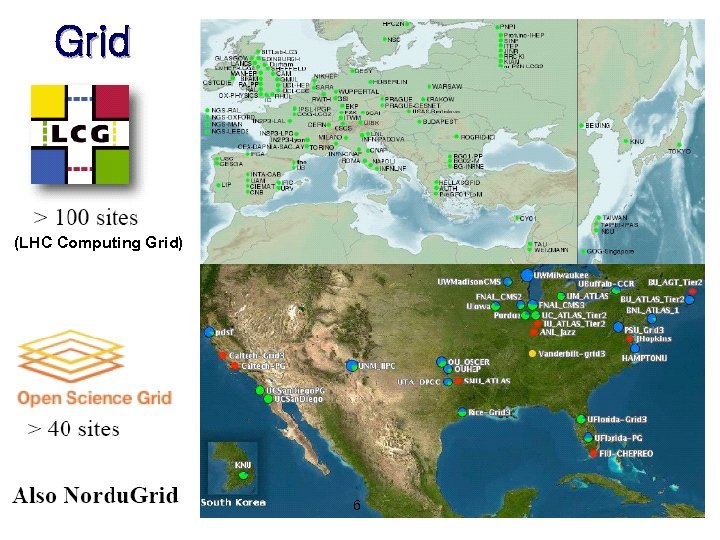

Grid (LHC Computing Grid) CENTER FOR HIGH ENERGY PHYSICS 6 KIHYEON CHO Grid (LHC Computing Grid) CENTER FOR HIGH ENERGY PHYSICS 6 KIHYEON CHO

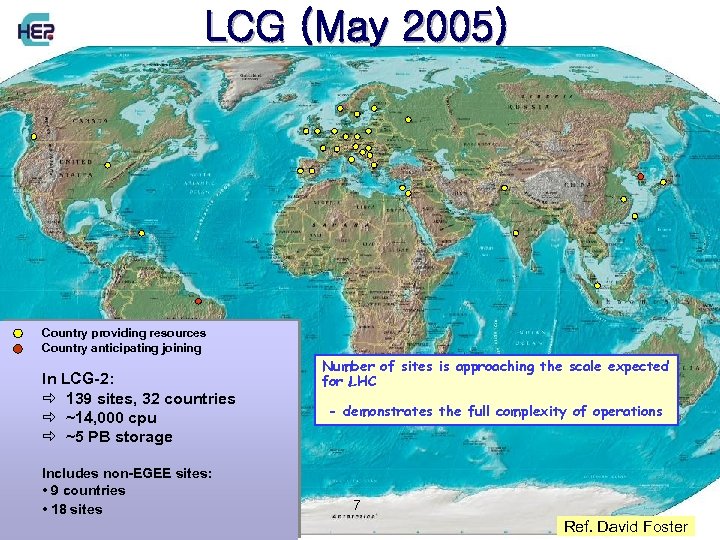

LCG (May 2005) Country providing resources Country anticipating joining In LCG-2: ð 139 sites, LCG (May 2005) Country providing resources Country anticipating joining In LCG-2: ð 139 sites, 32 countries ð ~14, 000 cpu ð ~5 PB storage Includes non-EGEE sites: • 9 countries FOR HIGH ENERGY PHYSICS CENTER • 18 sites Number of sites is approaching the scale expected for LHC - demonstrates the full complexity of operations 7 KIHYEON CHO Ref. David Foster

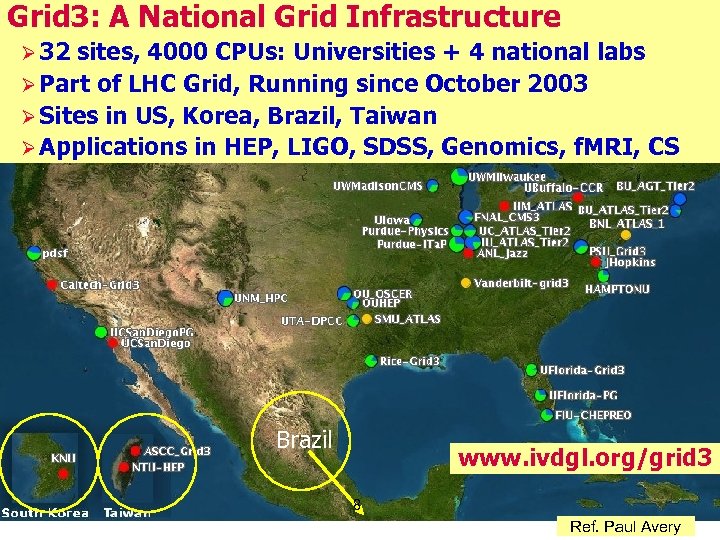

Grid 3: A National Grid Infrastructure Ø 32 sites, 4000 CPUs: Universities + 4 Grid 3: A National Grid Infrastructure Ø 32 sites, 4000 CPUs: Universities + 4 national labs Ø Part of LHC Grid, Running since October 2003 Ø Sites in US, Korea, Brazil, Taiwan Ø Applications in HEP, LIGO, SDSS, Genomics, f. MRI, CS Brazil CENTER FOR HIGH ENERGY PHYSICS www. ivdgl. org/grid 3 8 KIHYEON CHO Ref. Paul Avery

LCG Goals l The goal of the LCG project is to prototype and deploy LCG Goals l The goal of the LCG project is to prototype and deploy the computing environment for the LHC experiments l Two phases: q Phase 1: 2002 – 2005 § Build a service prototype, based on existing grid middleware § Gain experience in running a production grid service § Produce the TDR for the final system q Phase 2: 2006 – 2008 § Build and commission the initial LHC computing environment F LCG is not a development project – it relies on other grid projects or grid middleware development and support CENTER FOR HIGH ENERGY PHYSICS 9 KIHYEON CHO Ref. David Foster

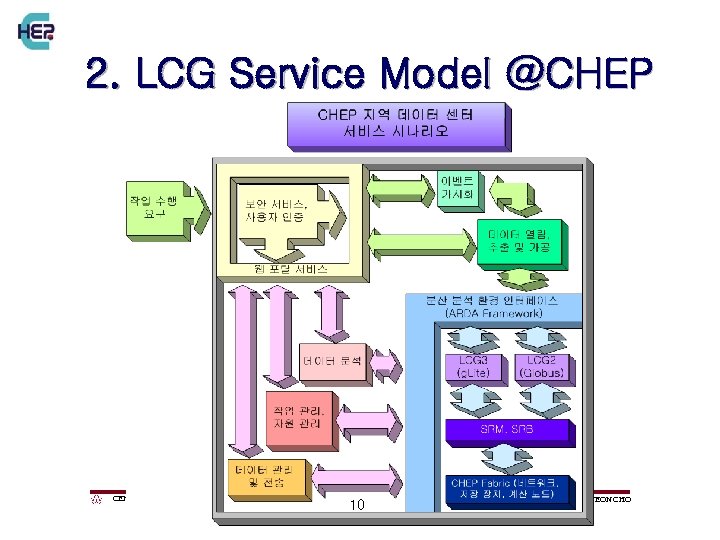

2. LCG Service Model @CHEP CENTER FOR HIGH ENERGY PHYSICS 10 KIHYEON CHO 2. LCG Service Model @CHEP CENTER FOR HIGH ENERGY PHYSICS 10 KIHYEON CHO

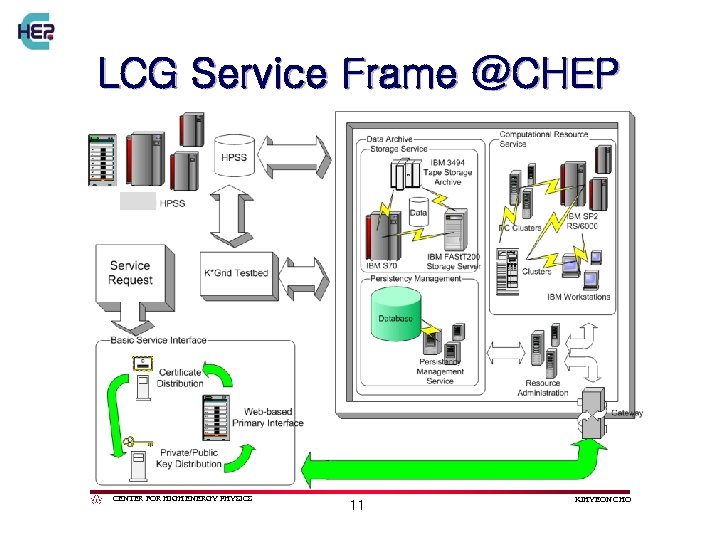

LCG Service Frame @CHEP CENTER FOR HIGH ENERGY PHYSICS 11 KIHYEON CHO LCG Service Frame @CHEP CENTER FOR HIGH ENERGY PHYSICS 11 KIHYEON CHO

LCG Service Elements l l l Web Portal Security Application Layer ARDA Grid Service LCG Service Elements l l l Web Portal Security Application Layer ARDA Grid Service based on LCG & Grid 3 Data storage using SRM & SRB CENTER FOR HIGH ENERGY PHYSICS 12 Grid 3 KIHYEON CHO CHEP Service elements

Current Status of LCG Service @CHEP l CA(Certificate Authority) q To construct KR-CHEP CA Current Status of LCG Service @CHEP l CA(Certificate Authority) q To construct KR-CHEP CA q Constructing CA , RA(Registration Authority) and web interface q Final goal is to be approved by DOE and APGrid Until then, use DOE CA for LHC Grid jobs l Constructing Base Service q Constructing Web Portal q Installing CMS software & Grid interface CENTER FOR HIGH ENERGY PHYSICS 13 KIHYEON CHO

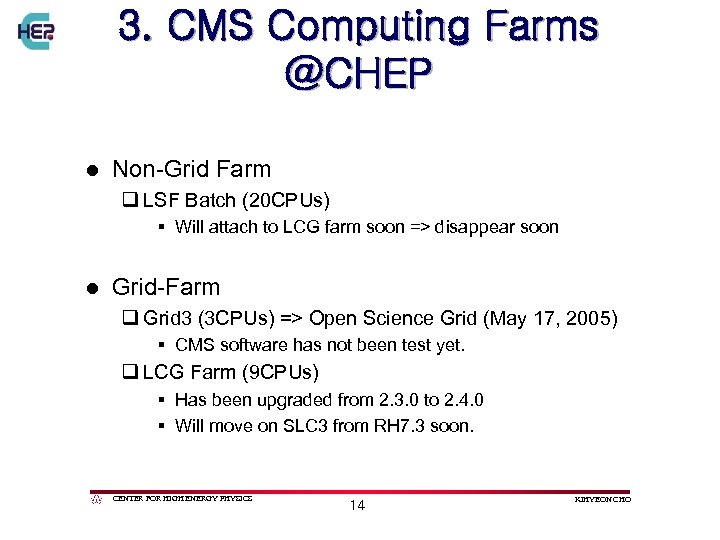

3. CMS Computing Farms @CHEP l Non-Grid Farm q LSF Batch (20 CPUs) § 3. CMS Computing Farms @CHEP l Non-Grid Farm q LSF Batch (20 CPUs) § Will attach to LCG farm soon => disappear soon l Grid-Farm q Grid 3 (3 CPUs) => Open Science Grid (May 17, 2005) § CMS software has not been test yet. q LCG Farm (9 CPUs) § Has been upgraded from 2. 3. 0 to 2. 4. 0 § Will move on SLC 3 from RH 7. 3 soon. CENTER FOR HIGH ENERGY PHYSICS 14 KIHYEON CHO

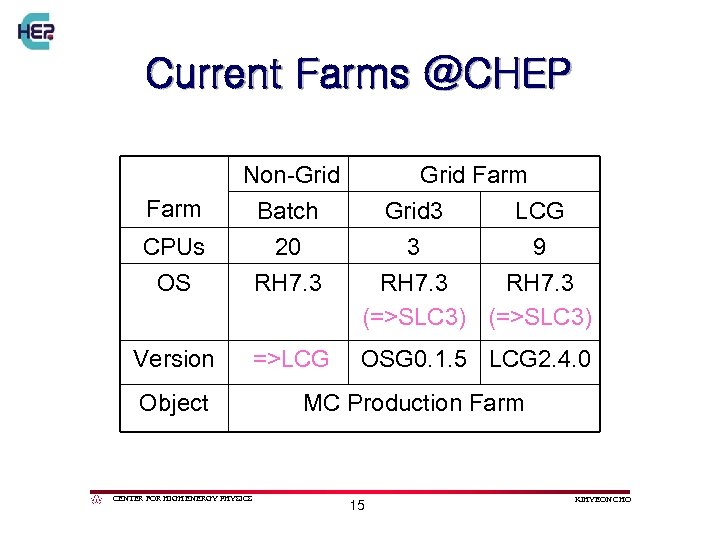

Current Farms @CHEP CPUs OS Non-Grid Batch 20 RH 7. 3 Grid Farm Grid Current Farms @CHEP CPUs OS Non-Grid Batch 20 RH 7. 3 Grid Farm Grid 3 LCG 3 9 RH 7. 3 (=>SLC 3) Version =>LCG OSG 0. 1. 5 LCG 2. 4. 0 Farm Object CENTER FOR HIGH ENERGY PHYSICS MC Production Farm 15 KIHYEON CHO

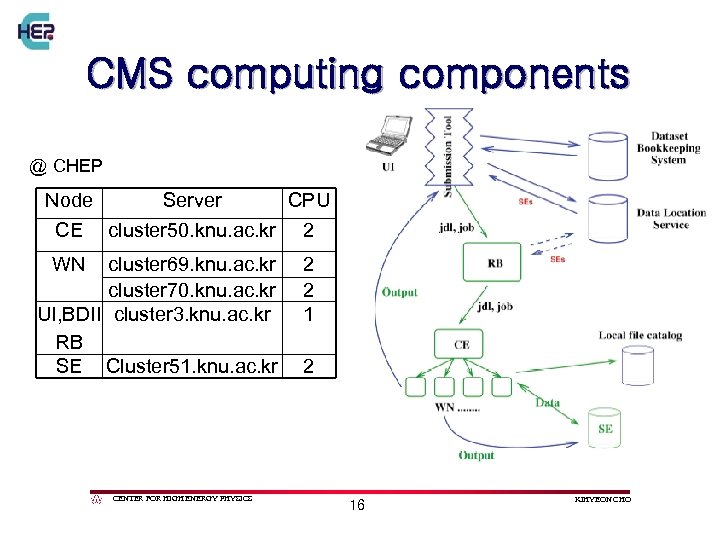

CMS computing components @ CHEP Node Server CPU CE cluster 50. knu. ac. kr CMS computing components @ CHEP Node Server CPU CE cluster 50. knu. ac. kr 2 WN cluster 69. knu. ac. kr cluster 70. knu. ac. kr UI, BDII cluster 3. knu. ac. kr RB SE Cluster 51. knu. ac. kr CENTER FOR HIGH ENERGY PHYSICS 2 2 16 KIHYEON CHO

LCG Farm @CHEP VO: atlas alice lhcb cms dteam sixt l CO_SW_DIR: /opt/exp_soft l LCG Farm @CHEP VO: atlas alice lhcb cms dteam sixt l CO_SW_DIR: /opt/exp_soft l System Administrator: lcg_knu@knu. ac. kr (Daehee Han) l LCG Map in Asia CENTER FOR HIGH ENERGY PHYSICS 17 KIHYEON CHO

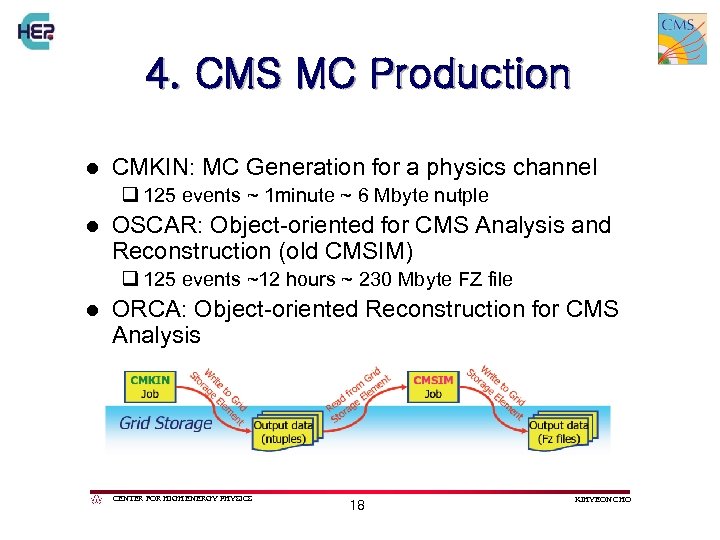

4. CMS MC Production l CMKIN: MC Generation for a physics channel q 125 4. CMS MC Production l CMKIN: MC Generation for a physics channel q 125 events ~ 1 minute ~ 6 Mbyte nutple l OSCAR: Object-oriented for CMS Analysis and Reconstruction (old CMSIM) q 125 events ~12 hours ~ 230 Mbyte FZ file l ORCA: Object-oriented Reconstruction for CMS Analysis CENTER FOR HIGH ENERGY PHYSICS 18 KIHYEON CHO

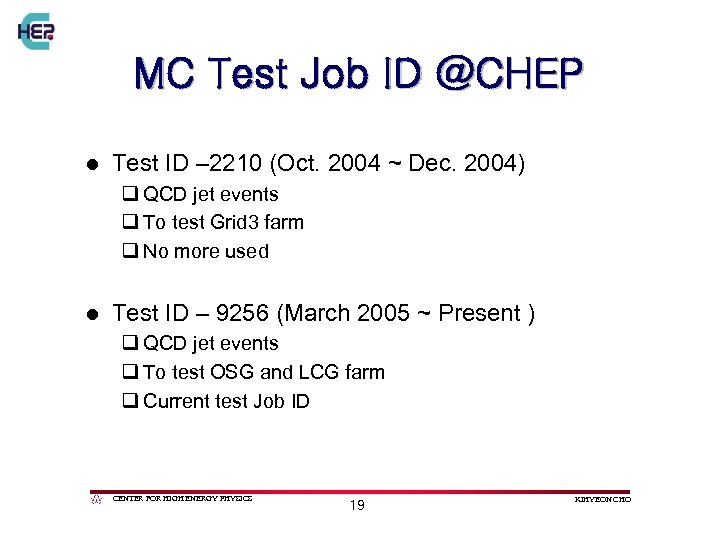

MC Test Job ID @CHEP l Test ID – 2210 (Oct. 2004 ~ Dec. MC Test Job ID @CHEP l Test ID – 2210 (Oct. 2004 ~ Dec. 2004) q QCD jet events q To test Grid 3 farm q No more used l Test ID – 9256 (March 2005 ~ Present ) q QCD jet events q To test OSG and LCG farm q Current test Job ID CENTER FOR HIGH ENERGY PHYSICS 19 KIHYEON CHO

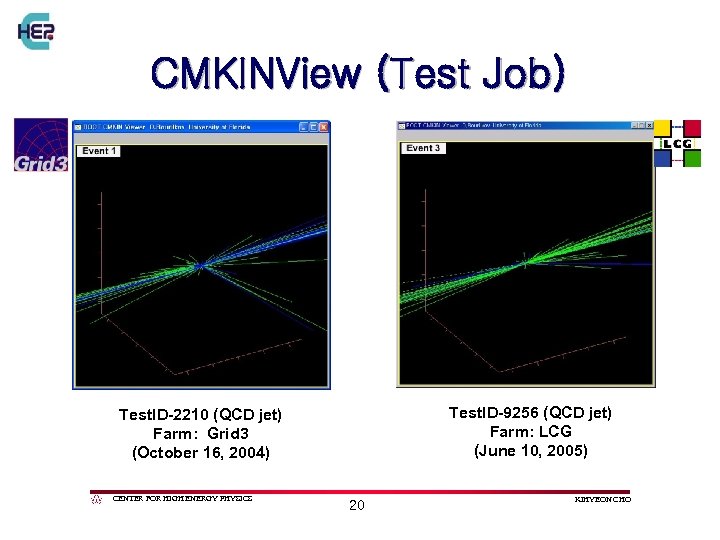

CMKINView (Test Job) Test. ID-9256 (QCD jet) Farm: LCG (June 10, 2005) Test. ID-2210 CMKINView (Test Job) Test. ID-9256 (QCD jet) Farm: LCG (June 10, 2005) Test. ID-2210 (QCD jet) Farm: Grid 3 (October 16, 2004) CENTER FOR HIGH ENERGY PHYSICS 20 KIHYEON CHO

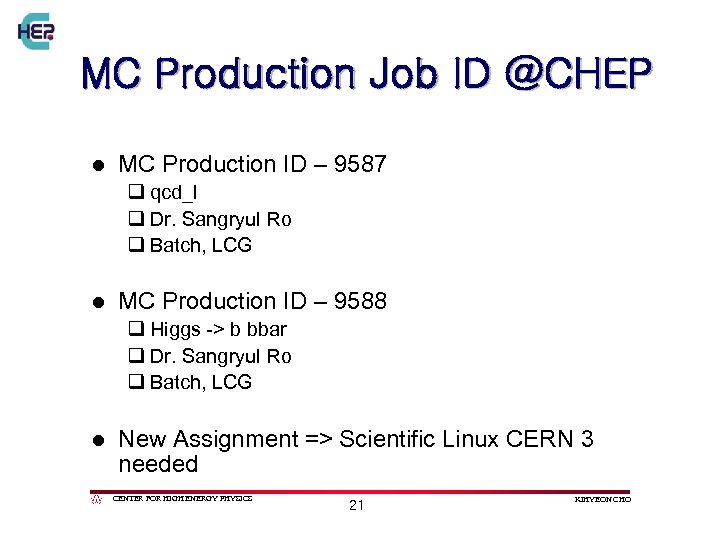

MC Production Job ID @CHEP l MC Production ID – 9587 q qcd_l q MC Production Job ID @CHEP l MC Production ID – 9587 q qcd_l q Dr. Sangryul Ro q Batch, LCG l MC Production ID – 9588 q Higgs -> b bbar q Dr. Sangryul Ro q Batch, LCG l New Assignment => Scientific Linux CERN 3 needed CENTER FOR HIGH ENERGY PHYSICS 21 KIHYEON CHO

CMKINView (MC Production) Job. ID-9587(QCD_l) Farm: Batch (May 7, 2005) CENTER FOR HIGH ENERGY CMKINView (MC Production) Job. ID-9587(QCD_l) Farm: Batch (May 7, 2005) CENTER FOR HIGH ENERGY PHYSICS Job. ID-9588 (Higgs->b bbar) Farm: Batch (May 6, 2005) 22 KIHYEON CHO

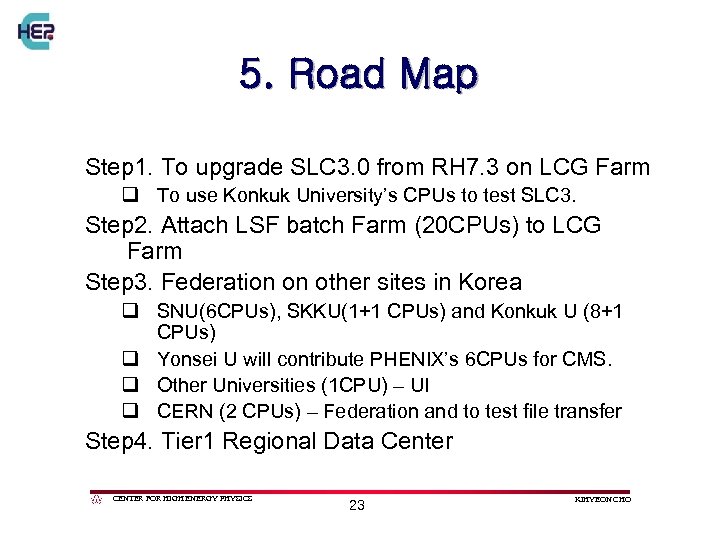

5. Road Map Step 1. To upgrade SLC 3. 0 from RH 7. 3 5. Road Map Step 1. To upgrade SLC 3. 0 from RH 7. 3 on LCG Farm q To use Konkuk University’s CPUs to test SLC 3. Step 2. Attach LSF batch Farm (20 CPUs) to LCG Farm Step 3. Federation on other sites in Korea q SNU(6 CPUs), SKKU(1+1 CPUs) and Konkuk U (8+1 CPUs) q Yonsei U will contribute PHENIX’s 6 CPUs for CMS. q Other Universities (1 CPU) – UI q CERN (2 CPUs) – Federation and to test file transfer Step 4. Tier 1 Regional Data Center CENTER FOR HIGH ENERGY PHYSICS 23 KIHYEON CHO

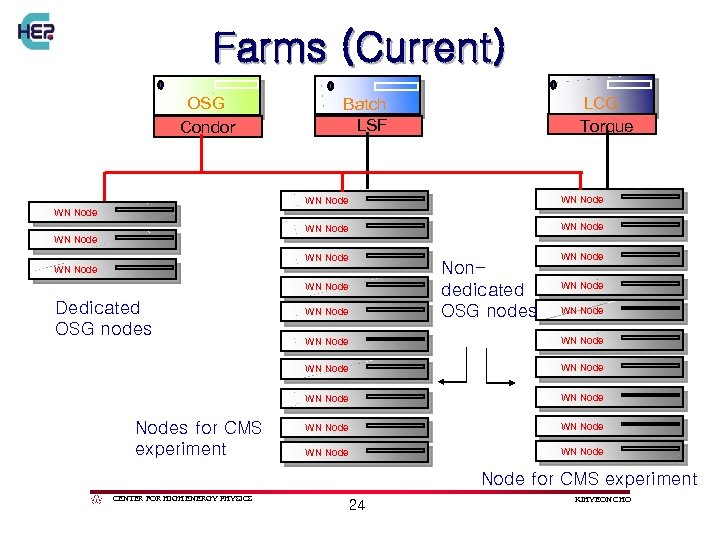

Farms (Current) OSG Condor LCG Torque Batch LSF WN Node WN Node Nondedicated OSG Farms (Current) OSG Condor LCG Torque Batch LSF WN Node WN Node Nondedicated OSG nodes WN Node Dedicated OSG nodes WN Node WN Nodes for CMS experiment WN Node WN Node for CMS experiment CENTER FOR HIGH ENERGY PHYSICS 24 KIHYEON CHO

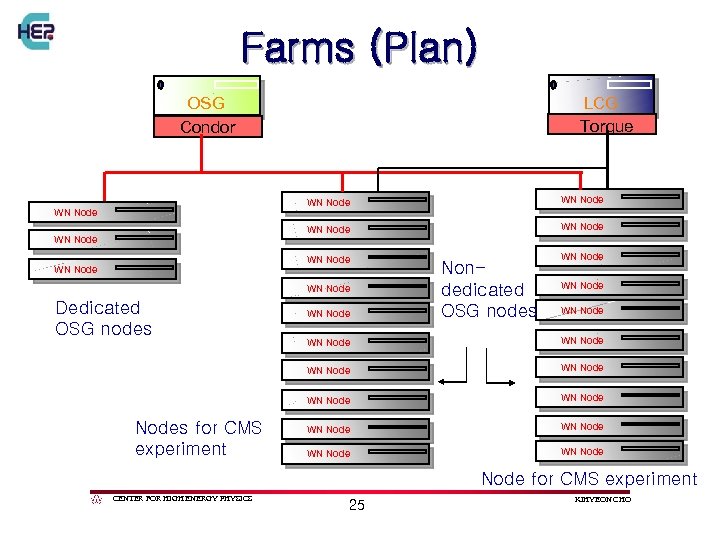

Farms (Plan) OSG Condor LCG Torque WN Node WN Node WN Node Dedicated OSG Farms (Plan) OSG Condor LCG Torque WN Node WN Node WN Node Dedicated OSG nodes WN Node Nondedicated OSG nodes WN Node WN Nodes for CMS experiment WN Node WN Node for CMS experiment CENTER FOR HIGH ENERGY PHYSICS 25 KIHYEON CHO

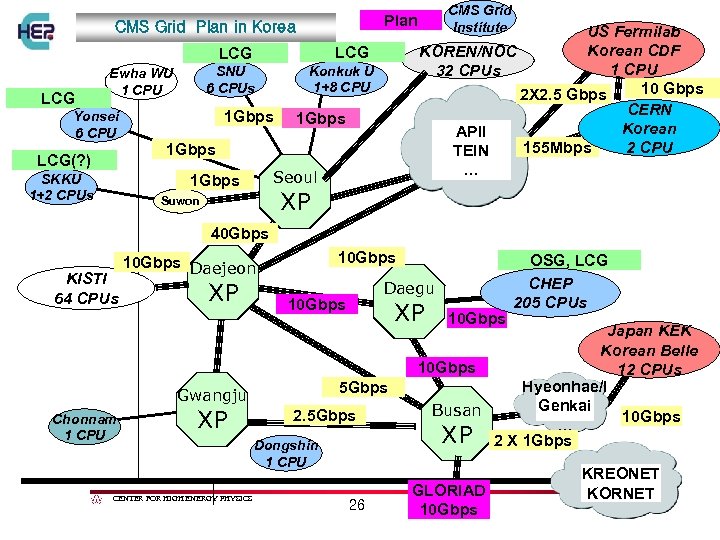

Plan CMS Grid Plan in Korea LCG LCG Yonsei 6 CPU LCG(? ) SKKU Plan CMS Grid Plan in Korea LCG LCG Yonsei 6 CPU LCG(? ) SKKU 1+2 CPUs Konkuk U 1+8 CPU SNU 6 CPUs Ewha WU 1 CPU 1 Gbps Seoul 1 Gbps CMS Grid Institute US Fermilab Korean CDF KOREN/NOC 1 CPU 32 CPUs 10 Gbps 2 X 2. 5 Gbps CERN Korean APII 2 CPU 155 Mbps TEIN … XP Suwon 40 Gbps KISTI 64 CPUs 10 Gbps Daejeon XP 10 Gbps XP CENTER FOR HIGH ENERGY PHYSICS XP 5 Gbps Gwangju Chonnam 1 CPU Daegu 2. 5 Gbps Dongshin 1 CPU 26 10 Gbps OSG, LCG CHEP 205 CPUs Japan KEK Korean Belle 10 Gbps 12 CPUs Hyeonhae/I Genkai Busan 10 Gbps … XP 2 X 1 Gbps GLORIAD 10 Gbps KREONET KORNET KIHYEON CHO

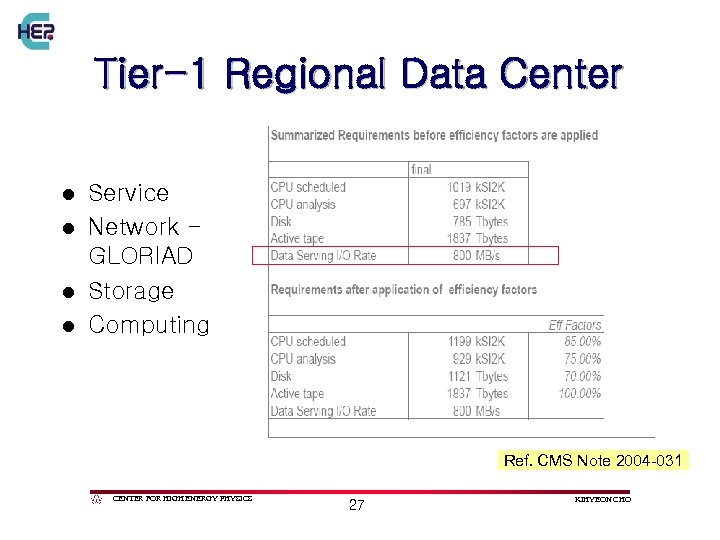

Tier-1 Regional Data Center Service l Network GLORIAD l Storage l Computing l Ref. Tier-1 Regional Data Center Service l Network GLORIAD l Storage l Computing l Ref. CMS Note 2004 -031 CENTER FOR HIGH ENERGY PHYSICS 27 KIHYEON CHO

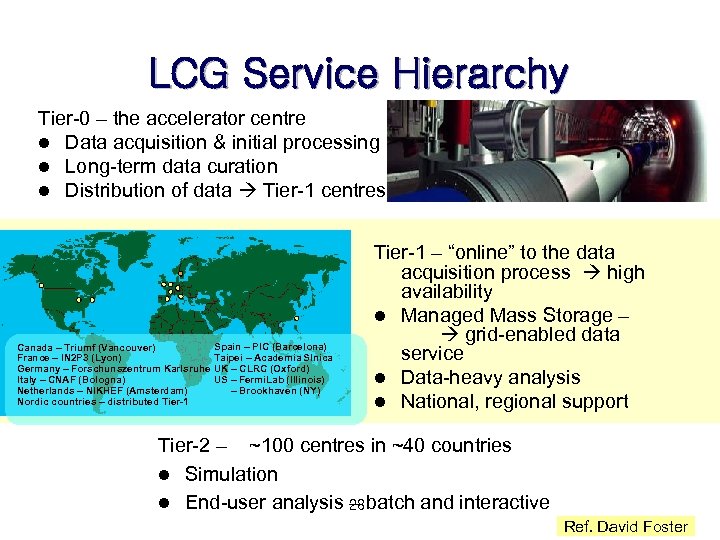

LCG Service Hierarchy Tier-0 – the accelerator centre l Data acquisition & initial processing LCG Service Hierarchy Tier-0 – the accelerator centre l Data acquisition & initial processing l Long-term data curation l Distribution of data Tier-1 centres Canada – Triumf (Vancouver) France – IN 2 P 3 (Lyon) Germany – Forschunszentrum Karlsruhe Italy – CNAF (Bologna) Netherlands – NIKHEF (Amsterdam) Nordic countries – distributed Tier-1 Spain – PIC (Barcelona) Taipei – Academia SInica UK – CLRC (Oxford) US – Fermi. Lab (Illinois) – Brookhaven (NY) Tier-1 – “online” to the data acquisition process high availability l Managed Mass Storage – grid-enabled data service l Data-heavy analysis l National, regional support Tier-2 – ~100 centres in ~40 countries l Simulation l End-user analysis 28 batch and interactive – Ref. David Foster

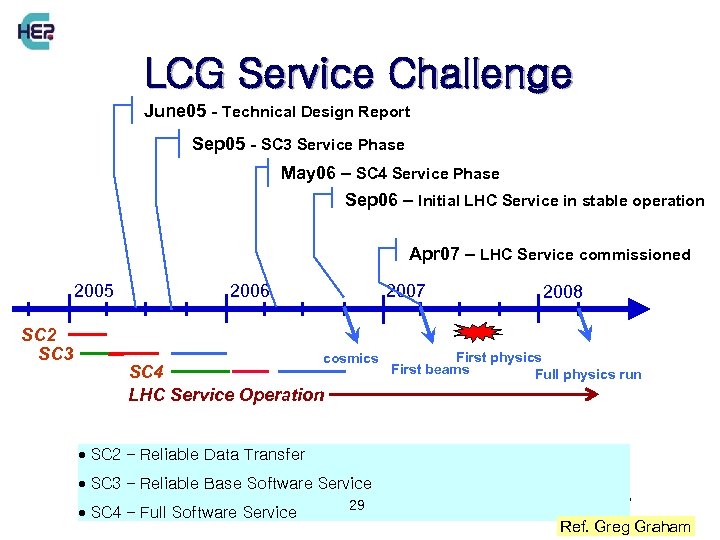

LCG Service Challenge June 05 - Technical Design Report Sep 05 - SC 3 LCG Service Challenge June 05 - Technical Design Report Sep 05 - SC 3 Service Phase May 06 – SC 4 Service Phase Sep 06 – Initial LHC Service in stable operation Apr 07 – LHC Service commissioned 2005 SC 2 SC 3 2006 2007 cosmics SC 4 LHC Service Operation 2008 First physics First beams Full physics run · SC 2 – Reliable Data Transfer · SC 3 – Reliable Base Software Service CENTER FOR HIGH ENERGY PHYSICS · SC 4 – Full Software Service 29 KIHYEON CHO Ref. Greg Graham

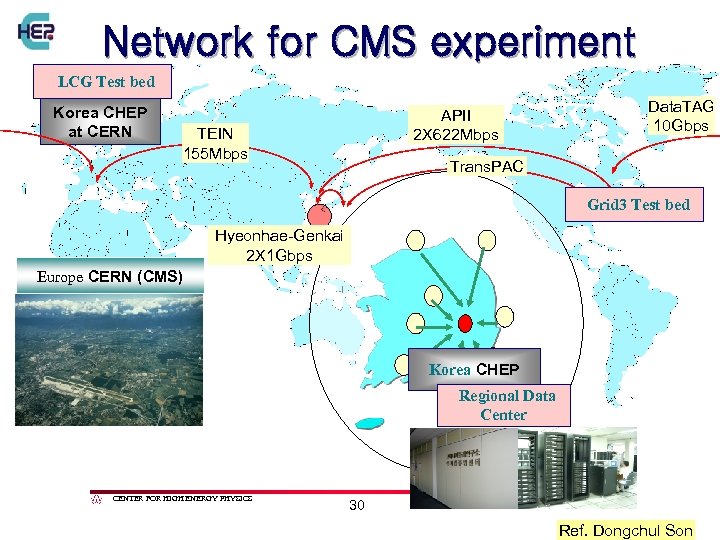

Network for CMS experiment LCG Test bed Korea CHEP at CERN Data. TAG 10 Network for CMS experiment LCG Test bed Korea CHEP at CERN Data. TAG 10 Gbps APII 2 X 622 Mbps TEIN 155 Mbps Trans. PAC Grid 3 Test bed Hyeonhae-Genkai 2 X 1 Gbps Europe CERN (CMS) Korea CHEP Regional Data Center CENTER FOR HIGH ENERGY PHYSICS 30 KIHYEON CHO Ref. Dongchul Son

CENTER FOR HIGH ENERGY PHYSICS 31 KIHYEON CHO CENTER FOR HIGH ENERGY PHYSICS 31 KIHYEON CHO

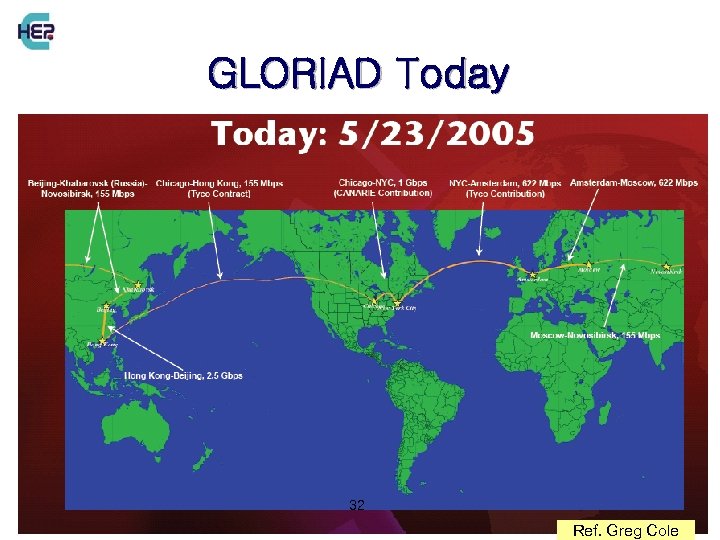

GLORIAD Today CENTER FOR HIGH ENERGY PHYSICS 32 KIHYEON CHO Ref. Greg Cole GLORIAD Today CENTER FOR HIGH ENERGY PHYSICS 32 KIHYEON CHO Ref. Greg Cole

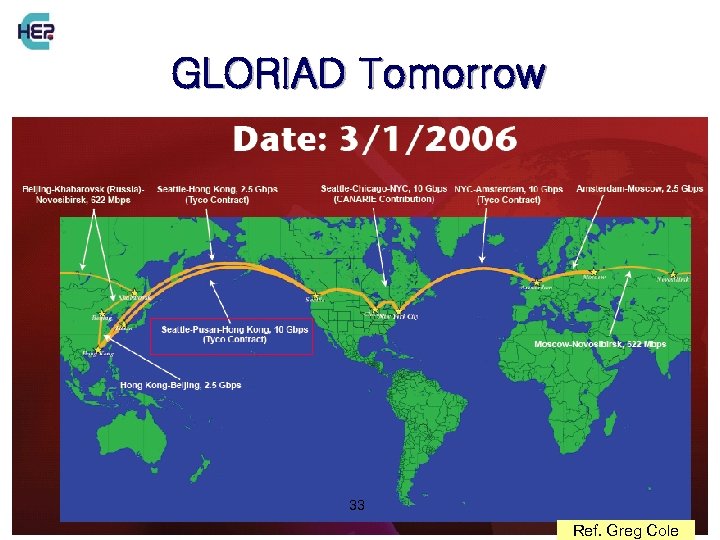

GLORIAD Tomorrow CENTER FOR HIGH ENERGY PHYSICS 33 KIHYEON CHO Ref. Greg Cole GLORIAD Tomorrow CENTER FOR HIGH ENERGY PHYSICS 33 KIHYEON CHO Ref. Greg Cole

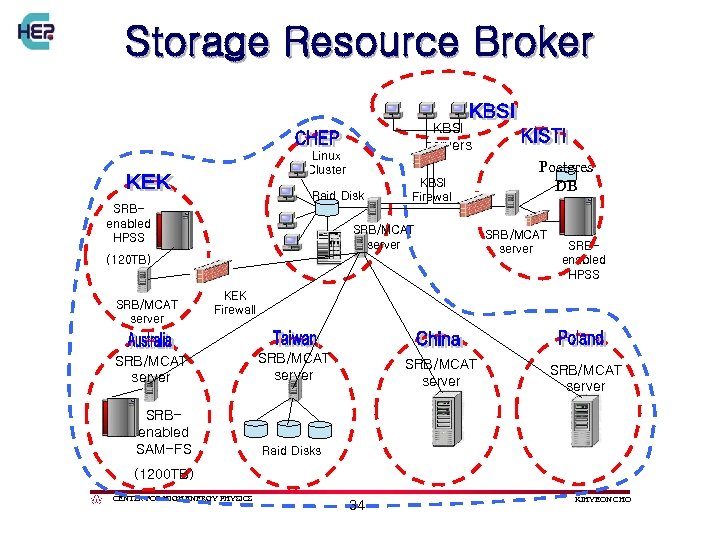

Storage Resource Broker KBSI servers Linux Cluster Raid Disk SRBenabled HPSS KBSI Firewall SRB/MCAT Storage Resource Broker KBSI servers Linux Cluster Raid Disk SRBenabled HPSS KBSI Firewall SRB/MCAT server (120 TB) SRB/MCAT server Postgres DB SRB/MCAT server SRBenabled HPSS KEK Firewall SRB/MCAT server SRBenabled SAM-FS SRB/MCAT server Raid Disks (1200 TB) CENTER FOR HIGH ENERGY PHYSICS 34 KIHYEON CHO

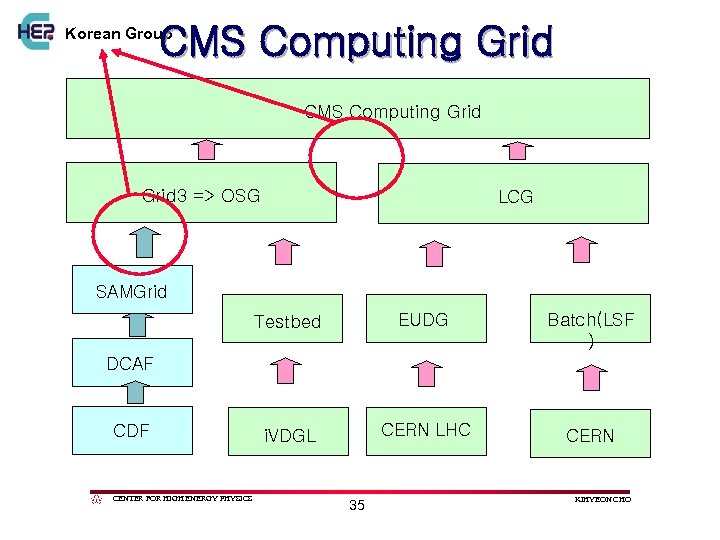

CMS Computing Grid Korean Group CMS Computing Grid 3 => OSG LCG SAMGrid Testbed CMS Computing Grid Korean Group CMS Computing Grid 3 => OSG LCG SAMGrid Testbed EUDG Batch(LSF ) i. VDGL CERN LHC CERN DCAF CDF CENTER FOR HIGH ENERGY PHYSICS 35 KIHYEON CHO

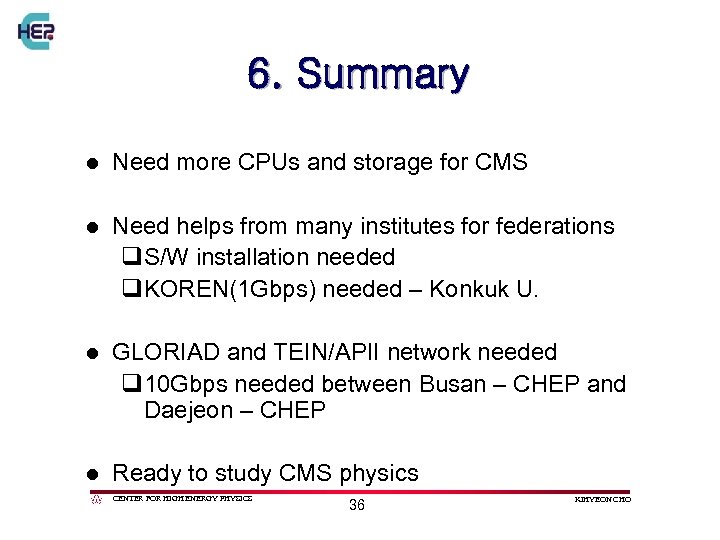

6. Summary l Need more CPUs and storage for CMS l Need helps from 6. Summary l Need more CPUs and storage for CMS l Need helps from many institutes for federations q. S/W installation needed q. KOREN(1 Gbps) needed – Konkuk U. l GLORIAD and TEIN/APII network needed q 10 Gbps needed between Busan – CHEP and Daejeon – CHEP l Ready to study CMS physics CENTER FOR HIGH ENERGY PHYSICS 36 KIHYEON CHO

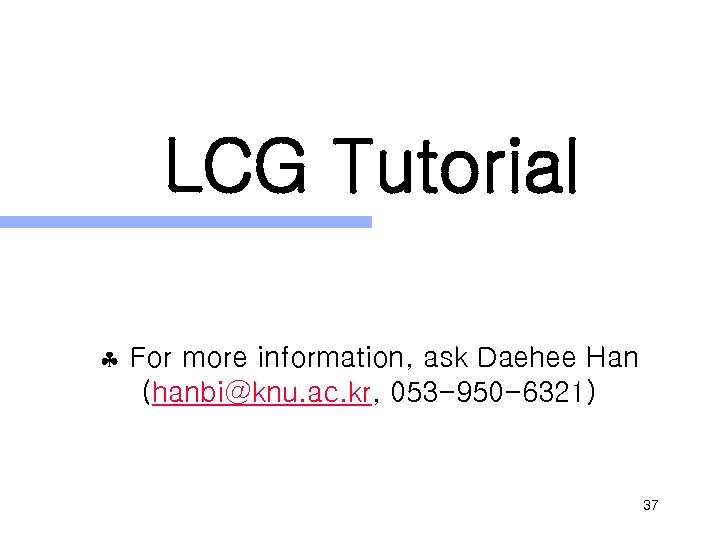

LCG Tutorial For more information, ask Daehee Han (hanbi@knu. ac. kr, 053 -950 -6321) LCG Tutorial For more information, ask Daehee Han (hanbi@knu. ac. kr, 053 -950 -6321) 37

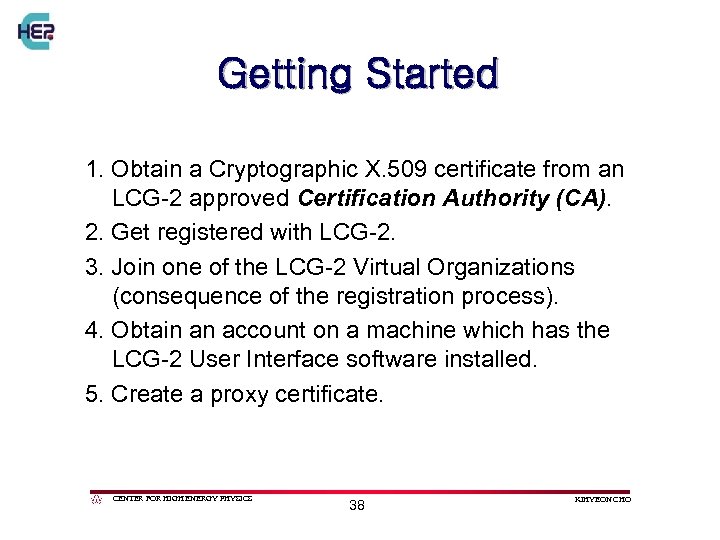

Getting Started 1. Obtain a Cryptographic X. 509 certificate from an LCG-2 approved Certification Getting Started 1. Obtain a Cryptographic X. 509 certificate from an LCG-2 approved Certification Authority (CA). 2. Get registered with LCG-2. 3. Join one of the LCG-2 Virtual Organizations (consequence of the registration process). 4. Obtain an account on a machine which has the LCG-2 User Interface software installed. 5. Create a proxy certificate. CENTER FOR HIGH ENERGY PHYSICS 38 KIHYEON CHO

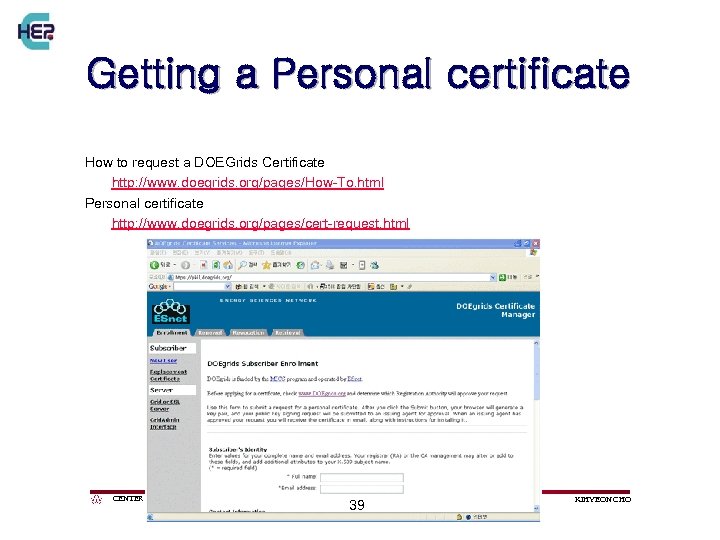

Getting a Personal certificate How to request a DOEGrids Certificate http: //www. doegrids. org/pages/How-To. Getting a Personal certificate How to request a DOEGrids Certificate http: //www. doegrids. org/pages/How-To. html Personal certificate http: //www. doegrids. org/pages/cert-request. html CENTER FOR HIGH ENERGY PHYSICS 39 KIHYEON CHO

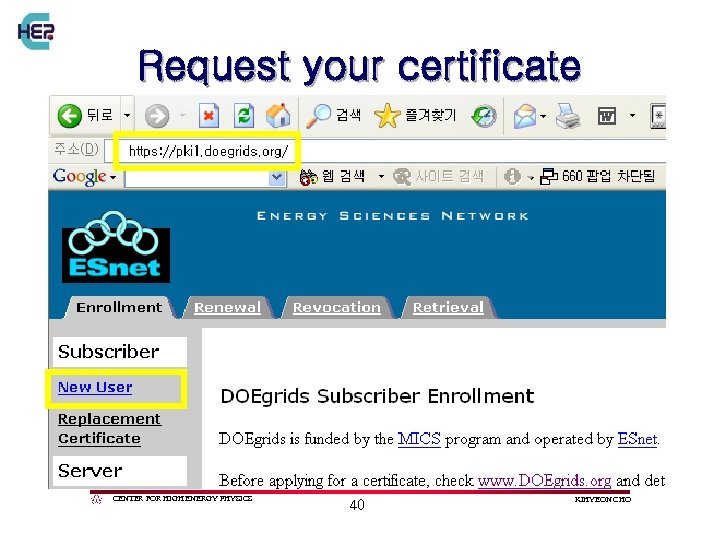

Request your certificate CENTER FOR HIGH ENERGY PHYSICS 40 KIHYEON CHO Request your certificate CENTER FOR HIGH ENERGY PHYSICS 40 KIHYEON CHO

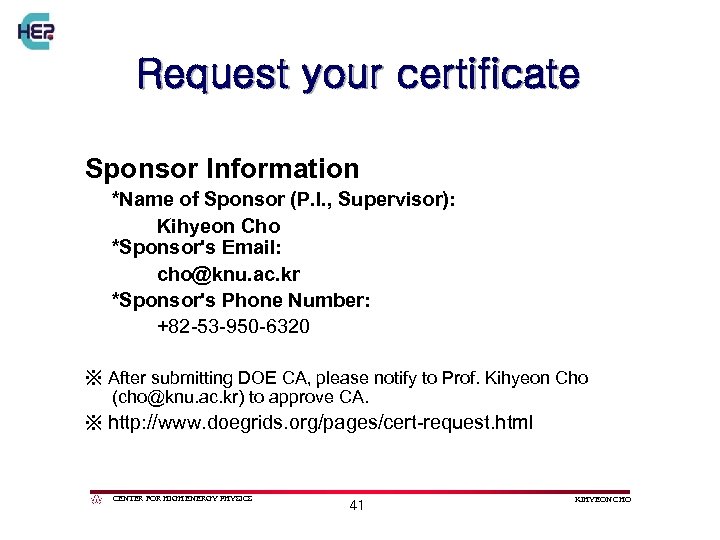

Request your certificate Sponsor Information *Name of Sponsor (P. I. , Supervisor): Kihyeon Cho Request your certificate Sponsor Information *Name of Sponsor (P. I. , Supervisor): Kihyeon Cho *Sponsor's Email: cho@knu. ac. kr *Sponsor's Phone Number: +82 -53 -950 -6320 ※ After submitting DOE CA, please notify to Prof. Kihyeon Cho (cho@knu. ac. kr) to approve CA. ※ http: //www. doegrids. org/pages/cert-request. html CENTER FOR HIGH ENERGY PHYSICS 41 KIHYEON CHO

Obtain an account at UI l Ask Mr. Daehee Han to obtain a user Obtain an account at UI l Ask Mr. Daehee Han to obtain a user account at User Interface machine(cluster 3. knu. ac. kr) l Name and User ID CENTER FOR HIGH ENERGY PHYSICS 42 KIHYEON CHO

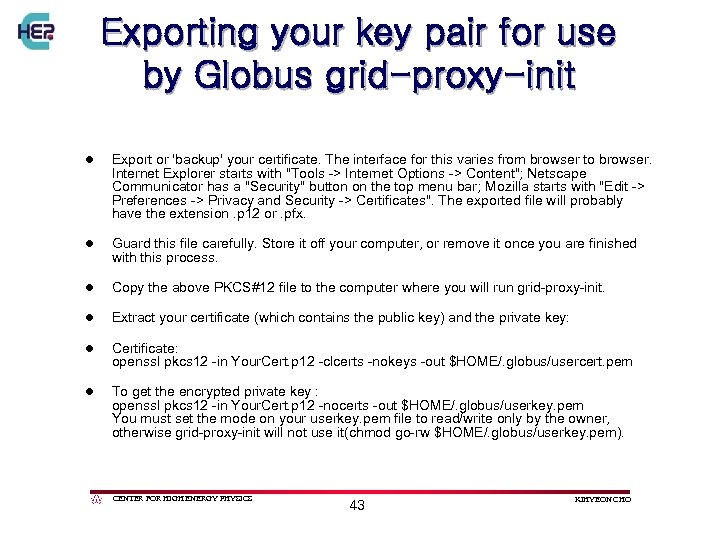

Exporting your key pair for use by Globus grid-proxy-init l Export or 'backup' your Exporting your key pair for use by Globus grid-proxy-init l Export or 'backup' your certificate. The interface for this varies from browser to browser. Internet Explorer starts with "Tools -> Internet Options -> Content"; Netscape Communicator has a "Security" button on the top menu bar; Mozilla starts with "Edit -> Preferences -> Privacy and Security -> Certificates". The exported file will probably have the extension. p 12 or. pfx. l Guard this file carefully. Store it off your computer, or remove it once you are finished with this process. l Copy the above PKCS#12 file to the computer where you will run grid-proxy-init. l Extract your certificate (which contains the public key) and the private key: l Certificate: openssl pkcs 12 -in Your. Cert. p 12 -clcerts -nokeys -out $HOME/. globus/usercert. pem l To get the encrypted private key : openssl pkcs 12 -in Your. Cert. p 12 -nocerts -out $HOME/. globus/userkey. pem You must set the mode on your userkey. pem file to read/write only by the owner, otherwise grid-proxy-init will not use it(chmod go-rw $HOME/. globus/userkey. pem). CENTER FOR HIGH ENERGY PHYSICS 43 KIHYEON CHO

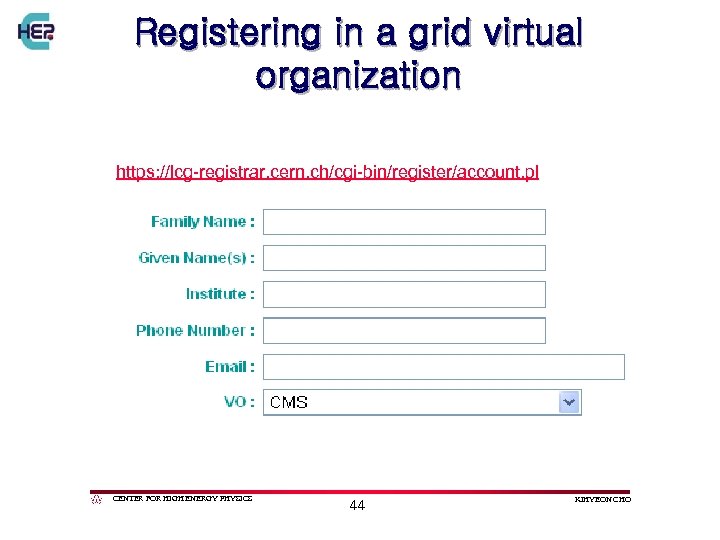

Registering in a grid virtual organization https: //lcg-registrar. cern. ch/cgi-bin/register/account. pl CENTER FOR HIGH Registering in a grid virtual organization https: //lcg-registrar. cern. ch/cgi-bin/register/account. pl CENTER FOR HIGH ENERGY PHYSICS 44 KIHYEON CHO

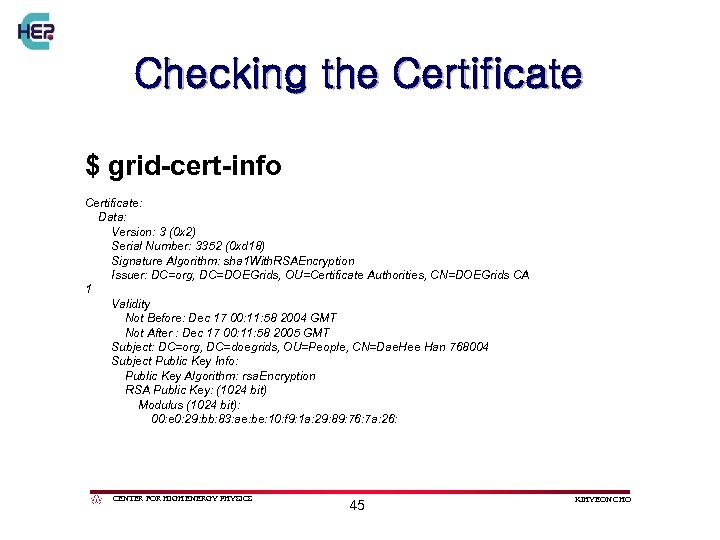

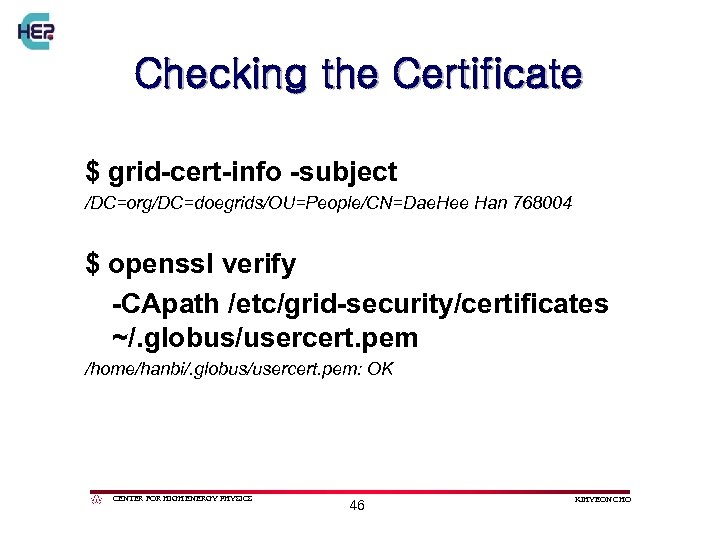

Checking the Certificate $ grid-cert-info Certificate: Data: Version: 3 (0 x 2) Serial Number: Checking the Certificate $ grid-cert-info Certificate: Data: Version: 3 (0 x 2) Serial Number: 3352 (0 xd 18) Signature Algorithm: sha 1 With. RSAEncryption Issuer: DC=org, DC=DOEGrids, OU=Certificate Authorities, CN=DOEGrids CA 1 Validity Not Before: Dec 17 00: 11: 58 2004 GMT Not After : Dec 17 00: 11: 58 2005 GMT Subject: DC=org, DC=doegrids, OU=People, CN=Dae. Hee Han 768004 Subject Public Key Info: Public Key Algorithm: rsa. Encryption RSA Public Key: (1024 bit) Modulus (1024 bit): 00: e 0: 29: bb: 83: ae: be: 10: f 9: 1 a: 29: 89: 76: 7 a: 26: CENTER FOR HIGH ENERGY PHYSICS 45 KIHYEON CHO

Checking the Certificate $ grid-cert-info -subject /DC=org/DC=doegrids/OU=People/CN=Dae. Hee Han 768004 $ openssl verify -CApath Checking the Certificate $ grid-cert-info -subject /DC=org/DC=doegrids/OU=People/CN=Dae. Hee Han 768004 $ openssl verify -CApath /etc/grid-security/certificates ~/. globus/usercert. pem /home/hanbi/. globus/usercert. pem: OK CENTER FOR HIGH ENERGY PHYSICS 46 KIHYEON CHO

Getting a Proxy Certificate $ grid-proxy-init Your identity: /DC=org/DC=doegrids/OU=People/CN=Dae. Hee Han 768004 Enter GRID Getting a Proxy Certificate $ grid-proxy-init Your identity: /DC=org/DC=doegrids/OU=People/CN=Dae. Hee Han 768004 Enter GRID pass phrase for this identity: Creating proxy. . . . Done Your proxy is valid until: Thu Jun 23 00: 22: 14 2005 $ grid-proxy-info subject : /DC=org/DC=doegrids/OU=People/CN=Dae. Hee Han 768004/CN=proxy issuer : /DC=org/DC=doegrids/OU=People/CN=Dae. Hee Han 768004 identity : /DC=org/DC=doegrids/OU=People/CN=Dae. Hee Han 768004 type : full legacy globus proxy strength : 512 bits path : /tmp/x 509 up_u 19490 timeleft : 11: 59: 10 CENTER FOR HIGH ENERGY PHYSICS 47 KIHYEON CHO

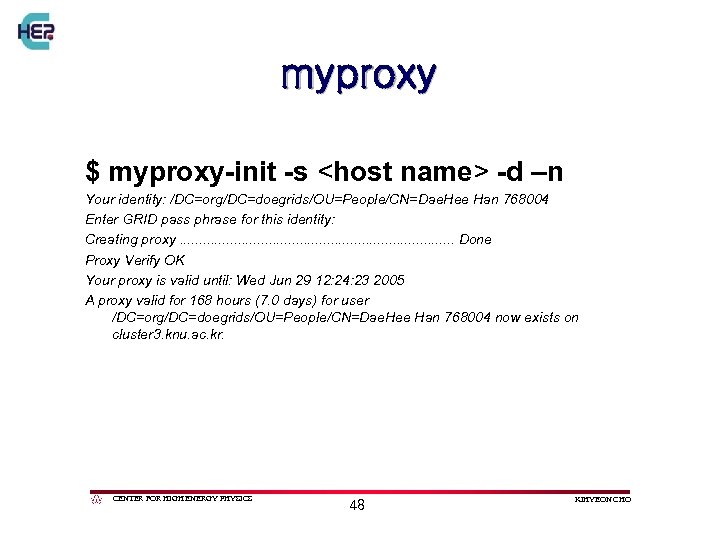

myproxy $ myproxy-init -s <host name> -d –n Your identity: /DC=org/DC=doegrids/OU=People/CN=Dae. Hee Han 768004 myproxy $ myproxy-init -s -d –n Your identity: /DC=org/DC=doegrids/OU=People/CN=Dae. Hee Han 768004 Enter GRID pass phrase for this identity: Creating proxy. . . . . Done Proxy Verify OK Your proxy is valid until: Wed Jun 29 12: 24: 23 2005 A proxy valid for 168 hours (7. 0 days) for user /DC=org/DC=doegrids/OU=People/CN=Dae. Hee Han 768004 now exists on cluster 3. knu. ac. kr. CENTER FOR HIGH ENERGY PHYSICS 48 KIHYEON CHO

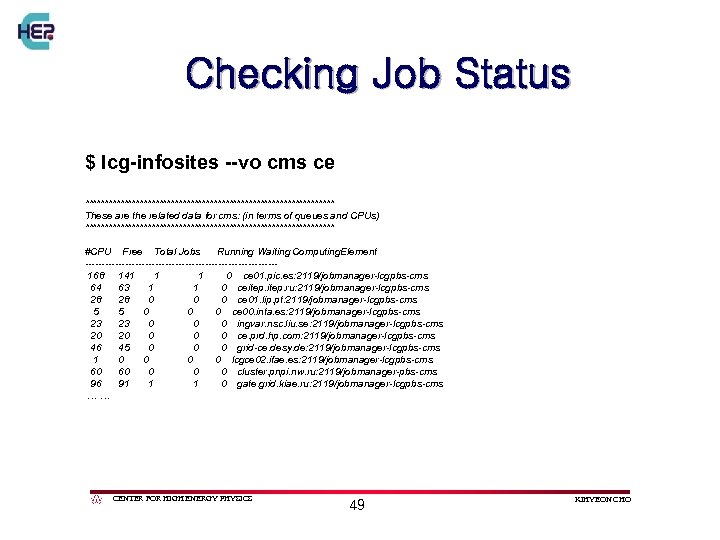

Checking Job Status $ lcg-infosites --vo cms ce ******************************** These are the related data Checking Job Status $ lcg-infosites --vo cms ce ******************************** These are the related data for cms: (in terms of queues and CPUs) ******************************** #CPU Free Total Jobs Running Waiting Computing. Element -----------------------------168 141 1 1 0 ce 01. pic. es: 2119/jobmanager-lcgpbs-cms 64 63 1 1 0 ceitep. ru: 2119/jobmanager-lcgpbs-cms 28 28 0 0 0 ce 01. lip. pt: 2119/jobmanager-lcgpbs-cms 5 5 0 0 0 ce 00. inta. es: 2119/jobmanager-lcgpbs-cms 23 23 0 0 0 ingvar. nsc. liu. se: 2119/jobmanager-lcgpbs-cms 20 20 0 ce. prd. hp. com: 2119/jobmanager-lcgpbs-cms 46 45 0 0 0 grid-ce. desy. de: 2119/jobmanager-lcgpbs-cms 1 0 0 lcgce 02. ifae. es: 2119/jobmanager-lcgpbs-cms 60 60 0 cluster. pnpi. nw. ru: 2119/jobmanager-pbs-cms 96 91 1 1 0 gate. grid. kiae. ru: 2119/jobmanager-lcgpbs-cms …… CENTER FOR HIGH ENERGY PHYSICS 49 KIHYEON CHO

Checking Status of Grid $ lcg-infosites --vo cms se ******************************* These are the related Checking Status of Grid $ lcg-infosites --vo cms se ******************************* These are the related data for cms: (in terms of SE) ******************************* Avail Space(Kb) Used Space(Kb) Type SEs -----------------------------823769472 1761092 disk seitep. ru 1 n. a disk se 01. lip. pt 1000000 5000000 mss castorgrid. pic. es 7786256 138234180 disk se 00. inta. es 793234712 10307544 disk se. grid. kiae. ru 58566112 794493472 disk teras. sara. nl 1000000 5000000 mss lcgse 05. ifae. es 26936956 8951308 disk se. prd. hp. com 364963932 91136 disk cms 10. fuw. edu. pl 1448906356 11294768 disk grid 100. kfki. hu 62299220 7832876 disk ingvar-se. nsc. liu. se CENTER FOR HIGH ENERGY PHYSICS 50 KIHYEON CHO

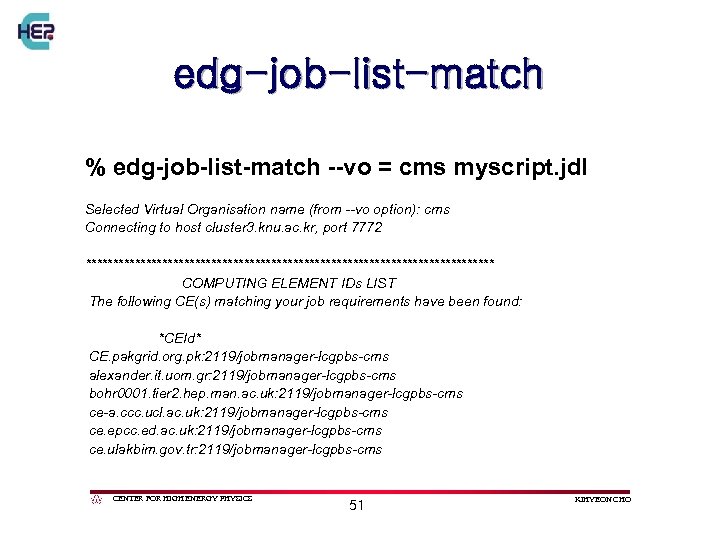

edg-job-list-match % edg-job-list-match --vo = cms myscript. jdl Selected Virtual Organisation name (from --vo edg-job-list-match % edg-job-list-match --vo = cms myscript. jdl Selected Virtual Organisation name (from --vo option): cms Connecting to host cluster 3. knu. ac. kr, port 7772 ************************************** COMPUTING ELEMENT IDs LIST The following CE(s) matching your job requirements have been found: *CEId* CE. pakgrid. org. pk: 2119/jobmanager-lcgpbs-cms alexander. it. uom. gr: 2119/jobmanager-lcgpbs-cms bohr 0001. tier 2. hep. man. ac. uk: 2119/jobmanager-lcgpbs-cms ce-a. ccc. ucl. ac. uk: 2119/jobmanager-lcgpbs-cms ce. epcc. ed. ac. uk: 2119/jobmanager-lcgpbs-cms ce. ulakbim. gov. tr: 2119/jobmanager-lcgpbs-cms CENTER FOR HIGH ENERGY PHYSICS 51 KIHYEON CHO

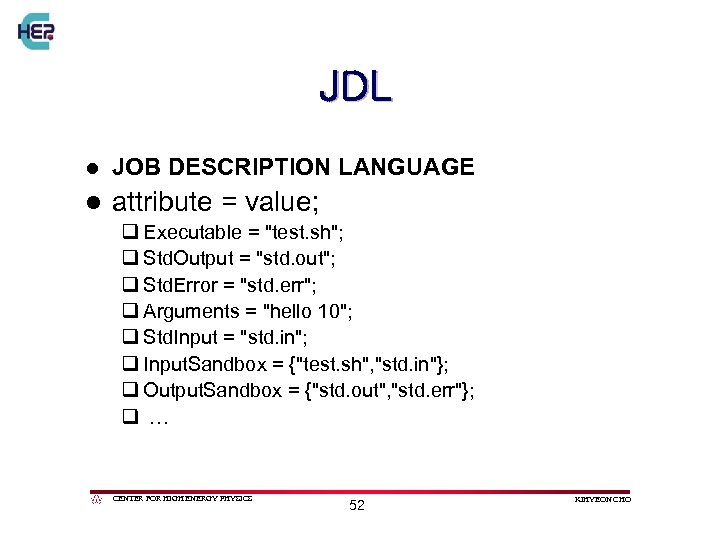

JDL l JOB DESCRIPTION LANGUAGE l attribute = value; q Executable = JDL l JOB DESCRIPTION LANGUAGE l attribute = value; q Executable = "test. sh"; q Std. Output = "std. out"; q Std. Error = "std. err"; q Arguments = "hello 10"; q Std. Input = "std. in"; q Input. Sandbox = {"test. sh", "std. in"}; q Output. Sandbox = {"std. out", "std. err"}; q … CENTER FOR HIGH ENERGY PHYSICS 52 KIHYEON CHO

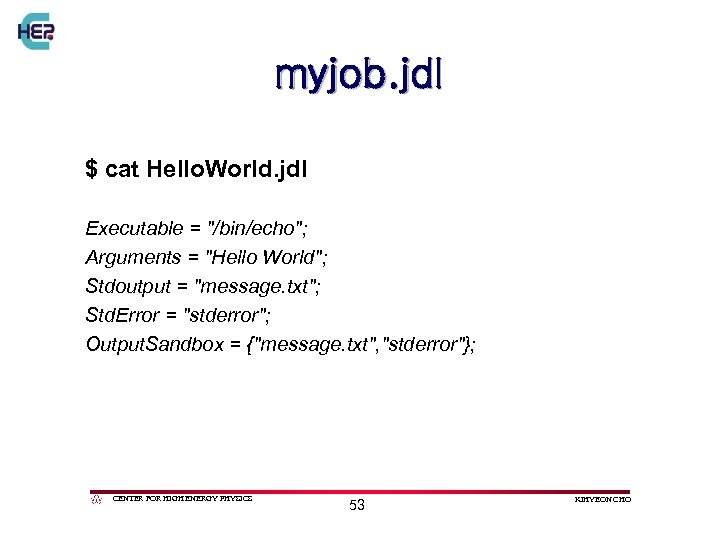

myjob. jdl $ cat Hello. World. jdl Executable = myjob. jdl $ cat Hello. World. jdl Executable = "/bin/echo"; Arguments = "Hello World"; Stdoutput = "message. txt"; Std. Error = "stderror"; Output. Sandbox = {"message. txt", "stderror"}; CENTER FOR HIGH ENERGY PHYSICS 53 KIHYEON CHO

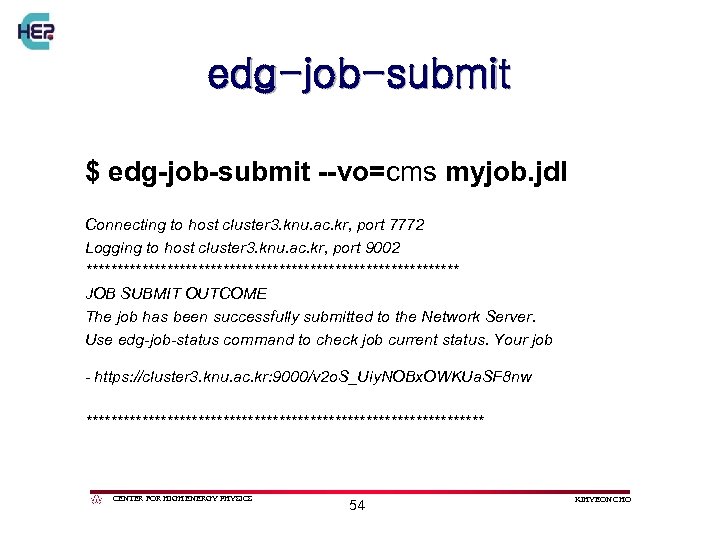

edg-job-submit $ edg-job-submit --vo=cms myjob. jdl Connecting to host cluster 3. knu. ac. kr, edg-job-submit $ edg-job-submit --vo=cms myjob. jdl Connecting to host cluster 3. knu. ac. kr, port 7772 Logging to host cluster 3. knu. ac. kr, port 9002 ****************************** JOB SUBMIT OUTCOME The job has been successfully submitted to the Network Server. Use edg-job-status command to check job current status. Your job - https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. OWKUa. SF 8 nw ******************************** CENTER FOR HIGH ENERGY PHYSICS 54 KIHYEON CHO

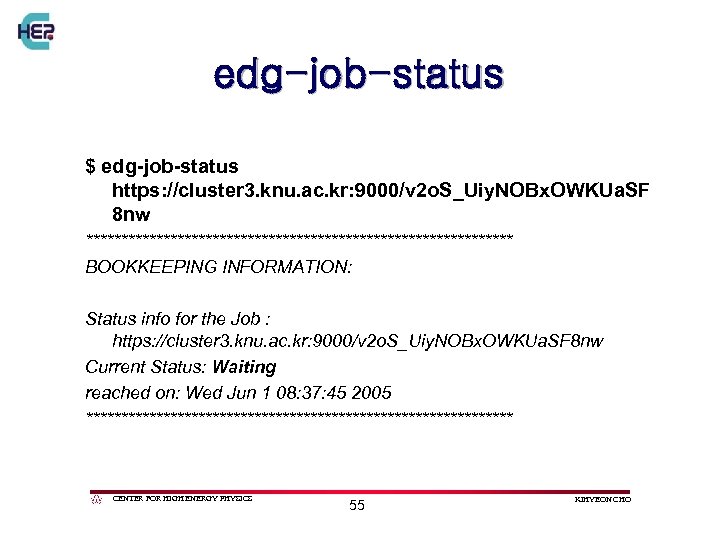

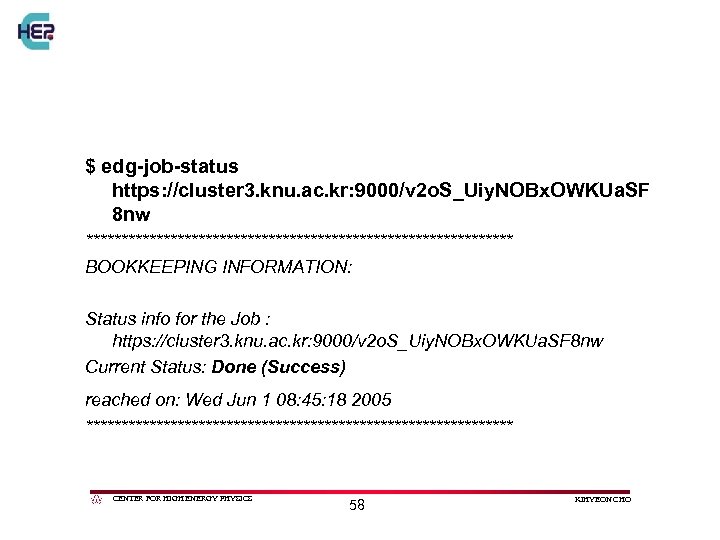

edg-job-status $ edg-job-status https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. edg-job-status $ edg-job-status https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. OWKUa. SF 8 nw ******************************* BOOKKEEPING INFORMATION: Status info for the Job : https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. OWKUa. SF 8 nw Current Status: Waiting reached on: Wed Jun 1 08: 37: 45 2005 ******************************* CENTER FOR HIGH ENERGY PHYSICS 55 KIHYEON CHO

edg-job-status $ edg-job-status https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. edg-job-status $ edg-job-status https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. OWKUa. SF 8 nw ******************************* BOOKKEEPING INFORMATION: Status info for the Job : https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. OWKUa. SF 8 nw Current Status: Scheduled reached on: Wed Jun 1 08: 37: 45 2005 ******************************* CENTER FOR HIGH ENERGY PHYSICS 56 KIHYEON CHO

edg-job-status $ edg-job-status https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. edg-job-status $ edg-job-status https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. OWKUa. SF 8 nw ******************************* BOOKKEEPING INFORMATION: Status info for the Job : https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. OWKUa. SF 8 nw Current Status: Running reached on: Wed Jun 1 08: 44: 01 2005 ******************************* CENTER FOR HIGH ENERGY PHYSICS 57 KIHYEON CHO

$ edg-job-status https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. OWKUa. $ edg-job-status https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. OWKUa. SF 8 nw ******************************* BOOKKEEPING INFORMATION: Status info for the Job : https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. OWKUa. SF 8 nw Current Status: Done (Success) reached on: Wed Jun 1 08: 45: 18 2005 ******************************* CENTER FOR HIGH ENERGY PHYSICS 58 KIHYEON CHO

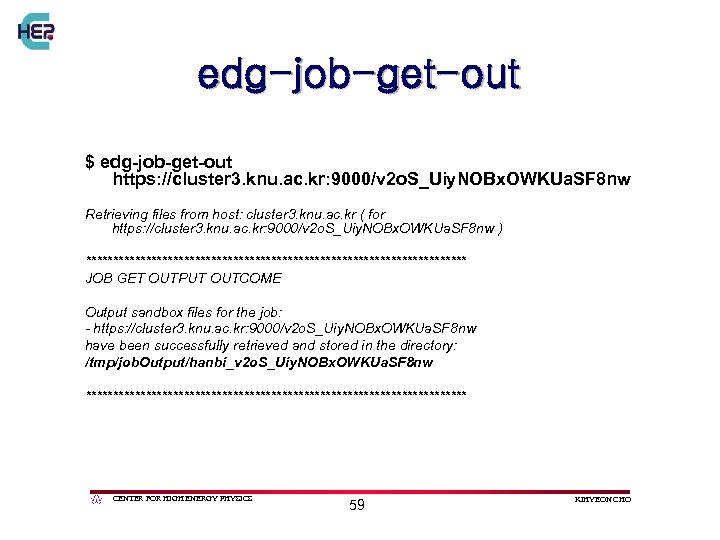

edg-job-get-out $ edg-job-get-out https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. edg-job-get-out $ edg-job-get-out https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. OWKUa. SF 8 nw Retrieving files from host: cluster 3. knu. ac. kr ( for https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. OWKUa. SF 8 nw ) *********************************** JOB GET OUTPUT OUTCOME Output sandbox files for the job: - https: //cluster 3. knu. ac. kr: 9000/v 2 o. S_Uiy. NOBx. OWKUa. SF 8 nw have been successfully retrieved and stored in the directory: /tmp/job. Output/hanbi_v 2 o. S_Uiy. NOBx. OWKUa. SF 8 nw *********************************** CENTER FOR HIGH ENERGY PHYSICS 59 KIHYEON CHO

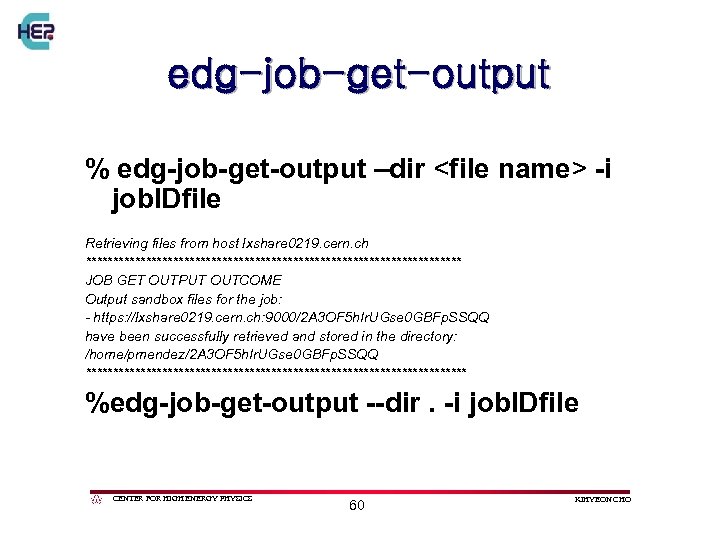

edg-job-get-output % edg-job-get-output –dir <file name> -i job. IDfile Retrieving files from host lxshare edg-job-get-output % edg-job-get-output –dir -i job. IDfile Retrieving files from host lxshare 0219. cern. ch *********************************** JOB GET OUTPUT OUTCOME Output sandbox files for the job: - https: //lxshare 0219. cern. ch: 9000/2 A 3 OF 5 h. Ir. UGse 0 GBFp. SSQQ have been successfully retrieved and stored in the directory: /home/pmendez/2 A 3 OF 5 h. Ir. UGse 0 GBFp. SSQQ *********************************** %edg-job-get-output --dir. -i job. IDfile CENTER FOR HIGH ENERGY PHYSICS 60 KIHYEON CHO

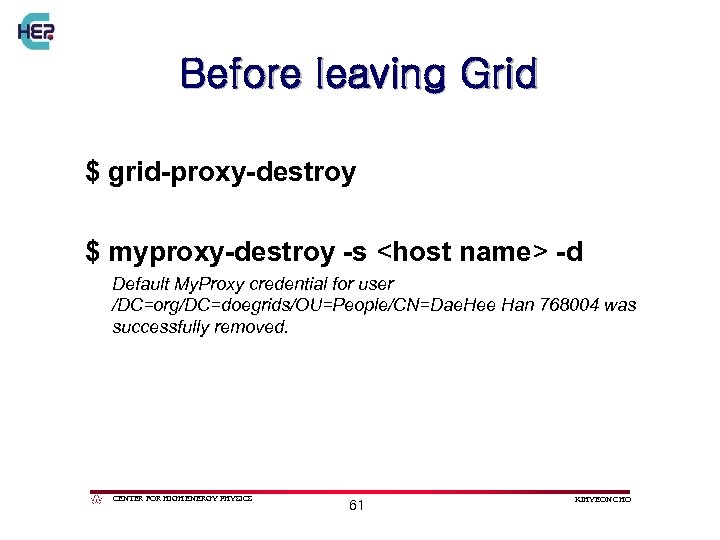

Before leaving Grid $ grid-proxy-destroy $ myproxy-destroy -s <host name> -d Default My. Proxy Before leaving Grid $ grid-proxy-destroy $ myproxy-destroy -s -d Default My. Proxy credential for user /DC=org/DC=doegrids/OU=People/CN=Dae. Hee Han 768004 was successfully removed. CENTER FOR HIGH ENERGY PHYSICS 61 KIHYEON CHO

Reference l LCG http: //lcg. web. cern. ch/LCG/ l LCG-2 USER GUIDE https: //edms. Reference l LCG http: //lcg. web. cern. ch/LCG/ l LCG-2 USER GUIDE https: //edms. cern. ch/file/454439//LCG-2 -User. Guide. html l LCG-2 USER SCENARIO https: //edms. cern. ch/file/498081/1. 0/User. Scenario 2. html l LCG@CHEP http: //chep. knu. ac. kr/LCG/ CENTER FOR HIGH ENERGY PHYSICS 62 KIHYEON CHO
