Workshop Equipment CATALOGUE Unit 10 Keymax, Industrial Park 1006 Ergon Road Lyttelton info@imworkshopequipment. co. za www. imworkshopequipment. co. za Tel: (012) 664 3556 Fax: (086) 568 8466

Product and colour may vary from pictures shown

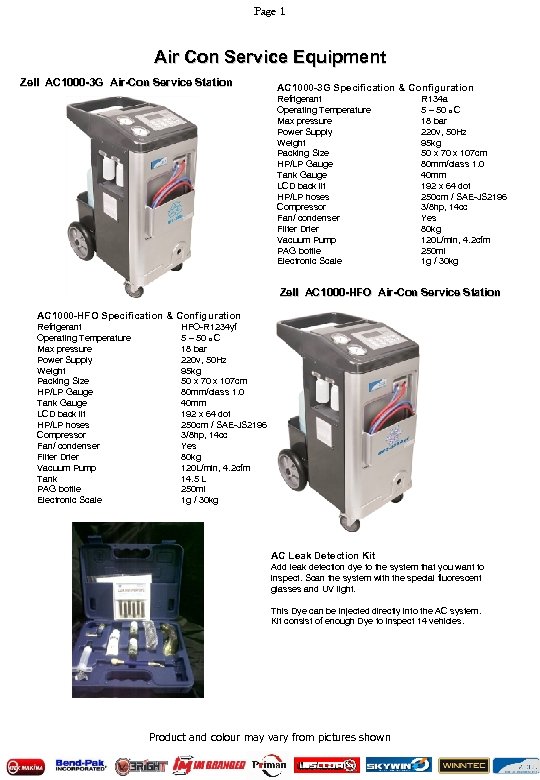

Page 1 Air Con Service Equipment Zell AC 1000 -3 G Air-Con Service Station AC 1000 -3 G Specification & Configuration Refrigerant Operating Temperature Max pressure Power Supply Weight Packing Size HP/LP Gauge Tank Gauge LCD back lit HP/LP hoses Compressor Fan/ condenser Filter Drier Vacuum Pump PAG bottle Electronic Scale R 134 a 5 – 50 o C 18 bar 220 v, 50 Hz 95 kg 50 x 70 x 107 cm 80 mm/class 1. 0 40 mm 192 x 64 dot 250 cm / SAE-JS 2196 3/8 hp, 14 cc Yes 80 kg 120 L/min, 4. 2 cfm 250 ml 1 g / 30 kg Zell AC 1000 -HFO Air-Con Service Station AC 1000 -HFO Specification & Configuration Refrigerant Operating Temperature Max pressure Power Supply Weight Packing Size HP/LP Gauge Tank Gauge LCD back lit HP/LP hoses Compressor Fan/ condenser Filter Drier Vacuum Pump Tank PAG bottle Electronic Scale HFO-R 1234 yf 5 – 50 o C 18 bar 220 v, 50 Hz 95 kg 50 x 70 x 107 cm 80 mm/class 1. 0 40 mm 192 x 64 dot 250 cm / SAE-JS 2196 3/8 hp, 14 cc Yes 80 kg 120 L/min, 4. 2 cfm 14. 5 L 250 ml 1 g / 30 kg AC Leak Detection Kit Add leak detection dye to the system that you want to inspect. Scan the system with the special fluorescent glasses and UV light. This Dye can be injected directly into the AC system. Kit consist of enough Dye to inspect 14 vehicles. Product and colour may vary from pictures shown

Page 2 Tyre Tools IM- BBR Bead Knocker / Stamper IM- BB Bead Blaster IM-BB-05 IM-BB-10 IM- Tubeless Tyre Changing Tool Set Demounting Tool Mounting Tool Weight: 15 kg Weight: 11 kg Dimension: 600 x 480 x 360 mm Dimension: 400 x 450 x 360 mm Rapid tyre inflation, after tyre fitting. Equipped with automatic purge of over limit pressure. , Supplied with Pressure Gauge Input pressure: 8 bar /120 psi Operating pressure: 6 - 8 bar / 87 -116 psi Max. pressure: 10 bar / 145 Psi Pneumatic Thumb operated Tyre Spreader Bead Keeper Set consists of: 1 x Demounting Tool, 1 x Mounting Tool, 1 x Bead Keeper Mount and de-mount all tubeless tires 17. 5'' to 24. 5''. Demount tyre in 8 seconds, Re-mount in 20 seconds without strain - Two simple tools do it all. Works on all standard tubeless and super single duplex tyres. The Changing Tools do not damage beads. Mounts and demount tyres without the need to lift the tyre. The bead keeper prevent the bead from skipping when mounting the top bead. Metal construction coated with PVC will not scratch aluminium wheels IM- AAT 400 Tyre Caddy Thumb operated pneumatic tyre spreader, used to spread tyres open for inspection or repairs. Stack Height 1500 mm Weight 17 kg Packing size 850 x 600 x 1530 mm Due to its jaws and easy manoeuvrability, it allows a pile of tyres to be loaded without having to touch them by hand IM - Easy tyre mount/demount Kit The Easy Tyre Mount /Demount Kit has become the industry standard for changing tubeless truck tyres. By using simple principles of leverage, the Easy tyre Mount/Demount kit actually works with the tyre and rim to do the work for you, in less time, with less strain, at a fraction of the cost of tyre changing machines. The Easy tyre mount/demount kit mounts and dismounts all tubeless truck tyres from 17. 5” up to 24. 5” and all super singles. It’s the safest, fastest, and easiest way ever invented to change tubeless truck tyres – guaranteed not to damage tyre beads. Product and colour may vary from pictures shown

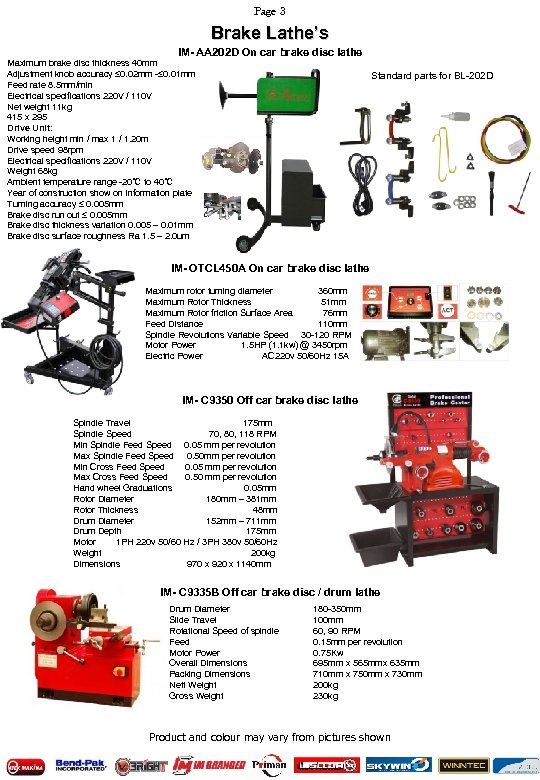

Page 3 Brake Lathe’s IM- AA 202 D On car brake disc lathe Maximum brake disc thickness 40 mm Adjustment knob accuracy ≤ 0. 02 mm -≤ 0. 01 mm Feed rate 8. 5 mm/min Electrical specifications 220 V / 110 V Net weight 11 kg 415 x 295 Drive Unit: Working height min / max 1 / 1. 20 m Drive speed 98 rpm Electrical specifications 220 V / 110 V Weight 68 kg Ambient temperature range -20℃ to 40℃ Year of construction show on information plate Turning accuracy ≤ 0. 005 mm Brake disc run out ≤ 0. 005 mm Brake disc thickness variation 0. 005 – 0. 01 mm Brake disc surface roughness Ra 1. 5 – 2. 0 um Standard parts for BL-202 D IM- OTCL 450 A On car brake disc lathe Maximum rotor turning diameter 360 mm Maximum Rotor Thickness 51 mm Maximum Rotor friction Surface Area 76 mm Feed Distance 110 mm Spindle Revolutions Variable Speed 30 -120 RPM Motor Power 1. 5 HP (1. 1 kw) @ 3450 rpm Electric Power AC 220 v 50/60 Hz 15 A IM- C 9350 Off car brake disc lathe Spindle Travel 175 mm Spindle Speed 70, 80, 118 RPM Min Spindle Feed Speed 0. 05 mm per revolution Max Spindle Feed Speed 0. 50 mm per revolution Min Cross Feed Speed 0. 05 mm per revolution Max Cross Feed Speed 0. 50 mm per revolution Hand wheel Graduations 0. 05 mm Rotor Diameter 180 mm – 381 mm Rotor Thickness 48 mm Drum Diameter 152 mm – 711 mm Drum Depth 175 mm Motor 1 PH 220 v 50/60 Hz / 3 PH 380 v 50/60 Hz Weight 200 kg Dimensions 970 x 920 x 1140 mm IM- C 9335 B Off car brake disc / drum lathe Drum Diameter Slide Travel Rotational Speed of spindle Feed Motor Power Overall Dimensions Packing Dimensions Nett Weight Gross Weight 180 -350 mm 100 mm 60, 90 RPM 0. 15 mm per revolution 0. 75 Kw 695 mm x 565 mmx 635 mm 710 mm x 750 mm x 730 mm 200 kg 230 kg Product and colour may vary from pictures shown

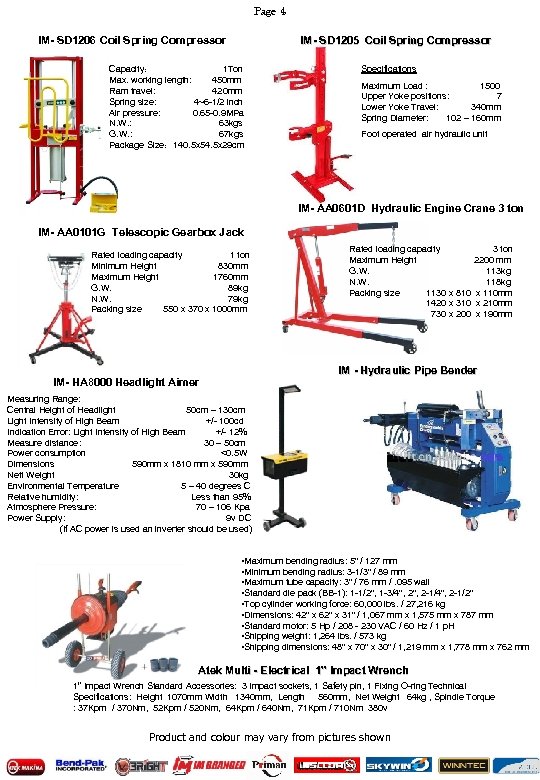

Page 4 IM- SD 1206 Coil Spring Compressor IM- SD 1205 Coil Spring Compressor Capacity： 1 Ton Max. working length: 450 mm Ram travel: 420 mm Spring size: 4~6 -1/2 inch Air pressure: 0. 65 -0. 9 MPa N. W. : 63 kgs G. W. : 67 kgs Package Size： 140. 5 x 54. 5 x 29 cm Specifications Maximum Load : 1500 Upper Yoke positions: 7 Lower Yoke Travel: 340 mm Spring Diameter: 102 – 160 mm Foot operated air hydraulic unit IM- AA 0601 D Hydraulic Engine Crane 3 ton IM- AA 0101 G Telescopic Gearbox Jack Rated loading capacity 1 ton Minimum Height 830 mm Maximum Height 1760 mm G. W. 89 kg N. W. 79 kg Packing size 550 x 370 x 1000 mm Rated loading capacity 3 ton Maximum Height 2200 mm G. W. 113 kg N. W. 118 kg Packing size 1130 x 810 x 110 mm 1420 x 310 x 210 mm 730 x 200 x 190 mm IM - Hydraulic Pipe Bender IM- HA 8000 Headlight Aimer Measuring Range: Central Height of Headlight 50 cm – 130 cm Light Intensity of High Beam +/- 100 cd Indication Error: Light Intensity of High Beam +/- 12% Measure distance : 30 – 50 cm Power consumption <0. 5 W Dimensions 590 mm x 1810 mm x 590 mm Nett Weight 30 kg Environmental Temperature 5 – 40 degrees C Relative humidity: Less than 95% Atmosphere Pressure: 70 – 106 Kpa Power Supply: 9 v DC (If AC power is used an inverter should be used) • Maximum bending radius: 5" / 127 mm • Minimum bending radius: 3 -1/3" / 89 mm • Maximum tube capacity: 3" / 76 mm /. 095 wall • Standard die pack (BB-1): 1 -1/2", 1 -3/4", 2 -1/4", 2 -1/2" • Top cylinder working force: 60, 000 lbs. / 27, 216 kg • Dimensions: 42" x 62" x 31" / 1, 067 mm x 1, 575 mm x 787 mm • Standard motor: 5 Hp / 208 - 230 VAC / 60 Hz / 1 p. H • Shipping weight: 1, 264 lbs. / 573 kg • Shipping dimensions: 48" x 70" x 30" / 1, 219 mm x 1, 778 mm x 762 mm Atek Multi - Electrical 1” Impact Wrench Standard Accessories: 3 Impact sockets, 1 Safety pin, 1 Fixing O-ring Technical Specifications: Height 1070 mm Width 1340 mm, Length 560 mm, Net Weight 64 kg , Spindle Torque : 37 Kpm / 370 Nm, 52 Kpm / 520 Nm, 64 Kpm / 640 Nm, 71 Kpm / 710 Nm 380 v Product and colour may vary from pictures shown

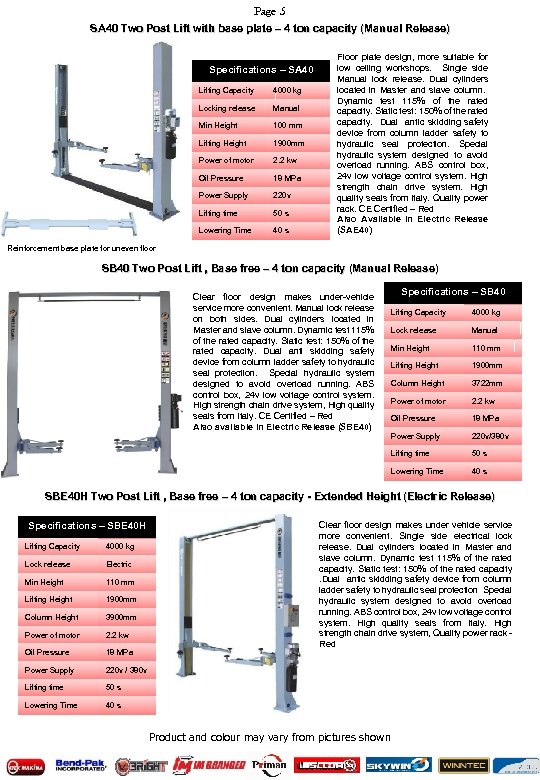

Page 5 SA 40 Two Post Lift with base plate – 4 ton capacity (Manual Release) Specifications – SA 40 Lifting Capacity 4000 kg Locking release Manual Min Height 100 mm Lifting Height 1900 mm Power of motor 2. 2 kw Oil Pressure 18 MPa Power Supply 220 v Lifting time 50 s Lowering Time 40 s Floor plate design, more suitable for low ceiling workshops. Single side Manual lock release. Dual cylinders located in Master and slave column. Dynamic test 115% of the rated capacity. Static test: 150% of the rated capacity. Dual antic skidding safety device from column ladder safety to hydraulic seal protection. Special hydraulic system designed to avoid overload running. ABS control box, 24 v low voltage control system. High strength chain drive system. High quality seals from Italy. Quality power rack. CE Certified – Red Also Available in Electric Release (SAE 40) Reinforcement base plate for uneven floor SB 40 Two Post Lift , Base free – 4 ton capacity (Manual Release) Clear floor design makes under-vehicle service more convenient. Manual lock release on both sides. Dual cylinders located in Master and slave column. Dynamic test 115% of the rated capacity. Static test: 150% of the rated capacity. Dual anti skidding safety device from column ladder safety to hydraulic seal protection. Special hydraulic system designed to avoid overload running. ABS control box, 24 v low voltage control system. High strength chain drive system, High quality seals from Italy. CE Certified – Red Also available in Electric Release (SBE 40) Specifications – SB 40 Lifting Capacity 4000 kg Lock release Manual Min Height 110 mm Lifting Height 1900 mm Column Height 3722 mm Power of motor 2. 2 kw Oil Pressure 18 MPa Power Supply 220 v/380 v Lifting time 50 s Lowering Time 40 s SBE 40 H Two Post Lift , Base free – 4 ton capacity - Extended Height (Electric Release) Specifications – SBE 40 H Lifting Capacity 4000 kg Lock release Electric Min Height 110 mm Lifting Height 1900 mm Column Height 3900 mm Power of motor 2. 2 kw Oil Pressure 18 MPa Power Supply 220 v / 380 v Lifting time 50 s Lowering Time Clear floor design makes under vehicle service more convenient. Single side electrical lock release. Dual cylinders located in Master and slave column. Dynamic test 115% of the rated capacity. Static test: 150% of the rated capacity . Dual antic skidding safety device from column ladder safety to hydraulic seal protection Special hydraulic system designed to avoid overload running. ABS control box, 24 v low voltage control system. High quality seals from Italy. High strength chain drive system, Quality power rack - Red 40 s Product and colour may vary from pictures shown

Page 6 SAE 40 Two Post Lift with base plate – 4 ton capacity (Electric Release) Reinforcement base plate for uneven floor Specifications – SAE 40 Lifting Capacity 4000 kg Locking release Electrical Min Height 100 mm Lifting Height 1900 mm Power of motor 2. 2 kw Oil Pressure 18 MPa Power Supply 220 v Lifting time 50 s Lowering Time 40 s Floor plate design, more suitable for low ceiling workshops. Single side electrical lock release. Dual cylinders located in Master and slave column. Dynamic test 115% of the rated capacity. Static test: 150% of the rated capacity. Dual antic skidding safety device from column ladder safety to hydraulic seal protection. Special hydraulic system designed to avoid overload running. ABS control box, 24 v low voltage control system. High strength chain drive system. High quality seals from Italy. Quality power rack. CE Certified - Red SBE 40 Two Post Lift , Base free – 4 ton capacity (Electric Release) Specifications – SBE 40 Lifting Capacity Lock release Electric Min Height 110 mm Lifting Height 1900 mm Column Height 3776 mm Power of motor 2. 2 kw Oil Pressure 18 MPa Power Supply 220 v / 380 v Lifting time Clear floor design makes under vehicle service more convenient. Single side electrical lock release. Dual cylinders located in Master and slave column. Dynamic test 115% of the rated capacity. Static test: 150% of the rated capacity . Dual antic skidding safety device from column ladder safety to hydraulic seal protection Special hydraulic system designed to avoid overload running. ABS control box, 24 v low voltage control system. High quality seals from Italy. High strength chain drive system Quality power rack - Red 4000 kg 50 s Lowering Time 40 s Product and colour may vary from pictures shown

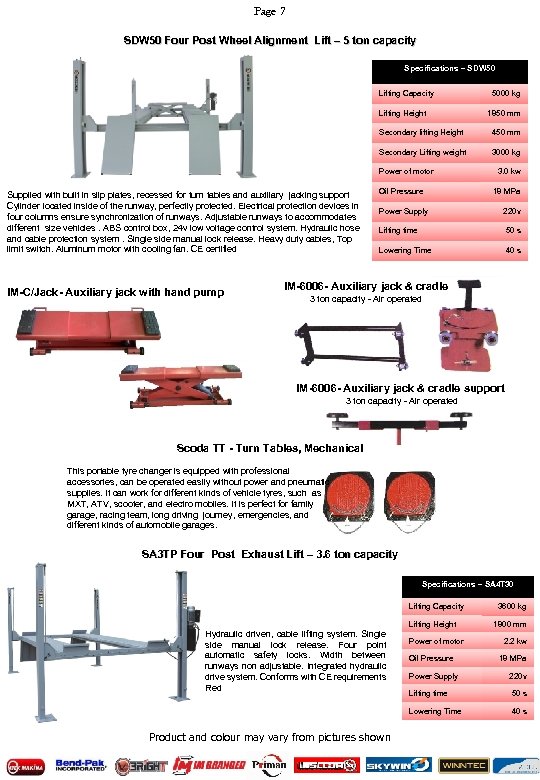

Page 7 SDW 50 Four Post Wheel Alignment Lift – 5 ton capacity Specifications – SDW 50 Lifting Capacity Lifting Height 5000 kg 1850 mm Secondary lifting Height 450 mm Secondary Lifting weight 3000 kg Power of motor Supplied with built in slip plates, recessed for turn tables and auxiliary jacking support Cylinder located inside of the runway, perfectly protected. Electrical protection devices in four columns ensure synchronization of runways. Adjustable runways to accommodates different size vehicles. ABS control box, 24 v low voltage control system. Hydraulic hose and cable protection system. Single side manual lock release. Heavy duty cables, Top limit switch. Aluminum motor with cooling fan. CE certified IM-C/Jack- Auxiliary jack with hand pump Oil Pressure 3. 0 kw 18 MPa Power Supply 220 v Lifting time 50 s Lowering Time 40 s IM-6006 - Auxiliary jack & cradle 3 ton capacity - Air operated IM-6006 - Auxiliary jack & cradle support 3 ton capacity - Air operated Scoda TT - Turn Tables, Mechanical This portable tyre changer is equipped with professional accessories, can be operated easily without power and pneumatic supplies. It can work for different kinds of vehicle tyres, such as MXT, ATV, scooter, and electro mobiles. It is perfect for family garage, racing team, long driving journey, emergencies, and different kinds of automobile garages. SA 3 TP Four Post Exhaust Lift – 3. 6 ton capacity Specifications – SA 4 T 30 Lifting Capacity Lifting Height Hydraulic driven, cable lifting system. Single side manual lock release. Four point automatic safety locks. Width between runways non adjustable. Integrated hydraulic drive system. Conforms with CE requirements Red Power of motor Oil Pressure 3600 kg 1800 mm 2. 2 kw 18 MPa 220 v Lifting time 50 s Lowering Time Product and colour may vary from pictures shown Power Supply 40 s

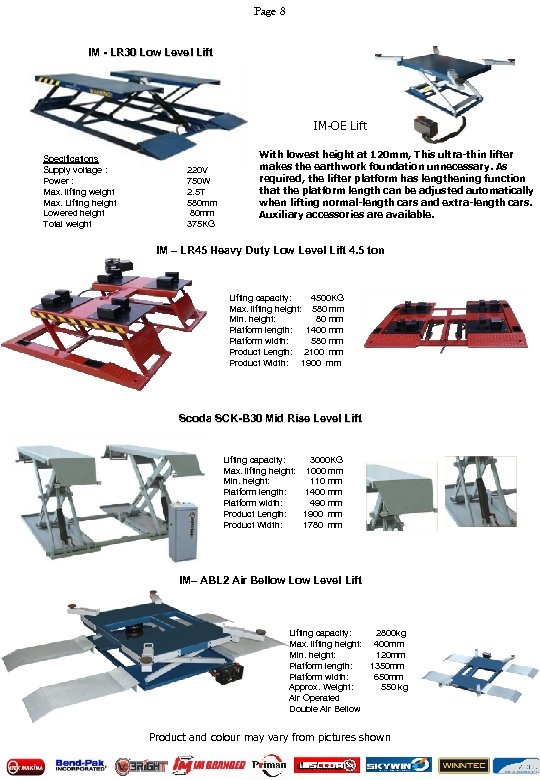

Page 8 IM - LR 30 Low Level Lift IM-OE Lift Specifications Supply voltage : Power : Max. lifting weight Max. Lifting height Lowered height Total weight 220 V 750 W 2. 5 T 580 mm 375 KG With lowest height at 120 mm, This ultra-thin lifter makes the earthwork foundation unnecessary. As required, the lifter platform has lengthening function that the platform length can be adjusted automatically when lifting normal-length cars and extra-length cars. Auxiliary accessories are available. IM – LR 45 Heavy Duty Low Level Lift 4. 5 ton Lifting capacity: 4500 KG Max. lifting height: 580 mm Min. height: 80 mm Platform length: 1400 mm Platform width: 580 mm Product Length: 2100 mm Product Width: 1900 mm Scoda SCK-B 30 Mid Rise Level Lifting capacity: 3000 KG Max. lifting height: 1000 mm Min. height: 110 mm Platform length: 1400 mm Platform width: 490 mm Product Length: 1900 mm Product Width: 1780 mm IM– ABL 2 Air Bellow Level Lifting capacity: 2800 kg Max. lifting height: 400 mm Min. height: 120 mm Platform length: 1350 mm Platform width: 650 mm Approx. Weight: 550 kg Air Operated Double Air Bellow Product and colour may vary from pictures shown

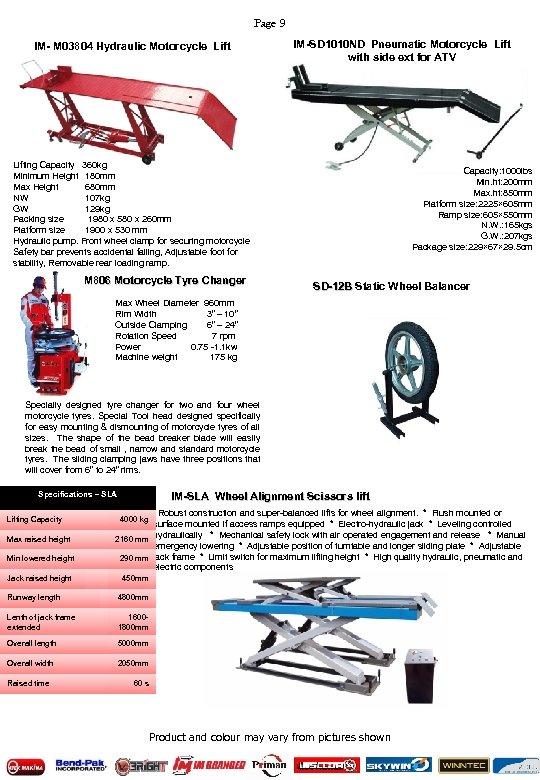

Page 9 IM- M 03804 Hydraulic Motorcycle Lift IM-SD 1010 ND Pneumatic Motorcycle Lift with side ext for ATV Lifting Capacity 360 kg Minimum Height 180 mm Max Height 680 mm NW 107 kg GW 129 kg Packing size 1980 x 580 x 260 mm Platform size 1900 x 530 mm Hydraulic pump. Front wheel clamp for securing motorcycle Safety bar prevents accidental falling, Adjustable foot for stability, Removable rear loading ramp. M 806 Motorcycle Tyre Changer Capacity: 1000 lbs Min. ht: 200 mm Max. ht: 850 mm Platform size: 2225× 605 mm Ramp size: 605× 550 mm N. W. : 165 kgs G. W. : 207 kgs Package size: 229× 67× 29. 5 cm SD-12 B Static Wheel Balancer Max Wheel Diameter 960 mm Rim Width 3” – 10” Outside Clamping 6” – 24” Rotation Speed 7 rpm Power 0. 75 -1. 1 kw Machine weight 175 kg Specially designed tyre changer for two and four wheel motorcycle tyres. Special Tool head designed specifically for easy mounting & dismounting of motorcycle tyres of all sizes. The shape of the bead breaker blade will easily break the bead of small , narrow and standard motorcycle tyres. The sliding clamping jaws have three positions that will cover from 6” to 24” rims. Specifications – SLA Lifting Capacity Max raised height Min lowered height Jack raised height IM-SLA Wheel Alignment Scissors lift * Robust construction and super-balanced lifts for wheel alignment. * Flush mounted or surface mounted if access ramps equipped * Electro-hydraulic jack * Leveling controlled 2160 mm hydraulically * Mechanical safety lock with air operated engagement and release * Manual emergency lowering * Adjustable position of turntable and longer sliding plate * Adjustable 290 mm jack frame * Limit switch for maximum lifting height * High quality hydraulic, pneumatic and electric components 4000 kg 450 mm Runway length 4800 mm Lenth of jack frame extended 16001800 mm Overall length 5000 mm Overall width 2050 mm Raised time 60 s Product and colour may vary from pictures shown

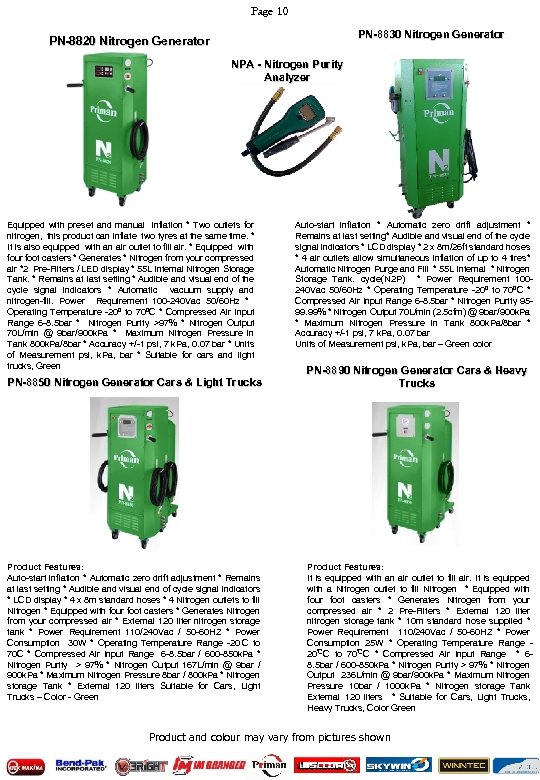

Page 10 PN-8830 Nitrogen Generator PN-8820 Nitrogen Generator NPA - Nitrogen Purity Analyzer Equipped with preset and manual inflation * Two outlets for nitrogen, this product can inflate two tyres at the same time. * It is also equipped with an air outlet to fill air. * Equipped with four foot casters * Generates * Nitrogen from your compressed air *2 Pre-Filters / LED display * 55 L internal Nitrogen Storage Tank. * Remains at last setting * Audible and visual end of the cycle signal indicators * Automatic vacuum supply and nitrogen-fill. Power Requirement 100 -240 Vac 50/60 Hz * Operating Temperature -20º to 70ºC * Compressed Air Input Range 6 -8. 5 bar * Nitrogen Purity >97% * Nitrogen Output 70 L/min @ 9 bar/900 k. Pa * Maximum Nitrogen Pressure in Tank 800 k. Pa/8 bar * Accuracy +/-1 psi, 7 k. Pa, 0. 07 bar * Units of Measurement psi, k. Pa, bar * Suitable for cars and light trucks, Green PN-8850 Nitrogen Generator Cars & Light Trucks Product Features: Auto-start inflation * Automatic zero drift adjustment * Remains at last setting * Audible and visual end of cycle signal indicators * LCD display * 4 x 8 m standard hoses * 4 Nitrogen outlets to fill Nitrogen * Equipped with four foot casters * Generates Nitrogen from your compressed air * External 120 liter nitrogen storage tank * Power Requirement 110/240 Vac / 50 -60 HZ * Power Consumption 30 W * Operating Temperature Range -20 C to 70 C * Compressed Air Input Range 6 -8. 5 bar / 600 -850 k. Pa * Nitrogen Purity > 97% * Nitrogen Output 167 L/min @ 9 bar / 900 k. Pa * Maximum Nitrogen Pressure 8 bar / 800 k. Pa * Nitrogen storage Tank * External 120 liters Suitable for Cars, Light Trucks – Color - Green Auto-start inflation * Automatic zero drift adjustment * Remains at last setting* Audible and visual end of the cycle signal indicators * LCD display * 2 x 8 m/26 ft standard hoses * 4 air outlets allow simultaneous inflation of up to 4 tires* Automatic Nitrogen Purge and Fill * 55 L internal * Nitrogen Storage Tank. cycle(N 2 P) * Power Requirement 100240 Vac 50/60 Hz * Operating Temperature -20º to 70ºC * Compressed Air Input Range 6 -8. 5 bar * Nitrogen Purity 9599. 99% * Nitrogen Output 70 L/min (2. 5 cfm) @ 9 bar/900 k. Pa * Maximum Nitrogen Pressure in Tank 800 k. Pa/8 bar * Accuracy +/-1 psi, 7 k. Pa, 0. 07 bar Units of Measurement psi, k. Pa, bar – Green color PN-8890 Nitrogen Generator Cars & Heavy Trucks Product Features: It is equipped with an air outlet to fill air. It is equipped with a Nitrogen outlet to fill Nitrogen * Equipped with four foot casters * Generates Nitrogen from your compressed air * 2 Pre-Filters * External 120 liter nitrogen storage tank * 10 m standard hose supplied * Power Requirement 110/240 Vac / 50 -60 HZ * Power Consumption 25 W * Operating Temperature Range 20℃C to 70℃C * Compressed Air Input Range * 68. 5 bar / 600 -850 k. Pa * Nitrogen Purity > 97% * Nitrogen Output 236 L/min @ 9 bar/900 k. Pa * Maximum Nitrogen Pressure 10 bar / 1000 k. Pa * Nitrogen storage Tank External 120 liters * Suitable for Cars, Light Trucks, Heavy Trucks, Color Green Product and colour may vary from pictures shown

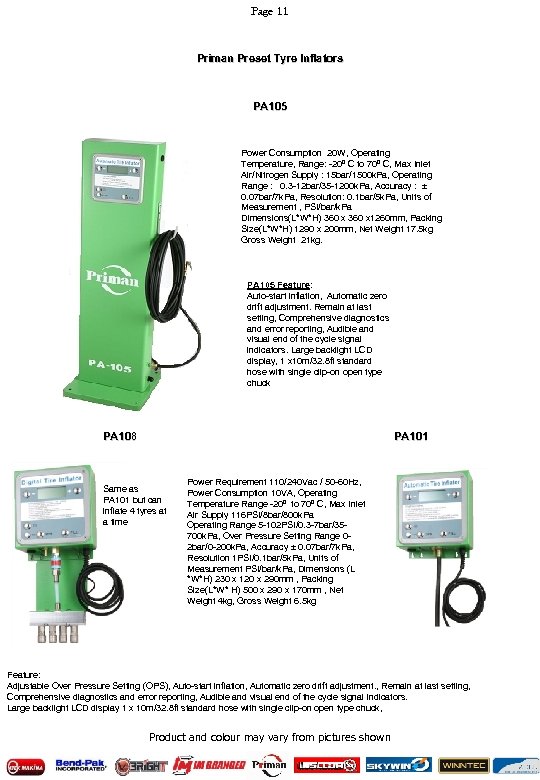

Page 11 Priman Preset Tyre Inflators PA 105 Power Consumption 20 W, Operating Temperature, Range: -20º C to 70º C, Max Inlet Air/Nitrogen Supply : 15 bar/1500 k. Pa, Operating Range : 0. 3 -12 bar/35 -1200 k. Pa, Accuracy : ± 0. 07 bar/7 k. Pa, Resolution: 0. 1 bar/5 k. Pa, Units of Measurement , PSI/bar/k. Pa Dimensions(L*W*H) 360 x 1260 mm, Packing Size(L*W*H) 1290 x 200 mm, Net Weight 17. 5 kg Gross Weight 21 kg. PA 105 Feature: Auto-start inflation, Automatic zero drift adjustment. Remain at last setting, Comprehensive diagnostics and error reporting, Audible and visual end of the cycle signal indicators. Large backlight LCD display, 1 x 10 m/32. 8 ft standard hose with single clip-on open type chuck PA 108 PA 101 Same as PA 101 but can inflate 4 tyres at a time Power Requirement 110/240 Vac / 50 -60 Hz, Power Consumption 10 VA, Operating Temperature Range -20º to 70º C, Max Inlet Air Supply 116 PSI/8 bar/800 k. Pa Operating Range 5 -102 PSI/0. 3 -7 bar/35700 k. Pa, Over Pressure Setting Range 02 bar/0 -200 k. Pa, Accuracy ± 0. 07 bar/7 k. Pa, Resolution 1 PSI/0. 1 bar/5 k. Pa, Units of Measurement PSI/bar/k. Pa, Dimensions (L *W*H) 230 x 120 x 290 mm , Packing Size(L*W* H) 500 x 290 x 170 mm , Net Weight 4 kg, Gross Weight 6. 5 kg Feature: Adjustable Over Pressure Setting (OPS), Auto-start inflation, Automatic zero drift adjustment. , Remain at last setting, Comprehensive diagnostics and error reporting, Audible and visual end of the cycle signal indicators. Large backlight LCD display 1 x 10 m/32. 8 ft standard hose with single clip-on open type chuck, Product and colour may vary from pictures shown

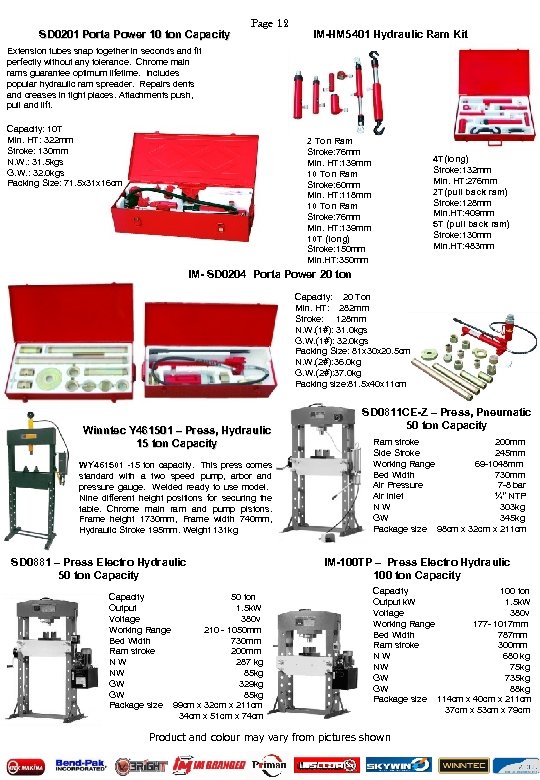

SD 0201 Porta Power 10 ton Capacity Page 12 IM-HM 5401 Hydraulic Ram Kit Extension tubes snap together in seconds and fit perfectly without any tolerance. Chrome main rams guarantee optimum lifetime. Includes popular hydraulic ram spreader. Repairs dents and creases in tight places. Attachments push, pull and lift. Capacity: 10 T Min. HT: 322 mm Stroke: 130 mm N. W. : 31. 5 kgs G. W. : 32. 0 kgs Packing Size: 71. 5 x 31 x 16 cm 2 Ton Ram Stroke: 76 mm Min. HT: 139 mm 10 Ton Ram Stroke: 60 mm Min. HT: 118 mm 10 Ton Ram Stroke: 76 mm Min. HT: 139 mm 10 T (long) Stroke: 150 mm Min. HT: 350 mm 4 T(long) Stroke: 132 mm Min. HT: 276 mm 2 T(pull back ram) Stroke: 128 mm Min. HT: 409 mm 5 T (pull back ram) Stroke: 130 mm Min. HT: 483 mm IM- SD 0204 Porta Power 20 ton Capacity: 20 Ton Min. HT: 282 mm Stroke: 128 mm N. W. (1#): 31. 0 kgs G. W. (1#): 32. 0 kgs Packing Size: 81 x 30 x 20. 5 cm N. W. (2#): 36. 0 kg G. W. (2#): 37. 0 kg Packing size: 81. 5 x 40 x 11 cm Winntec Y 461501 – Press, Hydraulic 15 ton Capacity WY 461501 -15 ton capacity. This press comes standard with a two speed pump, arbor and pressure gauge. Welded ready to use model. Nine different height positions for securing the table. Chrome main ram and pump pistons. Frame height 1730 mm, Frame width 740 mm, Hydraulic Stroke 195 mm. Weight 131 kg SD 0881 – Press Electro Hydraulic 50 ton Capacity 50 ton Output 1. 5 k. W Voltage 380 v Working Range 210 - 1050 mm Bed Width 730 mm Ram stroke 200 mm N W 287 kg NW 85 kg GW 329 kg GW 85 kg Package size 99 cm x 32 cm x 211 cm 34 cm x 51 cm x 74 cm SD 0811 CE-Z – Press, Pneumatic 50 ton Capacity Ram stroke 200 mm Side Stroke 245 mm Working Range 69 -1048 mm Bed Width 730 mm Air Pressure 7 -8 bar Air inlet ¼” NTP N W 303 kg GW 345 kg Package size 98 cm x 32 cm x 211 cm IM-100 TP – Press Electro Hydraulic 100 ton Capacity 100 ton Output k. W 1. 5 k. W Voltage 380 v Working Range 177 - 1017 mm Bed Width 787 mm Ram stroke 300 mm N W 680 kg NW 75 kg GW 735 kg GW 88 kg Package size 114 cm x 40 cm x 211 cm 37 cm x 53 cm x 79 cm Product and colour may vary from pictures shown

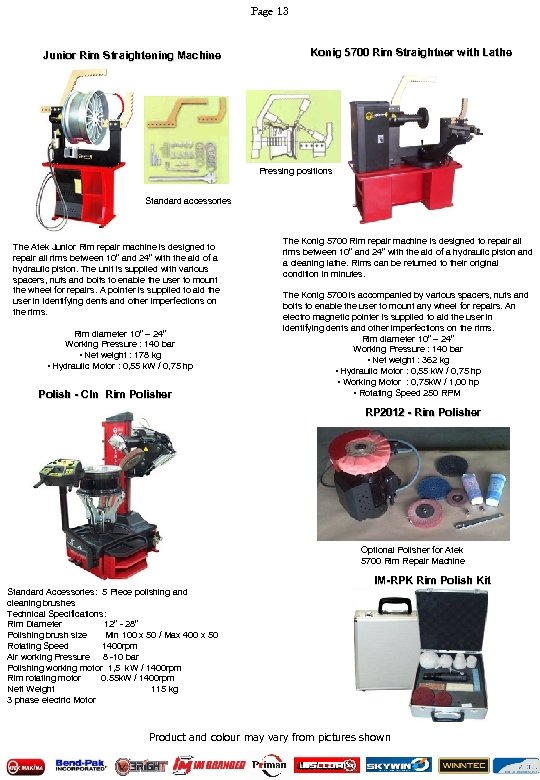

Page 13 Junior Rim Straightening Machine Konig 5700 Rim Straightner with Lathe Pressing positions Standard accessories The Atek Junior Rim repair machine is designed to repair all rims between 10” and 24” with the aid of a hydraulic piston. The unit is supplied with various spacers, nuts and bolts to enable the user to mount the wheel for repairs. A pointer is supplied to aid the user in identifying dents and other imperfections on the rims. Rim diameter 10” – 24” Working Pressure : 140 bar • Net weight : 178 kg • Hydraulic Motor : 0, 55 k. W / 0, 75 hp Polish - Cln Rim Polisher The Konig 5700 Rim repair machine is designed to repair all rims between 10” and 24” with the aid of a hydraulic piston and a cleaning lathe. Rims can be returned to their original condition in minutes. The Konig 5700 is accompanied by various spacers, nuts and bolts to enable the user to mount any wheel for repairs. An electro magnetic pointer is supplied to aid the user in identifying dents and other imperfections on the rims. Rim diameter 10” – 24” Working Pressure : 140 bar • Net weight : 362 kg • Hydraulic Motor : 0, 55 k. W / 0, 75 hp • Working Motor : 0, 75 k. W / 1, 00 hp • Rotating Speed 250 RPM RP 2012 - Rim Polisher Optional Polisher for Atek 5700 Rim Repair Machine Standard Accessories: 5 Piece polishing and cleaning brushes Technical Specifications: Rim Diameter 12” - 28” Polishing brush size Min 100 x 50 / Max 400 x 50 Rotating Speed 1400 rpm Air working Pressure 8 -10 bar Polishing working motor 1, 5 k. W / 1400 rpm Rim rotating motor 0. 55 k. W / 1400 rpm Nett Weight 115 kg 3 phase electric Motor IM-RPK Rim Polish Kit Product and colour may vary from pictures shown

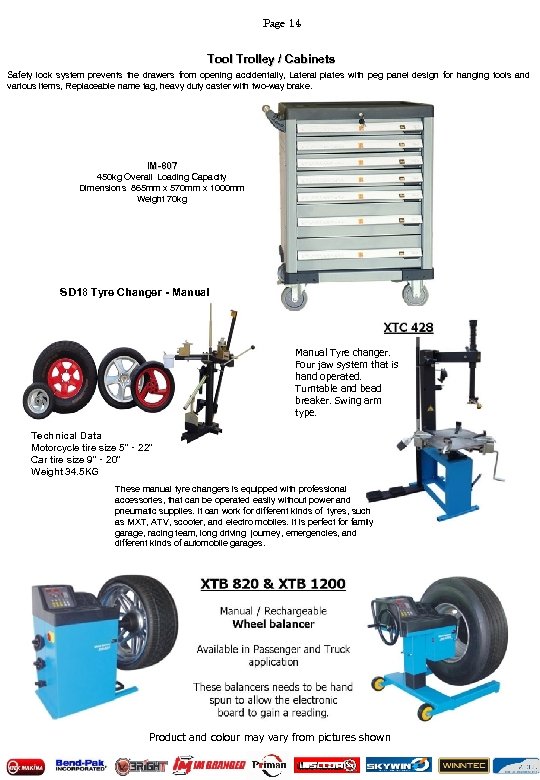

Page 14 Tool Trolley / Cabinets Safety lock system prevents the drawers from opening accidentally, Lateral plates with peg panel design for hanging tools and various items, Replaceable name tag, heavy duty caster with two-way brake. IM-807 450 kg Overall Loading Capacity Dimensions 865 mm x 570 mm x 1000 mm Weight 70 kg SD 18 Tyre Changer - Manual Tyre changer. Four jaw system that is hand operated. Turntable and bead breaker. Swing arm type. Technical Data Motorcycle tire size 5”‐ 22” Car tire size 9”‐ 20” Weight 34. 5 KG These manual tyre changers is equipped with professional accessories, that can be operated easily without power and pneumatic supplies. It can work for different kinds of tyres, such as MXT, ATV, scooter, and electro mobiles. It is perfect for family garage, racing team, long driving journey, emergencies, and different kinds of automobile garages. Product and colour may vary from pictures shown

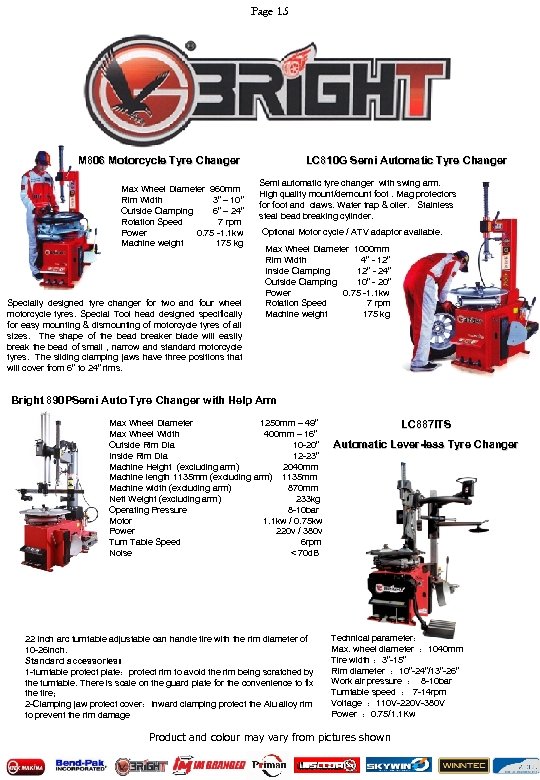

Page 15 M 806 Motorcycle Tyre Changer Max Wheel Diameter 960 mm Rim Width 3” – 10” Outside Clamping 6” – 24” Rotation Speed 7 rpm Power 0. 75 -1. 1 kw Machine weight 175 kg Specially designed tyre changer for two and four wheel motorcycle tyres. Special Tool head designed specifically for easy mounting & dismounting of motorcycle tyres of all sizes. The shape of the bead breaker blade will easily break the bead of small , narrow and standard motorcycle tyres. The sliding clamping jaws have three positions that will cover from 6” to 24” rims. LC 810 G Semi Automatic Tyre Changer Semi automatic tyre changer with swing arm. High quality mount/demount foot. Mag protectors for foot and claws. Water trap & oiler. Stainless steal bead breaking cylinder. Optional Motor cycle / ATV adaptor available. Max Wheel Diameter 1000 mm Rim Width 4” - 12” Inside Clamping 12” - 24” Outside Clamping 10” - 20” Power 0. 75 -1. 1 kw Rotation Speed 7 rpm Machine weight 175 kg Bright 890 PSemi Auto Tyre Changer with Help Arm Max Wheel Diameter 1250 mm – 49” Max Wheel Width 400 mm – 16” Outside Rim Dia 10 -20” Inside Rim Dia 12 -23” Machine Height (excluding arm) 2040 mm Machine length 1135 mm (excluding arm) 1135 mm Machine width (excluding arm) 870 mm Nett Weight (excluding arm) 233 kg Operating Pressure 8 -10 bar Motor 1. 1 kw / 0. 75 kw Power 220 v / 380 v Turn Table Speed 6 rpm Noise < 70 d. B 22 inch arc turntable adjustable can handle tire with the rim diameter of 10 -26 inch. Standard accessories： 1 -turntable protect plate：protect rim to avoid the rim being scratched by the turntable. There is scale on the guard plate for the convenience to fix the tire； 2 -Clamping jaw protect cover：Inward clamping protect the Alu alloy rim to prevent the rim damage LC 887 ITS Automatic Lever-less Tyre Changer Technical parameter： Max. wheel diameter ： 1040 mm Tire width ： 3”-15” Rim diameter ： 10”-24”/13”-26” Work air pressure ： 8 -10 bar Turntable speed ： 7 -14 rpm Voltage ： 110 V-220 V-380 V Power ： 0. 75/1. 1 Kw Product and colour may vary from pictures shown

Page 16 887 Automatic Tyre Changer Max Wheel Diameter 1030 mm Rim Width 3” - 15” Inside Clamping 13” -26” Outside Clamping 10” - 24” Power 0. 75 -1. 1 kw Machine weight 260 kg Speed Rotation 7 rpm AL 320 B Help Arm Automatic tyre changer with rear tilting arm. Pneumatic column lock. Mag protectors for foot and claws. Water trap and oiler. Stainless steal bead breaking cylinder. Turn tables equipped with a protective cover. 80 MM Turn tables cylinder increases clamp force. The design of the bead breaking blade rotates enabling best bead breaking force. Optional: Help arm for low profile tyres LC 588 Truck Tyre Changer LC 590 Truck and OTR Tyre Changer Max Wheel Diameter 2200 mm Wheel Width 1100 mm Internal Clamping 14” -56” Working Pressure 150 bar Machine weight 987 kg Max Wheel Diameter 1500 mm Wheel Width 1000 mm Power Requirements 1. 8 kw Internal Clamping 14” -26” Working Pressure 150 bar Machine weight 561 kg CB 910 GB Wheel Balancer CB 460 B Truck / Car Wheel Balancer 3 D Automatic measurement Multi-balancing modes Foot Brake Up to 4 user modes Alu Split weight program LCD Display Statistical Analysis Lazer Scale Max Wheel Diameter 1000 mm Wheel Width 20” Max Wheel Weight 65 kg Accuracy 1 g Rotation Speed 200 rpm Motor 0. 25 k. W Power Requirements 220 v/1 ph Machine weight 110 kg Manual data input Product and colour may vary from pictures shown Max Wheel Diameter 1200 mm Wheel Width 20” Max Wheel Weight 200 kg Accuracy 1 g Rotation Speed 100/200 rpm Power 0. 55 kw Machine weight 269 kg Equipped with a Wheel Lift

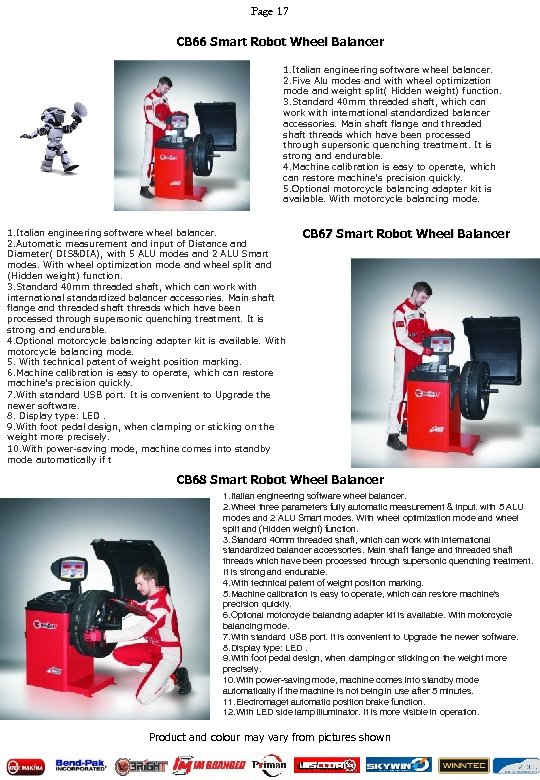

Page 17 CB 66 Smart Robot Wheel Balancer 1. Italian engineering software wheel balancer. 2. Five Alu modes and with wheel optimization mode and weight split( Hidden weight) function. 3. Standard 40 mm threaded shaft, which can work with international standardized balancer accessories. Main shaft flange and threaded shaft threads which have been processed through supersonic quenching treatment. It is strong and endurable. 4. Machine calibration is easy to operate, which can restore machine's precision quickly. 5. Optional motorcycle balancing adapter kit is available. With motorcycle balancing mode. 1. Italian engineering software wheel balancer. 2. Automatic measurement and input of Distance and Diameter( DIS&DIA), with 5 ALU modes and 2 ALU Smart modes. With wheel optimization mode and wheel split and (Hidden weight) function. 3. Standard 40 mm threaded shaft, which can work with international standardized balancer accessories. Main shaft flange and threaded shaft threads which have been processed through supersonic quenching treatment. It is strong and endurable. 4. Optional motorcycle balancing adapter kit is available. With motorcycle balancing mode. 5. With technical patent of weight position marking. 6. Machine calibration is easy to operate, which can restore machine's precision quickly. 7. With standard USB port. It is convenient to Upgrade the newer software. 8. Display type: LED. 9. With foot pedal design, when clamping or sticking on the weight more precisely. 10. With power-saving mode, machine comes into standby mode automatically if t CB 67 Smart Robot Wheel Balancer CB 68 Smart Robot Wheel Balancer 1. Italian engineering software wheel balancer. 2. Wheel three parameters fully automatic measurement & input. with 5 ALU modes and 2 ALU Smart modes. With wheel optimization mode and wheel split and (Hidden weight) function. 3. Standard 40 mm threaded shaft, which can work with international standardized balancer accessories. Main shaft flange and threaded shaft threads which have been processed through supersonic quenching treatment. It is strong and endurable. 4. With technical patent of weight position marking. 5. Machine calibration is easy to operate, which can restore machine's precision quickly. 6. Optional motorcycle balancing adapter kit is available. With motorcycle balancing mode. 7. With standard USB port. It is convenient to Upgrade the newer software. 8. Display type: LED. 9. With foot pedal design, when clamping or sticking on the weight more precisely. 10. With power-saving mode, machine comes into standby mode automatically if the machine is not being in use after 5 minutes. 11. Electromaget automatic position brake function. 12. With LED side lamp illuminator. It is more visible in operation. Product and colour may vary from pictures shown

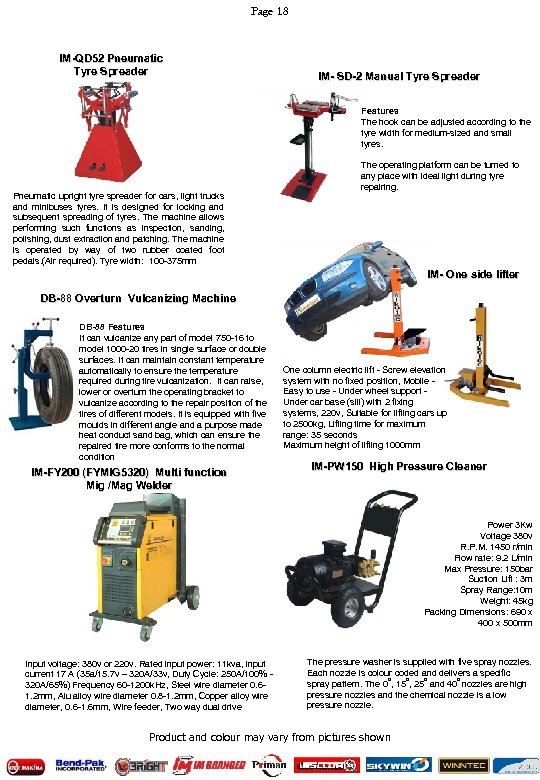

Page 18 IM-QD 52 Pneumatic Tyre Spreader IM- SD-2 Manual Tyre Spreader Features The hook can be adjusted according to the tyre width for medium-sized and small tyres. Pneumatic upright tyre spreader for cars, light trucks and minibuses tyres. It is designed for locking and subsequent spreading of tyres. The machine allows performing such functions as inspection, sanding, polishing, dust extraction and patching. The machine is operated by way of two rubber coated foot pedals. (Air required). Tyre width: 100 -375 mm The operating platform can be turned to any place with ideal light during tyre repairing. IM- One side lifter DB-88 Overturn Vulcanizing Machine DB-88 Features It can vulcanize any part of model 750 -16 to model 1000 -20 tires in single surface or double surfaces. It can maintain constant temperature automatically to ensure the temperature required during tire vulcanization. It can raise, lower or overturn the operating bracket to vulcanize according to the repair position of the tires of different models. It is equipped with five moulds in different angle and a purpose made heat conduct sand bag, which can ensure the repaired tire more conforms to the normal condition IM-FY 200 (FYMIG 5320) Multi function Mig /Mag Welder One column electric lift - Screw elevation system with no fixed position, Mobile - Easy to use - Under wheel support - Under car base (sill) with 2 fixing systems, 220 v, Suitable for lifting cars up to 2500 kg, Lifting time for maximum range: 35 seconds Maximum height of lifting 1000 mm IM-PW 150 High Pressure Cleaner Power 3 Kw Voltage 380 v R. P. M. 1450 r/min Flow rate: 9. 2 L/min Max Pressure: 150 bar Suction Lift : 3 m Spray Range: 10 m Weight: 45 kg Packing Dimensions: 690 x 400 x 500 mm Input voltage: 380 v or 220 v. Rated input power: 11 kva, input current 17 A (35 a/15. 7 v – 320 A/33 v, Duty Cycle: 250 A/100% - 320 A/65%) Frequency 60 -1200 k. Hz, Steel wire diameter 0. 61. 2 mm, Alu alloy wire diameter 0. 8 -1. 2 mm, Copper alloy wire diameter, 0. 6 -1. 6 mm, Wire feeder, Two way dual drive The pressure washer is supplied with five spray nozzles. Each nozzle is colour coded and delivers a specific o o spray pattern. The 0 , 15 , 25 and 40 nozzles are high pressure nozzles and the chemical nozzle is a low pressure nozzle. Product and colour may vary from pictures shown

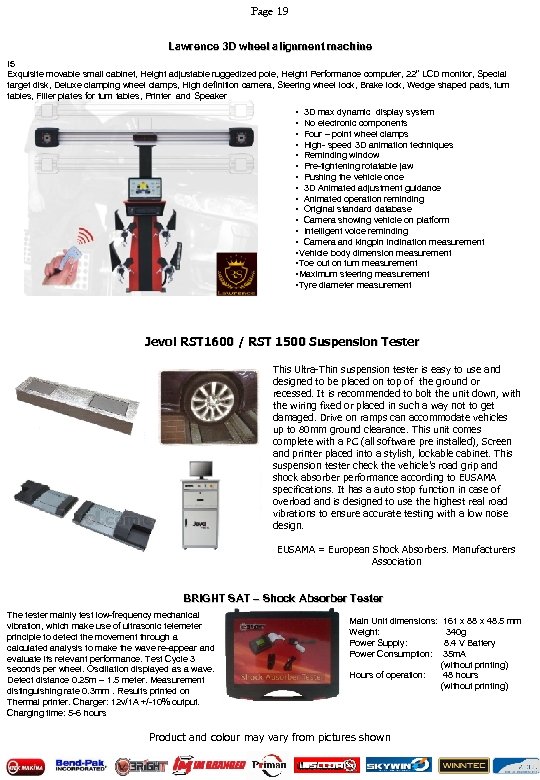

Page 19 Lawrence 3 D wheel alignment machine i 5 Exquisite movable small cabinet, Height adjustable ruggedized pole, Height Performance computer, 22” LCD monitor, Special target disk, Deluxe clamping wheel clamps, High definition camera, Steering wheel lock, Brake lock, Wedge shaped pads, turn tables, Filler plates for turn tables, Printer and Speaker • 3 D max dynamic display system • No electronic components • Four – point wheel clamps • High- speed 3 D animation techniques • Reminding window • Pre-tightening rotatable jaw • Pushing the vehicle once • 3 D Animated adjustment guidance • Animated operation reminding • Original standard database • Camera showing vehicle on platform • Intelligent voice reminding • Camera and kingpin inclination measurement • Vehicle body dimension measurement • Toe out on turn measurement • Maximum steering measurement • Tyre diameter measurement Jevol RST 1600 / RST 1500 Suspension Tester This Ultra-Thin suspension tester is easy to use and designed to be placed on top of the ground or recessed. It is recommended to bolt the unit down, with the wiring fixed or placed in such a way not to get damaged. Drive on ramps can accommodate vehicles up to 80 mm ground clearance. This unit comes complete with a PC (all software pre installed), Screen and printer placed into a stylish, lockable cabinet. This suspension tester check the vehicle’s road grip and shock absorber performance according to EUSAMA specifications. It has a auto stop function in case of overload and is designed to use the highest real road vibrations to ensure accurate testing with a low noise design. EUSAMA = European Shock Absorbers. Manufacturers Association BRIGHT SAT – Shock Absorber Tester The tester mainly test low-frequency mechanical vibration, which make use of ultrasonic telemeter principle to detect the movement through a calculated analysis to make the wave re-appear and evaluate its relevant performance. Test Cycle 3 seconds per wheel. Oscillation displayed as a wave. Detect distance 0. 25 m – 1. 5 meter. Measurement distinguishing rate 0. 3 mm. Results printed on Thermal printer. Charger: 12 v/1 A +/-10% output. Charging time: 5 -6 hours Main Unit dimensions: 161 x 88 x 48. 5 mm Weight: 340 g Power Supply: 8. 4 V Battery Power Consumption: 35 m. A (without printing) Hours of operation: 48 hours (without printing) Product and colour may vary from pictures shown

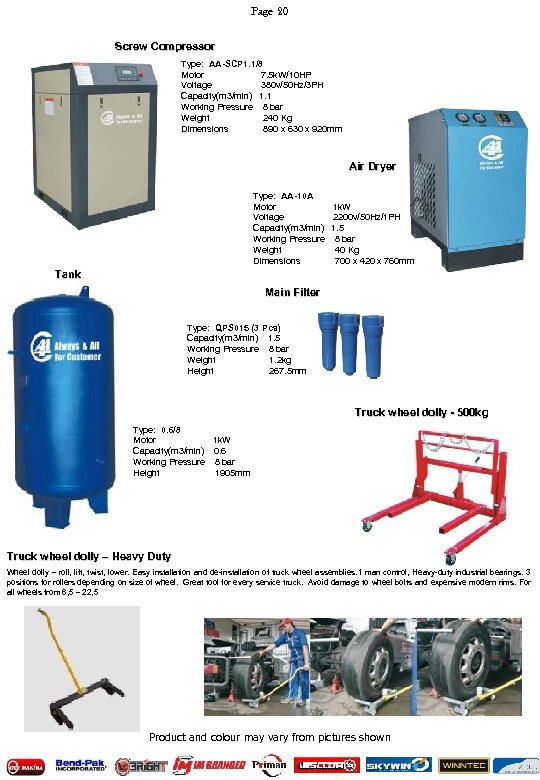

Page 20 Screw Compressor Type: AA-SCP 1. 1/8 Motor 7. 5 k. W/10 HP Voltage 380 v/50 Hz/3 PH Capacity(m 3/min) 1. 1 Working Pressure 8 bar Weight 240 Kg Dimensions 890 x 630 x 920 mm Air Dryer Type: AA-10 A Motor 1 k. W Voltage 2200 v/50 Hz/1 PH Capacity(m 3/min) 1. 5 Working Pressure 8 bar Weight 40 Kg Dimensions 700 x 420 x 760 mm Tank Main Filter Type: QPS 015 (3 Pcs) Capacity(m 3/min) 1. 5 Working Pressure 8 bar Weight 1. 2 kg Height 267. 5 mm Truck wheel dolly - 500 kg Type: 0. 6/8 Motor 1 k. W Capacity(m 3/min) 0. 6 Working Pressure 8 bar Height 1905 mm Truck wheel dolly – Heavy Duty Wheel dolly – roll, lift, twist, lower. Easy installation and de-installation of truck wheel assemblies. 1 man control, Heavy-duty industrial bearings. 3 positions for rollers depending on size of wheel. Great tool for every service truck. Avoid damage to wheel bolts and expensive modern rims. For all wheels from 6, 5 – 22, 5 Product and colour may vary from pictures shown

Contact Persons Hugo Deveugele Director Edgar Julyan Fred van Zyl Accounts & Stock Marketing & Technical Frans Belinah Store room Housekeeper Tel: 012 664 3556
