Wismar Business School Artificial Neural Networks and Data Mining Uwe Lämmel www. wi. hs-wismar. de/~laemmel Uwe. Laemmel@hs-wismar. de Neural Networks and Data Mining Folie 1

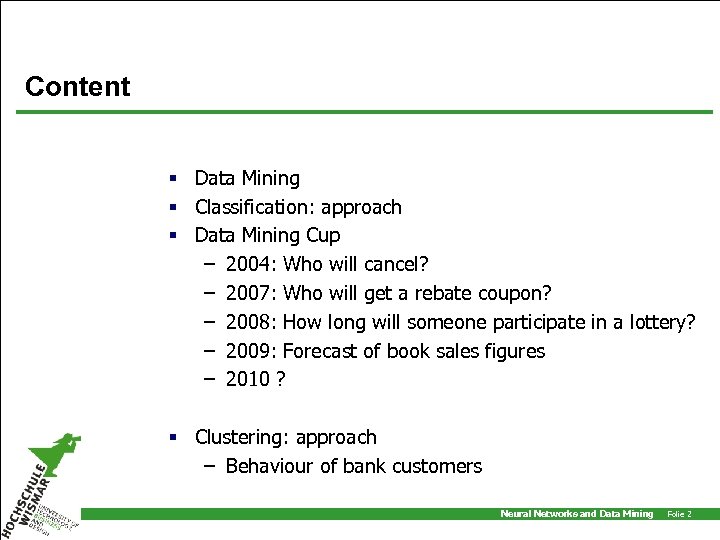

Content § Data Mining § Classification: approach § Data Mining Cup – 2004: Who will cancel? – 2007: Who will get a rebate coupon? – 2008: How long will someone participate in a lottery? – 2009: Forecast of book sales figures – 2010 ? § Clustering: approach – Behaviour of bank customers Neural Networks and Data Mining Folie 2

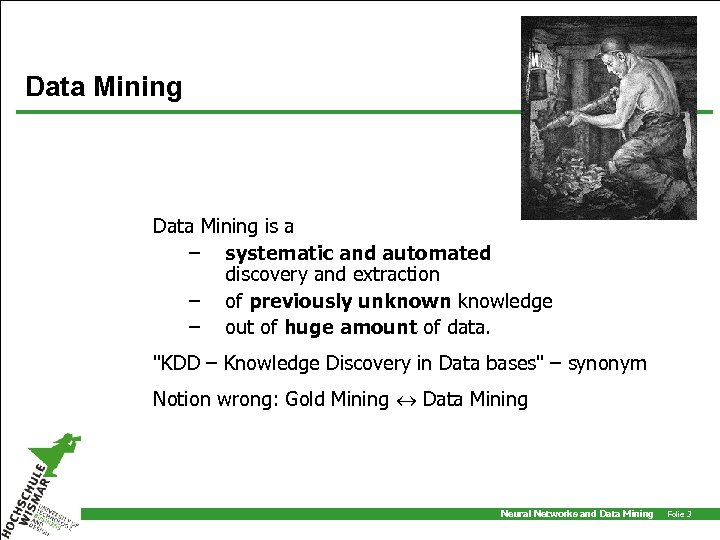

Data Mining is a – systematic and automated discovery and extraction – of previously unknown knowledge – out of huge amount of data. "KDD – Knowledge Discovery in Data bases" – synonym Notion wrong: Gold Mining Data Mining Neural Networks and Data Mining Folie 3

Data Mining – Applications § classification § clustering § association § prediction § text mining § web mining classification § items are placed in subsets (classes) § classes have known properties – customer is bad, average, good – pattern recognition – … § set of training items is used to train the classification algorithm clustering § partitioning a data set into subsets (clusters), so that the data in each subset (ideally) share some common features – similarity or proximity for some defined distance measure § is building classes Neural Networks and Data Mining Folie 4

Data Mining Process CRISP-DM model Neural Networks and Data Mining Folie 5

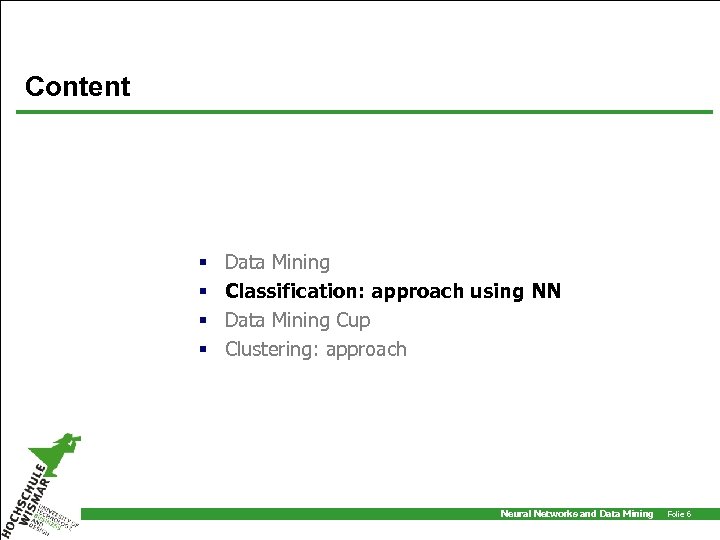

Content § § Data Mining Classification: approach using NN Data Mining Cup Clustering: approach Neural Networks and Data Mining Folie 6

Classification using NN training p. prerequisite § set of training pattern (many patterns) coded p. approach § code the values § divide set of training pattern into: – training set – test set § build a network § train the network using the training set § check the network quality using the test set training set test set real data Neural Networks and Data Mining Folie 7

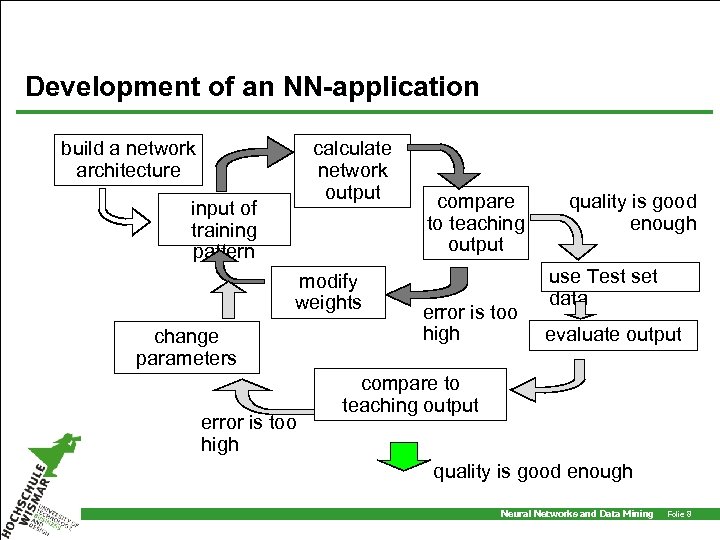

Development of an NN-application calculate network output build a network architecture input of training pattern modify weights change parameters error is too high compare to teaching output error is too high quality is good enough use Test set data evaluate output compare to teaching output quality is good enough Neural Networks and Data Mining Folie 8

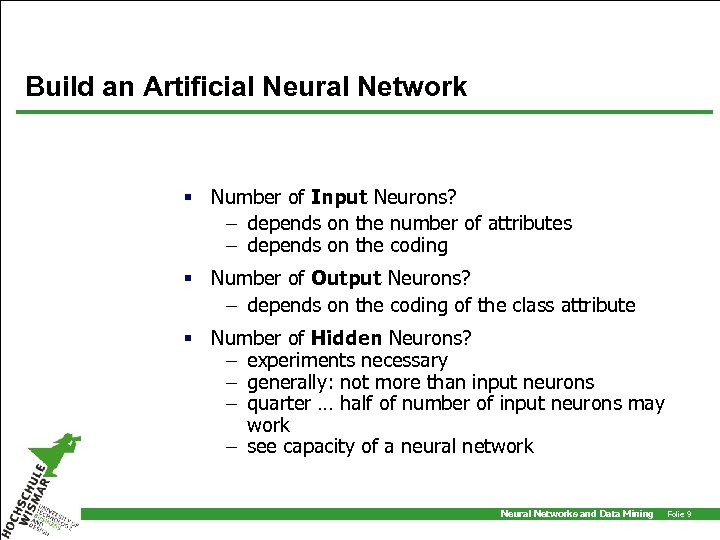

Build an Artificial Neural Network § Number of Input Neurons? – depends on the number of attributes – depends on the coding § Number of Output Neurons? – depends on the coding of the class attribute § Number of Hidden Neurons? – experiments necessary – generally: not more than input neurons – quarter … half of number of input neurons may work – see capacity of a neural network Neural Networks and Data Mining Folie 9

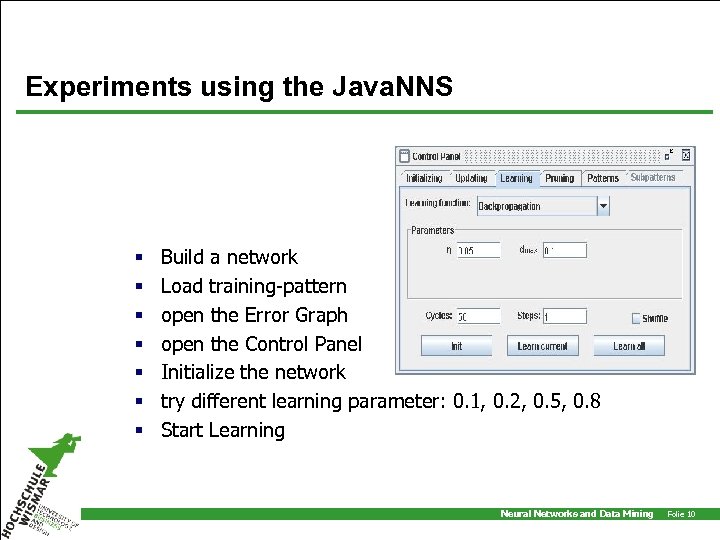

Experiments using the Java. NNS § § § § Build a network Load training-pattern open the Error Graph open the Control Panel Initialize the network try different learning parameter: 0. 1, 0. 2, 0. 5, 0. 8 Start Learning Neural Networks and Data Mining Folie 10

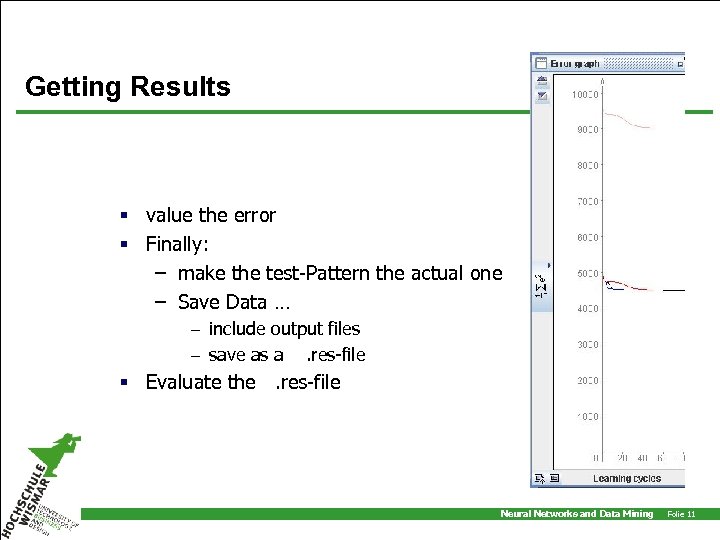

Getting Results § value the error § Finally: – make the test-Pattern the actual one – Save Data … – include output files – save as a. res-file § Evaluate the. res-file Neural Networks and Data Mining Folie 11

Experiments How can we improve the results? – Data pre-processing? – Architecture of ANN? – Learning Parameters? – Evaluation of the results: post-processing? record your work! Neural Networks and Data Mining Folie 12

Content § Data Mining § Classification: approach § Data Mining Cup – 2004: Who will cancel? – 2007: Who will get a rebate coupon? – 2008: How long will someone participate in a lottery? – 2009: Forecast of book sales figures – 2010 ? § Clustering: approach – Behaviour of bank customers Neural Networks and Data Mining Folie 13

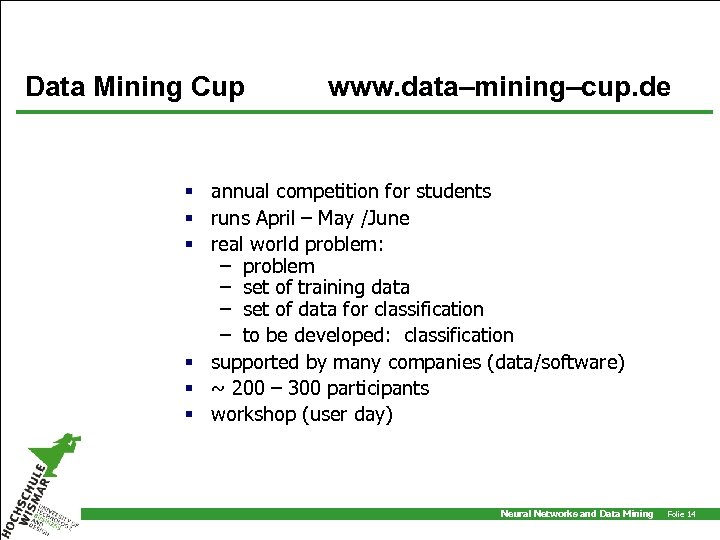

Data Mining Cup www. data–mining–cup. de § annual competition for students § runs April – May /June § real world problem: – problem – set of training data – set of data for classification – to be developed: classification § supported by many companies (data/software) § ~ 200 – 300 participants § workshop (user day) Neural Networks and Data Mining Folie 14

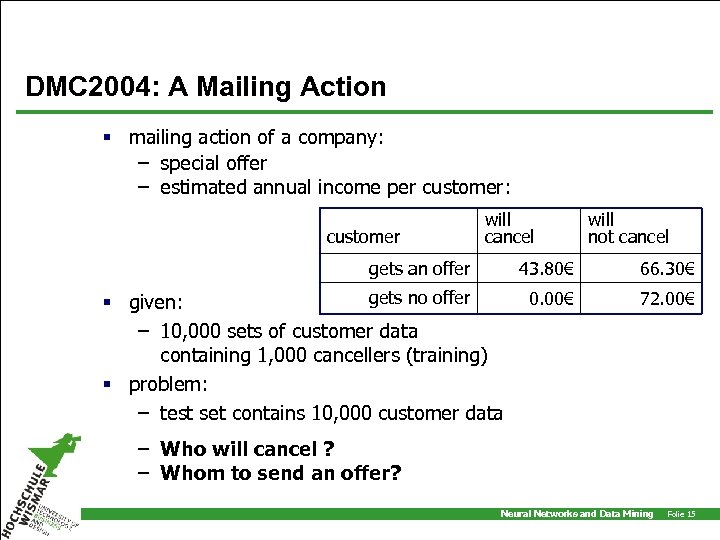

DMC 2004: A Mailing Action § mailing action of a company: – special offer – estimated annual income per customer: customer will cancel gets an offer will not cancel 43. 80€ gets no offer § given: – 10, 000 sets of customer data containing 1, 000 cancellers (training) § problem: – test set contains 10, 000 customer data 66. 30€ 0. 00€ 72. 00€ – Who will cancel ? – Whom to send an offer? Neural Networks and Data Mining Folie 15

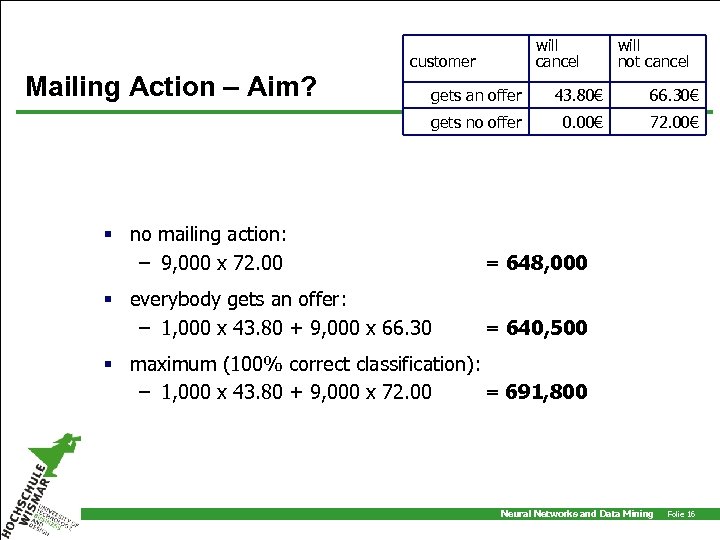

will cancel customer Mailing Action – Aim? will not cancel gets an offer 43. 80€ 66. 30€ gets no offer 0. 00€ 72. 00€ § no mailing action: – 9, 000 x 72. 00 = 648, 000 § everybody gets an offer: – 1, 000 x 43. 80 + 9, 000 x 66. 30 = 640, 500 § maximum (100% correct classification): – 1, 000 x 43. 80 + 9, 000 x 72. 00 = 691, 800 Neural Networks and Data Mining Folie 16

Goal Function: Lift will cancel customer will not cancel gets an offer 43. 80€ 66. 30€ gets no offer 0. 00€ 72. 00€ basis: no mailing action: 9, 000 · 72. 00 goal = extra income: lift. M = 43. 8 · c. M + 66. 30 · nk. M – 72. 00· nk. M Neural Networks and Data Mining Folie 17

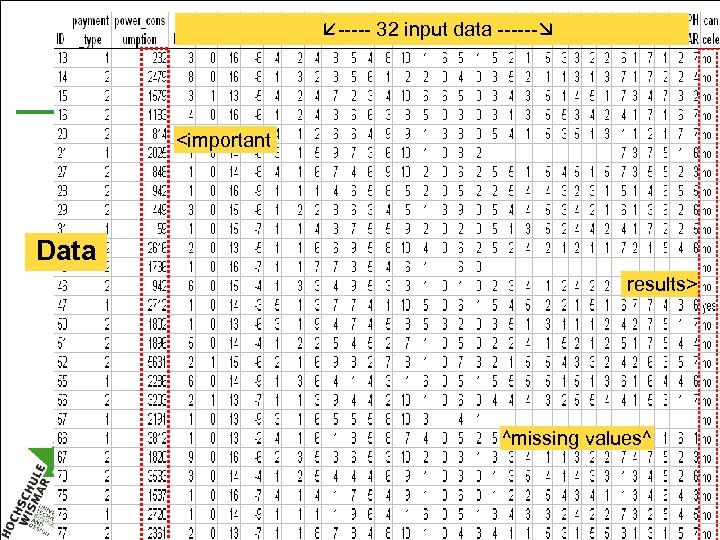

----- 32 input data ------ <important Data results> ^missing values^ Neural Networks and Data Mining Folie 18

Feed Forward Network – What to do? § § train the net with training set (10, 000) test the net using the test set ( another 10, 000) – classify all 10, 000 customer into canceller or loyal – evaluate the additional income Neural Networks and Data Mining Folie 19

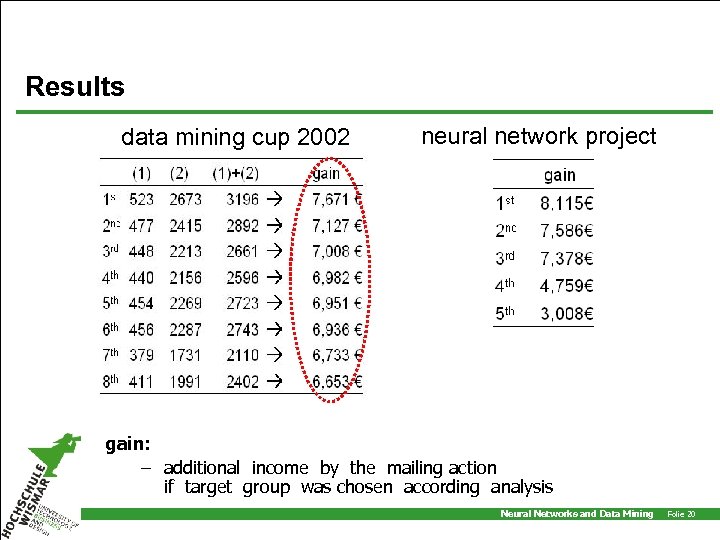

Results data mining cup 2002 neural network project 2004 gain: – additional income by the mailing action if target group was chosen according analysis Neural Networks and Data Mining Folie 20

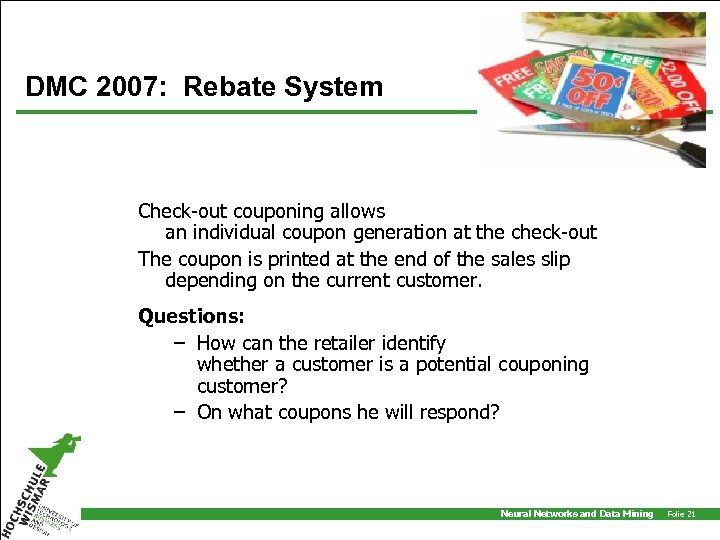

DMC 2007: Rebate System Check-out couponing allows an individual coupon generation at the check-out The coupon is printed at the end of the sales slip depending on the current customer. Questions: – How can the retailer identify whether a customer is a potential couponing customer? – On what coupons he will respond? Neural Networks and Data Mining Folie 21

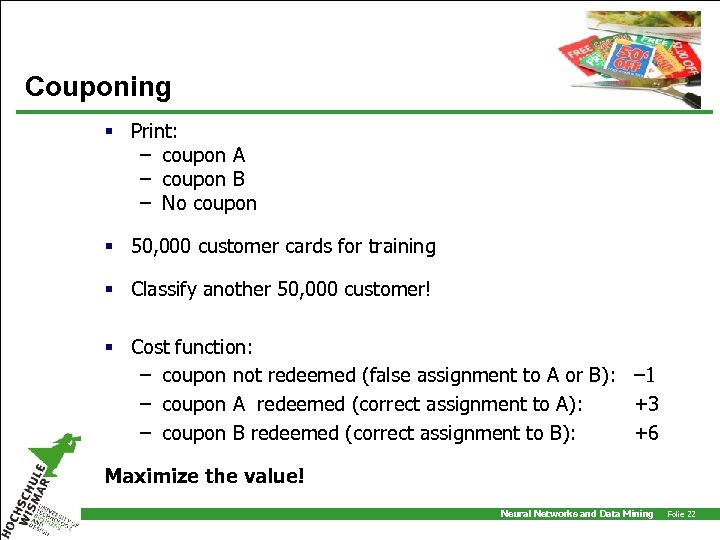

Couponing § Print: – coupon A – coupon B – No coupon § 50, 000 customer cards for training § Classify another 50, 000 customer! § Cost function: – coupon not redeemed (false assignment to A or B): – 1 – coupon A redeemed (correct assignment to A): +3 – coupon B redeemed (correct assignment to B): +6 Maximize the value! Neural Networks and Data Mining Folie 22

Data Understanding § What is the meaning of the attributes? § Type and range of values? Neural Networks and Data Mining Folie 23

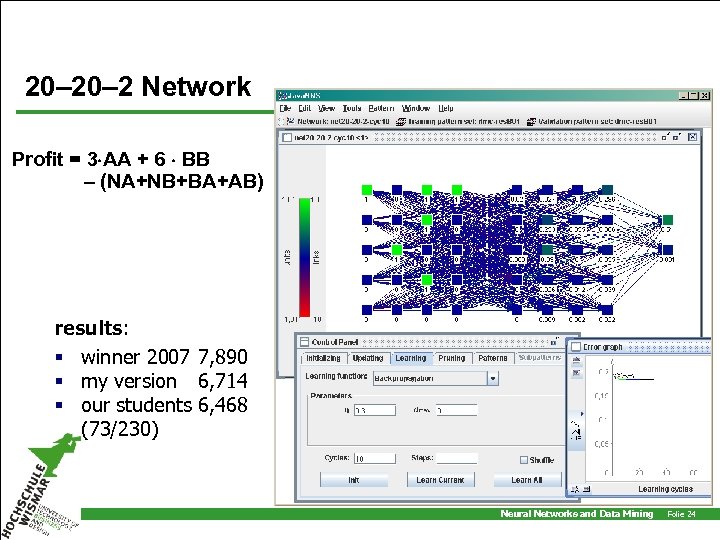

20– 2 Network Profit = 3 AA + 6 BB – (NA+NB+BA+AB) results: § winner 2007 7, 890 § my version 6, 714 § our students 6, 468 (73/230) Neural Networks and Data Mining Folie 24

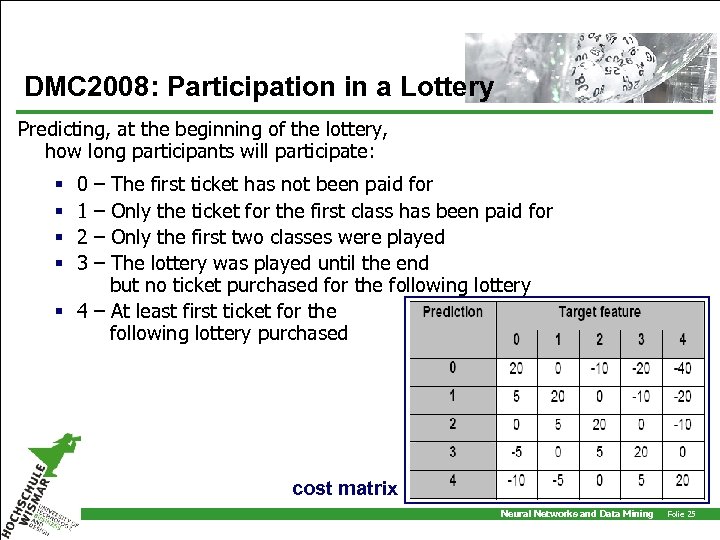

DMC 2008: Participation in a Lottery Predicting, at the beginning of the lottery, how long participants will participate: The first ticket has not been paid for Only the ticket for the first class has been paid for Only the first two classes were played The lottery was played until the end but no ticket purchased for the following lottery § 4 – At least first ticket for the following lottery purchased § § 0 1 2 3 – – cost matrix Neural Networks and Data Mining Folie 25

Data § 113, 476 pattern! § 69 attributes – new customer (yes/no) – age – bank – car – … Neural Networks and Data Mining Folie 26

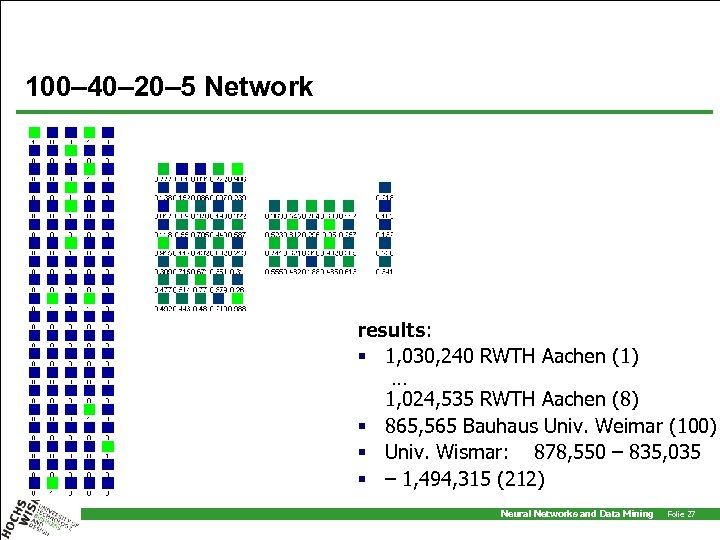

100– 40– 20– 5 Network results: § 1, 030, 240 RWTH Aachen (1) … 1, 024, 535 RWTH Aachen (8) § 865, 565 Bauhaus Univ. Weimar (100) § Univ. Wismar: 878, 550 – 835, 035 § – 1, 494, 315 (212) Neural Networks and Data Mining Folie 27

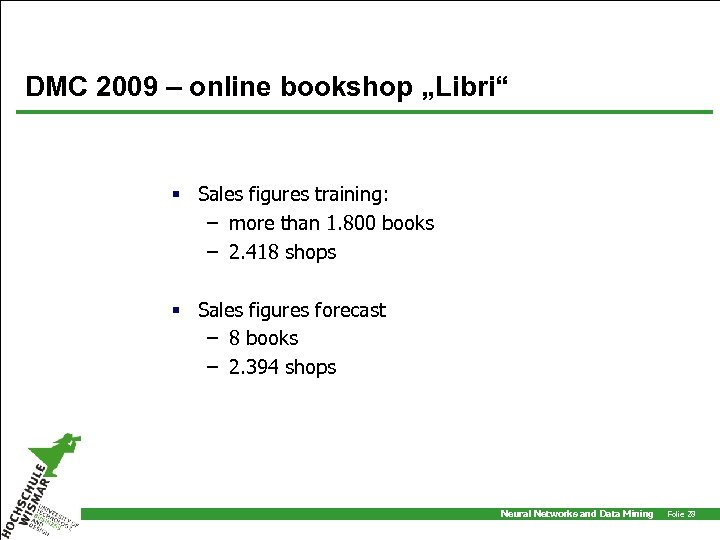

DMC 2009 – online bookshop „Libri“ § Sales figures training: – more than 1. 800 books – 2. 418 shops § Sales figures forecast – 8 books – 2. 394 shops Neural Networks and Data Mining Folie 28

DMC 2009 – online bookshop „Libri“ Neural Networks and Data Mining Folie 29

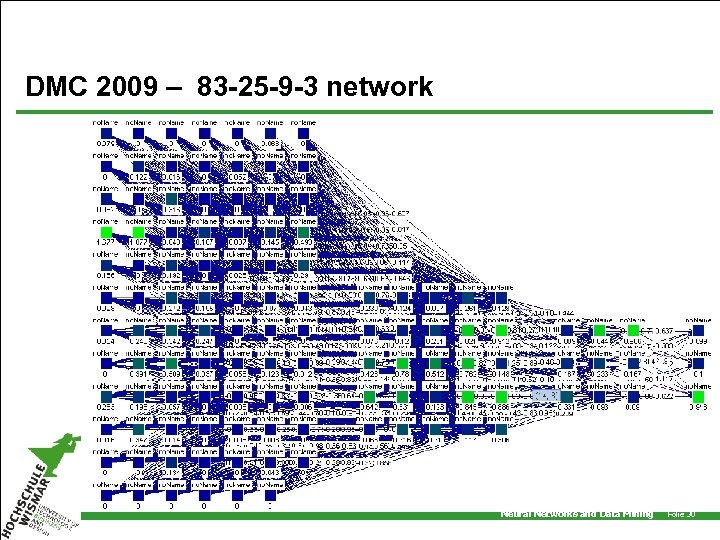

DMC 2009 – 83 -25 -9 -3 network Neural Networks and Data Mining Folie 30

DMC 2010: Revenue maximisation by intelligent couponing § Many customers only make an order in an online shop once § decision whether to send a voucher worth € 5. 00 § voucher for those who would not have decided to re-order by themselves. § 32, 427 data sets for training § 32, 428 data sets for prediction § 37 attributes per set + target attribute in training set Neural Networks and Data Mining Folie 31

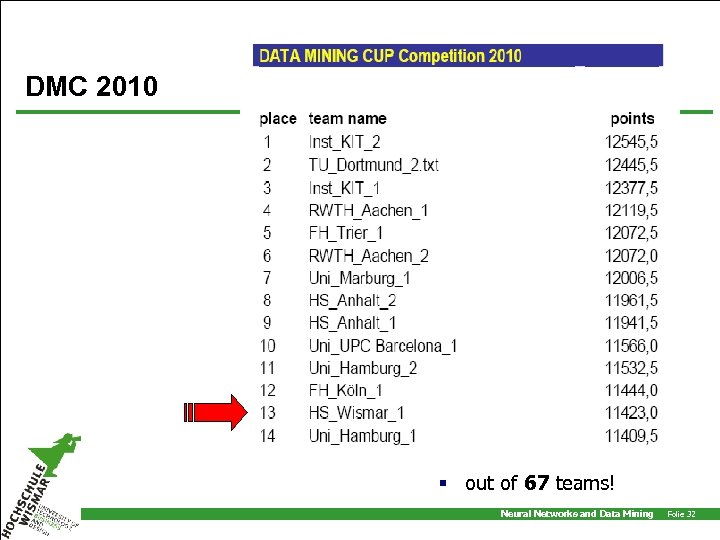

DMC 2010 § out of 67 teams! Neural Networks and Data Mining Folie 32

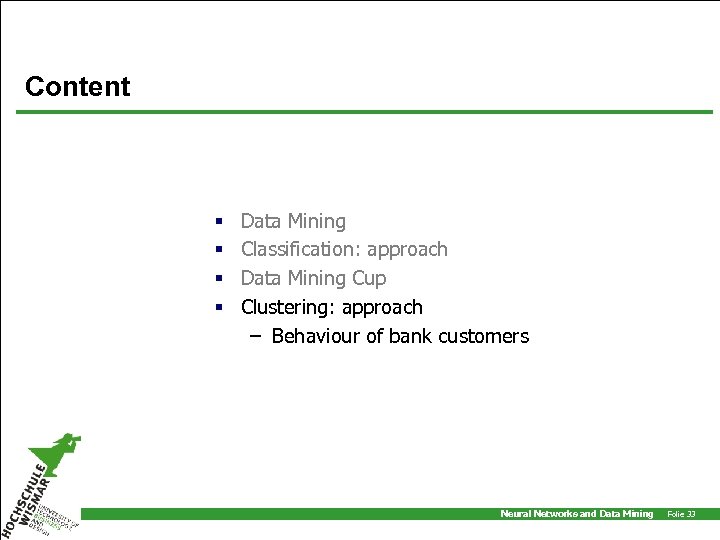

Content § § Data Mining Classification: approach Data Mining Cup Clustering: approach – Behaviour of bank customers Neural Networks and Data Mining Folie 33

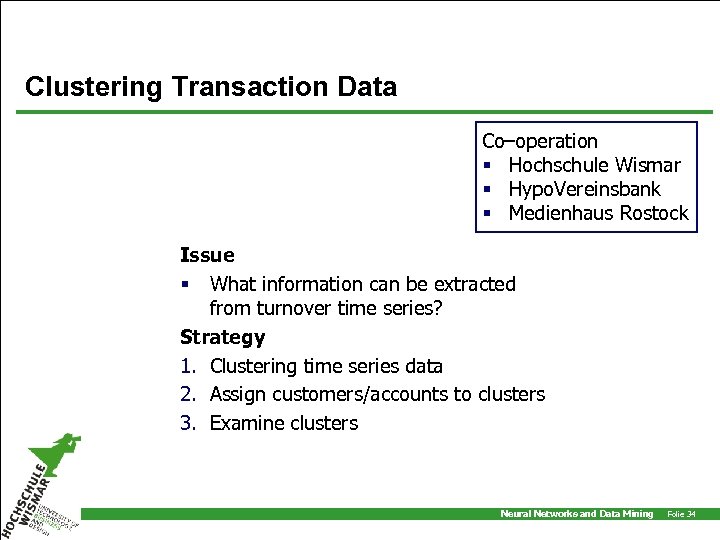

Clustering Transaction Data Co–operation § Hochschule Wismar § Hypo. Vereinsbank § Medienhaus Rostock Issue § What information can be extracted from turnover time series? Strategy 1. Clustering time series data 2. Assign customers/accounts to clusters 3. Examine clusters Neural Networks and Data Mining Folie 34

Transaction Data & Time Series Corporate clients § 223 branches Cumulated transactions per § Month § Account § Type of transaction. . . for a total of 6 years Original financial data not suitable: § Order of values is important § Time displacements are problematic Neural Networks and Data Mining Folie 35

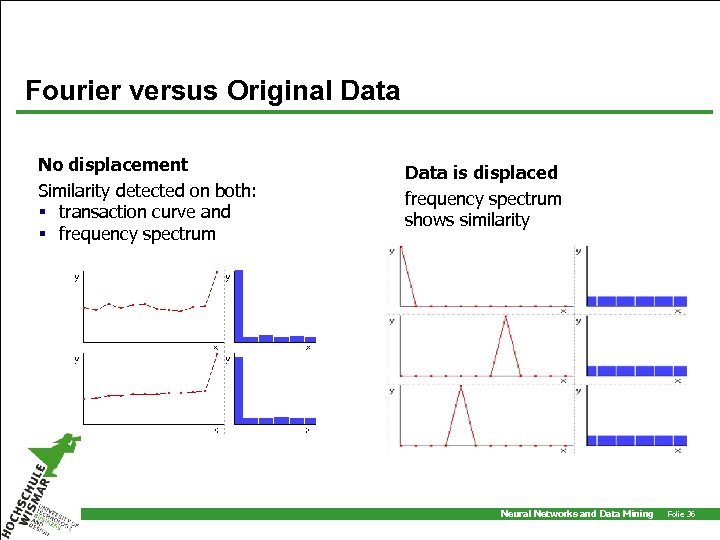

Fourier versus Original Data No displacement Similarity detected on both: § transaction curve and § frequency spectrum Data is displaced frequency spectrum shows similarity Neural Networks and Data Mining Folie 36

Using a classification model Turnover. . . Customer t 0+n tm tm+n 1. Building the Model Sequence A Sequence B Preprocessin g Clustering Classification Model Initial Cluster 3. Comparing cluster assignments Identical ? 2. Applying the model New Cluster Different Neural Networks and Data Mining Folie 37

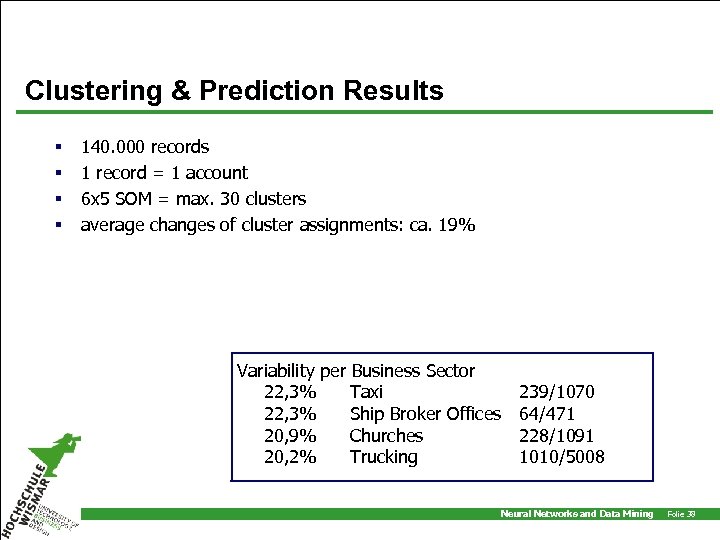

Clustering & Prediction Results § § 140. 000 records 1 record = 1 account 6 x 5 SOM = max. 30 clusters average changes of cluster assignments: ca. 19% Variability per Business Sector 22, 3% Taxi 22, 3% Ship Broker Offices 20, 9% Churches 20, 2% Trucking 239/1070 64/471 228/1091 1010/5008 Neural Networks and Data Mining Folie 38

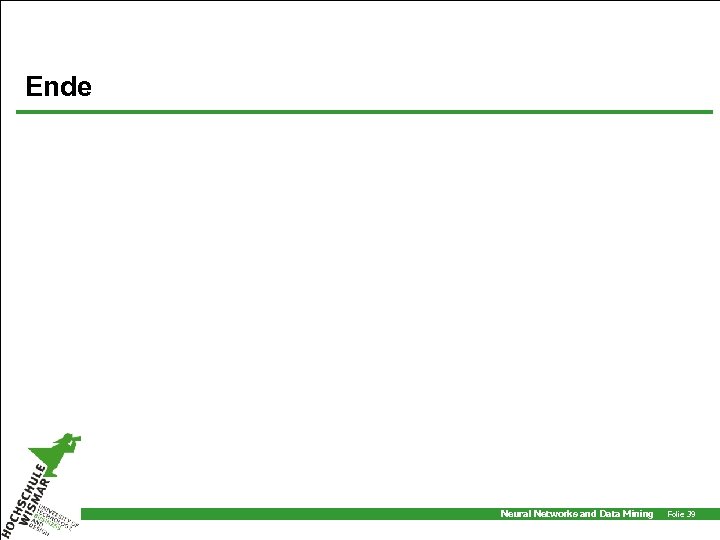

Ende Neural Networks and Data Mining Folie 39
