Wiring for Wireless. TM with Twisted Pair Cabling Bree Murphy, RCDD Applications Engineer Oberon, Inc.

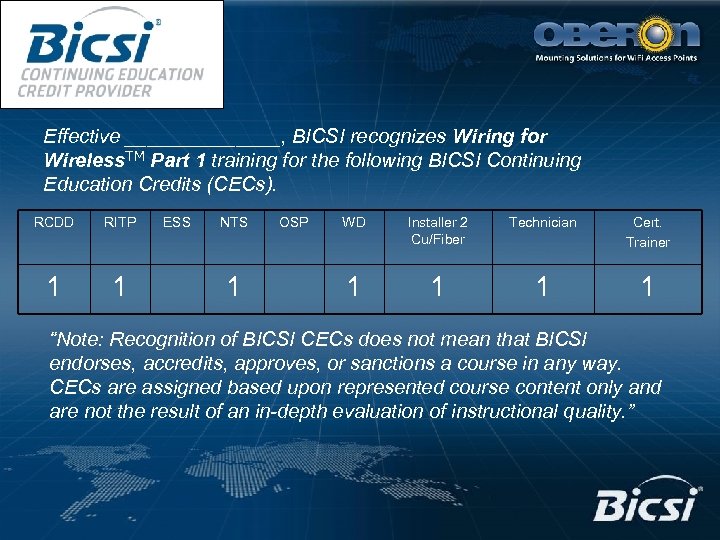

Effective _______, BICSI recognizes Wiring for Wireless. TM Part 1 training for the following BICSI Continuing Education Credits (CECs). RCDD RITP 1 1 ESS NTS 1 OSP WD Installer 2 Cu/Fiber Technician Cert. Trainer 1 1 “Note: Recognition of BICSI CECs does not mean that BICSI endorses, accredits, approves, or sanctions a course in any way. CECs are assigned based upon represented course content only and are not the result of an in-depth evaluation of instructional quality. ”

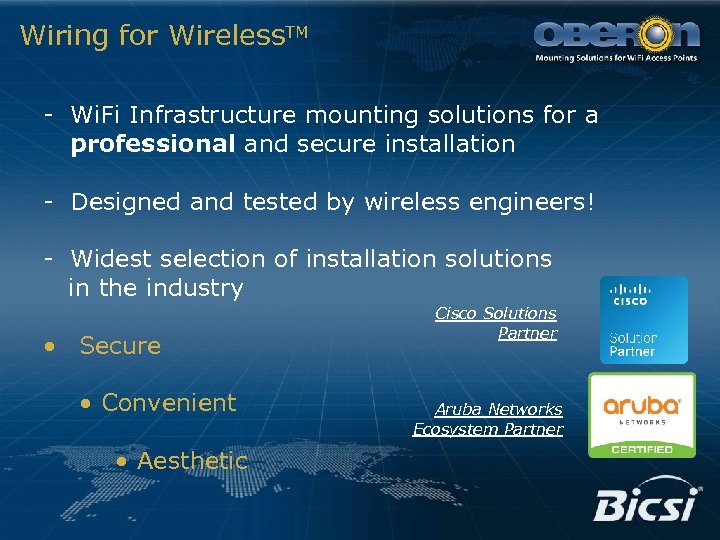

Wiring for Wireless. TM - Wi. Fi Infrastructure mounting solutions for a professional and secure installation - Designed and tested by wireless engineers! - Widest selection of installation solutions in the industry • Secure • Convenient • Aesthetic Cisco Solutions Partner Aruba Networks Ecosystem Partner

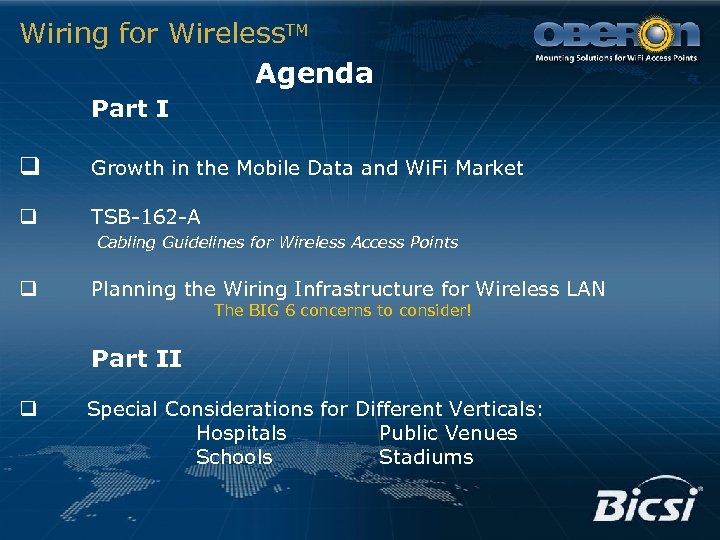

Wiring for Wireless. TM Agenda Part I q Growth in the Mobile Data and Wi. Fi Market q TSB-162 -A Cabling Guidelines for Wireless Access Points q Planning the Wiring Infrastructure for Wireless LAN The BIG 6 concerns to consider! Part II q Special Considerations for Different Verticals: Hospitals Public Venues Schools Stadiums

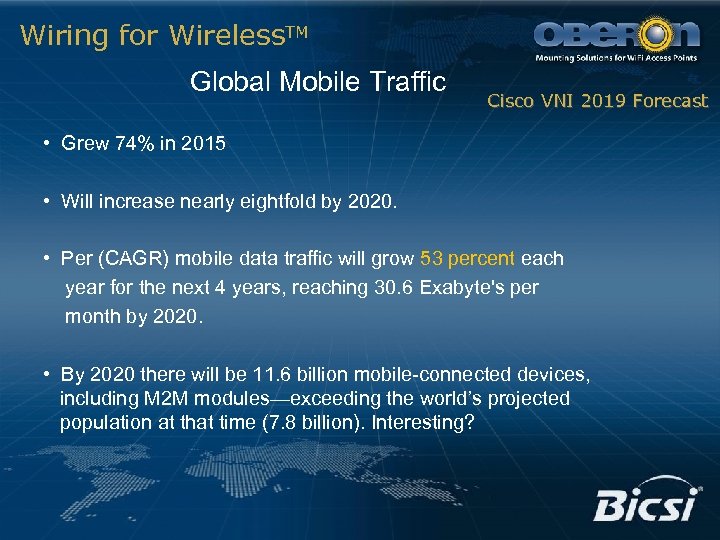

Wiring for Wireless. TM Global Mobile Traffic Cisco VNI 2019 Forecast • Grew 74% in 2015 • Will increase nearly eightfold by 2020. • Per (CAGR) mobile data traffic will grow 53 percent each year for the next 4 years, reaching 30. 6 Exabyte's per month by 2020. • By 2020 there will be 11. 6 billion mobile-connected devices, including M 2 M modules—exceeding the world’s projected population at that time (7. 8 billion). Interesting?

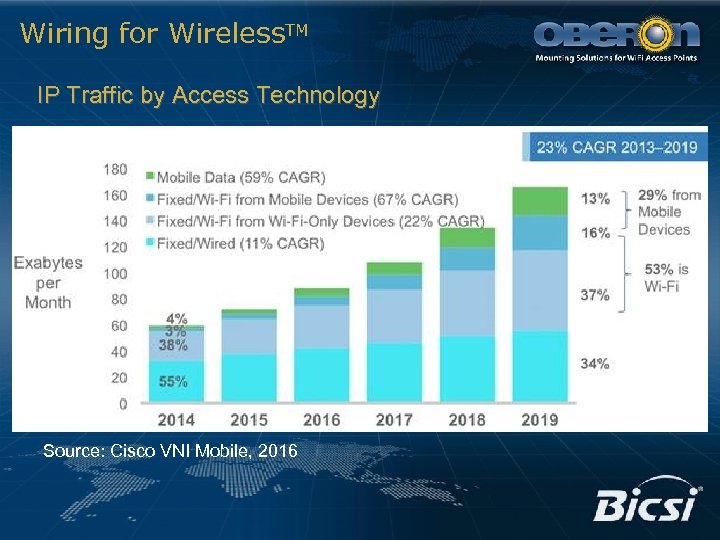

Wiring for Wireless. TM IP Traffic by Access Technology Source: Cisco VNI Mobile, 2016

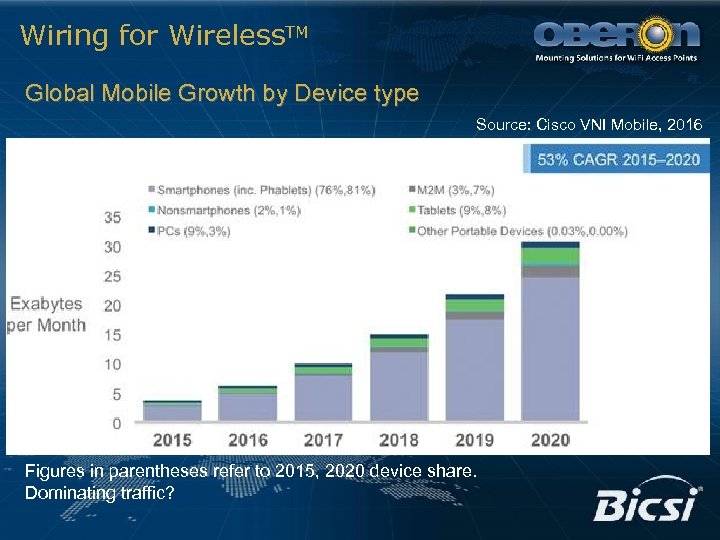

Wiring for Wireless. TM Global Mobile Growth by Device type Source: Cisco VNI Mobile, 2016 Figures in parentheses refer to 2015, 2020 device share. Dominating traffic?

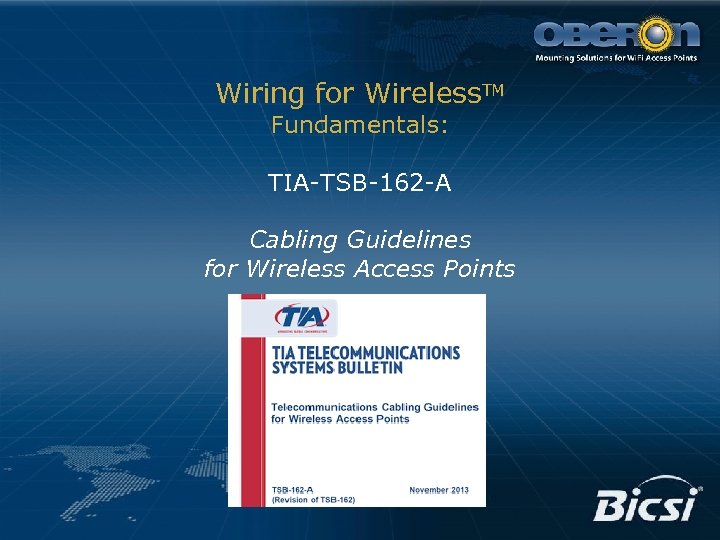

Wiring for Wireless. TM Fundamentals: TIA-TSB-162 -A Cabling Guidelines for Wireless Access Points
TSB-162 -A –Guidelines for Wireless Telecommunications Systems Bulletin TSB 162 -A Telecommunications Cabling Guidelines for Wireless Access Points (APs) Provides guidelines - Topology - Design - Installation - Testing of cabling infrastructure All to support the WLAN

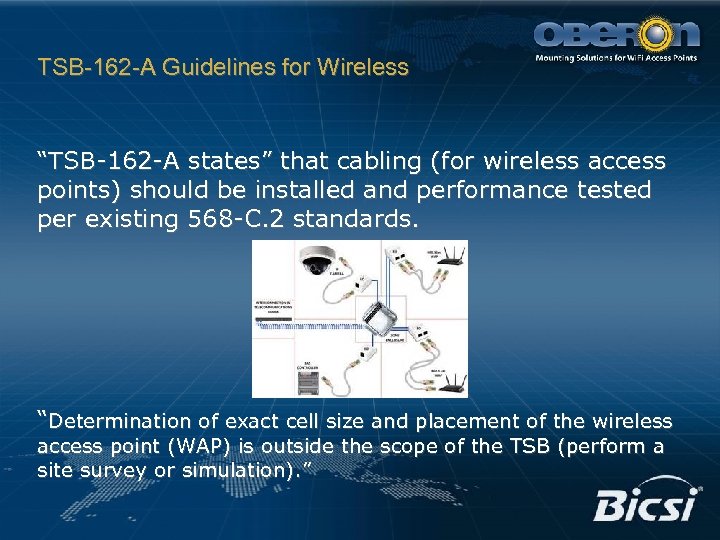

TSB-162 -A Guidelines for Wireless “TSB-162 -A states” that cabling (for wireless access points) should be installed and performance tested per existing 568 -C. 2 standards. “Determination of exact cell size and placement of the wireless access point (WAP) is outside the scope of the TSB (perform a site survey or simulation). ”

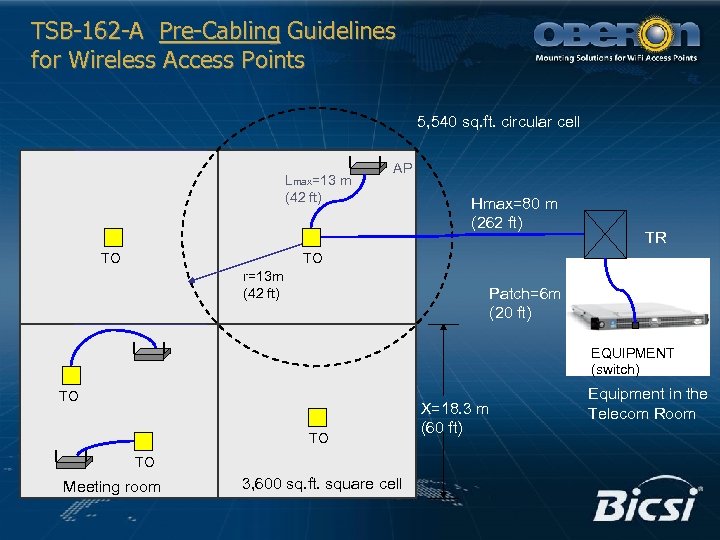

TSB-162 -A Pre-Cabling Guidelines for Wireless Access Points 5, 540 sq. ft. circular cell Lmax=13 m (42 ft) TO AP Hmax=80 m (262 ft) TR TO r=13 m (42 ft) Patch=6 m (20 ft) EQUIPMENT (switch) TO TO TO Meeting room 3, 600 sq. ft. square cell X=18. 3 m (60 ft) Equipment in the Telecom Room

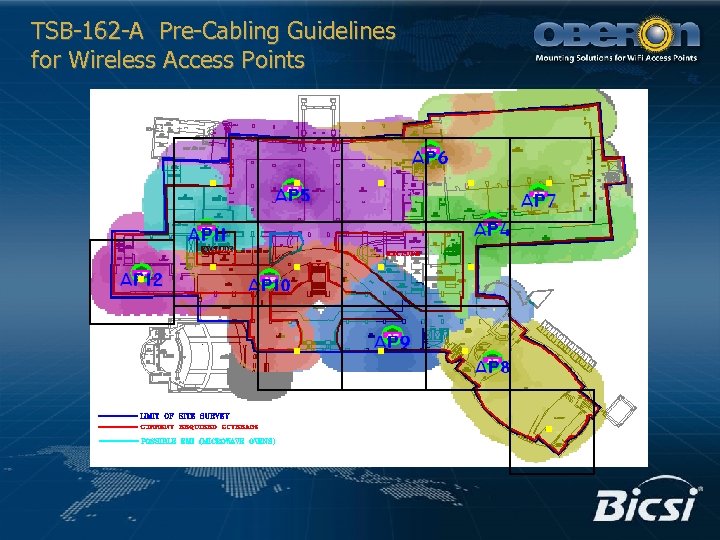

TSB-162 -A Pre-Cabling Guidelines for Wireless Access Points

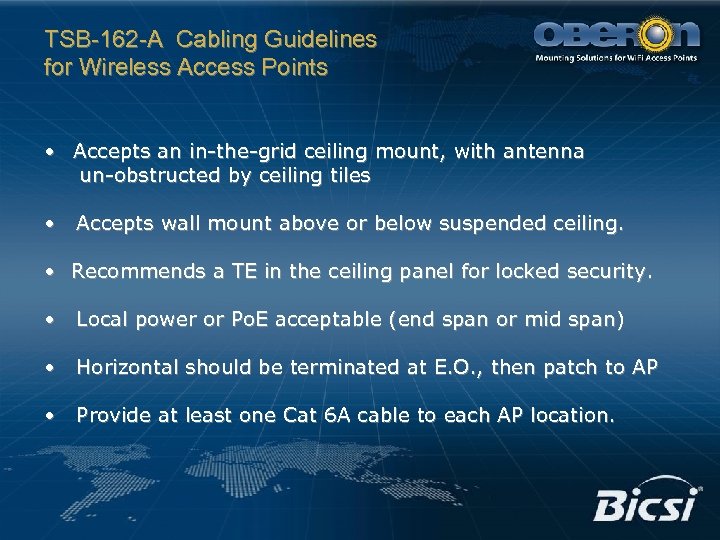

TSB-162 -A Cabling Guidelines for Wireless Access Points • Accepts an in-the-grid ceiling mount, with antenna un-obstructed by ceiling tiles • Accepts wall mount above or below suspended ceiling. • Recommends a TE in the ceiling panel for locked security. • Local power or Po. E acceptable (end span or mid span) • Horizontal should be terminated at E. O. , then patch to AP • Provide at least one Cat 6 A cable to each AP location.

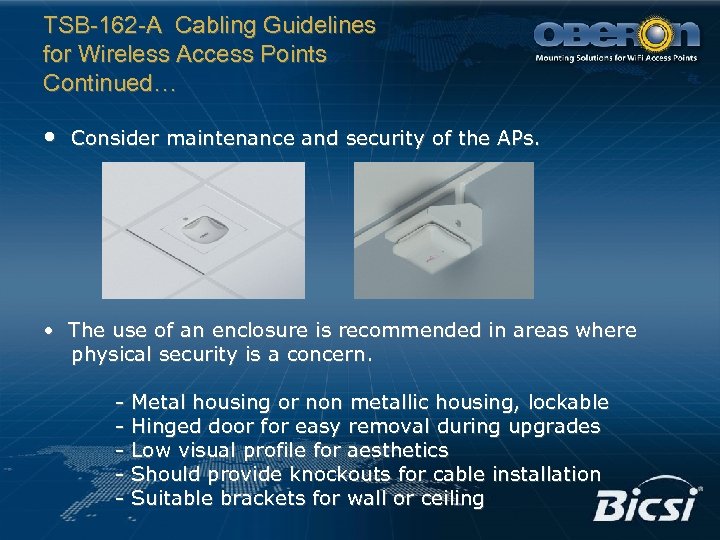

TSB-162 -A Cabling Guidelines for Wireless Access Points Continued… • Consider maintenance and security of the APs. • The use of an enclosure is recommended in areas where physical security is a concern. - Metal housing or non metallic housing, lockable Hinged door for easy removal during upgrades Low visual profile for aesthetics Should provide knockouts for cable installation Suitable brackets for wall or ceiling
Planning the Wiring Infrastructure for Wireless LAN

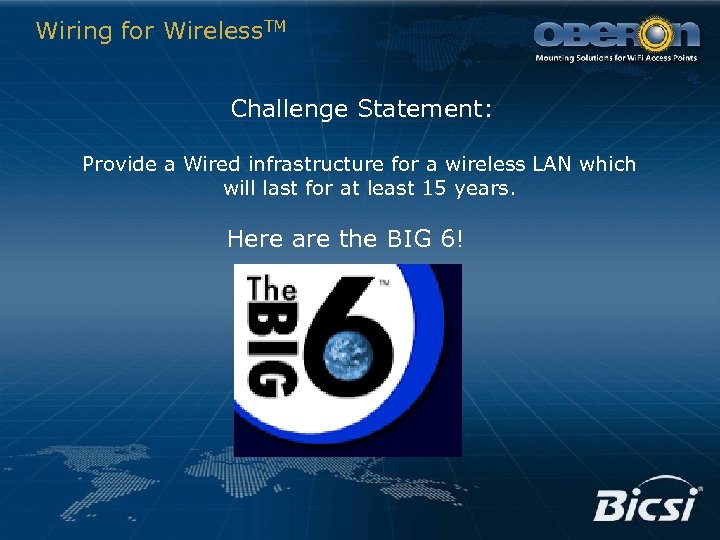

Wiring for Wireless. TM Challenge Statement: Provide a Wired infrastructure for a wireless LAN which will last for at least 15 years. Here are the BIG 6!

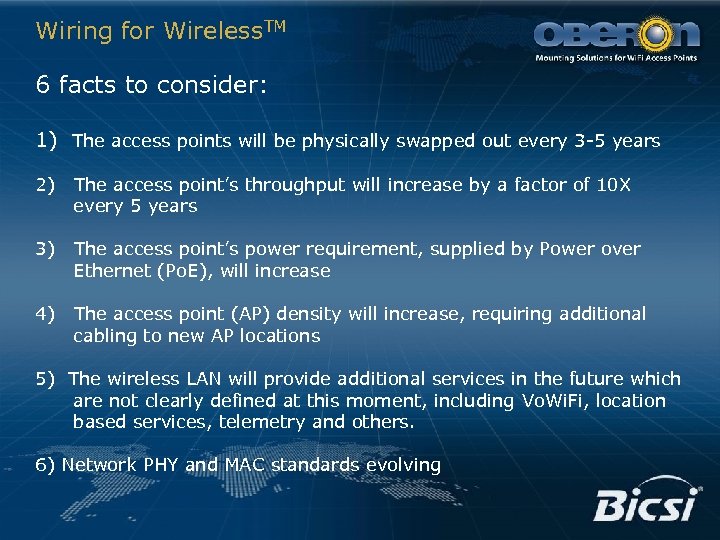

Wiring for Wireless. TM 6 facts to consider: 1) The access points will be physically swapped out every 3 -5 years 2) The access point’s throughput will increase by a factor of 10 X every 5 years 3) The access point’s power requirement, supplied by Power over Ethernet (Po. E), will increase 4) The access point (AP) density will increase, requiring additional cabling to new AP locations 5) The wireless LAN will provide additional services in the future which are not clearly defined at this moment, including Vo. Wi. Fi, location based services, telemetry and others. 6) Network PHY and MAC standards evolving

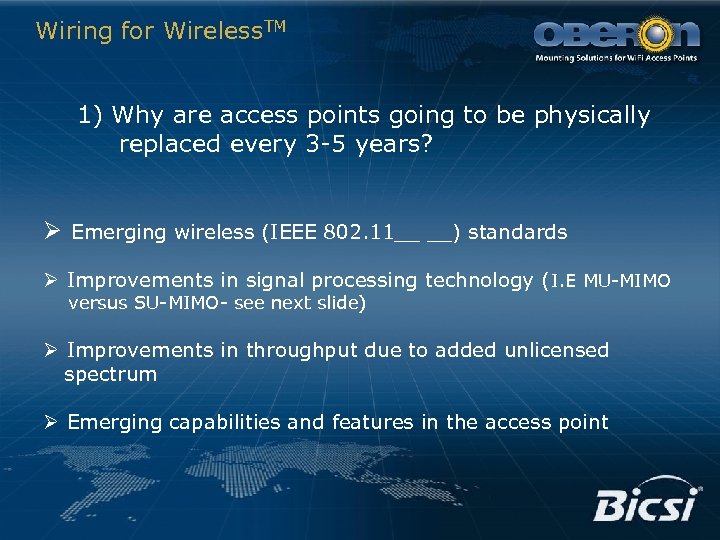

Wiring for Wireless. TM 1) Why are access points going to be physically replaced every 3 -5 years? Ø Emerging wireless (IEEE 802. 11__ __) standards Ø Improvements in signal processing technology (I. E MU-MIMO versus SU-MIMO- see next slide) Ø Improvements in throughput due to added unlicensed spectrum Ø Emerging capabilities and features in the access point

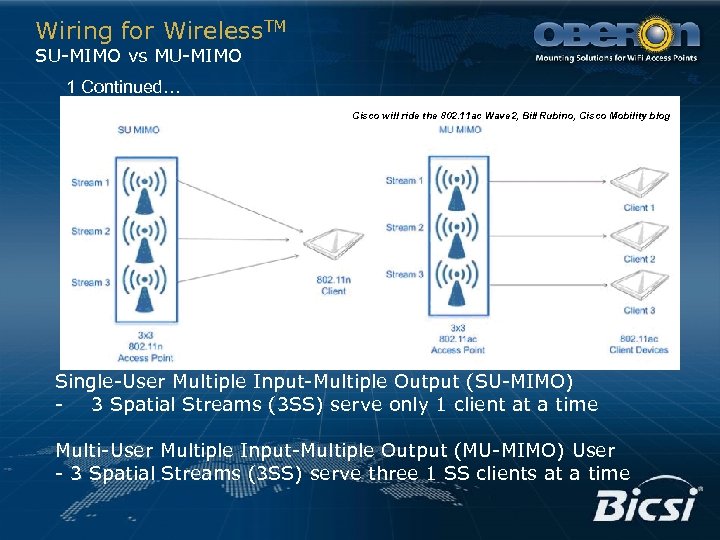

Wiring for Wireless. TM SU-MIMO vs MU-MIMO 1 Continued… Cisco will ride the 802. 11 ac Wave 2, Bill Rubino, Cisco Mobility blog Single-User Multiple Input-Multiple Output (SU-MIMO) - 3 Spatial Streams (3 SS) serve only 1 client at a time Multi-User Multiple Input-Multiple Output (MU-MIMO) User - 3 Spatial Streams (3 SS) serve three 1 SS clients at a time
Wiring for Wireless. TM FCC Band allocations 5 -6 GHz 1 Continued… Courtesy of Peter Lane, Aruba Networks- Atmosphere 2015 IEEE 802. 11 ac (both Wave 1 and Wave 2) provides: Over 500 MHz of bandwidth in the 5 GHz band - Choices Twenty-five Twelve Six Two 20 MHz channels 40 MHz channels 80 MHz channels 160 MHz channels (Wave 2 only) FCC may make an additional 250 MHz of bandwidth in the future!

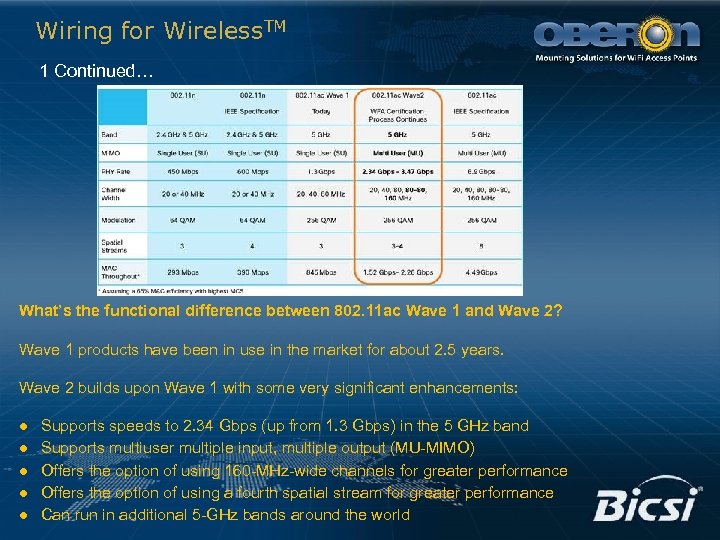

Wiring for Wireless. TM 1 Continued… What’s the functional difference between 802. 11 ac Wave 1 and Wave 2? Wave 1 products have been in use in the market for about 2. 5 years. Wave 2 builds upon Wave 1 with some very significant enhancements: ● Supports speeds to 2. 34 Gbps (up from 1. 3 Gbps) in the 5 GHz band ● Supports multiuser multiple input, multiple output (MU-MIMO) ● Offers the option of using 160 -MHz-wide channels for greater performance ● Offers the option of using a fourth spatial stream for greater performance ● Can run in additional 5 -GHz bands around the world

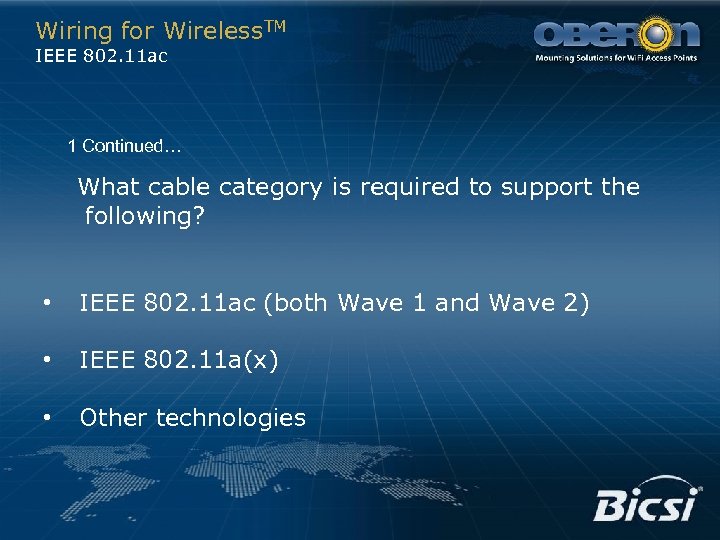

Wiring for Wireless. TM IEEE 802. 11 ac 1 Continued… What cable category is required to support the following? • IEEE 802. 11 ac (both Wave 1 and Wave 2) • IEEE 802. 11 a(x) • Other technologies

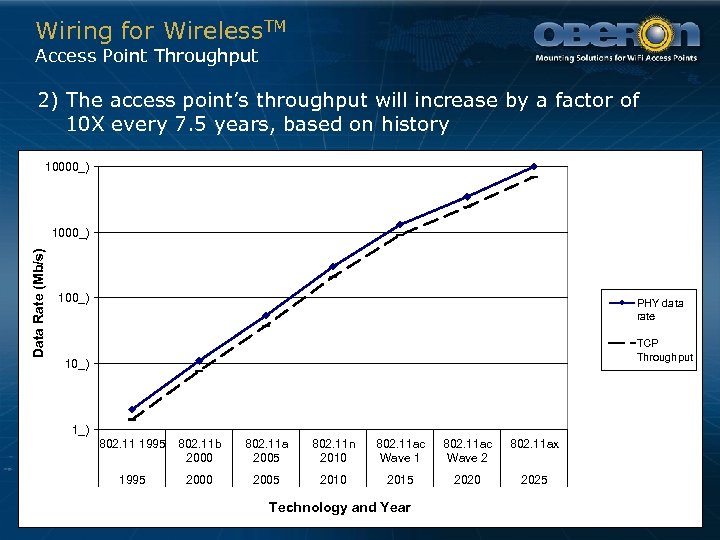

Wiring for Wireless. TM Access Point Throughput 2) The access point’s throughput will increase by a factor of 10 X every 7. 5 years, based on history 10000_) Data Rate (Mb/s) 1000_) 100_) PHY data rate TCP Throughput 10_) 1_) 802. 11 1995 802. 11 b 2000 802. 11 a 2005 802. 11 n 2010 802. 11 ac Wave 1 802. 11 ac Wave 2 802. 11 ax 1995 2000 2005 2010 2015 2020 2025 Technology and Year

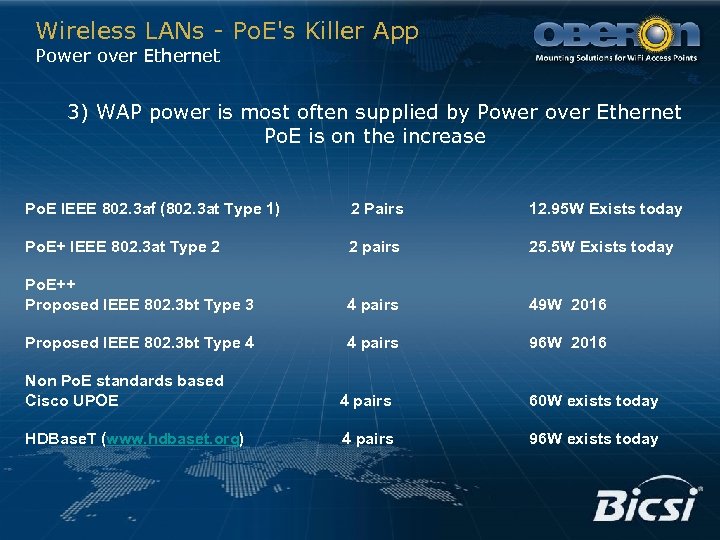

Wireless LANs - Po. E's Killer App Power over Ethernet 3) WAP power is most often supplied by Power over Ethernet Po. E is on the increase Po. E IEEE 802. 3 af (802. 3 at Type 1) 2 Pairs Po. E+ IEEE 802. 3 at Type 2 2 pairs Po. E++ Proposed IEEE 802. 3 bt Type 3 4 pairs Proposed IEEE 802. 3 bt Type 4 4 pairs Non Po. E standards based Cisco UPOE 4 pairs HDBase. T (www. hdbaset. org) 4 pairs 12. 95 W Exists today 25. 5 W Exists today 49 W 2016 96 W 2016 60 W exists today 96 W exists today

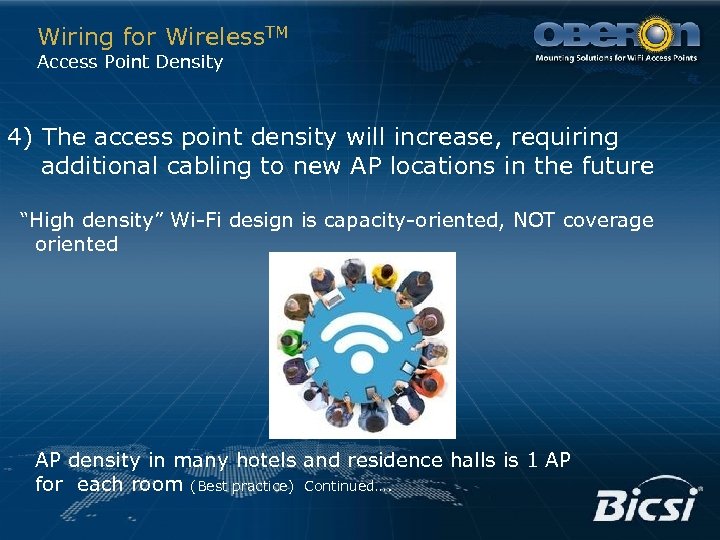

Wiring for Wireless. TM Access Point Density 4) The access point density will increase, requiring additional cabling to new AP locations in the future “High density” Wi-Fi design is capacity-oriented, NOT coverage oriented AP density in many hotels and residence halls is 1 AP for each room (Best practice) Continued….

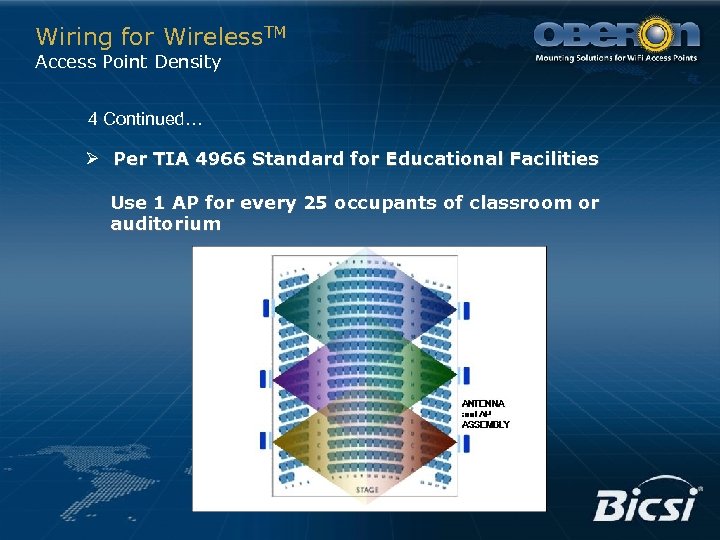

Wiring for Wireless. TM Access Point Density 4 Continued… Ø Per TIA 4966 Standard for Educational Facilities Use 1 AP for every 25 occupants of classroom or auditorium

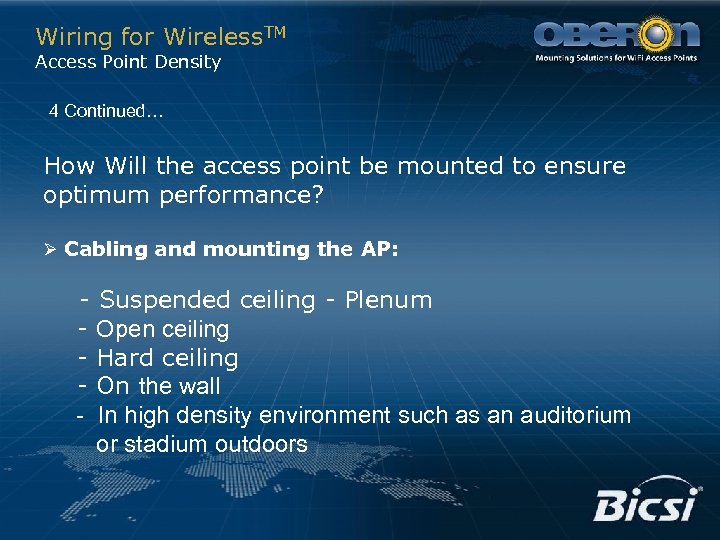

Wiring for Wireless. TM Access Point Density 4 Continued… How Will the access point be mounted to ensure optimum performance? Ø Cabling and mounting the AP: - Suspended ceiling - Plenum - Open ceiling - Hard ceiling - On the wall - In high density environment such as an auditorium or stadium outdoors

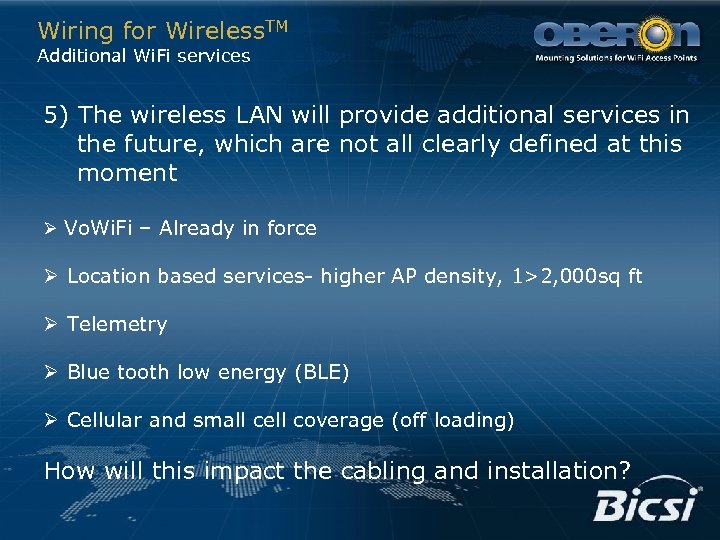

Wiring for Wireless. TM Additional Wi. Fi services 5) The wireless LAN will provide additional services in the future, which are not all clearly defined at this moment Ø Vo. Wi. Fi – Already in force Ø Location based services- higher AP density, 1>2, 000 sq ft Ø Telemetry Ø Blue tooth low energy (BLE) Ø Cellular and small cell coverage (off loading) How will this impact the cabling and installation?

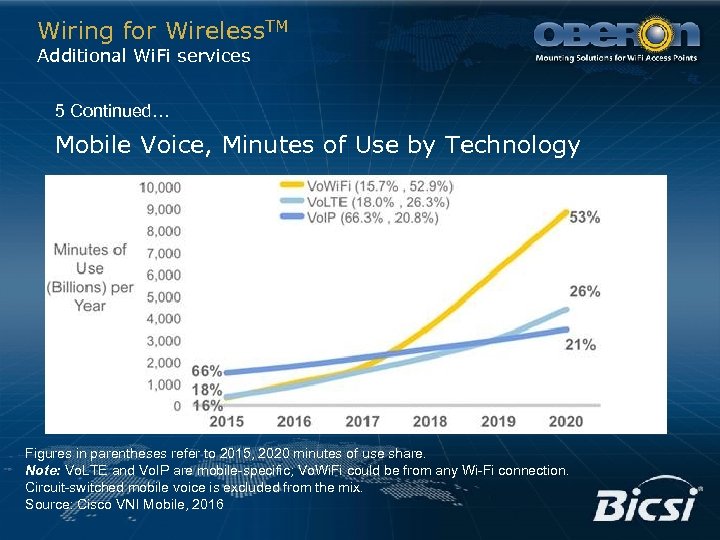

Wiring for Wireless. TM Additional Wi. Fi services 5 Continued… Mobile Voice, Minutes of Use by Technology Figures in parentheses refer to 2015, 2020 minutes of use share. Note: Vo. LTE and Vo. IP are mobile-specific; Vo. Wi. Fi could be from any Wi-Fi connection. Circuit-switched mobile voice is excluded from the mix. Source: Cisco VNI Mobile, 2016

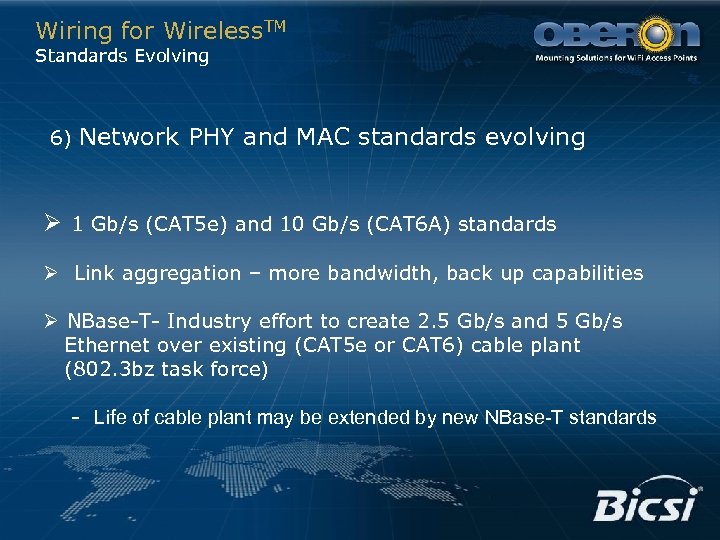

Wiring for Wireless. TM Standards Evolving 6) Network PHY and MAC standards evolving Ø 1 Gb/s (CAT 5 e) and 10 Gb/s (CAT 6 A) standards Ø Link aggregation – more bandwidth, back up capabilities Ø NBase-T- Industry effort to create 2. 5 Gb/s and 5 Gb/s Ethernet over existing (CAT 5 e or CAT 6) cable plant (802. 3 bz task force) - Life of cable plant may be extended by new NBase-T standards

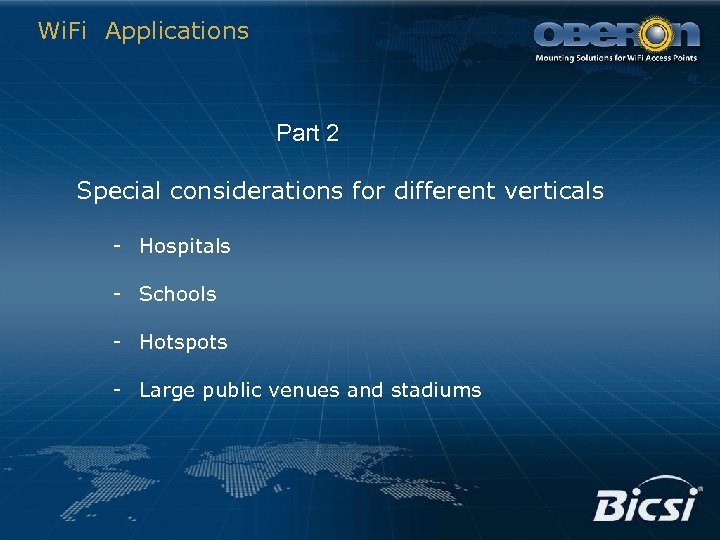

Wi. Fi Applications Part 2 Special considerations for different verticals - Hospitals - Schools - Hotspots - Large public venues and stadiums
Wi. Fi in Hospitals • TIA 1179 – Healthcare Infrastructure Standard • Hospitals have policies and procedures to mitigate Airborne Infectious Disease. Ø ICRA procedure simplification (don’t lift ceiling tiles) Ø HIPPA Compliance (secure the endpoints) Ø National Electric Code compliance (Plenum rated) • BICSI 004 Supplemental Information- Guide to Medical Grade Wireless Utility

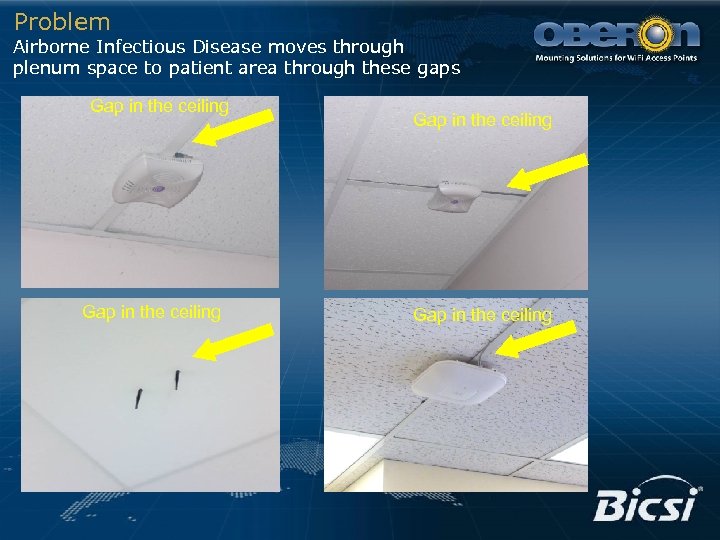

Problem Airborne Infectious Disease moves through plenum space to patient area through these gaps Gap in the ceiling

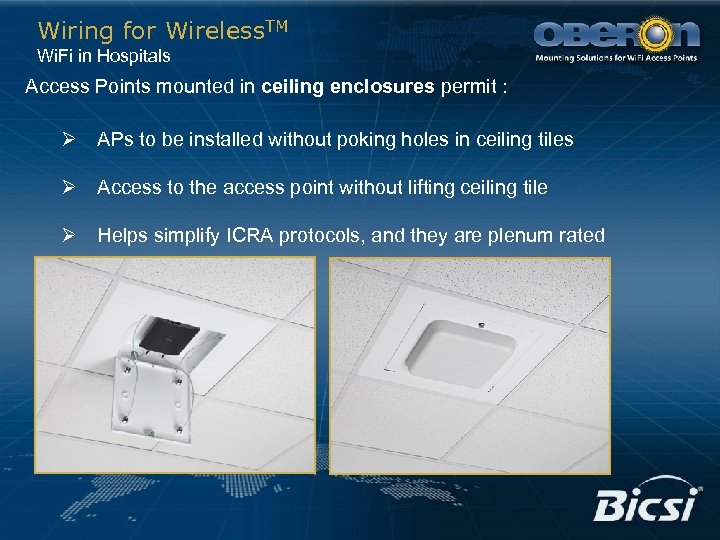

Wiring for Wireless. TM Wi. Fi in Hospitals Access Points mounted in ceiling enclosures permit : Ø APs to be installed without poking holes in ceiling tiles Ø Access to the access point without lifting ceiling tile Ø Helps simplify ICRA protocols, and they are plenum rated

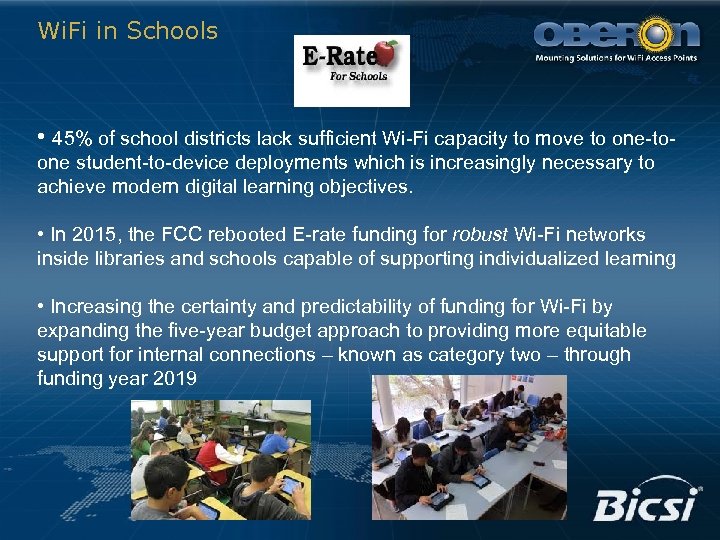

Wi. Fi in Schools • 45% of school districts lack sufficient Wi-Fi capacity to move to one-toone student-to-device deployments which is increasingly necessary to achieve modern digital learning objectives. • In 2015, the FCC rebooted E-rate funding for robust Wi-Fi networks inside libraries and schools capable of supporting individualized learning • Increasing the certainty and predictability of funding for Wi-Fi by expanding the five-year budget approach to providing more equitable support for internal connections – known as category two – through funding year 2019

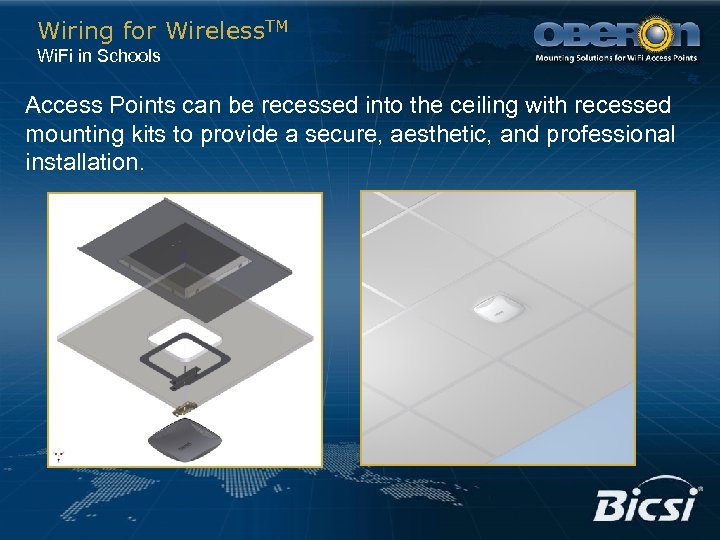

Wiring for Wireless. TM Wi. Fi in Schools Access Points can be recessed into the ceiling with recessed mounting kits to provide a secure, aesthetic, and professional installation.

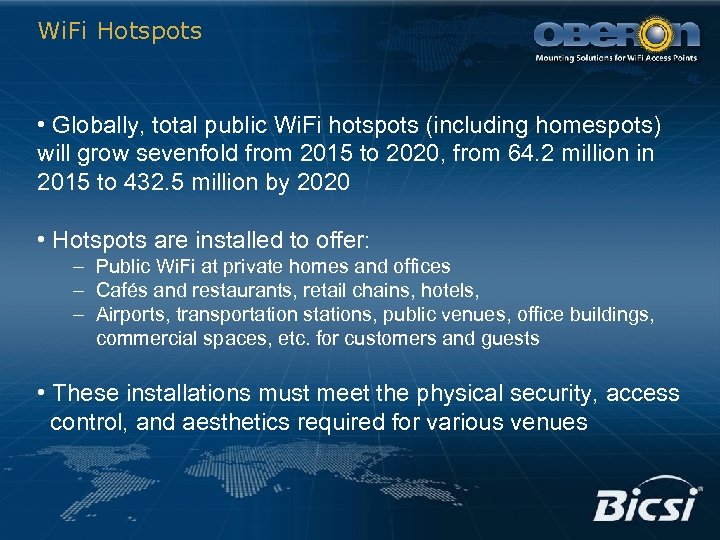

Wi. Fi Hotspots • Globally, total public Wi. Fi hotspots (including homespots) will grow sevenfold from 2015 to 2020, from 64. 2 million in 2015 to 432. 5 million by 2020 • Hotspots are installed to offer: – Public Wi. Fi at private homes and offices – Cafés and restaurants, retail chains, hotels, – Airports, transportation stations, public venues, office buildings, commercial spaces, etc. for customers and guests • These installations must meet the physical security, access control, and aesthetics required for various venues

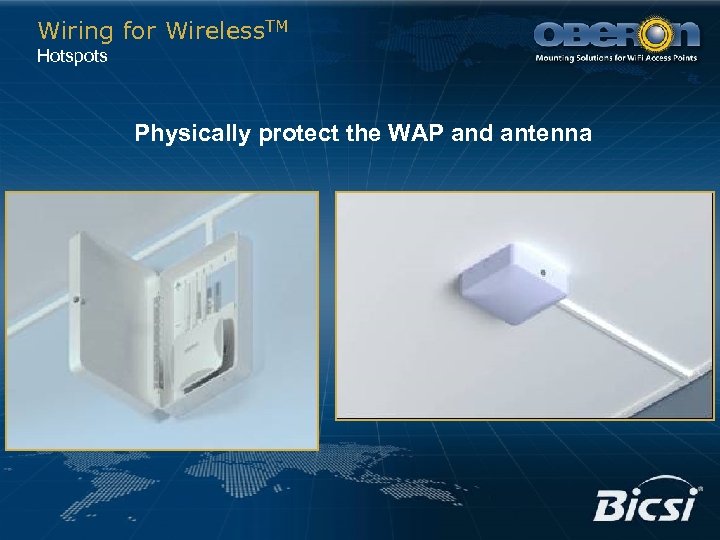

Wiring for Wireless. TM Hotspots Physically protect the WAP and antenna

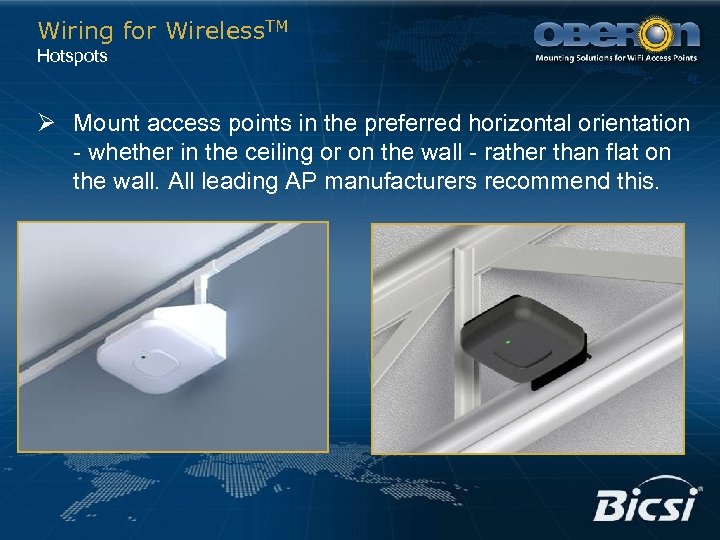

Wiring for Wireless. TM Hotspots Ø Mount access points in the preferred horizontal orientation - whether in the ceiling or on the wall - rather than flat on the wall. All leading AP manufacturers recommend this.
Wiring for Wireless. TM Recommendations • Plan for high density WAP installations. A professional installation will provide the physical security, code compliance, and aesthetics mandated by the environment

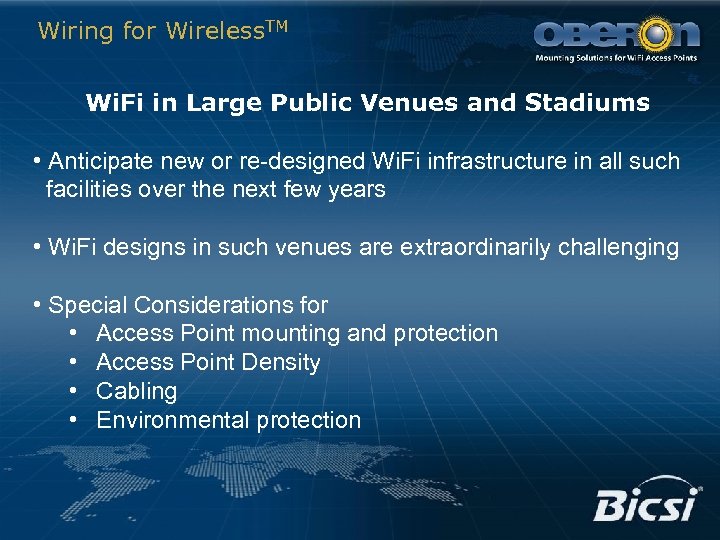

Wiring for Wireless. TM Wi. Fi in Large Public Venues and Stadiums • Anticipate new or re-designed Wi. Fi infrastructure in all such facilities over the next few years • Wi. Fi designs in such venues are extraordinarily challenging • Special Considerations for • Access Point mounting and protection • Access Point Density • Cabling • Environmental protection

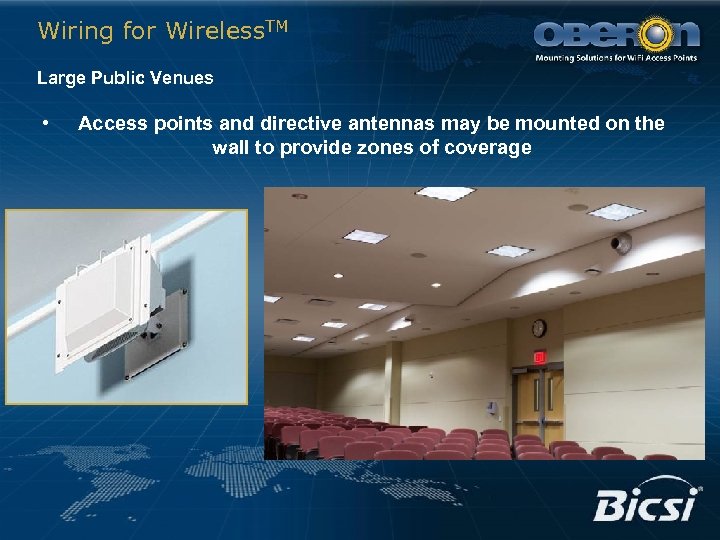

Wiring for Wireless. TM Large Public Venues • Access points and directive antennas may be mounted on the wall to provide zones of coverage

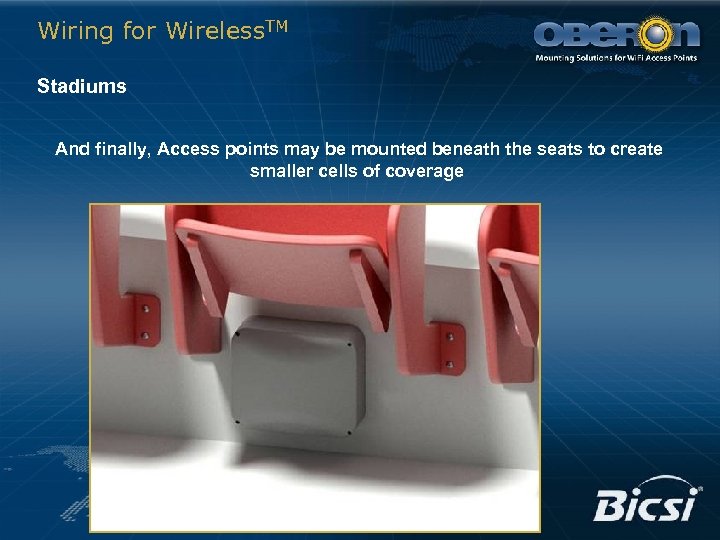

Wiring for Wireless. TM Stadiums And finally, Access points may be mounted beneath the seats to create smaller cells of coverage
Wiring for Wireless. TM Thank you for your time!

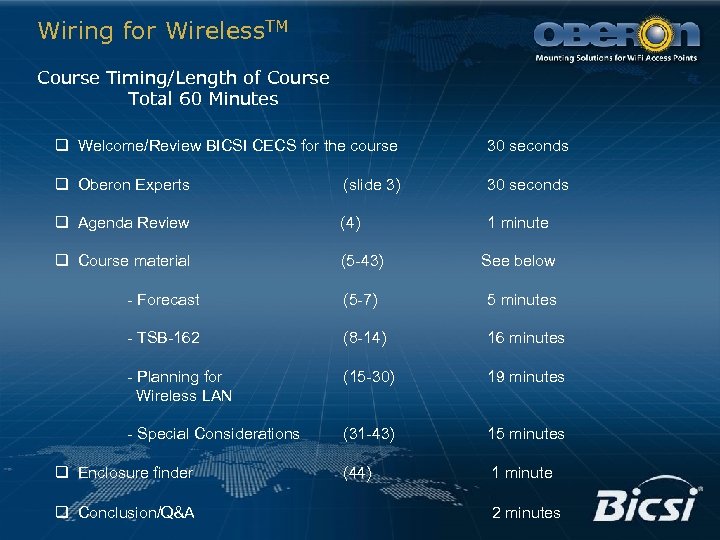

Wiring for Wireless. TM Course Timing/Length of Course Total 60 Minutes q q Welcome/Review BICSI CECS for the course Oberon Experts 30 seconds (slide 3) 30 seconds Agenda Review (4) 1 minute Course material (5 -43) See below - Forecast (5 -7) 5 minutes - TSB-162 (8 -14) 16 minutes - Planning for Wireless LAN (15 -30) 19 minutes - Special Considerations (31 -43) 15 minutes q Enclosure finder (44) 1 minute q Conclusion/Q&A 2 minutes
