Wireless Solution for Sea Port 2 Agenda

Wireless Solution for Sea Port

2 Agenda The challenges of Sea Ports Examples from Netronics deployment base Advantages for wireless technology Why Netronics?

The challenges of Sea Ports

4 The challenges of Sea Ports Operations • Support internal operations of the Sea Port • Traditional based applications Security • Securing the activity in the Sea Port • New, developing area due to global awareness and government legislations The Vision – have common infrastructure to support both areas

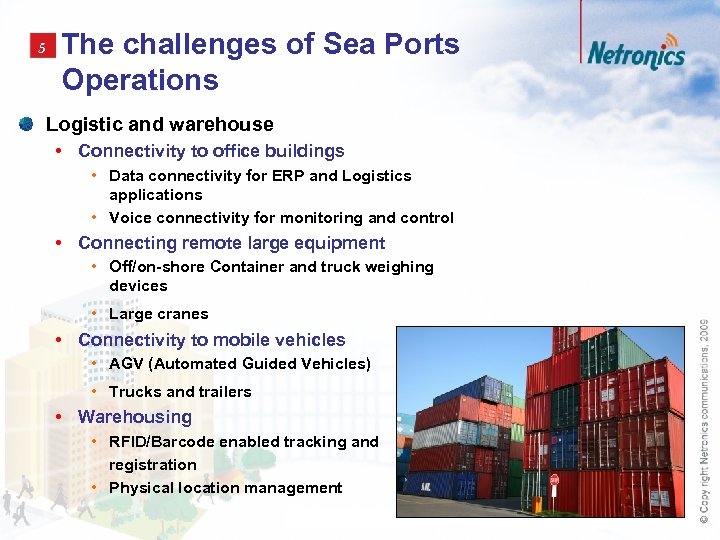

5 The challenges of Sea Ports Operations Logistic and warehouse • Connectivity to office buildings • Data connectivity for ERP and Logistics applications • Voice connectivity for monitoring and control • Connecting remote large equipment • Off/on-shore Container and truck weighing devices • Large cranes • Connectivity to mobile vehicles • AGV (Automated Guided Vehicles) • Trucks and trailers • Warehousing • RFID/Barcode enabled tracking and registration • Physical location management

6 The challenges of Sea Ports Security What is the trend? What are the security threats? How can you defend? What communication solutions required?

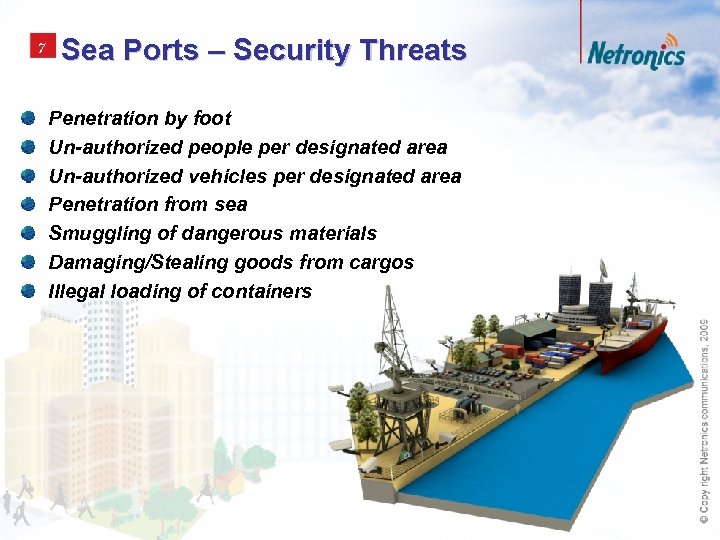

7 Sea Ports – Security Threats Penetration by foot Un-authorized people per designated area Un-authorized vehicles per designated area Penetration from sea Smuggling of dangerous materials Damaging/Stealing goods from cargos Illegal loading of containers

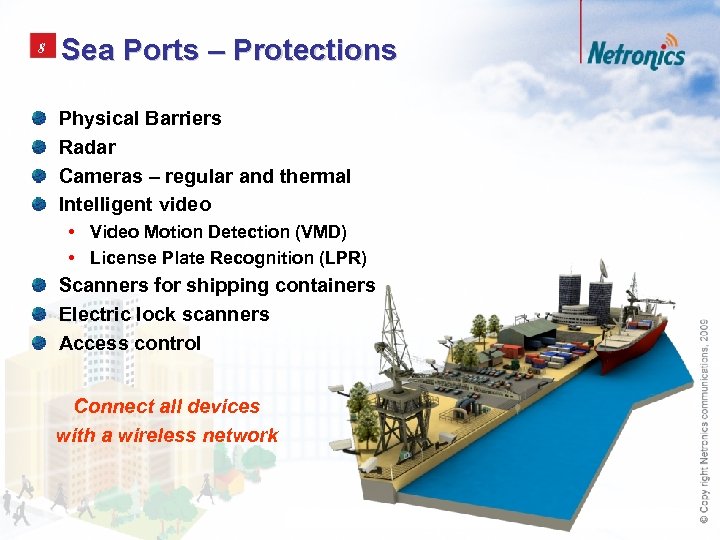

8 Sea Ports – Protections Physical Barriers Radar Cameras – regular and thermal Intelligent video • Video Motion Detection (VMD) • License Plate Recognition (LPR) Scanners for shipping containers Electric lock scanners Access control Connect all devices with a wireless network

Examples from Netronics Deployments

10 Forth Ports PLC About Forth Ports PLC • Operates the four main ports on the Scottish east coast The Challenge • Improve security • Network connectivity to new facilities • Network availability for real-time data and video The Solution • Wireless network with Netronics product lines Net. Link MP and Net. Link F The Result • A network which can be controlled at each port and from a central point

11 Forth Ports PLC Data • More reliable than fiber • Easier to connect new buildings Video • Maximum positioning flexibility • Re-location options • Monitoring available from every port

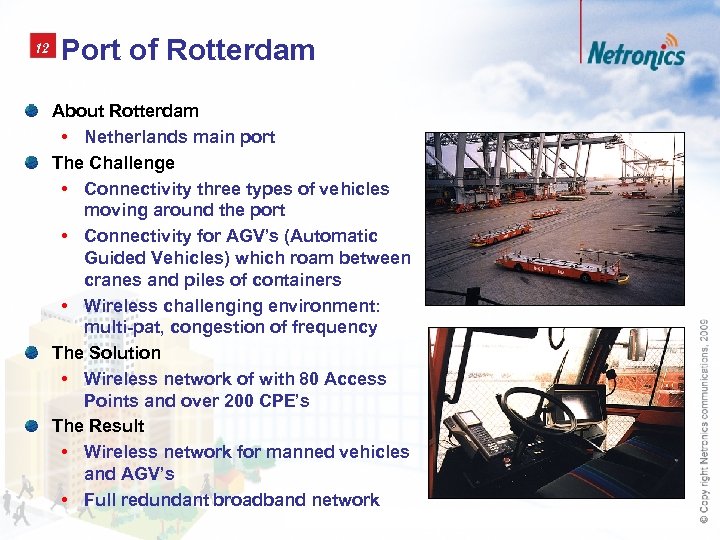

12 Port of Rotterdam About Rotterdam • Netherlands main port The Challenge • Connectivity three types of vehicles moving around the port • Connectivity for AGV’s (Automatic Guided Vehicles) which roam between cranes and piles of containers • Wireless challenging environment: multi-pat, congestion of frequency The Solution • Wireless network of with 80 Access Points and over 200 CPE’s The Result • Wireless network for manned vehicles and AGV’s • Full redundant broadband network

13 Port of Singapore About Singapore port • One of Asia Pacific main ports The Challenge • Coverage for moving operator cabin on all quay cranes • Coverage for ground cabins on the quay • Wireless challenging environment: metal environment (containers, ships, vehicles, etc. . ) The Solution • Wireless network of over 70 CPE’s, some of are mobile The Result • Streamlined operations, enhanced logistics

Advantages of Wireless Tehnology

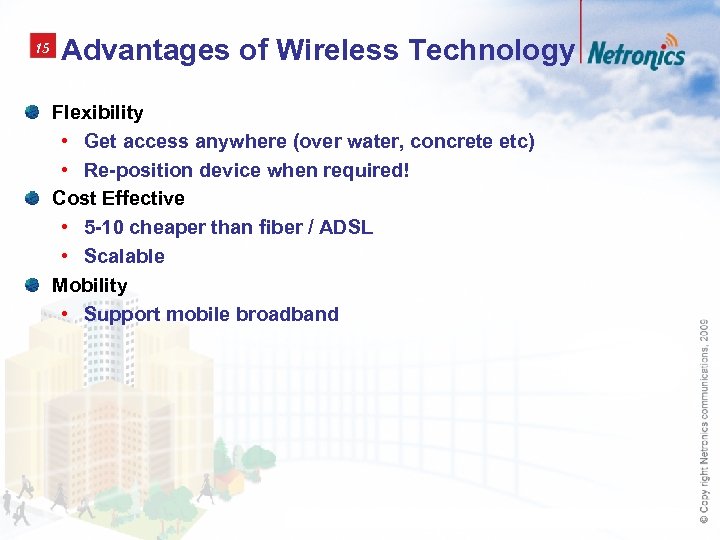

15 Advantages of Wireless Technology Flexibility • Get access anywhere (over water, concrete etc) • Re-position device when required! Cost Effective • 5 -10 cheaper than fiber / ADSL • Scalable Mobility • Support mobile broadband

Why Netronics

17 The Netronics Product Proven Experience • Rich deployment base of stable application • Industry understanding and Know-how Best products • Outdoor design - High survivability • Near 100% uptime • MTBF over 11 years; over 99. 99% availability • • -40°c to + 60°c temperature range • IP-67 rating (NEMA 4 X equivalent) • Range & coverage • OFDM technology provides NLOS • coverage and handles multi-path reflections • Maximum cell radius up to 20 miles • • Throughput • 32 Mbps per sector (FTP) Security • Hardware based AES encryption • VLAN support • Secure network management Mobility • Data connectivity to vehicles at 50 km/h Easy Deployment • deploy the first time out

Thank you
