Wireless Modems ESTeem Wireless Modems Bldg B 1

Wireless Modems ESTeem Wireless Modems Bldg. B 1 415 N. Quay Street Kennewick, WA 99336 Phone: 509 -735 -9092 www. esteem. com 210 Series 195 E Series 195 Series Wireless Modems 21 Years 1

specializes in the manufacturing and development of narrow band licensed, spread spectrum licensed and unlicensed Ethernet/Serial radio modems for the Industrial, Public Safety and Federal markets for long range outdoor and indoor applications. Model 210 Series Licensed Ethernet/Serial Narrow Band Products Model 195 & 195 E Series Ethernet/Serial Radio Products

Electronic Systems Technology, Inc. • • • Founded in 1982 Became Public Held in 1984 1985 First Wireless Modem Type Accepted 1987 U. S. Patent for Wireless Modem 1988 R & D 100 Award for Wireless Modem 1992 Central WA Small Business of the Year 1992 Started Relationship with Allen-Bradley 2004 & 2005 Washington State Fast 50 Award To date over 30, 000+ products in service world wide • Corporate offices and production facility in Kennewick, WA. Wireless Modems 21 Years 3

ESTeem Major Markets • Agriculture/Food Processing • Airport Lightning • Automotive • Enterprise Networking • Entertainment • Energy • Factory Floor Automation • Federal (military) • Marine Wireless Modems • Material Handling • Metals • Mining • Power • Public Safety • Oil/Gas • Solar Energy • Water/Wastewater • Wind Power • Wireless Networks 21 Years 5

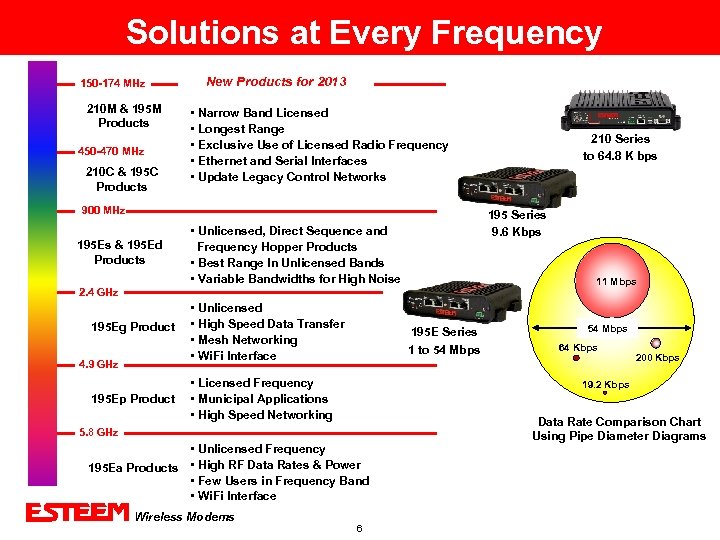

Solutions at Every Frequency 150 -174 MHz 210 M & 195 M Products 450 -470 MHz 210 C & 195 C Products New Products for 2013 • Narrow Band Licensed • Longest Range • Exclusive Use of Licensed Radio Frequency • Ethernet and Serial Interfaces • Update Legacy Control Networks 900 MHz 195 Es & 195 Ed Products 195 Series 9. 6 Kbps • Unlicensed, Direct Sequence and Frequency Hopper Products • Best Range In Unlicensed Bands • Variable Bandwidths for High Noise 11 Mbps 2. 4 GHz 195 Eg Product 4. 9 GHz 195 Ep Product • Unlicensed • High Speed Data Transfer • Mesh Networking • Wi. Fi Interface 195 E Series 1 to 54 Mbps • Licensed Frequency • Municipal Applications • High Speed Networking 54 Mbps 64 Kbps 200 Kbps 19. 2 Kbps 5. 8 GHz • Unlicensed Frequency 195 Ea Products • High RF Data Rates & Power • Few Users in Frequency Band • Wi. Fi Interface Wireless Modems 210 Series to 64. 8 K bps Data Rate Comparison Chart Using Pipe Diameter Diagrams 21 Years 6

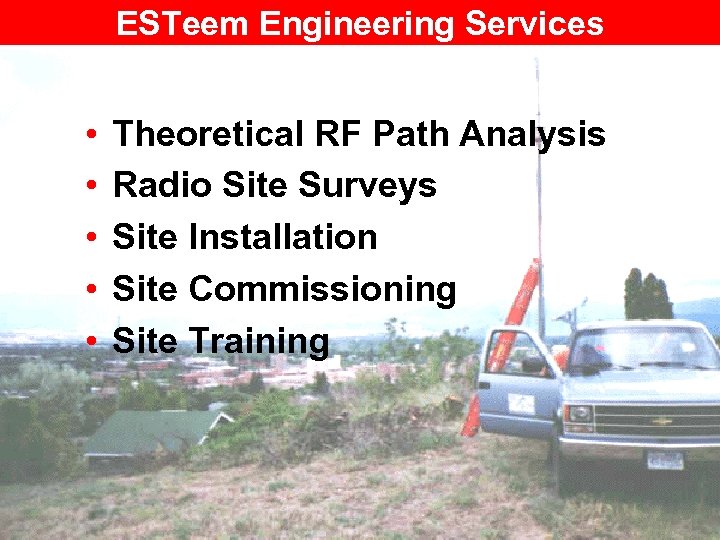

ESTeem Engineering Services • • • Theoretical RF Path Analysis Radio Site Surveys Site Installation Site Commissioning Site Training Wireless Modems 21 Years 7

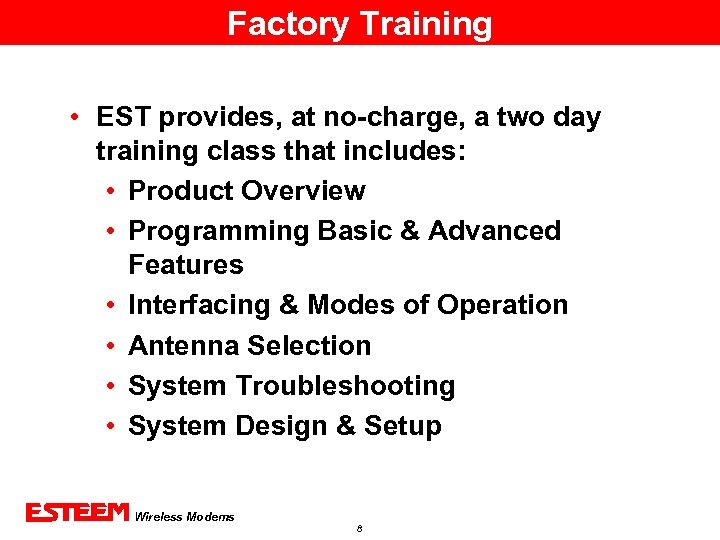

Factory Training • EST provides, at no-charge, a two day training class that includes: • Product Overview • Programming Basic & Advanced Features • Interfacing & Modes of Operation • Antenna Selection • System Troubleshooting • System Design & Setup Wireless Modems 21 Years 8

Site Planning Check List • • • Perform Theoretical Site RF Path Analysis Perform RF Site Survey Obtain Site License if necessary Select Systems Integrator Purchase Equipment • In-house Site Hardware Mock-up & Testing • Perform Site Installation • Site Commissioning • Customer Training Wireless Modems 21 Years 9

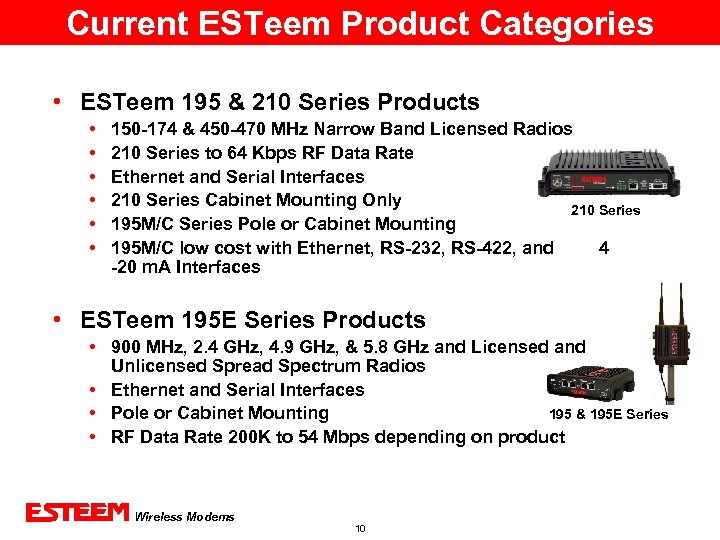

Current ESTeem Product Categories • ESTeem 195 & 210 Series Products • • • 150 -174 & 450 -470 MHz Narrow Band Licensed Radios 210 Series to 64 Kbps RF Data Rate Ethernet and Serial Interfaces 210 Series Cabinet Mounting Only 210 Series 195 M/C Series Pole or Cabinet Mounting 195 M/C low cost with Ethernet, RS-232, RS-422, and 4 -20 m. A Interfaces • ESTeem 195 E Series Products • 900 MHz, 2. 4 GHz, 4. 9 GHz, & 5. 8 GHz and Licensed and Unlicensed Spread Spectrum Radios • Ethernet and Serial Interfaces 195 & 195 E Series • Pole or Cabinet Mounting • RF Data Rate 200 K to 54 Mbps depending on product Wireless Modems 21 Years 10

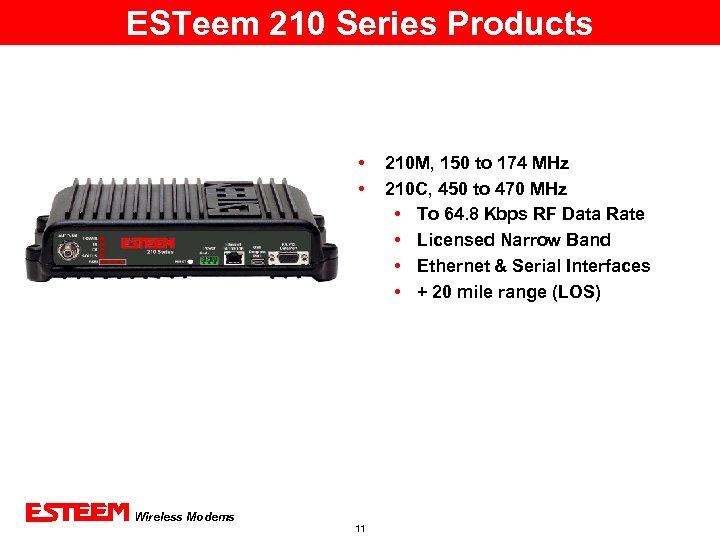

ESTeem 210 Series Products • • Wireless Modems 210 M, 150 to 174 MHz 210 C, 450 to 470 MHz • To 64. 8 Kbps RF Data Rate • Licensed Narrow Band • Ethernet & Serial Interfaces • + 20 mile range (LOS) 21 Years 11

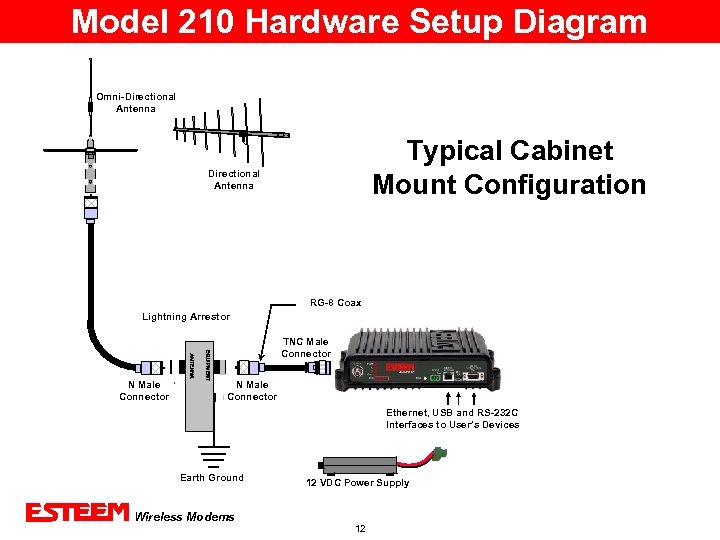

Model 210 Hardware Setup Diagram Omni-Directional Antenna Typical Cabinet Mount Configuration Directional Antenna RG-8 Coax Lightning Arrestor TNC Male Connector N Male Connector Ethernet, USB and RS-232 C Interfaces to User’s Devices Earth Ground Wireless Modems 12 VDC Power Supply 21 Years 12

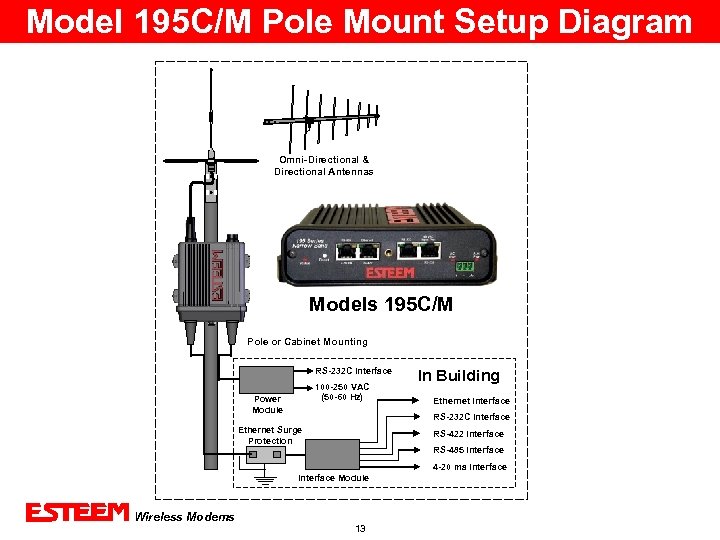

Model 195 C/M Pole Mount Setup Diagram Omni-Directional & Directional Antennas Models 195 C/M Pole or Cabinet Mounting RS-232 C Interface 100 -250 VAC (50 -60 Hz) Power Module In Building Ethernet Interface RS-232 C Interface Ethernet Surge Protection RS-422 Interface RS-485 Interface 4 -20 ma Interface Module Wireless Modems 21 Years 13

ESTeem Model 195 Cabinet Mount Hardware Diagram RS-232 Programming Interface Cable RS-232 Personal Computer Programming 10/100 Base T Ethernet Port Feedline Port Equipment Port Antenna Port 10/100 Base T Ethernet Interface Lightning Arrestor Antenna 100 -250 VAC/12 VDC Power Supply ESTeem Resource CD PLC/RTU Products Wireless Modems 21 Years 15

210 & 195 Series Site Networking Diagram Wireless Modems 21 Years 16

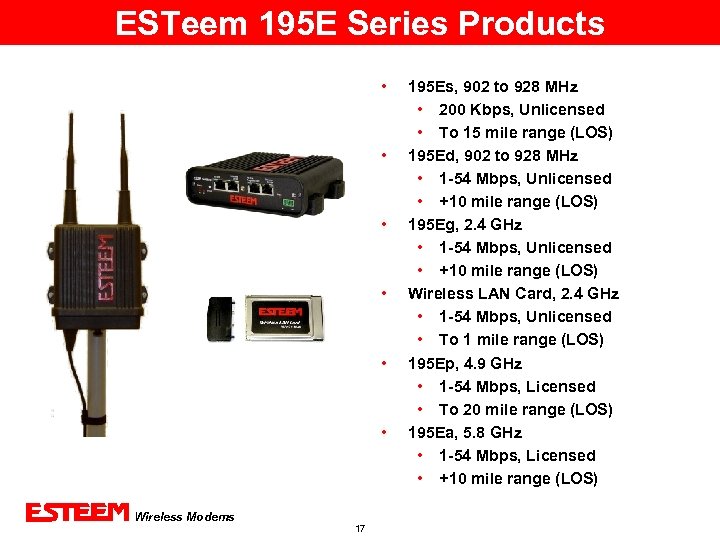

ESTeem 195 E Series Products • • • Wireless Modems 195 Es, 902 to 928 MHz • 200 Kbps, Unlicensed • To 15 mile range (LOS) 195 Ed, 902 to 928 MHz • 1 -54 Mbps, Unlicensed • +10 mile range (LOS) 195 Eg, 2. 4 GHz • 1 -54 Mbps, Unlicensed • +10 mile range (LOS) Wireless LAN Card, 2. 4 GHz • 1 -54 Mbps, Unlicensed • To 1 mile range (LOS) 195 Ep, 4. 9 GHz • 1 -54 Mbps, Licensed • To 20 mile range (LOS) 195 Ea, 5. 8 GHz • 1 -54 Mbps, Licensed • +10 mile range (LOS) 21 Years 17

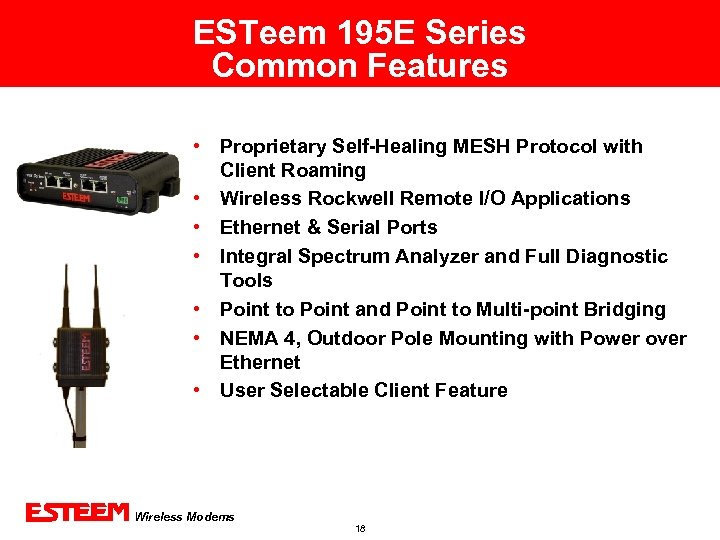

ESTeem 195 E Series Common Features • Proprietary Self-Healing MESH Protocol with Client Roaming • Wireless Rockwell Remote I/O Applications • Ethernet & Serial Ports • Integral Spectrum Analyzer and Full Diagnostic Tools • Point to Point and Point to Multi-point Bridging • NEMA 4, Outdoor Pole Mounting with Power over Ethernet • User Selectable Client Feature Wireless Modems 21 Years 18

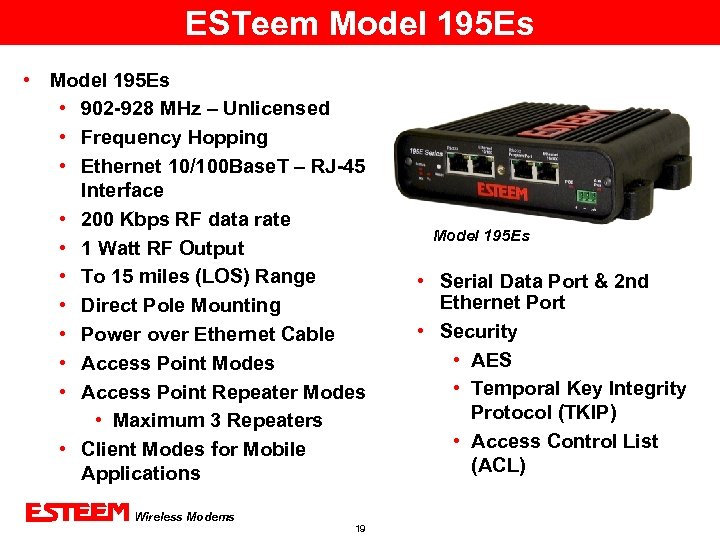

ESTeem Model 195 Es • 902 -928 MHz – Unlicensed • Frequency Hopping • Ethernet 10/100 Base. T – RJ-45 Interface • 200 Kbps RF data rate • 1 Watt RF Output • To 15 miles (LOS) Range • Direct Pole Mounting • Power over Ethernet Cable • Access Point Modes • Access Point Repeater Modes • Maximum 3 Repeaters • Client Modes for Mobile Applications Wireless Modems Model 195 Es • Serial Data Port & 2 nd Ethernet Port • Security • AES • Temporal Key Integrity Protocol (TKIP) • Access Control List (ACL) 21 Years 19

ESTeem Model 195 Ed • 902 -928 MHz - Unlicensed • OFDM Modulation • Ethernet 10/100 Base. T – RJ-45 Interface • 1 -54 M bps RF data rate • 1 Watt RF Output • +10 miles (LOS) Range • Direct Pole Mounting • Power over Ethernet Cable • Bridge Mode • Access Point Modes • Access Point Repeater Modes • Client Modes for Mobile Applications • Serial Data Port & 2 nd Ethernet Port Wireless Modems Model 195 Ed • Security • AES 128 Bit • WPA - Enterprise and PSK • Temporal Key Integrity Protocol (TKIP) • Access Control List (ACL) • Wired Equivalent Privacy (WEP) 128 Bit Encryption and Decryption 21 Years 20

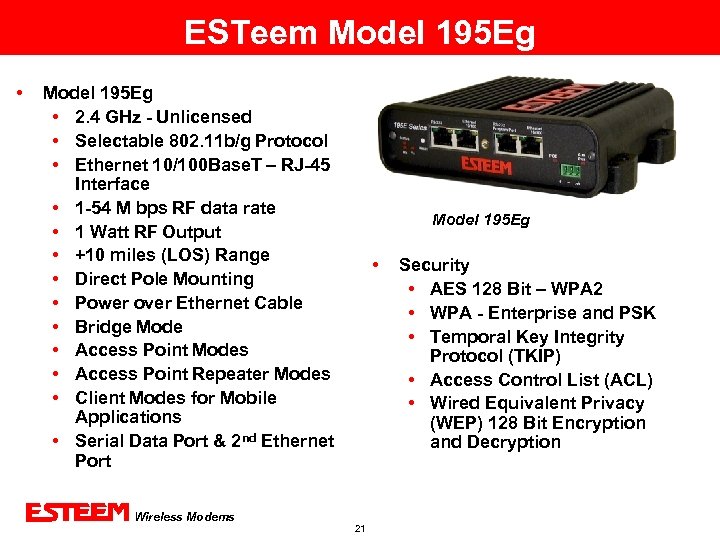

ESTeem Model 195 Eg • 2. 4 GHz - Unlicensed • Selectable 802. 11 b/g Protocol • Ethernet 10/100 Base. T – RJ-45 Interface • 1 -54 M bps RF data rate • 1 Watt RF Output • +10 miles (LOS) Range • Direct Pole Mounting • Power over Ethernet Cable • Bridge Mode • Access Point Modes • Access Point Repeater Modes • Client Modes for Mobile Applications • Serial Data Port & 2 nd Ethernet Port Wireless Modems Model 195 Eg • Security • AES 128 Bit – WPA 2 • WPA - Enterprise and PSK • Temporal Key Integrity Protocol (TKIP) • Access Control List (ACL) • Wired Equivalent Privacy (WEP) 128 Bit Encryption and Decryption 21 Years 21

ESTeem Model 195 Ep • 4. 9 GHz - Licensed Radio • Ethernet 10/100 Base. T – RJ-45 Interface • 1 -54 Mbps RF data rate • 2 Watt RF Peak Output • To 20 miles (LOS) Range • Direct Pole Mounting • Power over Ethernet Cable • Bridge Mode • Access Point Modes • Access Point Repeater Modes • Client Modes for Mobile Applications • Serial Data Port & 2 nd Ethernet Port Wireless Modems Model 195 Ep • Security • AES 128 Bit • Temporal Key Integrity Protocol (TKIP) • Access Control List (ACL) • Wired Equivalent Privacy (WEP) 128 Bit Encryption and Decryption 21 Years 22

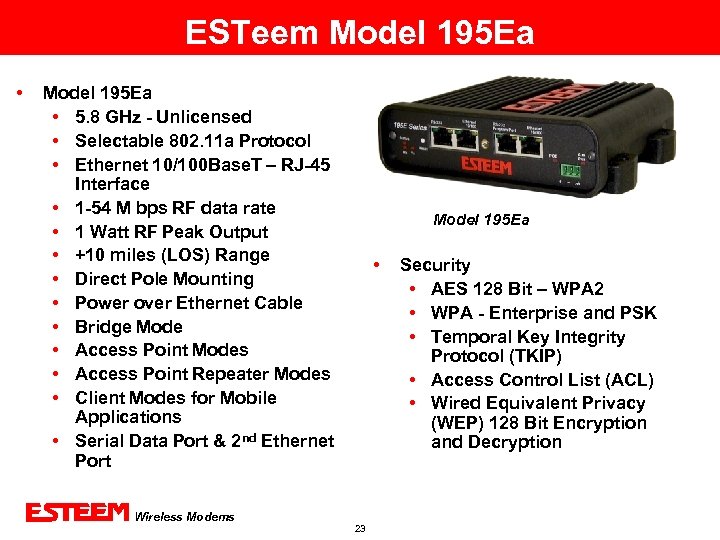

ESTeem Model 195 Ea • 5. 8 GHz - Unlicensed • Selectable 802. 11 a Protocol • Ethernet 10/100 Base. T – RJ-45 Interface • 1 -54 M bps RF data rate • 1 Watt RF Peak Output • +10 miles (LOS) Range • Direct Pole Mounting • Power over Ethernet Cable • Bridge Mode • Access Point Modes • Access Point Repeater Modes • Client Modes for Mobile Applications • Serial Data Port & 2 nd Ethernet Port Wireless Modems Model 195 Ea • Security • AES 128 Bit – WPA 2 • WPA - Enterprise and PSK • Temporal Key Integrity Protocol (TKIP) • Access Control List (ACL) • Wired Equivalent Privacy (WEP) 128 Bit Encryption and Decryption 21 Years 23

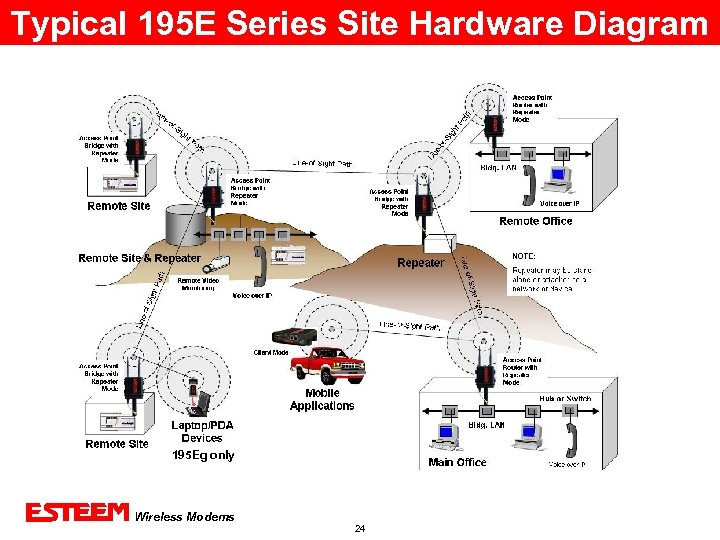

Typical 195 E Series Site Hardware Diagram 195 Eg only Wireless Modems 21 Years 24

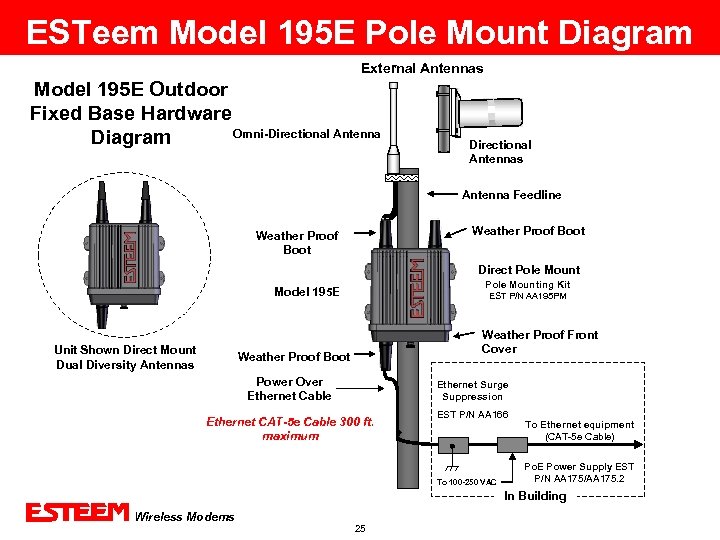

ESTeem Model 195 E Pole Mount Diagram External Antennas Model 195 E Outdoor Fixed Base Hardware Omni-Directional Antenna Diagram Directional Antennas Antenna Feedline Weather Proof Boot Direct Pole Mounting Kit Model 195 E Unit Shown Direct Mount Dual Diversity Antennas EST P/N AA 195 PM Weather Proof Front Cover Weather Proof Boot Power Over Ethernet Cable Ethernet Surge Suppression Ethernet CAT-5 e Cable 300 ft. maximum EST P/N AA 166 To 100 -250 VAC To Ethernet equipment (CAT-5 e Cable) Po. E Power Supply EST P/N AA 175/AA 175. 2 In Building Wireless Modems 21 Years 25

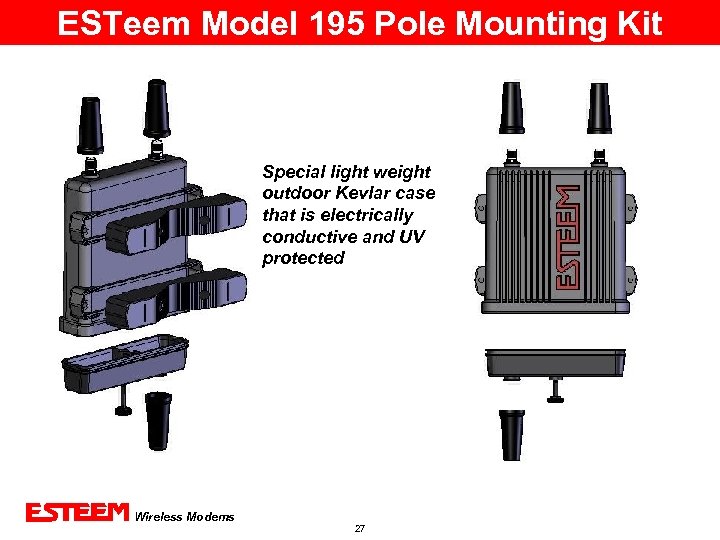

ESTeem Model 195 Pole Mounting Kit Special light weight outdoor Kevlar case that is electrically conductive and UV protected Wireless Modems 21 Years 27

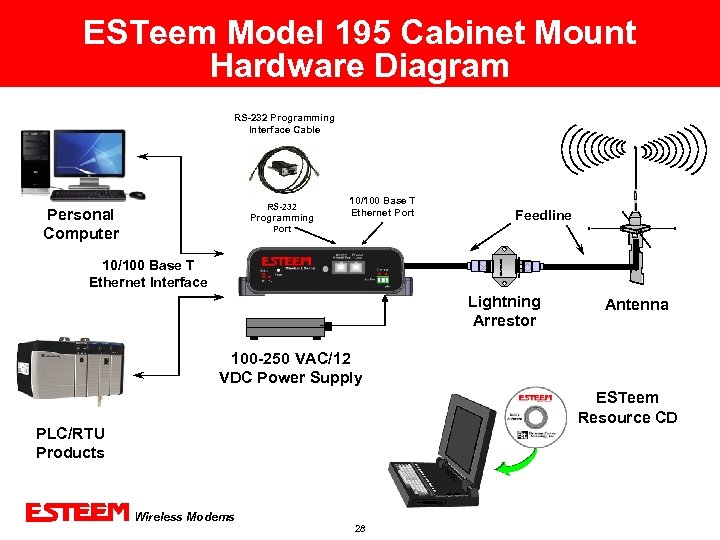

ESTeem Model 195 Cabinet Mount Hardware Diagram RS-232 Programming Interface Cable RS-232 Personal Computer Programming 10/100 Base T Ethernet Port Feedline Port Equipment Port Antenna Port 10/100 Base T Ethernet Interface Lightning Arrestor Antenna 100 -250 VAC/12 VDC Power Supply ESTeem Resource CD PLC/RTU Products Wireless Modems 21 Years 28

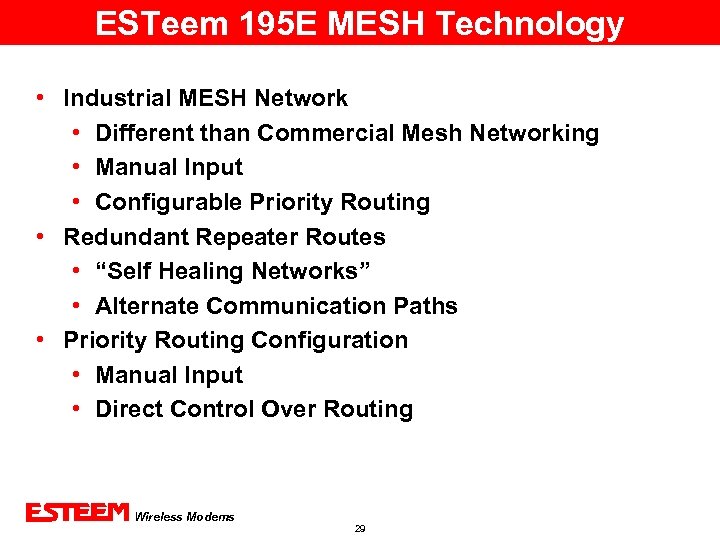

ESTeem 195 E MESH Technology • Industrial MESH Network • Different than Commercial Mesh Networking • Manual Input • Configurable Priority Routing • Redundant Repeater Routes • “Self Healing Networks” • Alternate Communication Paths • Priority Routing Configuration • Manual Input • Direct Control Over Routing Wireless Modems 21 Years 29
