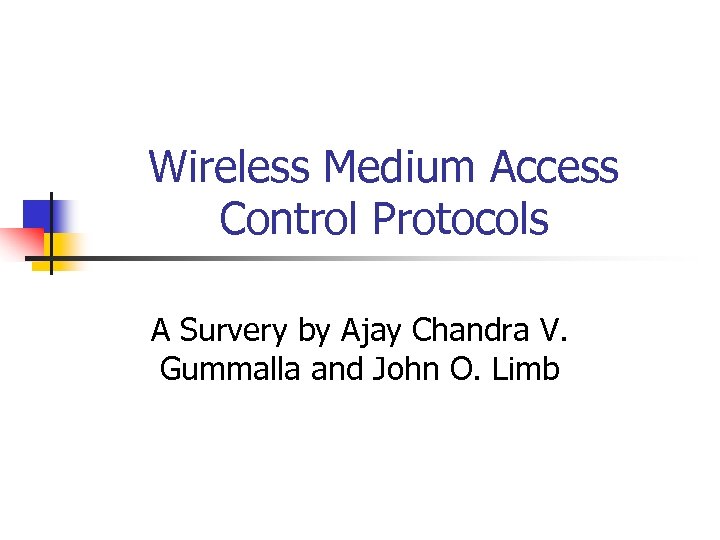

Wireless Medium Access Control Protocols A Survery by Ajay Chandra V. Gummalla and John O. Limb

Introduction n Survey Distributed vs. Centralized Networks Wireless MAC Issues n n Low Power Sensor Nodes Random Access Guaranteed Access Hybrid Access

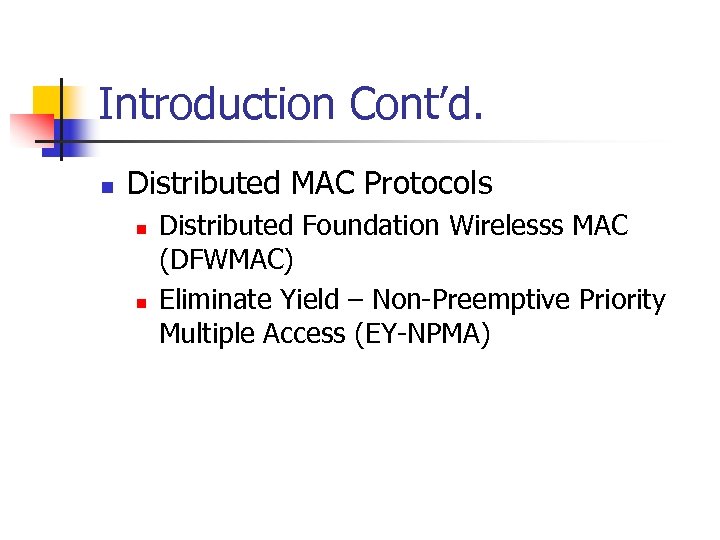

Introduction Cont’d. n Distributed MAC Protocols n n Distributed Foundation Wirelesss MAC (DFWMAC) Eliminate Yield – Non-Preemptive Priority Multiple Access (EY-NPMA)

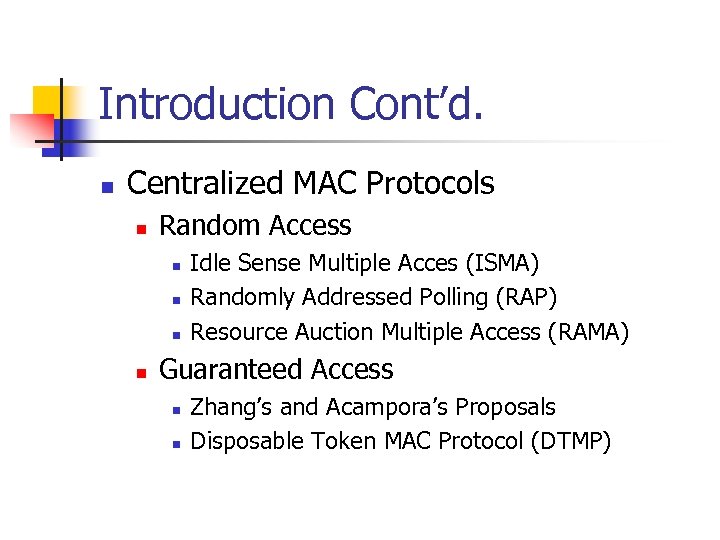

Introduction Cont’d. n Centralized MAC Protocols n Random Access n n Idle Sense Multiple Acces (ISMA) Randomly Addressed Polling (RAP) Resource Auction Multiple Access (RAMA) Guaranteed Access n n Zhang’s and Acampora’s Proposals Disposable Token MAC Protocol (DTMP)

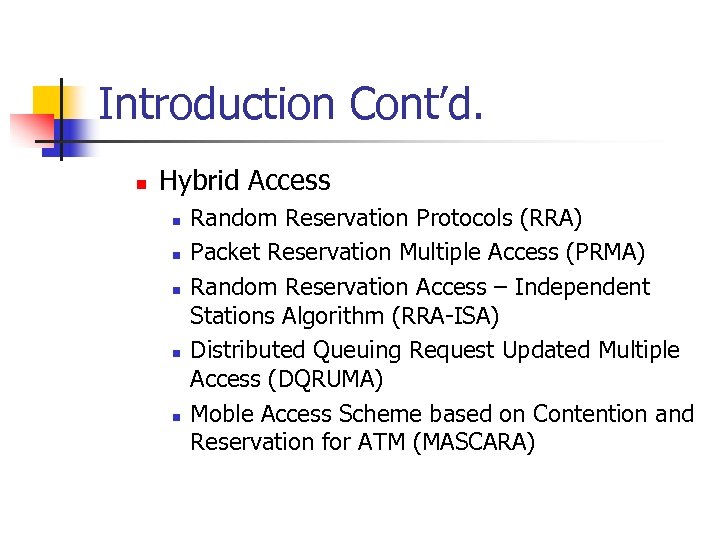

Introduction Cont’d. n Hybrid Access n n n Random Reservation Protocols (RRA) Packet Reservation Multiple Access (PRMA) Random Reservation Access – Independent Stations Algorithm (RRA-ISA) Distributed Queuing Request Updated Multiple Access (DQRUMA) Moble Access Scheme based on Contention and Reservation for ATM (MASCARA)

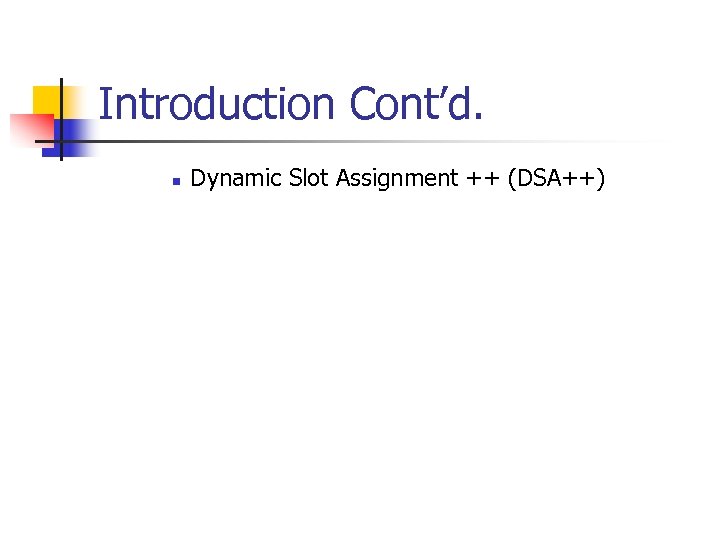

Introduction Cont’d. n Dynamic Slot Assignment ++ (DSA++)

Distributed Wireless Network n n ad hoc network No central administration Multi-hop wireless networks Wireless Sensor Nets

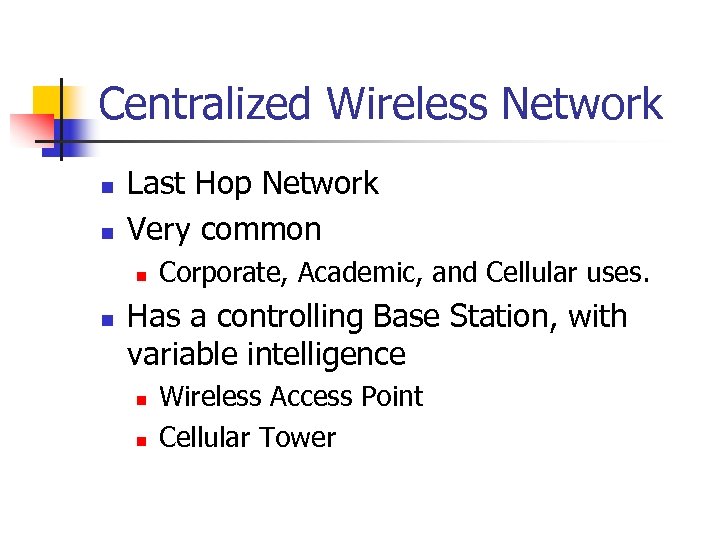

Centralized Wireless Network n n Last Hop Network Very common n n Corporate, Academic, and Cellular uses. Has a controlling Base Station, with variable intelligence n n Wireless Access Point Cellular Tower

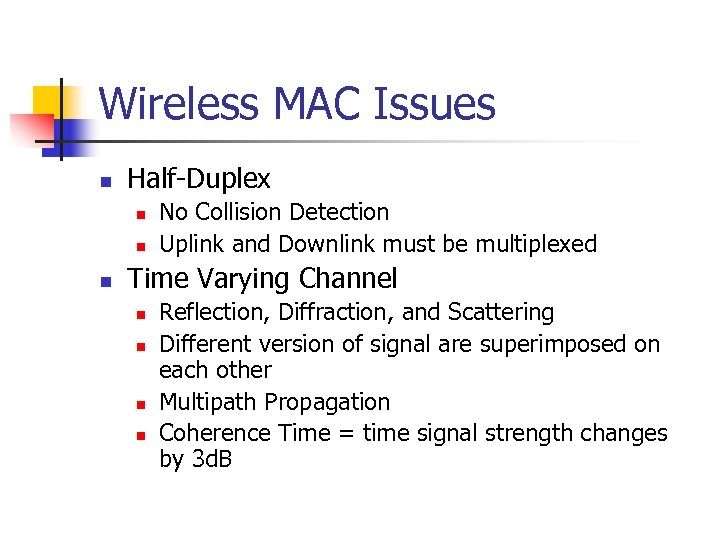

Wireless MAC Issues n Half-Duplex n n n No Collision Detection Uplink and Downlink must be multiplexed Time Varying Channel n n Reflection, Diffraction, and Scattering Different version of signal are superimposed on each other Multipath Propagation Coherence Time = time signal strength changes by 3 d. B

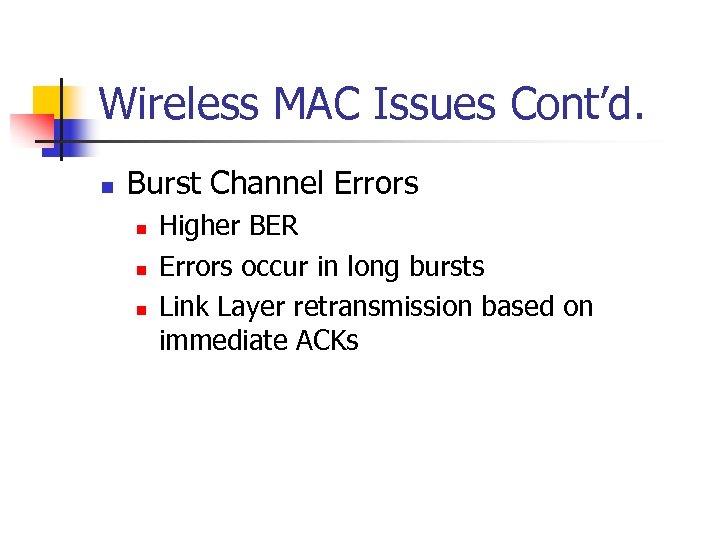

Wireless MAC Issues Cont’d. n Burst Channel Errors n n n Higher BER Errors occur in long bursts Link Layer retransmission based on immediate ACKs

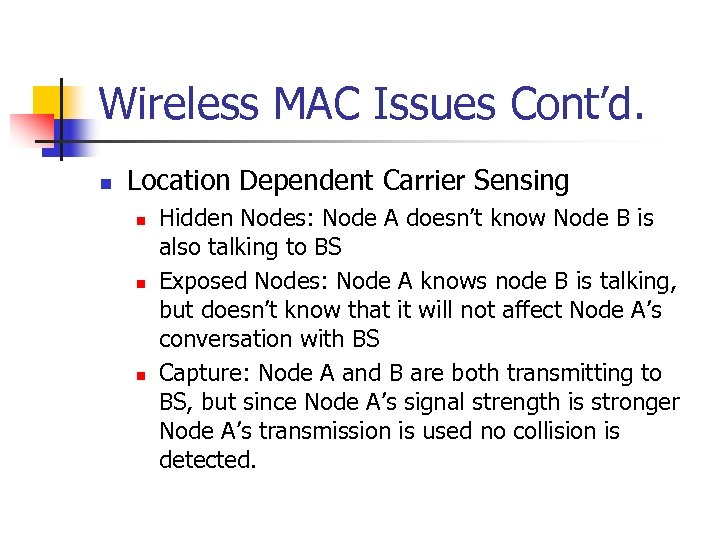

Wireless MAC Issues Cont’d. n Location Dependent Carrier Sensing n n n Hidden Nodes: Node A doesn’t know Node B is also talking to BS Exposed Nodes: Node A knows node B is talking, but doesn’t know that it will not affect Node A’s conversation with BS Capture: Node A and B are both transmitting to BS, but since Node A’s signal strength is stronger Node A’s transmission is used no collision is detected.

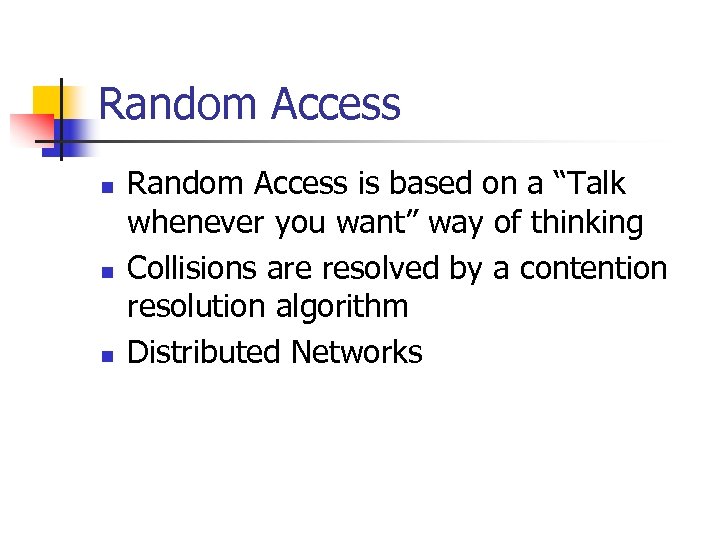

Random Access n n n Random Access is based on a “Talk whenever you want” way of thinking Collisions are resolved by a contention resolution algorithm Distributed Networks

Guaranteed Access n n n Access to medium is scheduled Round Robin Master/Slave (Polling) Tokens TDMA, FDMA

Hybrid Access n n n Melds best qualities of Random and Guaranteed Access Request-Grant mechanisms Requests are Random Access, and once reserved transmission is guaranteed Random Reservation Access Demand Assignment

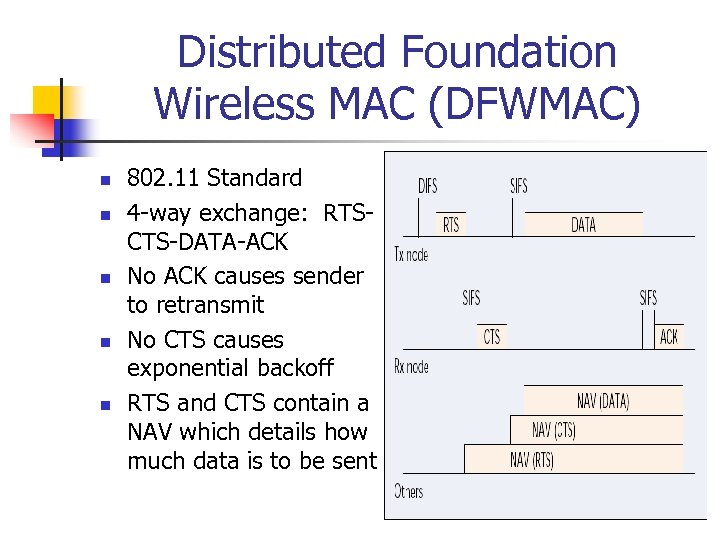

Distributed Foundation Wireless MAC (DFWMAC) n n n 802. 11 Standard 4 -way exchange: RTSCTS-DATA-ACK No ACK causes sender to retransmit No CTS causes exponential backoff RTS and CTS contain a NAV which details how much data is to be sent

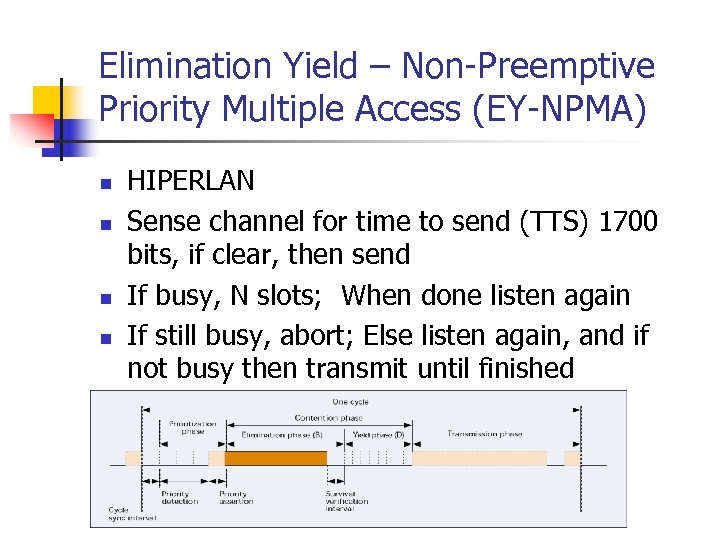

Elimination Yield – Non-Preemptive Priority Multiple Access (EY-NPMA) n n HIPERLAN Sense channel for time to send (TTS) 1700 bits, if clear, then send If busy, N slots; When done listen again If still busy, abort; Else listen again, and if not busy then transmit until finished

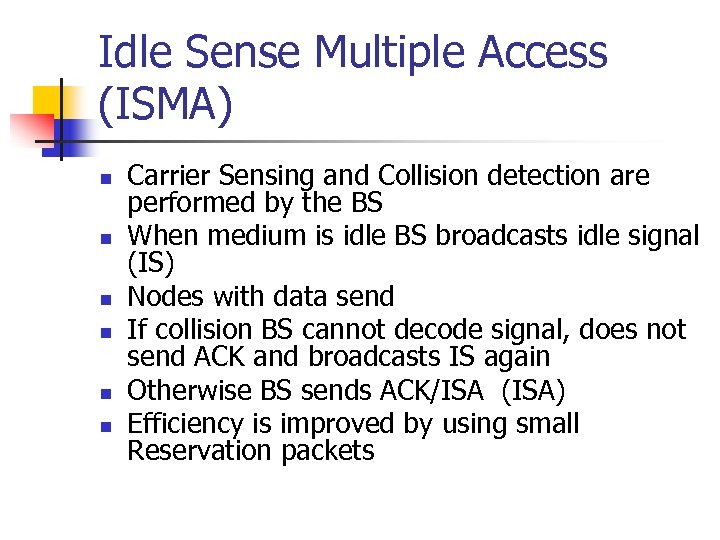

Idle Sense Multiple Access (ISMA) n n n Carrier Sensing and Collision detection are performed by the BS When medium is idle BS broadcasts idle signal (IS) Nodes with data send If collision BS cannot decode signal, does not send ACK and broadcasts IS again Otherwise BS sends ACK/ISA (ISA) Efficiency is improved by using small Reservation packets

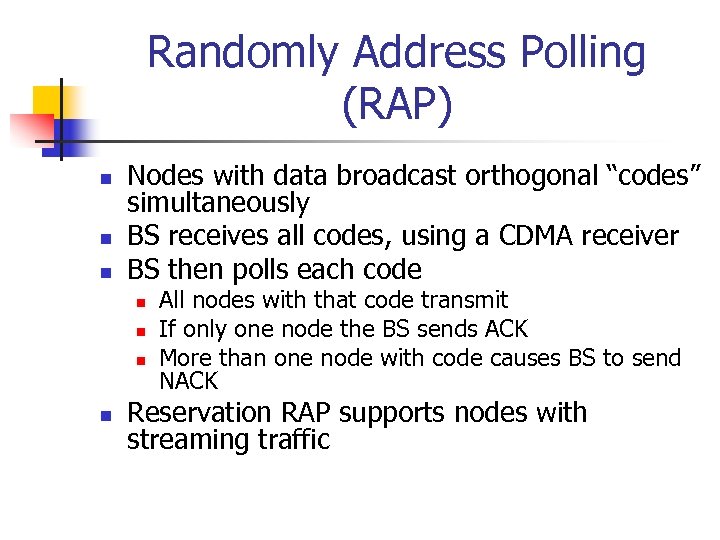

Randomly Address Polling (RAP) n n n Nodes with data broadcast orthogonal “codes” simultaneously BS receives all codes, using a CDMA receiver BS then polls each code n n All nodes with that code transmit If only one node the BS sends ACK More than one node with code causes BS to send NACK Reservation RAP supports nodes with streaming traffic

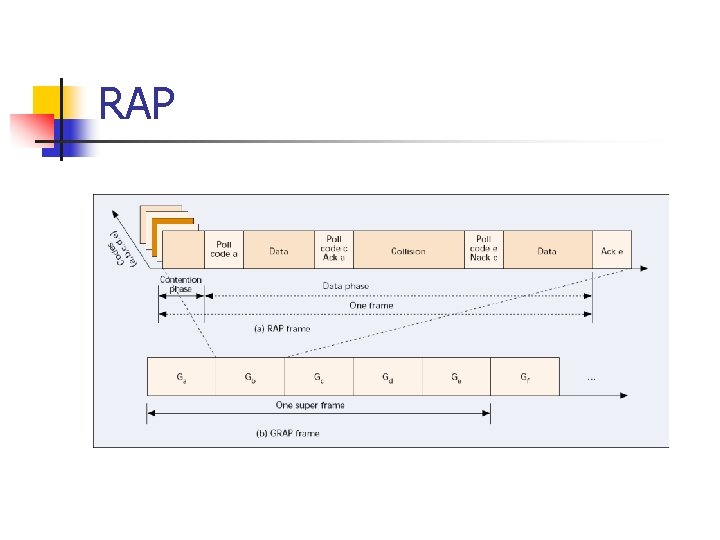

RAP

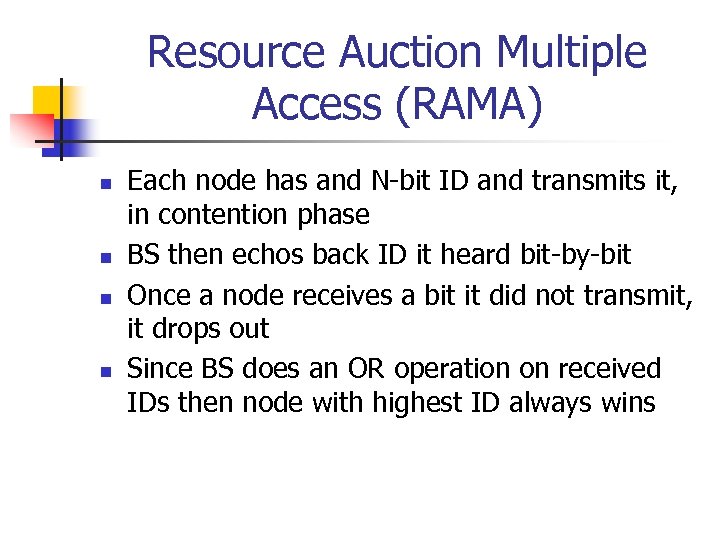

Resource Auction Multiple Access (RAMA) n n Each node has and N-bit ID and transmits it, in contention phase BS then echos back ID it heard bit-by-bit Once a node receives a bit it did not transmit, it drops out Since BS does an OR operation on received IDs then node with highest ID always wins

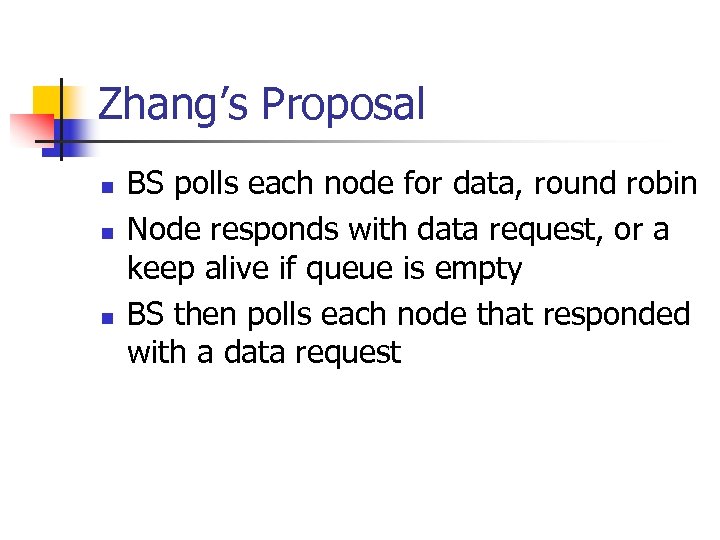

Zhang’s Proposal n n n BS polls each node for data, round robin Node responds with data request, or a keep alive if queue is empty BS then polls each node that responded with a data request

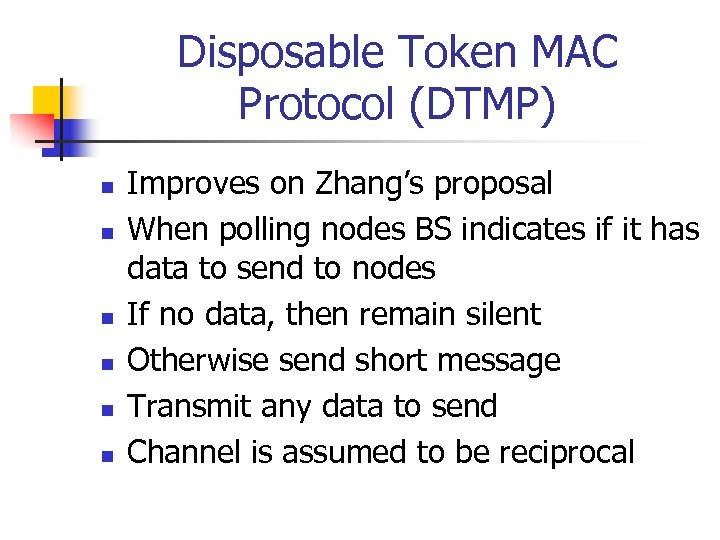

Disposable Token MAC Protocol (DTMP) n n n Improves on Zhang’s proposal When polling nodes BS indicates if it has data to send to nodes If no data, then remain silent Otherwise send short message Transmit any data to send Channel is assumed to be reciprocal

Acampora’s Proposal n n Poll, request, data phases BS polls each node, if the node has data to sends it responds The BS the broadcasts this nodes ID so that all nodes know the order in which to send BS then polls nodes each node in turn for its data

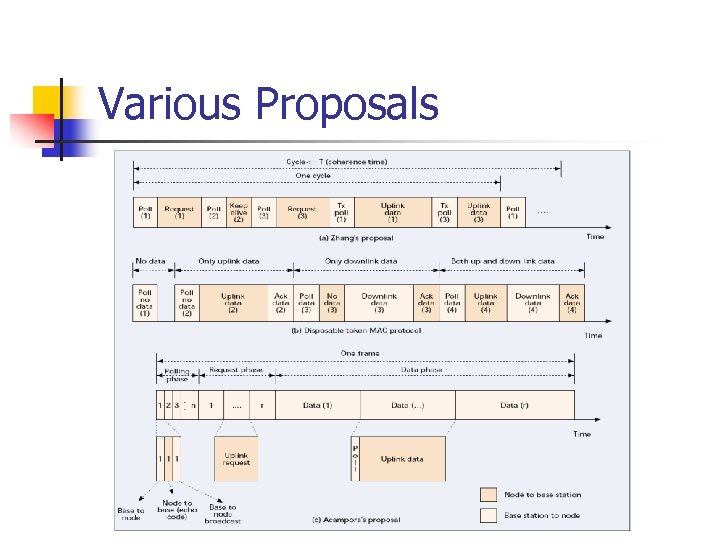

Various Proposals

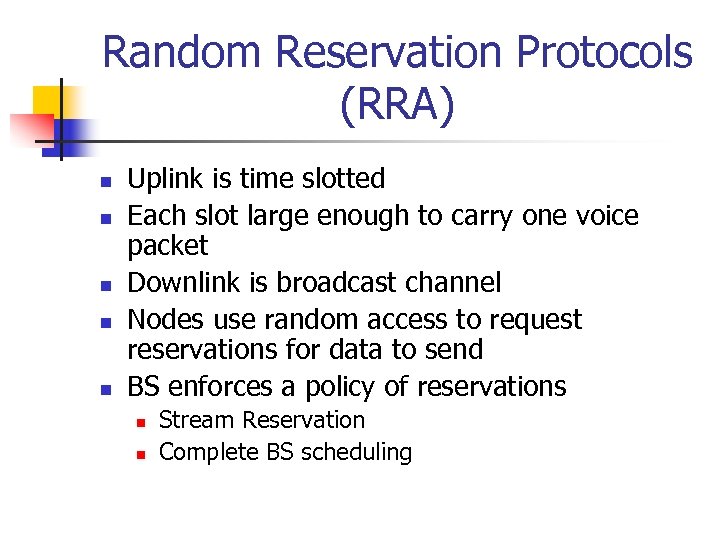

Random Reservation Protocols (RRA) n n n Uplink is time slotted Each slot large enough to carry one voice packet Downlink is broadcast channel Nodes use random access to request reservations for data to send BS enforces a policy of reservations n n Stream Reservation Complete BS scheduling

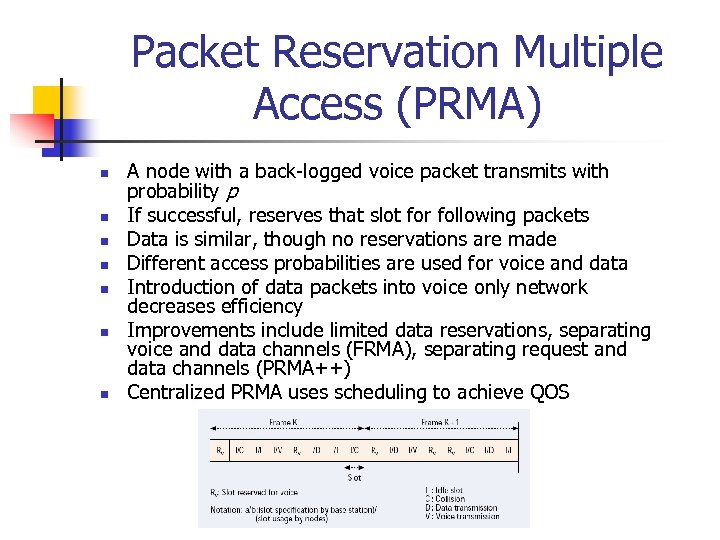

Packet Reservation Multiple Access (PRMA) n n n n A node with a back-logged voice packet transmits with probability p If successful, reserves that slot for following packets Data is similar, though no reservations are made Different access probabilities are used for voice and data Introduction of data packets into voice only network decreases efficiency Improvements include limited data reservations, separating voice and data channels (FRMA), separating request and data channels (PRMA++) Centralized PRMA uses scheduling to achieve QOS

Random Reservation Access – Independent Stations Algorithm (RRA -ISA) n n n BS polls a subset of all nodes Subset is defined by the probability of a single transmission in a slot is maximized BS uses channel history to compute subsets

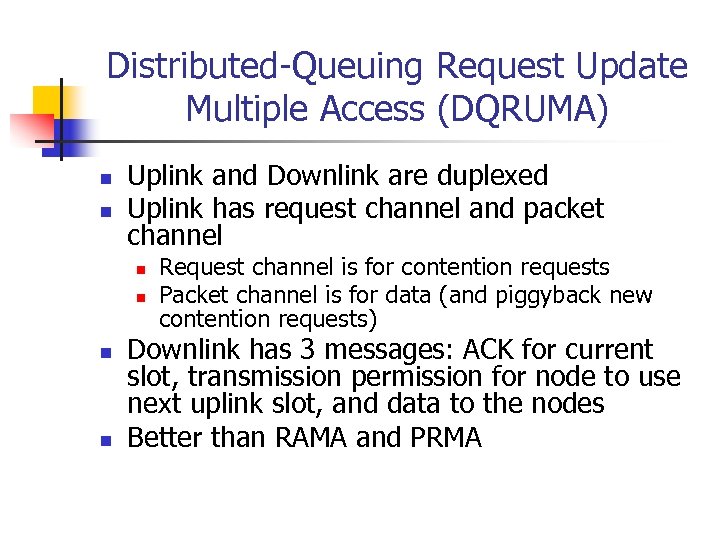

Distributed-Queuing Request Update Multiple Access (DQRUMA) n n Uplink and Downlink are duplexed Uplink has request channel and packet channel n n Request channel is for contention requests Packet channel is for data (and piggyback new contention requests) Downlink has 3 messages: ACK for current slot, transmission permission for node to use next uplink slot, and data to the nodes Better than RAMA and PRMA

Mobile Access Scheme based on Contention and Reservation for ATM (MASCARA) n n Frame consists of three periods: broadcast, reserved, and contention Broadcast informs nodes of structure of current frame and scheduled uplink transmissions Reserved period consists of downlink data, and uplink data as defined in broadcast period Contention is random access and used to send new requests to BS

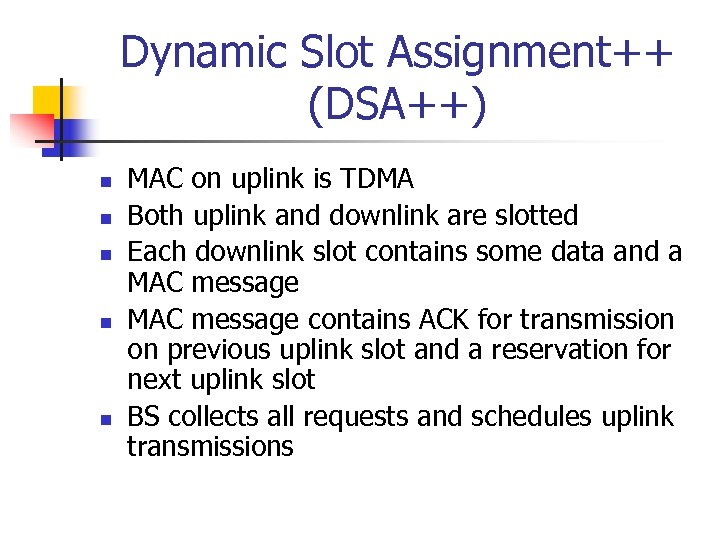

Dynamic Slot Assignment++ (DSA++) n n n MAC on uplink is TDMA Both uplink and downlink are slotted Each downlink slot contains some data and a MAC message contains ACK for transmission on previous uplink slot and a reservation for next uplink slot BS collects all requests and schedules uplink transmissions

Hybrids

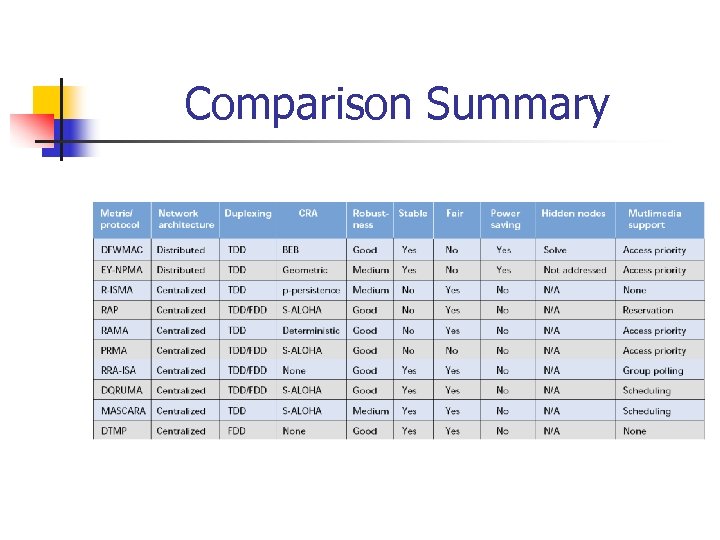

Comparison Summary

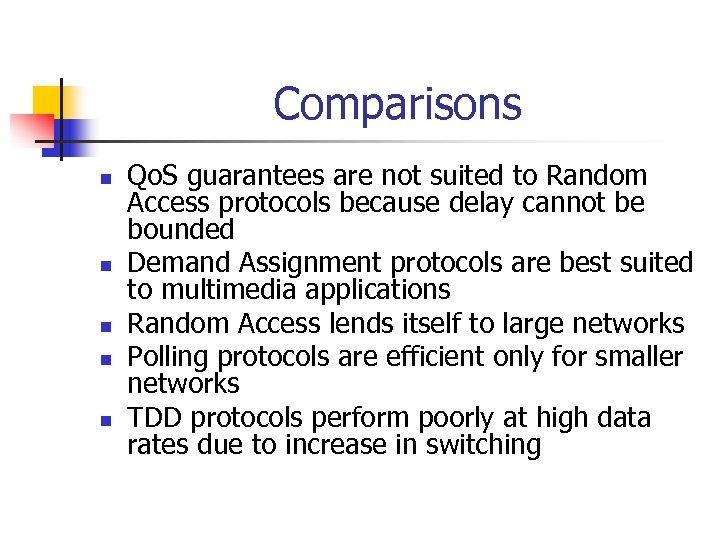

Comparisons n n n Qo. S guarantees are not suited to Random Access protocols because delay cannot be bounded Demand Assignment protocols are best suited to multimedia applications Random Access lends itself to large networks Polling protocols are efficient only for smaller networks TDD protocols perform poorly at high data rates due to increase in switching
