Wind Sat Space Borne Remote Sensing of

Wind. Sat — Space Borne Remote Sensing of Ocean Surface Winds Peter Gaiser, Mike Bettenhausen, Zorana Jelenak, Elizbeth Twarog, and Paul Chang Naval Research Laboratory, Washington DC NOAA/NESDIS, Camp Springs, MD 08 February 2005 Miami, FL

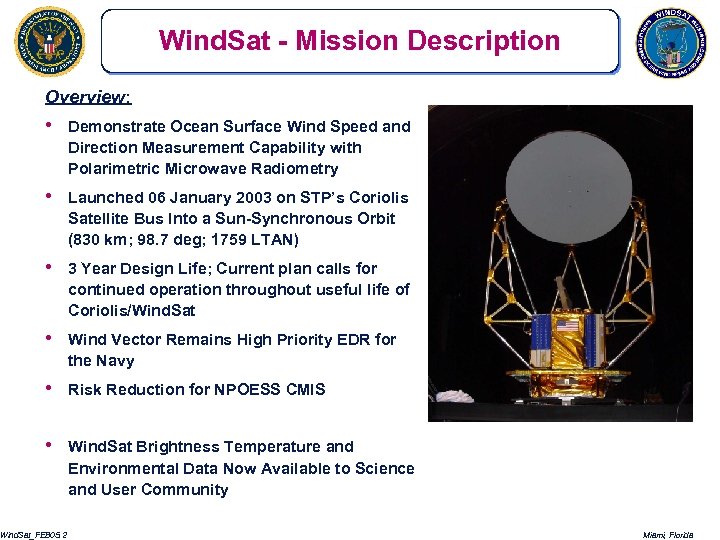

Wind. Sat - Mission Description Overview: • Demonstrate Ocean Surface Wind Speed and Direction Measurement Capability with Polarimetric Microwave Radiometry • Launched 06 January 2003 on STP’s Coriolis Satellite Bus Into a Sun-Synchronous Orbit (830 km; 98. 7 deg; 1759 LTAN) • 3 Year Design Life; Current plan calls for continued operation throughout useful life of Coriolis/Wind. Sat • Wind Vector Remains High Priority EDR for the Navy • Risk Reduction for NPOESS CMIS • Wind. Sat Brightness Temperature and Environmental Data Now Available to Science and User Community Wind. Sat_FEB 05. 2 Miami, Florida

Polarimetric Radiometry • Ocean Surface Emission and Scattering Vary With Wind Vector 37 GHz, Wind Speed = 9 m/s - Wind Direction Dependence Arises From Anisotropic Distribution and Orientation of Wind Driven Waves Polarimetric Radiometry Measures Stokes Vector - Polarization Properties of Emitted/scattered Radiation - Contains Directional Information - Wind Direction Signal Is Two Orders of Magnitude Smaller Than Background Signal DTu, K • - Two Means of Measuring Wind. Sat_FEB 05. 3 - Correlation of Primary Polarizations - Direct Measure of 45, LHC, RHC Polarizations Available from “Dual Polarization” Systems (SSM/I, SSMIS) New Capability Available from “Polarimetric” Systems (Wind. Sat) Miami, Florida

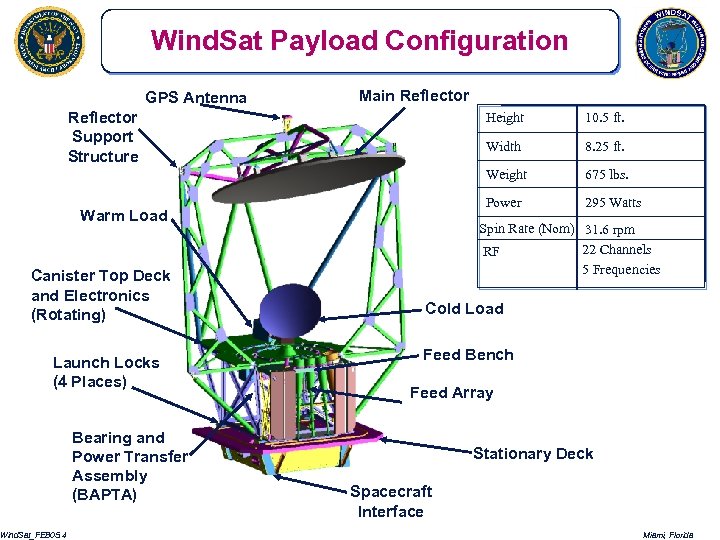

Wind. Sat Payload Configuration GPS Antenna Main Reflector Support Structure Height Width Canister Top Deck and Electronics (Rotating) Launch Locks (4 Places) Wind. Sat_FEB 05. 4 Bearing and Power Transfer Assembly (BAPTA) 8. 25 ft. Weight 675 lbs. Power Warm Load 10. 5 ft. 295 Watts Spin Rate (Nom) 31. 6 rpm 22 Channels RF 5 Frequencies Cold Load Feed Bench Feed Array Stationary Deck Spacecraft Interface Miami, Florida

Wind. Sat Description (1) NEDT for IFOV, Wind. Sat at 25°C, Warmload=281 K • Uses 11 Feeds Horns and a 6 -foot Spinning Offset Parabolic Reflector • Calibration Is Performed Once Per Scan As Feeds Pass Below Stationary Targets • Design Minimizes “New Technologies” and Uses Heritage On-board Calibration — Must Be Able to Separate Phenomenology and Sensor Behavior Wind. Sat_FEB 05. 5 Miami, Florida

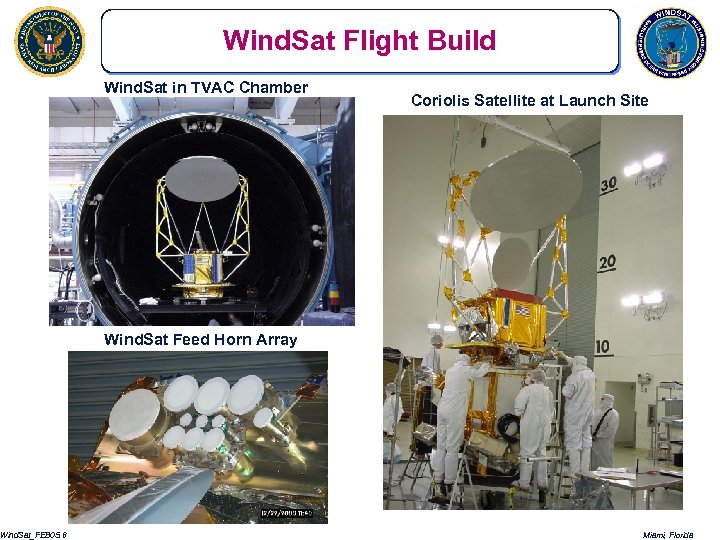

Wind. Sat_FEB 05. 6 Wind. Sat Flight Build Wind. Sat in TVAC Chamber Coriolis Satellite at Launch Site Wind. Sat Feed Horn Array Miami, Florida

Calibration/Validation • Wind. Sat operating as designed – System noise is low; receivers are stable – Geolocation accuracy is much better than 5 km – Two significant performance anomalies - RFI and lunar interference in cold sky data calibration (corrected) - Thermal gradients on warmload; Seasonal and orbit location dependent • Continue Wind. Sat sensor calibration – Incorporate feedback from wind vector validation – Warm load anomaly mitigation – Tuning antenna pattern correction • Ground Processing Upgrades – Incorporate more automated screening for anomalous conditions - RFI, Rain, Sea Ice flags – Faraday rotation improvements Wind. Sat_FEB 05. 7 Miami, Florida

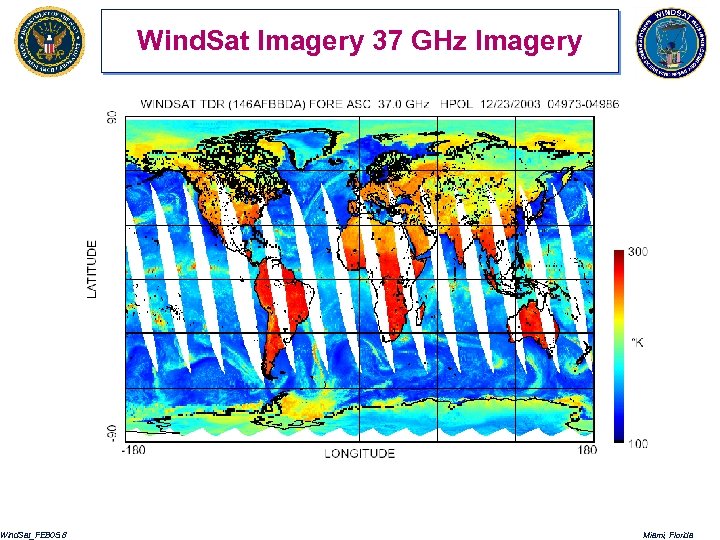

Wind. Sat_FEB 05. 8 Wind. Sat Imagery 37 GHz Imagery Miami, Florida

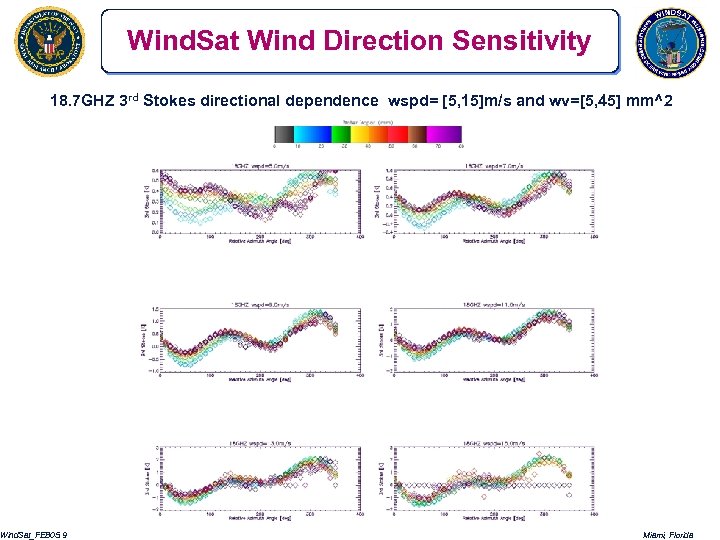

Wind. Sat Wind Direction Sensitivity 18. 7 GHZ 3 rd Stokes directional dependence wspd= [5, 15]m/s and wv=[5, 45] mm^2 Wind. Sat_FEB 05. 9 Miami, Florida

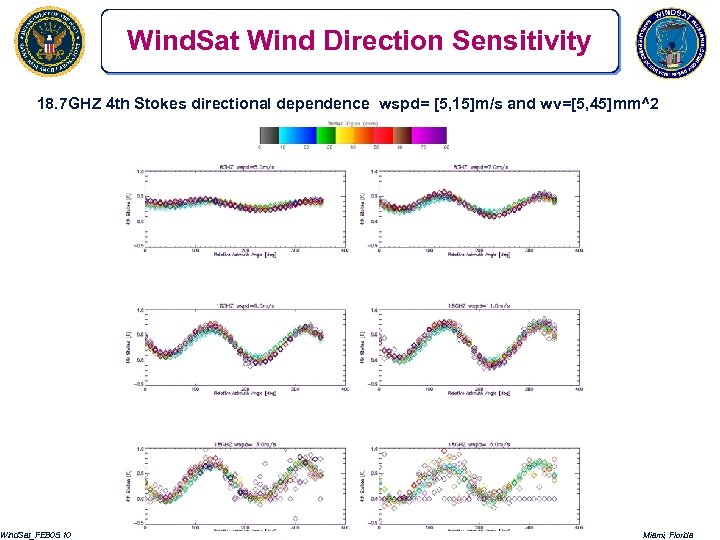

Wind. Sat Wind Direction Sensitivity 18. 7 GHZ 4 th Stokes directional dependence wspd= [5, 15]m/s and wv=[5, 45]mm^2 Wind. Sat_FEB 05. 10 Miami, Florida

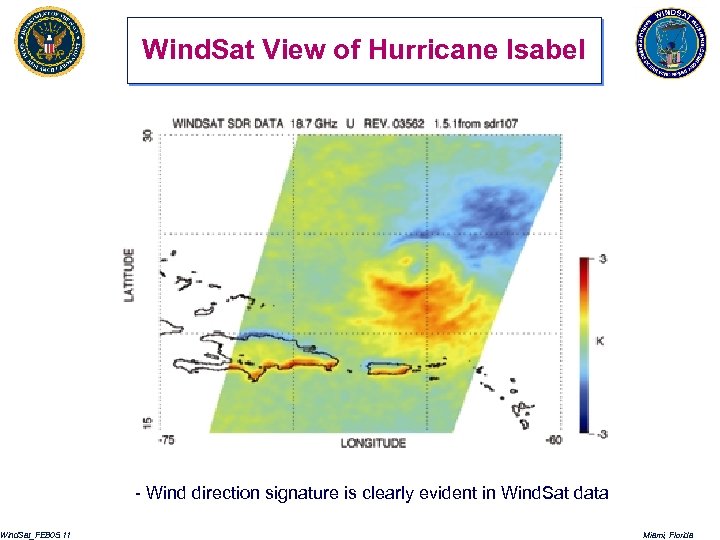

Wind. Sat_FEB 05. 11 Wind. Sat View of Hurricane Isabel - Wind direction signature is clearly evident in Wind. Sat data Miami, Florida

Wind Retrievals • Physically-based algorithm using nonlinear optimization (NRL) – Uses physical forward model – Solves for all EDRs simultaneously • Empirical regression technique (NRL) – Two-stage regression for wind vector components – Maximum likelihood estimator (MLE) for final wind direction • Maximum Likelihood Estimator (NOAA) – Uses empirical forward model for wind vector retrievals – Regression retrievals for other EDRs – Solves for each EDR separately • Other retrieved EDRs are columnar water vapor, cloud liquid water and SST Wind. Sat_FEB 05. 12 Miami, Florida

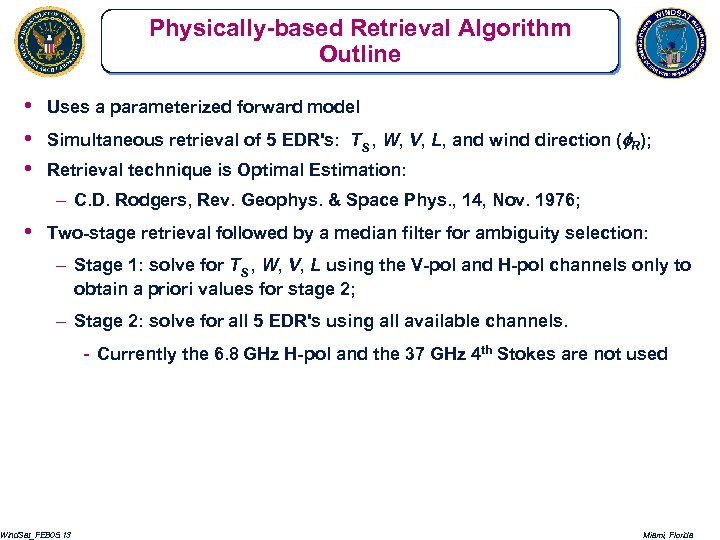

Physically-based Retrieval Algorithm Outline • • • Uses a parameterized forward model Simultaneous retrieval of 5 EDR's: TS , W, V, L, and wind direction ( R); Retrieval technique is Optimal Estimation: – C. D. Rodgers, Rev. Geophys. & Space Phys. , 14, Nov. 1976; • Two-stage retrieval followed by a median filter for ambiguity selection: – Stage 1: solve for TS , W, V, L using the V-pol and H-pol channels only to obtain a priori values for stage 2; – Stage 2: solve for all 5 EDR's using all available channels. Wind. Sat_FEB 05. 13 - Currently the 6. 8 GHz H-pol and the 37 GHz 4 th Stokes are not used Miami, Florida

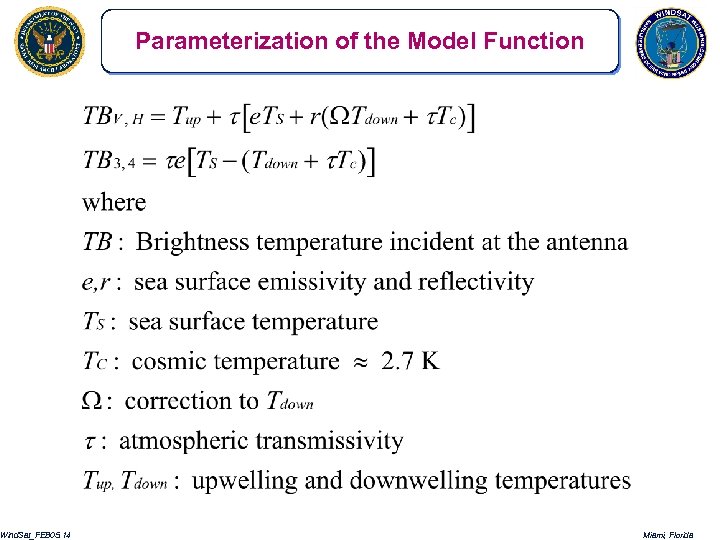

Wind. Sat_FEB 05. 14 Parameterization of the Model Function Miami, Florida

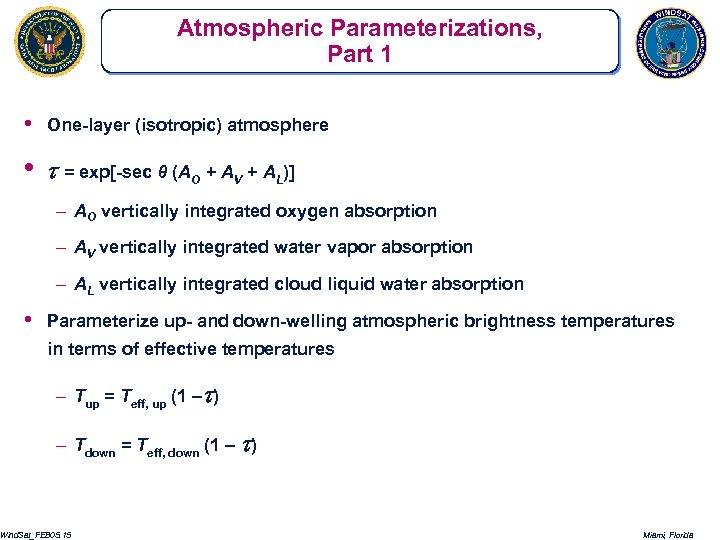

Atmospheric Parameterizations, Part 1 • One-layer (isotropic) atmosphere • = exp[-sec θ (A O + AV + AL)] – AO vertically integrated oxygen absorption – AV vertically integrated water vapor absorption – AL vertically integrated cloud liquid water absorption • Parameterize up- and down-welling atmospheric brightness temperatures in terms of effective temperatures – Tup = Teff, up (1 – ) – Tdown = Teff, down (1 – ) Wind. Sat_FEB 05. 15 Miami, Florida

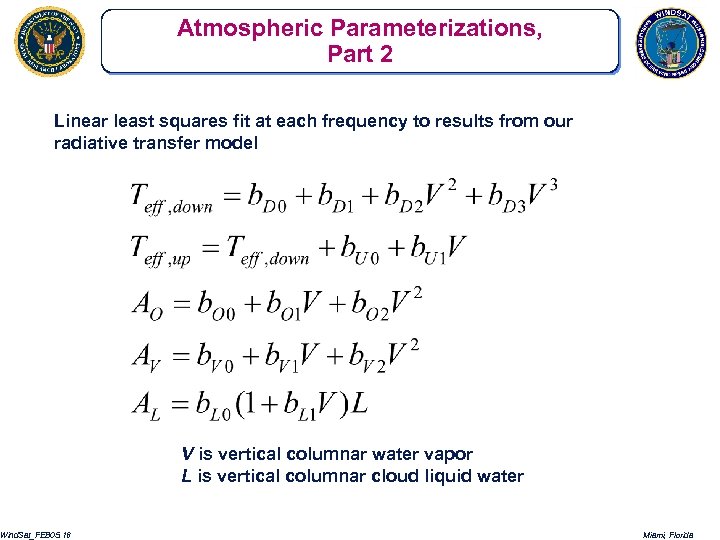

Atmospheric Parameterizations, Part 2 Linear least squares fit at each frequency to results from our radiative transfer model Wind. Sat_FEB 05. 16 V is vertical columnar water vapor L is vertical columnar cloud liquid water Miami, Florida

Sea Emissivity Calculation • NRL two-scale model is used to generate a 3 D lookup table (EIA, Ts , wind speed) for the emissivity • Correction term for contribution from non-specular reflected downwelling radiation, Ω (Wang et al, next talk) • Empirical corrections are made to account for foam and modeling errors: – Measured emissivity is calculated - measured brightness temperature (SDR) - cross-track biases applied - atmospheric contribution is removed – Isotropic terms only for V and H polarizations – Harmonics for 3 rd and 4 th Stokes Wind. Sat_FEB 05. 17 - correction is applied as a scaling factor, emeasured / emodel Miami, Florida

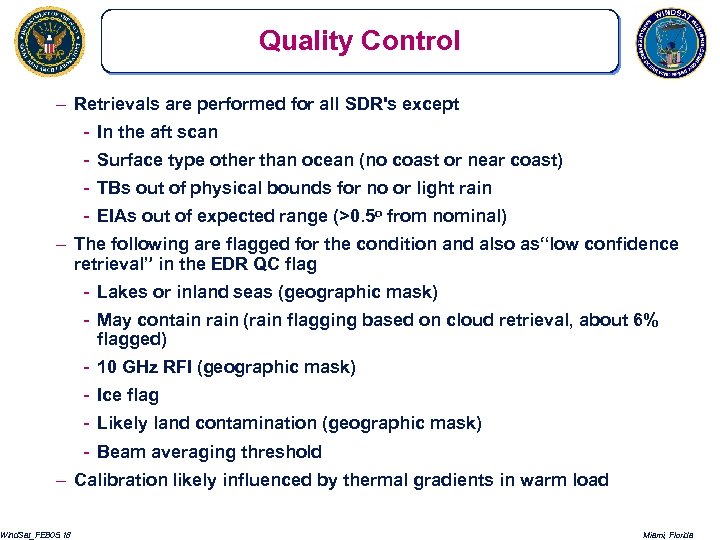

Quality Control – Retrievals are performed for all SDR's except - In the aft scan - Surface type other than ocean (no coast or near coast) - TBs out of physical bounds for no or light rain - EIAs out of expected range (>0. 5 o from nominal) – The following are flagged for the condition and also as“low confidence retrieval” in the EDR QC flag - Lakes or inland seas (geographic mask) - May contain rain (rain flagging based on cloud retrieval, about 6% flagged) - 10 GHz RFI (geographic mask) - Ice flag - Likely land contamination (geographic mask) - Beam averaging threshold – Calibration likely influenced by thermal gradients in warm load Wind. Sat_FEB 05. 18 Miami, Florida

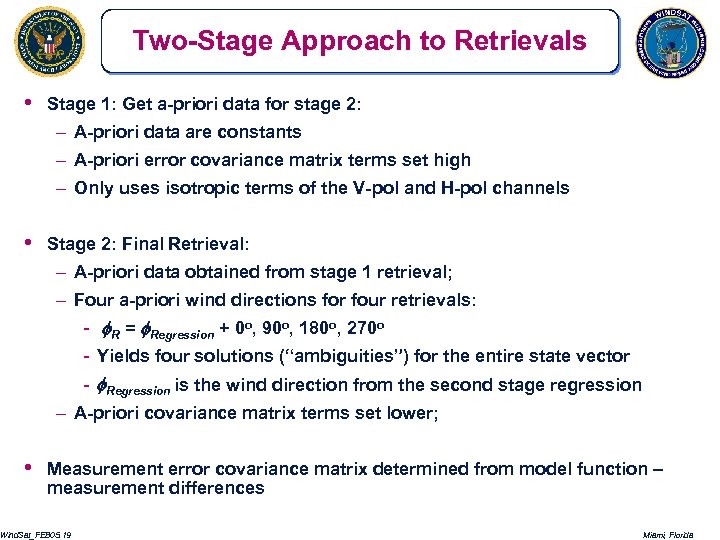

Two-Stage Approach to Retrievals • Stage 1: Get a-priori data for stage 2: – A-priori data are constants – A-priori error covariance matrix terms set high – Only uses isotropic terms of the V-pol and H-pol channels • Stage 2: Final Retrieval: – A-priori data obtained from stage 1 retrieval; – Four a-priori wind directions for four retrievals: - R = Regression + 0 o, 90 o, 180 o, 270 o - Yields four solutions (“ambiguities”) for the entire state vector - Regression is the wind direction from the second stage regression – A-priori covariance matrix terms set lower; • Measurement error covariance matrix determined from model function – measurement differences Wind. Sat_FEB 05. 19 Miami, Florida

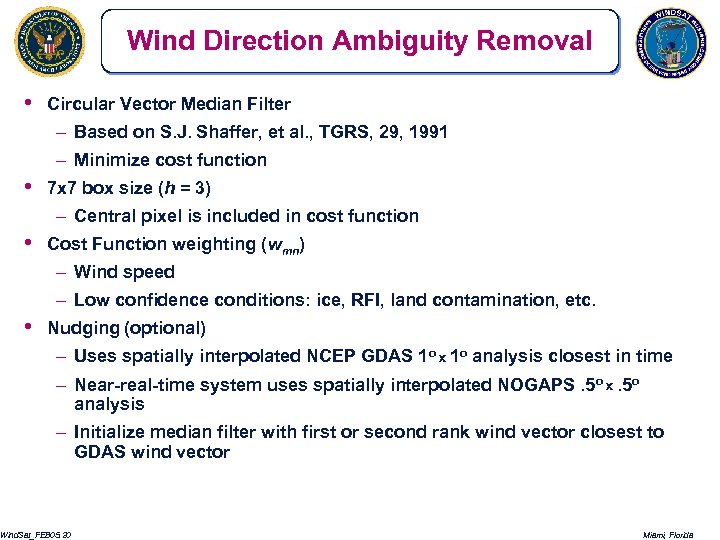

Wind Direction Ambiguity Removal • Circular Vector Median Filter – Based on S. J. Shaffer, et al. , TGRS, 29, 1991 – Minimize cost function • 7 x 7 box size (h = 3) – Central pixel is included in cost function • Cost Function weighting (wmn) – Wind speed – Low confidence conditions: ice, RFI, land contamination, etc. • Nudging (optional) – Uses spatially interpolated NCEP GDAS 1 o x 1 o analysis closest in time – Near-real-time system uses spatially interpolated NOGAPS. 5 o x. 5 o analysis – Initialize median filter with first or second rank wind vector closest to GDAS wind vector Wind. Sat_FEB 05. 20 Miami, Florida

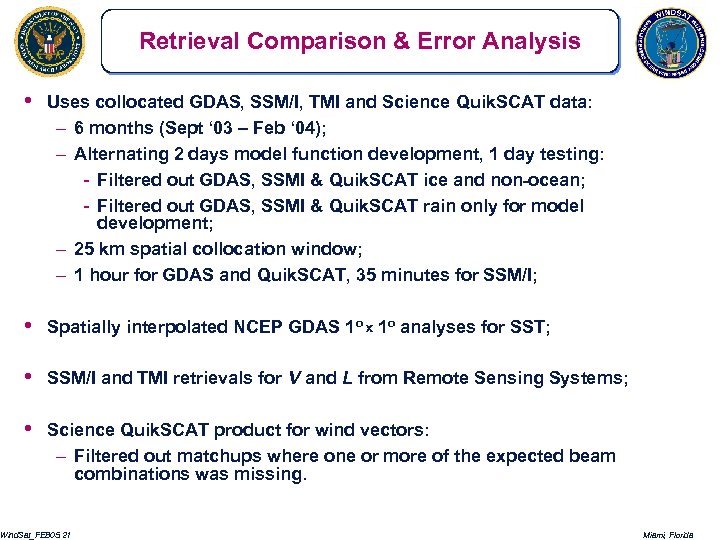

Retrieval Comparison & Error Analysis • Uses collocated GDAS, SSM/I, TMI and Science Quik. SCAT data: – 6 months (Sept ‘ 03 – Feb ‘ 04); – Alternating 2 days model function development, 1 day testing: - Filtered out GDAS, SSMI & Quik. SCAT ice and non-ocean; - Filtered out GDAS, SSMI & Quik. SCAT rain only for model development; – 25 km spatial collocation window; – 1 hour for GDAS and Quik. SCAT, 35 minutes for SSM/I; • Spatially interpolated NCEP GDAS 1 o x 1 o analyses for SST; • SSM/I and TMI retrievals for V and L from Remote Sensing Systems; • Science Quik. SCAT product for wind vectors: – Filtered out matchups where one or more of the expected beam combinations was missing. Wind. Sat_FEB 05. 21 Miami, Florida

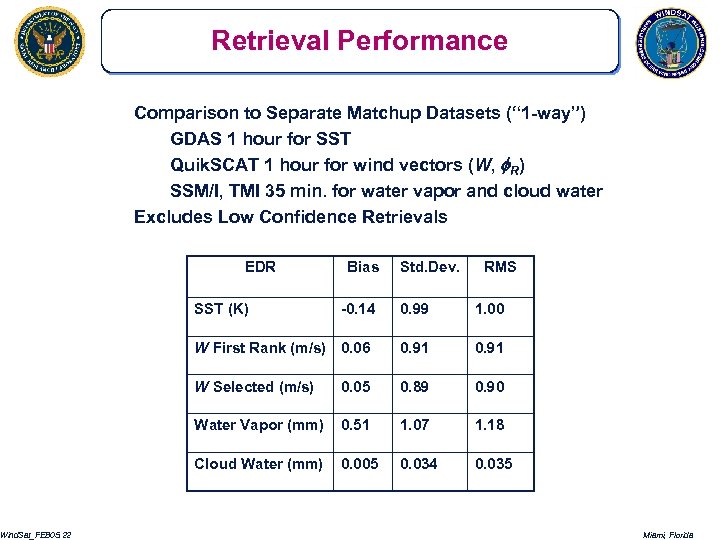

Wind. Sat_FEB 05. 22 Retrieval Performance Comparison to Separate Matchup Datasets (“ 1 -way”) GDAS 1 hour for SST Quik. SCAT 1 hour for wind vectors (W, R) SSM/I, TMI 35 min. for water vapor and cloud water Excludes Low Confidence Retrievals EDR SST (K) Bias -0. 14 Std. Dev. RMS 0. 99 1. 00 W First Rank (m/s) 0. 06 0. 91 W Selected (m/s) 0. 05 0. 89 0. 90 Water Vapor (mm) 0. 51 1. 07 1. 18 Cloud Water (mm) 0. 005 0. 034 0. 035 Miami, Florida

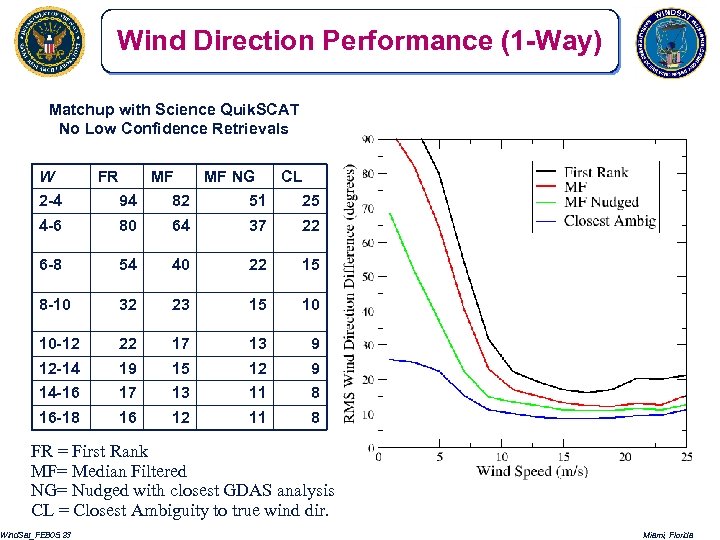

Wind Direction Performance (1 -Way) Matchup with Science Quik. SCAT No Low Confidence Retrievals W FR MF MF NG CL 2 -4 94 82 51 25 4 -6 80 64 37 22 6 -8 54 40 22 15 8 -10 32 23 15 10 10 -12 22 17 13 9 12 -14 19 15 12 9 14 -16 17 13 11 8 16 -18 16 12 11 8 FR = First Rank MF= Median Filtered NG= Nudged with closest GDAS analysis CL = Closest Ambiguity to true wind dir. Wind. Sat_FEB 05. 23 Miami, Florida

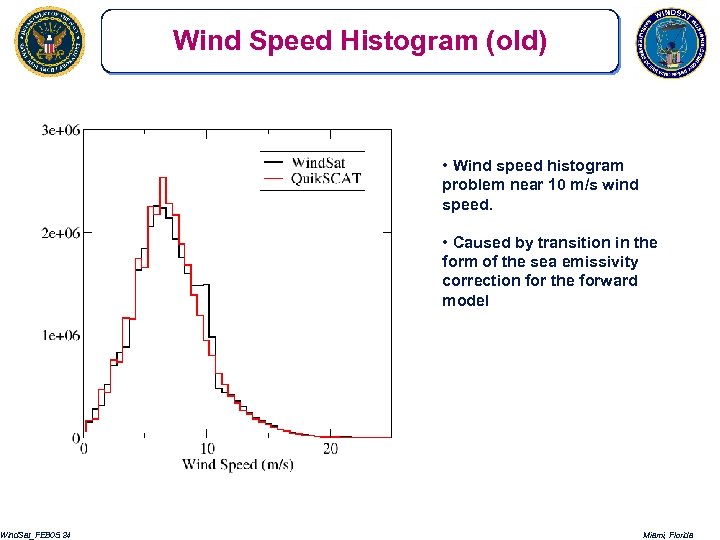

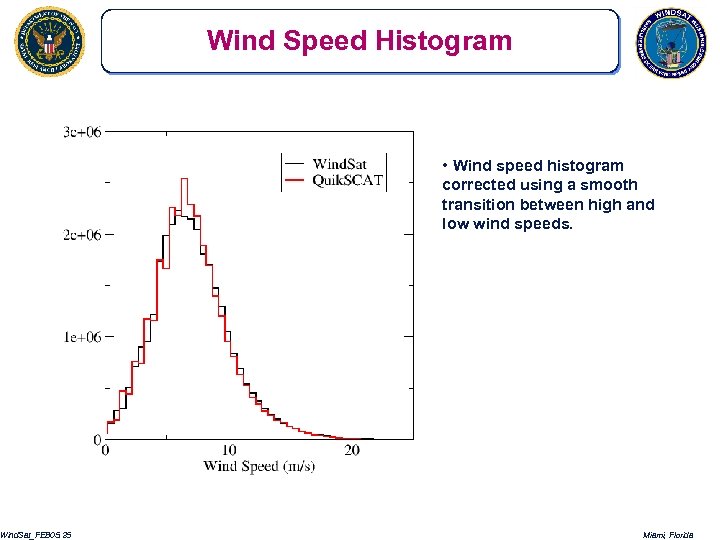

Wind. Sat_FEB 05. 24 Wind Speed Histogram (old) • Wind speed histogram problem near 10 m/s wind speed. • Caused by transition in the form of the sea emissivity correction for the forward model Miami, Florida

Wind. Sat_FEB 05. 25 Wind Speed Histogram • Wind speed histogram corrected using a smooth transition between high and low wind speeds. Miami, Florida

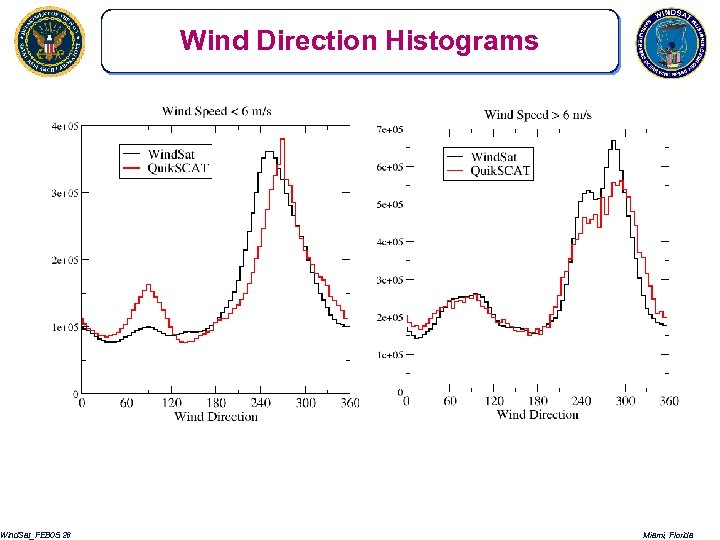

Wind. Sat_FEB 05. 26 Wind Direction Histograms Miami, Florida

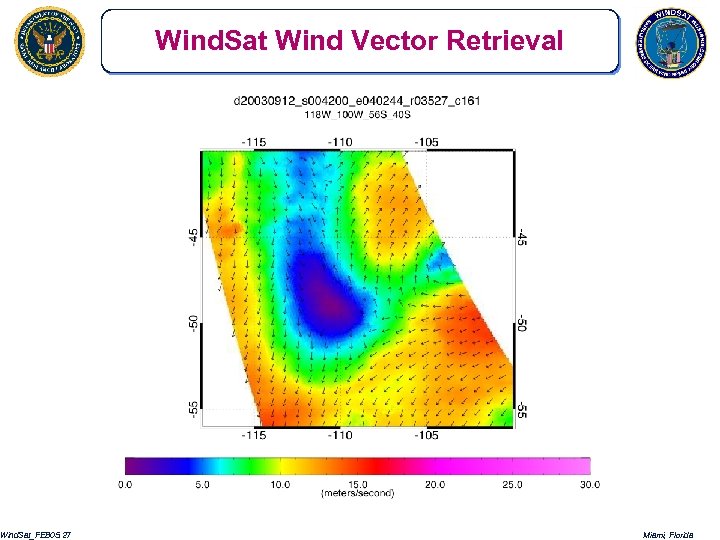

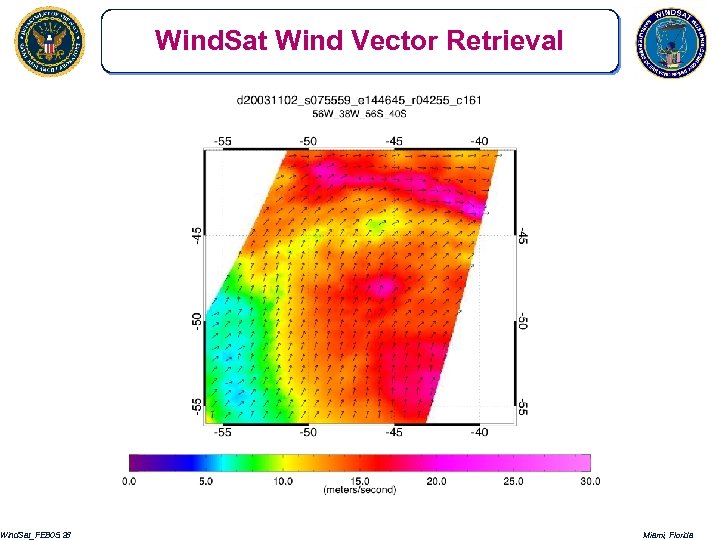

Wind. Sat_FEB 05. 27 Wind. Sat Wind Vector Retrieval Miami, Florida

Wind. Sat_FEB 05. 28 Wind. Sat Wind Vector Retrieval Miami, Florida

Ongoing Work • Improving performance of wind vector retrievals – Wind speeds below 7 m/s – Improving forward model performance across all conditions – Incorporate lessons learned from ocean wind science community and other data users – Improve ambiguity removal techniques • Higher spatial resolution – Train and test retrieval algorithms at higher spatial resolutions (smaller footprint but higher noise) • Demonstrate improvement with two-look retrieval technique Wind. Sat_FEB 05. 29 Miami, Florida

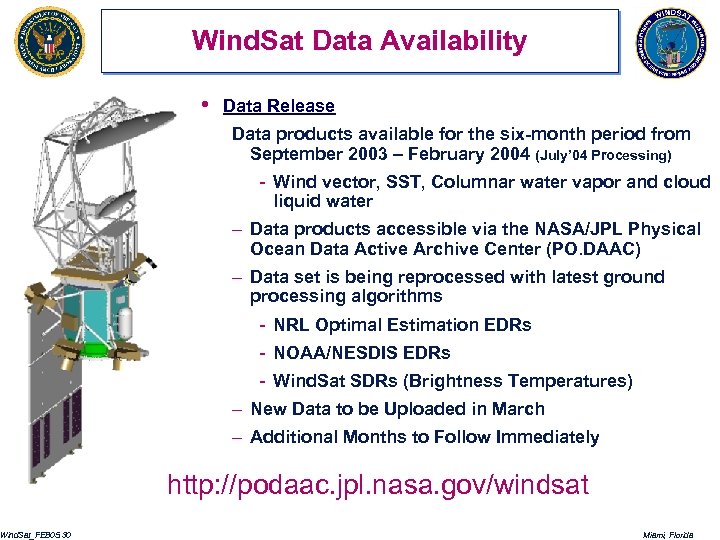

Wind. Sat_FEB 05. 30 Wind. Sat Data Availability • Data Release Data products available for the six-month period from September 2003 – February 2004 (July’ 04 Processing) - Wind vector, SST, Columnar water vapor and cloud liquid water – Data products accessible via the NASA/JPL Physical Ocean Data Active Archive Center (PO. DAAC) – Data set is being reprocessed with latest ground processing algorithms - NRL Optimal Estimation EDRs - NOAA/NESDIS EDRs - Wind. Sat SDRs (Brightness Temperatures) – New Data to be Uploaded in March – Additional Months to Follow Immediately http: //podaac. jpl. nasa. gov/windsat Miami, Florida

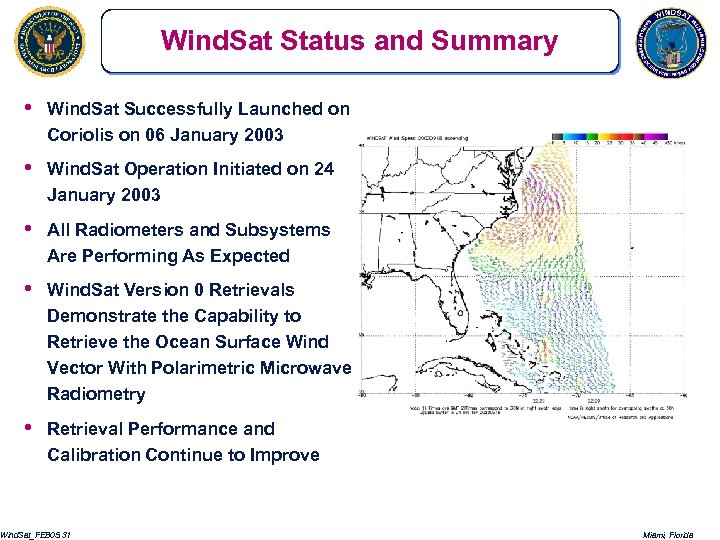

Wind. Sat Status and Summary • Wind. Sat Successfully Launched on Coriolis on 06 January 2003 • Wind. Sat Operation Initiated on 24 January 2003 • All Radiometers and Subsystems Are Performing As Expected • Wind. Sat Version 0 Retrievals Demonstrate the Capability to Retrieve the Ocean Surface Wind Vector With Polarimetric Microwave Radiometry • Retrieval Performance and Calibration Continue to Improve Wind. Sat_FEB 05. 31 Miami, Florida

Wind. Sat_FEB 05. 32 Backup Miami, Florida

Wind. Sat Mission Objectives Parameter System Wind Speed Accuracy Predicted Performance < 2 m/s Goal Range CMIS IORD ± 2 m/s or 20% o Wind Direction 3 -5 m/s <25 o ± 20° (3 -25 m/s) Wind. Sat_FEB 05. 33 5 -25 m/s <20 Spatial Resolution CMIS Predicted Goal Performance IORD Goal 3 – 25 m/s 25 km CMIS IORD 20 km 0 - 360° 25 km 20 km 1. To Demonstrate the Viability of Retrieving Ocean Surface Wind Vectors from Space Borne Polarimetric Microwave Radiometry 2. Show Potential to Measure the Additional Environmental Data Types: Sea Surface Temperature, Integrated Atmospheric Water Vapor, Cloud Liquid Water, Rain Rate, Sea Ice, Snow Cover, Etc. 3. Transition of Polarimetric Microwave Radiometer Science and Technology for Use in the Development and Production of the NPOESS Conical Microwave Imagery and Sounder (CMIS) Miami, Florida

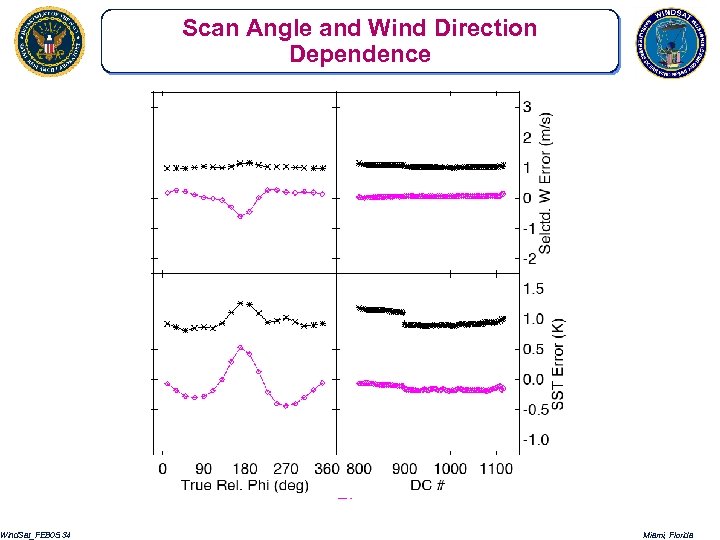

Wind. Sat_FEB 05. 34 Scan Angle and Wind Direction Dependence Miami, Florida

Wind. Sat_FEB 05. 35 Wind Direction Sensitivity Miami, Florida

Wind. Sat_FEB 05. 36 Earth Projected Beams • • • Multiple Feeds Results in 11 Sets of Dual-Polarized Antenna Beams within Frequency Bands Have Same EIA Data Co-Located Within Bands by Time Shifting Data; Co-Location Across Bands Requires Interpolation Miami, Florida

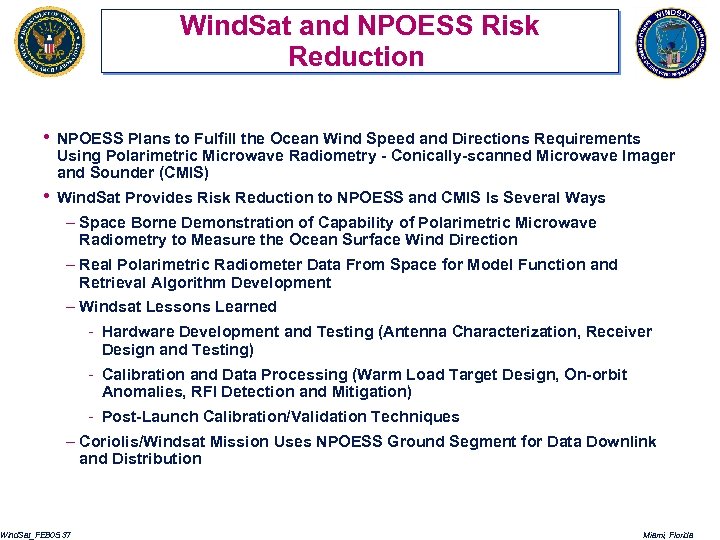

Wind. Sat and NPOESS Risk Reduction • NPOESS Plans to Fulfill the Ocean Wind Speed and Directions Requirements Using Polarimetric Microwave Radiometry - Conically-scanned Microwave Imager and Sounder (CMIS) • Wind. Sat Provides Risk Reduction to NPOESS and CMIS Is Several Ways – Space Borne Demonstration of Capability of Polarimetric Microwave Radiometry to Measure the Ocean Surface Wind Direction – Real Polarimetric Radiometer Data From Space for Model Function and Retrieval Algorithm Development – Windsat Lessons Learned - Hardware Development and Testing (Antenna Characterization, Receiver Design and Testing) - Calibration and Data Processing (Warm Load Target Design, On-orbit Anomalies, RFI Detection and Mitigation) - Post-Launch Calibration/Validation Techniques – Coriolis/Windsat Mission Uses NPOESS Ground Segment for Data Downlink and Distribution Wind. Sat_FEB 05. 37 Miami, Florida

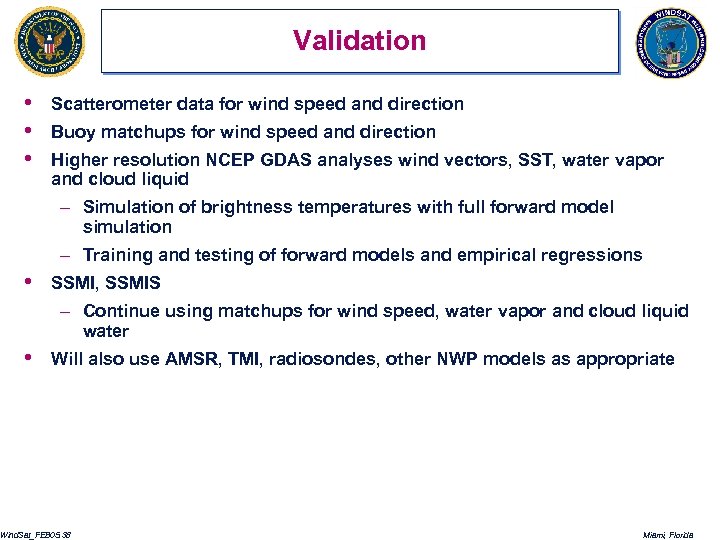

Validation • • • Scatterometer data for wind speed and direction Buoy matchups for wind speed and direction Higher resolution NCEP GDAS analyses wind vectors, SST, water vapor and cloud liquid – Simulation of brightness temperatures with full forward model simulation – Training and testing of forward models and empirical regressions • SSMI, SSMIS – Continue using matchups for wind speed, water vapor and cloud liquid water • Will also use AMSR, TMI, radiosondes, other NWP models as appropriate Wind. Sat_FEB 05. 38 Miami, Florida

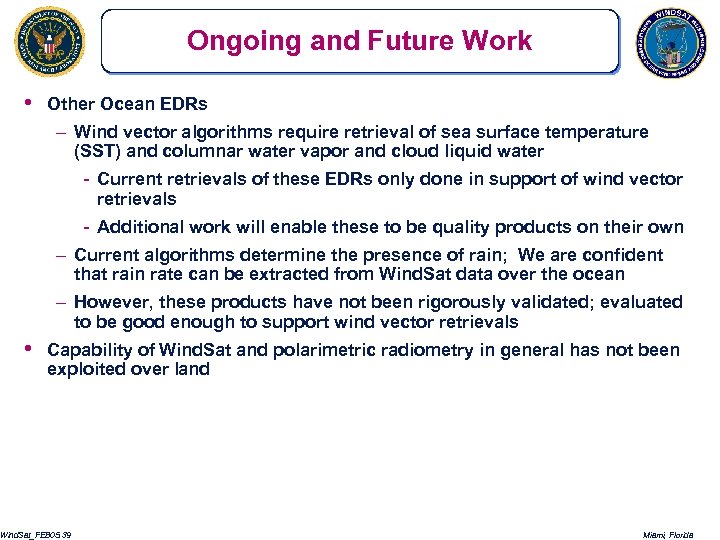

Ongoing and Future Work • Other Ocean EDRs – Wind vector algorithms require retrieval of sea surface temperature (SST) and columnar water vapor and cloud liquid water - Current retrievals of these EDRs only done in support of wind vector retrievals - Additional work will enable these to be quality products on their own – Current algorithms determine the presence of rain; We are confident that rain rate can be extracted from Wind. Sat data over the ocean – However, these products have not been rigorously validated; evaluated to be good enough to support wind vector retrievals • Capability of Wind. Sat and polarimetric radiometry in general has not been exploited over land Wind. Sat_FEB 05. 39 Miami, Florida

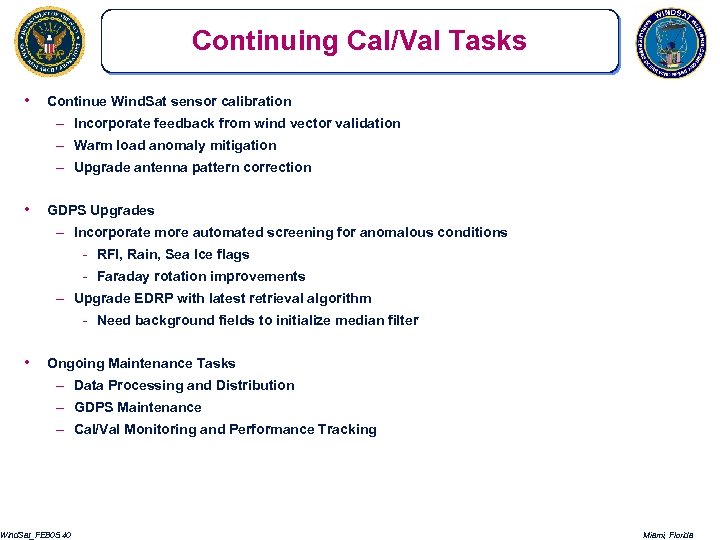

Continuing Cal/Val Tasks • Continue Wind. Sat sensor calibration – Incorporate feedback from wind vector validation – Warm load anomaly mitigation – Upgrade antenna pattern correction • GDPS Upgrades – Incorporate more automated screening for anomalous conditions - RFI, Rain, Sea Ice flags - Faraday rotation improvements – Upgrade EDRP with latest retrieval algorithm - Need background fields to initialize median filter • Ongoing Maintenance Tasks – Data Processing and Distribution – GDPS Maintenance – Cal/Val Monitoring and Performance Tracking Wind. Sat_FEB 05. 40 Miami, Florida

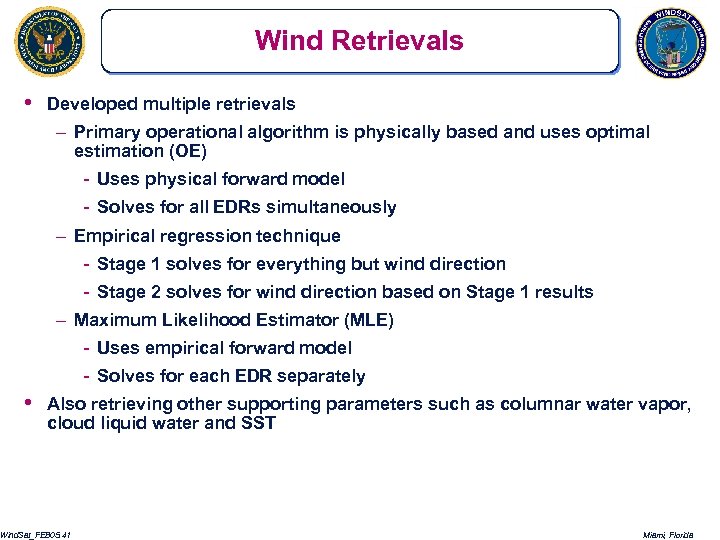

Wind Retrievals • Developed multiple retrievals – Primary operational algorithm is physically based and uses optimal estimation (OE) - Uses physical forward model - Solves for all EDRs simultaneously – Empirical regression technique - Stage 1 solves for everything but wind direction - Stage 2 solves for wind direction based on Stage 1 results – Maximum Likelihood Estimator (MLE) - Uses empirical forward model - Solves for each EDR separately • Also retrieving other supporting parameters such as columnar water vapor, cloud liquid water and SST Wind. Sat_FEB 05. 41 Miami, Florida
