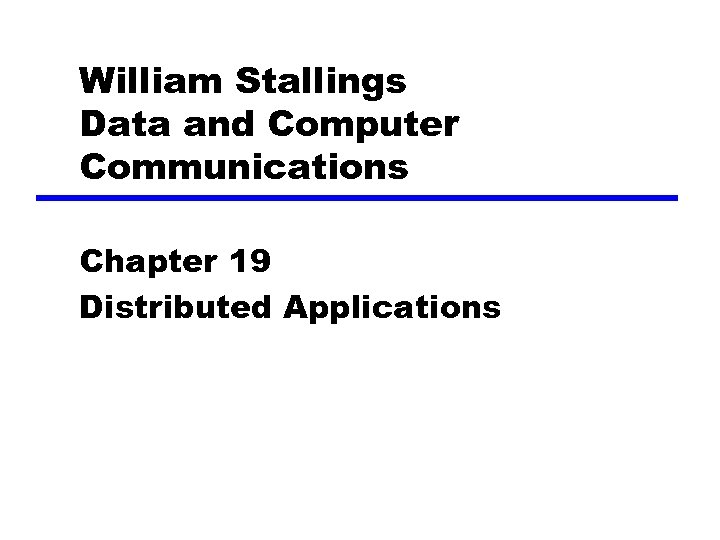

William Stallings Data and Computer Communications Chapter 19 Distributed Applications William Stallings Data and Computer Communications Chapter 19 Distributed Applications

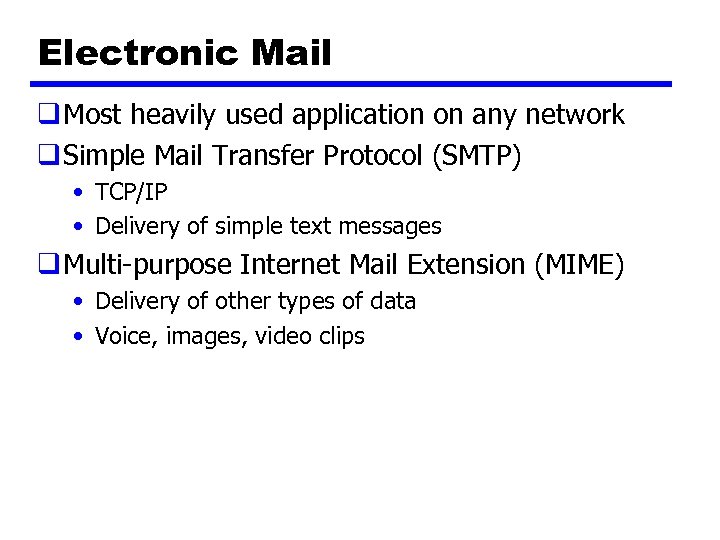

Electronic Mail q Most heavily used application on any network q Simple Mail Transfer Electronic Mail q Most heavily used application on any network q Simple Mail Transfer Protocol (SMTP) • TCP/IP • Delivery of simple text messages q Multi-purpose Internet Mail Extension (MIME) • Delivery of other types of data • Voice, images, video clips

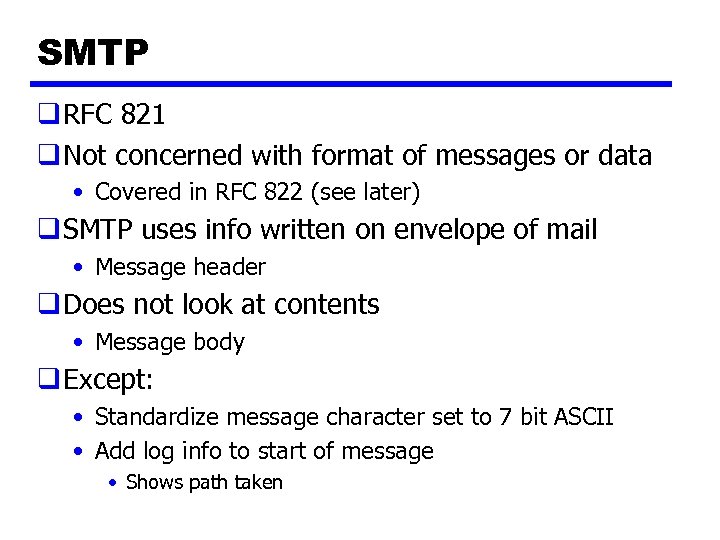

SMTP q RFC 821 q Not concerned with format of messages or data • SMTP q RFC 821 q Not concerned with format of messages or data • Covered in RFC 822 (see later) q SMTP uses info written on envelope of mail • Message header q Does not look at contents • Message body q Except: • Standardize message character set to 7 bit ASCII • Add log info to start of message • Shows path taken

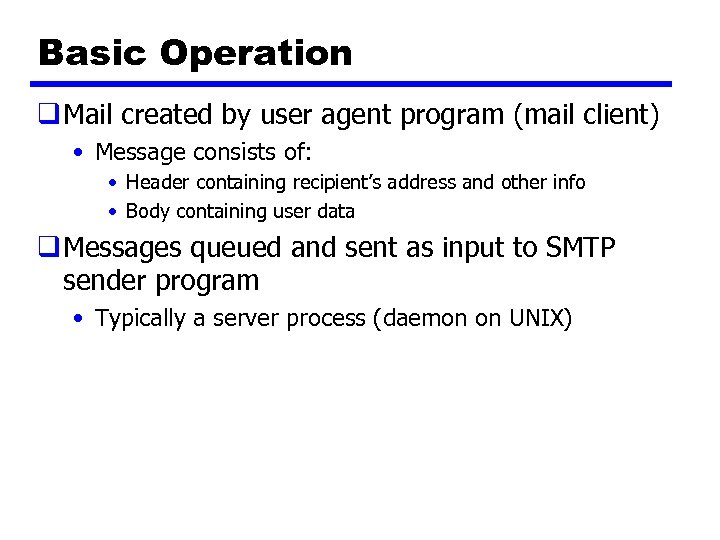

Basic Operation q Mail created by user agent program (mail client) • Message consists Basic Operation q Mail created by user agent program (mail client) • Message consists of: • Header containing recipient’s address and other info • Body containing user data q Messages queued and sent as input to SMTP sender program • Typically a server process (daemon on UNIX)

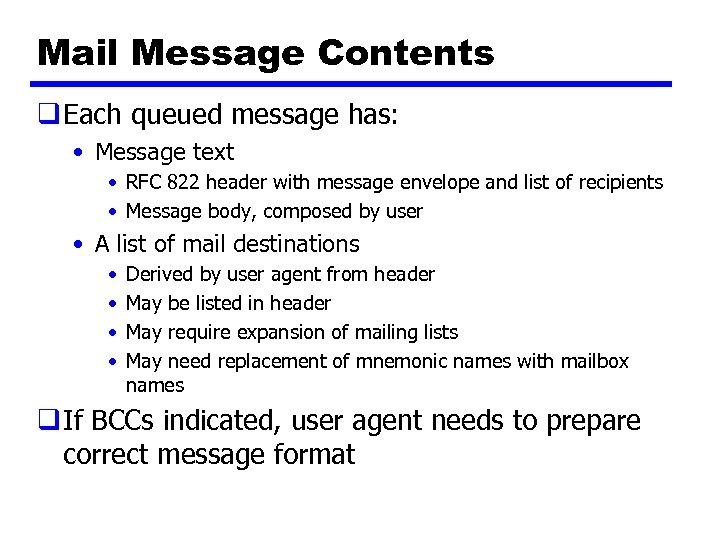

Mail Message Contents q Each queued message has: • Message text • RFC 822 Mail Message Contents q Each queued message has: • Message text • RFC 822 header with message envelope and list of recipients • Message body, composed by user • A list of mail destinations • • Derived by user agent from header May be listed in header May require expansion of mailing lists May need replacement of mnemonic names with mailbox names q If BCCs indicated, user agent needs to prepare correct message format

SMTP Sender q Takes message from queue q Transmits to proper destination host • SMTP Sender q Takes message from queue q Transmits to proper destination host • Via SMTP transaction • Over one or more TCP connections to port 25 q Host may have multiple senders active q Host should be able to create receivers on demand q When delivery complete, sender deletes destination from list for that message q When all destinations processed, message is deleted

Optimization q If message destined for multiple users on a given host, it is Optimization q If message destined for multiple users on a given host, it is sent only once • Delivery to users handled at destination host q If multiple messages ready for given host, a single TCP connection can be used • Saves overhead of setting up and dropping connection

Possible Errors q Host unreachable q Host out of operation q TCP connection fail Possible Errors q Host unreachable q Host out of operation q TCP connection fail during transfer q Sender can re-queue mail • Give up after a period q Faulty destination address • • User error Target user changed address Redirect if possible Inform user if not

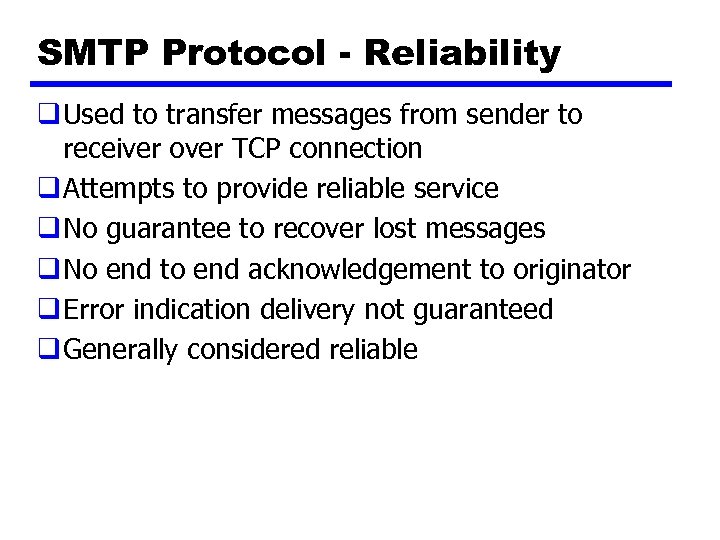

SMTP Protocol - Reliability q Used to transfer messages from sender to receiver over SMTP Protocol - Reliability q Used to transfer messages from sender to receiver over TCP connection q Attempts to provide reliable service q No guarantee to recover lost messages q No end to end acknowledgement to originator q Error indication delivery not guaranteed q Generally considered reliable

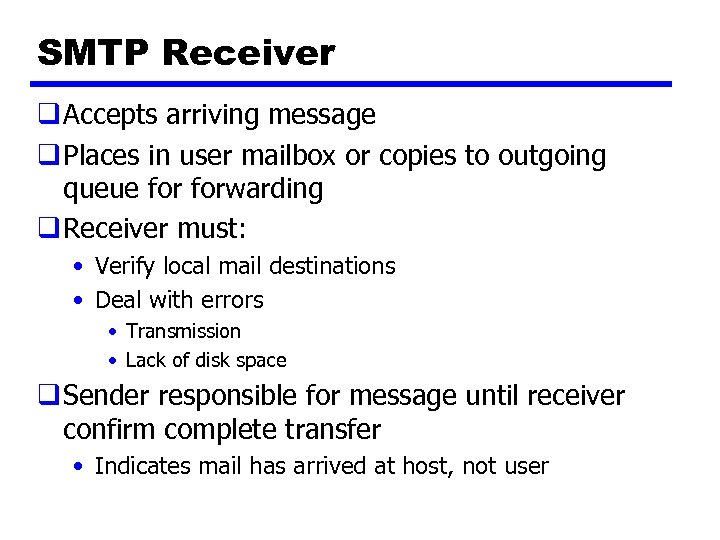

SMTP Receiver q Accepts arriving message q Places in user mailbox or copies to SMTP Receiver q Accepts arriving message q Places in user mailbox or copies to outgoing queue forwarding q Receiver must: • Verify local mail destinations • Deal with errors • Transmission • Lack of disk space q Sender responsible for message until receiver confirm complete transfer • Indicates mail has arrived at host, not user

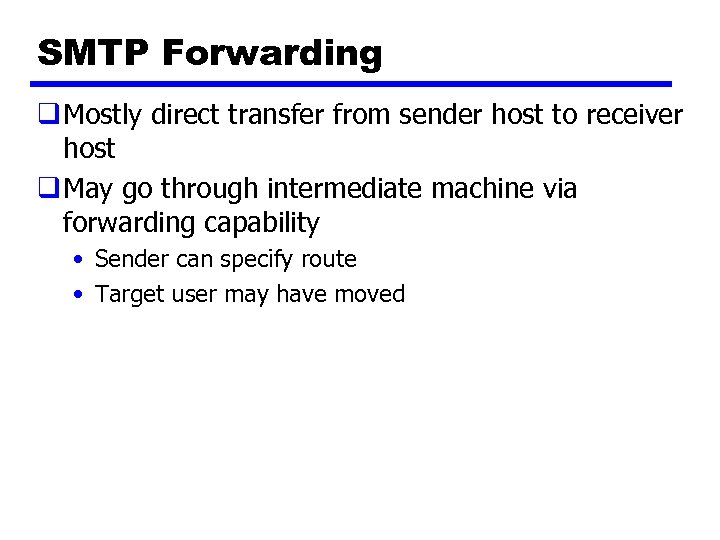

SMTP Forwarding q Mostly direct transfer from sender host to receiver host q May SMTP Forwarding q Mostly direct transfer from sender host to receiver host q May go through intermediate machine via forwarding capability • Sender can specify route • Target user may have moved

Conversation q SMTP limited to conversation between sender and receiver q Main function is Conversation q SMTP limited to conversation between sender and receiver q Main function is to transfer messages q Rest of mail handling beyond scope of SMTP • May differ between systems

SMTP Mail Flow SMTP Mail Flow

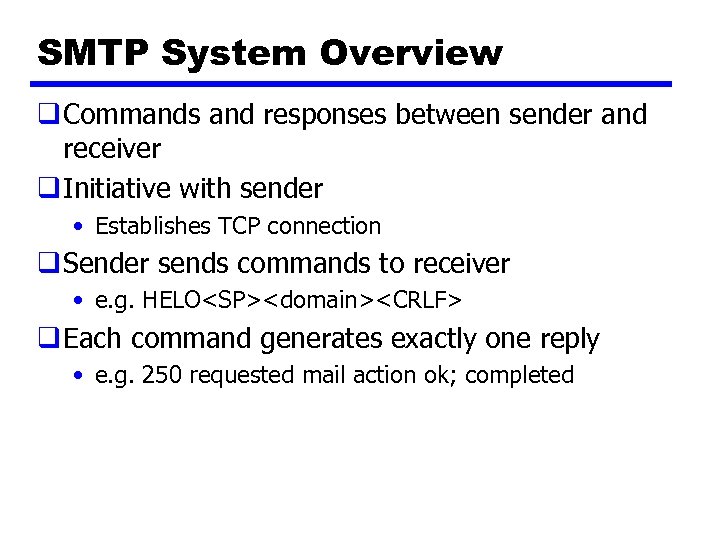

SMTP System Overview q Commands and responses between sender and receiver q Initiative with SMTP System Overview q Commands and responses between sender and receiver q Initiative with sender • Establishes TCP connection q Sender sends commands to receiver • e. g. HELO q Each command generates exactly one reply • e. g. 250 requested mail action ok; completed

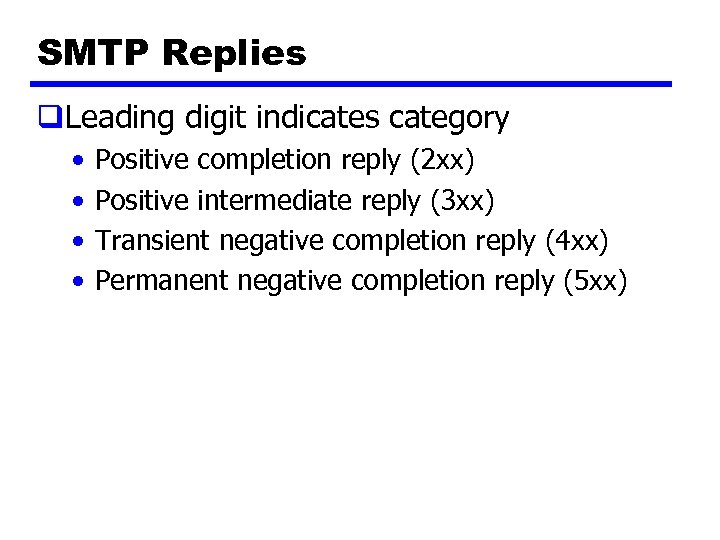

SMTP Replies q. Leading digit indicates category • • Positive completion reply (2 xx) SMTP Replies q. Leading digit indicates category • • Positive completion reply (2 xx) Positive intermediate reply (3 xx) Transient negative completion reply (4 xx) Permanent negative completion reply (5 xx)

Operation Phases q. Connection setup q. Exchange of command-response pairs q. Connection termination Operation Phases q. Connection setup q. Exchange of command-response pairs q. Connection termination

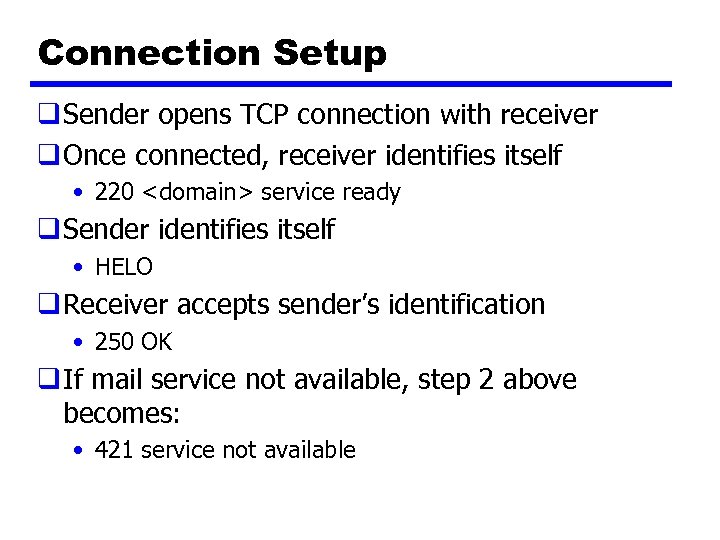

Connection Setup q Sender opens TCP connection with receiver q Once connected, receiver identifies Connection Setup q Sender opens TCP connection with receiver q Once connected, receiver identifies itself • 220 service ready q Sender identifies itself • HELO q Receiver accepts sender’s identification • 250 OK q If mail service not available, step 2 above becomes: • 421 service not available

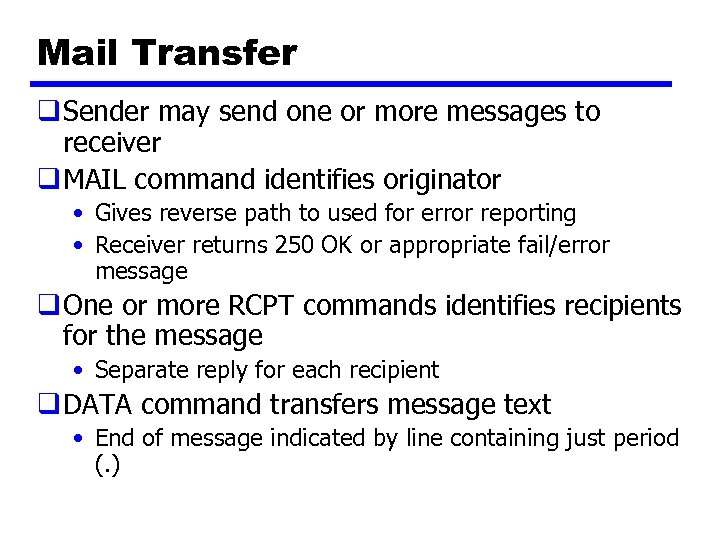

Mail Transfer q Sender may send one or more messages to receiver q MAIL Mail Transfer q Sender may send one or more messages to receiver q MAIL command identifies originator • Gives reverse path to used for error reporting • Receiver returns 250 OK or appropriate fail/error message q One or more RCPT commands identifies recipients for the message • Separate reply for each recipient q DATA command transfers message text • End of message indicated by line containing just period (. )

Closing Connection q Two steps q Sender sends QUIT and waits for reply q Closing Connection q Two steps q Sender sends QUIT and waits for reply q Then initiate TCP close operation q Receiver initiates TCP close after sending reply to QUIT

Sample SMTP Exchange q S: HELO pc-ycc R: 250 euler. im. ncnu. edu. tw Sample SMTP Exchange q S: HELO pc-ycc R: 250 euler. im. ncnu. edu. tw Hello …, pleased to meet you q S: MAIL FROM: R: 250 OK q S: RCPT TO: R: 250 OK q S: RCPT TO: R: 550 No such user here q S: DATA R: 354 Start mail input; end with S: Blah blah…. S: …etc. S: R: 250 OK q S: QUIT R: 221 2. 0. 0 euler. im. ncnu. edu. tw closing connection

Format for Text Messages- RFC 822 q Message viewed as having envelope and contents Format for Text Messages- RFC 822 q Message viewed as having envelope and contents q Envelope contains information required to transmit and deliver message q Message is sequence of lines of text • Uses general memo framework • Header usually keyword followed by colon followed by arguments

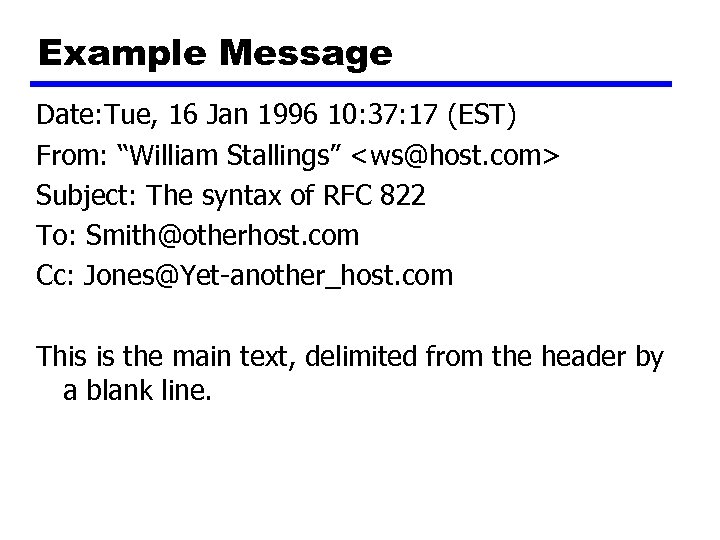

Example Message Date: Tue, 16 Jan 1996 10: 37: 17 (EST) From: “William Stallings” Example Message Date: Tue, 16 Jan 1996 10: 37: 17 (EST) From: “William Stallings” Subject: The syntax of RFC 822 To: [email protected] com Cc: [email protected]_host. com This is the main text, delimited from the header by a blank line.

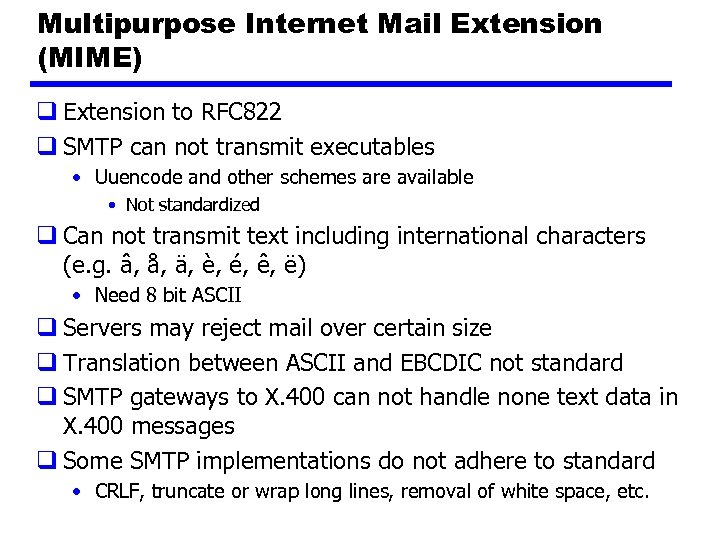

Multipurpose Internet Mail Extension (MIME) q Extension to RFC 822 q SMTP can not Multipurpose Internet Mail Extension (MIME) q Extension to RFC 822 q SMTP can not transmit executables • Uuencode and other schemes are available • Not standardized q Can not transmit text including international characters (e. g. â, å, ä, è, é, ê, ë) • Need 8 bit ASCII q Servers may reject mail over certain size q Translation between ASCII and EBCDIC not standard q SMTP gateways to X. 400 can not handle none text data in X. 400 messages q Some SMTP implementations do not adhere to standard • CRLF, truncate or wrap long lines, removal of white space, etc.

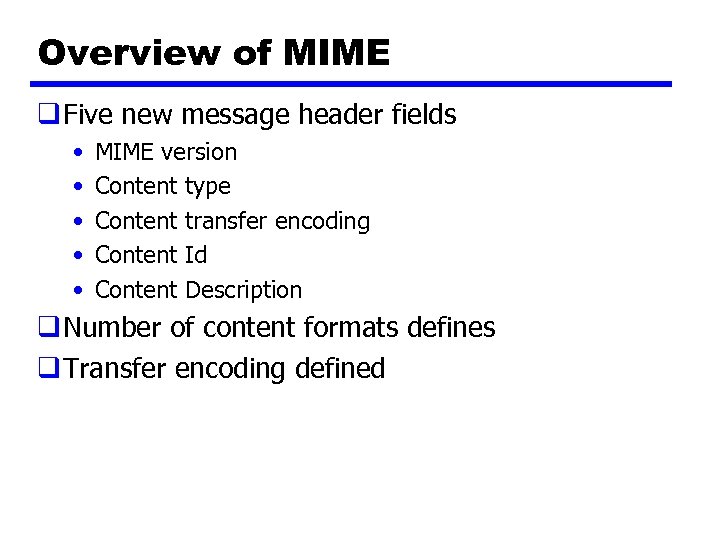

Overview of MIME q Five new message header fields • • • MIME version Overview of MIME q Five new message header fields • • • MIME version Content type Content transfer encoding Content Id Content Description q Number of content formats defines q Transfer encoding defined

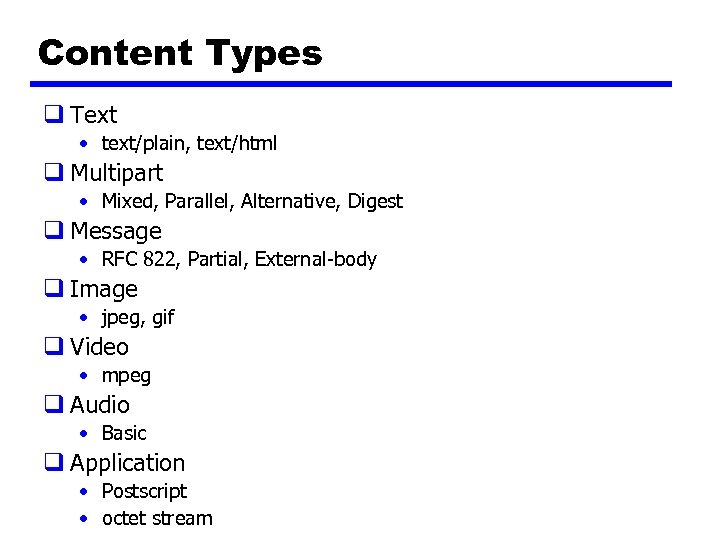

Content Types q Text • text/plain, text/html q Multipart • Mixed, Parallel, Alternative, Digest Content Types q Text • text/plain, text/html q Multipart • Mixed, Parallel, Alternative, Digest q Message • RFC 822, Partial, External-body q Image • jpeg, gif q Video • mpeg q Audio • Basic q Application • Postscript • octet stream

To: " src="http://present5.com/presentation/4530dc9b2c2f22ed055271b950194ee6/image-26.jpg" alt="multipart/mixed. . . From: "Yen-Cheng Chen" To: " /> multipart/mixed. . . From: "Yen-Cheng Chen" To: Subject: test mail! Date: Wed, 22 May 2002 14: 27: 07 +0800 MIME-Version: 1. 0 Content-Type: multipart/mixed; boundary="----=_Next. Part_000_0047_01 C 2019 E. 69 F 32 C 40“ Status: This is a multi-part message in MIME format. ------=_Next. Part_000_0047_01 C 2019 E. 69 F 32 C 40 Content-Type: text/plain; charset="big 5" Content-Transfer-Encoding: 7 bit Start of Body! Yen-Cheng ------=_Next. Part_000_0047_01 C 2019 E. 69 F 32 C 40 Content-Type: text/plain; name="a. txt" Content-Transfer-Encoding: 7 bit Content-Disposition: attachment; filename="a. txt“ This is the first and only one line of the file. ------=_Next. Part_000_0047_01 C 2019 E. 69 F 32 C 40 --

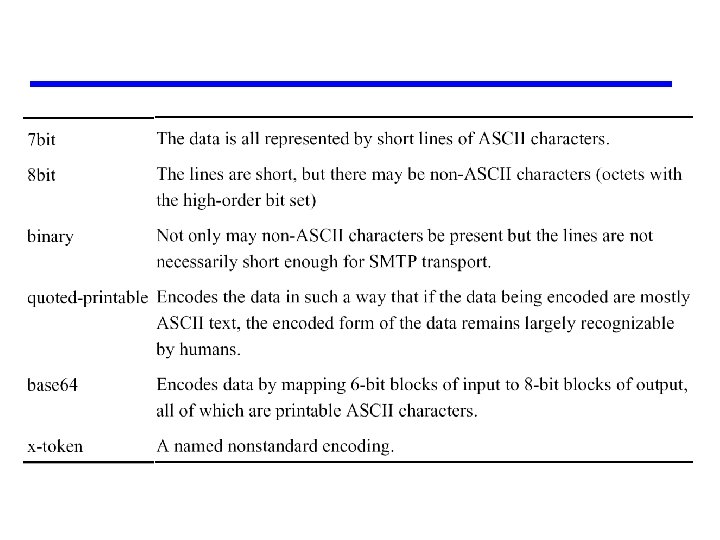

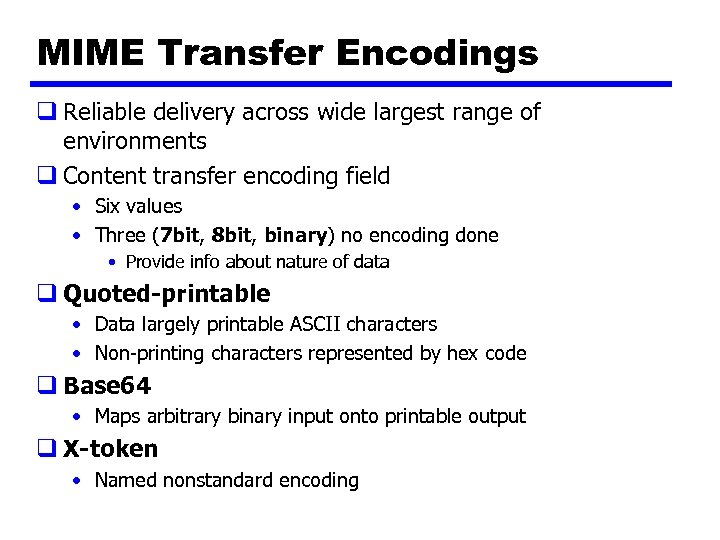

MIME Transfer Encodings q Reliable delivery across wide largest range of environments q Content MIME Transfer Encodings q Reliable delivery across wide largest range of environments q Content transfer encoding field • Six values • Three (7 bit, 8 bit, binary) no encoding done • Provide info about nature of data q Quoted-printable • Data largely printable ASCII characters • Non-printing characters represented by hex code q Base 64 • Maps arbitrary binary input onto printable output q X-token • Named nonstandard encoding

Quoted-printable 一年=365天 Content-Type: text/plain; charset= Quoted-printable 一年=365天 Content-Type: text/plain; charset="big 5" Content-Transfer-Encoding: quoted-printable =A [email protected]=A 6~=3 D 365=A 4=D 1

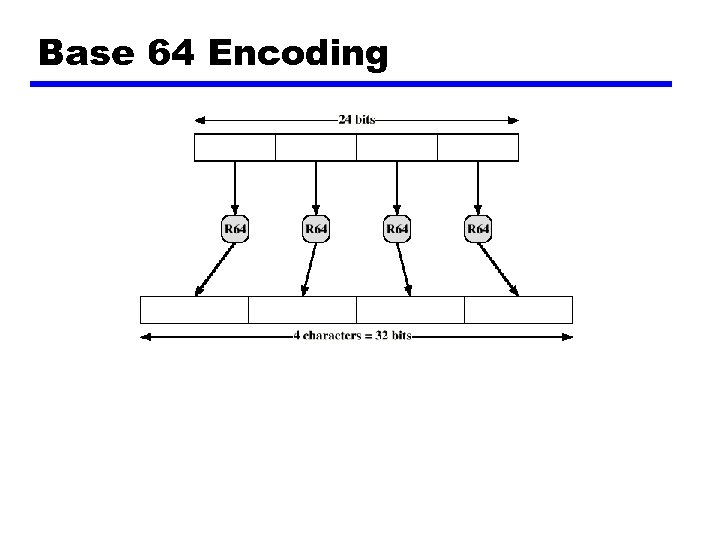

Base 64 Encoding Base 64 Encoding

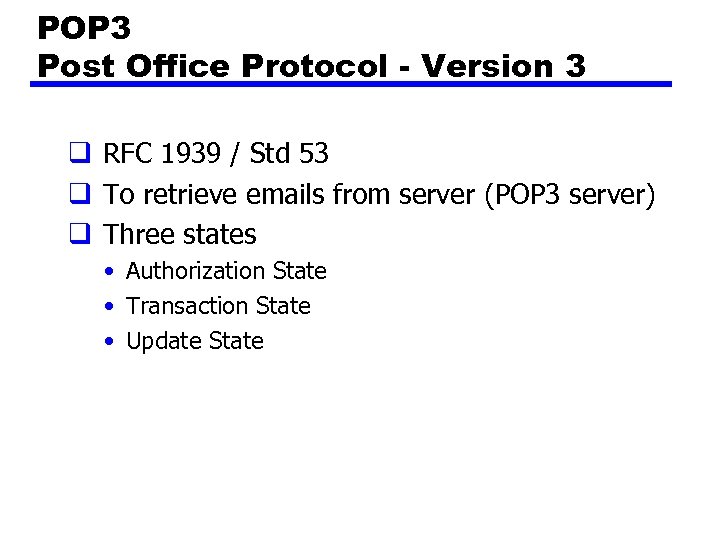

POP 3 Post Office Protocol - Version 3 q RFC 1939 / Std 53 POP 3 Post Office Protocol - Version 3 q RFC 1939 / Std 53 q To retrieve emails from server (POP 3 server) q Three states • Authorization State • Transaction State • Update State

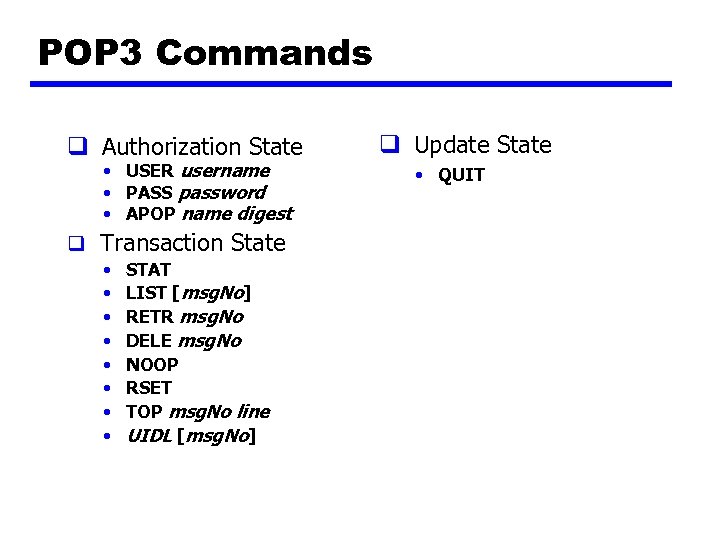

POP 3 Commands q Authorization State • USER username • PASS password • APOP POP 3 Commands q Authorization State • USER username • PASS password • APOP name digest q Transaction State • • STAT LIST [msg. No] RETR msg. No DELE msg. No NOOP RSET TOP msg. No line UIDL [msg. No] q Update State • QUIT

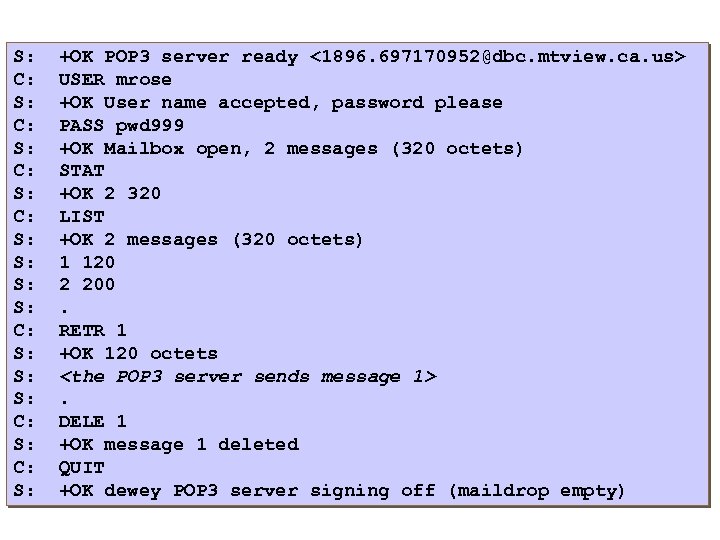

S: C: S: S: C: S: +OK POP 3 server ready <1896. 697170952@dbc. mtview. S: C: S: S: C: S: +OK POP 3 server ready <1896. [email protected] mtview. ca. us> USER mrose +OK User name accepted, password please PASS pwd 999 +OK Mailbox open, 2 messages (320 octets) STAT +OK 2 320 LIST +OK 2 messages (320 octets) 1 120 2 200. RETR 1 +OK 120 octets . DELE 1 +OK message 1 deleted QUIT +OK dewey POP 3 server signing off (maildrop empty)

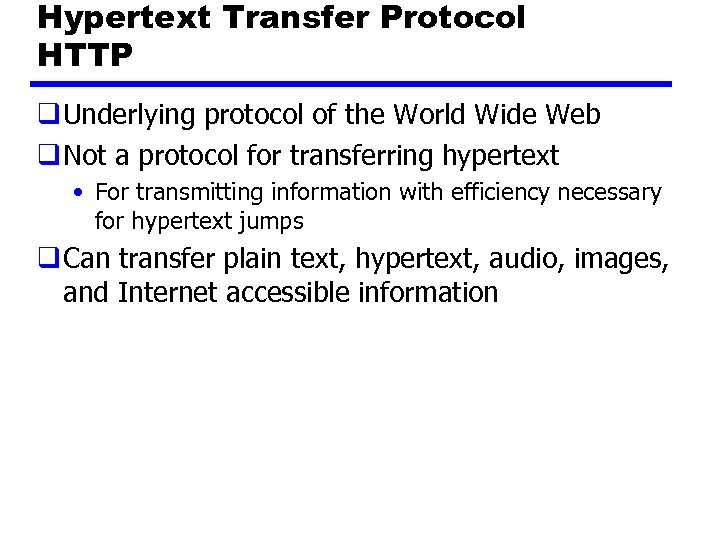

Hypertext Transfer Protocol HTTP q Underlying protocol of the World Wide Web q Not Hypertext Transfer Protocol HTTP q Underlying protocol of the World Wide Web q Not a protocol for transferring hypertext • For transmitting information with efficiency necessary for hypertext jumps q Can transfer plain text, hypertext, audio, images, and Internet accessible information

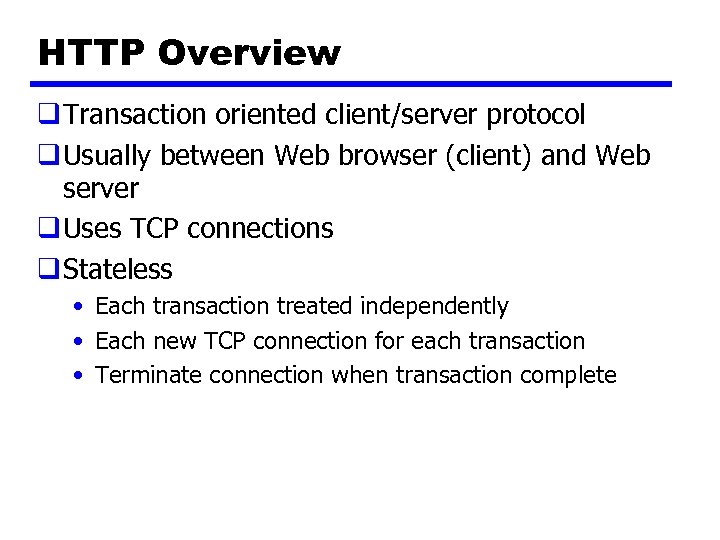

HTTP Overview q Transaction oriented client/server protocol q Usually between Web browser (client) and HTTP Overview q Transaction oriented client/server protocol q Usually between Web browser (client) and Web server q Uses TCP connections q Stateless • Each transaction treated independently • Each new TCP connection for each transaction • Terminate connection when transaction complete

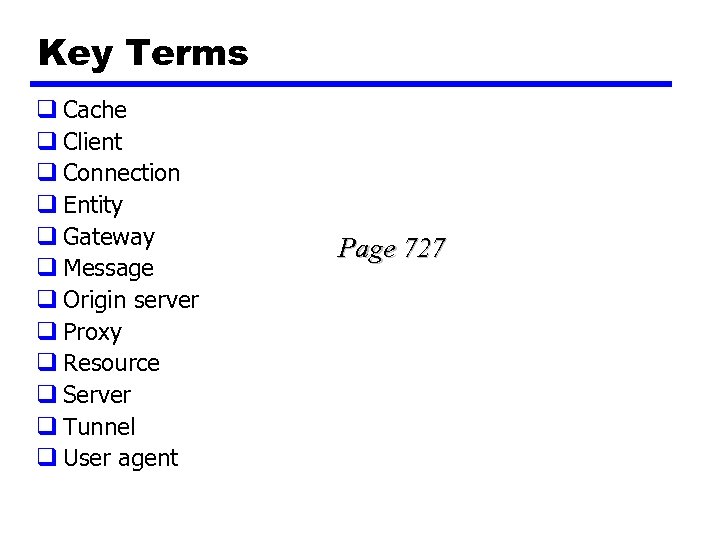

Key Terms q Cache q Client q Connection q Entity q Gateway q Message Key Terms q Cache q Client q Connection q Entity q Gateway q Message q Origin server q Proxy q Resource q Server q Tunnel q User agent Page 727

Examples of HTTP Operation Examples of HTTP Operation

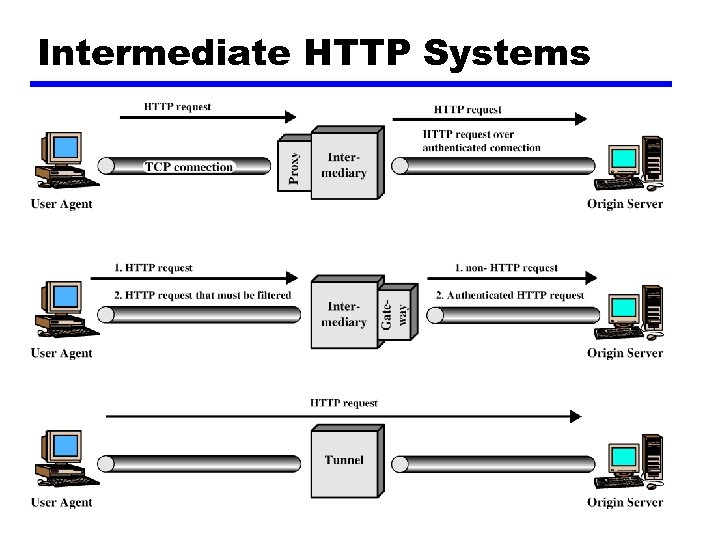

Intermediate HTTP Systems Intermediate HTTP Systems

HTTP Messages q Two types of messages: • Requests: Client to server • Responses: HTTP Messages q Two types of messages: • Requests: Client to server • Responses: Server to client q Request line q Response line q General header q Request header q Response header q Entity body

General Header Fields q Cache control q Connection q Date q Forwarded q Keep General Header Fields q Cache control q Connection q Date q Forwarded q Keep alive q MIME version q Pragma q Upgrade

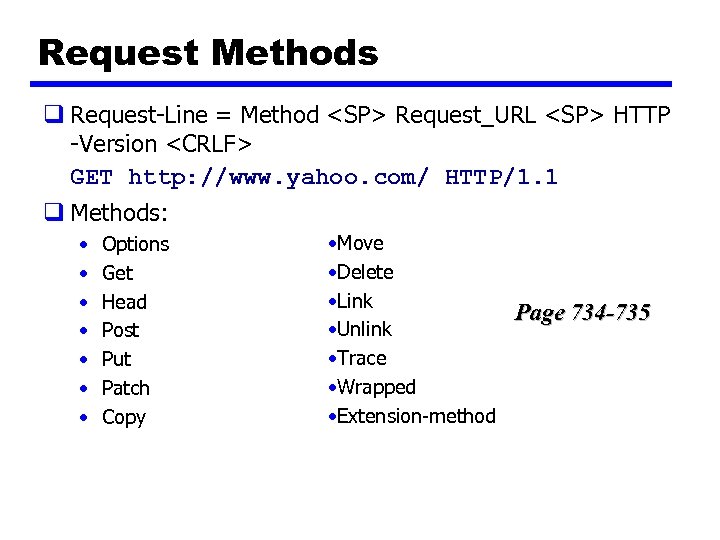

Request Methods q Request-Line = Method <SP> Request_URL <SP> HTTP -Version <CRLF> GET http: Request Methods q Request-Line = Method Request_URL HTTP -Version GET http: //www. yahoo. com/ HTTP/1. 1 q Methods: • • Options Get Head Post Put Patch Copy • Move • Delete • Link Page 734 -735 • Unlink • Trace • Wrapped • Extension-method

Request Header Field q Accept charset q Accept encoding q Accept language q Authorization Request Header Field q Accept charset q Accept encoding q Accept language q Authorization q From q Host q If modified since q Proxy authentication q Range q Referrer q Unless q User agent

Response Messages q Status line followed by one or more general, response and entity Response Messages q Status line followed by one or more general, response and entity headers, followed by optional entity body q Status-Line = HTTP-Version Status-Code Reason-Phrase HTTP/1. 0 200 OK

Status Codes q Informational q Successful q Redirection q Client error q Server error Status Codes q Informational q Successful q Redirection q Client error q Server error

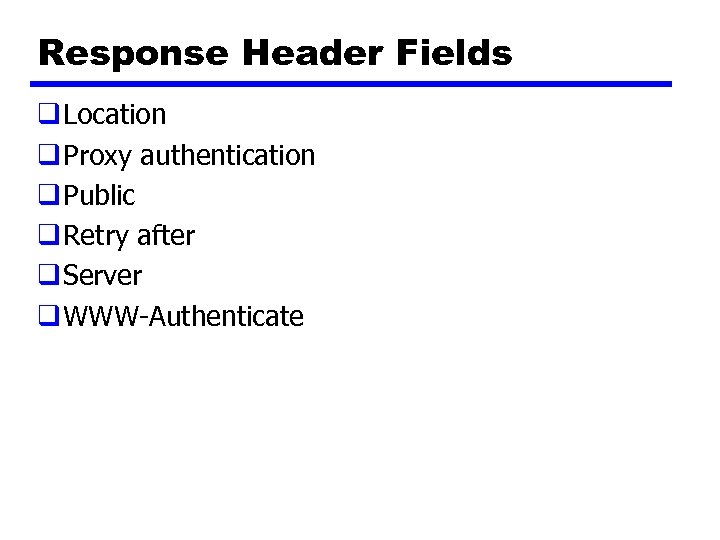

Response Header Fields q Location q Proxy authentication q Public q Retry after q Response Header Fields q Location q Proxy authentication q Public q Retry after q Server q WWW-Authenticate

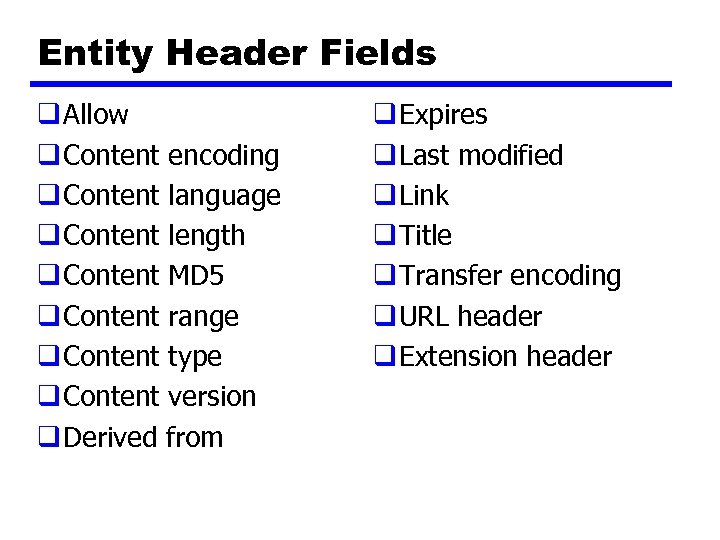

Entity Header Fields q Allow q Content encoding q Content language q Content length Entity Header Fields q Allow q Content encoding q Content language q Content length q Content MD 5 q Content range q Content type q Content version q Derived from q Expires q Last modified q Link q Title q Transfer encoding q URL header q Extension header

Entity Body q Arbitrary sequence of octets q HTTP transfers any type of data Entity Body q Arbitrary sequence of octets q HTTP transfers any type of data including: • • • text binary data audio images video q Interpretation of data determined by header fields • Content encoding, content type, transfer encoding

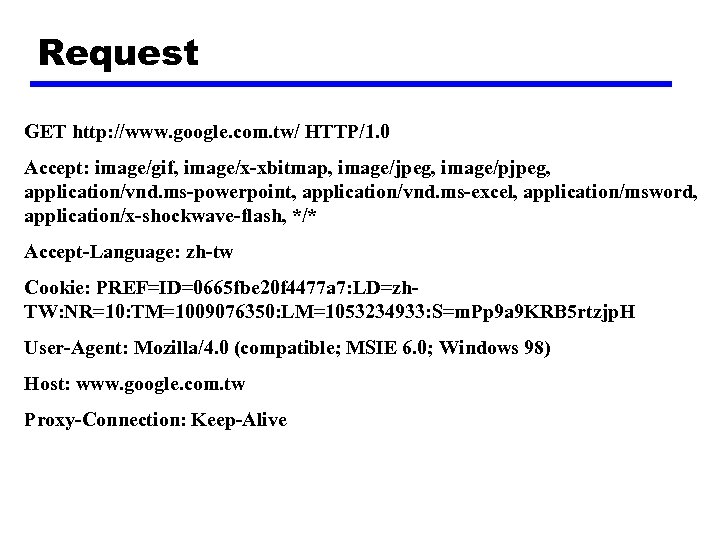

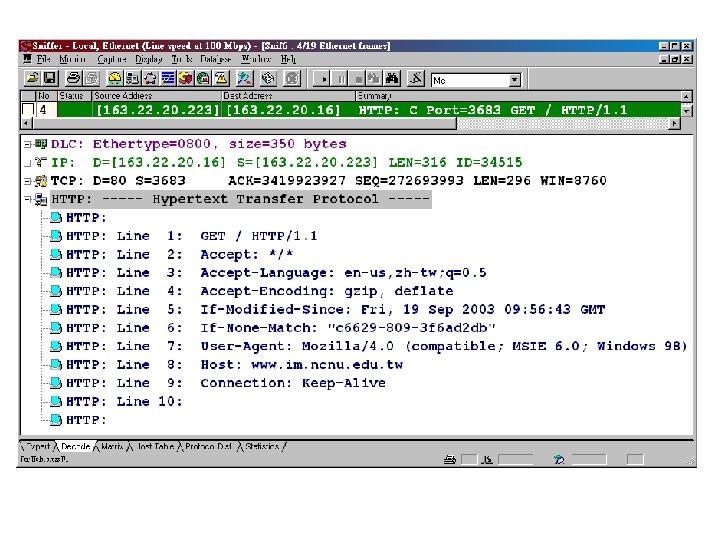

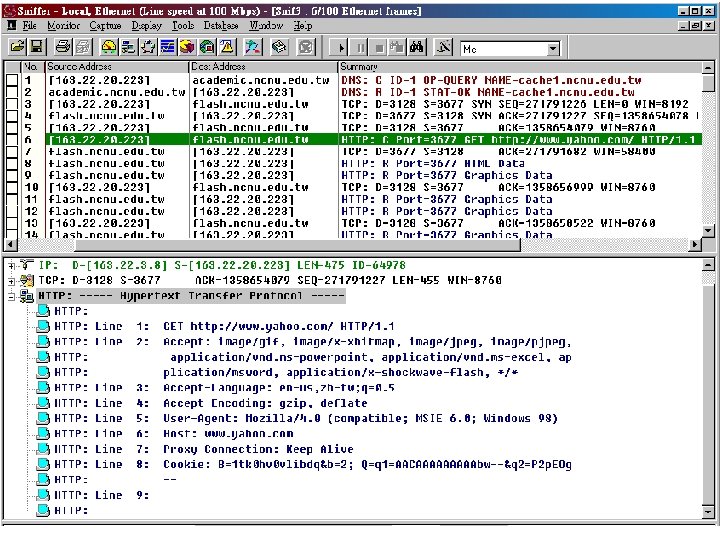

Request GET http: //www. google. com. tw/ HTTP/1. 0 Accept: image/gif, image/x-xbitmap, image/jpeg, image/pjpeg, Request GET http: //www. google. com. tw/ HTTP/1. 0 Accept: image/gif, image/x-xbitmap, image/jpeg, image/pjpeg, application/vnd. ms-powerpoint, application/vnd. ms-excel, application/msword, application/x-shockwave-flash, */* Accept-Language: zh-tw Cookie: PREF=ID=0665 fbe 20 f 4477 a 7: LD=zh. TW: NR=10: TM=1009076350: LM=1053234933: S=m. Pp 9 a 9 KRB 5 rtzjp. H User-Agent: Mozilla/4. 0 (compatible; MSIE 6. 0; Windows 98) Host: www. google. com. tw Proxy-Connection: Keep-Alive

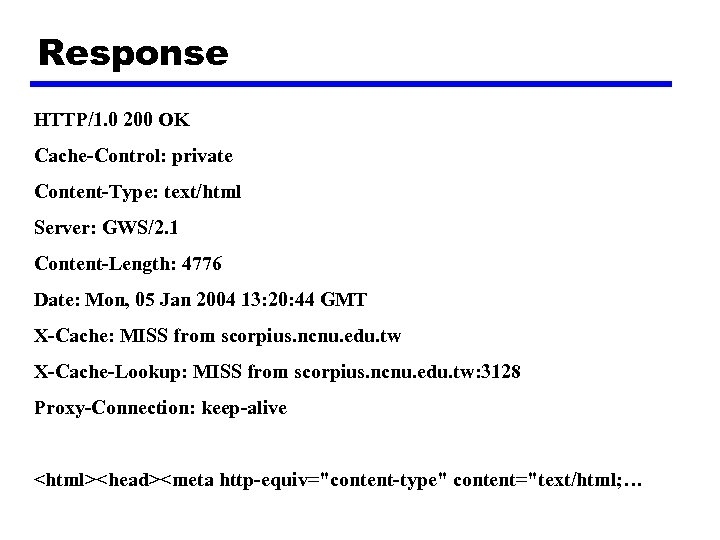

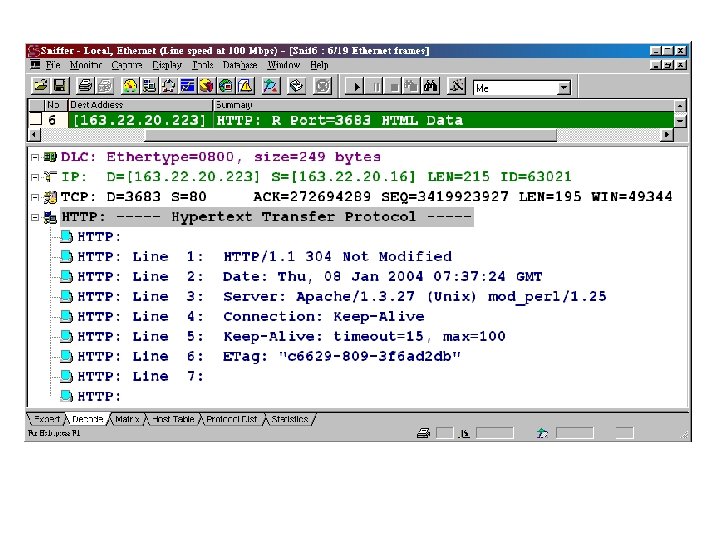

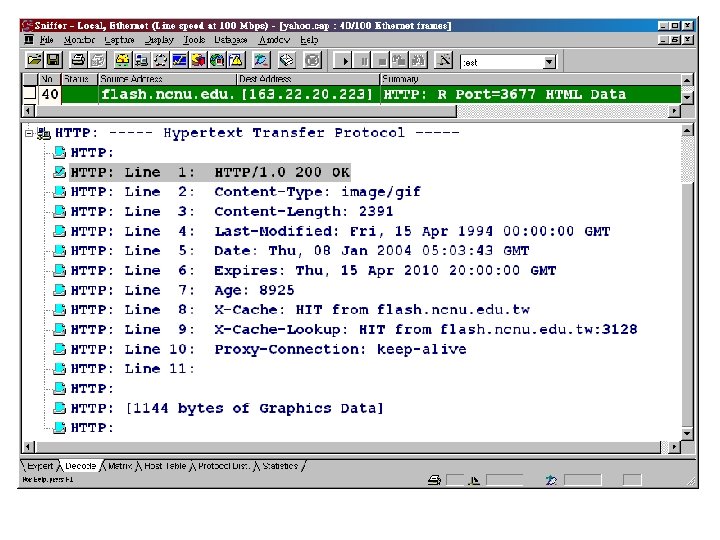

Response HTTP/1. 0 200 OK Cache-Control: private Content-Type: text/html Server: GWS/2. 1 Content-Length: 4776 Response HTTP/1. 0 200 OK Cache-Control: private Content-Type: text/html Server: GWS/2. 1 Content-Length: 4776 Date: Mon, 05 Jan 2004 13: 20: 44 GMT X-Cache: MISS from scorpius. ncnu. edu. tw X-Cache-Lookup: MISS from scorpius. ncnu. edu. tw: 3128 Proxy-Connection: keep-alive

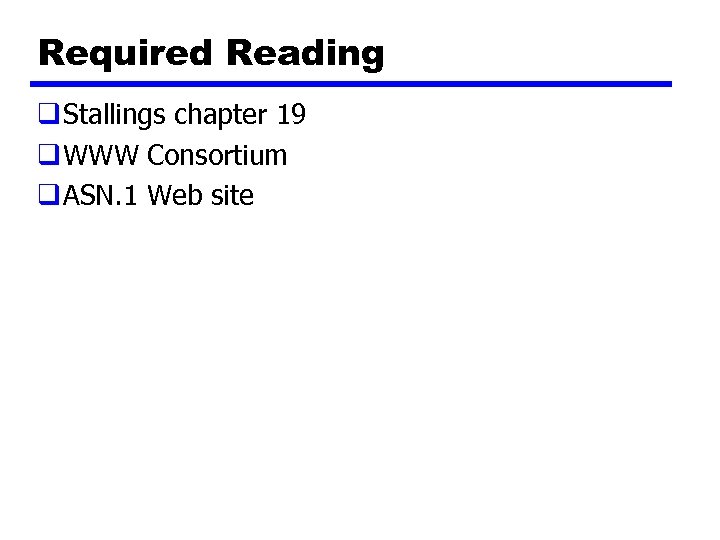

Required Reading q Stallings chapter 19 q WWW Consortium q ASN. 1 Web site Required Reading q Stallings chapter 19 q WWW Consortium q ASN. 1 Web site
