Wif presentation for a WIRELESS INTERNET FLEET High tech Solutions for real time tracking http: //www. wif. it 1 of 43

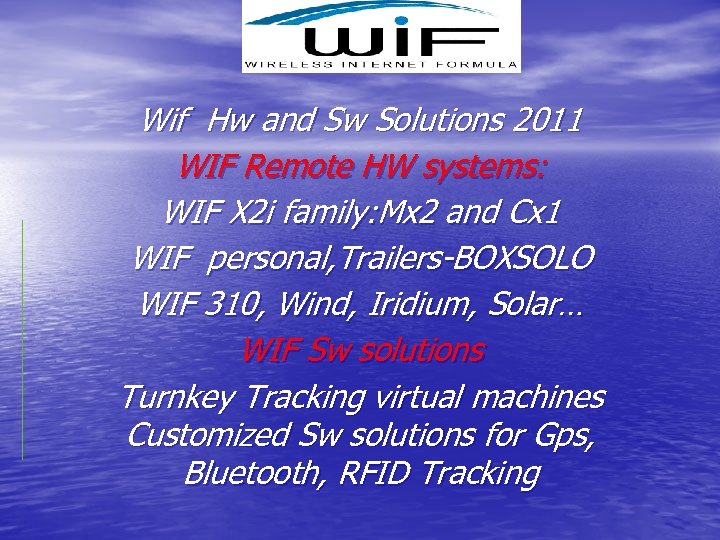

Wif Hw and Sw Solutions 2011 WIF Remote HW systems: WIF X 2 i family: Mx 2 and Cx 1 WIF personal, Trailers-BOXSOLO WIF 310, Wind, Iridium, Solar… WIF Sw solutions Turnkey Tracking virtual machines Customized Sw solutions for Gps, Bluetooth, RFID Tracking

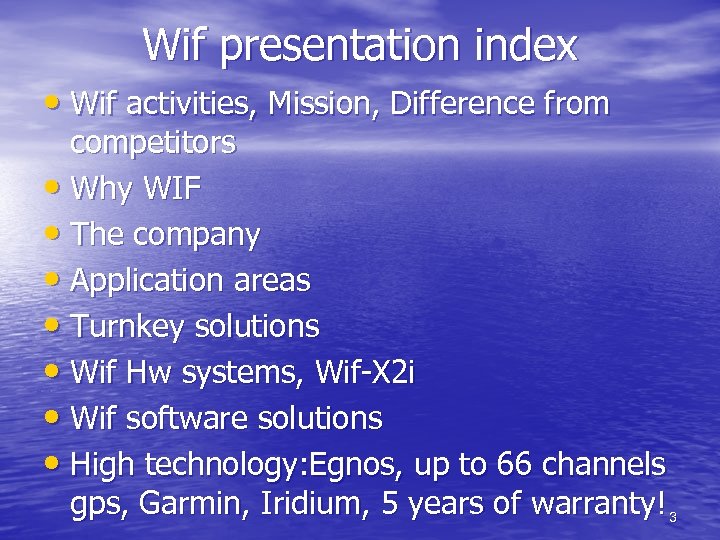

Wif presentation index • Wif activities, Mission, Difference from competitors • Why WIF • The company • Application areas • Turnkey solutions • Wif Hw systems, Wif-X 2 i • Wif software solutions • High technology: Egnos, up to 66 channels gps, Garmin, Iridium, 5 years of warranty! 3

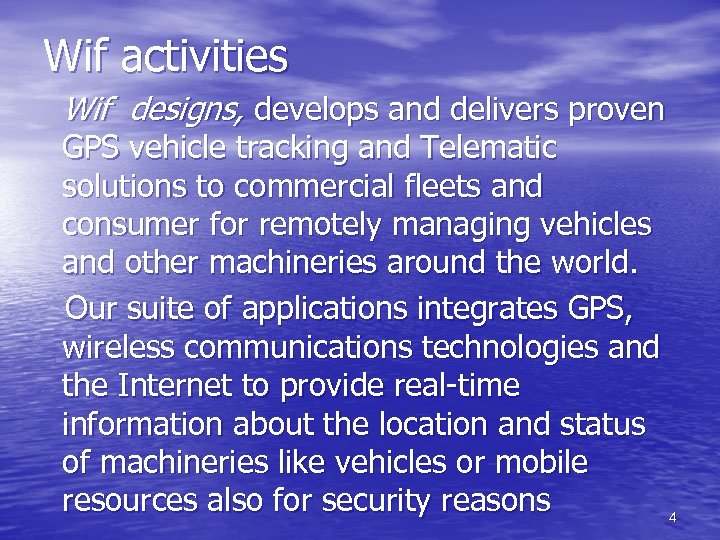

Wif activities Wif designs, develops and delivers proven GPS vehicle tracking and Telematic solutions to commercial fleets and consumer for remotely managing vehicles and other machineries around the world. Our suite of applications integrates GPS, wireless communications technologies and the Internet to provide real-time information about the location and status of machineries like vehicles or mobile resources also for security reasons 4

Wif activities Wif designs, develops and delivers Ict solutions Mainly focused on state of the art Real-time tracking and monitoring solutions based on GPS, Sat, GPRS, WI-FI, Rfid, web, Bluetooth 5

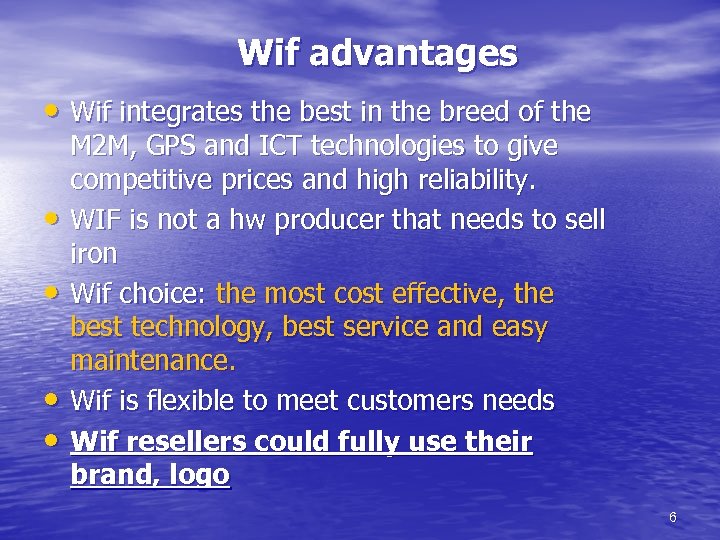

Wif advantages • Wif integrates the best in the breed of the • • M 2 M, GPS and ICT technologies to give competitive prices and high reliability. WIF is not a hw producer that needs to sell iron Wif choice: the most cost effective, the best technology, best service and easy maintenance. Wif is flexible to meet customers needs Wif resellers could fully use their brand, logo 6

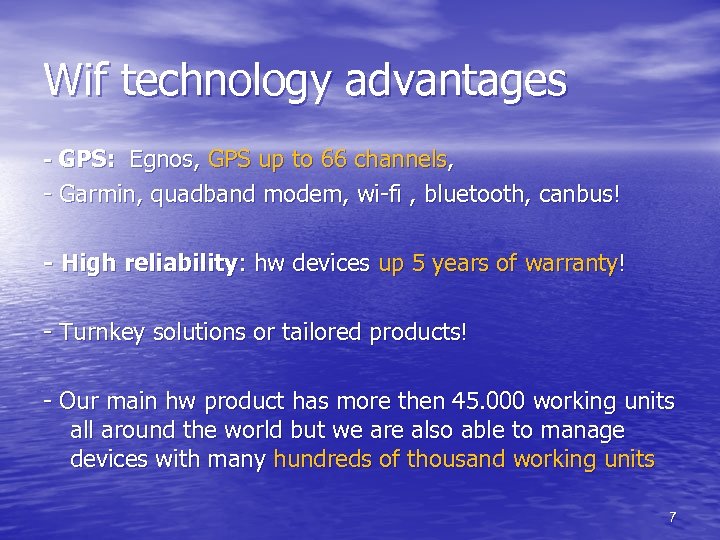

Wif technology advantages - GPS: Egnos, GPS up to 66 channels, - Garmin, quadband modem, wi-fi , bluetooth, canbus! - High reliability: hw devices up 5 years of warranty! - Turnkey solutions or tailored products! - Our main hw product has more then 45. 000 working units all around the world but we are also able to manage devices with many hundreds of thousand working units 7

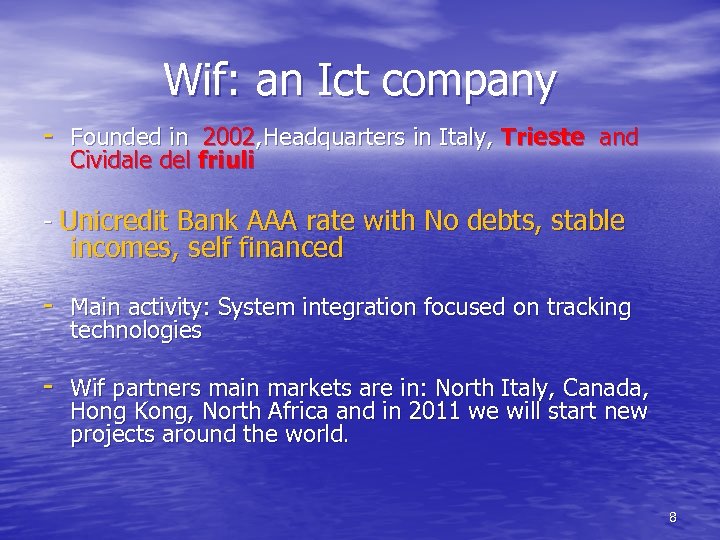

Wif: an Ict company - Founded in 2002, Headquarters in Italy, Trieste and Cividale del friuli - Unicredit Bank AAA rate with No debts, stable incomes, self financed - Main activity: System integration focused on tracking technologies - Wif partners main markets are in: North Italy, Canada, Hong Kong, North Africa and in 2011 we will start new projects around the world. 8

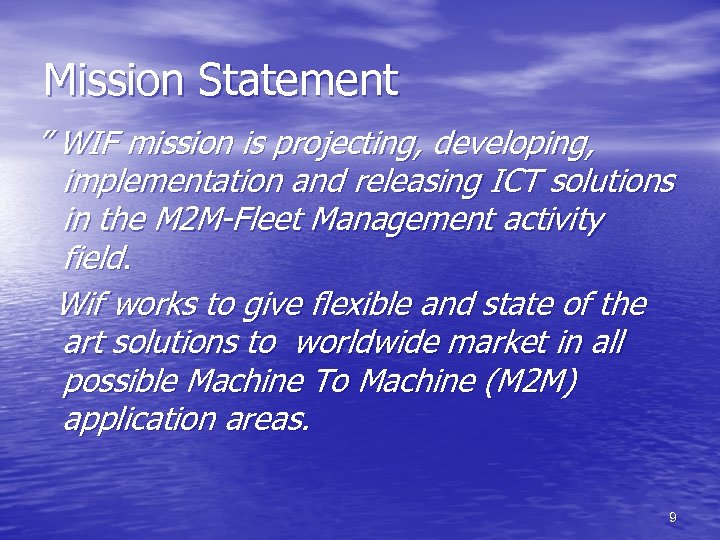

Mission Statement ” WIF mission is projecting, developing, implementation and releasing ICT solutions in the M 2 M-Fleet Management activity field. Wif works to give flexible and state of the art solutions to worldwide market in all possible Machine To Machine (M 2 M) application areas. 9

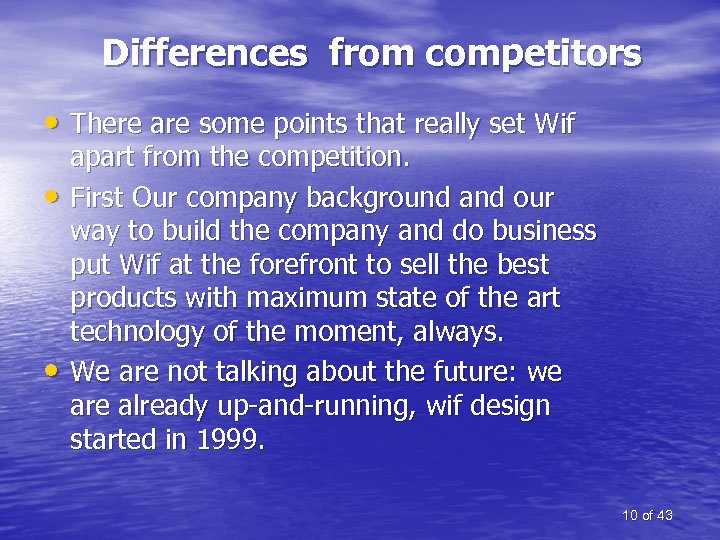

Differences from competitors • There are some points that really set Wif • • apart from the competition. First Our company background and our way to build the company and do business put Wif at the forefront to sell the best products with maximum state of the art technology of the moment, always. We are not talking about the future: we are already up-and-running, wif design started in 1999. 10 of 43

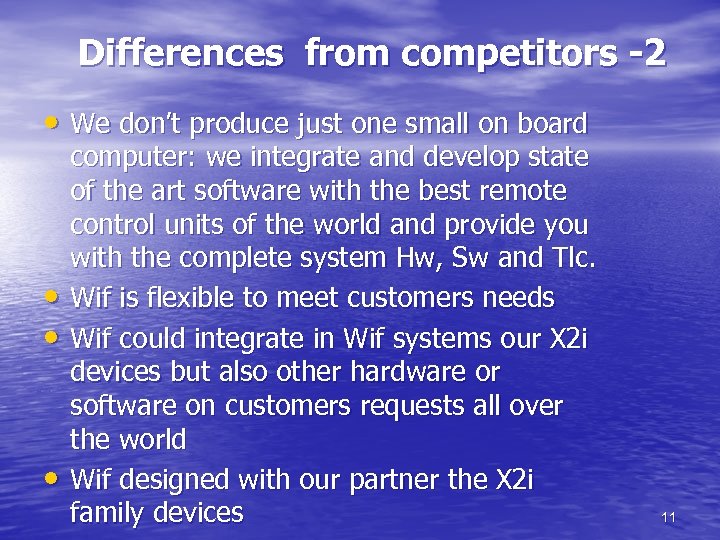

Differences from competitors -2 • We don’t produce just one small on board • • • computer: we integrate and develop state of the art software with the best remote control units of the world and provide you with the complete system Hw, Sw and Tlc. Wif is flexible to meet customers needs Wif could integrate in Wif systems our X 2 i devices but also other hardware or software on customers requests all over the world Wif designed with our partner the X 2 i family devices 11

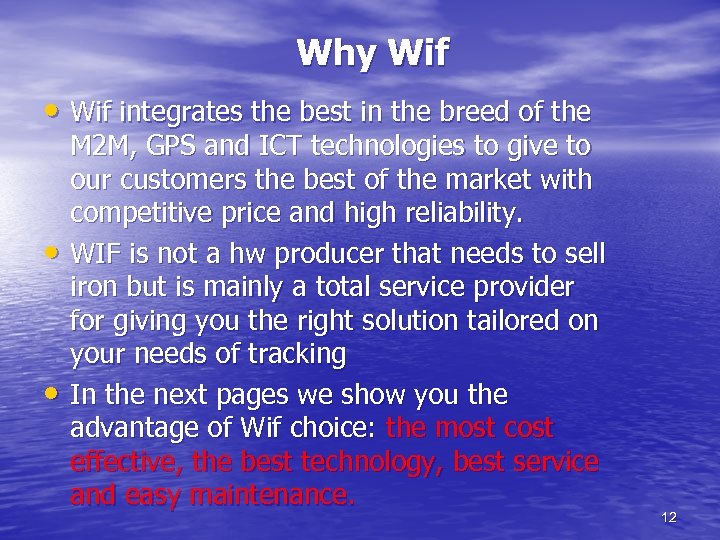

Why Wif • Wif integrates the best in the breed of the • • M 2 M, GPS and ICT technologies to give to our customers the best of the market with competitive price and high reliability. WIF is not a hw producer that needs to sell iron but is mainly a total service provider for giving you the right solution tailored on your needs of tracking In the next pages we show you the advantage of Wif choice: the most cost effective, the best technology, best service and easy maintenance. 12

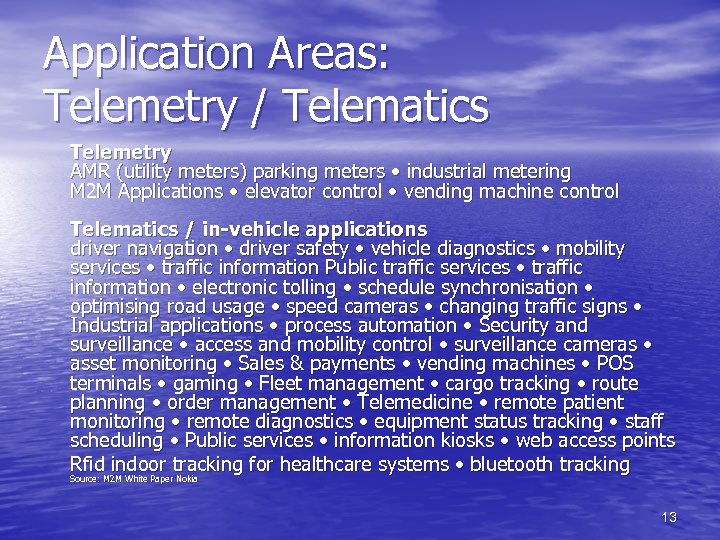

Application Areas: Telemetry / Telematics Telemetry AMR (utility meters) parking meters • industrial metering M 2 M Applications • elevator control • vending machine control Telematics / in-vehicle applications driver navigation • driver safety • vehicle diagnostics • mobility services • traffic information Public traffic services • traffic information • electronic tolling • schedule synchronisation • optimising road usage • speed cameras • changing traffic signs • Industrial applications • process automation • Security and surveillance • access and mobility control • surveillance cameras • asset monitoring • Sales & payments • vending machines • POS terminals • gaming • Fleet management • cargo tracking • route planning • order management • Telemedicine • remote patient monitoring • remote diagnostics • equipment status tracking • staff scheduling • Public services • information kiosks • web access points Rfid indoor tracking for healthcare systems • bluetooth tracking Source: M 2 M White Paper Nokia 13

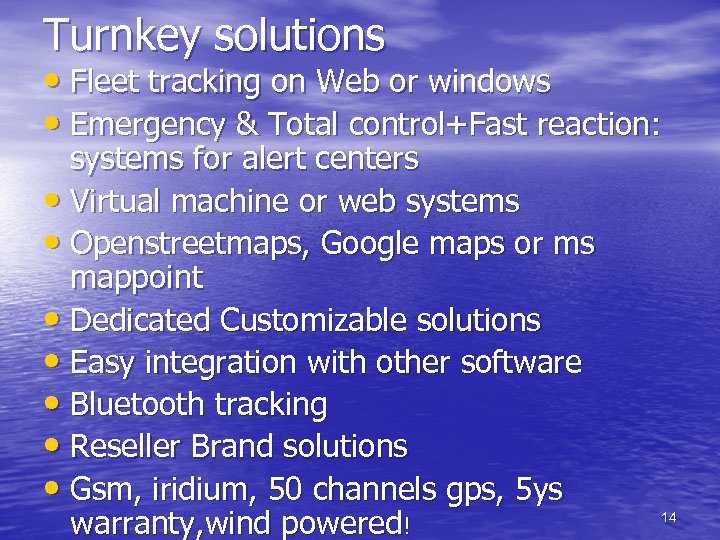

Turnkey solutions • Fleet tracking on Web or windows • Emergency & Total control+Fast reaction: systems for alert centers • Virtual machine or web systems • Openstreetmaps, Google maps or ms mappoint • Dedicated Customizable solutions • Easy integration with other software • Bluetooth tracking • Reseller Brand solutions • Gsm, iridium, 50 channels gps, 5 ys warranty, wind powered! 14

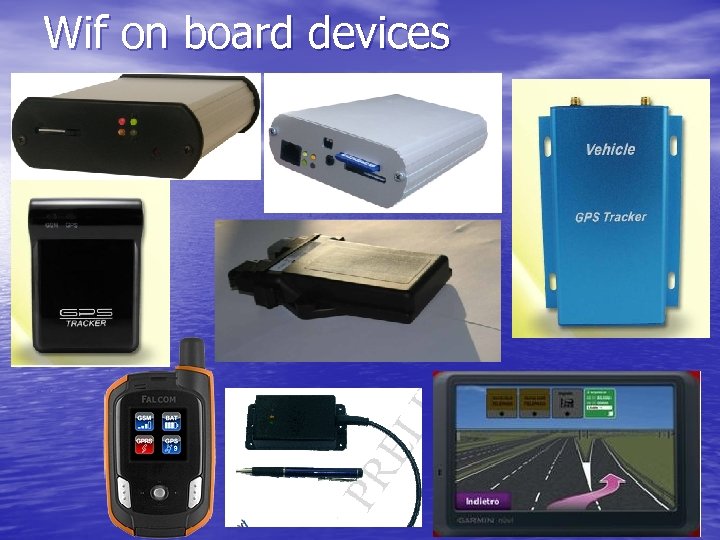

Wif on board devices 15

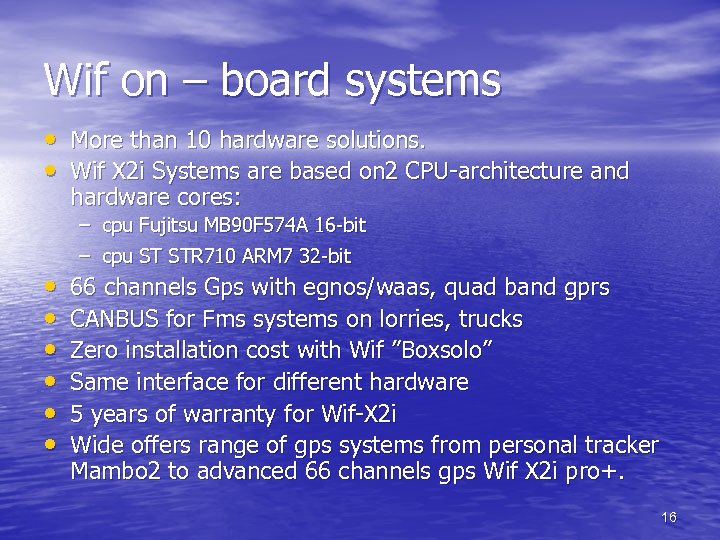

Wif on – board systems • • More than 10 hardware solutions. Wif X 2 i Systems are based on 2 CPU-architecture and hardware cores: – cpu Fujitsu MB 90 F 574 A 16 -bit – cpu ST STR 710 ARM 7 32 -bit 66 channels Gps with egnos/waas, quad band gprs CANBUS for Fms systems on lorries, trucks Zero installation cost with Wif ”Boxsolo” Same interface for different hardware 5 years of warranty for Wif-X 2 i Wide offers range of gps systems from personal tracker Mambo 2 to advanced 66 channels gps Wif X 2 i pro+. 16

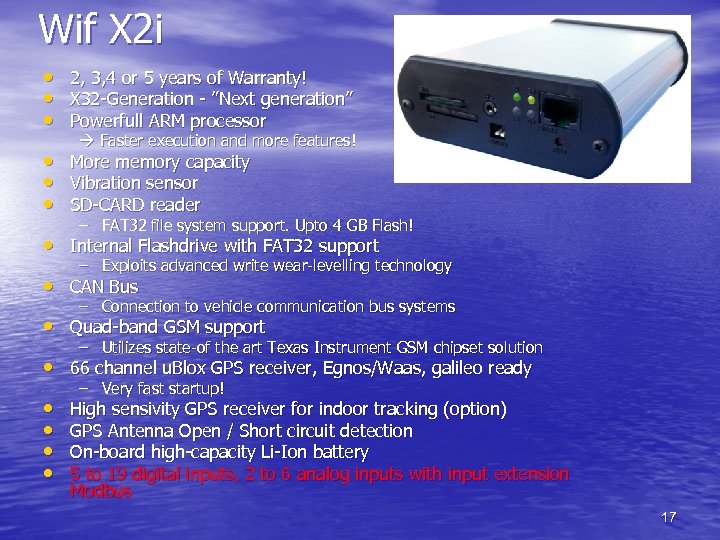

Wif X 2 i • • • 2, 3, 4 or 5 years of Warranty! X 32 -Generation - ”Next generation” Powerfull ARM processor • • • More memory capacity Vibration sensor SD-CARD reader Faster execution and more features! – FAT 32 file system support. Upto 4 GB Flash! • Internal Flashdrive with FAT 32 support – Exploits advanced write wear-levelling technology • CAN Bus – Connection to vehicle communication bus systems • Quad-band GSM support – Utilizes state-of the art Texas Instrument GSM chipset solution • 66 channel u. Blox GPS receiver, Egnos/Waas, galileo ready • • – Very fast startup! High sensivity GPS receiver for indoor tracking (option) GPS Antenna Open / Short circuit detection On-board high-capacity Li-Ion battery 5 to 19 digital inputs, 2 to 6 analog inputs with input extension Modbus 17

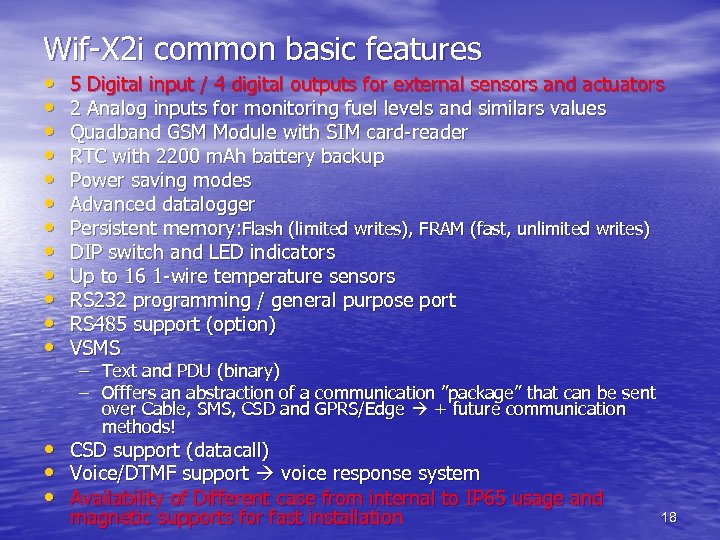

Wif-X 2 i common basic features • • • 5 Digital input / 4 digital outputs for external sensors and actuators 2 Analog inputs for monitoring fuel levels and similars values Quadband GSM Module with SIM card-reader RTC with 2200 m. Ah battery backup Power saving modes Advanced datalogger Persistent memory: Flash (limited writes), FRAM (fast, unlimited writes) DIP switch and LED indicators Up to 16 1 -wire temperature sensors RS 232 programming / general purpose port RS 485 support (option) VSMS – Text and PDU (binary) – Offfers an abstraction of a communication ”package” that can be sent over Cable, SMS, CSD and GPRS/Edge + future communication methods! • CSD support (datacall) • Voice/DTMF support voice response system • Availability of Different case from internal to IP 65 usage and magnetic supports for fast installation 18

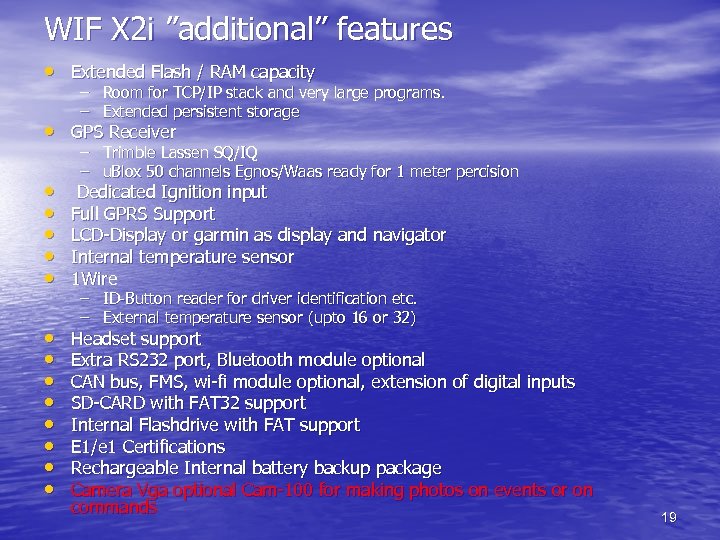

WIF X 2 i ”additional” features • Extended Flash / RAM capacity – Room for TCP/IP stack and very large programs. – Extended persistent storage • GPS Receiver – Trimble Lassen SQ/IQ – u. Blox 50 channels Egnos/Waas ready for 1 meter percision • • • Dedicated Ignition input Full GPRS Support LCD-Display or garmin as display and navigator Internal temperature sensor 1 Wire • • Headset support Extra RS 232 port, Bluetooth module optional CAN bus, FMS, wi-fi module optional, extension of digital inputs SD-CARD with FAT 32 support Internal Flashdrive with FAT support E 1/e 1 Certifications Rechargeable Internal battery backup package Camera Vga optional Cam-100 for making photos on events or on commands – ID-Button reader for driver identification etc. – External temperature sensor (upto 16 or 32) 19

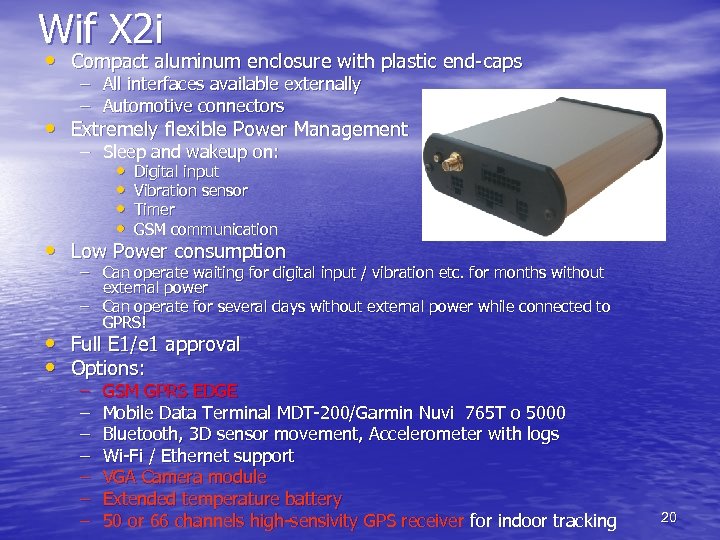

Wif X 2 i • Compact aluminum enclosure with plastic end-caps – All interfaces available externally – Automotive connectors • Extremely flexible Power Management – Sleep and wakeup on: • • Digital input • Vibration sensor • Timer • GSM communication Low Power consumption – Can operate waiting for digital input / vibration etc. for months without external power – Can operate for several days without external power while connected to GPRS! • Full E 1/e 1 approval • Options: – – – – GSM GPRS EDGE Mobile Data Terminal MDT-200/Garmin Nuvi 765 T o 5000 Bluetooth, 3 D sensor movement, Accelerometer with logs Wi-Fi / Ethernet support VGA Camera module Extended temperature battery 50 or 66 channels high-sensivity GPS receiver for indoor tracking 20

Wif X 2 i input or output extensions • To expand the I/O capability of Wif X 2 i an MODBUS compatible I/O module can be connected to the product. Wif are offering a range of MODBUS I/O modules that are highquality, low-cost and extremely easy to set-up and use. The EX 9041 D module offers 14 isolated Digital Inputs and LED indication of the inputs status. • RT-EX-9044 D: 4 Digital Inputs and 8 Digital Outputs (isolated) • RT-EX-9065 D: 4 Digital Inputs and 5 Digital Relay Outputs • T-EX-9017: 8 Analog Inputs, 16 Bit 21

WIF Magnetic • • An IP 65 compact version of X 2 i Magnetic attack for fast installation Communication via Quad Band GSM Voice, SMS, Data, GPRS, TCP/IP Integrated gsm and gps antennas Fully customizable behaviour Autonomous operation without external Power supply • Magnetic wirless door sensor!! 22

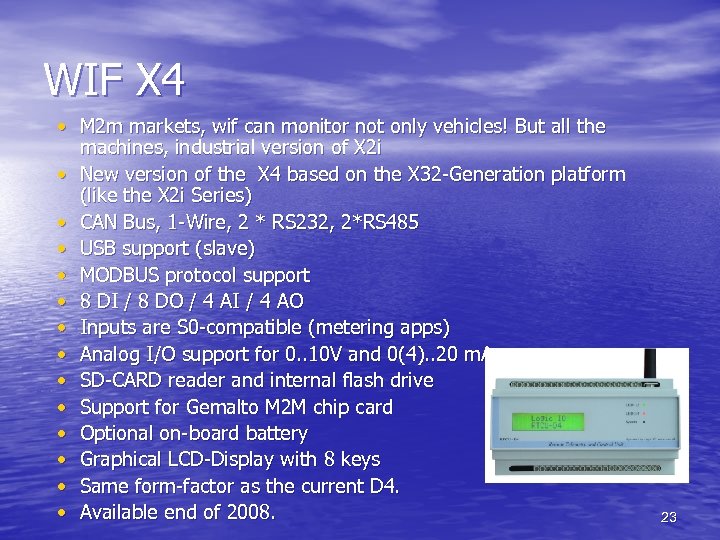

WIF X 4 • M 2 m markets, wif can monitor not only vehicles! But all the machines, industrial version of X 2 i • New version of the X 4 based on the X 32 -Generation platform (like the X 2 i Series) • CAN Bus, 1 -Wire, 2 * RS 232, 2*RS 485 • USB support (slave) • MODBUS protocol support • 8 DI / 8 DO / 4 AI / 4 AO • Inputs are S 0 -compatible (metering apps) • Analog I/O support for 0. . 10 V and 0(4). . 20 m. A • SD-CARD reader and internal flash drive • Support for Gemalto M 2 M chip card • Optional on-board battery • Graphical LCD-Display with 8 keys • Same form-factor as the current D 4. • Available end of 2008. 23

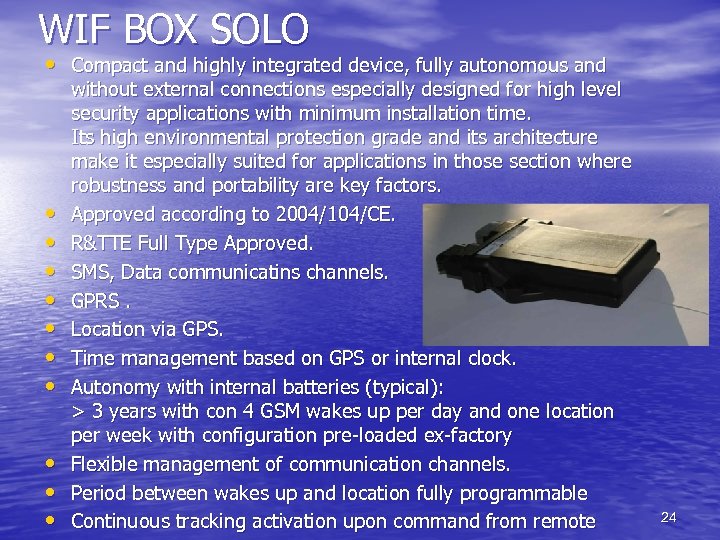

WIF BOX SOLO • Compact and highly integrated device, fully autonomous and • • • without external connections especially designed for high level security applications with minimum installation time. Its high environmental protection grade and its architecture make it especially suited for applications in those section where robustness and portability are key factors. Approved according to 2004/104/CE. R&TTE Full Type Approved. SMS, Data communicatins channels. GPRS. Location via GPS. Time management based on GPS or internal clock. Autonomy with internal batteries (typical): > 3 years with con 4 GSM wakes up per day and one location per week with configuration pre-loaded ex-factory Flexible management of communication channels. Period between wakes up and location fully programmable Continuous tracking activation upon command from remote 24

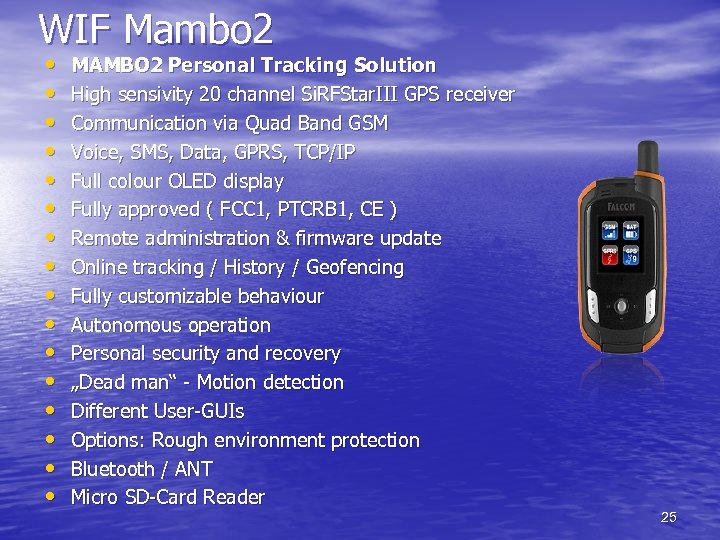

WIF Mambo 2 • • • • MAMBO 2 Personal Tracking Solution High sensivity 20 channel Si. RFStar. III GPS receiver Communication via Quad Band GSM Voice, SMS, Data, GPRS, TCP/IP Full colour OLED display Fully approved ( FCC 1, PTCRB 1, CE ) Remote administration & firmware update Online tracking / History / Geofencing Fully customizable behaviour Autonomous operation Personal security and recovery „Dead man“ - Motion detection Different User-GUIs Options: Rough environment protection Bluetooth / ANT Micro SD-Card Reader 25

WIF basic: Wif 310 • • • • Cheap Wif Tracking Solution High sensivity 20 channel Si. RFStar. III GPS receiver Communication via Quad Band GSM Voice, SMS, Data, GPRS, TCP/IP Integrated gps and gsm antennas Fully approved ( FCC 1, PTCRB 1, CE ) Remote administration & firmware update Online tracking / History / Geofencing Fully customizable behaviour Autonomous operation Personal security and recovery „Dead man“ - Motion detection Different User-GUIs Options: Rough environment protection 26

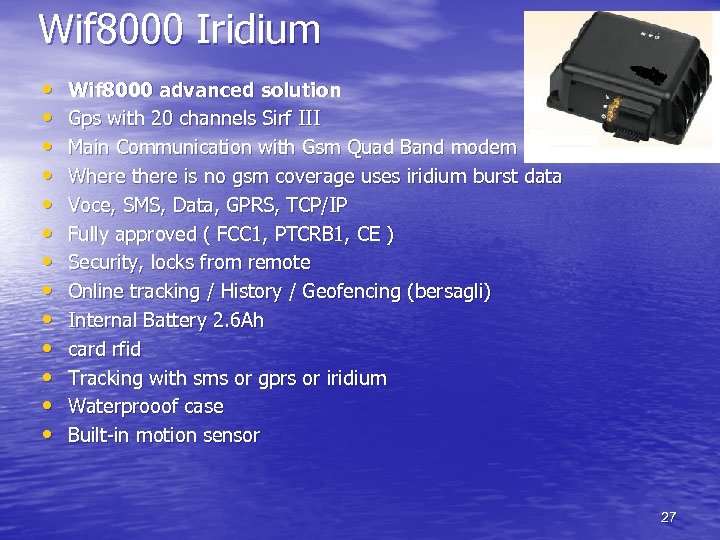

Wif 8000 Iridium • • • • Wif 8000 advanced solution Gps with 20 channels Sirf III Main Communication with Gsm Quad Band modem Where there is no gsm coverage uses iridium burst data Voce, SMS, Data, GPRS, TCP/IP Fully approved ( FCC 1, PTCRB 1, CE ) Security, locks from remote Online tracking / History / Geofencing (bersagli) Internal Battery 2. 6 Ah card rfid Tracking with sms or gprs or iridium Waterprooof case Built-in motion sensor 27

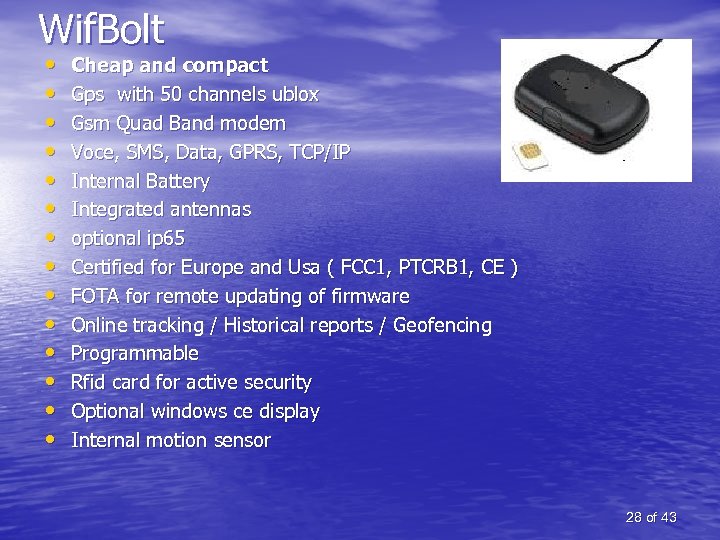

Wif. Bolt • • • • Cheap and compact Gps with 50 channels ublox Gsm Quad Band modem Voce, SMS, Data, GPRS, TCP/IP Internal Battery Integrated antennas optional ip 65 Certified for Europe and Usa ( FCC 1, PTCRB 1, CE ) FOTA for remote updating of firmware Online tracking / Historical reports / Geofencing Programmable Rfid card for active security Optional windows ce display Internal motion sensor 28 of 43

2011 Wif enhancements • Bluetooth or wi-fi tracking • Video and Tracking umts or wi-fi • Accelerometer logging for measure harsh braking or • strong start: wif box, Wif-X 2 i and Wif cx 1 Support for A-GPS (Assisted GPS) – Ultra fast start-up – Higher precision • Express Courier solutions • Driving style sotware for insurances and leasing • • operators Iridium options for no gsm coverage zones Rfid for infant protection systems: active tags Wind or solar powered trackers 66 channels Gps 29

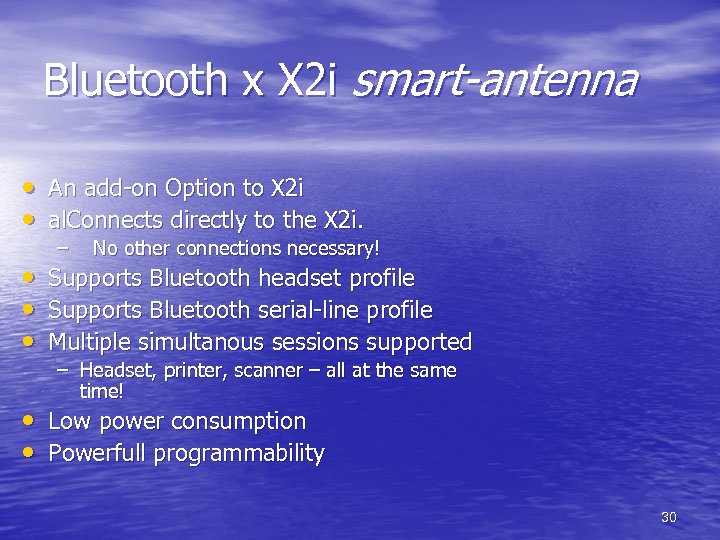

Bluetooth x X 2 i smart-antenna • An add-on Option to X 2 i • al. Connects directly to the X 2 i. – No other connections necessary! • Supports Bluetooth headset profile • Supports Bluetooth serial-line profile • Multiple simultanous sessions supported – Headset, printer, scanner – all at the same time! • Low power consumption • Powerfull programmability 30

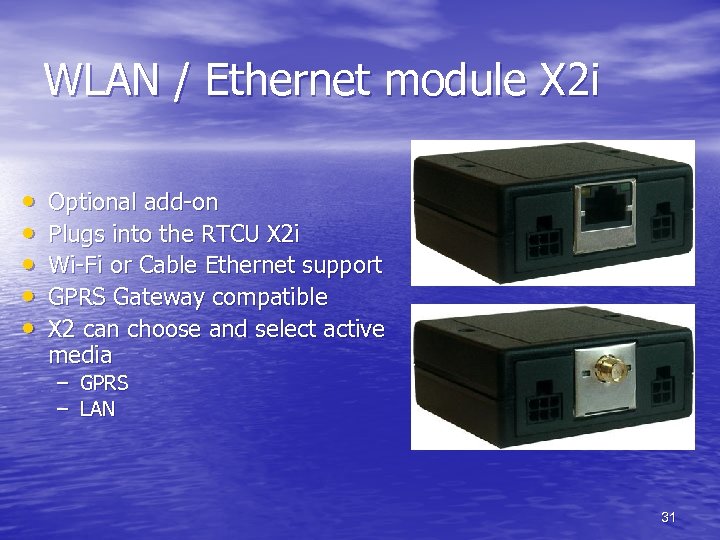

WLAN / Ethernet module X 2 i • • • Optional add-on Plugs into the RTCU X 2 i Wi-Fi or Cable Ethernet support GPRS Gateway compatible X 2 can choose and select active media – GPRS – LAN 31

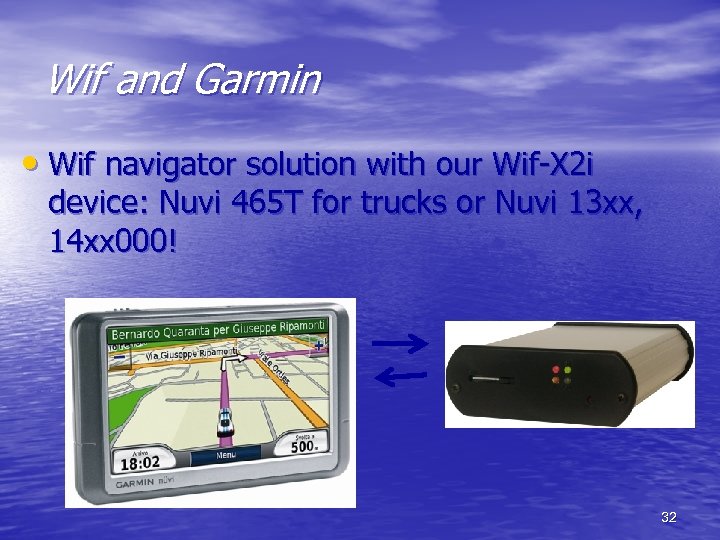

Wif and Garmin • Wif navigator solution with our Wif-X 2 i device: Nuvi 465 T for trucks or Nuvi 13 xx, 14 xx 000! 32

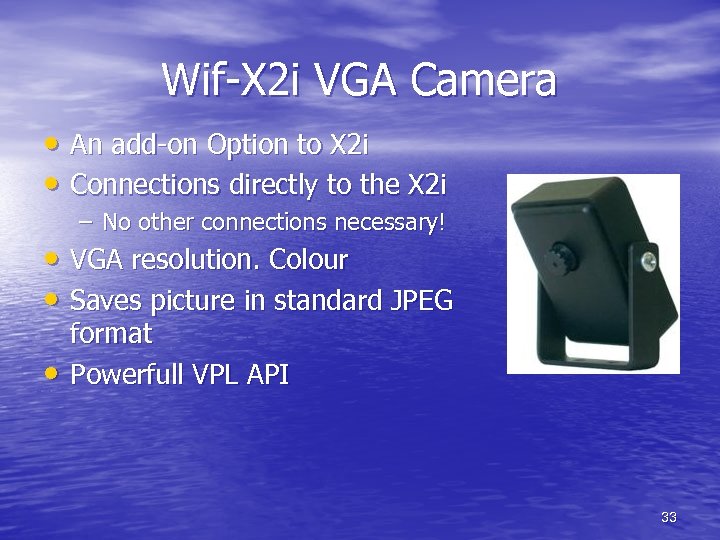

Wif-X 2 i VGA Camera • An add-on Option to X 2 i • Connections directly to the X 2 i – No other connections necessary! • VGA resolution. Colour • Saves picture in standard JPEG • format Powerfull VPL API 33

Wif-X 2 i VGA Camera – sample pictures 34

GPRS features • Wif was one of the first in the world with GPRS from 2004 • Large experience from 40+ networks • All network and/or GSM module problems are handled by the firmware • Wif solutions could manage also Sms, Wi-fi and private radio systems 35

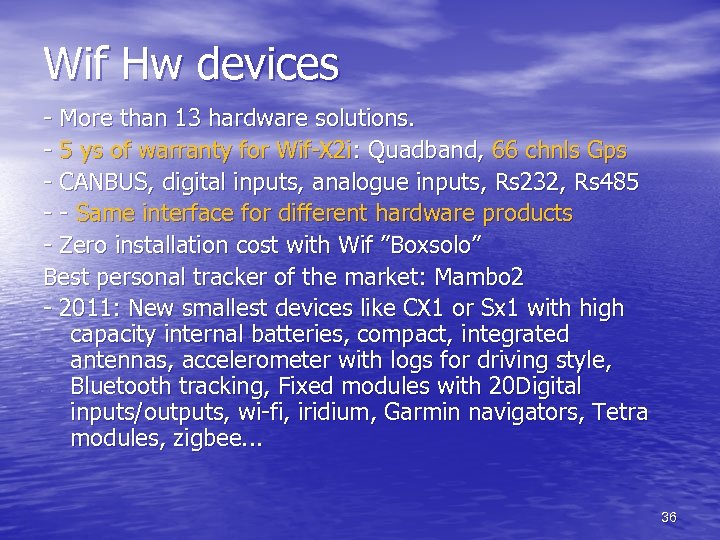

Wif Hw devices - More than 13 hardware solutions. - 5 ys of warranty for Wif-X 2 i: Quadband, 66 chnls Gps - CANBUS, digital inputs, analogue inputs, Rs 232, Rs 485 - - Same interface for different hardware products - Zero installation cost with Wif ”Boxsolo” Best personal tracker of the market: Mambo 2 - 2011: New smallest devices like CX 1 or Sx 1 with high capacity internal batteries, compact, integrated antennas, accelerometer with logs for driving style, Bluetooth tracking, Fixed modules with 20 Digital inputs/outputs, wi-fi, iridium, Garmin navigators, Tetra modules, zigbee. . . 36

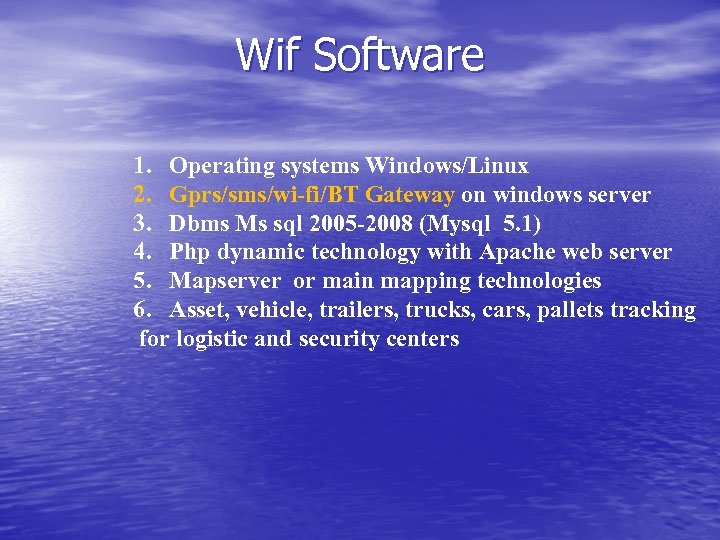

Wif Software 1. Operating systems Windows/Linux 2. Gprs/sms/wi-fi/BT Gateway on windows server 3. Dbms Ms sql 2005 -2008 (Mysql 5. 1) 4. Php dynamic technology with Apache web server 5. Mapserver or main mapping technologies 6. Asset, vehicle, trailers, trucks, cars, pallets tracking for logistic and security centers

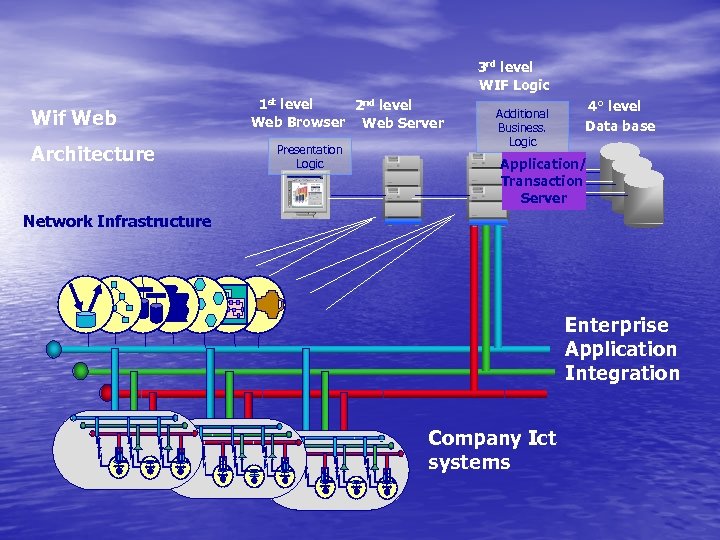

3 rd level WIF Logic Wif Web Architecture 1 st level 2 nd level Web Browser Web Server Presentation Logic Additional Business. Logic 4° level Data base Application/ Transaction Server Network Infrastructure Enterprise Application Integration Company Ict systems

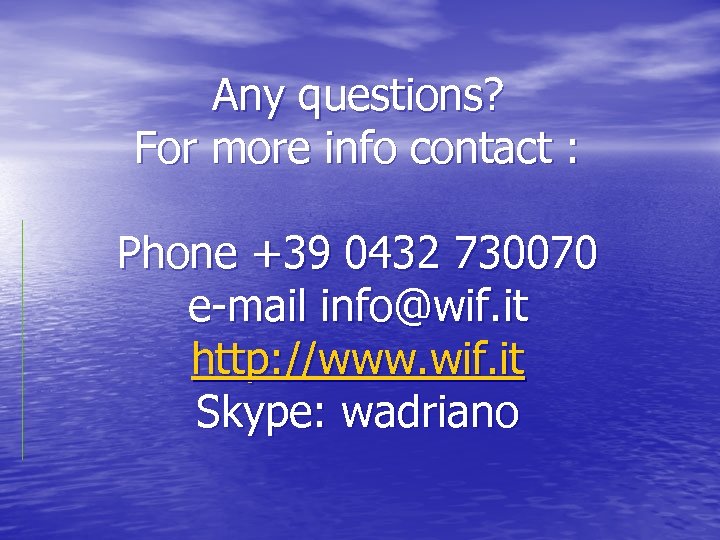

Any questions? For more info contact : Phone +39 0432 730070 e-mail info@wif. it http: //www. wif. it Skype: wadriano
