What to trust on the Net or do

What to trust on the Net? or do I get all these emails from LLoyds Bank when I'm not a customer? ” “Why Andrew Mc. Nab

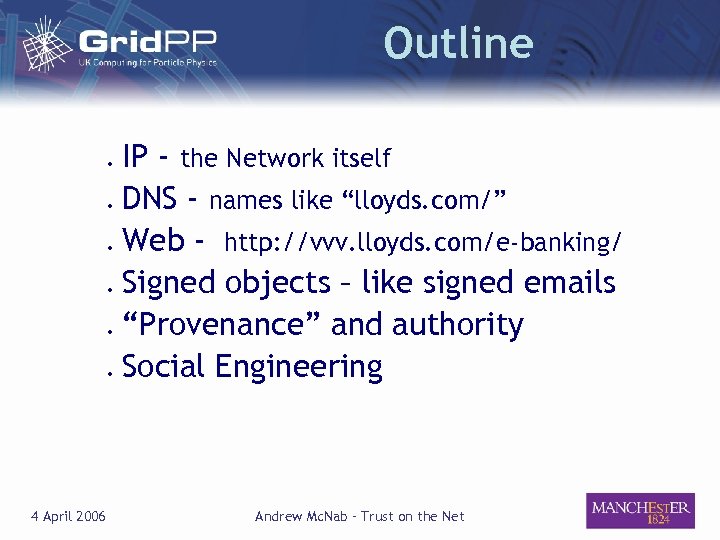

Outline ● ● ● 4 April 2006 IP - the Network itself DNS - names like “lloyds. com/” Web - http: //vvv. lloyds. com/e-banking/ Signed objects – like signed emails “Provenance” and authority Social Engineering Andrew Mc. Nab – Trust on the Net

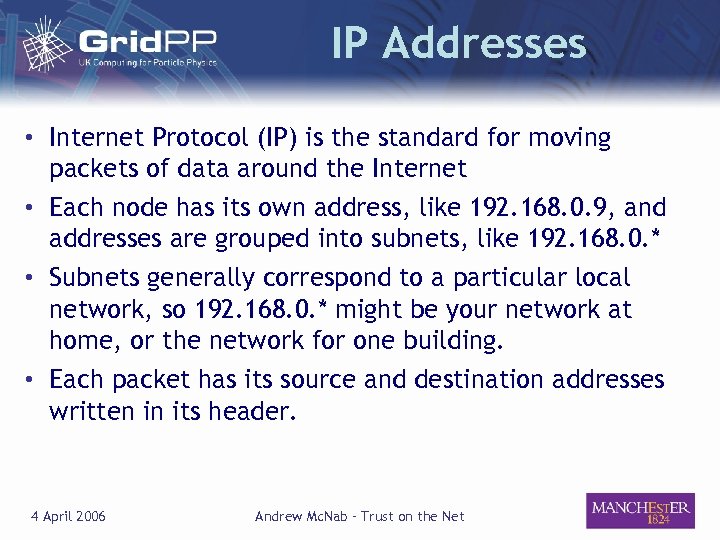

IP Addresses • Internet Protocol (IP) is the standard for moving packets of data around the Internet • Each node has its own address, like 192. 168. 0. 9, and addresses are grouped into subnets, like 192. 168. 0. * • Subnets generally correspond to a particular local network, so 192. 168. 0. * might be your network at home, or the network for one building. • Each packet has its source and destination addresses written in its header. 4 April 2006 Andrew Mc. Nab – Trust on the Net

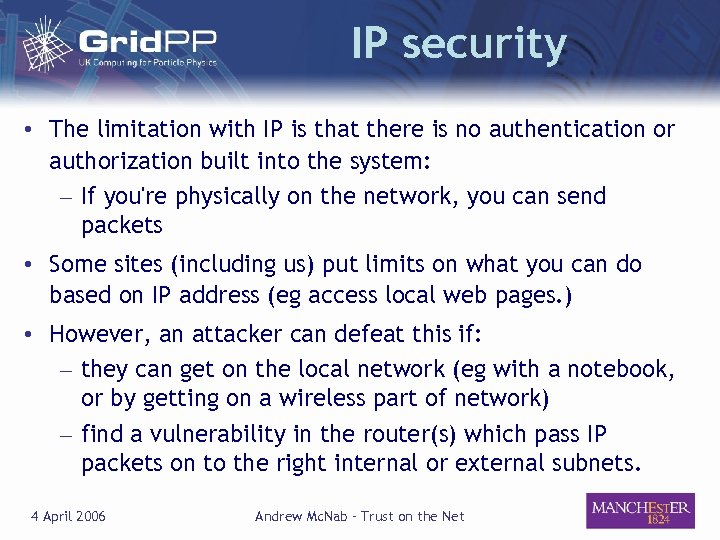

IP security • The limitation with IP is that there is no authentication or authorization built into the system: – If you're physically on the network, you can send packets • Some sites (including us) put limits on what you can do based on IP address (eg access local web pages. ) • However, an attacker can defeat this if: – they can get on the local network (eg with a notebook, or by getting on a wireless part of network) – find a vulnerability in the router(s) which pass IP packets on to the right internal or external subnets. 4 April 2006 Andrew Mc. Nab – Trust on the Net

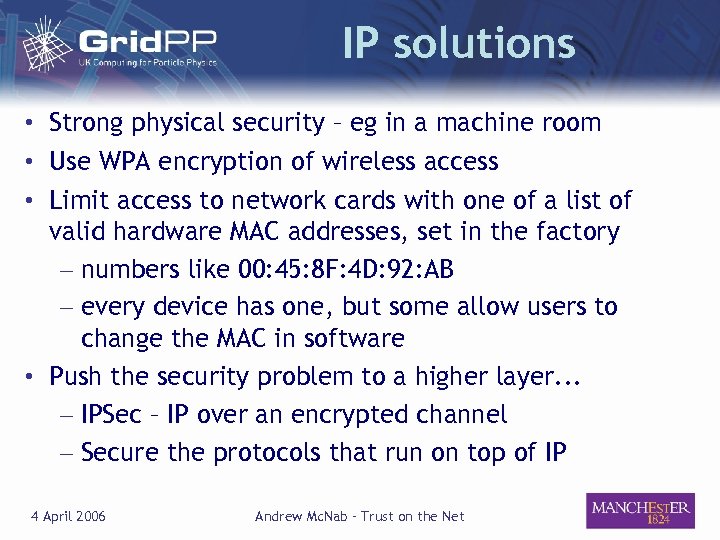

IP solutions • Strong physical security – eg in a machine room • Use WPA encryption of wireless access • Limit access to network cards with one of a list of valid hardware MAC addresses, set in the factory – numbers like 00: 45: 8 F: 4 D: 92: AB – every device has one, but some allow users to change the MAC in software • Push the security problem to a higher layer. . . – IPSec – IP over an encrypted channel – Secure the protocols that run on top of IP 4 April 2006 Andrew Mc. Nab – Trust on the Net

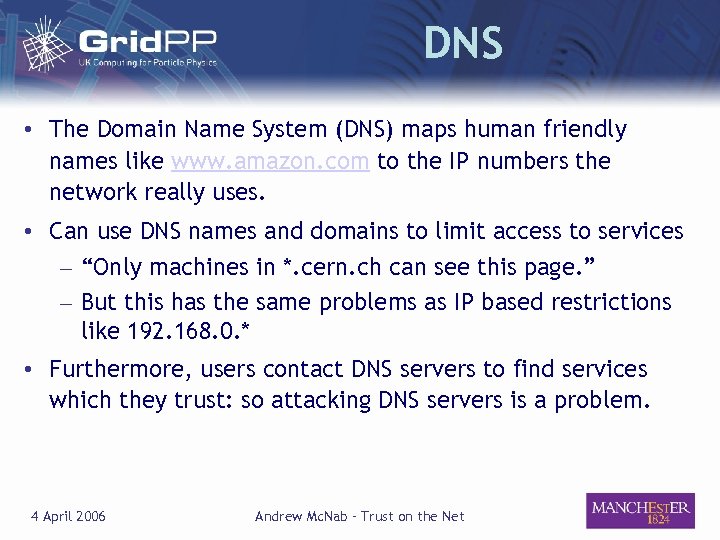

DNS • The Domain Name System (DNS) maps human friendly names like www. amazon. com to the IP numbers the network really uses. • Can use DNS names and domains to limit access to services – “Only machines in *. cern. ch can see this page. ” – But this has the same problems as IP based restrictions like 192. 168. 0. * • Furthermore, users contact DNS servers to find services which they trust: so attacking DNS servers is a problem. 4 April 2006 Andrew Mc. Nab – Trust on the Net

DNS server attacks • For example, to make www. lloyds-bank. com point to my notebook rather than their server • Most DNS servers use the same program, BIND, and vulnerabilities in this are regularly found – so maybe I can hack the user's local DNS server, and make it lie about www. lloyds-bank. com • It's possible to misconfigure DNS servers to allow attackers to inject fake data (ie pretending to know the truth about where www. lloyds-bank. com is) 4 April 2006 Andrew Mc. Nab – Trust on the Net

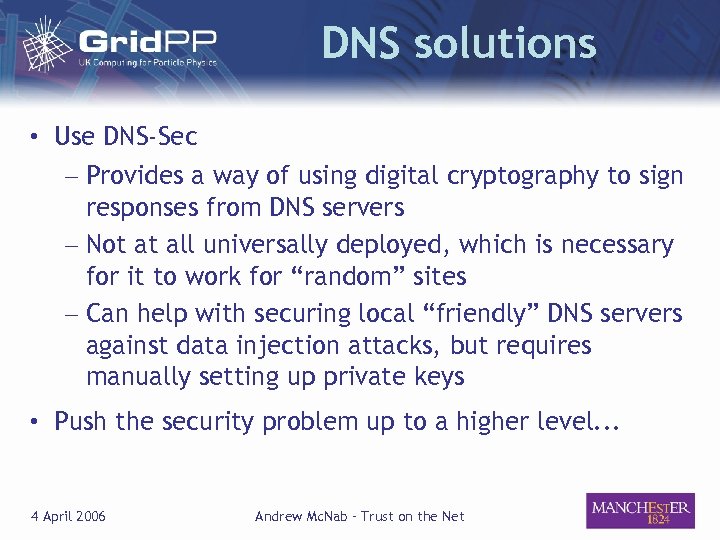

DNS solutions • Use DNS-Sec – Provides a way of using digital cryptography to sign responses from DNS servers – Not at all universally deployed, which is necessary for it to work for “random” sites – Can help with securing local “friendly” DNS servers against data injection attacks, but requires manually setting up private keys • Push the security problem up to a higher level. . . 4 April 2006 Andrew Mc. Nab – Trust on the Net

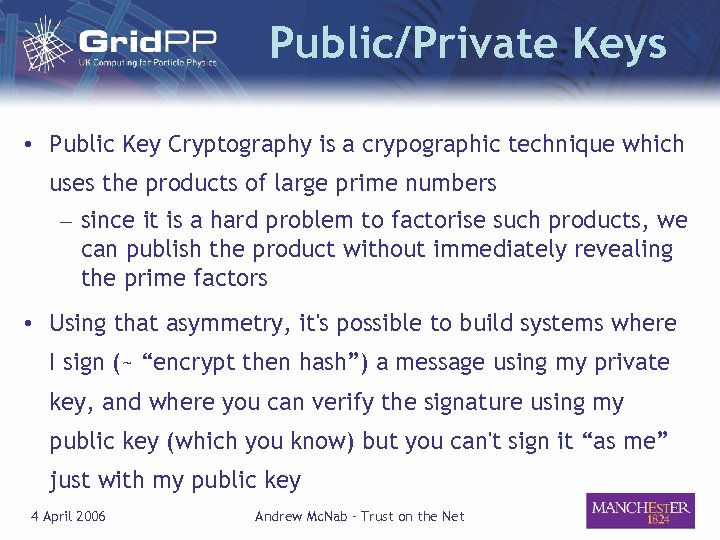

Public/Private Keys • Public Key Cryptography is a crypographic technique which uses the products of large prime numbers – since it is a hard problem to factorise such products, we can publish the product without immediately revealing the prime factors • Using that asymmetry, it's possible to build systems where I sign (~ “encrypt then hash”) a message using my private key, and where you can verify the signature using my public key (which you know) but you can't sign it “as me” just with my public key 4 April 2006 Andrew Mc. Nab – Trust on the Net

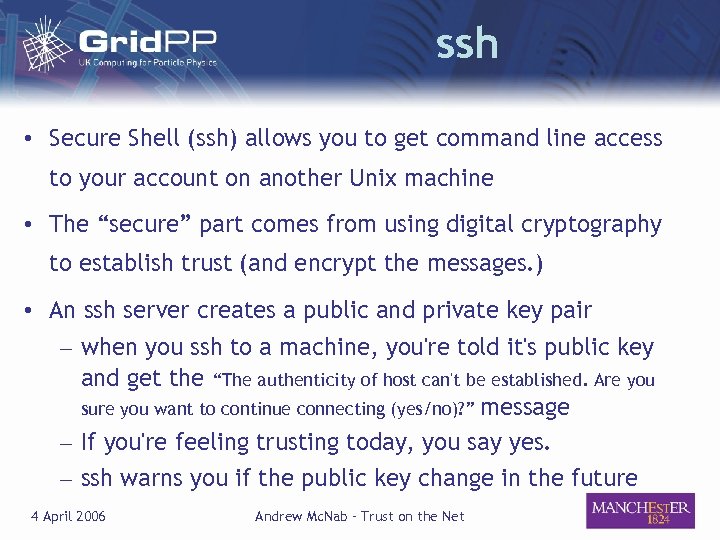

ssh • Secure Shell (ssh) allows you to get command line access to your account on another Unix machine • The “secure” part comes from using digital cryptography to establish trust (and encrypt the messages. ) • An ssh server creates a public and private key pair – when you ssh to a machine, you're told it's public key and get the “The authenticity of host can't be established. Are you sure you want to continue connecting (yes/no)? ” message – If you're feeling trusting today, you say yes. – ssh warns you if the public key change in the future 4 April 2006 Andrew Mc. Nab – Trust on the Net

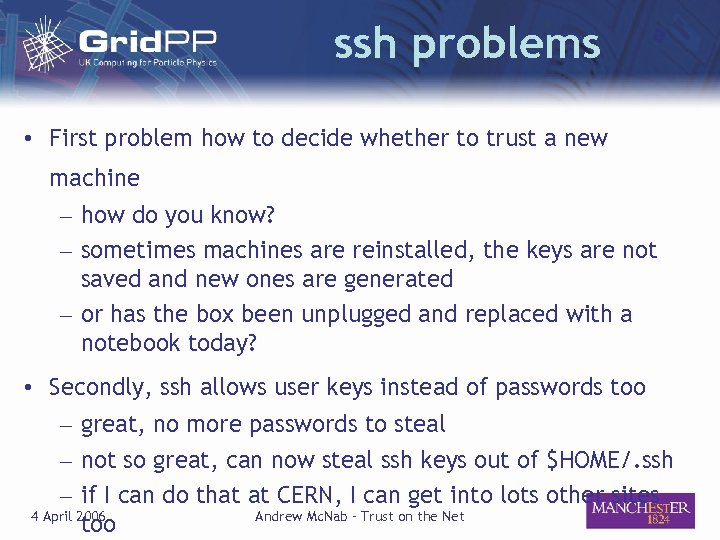

ssh problems • First problem how to decide whether to trust a new machine – how do you know? – sometimes machines are reinstalled, the keys are not saved and new ones are generated – or has the box been unplugged and replaced with a notebook today? • Secondly, ssh allows user keys instead of passwords too – great, no more passwords to steal – not so great, can now steal ssh keys out of $HOME/. ssh – if I can do that at CERN, I can get into lots other sites 4 April 2006 Andrew Mc. Nab – Trust on the Net too

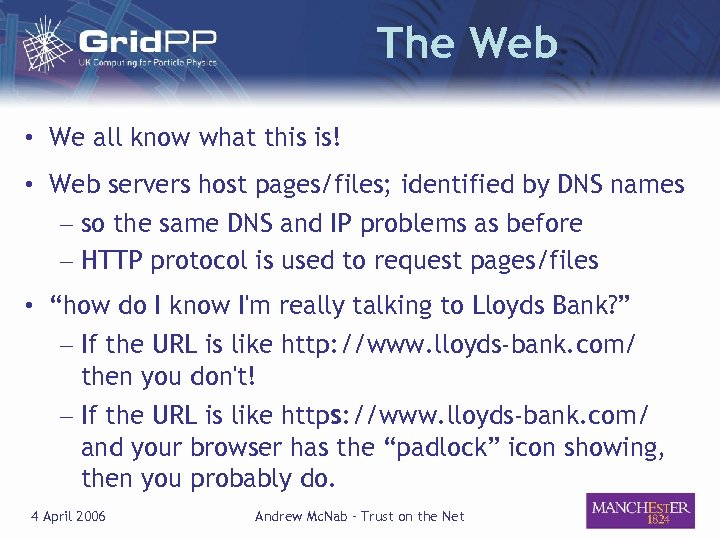

The Web • We all know what this is! • Web servers host pages/files; identified by DNS names – so the same DNS and IP problems as before – HTTP protocol is used to request pages/files • “how do I know I'm really talking to Lloyds Bank? ” – If the URL is like http: //www. lloyds-bank. com/ then you don't! – If the URL is like https: //www. lloyds-bank. com/ and your browser has the “padlock” icon showing, then you probably do. 4 April 2006 Andrew Mc. Nab – Trust on the Net

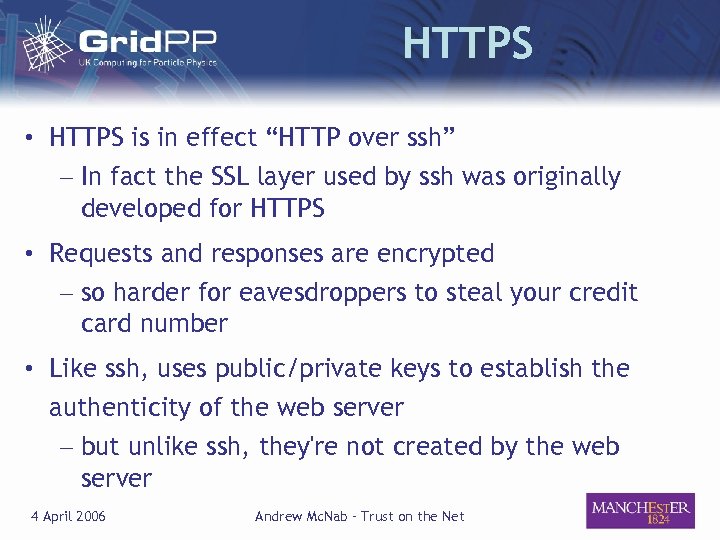

HTTPS • HTTPS is in effect “HTTP over ssh” – In fact the SSL layer used by ssh was originally developed for HTTPS • Requests and responses are encrypted – so harder for eavesdroppers to steal your credit card number • Like ssh, uses public/private keys to establish the authenticity of the web server – but unlike ssh, they're not created by the web server 4 April 2006 Andrew Mc. Nab – Trust on the Net

Certificates • Public Key Cryptography allows us to sign “things”, in a way that other people can verify – This means a trusted third party (TTP) can sign a server's public key – The TTP can vouch for the authenticity of any name associated with the public key – In practice, Certification Authorities issue signed public keys (“certificates”) with DNS names – By trusting a few CAs, I can trust 1000 s of certificates • CAs exist both commercially (Verisign, BT etc) and in research projects (UK e-Science CA) 4 April 2006 Andrew Mc. Nab – Trust on the Net

HTTPS + certificates • Certificates make HTTPS one of the most reliable security systems in production on the Net. – So they're the basis of authentication on the Grid too – Can also be used to identify users to servers: signed user certificate instead of private ssh key • But the certificates still just authenticate: they don't tell you whether you can trust www. LL 0 YDS-BANK. com, just that the server is run by the owner of ll 0 yds-bank. com. • So we push the problem up a level again, and manually squint at URLs to see if they're faked. . . 4 April 2006 Andrew Mc. Nab – Trust on the Net

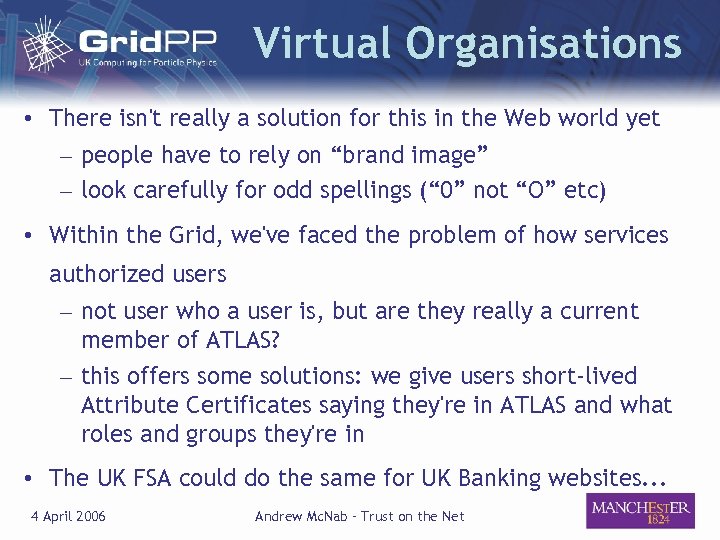

Virtual Organisations • There isn't really a solution for this in the Web world yet – people have to rely on “brand image” – look carefully for odd spellings (“ 0” not “O” etc) • Within the Grid, we've faced the problem of how services authorized users – not user who a user is, but are they really a current member of ATLAS? – this offers some solutions: we give users short-lived Attribute Certificates saying they're in ATLAS and what roles and groups they're in • The UK FSA could do the same for UK Banking websites. . . 4 April 2006 Andrew Mc. Nab – Trust on the Net

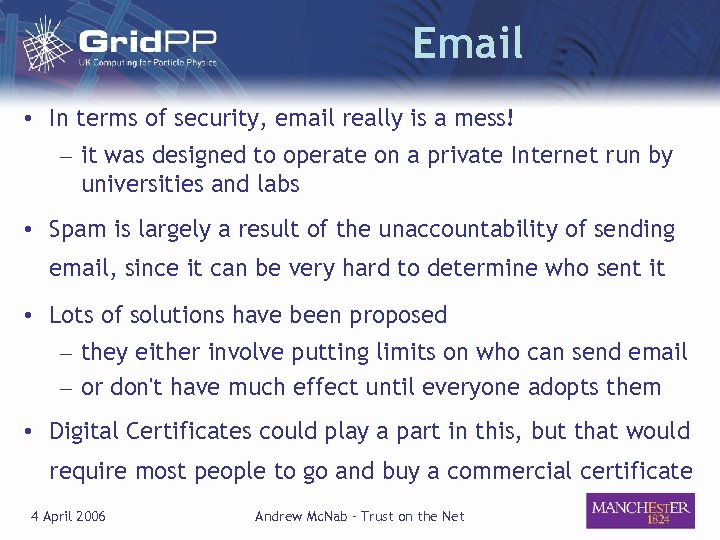

Email • In terms of security, email really is a mess! – it was designed to operate on a private Internet run by universities and labs • Spam is largely a result of the unaccountability of sending email, since it can be very hard to determine who sent it • Lots of solutions have been proposed – they either involve putting limits on who can send email – or don't have much effect until everyone adopts them • Digital Certificates could play a part in this, but that would require most people to go and buy a commercial certificate 4 April 2006 Andrew Mc. Nab – Trust on the Net

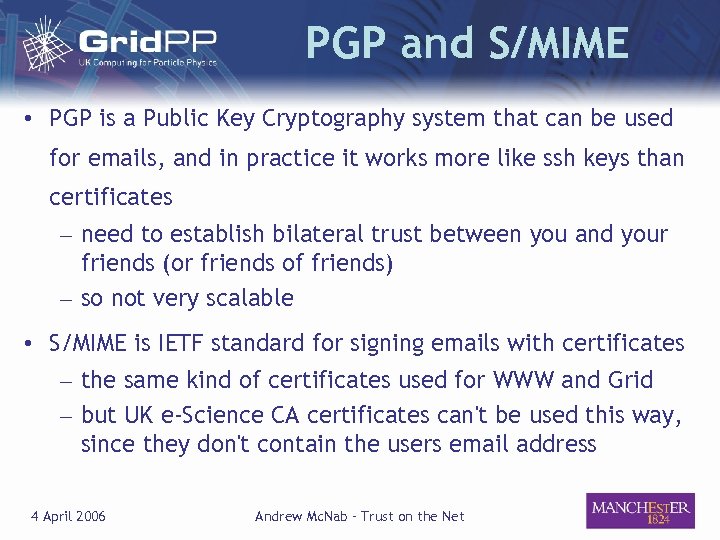

PGP and S/MIME • PGP is a Public Key Cryptography system that can be used for emails, and in practice it works more like ssh keys than certificates – need to establish bilateral trust between you and your friends (or friends of friends) – so not very scalable • S/MIME is IETF standard for signing emails with certificates – the same kind of certificates used for WWW and Grid – but UK e-Science CA certificates can't be used this way, since they don't contain the users email address 4 April 2006 Andrew Mc. Nab – Trust on the Net

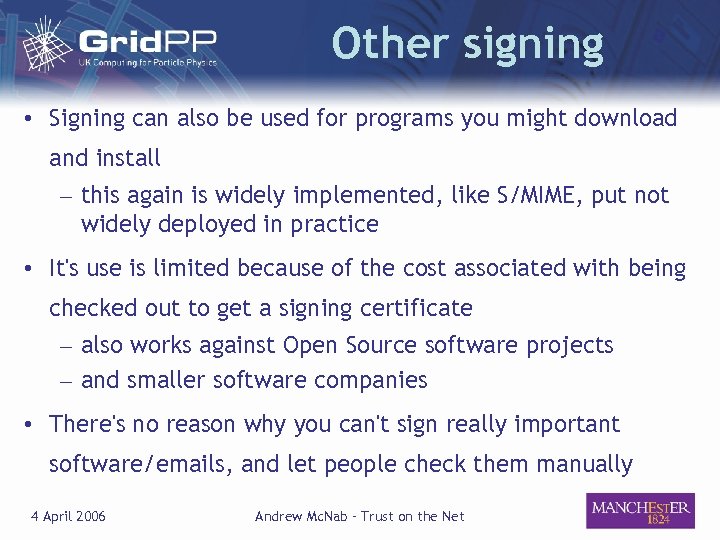

Other signing • Signing can also be used for programs you might download and install – this again is widely implemented, like S/MIME, put not widely deployed in practice • It's use is limited because of the cost associated with being checked out to get a signing certificate – also works against Open Source software projects – and smaller software companies • There's no reason why you can't sign really important software/emails, and let people check them manually 4 April 2006 Andrew Mc. Nab – Trust on the Net

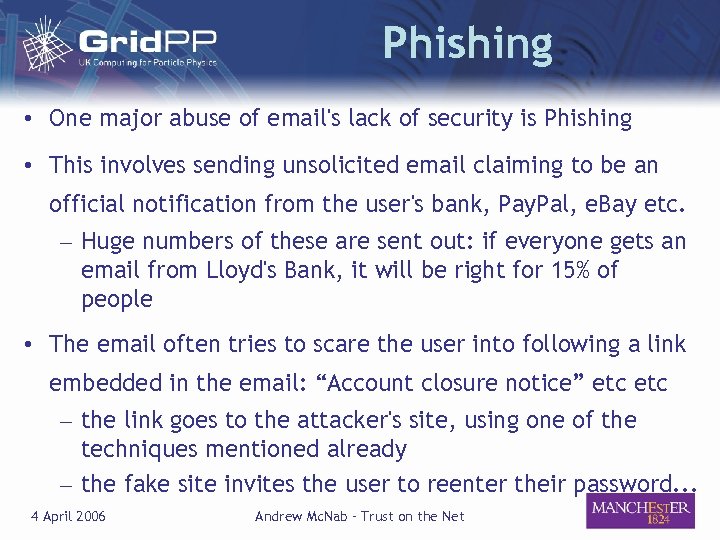

Phishing • One major abuse of email's lack of security is Phishing • This involves sending unsolicited email claiming to be an official notification from the user's bank, Pay. Pal, e. Bay etc. – Huge numbers of these are sent out: if everyone gets an email from Lloyd's Bank, it will be right for 15% of people • The email often tries to scare the user into following a link embedded in the email: “Account closure notice” etc – the link goes to the attacker's site, using one of the techniques mentioned already – the fake site invites the user to reenter their password. . . 4 April 2006 Andrew Mc. Nab – Trust on the Net

Social Engineering • Phishing is an automated form of the “ancient” hacker technique of “Social Engineering” – ie talking people into doing things that let you break in – The “ph” comes from Phone Phreaking – which involved hacking ATT's telephone network, and often required pretending to be a telephone engineer • One of the problems of network security is the tendency to “push the problem up to a higher level”. • Eventually, The Highest Level is a human, and we're much worse at following security procedures than computers 4 April 2006 Andrew Mc. Nab – Trust on the Net

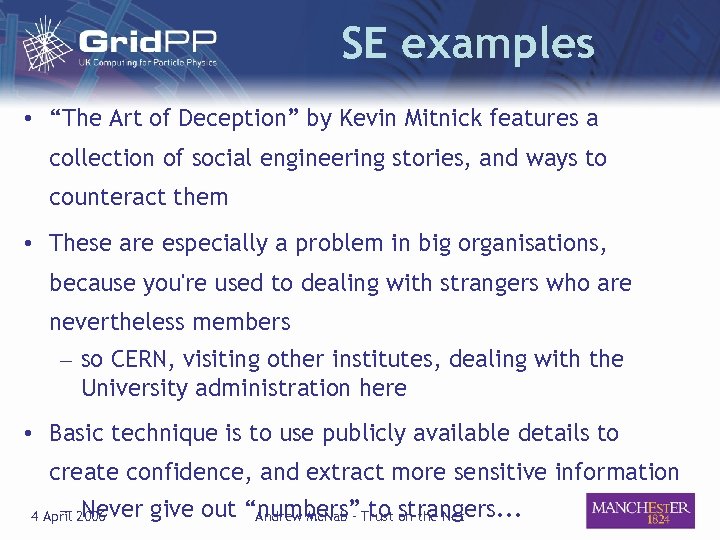

SE examples • “The Art of Deception” by Kevin Mitnick features a collection of social engineering stories, and ways to counteract them • These are especially a problem in big organisations, because you're used to dealing with strangers who are nevertheless members – so CERN, visiting other institutes, dealing with the University administration here • Basic technique is to use publicly available details to create confidence, and extract more sensitive information – Never give out “numbers”Trust strangers. . . Andrew Mc. Nab – to on the Net 4 April 2006

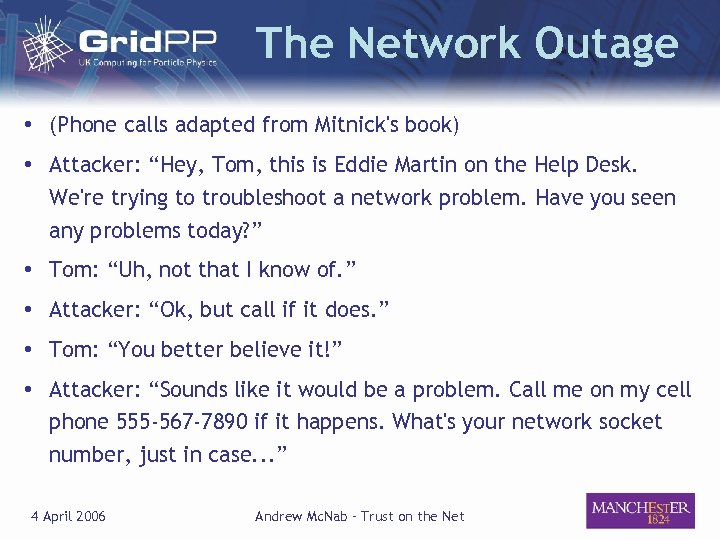

The Network Outage • (Phone calls adapted from Mitnick's book) • Attacker: “Hey, Tom, this is Eddie Martin on the Help Desk. We're trying to troubleshoot a network problem. Have you seen any problems today? ” • Tom: “Uh, not that I know of. ” • Attacker: “Ok, but call if it does. ” • Tom: “You better believe it!” • Attacker: “Sounds like it would be a problem. Call me on my cell phone 555 -567 -7890 if it happens. What's your network socket number, just in case. . . ” 4 April 2006 Andrew Mc. Nab – Trust on the Net

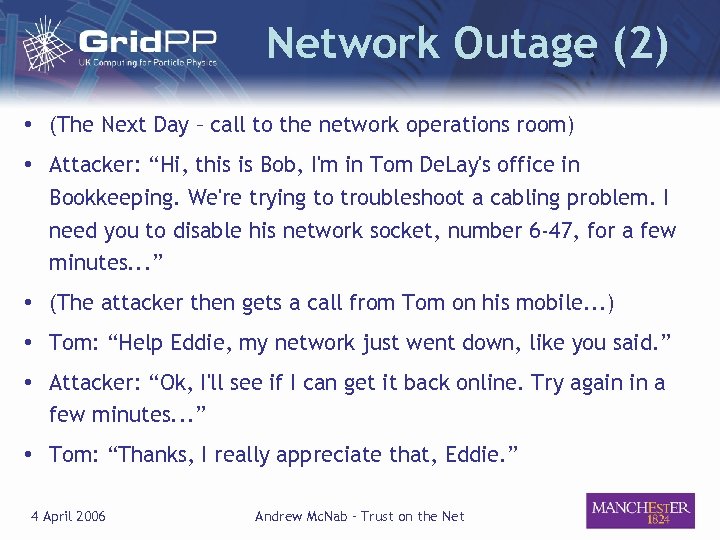

Network Outage (2) • (The Next Day – call to the network operations room) • Attacker: “Hi, this is Bob, I'm in Tom De. Lay's office in Bookkeeping. We're trying to troubleshoot a cabling problem. I need you to disable his network socket, number 6 -47, for a few minutes. . . ” • (The attacker then gets a call from Tom on his mobile. . . ) • Tom: “Help Eddie, my network just went down, like you said. ” • Attacker: “Ok, I'll see if I can get it back online. Try again in a few minutes. . . ” • Tom: “Thanks, I really appreciate that, Eddie. ” 4 April 2006 Andrew Mc. Nab – Trust on the Net

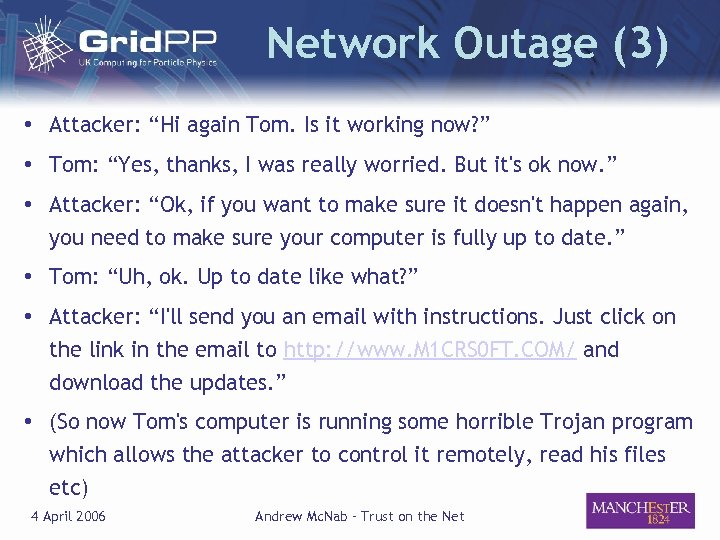

Network Outage (3) • Attacker: “Hi again Tom. Is it working now? ” • Tom: “Yes, thanks, I was really worried. But it's ok now. ” • Attacker: “Ok, if you want to make sure it doesn't happen again, you need to make sure your computer is fully up to date. ” • Tom: “Uh, ok. Up to date like what? ” • Attacker: “I'll send you an email with instructions. Just click on the link in the email to http: //www. M 1 CRS 0 FT. COM/ and download the updates. ” • (So now Tom's computer is running some horrible Trojan program which allows the attacker to control it remotely, read his files etc) 4 April 2006 Andrew Mc. Nab – Trust on the Net

Summary • You can trust HTTPS websites IF you make sure they've got sensible names – you can minimise the risk of Phishing attacks by using Google to find sites, and not trusting URLs in emails • ssh is great once you've made contact with a site and accepted its public key • Everything else shouldn't be taken at face value – especially helpful people who ask you about employment numbers, network numbers, addresses, office numbers, “what Professor X's secretary's first name is” etc that could be used to build confidence in an attacker. . . 4 April 2006 Andrew Mc. Nab – Trust on the Net
