What is Vehicle Tracking Systems(VTS) It is a system wherein you can locate exact Location of your vehicle on your desktop Sitting in your premises/offices. Its very simple Tracking System by which you can know the latest Position of Your Vehicle whether it is mobile , halted or broken down somewhere. It also tells you about the current speed, average speed and the exact stoppage durations of the vehicle on your desktop. You can even fix the route of the trip and keep a watch whether the vehicle is following the same. Plus it also gives you reports of the trip, vehicle and the status report. Plus Many more Application and Advantages. Next

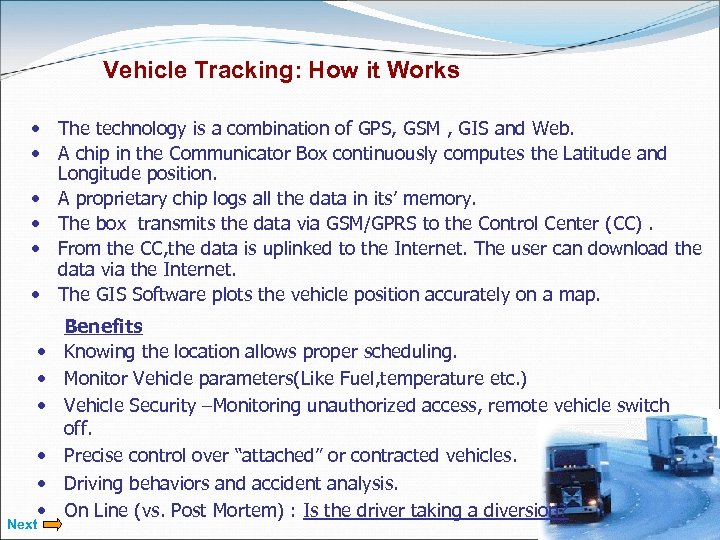

Vehicle Tracking: How it Works • The technology is a combination of GPS, GSM , GIS and Web. • A chip in the Communicator Box continuously computes the Latitude and Longitude position. • A proprietary chip logs all the data in its’ memory. • The box transmits the data via GSM/GPRS to the Control Center (CC). • From the CC, the data is uplinked to the Internet. The user can download the data via the Internet. • The GIS Software plots the vehicle position accurately on a map. • • • Next Benefits Knowing the location allows proper scheduling. Monitor Vehicle parameters(Like Fuel, temperature etc. ) Vehicle Security –Monitoring unauthorized access, remote vehicle switch off. Precise control over “attached” or contracted vehicles. Driving behaviors and accident analysis. On Line (vs. Post Mortem) : Is the driver taking a diversion?

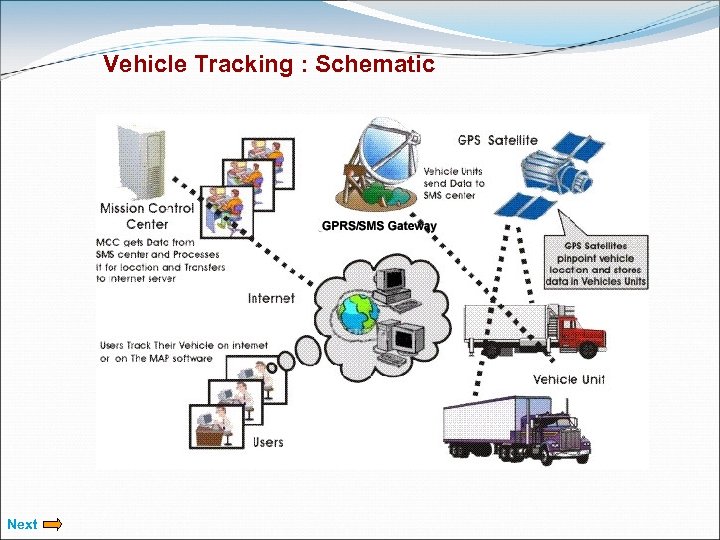

Vehicle Tracking : Schematic Next

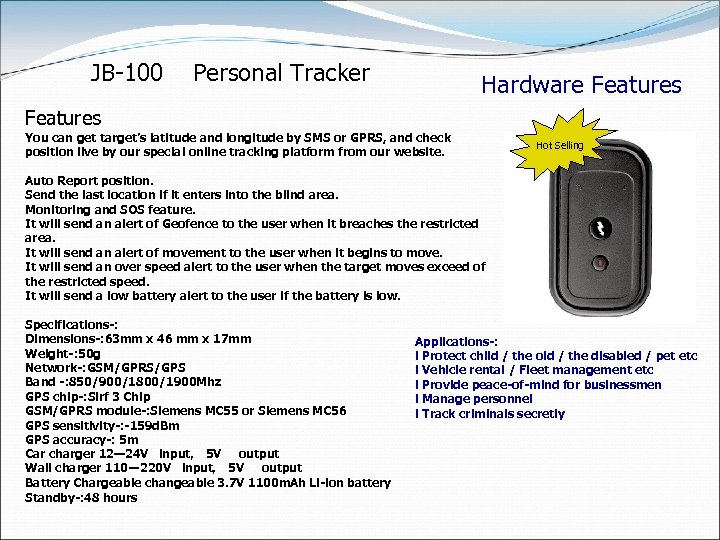

JB-100 Personal Tracker Hardware Features You can get target’s latitude and longitude by SMS or GPRS, and check position live by our special online tracking platform from our website. Hot Selling Auto Report position. Send the last location if it enters into the blind area. Monitoring and SOS feature. It will send an alert of Geofence to the user when it breaches the restricted area. It will send an alert of movement to the user when it begins to move. It will send an over speed alert to the user when the target moves exceed of the restricted speed. It will send a low battery alert to the user if the battery is low. Specifications-: Dimensions-: 63 mm x 46 mm x 17 mm Applications-: Weight-: 50 g l Protect child / the old / the disabled / pet etc Network-: GSM/GPRS/GPS l Vehicle rental / Fleet management etc Band -: 850/900/1800/1900 Mhz l Provide peace-of-mind for businessmen GPS chip-: Sirf 3 Chip l Manage personnel GSM/GPRS module-: Siemens MC 55 or Siemens MC 56 l Track criminals secretly GPS sensitivity-: -159 d. Bm GPS accuracy-: 5 m Car charger 12— 24 V input， 5 V output Wall charger 110－220 V input， 5 V output Battery Chargeable changeable 3. 7 V 1100 m. Ah Li-ion battery Standby-: 48 hours

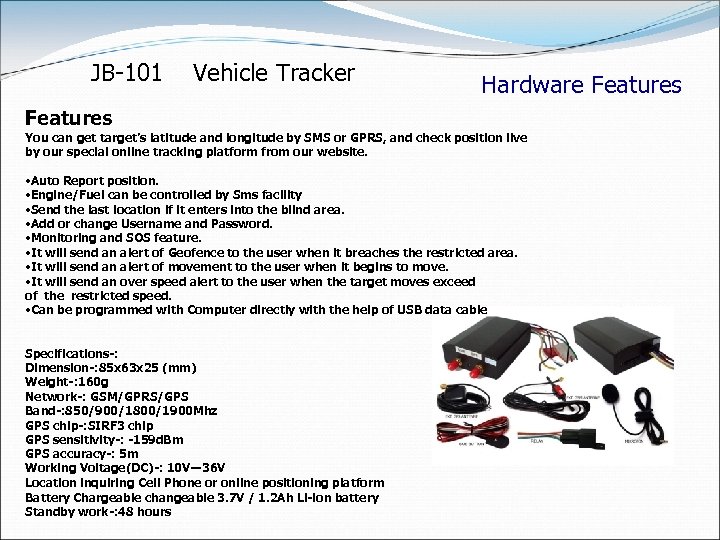

JB-101 Vehicle Tracker Hardware Features You can get target’s latitude and longitude by SMS or GPRS, and check position live by our special online tracking platform from our website. • Auto Report position. • Engine/Fuel can be controlled by Sms facility • Send the last location if it enters into the blind area. • Add or change Username and Password. • Monitoring and SOS feature. • It will send an alert of Geofence to the user when it breaches the restricted area. • It will send an alert of movement to the user when it begins to move. • It will send an over speed alert to the user when the target moves exceed of the restricted speed. • Can be programmed with Computer directly with the help of USB data cable Specifications-: Dimension-: 85 x 63 x 25 (mm) Weight-: 160 g Network-: GSM/GPRS/GPS Band-: 850/900/1800/1900 Mhz GPS chip-: SIRF 3 chip GPS sensitivity-: -159 d. Bm GPS accuracy-: 5 m Working Voltage(DC)-: 10 V－36 V Location inquiring Cell Phone or online positioning platform Battery Chargeable changeable 3. 7 V / 1. 2 Ah Li-ion battery Standby work-: 48 hours

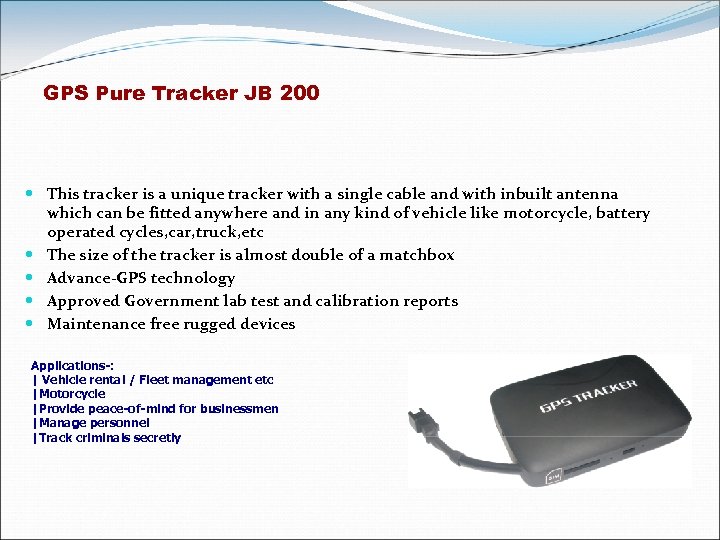

GPS Pure Tracker JB 200 This tracker is a unique tracker with a single cable and with inbuilt antenna which can be fitted anywhere and in any kind of vehicle like motorcycle, battery operated cycles, car, truck, etc The size of the tracker is almost double of a matchbox Advance-GPS technology Approved Government lab test and calibration reports Maintenance free rugged devices Applications-: | Vehicle rental / Fleet management etc |Motorcycle |Provide peace-of-mind for businessmen |Manage personnel |Track criminals secretly

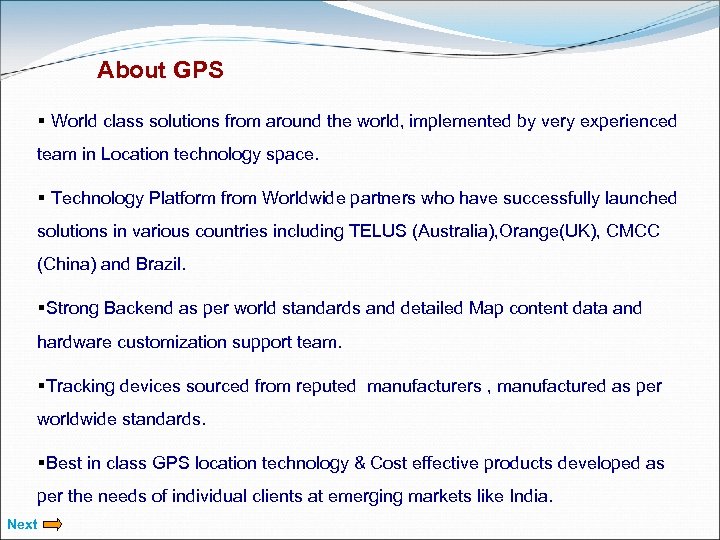

About GPS World class solutions from around the world, implemented by very experienced team in Location technology space. Technology Platform from Worldwide partners who have successfully launched solutions in various countries including TELUS (Australia), Orange(UK), CMCC (China) and Brazil. Strong Backend as per world standards and detailed Map content data and hardware customization support team. Tracking devices sourced from reputed manufacturers , manufactured as per worldwide standards. Best in class GPS location technology & Cost effective products developed as per the needs of individual clients at emerging markets like India. Next

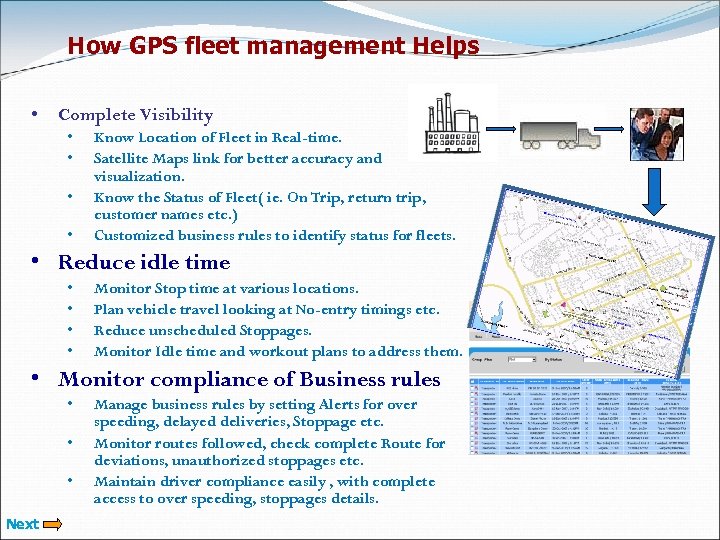

How GPS fleet management Helps • Complete Visibility • • Know Location of Fleet in Real-time. Satellite Maps link for better accuracy and visualization. Know the Status of Fleet( ie. On Trip, return trip, customer names etc. ) Customized business rules to identify status for fleets. • Reduce idle time • • Monitor Stop time at various locations. Plan vehicle travel looking at No-entry timings etc. Reduce unscheduled Stoppages. Monitor Idle time and workout plans to address them. • Monitor compliance of Business rules • • • Next Manage business rules by setting Alerts for over speeding, delayed deliveries, Stoppage etc. Monitor routes followed, check complete Route for deviations, unauthorized stoppages etc. Maintain driver compliance easily , with complete access to over speeding, stoppages details.

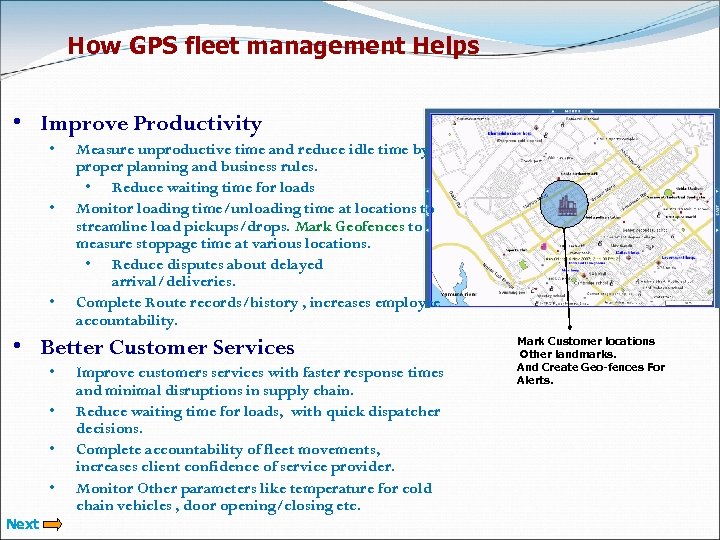

How GPS fleet management Helps • Improve Productivity • • • Measure unproductive time and reduce idle time by proper planning and business rules. • Reduce waiting time for loads Monitor loading time/unloading time at locations to streamline load pickups/drops. Mark Geofences to measure stoppage time at various locations. • Reduce disputes about delayed arrival/deliveries. Complete Route records/history , increases employee accountability. • Better Customer Services • • Next Improve customers services with faster response times and minimal disruptions in supply chain. Reduce waiting time for loads, with quick dispatcher decisions. Complete accountability of fleet movements, increases client confidence of service provider. Monitor Other parameters like temperature for cold chain vehicles , door opening/closing etc. Mark Customer locations Other landmarks. And Create Geo-fences For Alerts.

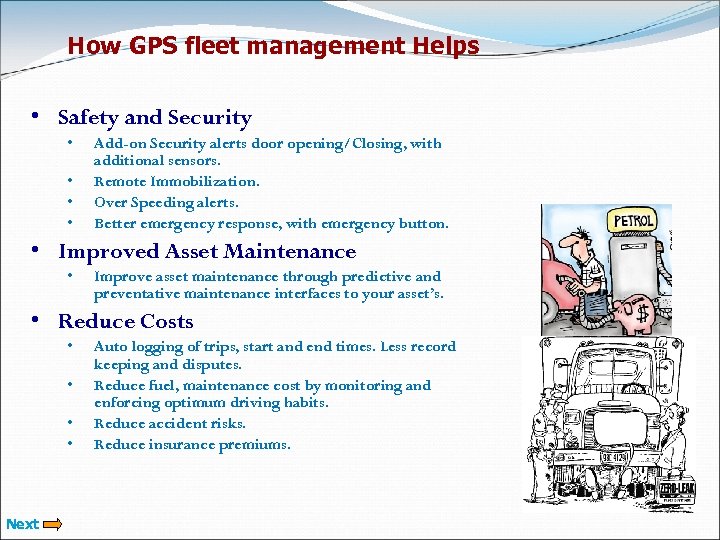

How GPS fleet management Helps • Safety and Security • • Add-on Security alerts door opening/Closing, with additional sensors. Remote Immobilization. Over Speeding alerts. Better emergency response, with emergency button. • Improved Asset Maintenance • Improve asset maintenance through predictive and preventative maintenance interfaces to your asset’s. • Reduce Costs • • Next Auto logging of trips, start and end times. Less record keeping and disputes. Reduce fuel, maintenance cost by monitoring and enforcing optimum driving habits. Reduce accident risks. Reduce insurance premiums.

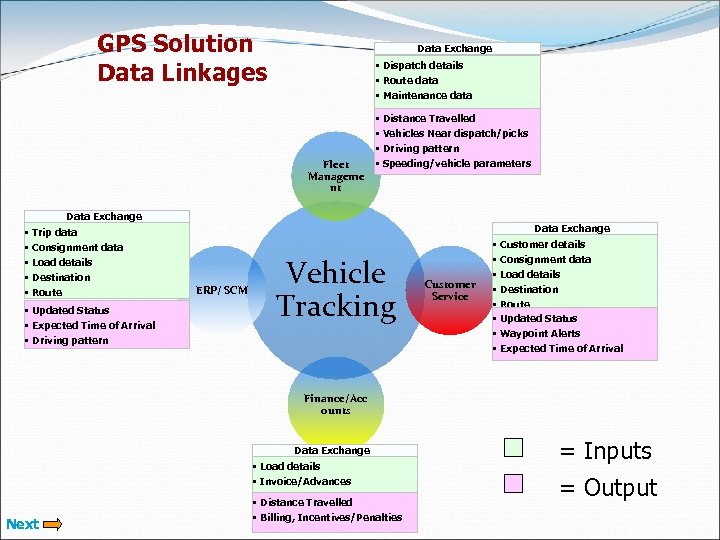

GPS Solution Data Linkages Data Exchange • Dispatch details • Route data • Maintenance data Fleet Manageme nt • Distance Travelled • Vehicles Near dispatch/picks • Driving pattern • Speeding/vehicle parameters Data Exchange • Trip data • Consignment data • Load details • Destination • Route • Updated Status • Expected Time of Arrival • Driving pattern Data Exchange ERP/ SCM Vehicle Tracking Customer Service • Customer details • Consignment data • Load details • Destination • Route • Updated Status • Waypoint Alerts • Expected Time of Arrival Finance/Acc ounts Data Exchange • Load details • Invoice/Advances Next • Distance Travelled • Billing, Incentives/Penalties = Inputs = Output

Application Areas • • • Next Automated Vehicle Tracking For Fleet management : • Commercial Fleet of Trucking and Buses Tracking and management • Tanker tracking with Valve/Lid sensors, to prevent thefts, unauthorized operations. • Fleet management for Radio Taxis and Cabs • Mobile asset management for delivery vehicles. Emergency response Services • Medical Emergency response services for faster ambulance dispatch and medical emergency management. • Police emergency management, with precise location of fleet known for better management. • Fire trucks and other emergency response vehicle management Government Applications • Municipal Fleet management( water tankers, garbage collection etc) • Passenger information system for city and long route Buses

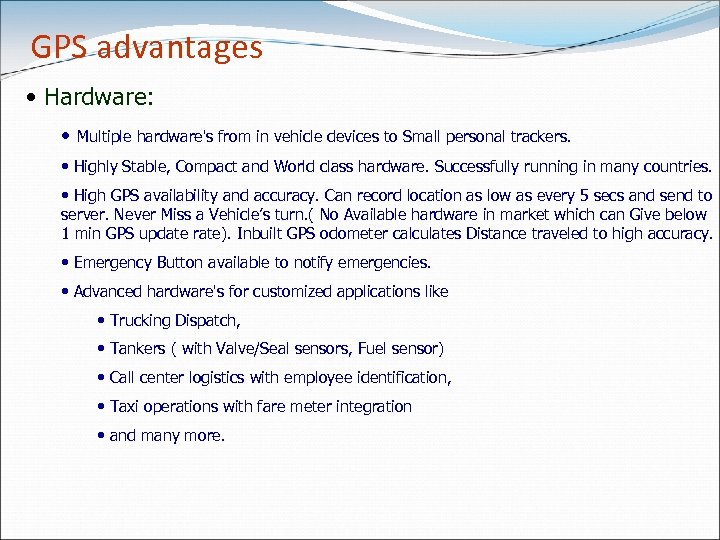

GPS advantages • Hardware: • Multiple hardware's from in vehicle devices to Small personal trackers. • Highly Stable, Compact and World class hardware. Successfully running in many countries. • High GPS availability and accuracy. Can record location as low as every 5 secs and send to server. Never Miss a Vehicle’s turn. ( No Available hardware in market which can Give below 1 min GPS update rate). Inbuilt GPS odometer calculates Distance traveled to high accuracy. • Emergency Button available to notify emergencies. • Advanced hardware's for customized applications like • Trucking Dispatch, • Tankers ( with Valve/Seal sensors, Fuel sensor) • Call center logistics with employee identification, • Taxi operations with fare meter integration • and many more.

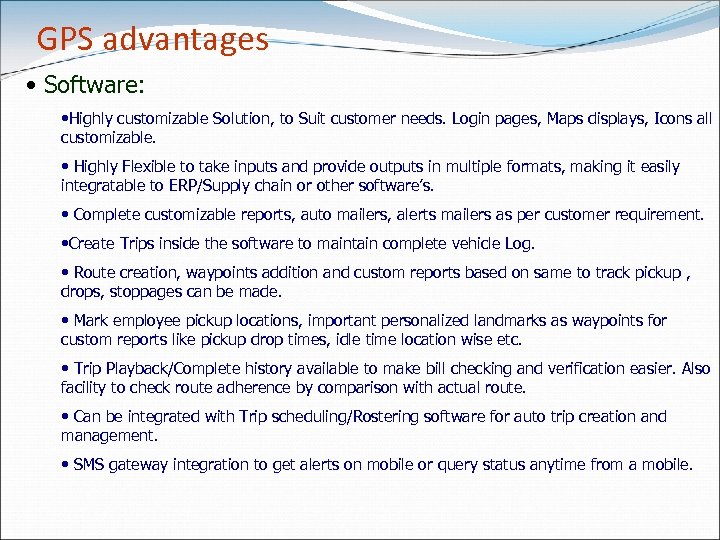

GPS advantages • Software: • Highly customizable Solution, to Suit customer needs. Login pages, Maps displays, Icons all customizable. • Highly Flexible to take inputs and provide outputs in multiple formats, making it easily integratable to ERP/Supply chain or other software’s. • Complete customizable reports, auto mailers, alerts mailers as per customer requirement. • Create Trips inside the software to maintain complete vehicle Log. • Route creation, waypoints addition and custom reports based on same to track pickup , drops, stoppages can be made. • Mark employee pickup locations, important personalized landmarks as waypoints for custom reports like pickup drop times, idle time location wise etc. • Trip Playback/Complete history available to make bill checking and verification easier. Also facility to check route adherence by comparison with actual route. • Can be integrated with Trip scheduling/Rostering software for auto trip creation and management. • SMS gateway integration to get alerts on mobile or query status anytime from a mobile.

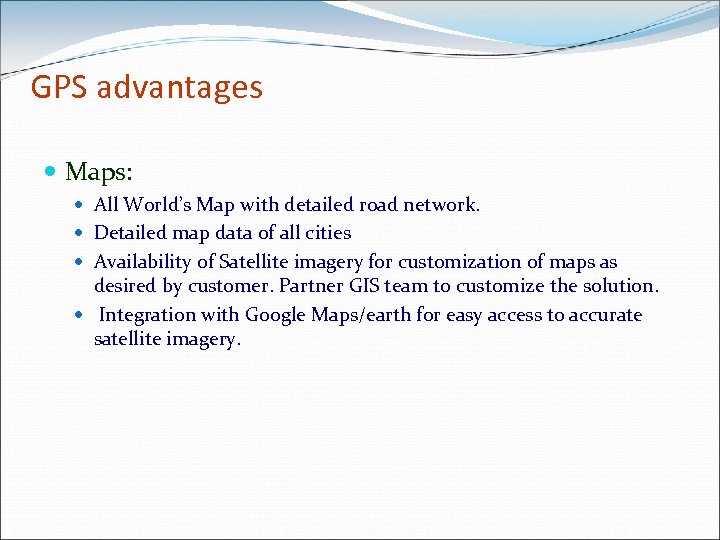

GPS advantages Maps: All World’s Map with detailed road network. Detailed map data of all cities Availability of Satellite imagery for customization of maps as desired by customer. Partner GIS team to customize the solution. Integration with Google Maps/earth for easy access to accurate satellite imagery.

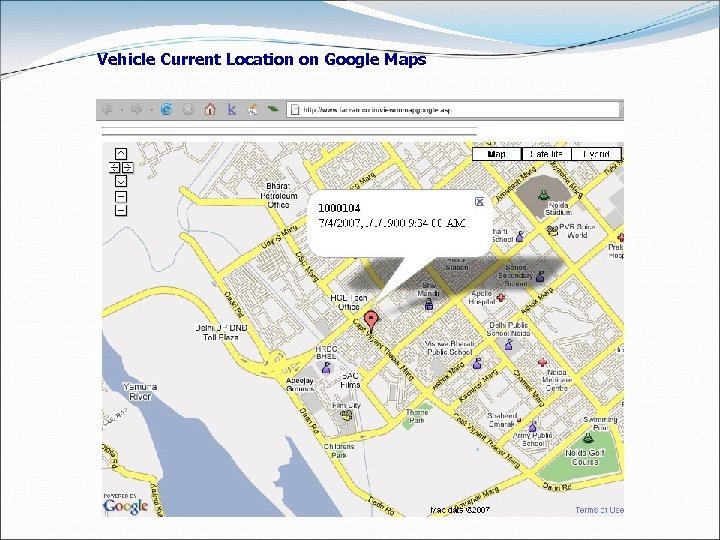

Vehicle Current Location on Google Maps

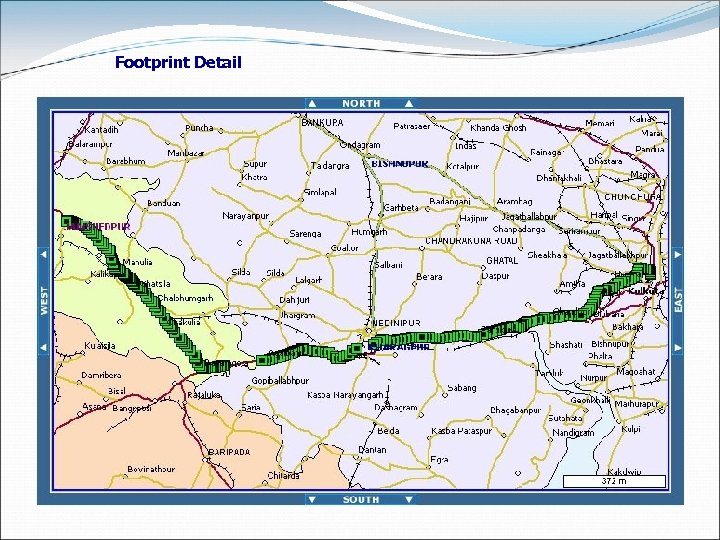

Footprint Detail

Footprint with Vehicle Detail

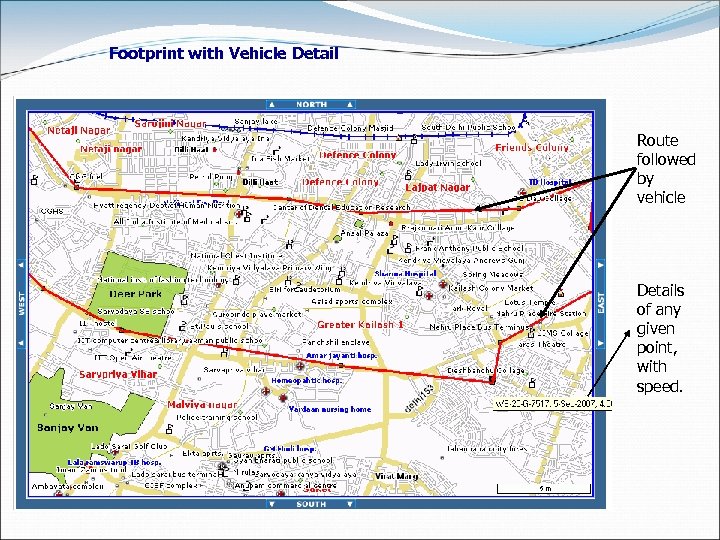

Footprint with Vehicle Detail Route followed by vehicle Details of any given point, with speed.
