Welcome to this Tech. Net Event We would like to bring your attention to Welcome to this Tech. Net Event We would like to bring your attention to the key elements of the Tech. Net programme; the central information and community resource for IT professionals in the UK: • • • FREE bi-weekly technical newsletter FREE regular technical events hosted across the UK FREE weekly UK & US led technical webcasts FREE comprehensive technical web site Monthly CD / DVD subscription with the latest technical tools & resources FREE quarterly technical magazine To subscribe to the newsletter or just to find out more, please visit www. microsoft. com/uk/technet or speak to a Microsoft representative during the break

Terminal Services Server-Centric Computing Now and in the Future Terminal Services Server-Centric Computing Now and in the Future

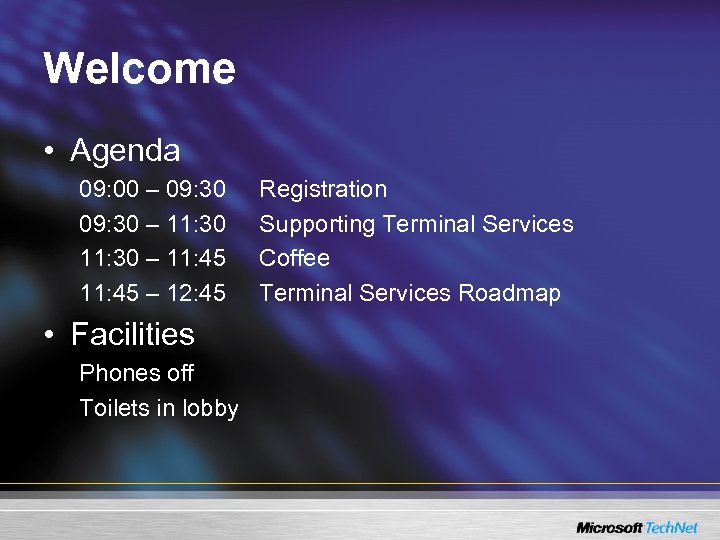

Welcome • Agenda 09: 00 – 09: 30 – 11: 45 – 12: 45 Welcome • Agenda 09: 00 – 09: 30 – 11: 45 – 12: 45 • Facilities Phones off Toilets in lobby Registration Supporting Terminal Services Coffee Terminal Services Roadmap

The PSS View: Supporting Terminal Services Sasha Loncarevic Critical Problem Resolution EMEA GTSC Platforms The PSS View: Supporting Terminal Services Sasha Loncarevic Critical Problem Resolution EMEA GTSC Platforms Support

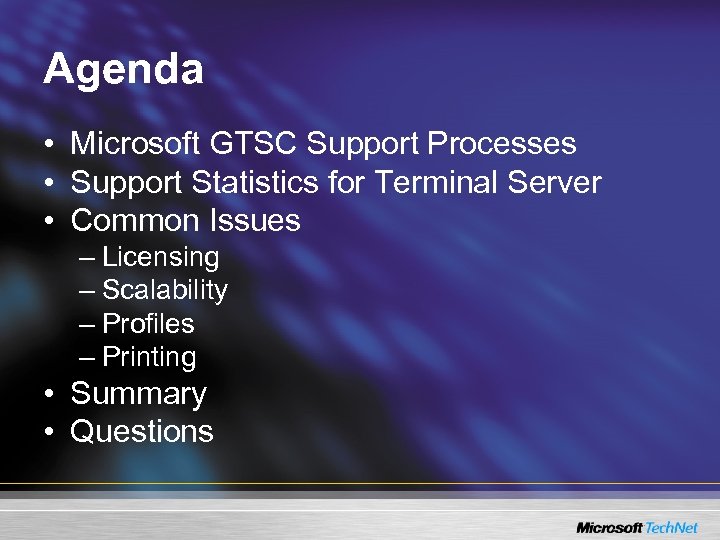

Agenda • Microsoft GTSC Support Processes • Support Statistics for Terminal Server • Common Agenda • Microsoft GTSC Support Processes • Support Statistics for Terminal Server • Common Issues – Licensing – Scalability – Profiles – Printing • Summary • Questions

Support Processes in EMEA GTSC • Win. SE (sustained Engineering) – – Part of Support Processes in EMEA GTSC • Win. SE (sustained Engineering) – – Part of Product Group Instrumentation Close collaboration with developers and PMs Developers and Win. SE are on aliases too • CPR/EE – – In-depth troubleshooting Source code & Build Environment Debugging and Instrumentation Request for Collaboration/Hotfix with Win. SE • Support Specialist – Incident database, KB (external, partner and draft), Solution Objects (internal) – International/Local Aliases – Collaboration and mentoring – Escalate to CPR/EE

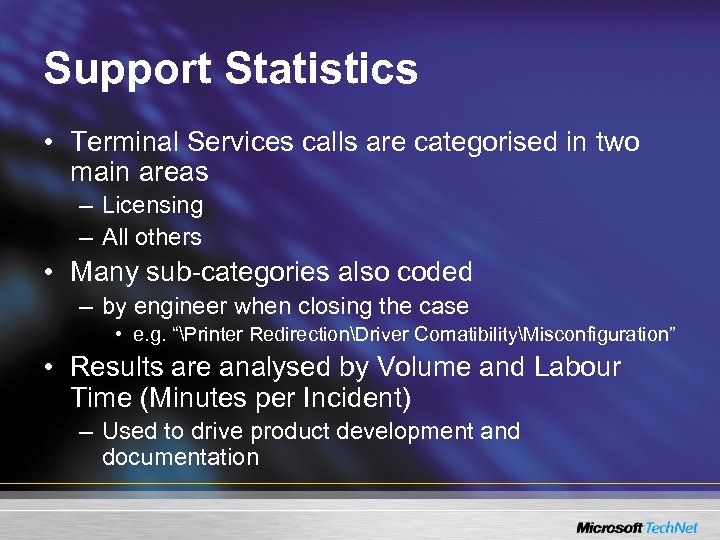

Support Statistics • Terminal Services calls are categorised in two main areas – Licensing Support Statistics • Terminal Services calls are categorised in two main areas – Licensing – All others • Many sub-categories also coded – by engineer when closing the case • e. g. “Printer RedirectionDriver ComatibilityMisconfiguration” • Results are analysed by Volume and Labour Time (Minutes per Incident) – Used to drive product development and documentation

Support in 2004 • Windows 2000 – ~10% of total Windows Server volume – Support in 2004 • Windows 2000 – ~10% of total Windows Server volume – ~5% of total Windows Server labour – Licensing accounts for half of volume, a third of labour • Windows 2003 – ~15% of total Windows Server volume – ~7% of total Windows Server labour – Licensing accounts for 75% of volume and labour • Terminal Services Licensing is in the top 10 by labour Windows 2000 Windows 2003 Volume Labour TS Other TS Licensing Non TS

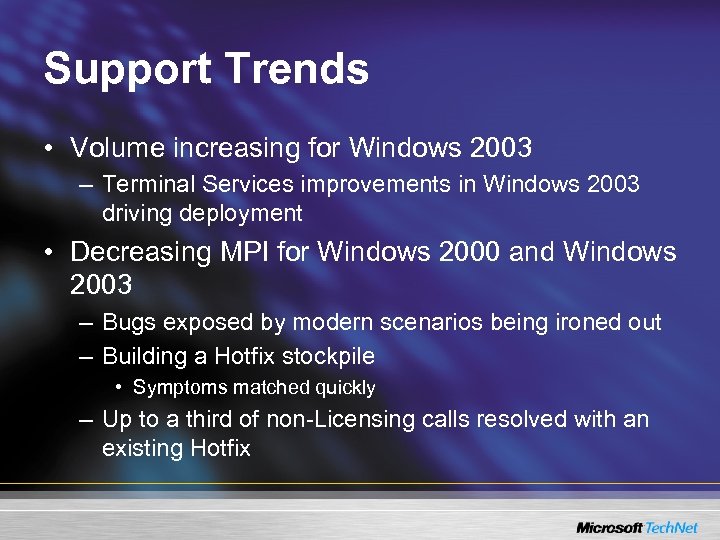

Support Trends • Volume increasing for Windows 2003 – Terminal Services improvements in Windows Support Trends • Volume increasing for Windows 2003 – Terminal Services improvements in Windows 2003 driving deployment • Decreasing MPI for Windows 2000 and Windows 2003 – Bugs exposed by modern scenarios being ironed out – Building a Hotfix stockpile • Symptoms matched quickly – Up to a third of non-Licensing calls resolved with an existing Hotfix

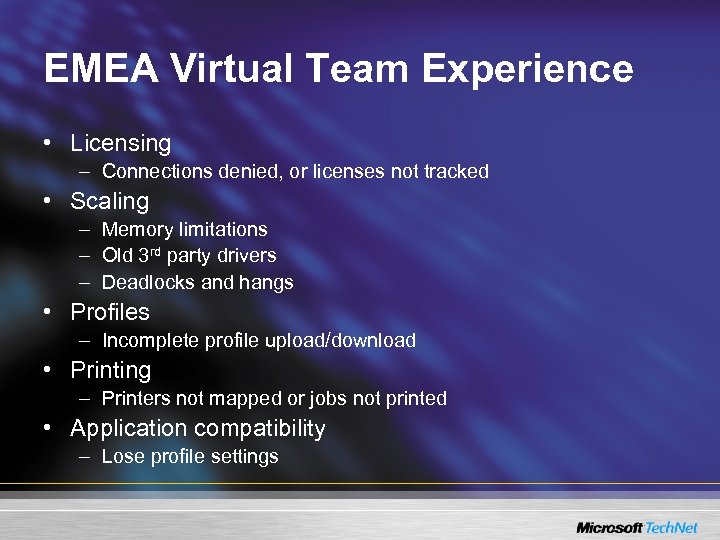

EMEA Virtual Team Experience • Licensing – Connections denied, or licenses not tracked • EMEA Virtual Team Experience • Licensing – Connections denied, or licenses not tracked • Scaling – Memory limitations – Old 3 rd party drivers – Deadlocks and hangs • Profiles – Incomplete profile upload/download • Printing – Printers not mapped or jobs not printed • Application compatibility – Lose profile settings

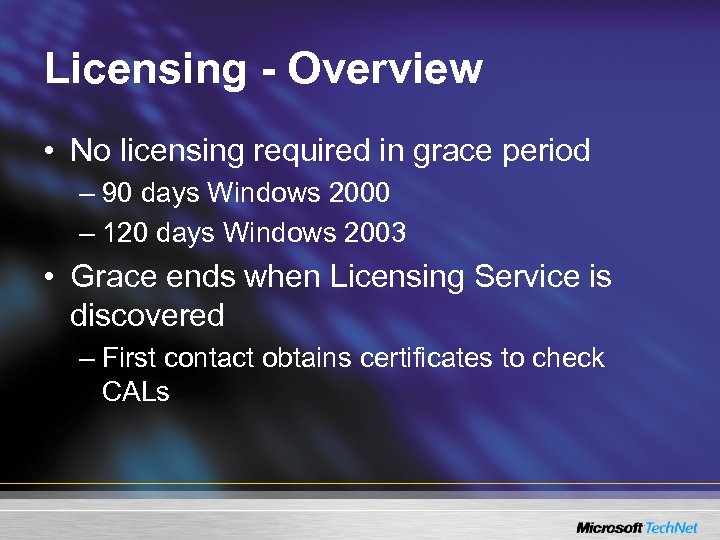

Licensing - Overview • No licensing required in grace period – 90 days Windows Licensing - Overview • No licensing required in grace period – 90 days Windows 2000 – 120 days Windows 2003 • Grace ends when Licensing Service is discovered – First contact obtains certificates to check CALs

The Grace Period Windows Terminal Services Server running Licensing Service The Grace Period Windows Terminal Services Server running Licensing Service

Finding the License Service • Discovery is done – Windows 2003 • In the Finding the License Service • Discovery is done – Windows 2003 • In the background every hour until an in-site License Service is found – Windows 2000 • In the background every 15 minutes until a License Service is discovered thereafter every 2 hours – Or whenever a License Service is required • Upgrade or issue CAL • Secure Licensing option in Windows 2003 – Configured via Group Policy – Local “Terminal Server Computer” group

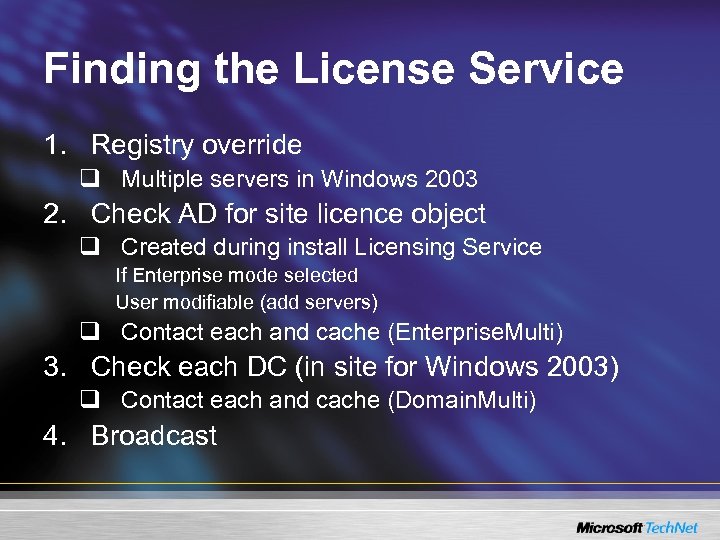

Finding the License Service 1. Registry override q Multiple servers in Windows 2003 2. Finding the License Service 1. Registry override q Multiple servers in Windows 2003 2. Check AD for site licence object q Created during install Licensing Service If Enterprise mode selected User modifiable (add servers) q Contact each and cache (Enterprise. Multi) 3. Check each DC (in site for Windows 2003) q Contact each and cache (Domain. Multi) 4. Broadcast

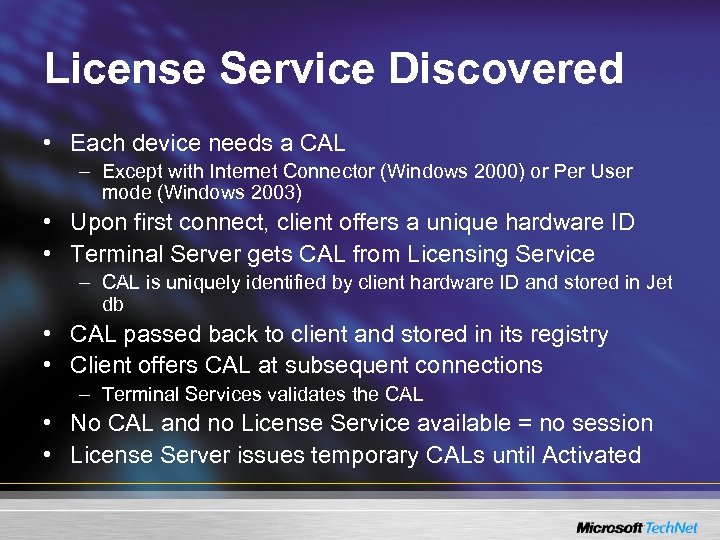

License Service Discovered • Each device needs a CAL – Except with Internet Connector License Service Discovered • Each device needs a CAL – Except with Internet Connector (Windows 2000) or Per User mode (Windows 2003) • Upon first connect, client offers a unique hardware ID • Terminal Server gets CAL from Licensing Service – CAL is uniquely identified by client hardware ID and stored in Jet db • CAL passed back to client and stored in its registry • Client offers CAL at subsequent connections – Terminal Services validates the CAL • No CAL and no License Service available = no session • License Server issues temporary CALs until Activated

License Service Not Activated Windows Terminal Services Licensing Service License Service Not Activated Windows Terminal Services Licensing Service

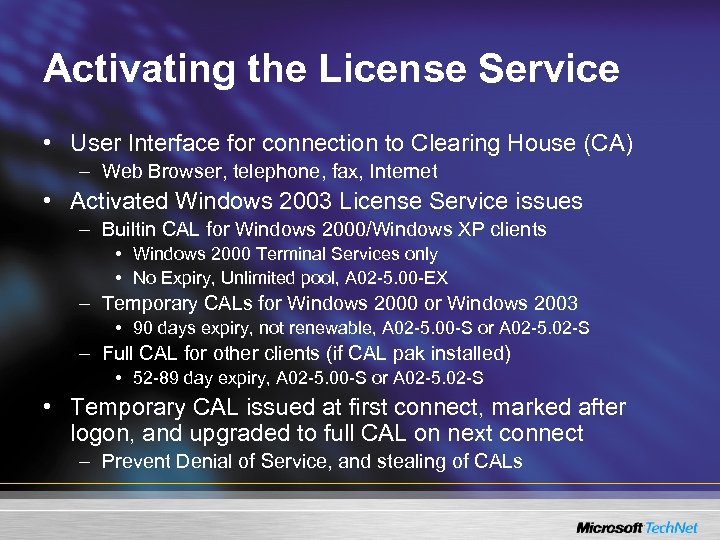

Activating the License Service • User Interface for connection to Clearing House (CA) – Activating the License Service • User Interface for connection to Clearing House (CA) – Web Browser, telephone, fax, Internet • Activated Windows 2003 License Service issues – Builtin CAL for Windows 2000/Windows XP clients • Windows 2000 Terminal Services only • No Expiry, Unlimited pool, A 02 -5. 00 -EX – Temporary CALs for Windows 2000 or Windows 2003 • 90 days expiry, not renewable, A 02 -5. 00 -S or A 02 -5. 02 -S – Full CAL for other clients (if CAL pak installed) • 52 -89 day expiry, A 02 -5. 00 -S or A 02 -5. 02 -S • Temporary CAL issued at first connect, marked after logon, and upgraded to full CAL on next connect – Prevent Denial of Service, and stealing of CALs

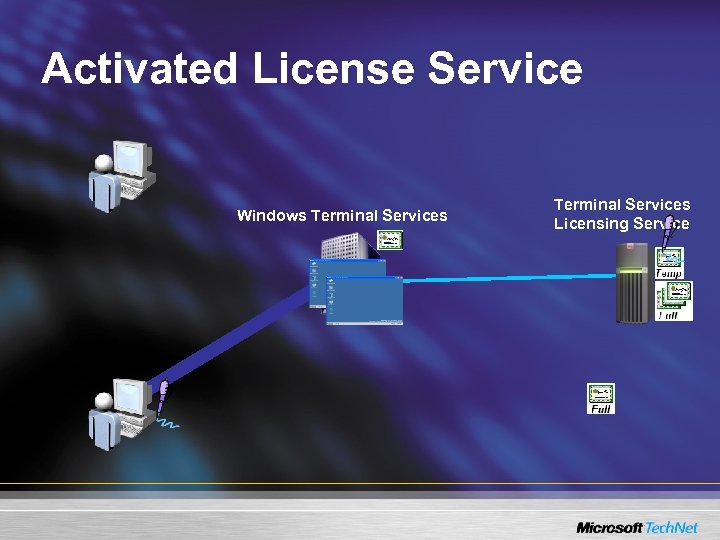

Activated License Service Windows Terminal Services Licensing Service Activated License Service Windows Terminal Services Licensing Service

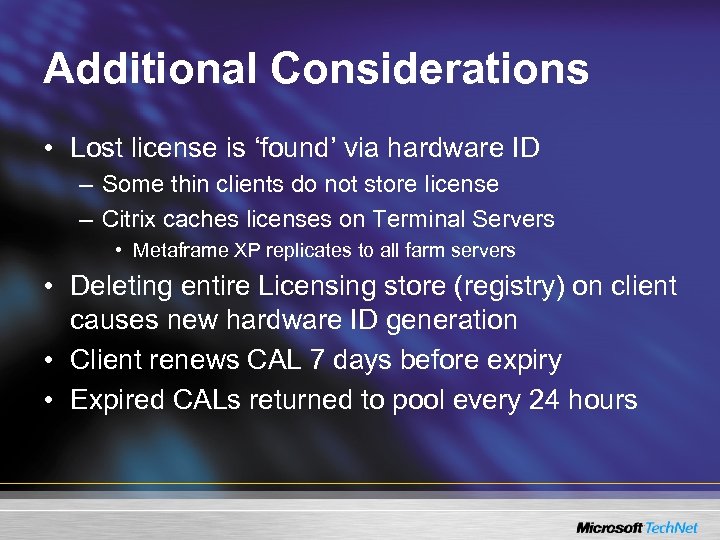

Additional Considerations • Lost license is ‘found’ via hardware ID – Some thin clients Additional Considerations • Lost license is ‘found’ via hardware ID – Some thin clients do not store license – Citrix caches licenses on Terminal Servers • Metaframe XP replicates to all farm servers • Deleting entire Licensing store (registry) on client causes new hardware ID generation • Client renews CAL 7 days before expiry • Expired CALs returned to pool every 24 hours

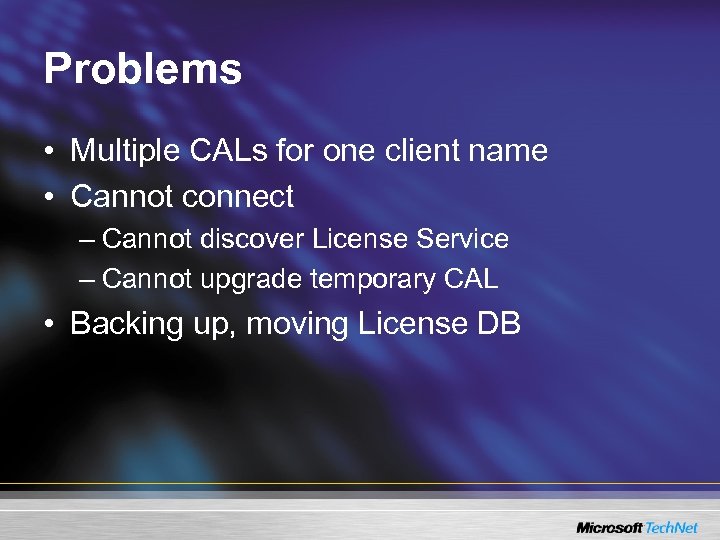

Problems • Multiple CALs for one client name • Cannot connect – Cannot discover Problems • Multiple CALs for one client name • Cannot connect – Cannot discover License Service – Cannot upgrade temporary CAL • Backing up, moving License DB

Troubleshooting • Eventlog (MPS Reports) • Resource Kit – LSREPORT – LSVIEW – TSCTST Troubleshooting • Eventlog (MPS Reports) • Resource Kit – LSREPORT – LSVIEW – TSCTST • PSS Tools – LSDIAG – TSTST • Checked version of LSERVER. EXE • Term. Srv tracing & additional instrumentation

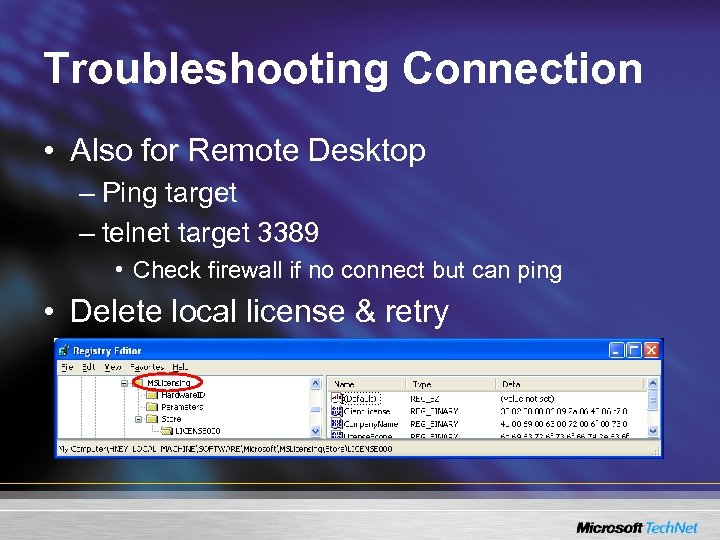

Troubleshooting Connection • Also for Remote Desktop – Ping target – telnet target 3389 Troubleshooting Connection • Also for Remote Desktop – Ping target – telnet target 3389 • Check firewall if no connect but can ping • Delete local license & retry

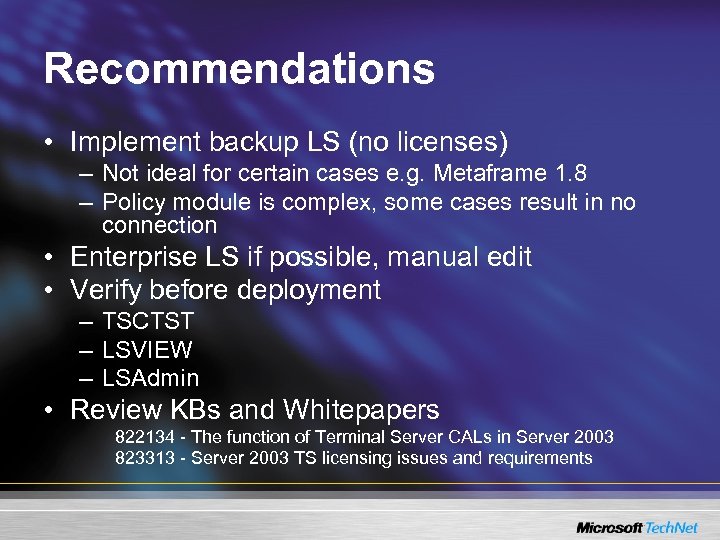

Recommendations • Implement backup LS (no licenses) – Not ideal for certain cases e. Recommendations • Implement backup LS (no licenses) – Not ideal for certain cases e. g. Metaframe 1. 8 – Policy module is complex, some cases result in no connection • Enterprise LS if possible, manual edit • Verify before deployment – TSCTST – LSVIEW – LSAdmin • Review KBs and Whitepapers 822134 - The function of Terminal Server CALs in Server 2003 823313 - Server 2003 TS licensing issues and requirements

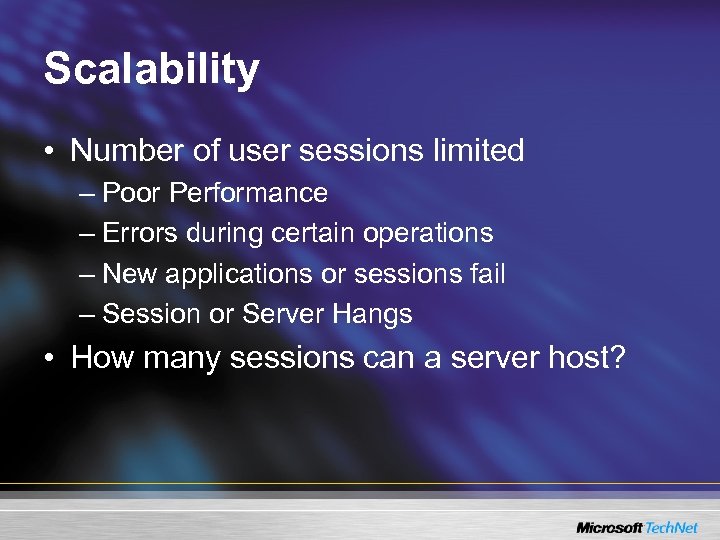

Scalability • Number of user sessions limited – Poor Performance – Errors during certain Scalability • Number of user sessions limited – Poor Performance – Errors during certain operations – New applications or sessions fail – Session or Server Hangs • How many sessions can a server host?

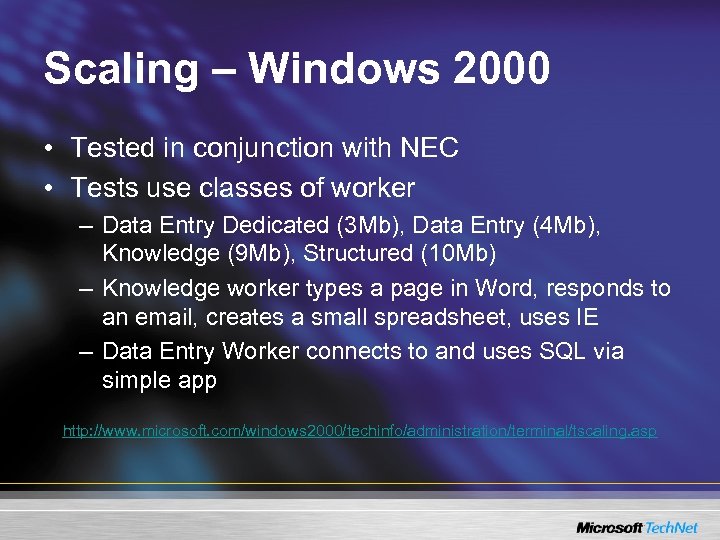

Scaling – Windows 2000 • Tested in conjunction with NEC • Tests use classes Scaling – Windows 2000 • Tested in conjunction with NEC • Tests use classes of worker – Data Entry Dedicated (3 Mb), Data Entry (4 Mb), Knowledge (9 Mb), Structured (10 Mb) – Knowledge worker types a page in Word, responds to an email, creates a small spreadsheet, uses IE – Data Entry Worker connects to and uses SQL via simple app http: //www. microsoft. com/windows 2000/techinfo/administration/terminal/tscaling. asp

Scaling - Windows 2000 (NEC) • 500 MHz procs used – now Xeon 3. Scaling - Windows 2000 (NEC) • 500 MHz procs used – now Xeon 3. 2 GHz with HT not uncommon – Windows 2003 uses HT better; Windows 2000 suffers slightly • Scripted: No indication of ‘usability’

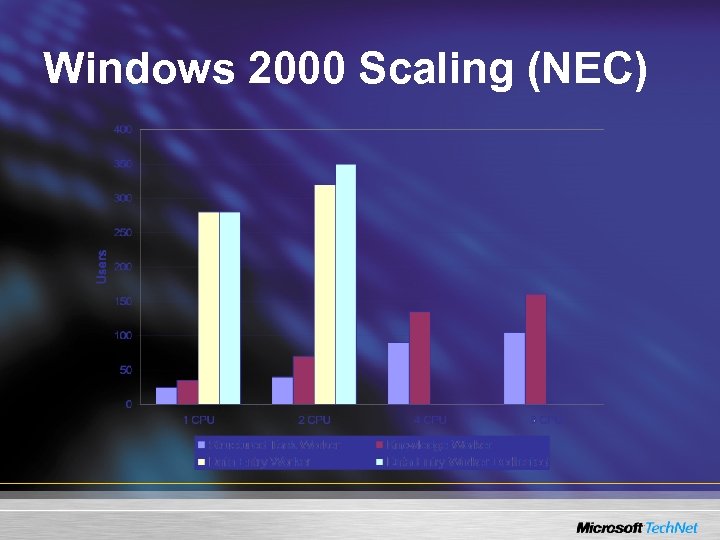

Windows 2000 Scaling (NEC) Windows 2000 Scaling (NEC)

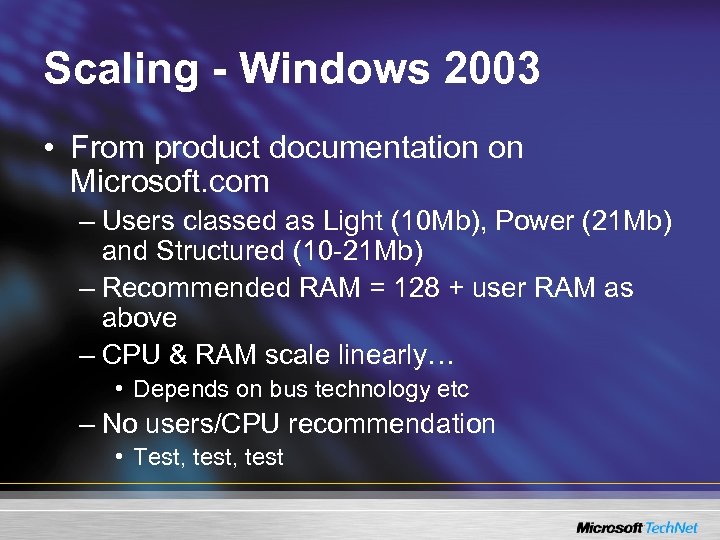

Scaling - Windows 2003 • From product documentation on Microsoft. com – Users classed Scaling - Windows 2003 • From product documentation on Microsoft. com – Users classed as Light (10 Mb), Power (21 Mb) and Structured (10 -21 Mb) – Recommended RAM = 128 + user RAM as above – CPU & RAM scale linearly… • Depends on bus technology etc – No users/CPU recommendation • Test, test

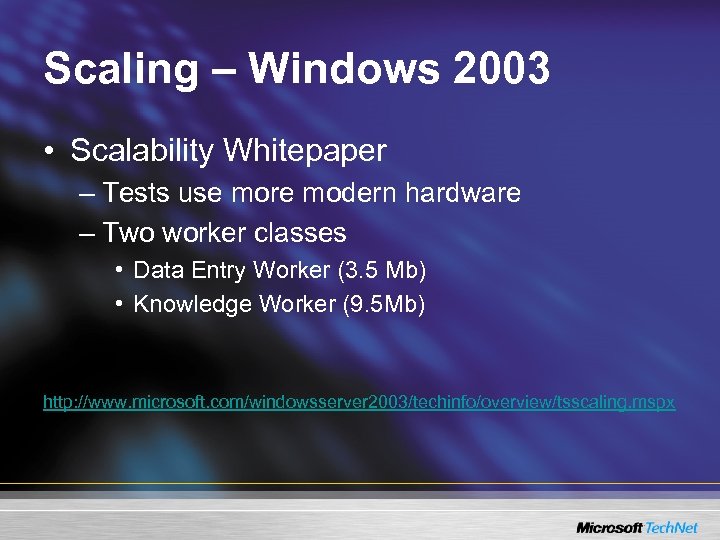

Scaling – Windows 2003 • Scalability Whitepaper – Tests use more modern hardware – Scaling – Windows 2003 • Scalability Whitepaper – Tests use more modern hardware – Two worker classes • Data Entry Worker (3. 5 Mb) • Knowledge Worker (9. 5 Mb) http: //www. microsoft. com/windowsserver 2003/techinfo/overview/tsscaling. mspx

Scaling - Windows 2003 Scaling - Windows 2003

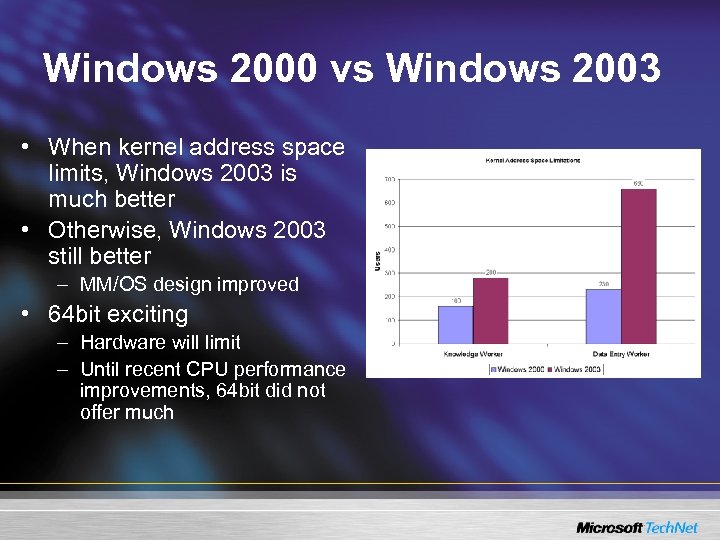

Windows 2000 vs Windows 2003 • When kernel address space limits, Windows 2003 is Windows 2000 vs Windows 2003 • When kernel address space limits, Windows 2003 is much better • Otherwise, Windows 2003 still better – MM/OS design improved • 64 bit exciting – Hardware will limit – Until recent CPU performance improvements, 64 bit did not offer much

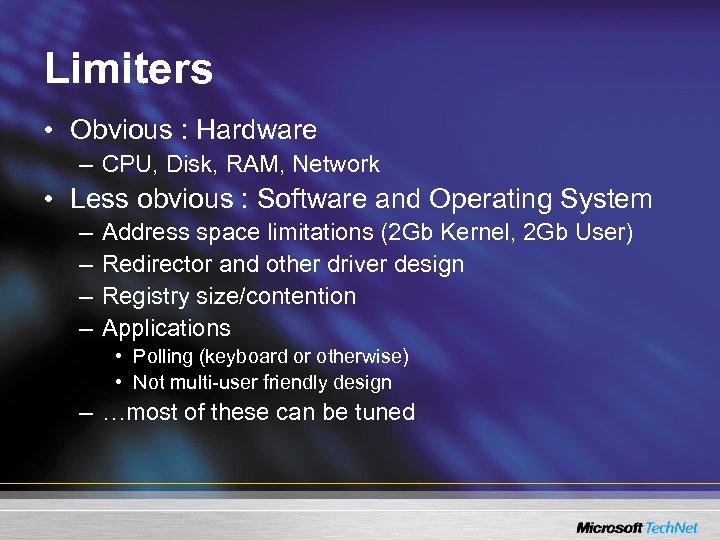

Limiters • Obvious : Hardware – CPU, Disk, RAM, Network • Less obvious : Limiters • Obvious : Hardware – CPU, Disk, RAM, Network • Less obvious : Software and Operating System – – Address space limitations (2 Gb Kernel, 2 Gb User) Redirector and other driver design Registry size/contention Applications • Polling (keyboard or otherwise) • Not multi-user friendly design – …most of these can be tuned

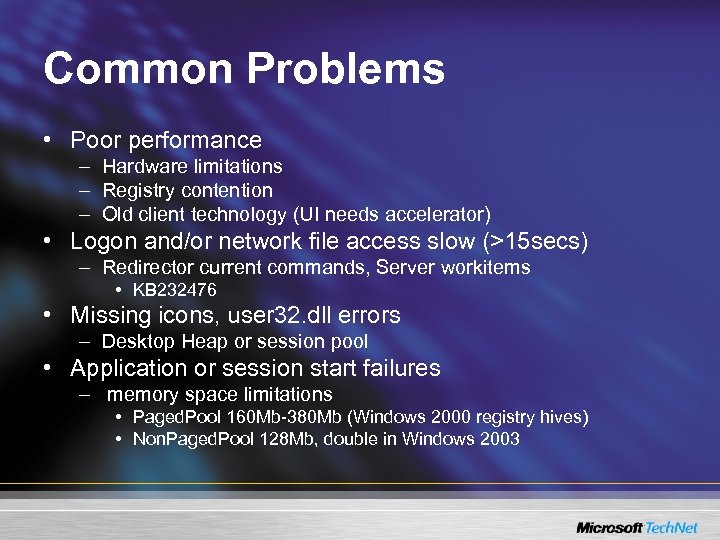

Common Problems • Poor performance – Hardware limitations – Registry contention – Old client Common Problems • Poor performance – Hardware limitations – Registry contention – Old client technology (UI needs accelerator) • Logon and/or network file access slow (>15 secs) – Redirector current commands, Server workitems • KB 232476 • Missing icons, user 32. dll errors – Desktop Heap or session pool • Application or session start failures – memory space limitations • Paged. Pool 160 Mb-380 Mb (Windows 2000 registry hives) • Non. Paged. Pool 128 Mb, double in Windows 2003

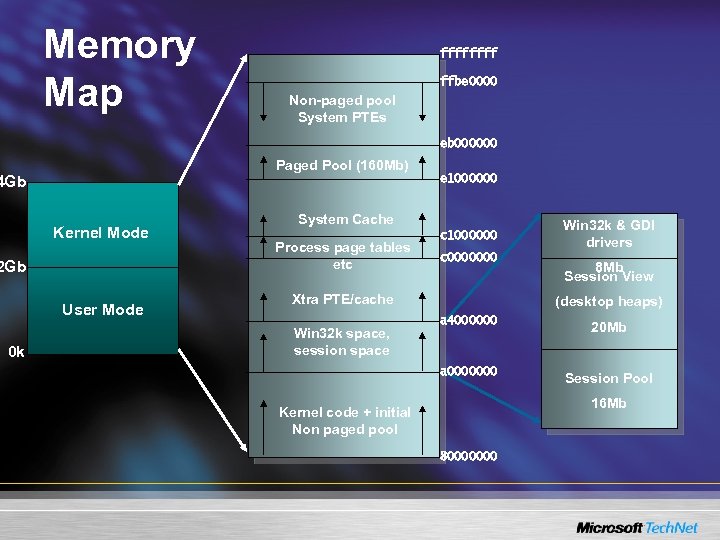

Memory Map ffff ffbe 0000 Non-paged pool System PTEs eb 000000 Paged Pool (160 Memory Map ffff ffbe 0000 Non-paged pool System PTEs eb 000000 Paged Pool (160 Mb) 4 Gb e 1000000 Kernel Mode 2 Gb User Mode 0 k System Cache Process page tables etc c 1000000 c 0000000 Xtra PTE/cache Win 32 k & GDI drivers 8 Mb Session View (desktop heaps) a 4000000 20 Mb a 0000000 Win 32 k space, session space Session Pool 16 Mb Kernel code + initial Non paged pool 80000000

Troubleshooting with Perfmon • CPU – >75% usage – Q length>1 sustained • Process Troubleshooting with Perfmon • CPU – >75% usage – Q length>1 sustained • Process – Identify spinning or leaking process – Private Bytes or Handle Count growing • Memory – – Page Faults/s >10000 Available memory <10 Mb Disk Q Length >1 sustained Paged Pool, Non-Paged limits

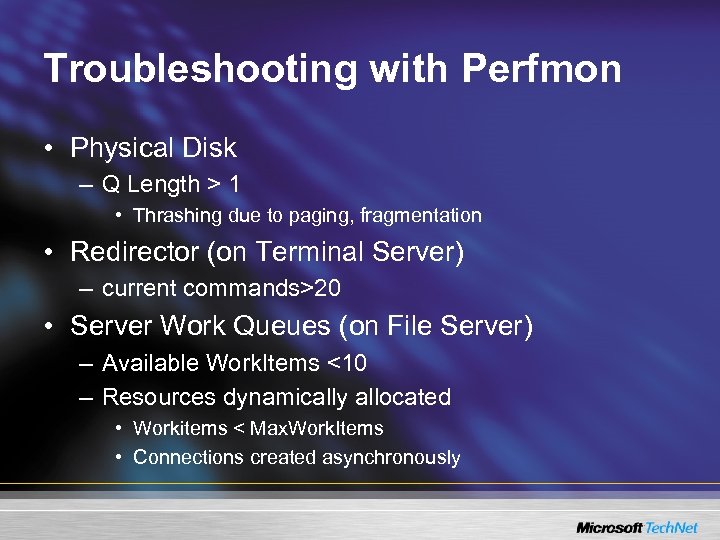

Troubleshooting with Perfmon • Physical Disk – Q Length > 1 • Thrashing due Troubleshooting with Perfmon • Physical Disk – Q Length > 1 • Thrashing due to paging, fragmentation • Redirector (on Terminal Server) – current commands>20 • Server Work Queues (on File Server) – Available Work. Items <10 – Resources dynamically allocated • Workitems < Max. Work. Items • Connections created asynchronously

Demo • Performance Monitor • Redirector Current Commands • Server Workitems Demo • Performance Monitor • Redirector Current Commands • Server Workitems

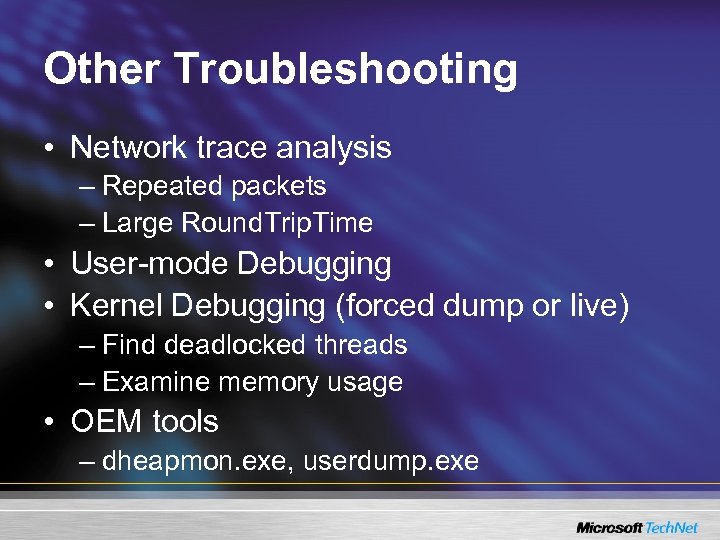

Other Troubleshooting • Network trace analysis – Repeated packets – Large Round. Trip. Time Other Troubleshooting • Network trace analysis – Repeated packets – Large Round. Trip. Time • User-mode Debugging • Kernel Debugging (forced dump or live) – Find deadlocked threads – Examine memory usage • OEM tools – dheapmon. exe, userdump. exe

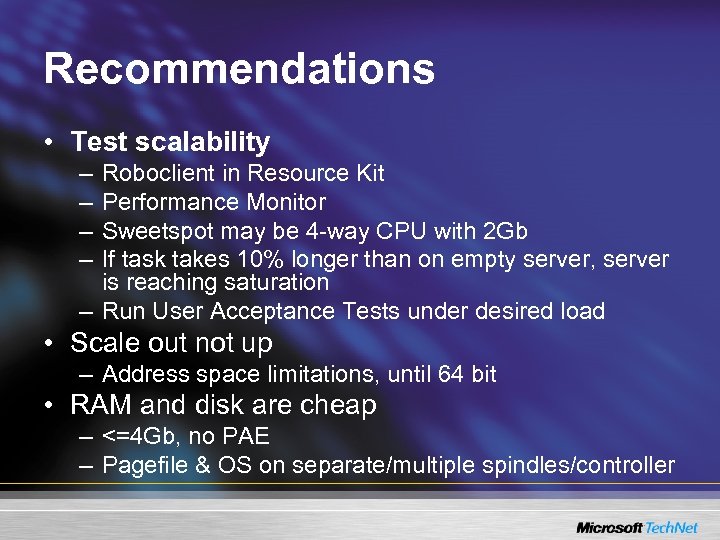

Recommendations • Test scalability – – Roboclient in Resource Kit Performance Monitor Sweetspot may Recommendations • Test scalability – – Roboclient in Resource Kit Performance Monitor Sweetspot may be 4 -way CPU with 2 Gb If task takes 10% longer than on empty server, server is reaching saturation – Run User Acceptance Tests under desired load • Scale out not up – Address space limitations, until 64 bit • RAM and disk are cheap – <=4 Gb, no PAE – Pagefile & OS on separate/multiple spindles/controller

Recommendations • Rethink folder redirection & run apps locally • Set up and test Recommendations • Rethink folder redirection & run apps locally • Set up and test Memory Dump – Problems are more complex since hardware allows greater loading • Collect and store baseline performance data

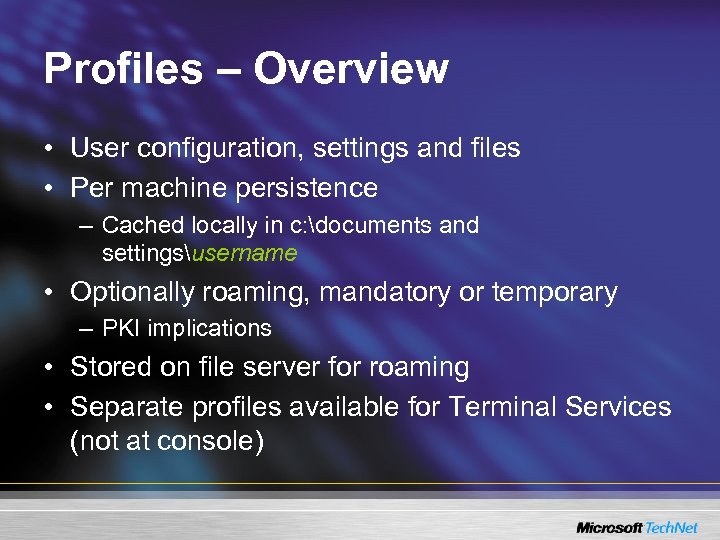

Profiles – Overview • User configuration, settings and files • Per machine persistence – Profiles – Overview • User configuration, settings and files • Per machine persistence – Cached locally in c: documents and settingsusername • Optionally roaming, mandatory or temporary – PKI implications • Stored on file server for roaming • Separate profiles available for Terminal Services (not at console)

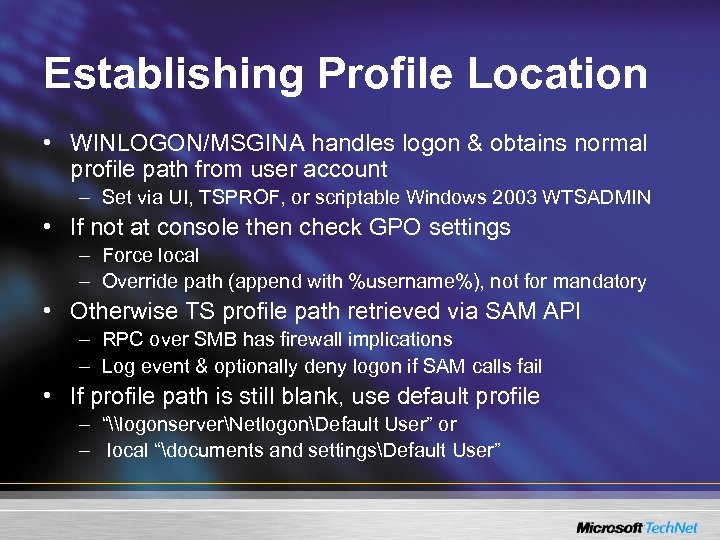

Establishing Profile Location • WINLOGON/MSGINA handles logon & obtains normal profile path from user Establishing Profile Location • WINLOGON/MSGINA handles logon & obtains normal profile path from user account – Set via UI, TSPROF, or scriptable Windows 2003 WTSADMIN • If not at console then check GPO settings – Force local – Override path (append with %username%), not for mandatory • Otherwise TS profile path retrieved via SAM API – RPC over SMB has firewall implications – Log event & optionally deny logon if SAM calls fail • If profile path is still blank, use default profile – “\logonserverNetlogonDefault User” or – local “documents and settingsDefault User”

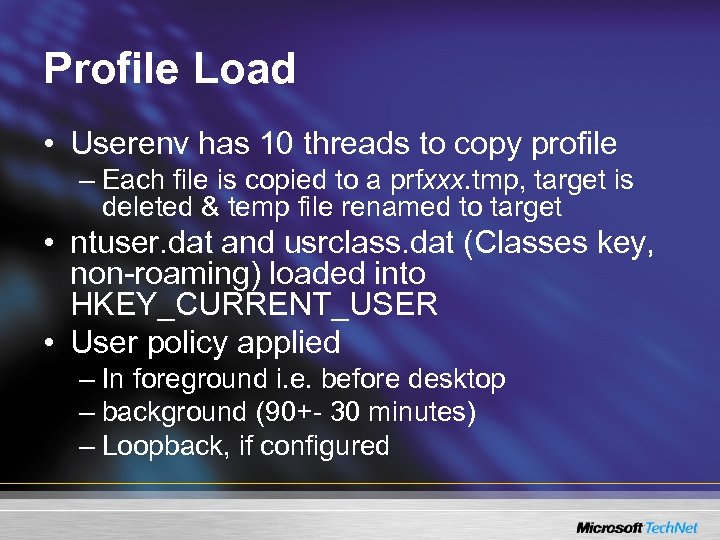

Profile Load • Userenv has 10 threads to copy profile – Each file is Profile Load • Userenv has 10 threads to copy profile – Each file is copied to a prfxxx. tmp, target is deleted & temp file renamed to target • ntuser. dat and usrclass. dat (Classes key, non-roaming) loaded into HKEY_CURRENT_USER • User policy applied – In foreground i. e. before desktop – background (90+- 30 minutes) – Loopback, if configured

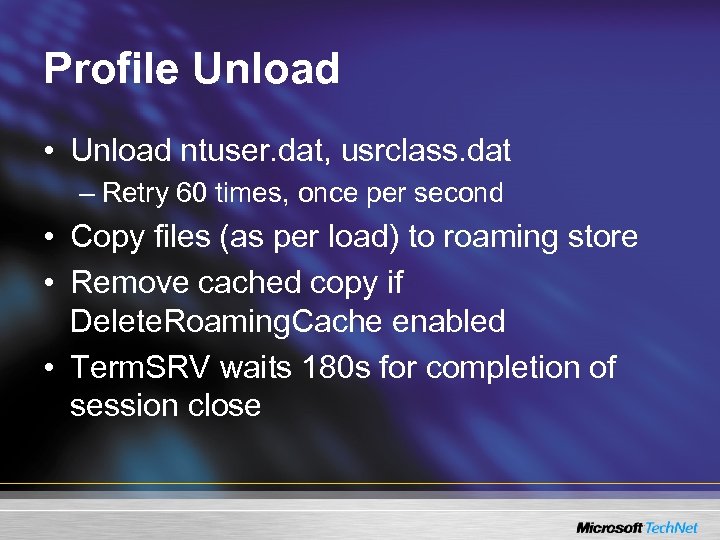

Profile Unload • Unload ntuser. dat, usrclass. dat – Retry 60 times, once per Profile Unload • Unload ntuser. dat, usrclass. dat – Retry 60 times, once per second • Copy files (as per load) to roaming store • Remove cached copy if Delete. Roaming. Cache enabled • Term. SRV waits 180 s for completion of session close

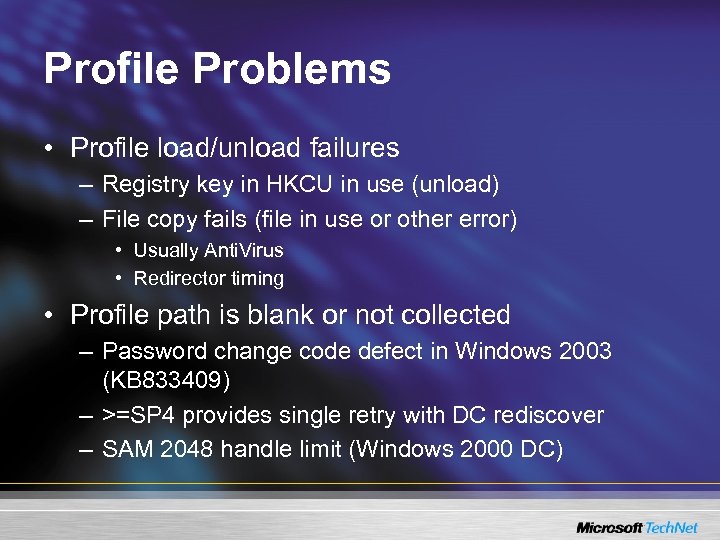

Profile Problems • Profile load/unload failures – Registry key in HKCU in use (unload) Profile Problems • Profile load/unload failures – Registry key in HKCU in use (unload) – File copy fails (file in use or other error) • Usually Anti. Virus • Redirector timing • Profile path is blank or not collected – Password change code defect in Windows 2003 (KB 833409) – >=SP 4 provides single retry with DC rediscover – SAM 2048 handle limit (Windows 2000 DC)

Profile Problems • XForest. Logon (Windows 2003, Win 2 k >=SP 4) – Prevent Profile Problems • XForest. Logon (Windows 2003, Win 2 k >=SP 4) – Prevent roaming profile and policy from foreign domain • Profiles shared between NT 4, Windows 2000, Windows 2003 and Windows XP – Protected. Storage one time migration

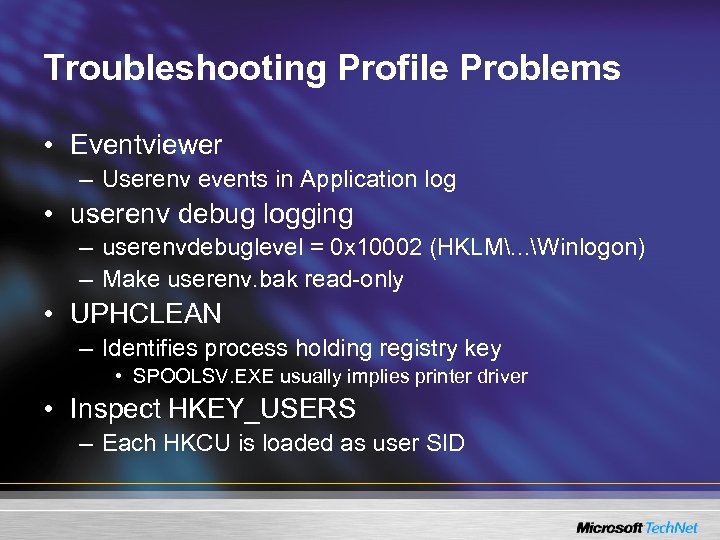

Troubleshooting Profile Problems • Eventviewer – Userenv events in Application log • userenv debug Troubleshooting Profile Problems • Eventviewer – Userenv events in Application log • userenv debug logging – userenvdebuglevel = 0 x 10002 (HKLM. . . Winlogon) – Make userenv. bak read-only • UPHCLEAN – Identifies process holding registry key • SPOOLSV. EXE usually implies printer driver • Inspect HKEY_USERS – Each HKCU is loaded as user SID

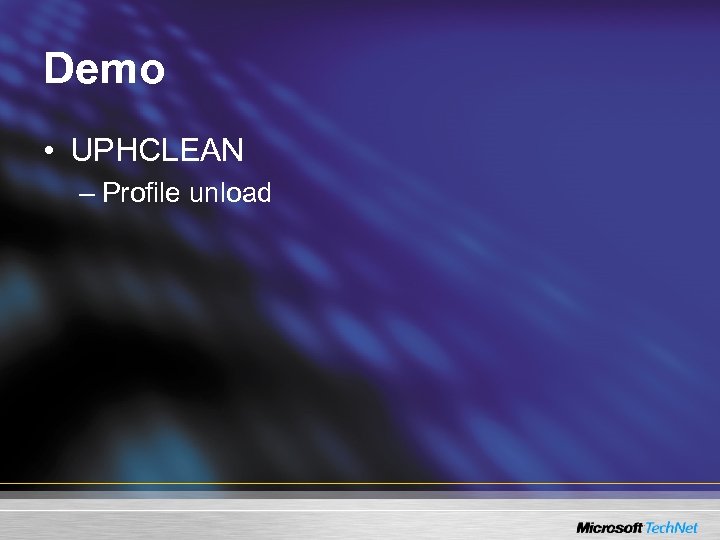

Demo • UPHCLEAN – Profile unload Demo • UPHCLEAN – Profile unload

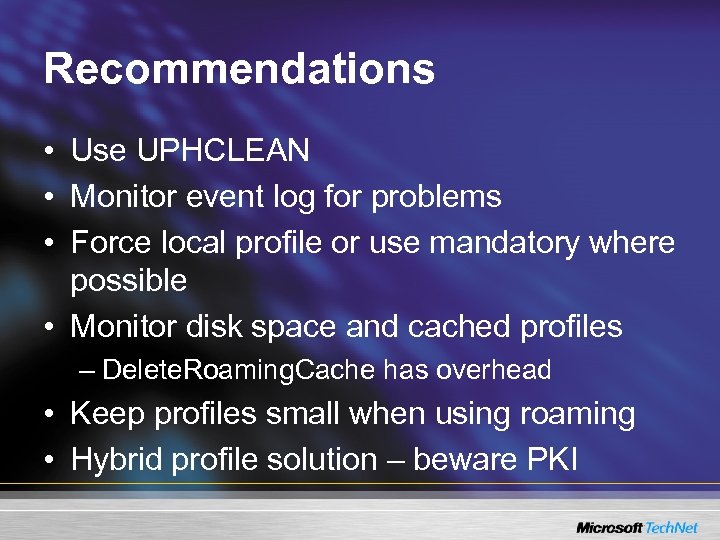

Recommendations • Use UPHCLEAN • Monitor event log for problems • Force local profile Recommendations • Use UPHCLEAN • Monitor event log for problems • Force local profile or use mandatory where possible • Monitor disk space and cached profiles – Delete. Roaming. Cache has overhead • Keep profiles small when using roaming • Hybrid profile solution – beware PKI

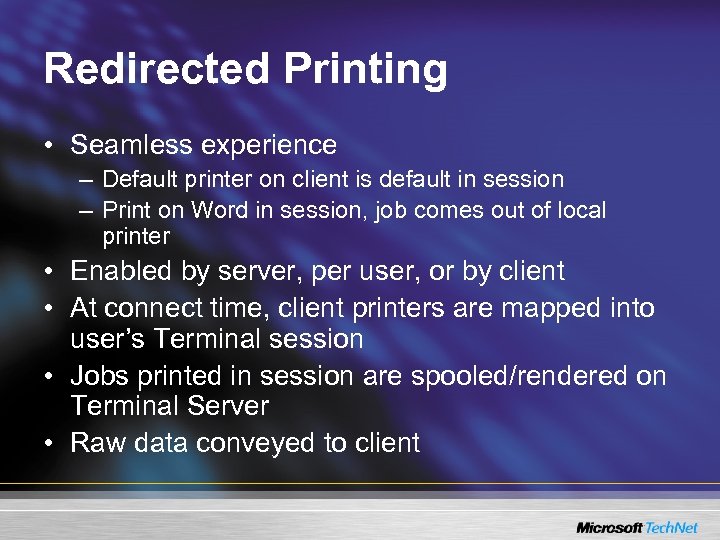

Redirected Printing • Seamless experience – Default printer on client is default in session Redirected Printing • Seamless experience – Default printer on client is default in session – Print on Word in session, job comes out of local printer • Enabled by server, per user, or by client • At connect time, client printers are mapped into user’s Terminal session • Jobs printed in session are spooled/rendered on Terminal Server • Raw data conveyed to client

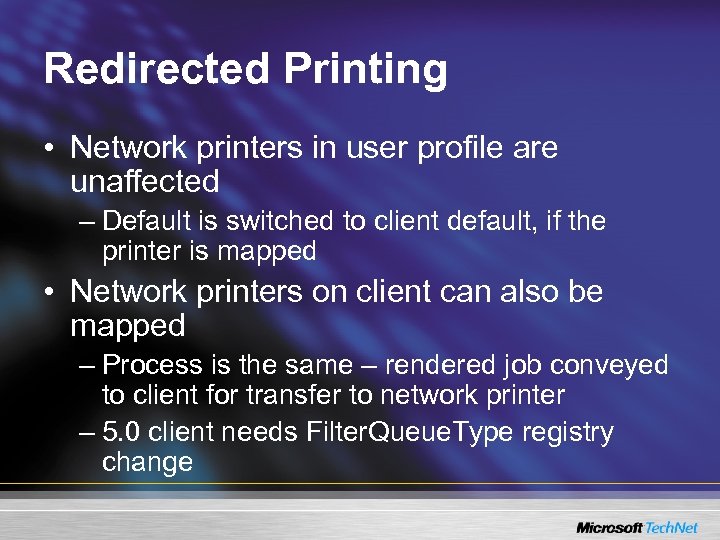

Redirected Printing • Network printers in user profile are unaffected – Default is switched Redirected Printing • Network printers in user profile are unaffected – Default is switched to client default, if the printer is mapped • Network printers on client can also be mapped – Process is the same – rendered job conveyed to client for transfer to network printer – 5. 0 client needs Filter. Queue. Type registry change

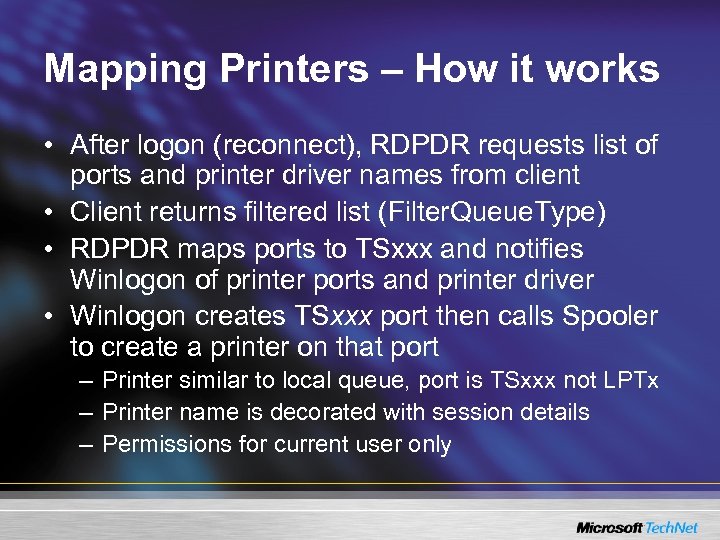

Mapping Printers – How it works • After logon (reconnect), RDPDR requests list of Mapping Printers – How it works • After logon (reconnect), RDPDR requests list of ports and printer driver names from client • Client returns filtered list (Filter. Queue. Type) • RDPDR maps ports to TSxxx and notifies Winlogon of printer ports and printer driver • Winlogon creates TSxxx port then calls Spooler to create a printer on that port – Printer similar to local queue, port is TSxxx not LPTx – Printer name is decorated with session details – Permissions for current user only

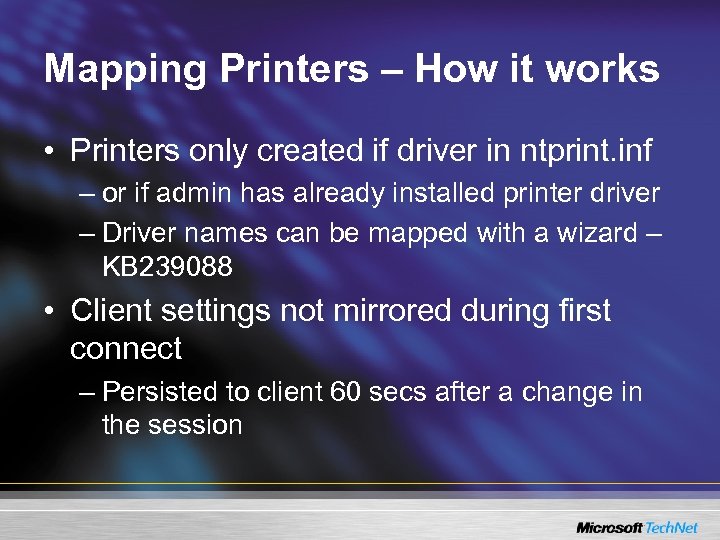

Mapping Printers – How it works • Printers only created if driver in ntprint. Mapping Printers – How it works • Printers only created if driver in ntprint. inf – or if admin has already installed printer driver – Driver names can be mapped with a wizard – KB 239088 • Client settings not mirrored during first connect – Persisted to client 60 secs after a change in the session

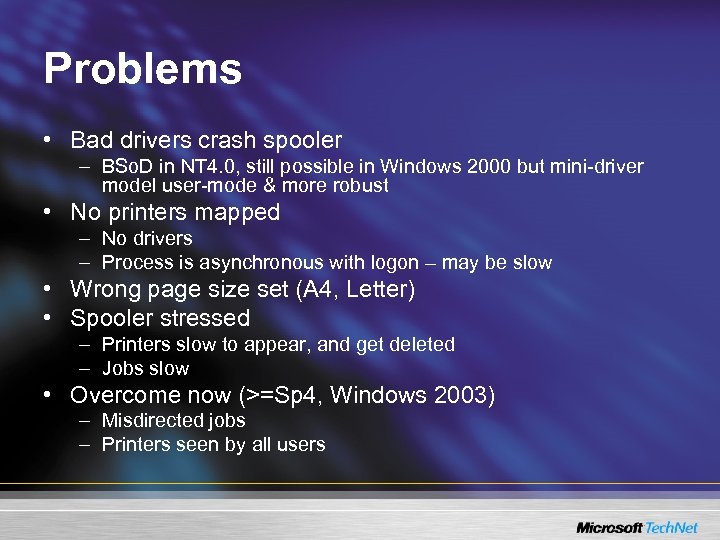

Problems • Bad drivers crash spooler – BSo. D in NT 4. 0, still Problems • Bad drivers crash spooler – BSo. D in NT 4. 0, still possible in Windows 2000 but mini-driver model user-mode & more robust • No printers mapped – No drivers – Process is asynchronous with logon – may be slow • Wrong page size set (A 4, Letter) • Spooler stressed – Printers slow to appear, and get deleted – Jobs slow • Overcome now (>=Sp 4, Windows 2003) – Misdirected jobs – Printers seen by all users

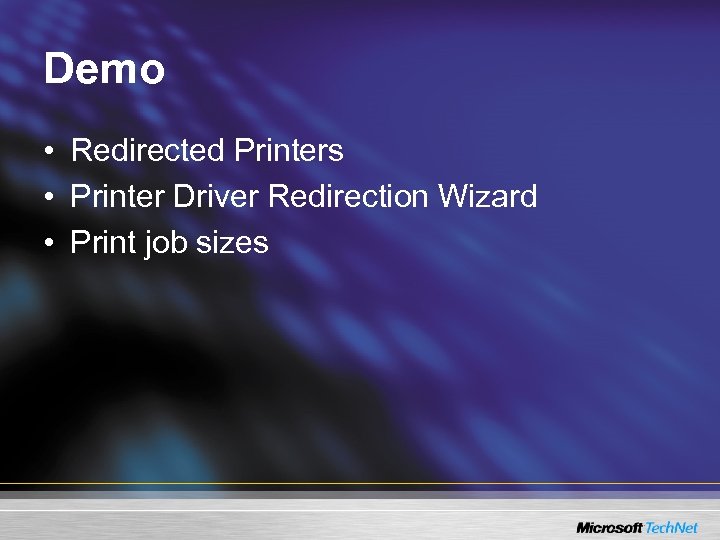

Demo • Redirected Printers • Printer Driver Redirection Wizard • Print job sizes Demo • Redirected Printers • Printer Driver Redirection Wizard • Print job sizes

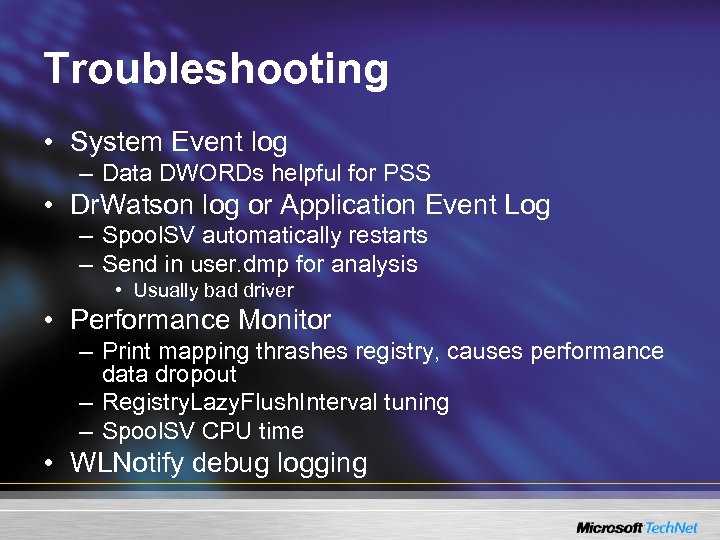

Troubleshooting • System Event log – Data DWORDs helpful for PSS • Dr. Watson Troubleshooting • System Event log – Data DWORDs helpful for PSS • Dr. Watson log or Application Event Log – Spool. SV automatically restarts – Send in user. dmp for analysis • Usually bad driver • Performance Monitor – Print mapping thrashes registry, causes performance data dropout – Registry. Lazy. Flush. Interval tuning – Spool. SV CPU time • WLNotify debug logging

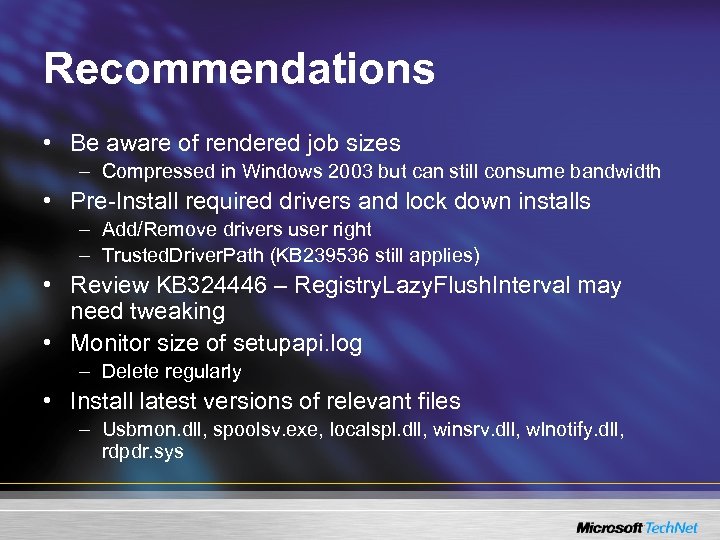

Recommendations • Be aware of rendered job sizes – Compressed in Windows 2003 but Recommendations • Be aware of rendered job sizes – Compressed in Windows 2003 but can still consume bandwidth • Pre-Install required drivers and lock down installs – Add/Remove drivers user right – Trusted. Driver. Path (KB 239536 still applies) • Review KB 324446 – Registry. Lazy. Flush. Interval may need tweaking • Monitor size of setupapi. log – Delete regularly • Install latest versions of relevant files – Usbmon. dll, spoolsv. exe, localspl. dll, winsrv. dll, wlnotify. dll, rdpdr. sys

Application Compatibility • Remote Desktop or Remote Administration – Control Panel Add/Remove required in Application Compatibility • Remote Desktop or Remote Administration – Control Panel Add/Remove required in Windows 2000 • Application Server – Requires Control Panel Add/Remove – Check TSOC. LOG if errors occur – Additional overhead to maintain multi-user compatibility • For applications that are not multi-user aware (very few these days)

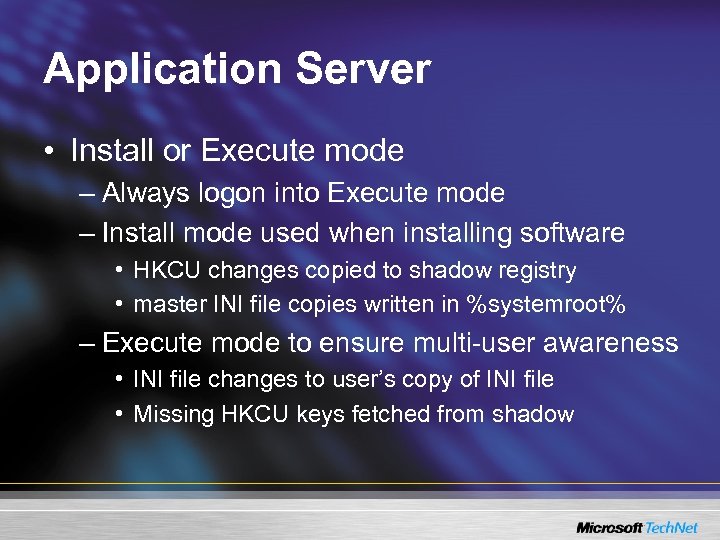

Application Server • Install or Execute mode – Always logon into Execute mode – Application Server • Install or Execute mode – Always logon into Execute mode – Install mode used when installing software • HKCU changes copied to shadow registry • master INI file copies written in %systemroot% – Execute mode to ensure multi-user awareness • INI file changes to user’s copy of INI file • Missing HKCU keys fetched from shadow

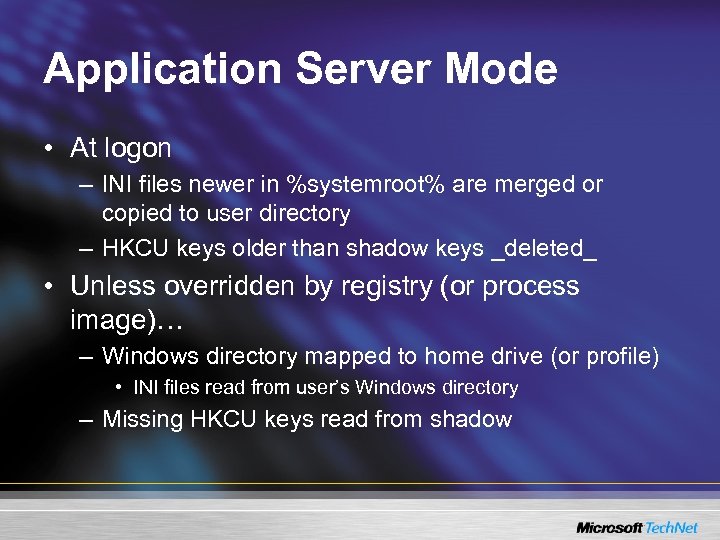

Application Server Mode • At logon – INI files newer in %systemroot% are merged Application Server Mode • At logon – INI files newer in %systemroot% are merged or copied to user directory – HKCU keys older than shadow keys _deleted_ • Unless overridden by registry (or process image)… – Windows directory mapped to home drive (or profile) • INI files read from user’s Windows directory – Missing HKCU keys read from shadow

Problems • Settings revert to old values e. g. ‘Lose’ Office Config – Usually Problems • Settings revert to old values e. g. ‘Lose’ Office Config – Usually caused by NOT imaging servers… – KB 297379 • Server not in correct mode – require more than two sessions, or non-administrator • Internet Explorer, Outlook Express icons re-appear after removal – Explorer stubs difficult to remove

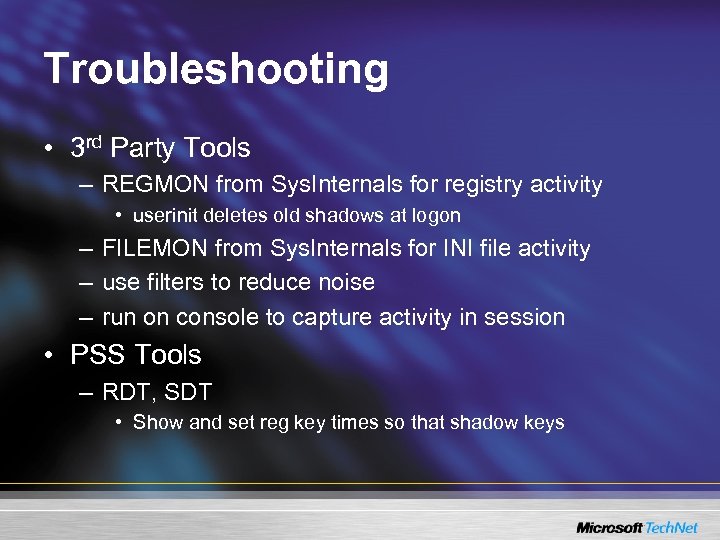

Troubleshooting • 3 rd Party Tools – REGMON from Sys. Internals for registry activity Troubleshooting • 3 rd Party Tools – REGMON from Sys. Internals for registry activity • userinit deletes old shadows at logon – FILEMON from Sys. Internals for INI file activity – use filters to reduce noise – run on console to capture activity in session • PSS Tools – RDT, SDT • Show and set reg key times so that shadow keys

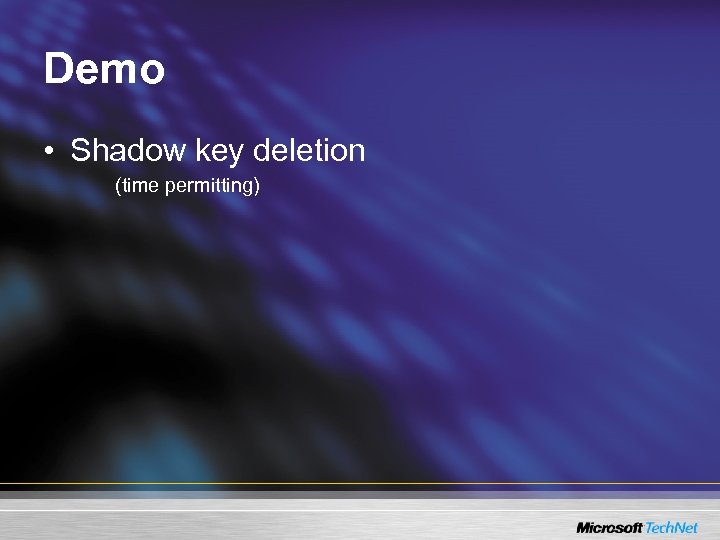

Demo • Shadow key deletion (time permitting) Demo • Shadow key deletion (time permitting)

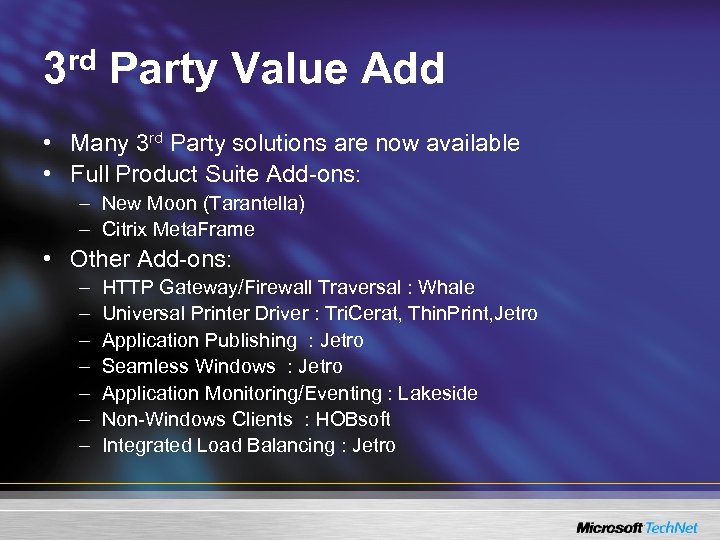

3 rd Party Value Add • Many 3 rd Party solutions are now available 3 rd Party Value Add • Many 3 rd Party solutions are now available • Full Product Suite Add-ons: – New Moon (Tarantella) – Citrix Meta. Frame • Other Add-ons: – – – – HTTP Gateway/Firewall Traversal : Whale Universal Printer Driver : Tri. Cerat, Thin. Print, Jetro Application Publishing : Jetro Seamless Windows : Jetro Application Monitoring/Eventing : Lakeside Non-Windows Clients : HOBsoft Integrated Load Balancing : Jetro

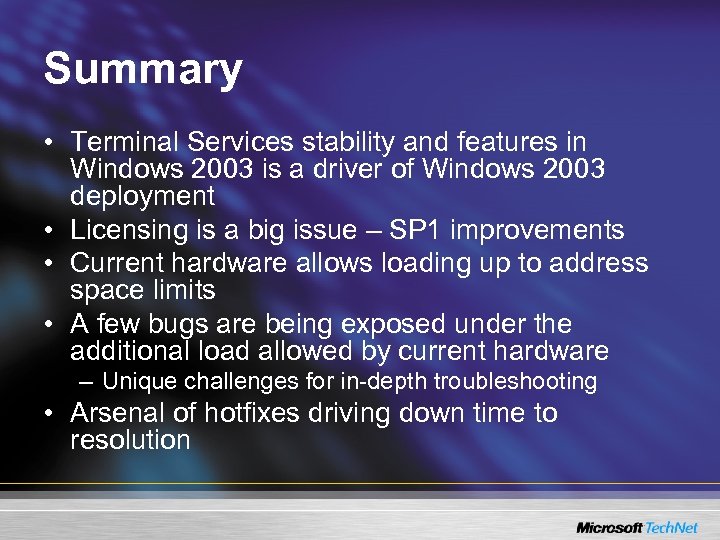

Summary • Terminal Services stability and features in Windows 2003 is a driver of Summary • Terminal Services stability and features in Windows 2003 is a driver of Windows 2003 deployment • Licensing is a big issue – SP 1 improvements • Current hardware allows loading up to address space limits • A few bugs are being exposed under the additional load allowed by current hardware – Unique challenges for in-depth troubleshooting • Arsenal of hotfixes driving down time to resolution

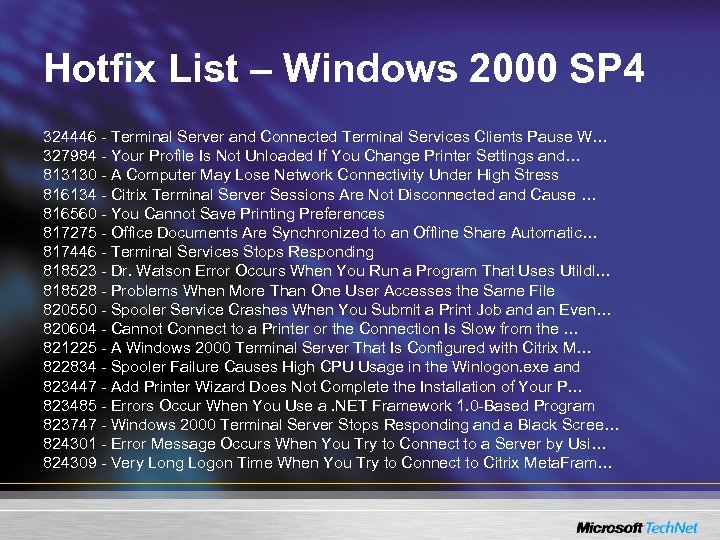

Hotfix List – Windows 2000 SP 4 324446 - Terminal Server and Connected Terminal Hotfix List – Windows 2000 SP 4 324446 - Terminal Server and Connected Terminal Services Clients Pause W… 327984 - Your Profile Is Not Unloaded If You Change Printer Settings and… 813130 - A Computer May Lose Network Connectivity Under High Stress 816134 - Citrix Terminal Server Sessions Are Not Disconnected and Cause … 816560 - You Cannot Save Printing Preferences 817275 - Office Documents Are Synchronized to an Offline Share Automatic… 817446 - Terminal Services Stops Responding 818523 - Dr. Watson Error Occurs When You Run a Program That Uses Utildl… 818528 - Problems When More Than One User Accesses the Same File 820550 - Spooler Service Crashes When You Submit a Print Job and an Even… 820604 - Cannot Connect to a Printer or the Connection Is Slow from the … 821225 - A Windows 2000 Terminal Server That Is Configured with Citrix M… 822834 - Spooler Failure Causes High CPU Usage in the Winlogon. exe and 823447 - Add Printer Wizard Does Not Complete the Installation of Your P… 823485 - Errors Occur When You Use a. NET Framework 1. 0 -Based Program 823747 - Windows 2000 Terminal Server Stops Responding and a Black Scree… 824301 - Error Message Occurs When You Try to Connect to a Server by Usi… 824309 - Very Long Logon Time When You Try to Connect to Citrix Meta. Fram…

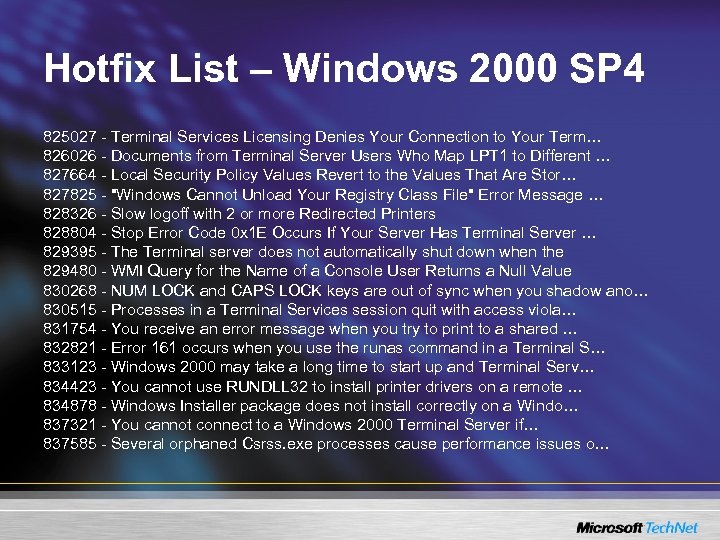

Hotfix List – Windows 2000 SP 4 825027 - Terminal Services Licensing Denies Your Hotfix List – Windows 2000 SP 4 825027 - Terminal Services Licensing Denies Your Connection to Your Term… 826026 - Documents from Terminal Server Users Who Map LPT 1 to Different … 827664 - Local Security Policy Values Revert to the Values That Are Stor… 827825 - "Windows Cannot Unload Your Registry Class File" Error Message … 828326 - Slow logoff with 2 or more Redirected Printers 828804 - Stop Error Code 0 x 1 E Occurs If Your Server Has Terminal Server … 829395 - The Terminal server does not automatically shut down when the 829480 - WMI Query for the Name of a Console User Returns a Null Value 830268 - NUM LOCK and CAPS LOCK keys are out of sync when you shadow ano… 830515 - Processes in a Terminal Services session quit with access viola… 831754 - You receive an error message when you try to print to a shared … 832821 - Error 161 occurs when you use the runas command in a Terminal S… 833123 - Windows 2000 may take a long time to start up and Terminal Serv… 834423 - You cannot use RUNDLL 32 to install printer drivers on a remote … 834878 - Windows Installer package does not install correctly on a Windo… 837321 - You cannot connect to a Windows 2000 Terminal Server if… 837585 - Several orphaned Csrss. exe processes cause performance issues o…

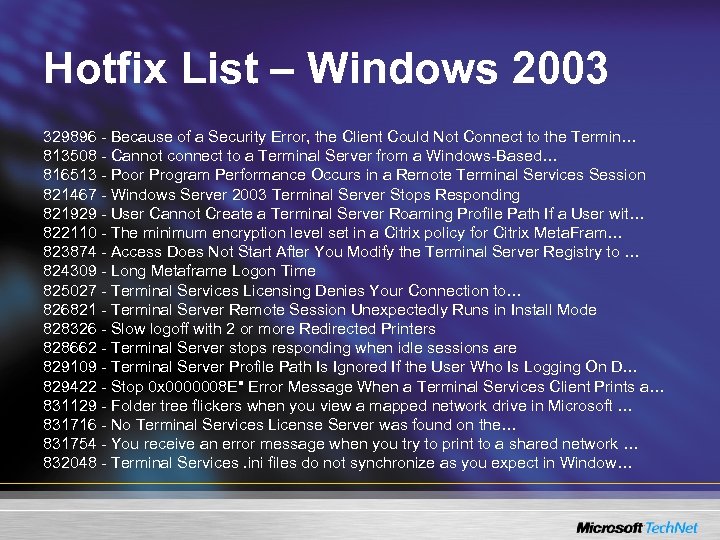

Hotfix List – Windows 2003 329896 - Because of a Security Error, the Client Hotfix List – Windows 2003 329896 - Because of a Security Error, the Client Could Not Connect to the Termin… 813508 - Cannot connect to a Terminal Server from a Windows-Based… 816513 - Poor Program Performance Occurs in a Remote Terminal Services Session 821467 - Windows Server 2003 Terminal Server Stops Responding 821929 - User Cannot Create a Terminal Server Roaming Profile Path If a User wit… 822110 - The minimum encryption level set in a Citrix policy for Citrix Meta. Fram… 823874 - Access Does Not Start After You Modify the Terminal Server Registry to … 824309 - Long Metaframe Logon Time 825027 - Terminal Services Licensing Denies Your Connection to… 826821 - Terminal Server Remote Session Unexpectedly Runs in Install Mode 828326 - Slow logoff with 2 or more Redirected Printers 828662 - Terminal Server stops responding when idle sessions are 829109 - Terminal Server Profile Path Is Ignored If the User Who Is Logging On D… 829422 - Stop 0 x 0000008 E" Error Message When a Terminal Services Client Prints a… 831129 - Folder tree flickers when you view a mapped network drive in Microsoft … 831716 - No Terminal Services License Server was found on the… 831754 - You receive an error message when you try to print to a shared network … 832048 - Terminal Services. ini files do not synchronize as you expect in Window…

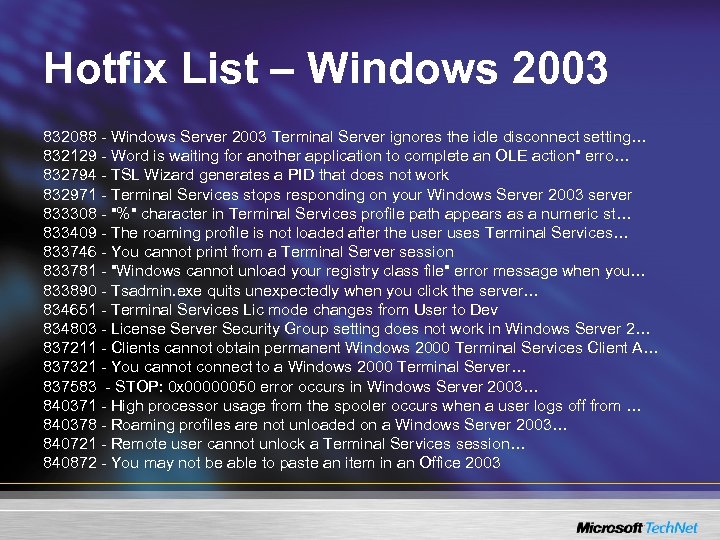

Hotfix List – Windows 2003 832088 - Windows Server 2003 Terminal Server ignores the Hotfix List – Windows 2003 832088 - Windows Server 2003 Terminal Server ignores the idle disconnect setting… 832129 - Word is waiting for another application to complete an OLE action" erro… 832794 - TSL Wizard generates a PID that does not work 832971 - Terminal Services stops responding on your Windows Server 2003 server 833308 - "%" character in Terminal Services profile path appears as a numeric st… 833409 - The roaming profile is not loaded after the user uses Terminal Services… 833746 - You cannot print from a Terminal Server session 833781 - "Windows cannot unload your registry class file" error message when you… 833890 - Tsadmin. exe quits unexpectedly when you click the server… 834651 - Terminal Services Lic mode changes from User to Dev 834803 - License Server Security Group setting does not work in Windows Server 2… 837211 - Clients cannot obtain permanent Windows 2000 Terminal Services Client A… 837321 - You cannot connect to a Windows 2000 Terminal Server… 837583 - STOP: 0 x 00000050 error occurs in Windows Server 2003… 840371 - High processor usage from the spooler occurs when a user logs off from … 840378 - Roaming profiles are not unloaded on a Windows Server 2003… 840721 - Remote user cannot unlock a Terminal Services session… 840872 - You may not be able to paste an item in an Office 2003
