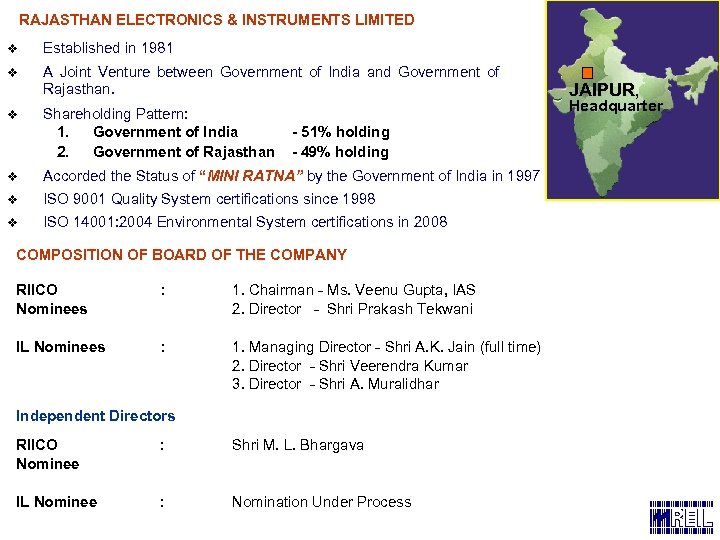

RAJASTHAN ELECTRONICS & INSTRUMENTS LIMITED v Established in 1981 v A Joint Venture between Government of India and Government of Rajasthan. v Shareholding Pattern: 1. Government of India - 51% holding 2. Government of Rajasthan - 49% holding v Accorded the Status of “MINI RATNA” by the Government of India in 1997 v ISO 9001 Quality System certifications since 1998 v ISO 14001: 2004 Environmental System certifications in 2008 COMPOSITION OF BOARD OF THE COMPANY RIICO : 1. Chairman - Ms. Veenu Gupta, IAS Nominees 2. Director - Shri Prakash Tekwani IL Nominees : 1. Managing Director - Shri A. K. Jain (full time) 2. Director - Shri Veerendra Kumar 3. Director - Shri A. Muralidhar Independent Directors RIICO Nominee : Shri M. L. Bhargava IL Nominee : Nomination Under Process JAIPUR, Headquarter

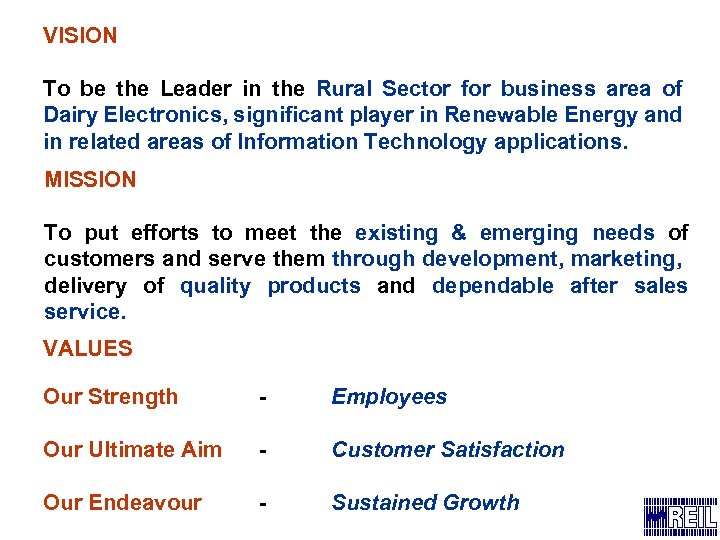

VISION To be the Leader in the Rural Sector for business area of Dairy Electronics, significant player in Renewable Energy and in related areas of Information Technology applications. MISSION To put efforts to meet the existing & emerging needs of customers and serve them through development, marketing, delivery of quality products and dependable after sales service. VALUES Our Strength - Employees Our Ultimate Aim - Customer Satisfaction Our Endeavour - Sustained Growth

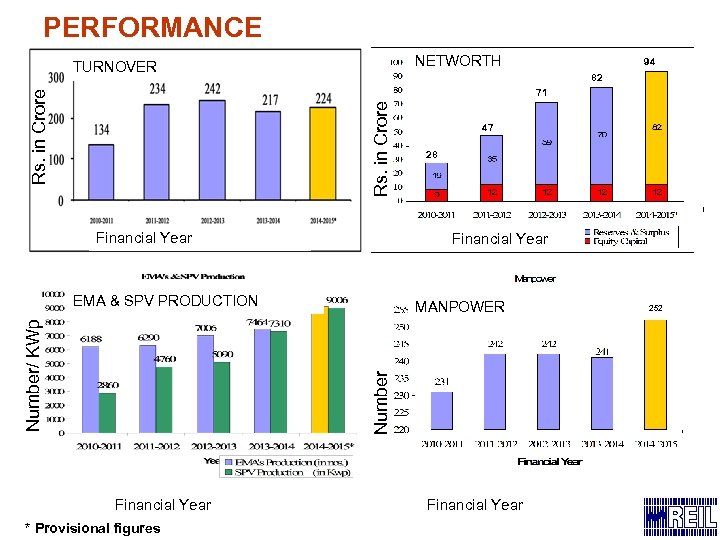

PERFORMANCE NETWORTH TURNOVER 94 82 Rs. in Crore 71 Financial Year 28 Financial Year EMA & SPV PRODUCTION MANPOWER Number/ KWp 47 Financial Year * Provisional figures Financial Year 252

Mo. U SIGNING WITH THE MINISTRY Shri Rajan S. Katoch, Secretary (DHI) and Shri A. K. Jain, MD, REIL sign the Mo. U 2015 -2016 Dr. Sutanu Behuria, Secretary (DHI) and Shri A. K. Jain, MD, REIL sign the Mo. U 2014 -2015

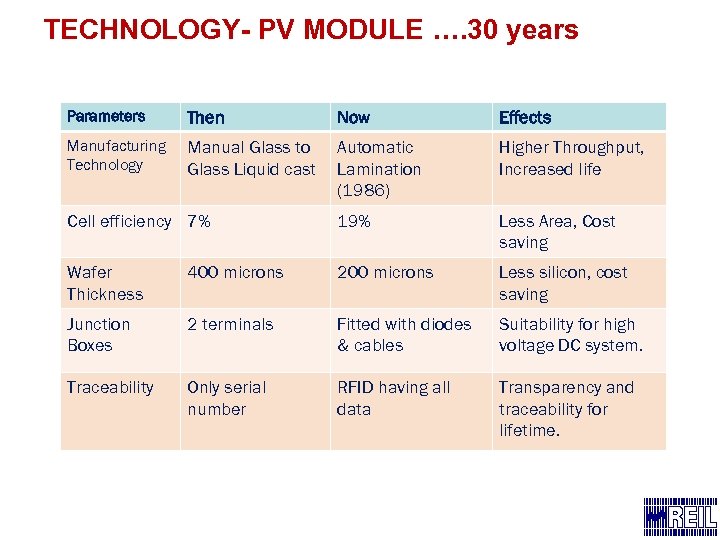

TECHNOLOGY- PV MODULE …. 30 years Parameters Then Now Effects Manufacturing Technology Manual Glass to Glass Liquid cast Automatic Lamination (1986) Higher Throughput, Increased life Cell efficiency 7% 19% Less Area, Cost saving Wafer Thickness 400 microns 200 microns Less silicon, cost saving Junction Boxes 2 terminals Fitted with diodes & cables Suitability for high voltage DC system. Traceability Only serial number RFID having all data Transparency and traceability for lifetime.

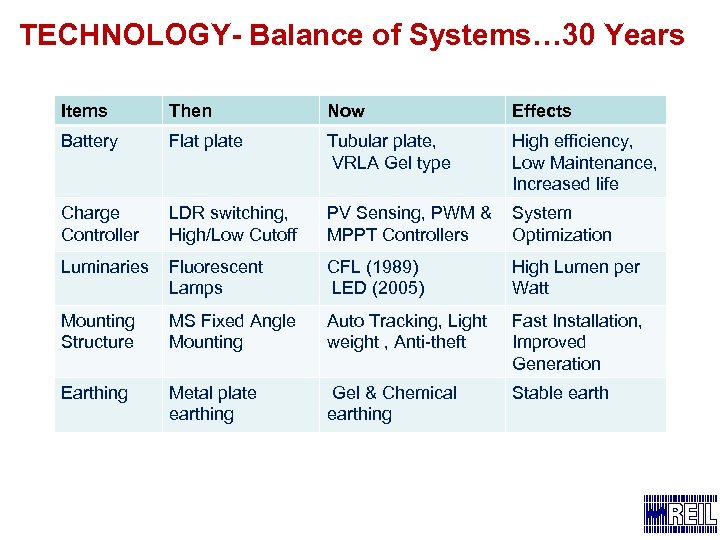

TECHNOLOGY- Balance of Systems… 30 Years Items Then Now Effects Battery Flat plate Tubular plate, VRLA Gel type High efficiency, Low Maintenance, Increased life Charge Controller LDR switching, High/Low Cutoff PV Sensing, PWM & System MPPT Controllers Optimization Luminaries Fluorescent Lamps CFL (1989) LED (2005) High Lumen per Watt Mounting Structure MS Fixed Angle Mounting Auto Tracking, Light weight , Anti-theft Fast Installation, Improved Generation Earthing Metal plate earthing Gel & Chemical earthing Stable earth

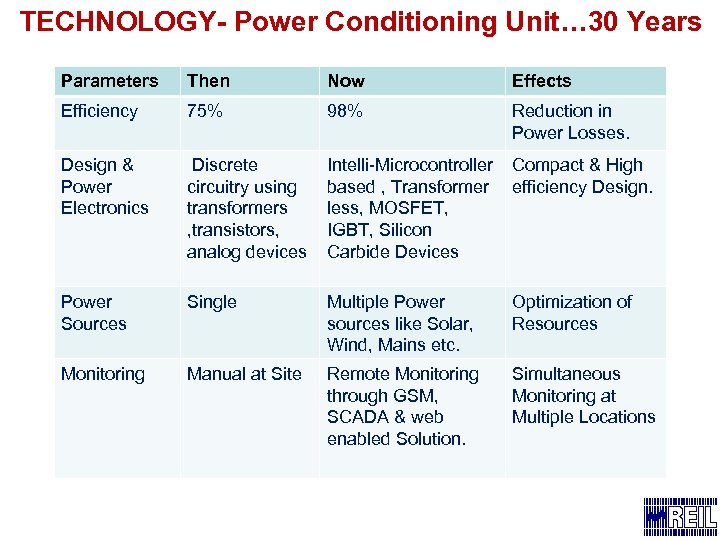

TECHNOLOGY- Power Conditioning Unit… 30 Years Parameters Then Now Effects Efficiency 75% 98% Reduction in Power Losses. Design & Power Electronics Discrete circuitry using transformers , transistors, analog devices Intelli-Microcontroller Compact & High based , Transformer efficiency Design. less, MOSFET, IGBT, Silicon Carbide Devices Power Sources Single Multiple Power sources like Solar, Wind, Mains etc. Optimization of Resources Monitoring Manual at Site Remote Monitoring through GSM, SCADA & web enabled Solution. Simultaneous Monitoring at Multiple Locations

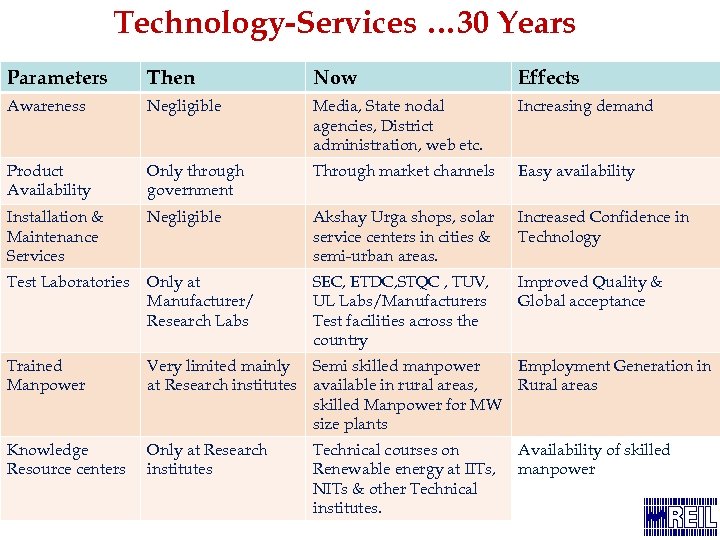

Technology-Services … 30 Years Parameters Then Now Effects Awareness Negligible Media, State nodal agencies, District administration, web etc. Increasing demand Product Availability Only through government Through market channels Easy availability Installation & Maintenance Services Negligible Akshay Urga shops, solar service centers in cities & semi-urban areas. Increased Confidence in Technology Test Laboratories Only at Manufacturer/ Research Labs SEC, ETDC, STQC , TUV, UL Labs/Manufacturers Test facilities across the country Improved Quality & Global acceptance Trained Manpower Very limited mainly Semi skilled manpower at Research institutes available in rural areas, skilled Manpower for MW size plants Employment Generation in Rural areas Knowledge Resource centers Only at Research institutes Availability of skilled manpower Technical courses on Renewable energy at IITs, NITs & other Technical institutes.

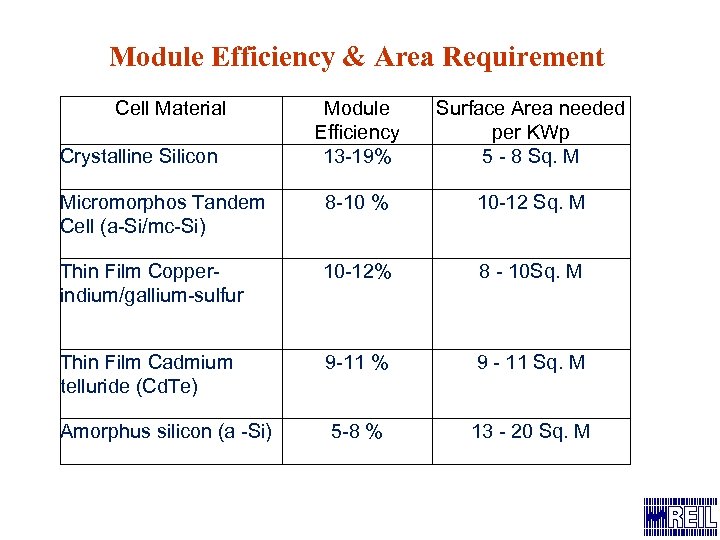

Module Efficiency & Area Requirement Cell Material Module Efficiency 13 -19% Surface Area needed per KWp 5 - 8 Sq. M Micromorphos Tandem Cell (a-Si/mc-Si) 8 -10 % 10 -12 Sq. M Thin Film Copperindium/gallium-sulfur 10 -12% 8 - 10 Sq. M Thin Film Cadmium telluride (Cd. Te) 9 -11 % 9 - 11 Sq. M Amorphus silicon (a -Si) 5 -8 % 13 - 20 Sq. M Crystalline Silicon

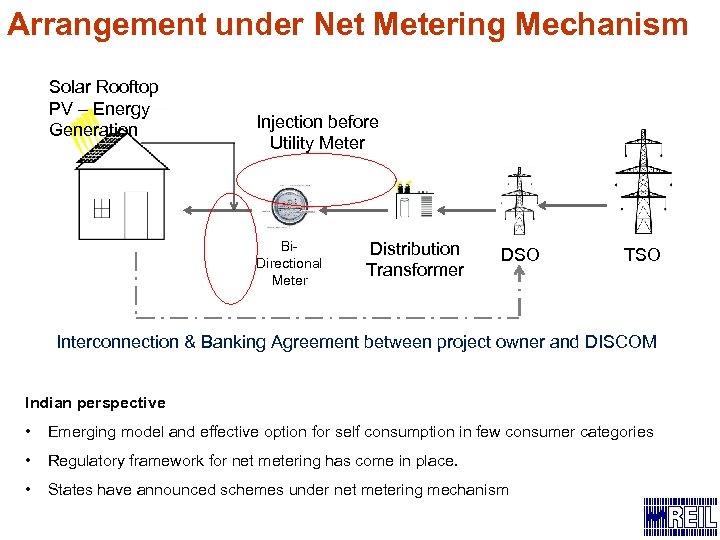

Arrangement under Net Metering Mechanism Solar Rooftop PV – Energy Generation Injection before Utility Meter Bi. Directional Meter Distribution Transformer DSO TSO Interconnection & Banking Agreement between project owner and DISCOM Indian perspective • Emerging model and effective option for self consumption in few consumer categories • Regulatory framework for net metering has come in place. • States have announced schemes under net metering mechanism

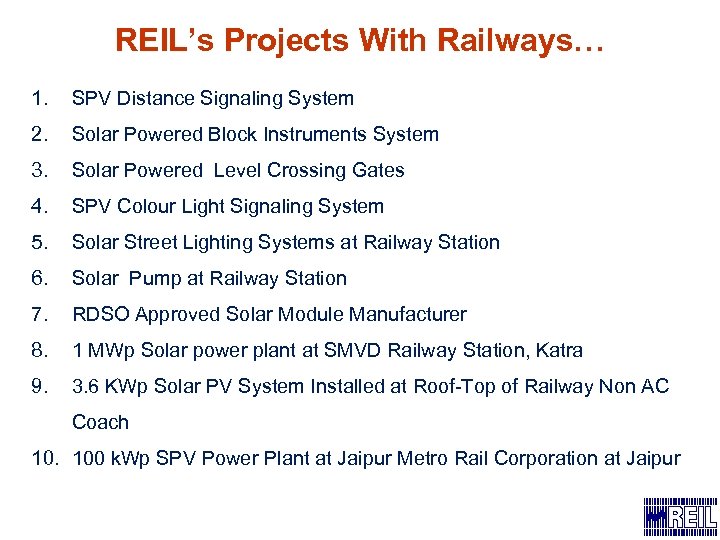

REIL’s Projects With Railways… 1. SPV Distance Signaling System 2. Solar Powered Block Instruments System 3. Solar Powered Level Crossing Gates 4. SPV Colour Light Signaling System 5. Solar Street Lighting Systems at Railway Station 6. Solar Pump at Railway Station 7. RDSO Approved Solar Module Manufacturer 8. 1 MWp Solar power plant at SMVD Railway Station, Katra 9. 3. 6 KWp Solar PV System Installed at Roof-Top of Railway Non AC Coach 10. 100 k. Wp SPV Power Plant at Jaipur Metro Rail Corporation at Jaipur

1 MWp SPV Power Plant at Shri Mata Vaishno Devi Katra Railway Station, J&K

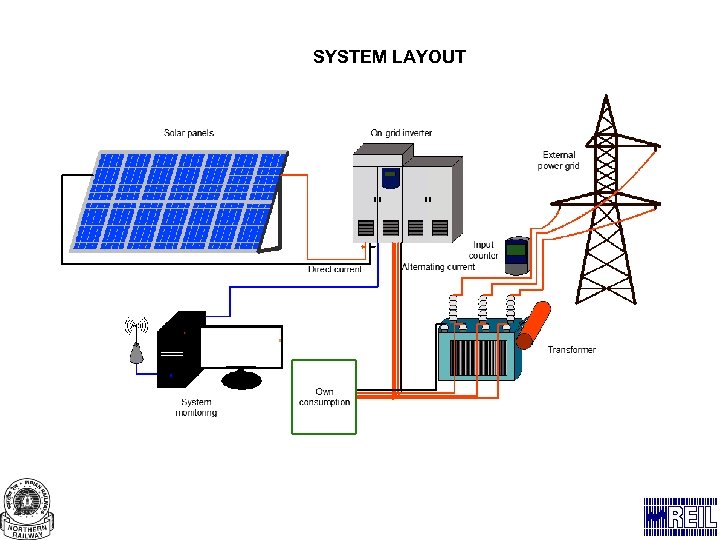

SYSTEM LAYOUT

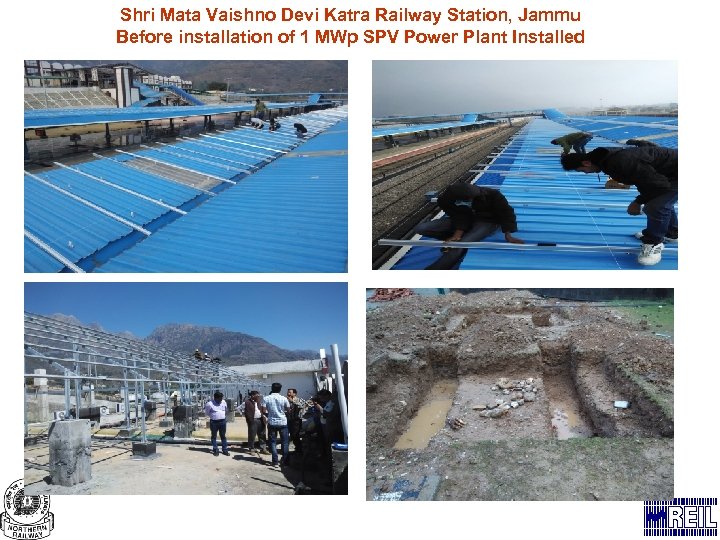

Shri Mata Vaishno Devi Katra Railway Station, Jammu Before installation of 1 MWp SPV Power Plant Installed

Shri Mata Vaishno Devi Katra Railway Station, Jammu After Installation of 1 MWp SPV Power Plant

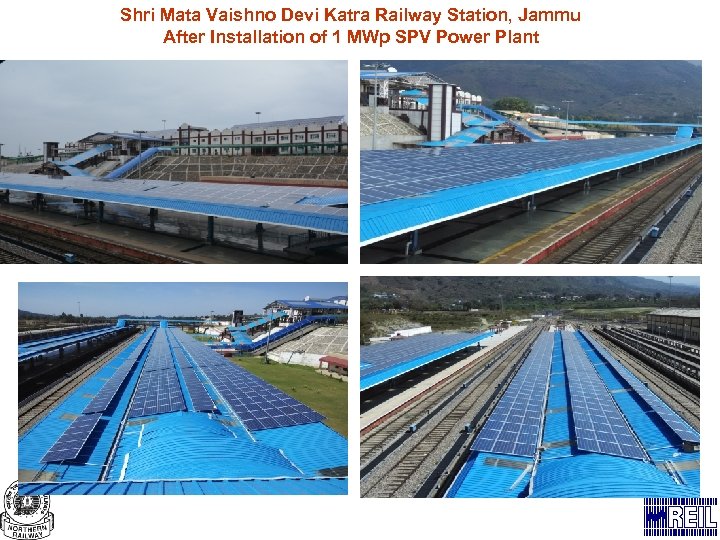

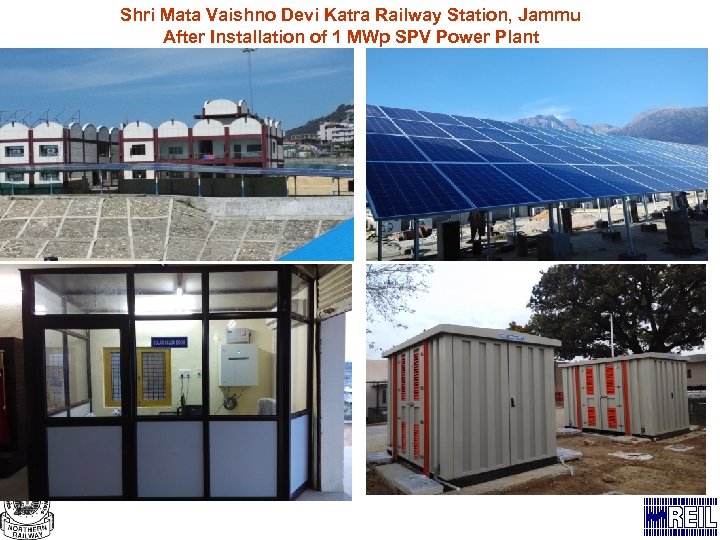

Shri Mata Vaishno Devi Katra Railway Station, Jammu After Installation of 1 MWp SPV Power Plant

BENEFITS FROM THE PROJECT Ø Generation of clean and green energy in a power deficit area. Ø 14. 6 Lac units of electricity annually. Ø Reduction of 1655 tons of Carbon Dioxide emissions per year. Ø Saving of Rs. 1 Cr on electricity bill annually. Ø Environmental awareness at strategically located Railway Station for Pilgrimage Tourism. Ø Online monitoring of power generation. Ø MIS reports for future projects.

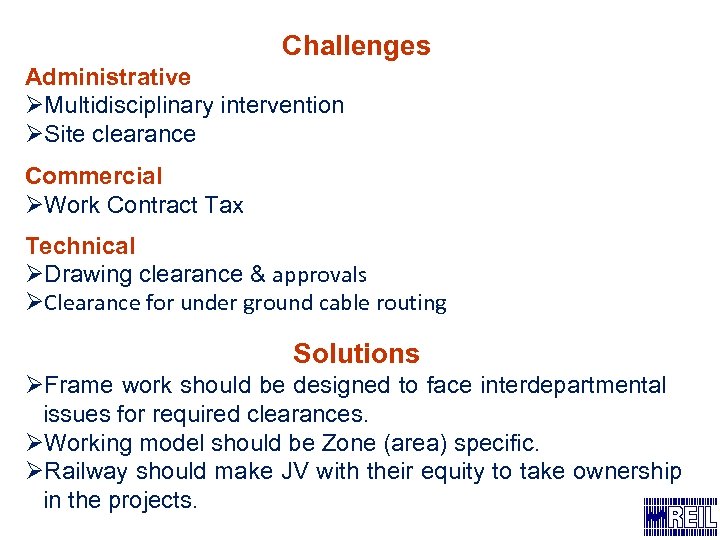

Challenges Administrative ØMultidisciplinary intervention ØSite clearance Commercial ØWork Contract Tax Technical ØDrawing clearance & approvals ØClearance for under ground cable routing Solutions ØFrame work should be designed to face interdepartmental issues for required clearances. ØWorking model should be Zone (area) specific. ØRailway should make JV with their equity to take ownership in the projects.

3. 6 KWp Solar PV System Installed at Roof-Top of Railway Non AC Coach I & C in 2014

BENEFITS FROM THE PROJECT ØGenerates about 17 units a day which enables the lighting system in the coach. ØGeneration of clean and green energy. ØContinuous Power Supply to Railway Coach. ØAdditional protection to the coach from heat in summers.

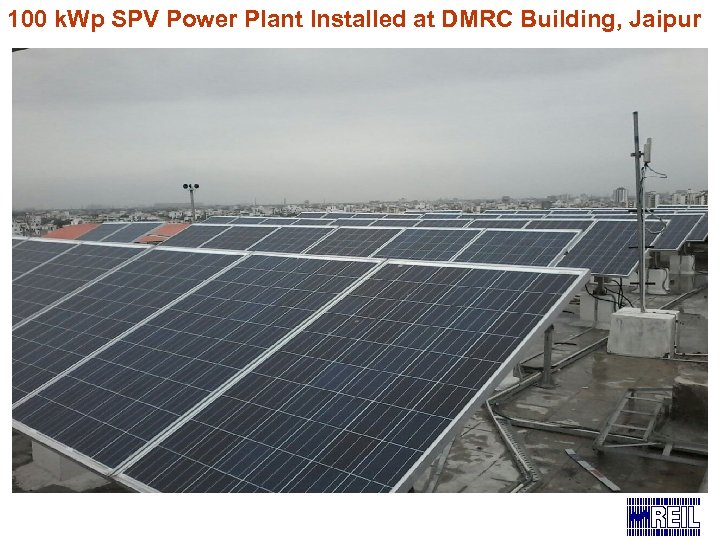

100 k. Wp SPV Power Plant Installed at DMRC Building, Jaipur

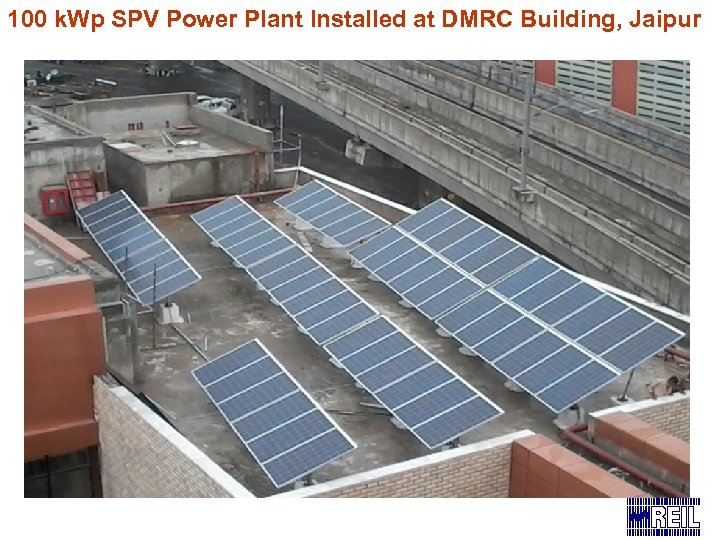

100 k. Wp SPV Power Plant Installed at DMRC Building, Jaipur

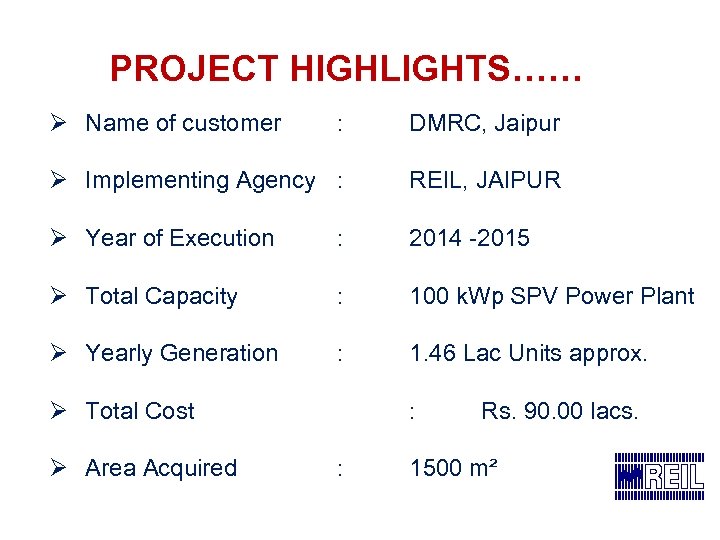

PROJECT HIGHLIGHTS…… Ø Name of customer : DMRC, Jaipur Ø Implementing Agency : REIL, JAIPUR Ø Year of Execution : 2014 -2015 Ø Total Capacity : 100 k. Wp SPV Power Plant Ø Yearly Generation : 1. 46 Lac Units approx. Ø Total Cost Ø Area Acquired : : Rs. 90. 00 lacs. 1500 m²

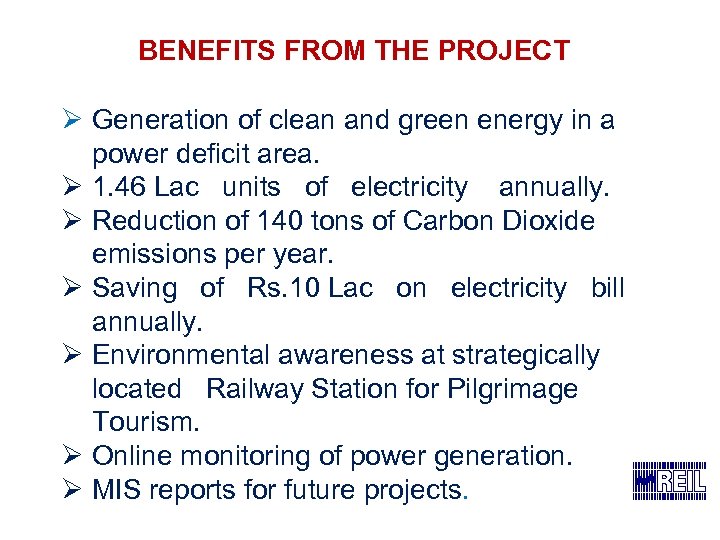

BENEFITS FROM THE PROJECT Ø Generation of clean and green energy in a power deficit area. Ø 1. 46 Lac units of electricity annually. Ø Reduction of 140 tons of Carbon Dioxide emissions per year. Ø Saving of Rs. 10 Lac on electricity bill annually. Ø Environmental awareness at strategically located Railway Station for Pilgrimage Tourism. Ø Online monitoring of power generation. Ø MIS reports for future projects.

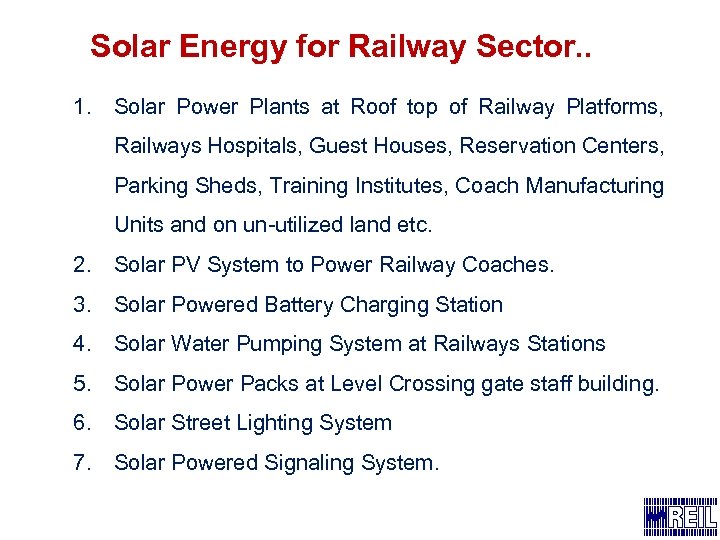

Solar Energy for Railway Sector. . 1. Solar Power Plants at Roof top of Railway Platforms, Railways Hospitals, Guest Houses, Reservation Centers, Parking Sheds, Training Institutes, Coach Manufacturing Units and on un-utilized land etc. 2. Solar PV System to Power Railway Coaches. 3. Solar Powered Battery Charging Station 4. Solar Water Pumping System at Railways Stations 5. Solar Power Packs at Level Crossing gate staff building. 6. Solar Street Lighting System 7. Solar Powered Signaling System.

Potential for SPV Systems in Railway Sr. No 1 2 3 Locations Zonal Railway Head quarter Railway Training Institutes Railway Production Units Railways Hospitals 6 7 Total in MWp Class A 1 Railway Station Class A Railway Station Class B Railways Station TOTAL 17 200 KWp 3. 4 7 200 KWp 1. 4 586 4 5 Qty Capacity of Power (Approx. ) Plant Proposed 100 KWp 58. 6 10 2000 KWp 20. 0 1000 KWp 100. 0 4000 200 KWp 800. 0 984. 8 MWp

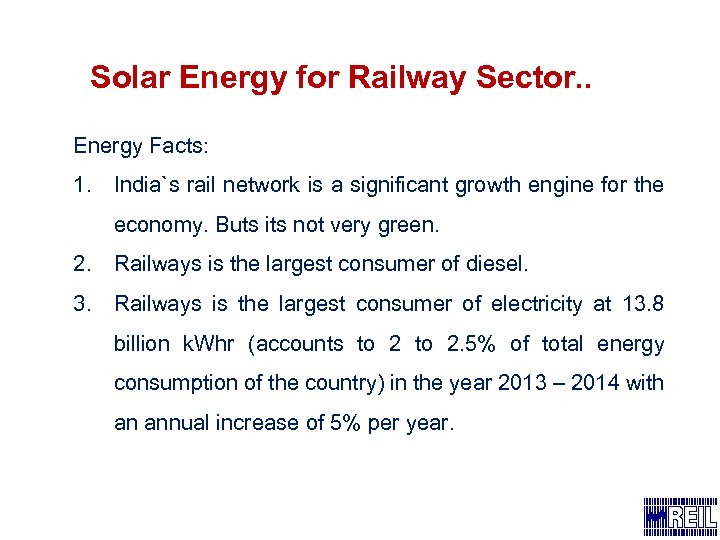

Solar Energy for Railway Sector. . Energy Facts: 1. India`s rail network is a significant growth engine for the economy. Buts its not very green. 2. Railways is the largest consumer of diesel. 3. Railways is the largest consumer of electricity at 13. 8 billion k. Whr (accounts to 2. 5% of total energy consumption of the country) in the year 2013 – 2014 with an annual increase of 5% per year.

Solar Energy for Railway Sector. . Benefits: Ø Solar Power is best utilized when it is generated at the point of consumption. Ø Scaling up dependence on solar power will fulfils two of India`s pressing objectives: economic development and climate change mitigation. Ø Deployment of rooftop solar systems at railway stations will save money and create thousand of jobs. Ø Switching to solar power can save valuable millions of dollars of foreign exchange reserves by avoiding diesel imports.

Inauguration of Commencement of work for Solar Plant at Shri Mata Vaishno Devi Katra Railway Station 28 th October, Shri Arunendra Kumar, Chairman, Railway Board 2014 inaugurated the commencement of work for the turnkey project of 1 MWp Solar Plant in the presence of Shri A. K. Jain, MD, at Shri Mata Vaishno Devi Katra Railway Station, J&K.

Mo. U signing for setting up of JVC for 4000 MW Ultra Mega Solar Power Project 29 th January 2014 Managing Director, REIL, Shri A. K. Jain signs Mo. U with five other PSUs for setting up of JVC for 4, 000 MW Ultra Mega Solar Power Project at Sambhar, Rajasthan

NATIONAL ENERGY CONSERVATION AWARD - 2012 14 th December 2012 Shri A. K. Jain, Managing Director, REIL receives, the “National Energy Conservation Award -2012”, from Honorable President Shri Pranab Mukerjee on 14 -12 -2012.

SCOPE Meritorious Award Commendation Certificate Nov, 05 2014 at Vigyan Bhawan, New Delhi Union Minister of Heavy Industries and Public Enterprises, Shri Anant Geete presented ‘SCOPE Meritorious Award Commendation Certificate’ for R&D, Technology Development & Innovation, for the year 2012 -13 in a ceremony held in the Chairmanship of Hon’ble President of India, on 05. 11. 2014 at New Delhi.

India Today PSUs Award 2014 for “Best in R&D Innovation” Hon’ble Minister for Consumer Affairs, Food and Public Distribution, Shri Ram Vilas Paswan awarded India Today PSUs Award 2014 for “Best in R&D Innovation” in the Mini-Ratna Category, to the Managing Director, Shri A. K. Jain, on 21. 08. 2014 at New Delhi.

BT Star PSU Excellence AWARD 2014 Hon’ble Minister of States, Shri Jitendra Singh awarded to Managing Director, Shri A. K. Jain “BT Star PSU 2014” Award for Excellence in Innovation (seen from left to right Shri Indresh Kumar, Chairman, Central Committee, RSS, Hon’ble Mo. S, Shri TKA Nair, Advisor to former PM, and Shri A. K. Jain) on 19. 06. 2014 at New Delhi.

Governance Now “PSU Award 2014” Nov, 07 2014 at SCOPE Convention Center, New Delhi Hon’ble Union Minister for Consumer Affairs, Food and Public Distribution, Shri Ram Vilas Paswan and Hon’ble Union Minister of Micro, Small & Medium Enterprises (MSME), Go. I, Shri Kalraj Mishra presented Governance Now “PSU Award 2014” in Mini Ratna Category II, for Assets Utilization, to Shri A. K. Jain, MD, REIL in a ceremony held at New delhi on 07. 11. 2014.

PSE Excellence Award 2014 17 th December 2014 Hon’ble Governor of Uttar Pradesh, Shri Ram Naik, in the presence of Hon’ble Minister of State for Heavy Industries & Public Enterprises, Shri G. M. Siddeshwara presented “PSE Excellence Award 2014” for R&D, Technology Development, in an event organized by Indian Chamber of Commerce in association with DPE, on 17. 12. 2014, at New Delhi.

PRESTIGIOUS AWARDS … Year Award National Awards 2014 : 2012 2006/07 2004 1991/2000 -01 : : ‘SCOPE Meritorious Award Commendation Certificate’ for R&D, Technology Development & Innovation by Union Minister of Heavy Industries and Public Enterprises. “National Energy Conservation Award – 2012”, from President Govt. of India, by Ministry of Power “SCOPE Award” for Excellence and Outstanding Contribution to the Public Sector Management DSIR National R&D Award, from Prime Minister, Govt. of India, by Ministry of Science & Technology Excellence in Electronics Award, by then Do. E Now Mo. IT&C, Govt. of India National Level Awards 2015 2014 2014 : BT Star PSU Excellence Award -2014 -Best PSU, for Excellence in CSR Category, for Mini Ratna PSU : “PSE Excellence Award 2014” for R&D, Technology, by Indian Chamber of Commerce in association with Department of Public Enterprises , Go. I Governance Now “PSU Award 2014” in Mini Ratna Category II, for Assets Utilization : : India Today PSUs Award 2014, for Best in R&D Innovation in Mini Ratna Category : Asia Pacific HRM Congress Awards 2014 for “Organization with Innovative HR Practices” : BT Star PSU Excellence Award -2014 -Best PSU, for Excellence in Innovation, in Mini Ratna Category 2013 : “PSE Excellence Award 2013” for Operational Excellence by Indian Chamber of Commerce in association 2013 : 2013 2012 2011 2002/2008 : : : with Department of Public Enterprises , Go. I Governance Now “PSU Award 2013” for Asset Utilization & Utilization of Human Resource, by Minister of Heavy Industries and Public Enterprises, Go. I. e-India “PSE Award 2013” for Financial Resource Management through ICT “SKOCH Digital Inclusion Award 2012” & “e. World Forum Award – 2012” , for Best ICT G 2 G Initiatives BT Star PSU Excellence Award -2012 -Best PSU, for outstanding performance in Mini Ratna Category “e. World Forum Award – 2011” for the Best Rural e-Governance Initiative. Energy Efficiency Four Star Rating Award for REIL Premises First Prize from Indian Dairy Association 2011/2012 2008 -2012 2008 : : : State Award: First Prize in Rajasthan Energy Conservation Awards. Best Employer Award (6 times) State Award for Export Excellence State Awards

SCOPE Award, 2006 -2007 for Excellence and Outstanding contribution to the Public Sector Management National Energy Conservation Award - 2012 DSIR National R&D Award, 2004 Excellence in Electronics Award - 2000 -2001 Excellence in Electronics Award 1991

PROUD MOMENTS … Hon’ble Prime Minister , Shri Narendra Modi during his tenure as CM, witnessing REIL products at Valsad Dairy, Gujarat

Hon'ble Union Minister, Ministry of Agriculture, Shri Radha Mohan Singh and Chairman NDDB, Shri T. Nanda Kumar, visited the REIL Stall, during India International Trade Fair (IITF) at New Delhi 17 th Nov, 2014 Hon’ble Union Minister, Ministry of Agriculture 20 th Nov, 2014 Chairman NDDB Former President of India, Dr. APJ Kalam and CM Andhra Pradesh Mr. N Chandrababu Naidu, visited REIL’s DPU, on 06. 10. 2014 at Kalyandurgam, Ananthapur Dist. Andhra Pradesh 06 th October, 2014

Former President of India Dr. APJ Abdul Kalam Former PM, Shri Atal Bihari Vajpayee at a Gujarat Milk Society

REIL is dedicated to… Electronics Energy Information Technology …for the socio-economic upliftment of rural masses and public welfare at large.

RESEARCH & DEVELOPMENT R & D Division (Recognized by DSIR) Appox. 1 % of turnover is incurred in R&D activities every year. Rs. 235 Lacs in the Year 2012 -13; Rs. 248 Lacs in the Year 2013 -14. Area of operation • Product Up gradation • Milk analysis • Data Processing & automation • Milk weighing • Non conventional systems

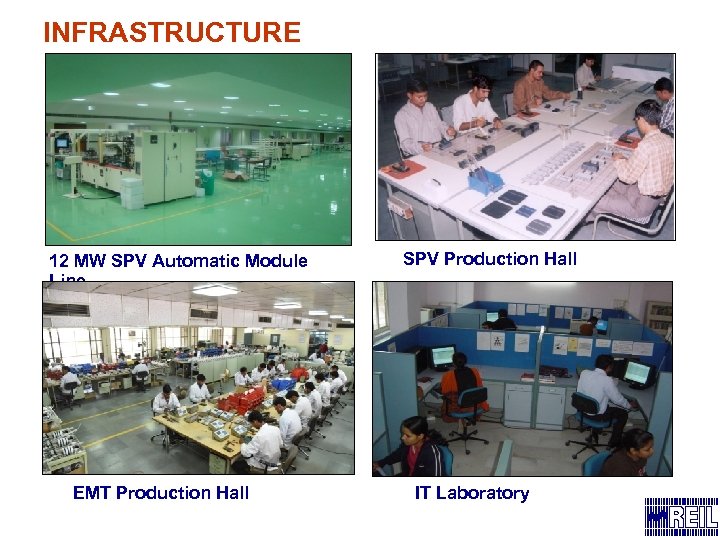

INFRASTRUCTURE REIL Works Marketing Office

INFRASTRUCTURE 12 MW SPV Automatic Module Line EMT Production Hall SPV Production Hall IT Laboratory

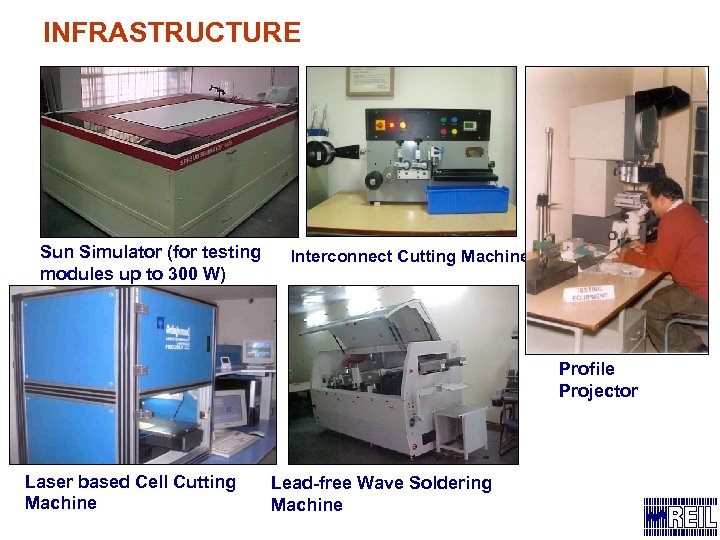

INFRASTRUCTURE Sun Simulator (for testing modules up to 300 W) Interconnect Cutting Machine Profile Projector Laser based Cell Cutting Machine Lead-free Wave Soldering Machine

REIL- Contributions to the SPV sector… Ø Pioneering role in the sector since 1985. Ø Successful implementation of pilot projects for Indian environment & needs, with MNRE and other agencies. Ø Vertically integrated organization for modules, electronics, Bo. S, design & development, EPC services, and post sales support. Ø Turnkey-solutions provider Ø Large-size projects of national importance. Ø Projects in alignment with missions of the government: drinking water, literacy, education, health, irrigation, e-governance services for rural folk etc.

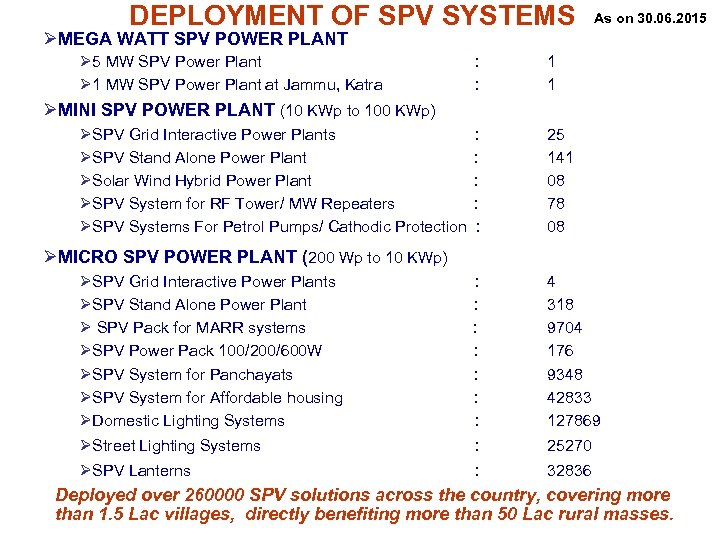

DEPLOYMENT OF SPV SYSTEMS As on 30. 06. 2015 ØMEGA WATT SPV POWER PLANT Ø 5 MW SPV Power Plant Ø 1 MW SPV Power Plant at Jammu, Katra : : 1 1 ØMINI SPV POWER PLANT (10 KWp to 100 KWp) ØSPV Grid Interactive Power Plants : ØSPV Stand Alone Power Plant : ØSolar Wind Hybrid Power Plant : ØSPV System for RF Tower/ MW Repeaters : ØSPV Systems For Petrol Pumps/ Cathodic Protection : 25 141 08 78 08 ØMICRO SPV POWER PLANT (200 Wp to 10 KWp) ØSPV Grid Interactive Power Plants : ØSPV Stand Alone Power Plant : Ø SPV Pack for MARR systems : ØSPV Power Pack 100/200/600 W : ØSPV System for Panchayats : ØSPV System for Affordable housing : ØDomestic Lighting Systems : 4 318 9704 176 9348 42833 127869 ØStreet Lighting Systems : 25270 : 32836 ØSPV Lanterns Deployed over 260000 SPV solutions across the country, covering more than 1. 5 Lac villages, directly benefiting more than 50 Lac rural masses.

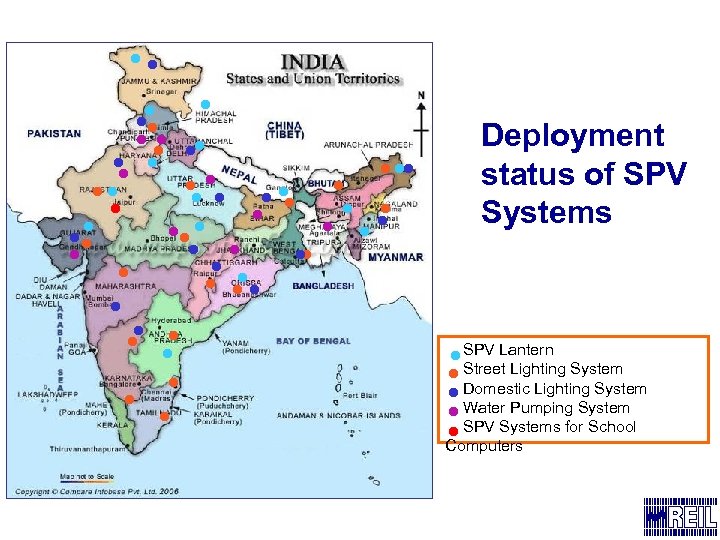

nn n n nn n n n n n n n nn n n n n Deployment status of SPV Systems SPV Lantern n Street Lighting System n Domestic Lighting System n Water Pumping System n SPV Systems for School n Computers
