WELCOME To Company Overview n Founded 1989

WELCOME To

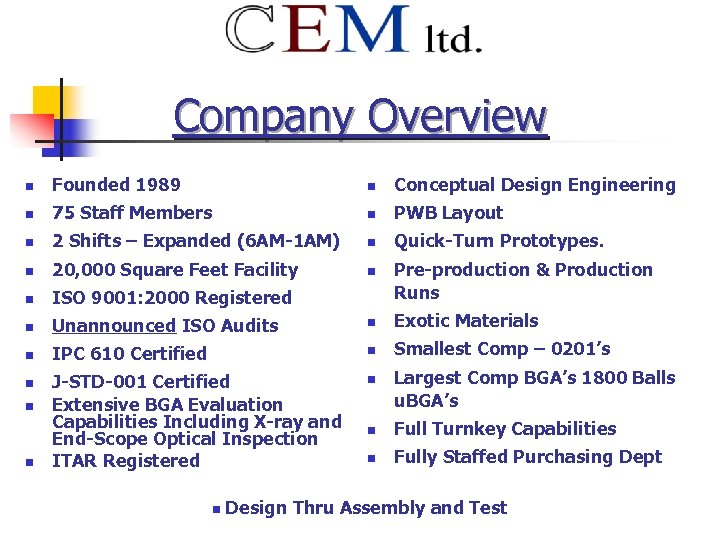

Company Overview n Founded 1989 n Conceptual Design Engineering n 75 Staff Members n PWB Layout n 2 Shifts – Expanded (6 AM-1 AM) n Quick-Turn Prototypes. n 20, 000 Square Feet Facility n n ISO 9001: 2000 Registered n Unannounced ISO Audits n Exotic Materials n IPC 610 Certified n Smallest Comp – 0201’s J-STD-001 Certified Extensive BGA Evaluation Capabilities Including X-ray and End-Scope Optical Inspection ITAR Registered n n n Pre-production & Production Runs Largest Comp BGA’s 1800 Balls u. BGA’s n Full Turnkey Capabilities n Fully Staffed Purchasing Dept Design Thru Assembly and Test

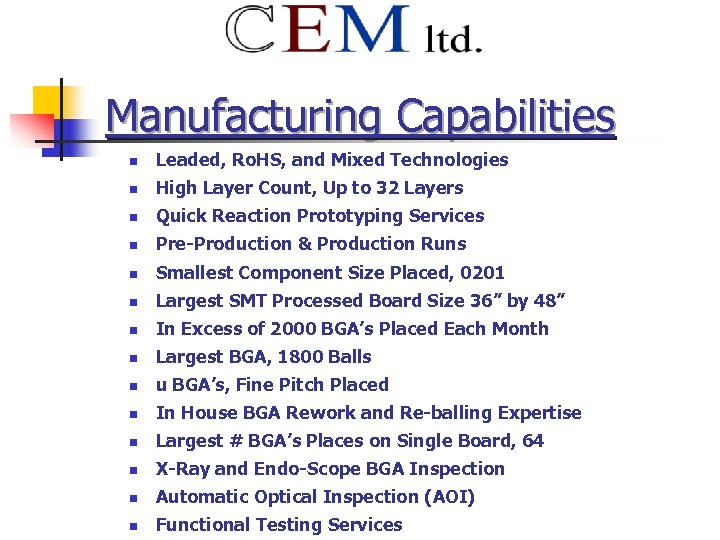

Manufacturing Capabilities n Leaded, Ro. HS, and Mixed Technologies n High Layer Count, Up to 32 Layers n Quick Reaction Prototyping Services n Pre-Production & Production Runs n Smallest Component Size Placed, 0201 n Largest SMT Processed Board Size 36” by 48” n In Excess of 2000 BGA’s Placed Each Month n Largest BGA, 1800 Balls n u BGA’s, Fine Pitch Placed n In House BGA Rework and Re-balling Expertise n Largest # BGA’s Places on Single Board, 64 n X-Ray and Endo-Scope BGA Inspection n Automatic Optical Inspection (AOI) n Functional Testing Services

ar e nan U nce ou n ISO d udi A 3 T ts a. Y es im

ON TI IS G TA I RE R RA T

Equipment List

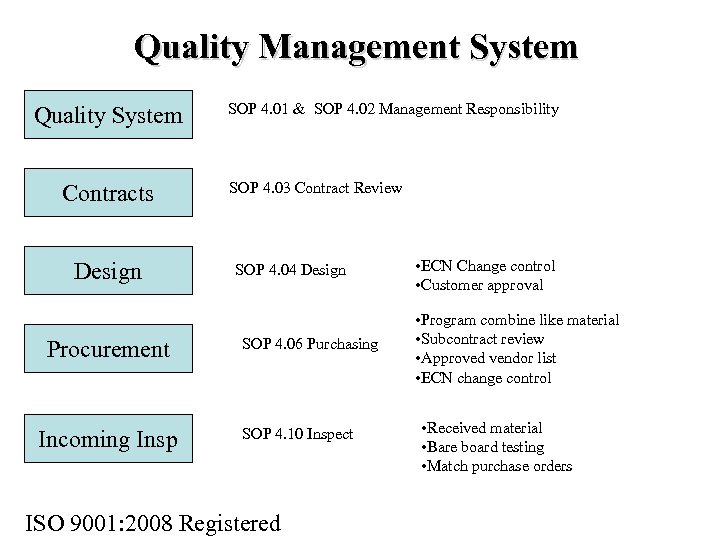

Quality Management System Quality System Contracts Design Procurement Incoming Insp SOP 4. 01 & SOP 4. 02 Management Responsibility SOP 4. 03 Contract Review SOP 4. 04 Design SOP 4. 06 Purchasing SOP 4. 10 Inspect ISO 9001: 2008 Registered • ECN Change control • Customer approval • Program combine like material • Subcontract review • Approved vendor list • ECN change control • Received material • Bare board testing • Match purchase orders

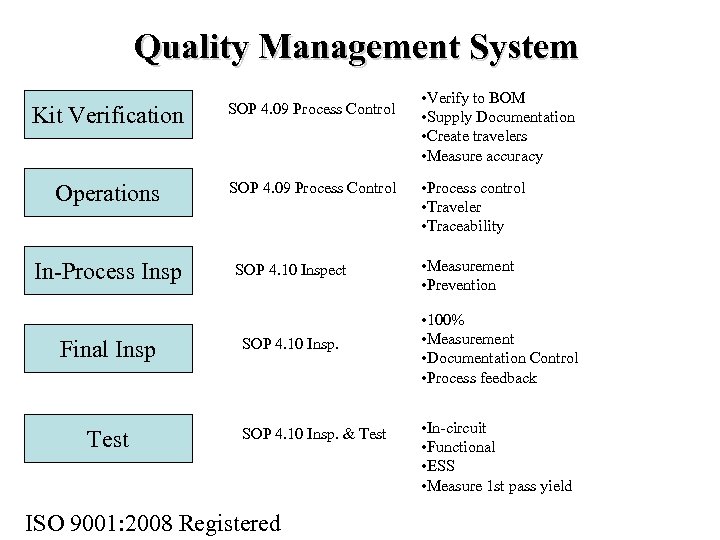

Quality Management System Kit Verification SOP 4. 09 Process Control Operations SOP 4. 09 Process Control In-Process Insp Final Insp Test SOP 4. 10 Inspect SOP 4. 10 Insp. & Test ISO 9001: 2008 Registered • Verify to BOM • Supply Documentation • Create travelers • Measure accuracy • Process control • Traveler • Traceability • Measurement • Prevention • 100% • Measurement • Documentation Control • Process feedback • In-circuit • Functional • ESS • Measure 1 st pass yield

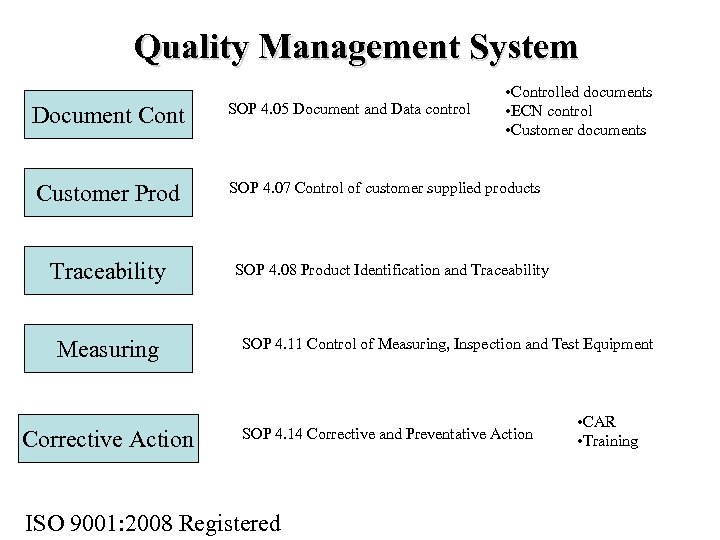

Quality Management System • Controlled documents • ECN control • Customer documents Document Cont SOP 4. 05 Document and Data control Customer Prod SOP 4. 07 Control of customer supplied products Traceability Measuring Corrective Action SOP 4. 08 Product Identification and Traceability SOP 4. 11 Control of Measuring, Inspection and Test Equipment SOP 4. 14 Corrective and Preventative Action ISO 9001: 2008 Registered • CAR • Training

Quality Assurance System Product Flow General

Quality Assurance System Product Flow General

Quality Assurance System Product Flow General

Product Flow Typical

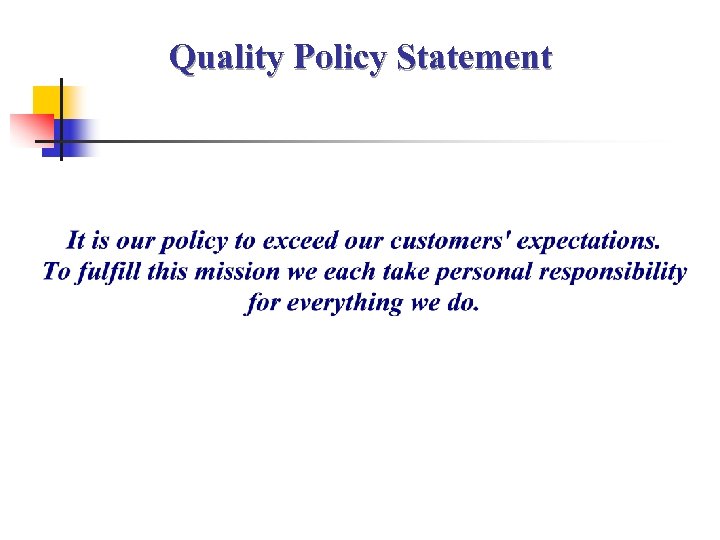

Quality Policy Statement

Thank You
