Welcome Senco Ultra Filtration Pot filter M s

Welcome

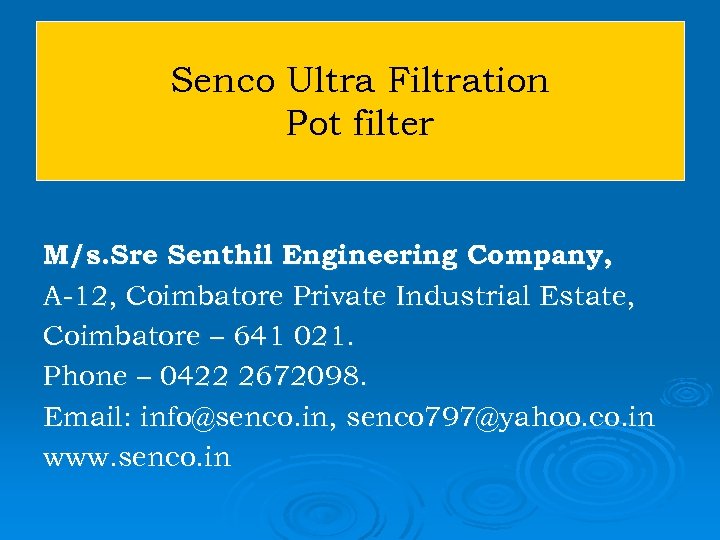

Senco Ultra Filtration Pot filter M/s. Sre Senthil Engineering Company, A-12, Coimbatore Private Industrial Estate, Coimbatore – 641 021. Phone – 0422 2672098. Email: info@senco. in, senco 797@yahoo. co. in www. senco. in

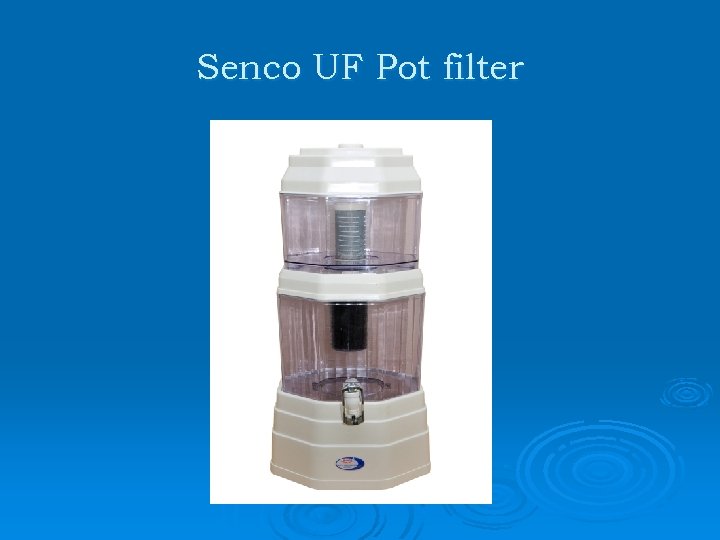

Senco UF Pot filter

Polymeric Hollow Fiber UF Membrane This state of art membrane filters particles of the size of 0. 01 micron and above. So This filters the turbidity, Iron content and all bacteria from water. This capacity of Bacterial filtration is guaranteed through out the life of the membrane. As all the bacteria are filtered, no separatedisinfection equipment is required.

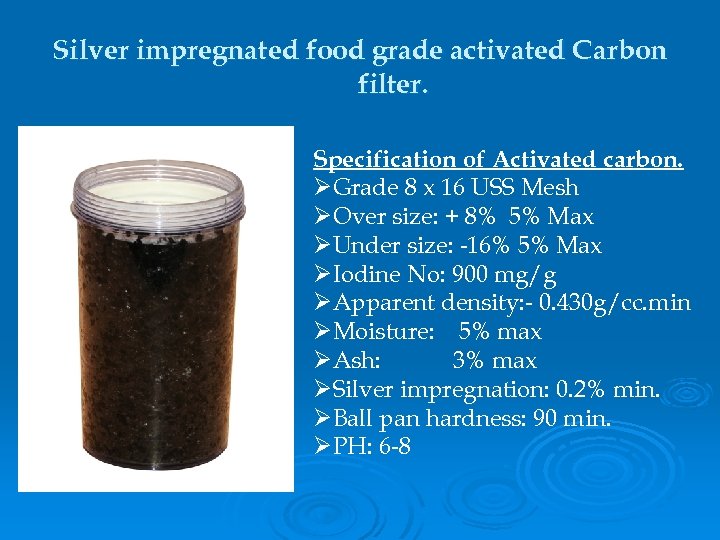

Silver impregnated food grade activated Carbon filter. Specification of Activated carbon. ØGrade 8 x 16 USS Mesh ØOver size: + 8% 5% Max ØUnder size: -16% 5% Max ØIodine No: 900 mg/g ØApparent density: - 0. 430 g/cc. min ØMoisture: 5% max ØAsh: 3% max ØSilver impregnation: 0. 2% min. ØBall pan hardness: 90 min. ØPH: 6 -8

Features Ø Ø Ø Technology - Ultra filtration. Contaminants removed suspended solids / turbidity precipitated iron. bacteria. Total Capacity of the filter 25 Liters. Top container 10 Liters. Bottom container 15 Liters. Material of construction. Body Poly Carbonate. (food grade) Lid Poly propylene. (food grade) Stand Poly propylene. (food grade) Tap Poly propylene. (food grade) No of Taps 1 no

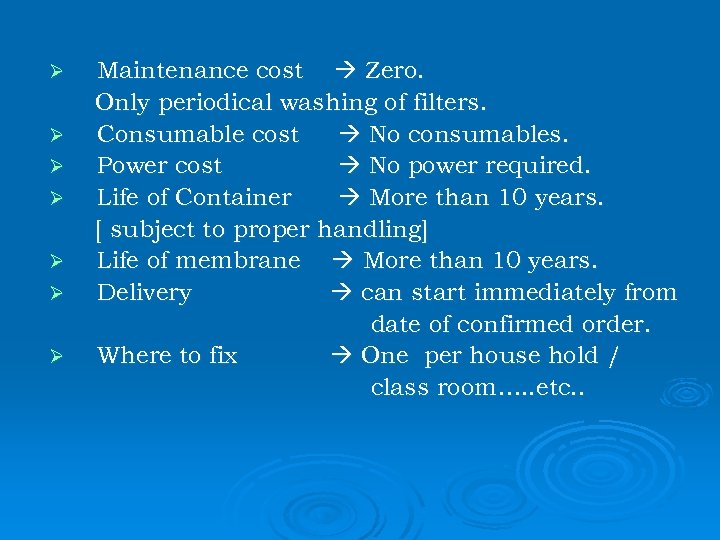

Ø Ø Ø Ø Maintenance cost Zero. Only periodical washing of filters. Consumable cost No consumables. Power cost No power required. Life of Container More than 10 years. [ subject to proper handling] Life of membrane More than 10 years. Delivery can start immediately from date of confirmed order. Where to fix One per house hold / class room…. . etc. .

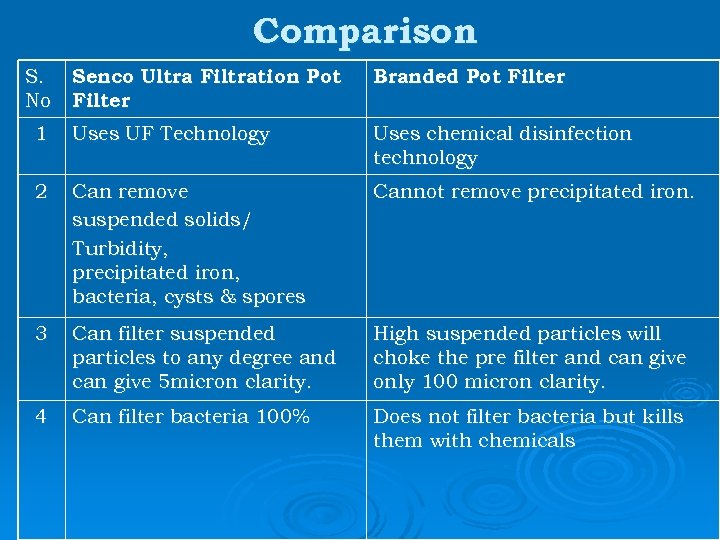

Comparison Senco Ultra Filtration Pot Filter Branded Pot Filter 1 Uses UF Technology Uses chemical disinfection technology 2 Can remove suspended solids/ Turbidity, precipitated iron, bacteria, cysts & spores Cannot remove precipitated iron. 3 Can filter suspended particles to any degree and can give 5 micron clarity. High suspended particles will choke the pre filter and can give only 100 micron clarity. 4 Can filter bacteria 100% Does not filter bacteria but kills them with chemicals S. No

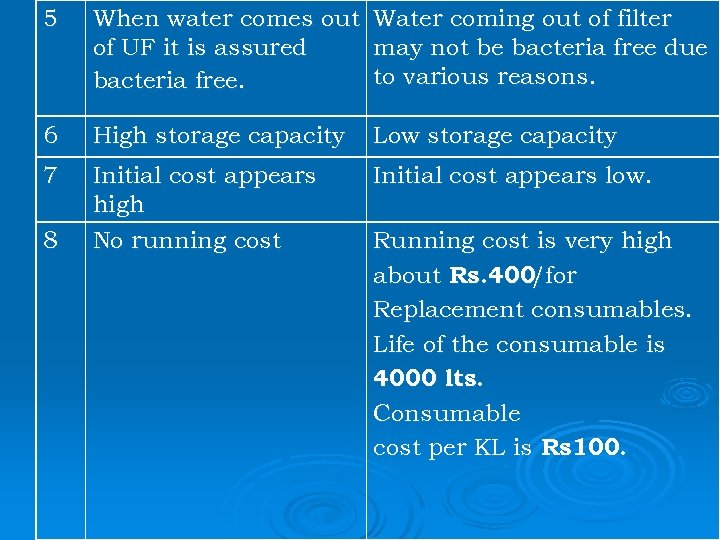

5 When water comes out of UF it is assured bacteria free. Water coming out of filter may not be bacteria free due to various reasons. 6 High storage capacity Low storage capacity 7 Initial cost appears high No running cost Initial cost appears low. 8 Running cost is very high about Rs. 400/for Replacement consumables. Life of the consumable is 4000 lts. Consumable cost per KL is Rs 100.

Max allowable running cost as per DST, GOI norms is Rs. 30/-per. KL for Jalmani projects. Considering there are 40 students in 1 class room and they consume 2 lts per day, we need 80 Lp. D and 80 x 200 lts per year, ie 16 KL per year. We need 4 replacements. Total cost per annum 4 x 400 = Rs 1600/ and for 5 years Rs 8000/. 9 Running cost comparison at the end of 5 years. Zero Rs 8000/.

Thank you
