Welcome about respiratory protection test technology Welcome about respiratory protection test technology

Labtec Labtec

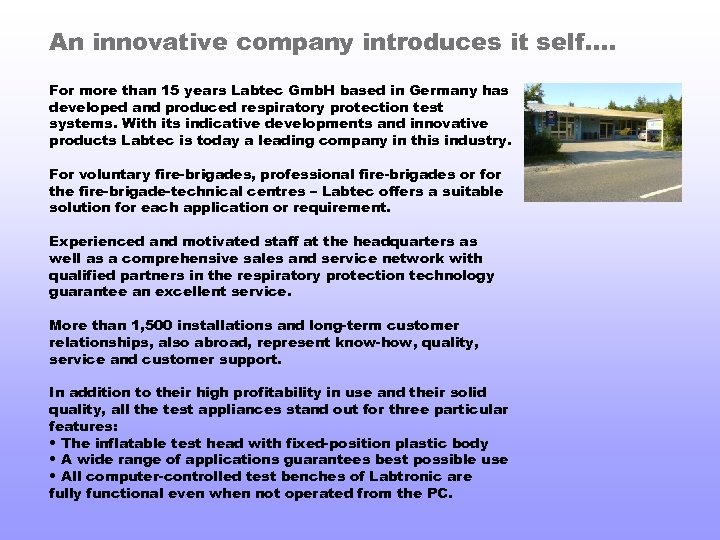

An innovative company introduces it self. . For more than 15 years Labtec Gmb. An innovative company introduces it self. . For more than 15 years Labtec Gmb. H based in Germany has developed and produced respiratory protection test systems. With its indicative developments and innovative products Labtec is today a leading company in this industry. For voluntary fire-brigades, professional fire-brigades or for the fire-brigade-technical centres – Labtec offers a suitable solution for each application or requirement. Experienced and motivated staff at the headquarters as well as a comprehensive sales and service network with qualified partners in the respiratory protection technology guarantee an excellent service. More than 1, 500 installations and long-term customer relationships, also abroad, represent know-how, quality, service and customer support. In addition to their high profitability in use and their solid quality, all the test appliances stand out for three particular features: • The inflatable test head with fixed-position plastic body • A wide range of applications guarantees best possible use • All computer-controlled test benches of Labtronic are fully functional even when not operated from the PC.

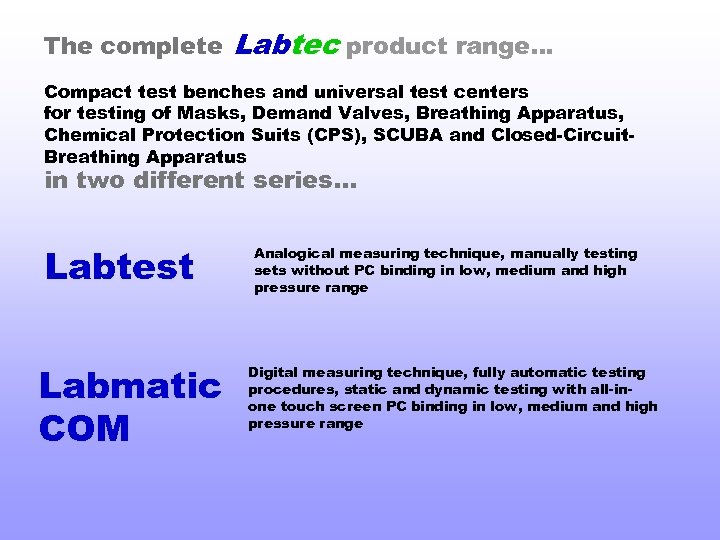

The complete Labtec product range… Compact test benches and universal test centers for testing The complete Labtec product range… Compact test benches and universal test centers for testing of Masks, Demand Valves, Breathing Apparatus, Chemical Protection Suits (CPS), SCUBA and Closed-Circuit. Breathing Apparatus in two different series. . . Labtest Labmatic COM Analogical measuring technique, manually testing sets without PC binding in low, medium and high pressure range Digital measuring technique, fully automatic testing procedures, static and dynamic testing with all-inone touch screen PC binding in low, medium and high pressure range

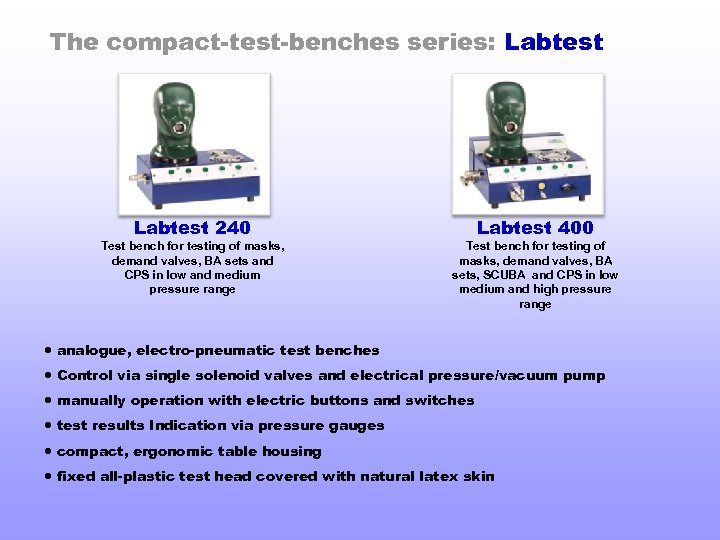

The compact-test-benches series: Labtest 240 Test bench for testing of masks, demand valves, BA The compact-test-benches series: Labtest 240 Test bench for testing of masks, demand valves, BA sets and CPS in low and medium pressure range Labtest 400 Test bench for testing of masks, demand valves, BA sets, SCUBA and CPS in low medium and high pressure range analogue, electro-pneumatic test benches Control via single solenoid valves and electrical pressure/vacuum pump manually operation with electric buttons and switches test results Indication via pressure gauges compact, ergonomic table housing fixed all-plastic test head covered with natural latex skin

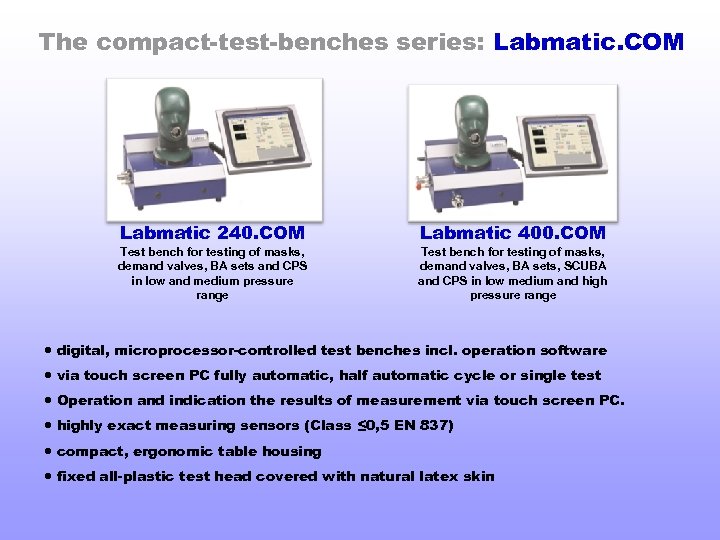

The compact-test-benches series: Labmatic. COM Labmatic 240. COM Test bench for testing of masks, The compact-test-benches series: Labmatic. COM Labmatic 240. COM Test bench for testing of masks, demand valves, BA sets and CPS in low and medium pressure range Labmatic 400. COM Test bench for testing of masks, demand valves, BA sets, SCUBA and CPS in low medium and high pressure range digital, microprocessor-controlled test benches incl. operation software via touch screen PC fully automatic, half automatic cycle or single test Operation and indication the results of measurement via touch screen PC. highly exact measuring sensors (Class ≤ 0, 5 EN 837) compact, ergonomic table housing fixed all-plastic test head covered with natural latex skin

The universal test-benches: Labmatic 1500. COM For static and dynamic leakage – and function The universal test-benches: Labmatic 1500. COM For static and dynamic leakage – and function tests of: Masks, Demand Valves, BA sets, CPS, SCUBA, Closed-Circuit. Breathing-Apparatus, Air Supply BA sets, Escape sets in low-, medium- and high pressure range digital, microprocessor-controlled test benches incl. operation software via PC fully automatic, half automatic cycle or single test highly exact measuring sensors (Class ≤ 0, 5 EN 837) ergonomic table housing with BA connector on the front side infinitely variable pressure reducer 0… 350 bar fixed all-plastic test head covered with natural latex skin infinitely variable breathing machine in the software

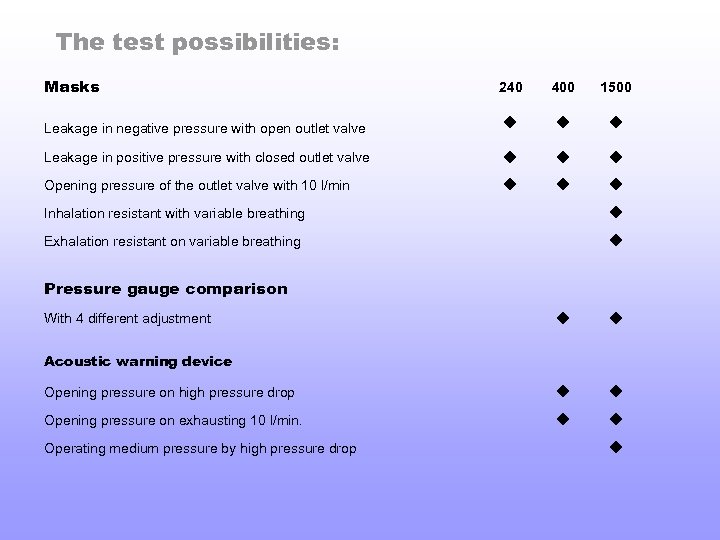

The test possibilities: Masks 240 400 1500 Leakage in positive pressure with closed outlet The test possibilities: Masks 240 400 1500 Leakage in positive pressure with closed outlet valve Opening pressure of the outlet valve with 10 l/min Leakage in negative pressure with open outlet valve Inhalation resistant with variable breathing Exhalation resistant on variable breathing Pressure gauge comparison With 4 different adjustment Opening pressure on high pressure drop Opening pressure on exhausting 10 l/min. Acoustic warning device Operating medium pressure by high pressure drop

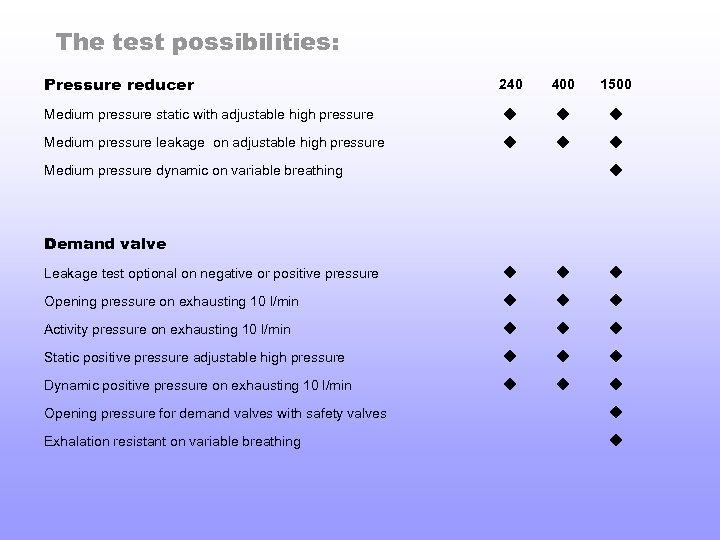

The test possibilities: Pressure reducer 240 400 1500 Medium pressure static with adjustable high The test possibilities: Pressure reducer 240 400 1500 Medium pressure static with adjustable high pressure Medium pressure leakage on adjustable high pressure Medium pressure dynamic on variable breathing Demand valve Leakage test optional on negative or positive pressure Opening pressure on exhausting 10 l/min Activity pressure on exhausting 10 l/min Static positive pressure adjustable high pressure Dynamic positive pressure on exhausting 10 l/min Opening pressure for demand valves with safety valves Exhalation resistant on variable breathing

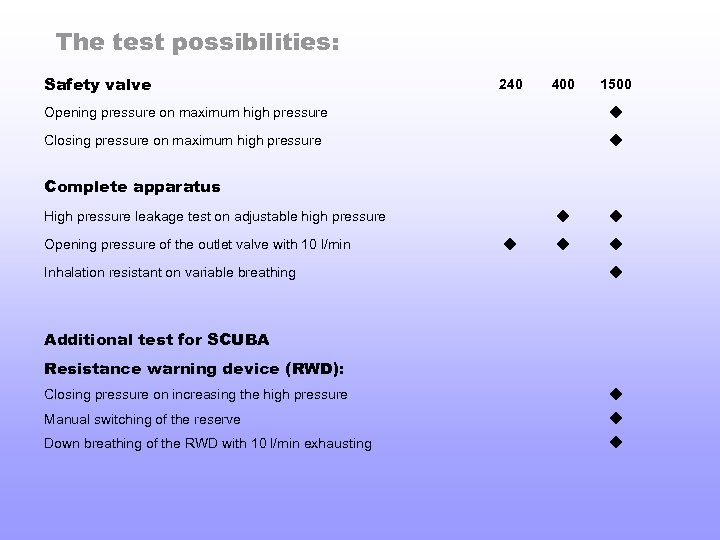

The test possibilities: Safety valve 240 400 1500 Opening pressure on maximum high pressure The test possibilities: Safety valve 240 400 1500 Opening pressure on maximum high pressure Closing pressure on maximum high pressure Complete apparatus High pressure leakage test on adjustable high pressure Opening pressure of the outlet valve with 10 l/min Inhalation resistant on variable breathing Additional test for SCUBA Resistance warning device (RWD): Closing pressure on increasing the high pressure Manual switching of the reserve Down breathing of the RWD with 10 l/min exhausting

The test possibilities: Additional tests for Closed-Circuit-Breathing- 240 400 1500 Apparatus Activity pressure of The test possibilities: Additional tests for Closed-Circuit-Breathing- 240 400 1500 Apparatus Activity pressure of the low pressure warning Drainage valve Over pressure valve Constant dosage Minimum valve Bypass valve Rest pressure warning Additional tests for Escape sets Use period test Chemical Protection Suit Leakage test of the suit Leakage test of the over pressure valves

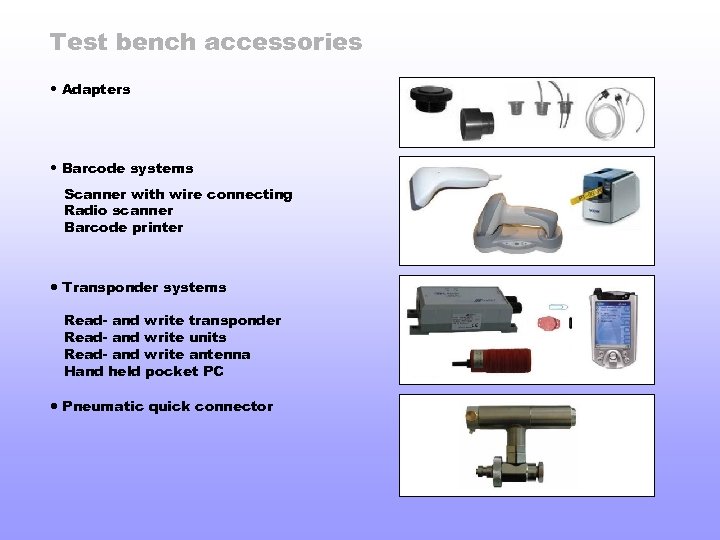

Test bench accessories • Adapters • Barcode systems Scanner with wire connecting Radio scanner Test bench accessories • Adapters • Barcode systems Scanner with wire connecting Radio scanner Barcode printer Transponder systems Read- and write transponder Read- and write units Read- and write antenna Hand held pocket PC Pneumatic quick connector

The software Labtronic NT - the professional test- and administration software for operation of The software Labtronic NT - the professional test- and administration software for operation of Labtronic- and Labmatic test benches ü simple and clear operation by menu-led structure ü alternatively fully automatic, half automatic test sequence or single tests ü fully network able ü free configurable and of the operator individually to its test conditions adaptable ü extensive type data base of all well-known equipment manufacturers with test rate already contained ü integrated date administration for examine -, service and calibration intervals ü extensive evaluation possibilities to customers, devices, tests, service and maintenance periods ü equipment identification with barcode or transponder ü Export possibility of the data with Dbase or programs of other manufacturers ü developable by software additional tools

A small selection of our customer list A small selection of our customer list

A small selection of our customer list A small selection of our customer list

More information and support: Labtec Gesellschaft für Labortechnik mb. H Meckesheimer Str. 2 D-74927 More information and support: Labtec Gesellschaft für Labortechnik mb. H Meckesheimer Str. 2 D-74927 Eschelbronn Phone: Fax: e-mail: ++49 (0)6226 - 158 73 00 ++49 (0)6226 - 158 73 10 [email protected] de Thank you for your interest and your attention
