INTRODUCTION Ningbo Dada Anticorrosion Material co. , Ltd. (IDEAL TAPE) as one of the largest Cold Applied Polyethylene (PE) Tape, Tape Primer & Putty Tape producers in China, we are capable of producing Self-Melted. Polyethylene (PE) Tape for pipe coating, pipe fittings & surface treatment. DADA TAPE covers 24, 000 square meters, and currently has 200 staff members including over 20 intermediate and senior technicians. It possesses an automatic production line for heating complex adhesive tape and an annual output of 5, 000 tons. We had been awarded in the National Torch Plan, and we had been established and implemented the ISO 9001: 2008 Quality Management System as well. DADA TAPE can be used for the purposes of steel pipe surface corrosion resistance for various pipelines in facility projects of petroleum, petrochemical industry, city gas, oil and gas storage and transportation, power, water supply, metallurgy, civil aviation, etc.

Where Ideal Tape located? Dada Tape is located in the Economy Development Zone to the south of the Hangzhou Bay Trans-Ocean Bridge, on the bank of the beautiful and richly-endowed Hangzhou Bay. 3 hour by car from Shanghai airport and 2 hour from Ningbo and hangzhou airport

Enterprise Value Highest Standard of Integrity Green Environmental Protection Keep Forging Ahead Globalisation

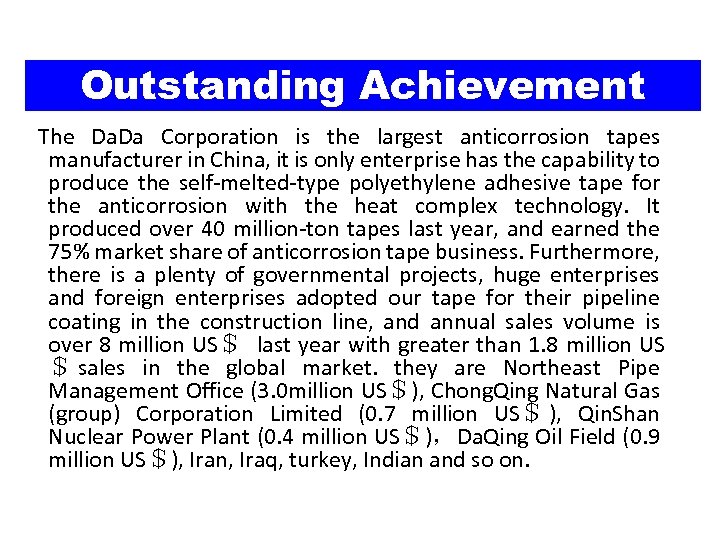

Outstanding Achievement The Da. Da Corporation is the largest anticorrosion tapes manufacturer in China, it is only enterprise has the capability to produce the self-melted-type polyethylene adhesive tape for the anticorrosion with the heat complex technology. It produced over 40 million-ton tapes last year, and earned the 75% market share of anticorrosion tape business. Furthermore, there is a plenty of governmental projects, huge enterprises and foreign enterprises adopted our tape for their pipeline coating in the construction line, and annual sales volume is over 8 million US＄ last year with greater than 1. 8 million US ＄ sales in the global market. they are Northeast Pipe Management Office (3. 0 million US＄), Chong. Qing Natural Gas (group) Corporation Limited (0. 7 million US＄ ), Qin. Shan Nuclear Power Plant (0. 4 million US＄)，Da. Qing Oil Field (0. 9 million US＄), Iran, Iraq, turkey, Indian and so on.

Certificates

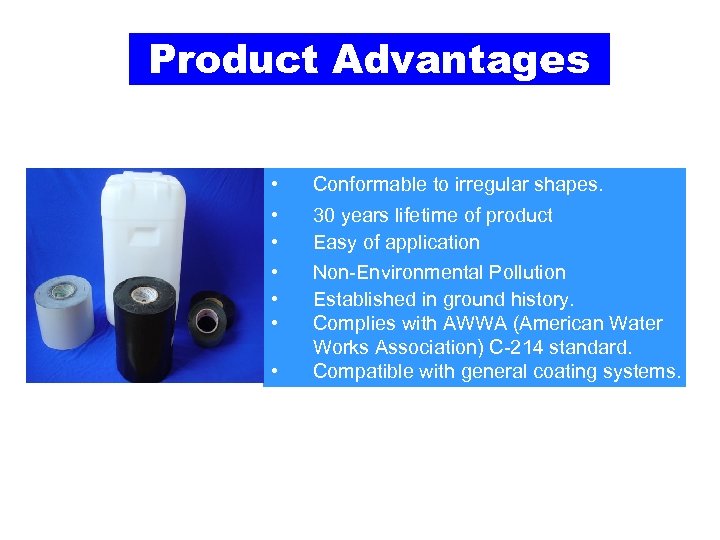

Product Advantages • Conformable to irregular shapes. • • 30 years lifetime of product Easy of application • • • Non-Environmental Pollution Established in ground history. Complies with AWWA (American Water Works Association) C-214 standard. Compatible with general coating systems. •

T-100 Inner Tape Series Coating Systems System Description The T-100 series is cold applied tape coating systems for the anti corrosion of underground, underwater, and overhead pipelines. Butyl Rubber Adhesive is a key in ground performance characteristic coupled with the low and high density polyethylene backing. This kind of tape can be applied by hand or with a wrapping machine. T-100 Inner Tape series Coating Systems with AWWA C-214 Standard Type of the tape: Thickness: T-140 Total T-150 T-165 T-180 T-1100 T-1130 mm mil mm mil 0. 38 15 0. 51 20 0. 64 25 0. 76 30 1. 02 40 1. 27 50 Film 0. 25 10 0. 30 12 0. 33 13 0. 38 15 0. 51 20 0. 64 25 Adhesive 0. 13 5 0. 21 8 0. 31 12 0. 38 15 0. 51 20 0. 63 25 (ASTM D 1000) Tensile: Length: 27 lbs/in 31 lbs/in 60 Meter 50 Meter 34 lbs/in 40 Meter 39 lbs/in 30 Meter Width: 2”, 3”, 4”, 6”, 9”, 12” Colour: Black Composition: Backing: low and high polyethylene & Adhesive: Butyl Rubber Elongation: 300% Peel Adhesion to Primed Pipe: 165 oz/in, 18 N/10 mm (ASTM D 1000) Cathodic Disbandment: (ASTM G 8) 0. 25 in radius 6. 4 mm Water Vapor Transmission Rate: 0. 2 g/100 in 2 /24 h, 0. 3 mg/cm 2/24 h (ASTM F 1249) Water Absorption: (ASTM D 570) ≤ 0. 1 Volume Resistively: (ASTM E 257) 2. 5 X 1012 ohm·m Dielectric Strength: (ASTM D 149) 40 KV Temperature Range: -30 to 160 o. F, -34 to 71 o. C (Normal in Ground Service) 53 lbs/in 25 Meter 66 lbs/in 20 Meter

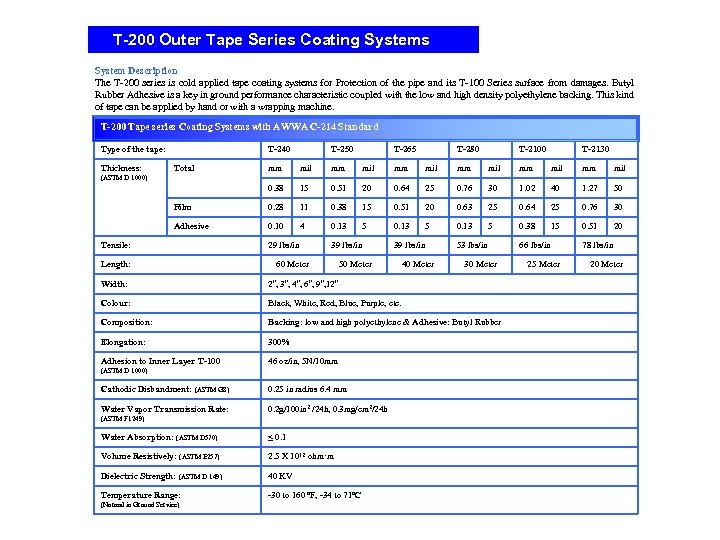

T-200 Outer Tape Series Coating Systems System Description The T-200 series is cold applied tape coating systems for Protection of the pipe and its T-100 Series surface from damages. Butyl Rubber Adhesive is a key in ground performance characteristic coupled with the low and high density polyethylene backing. This kind of tape can be applied by hand or with a wrapping machine. T-200 Tape series Coating Systems with AWWA C-214 Standard Type of the tape: Thickness: T-240 Total T-250 T-265 T-280 T-2100 T-2130 mm mil mm mil 0. 38 15 0. 51 20 0. 64 25 0. 76 30 1. 02 40 1. 27 50 Film 0. 28 11 0. 38 15 0. 51 20 0. 63 25 0. 64 25 0. 76 30 Adhesive 0. 10 4 0. 13 5 0. 38 15 0. 51 20 (ASTM D 1000) Tensile: Length: 29 lbs/in 39 lbs/in 60 Meter 39 lbs/in 50 Meter 40 Meter 53 lbs/in 30 Meter Width: 2”, 3”, 4”, 6”, 9”, 12” Colour: Black, White, Red, Blue, Purple, etc. Composition: Backing: low and high polyethylene & Adhesive: Butyl Rubber Elongation: 300% Adhesion to Inner Layer T-100 46 oz/in, 5 N/10 mm (ASTM D 1000) Cathodic Disbandment: (ASTM G 8) 0. 25 in radius 6. 4 mm Water Vapor Transmission Rate: 0. 2 g/100 in 2 /24 h, 0. 3 mg/cm 2/24 h (ASTM F 1249) Water Absorption: (ASTM D 570) ≤ 0. 1 Volume Resistively: (ASTM E 257) 2. 5 X 1012 ohm·m Dielectric Strength: (ASTM D 149) 40 KV Temperature Range: -30 to 160 o. F, -34 to 71 o. C (Normal in Ground Service) 66 lbs/in 25 Meter 78 lbs/in 20 Meter

T-300 Joint Tape Series Coating Systems System Description The T-300 series is cold applied tape coating systems for anticorrosion of field joints, fittings, and specifically piping. Butyl Rubber Adhesive is a key in ground performance characteristic coupled with the low and high density polyethylene backing. This kind of tape can be applied by hand or with a wrapping machine. _T-300 Joint Tape Series Coating Systems with AWWA C-214 Standard Type of the tape T-365 T-380 T-3100 T-3130 Thickness mm mil 0. 64 25 0. 76 30 1. 02 40 1. 27 50 (ASTM D 1000) Tensile: 31 lbs/in 41 lbs/in 52 lbs/in Length: 40 Meter 30 Meter 25 Meter 20 Meter Width: 2”, 3”, 4”, 6”, 9”, 12” Colour: Black, White, Red, Blue, Purple, etc. Composition: Backing: low and high polyethylene & Adhesive: Butyl Rubber Elongation: 300% Peel Adhesion to Prime Pipe: 230 oz/in, 25 N/10 mm (ASTM D 1000) Cathodic Disbandment: (ASTM G 8) 0. 25 in radius 6. 4 mm Water Vapor Transmission Rate: 0. 2 g/100 in 2 /24 h, 0. 3 mg/cm 2/24 h (ASTM F 1249) Water Absorption: (ASTM D 570) ≤ 0. 1 Volume Resistively: (ASTM E 257) 2. 5 X 1012 ohm·m Dielectric Strength: (ASTM D 149) 40 KV Temperature Range: -30 to 160 o. F, -34 to 71 o. C (Normal in Ground Service)

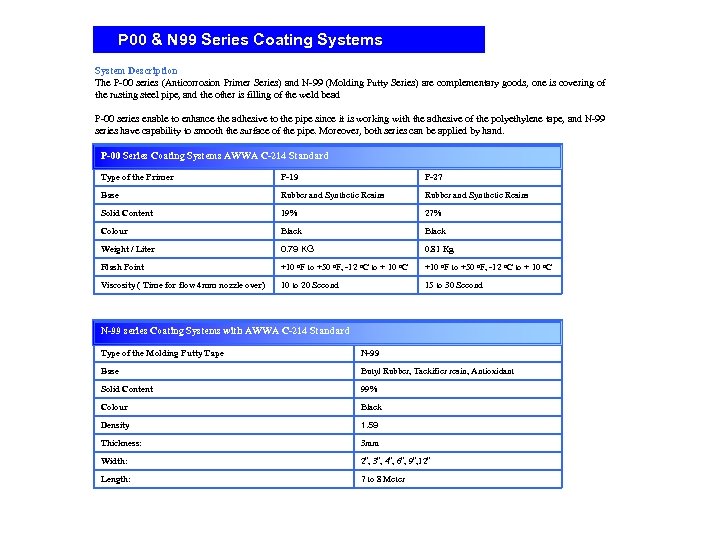

P 00 & N 99 Series Coating Systems System Description The P-00 series (Anticorrosion Primer Series) and N-99 (Molding Putty Series) are complementary goods, one is covering of the rusting steel pipe, and the other is filling of the weld bead P-00 series enable to enhance the adhesive to the pipe since it is working with the adhesive of the polyethylene tape, and N-99 series have capability to smooth the surface of the pipe. Moreover, both series can be applied by hand. P-00 Series Coating Systems AWWA C-214 Standard Type of the Primer P-19 P-27 Base Rubber and Synthetic Resins Solid Content 19% 27% Colour Black Weight / Liter 0. 79 KG o. F to +50 0. 81 Kg o. F, Flash Point +10 Viscosity ( Time for flow 4 mm nozzle over) -12 o. C to + 10 o. C 10 to 20 Second +10 o. F to +50 o. F, -12 o. C to + 10 o. C 15 to 30 Second N-99 series Coating Systems with AWWA C-214 Standard Type of the Molding Putty Tape N-99 Base Butyl Rubber, Tackifier resin, Antioxidant Solid Content 99% Colour Black Density 1. 59 Thickness: 3 mm Width: 2”, 3”, 4”, 6”, 9”, 12” Length: 7 to 8 Meter

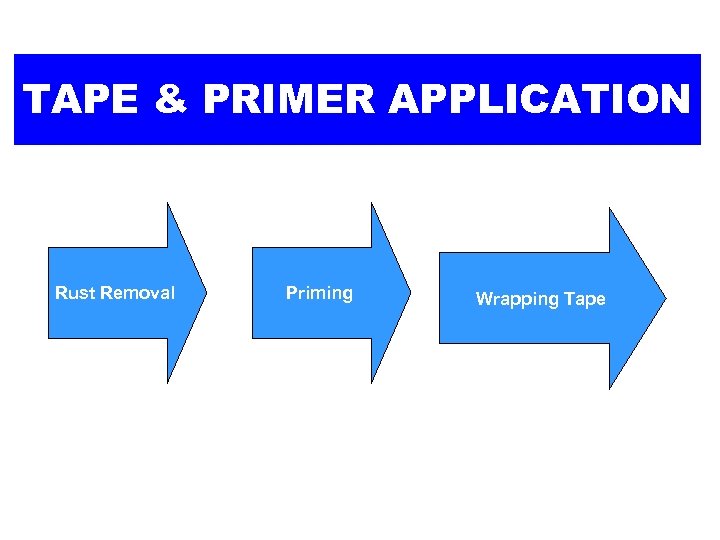

TAPE & PRIMER APPLICATION Rust Removal Priming Wrapping Tape

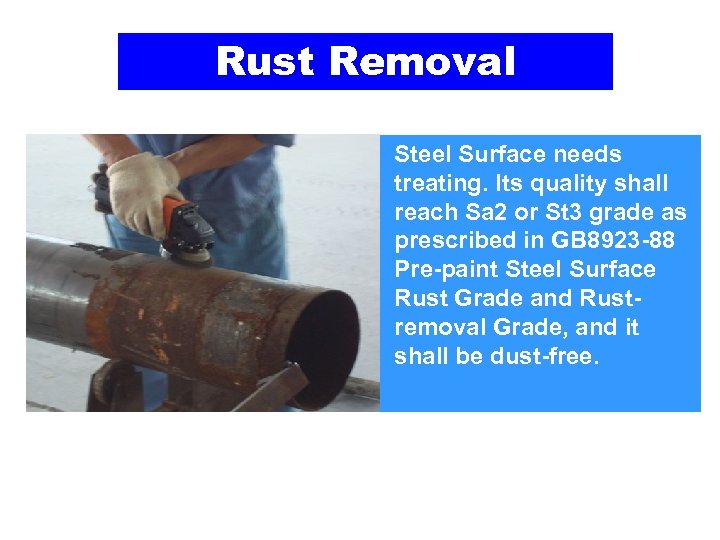

Rust Removal Steel Surface needs treating. Its quality shall reach Sa 2 or St 3 grade as prescribed in GB 8923 -88 Pre-paint Steel Surface Rust Grade and Rustremoval Grade, and it shall be dust-free.

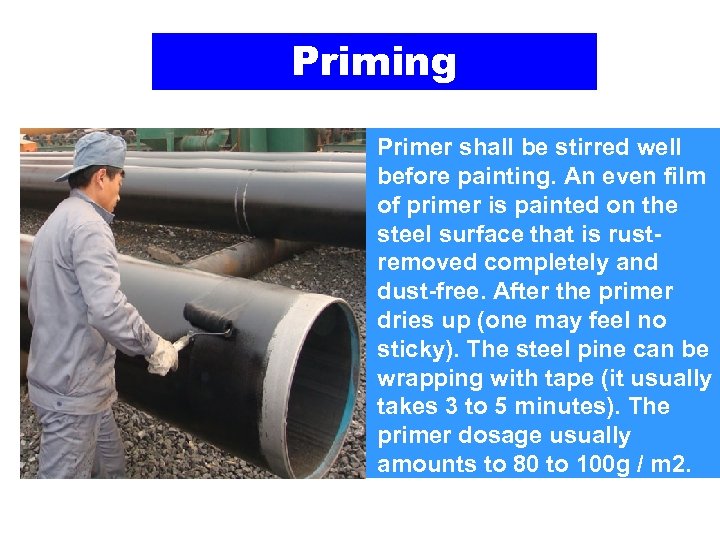

Priming Primer shall be stirred well before painting. An even film of primer is painted on the steel surface that is rustremoved completely and dust-free. After the primer dries up (one may feel no sticky). The steel pine can be wrapping with tape (it usually takes 3 to 5 minutes). The primer dosage usually amounts to 80 to 100 g / m 2.

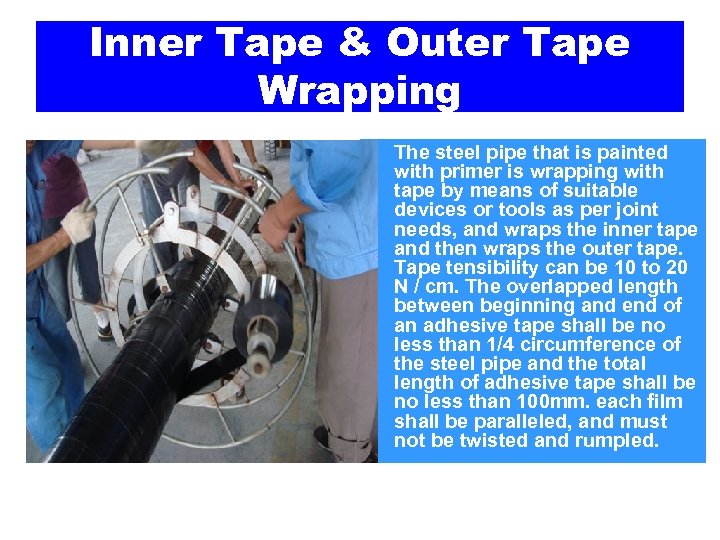

Inner Tape & Outer Tape Wrapping The steel pipe that is painted with primer is wrapping with tape by means of suitable devices or tools as per joint needs, and wraps the inner tape and then wraps the outer tape. Tape tensibility can be 10 to 20 N / cm. The overlapped length between beginning and end of an adhesive tape shall be no less than 1/4 circumference of the steel pipe and the total length of adhesive tape shall be no less than 100 mm. each film shall be paralleled, and must not be twisted and rumpled.

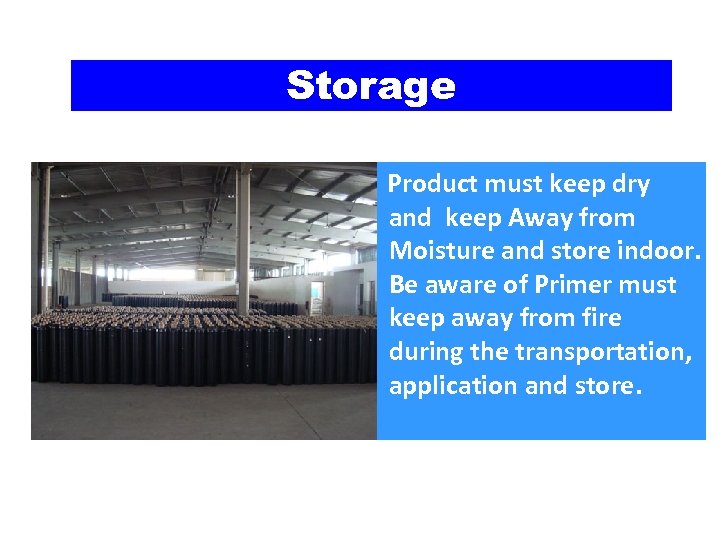

Storage Product must keep dry and keep Away from Moisture and store indoor. Be aware of Primer must keep away from fire during the transportation, application and store.
