Webinar MCL and the MT 2000 19 March

Webinar: MCL and the MT 2000 19 March 2018 Richard Fullard Richard. Fullard@mcl-collection. com http: //mt 2000. mcl-collection. com/

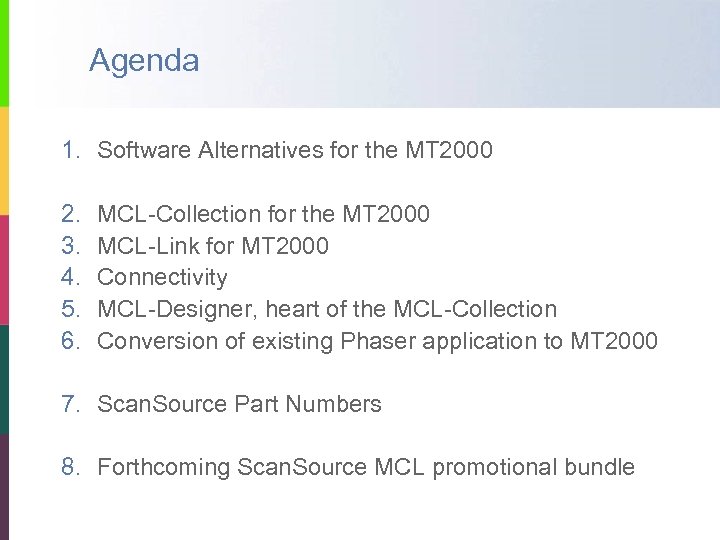

Agenda 1. Software Alternatives for the MT 2000 2. 3. 4. 5. 6. MCL-Collection for the MT 2000 MCL-Link for MT 2000 Connectivity MCL-Designer, heart of the MCL-Collection Conversion of existing Phaser application to MT 2000 7. Scan. Source Part Numbers 8. Forthcoming Scan. Source MCL promotional bundle

1. Software Alternatives for the MT 2000

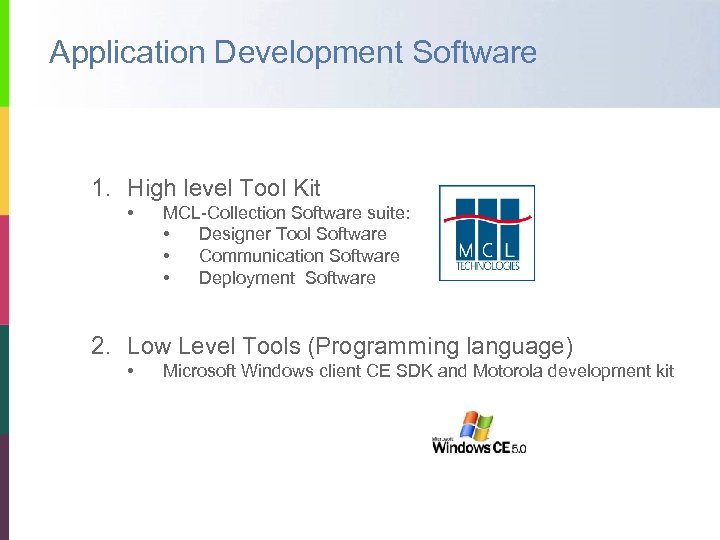

Application Development Software 1. High level Tool Kit • MCL-Collection Software suite: • Designer Tool Software • Communication Software • Deployment Software 2. Low Level Tools (Programming language) • Microsoft Windows client CE SDK and Motorola development kit

2. MCL-Collection for the MT 2000

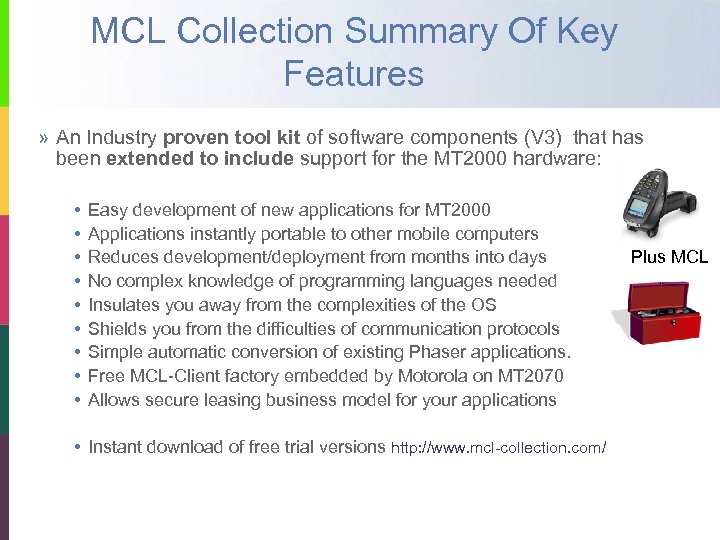

MCL Collection Summary Of Key Features » An Industry proven tool kit of software components (V 3) that has been extended to include support for the MT 2000 hardware: • • • Easy development of new applications for MT 2000 Applications instantly portable to other mobile computers Reduces development/deployment from months into days No complex knowledge of programming languages needed Insulates you away from the complexities of the OS Shields you from the difficulties of communication protocols Simple automatic conversion of existing Phaser applications. Free MCL-Client factory embedded by Motorola on MT 2070 Allows secure leasing business model for your applications • Instant download of free trial versions http: //www. mcl-collection. com/ Plus MCL

Hosts / Servers/ PCs Two possible MCL Architectures for MT 20 XX POS MCL ODBC Bridge MCL DLL Bridge MCL Bridge for SAP MCL-Link for MT 2000/ MCL-Link / MCL- Net Communication & Data Dispatching Program User Side RS 232 Bluetooth MCL-Client POS Architecture (MT 2090 only) Wifi 802. 11 MCL-Client Standard MCL Architecture

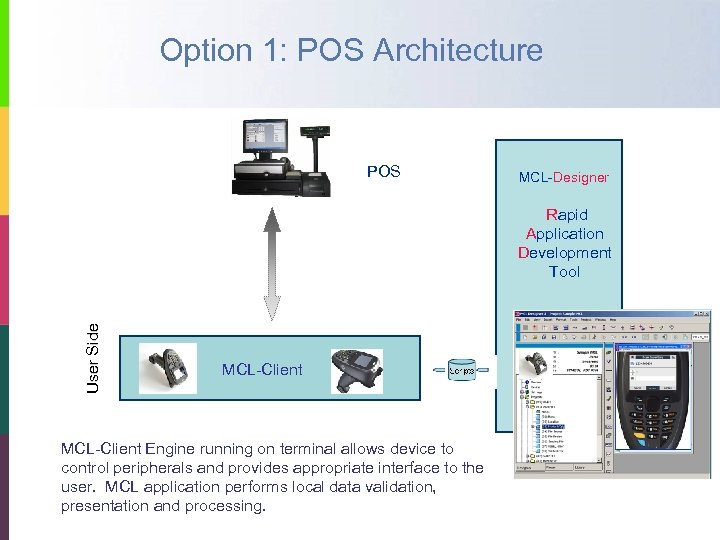

Option 1: POS Architecture POS MCL-Designer User Side Rapid Application Development Tool MCL-Client Engine running on terminal allows device to control peripherals and provides appropriate interface to the user. MCL application performs local data validation, presentation and processing.

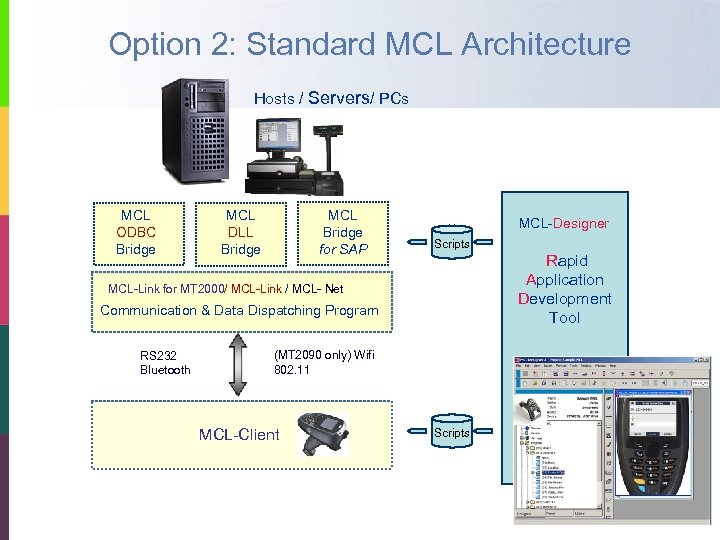

Option 2: Standard MCL Architecture Hosts / Servers/ PCs MCL ODBC Bridge MCL DLL Bridge MCL Bridge for SAP MCL-Designer Scripts Rapid Application Development Tool MCL-Link for MT 2000/ MCL-Link / MCL- Net Communication & Data Dispatching Program RS 232 Bluetooth (MT 2090 only) Wifi 802. 11 MCL-Client Scripts

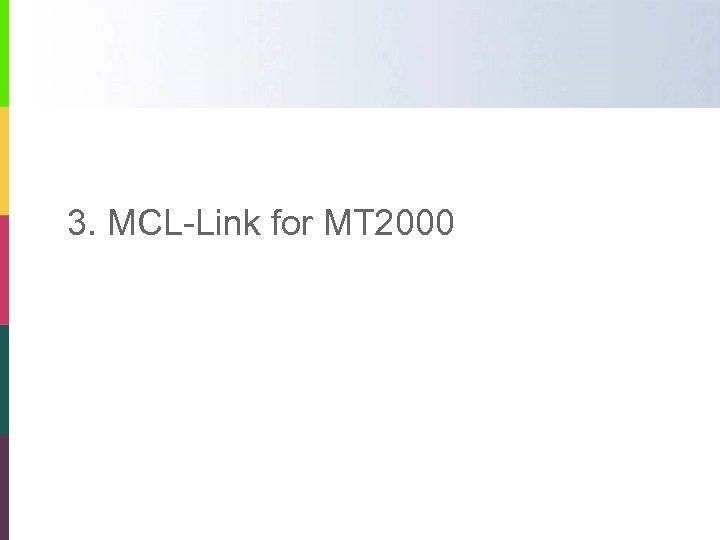

3. MCL-Link for MT 2000

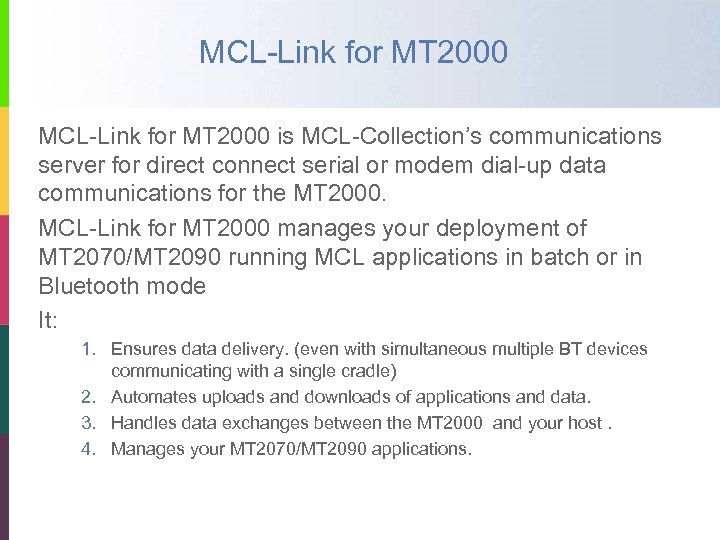

MCL-Link for MT 2000 is MCL-Collection’s communications server for direct connect serial or modem dial-up data communications for the MT 2000. MCL-Link for MT 2000 manages your deployment of MT 2070/MT 2090 running MCL applications in batch or in Bluetooth mode It: 1. Ensures data delivery. (even with simultaneous multiple BT devices communicating with a single cradle) 2. Automates uploads and downloads of applications and data. 3. Handles data exchanges between the MT 2000 and your host. 4. Manages your MT 2070/MT 2090 applications.

4. Connectivity

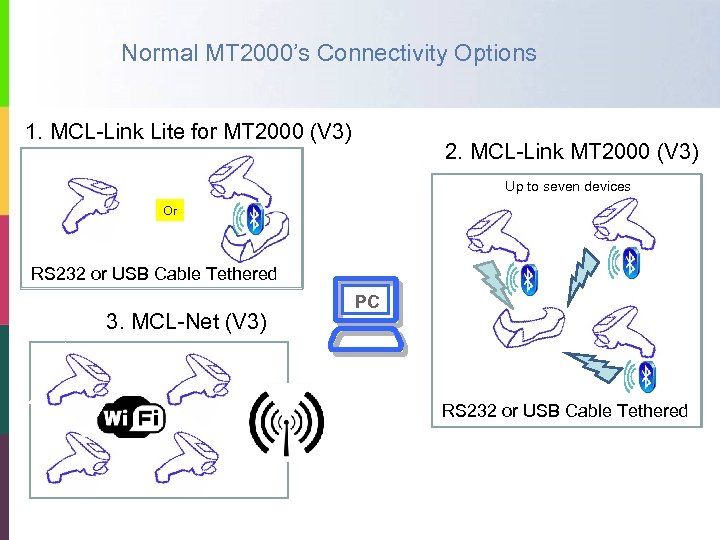

Normal MT 2000’s Connectivity Options 1. MCL-Link Lite for MT 2000 (V 3) 2. MCL-Link MT 2000 (V 3) Up to seven devices Or RS 232 or USB Cable Tethered 3. MCL-Net (V 3) PC RS 232 or USB Cable Tethered

5. MCL-Designer, heart of the MCL-Collection

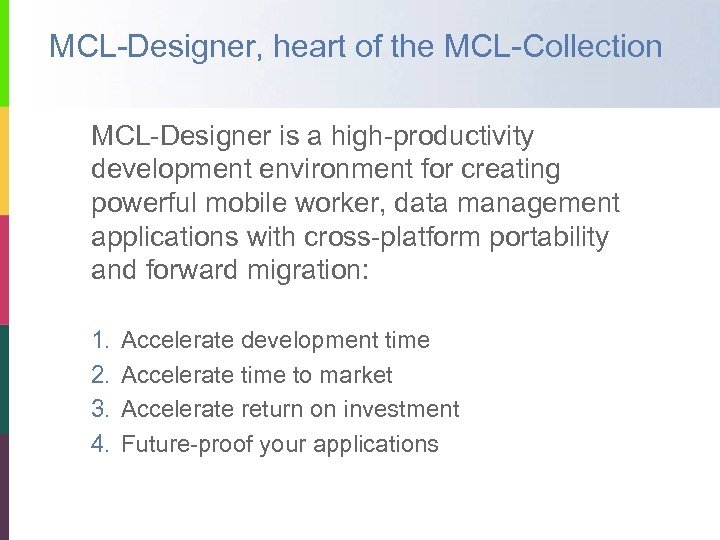

MCL-Designer, heart of the MCL-Collection MCL-Designer is a high-productivity development environment for creating powerful mobile worker, data management applications with cross-platform portability and forward migration: 1. 2. 3. 4. Accelerate development time Accelerate time to market Accelerate return on investment Future-proof your applications

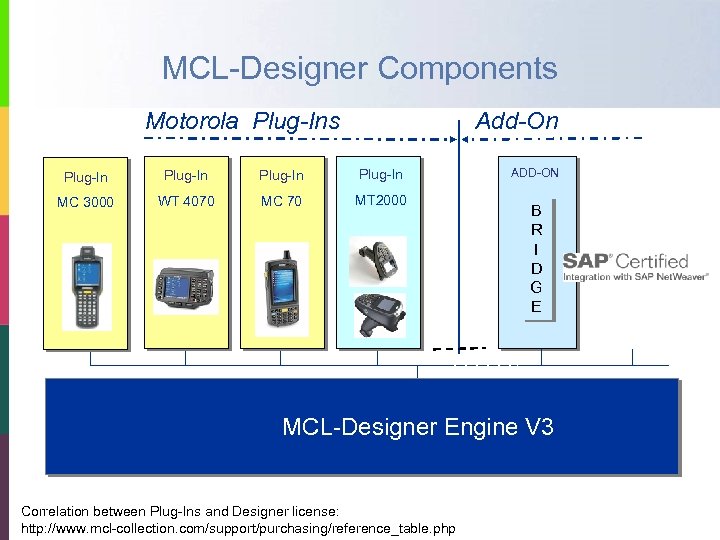

MCL-Designer Components Motorola Plug-Ins Add-On Plug-In MC 3000 WT 4070 MC 70 MT 2000 ADD-ON B R I D G E MCL-Designer Engine V 3 Correlation between Plug-Ins and Designer license: http: //www. mcl-collection. com/support/purchasing/reference_table. php

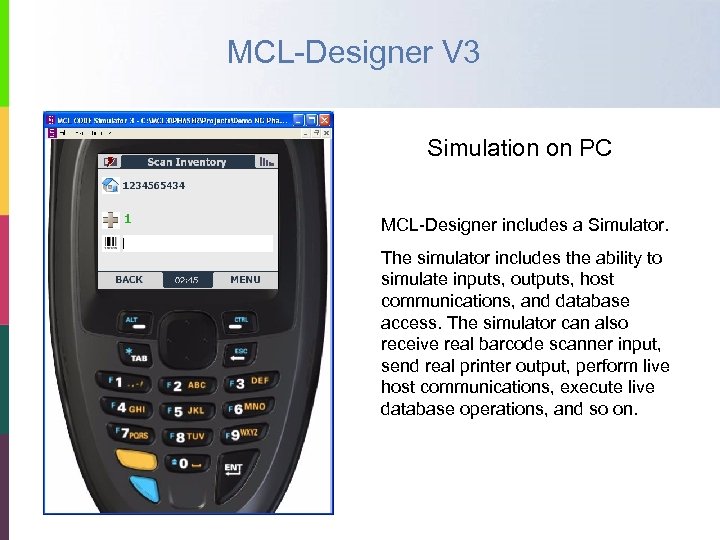

MCL-Designer V 3 Simulation on PC MCL-Designer includes a Simulator. The simulator includes the ability to simulate inputs, outputs, host communications, and database access. The simulator can also receive real barcode scanner input, send real printer output, perform live host communications, execute live database operations, and so on.

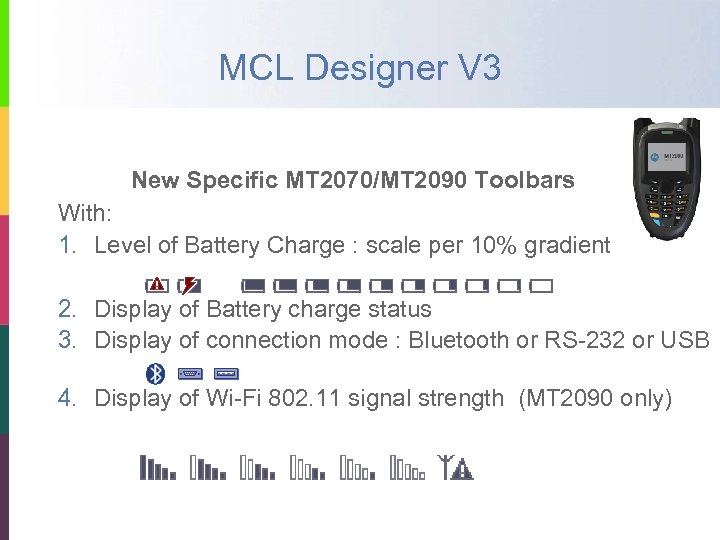

MCL Designer V 3 New Specific MT 2070/MT 2090 Toolbars With: 1. Level of Battery Charge : scale per 10% gradient 2. Display of Battery charge status 3. Display of connection mode : Bluetooth or RS-232 or USB 4. Display of Wi-Fi 802. 11 signal strength (MT 2090 only)

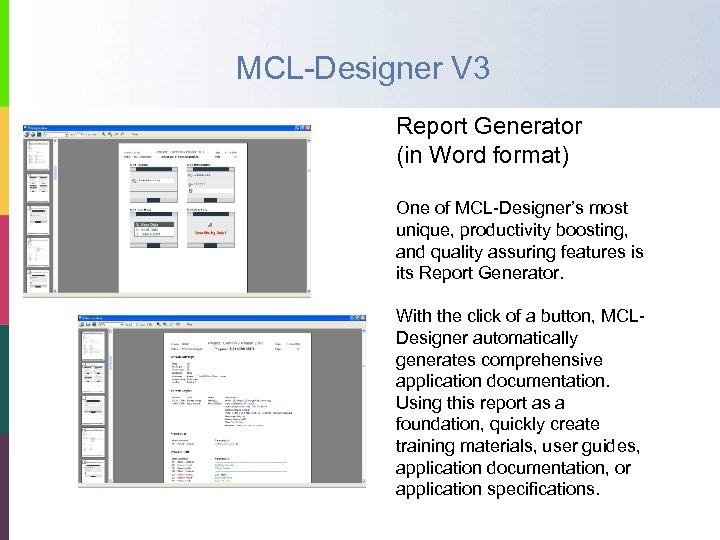

MCL-Designer V 3 Report Generator (in Word format) One of MCL-Designer’s most unique, productivity boosting, and quality assuring features is its Report Generator. With the click of a button, MCLDesigner automatically generates comprehensive application documentation. Using this report as a foundation, quickly create training materials, user guides, application documentation, or application specifications.

6. Conversion of existing Phaser application to MT 2000

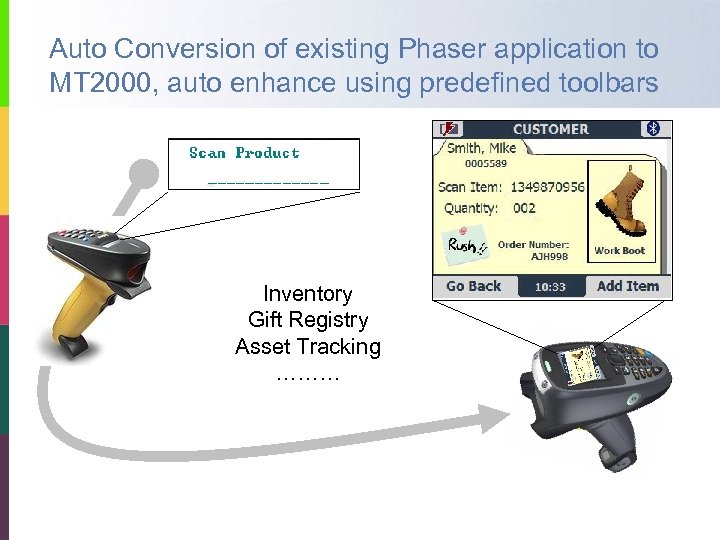

Auto Conversion of existing Phaser application to MT 2000, auto enhance using predefined toolbars Inventory Gift Registry Asset Tracking ………

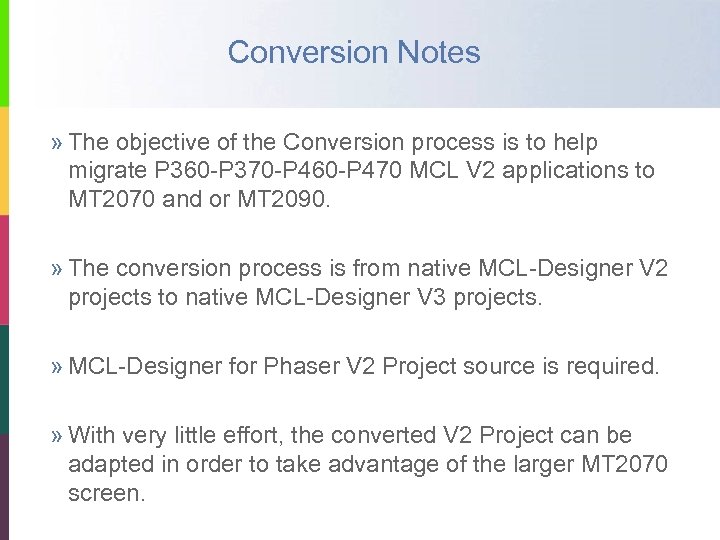

Conversion Notes » The objective of the Conversion process is to help migrate P 360 -P 370 -P 460 -P 470 MCL V 2 applications to MT 2070 and or MT 2090. » The conversion process is from native MCL-Designer V 2 projects to native MCL-Designer V 3 projects. » MCL-Designer for Phaser V 2 Project source is required. » With very little effort, the converted V 2 Project can be adapted in order to take advantage of the larger MT 2070 screen.

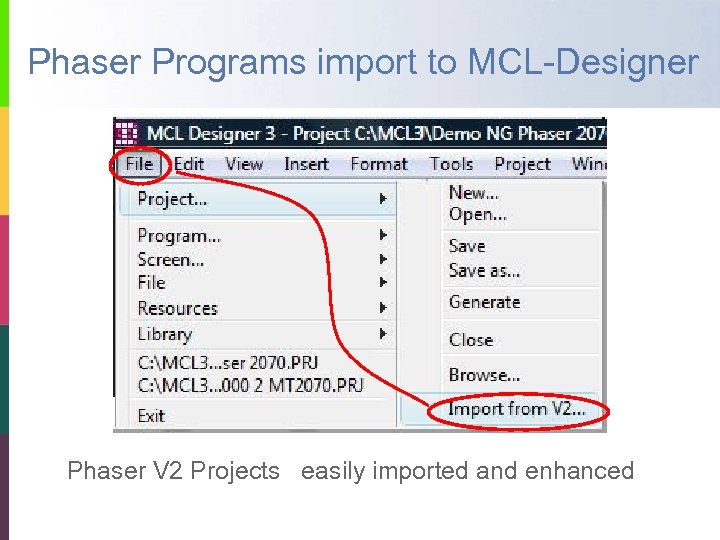

Phaser Programs import to MCL-Designer Phaser V 2 Projects easily imported and enhanced

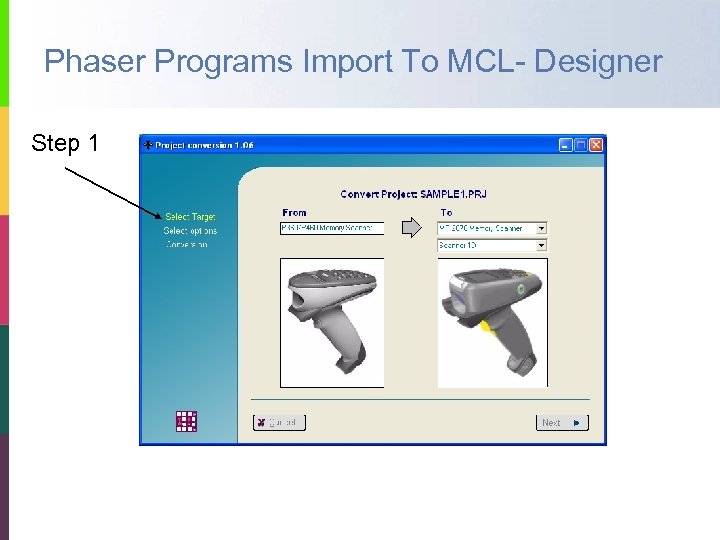

Phaser Programs Import To MCL- Designer Step 1

Phaser Programs Import To MCL- Designer Step 2 Select Options and Click Next Conversion Process will be automatically initiated

Automatic Verification of Imported Project Inconsistencies identified immediately. One Click for immediate move to problem area and correction

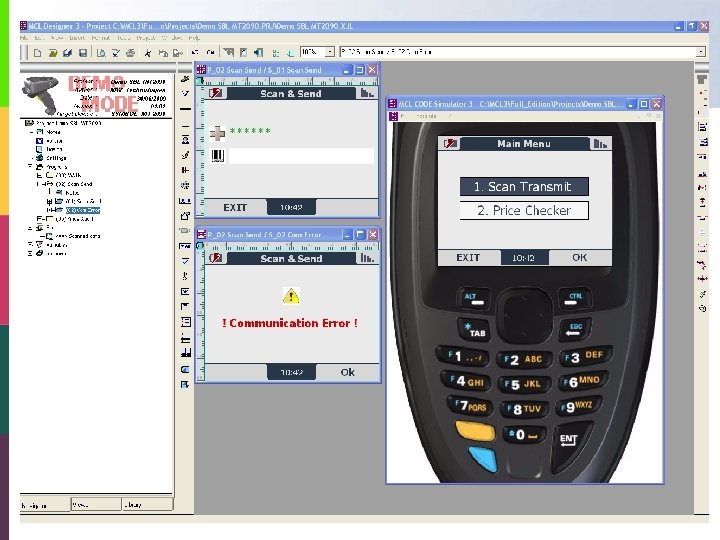

Phaser V 2 Project Adaptation (4) MCL-Code conversion from V 2 to V 3 is made on a line by line basis. Simulator MCL-Designer for Phaser V 2 Simulator MCL-Designer V 3 for MT 2000

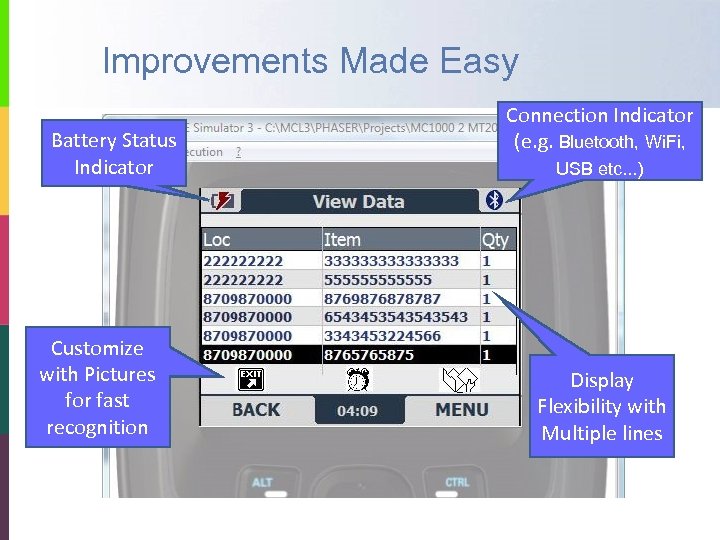

Improvements Made Easy Battery Status Indicator Customize with Pictures for fast recognition Connection Indicator (e. g. Bluetooth, Wi. Fi, USB etc. . . ) Display Flexibility with Multiple lines

7. Scan. Source Part Numbers

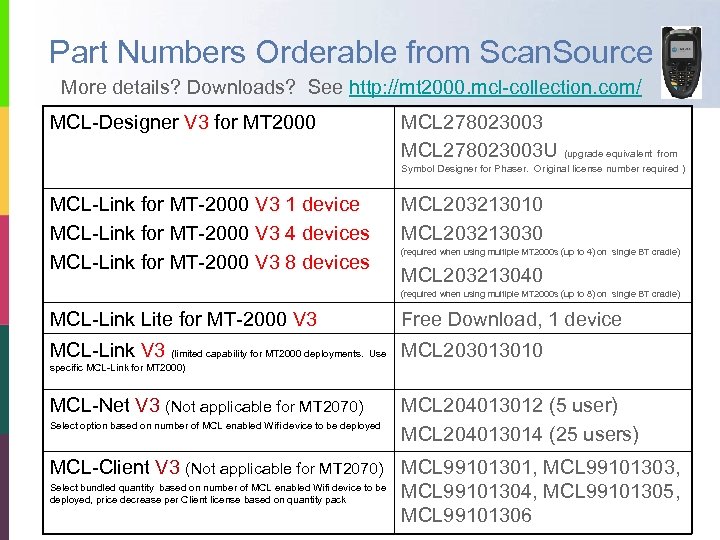

Part Numbers Orderable from Scan. Source More details? Downloads? See http: //mt 2000. mcl-collection. com/ MCL-Designer V 3 for MT 2000 MCL 278023003 U (upgrade equivalent from Symbol Designer for Phaser. Original license number required ) MCL-Link for MT-2000 V 3 1 device MCL-Link for MT-2000 V 3 4 devices MCL-Link for MT-2000 V 3 8 devices MCL 203213010 MCL 203213030 (required when using multiple MT 2000 s (up to 4) on single BT cradle) MCL 203213040 (required when using multiple MT 2000 s (up to 8) on single BT cradle) MCL-Link Lite for MT-2000 V 3 Free Download, 1 device MCL-Link V 3 (limited capability for MT 2000 deployments. Use MCL 203013010 specific MCL-Link for MT 2000) MCL-Net V 3 (Not applicable for MT 2070) Select option based on number of MCL enabled Wifi device to be deployed MCL 204013012 (5 user) MCL 204013014 (25 users) MCL-Client V 3 (Not applicable for MT 2070) MCL 99101301, MCL 99101303, Select bundled quantity based on number of MCL enabled Wifi device to be MCL 99101304, MCL 99101305, deployed, price decrease per Client license based on quantity pack MCL 99101306

8. Forthcoming Scan. Source MCL promotional bundle

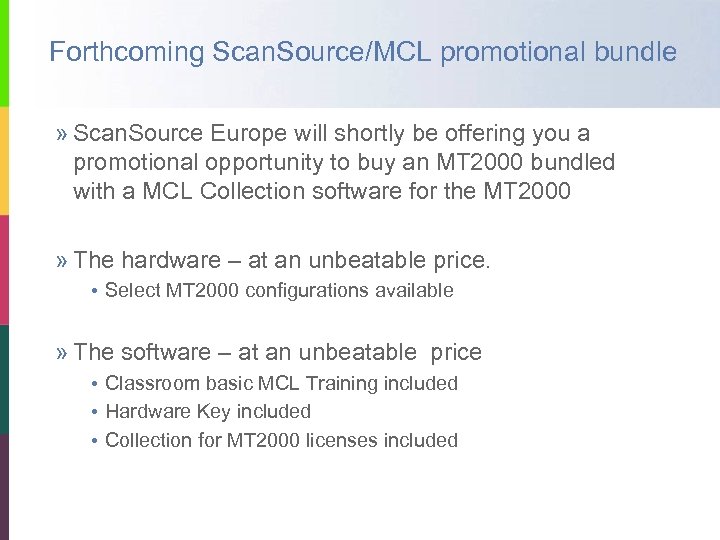

Forthcoming Scan. Source/MCL promotional bundle » Scan. Source Europe will shortly be offering you a promotional opportunity to buy an MT 2000 bundled with a MCL Collection software for the MT 2000 » The hardware – at an unbeatable price. • Select MT 2000 configurations available » The software – at an unbeatable price • Classroom basic MCL Training included • Hardware Key included • Collection for MT 2000 licenses included

Questions and Thank You
