Web Site Example Web site for clothing

Web Site Example • Web site for clothing catalogue company • Company has customer data on purchases from site, but wants to know more about all visitors to their web site • Buys web panel data – from Nielsen//Net. Ratings or Media Metrix (not in NZ) • E. g. Nielsen//Net. Ratings universe for the At Home Internet audience measurement is all individuals aged 2+ living in homes that have access to the Internet via a PC owned or leased by a household member and using a Windows operating system

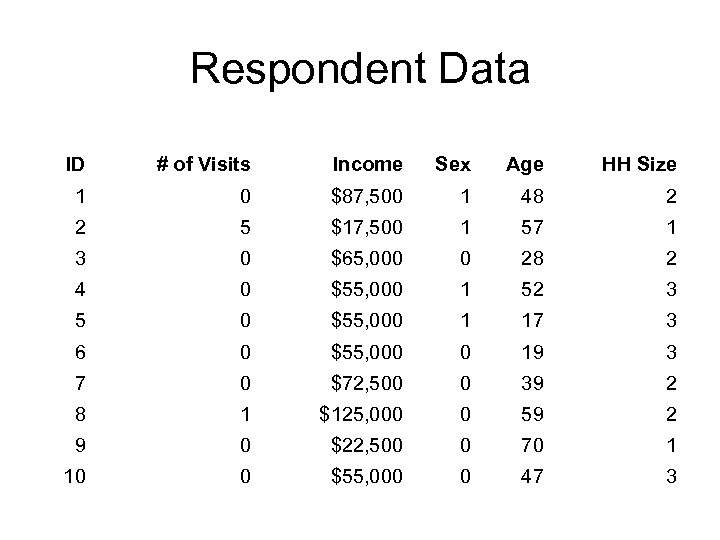

Respondent Data ID # of Visits Income Sex Age HH Size 1 0 $87, 500 1 48 2 2 5 $17, 500 1 57 1 3 0 $65, 000 0 28 2 4 0 $55, 000 1 52 3 5 0 $55, 000 1 17 3 6 0 $55, 000 0 19 3 7 0 $72, 500 0 39 2 8 1 $125, 000 0 59 2 9 0 $22, 500 0 70 1 10 0 $55, 000 0 47 3

Frequency Distribution Number of Visits Frequency Count 0 2046 1 318 2 129 3 66 4 38 5 30 6 16 7 11 8 9 9 10 10+ 55

Fit Poisson Model • R Code: visit. dist <- c(2046, 318, 129, 66, 38, 30, 16, 11, 9, 10, 55) lpois <- function(lambda, data) { visits <- 0: 9 sum(data[1: 10]*log(dpois(visits, lambda))) + data[11]*log(ppois(9, lambda, lower. tail=FALSE)) } optimise(function(param){lpois(param, visit. dist)}, c(0, 10)) • Result: maximum value of log-likelihood is achieved at λ=0. 72

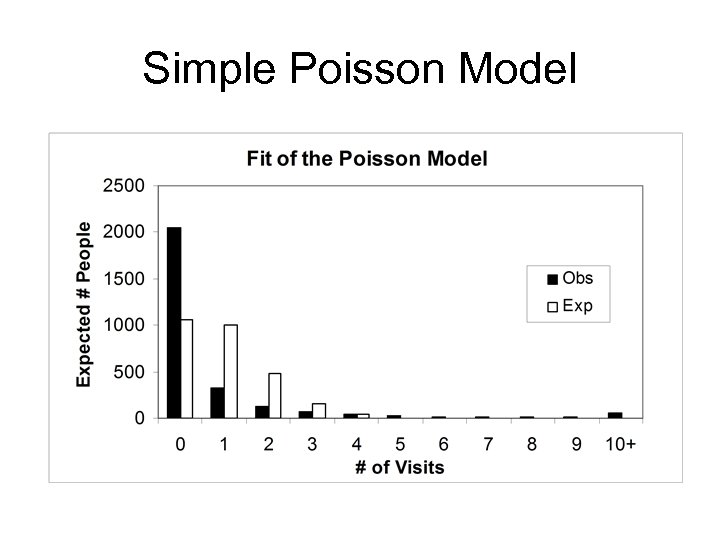

Simple Poisson Model

Nature of Heterogeneity • Unobserved (or random) heterogeneity – The visiting rate λ is assumed to vary across the population according to some distribution – No attempt is made to explain why people differ in their visiting rates • Observed (or determined) heterogeneity – Explanatory variables are observed for each person – We explicitly link the value of λ for each person to their values of the explanatory variables • E. g. Poisson regression model

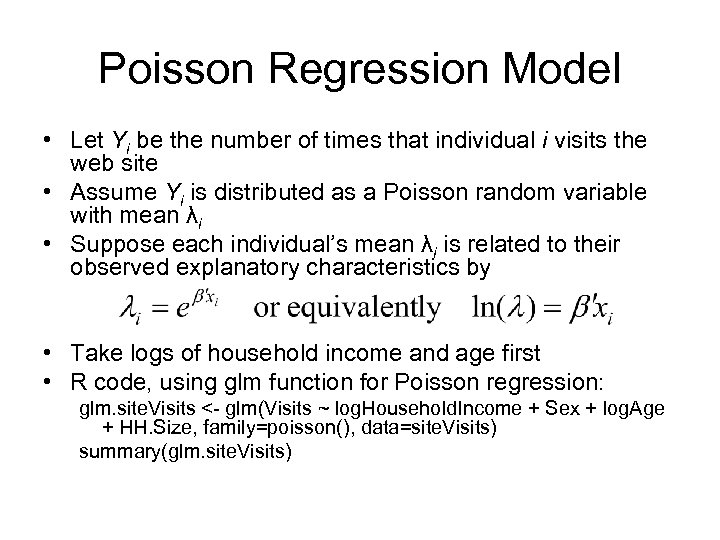

Poisson Regression Model • Let Yi be the number of times that individual i visits the web site • Assume Yi is distributed as a Poisson random variable with mean λi • Suppose each individual’s mean λi is related to their observed explanatory characteristics by • Take logs of household income and age first • R code, using glm function for Poisson regression: glm. site. Visits <- glm(Visits ~ log. Household. Income + Sex + log. Age + HH. Size, family=poisson(), data=site. Visits) summary(glm. site. Visits)

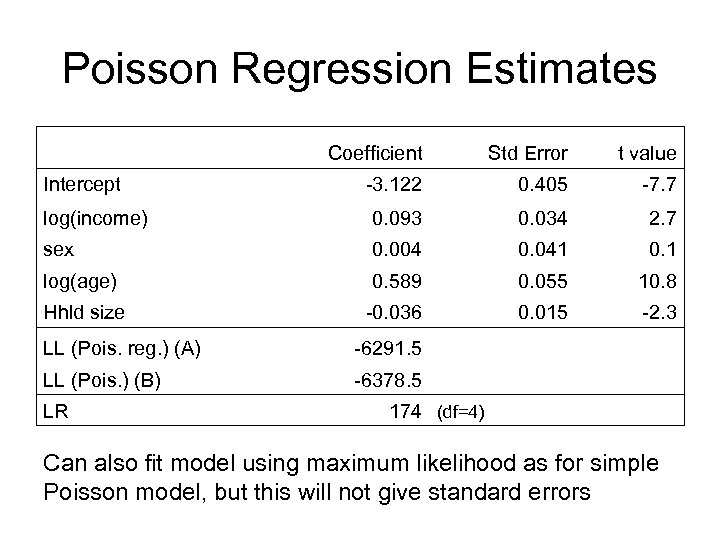

Poisson Regression Estimates Coefficient Std Error t value -3. 122 0. 405 -7. 7 log(income) 0. 093 0. 034 2. 7 sex 0. 004 0. 041 0. 1 log(age) 0. 589 0. 055 10. 8 Hhld size -0. 036 0. 015 -2. 3 Intercept LL (Pois. reg. ) (A) -6291. 5 LL (Pois. ) (B) -6378. 5 174 (df=4) LR Can also fit model using maximum likelihood as for simple Poisson model, but this will not give standard errors

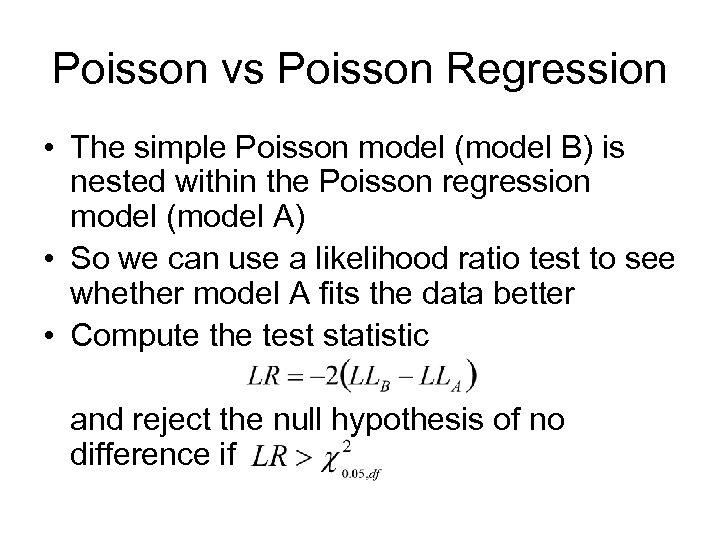

Poisson vs Poisson Regression • The simple Poisson model (model B) is nested within the Poisson regression model (model A) • So we can use a likelihood ratio test to see whether model A fits the data better • Compute the test statistic and reject the null hypothesis of no difference if

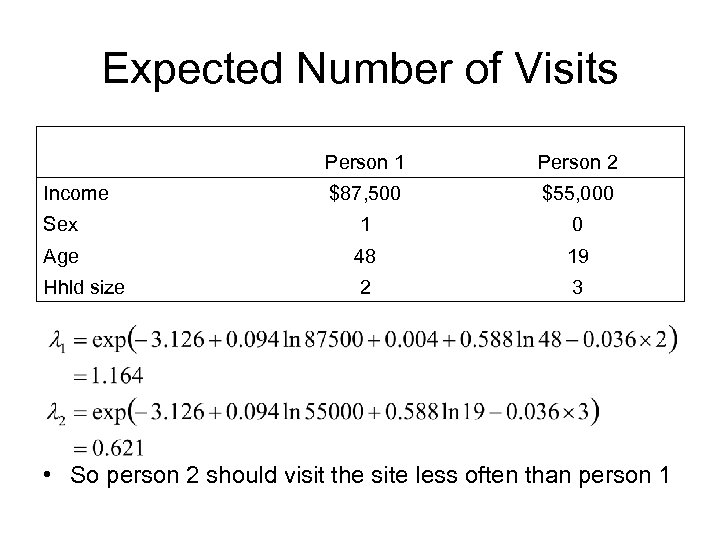

Expected Number of Visits Person 1 Person 2 $87, 500 $55, 000 Sex 1 0 Age 48 19 Hhld size 2 3 Income • So person 2 should visit the site less often than person 1

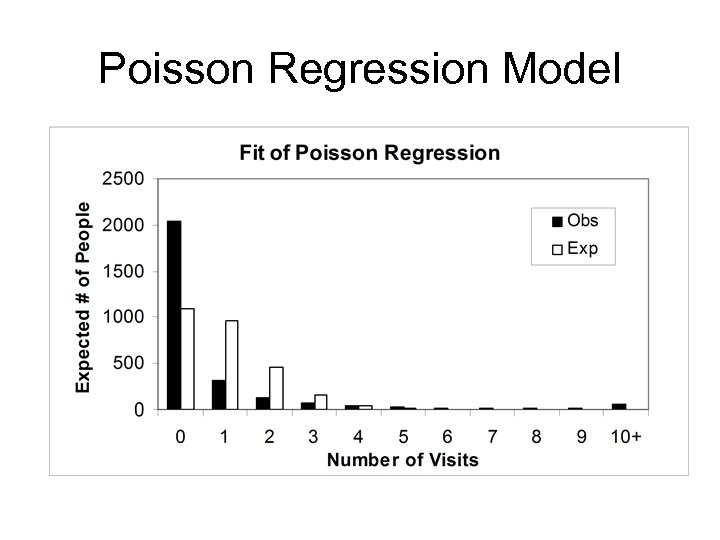

Poisson Regression Model

Poisson Regression Fit • Poisson regression model improves fit over simple Poisson model – But not by much • Try introducing random heterogeneity instead of, or as well as, observed heterogeneity • Possibilities include: – – Zero-inflated Poisson model Zero-inflated Poisson regression Negative binomial distribution Negative binomial regression

Zero-inflated Poisson Regression • Assume that a proportion π of people never visit the site • However other people visit according to Poisson model • Probability distribution:

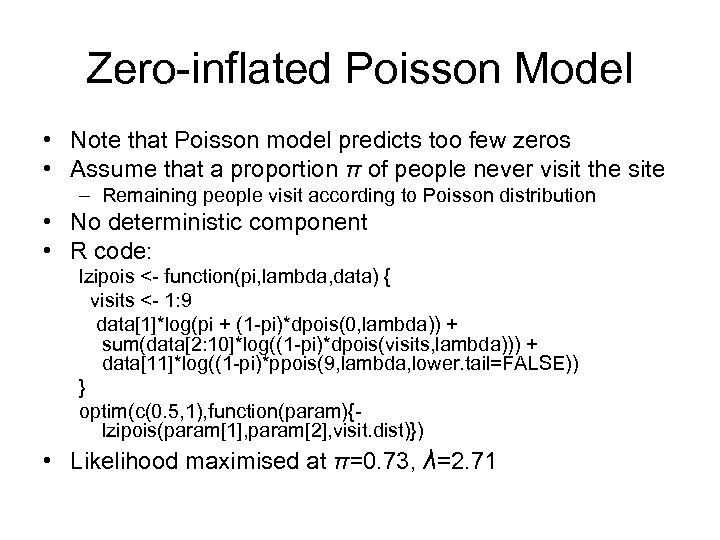

Zero-inflated Poisson Model • Note that Poisson model predicts too few zeros • Assume that a proportion π of people never visit the site – Remaining people visit according to Poisson distribution • No deterministic component • R code: lzipois <- function(pi, lambda, data) { visits <- 1: 9 data[1]*log(pi + (1 -pi)*dpois(0, lambda)) + sum(data[2: 10]*log((1 -pi)*dpois(visits, lambda))) + data[11]*log((1 -pi)*ppois(9, lambda, lower. tail=FALSE)) } optim(c(0. 5, 1), function(param){lzipois(param[1], param[2], visit. dist)}) • Likelihood maximised at π=0. 73, λ=2. 71

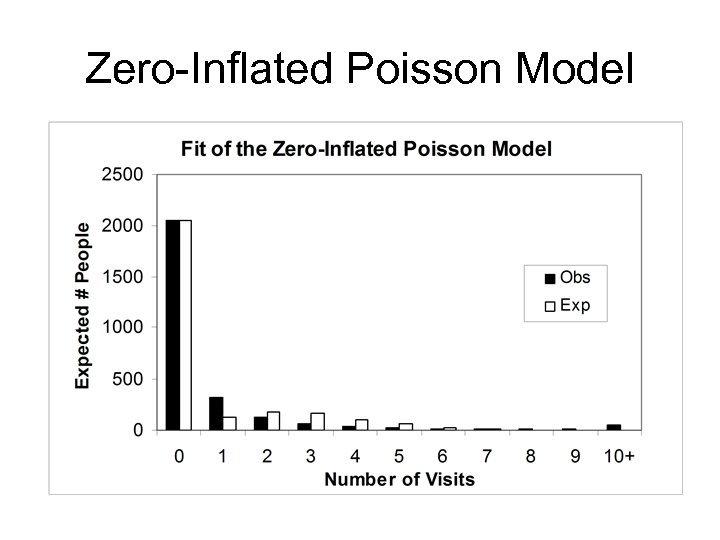

Zero-Inflated Poisson Model

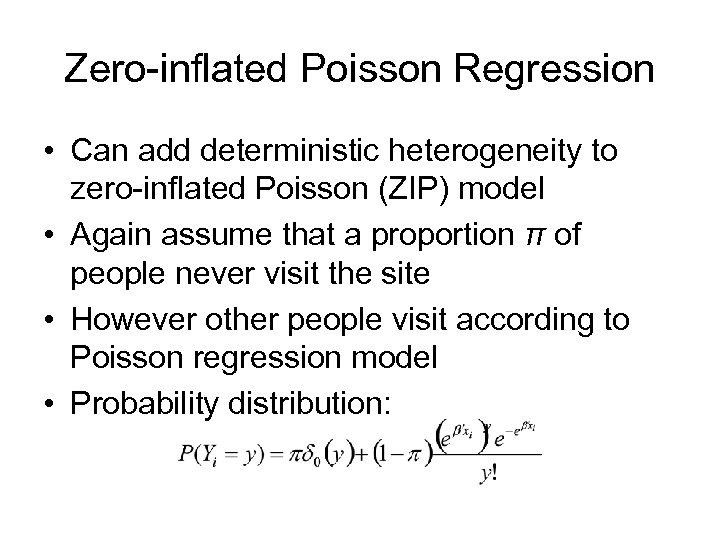

Zero-inflated Poisson Regression • Can add deterministic heterogeneity to zero-inflated Poisson (ZIP) model • Again assume that a proportion π of people never visit the site • However other people visit according to Poisson regression model • Probability distribution:

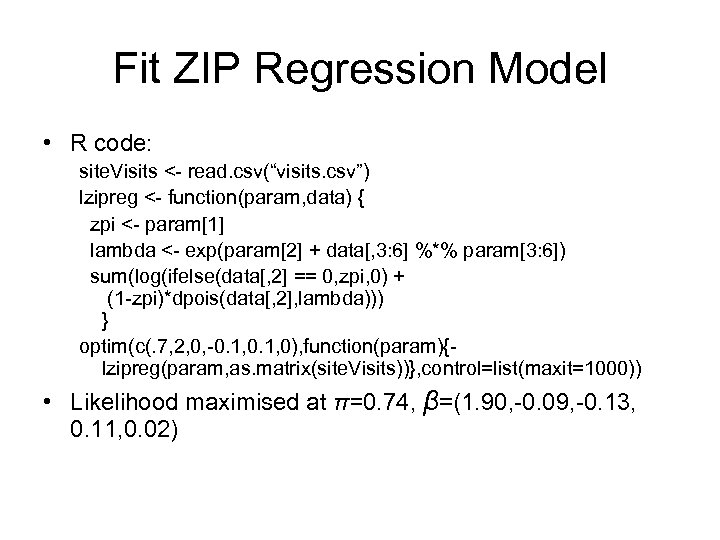

Fit ZIP Regression Model • R code: site. Visits <- read. csv(“visits. csv”) lzipreg <- function(param, data) { zpi <- param[1] lambda <- exp(param[2] + data[, 3: 6] %*% param[3: 6]) sum(log(ifelse(data[, 2] == 0, zpi, 0) + (1 -zpi)*dpois(data[, 2], lambda))) } optim(c(. 7, 2, 0, -0. 1, 0), function(param){lzipreg(param, as. matrix(site. Visits))}, control=list(maxit=1000)) • Likelihood maximised at π=0. 74, β=(1. 90, -0. 09, -0. 13, 0. 11, 0. 02)

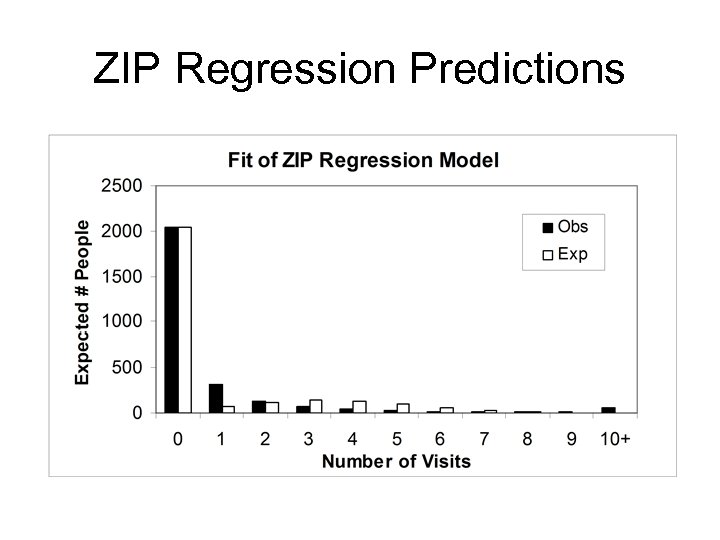

ZIP Regression Predictions

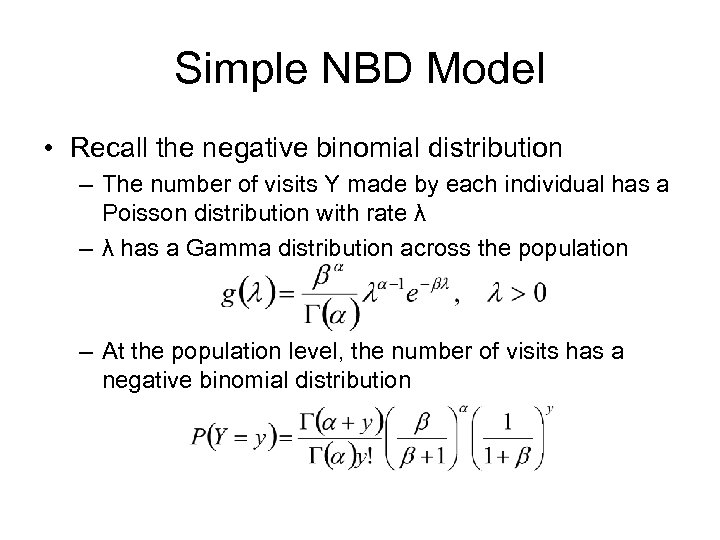

Simple NBD Model • Recall the negative binomial distribution – The number of visits Y made by each individual has a Poisson distribution with rate λ – λ has a Gamma distribution across the population – At the population level, the number of visits has a negative binomial distribution

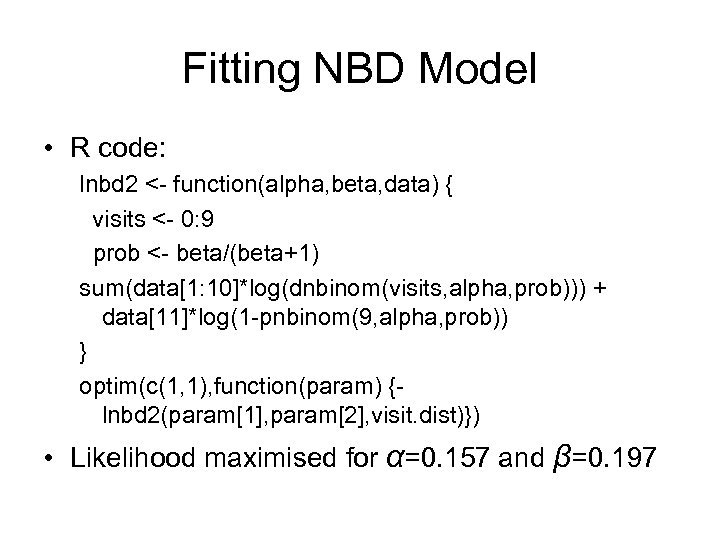

Fitting NBD Model • R code: lnbd 2 <- function(alpha, beta, data) { visits <- 0: 9 prob <- beta/(beta+1) sum(data[1: 10]*log(dnbinom(visits, alpha, prob))) + data[11]*log(1 -pnbinom(9, alpha, prob)) } optim(c(1, 1), function(param) {lnbd 2(param[1], param[2], visit. dist)}) • Likelihood maximised for α=0. 157 and β=0. 197

NBD Model Predictions

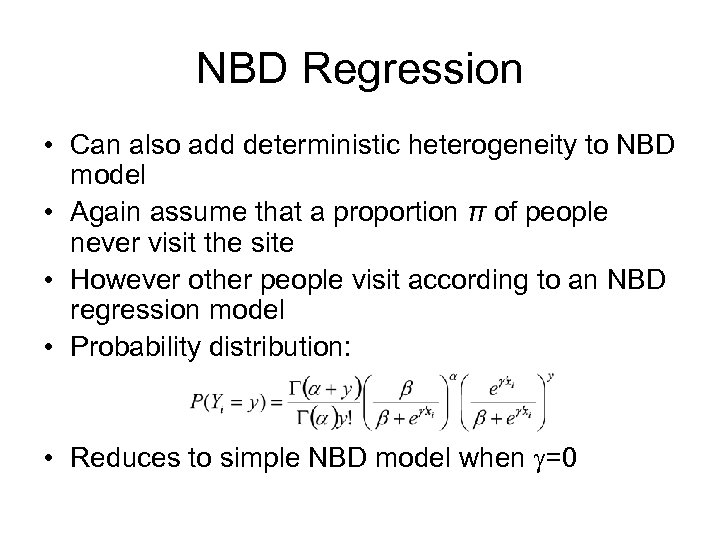

NBD Regression • Can also add deterministic heterogeneity to NBD model • Again assume that a proportion π of people never visit the site • However other people visit according to an NBD regression model • Probability distribution: • Reduces to simple NBD model when g=0

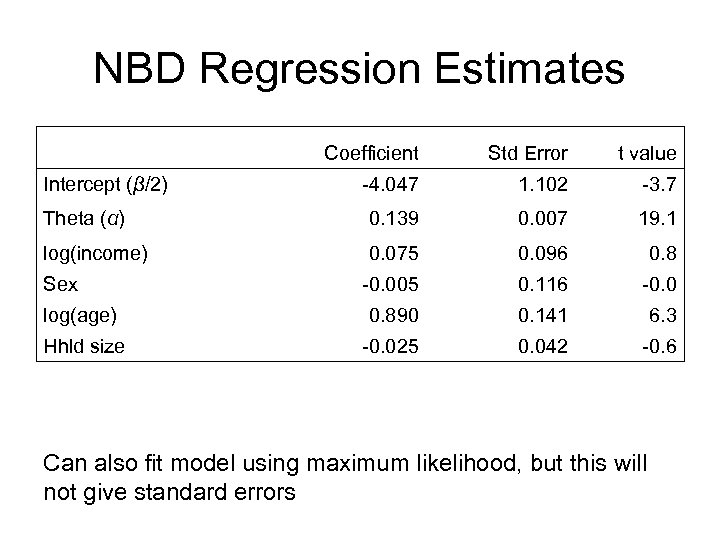

NBD Regression Estimates Coefficient Std Error t value -4. 047 1. 102 -3. 7 Theta (α) 0. 139 0. 007 19. 1 log(income) 0. 075 0. 096 0. 8 -0. 005 0. 116 -0. 0 log(age) 0. 890 0. 141 6. 3 Hhld size -0. 025 0. 042 -0. 6 Intercept (β/2) Sex Can also fit model using maximum likelihood, but this will not give standard errors

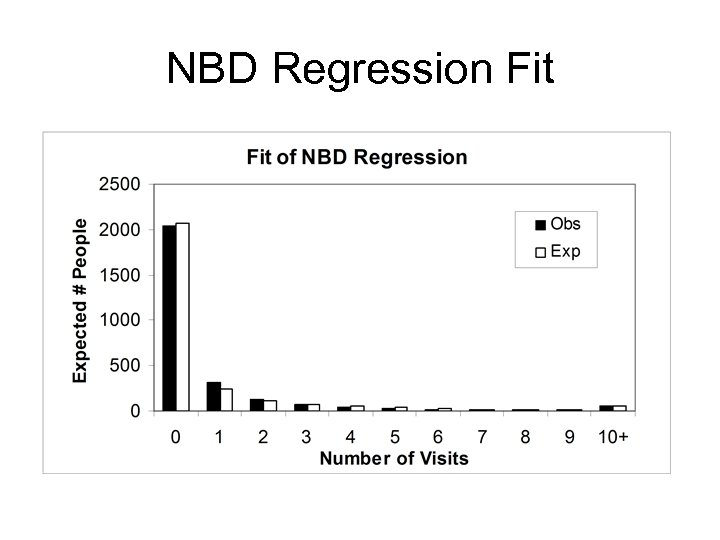

NBD Regression Fit

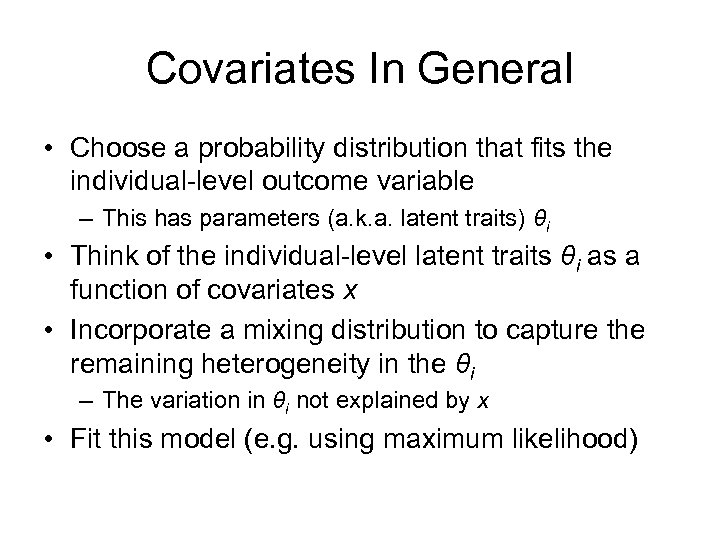

Covariates In General • Choose a probability distribution that fits the individual-level outcome variable – This has parameters (a. k. a. latent traits) θi • Think of the individual-level latent traits θi as a function of covariates x • Incorporate a mixing distribution to capture the remaining heterogeneity in the θi – The variation in θi not explained by x • Fit this model (e. g. using maximum likelihood)

New Concepts • How to incorporate covariates in probability models – Poisson, zero-inflated Poisson and NBD regression models for count data • However, getting the outcome variable distribution right was more crucial here than introducing covariates • Importance of covariates is often exaggerated

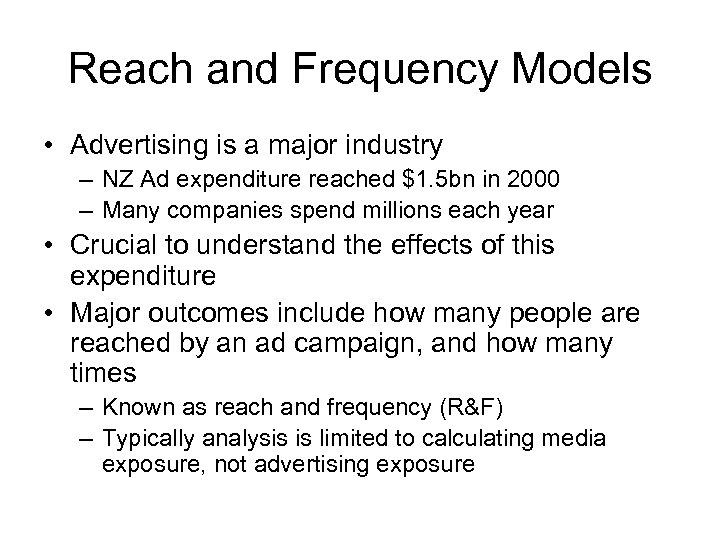

Reach and Frequency Models • Advertising is a major industry – NZ Ad expenditure reached $1. 5 bn in 2000 – Many companies spend millions each year • Crucial to understand the effects of this expenditure • Major outcomes include how many people are reached by an ad campaign, and how many times – Known as reach and frequency (R&F) – Typically analysis is limited to calculating media exposure, not advertising exposure

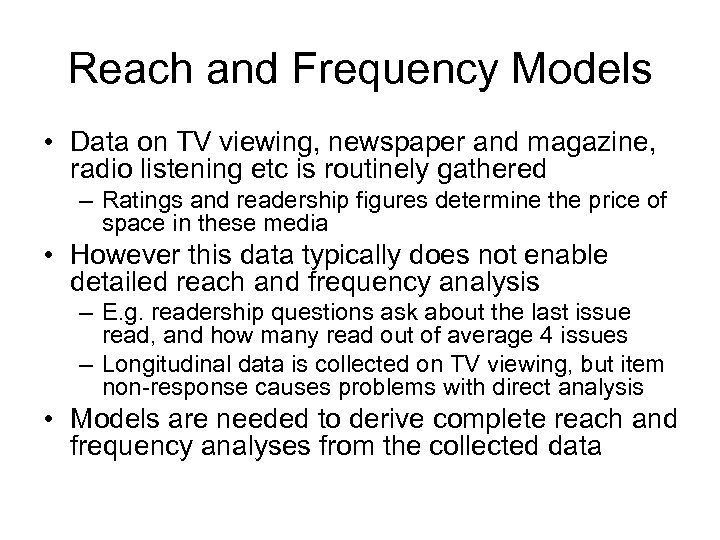

Reach and Frequency Models • Data on TV viewing, newspaper and magazine, radio listening etc is routinely gathered – Ratings and readership figures determine the price of space in these media • However this data typically does not enable detailed reach and frequency analysis – E. g. readership questions ask about the last issue read, and how many read out of average 4 issues – Longitudinal data is collected on TV viewing, but item non-response causes problems with direct analysis • Models are needed to derive complete reach and frequency analyses from the collected data

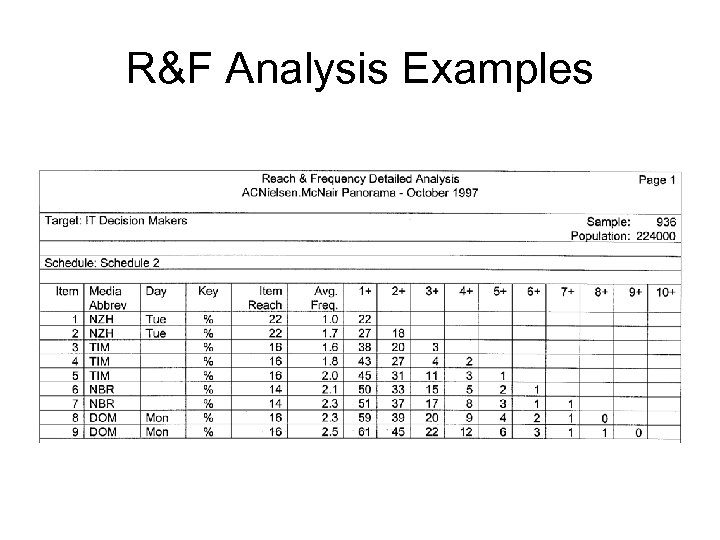

R&F Analysis Examples

Beta-Binomial Model for R&F • If an advertiser has placed an ad in each of 10 issues of a magazine, the beta-binomial model assumes that: – Each person has a probability p of reading each issue – These probabilities follow a beta distribution – Each issue is read independently, between and across individuals • Distribution of # issues read for each person is binomial • The resulting aggregate exposure distribution is the betabinomial • Applied to R&F analysis by Metheringham (1964) • Still widely used • But not very accurate

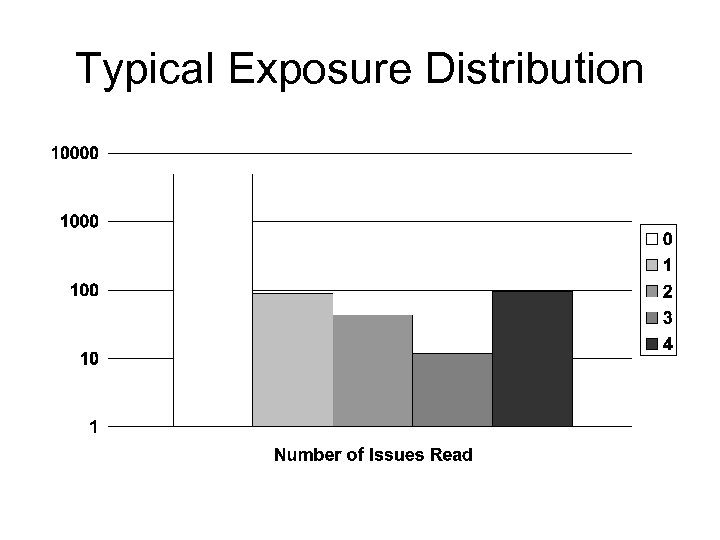

Typical Exposure Distribution

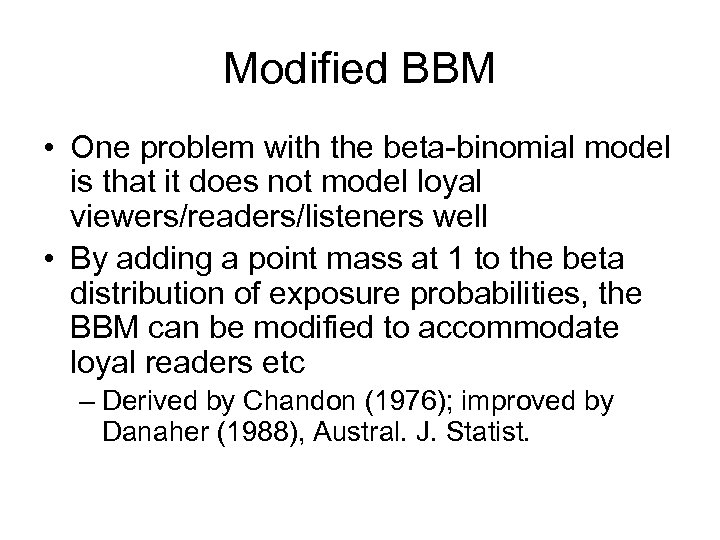

Modified BBM • One problem with the beta-binomial model is that it does not model loyal viewers/readers/listeners well • By adding a point mass at 1 to the beta distribution of exposure probabilities, the BBM can be modified to accommodate loyal readers etc – Derived by Chandon (1976); improved by Danaher (1988), Austral. J. Statist.

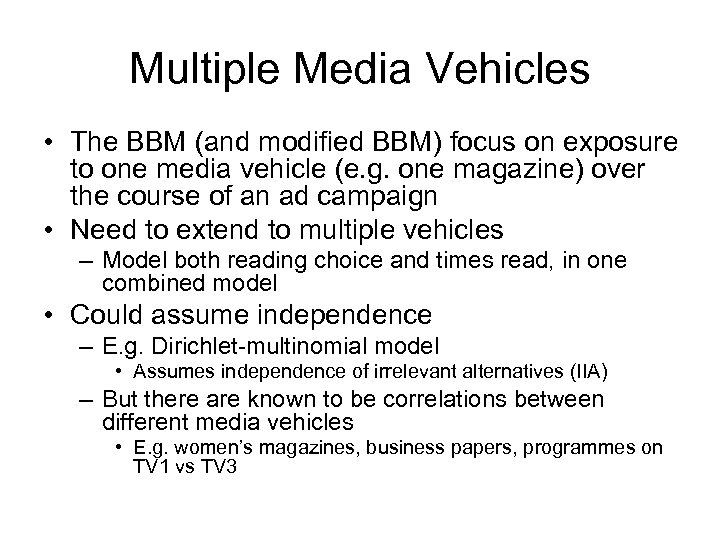

Multiple Media Vehicles • The BBM (and modified BBM) focus on exposure to one media vehicle (e. g. one magazine) over the course of an ad campaign • Need to extend to multiple vehicles – Model both reading choice and times read, in one combined model • Could assume independence – E. g. Dirichlet-multinomial model • Assumes independence of irrelevant alternatives (IIA) – But there are known to be correlations between different media vehicles • E. g. women’s magazines, business papers, programmes on TV 1 vs TV 3

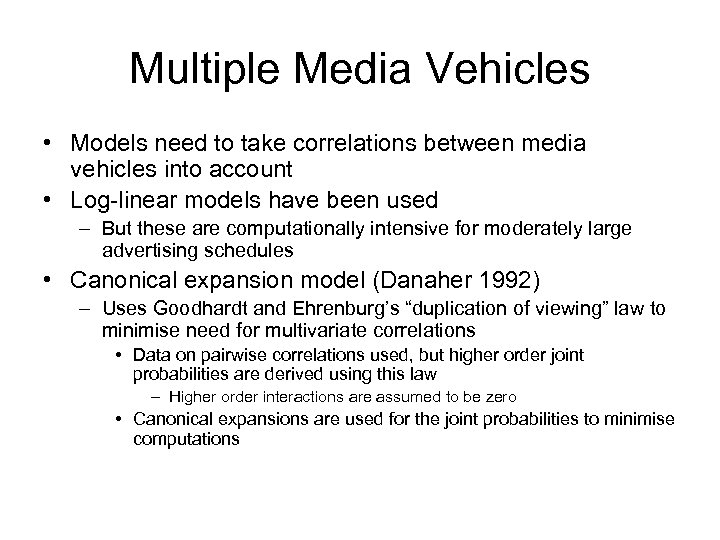

Multiple Media Vehicles • Models need to take correlations between media vehicles into account • Log-linear models have been used – But these are computationally intensive for moderately large advertising schedules • Canonical expansion model (Danaher 1992) – Uses Goodhardt and Ehrenburg’s “duplication of viewing” law to minimise need for multivariate correlations • Data on pairwise correlations used, but higher order joint probabilities are derived using this law – Higher order interactions are assumed to be zero • Canonical expansions are used for the joint probabilities to minimise computations

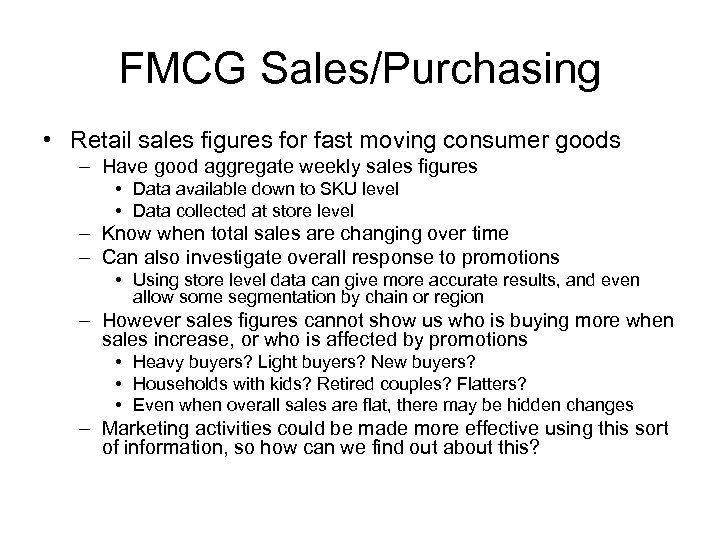

FMCG Sales/Purchasing • Retail sales figures for fast moving consumer goods – Have good aggregate weekly sales figures • Data available down to SKU level • Data collected at store level – Know when total sales are changing over time – Can also investigate overall response to promotions • Using store level data can give more accurate results, and even allow some segmentation by chain or region – However sales figures cannot show us who is buying more when sales increase, or who is affected by promotions • Heavy buyers? Light buyers? New buyers? • Households with kids? Retired couples? Flatters? • Even when overall sales are flat, there may be hidden changes – Marketing activities could be made more effective using this sort of information, so how can we find out about this?

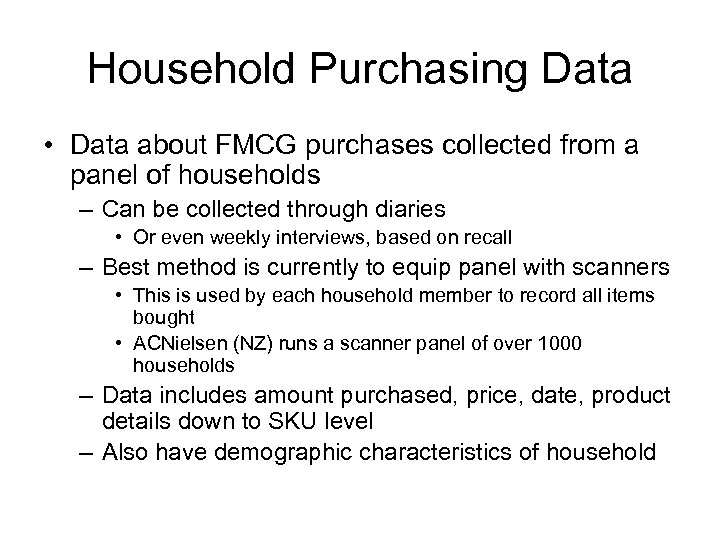

Household Purchasing Data • Data about FMCG purchases collected from a panel of households – Can be collected through diaries • Or even weekly interviews, based on recall – Best method is currently to equip panel with scanners • This is used by each household member to record all items bought • ACNielsen (NZ) runs a scanner panel of over 1000 households – Data includes amount purchased, price, date, product details down to SKU level – Also have demographic characteristics of household

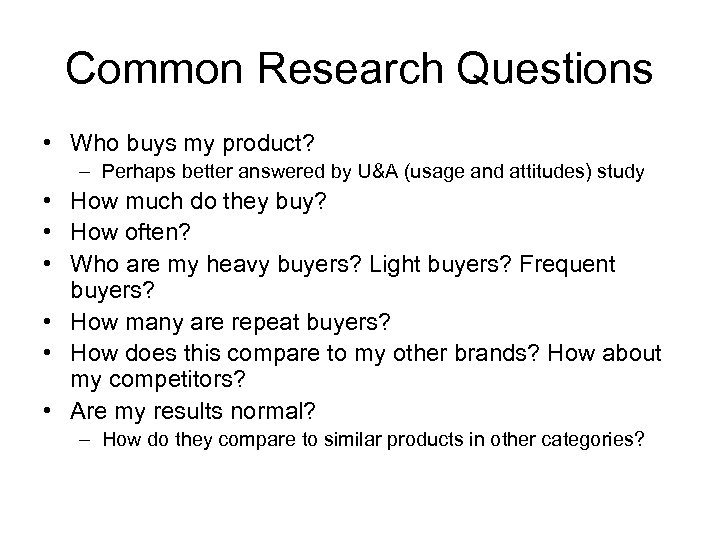

Common Research Questions • Who buys my product? – Perhaps better answered by U&A (usage and attitudes) study • How much do they buy? • How often? • Who are my heavy buyers? Light buyers? Frequent buyers? • How many are repeat buyers? • How does this compare to my other brands? How about my competitors? • Are my results normal? – How do they compare to similar products in other categories?

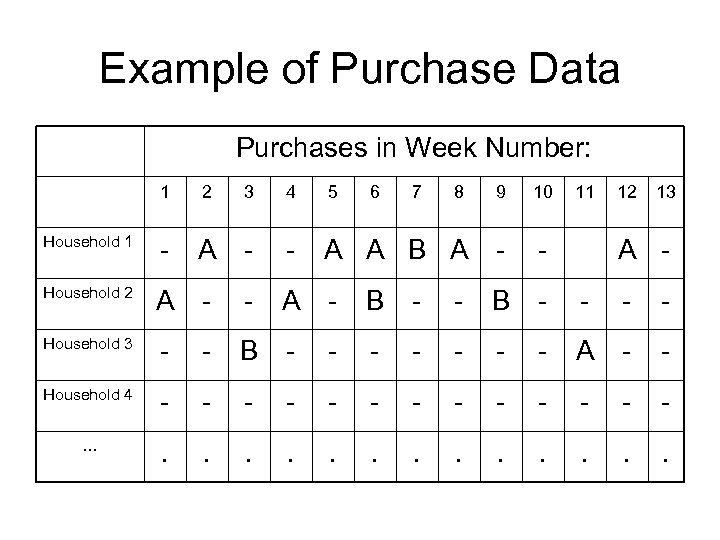

Example of Purchase Data Purchases in Week Number: 1 2 3 4 5 6 7 8 9 10 11 12 13 Household 1 - A - - A A B A - - Household 2 A - - A - B - - - - Household 3 - - B - - - - A - - Household 4 - - - - … . . . A -

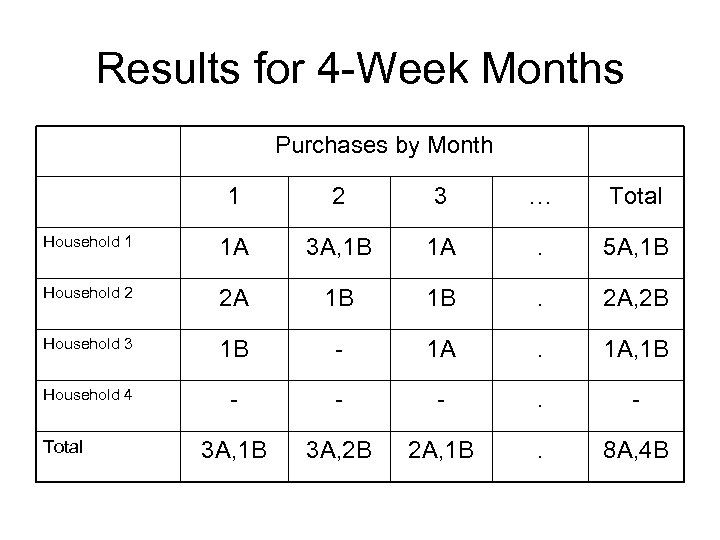

Results for 4 -Week Months Purchases by Month 1 2 3 … Total Household 1 1 A 3 A, 1 B 1 A . 5 A, 1 B Household 2 2 A 1 B 1 B . 2 A, 2 B Household 3 1 B - 1 A . 1 A, 1 B Household 4 - - - . - 3 A, 1 B 3 A, 2 B 2 A, 1 B . 8 A, 4 B Total

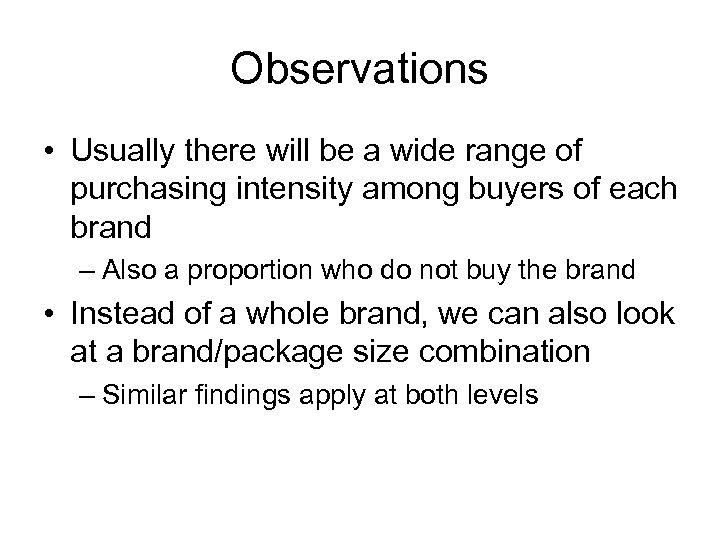

Observations • Usually there will be a wide range of purchasing intensity among buyers of each brand – Also a proportion who do not buy the brand • Instead of a whole brand, we can also look at a brand/package size combination – Similar findings apply at both levels

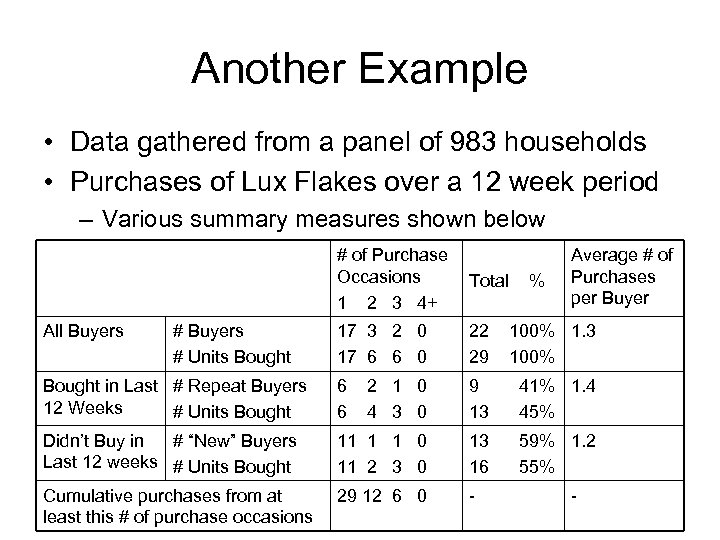

Another Example • Data gathered from a panel of 983 households • Purchases of Lux Flakes over a 12 week period – Various summary measures shown below # of Purchase Occasions Total % 1 2 3 4+ All Buyers # Units Bought Average # of Purchases per Buyer 17 3 2 0 17 6 6 0 22 100% 1. 3 29 100% Bought in Last # Repeat Buyers 12 Weeks # Units Bought 6 2 1 0 6 4 3 0 9 41% 1. 4 13 45% Didn’t Buy in # “New” Buyers Last 12 weeks # Units Bought 11 1 1 0 11 2 3 0 13 59% 1. 2 16 55% Cumulative purchases from at least this # of purchase occasions 29 12 6 0 - -

Example (continued) • Low penetration overall – 22 buyers, about 2% of panel • More than half the purchases were by “new” buyers • The cumulative purchasing distribution looks similar to the cumulative reach distributions from the last lecture

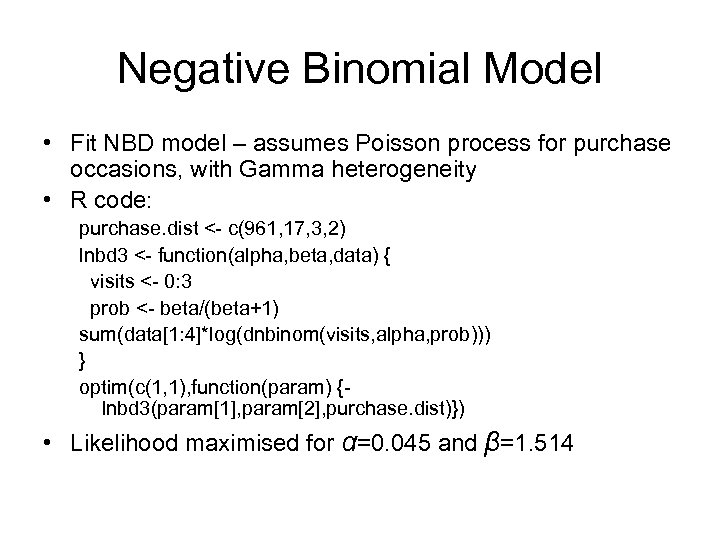

Negative Binomial Model • Fit NBD model – assumes Poisson process for purchase occasions, with Gamma heterogeneity • R code: purchase. dist <- c(961, 17, 3, 2) lnbd 3 <- function(alpha, beta, data) { visits <- 0: 3 prob <- beta/(beta+1) sum(data[1: 4]*log(dnbinom(visits, alpha, prob))) } optim(c(1, 1), function(param) {lnbd 3(param[1], param[2], purchase. dist)}) • Likelihood maximised for α=0. 045 and β=1. 514

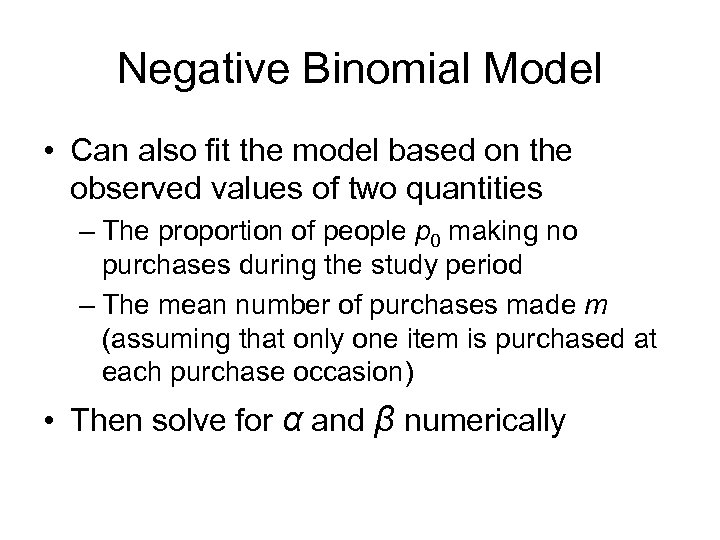

Negative Binomial Model • Can also fit the model based on the observed values of two quantities – The proportion of people p 0 making no purchases during the study period – The mean number of purchases made m (assuming that only one item is purchased at each purchase occasion) • Then solve for α and β numerically

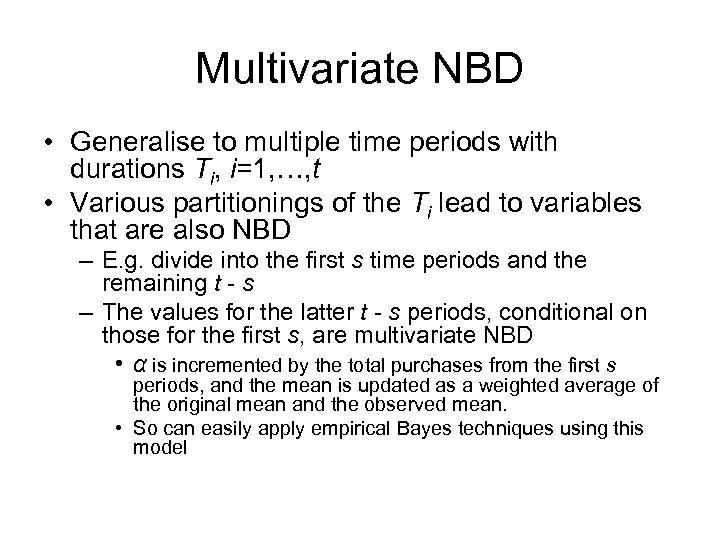

Multivariate NBD • Generalise to multiple time periods with durations Ti, i=1, …, t • Various partitionings of the Ti lead to variables that are also NBD – E. g. divide into the first s time periods and the remaining t - s – The values for the latter t - s periods, conditional on those for the first s, are multivariate NBD • α is incremented by the total purchases from the first s periods, and the mean is updated as a weighted average of the original mean and the observed mean. • So can easily apply empirical Bayes techniques using this model

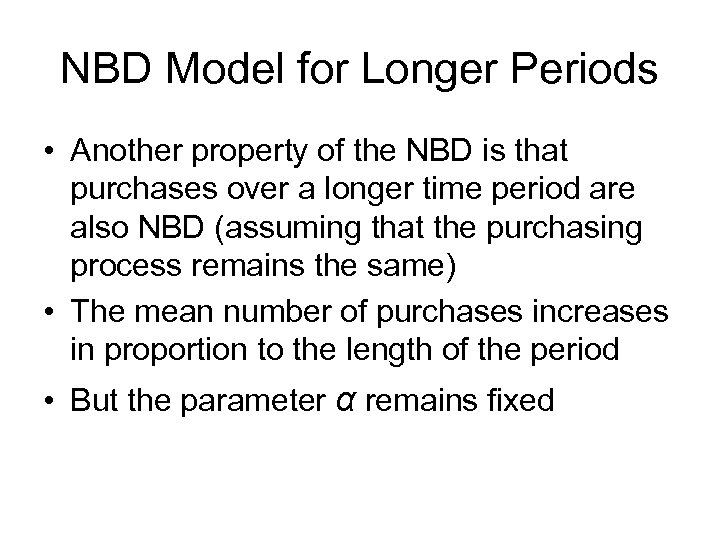

NBD Model for Longer Periods • Another property of the NBD is that purchases over a longer time period are also NBD (assuming that the purchasing process remains the same) • The mean number of purchases increases in proportion to the length of the period • But the parameter α remains fixed

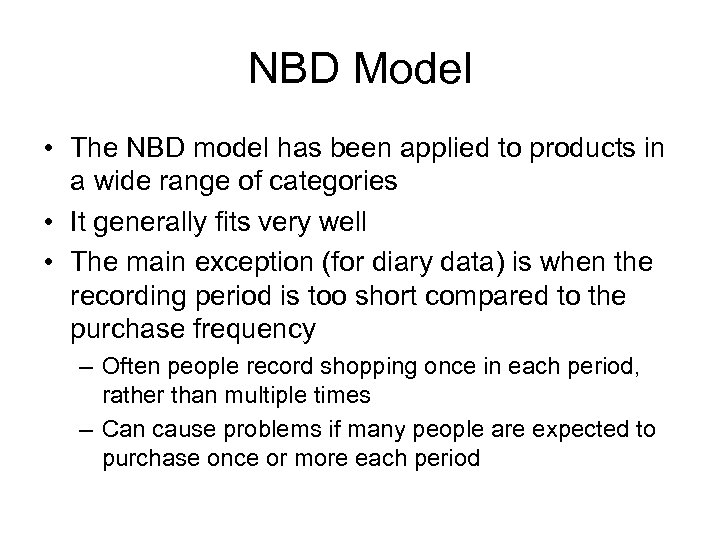

NBD Model • The NBD model has been applied to products in a wide range of categories • It generally fits very well • The main exception (for diary data) is when the recording period is too short compared to the purchase frequency – Often people record shopping once in each period, rather than multiple times – Can cause problems if many people are expected to purchase once or more each period

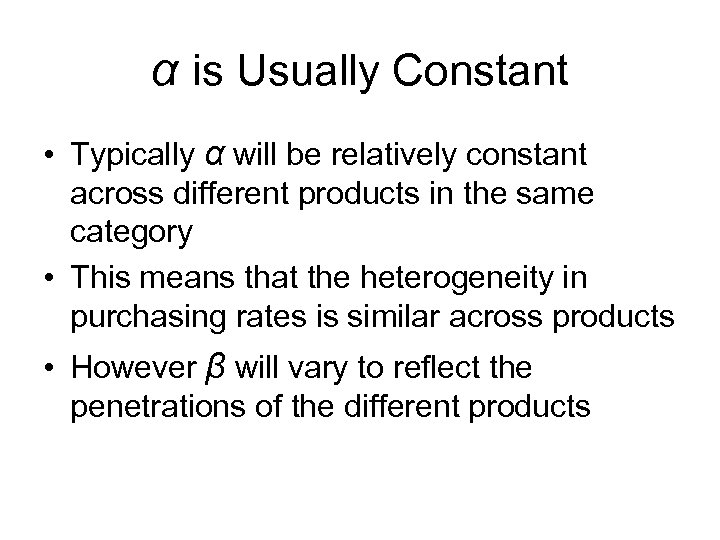

α is Usually Constant • Typically α will be relatively constant across different products in the same category • This means that the heterogeneity in purchasing rates is similar across products • However β will vary to reflect the penetrations of the different products

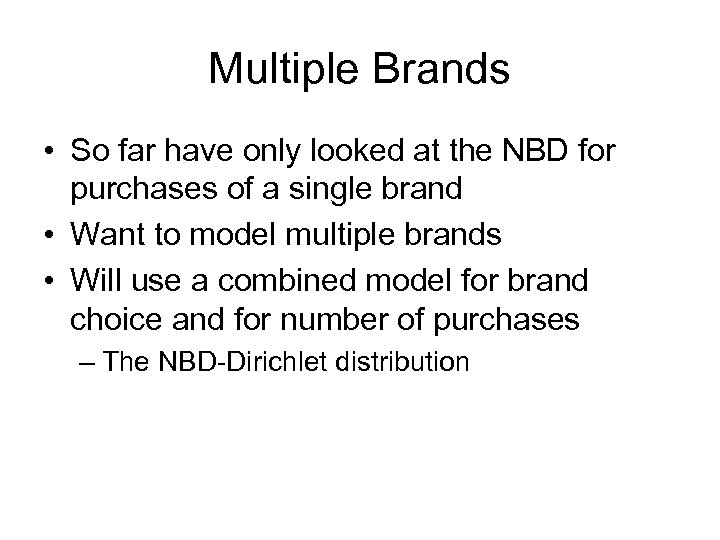

Multiple Brands • So far have only looked at the NBD for purchases of a single brand • Want to model multiple brands • Will use a combined model for brand choice and for number of purchases – The NBD-Dirichlet distribution

Model for Brand Choice • Assume that brand choices are made independently for each purchase, with a individual i having a fixed probability pij of choosing brand j • These probabilities pij are assumed to vary among people according to a Dirichlet distribution – This is a generalisation of the Beta distribution

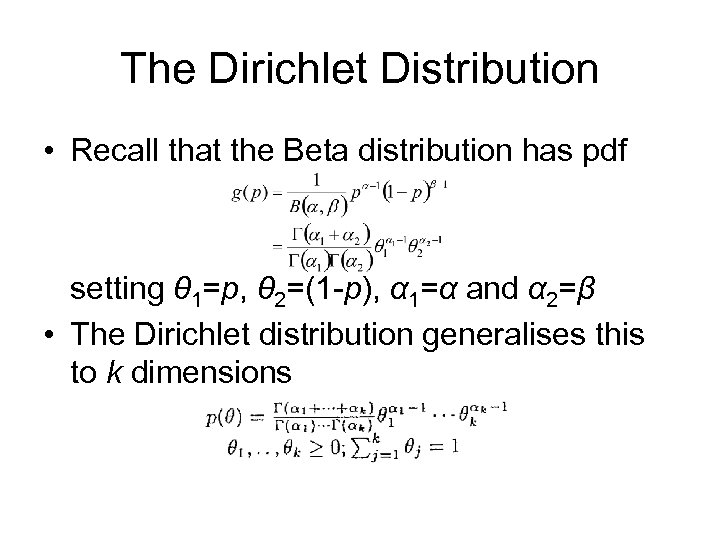

The Dirichlet Distribution • Recall that the Beta distribution has pdf setting θ 1=p, θ 2=(1 -p), α 1=α and α 2=β • The Dirichlet distribution generalises this to k dimensions

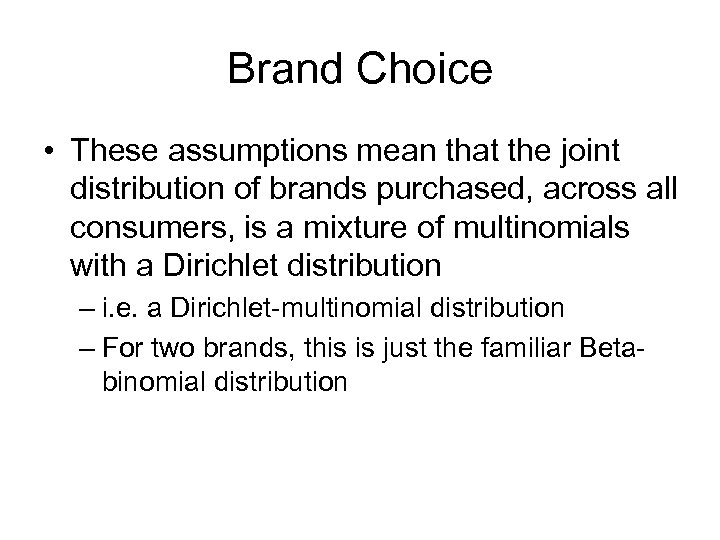

Brand Choice • These assumptions mean that the joint distribution of brands purchased, across all consumers, is a mixture of multinomials with a Dirichlet distribution – i. e. a Dirichlet-multinomial distribution – For two brands, this is just the familiar Betabinomial distribution

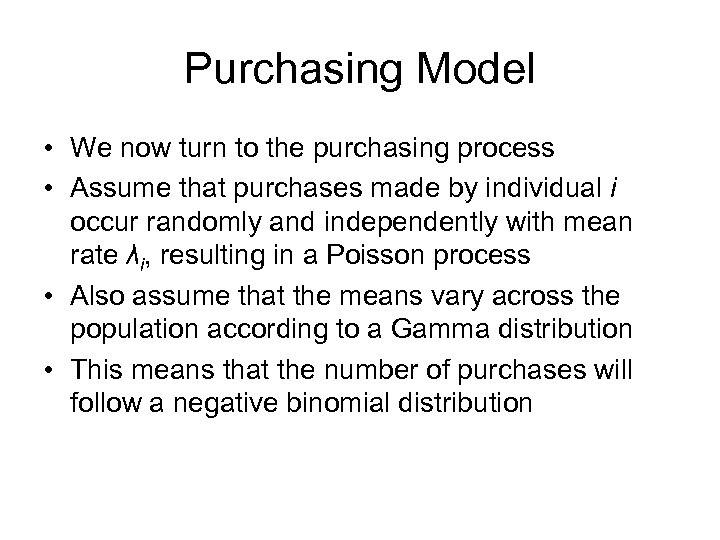

Purchasing Model • We now turn to the purchasing process • Assume that purchases made by individual i occur randomly and independently with mean rate λi, resulting in a Poisson process • Also assume that the means vary across the population according to a Gamma distribution • This means that the number of purchases will follow a negative binomial distribution

Combined Model • Finally, assume that the purchase rates and brand choice probabilities are independent of one another • The resulting distribution of brand purchases follows an NBD-Dirichlet distribution (often called Dirichlet for short) – This has k+2 parameters, one for each brand 2 for the NBD purchase distribution

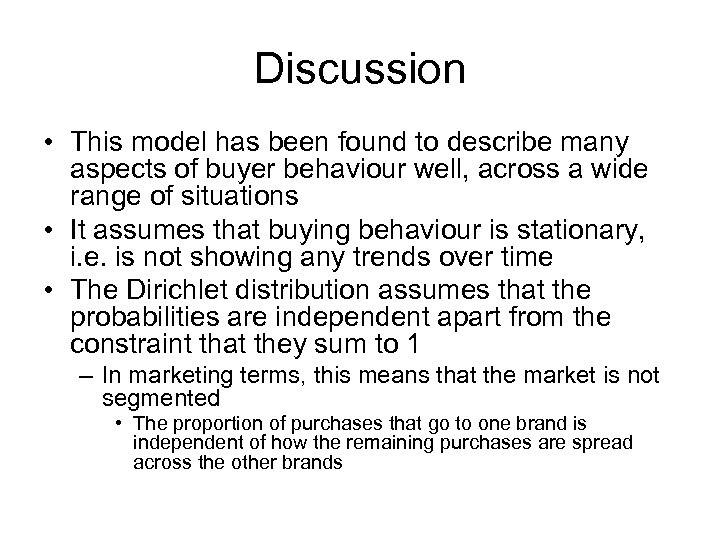

Discussion • This model has been found to describe many aspects of buyer behaviour well, across a wide range of situations • It assumes that buying behaviour is stationary, i. e. is not showing any trends over time • The Dirichlet distribution assumes that the probabilities are independent apart from the constraint that they sum to 1 – In marketing terms, this means that the market is not segmented • The proportion of purchases that go to one brand is independent of how the remaining purchases are spread across the other brands

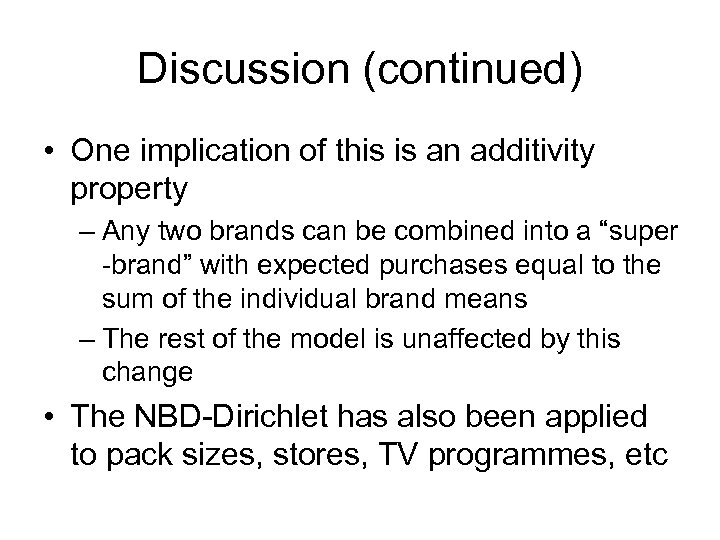

Discussion (continued) • One implication of this is an additivity property – Any two brands can be combined into a “super -brand” with expected purchases equal to the sum of the individual brand means – The rest of the model is unaffected by this change • The NBD-Dirichlet has also been applied to pack sizes, stores, TV programmes, etc

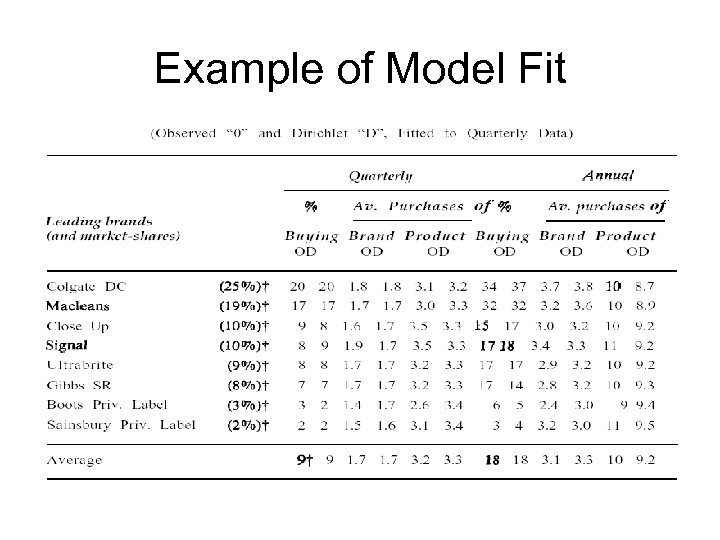

Example of Model Fit

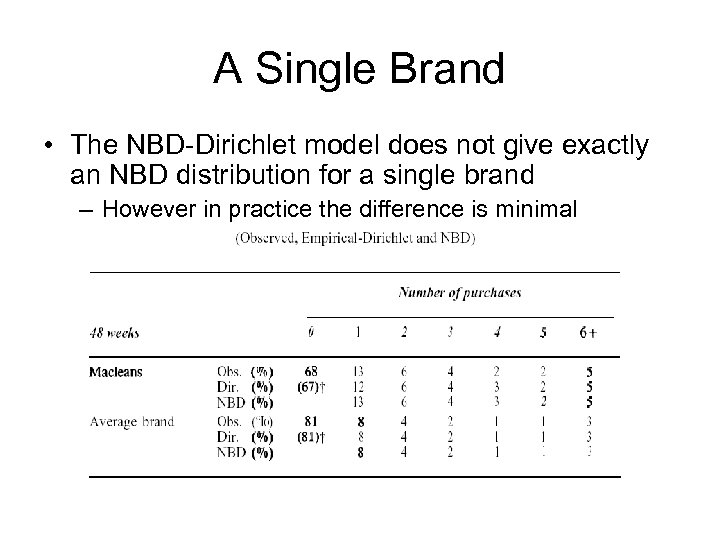

A Single Brand • The NBD-Dirichlet model does not give exactly an NBD distribution for a single brand – However in practice the difference is minimal

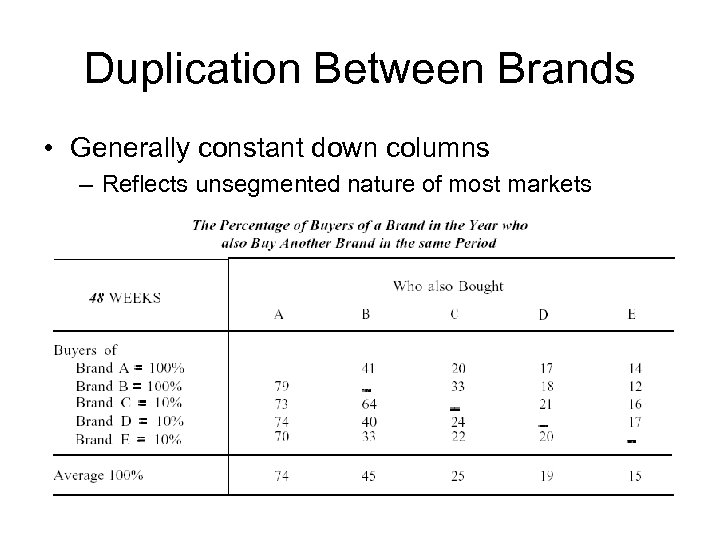

Duplication Between Brands • Generally constant down columns – Reflects unsegmented nature of most markets

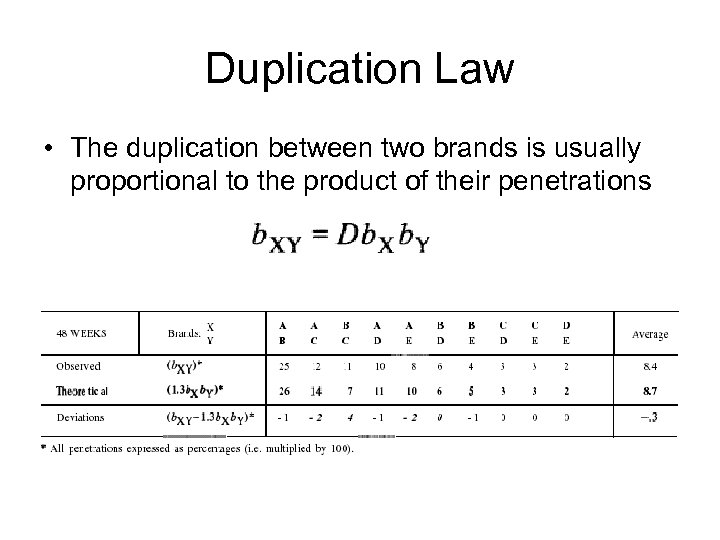

Duplication Law • The duplication between two brands is usually proportional to the product of their penetrations
