Web Server Design Week 3 Old Dominion University Department of Computer Science CS 495/595 Spring 2010 Martin Klein <mklein@cs. odu. edu> 1/27/10

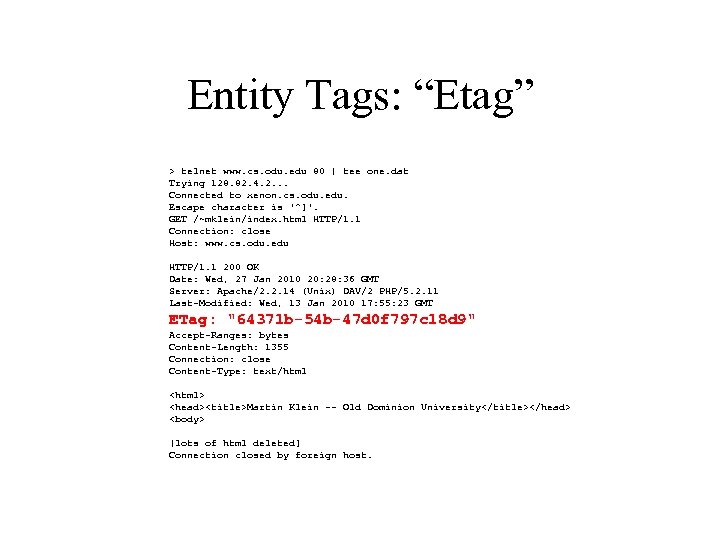

Entity Tags: “Etag” > telnet www. cs. odu. edu 80 | tee one. dat Trying 128. 82. 4. 2. . . Connected to xenon. cs. odu. edu. Escape character is '^]'. GET /~mklein/index. html HTTP/1. 1 Connection: close Host: www. cs. odu. edu HTTP/1. 1 200 OK Date: Wed, 27 Jan 2010 20: 28: 36 GMT Server: Apache/2. 2. 14 (Unix) DAV/2 PHP/5. 2. 11 Last-Modified: Wed, 13 Jan 2010 17: 55: 23 GMT ETag: "64371 b-54 b-47 d 0 f 797 c 18 d 9" Accept-Ranges: bytes Content-Length: 1355 Connection: close Content-Type: text/html <html> <head><title>Martin Klein -- Old Dominion University</title></head> <body> [lots of html deleted] Connection closed by foreign host.

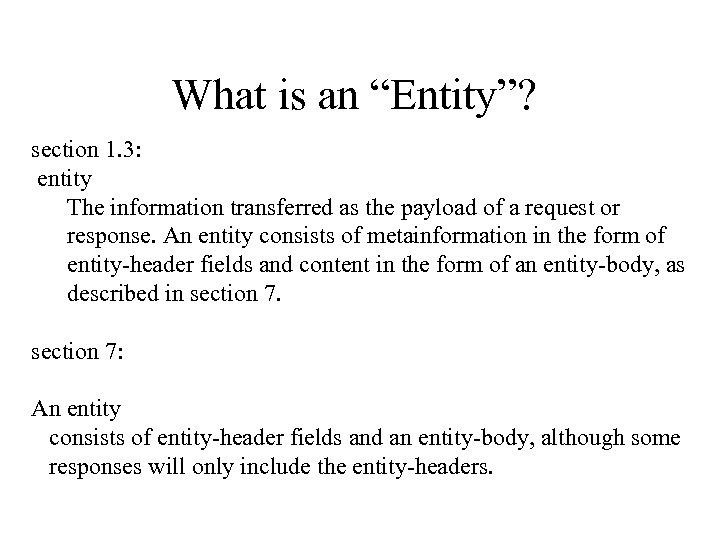

What is an “Entity”? section 1. 3: entity The information transferred as the payload of a request or response. An entity consists of metainformation in the form of entity-header fields and content in the form of an entity-body, as described in section 7: An entity consists of entity-header fields and an entity-body, although some responses will only include the entity-headers.
Looking at a Request/Response (as much as we have learned so far) Request Response GET /~mklein/index. html HTTP/1. 1 200 OK Request Headers: Host: www. cs. odu. edu Response Headers: Server: Apache. . . General Headers: Date: Wed, 27 Jan 2010 15: 04: 47 GMT Connection: close Entity Headers: Content-Length: 0 Content-Type: text/html. . . CRLF [ message-body ]

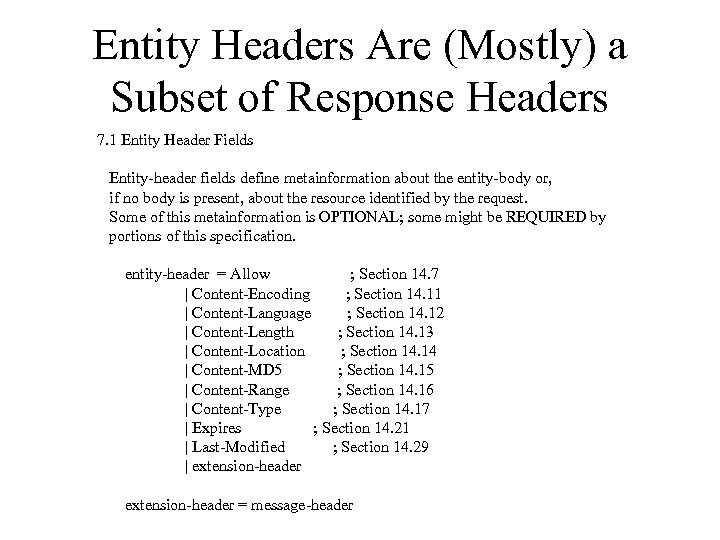

Entity Headers Are (Mostly) a Subset of Response Headers 7. 1 Entity Header Fields Entity-header fields define metainformation about the entity-body or, if no body is present, about the resource identified by the request. Some of this metainformation is OPTIONAL; some might be REQUIRED by portions of this specification. entity-header = Allow ; Section 14. 7 | Content-Encoding ; Section 14. 11 | Content-Language ; Section 14. 12 | Content-Length ; Section 14. 13 | Content-Location ; Section 14. 14 | Content-MD 5 ; Section 14. 15 | Content-Range ; Section 14. 16 | Content-Type ; Section 14. 17 | Expires ; Section 14. 21 | Last-Modified ; Section 14. 29 | extension-header = message-header
Section 3. 11 - Entity Tags • Etags used in – request headers – response headers An entity tag consists of an opaque quoted string, possibly prefixed by a weakness indicator. […] A "strong entity tag" MAY be shared by two entities of a resource only if they are equivalent by octet equality. A "weak entity tag, " indicated by the "W/" prefix, MAY be shared by two entities of a resource only if the entities are equivalent and could be substituted for each other with no significant change in semantics. A weak entity tag can only be used for weak comparison. An entity tag MUST be unique across all versions of all entities associated with a particular resource. A given entity tag value MAY be used for entities obtained by requests on different URIs. The use of the same entity tag value in conjunction with entities obtained by requests on different URIs does not imply the equivalence of those entities.

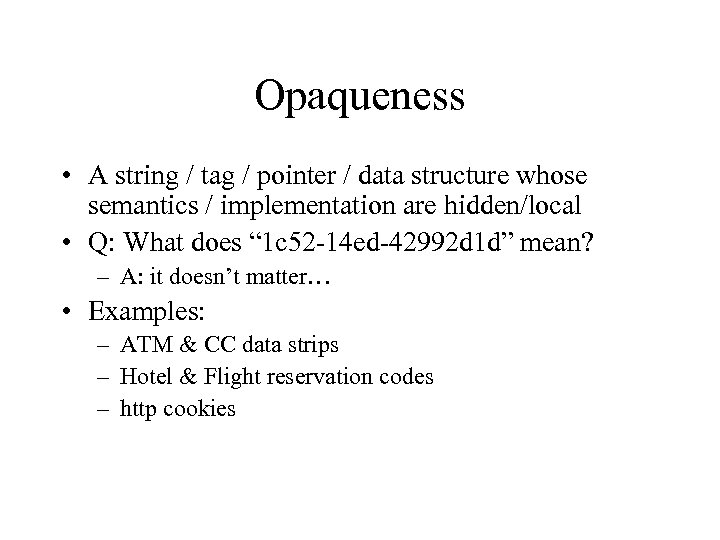

Opaqueness • A string / tag / pointer / data structure whose semantics / implementation are hidden/local • Q: What does “ 1 c 52 -14 ed-42992 d 1 d” mean? – A: it doesn’t matter… • Examples: – ATM & CC data strips – Hotel & Flight reservation codes – http cookies
Section 13. 3. 3 Weak and Strong Validators Entity tags are normally "strong validators, " but the protocol provides a mechanism to tag an entity tag as "weak. " One can think of a strong validator as one that changes whenever the bits of an entity changes, while a weak value changes whenever the meaning of an entity changes. Alternatively, one can think of a strong validator as part of an identifier for a specific entity, while a weak validator is part of an identifier for a set of semantically equivalent entities. Note: One example of a strong validator is an integer that is incremented in stable storage every time an entity is changed. An entity's modification time, if represented with one-second resolution, could be a weak validator, since it is possible that the resource might be modified twice during a single second. Support for weak validators is optional. However, weak validators allow for more efficient caching of equivalent objects; … strong = exact match; weak = “good enough” match

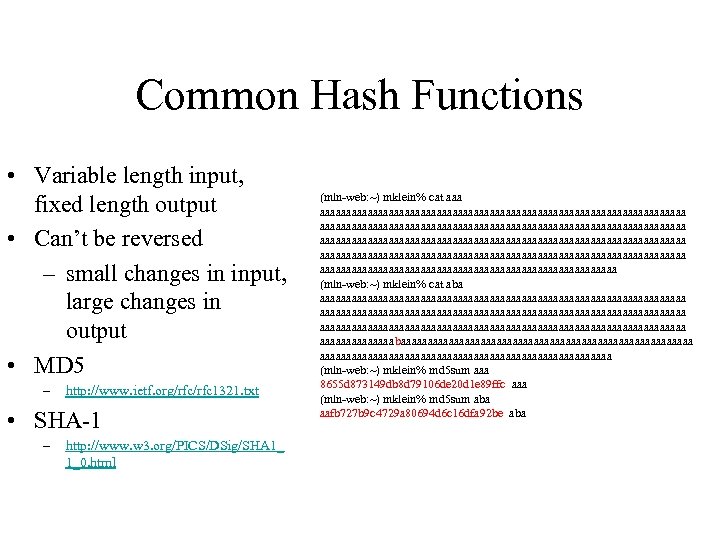

Common Hash Functions • Variable length input, fixed length output • Can’t be reversed – small changes in input, large changes in output • MD 5 – http: //www. ietf. org/rfc 1321. txt • SHA-1 – http: //www. w 3. org/PICS/DSig/SHA 1_ 1_0. html (mln-web: ~) mklein% cat aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa aaaaaaaaaaaaaaaaaaaaaaaaaaaaaa (mln-web: ~) mklein% cat aba aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa aaaaaaabaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa (mln-web: ~) mklein% md 5 sum aaa 8655 d 873149 db 8 d 79106 de 20 d 1 e 89 ffc aaa (mln-web: ~) mklein% md 5 sum aba aafb 727 b 9 c 4729 a 80694 d 6 c 16 dfa 92 be aba

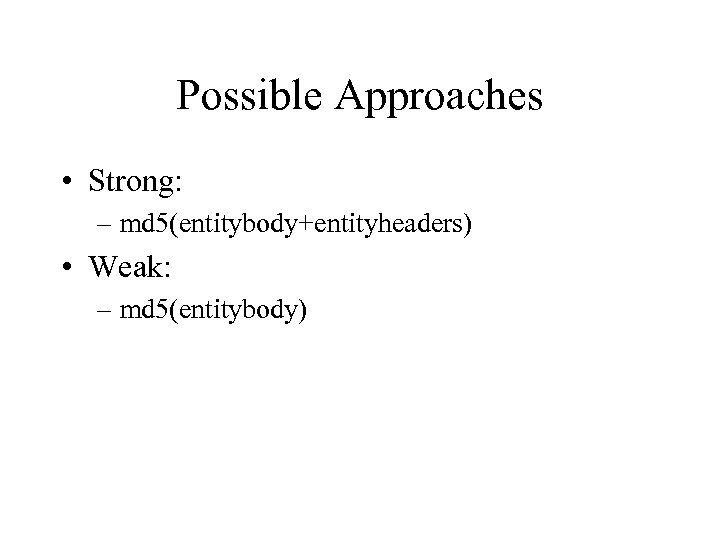

Possible Approaches • Strong: – md 5(entitybody+entityheaders) • Weak: – md 5(entitybody)

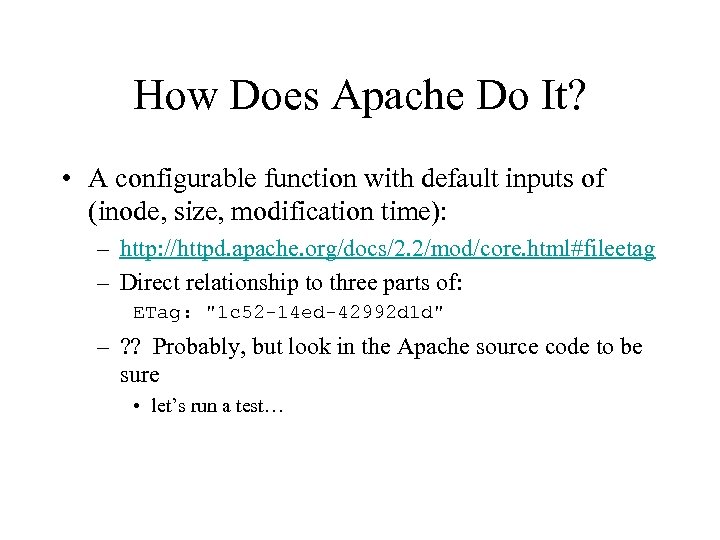

How Does Apache Do It? • A configurable function with default inputs of (inode, size, modification time): – http: //httpd. apache. org/docs/2. 2/mod/core. html#fileetag – Direct relationship to three parts of: ETag: "1 c 52 -14 ed-42992 d 1 d" – ? ? Probably, but look in the Apache source code to be sure • let’s run a test…

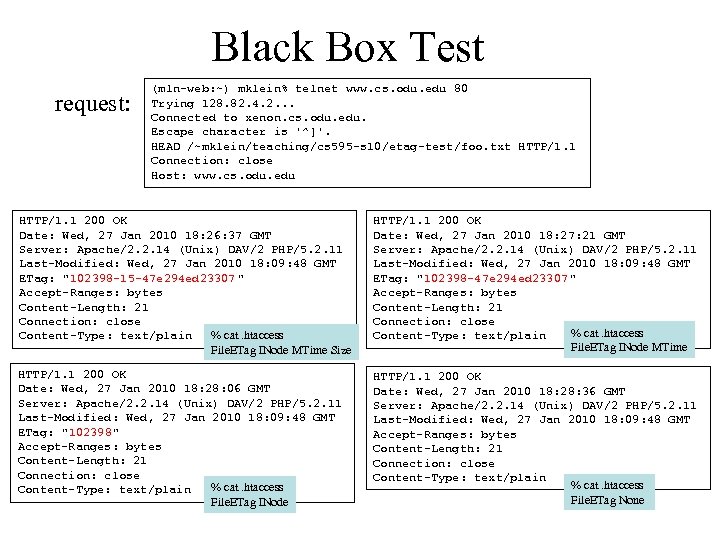

Black Box Test request: (mln-web: ~) mklein% telnet www. cs. odu. edu 80 Trying 128. 82. 4. 2. . . Connected to xenon. cs. odu. edu. Escape character is '^]'. HEAD /~mklein/teaching/cs 595 -s 10/etag-test/foo. txt HTTP/1. 1 Connection: close Host: www. cs. odu. edu HTTP/1. 1 200 OK Date: Wed, 27 Jan 2010 18: 26: 37 GMT Server: Apache/2. 2. 14 (Unix) DAV/2 PHP/5. 2. 11 Last-Modified: Wed, 27 Jan 2010 18: 09: 48 GMT ETag: "102398 -15 -47 e 294 ed 23307" Accept-Ranges: bytes Content-Length: 21 Connection: close % cat. htaccess Content-Type: text/plain File. ETag INode MTime Size HTTP/1. 1 200 OK Date: Wed, 27 Jan 2010 18: 27: 21 GMT Server: Apache/2. 2. 14 (Unix) DAV/2 PHP/5. 2. 11 Last-Modified: Wed, 27 Jan 2010 18: 09: 48 GMT ETag: "102398 -47 e 294 ed 23307" Accept-Ranges: bytes Content-Length: 21 Connection: close % cat. htaccess Content-Type: text/plain File. ETag INode MTime HTTP/1. 1 200 OK Date: Wed, 27 Jan 2010 18: 28: 06 GMT Server: Apache/2. 2. 14 (Unix) DAV/2 PHP/5. 2. 11 Last-Modified: Wed, 27 Jan 2010 18: 09: 48 GMT ETag: "102398" Accept-Ranges: bytes Content-Length: 21 Connection: close % cat. htaccess Content-Type: text/plain File. ETag INode HTTP/1. 1 200 OK Date: Wed, 27 Jan 2010 18: 28: 36 GMT Server: Apache/2. 2. 14 (Unix) DAV/2 PHP/5. 2. 11 Last-Modified: Wed, 27 Jan 2010 18: 09: 48 GMT Accept-Ranges: bytes Content-Length: 21 Connection: close Content-Type: text/plain % cat. htaccess File. ETag None
(contd) (original) ETag: " 102398 -15 -47 e 294 ed 23307 " HTTP/1. 1 200 OK Date: Wed, 27 Jan 2010 18: 30: 18 GMT Server: Apache/2. 2. 14 (Unix) DAV/2 PHP/5. 2. 11 Last-Modified: Wed, 27 Jan 2010 18: 30: 04 GMT ETag: "102398 -15 -47 e 29974 ce 300" Accept-Ranges: bytes Content-Length: 21 Connection: close Content-Type: text/plain % touch foo. txt HTTP/1. 1 200 OK Date: Wed, 27 Jan 2010 18: 31: 08 GMT Server: Apache/2. 2. 14 (Unix) DAV/2 PHP/5. 2. 11 Last-Modified: Wed, 27 Jan 2010 18: 30: 52 GMT ETag: "102398 -19 -47 e 299 a 294 f 00" Accept-Ranges: bytes Content-Length: 25 Connection: close Content-Type: text/plain % echo "bar" >> foo. txt
