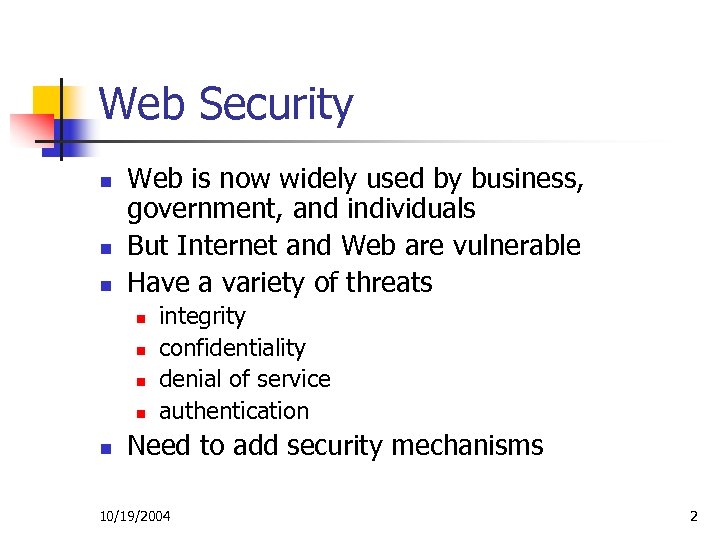

Web Security n n n Web is now widely used by business, government, and individuals But Internet and Web are vulnerable Have a variety of threats n n n integrity confidentiality denial of service authentication Need to add security mechanisms 10/19/2004 2

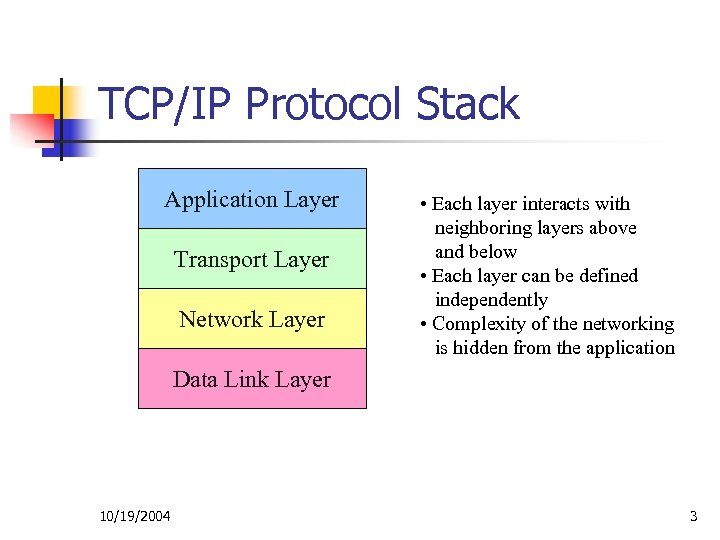

TCP/IP Protocol Stack Application Layer Transport Layer Network Layer • Each layer interacts with neighboring layers above and below • Each layer can be defined independently • Complexity of the networking is hidden from the application Data Link Layer 10/19/2004 3

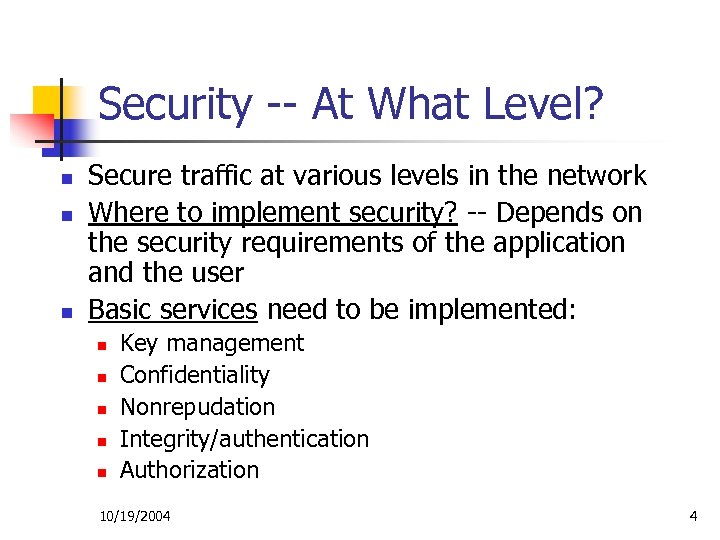

Security -- At What Level? n n n Secure traffic at various levels in the network Where to implement security? -- Depends on the security requirements of the application and the user Basic services need to be implemented: n n n Key management Confidentiality Nonrepudation Integrity/authentication Authorization 10/19/2004 4

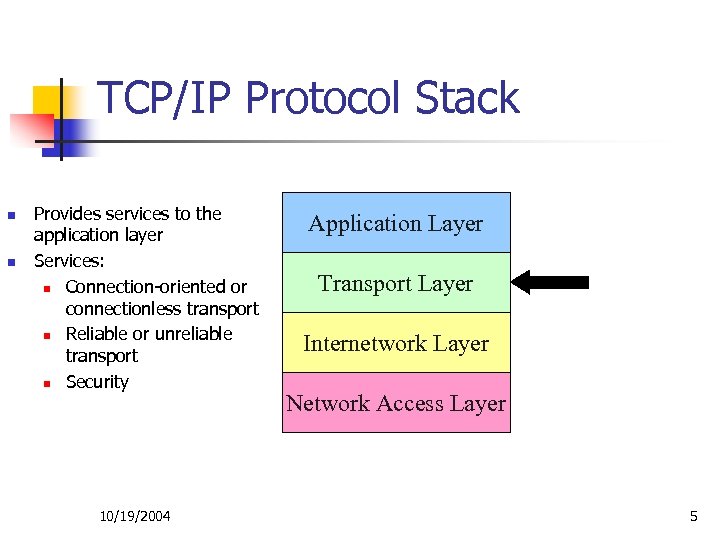

TCP/IP Protocol Stack n n Provides services to the application layer Services: n Connection-oriented or connectionless transport n Reliable or unreliable transport n Security 10/19/2004 Application Layer Transport Layer Internetwork Layer Network Access Layer 5

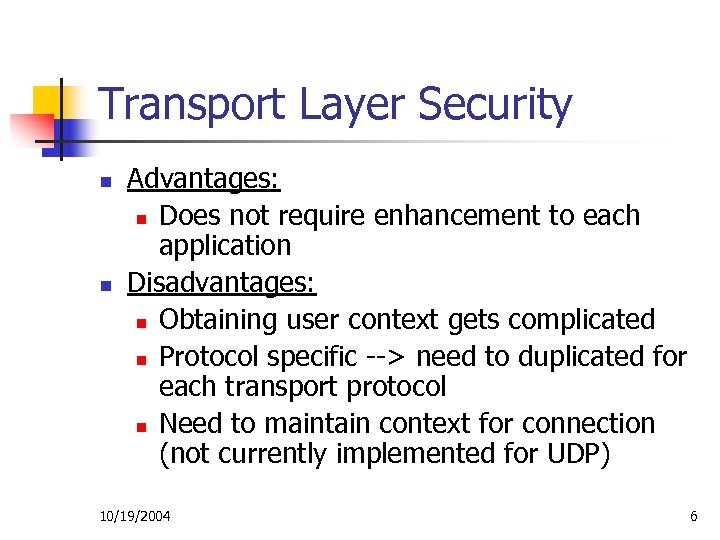

Transport Layer Security n n Advantages: n Does not require enhancement to each application Disadvantages: n Obtaining user context gets complicated n Protocol specific --> need to duplicated for each transport protocol n Need to maintain context for connection (not currently implemented for UDP) 10/19/2004 6

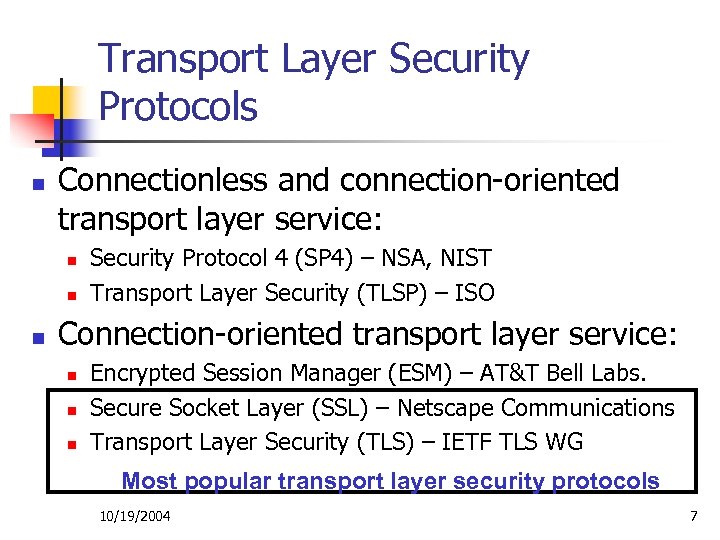

Transport Layer Security Protocols n Connectionless and connection-oriented transport layer service: n n n Security Protocol 4 (SP 4) – NSA, NIST Transport Layer Security (TLSP) – ISO Connection-oriented transport layer service: n n n Encrypted Session Manager (ESM) – AT&T Bell Labs. Secure Socket Layer (SSL) – Netscape Communications Transport Layer Security (TLS) – IETF TLS WG Most popular transport layer security protocols 10/19/2004 7

SSL n SSL versions: n n n 1. 0: serious security flaws – never released to public 2. 0: some weaknesses (man-in-the-middle attack) – in Netscape Navigator 1. 0 -2. x 3. 0: no serious security flaws – in Netscape Navigator 3. 0 and higher, MS Explorer 3. 0 and higher 10/19/2004 8

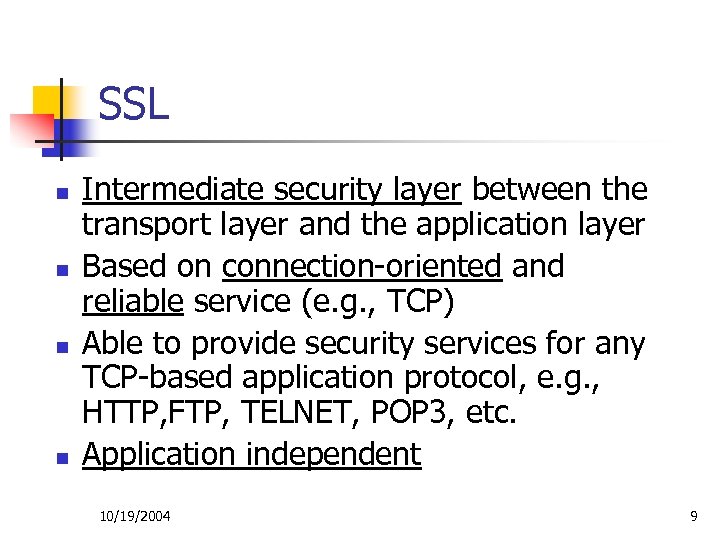

SSL n n Intermediate security layer between the transport layer and the application layer Based on connection-oriented and reliable service (e. g. , TCP) Able to provide security services for any TCP-based application protocol, e. g. , HTTP, FTP, TELNET, POP 3, etc. Application independent 10/19/2004 9

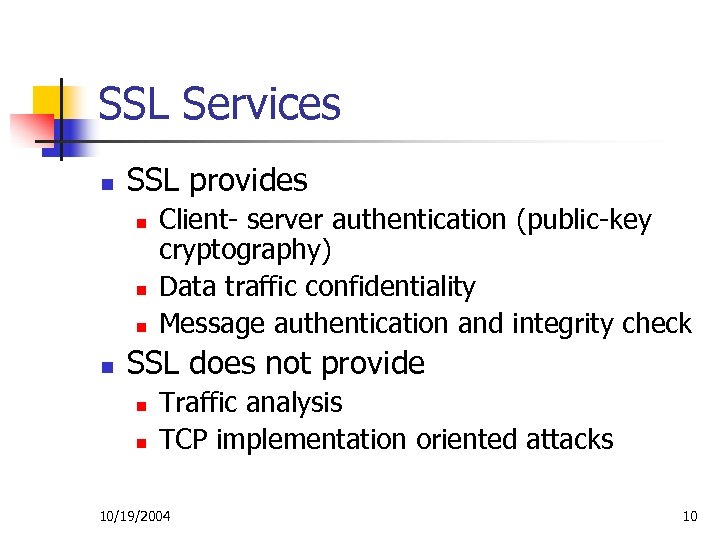

SSL Services n SSL provides n n Client- server authentication (public-key cryptography) Data traffic confidentiality Message authentication and integrity check SSL does not provide n n Traffic analysis TCP implementation oriented attacks 10/19/2004 10

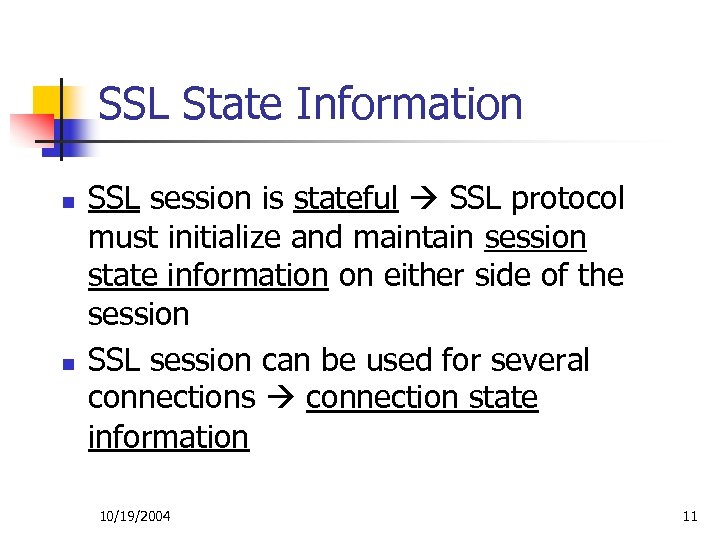

SSL State Information n n SSL session is stateful SSL protocol must initialize and maintain session state information on either side of the session SSL session can be used for several connections connection state information 10/19/2004 11

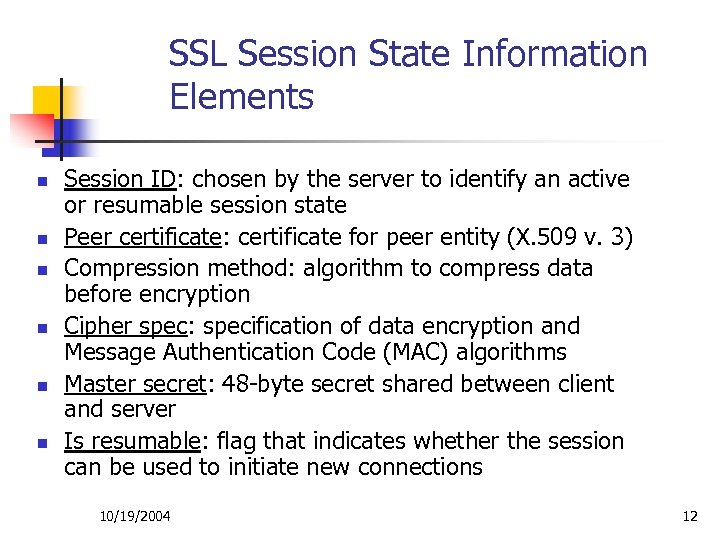

SSL Session State Information Elements n n n Session ID: chosen by the server to identify an active or resumable session state Peer certificate: certificate for peer entity (X. 509 v. 3) Compression method: algorithm to compress data before encryption Cipher spec: specification of data encryption and Message Authentication Code (MAC) algorithms Master secret: 48 -byte secret shared between client and server Is resumable: flag that indicates whether the session can be used to initiate new connections 10/19/2004 12

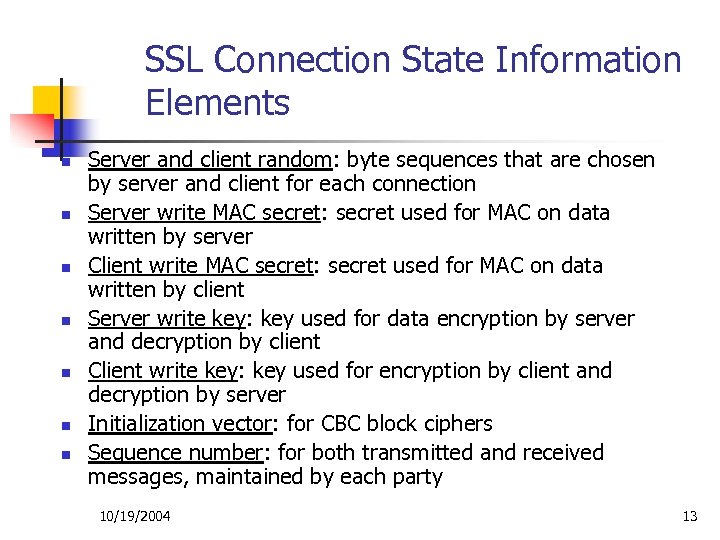

SSL Connection State Information Elements n n n n Server and client random: byte sequences that are chosen by server and client for each connection Server write MAC secret: secret used for MAC on data written by server Client write MAC secret: secret used for MAC on data written by client Server write key: key used for data encryption by server and decryption by client Client write key: key used for encryption by client and decryption by server Initialization vector: for CBC block ciphers Sequence number: for both transmitted and received messages, maintained by each party 10/19/2004 13

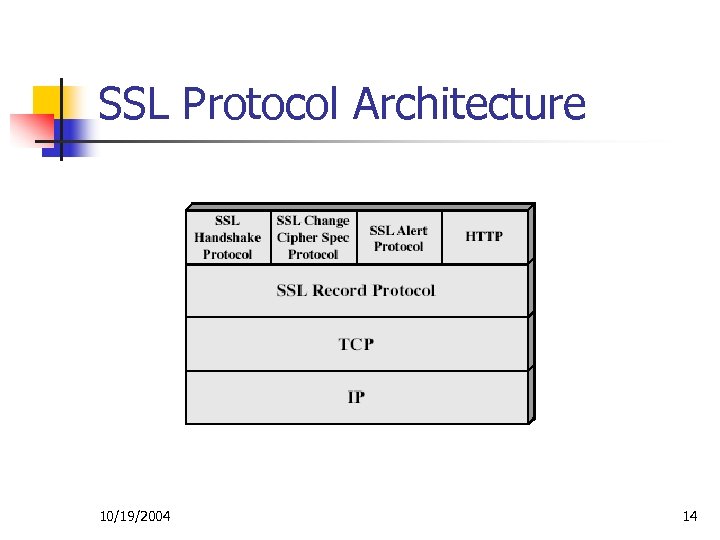

SSL Protocol Architecture 10/19/2004 14

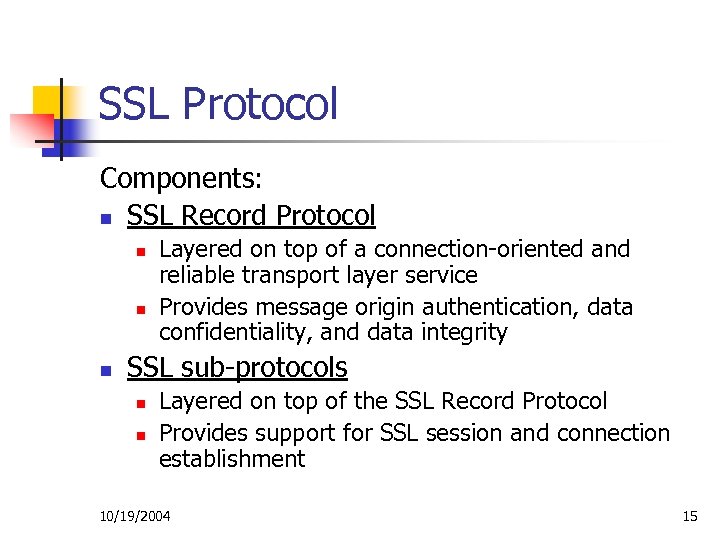

SSL Protocol Components: n SSL Record Protocol n n n Layered on top of a connection-oriented and reliable transport layer service Provides message origin authentication, data confidentiality, and data integrity SSL sub-protocols n n Layered on top of the SSL Record Protocol Provides support for SSL session and connection establishment 10/19/2004 15

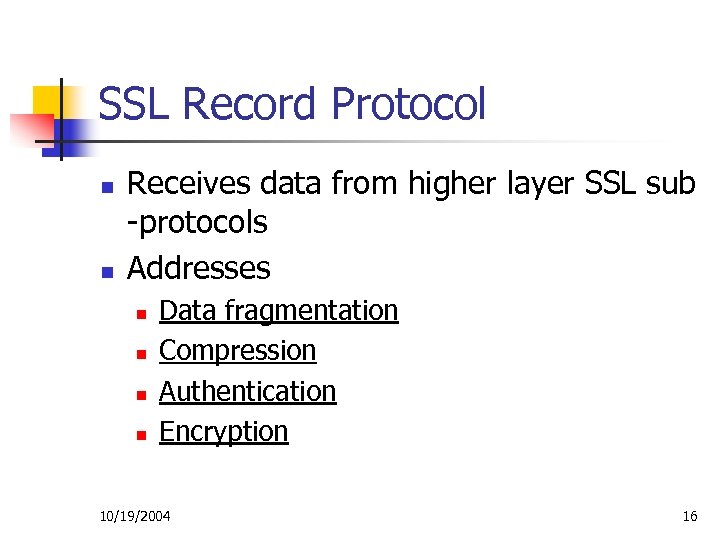

SSL Record Protocol n n Receives data from higher layer SSL sub -protocols Addresses n n Data fragmentation Compression Authentication Encryption 10/19/2004 16

SSL Record Protocol n confidentiality n n using symmetric encryption with a shared secret key defined by Handshake Protocol IDEA, RC 2 -40, DES, 3 DES, Fortezza, RC 440, RC 4 -128 message is compressed before encryption (optional) message integrity n n using a MAC with shared secret key similar to HMAC but with different padding 10/19/2004 17

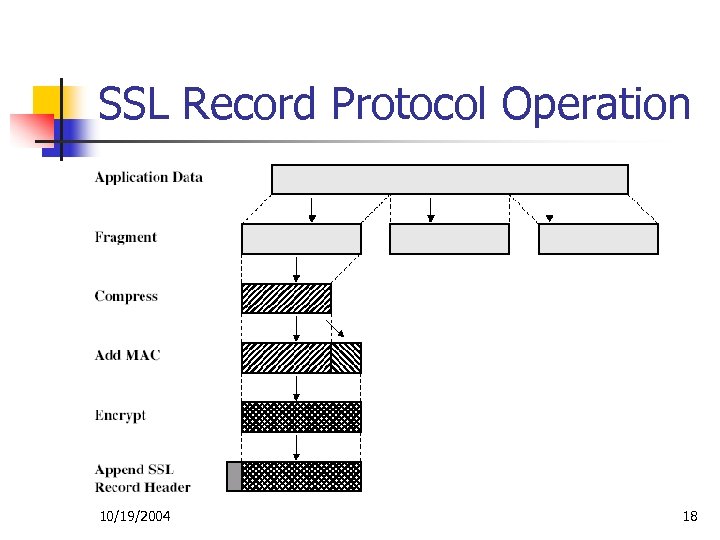

SSL Record Protocol Operation 10/19/2004 18

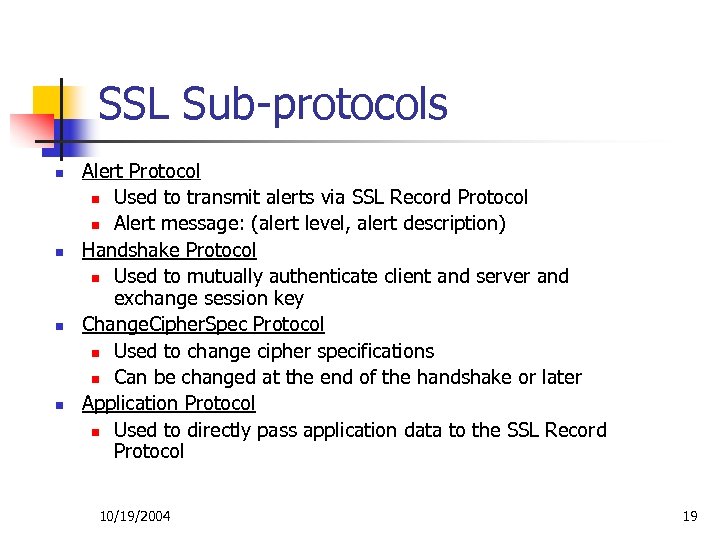

SSL Sub-protocols n n Alert Protocol n Used to transmit alerts via SSL Record Protocol n Alert message: (alert level, alert description) Handshake Protocol n Used to mutually authenticate client and server and exchange session key Change. Cipher. Spec Protocol n Used to change cipher specifications n Can be changed at the end of the handshake or later Application Protocol n Used to directly pass application data to the SSL Record Protocol 10/19/2004 19

SSL Alert Protocol n n Use two-byte message to convey SSL-related alerts to peer entity First byte is severity level n n Second byte is specific alert n n n warning(1) or fatal(2) Always fatal: unexpected_message, bad_record_mac, decompression_failure, handshake_failure, illegal_parameter Other alerts: close_notify, no_certificate, bad_certificate, unsupported_certificate, certificate_revoked, certificate_expired, certificate_unknown Compressed and encrypted like all SSL data 10/19/2004 20

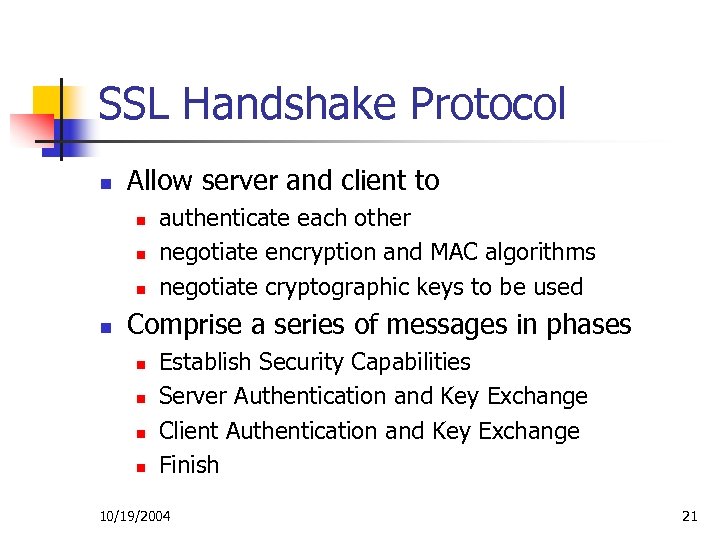

SSL Handshake Protocol n Allow server and client to n n authenticate each other negotiate encryption and MAC algorithms negotiate cryptographic keys to be used Comprise a series of messages in phases n n Establish Security Capabilities Server Authentication and Key Exchange Client Authentication and Key Exchange Finish 10/19/2004 21

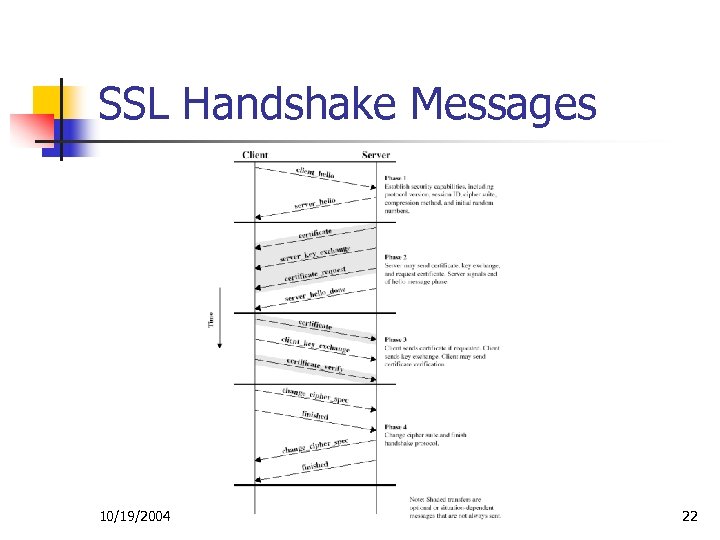

SSL Handshake Messages 10/19/2004 22

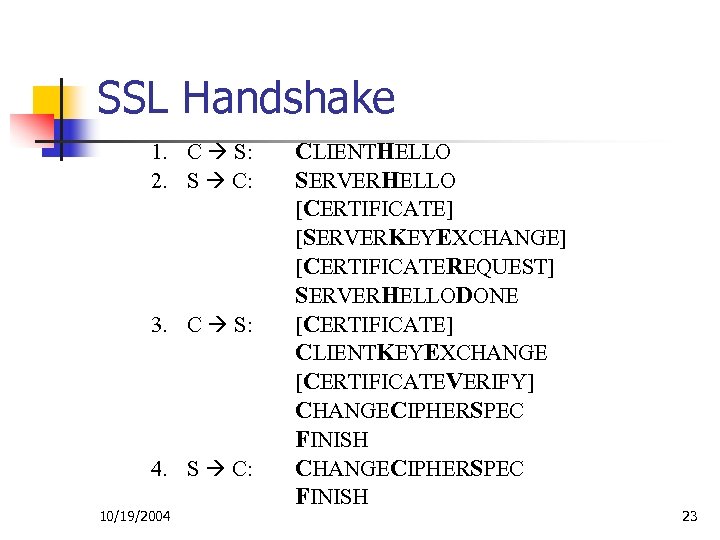

SSL Handshake 1. C S: 2. S C: 3. C S: 4. S C: 10/19/2004 CLIENTHELLO SERVERHELLO [CERTIFICATE] [SERVERKEYEXCHANGE] [CERTIFICATEREQUEST] SERVERHELLODONE [CERTIFICATE] CLIENTKEYEXCHANGE [CERTIFICATEVERIFY] CHANGECIPHERSPEC FINISH 23

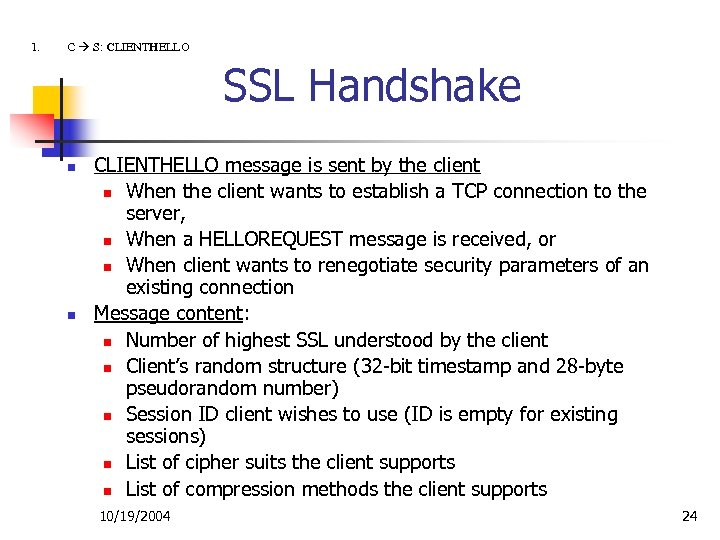

1. C S: CLIENTHELLO SSL Handshake n n CLIENTHELLO message is sent by the client n When the client wants to establish a TCP connection to the server, n When a HELLOREQUEST message is received, or n When client wants to renegotiate security parameters of an existing connection Message content: n Number of highest SSL understood by the client n Client’s random structure (32 -bit timestamp and 28 -byte pseudorandom number) n Session ID client wishes to use (ID is empty for existing sessions) n List of cipher suits the client supports n List of compression methods the client supports 10/19/2004 24

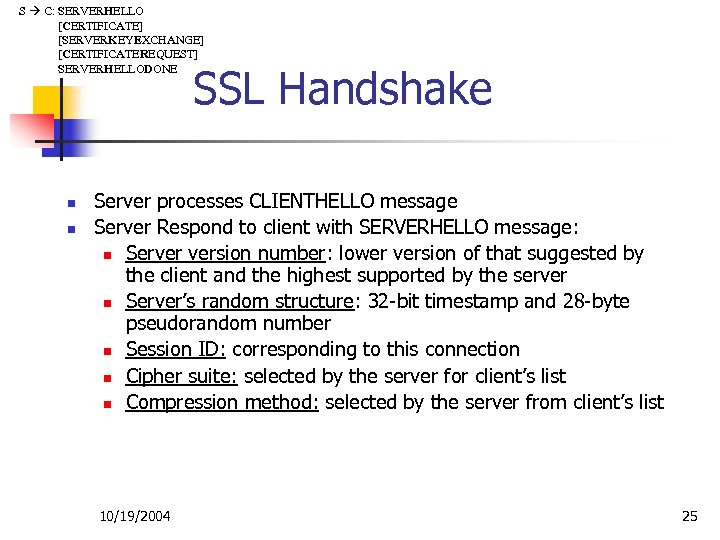

S C: SERVERHELLO [CERTIFICATE] [SERVERKEYEXCHANGE] [CERTIFICATEREQUEST] SERVERHELLODONE SSL Handshake n n Server processes CLIENTHELLO message Server Respond to client with SERVERHELLO message: n Server version number: lower version of that suggested by the client and the highest supported by the server n Server’s random structure: 32 -bit timestamp and 28 -byte pseudorandom number n Session ID: corresponding to this connection n Cipher suite: selected by the server for client’s list n Compression method: selected by the server from client’s list 10/19/2004 25

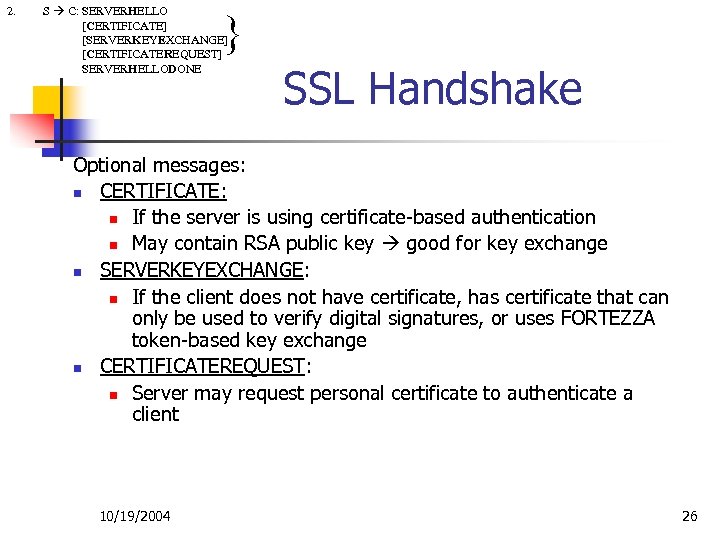

2. S C: SERVERHELLO [CERTIFICATE] [SERVERKEYEXCHANGE] [CERTIFICATEREQUEST] SERVERHELLODONE } SSL Handshake Optional messages: n CERTIFICATE: n If the server is using certificate-based authentication n May contain RSA public key good for key exchange n SERVERKEYEXCHANGE: n If the client does not have certificate, has certificate that can only be used to verify digital signatures, or uses FORTEZZA token-based key exchange n CERTIFICATEREQUEST: n Server may request personal certificate to authenticate a client 10/19/2004 26

3. C S: [CERTIFICATE] CLIENTKEYEXCHANGE [CERTIFICATEVERIFY] CHANGECIPHERSPEC FINISH n SSL Handshake Client processing: n Verifies site certification n Valid site certification if the server’s name matches the host part of the URL the client wants to access n Checks security parameters supplied by the SERVERHELLO 10/19/2004 27

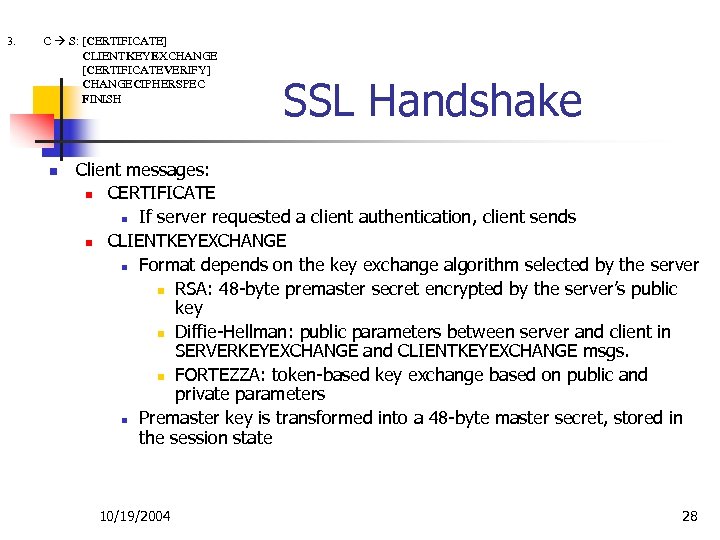

3. C S: [CERTIFICATE] CLIENTKEYEXCHANGE [CERTIFICATEVERIFY] CHANGECIPHERSPEC FINISH n SSL Handshake Client messages: n CERTIFICATE n If server requested a client authentication, client sends n CLIENTKEYEXCHANGE n Format depends on the key exchange algorithm selected by the server n RSA: 48 -byte premaster secret encrypted by the server’s public key n Diffie-Hellman: public parameters between server and client in SERVERKEYEXCHANGE and CLIENTKEYEXCHANGE msgs. n FORTEZZA: token-based key exchange based on public and private parameters n Premaster key is transformed into a 48 -byte master secret, stored in the session state 10/19/2004 28

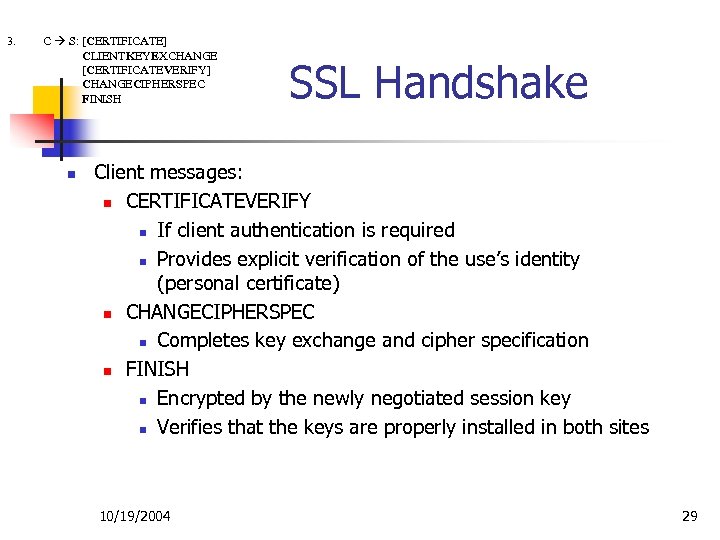

3. C S: [CERTIFICATE] CLIENTKEYEXCHANGE [CERTIFICATEVERIFY] CHANGECIPHERSPEC FINISH n SSL Handshake Client messages: n CERTIFICATEVERIFY n If client authentication is required n Provides explicit verification of the use’s identity (personal certificate) n CHANGECIPHERSPEC n Completes key exchange and cipher specification n FINISH n Encrypted by the newly negotiated session key n Verifies that the keys are properly installed in both sites 10/19/2004 29

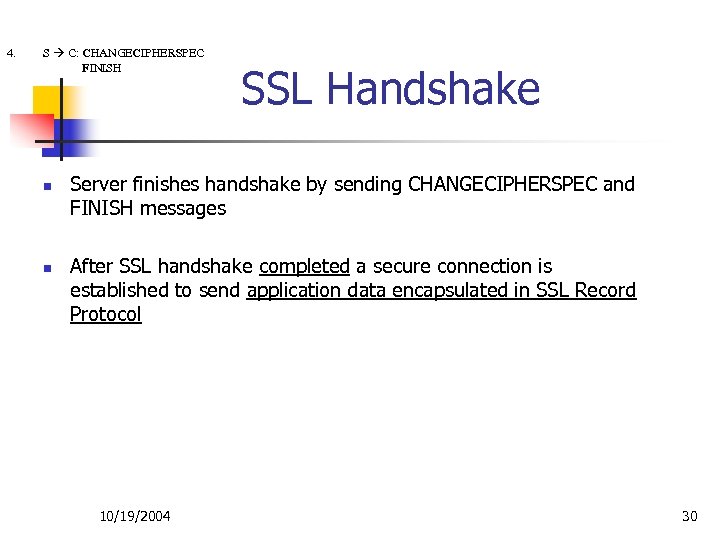

4. S C: CHANGECIPHERSPEC FINISH n n SSL Handshake Server finishes handshake by sending CHANGECIPHERSPEC and FINISH messages After SSL handshake completed a secure connection is established to send application data encapsulated in SSL Record Protocol 10/19/2004 30

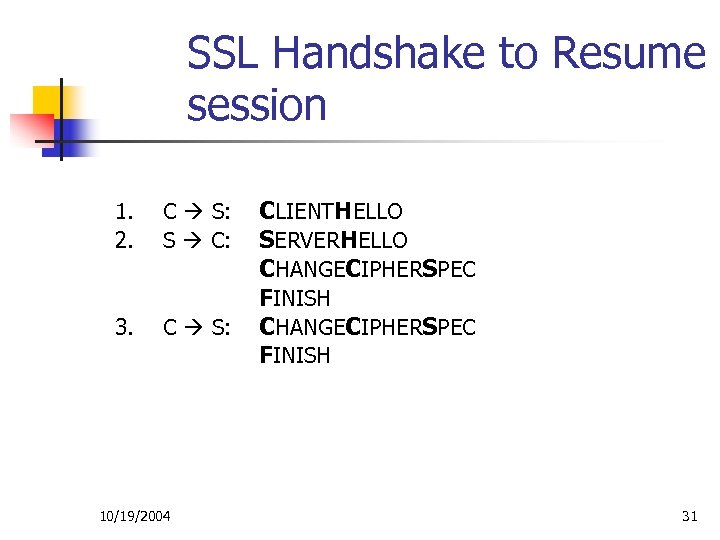

SSL Handshake to Resume session 1. 2. C S: S C: 3. C S: 10/19/2004 CLIENTHELLO SERVERHELLO CHANGECIPHERSPEC FINISH 31

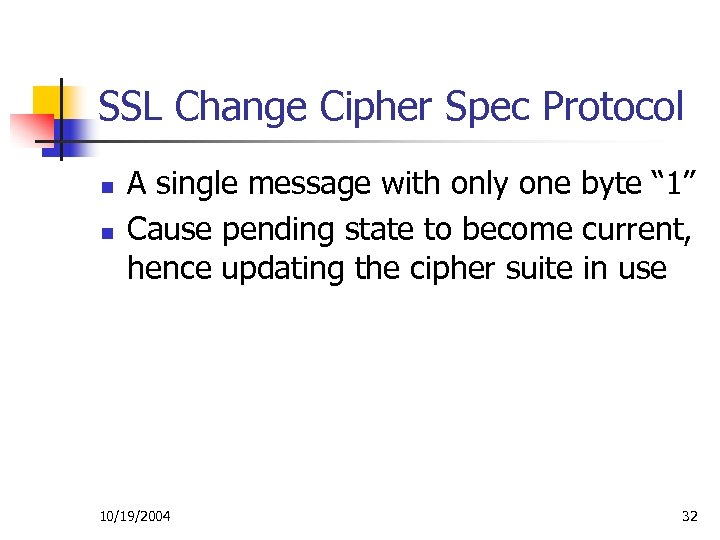

SSL Change Cipher Spec Protocol n n A single message with only one byte “ 1” Cause pending state to become current, hence updating the cipher suite in use 10/19/2004 32

Transport Layer Security (TLS) n n Specified as IETF standard RFC 2246 Similar to SSLv 3 but with minor differences n n n n in record format version number use HMAC for MAC a pseudo-random function expands secrets has additional alert codes some changes in supported ciphers changes in certificate negotiations changes in use of padding 10/19/2004 33

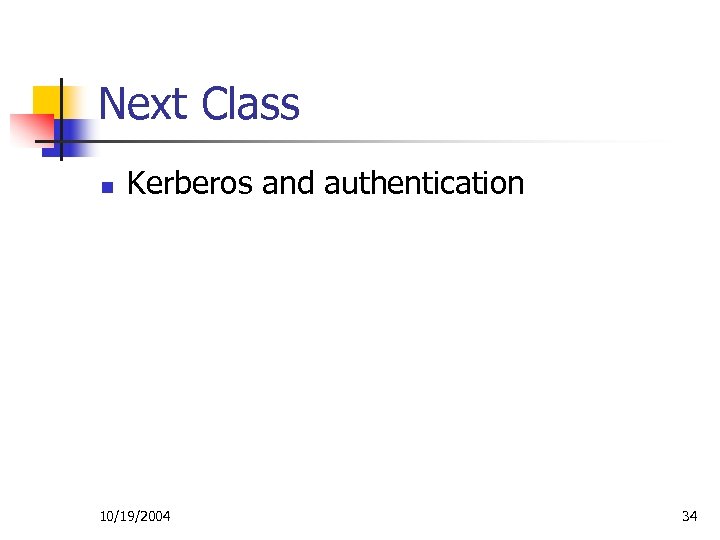

Next Class n Kerberos and authentication 10/19/2004 34
