Web of Detectors “Never Stop A Train For Mechanical Failure” 1 Dale Cassels ACACSO May 2013

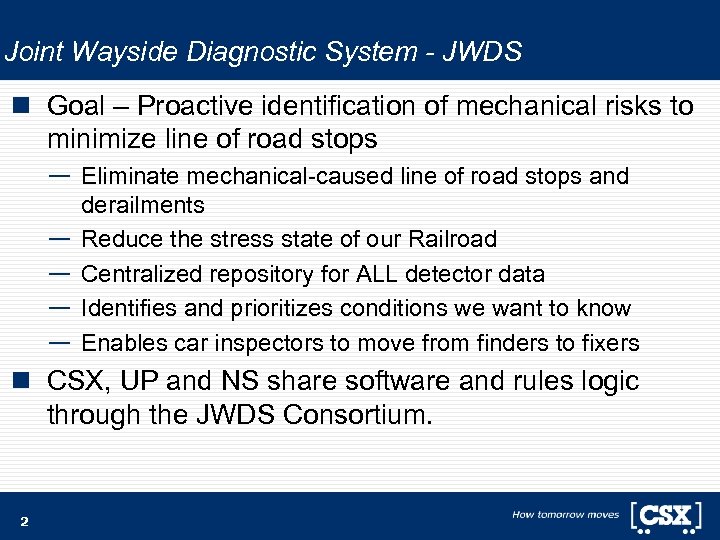

Joint Wayside Diagnostic System - JWDS n Goal – Proactive identification of mechanical risks to minimize line of road stops — Eliminate mechanical-caused line of road stops and derailments — Reduce the stress state of our Railroad — Centralized repository for ALL detector data — Identifies and prioritizes conditions we want to know — Enables car inspectors to move from finders to fixers n CSX, UP and NS share software and rules logic through the JWDS Consortium. 2

Joint Wayside Diagnostic System - JWDS Before JWDS, we were REACTIVE to what the detector was telling us. Now… we are PROACTIVE as to what the equipment is telling us. 3

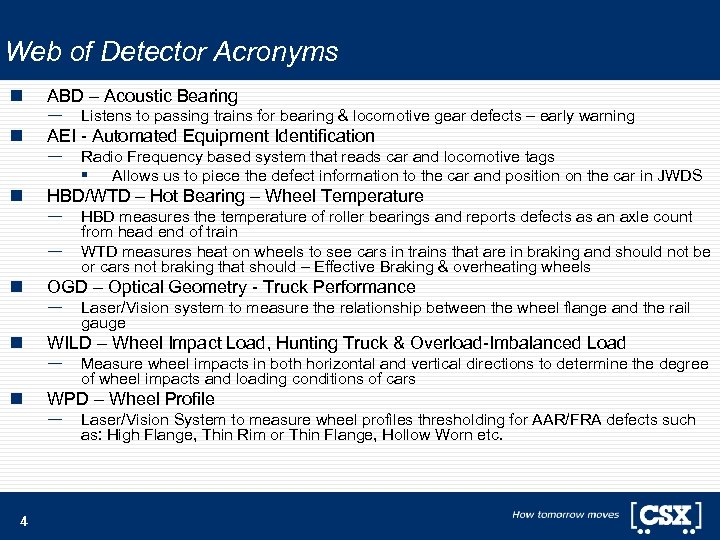

Web of Detector Acronyms n n n ABD – Acoustic Bearing — AEI - Automated Equipment Identification — n n 4 Radio Frequency based system that reads car and locomotive tags § Allows us to piece the defect information to the car and position on the car in JWDS HBD/WTD – Hot Bearing – Wheel Temperature — — n Listens to passing trains for bearing & locomotive gear defects – early warning HBD measures the temperature of roller bearings and reports defects as an axle count from head end of train WTD measures heat on wheels to see cars in trains that are in braking and should not be or cars not braking that should – Effective Braking & overheating wheels OGD – Optical Geometry - Truck Performance — Laser/Vision system to measure the relationship between the wheel flange and the rail gauge WILD – Wheel Impact Load, Hunting Truck & Overload-Imbalanced Load — Measure wheel impacts in both horizontal and vertical directions to determine the degree of wheel impacts and loading conditions of cars WPD – Wheel Profile — Laser/Vision System to measure wheel profiles thresholding for AAR/FRA defects such as: High Flange, Thin Rim or Thin Flange, Hollow Worn etc.

Combined Wheel & Bearing Temperature Bearing Detector Deflector Hot Wheel 5

Hot Wheel Detector – data displayed 6

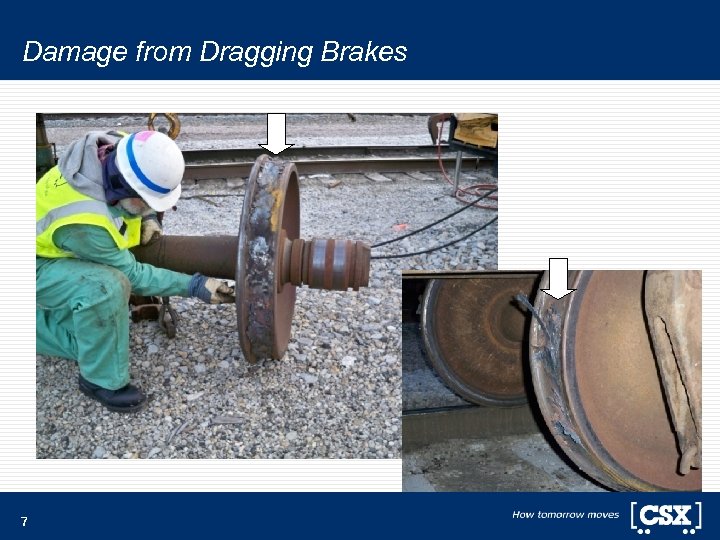

Damage from Dragging Brakes 7

Hot Bearing Detector - Cyber. Scan 8

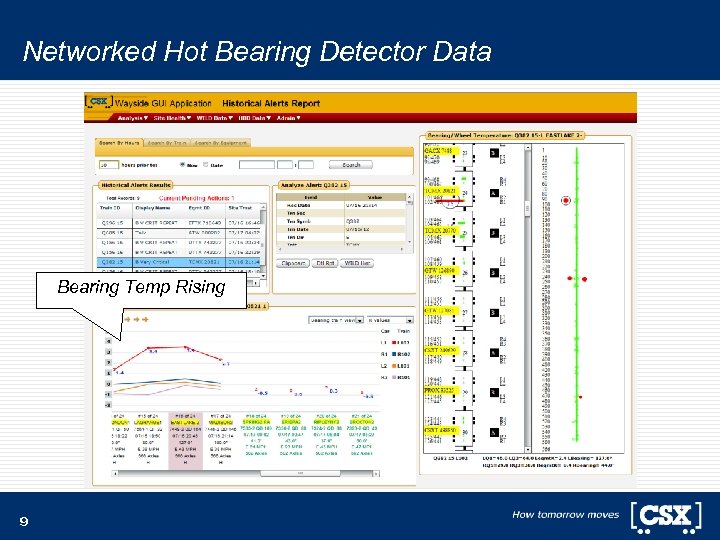

Networked Hot Bearing Detector Data Bearing Temp Rising 9

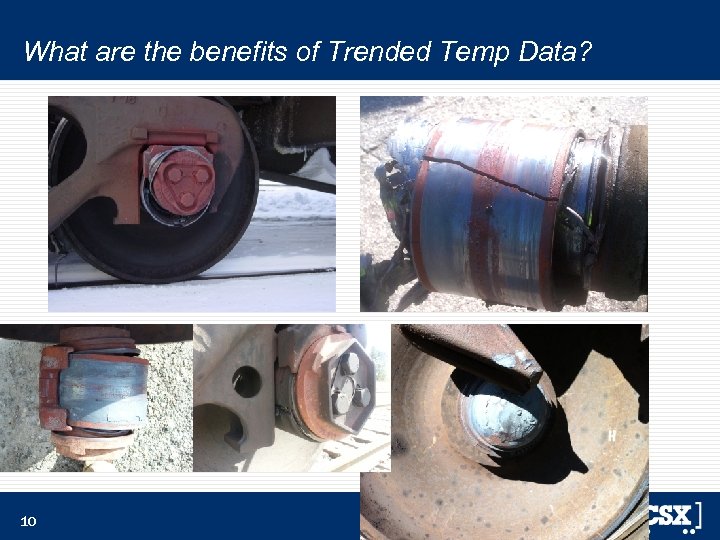

What are the benefits of Trended Temp Data? 10

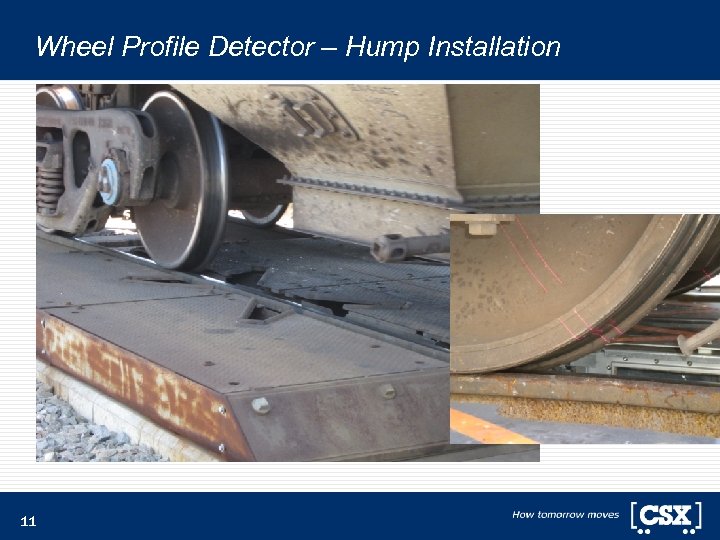

Wheel Profile Detector – Hump Installation 11

Wheel Profile Detector – Line of Road 12

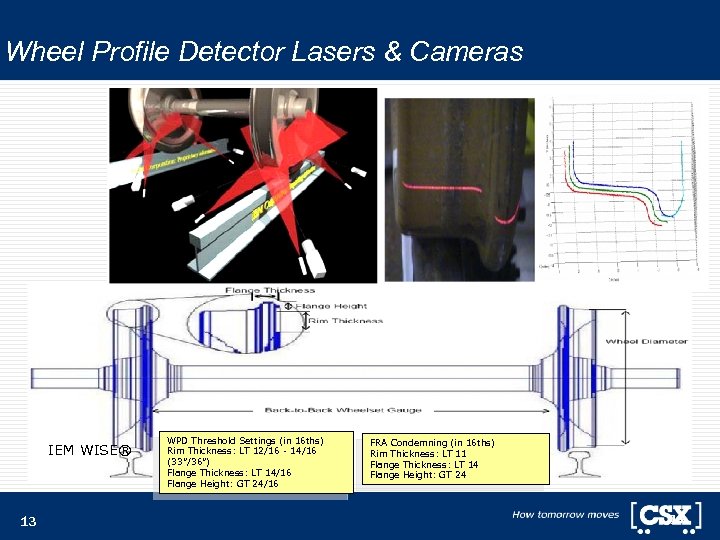

Wheel Profile Detector Lasers & Cameras IEM WISE® 13 WPD Threshold Settings (in 16 ths) Rim Thickness: LT 12/16 - 14/16 (33”/36”) Flange Thickness: LT 14/16 Flange Height: GT 24/16 FRA Condemning (in 16 ths) Rim Thickness: LT 11 Flange Thickness: LT 14 Flange Height: GT 24 13

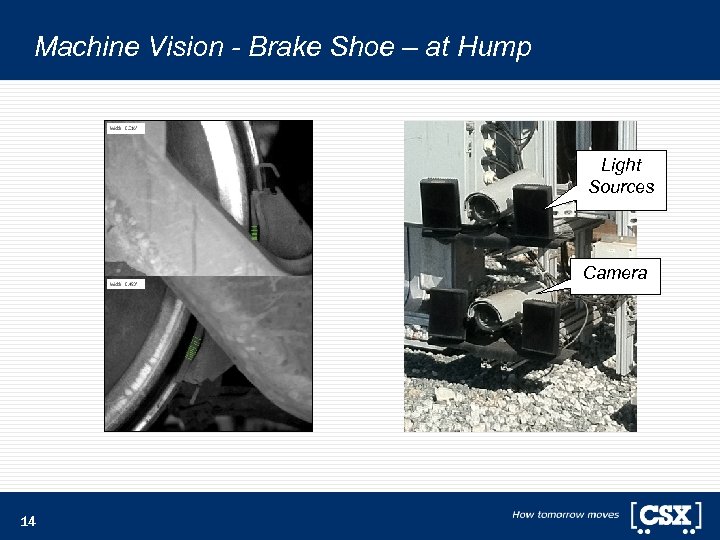

Machine Vision - Brake Shoe – at Hump Light Sources Camera 14

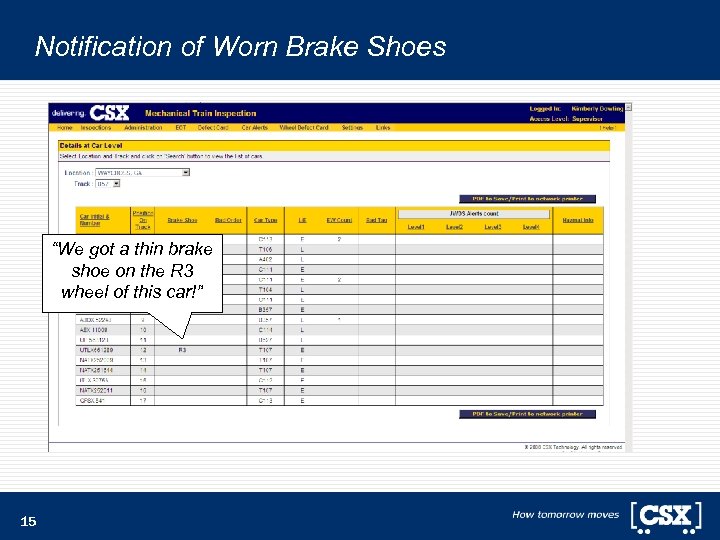

Notification of Worn Brake Shoes “We got a thin brake shoe on the R 3 wheel of this car!” 15

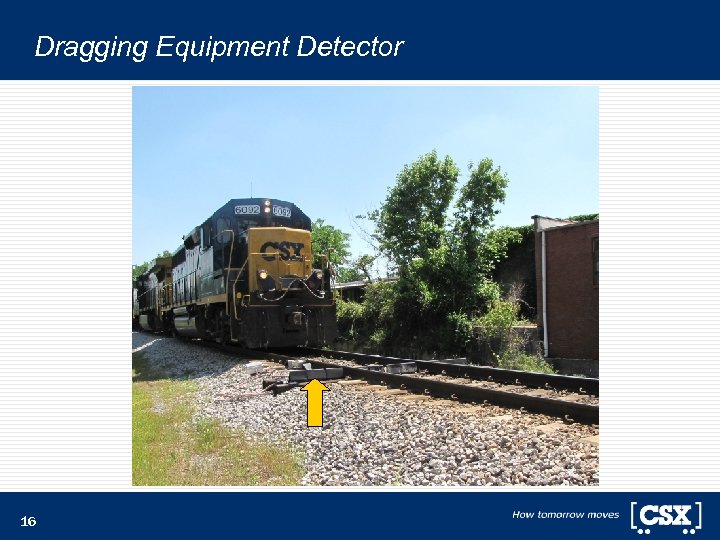

Dragging Equipment Detector 16

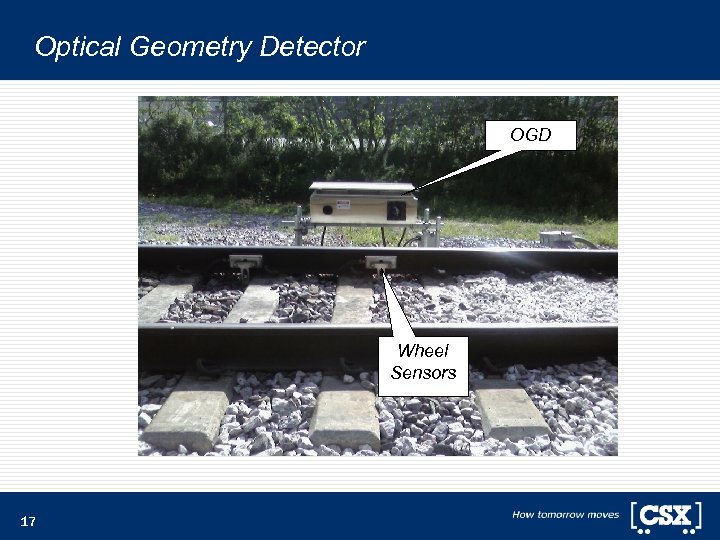

Optical Geometry Detector OGD Wheel Sensors 17

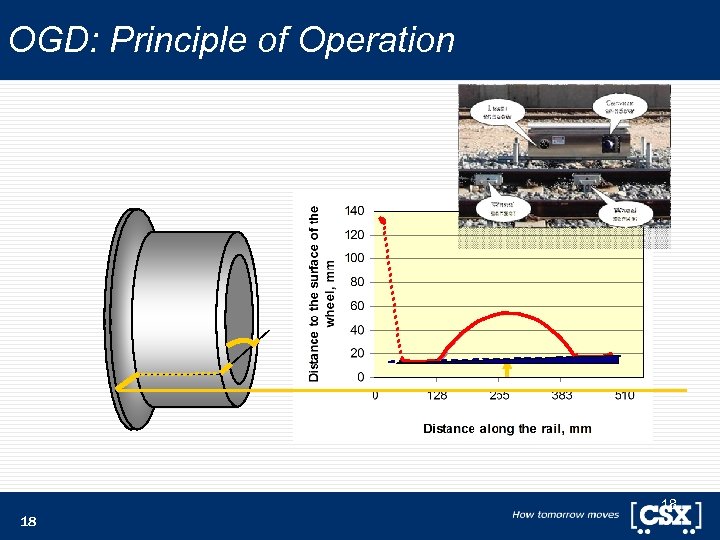

OGD: Principle of Operation 18 18

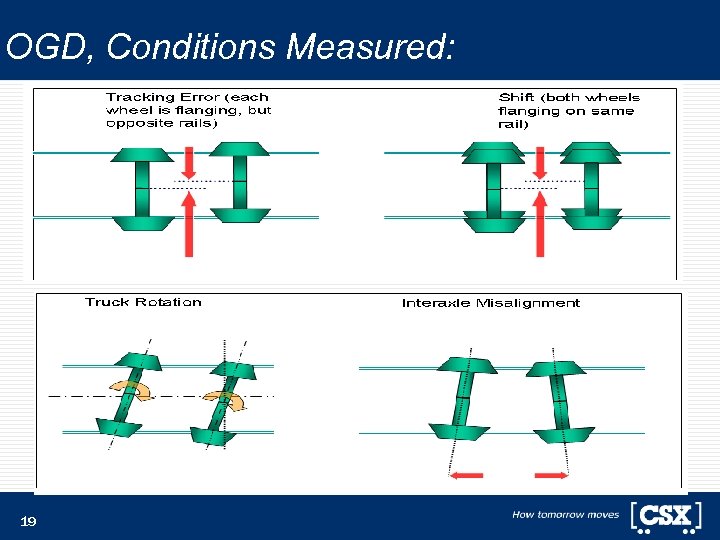

OGD, Conditions Measured: 19

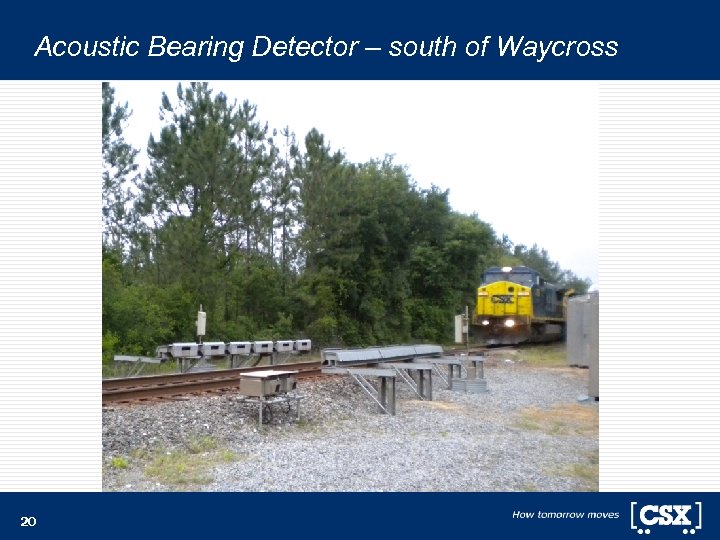

Acoustic Bearing Detector – south of Waycross 20

Acoustic Bearing Detector Microphones 21

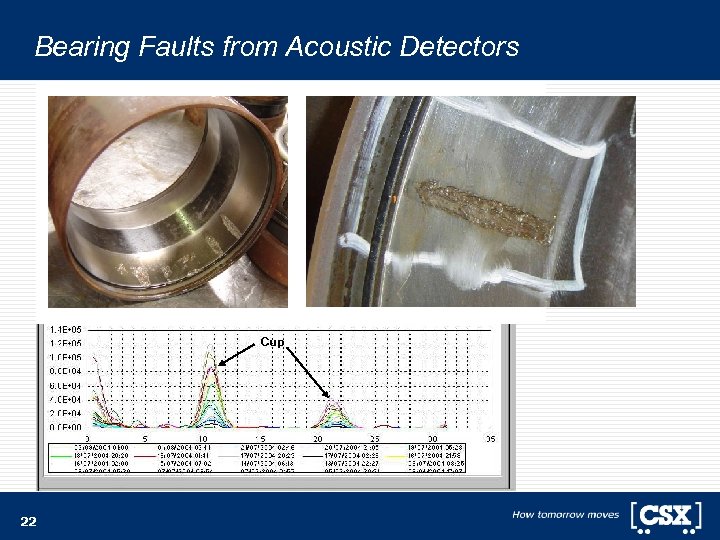

Bearing Faults from Acoustic Detectors Cup 22

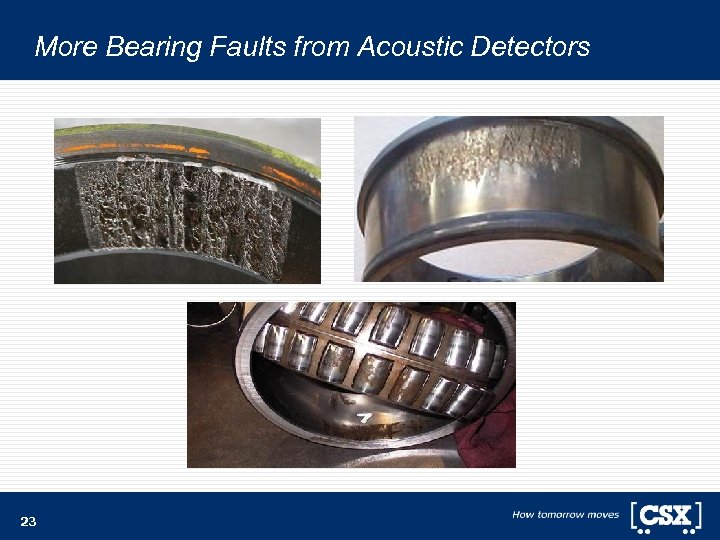

More Bearing Faults from Acoustic Detectors 23

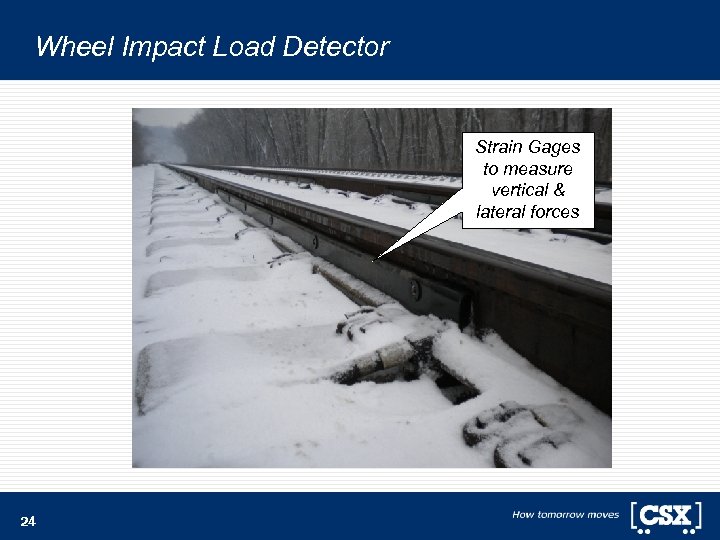

Wheel Impact Load Detector Strain Gages to measure vertical & lateral forces 24

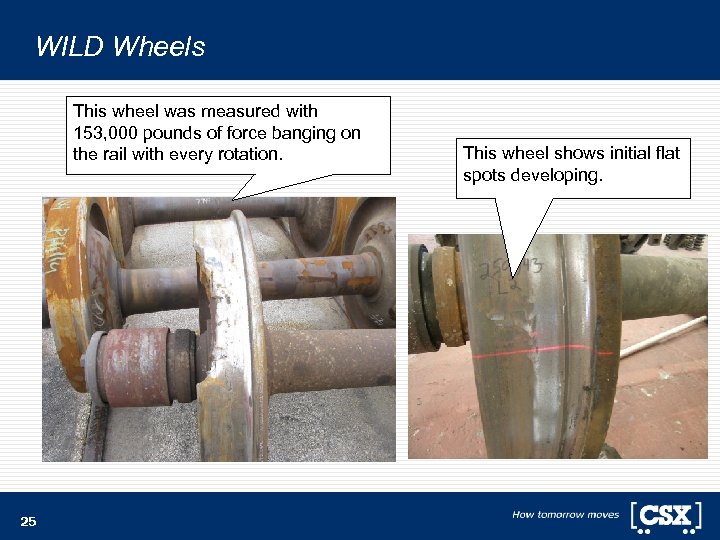

WILD Wheels This wheel was measured with 153, 000 pounds of force banging on the rail with every rotation. 25 This wheel shows initial flat spots developing.

Automatic Equipment Identification Reader - AEI Antenna 26 Processor

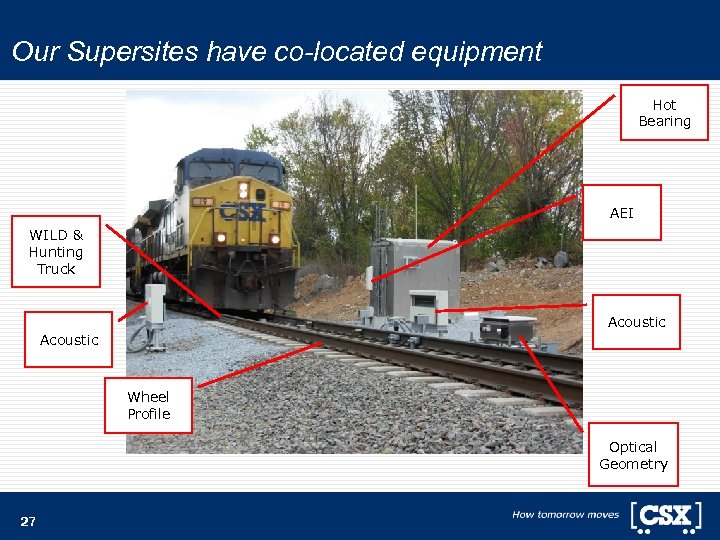

Our Supersites have co-located equipment Hot Bearing AEI WILD & Hunting Truck Acoustic Wheel Profile Optical Geometry 27

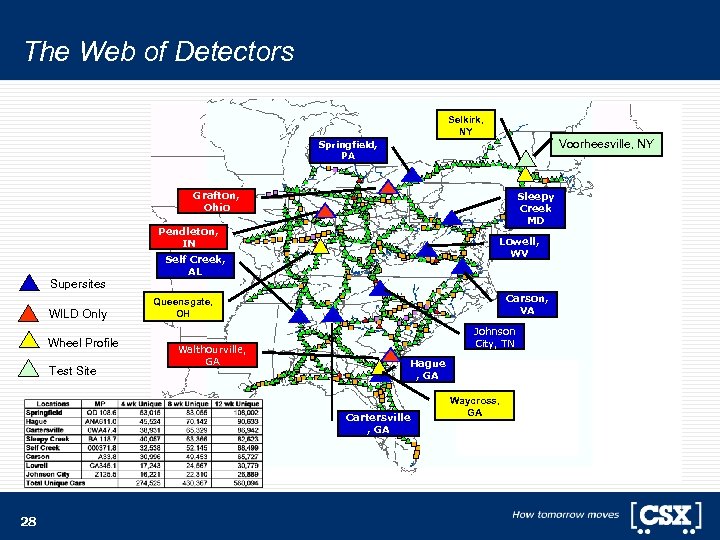

The Web of Detectors Selkirk, NY Voorheesville, NY Springfield, PA Grafton, Ohio Sleepy Creek MD Pendleton, IN Supersites WILD Only Wheel Profile Test Site Lowell, WV Self Creek, AL Carson, VA Queensgate, OH Walthourville, GA Johnson City, TN Hague Approximately CSX 706 HBD’s , GA 850 Today, System hot bearing detectors are networked and Cartersville , GA 28 Waycross, and we are trending, GA adding more as we replace older equipment….

Testing Out New Technology n What’s in the pipeline? — Using Thermal Imaging Cameras to find Hot Wheels/Hot Bearings — Acoustic monitoring for locomotive bearings — Machine Vision for coupler securement 29

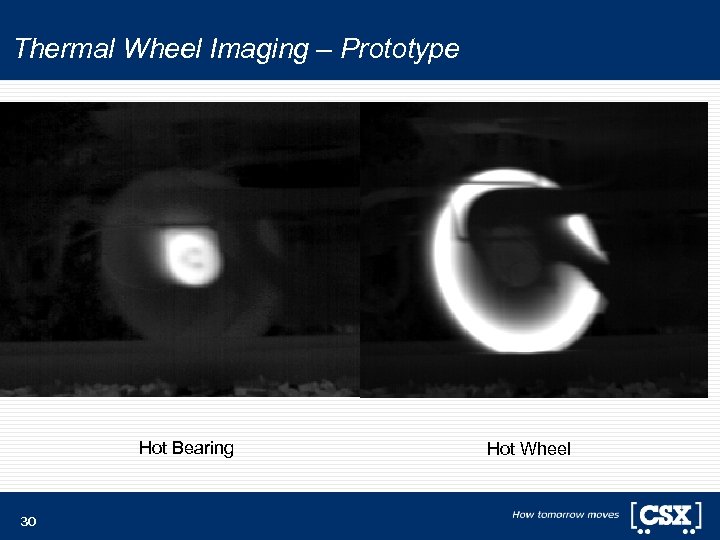

Thermal Wheel Imaging – Prototype Hot Bearing 30 Hot Wheel

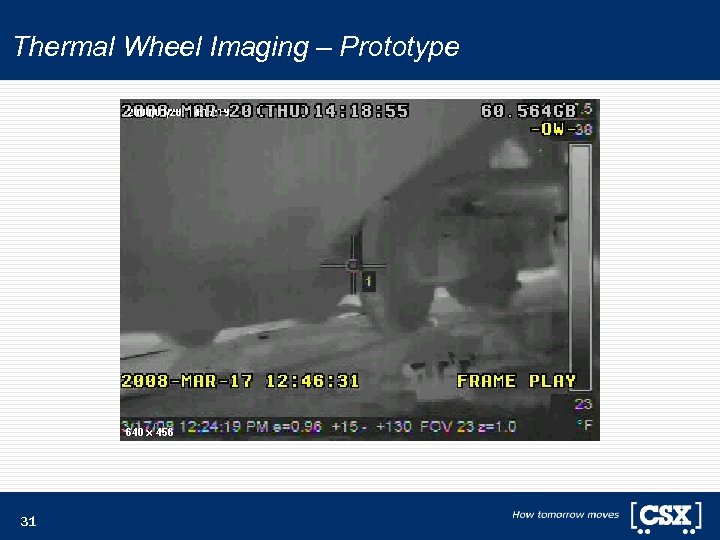

Thermal Wheel Imaging – Prototype 31

Questions? 32
