Web browser privacy and security (I) March 21 st, 2006 Ricardo Villamarin-Salomon 17 -500

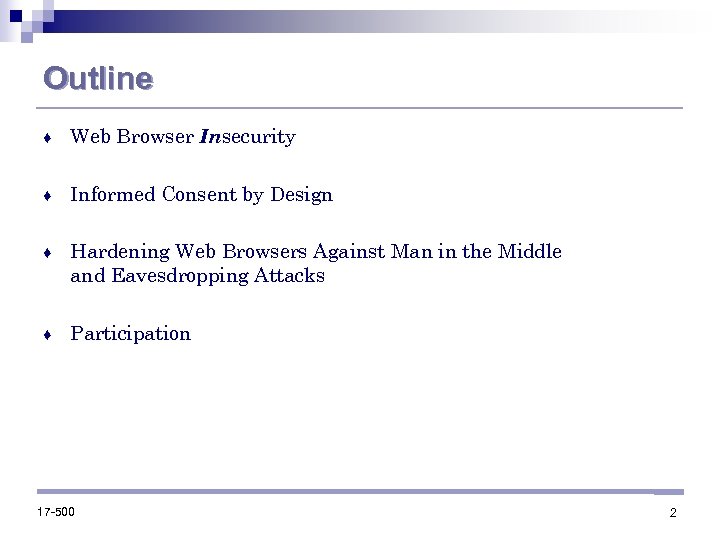

Outline ♦ Web Browser Insecurity ♦ Informed Consent by Design ♦ Hardening Web Browsers Against Man in the Middle and Eavesdropping Attacks ♦ Participation 17 -500 2

Web Browser Insecurity ♦ Targeted attacks on Web applications and Web browsers are increasingly becoming the focal point for cyber criminals. Ø Ø 17 -500 Traditional attack activity : motivated by curiosity and a desire to show off technical virtuosity Current threats are motivated by profit: identity theft, extortion, and fraud, for financial gain. 3

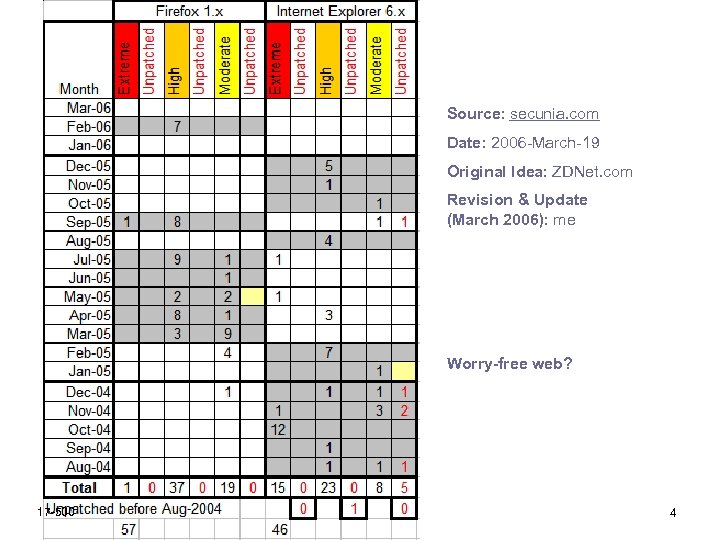

Source: secunia. com Date: 2006 -March-19 Original Idea: ZDNet. com Revision & Update (March 2006): me Worry-free web? 17 -500 4

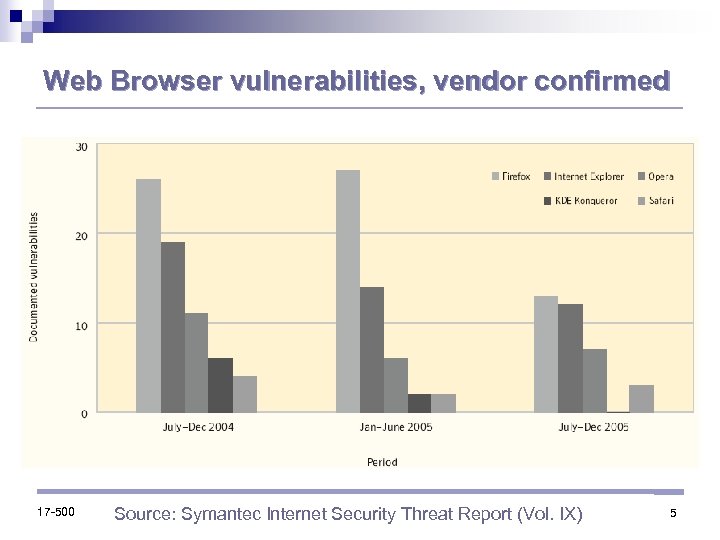

Web Browser vulnerabilities, vendor confirmed 17 -500 Source: Symantec Internet Security Threat Report (Vol. IX) 5

Web Browser vulnerabilities, confirmed & non-confirmed by vendor 17 -500 Source: Symantec Internet Security Threat Report (Vol. IX) 6

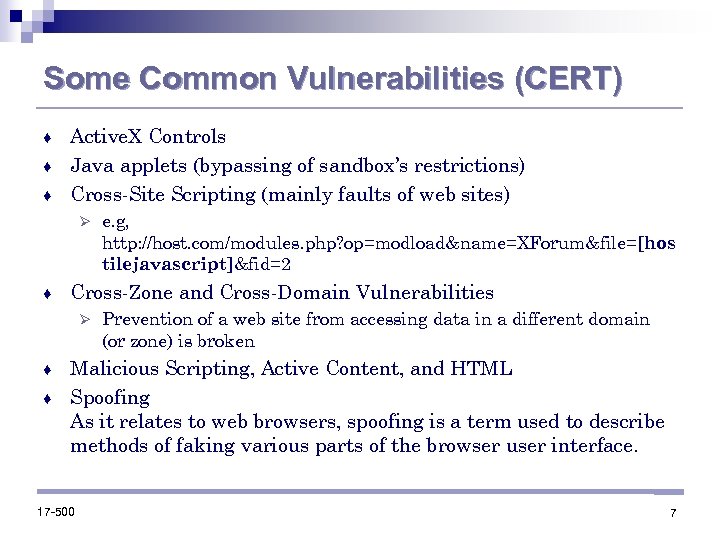

Some Common Vulnerabilities (CERT) Active. X Controls ♦ Java applets (bypassing of sandbox’s restrictions) ♦ Cross-Site Scripting (mainly faults of web sites) ♦ Ø ♦ e. g, http: //host. com/modules. php? op=modload&name=XForum&file=[hos tilejavascript]&fid=2 Cross-Zone and Cross-Domain Vulnerabilities Ø Prevention of a web site from accessing data in a different domain (or zone) is broken Malicious Scripting, Active Content, and HTML ♦ Spoofing As it relates to web browsers, spoofing is a term used to describe methods of faking various parts of the browser user interface. ♦ 17 -500 7

Informed Consent for Information Systems Batya Friedman, Peyina Lin, and Jessica K. Miller 17 -500

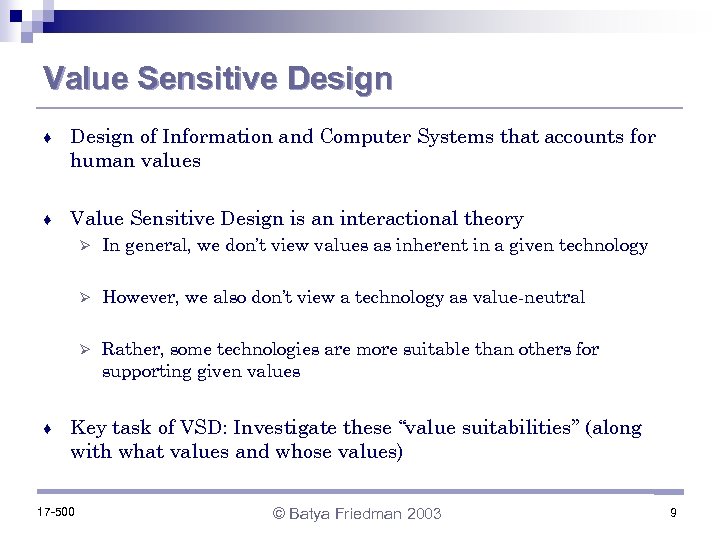

Value Sensitive Design ♦ Design of Information and Computer Systems that accounts for human values ♦ Value Sensitive Design is an interactional theory Ø Ø However, we also don’t view a technology as value-neutral Ø ♦ In general, we don’t view values as inherent in a given technology Rather, some technologies are more suitable than others for supporting given values Key task of VSD: Investigate these “value suitabilities” (along with what values and whose values) 17 -500 © Batya Friedman 2003 9

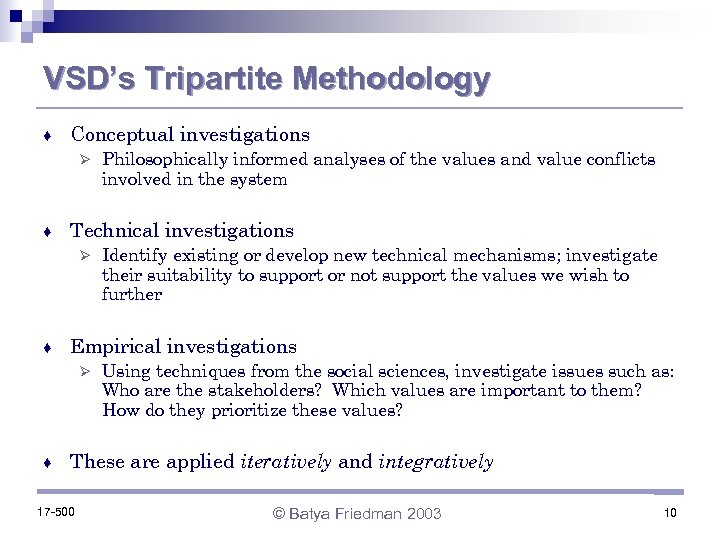

VSD’s Tripartite Methodology ♦ Conceptual investigations Ø ♦ Technical investigations Ø ♦ Identify existing or develop new technical mechanisms; investigate their suitability to support or not support the values we wish to further Empirical investigations Ø ♦ Philosophically informed analyses of the values and value conflicts involved in the system Using techniques from the social sciences, investigate issues such as: Who are the stakeholders? Which values are important to them? How do they prioritize these values? These are applied iteratively and integratively 17 -500 © Batya Friedman 2003 10

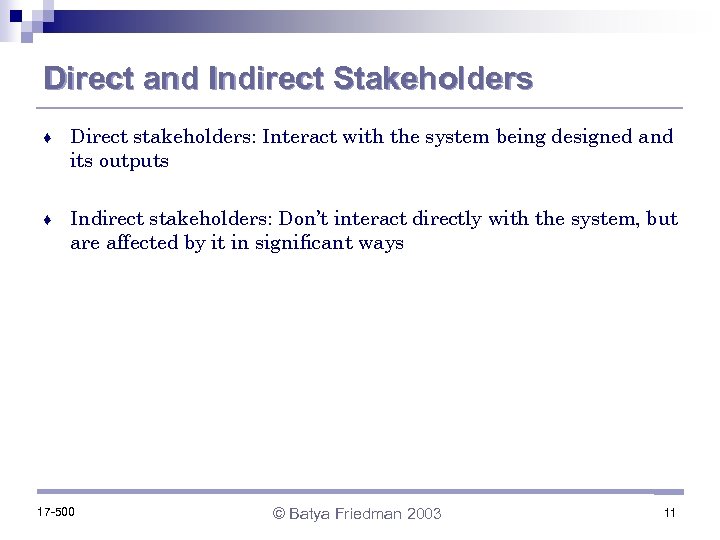

Direct and Indirect Stakeholders ♦ Direct stakeholders: Interact with the system being designed and its outputs ♦ Indirect stakeholders: Don’t interact directly with the system, but are affected by it in significant ways 17 -500 © Batya Friedman 2003 11

Model of Informed Consent for Information Systems 1. Disclosure 4. Competence 2. Comprehension 5. Agreement 3. Voluntariness 6. Minimal Distraction 17 -500 12

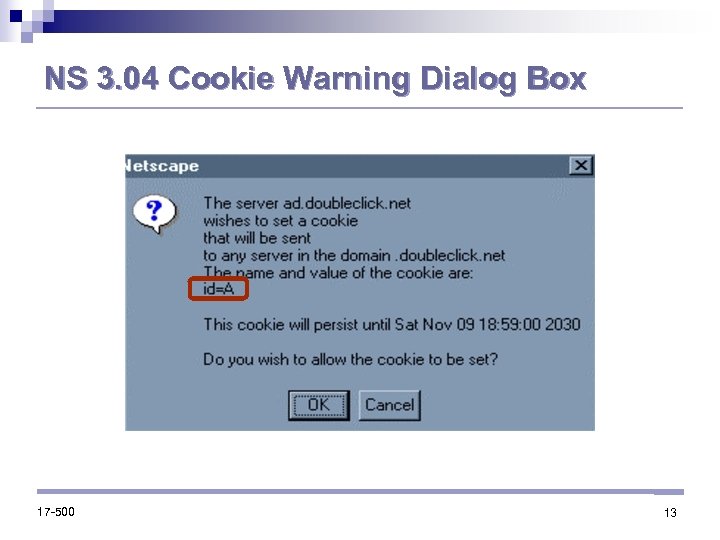

NS 3. 04 Cookie Warning Dialog Box 17 -500 13

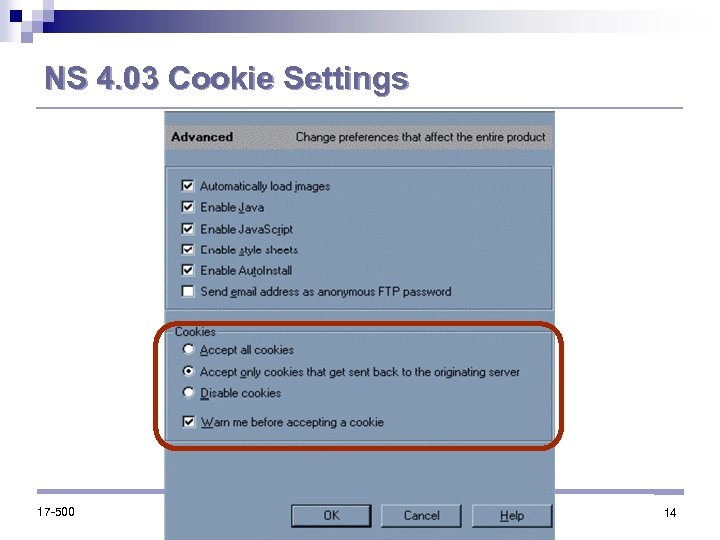

NS 4. 03 Cookie Settings 17 -500 14

IE 4. 0 Cookie Warning Dialog Box 17 -500 15

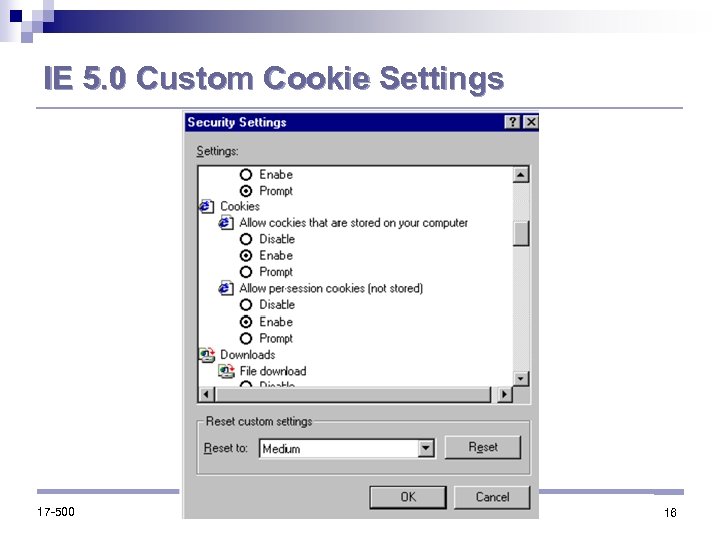

IE 5. 0 Custom Cookie Settings 17 -500 16

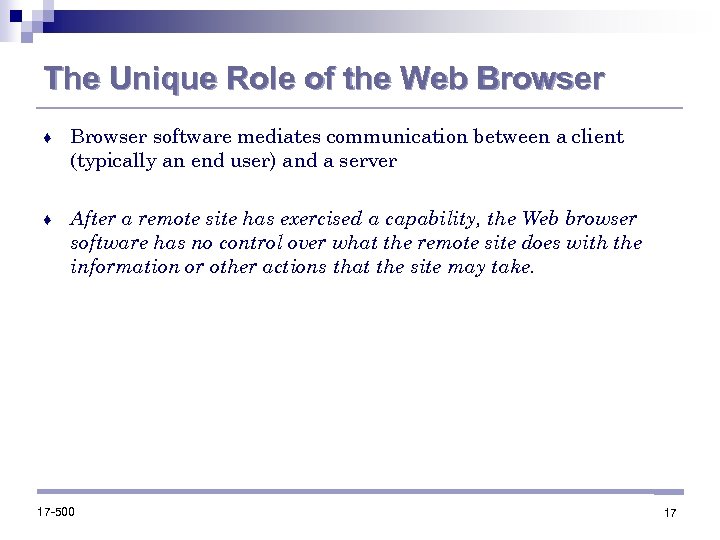

The Unique Role of the Web Browser ♦ Browser software mediates communication between a client (typically an end user) and a server ♦ After a remote site has exercised a capability, the Web browser software has no control over what the remote site does with the information or other actions that the site may take. 17 -500 17

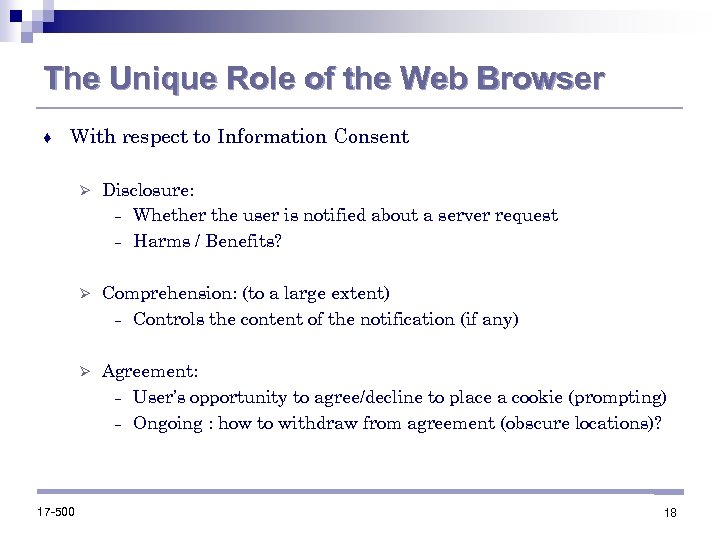

The Unique Role of the Web Browser ♦ With respect to Information Consent Ø Ø Comprehension: (to a large extent) - Controls the content of the notification (if any) Ø 17 -500 Disclosure: - Whether the user is notified about a server request - Harms / Benefits? Agreement: - User’s opportunity to agree/decline to place a cookie (prompting) - Ongoing : how to withdraw from agreement (obscure locations)? 18

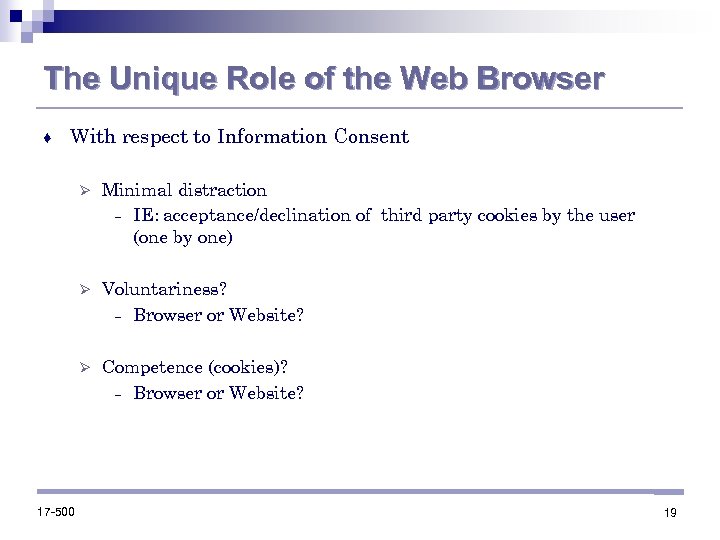

The Unique Role of the Web Browser ♦ With respect to Information Consent Ø Ø Voluntariness? - Browser or Website? Ø 17 -500 Minimal distraction - IE: acceptance/declination of third party cookies by the user (one by one) Competence (cookies)? - Browser or Website? 19

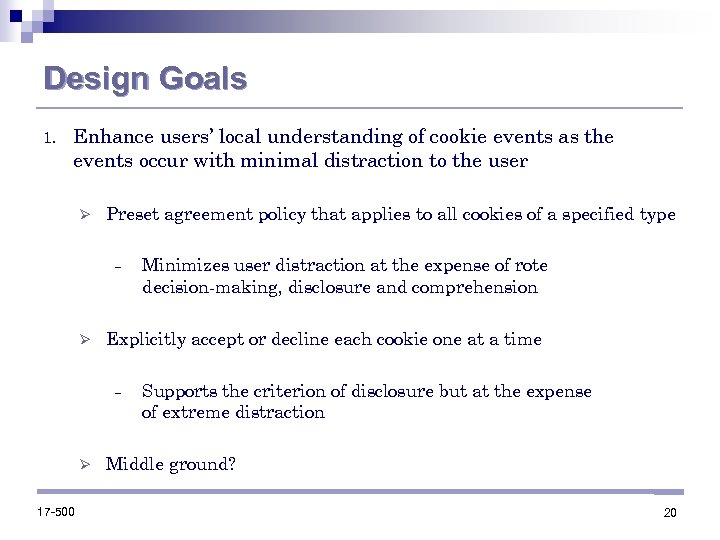

Design Goals 1. Enhance users’ local understanding of cookie events as the events occur with minimal distraction to the user Ø Preset agreement policy that applies to all cookies of a specified type - Ø Explicitly accept or decline each cookie one at a time - Ø 17 -500 Minimizes user distraction at the expense of rote decision-making, disclosure and comprehension Supports the criterion of disclosure but at the expense of extreme distraction Middle ground? 20

Design Goals 2. Enhance users’ global understanding of the common uses of cookie technology Ø Ø 17 -500 Including potential benefits and risks associated with those uses A necessary piece of disclosure and comprehension 21

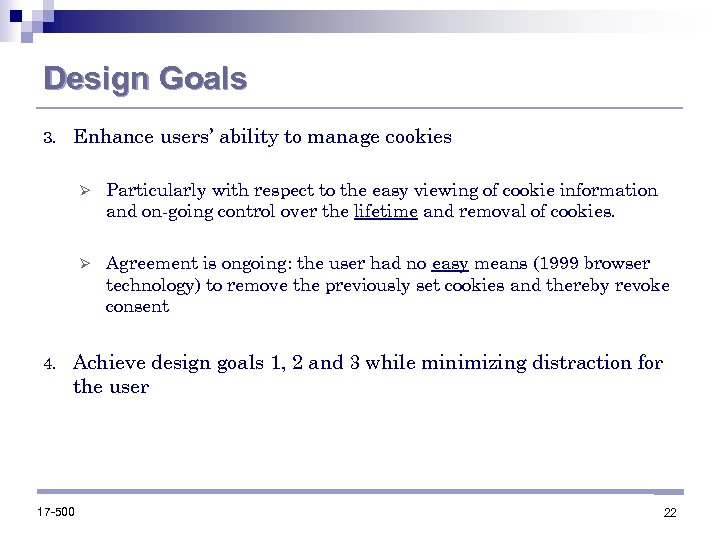

Design Goals 3. Enhance users’ ability to manage cookies Ø Ø 4. Particularly with respect to the easy viewing of cookie information and on-going control over the lifetime and removal of cookies. Agreement is ongoing: the user had no easy means (1999 browser technology) to remove the previously set cookies and thereby revoke consent Achieve design goals 1, 2 and 3 while minimizing distraction for the user 17 -500 22

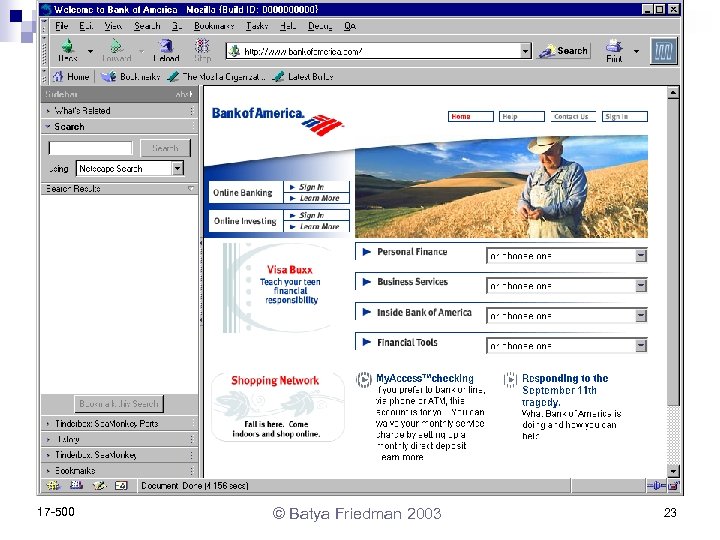

17 -500 © Batya Friedman 2003 23

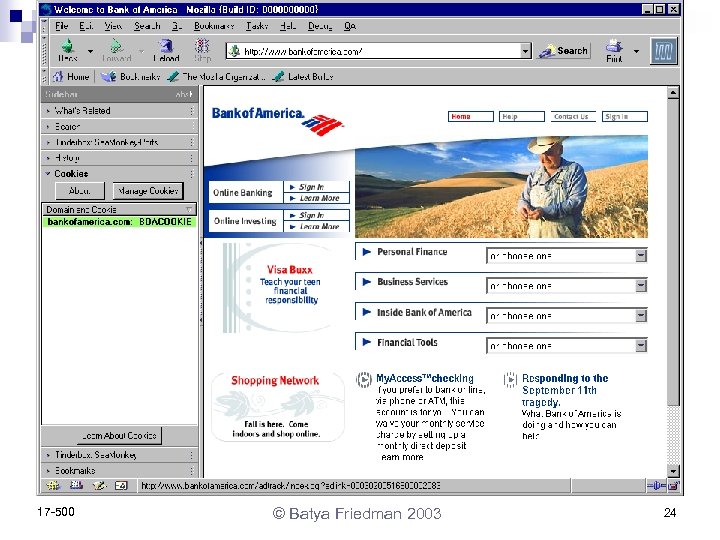

17 -500 © Batya Friedman 2003 24

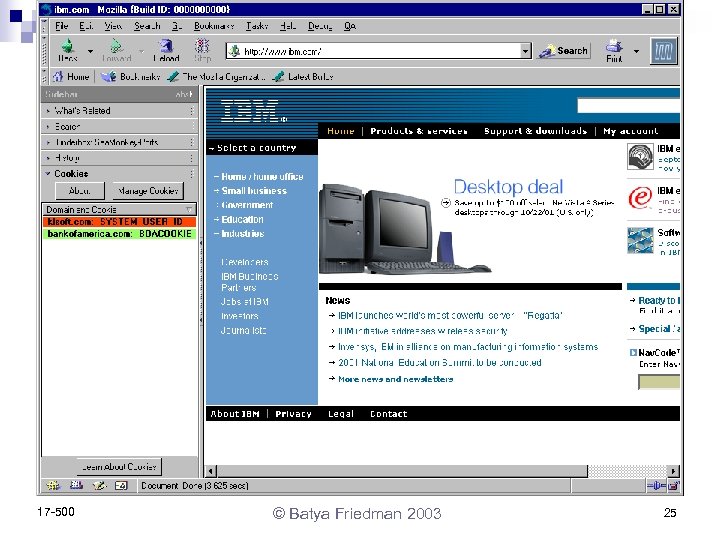

17 -500 © Batya Friedman 2003 25

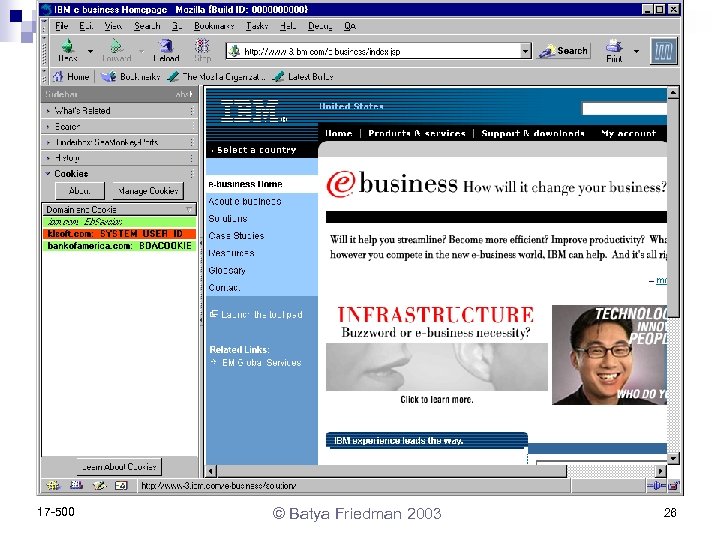

17 -500 © Batya Friedman 2003 26

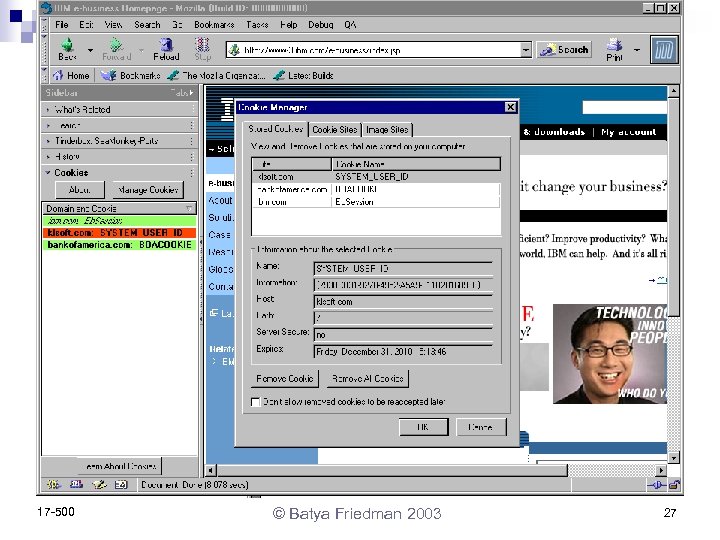

17 -500 © Batya Friedman 2003 27

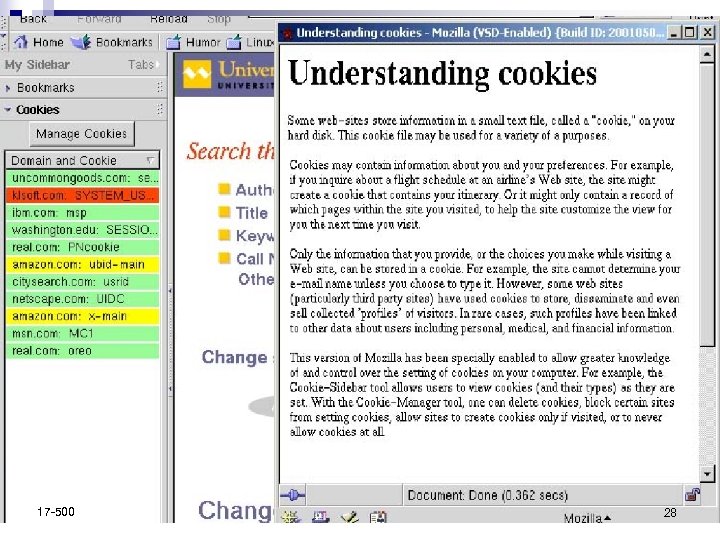

17 -500 28

17 -500 29

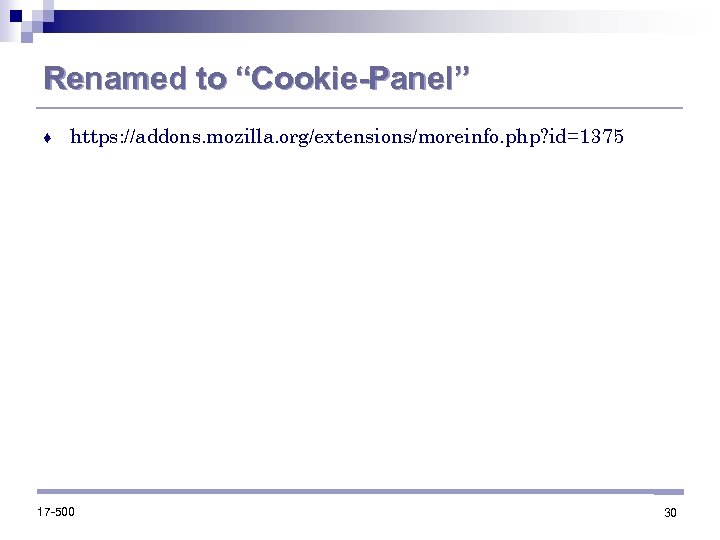

Renamed to “Cookie-Panel” ♦ https: //addons. mozilla. org/extensions/moreinfo. php? id=1375 17 -500 30

Secure Connections ♦ Informing through interaction Design 17 -500 31

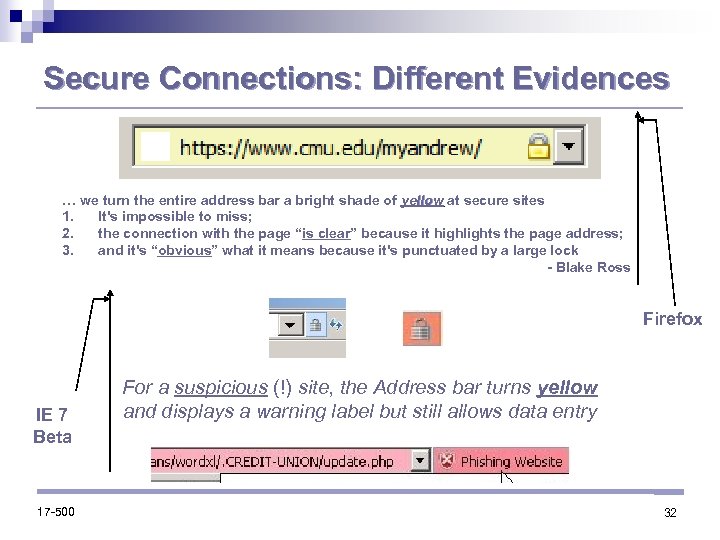

Secure Connections: Different Evidences … we turn the entire address bar a bright shade of yellow at secure sites 1. It's impossible to miss; 2. the connection with the page “is clear” because it highlights the page address; 3. and it's “obvious” what it means because it's punctuated by a large lock - Blake Ross. . Firefox IE 7 Beta 17 -500 For a suspicious (!) site, the Address bar turns yellow and displays a warning label but still allows data entry 32

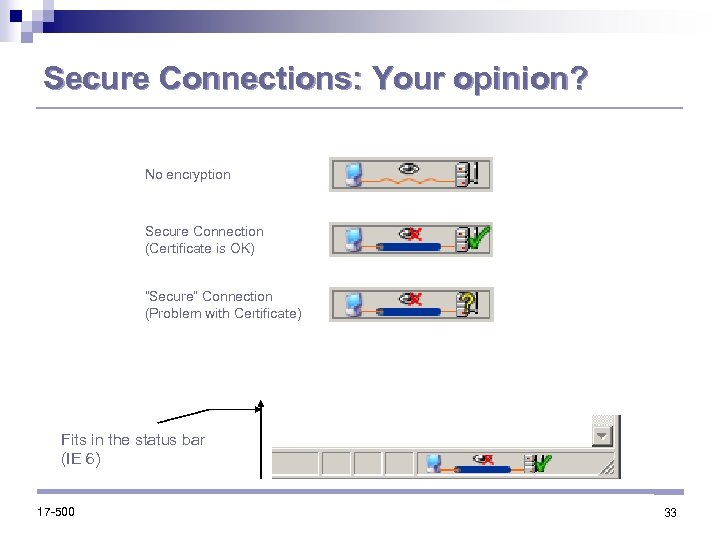

Secure Connections: Your opinion? No encryption Secure Connection (Certificate is OK) “Secure” Connection (Problem with Certificate) Fits in the status bar (IE 6) 17 -500 33

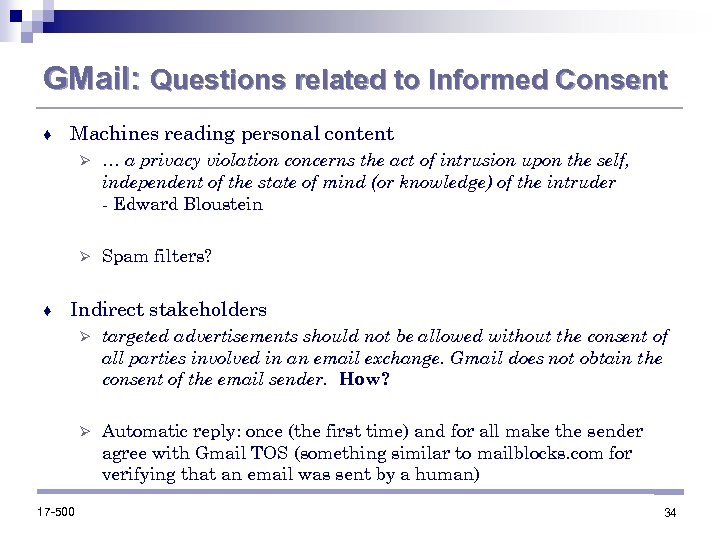

GMail: Questions related to Informed Consent ♦ Machines reading personal content Ø Ø ♦ … a privacy violation concerns the act of intrusion upon the self, independent of the state of mind (or knowledge) of the intruder - Edward Bloustein Spam filters? Indirect stakeholders Ø Ø 17 -500 targeted advertisements should not be allowed without the consent of all parties involved in an email exchange. Gmail does not obtain the consent of the email sender. How? Automatic reply: once (the first time) and for all make the sender agree with Gmail TOS (something similar to mailblocks. com for verifying that an email was sent by a human) 34

Hardening Web Browsers Against Man in the Middle and Eavesdropping Attacks Haidong Xia and Jose Carlos Brustoloni 17 -500

Usability of Web Browser security ♦ Man-In-The-Middle (MITM) attacks ♦ Eavesdropping attacks ♦ Several tools available 17 -500 36

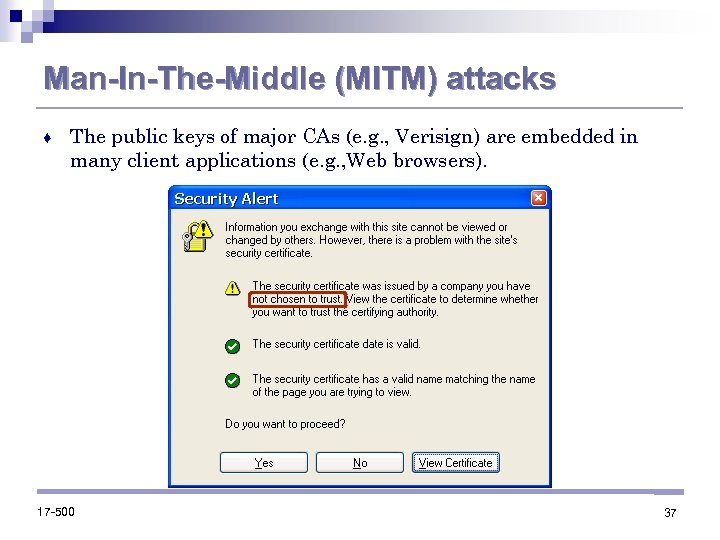

Man-In-The-Middle (MITM) attacks ♦ The public keys of major CAs (e. g. , Verisign) are embedded in many client applications (e. g. , Web browsers). 17 -500 37

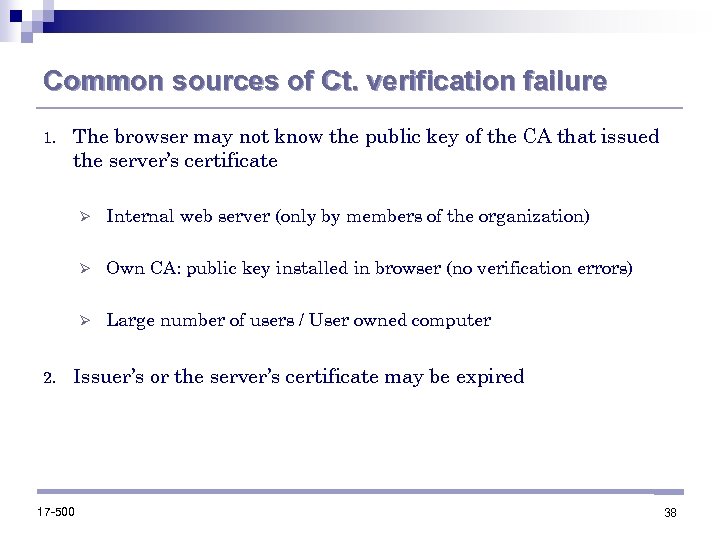

Common sources of Ct. verification failure 1. The browser may not know the public key of the CA that issued the server’s certificate Ø Ø Own CA: public key installed in browser (no verification errors) Ø 2. Internal web server (only by members of the organization) Large number of users / User owned computer Issuer’s or the server’s certificate may be expired 17 -500 38

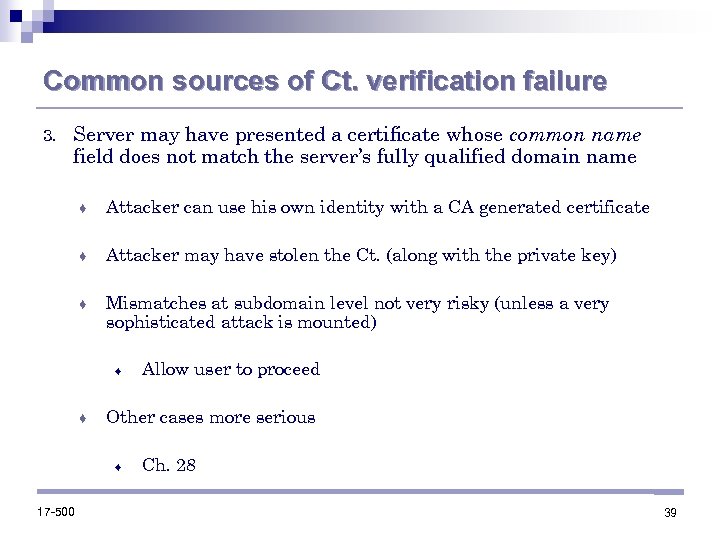

Common sources of Ct. verification failure 3. Server may have presented a certificate whose common name field does not match the server’s fully qualified domain name ♦ Attacker can use his own identity with a CA generated certificate ♦ Attacker may have stolen the Ct. (along with the private key) ♦ Mismatches at subdomain level not very risky (unless a very sophisticated attack is mounted) ♦ ♦ Other cases more serious ♦ 17 -500 Allow user to proceed Ch. 28 39

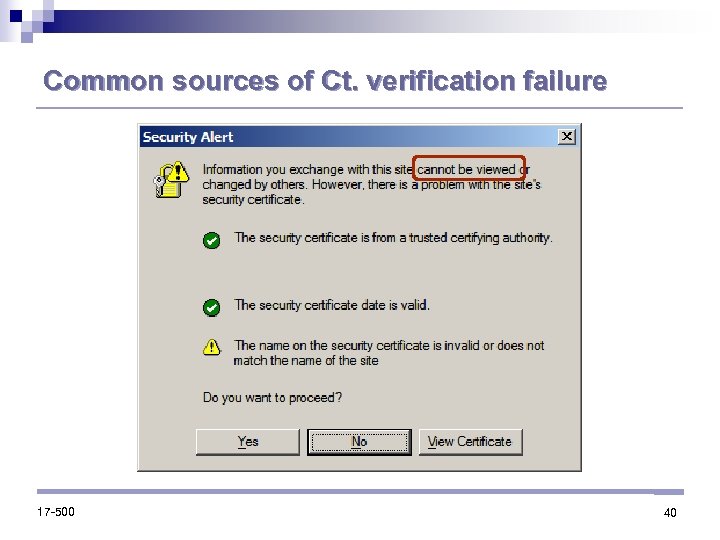

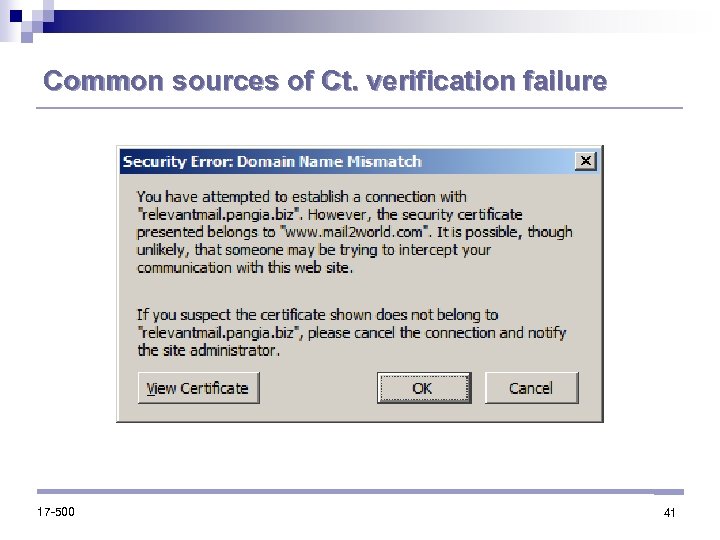

Common sources of Ct. verification failure 17 -500 40

Common sources of Ct. verification failure 17 -500 41

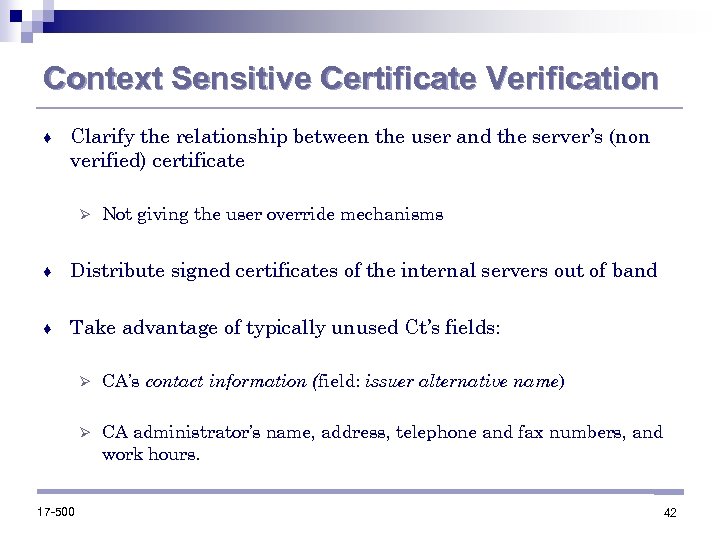

Context Sensitive Certificate Verification ♦ Clarify the relationship between the user and the server’s (non verified) certificate Ø Not giving the user override mechanisms ♦ Distribute signed certificates of the internal servers out of band ♦ Take advantage of typically unused Ct’s fields: Ø Ø 17 -500 CA’s contact information (field: issuer alternative name) CA administrator’s name, address, telephone and fax numbers, and work hours. 42

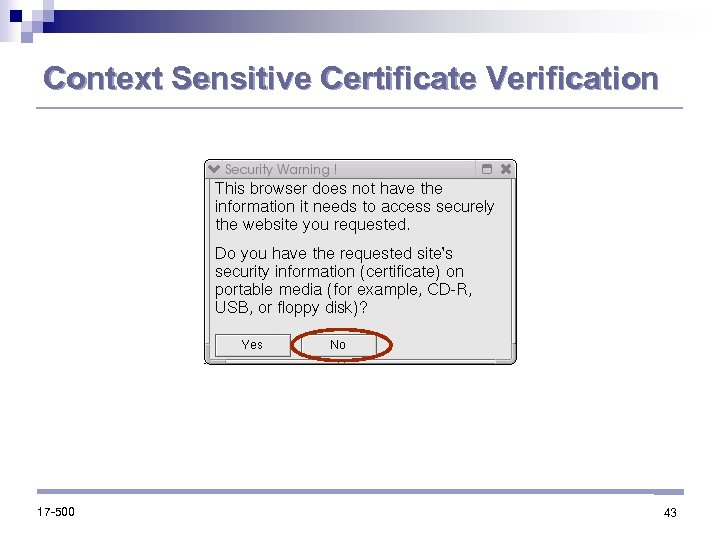

Context Sensitive Certificate Verification 17 -500 43

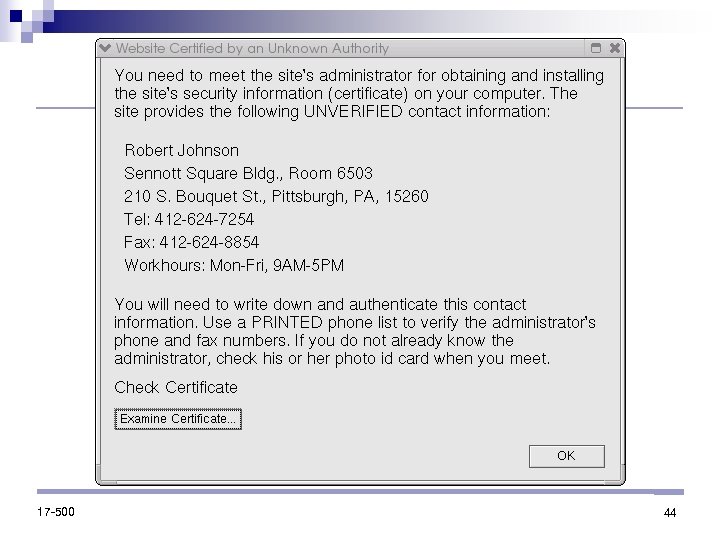

17 -500 44

17 -500 45

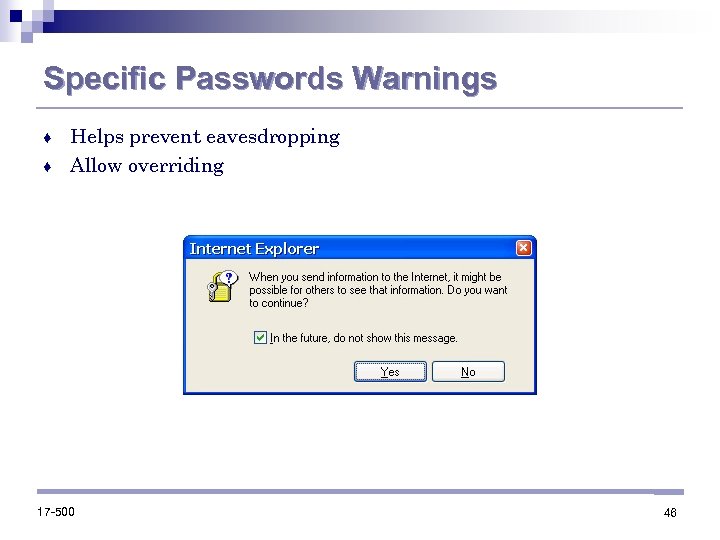

Specific Passwords Warnings Helps prevent eavesdropping ♦ Allow overriding ♦ 17 -500 46

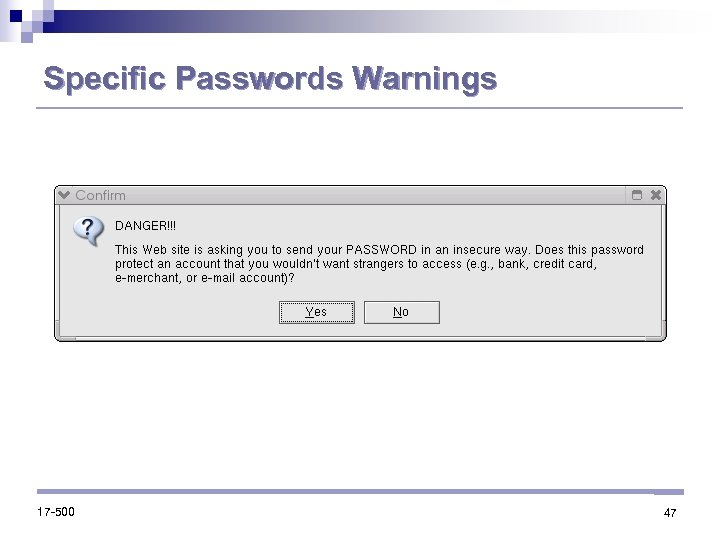

Specific Passwords Warnings 17 -500 47

Specific Passwords Warnings 17 -500 48

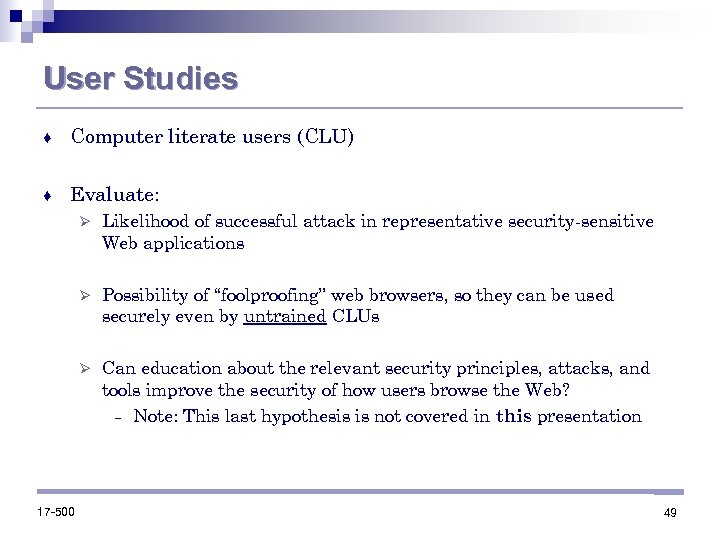

User Studies ♦ Computer literate users (CLU) ♦ Evaluate: Ø Ø Possibility of “foolproofing” web browsers, so they can be used securely even by untrained CLUs Ø 17 -500 Likelihood of successful attack in representative security-sensitive Web applications Can education about the relevant security principles, attacks, and tools improve the security of how users browse the Web? - Note: This last hypothesis is not covered in this presentation 49

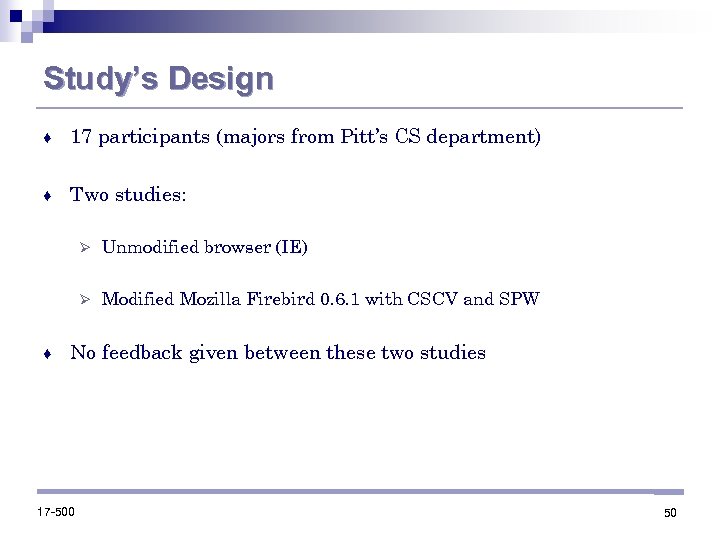

Study’s Design ♦ 17 participants (majors from Pitt’s CS department) ♦ Two studies: Ø Ø ♦ Unmodified browser (IE) Modified Mozilla Firebird 0. 6. 1 with CSCV and SPW No feedback given between these two studies 17 -500 50

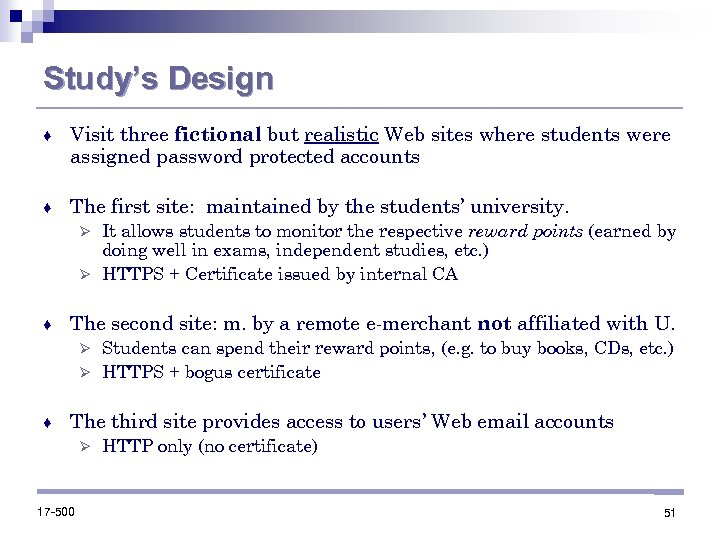

Study’s Design ♦ Visit three fictional but realistic Web sites where students were assigned password protected accounts ♦ The first site: maintained by the students’ university. It allows students to monitor the respective reward points (earned by doing well in exams, independent studies, etc. ) Ø HTTPS + Certificate issued by internal CA Ø ♦ The second site: m. by a remote e-merchant not affiliated with U. Students can spend their reward points, (e. g. to buy books, CDs, etc. ) Ø HTTPS + bogus certificate Ø ♦ The third site provides access to users’ Web email accounts Ø 17 -500 HTTP only (no certificate) 51

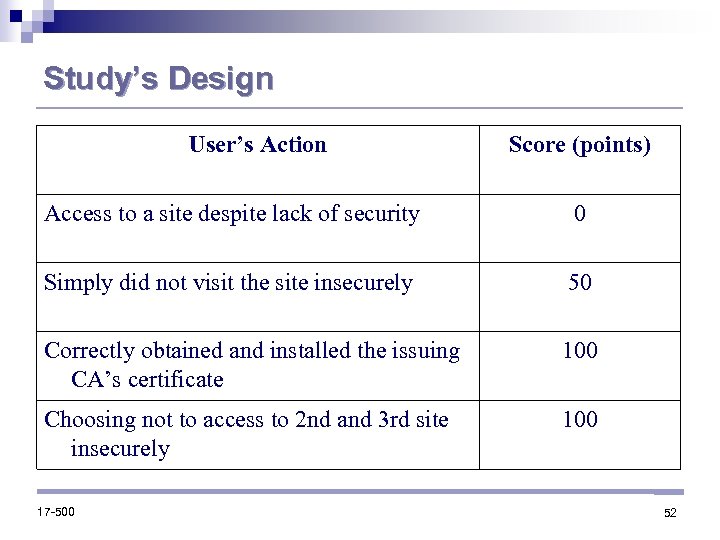

Study’s Design User’s Action Score (points) Access to a site despite lack of security 0 Simply did not visit the site insecurely 50 Correctly obtained and installed the issuing CA’s certificate 100 Choosing not to access to 2 nd and 3 rd site insecurely 100 17 -500 52

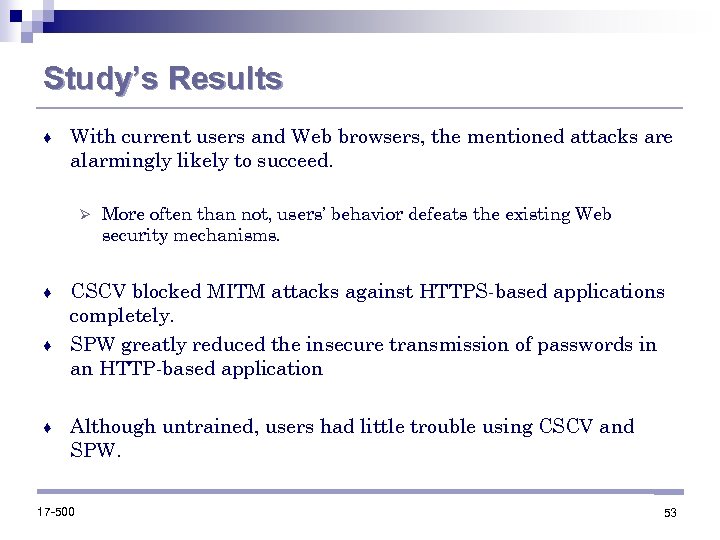

Study’s Results ♦ With current users and Web browsers, the mentioned attacks are alarmingly likely to succeed. Ø More often than not, users’ behavior defeats the existing Web security mechanisms. CSCV blocked MITM attacks against HTTPS-based applications completely. ♦ SPW greatly reduced the insecure transmission of passwords in an HTTP-based application ♦ ♦ Although untrained, users had little trouble using CSCV and SPW. 17 -500 53

Participation 17 -500

Disagreements about Secure Connections ♦ Propose some ideas for representing secure connections in web browsers 17 -500 55

Thank you! 17 -500
