Web-based Decision Tools for Nursery IPM http: //pnwpest. org/farwest 05 / Len Coop, Assistant Professor (Senior Research) Integrated Plant Protection Center, Botany & Plant Pathology Dept. Oregon State University

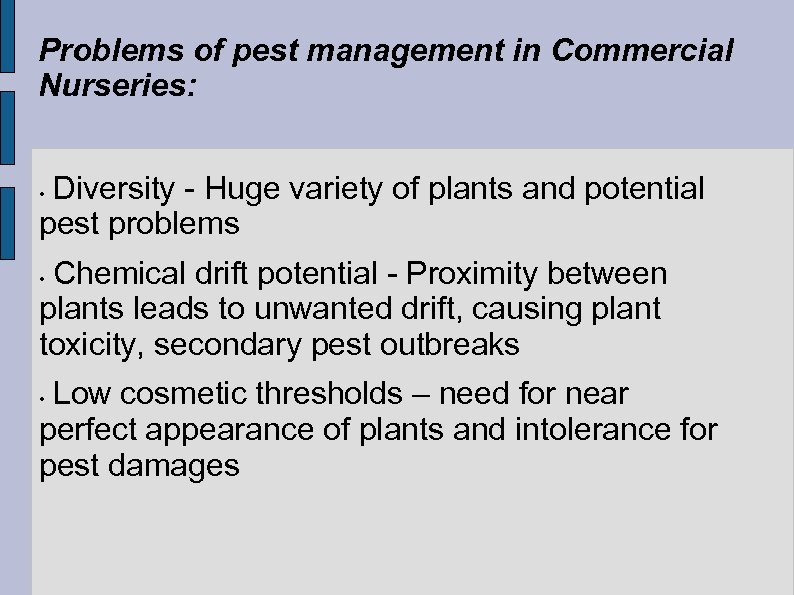

Problems of pest management in Commercial Nurseries: Diversity - Huge variety of plants and potential pest problems • Chemical drift potential - Proximity between plants leads to unwanted drift, causing plant toxicity, secondary pest outbreaks • Low cosmetic thresholds – need for near perfect appearance of plants and intolerance for pest damages •

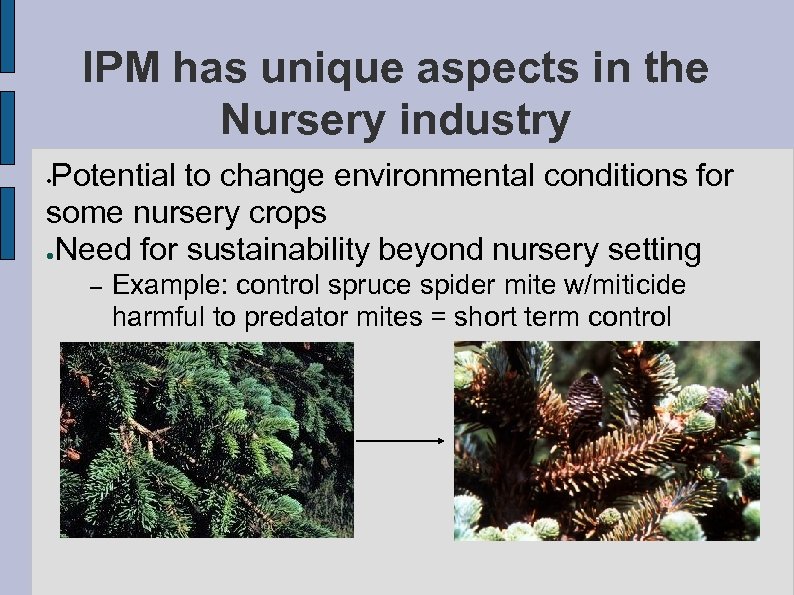

IPM has unique aspects in the Nursery industry Potential to change environmental conditions for some nursery crops ●Need for sustainability beyond nursery setting • – Example: control spruce spider mite w/miticide harmful to predator mites = short term control

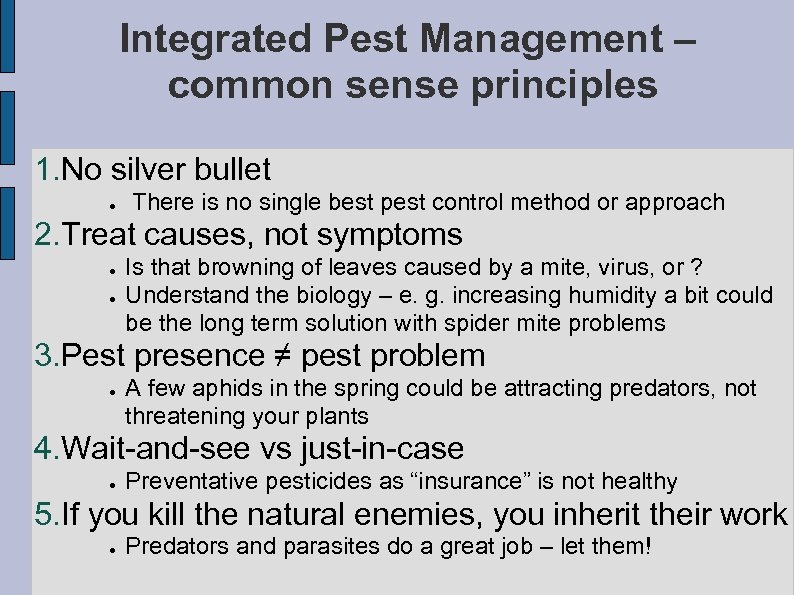

Integrated Pest Management – common sense principles 1. No silver bullet ● There is no single best pest control method or approach 2. Treat causes, not symptoms ● ● Is that browning of leaves caused by a mite, virus, or ? Understand the biology – e. g. increasing humidity a bit could be the long term solution with spider mite problems 3. Pest presence ≠ pest problem ● A few aphids in the spring could be attracting predators, not threatening your plants 4. Wait-and-see vs just-in-case ● Preventative pesticides as “insurance” is not healthy 5. If you kill the natural enemies, you inherit their work ● Predators and parasites do a great job – let them!

INTEGRATED PEST MANAGEMENT • Which species? • How many? • Where are they? • Is the damage significant

Thresholds – wait until sprays are cost effective EIL ET

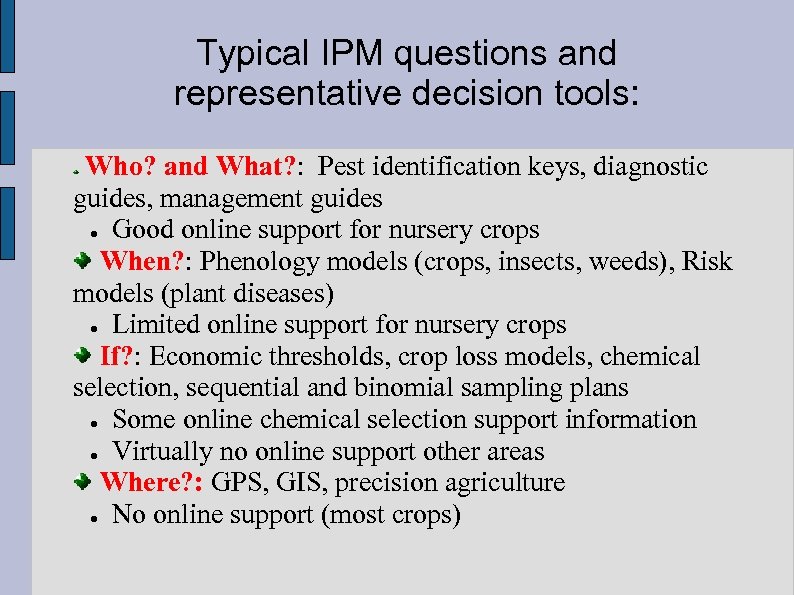

Typical IPM questions and representative decision tools: Who? and What? : Pest identification keys, diagnostic guides, management guides ● Good online support for nursery crops When? : Phenology models (crops, insects, weeds), Risk models (plant diseases) ● Limited online support for nursery crops If? : Economic thresholds, crop loss models, chemical selection, sequential and binomial sampling plans ● Some online chemical selection support information ● Virtually no online support other areas Where? : GPS, GIS, precision agriculture ● No online support (most crops)

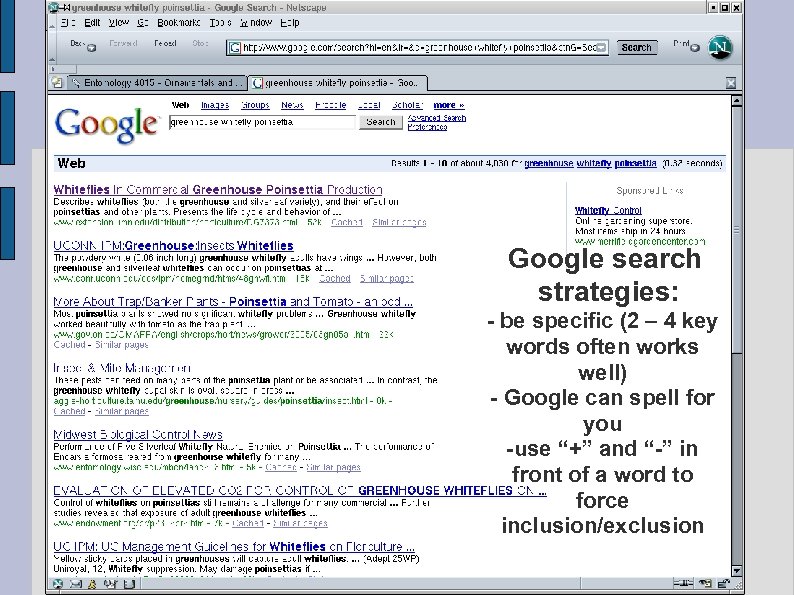

Google search strategies: - be specific (2 – 4 key words often works well) - Google can spell for you -use “+” and “-” in front of a word to force inclusion/exclusion

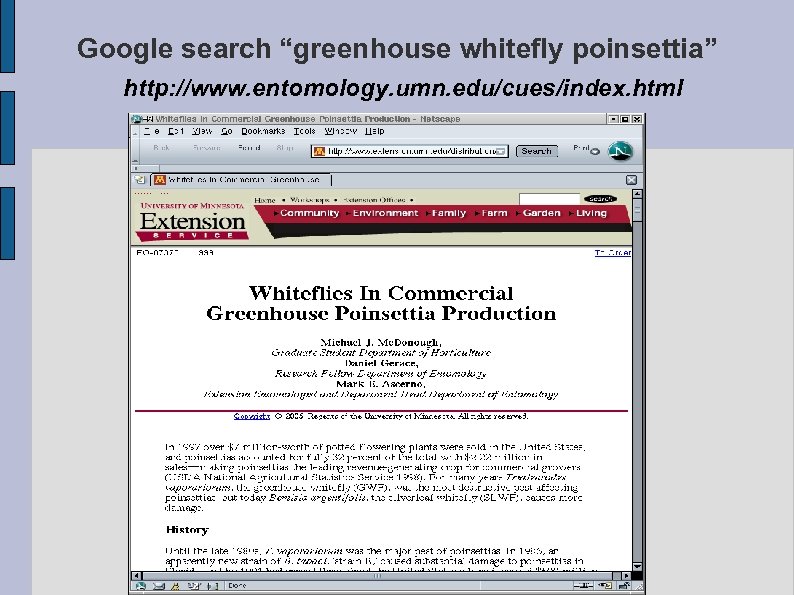

Google search “greenhouse whitefly poinsettia” http: //www. entomology. umn. edu/cues/index. html

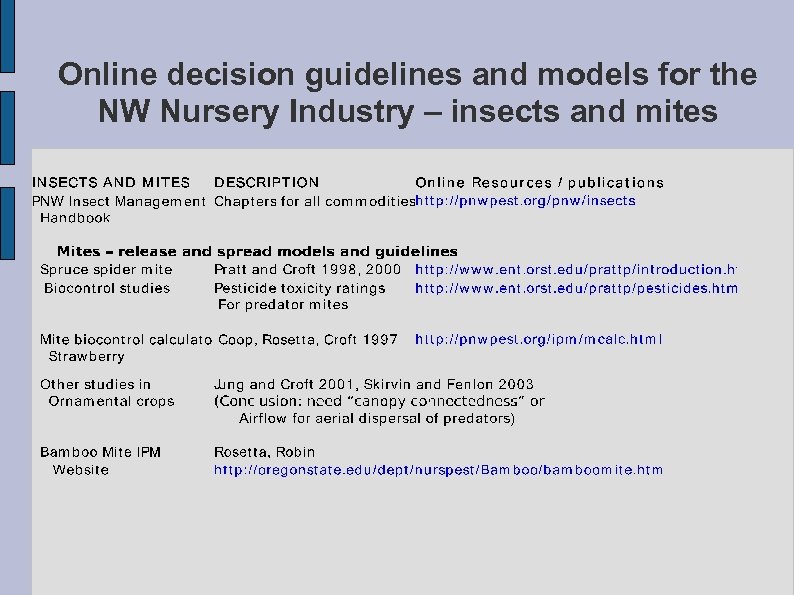

Online decision guidelines and models for the NW Nursery Industry – insects and mites

Example toxicity ratings of selected compounds to mite predator and key biocontrol agent, Neoseiulus fallacis for use in ornamentals

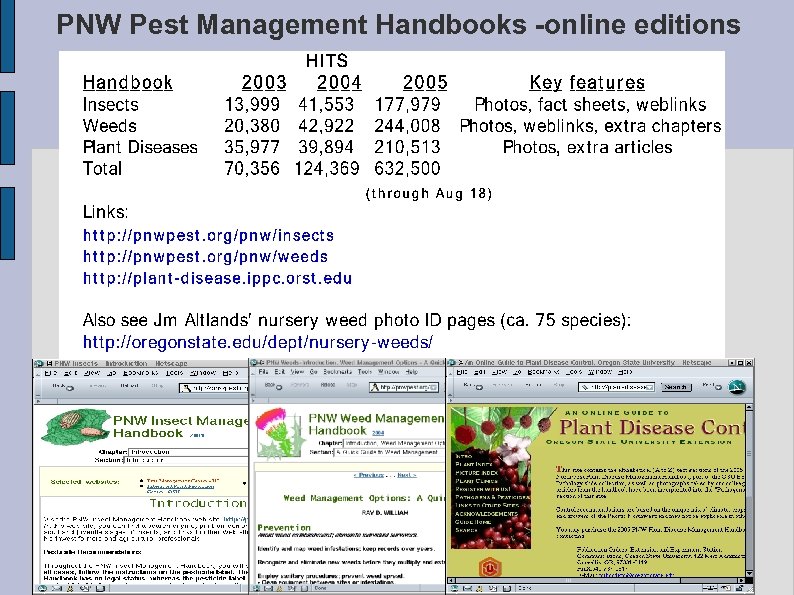

PNW Pest Management Handbooks -online editions

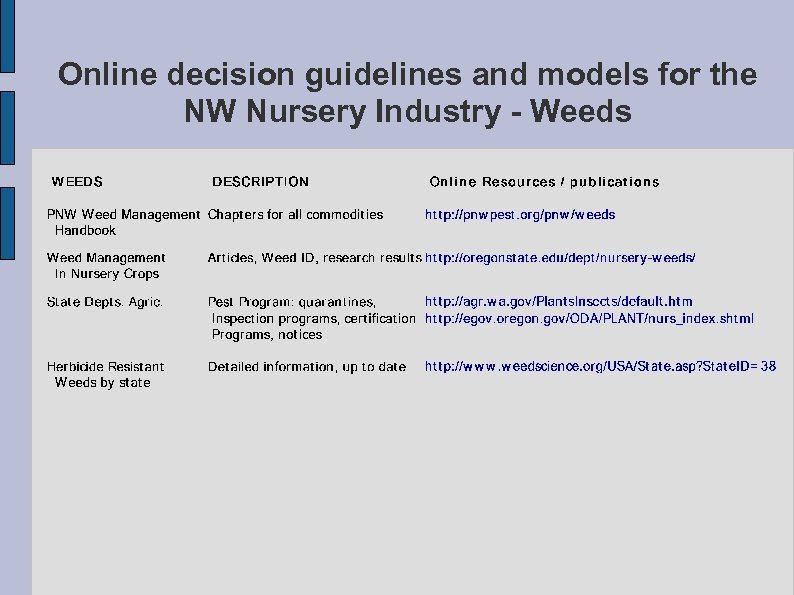

Online decision guidelines and models for the NW Nursery Industry - Weeds

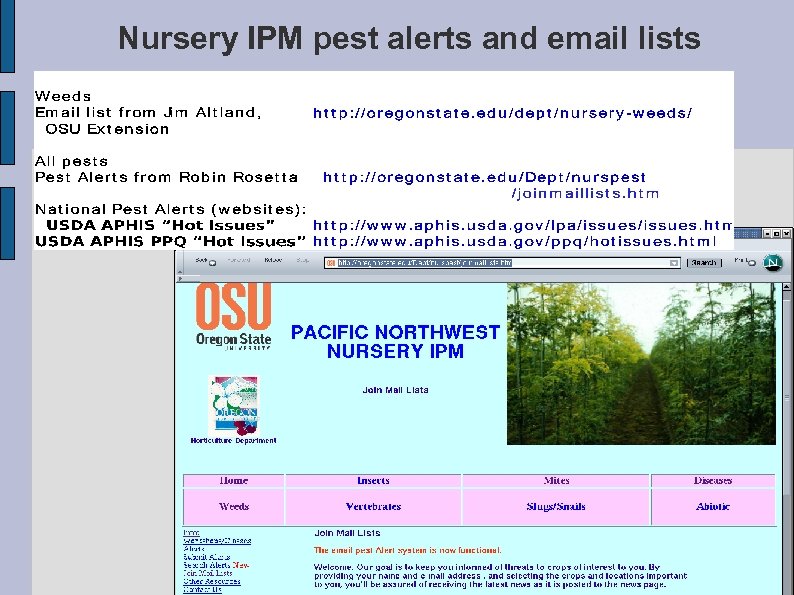

Nursery IPM pest alerts and email lists

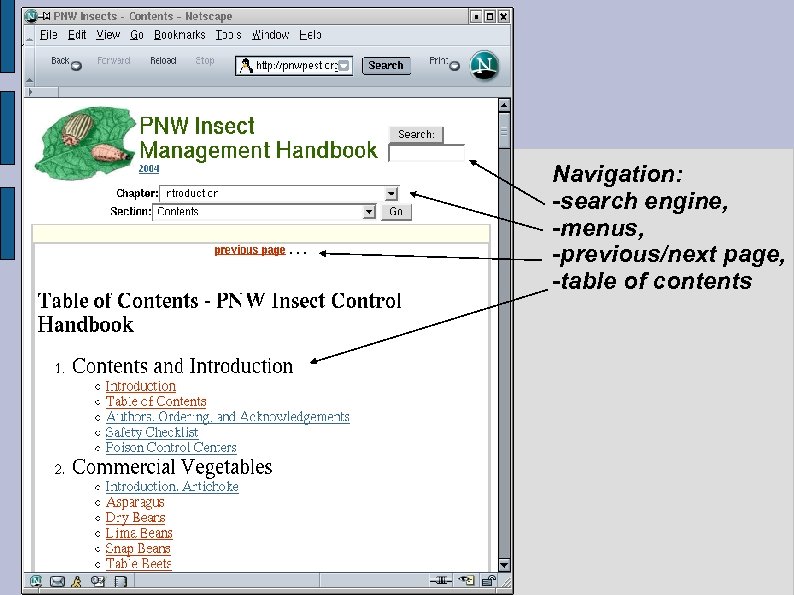

Navigation: -search engine, -menus, -previous/next page, -table of contents

Search results: section links plus version with “highlight matches”

“highlight matches” result

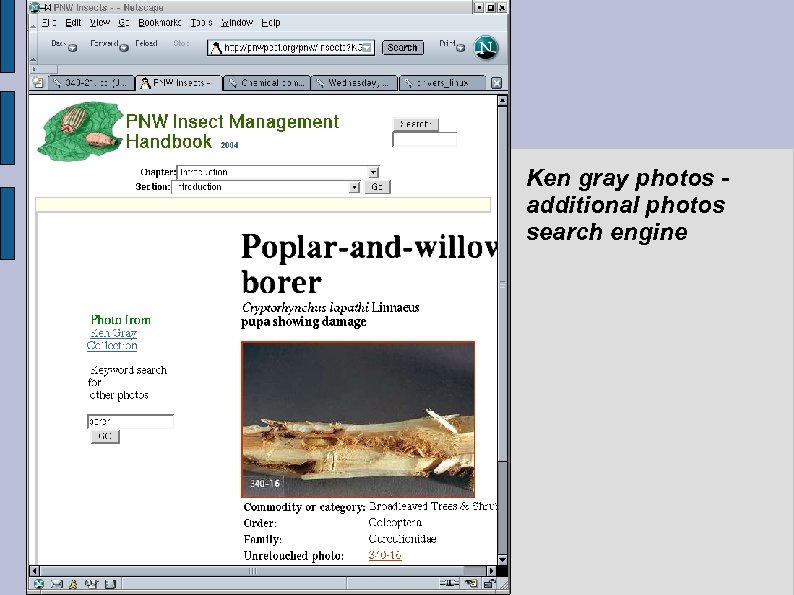

Ken gray photos additional photos search engine

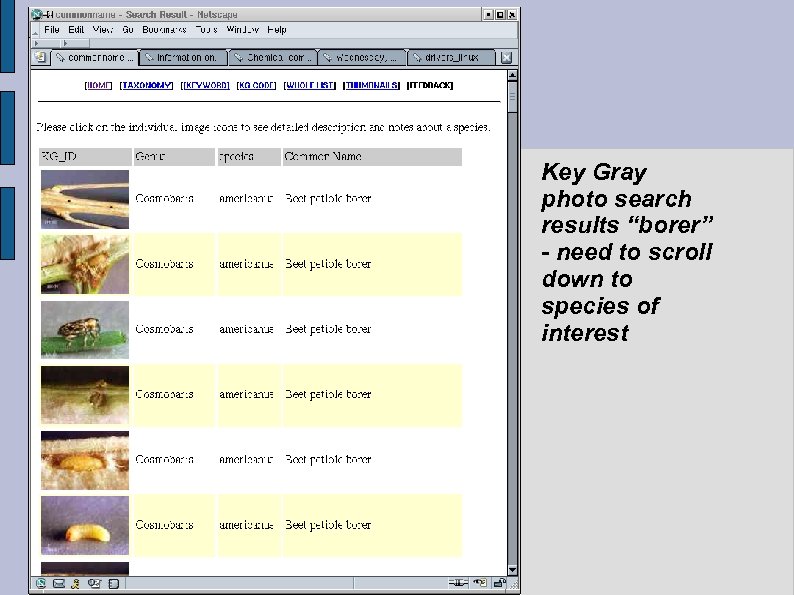

Key Gray photo search results “borer” - need to scroll down to species of interest

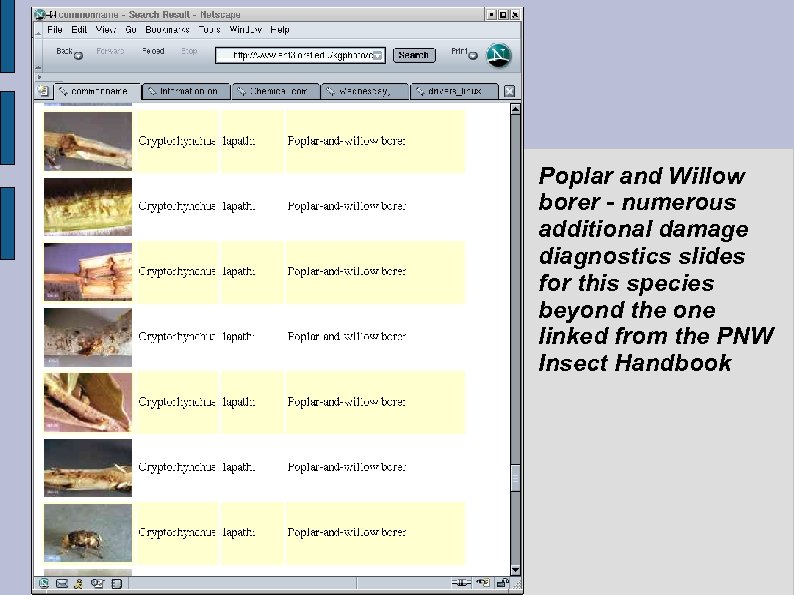

Poplar and Willow borer - numerous additional damage diagnostics slides for this species beyond the one linked from the PNW Insect Handbook

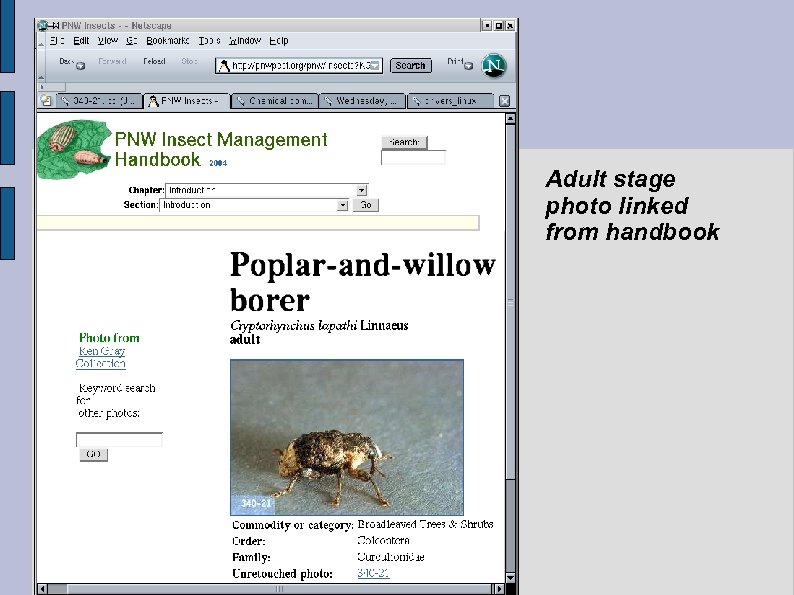

Adult stage photo linked from handbook

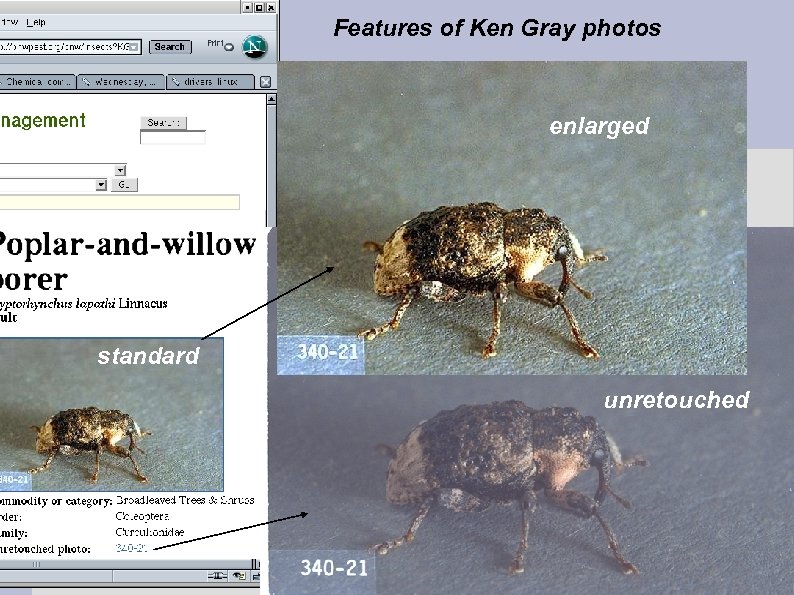

Features of Ken Gray photos enlarged standard unretouched

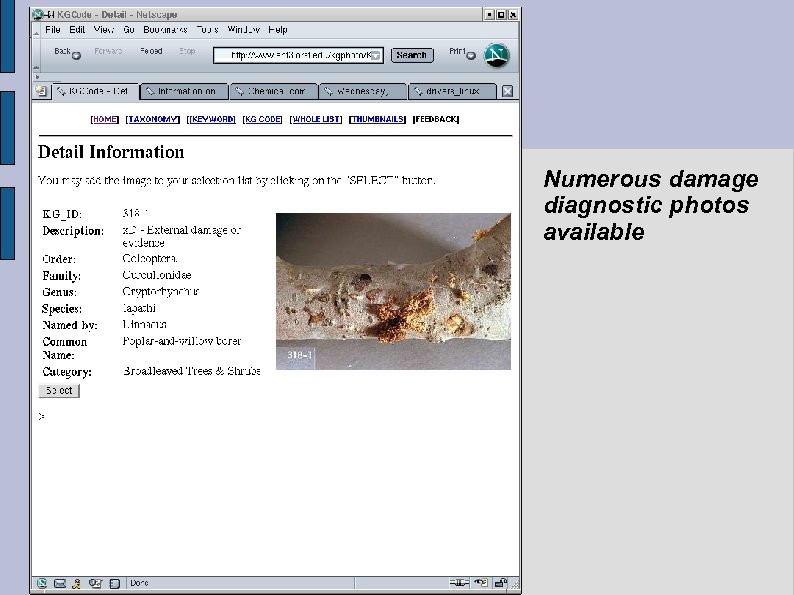

Numerous damage diagnostic photos available

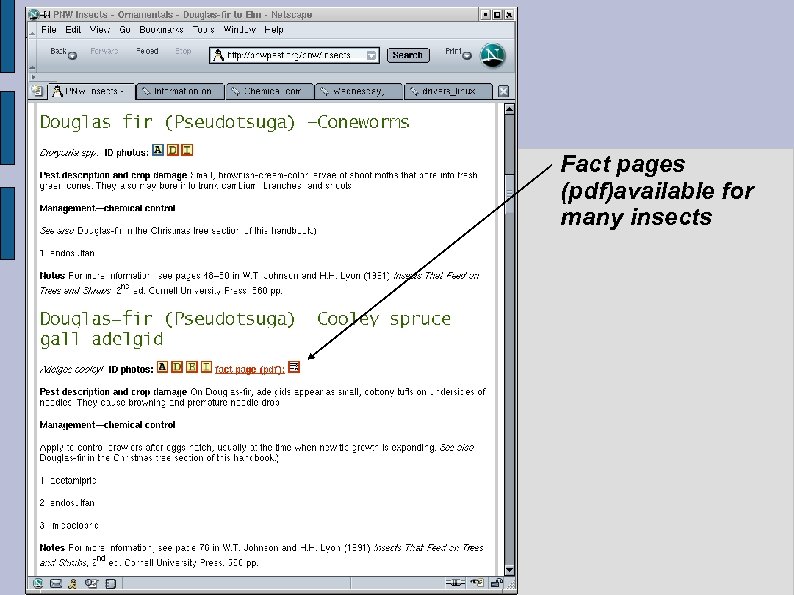

Fact pages (pdf)available for many insects

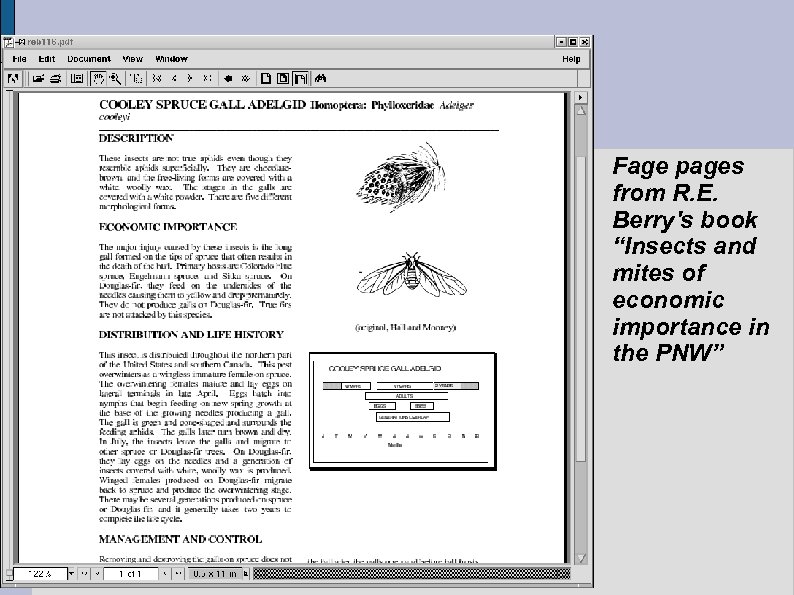

Fage pages from R. E. Berry's book “Insects and mites of economic importance in the PNW”

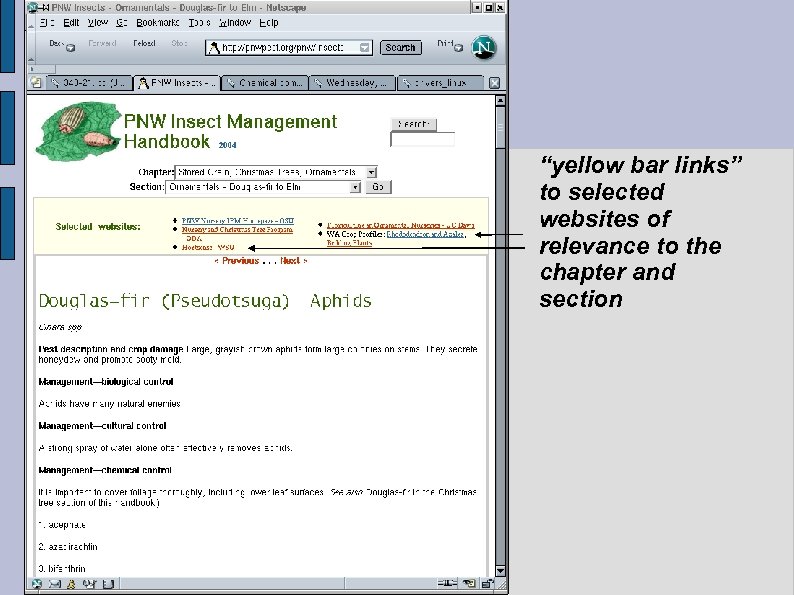

“yellow bar links” to selected websites of relevance to the chapter and section

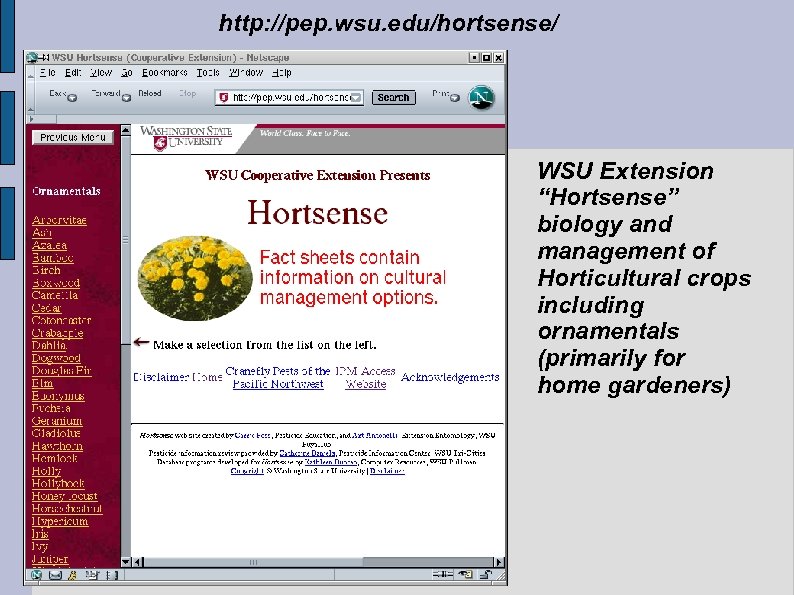

http: //pep. wsu. edu/hortsense/ WSU Extension “Hortsense” biology and management of Horticultural crops including ornamentals (primarily for home gardeners)

Links to crop profiles and “pest management strategic plans” (PMSPs)

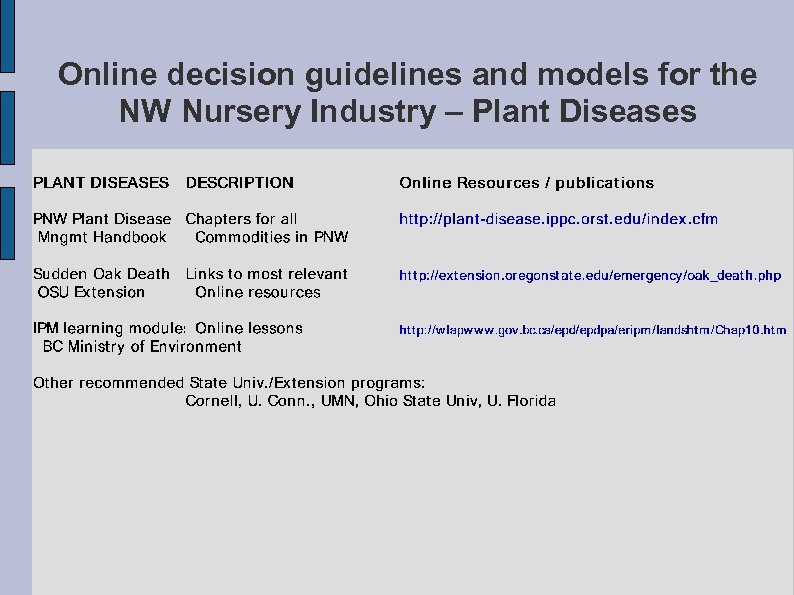

Online decision guidelines and models for the NW Nursery Industry – Plant Diseases

Example material from the BC Ministry of Environment Online IPM for landscape pests - manual+lessons http: //wlapwww. gov. bc. ca/epdpa/eripm/landshtm/Chap 10. htm

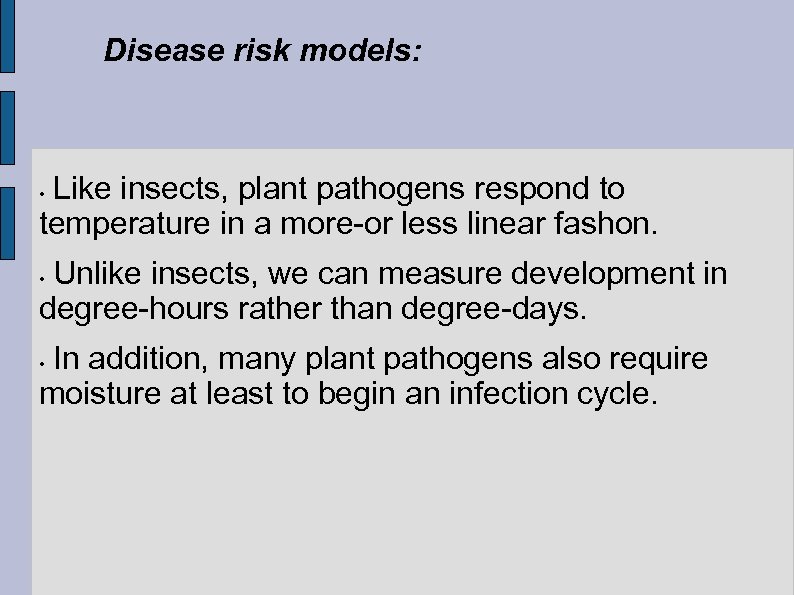

Disease risk models: Like insects, plant pathogens respond to temperature in a more-or less linear fashon. • Unlike insects, we can measure development in degree-hours rather than degree-days. • In addition, many plant pathogens also require moisture at least to begin an infection cycle. •

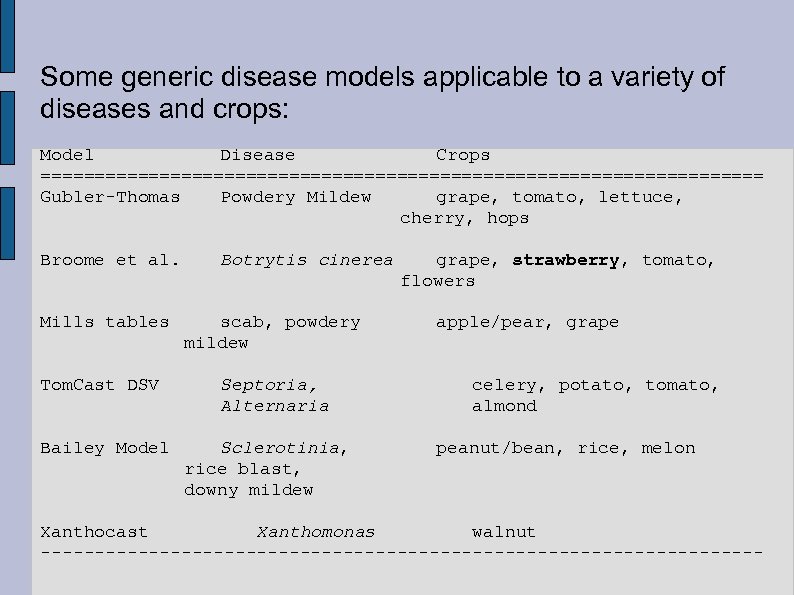

Some generic disease models applicable to a variety of diseases and crops: Model Disease Crops ================================== Gubler-Thomas Powdery Mildew grape, tomato, lettuce, cherry, hops Broome et al. Botrytis cinerea Mills tables scab, powdery mildew Tom. Cast DSV Septoria, Alternaria Bailey Model Sclerotinia, rice blast, downy mildew grape, strawberry, tomato, flowers apple/pear, grape celery, potato, tomato, almond peanut/bean, rice, melon Xanthocast Xanthomonas walnut ----------------------------------

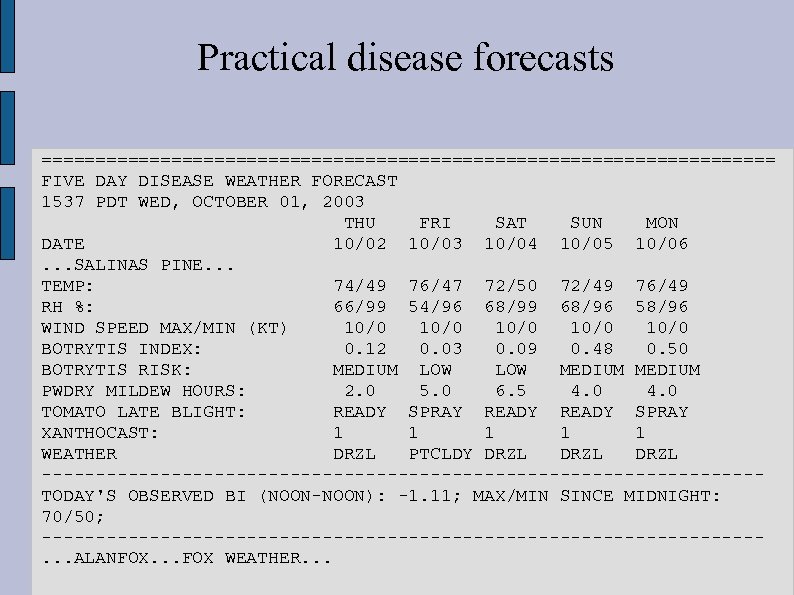

Practical disease forecasts ================================== FIVE DAY DISEASE WEATHER FORECAST 1537 PDT WED, OCTOBER 01, 2003 THU FRI SAT SUN MON DATE 10/02 10/03 10/04 10/05 10/06. . . SALINAS PINE. . . TEMP: 74/49 76/47 72/50 72/49 76/49 RH %: 66/99 54/96 68/99 68/96 58/96 WIND SPEED MAX/MIN (KT) 10/0 10/0 BOTRYTIS INDEX: 0. 12 0. 03 0. 09 0. 48 0. 50 BOTRYTIS RISK: MEDIUM LOW MEDIUM PWDRY MILDEW HOURS: 2. 0 5. 0 6. 5 4. 0 TOMATO LATE BLIGHT: READY SPRAY XANTHOCAST: 1 1 1 WEATHER DRZL PTCLDY DRZL ---------------------------------TODAY'S OBSERVED BI (NOON-NOON): -1. 11; MAX/MIN SINCE MIDNIGHT: 70/50; ---------------------------------. . . ALANFOX. . . FOX WEATHER. . .

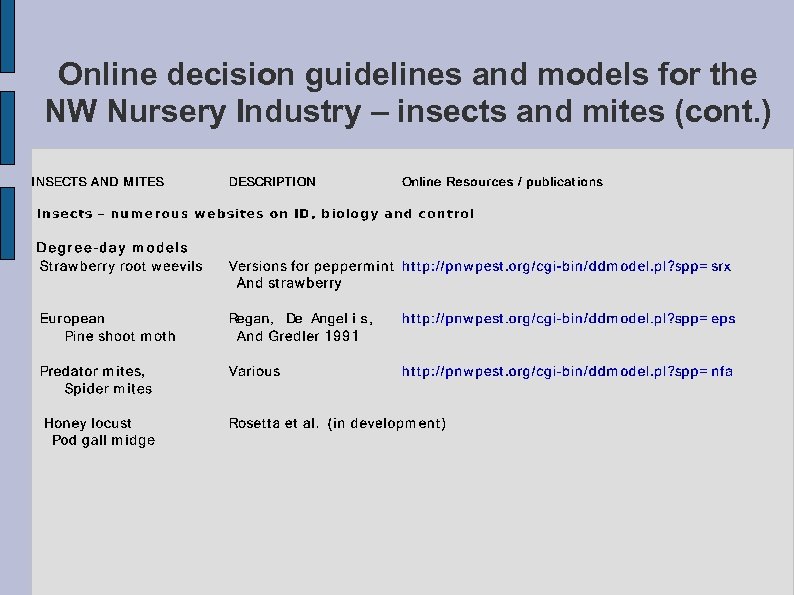

Online decision guidelines and models for the NW Nursery Industry – insects and mites (cont. )

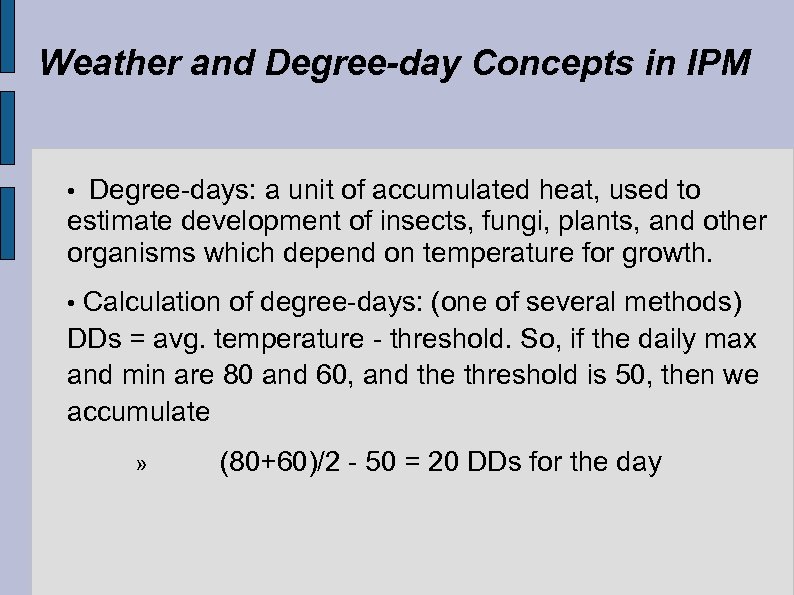

Weather and Degree-day Concepts in IPM Degree-days: a unit of accumulated heat, used to estimate development of insects, fungi, plants, and other organisms which depend on temperature for growth. • Calculation of degree-days: (one of several methods) DDs = avg. temperature - threshold. So, if the daily max and min are 80 and 60, and the threshold is 50, then we accumulate • » (80+60)/2 - 50 = 20 DDs for the day

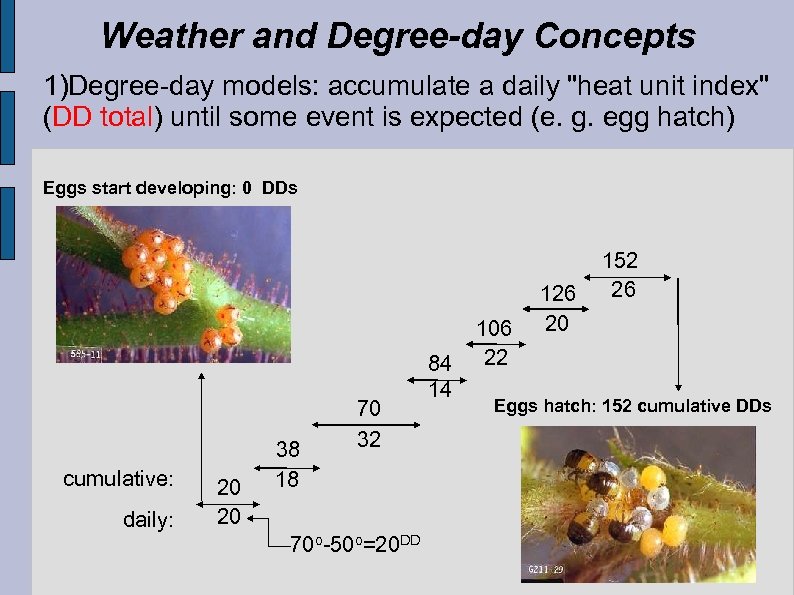

Weather and Degree-day Concepts 1)Degree-day models: accumulate a daily "heat unit index" (DD total) until some event is expected (e. g. egg hatch) Eggs start developing: 0 DDs cumulative: daily: 20 20 38 18 70 32 70 o-50 o=20 DD 84 14 106 22 126 20 152 26 Eggs hatch: 152 cumulative DDs

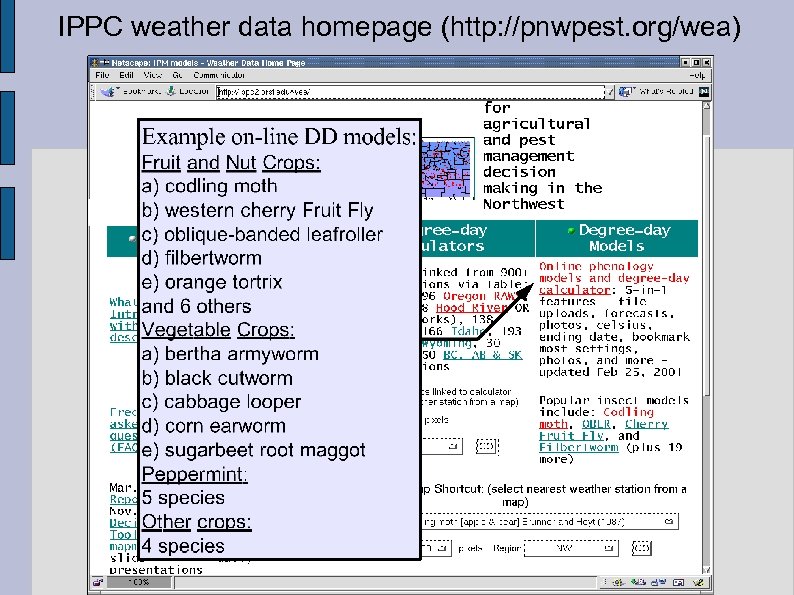

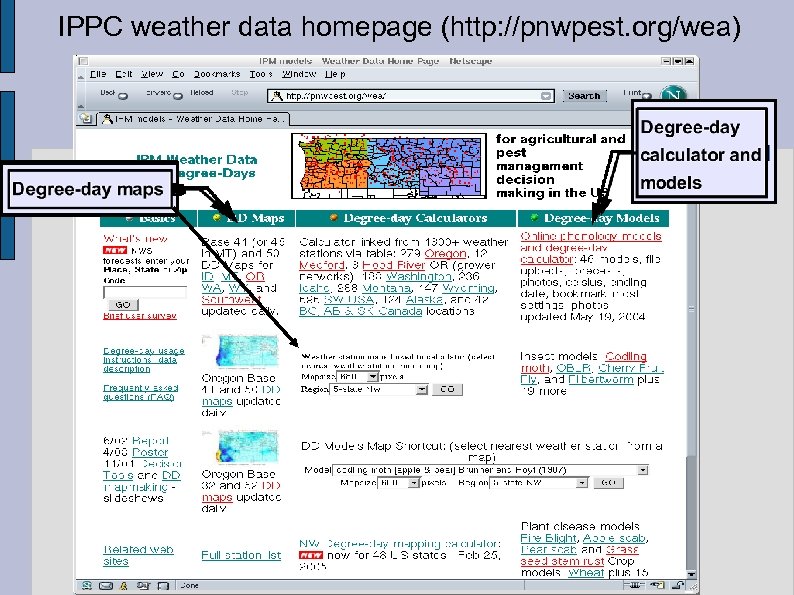

IPPC weather data homepage (http: //pnwpest. org/wea)

Degree-day models: Examples in pest management Nursery crops - Eur. Pine Shoot Moth: Begin sprays at 10 percent flight activity, predicted by 1, 712 degree-days above 28 F after Jan. 1 st. Tree Fruits - Codling moth: 1 st treatment 250 DD days after first consistent flight in traps (BIOFIX). Vegetables - Sugarbeet root maggot: if 40 -50 flies are collected in traps by 360 DD from March 1 then treat.

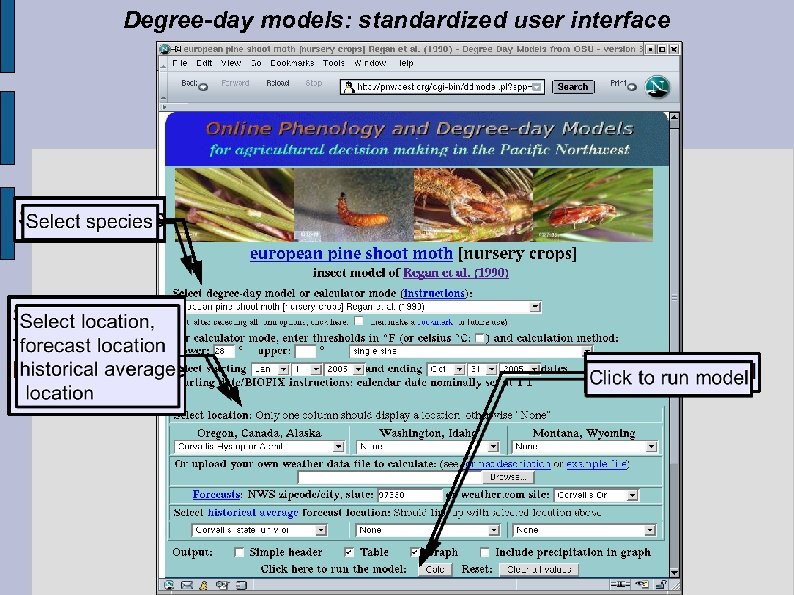

Degree-day models: standardized user interface

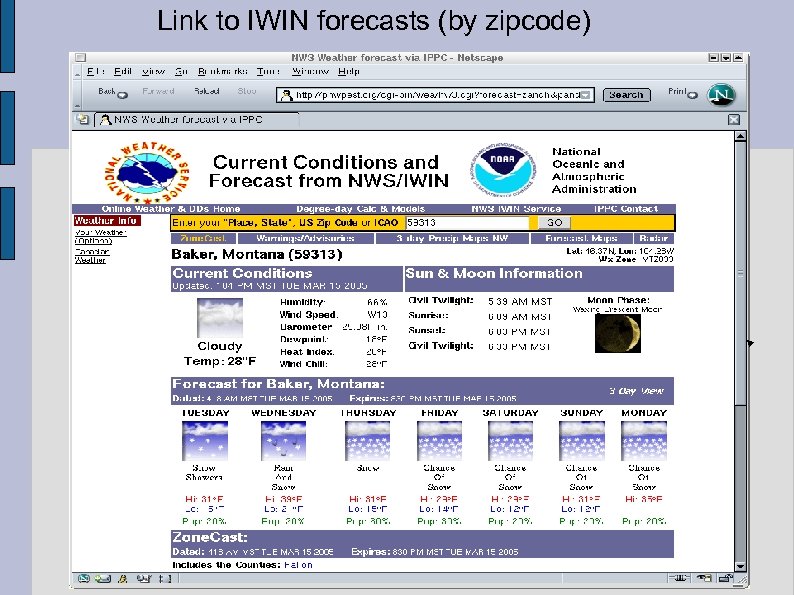

Link to IWIN forecasts (by zipcode)

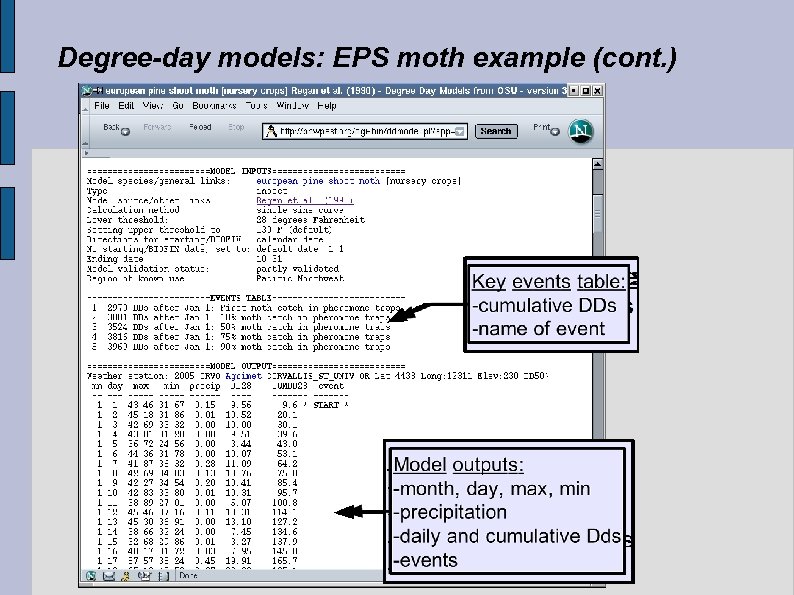

Degree-day models: EPS moth example (cont. )

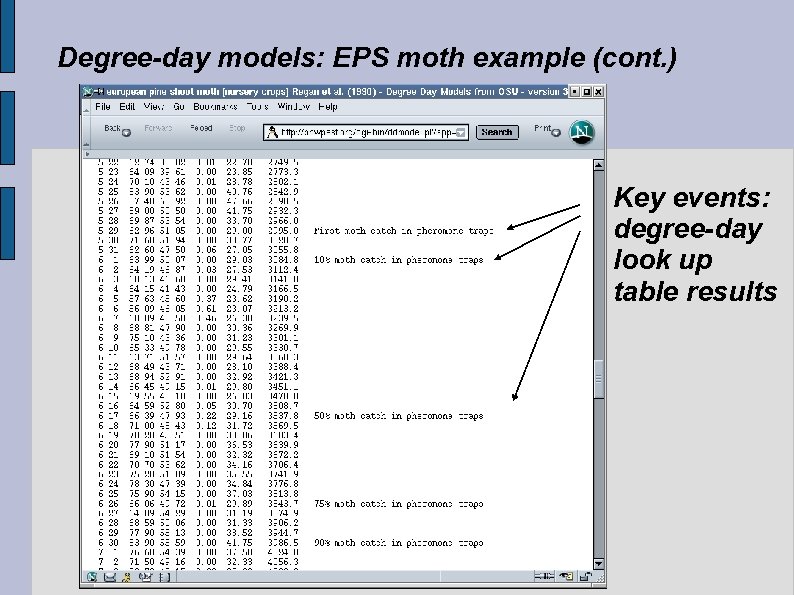

Degree-day models: EPS moth example (cont. ) Key events: degree-day look up table results

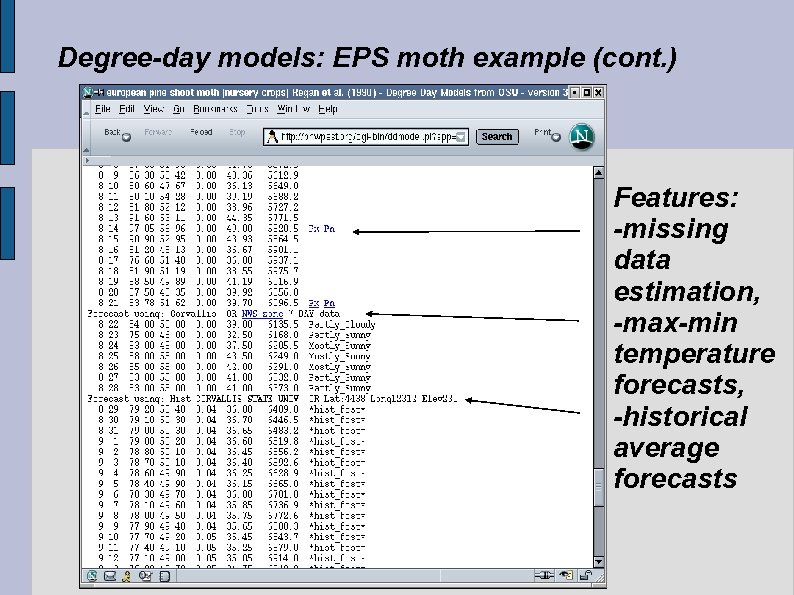

Degree-day models: EPS moth example (cont. ) Features: -missing data estimation, -max-min temperature forecasts, -historical average forecasts

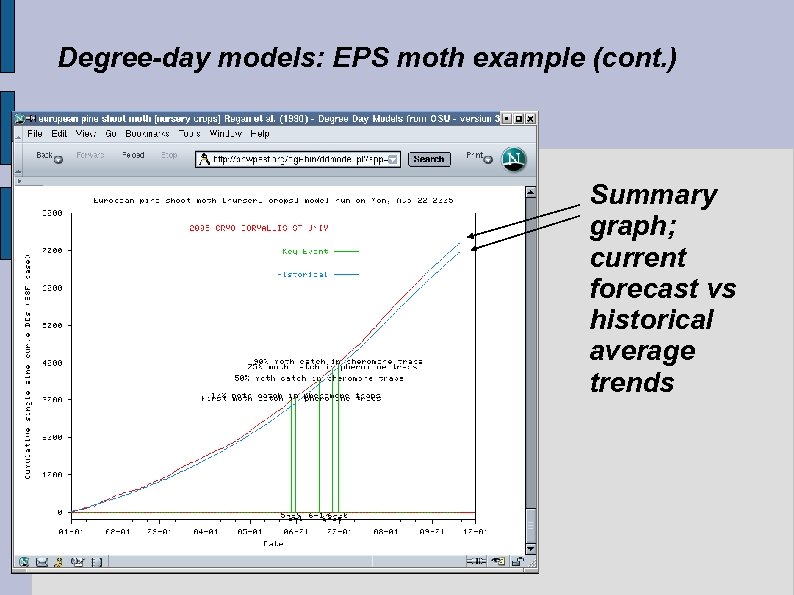

Degree-day models: EPS moth example (cont. ) Summary graph; current forecast vs historical average trends

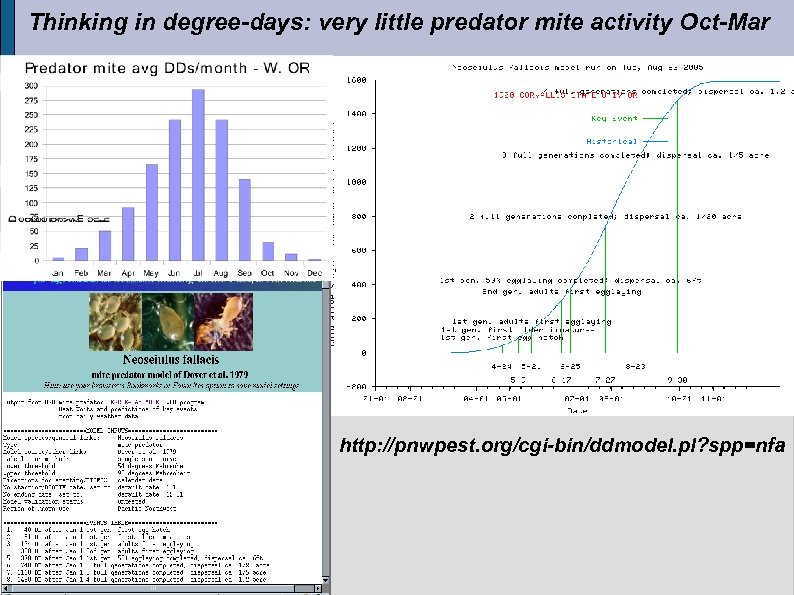

Thinking in degree-days: very little predator mite activity Oct-Mar http: //pnwpest. org/cgi-bin/ddmodel. pl? spp=nfa

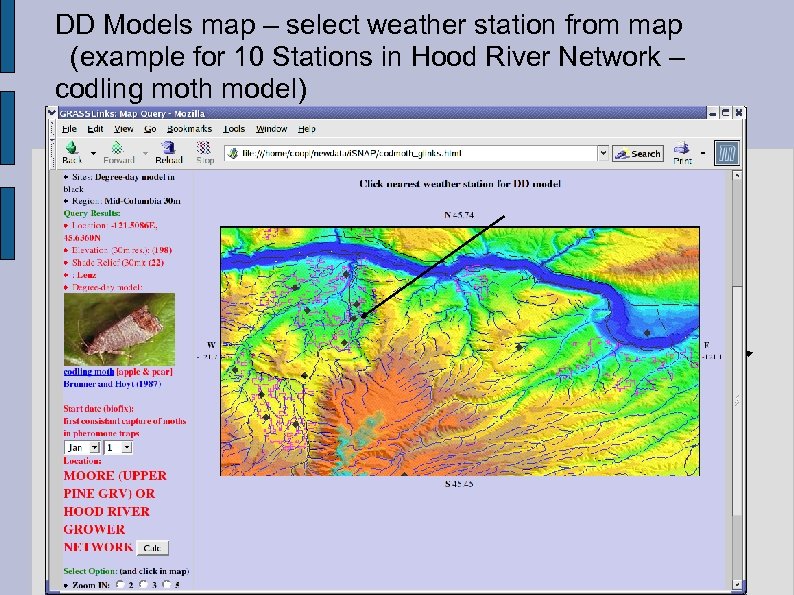

DD Models map – select weather station from map (example for 10 Stations in Hood River Network – codling moth model)

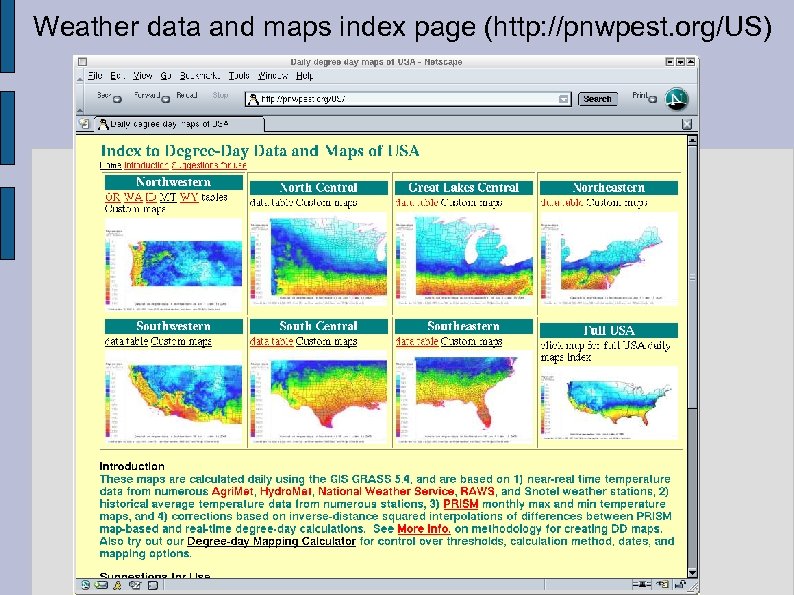

Weather data and maps index page (http: //pnwpest. org/US)

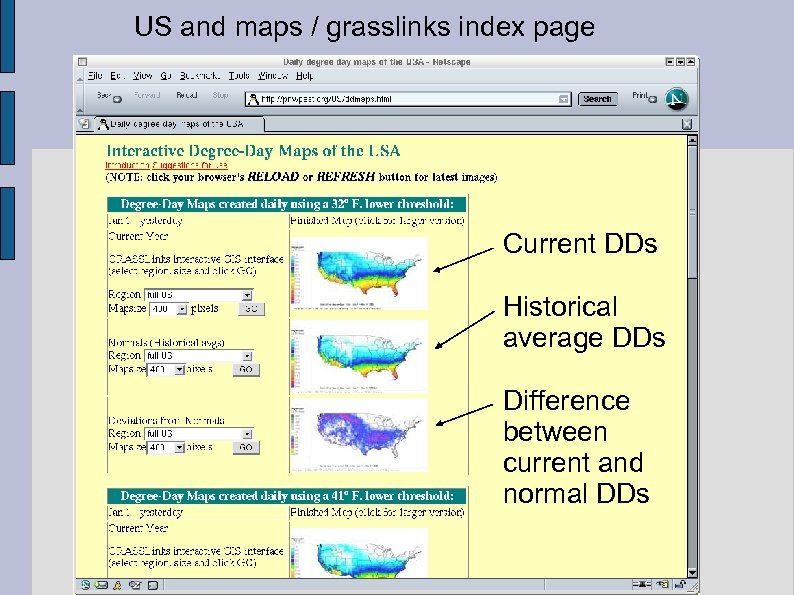

US and maps / grasslinks index page Current DDs Historical average DDs Difference between current and normal DDs

Grasslinks interactive GIS example – NE USA

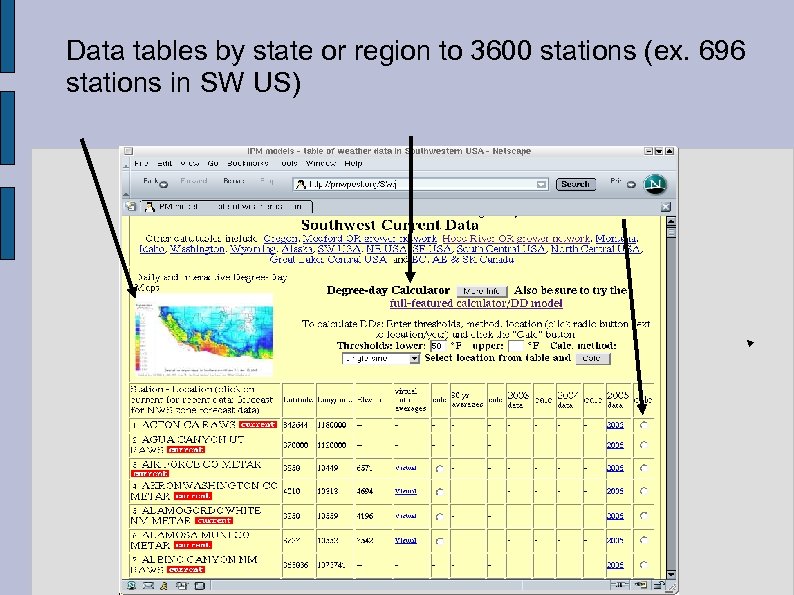

Data tables by state or region to 3600 stations (ex. 696 stations in SW US)

Typical IPM questions and representative decision tools: Who? and What? : Pest identification keys, diagnostic guides, management guides ● Good online support for nursery crops When? : Phenology models (crops, insects, weeds), Risk models (plant diseases) ● Limited online support for nursery crops, more on the way If? : Economic thresholds, crop loss models, chemical selection, sequential and binomial sampling plans ● Some online chemical selection support information ● Virtually no online support other areas Where? : GPS, GIS, precision agriculture ● No online support (most crops)

Additional (bonus) slides ->

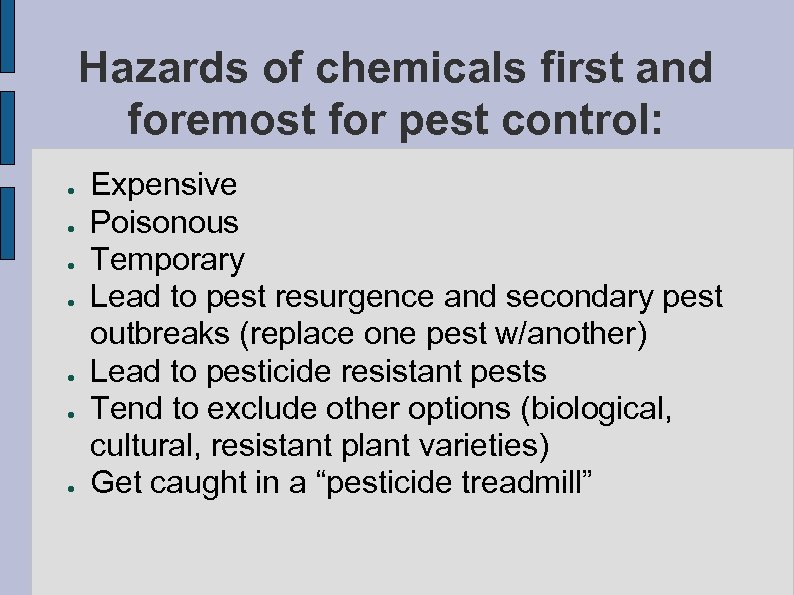

Hazards of chemicals first and foremost for pest control: ● ● ● ● Expensive Poisonous Temporary Lead to pest resurgence and secondary pest outbreaks (replace one pest w/another) Lead to pesticide resistant pests Tend to exclude other options (biological, cultural, resistant plant varieties) Get caught in a “pesticide treadmill”

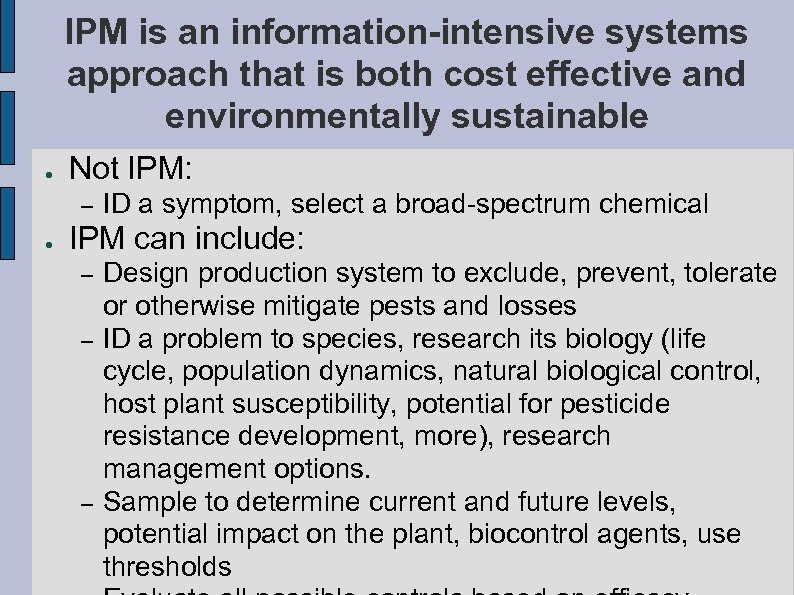

IPM is an information-intensive systems approach that is both cost effective and environmentally sustainable ● Not IPM: – ● ID a symptom, select a broad-spectrum chemical IPM can include: – – – Design production system to exclude, prevent, tolerate or otherwise mitigate pests and losses ID a problem to species, research its biology (life cycle, population dynamics, natural biological control, host plant susceptibility, potential for pesticide resistance development, more), research management options. Sample to determine current and future levels, potential impact on the plant, biocontrol agents, use thresholds

Sampling & Thresholds determine need for

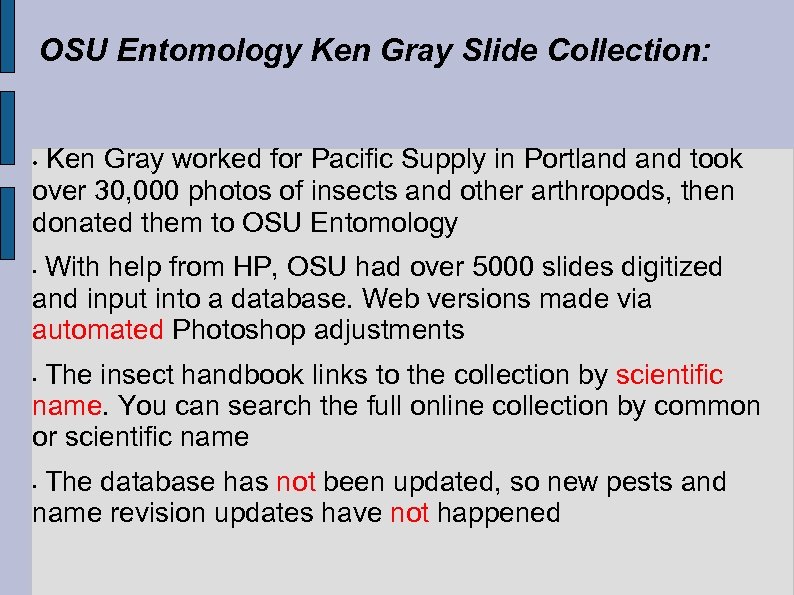

OSU Entomology Ken Gray Slide Collection: Ken Gray worked for Pacific Supply in Portland took over 30, 000 photos of insects and other arthropods, then donated them to OSU Entomology • With help from HP, OSU had over 5000 slides digitized and input into a database. Web versions made via automated Photoshop adjustments • The insect handbook links to the collection by scientific name. You can search the full online collection by common or scientific name • The database has not been updated, so new pests and name revision updates have not happened •
