Web applications and Oracle FIS 432 632 Intranets

Web applications and Oracle FIS 432/632

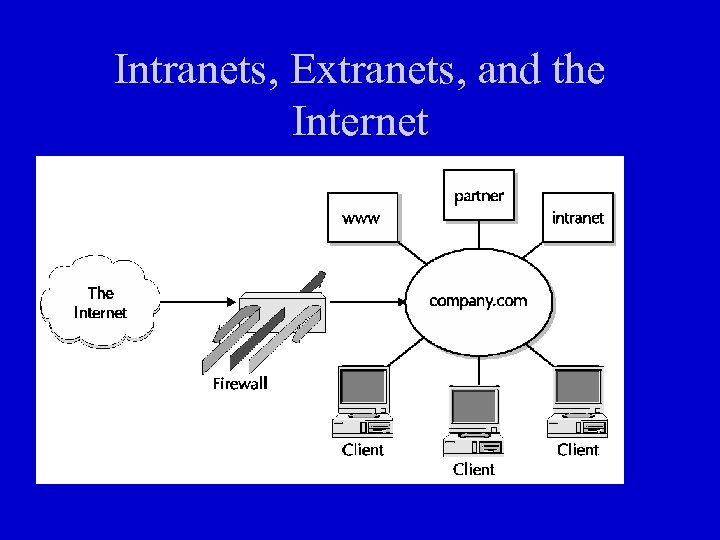

Intranets, Extranets, and the Internet

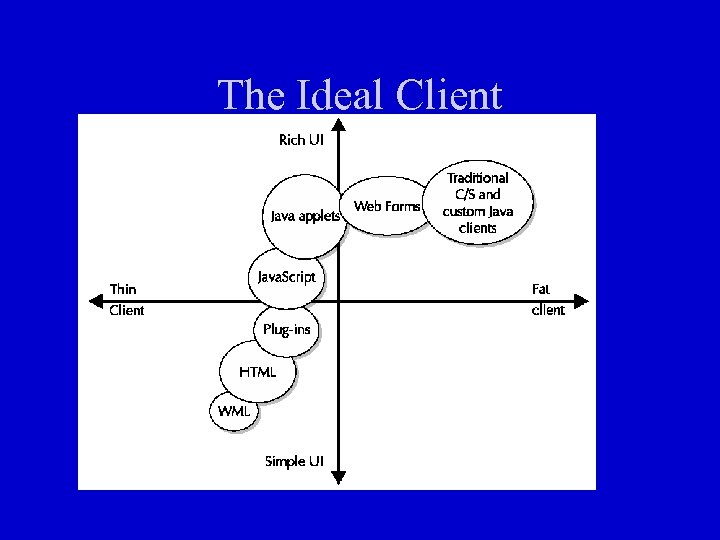

The Ideal Client

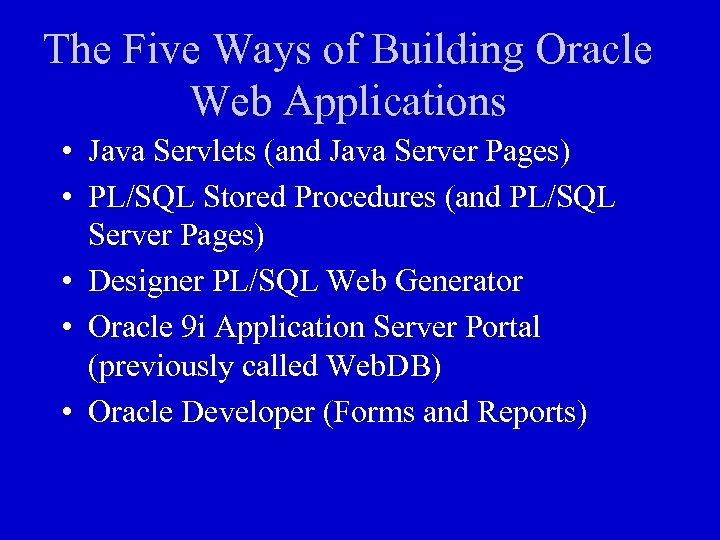

The Five Ways of Building Oracle Web Applications • Java Servlets (and Java Server Pages) • PL/SQL Stored Procedures (and PL/SQL Server Pages) • Designer PL/SQL Web Generator • Oracle 9 i Application Server Portal (previously called Web. DB) • Oracle Developer (Forms and Reports)

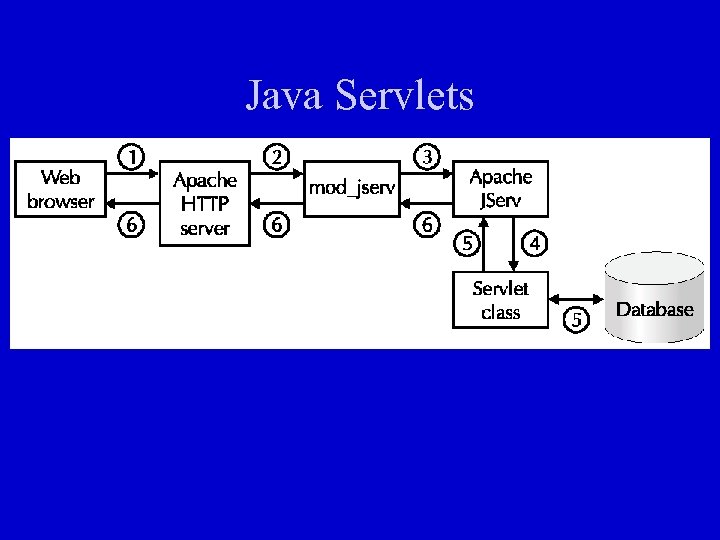

Java Servlets

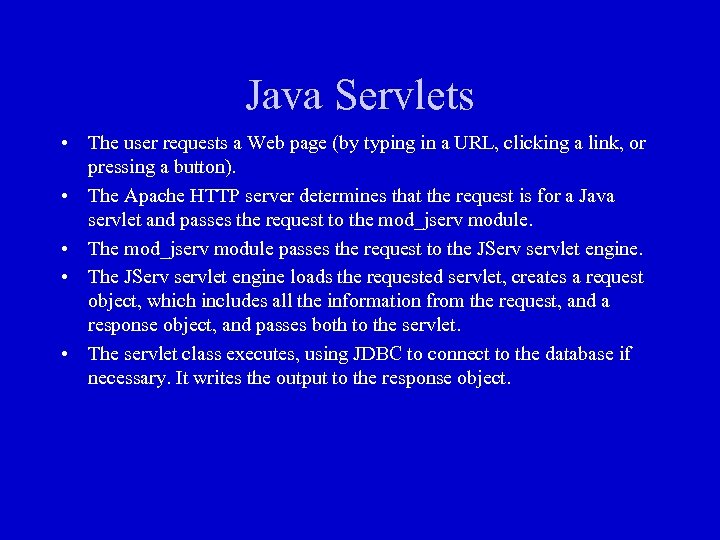

Java Servlets • The user requests a Web page (by typing in a URL, clicking a link, or pressing a button). • The Apache HTTP server determines that the request is for a Java servlet and passes the request to the mod_jserv module. • The mod_jserv module passes the request to the JServ servlet engine. • The JServ servlet engine loads the requested servlet, creates a request object, which includes all the information from the request, and a response object, and passes both to the servlet. • The servlet class executes, using JDBC to connect to the database if necessary. It writes the output to the response object.

Advantages and Disadvantages Advantages Disadvantages Java is a more modern and feature-rich programming language than PL/SQL New language to learn for many Oracle developers Java Servlets are not bound to Need much code (JDBC) or a specific vendor non-standard features (SQLJ) to retrieve data from database Some overhead in establishing a database connection

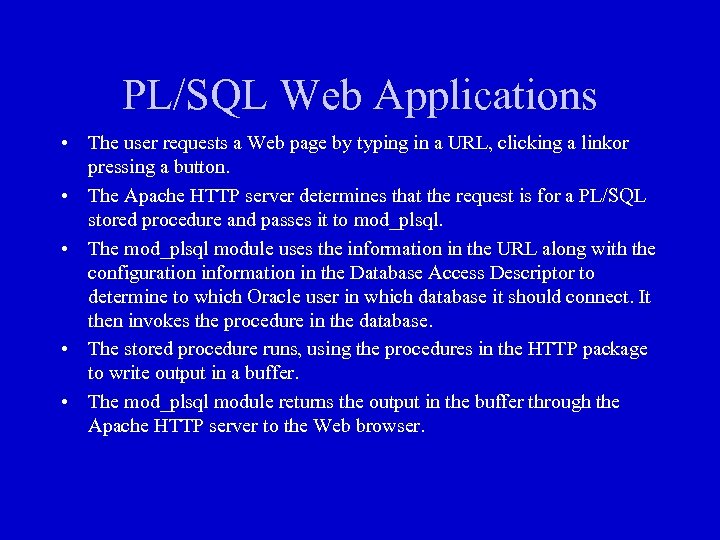

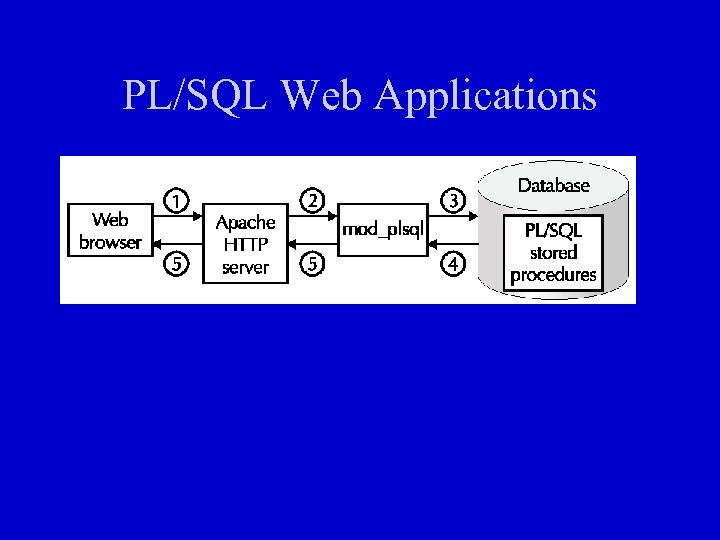

PL/SQL Web Applications

PL/SQL Web Applications • The user requests a Web page by typing in a URL, clicking a linkor pressing a button. • The Apache HTTP server determines that the request is for a PL/SQL stored procedure and passes it to mod_plsql. • The mod_plsql module uses the information in the URL along with the configuration information in the Database Access Descriptor to determine to which Oracle user in which database it should connect. It then invokes the procedure in the database. • The stored procedure runs, using the procedures in the HTTP package to write output in a buffer. • The mod_plsql module returns the output in the buffer through the Apache HTTP server to the Web browser.

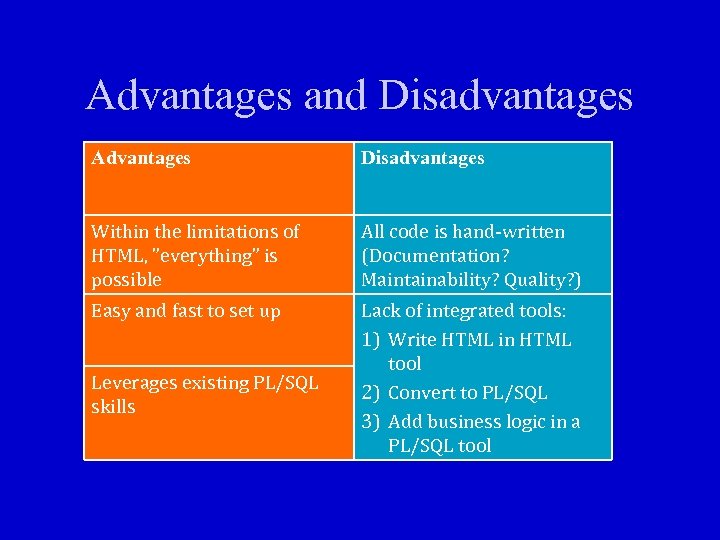

Advantages and Disadvantages Advantages Disadvantages Within the limitations of HTML, ”everything” is possible All code is hand-written (Documentation? Maintainability? Quality? ) Easy and fast to set up Lack of integrated tools: 1) Write HTML in HTML tool 2) Convert to PL/SQL 3) Add business logic in a PL/SQL tool Leverages existing PL/SQL skills

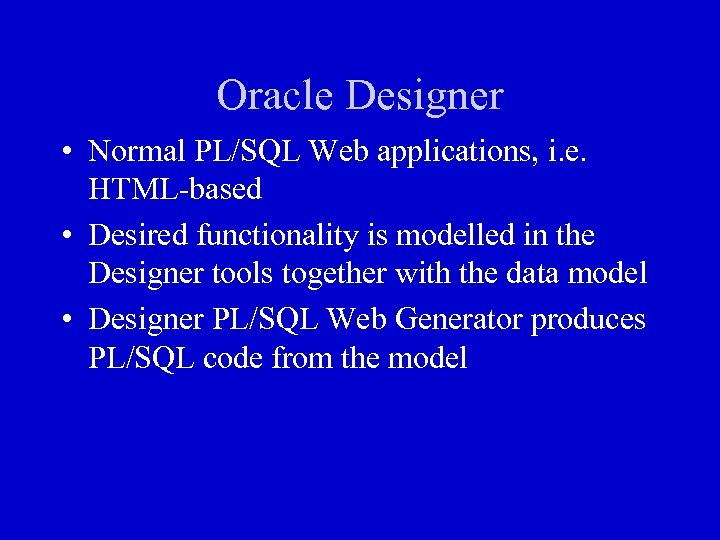

Oracle Designer • Normal PL/SQL Web applications, i. e. HTML-based • Desired functionality is modelled in the Designer tools together with the data model • Designer PL/SQL Web Generator produces PL/SQL code from the model

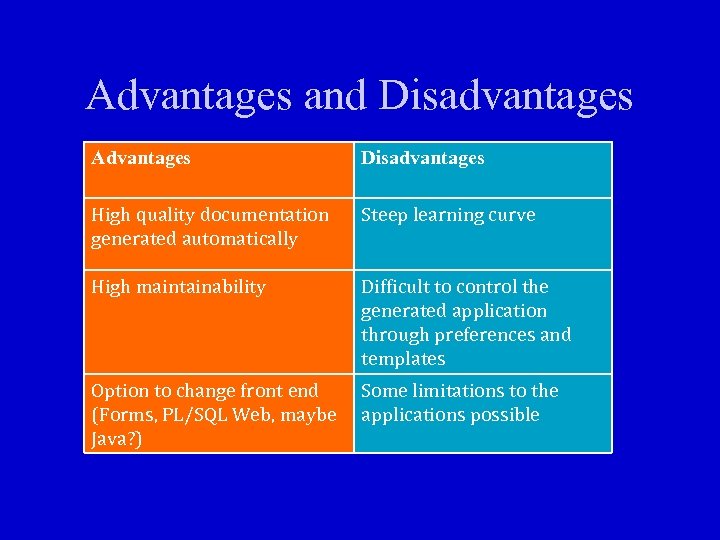

Advantages and Disadvantages Advantages Disadvantages High quality documentation generated automatically Steep learning curve High maintainability Difficult to control the generated application through preferences and templates Option to change front end (Forms, PL/SQL Web, maybe Java? ) Some limitations to the applications possible

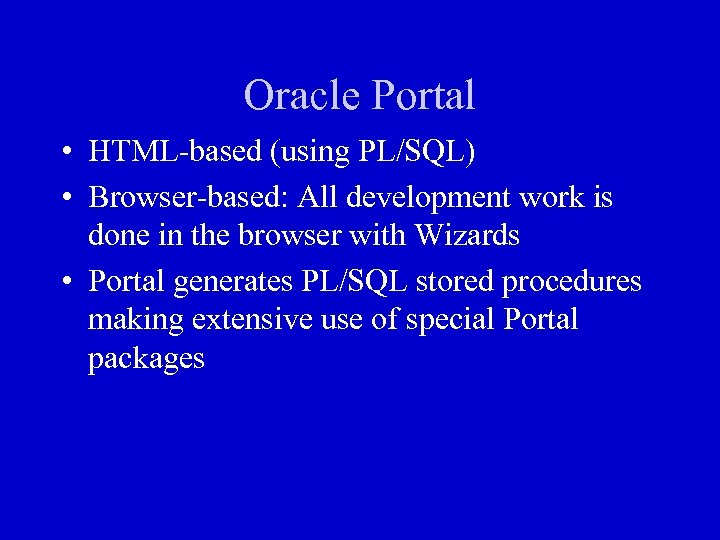

Oracle Portal • HTML-based (using PL/SQL) • Browser-based: All development work is done in the browser with Wizards • Portal generates PL/SQL stored procedures making extensive use of special Portal packages

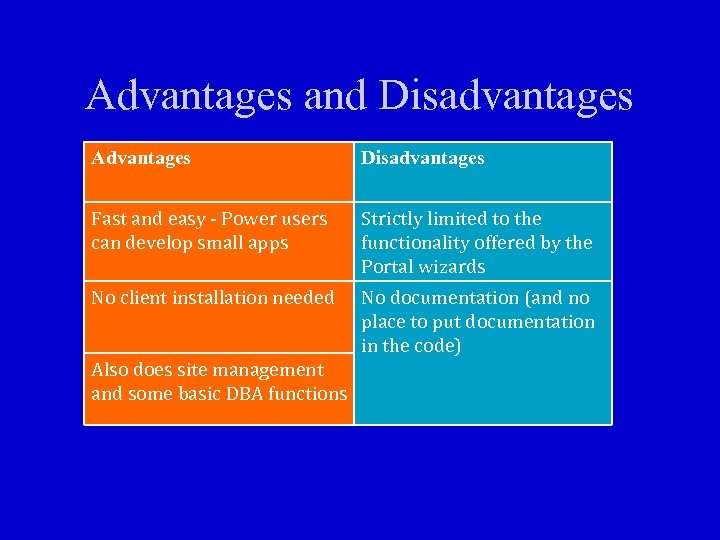

Advantages and Disadvantages Advantages Disadvantages Fast and easy - Power users can develop small apps Strictly limited to the functionality offered by the Portal wizards No client installation needed No documentation (and no place to put documentation in the code) Also does site management and some basic DBA functions

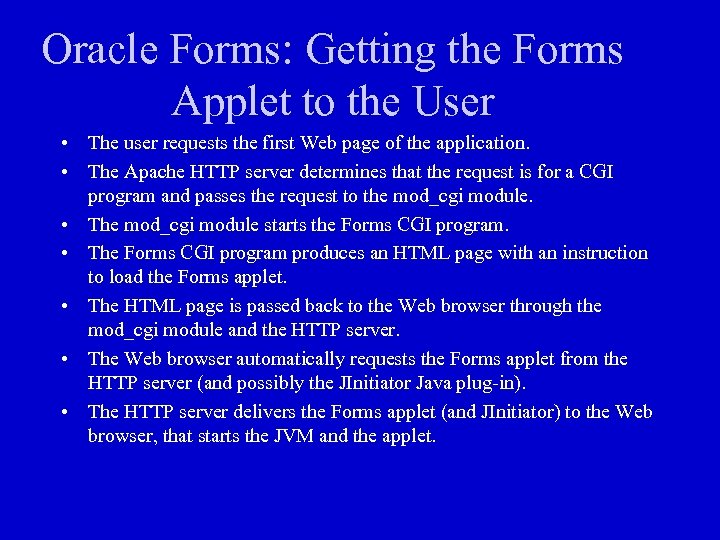

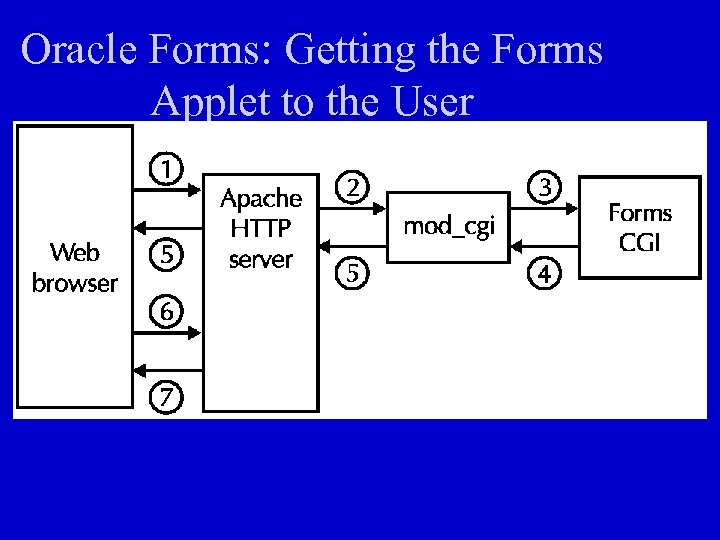

Oracle Forms: Getting the Forms Applet to the User

Oracle Forms: Getting the Forms Applet to the User • The user requests the first Web page of the application. • The Apache HTTP server determines that the request is for a CGI program and passes the request to the mod_cgi module. • The mod_cgi module starts the Forms CGI program. • The Forms CGI program produces an HTML page with an instruction to load the Forms applet. • The HTML page is passed back to the Web browser through the mod_cgi module and the HTTP server. • The Web browser automatically requests the Forms applet from the HTTP server (and possibly the JInitiator Java plug-in). • The HTTP server delivers the Forms applet (and JInitiator) to the Web browser, that starts the JVM and the applet.

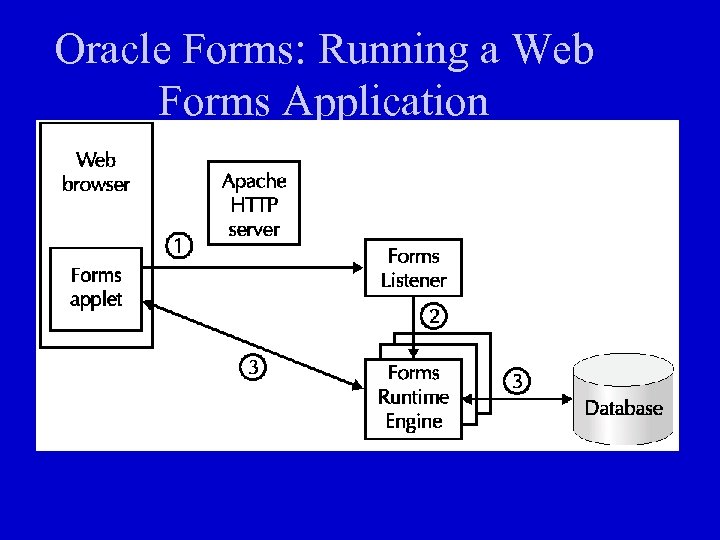

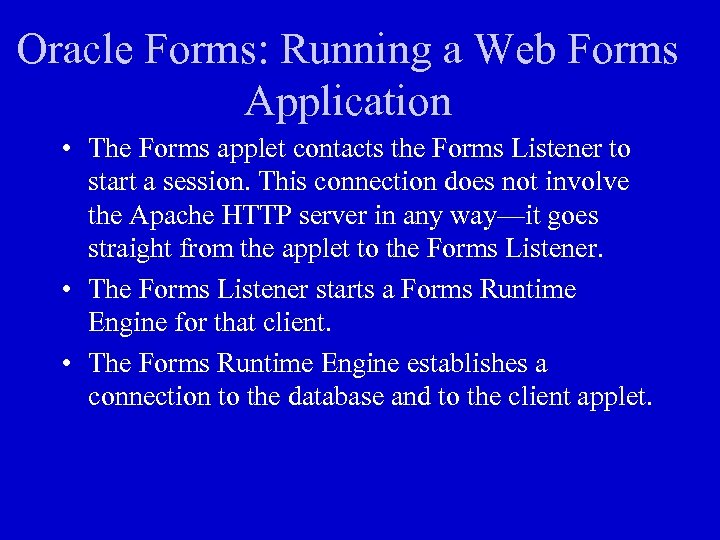

Oracle Forms: Running a Web Forms Application

Oracle Forms: Running a Web Forms Application • The Forms applet contacts the Forms Listener to start a session. This connection does not involve the Apache HTTP server in any way—it goes straight from the applet to the Forms Listener. • The Forms Listener starts a Forms Runtime Engine for that client. • The Forms Runtime Engine establishes a connection to the database and to the client applet.

Advantages and Disadvantages Advantages Disadvantages Full control over the user interface Needs a specific Java Virtual Machine (IE 5 or separate plug-in to download) Leverage existing Forms skills Longer startup time (applet download, JVM initialization) Obvious first migration path Needs more hardware for Client/Server applications (Server: 10+ MB RAM per client, Client: 64+ MB RAM)

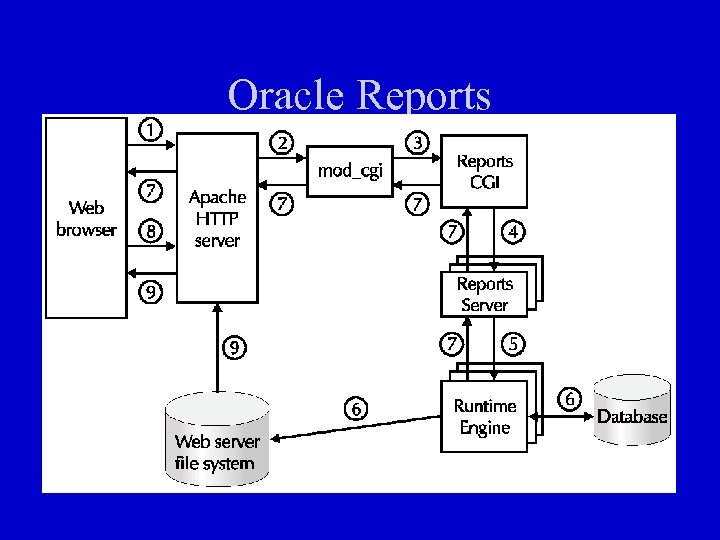

Oracle Reports

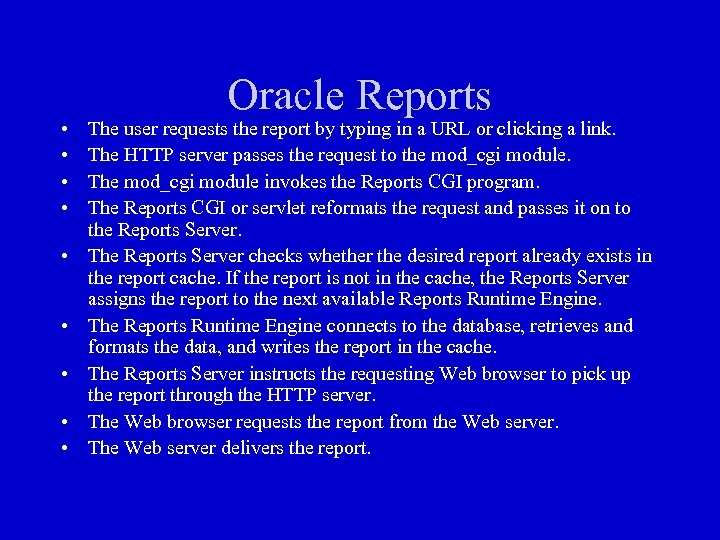

• • • Oracle Reports The user requests the report by typing in a URL or clicking a link. The HTTP server passes the request to the mod_cgi module. The mod_cgi module invokes the Reports CGI program. The Reports CGI or servlet reformats the request and passes it on to the Reports Server. The Reports Server checks whether the desired report already exists in the report cache. If the report is not in the cache, the Reports Server assigns the report to the next available Reports Runtime Engine. The Reports Runtime Engine connects to the database, retrieves and formats the data, and writes the report in the cache. The Reports Server instructs the requesting Web browser to pick up the report through the HTTP server. The Web browser requests the report from the Web server. The Web server delivers the report.

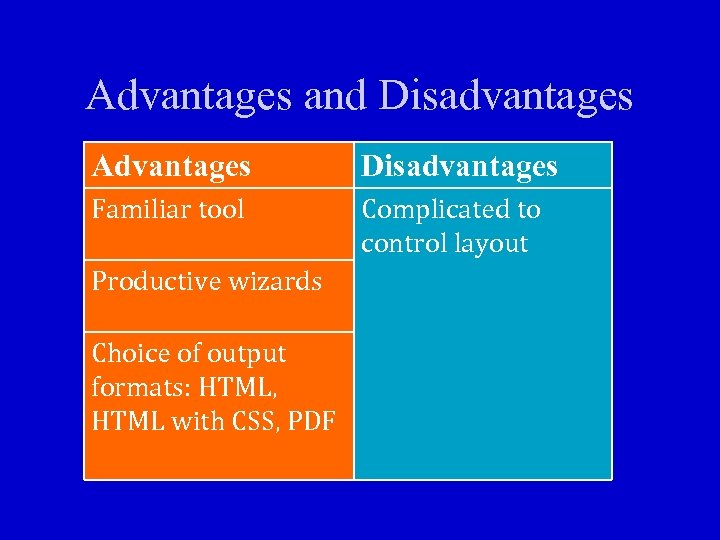

Advantages and Disadvantages Advantages Disadvantages Familiar tool Complicated to control layout Productive wizards Choice of output formats: HTML, HTML with CSS, PDF

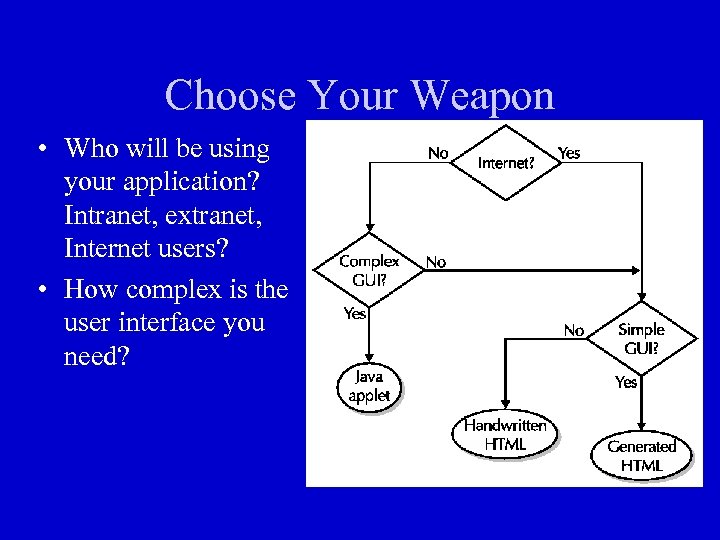

Choose Your Weapon • Who will be using your application? Intranet, extranet, Internet users? • How complex is the user interface you need?

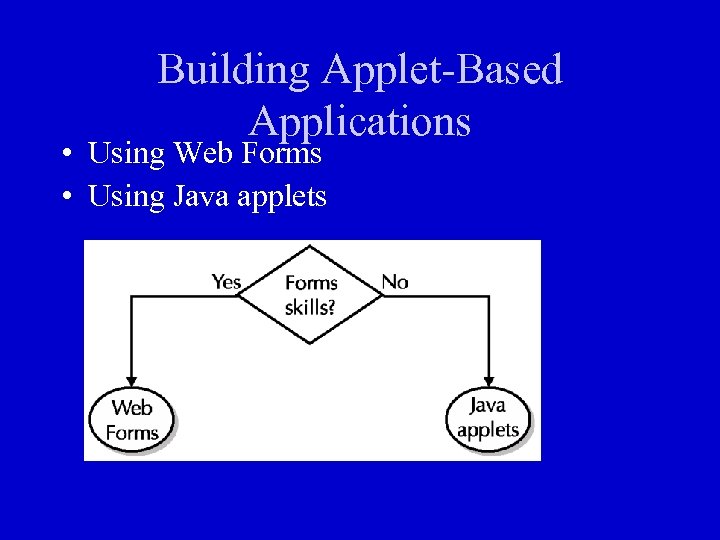

Building Applet-Based Applications • Using Web Forms • Using Java applets

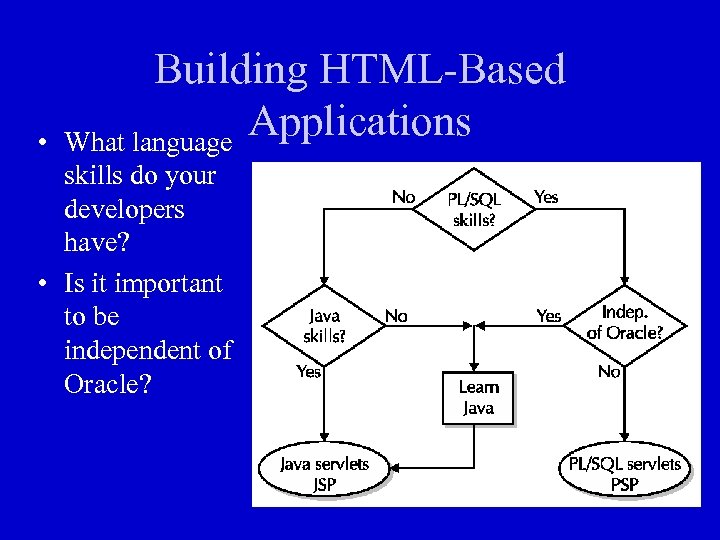

• Building HTML-Based Applications What language skills do your developers have? • Is it important to be independent of Oracle?

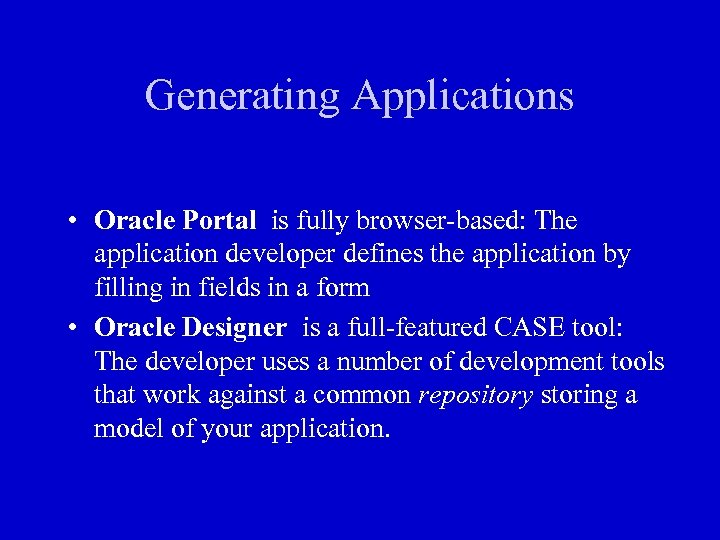

Generating Applications If you can live with the user interface they offer, Oracles codegenerating tools allow much higher developer productivity • Oracle Portal is fully browser-based: The application developer defines the application by filling in fields in a form • Oracle Designer is a full-featured CASE tool: The developer uses a number of development tools that work against a common repository storing a model of your application.

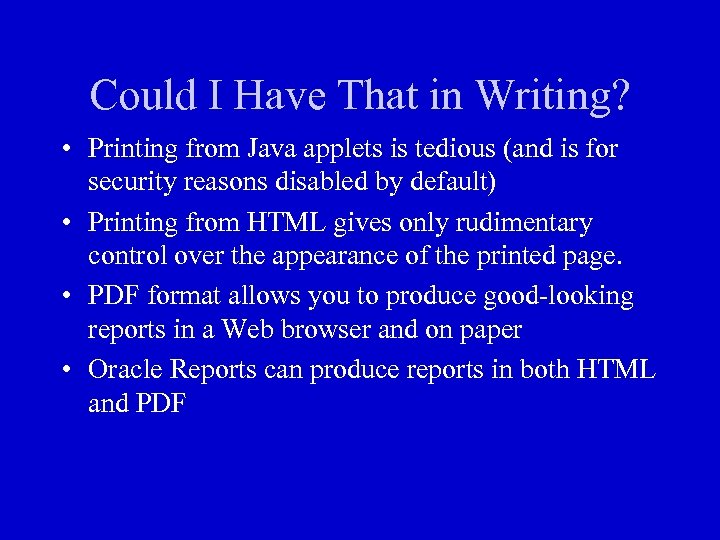

Could I Have That in Writing? • Printing from Java applets is tedious (and is for security reasons disabled by default) • Printing from HTML gives only rudimentary control over the appearance of the printed page. • PDF format allows you to produce good-looking reports in a Web browser and on paper • Oracle Reports can produce reports in both HTML and PDF

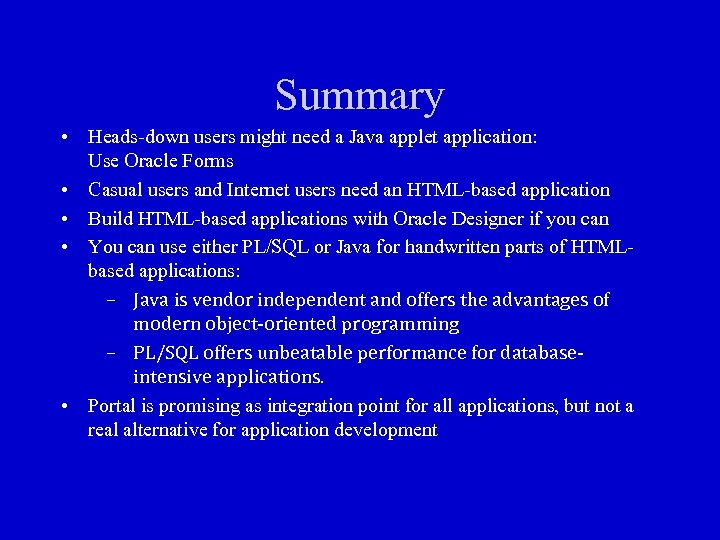

Summary • Heads-down users might need a Java applet application: Use Oracle Forms • Casual users and Internet users need an HTML-based application • Build HTML-based applications with Oracle Designer if you can • You can use either PL/SQL or Java for handwritten parts of HTMLbased applications: – Java is vendor independent and offers the advantages of modern object-oriented programming – PL/SQL offers unbeatable performance for databaseintensive applications. • Portal is promising as integration point for all applications, but not a real alternative for application development

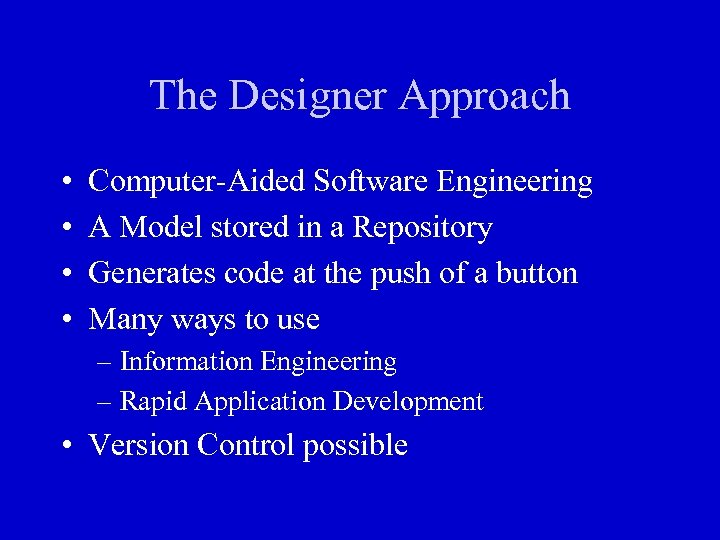

The Designer Approach • • Computer-Aided Software Engineering A Model stored in a Repository Generates code at the push of a button Many ways to use – Information Engineering – Rapid Application Development • Version Control possible

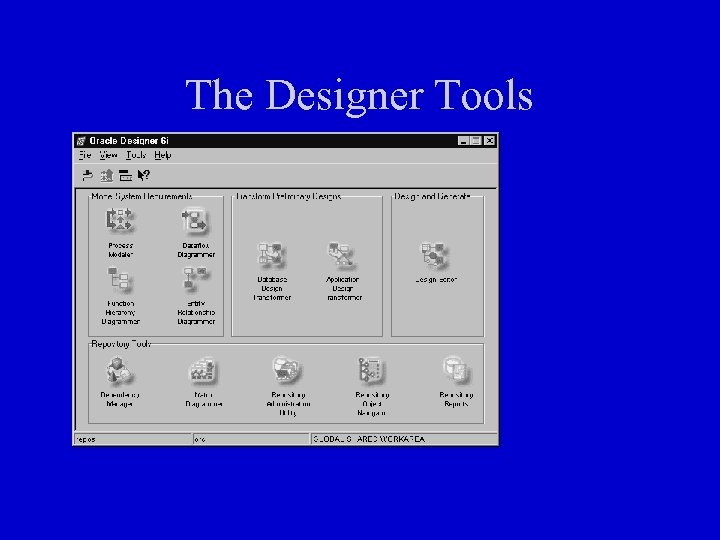

The Designer Tools

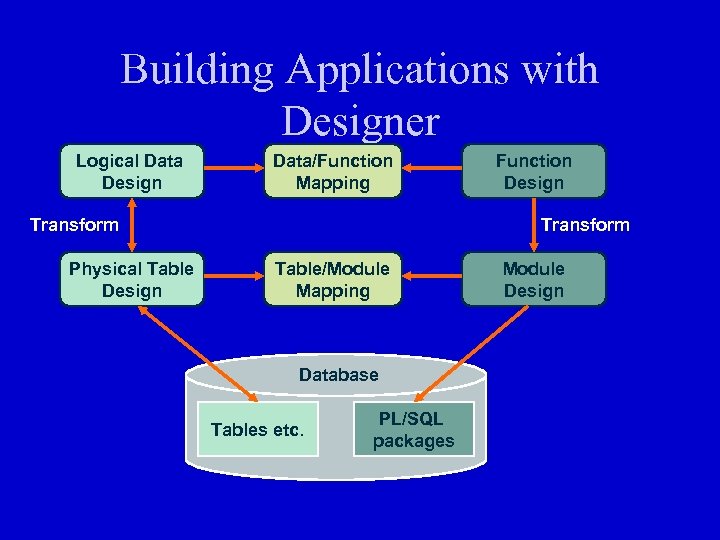

Building Applications with Designer Logical Data Design Data/Function Mapping Transform Physical Table Design Function Design Transform Table/Module Mapping Database Tables etc. PL/SQL packages Module Design

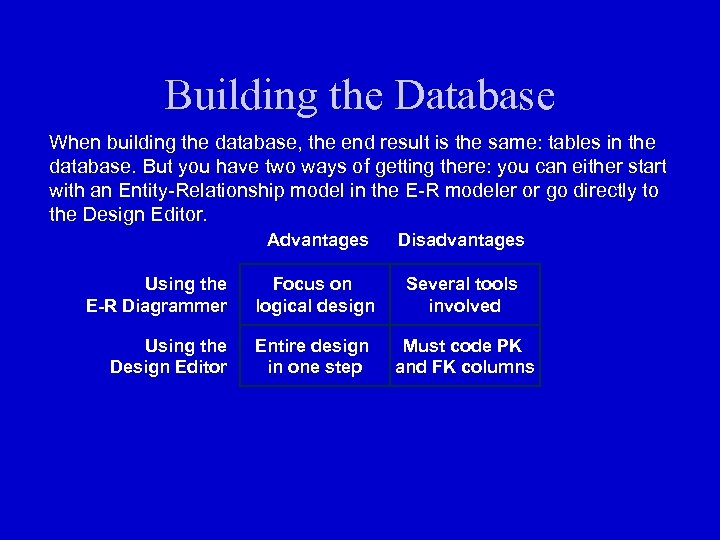

Building the Database When building the database, the end result is the same: tables in the database. But you have two ways of getting there: you can either start with an Entity-Relationship model in the E-R modeler or go directly to the Design Editor. Advantages Using the E-R Diagrammer Using the Design Editor Disadvantages Focus on logical design Several tools involved Entire design in one step Must code PK and FK columns

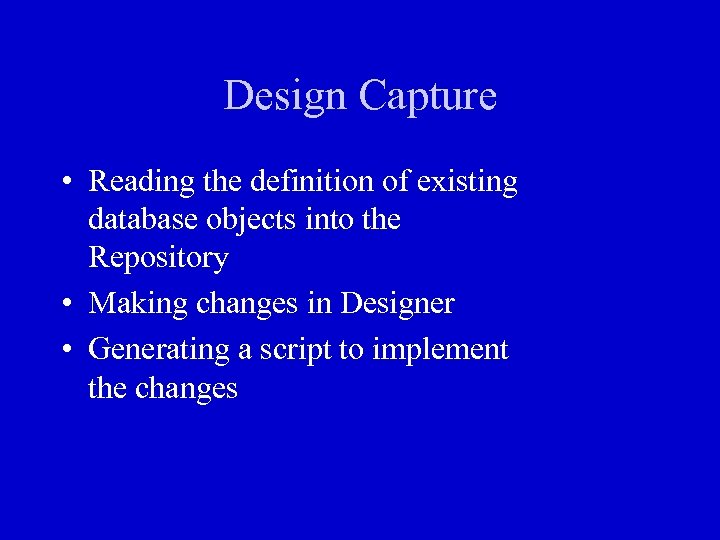

Design Capture • Reading the definition of existing database objects into the Repository • Making changes in Designer • Generating a script to implement the changes

Building an Employee List The hierarchy of objects: • Module Component • Table Usage Context items: The columns appearing on the Record List

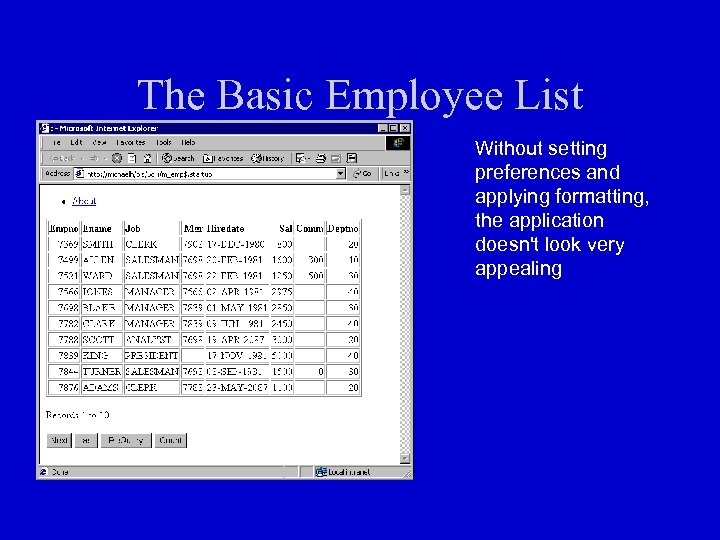

The Basic Employee List Without setting preferences and applying formatting, the application doesn't look very appealing

Important Generator Preferences Name Description Value Comment MODSUB Substitute HTML Reserved Characters No To allow HTML tags in user text MODALR Startup Page: About Page Hyperlink No To remove the About link PKGLST PL/SQL Package List MODSFA Standard Footer on All Pages MODSFT Standard Footer MODSHA Standard Header on All Pages MODSHD Standard Header Format Yes format. page. End Yes The HTML-generating packages recognized by Designer Instruction to use footer A call to the Format package Instruction to use header format. page. Start A call to the Format package ('Module Title')

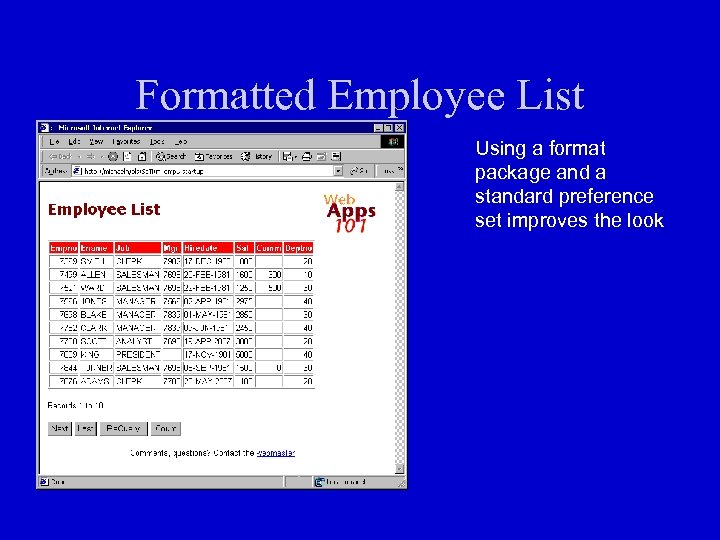

Formatted Employee List Using a format package and a standard preference set improves the look

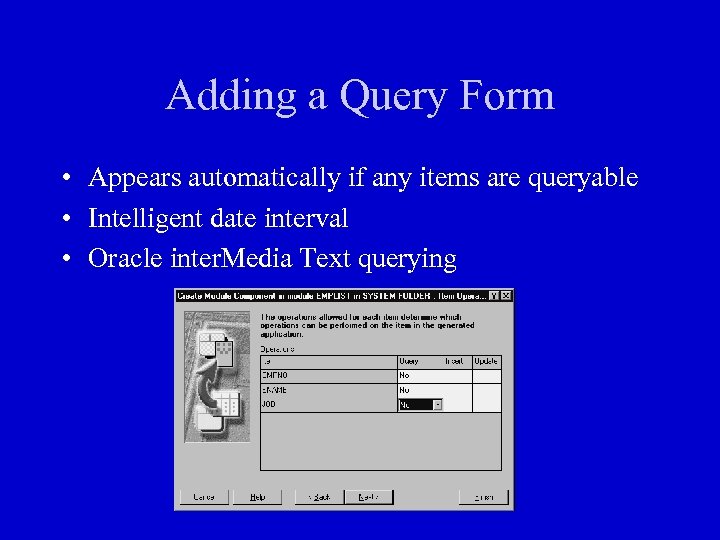

Adding a Query Form • Appears automatically if any items are queryable • Intelligent date interval • Oracle inter. Media Text querying

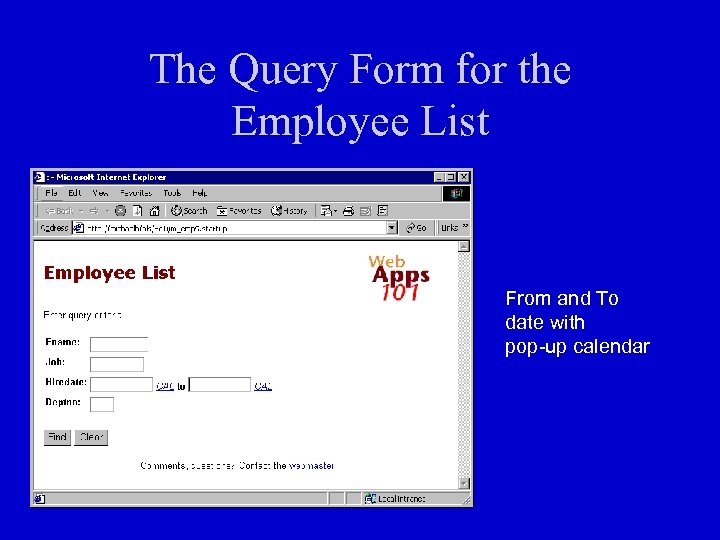

The Query Form for the Employee List From and To date with pop-up calendar

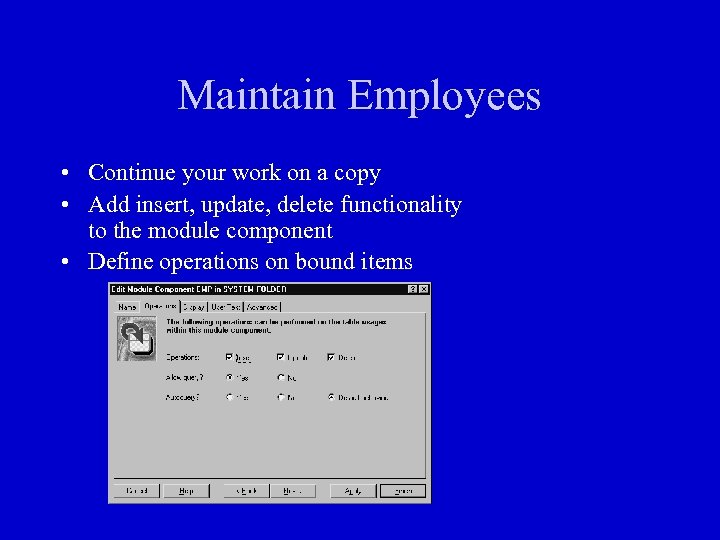

Maintain Employees • Continue your work on a copy • Add insert, update, delete functionality to the module component • Define operations on bound items

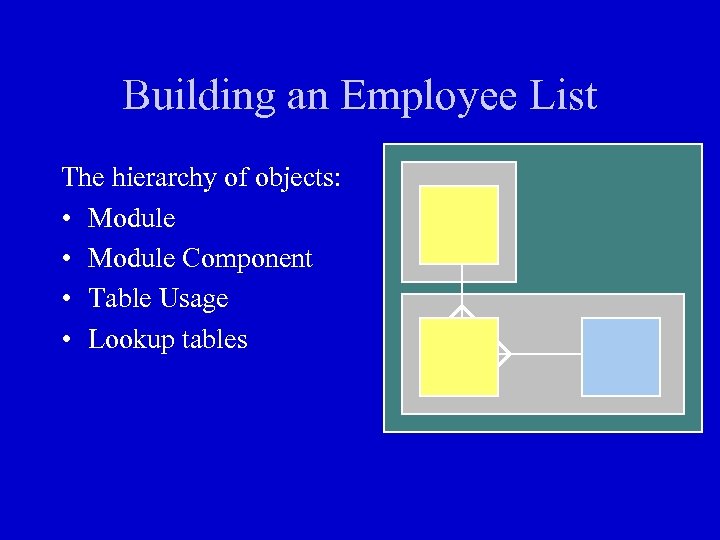

Building an Employee List The hierarchy of objects: • Module Component • Table Usage • Lookup tables

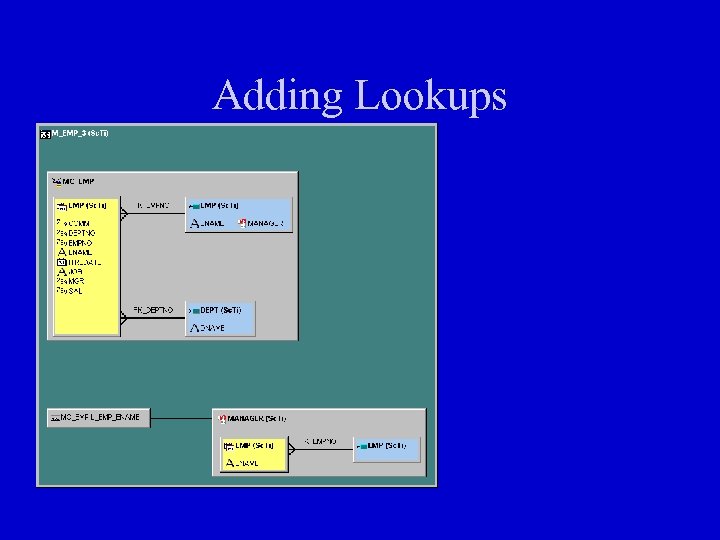

Adding Lookups

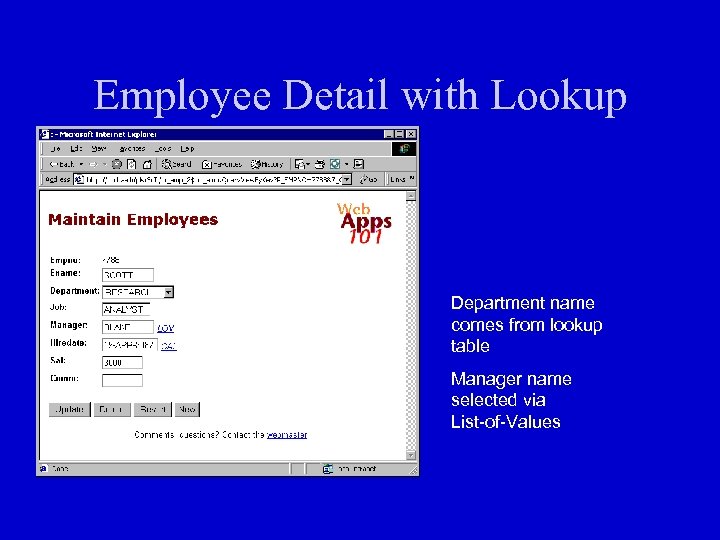

Employee Detail with Lookup Department name comes from lookup table Manager name selected via List-of-Values

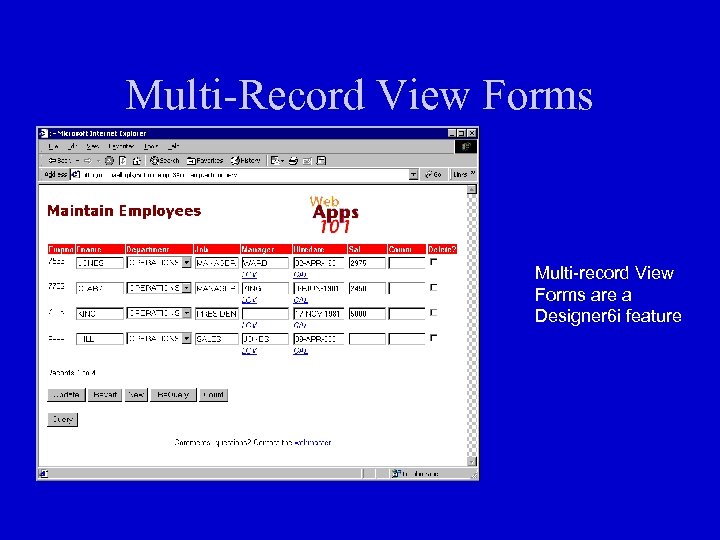

Multi-Record View Forms Multi-record View Forms are a Designer 6 i feature

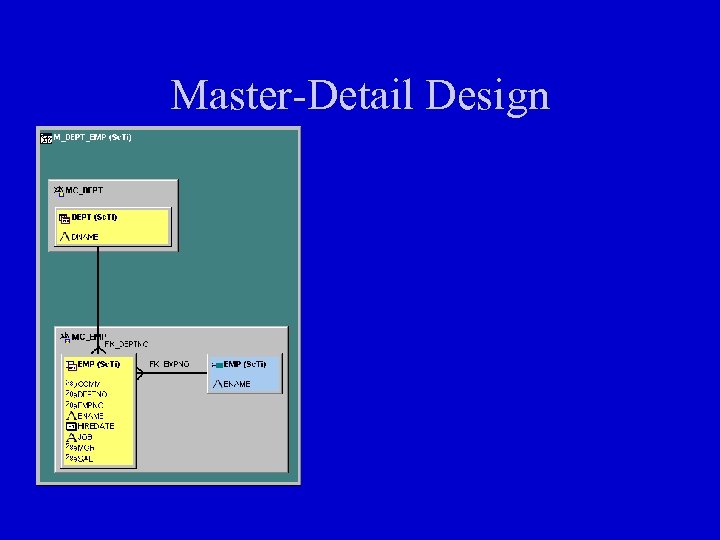

Master-Detail Design

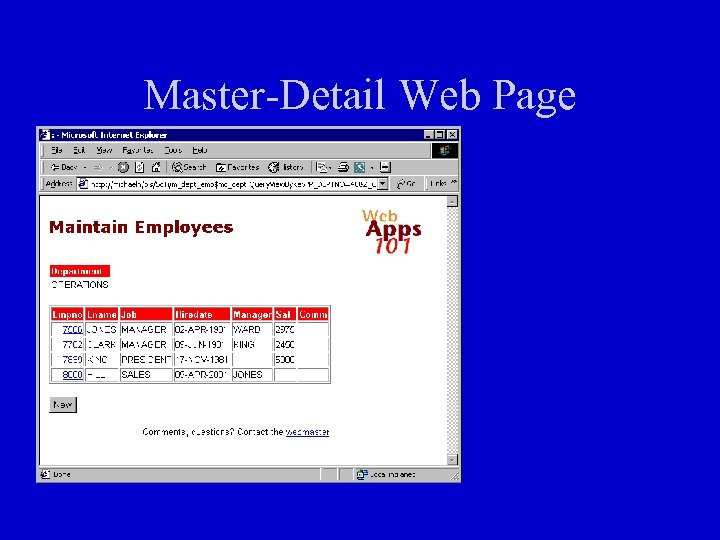

Master-Detail Web Page
