Weather, Climate & General Circulation B. N. Goswami Indian Institute of Tropical Meteorology
Introduction to Observed General Circulation of the Atmosphere or the Climate (the mean condition) Example of Weather producing systems (fluctuating component)

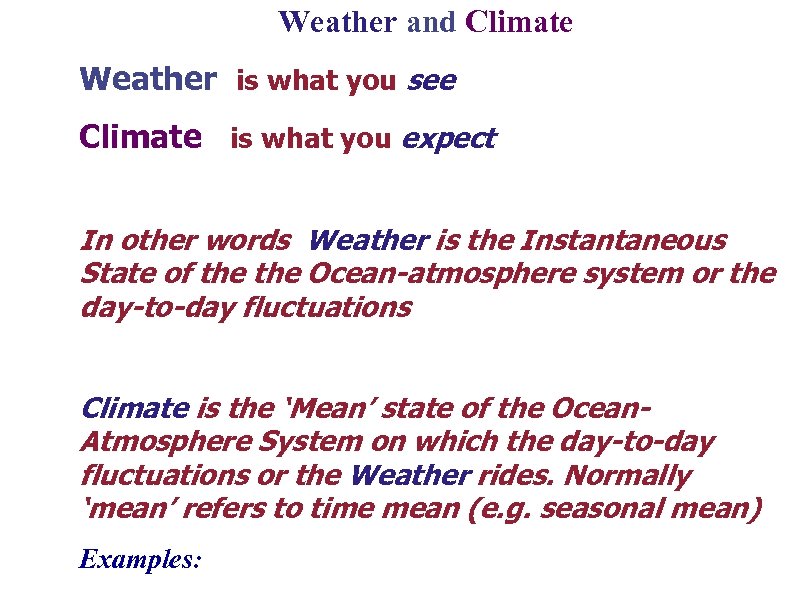

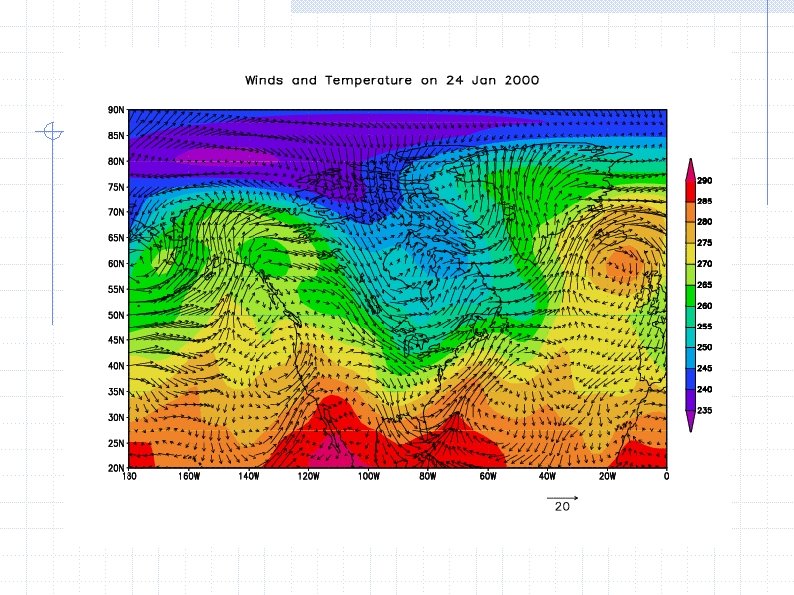

Weather and Climate Weather is what you see Climate is what you expect In other words Weather is the Instantaneous State of the Ocean-atmosphere system or the day-to-day fluctuations Climate is the ‘Mean’ state of the Ocean. Atmosphere System on which the day-to-day fluctuations or the Weather rides. Normally ‘mean’ refers to time mean (e. g. seasonal mean) Examples:

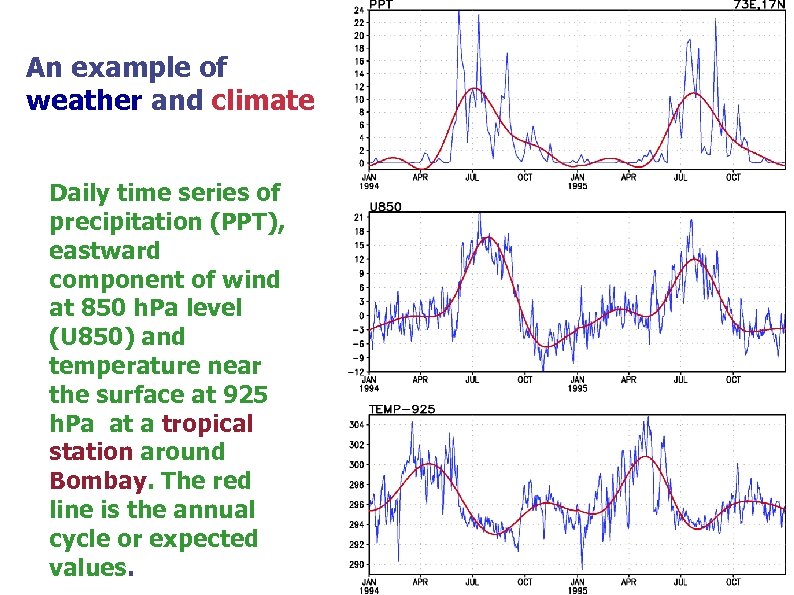

An example of weather and climate Daily time series of precipitation (PPT), eastward component of wind at 850 h. Pa level (U 850) and temperature near the surface at 925 h. Pa at a tropical station around Bombay. The red line is the annual cycle or expected values.

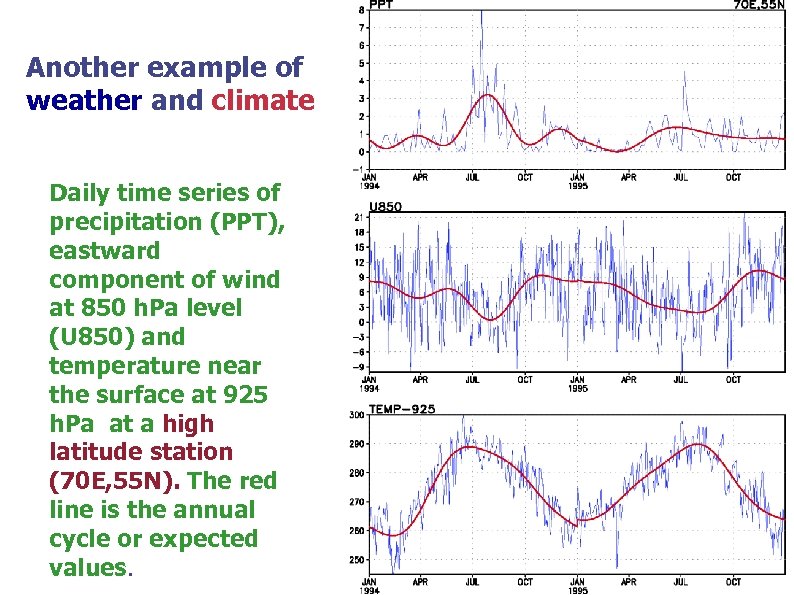

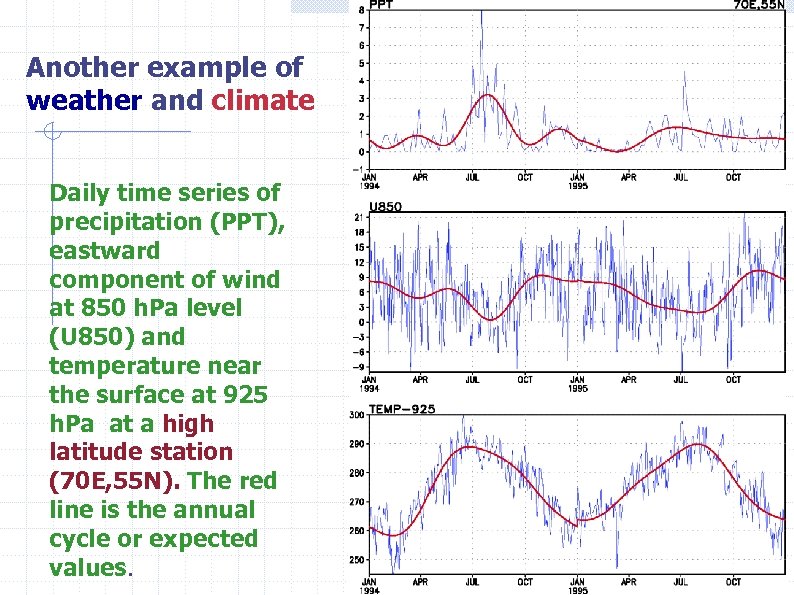

Another example of weather and climate Daily time series of precipitation (PPT), eastward component of wind at 850 h. Pa level (U 850) and temperature near the surface at 925 h. Pa at a high latitude station (70 E, 55 N). The red line is the annual cycle or expected values.
Fig. 5: Polar stereographic projection of geopotential height at 500 h. Pa in the NH on a typical day. The large scale waves with wavelength 3000 -4000 km are seen.

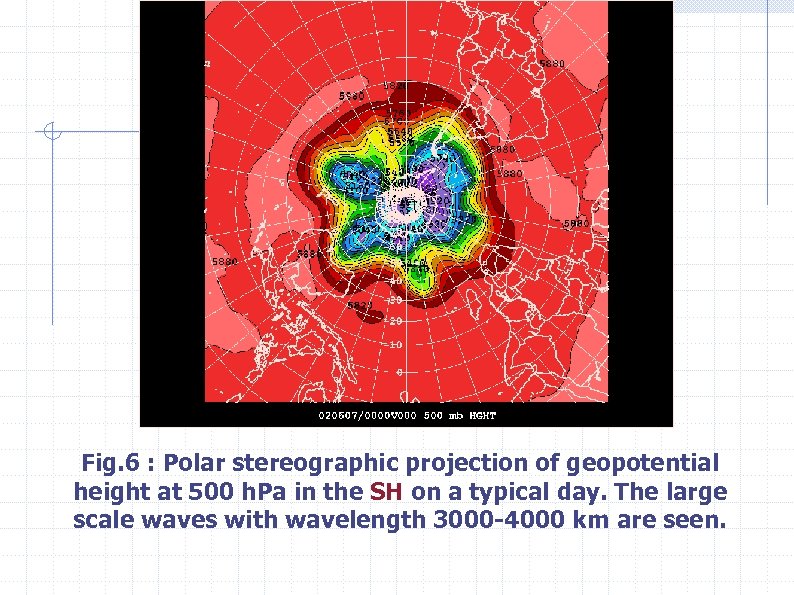

Fig. 6 : Polar stereographic projection of geopotential height at 500 h. Pa in the SH on a typical day. The large scale waves with wavelength 3000 -4000 km are seen.
An example of long waves in the middle latitude westerlies

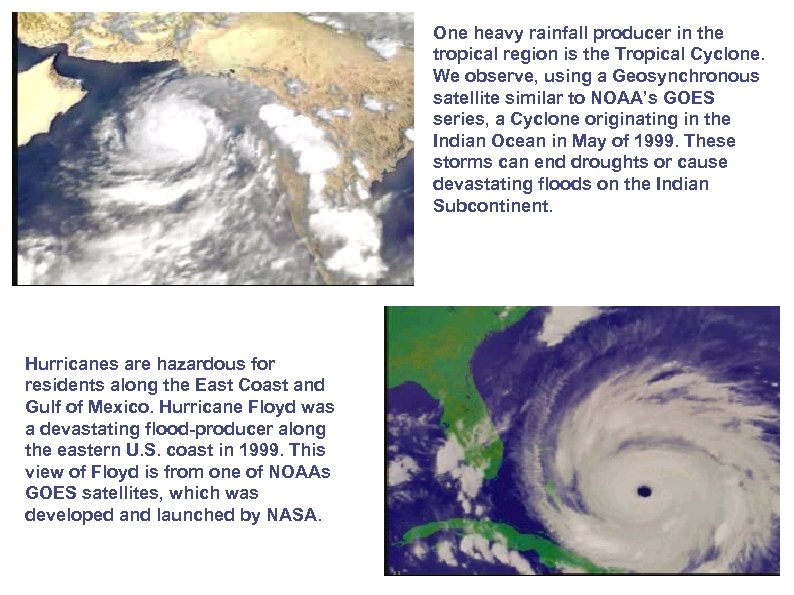

One heavy rainfall producer in the tropical region is the Tropical Cyclone. We observe, using a Geosynchronous satellite similar to NOAA’s GOES series, a Cyclone originating in the Indian Ocean in May of 1999. These storms can end droughts or cause devastating floods on the Indian Subcontinent. Hurricanes are hazardous for residents along the East Coast and Gulf of Mexico. Hurricane Floyd was a devastating flood-producer along the eastern U. S. coast in 1999. This view of Floyd is from one of NOAAs GOES satellites, which was developed and launched by NASA.
Another ex. of Weather in the tropics: A Low Pressure System on the ITCZ gives copious rain in Rajasthan-Gujarat, 5 -8 -04 IR picture from METEOSAT at 18 UTC 05 -08 -2004
Meteosat cloud picture of June 09, 2008. Weather Vortices on the ITCZ
Daily surface water temp as measured by satellite

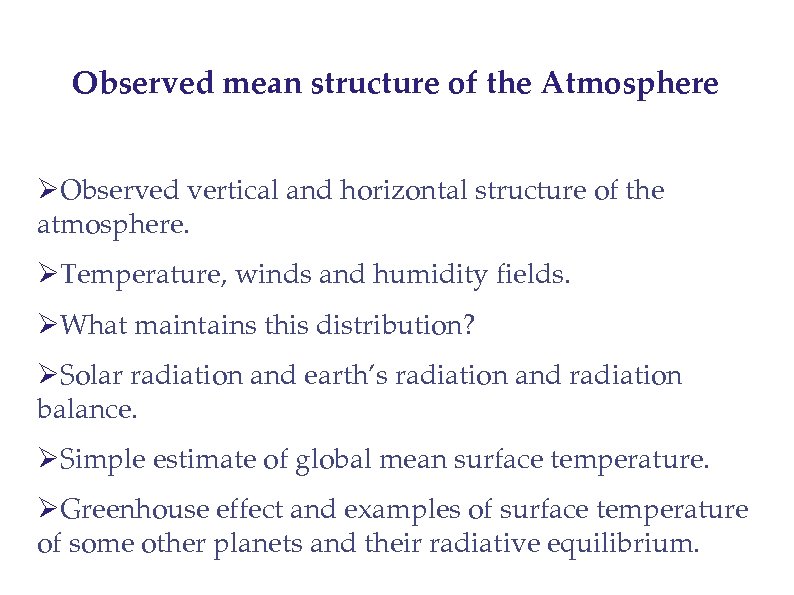

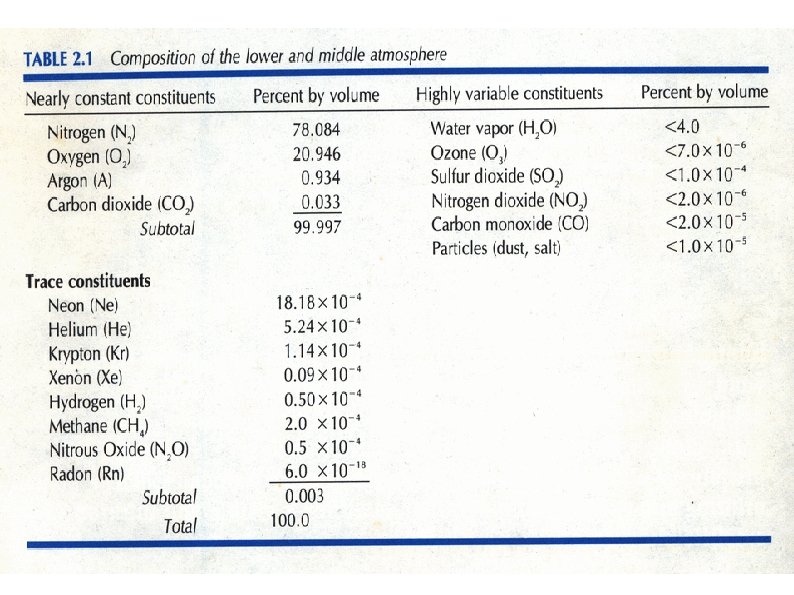

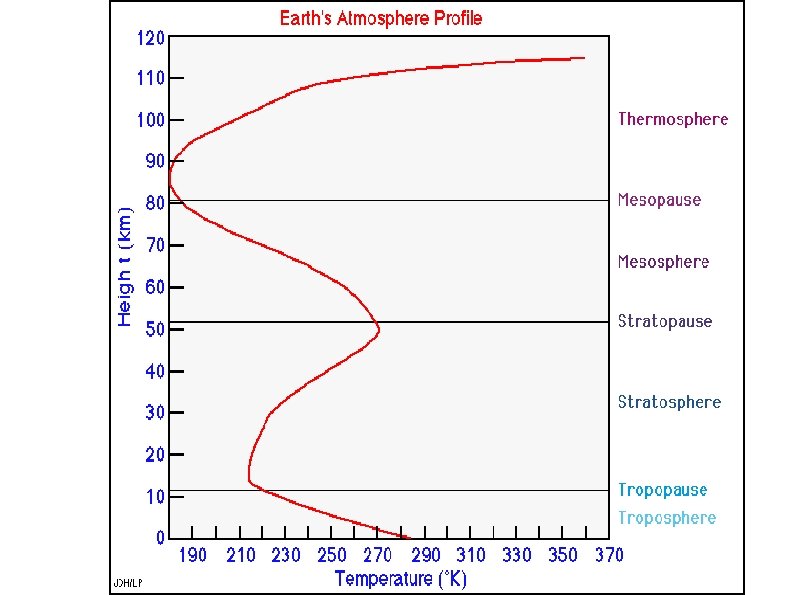

Observed mean structure of the Atmosphere ØObserved vertical and horizontal structure of the atmosphere. ØTemperature, winds and humidity fields. ØWhat maintains this distribution? ØSolar radiation and earth’s radiation and radiation balance. ØSimple estimate of global mean surface temperature. ØGreenhouse effect and examples of surface temperature of some other planets and their radiative equilibrium.

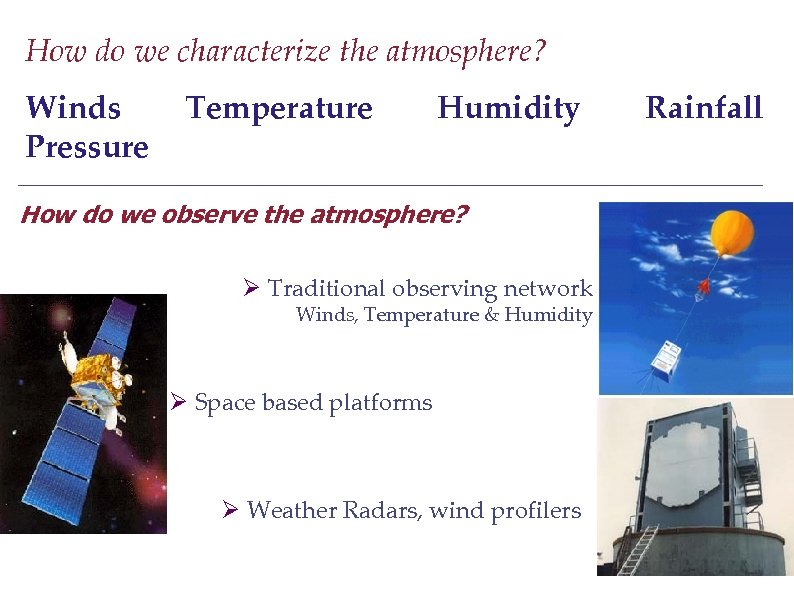

How do we characterize the atmosphere? Winds Pressure Temperature Humidity How do we observe the atmosphere? Ø Traditional observing network Winds, Temperature & Humidity Ø Space based platforms Ø Weather Radars, wind profilers Rainfall
From a network of roughly 900 upper-air stations, radiosondes, attached to free-rising balloons, make measurements of pressure, wind velocity, temperature and humidity from just above ground to heights of up to 30 km. Over two thirds of the stations make observations at 0000 UTC and 1200 UTC. Between 100 and 200 stations make observations once per day, while about 100 have "temporarily" suspended operations. In ocean areas, radiosonde observations are taken by 15 ships, which mainly ply the North Atlantic, fitted with automated shipboard upper-air sounding facilities.

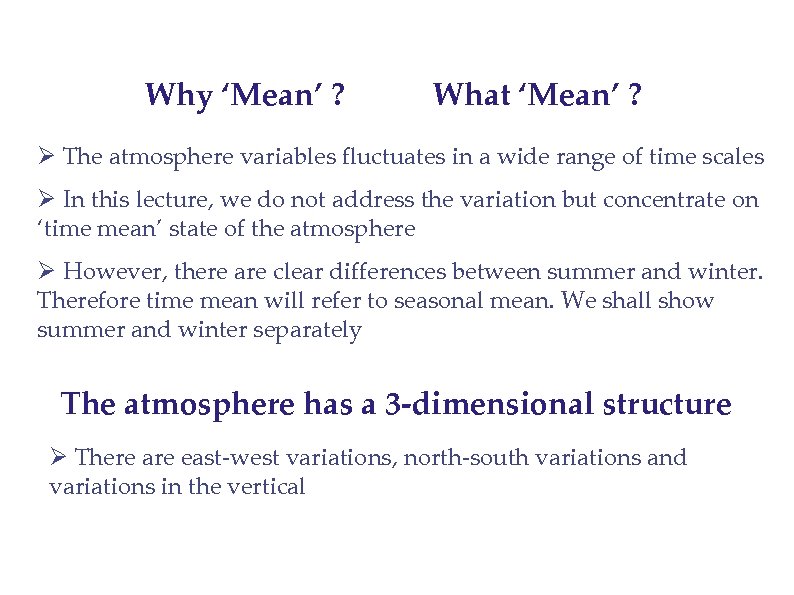

Why ‘Mean’ ? What ‘Mean’ ? Ø The atmosphere variables fluctuates in a wide range of time scales Ø In this lecture, we do not address the variation but concentrate on ‘time mean’ state of the atmosphere Ø However, there are clear differences between summer and winter. Therefore time mean will refer to seasonal mean. We shall show summer and winter separately The atmosphere has a 3 -dimensional structure Ø There are east-west variations, north-south variations and variations in the vertical
Another example of weather and climate Daily time series of precipitation (PPT), eastward component of wind at 850 h. Pa level (U 850) and temperature near the surface at 925 h. Pa at a high latitude station (70 E, 55 N). The red line is the annual cycle or expected values.

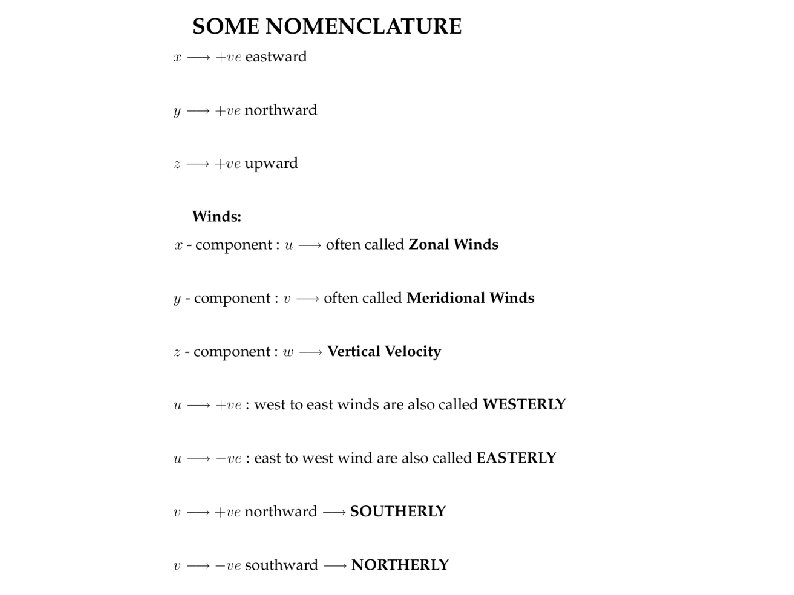

Long term mean seasonal average vector winds during NH winter (DJF) and summer (JJA) at the surface. This is based on 40 years of NCEP/NCAR reanalysis. Colors indicate wind magnitude. Easterlies in the tropics and westerlies in the middle latitudes may be noted. Reversal of winds between the two seasons over the monsoon regions is seen.

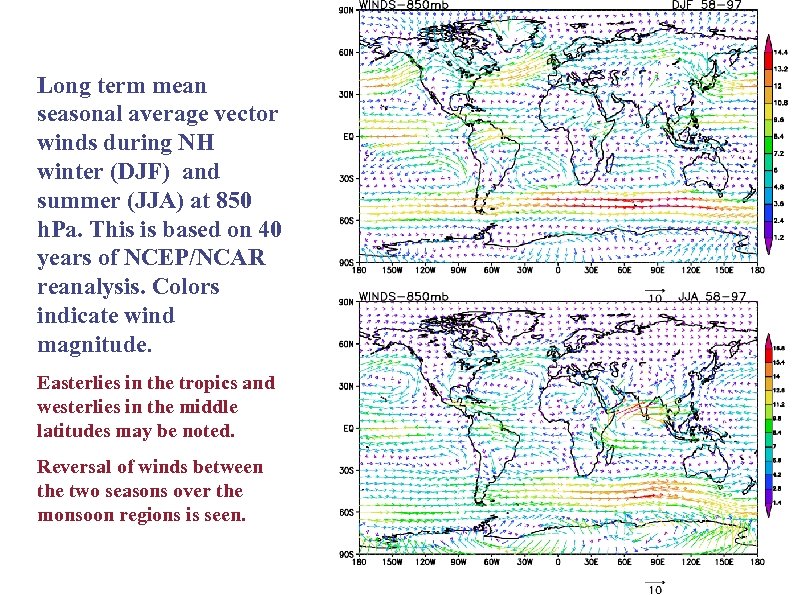

Long term mean seasonal average vector winds during NH winter (DJF) and summer (JJA) at 850 h. Pa. This is based on 40 years of NCEP/NCAR reanalysis. Colors indicate wind magnitude. Easterlies in the tropics and westerlies in the middle latitudes may be noted. Reversal of winds between the two seasons over the monsoon regions is seen.

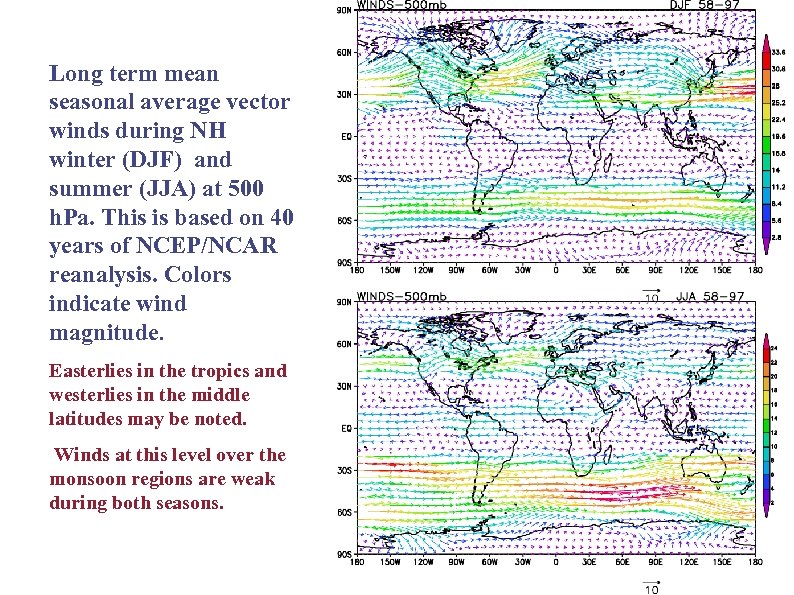

Long term mean seasonal average vector winds during NH winter (DJF) and summer (JJA) at 500 h. Pa. This is based on 40 years of NCEP/NCAR reanalysis. Colors indicate wind magnitude. Easterlies in the tropics and westerlies in the middle latitudes may be noted. Winds at this level over the monsoon regions are weak during both seasons.

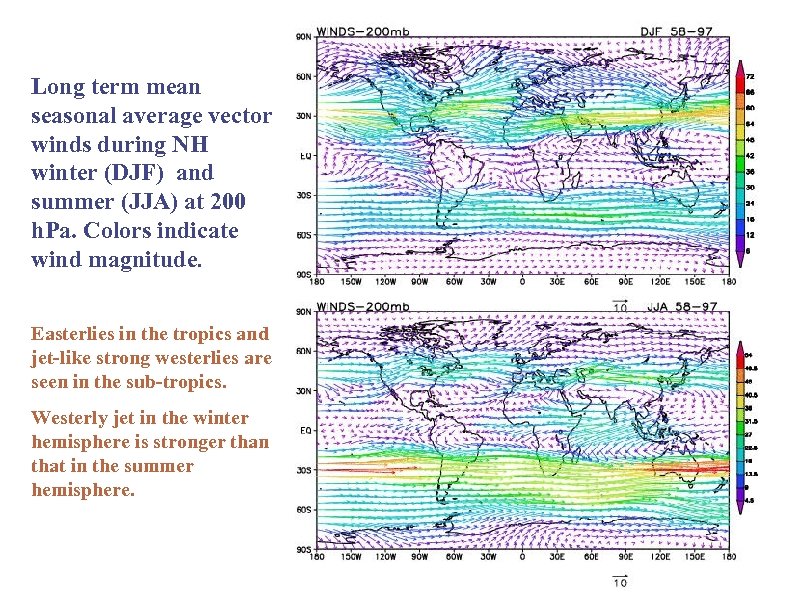

Long term mean seasonal average vector winds during NH winter (DJF) and summer (JJA) at 200 h. Pa. Colors indicate wind magnitude. Easterlies in the tropics and jet-like strong westerlies are seen in the sub-tropics. Westerly jet in the winter hemisphere is stronger than that in the summer hemisphere.

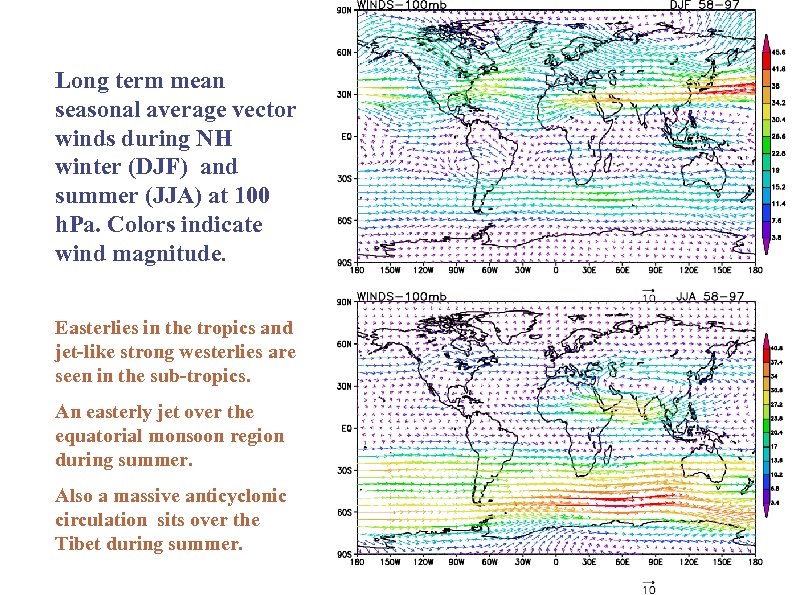

Long term mean seasonal average vector winds during NH winter (DJF) and summer (JJA) at 100 h. Pa. Colors indicate wind magnitude. Easterlies in the tropics and jet-like strong westerlies are seen in the sub-tropics. An easterly jet over the equatorial monsoon region during summer. Also a massive anticyclonic circulation sits over the Tibet during summer.

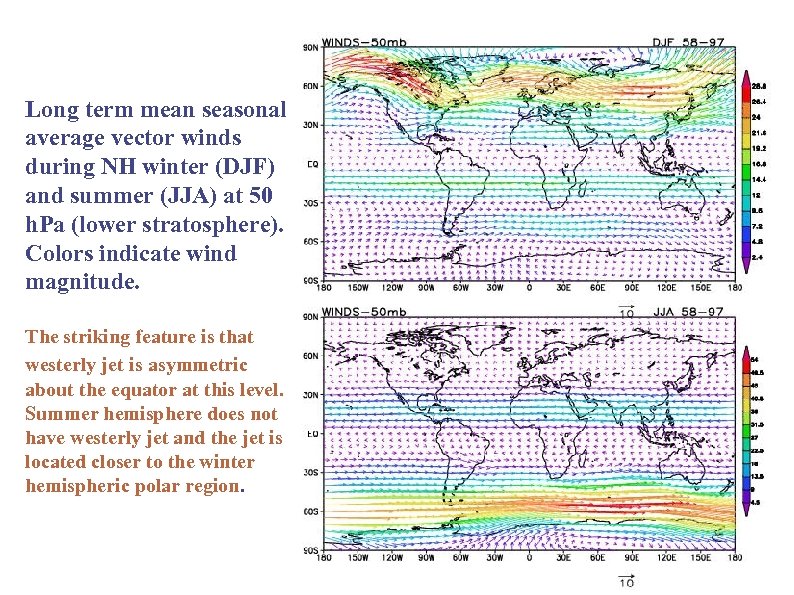

Long term mean seasonal average vector winds during NH winter (DJF) and summer (JJA) at 50 h. Pa (lower stratosphere). Colors indicate wind magnitude. The striking feature is that westerly jet is asymmetric about the equator at this level. Summer hemisphere does not have westerly jet and the jet is located closer to the winter hemispheric polar region.

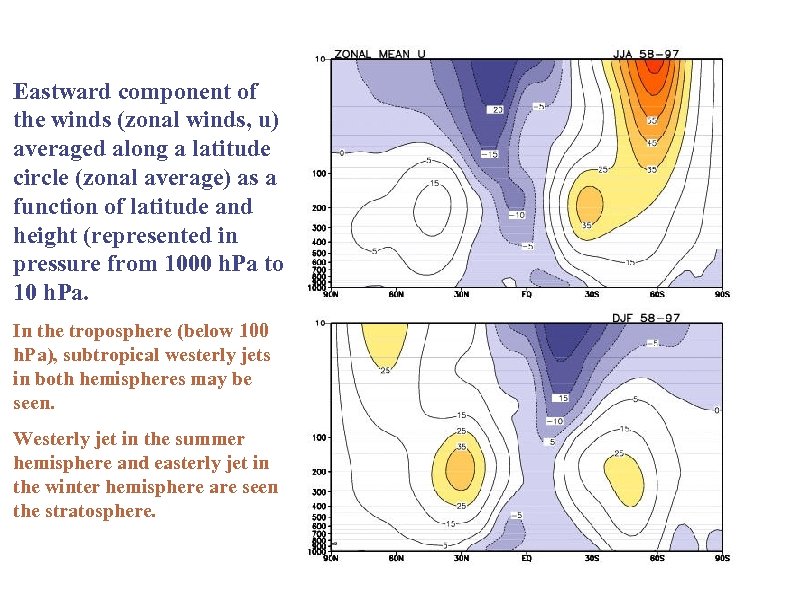

Eastward component of the winds (zonal winds, u) averaged along a latitude circle (zonal average) as a function of latitude and height (represented in pressure from 1000 h. Pa to 10 h. Pa. In the troposphere (below 100 h. Pa), subtropical westerly jets in both hemispheres may be seen. Westerly jet in the summer hemisphere and easterly jet in the winter hemisphere are seen the stratosphere.
Long term mean seasonal average temperature (K) during NH winter (DJF) and summer (JJA) at the surface. This is based on 40 years of NCEP/NCAR reanalysis. In the tropics (between 30 S and 30 N), latitudinal variations of temp. is very weak. It is rapid in the middle latitude. The equator-to-pole temp. difference is around 60 K (40 K)in winter (summer) hemisphere.
Long term mean seasonal average temperature (K) during NH winter (DJF) and summer (JJA) at 850 h. Pa. Similar to that at surface but the magnitude has decreased. The wave like structure of Temp. contours in NH winter (DJF) is due to land-ocean contrasts.

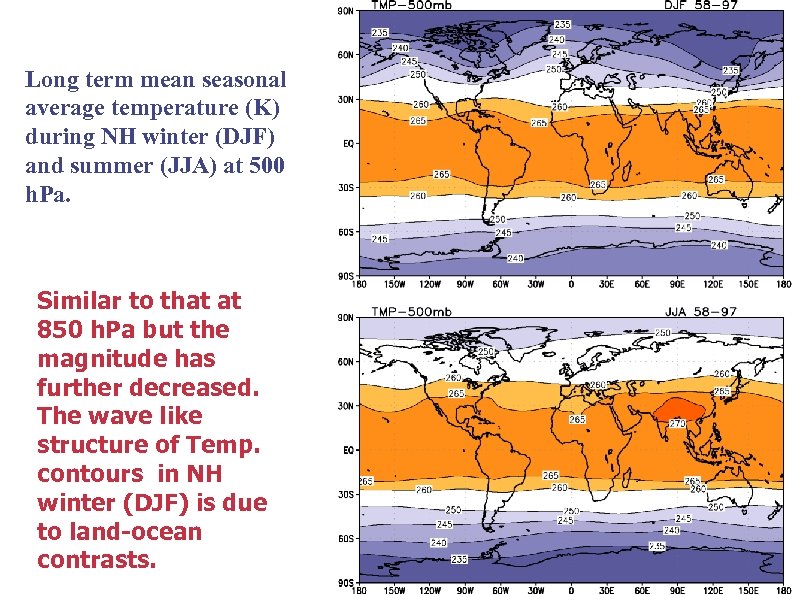

Long term mean seasonal average temperature (K) during NH winter (DJF) and summer (JJA) at 500 h. Pa. Similar to that at 850 h. Pa but the magnitude has further decreased. The wave like structure of Temp. contours in NH winter (DJF) is due to land-ocean contrasts.

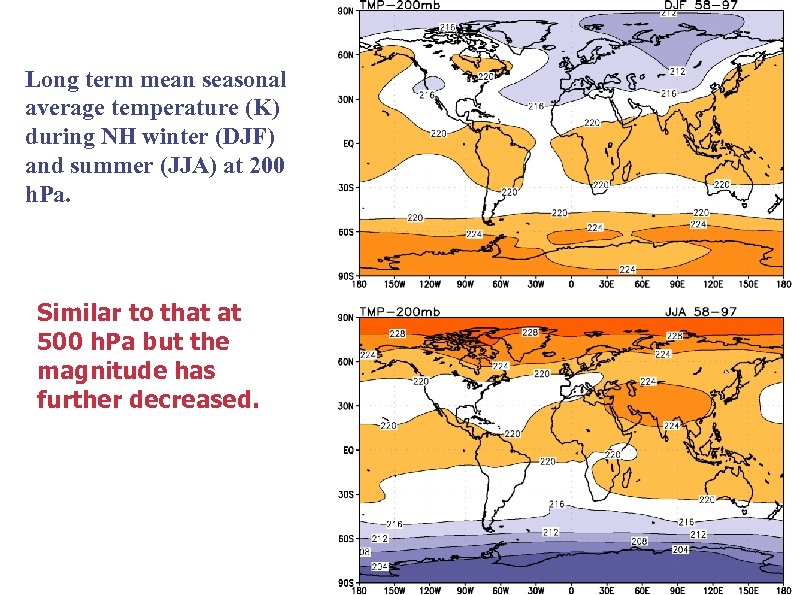

Long term mean seasonal average temperature (K) during NH winter (DJF) and summer (JJA) at 200 h. Pa. Similar to that at 500 h. Pa but the magnitude has further decreased.

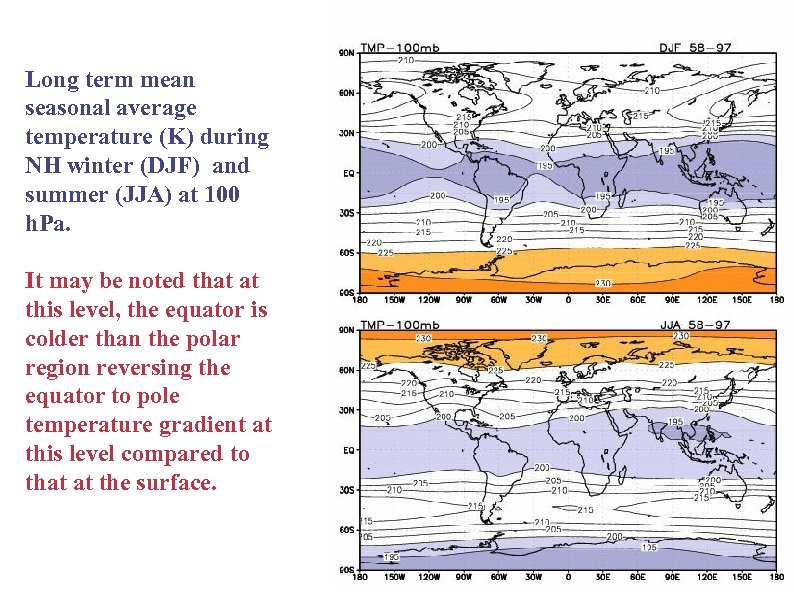

Long term mean seasonal average temperature (K) during NH winter (DJF) and summer (JJA) at 100 h. Pa. It may be noted that at this level, the equator is colder than the polar region reversing the equator to pole temperature gradient at this level compared to that at the surface.

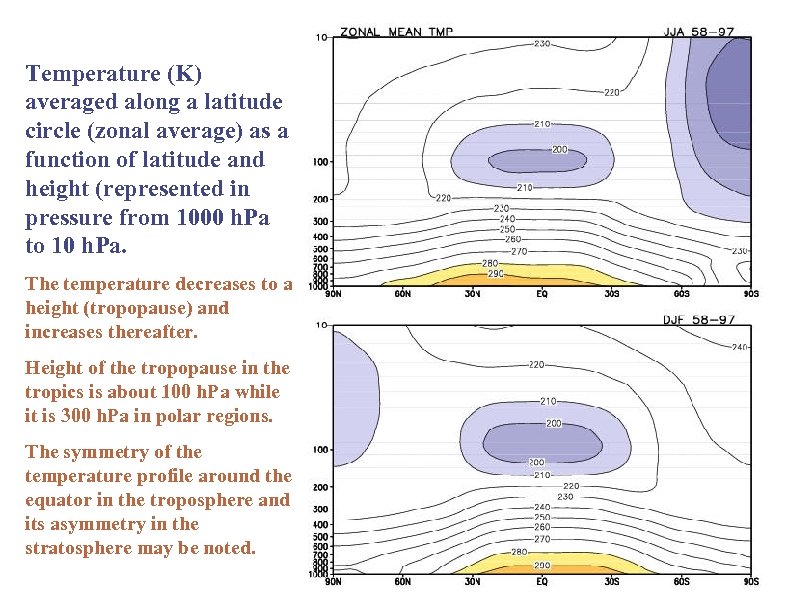

Temperature (K) averaged along a latitude circle (zonal average) as a function of latitude and height (represented in pressure from 1000 h. Pa to 10 h. Pa. The temperature decreases to a height (tropopause) and increases thereafter. Height of the tropopause in the tropics is about 100 h. Pa while it is 300 h. Pa in polar regions. The symmetry of the temperature profile around the equator in the troposphere and its asymmetry in the stratosphere may be noted.

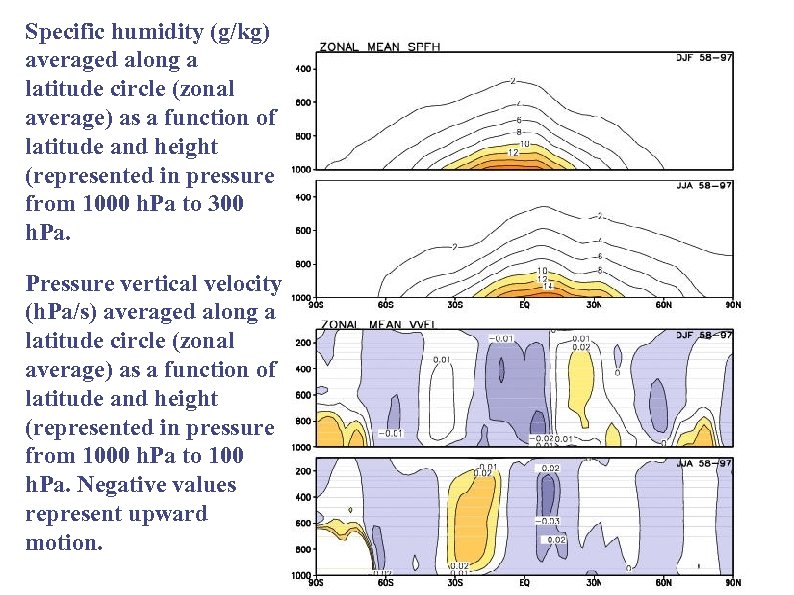

Specific humidity (g/kg) averaged along a latitude circle (zonal average) as a function of latitude and height (represented in pressure from 1000 h. Pa to 300 h. Pa. Pressure vertical velocity (h. Pa/s) averaged along a latitude circle (zonal average) as a function of latitude and height (represented in pressure from 1000 h. Pa to 100 h. Pa. Negative values represent upward motion.
How is a three cell meridional structure is maintained?

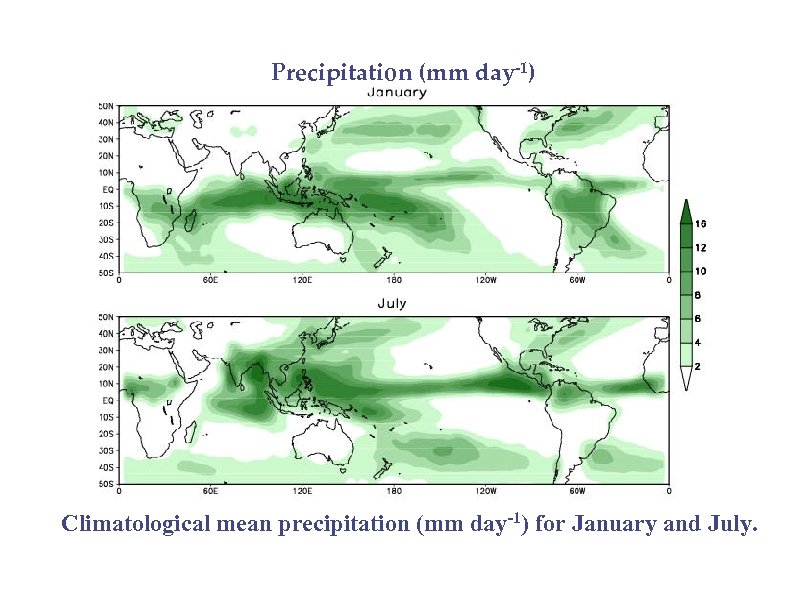

Precipitation (mm day-1) Climatological mean precipitation (mm day-1) for January and July.

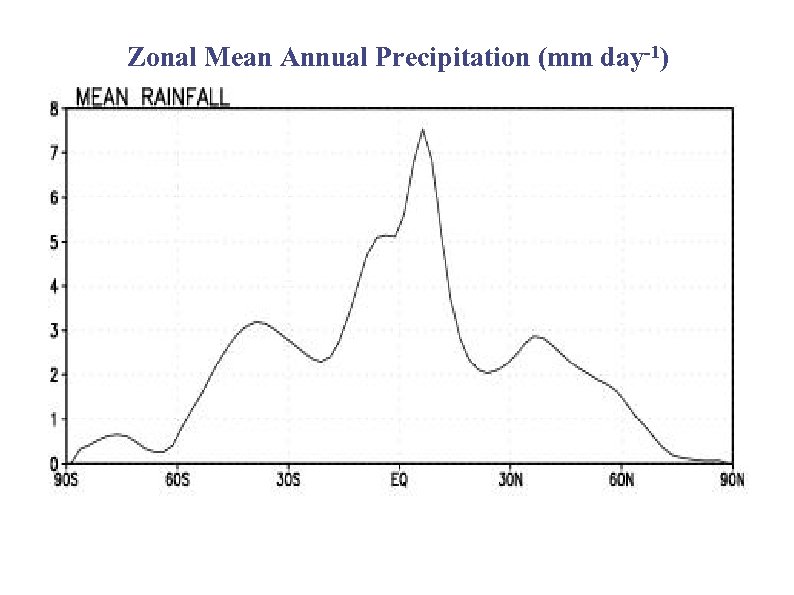

Zonal Mean Annual Precipitation (mm day-1)

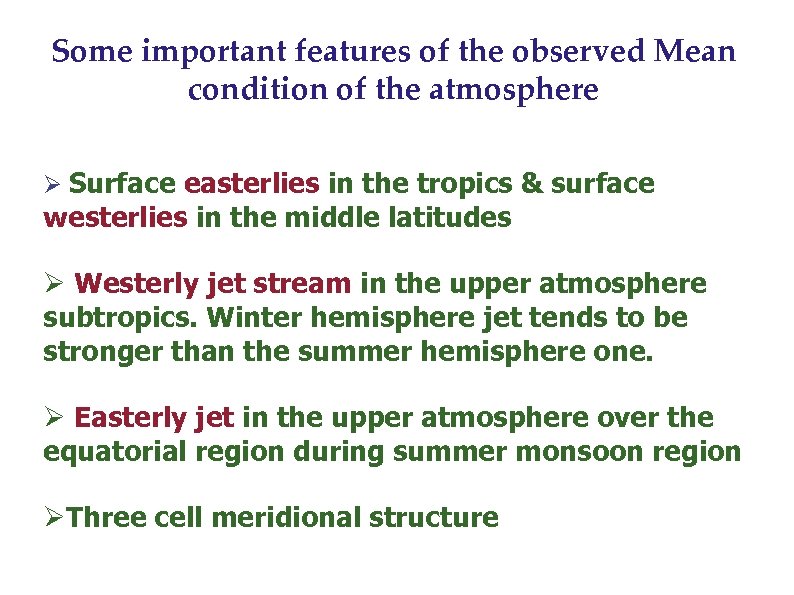

Some important features of the observed Mean condition of the atmosphere Ø Surface easterlies in the tropics & surface westerlies in the middle latitudes Ø Westerly jet stream in the upper atmosphere subtropics. Winter hemisphere jet tends to be stronger than the summer hemisphere one. Ø Easterly jet in the upper atmosphere over the equatorial region during summer monsoon region ØThree cell meridional structure

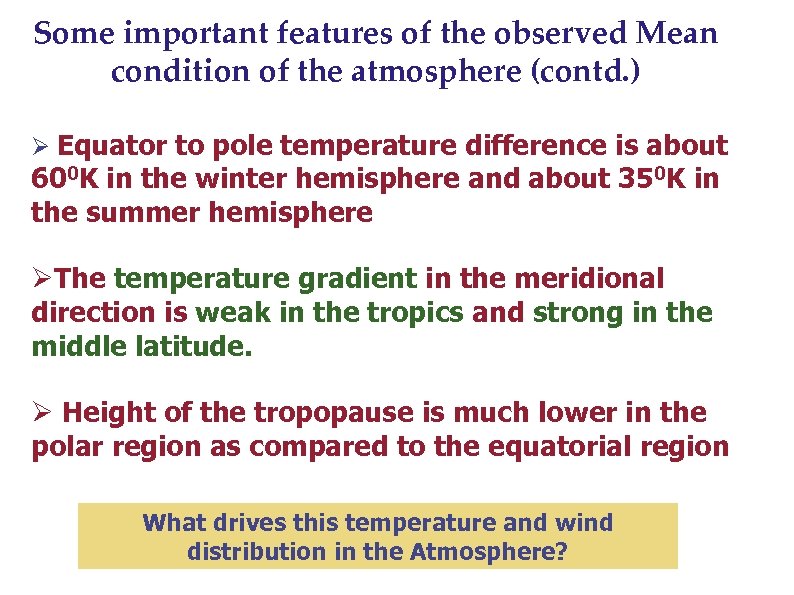

Some important features of the observed Mean condition of the atmosphere (contd. ) Ø Equator to pole temperature difference is about 600 K in the winter hemisphere and about 350 K in the summer hemisphere ØThe temperature gradient in the meridional direction is weak in the tropics and strong in the middle latitude. Ø Height of the tropopause is much lower in the polar region as compared to the equatorial region What drives this temperature and wind distribution in the Atmosphere?

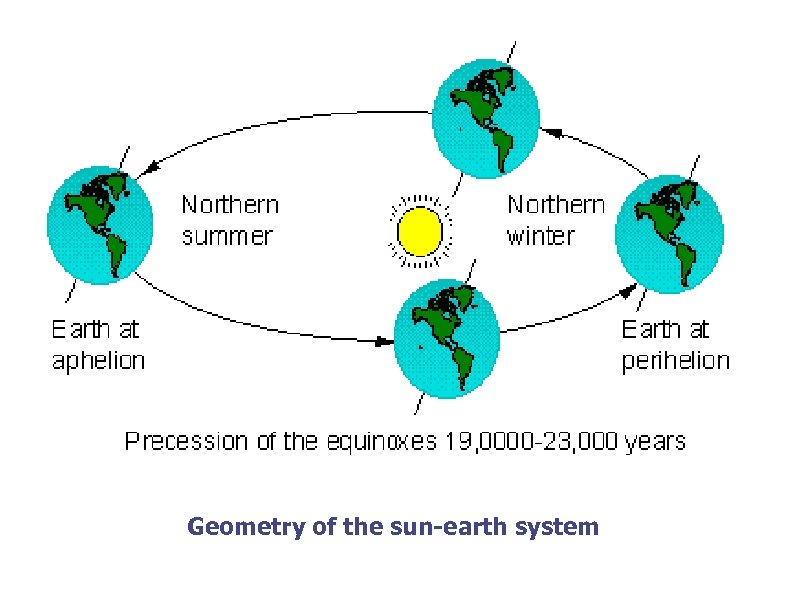

Geometry of the sun-earth system
The Radiation Budget : Incoming Solar (SW) & outgoing LW
(Top) Normalized blackbody radiation for sun (left) and earth (right). (Bottom) Absorption of solar radiation at 11 km and ground level.

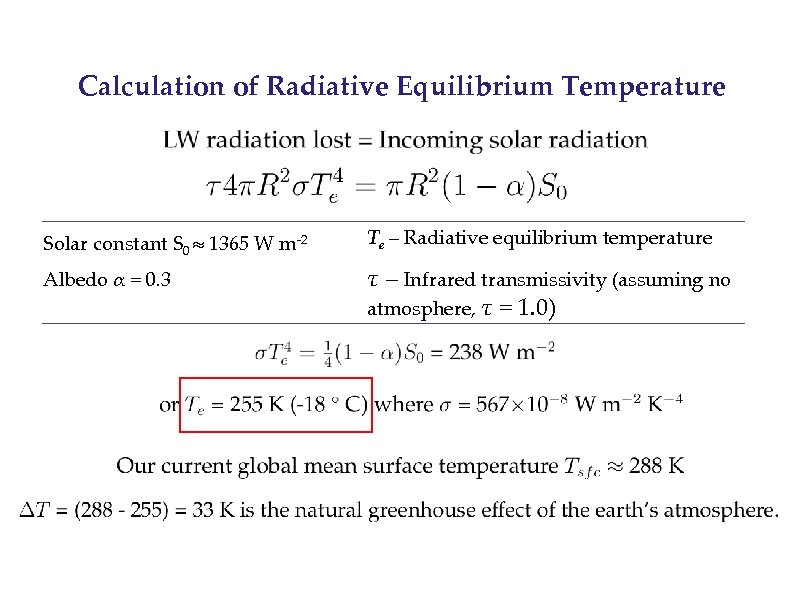

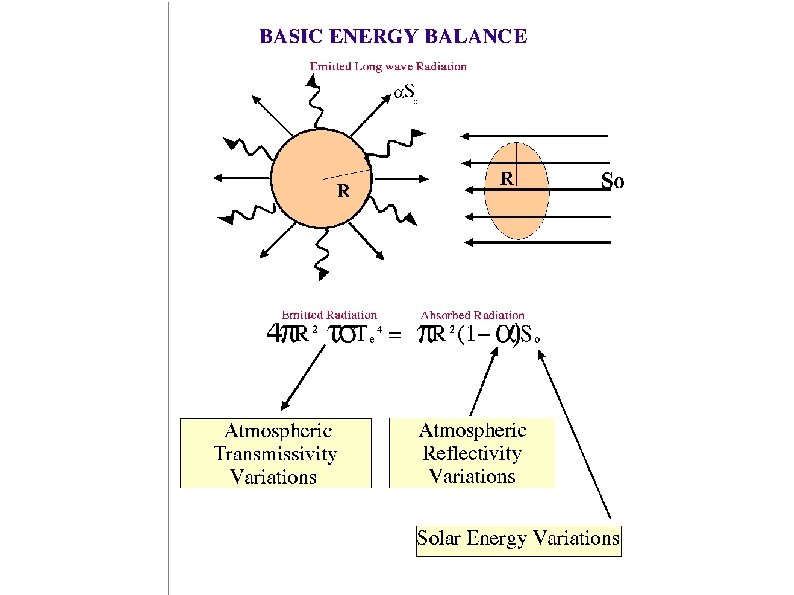

Calculation of Radiative Equilibrium Temperature Solar constant S 0 1365 W m-2 Te – Radiative equilibrium temperature Albedo α = 0. 3 τ – Infrared transmissivity (assuming no atmosphere, τ = 1. 0)

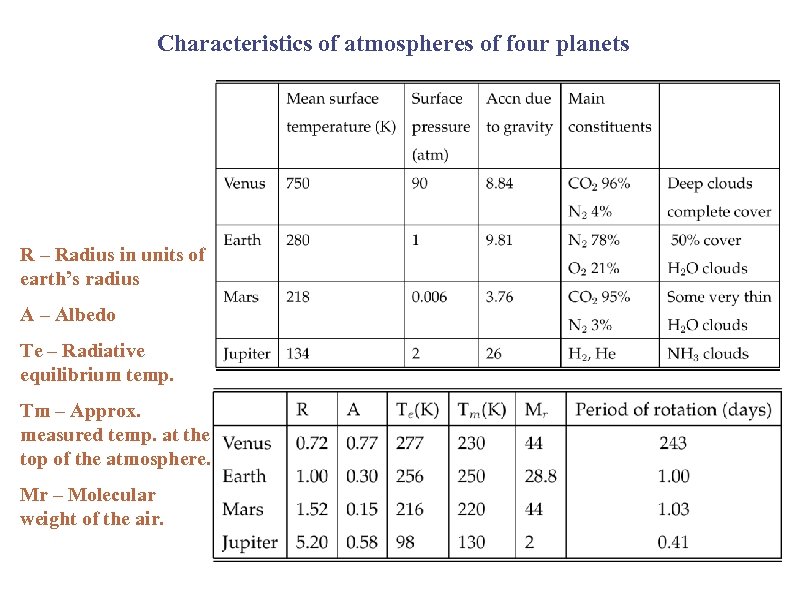

Characteristics of atmospheres of four planets R – Radius in units of earth’s radius A – Albedo Te – Radiative equilibrium temp. Tm – Approx. measured temp. at the top of the atmosphere. Mr – Molecular weight of the air.
Role of the Atmosphere Ø Decreases Long Wave (LW) radiation loss to space Ø Depends on clouds, Water vapor, and CO 2 distributions
Equilibrium Temperature for Venus

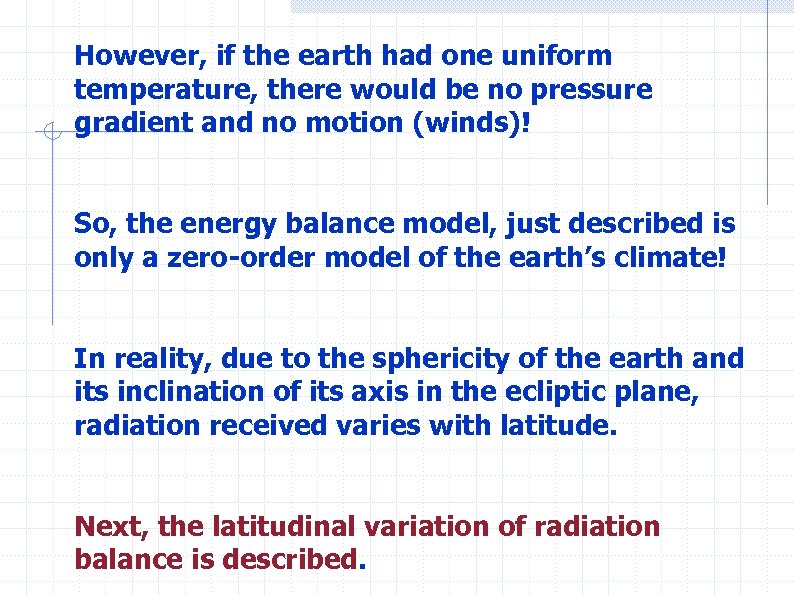

However, if the earth had one uniform temperature, there would be no pressure gradient and no motion (winds)! So, the energy balance model, just described is only a zero-order model of the earth’s climate! In reality, due to the sphericity of the earth and its inclination of its axis in the ecliptic plane, radiation received varies with latitude. Next, the latitudinal variation of radiation balance is described.
Zonal mean incoming solar radiation (W m – 2 ) at the top of the atmosphere, annual mean (thick solid), JJA (dashed line) and DJF (thin solid) as a function of latitude. Zonal mean reflected solar radiation (W m – 2 ) at the top of the atmosphere, annual mean (thick solid), JJA (dashed line) and DJF (thin solid) as a function of latitude.

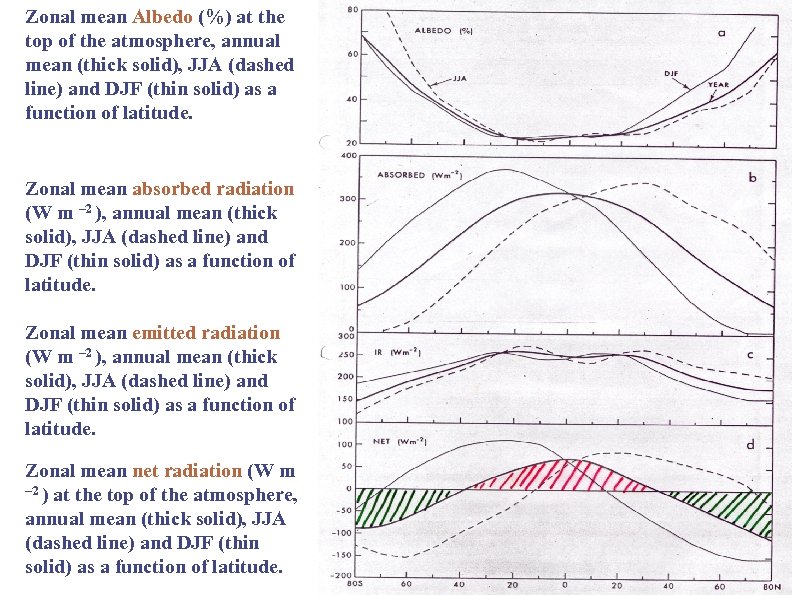

Zonal mean Albedo (%) at the top of the atmosphere, annual mean (thick solid), JJA (dashed line) and DJF (thin solid) as a function of latitude. Zonal mean absorbed radiation (W m – 2 ), annual mean (thick solid), JJA (dashed line) and DJF (thin solid) as a function of latitude. Zonal mean emitted radiation (W m – 2 ), annual mean (thick solid), JJA (dashed line) and DJF (thin solid) as a function of latitude. Zonal mean net radiation (W m – 2 ) at the top of the atmosphere, annual mean (thick solid), JJA (dashed line) and DJF (thin solid) as a function of latitude.

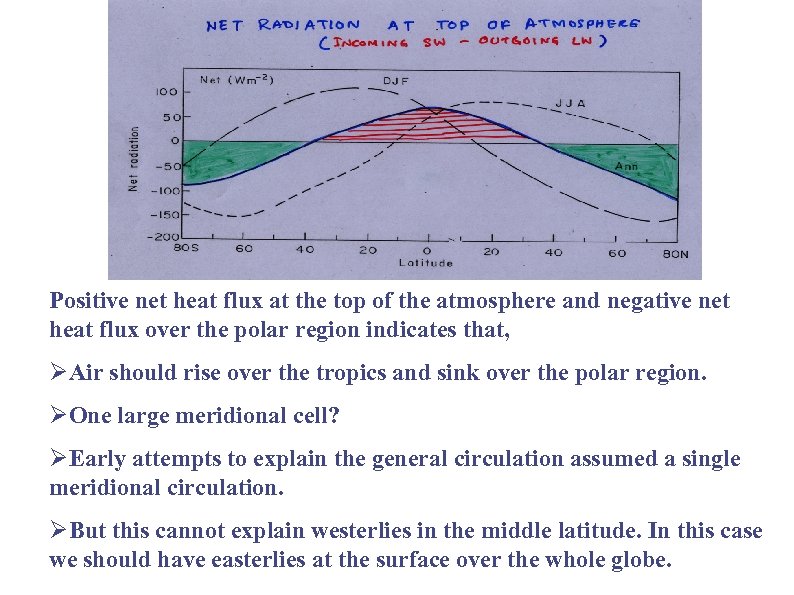

Positive net heat flux at the top of the atmosphere and negative net heat flux over the polar region indicates that, ØAir should rise over the tropics and sink over the polar region. ØOne large meridional cell? ØEarly attempts to explain the general circulation assumed a single meridional circulation. ØBut this cannot explain westerlies in the middle latitude. In this case we should have easterlies at the surface over the whole globe.

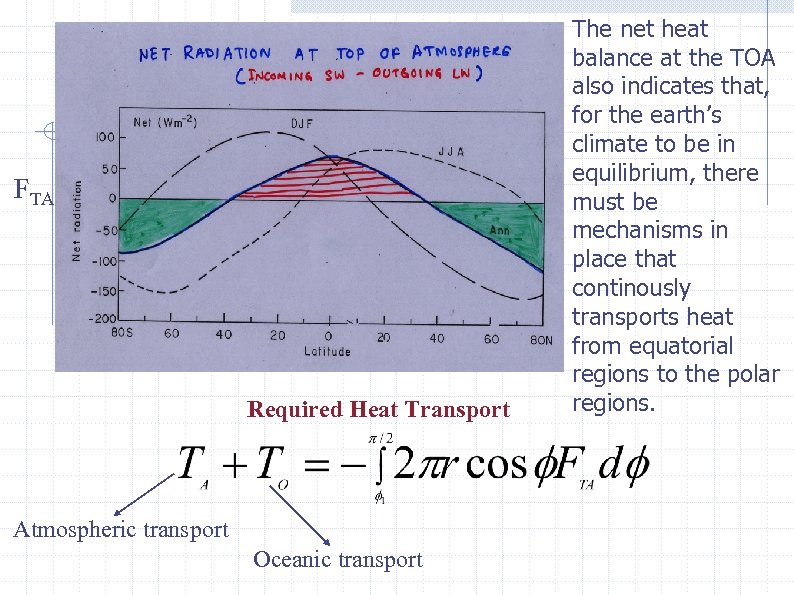

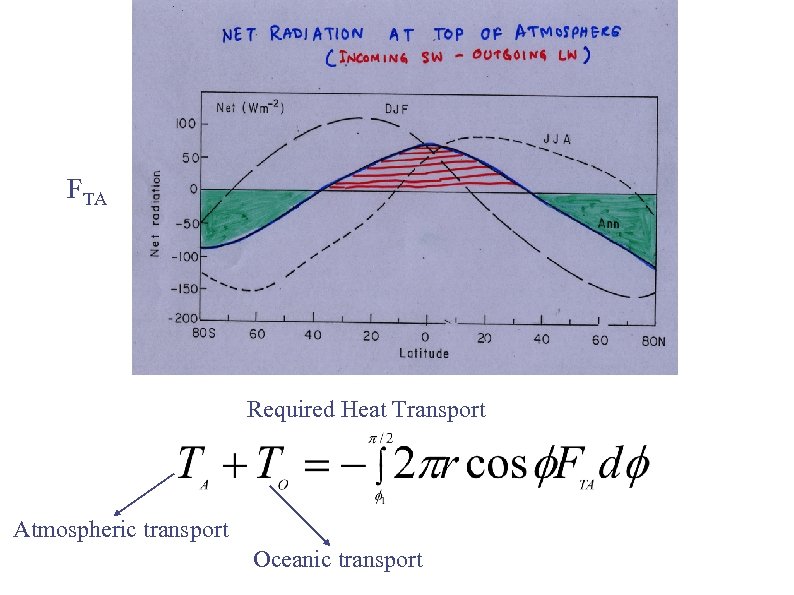

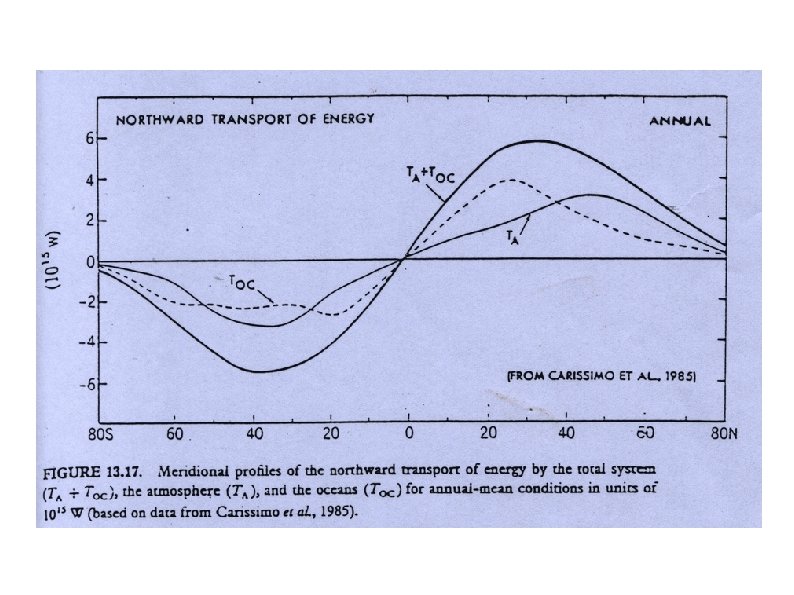

FTA Required Heat Transport Atmospheric transport Oceanic transport The net heat balance at the TOA also indicates that, for the earth’s climate to be in equilibrium, there must be mechanisms in place that continously transports heat from equatorial regions to the polar regions.
How are the Atmospheric motions generated? Positive net heating in Tropics & negative net heating in polar regions Warmer tropics & Colder polar regions Lower Pressure in the tropics and higher pressure in the polar regions Air moves under the action of the pressure gradient force and motion is generated. As the earth is rotating, Coriolis force modifies this motion and observed circulation is generated.

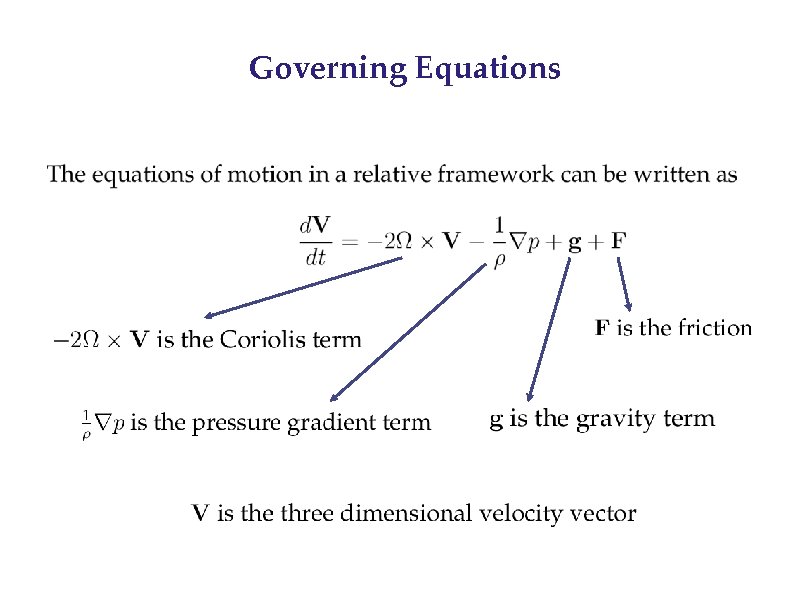

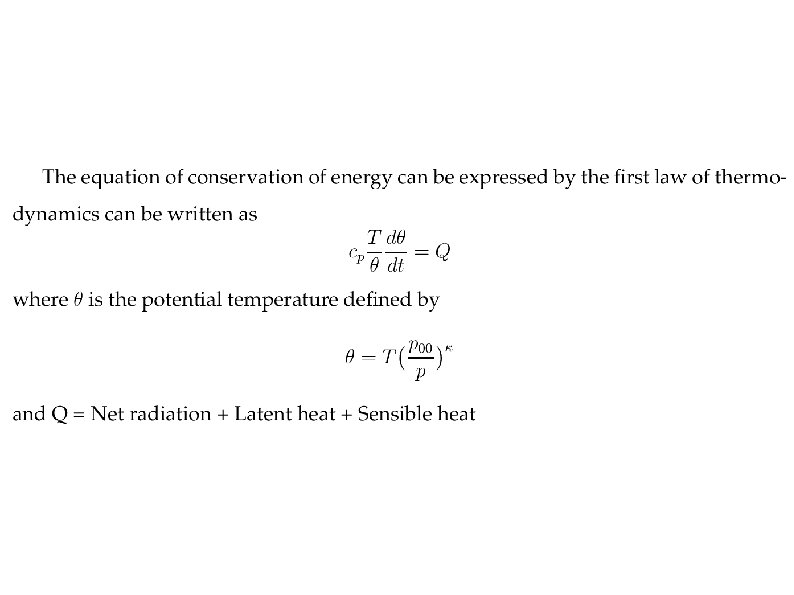

Governing Equations

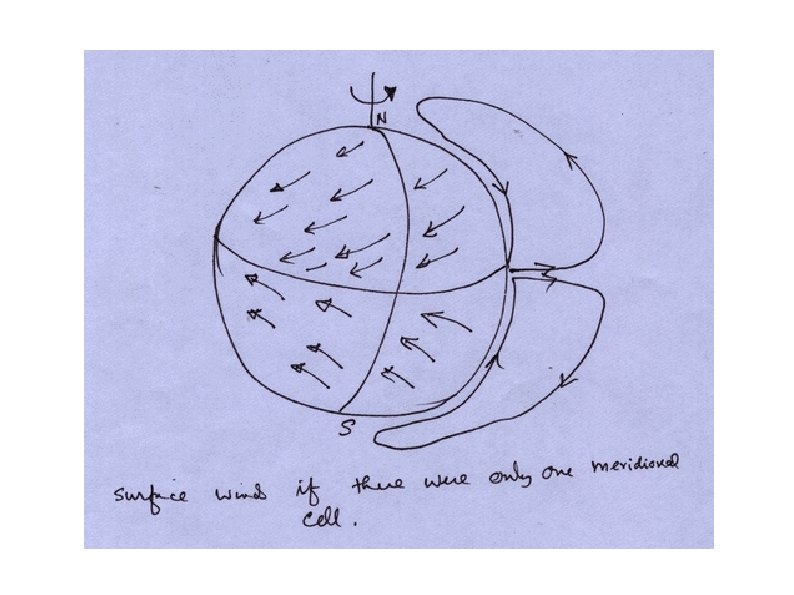

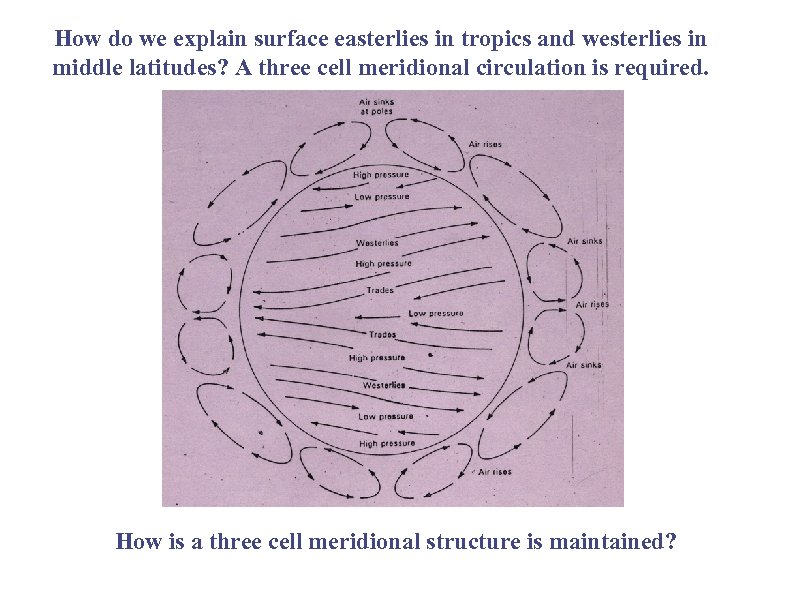

How do we explain surface easterlies in tropics and westerlies in middle latitudes? A three cell meridional circulation is required. How is a three cell meridional structure is maintained?

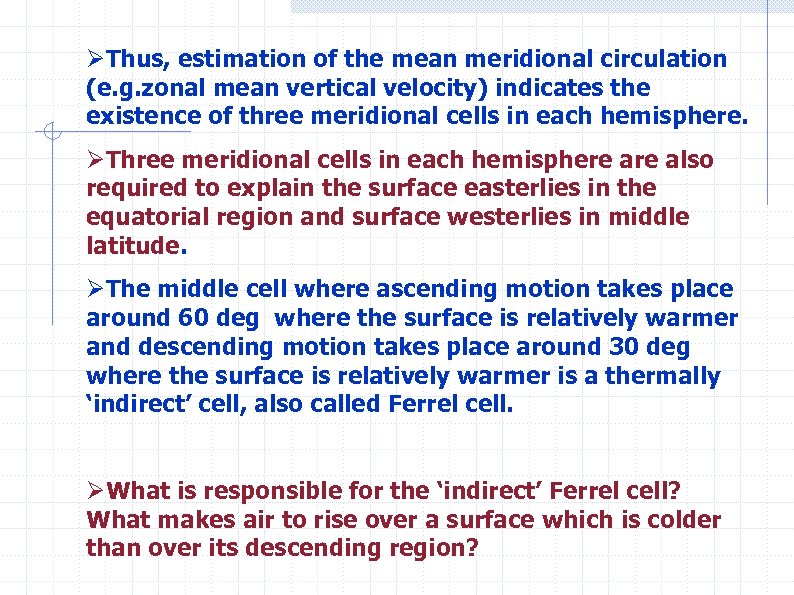

ØThus, estimation of the mean meridional circulation (e. g. zonal mean vertical velocity) indicates the existence of three meridional cells in each hemisphere. ØThree meridional cells in each hemisphere also required to explain the surface easterlies in the equatorial region and surface westerlies in middle latitude. ØThe middle cell where ascending motion takes place around 60 deg where the surface is relatively warmer and descending motion takes place around 30 deg where the surface is relatively warmer is a thermally ‘indirect’ cell, also called Ferrel cell. ØWhat is responsible for the ‘indirect’ Ferrel cell? What makes air to rise over a surface which is colder than over its descending region?

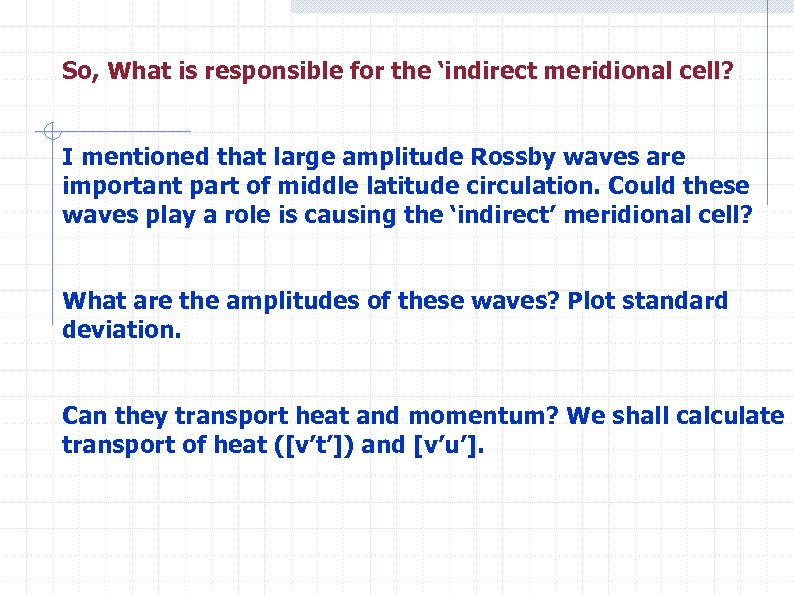

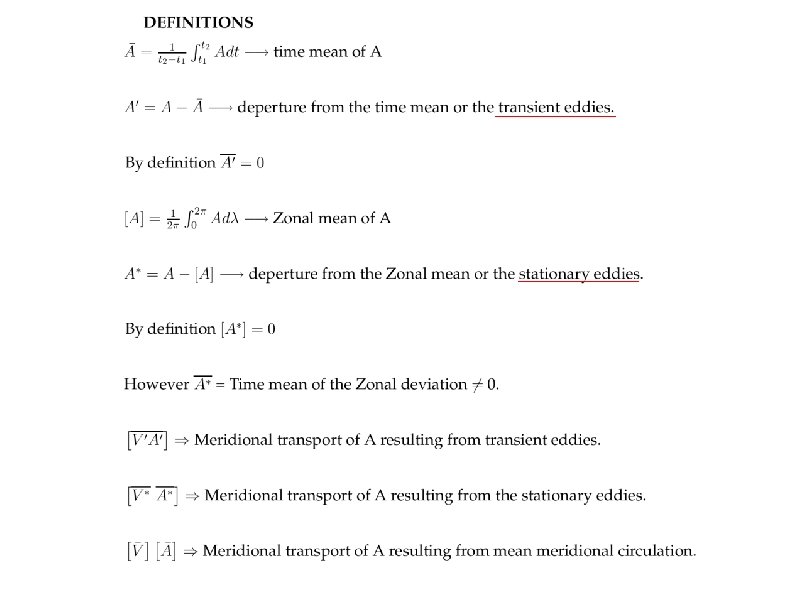

So, What is responsible for the ‘indirect meridional cell? I mentioned that large amplitude Rossby waves are important part of middle latitude circulation. Could these waves play a role is causing the ‘indirect’ meridional cell? What are the amplitudes of these waves? Plot standard deviation. Can they transport heat and momentum? We shall calculate transport of heat ([v’t’]) and [v’u’].

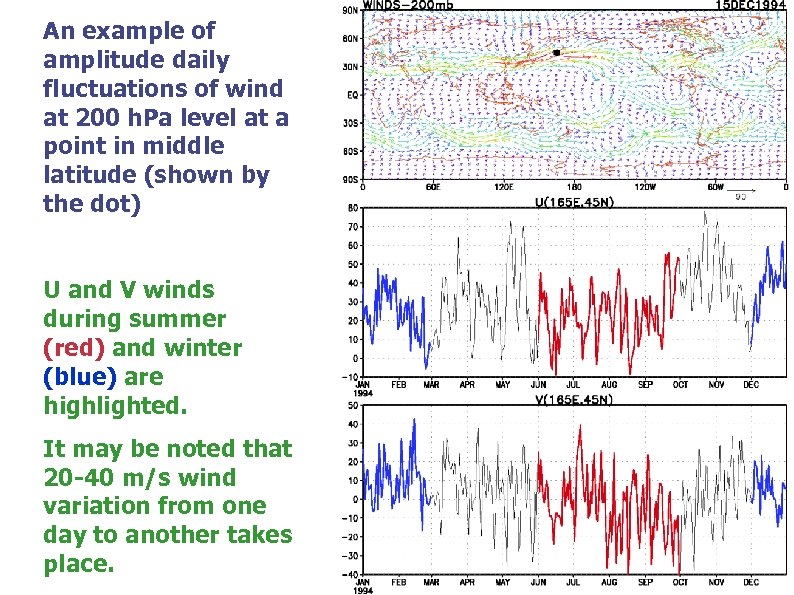

An example of amplitude daily fluctuations of wind at 200 h. Pa level at a point in middle latitude (shown by the dot) U and V winds during summer (red) and winter (blue) are highlighted. It may be noted that 20 -40 m/s wind variation from one day to another takes place.

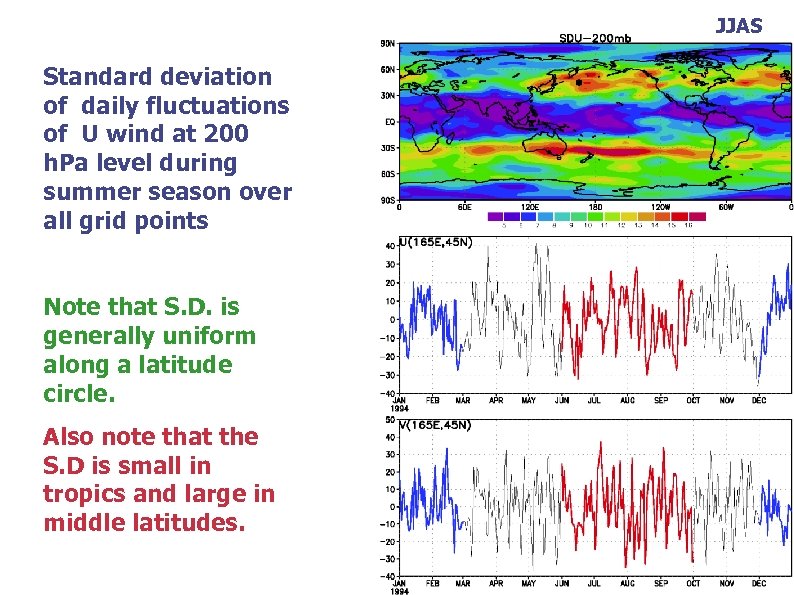

JJAS Standard deviation of daily fluctuations of U wind at 200 h. Pa level during summer season over all grid points Note that S. D. is generally uniform along a latitude circle. Also note that the S. D is small in tropics and large in middle latitudes.

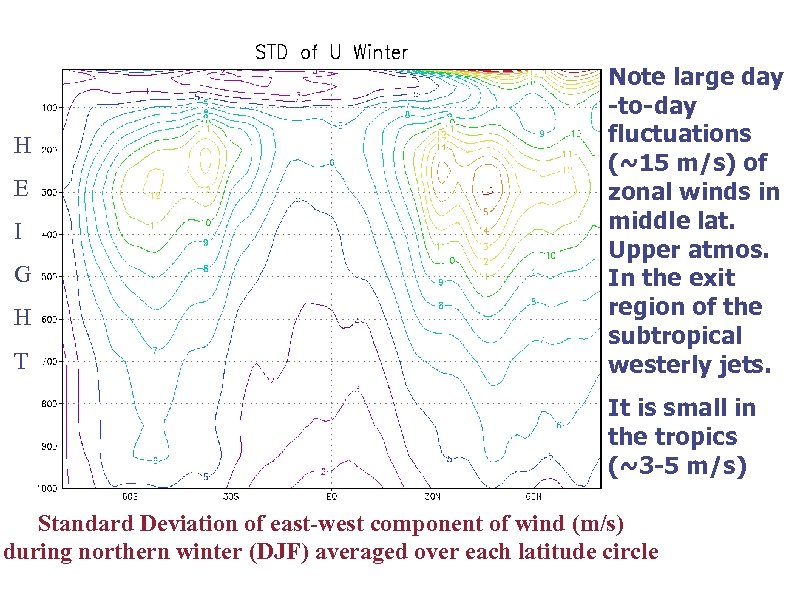

H E I G H T Note large day -to-day fluctuations (~15 m/s) of zonal winds in middle lat. Upper atmos. In the exit region of the subtropical westerly jets. It is small in the tropics (~3 -5 m/s) Standard Deviation of east-west component of wind (m/s) during northern winter (DJF) averaged over each latitude circle

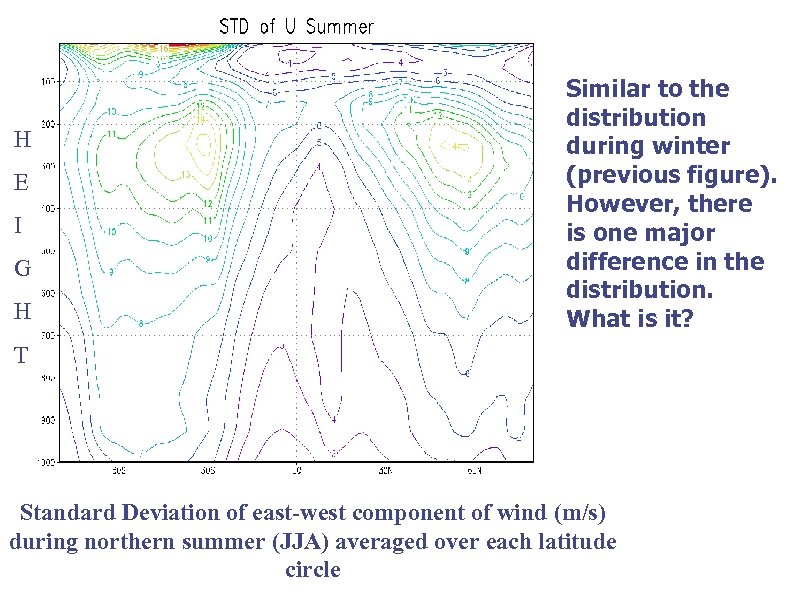

H E I G H Similar to the distribution during winter (previous figure). However, there is one major difference in the distribution. What is it? T Standard Deviation of east-west component of wind (m/s) during northern summer (JJA) averaged over each latitude circle

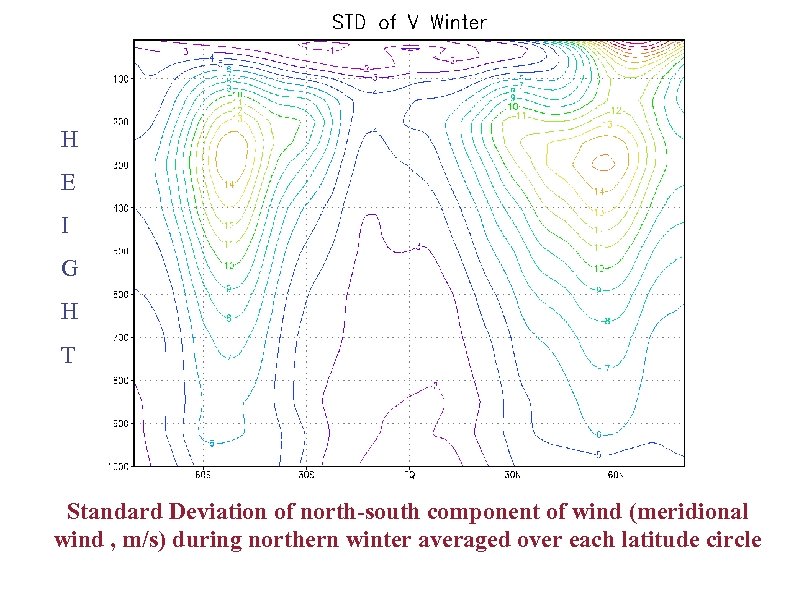

H E I G H T Standard Deviation of north-south component of wind (meridional wind , m/s) during northern winter averaged over each latitude circle

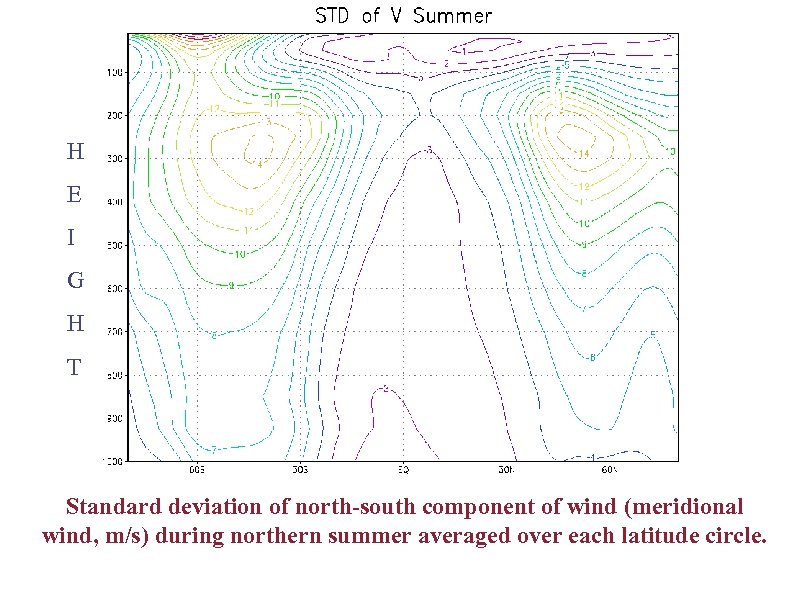

H E I G H T Standard deviation of north-south component of wind (meridional wind, m/s) during northern summer averaged over each latitude circle.

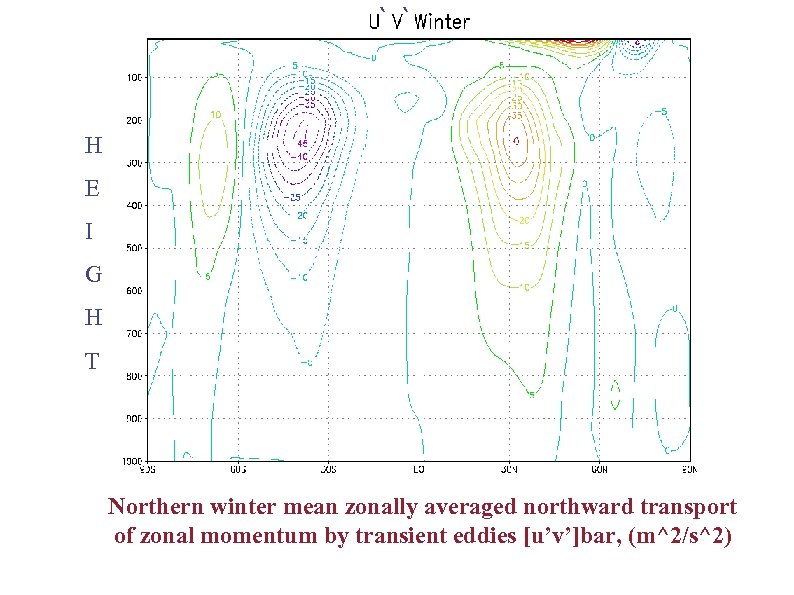

` ` H E I G H T Northern winter mean zonally averaged northward transport of zonal momentum by transient eddies [u’v’]bar, (m^2/s^2)

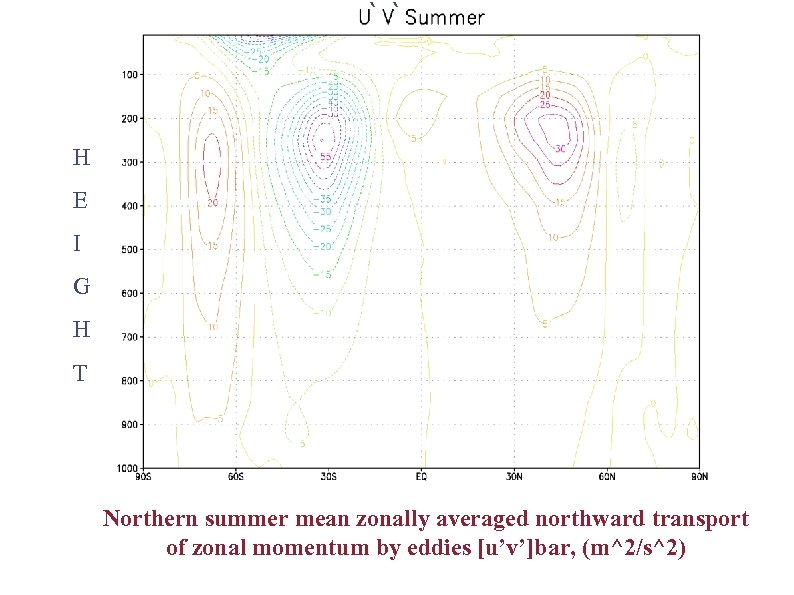

` ` H E I G H T Northern summer mean zonally averaged northward transport of zonal momentum by eddies [u’v’]bar, (m^2/s^2)

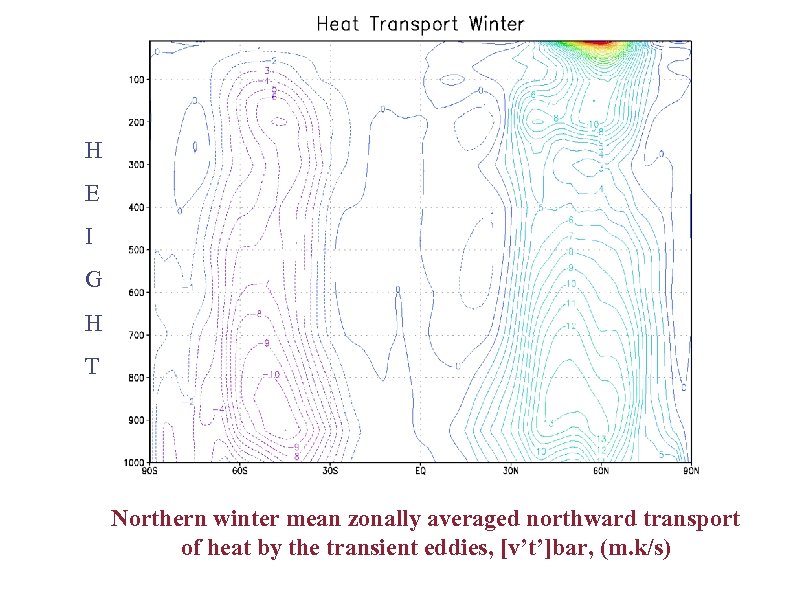

H E I G H T Northern winter mean zonally averaged northward transport of heat by the transient eddies, [v’t’]bar, (m. k/s)

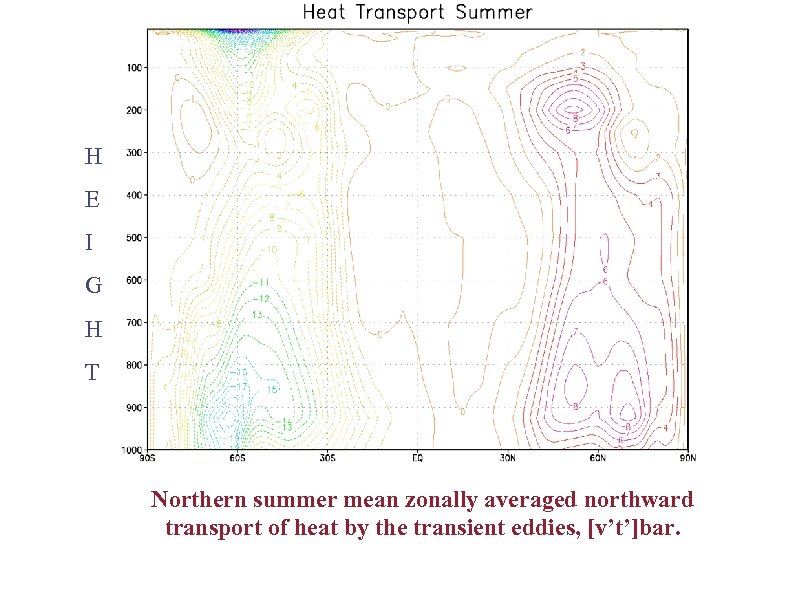

H E I G H T Northern summer mean zonally averaged northward transport of heat by the transient eddies, [v’t’]bar.
FTA Required Heat Transport Atmospheric transport Oceanic transport
Relative contributions mean meridional circulation and the eddies in meridional transport of energy. Transient eddy transport Stationary eddy transport MMC transport

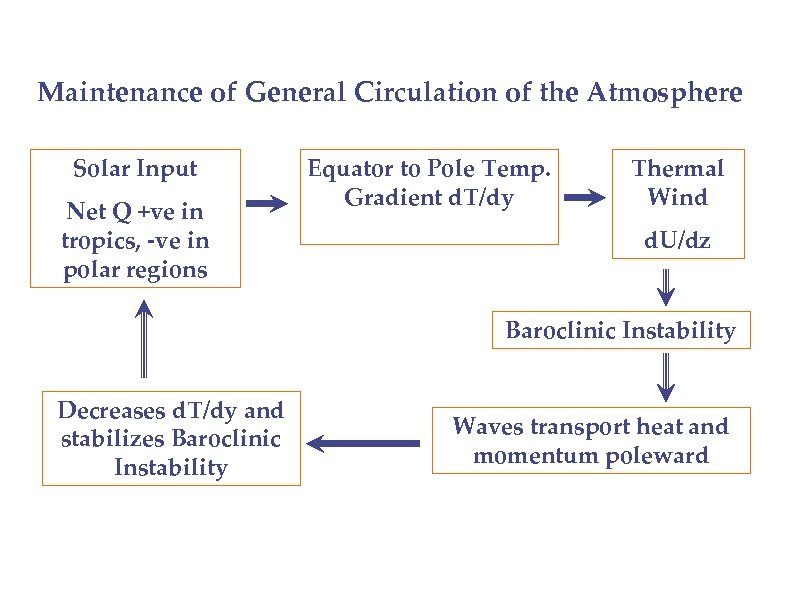

Maintenance of General Circulation of the Atmosphere Solar Input Net Q +ve in tropics, -ve in polar regions Equator to Pole Temp. Gradient d. T/dy Thermal Wind d. U/dz Baroclinic Instability Decreases d. T/dy and stabilizes Baroclinic Instability Waves transport heat and momentum poleward
