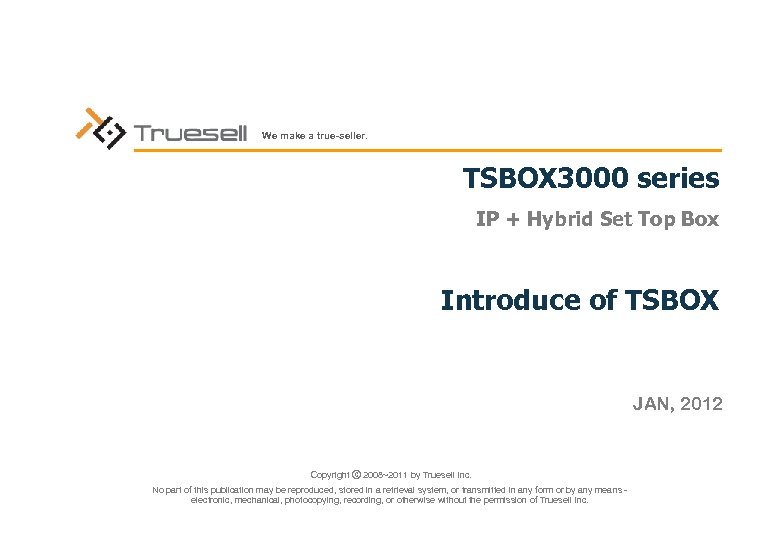

We make a true-seller. TSBOX 3000 series IP + Hybrid Set Top Box Introduce of TSBOX JAN, 2012 Copyright ⓒ 2008~2011 by Truesell Inc. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means - electronic, mechanical, photocopying, recording, or otherwise without the permission of Truesell Inc.

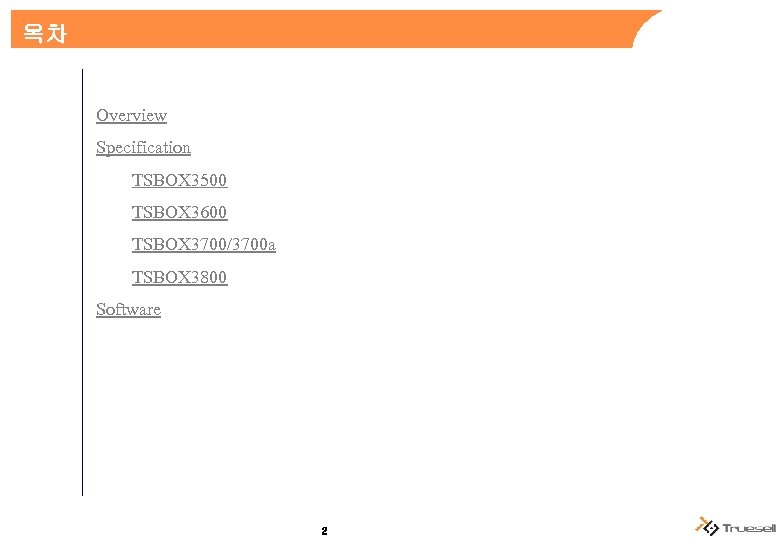

목차 Overview Specification TSBOX 3500 TSBOX 3600 TSBOX 3700/3700 a TSBOX 3800 Software 2

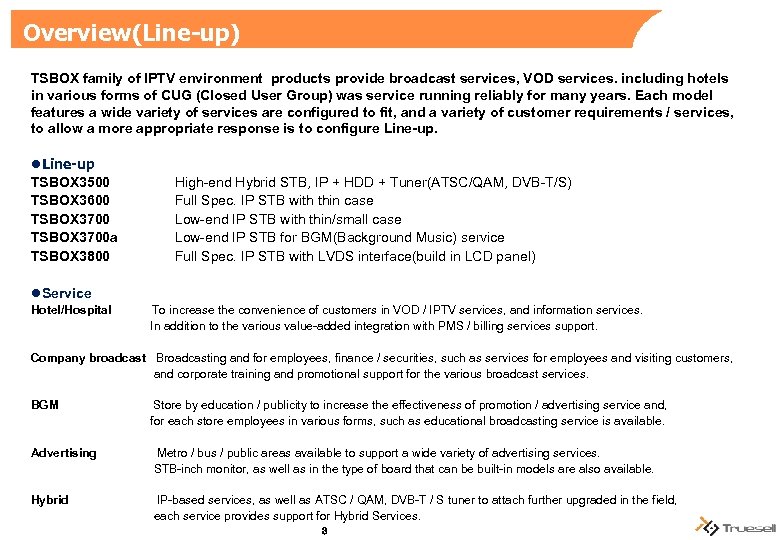

Overview(Line-up) TSBOX family of IPTV environment products provide broadcast services, VOD services. including hotels in various forms of CUG (Closed User Group) was service running reliably for many years. Each model features a wide variety of services are configured to fit, and a variety of customer requirements / services, to allow a more appropriate response is to configure Line-up. l. Line-up TSBOX 3500 TSBOX 3600 TSBOX 3700 a TSBOX 3800 High-end Hybrid STB, IP + HDD + Tuner(ATSC/QAM, DVB-T/S) Full Spec. IP STB with thin case Low-end IP STB with thin/small case Low-end IP STB for BGM(Background Music) service Full Spec. IP STB with LVDS interface(build in LCD panel) l. Service Hotel/Hospital To increase the convenience of customers in VOD / IPTV services, and information services. In addition to the various value-added integration with PMS / billing services support. Company broadcast Broadcasting and for employees, finance / securities, such as services for employees and visiting customers, and corporate training and promotional support for the various broadcast services. BGM Store by education / publicity to increase the effectiveness of promotion / advertising service and, for each store employees in various forms, such as educational broadcasting service is available. Advertising Metro / bus / public areas available to support a wide variety of advertising services. STB-inch monitor, as well as in the type of board that can be built-in models are also available. Hybrid IP-based services, as well as ATSC / QAM, DVB-T / S tuner to attach further upgraded in the field, each service provides support for Hybrid Services. 3

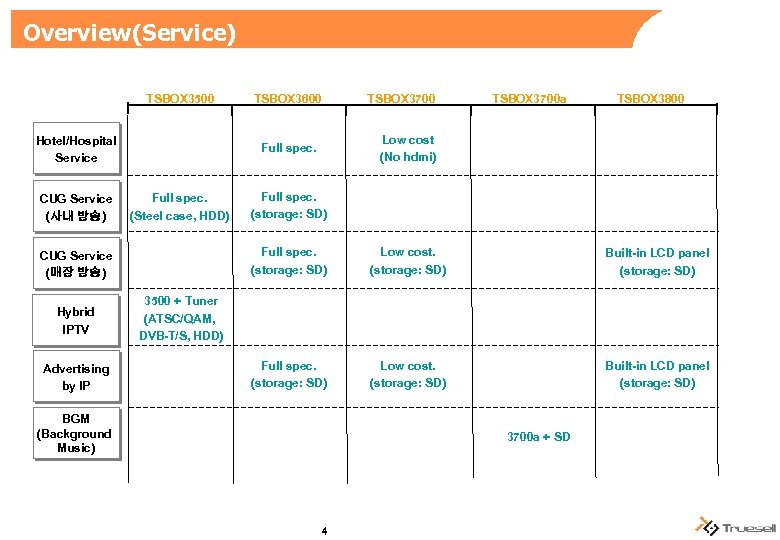

Overview(Service) TSBOX 3500 Hotel/Hospital Service CUG Service (사내 방송) Advertising by IP TSBOX 3700 Full spec. (Steel case, HDD) TSBOX 3700 a TSBOX 3800 Low cost (No hdmi) Full spec. (storage: SD) CUG Service (매장 방송) Hybrid IPTV TSBOX 3600 Low cost. (storage: SD) Built-in LCD panel (storage: SD) Full spec. (storage: SD) Low cost. (storage: SD) Built-in LCD panel (storage: SD) 3500 + Tuner (ATSC/QAM, DVB-T/S, HDD) BGM (Background Music) 3700 a + SD 4

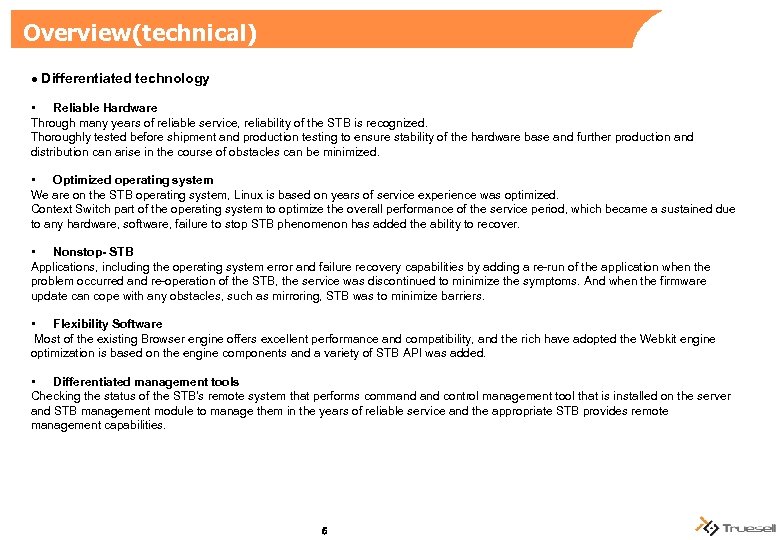

Overview(technical) ● Differentiated technology • Reliable Hardware Through many years of reliable service, reliability of the STB is recognized. Thoroughly tested before shipment and production testing to ensure stability of the hardware base and further production and distribution can arise in the course of obstacles can be minimized. • Optimized operating system We are on the STB operating system, Linux is based on years of service experience was optimized. Context Switch part of the operating system to optimize the overall performance of the service period, which became a sustained due to any hardware, software, failure to stop STB phenomenon has added the ability to recover. • Nonstop- STB Applications, including the operating system error and failure recovery capabilities by adding a re-run of the application when the problem occurred and re-operation of the STB, the service was discontinued to minimize the symptoms. And when the firmware update can cope with any obstacles, such as mirroring, STB was to minimize barriers. • Flexibility Software Most of the existing Browser engine offers excellent performance and compatibility, and the rich have adopted the Webkit engine optimization is based on the engine components and a variety of STB API was added. • Differentiated management tools Checking the status of the STB's remote system that performs command control management tool that is installed on the server and STB management module to manage them in the years of reliable service and the appropriate STB provides remote management capabilities. 5

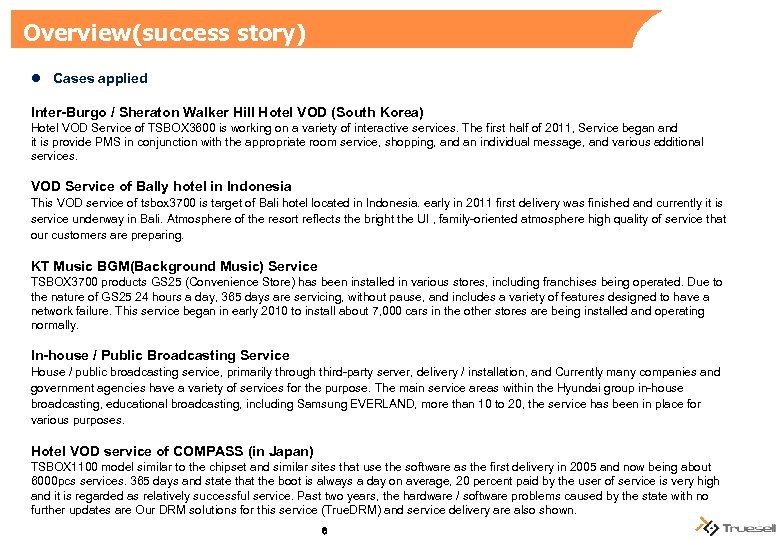

Overview(success story) l Cases applied Inter-Burgo / Sheraton Walker Hill Hotel VOD (South Korea) Hotel VOD Service of TSBOX 3600 is working on a variety of interactive services. The first half of 2011, Service began and it is provide PMS in conjunction with the appropriate room service, shopping, and an individual message, and various additional services. VOD Service of Bally hotel in Indonesia This VOD service of tsbox 3700 is target of Bali hotel located in Indonesia. early in 2011 first delivery was finished and currently it is service underway in Bali. Atmosphere of the resort reflects the bright the UI , family-oriented atmosphere high quality of service that our customers are preparing. KT Music BGM(Background Music) Service TSBOX 3700 products GS 25 (Convenience Store) has been installed in various stores, including franchises being operated. Due to the nature of GS 25 24 hours a day, 365 days are servicing, without pause, and includes a variety of features designed to have a network failure. This service began in early 2010 to install about 7, 000 cars in the other stores are being installed and operating normally. In-house / Public Broadcasting Service House / public broadcasting service, primarily through third-party server, delivery / installation, and Currently many companies and government agencies have a variety of services for the purpose. The main service areas within the Hyundai group in-house broadcasting, educational broadcasting, including Samsung EVERLAND, more than 10 to 20, the service has been in place for various purposes. Hotel VOD service of COMPASS (in Japan) TSBOX 1100 model similar to the chipset and similar sites that use the software as the first delivery in 2005 and now being about 6000 pcs services. 365 days and state that the boot is always a day on average, 20 percent paid by the user of service is very high and it is regarded as relatively successful service. Past two years, the hardware / software problems caused by the state with no further updates are Our DRM solutions for this service (True. DRM) and service delivery are also shown. 6

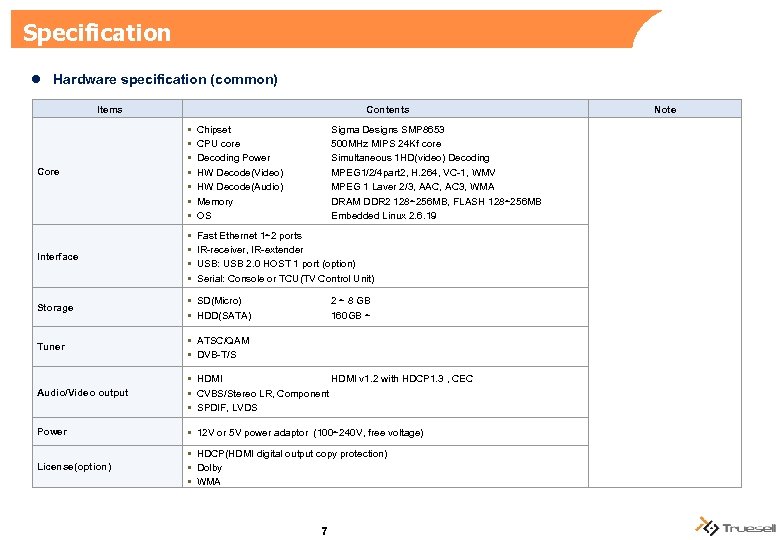

Specification l Hardware specification (common) Items Contents Chipset Sigma Designs SMP 8653 500 MHz MIPS 24 Kf core Simultaneous 1 HD(video) Decoding MPEG 1/2/4 part 2, H. 264, VC-1, WMV MPEG 1 Laver 2/3, AAC, AC 3, WMA DRAM DDR 2 128~256 MB, FLASH 128~256 MB Embedded Linux 2. 6. 19 CPU core Decoding Power Core HW Decode(Video) HW Decode(Audio) Memory OS Fast Ethernet 1~2 ports Interface IR-receiver, IR-extender USB: USB 2. 0 HOST 1 port (option) Serial: Console or TCU(TV Control Unit) Storage Tuner SD(Micro) 2 ~ 8 GB 160 GB ~ HDD(SATA) ATSC/QAM DVB-T/S HDMI Audio/Video output HDMI v 1. 2 with HDCP 1. 3 , CEC CVBS/Stereo LR, Component SPDIF, LVDS Power 12 V or 5 V power adaptor (100~240 V, free voltage) HDCP(HDMI digital output copy protection) License(option) Dolby WMA 7 Note

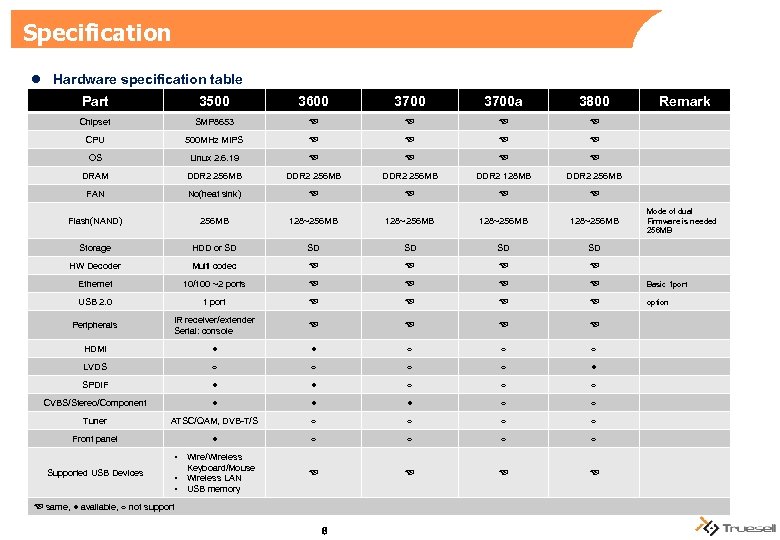

Specification l Hardware specification table Part 3500 3600 3700 a 3800 Remark Chipset SMP 8653 ☜ ☜ CPU 500 MHz MIPS ☜ ☜ OS Linux 2. 6. 19 ☜ ☜ DRAM DDR 2 256 MB DDR 2 128 MB DDR 2 256 MB FAN No(heat sink) ☜ ☜ Flash(NAND) 256 MB 128~256 MB Storage HDD or SD SD SD HW Decoder Multi codec ☜ ☜ Ethernet 10/100 ~2 ports ☜ ☜ Basic 1 port USB 2. 0 1 port ☜ ☜ option Peripherals IR receiver/extender Serial: console ☜ ☜ HDMI ● ● ○ ○ ○ LVDS ○ ○ ● SPDIF ● ● ○ ○ ○ CVBS/Stereo/Component ● ● ● ○ ○ Tuner ATSC/QAM, DVB-T/S ○ ○ Front panel ● ○ ○ ☜ ☜ • Supported USB Devices • • Wire/Wireless Keyboard/Mouse Wireless LAN USB memory ☜ same, ● available, ○ not support 8 Mode of dual Firmware is needed 256 MB

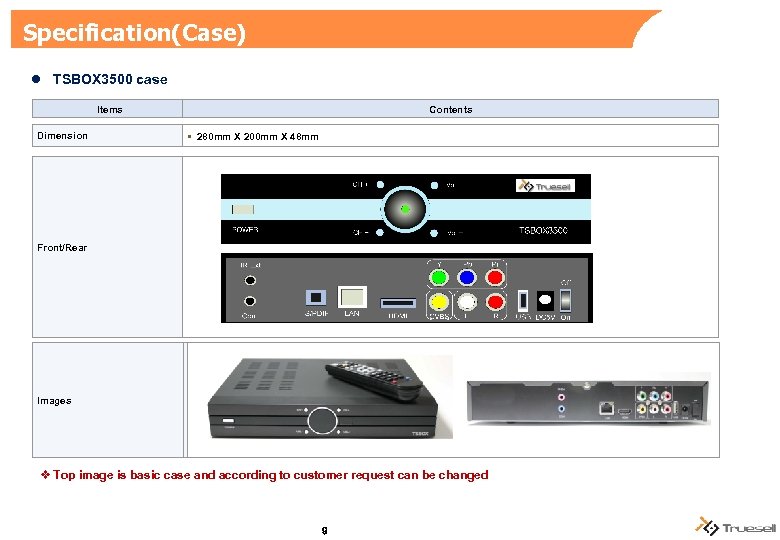

Specification(Case) l TSBOX 3500 case Items Dimension Contents 280 mm X 200 mm X 48 mm Front/Rear Images v Top image is basic case and according to customer request can be changed 9

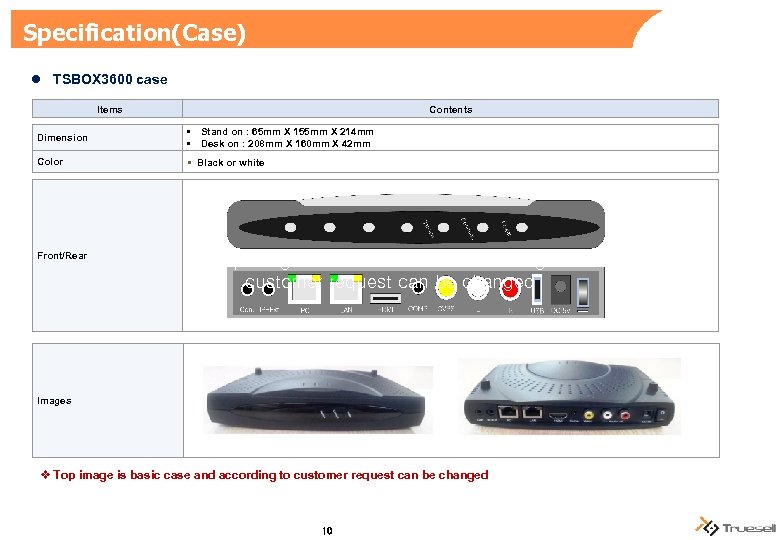

Specification(Case) l TSBOX 3600 case Items Contents Dimension • Stand on : 65 mm X 155 mm X 214 mm • Desk on : 208 mm X 160 mm X 42 mm Color Black or white Front/Rear Top image is basic case and according to customer request can be changed Images v Top image is basic case and according to customer request can be changed 10

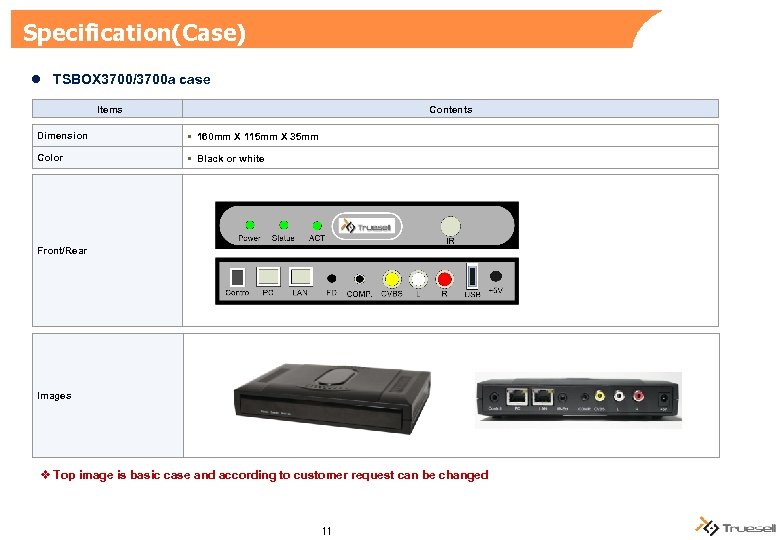

Specification(Case) l TSBOX 3700/3700 a case Items Contents Dimension 160 mm X 115 mm X 35 mm Color Black or white Front/Rear Images v Top image is basic case and according to customer request can be changed 11

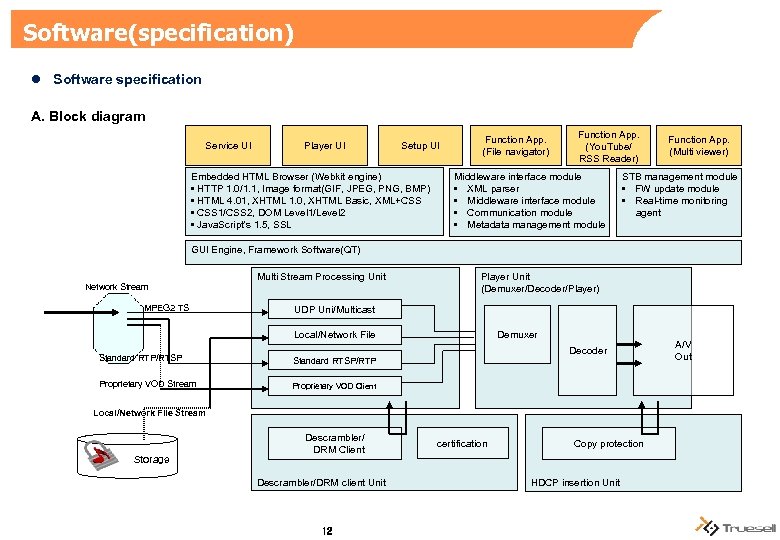

Software(specification) l Software specification A. Block diagram Service UI Player UI Setup UI Embedded HTML Browser (Webkit engine) • HTTP 1. 0/1. 1, Image format(GIF, JPEG, PNG, BMP) • HTML 4. 01, XHTML 1. 0, XHTML Basic, XML+CSS • CSS 1/CSS 2, DOM Level 1/Level 2 • Java. Script's 1. 5, SSL Function App. (File navigator) Function App. (You. Tube/ RSS Reader) Middleware interface module • XML parser • Middleware interface module • Communication module • Metadata management module Function App. (Multi viewer) STB management module • FW update module • Real-time monitoring agent GUI Engine, Framework Software(QT) Network Stream MPEG 2 TS Multi Stream Processing Unit Player Unit (Demuxer/Decoder/Player) UDP Uni/Multicast Local/Network File Standard RTP/RTSP Decoder Standard RTSP/RTP Proprietary VOD Stream Demuxer Proprietary VOD Client Local/Network File Stream Storage Descrambler/ DRM Client Descrambler/DRM client Unit 12 certification Copy protection HDCP insertion Unit A/V Out

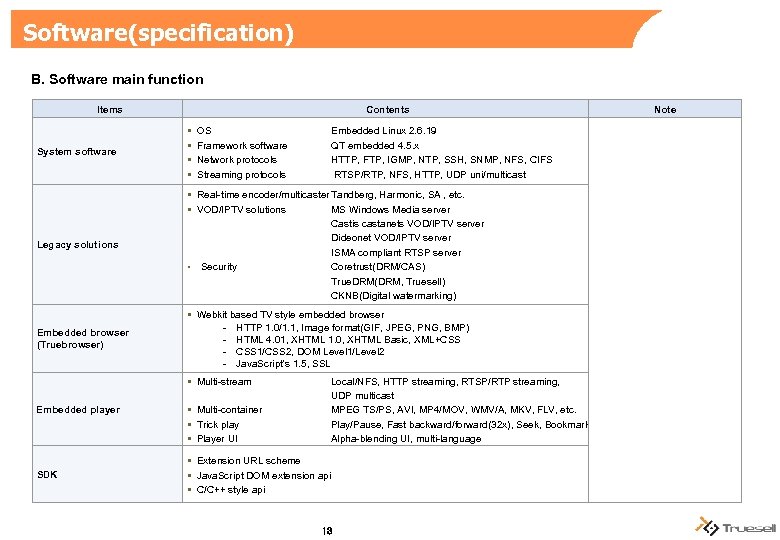

Software(specification) B. Software main function Items Contents OS System software Embedded Linux 2. 6. 19 QT embedded 4. 5. x HTTP, FTP, IGMP, NTP, SSH, SNMP, NFS, CIFS RTSP/RTP, NFS, HTTP, UDP uni/multicast Framework software Network protocols Streaming protocols Real-time encoder/multicaster Tandberg, Harmonic, SA , etc. VOD/IPTV solutions MS Windows Media server Castis castanets VOD/IPTV server Dideonet VOD/IPTV server ISMA compliant RTSP server Coretrust(DRM/CAS) True. DRM(DRM, Truesell) CKNB(Digital watermarking) Legacy solutions • Security Webkit based TV style embedded browser Embedded browser (Truebrowser) - HTTP 1. 0/1. 1, Image format(GIF, JPEG, PNG, BMP) HTML 4. 01, XHTML 1. 0, XHTML Basic, XML+CSS 1/CSS 2, DOM Level 1/Level 2 Java. Script's 1. 5, SSL Multi-stream Embedded player Multi-container Trick play Player UI Local/NFS, HTTP streaming, RTSP/RTP streaming, UDP multicast MPEG TS/PS, AVI, MP 4/MOV, WMV/A, MKV, FLV, etc. Play/Pause, Fast backward/forward(32 x), Seek, Bookmark Alpha-blending UI, multi-language Extension URL scheme SDK Java. Script DOM extension api C/C++ style api 13 Note

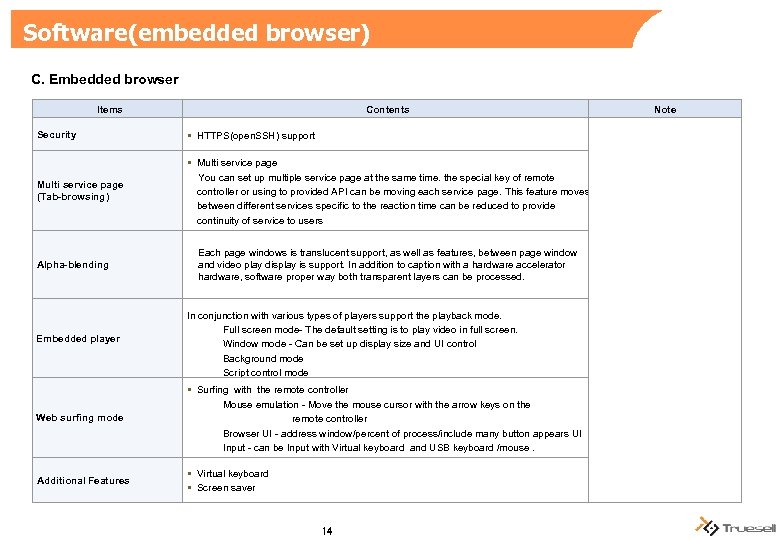

Software(embedded browser) C. Embedded browser Items Security Contents HTTPS(open. SSH) support Multi service page (Tab-browsing) Alpha-blending Embedded player You can set up multiple service page at the same time. the special key of remote controller or using to provided API can be moving each service page. This feature moves between different services specific to the reaction time can be reduced to provide continuity of service to users Each page windows is translucent support, as well as features, between page window and video play display is support. In addition to caption with a hardware accelerator hardware, software proper way both transparent layers can be processed. In conjunction with various types of players support the playback mode. Full screen mode- The default setting is to play video in full screen. Window mode - Can be set up display size and UI control Background mode Script control mode Surfing with the remote controller Web surfing mode Additional Features Mouse emulation - Move the mouse cursor with the arrow keys on the remote controller Browser UI - address window/percent of process/include many button appears UI Input - can be Input with Virtual keyboard and USB keyboard /mouse. Virtual keyboard Screen saver 14 Note

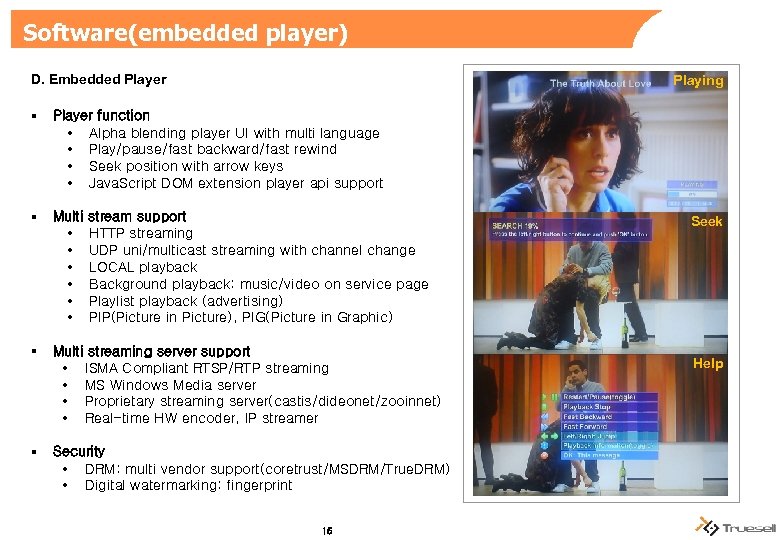

Software(embedded player) D. Embedded Player Playing § Player function • Alpha blending player UI with multi language • Play/pause/fast backward/fast rewind • Seek position with arrow keys • Java. Script DOM extension player api support § Multi • • • stream support HTTP streaming UDP uni/multicast streaming with channel change LOCAL playback Background playback: music/video on service page Playlist playback (advertising) PIP(Picture in Picture), PIG(Picture in Graphic) § Multi streaming server support • ISMA Compliant RTSP/RTP streaming • MS Windows Media server • Proprietary streaming server(castis/dideonet/zooinnet) • Real-time HW encoder, IP streamer § Security • DRM: multi vendor support(coretrust/MSDRM/True. DRM) • Digital watermarking: fingerprint 15 Seek Help

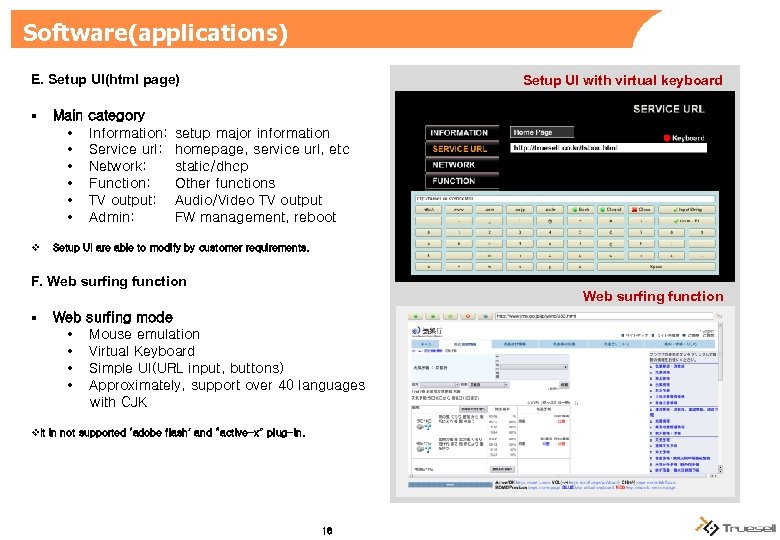

Software(applications) E. Setup UI(html page) § v Main • • • category Information: Service url: Network: Function: TV output: Admin: Setup UI with virtual keyboard setup major information homepage, service url, etc static/dhcp Other functions Audio/Video TV output FW management, reboot Setup UI are able to modify by customer requirements. F. Web surfing function § Web • • Web surfing function surfing mode Mouse emulation Virtual Keyboard Simple UI(URL input, buttons) Approximately, support over 40 languages with CJK v. It in not supported ‘adobe flash’ and “active-x” plug-in. 16

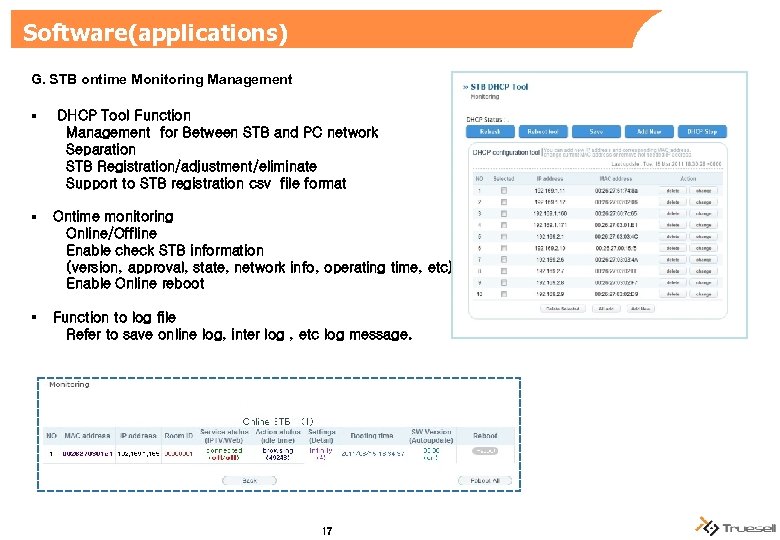

Software(applications) G. STB ontime Monitoring Management § DHCP Tool Function Management for Between STB and PC network Separation STB Registration/adjustment/eliminate Support to STB registration csv file format § Ontime monitoring Online/Offline Enable check STB information (version, approval, state, network info, operating time, etc) Enable Online reboot § Function to log file Refer to save online log, inter log , etc log message. 17

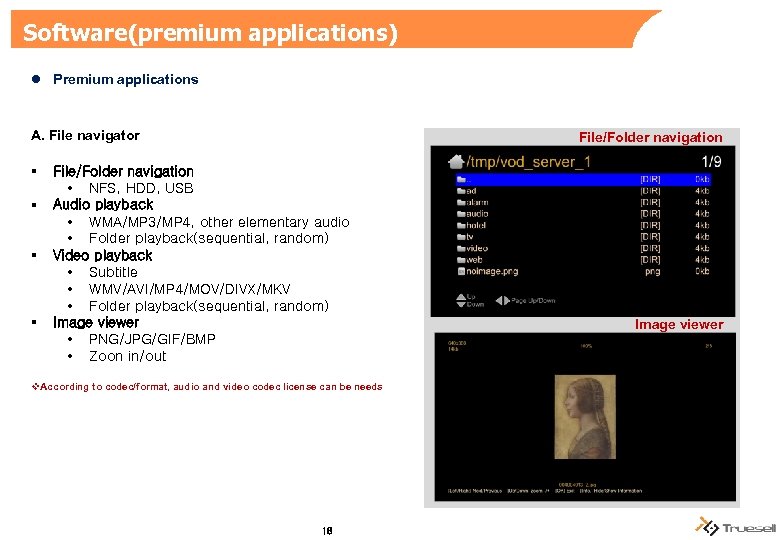

Software(premium applications) l Premium applications A. File navigator § § File/Folder navigation • NFS, HDD, USB Audio playback • WMA/MP 3/MP 4, other elementary audio • Folder playback(sequential, random) Video playback • Subtitle • WMV/AVI/MP 4/MOV/DIVX/MKV • Folder playback(sequential, random) Image viewer • PNG/JPG/GIF/BMP • Zoon in/out v. According to codec/format, audio and video codec license can be needs 18 Image viewer

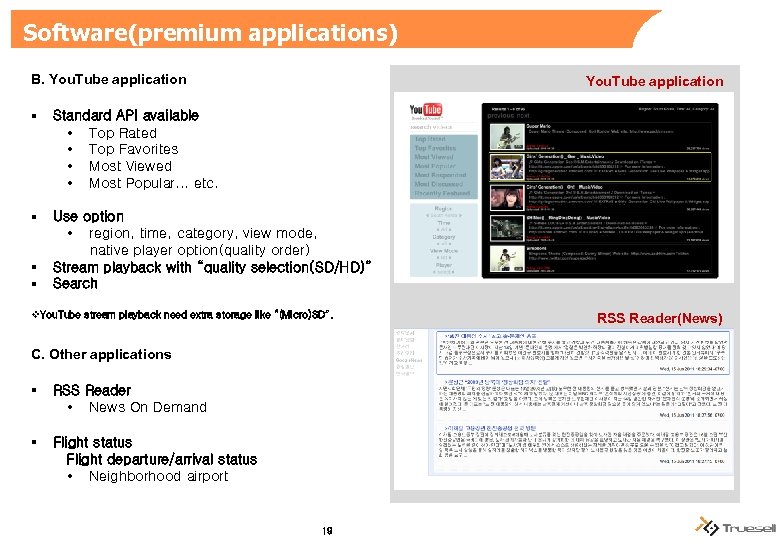

Software(premium applications) B. You. Tube application § Standard API available • Top Rated • Top Favorites • Most Viewed • Most Popular. . . etc. § Use option • region, time, category, view mode, native player option(quality order) Stream playback with “quality selection(SD/HD)” Search § § v. You. Tube stream playback need extra storage like “(Micro)SD”. C. Other applications § RSS Reader • News On Demand § Flight status Flight departure/arrival status • Neighborhood airport 19 RSS Reader(News)

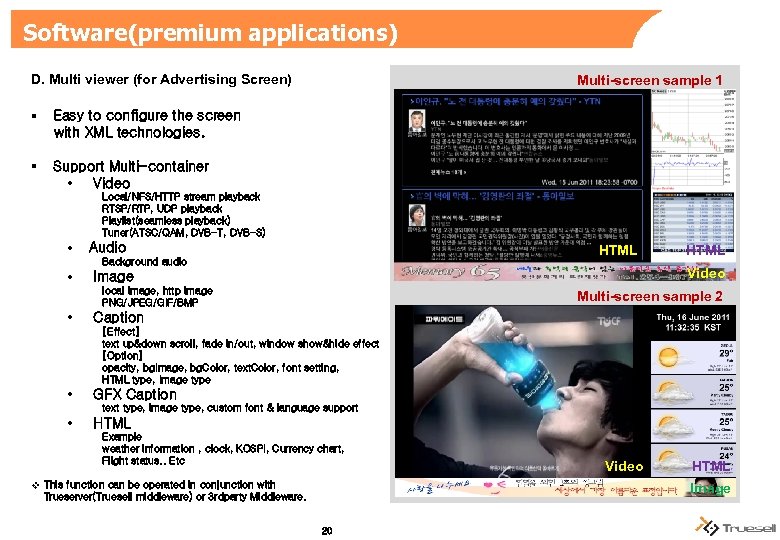

Software(premium applications) D. Multi viewer (for Advertising Screen) § Easy to configure the screen with XML technologies. § Multi-screen sample 1 Support Multi-container • Video Local/NFS/HTTP stream playback RTSP/RTP, UDP playback Playlist(seamless playback) Tuner(ATSC/QAM, DVB-T, DVB-S) • Audio HTML Background audio • Image • Video local image, http image PNG/JPEG/GIF/BMP HTML Multi-screen sample 2 Caption [Effect] text up&down scroll, fade in/out, window show&hide effect [Option] opacity, bg. Image, bg. Color, text. Color, font setting, HTML type, Image type • GFX Caption text type, image type, custom font & language support • HTML Example weather information , clock, KOSPI, Currency chart, Flight status. . Etc v This function can be operated in conjunction with Trueserver(Truesell middleware) or 3 rdparty Middleware. Video HTML Image 20

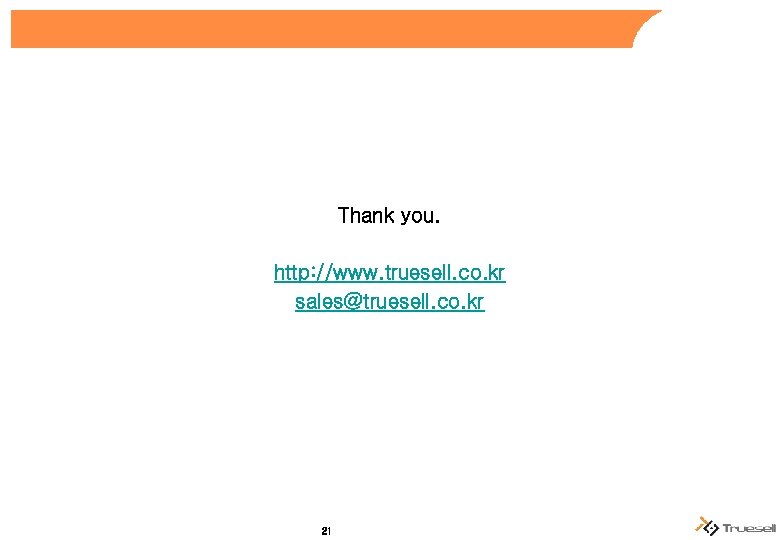

Thank you. http: //www. truesell. co. kr sales@truesell. co. kr 21
