Watermarking What is the Future Edward J Delp

Watermarking: What is the Future? Edward J. Delp Purdue University School of Electrical and Computer Engineering Purdue Multimedia Testbed Video and Image Processing Laboratory (VIPER) West Lafayette, IN 47907 -1285 +1 765 494 1740 +1 765 494 0880 (fax) email: ace@ecn. purdue. edu http: //www. ece. purdue. edu/~ace Edward J. Delp Panasonic January 13, 2000 Slide 1

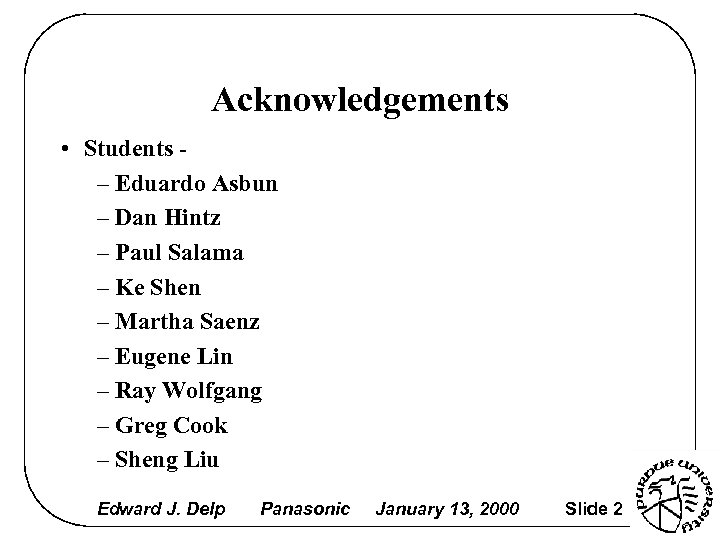

Acknowledgements • Students – Eduardo Asbun – Dan Hintz – Paul Salama – Ke Shen – Martha Saenz – Eugene Lin – Ray Wolfgang – Greg Cook – Sheng Liu Edward J. Delp Panasonic January 13, 2000 Slide 2

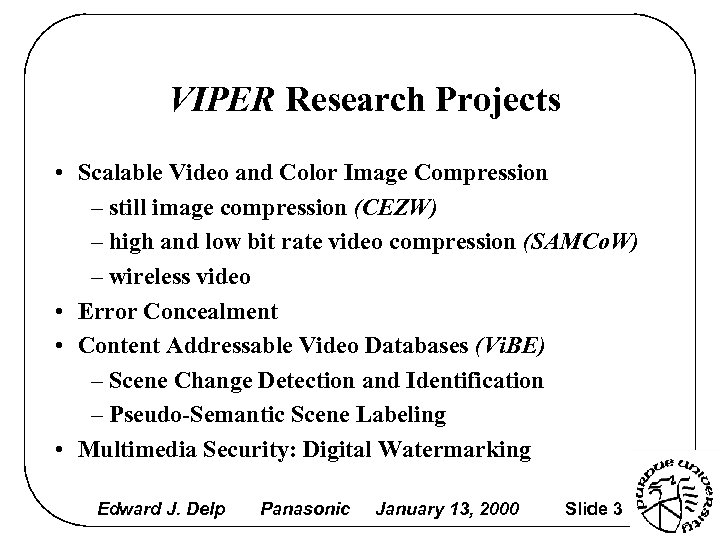

VIPER Research Projects • Scalable Video and Color Image Compression – still image compression (CEZW) – high and low bit rate video compression (SAMCo. W) – wireless video • Error Concealment • Content Addressable Video Databases (Vi. BE) – Scene Change Detection and Identification – Pseudo-Semantic Scene Labeling • Multimedia Security: Digital Watermarking Edward J. Delp Panasonic January 13, 2000 Slide 3

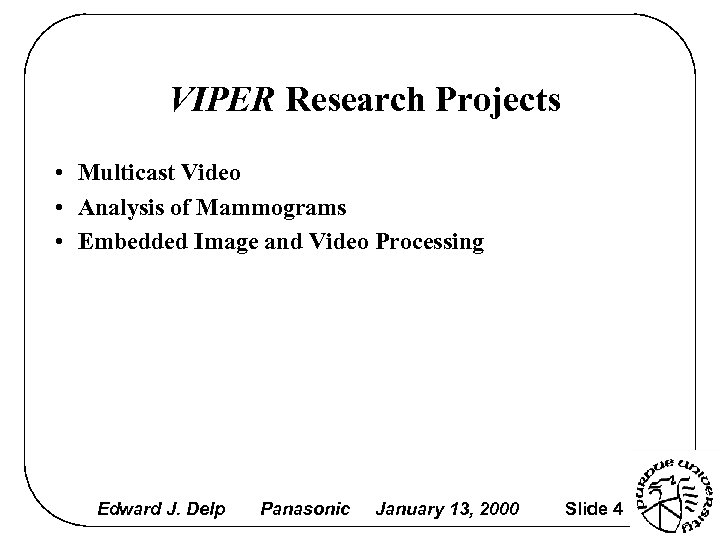

VIPER Research Projects • Multicast Video • Analysis of Mammograms • Embedded Image and Video Processing Edward J. Delp Panasonic January 13, 2000 Slide 4

Multimedia Security • “Everything” is digital these days - a copy of a digital media element is identical to the original • How can an owner protect their content? • Are images still “fossilized light”? • What does all of this mean in terms of law? • Does any security system really work or does it just make us feel good! Edward J. Delp Panasonic January 13, 2000 Slide 5

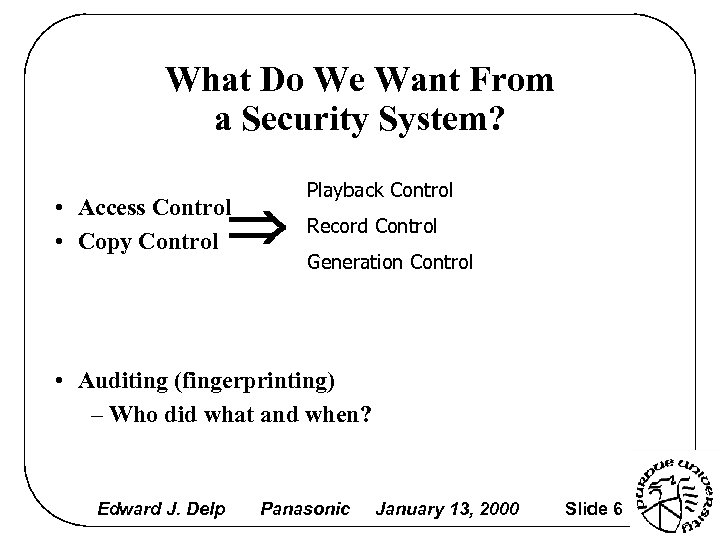

What Do We Want From a Security System? • Access Control • Copy Control Playback Control Record Control Generation Control • Auditing (fingerprinting) – Who did what and when? Edward J. Delp Panasonic January 13, 2000 Slide 6

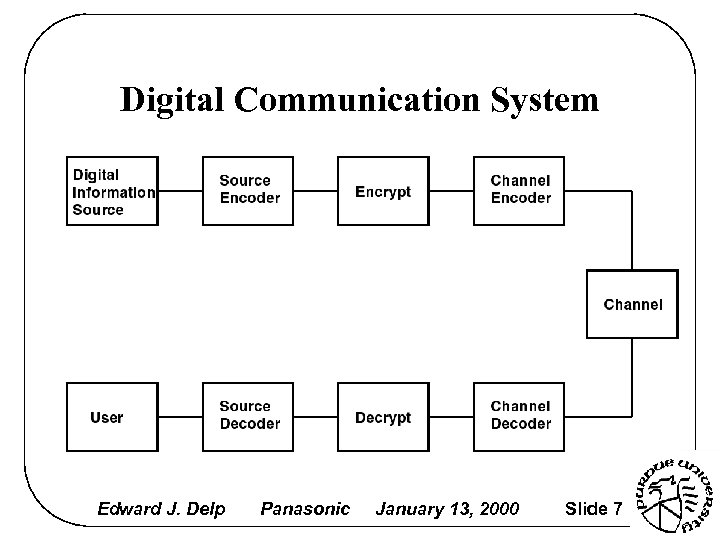

Digital Communication System Edward J. Delp Panasonic January 13, 2000 Slide 7

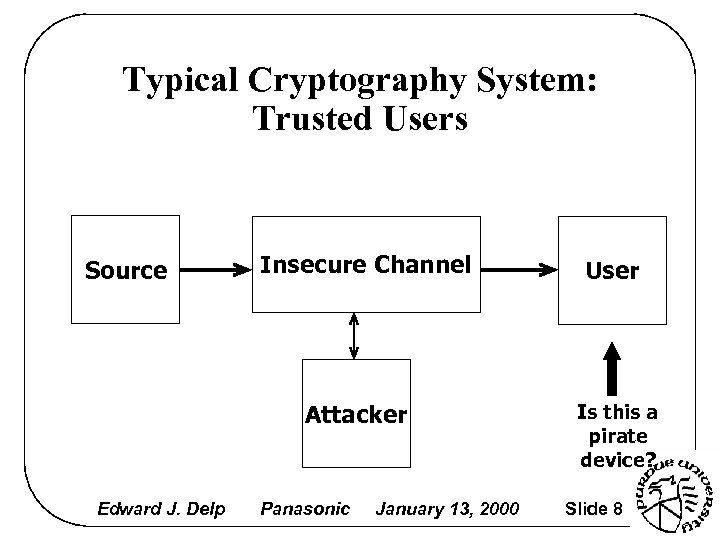

Typical Cryptography System: Trusted Users Source Insecure Channel Attacker Edward J. Delp Panasonic January 13, 2000 User Is this a pirate device? Slide 8

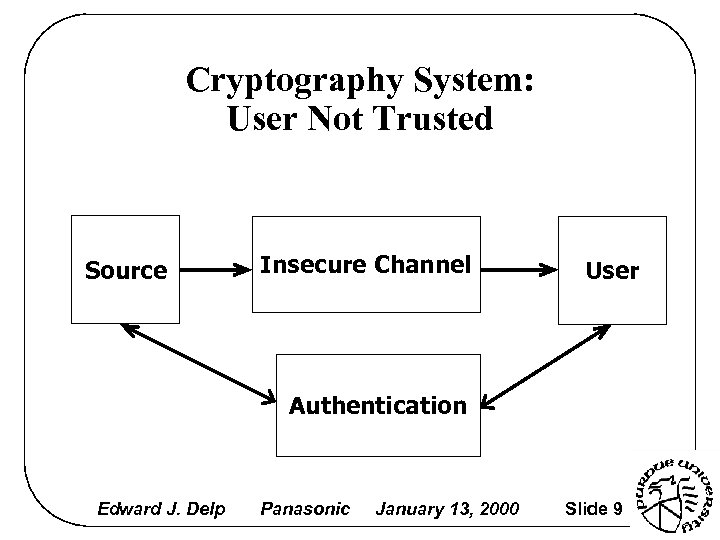

Cryptography System: User Not Trusted Source Insecure Channel User Authentication Edward J. Delp Panasonic January 13, 2000 Slide 9

What is Watermarking? • The use of perceptually invisible authentication techniques – “controlled” distortion is introduced in a multimedia element • Visible watermarks also exists Is our community mesmerized by watermarking technology? Edward J. Delp Panasonic January 13, 2000 Slide 10

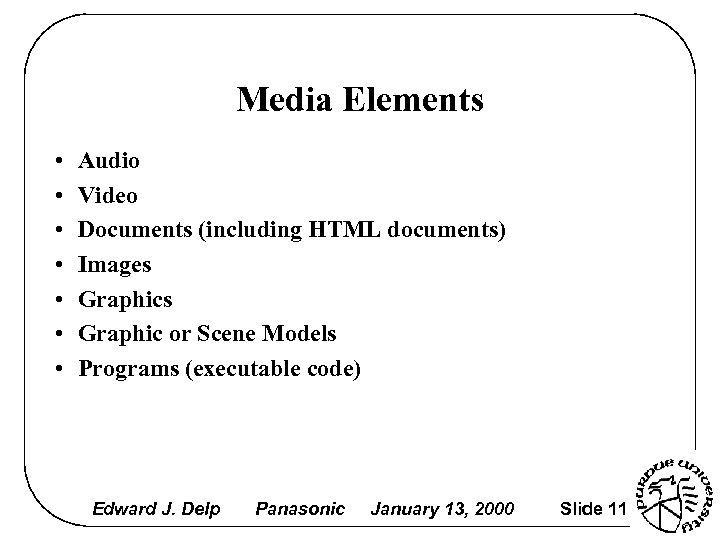

Media Elements • • Audio Video Documents (including HTML documents) Images Graphic or Scene Models Programs (executable code) Edward J. Delp Panasonic January 13, 2000 Slide 11

Watermarking Scenario • Scenario – an owner places digital images on a network server and wants to “protect” the images • Goals – verify the owner of a digital image – detect forgeries of an original image – identify illegal copies of the image – prevent unauthorized distribution Edward J. Delp Panasonic January 13, 2000 Slide 12

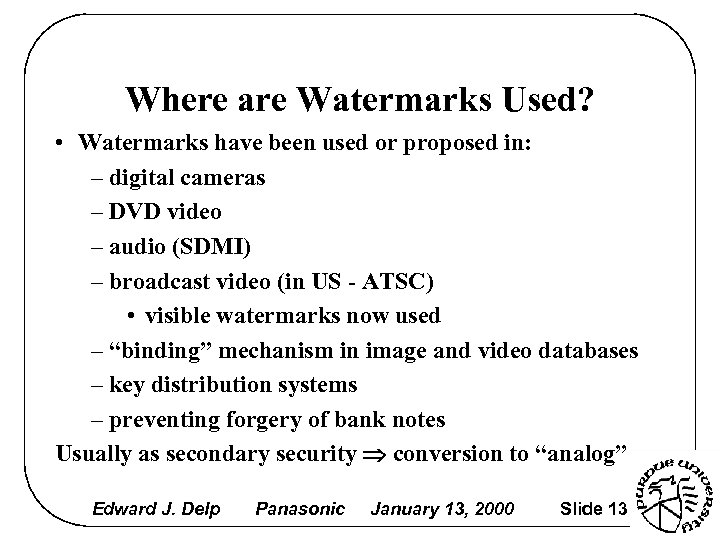

Where are Watermarks Used? • Watermarks have been used or proposed in: – digital cameras – DVD video – audio (SDMI) – broadcast video (in US - ATSC) • visible watermarks now used – “binding” mechanism in image and video databases – key distribution systems – preventing forgery of bank notes Usually as secondary security conversion to “analog” Edward J. Delp Panasonic January 13, 2000 Slide 13

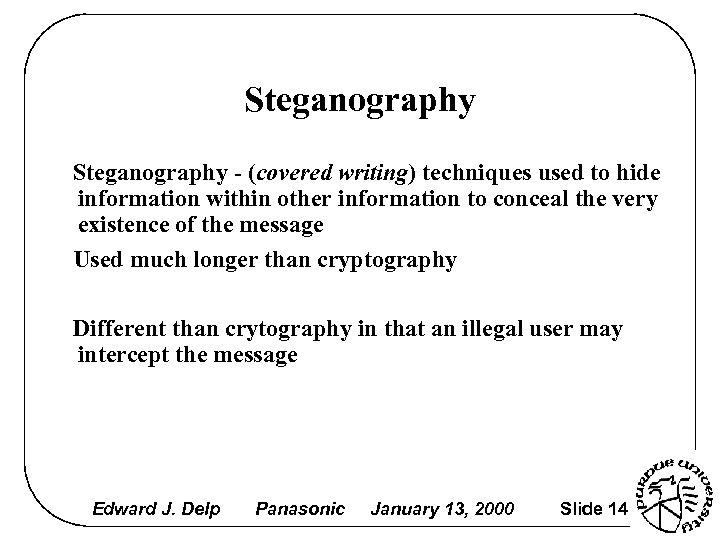

Steganography - (covered writing) techniques used to hide information within other information to conceal the very existence of the message Used much longer than cryptography Different than crytography in that an illegal user may intercept the message Edward J. Delp Panasonic January 13, 2000 Slide 14

Multimedia Security Applications • • • Privacy Forgery Detection watermarking Copyright Protection watermarking Proof of Purchase (non-deniable) Proof of Delivery (non-deniable) Intruder Detection Edward J. Delp Panasonic January 13, 2000 Slide 15

Multimedia Security - Tools Set • Encryption • Authentication • Hashing • Time-stamping • Watermarking Edward J. Delp Panasonic January 13, 2000 Slide 16

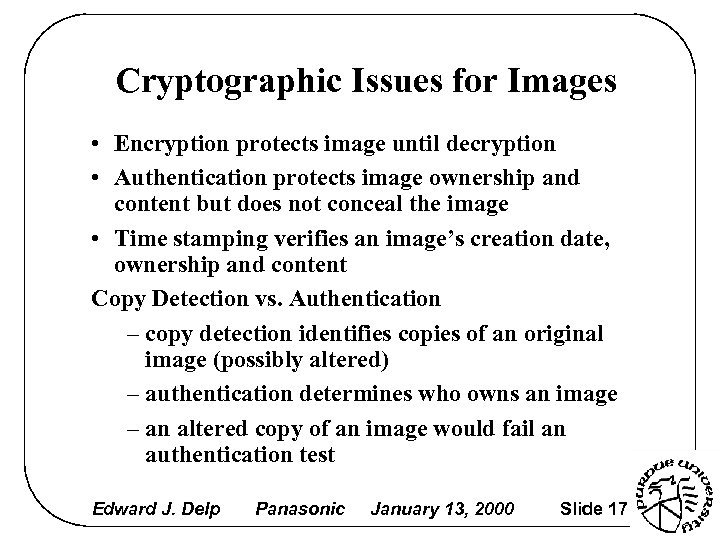

Cryptographic Issues for Images • Encryption protects image until decryption • Authentication protects image ownership and content but does not conceal the image • Time stamping verifies an image’s creation date, ownership and content Copy Detection vs. Authentication – copy detection identifies copies of an original image (possibly altered) – authentication determines who owns an image – an altered copy of an image would fail an authentication test Edward J. Delp Panasonic January 13, 2000 Slide 17

Time Stamps • Time stamps use hash functions to verify a digital work’s time of creation, ownership and content: – When was this data created or last modified? • Two procedures: – certification - the author of the data can "sign" the record, or a user can fix data in time. The result is a certificate – verification - any user can check data and its certificate to make sure it is correct • Time stamping is a form of authentication and requires a “trusted” third party escrow agent • http: //www. surety. com/ Edward J. Delp Panasonic January 13, 2000 Slide 18

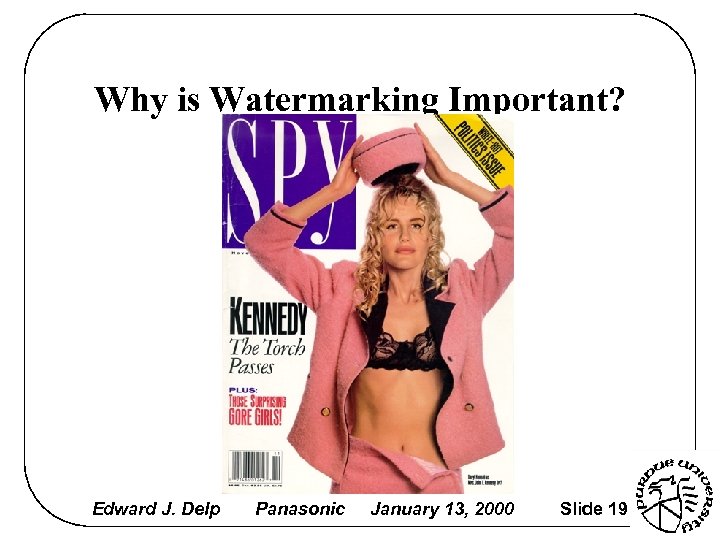

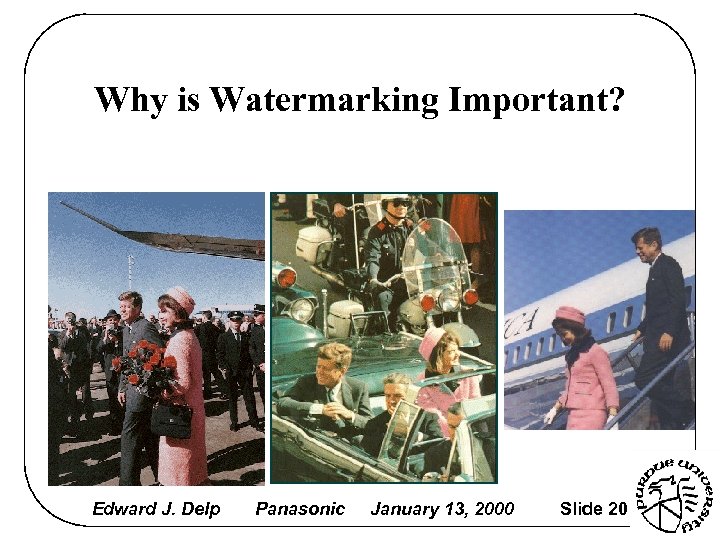

Why is Watermarking Important? Edward J. Delp Panasonic January 13, 2000 Slide 19

Why is Watermarking Important? Edward J. Delp Panasonic January 13, 2000 Slide 20

Why Watermarking is Important? Edward J. Delp Panasonic January 13, 2000 Slide 21

Why is Watermarking Important? Edward J. Delp Panasonic January 13, 2000 Slide 22

Why is Watermarking Important? Edward J. Delp Panasonic January 13, 2000 Slide 23

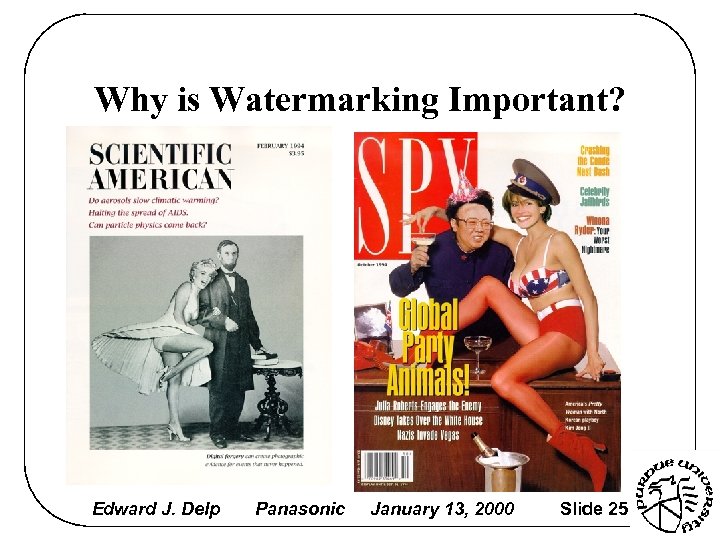

Why is Watermarking Important? Edward J. Delp Panasonic January 13, 2000 Slide 24

Why is Watermarking Important? Edward J. Delp Panasonic January 13, 2000 Slide 25

Why is Watermarking Important? Edward J. Delp Panasonic January 13, 2000 Slide 26

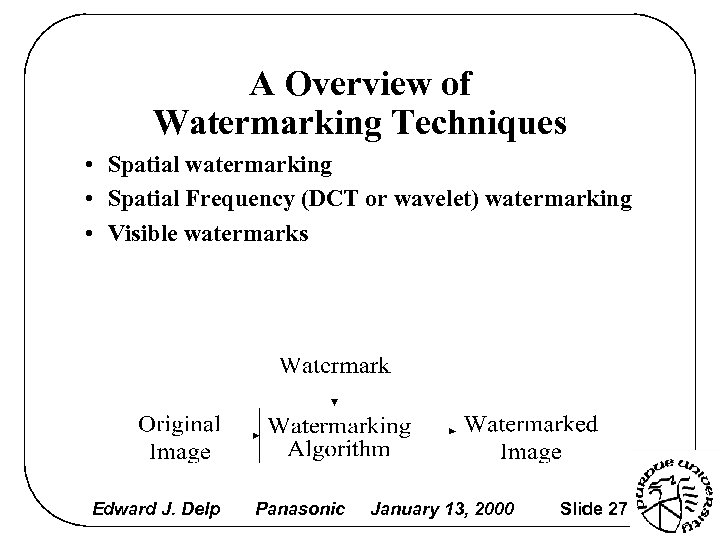

A Overview of Watermarking Techniques • Spatial watermarking • Spatial Frequency (DCT or wavelet) watermarking • Visible watermarks Edward J. Delp Panasonic January 13, 2000 Slide 27

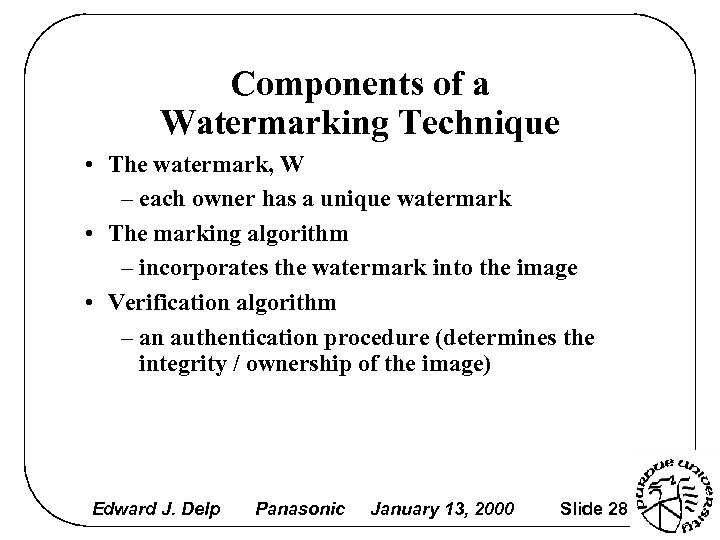

Components of a Watermarking Technique • The watermark, W – each owner has a unique watermark • The marking algorithm – incorporates the watermark into the image • Verification algorithm – an authentication procedure (determines the integrity / ownership of the image) Edward J. Delp Panasonic January 13, 2000 Slide 28

Main Principles • Transparency - the watermark is not visible in the image under typical viewing conditions • Robustness to attacks - the watermark can still be detected after the image has undergone linear and/or nonlinear operations (this may not be a good property fragile watermarks) • Capacity - the technique is capable of allowing multiple watermarks to be inserted into the image with each watermark being independently verifiable Edward J. Delp Panasonic January 13, 2000 Slide 29

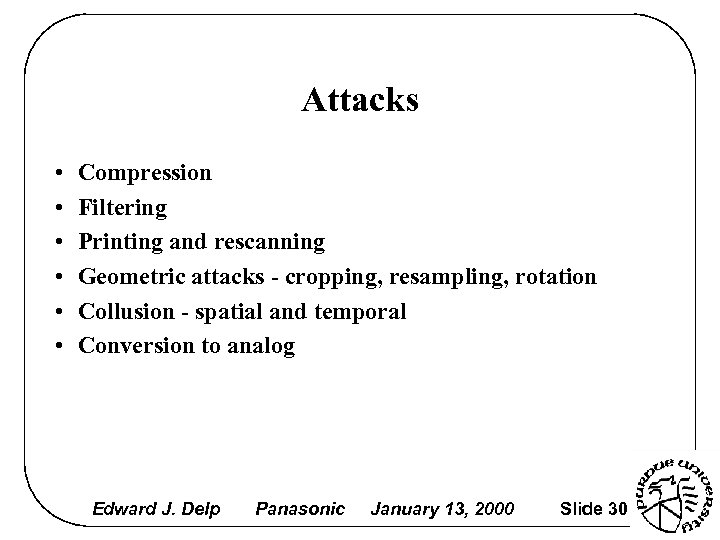

Attacks • • • Compression Filtering Printing and rescanning Geometric attacks - cropping, resampling, rotation Collusion - spatial and temporal Conversion to analog Edward J. Delp Panasonic January 13, 2000 Slide 30

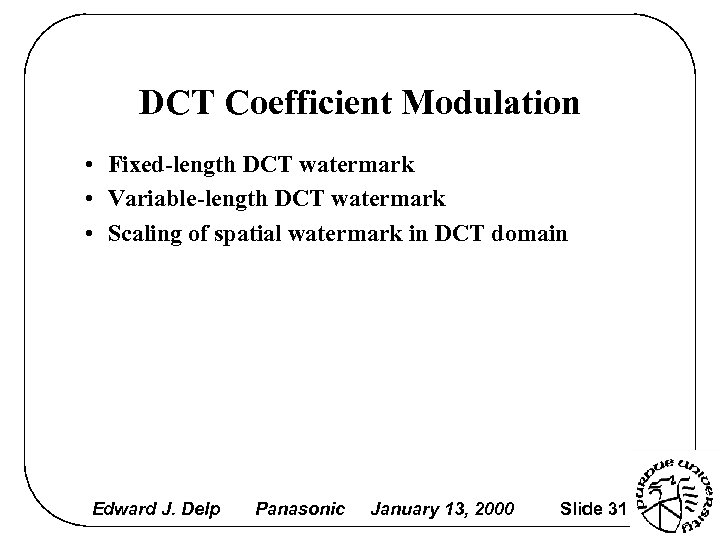

DCT Coefficient Modulation • Fixed-length DCT watermark • Variable-length DCT watermark • Scaling of spatial watermark in DCT domain Edward J. Delp Panasonic January 13, 2000 Slide 31

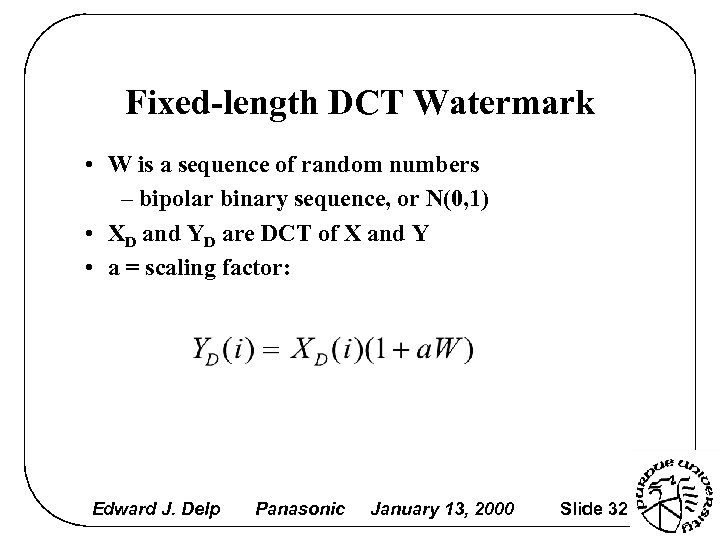

Fixed-length DCT Watermark • W is a sequence of random numbers – bipolar binary sequence, or N(0, 1) • XD and YD are DCT of X and Y • a = scaling factor: Edward J. Delp Panasonic January 13, 2000 Slide 32

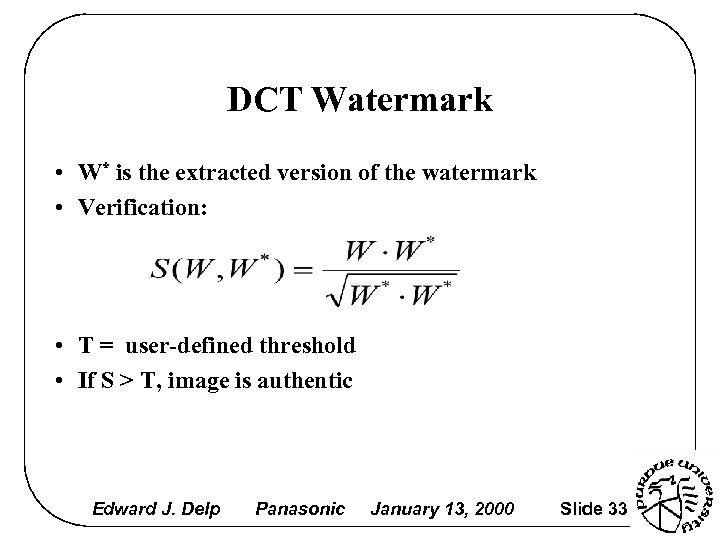

DCT Watermark • W* is the extracted version of the watermark • Verification: • T = user-defined threshold • If S > T, image is authentic Edward J. Delp Panasonic January 13, 2000 Slide 33

Original Image Edward J. Delp Panasonic January 13, 2000 Slide 34

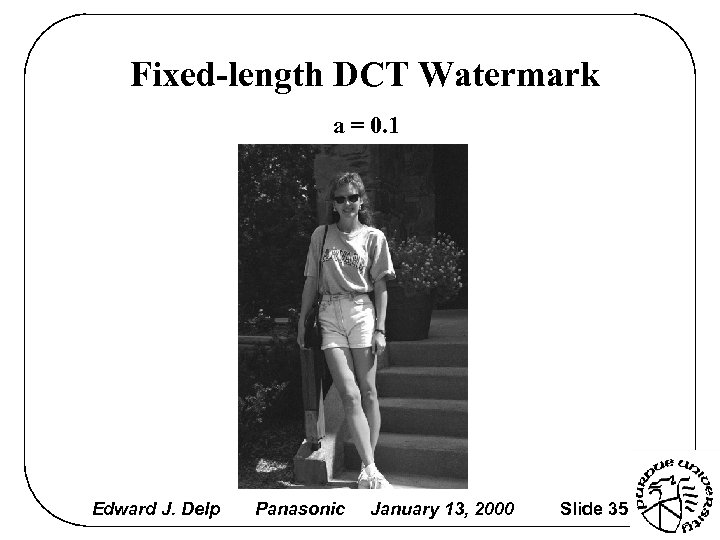

Fixed-length DCT Watermark a = 0. 1 Edward J. Delp Panasonic January 13, 2000 Slide 35

Fixed-length DCT Watermark a = 0. 5 Edward J. Delp Panasonic January 13, 2000 Slide 36

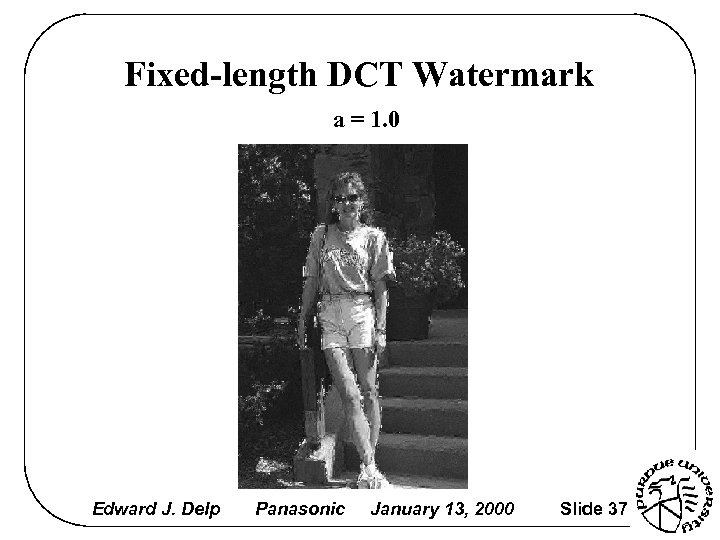

Fixed-length DCT Watermark a = 1. 0 Edward J. Delp Panasonic January 13, 2000 Slide 37

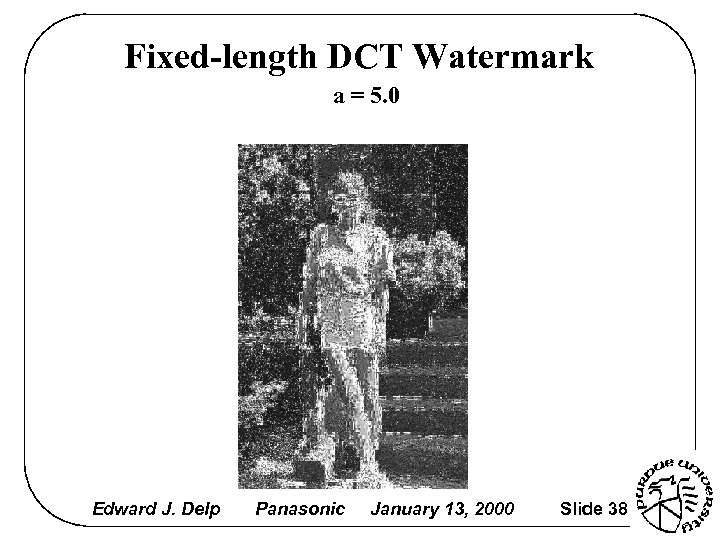

Fixed-length DCT Watermark a = 5. 0 Edward J. Delp Panasonic January 13, 2000 Slide 38

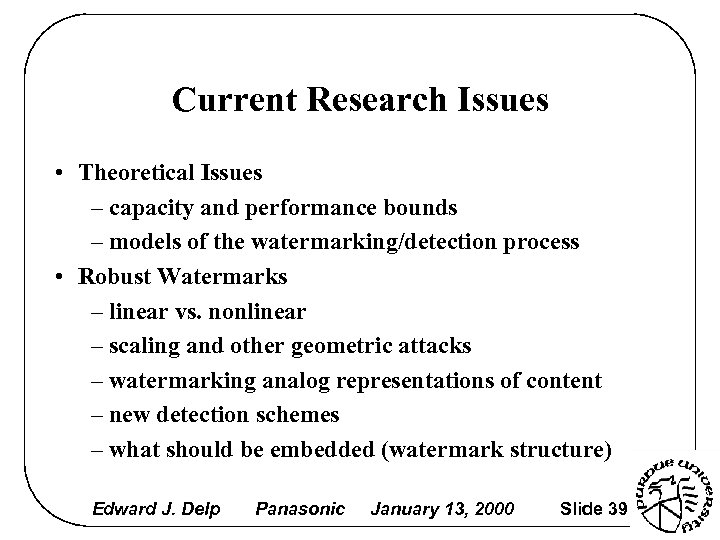

Current Research Issues • Theoretical Issues – capacity and performance bounds – models of the watermarking/detection process • Robust Watermarks – linear vs. nonlinear – scaling and other geometric attacks – watermarking analog representations of content – new detection schemes – what should be embedded (watermark structure) Edward J. Delp Panasonic January 13, 2000 Slide 39

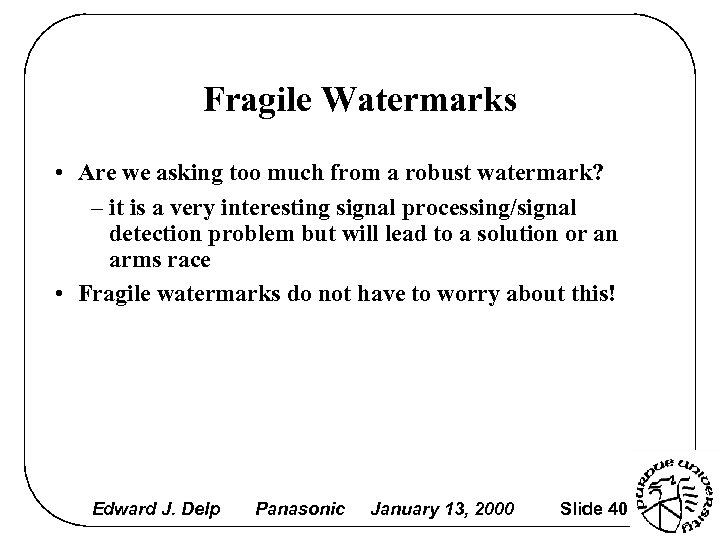

Fragile Watermarks • Are we asking too much from a robust watermark? – it is a very interesting signal processing/signal detection problem but will lead to a solution or an arms race • Fragile watermarks do not have to worry about this! Edward J. Delp Panasonic January 13, 2000 Slide 40

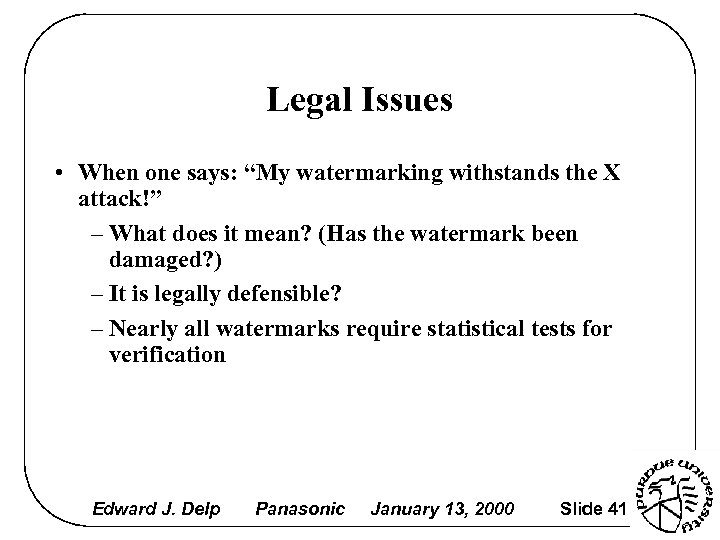

Legal Issues • When one says: “My watermarking withstands the X attack!” – What does it mean? (Has the watermark been damaged? ) – It is legally defensible? – Nearly all watermarks require statistical tests for verification Edward J. Delp Panasonic January 13, 2000 Slide 41

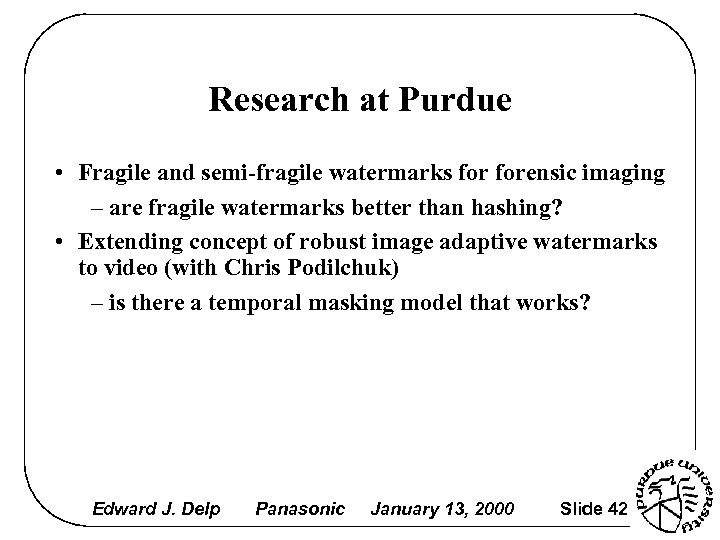

Research at Purdue • Fragile and semi-fragile watermarks forensic imaging – are fragile watermarks better than hashing? • Extending concept of robust image adaptive watermarks to video (with Chris Podilchuk) – is there a temporal masking model that works? Edward J. Delp Panasonic January 13, 2000 Slide 42

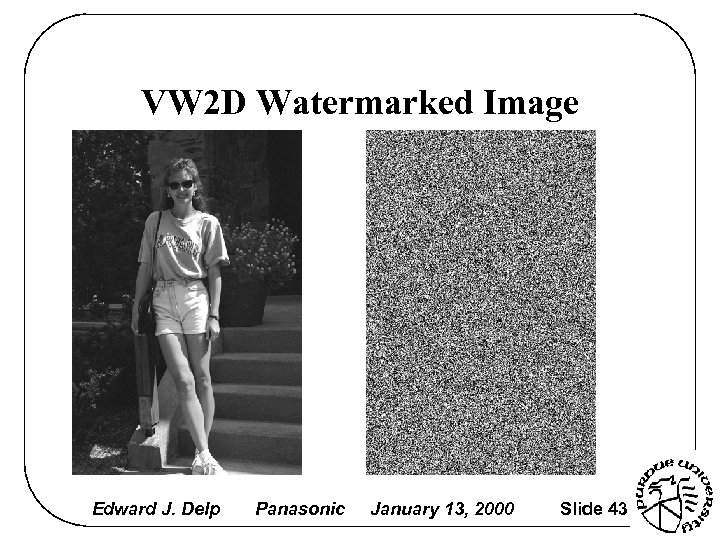

VW 2 D Watermarked Image Edward J. Delp Panasonic January 13, 2000 Slide 43

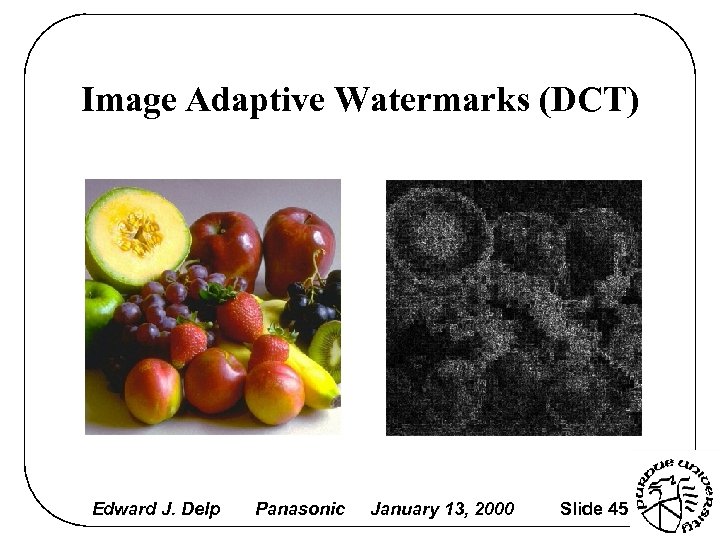

Image Adaptive Watermarks (DCT) Edward J. Delp Panasonic January 13, 2000 Slide 44

Image Adaptive Watermarks (DCT) Edward J. Delp Panasonic January 13, 2000 Slide 45

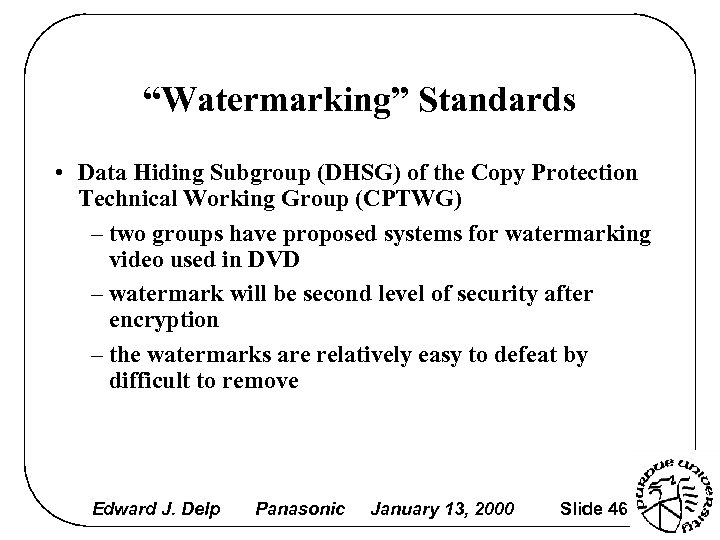

“Watermarking” Standards • Data Hiding Subgroup (DHSG) of the Copy Protection Technical Working Group (CPTWG) – two groups have proposed systems for watermarking video used in DVD – watermark will be second level of security after encryption – the watermarks are relatively easy to defeat by difficult to remove Edward J. Delp Panasonic January 13, 2000 Slide 46

Watermarking: Legal/Political Issues • Watermarking technologies have not been tested in court – is watermarking the “feel good” technology of multimedia? • Might one be better off just doing timestamping and/or other forms of authentication? • What does it mean when a watermarking technique survives an attack (verification based on statistical tests) • Watermarking may always be the secondary security method Edward J. Delp Panasonic January 13, 2000 Slide 47

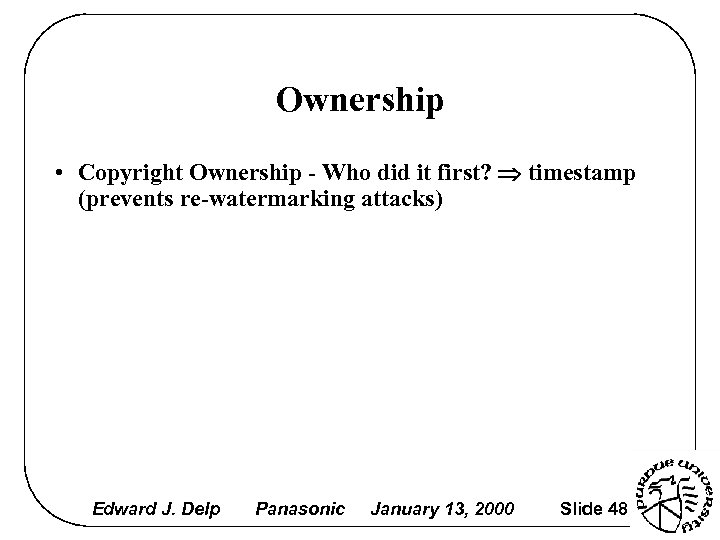

Ownership • Copyright Ownership - Who did it first? timestamp (prevents re-watermarking attacks) Edward J. Delp Panasonic January 13, 2000 Slide 48

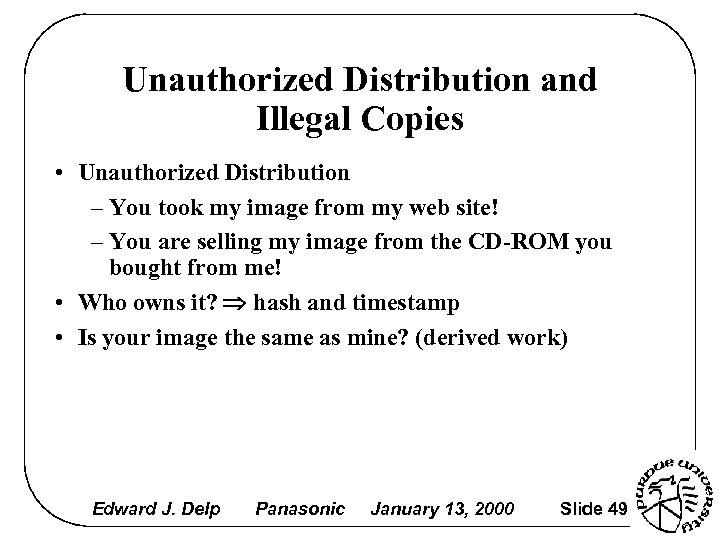

Unauthorized Distribution and Illegal Copies • Unauthorized Distribution – You took my image from my web site! – You are selling my image from the CD-ROM you bought from me! • Who owns it? hash and timestamp • Is your image the same as mine? (derived work) Edward J. Delp Panasonic January 13, 2000 Slide 49

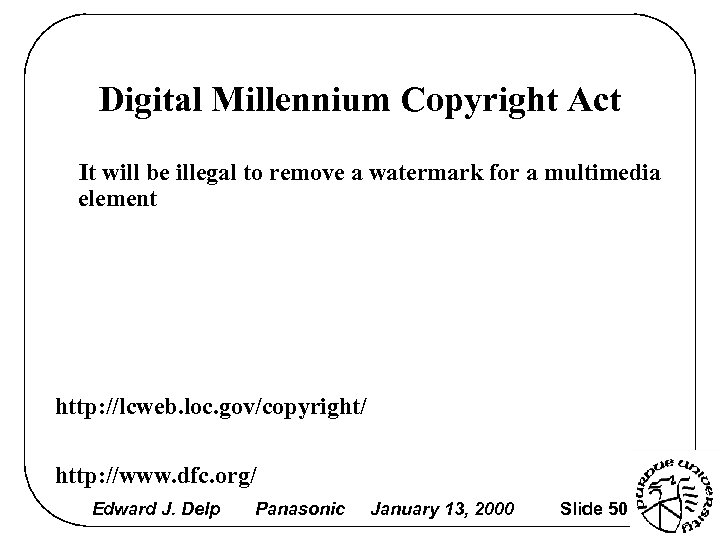

Digital Millennium Copyright Act It will be illegal to remove a watermark for a multimedia element http: //lcweb. loc. gov/copyright/ http: //www. dfc. org/ Edward J. Delp Panasonic January 13, 2000 Slide 50

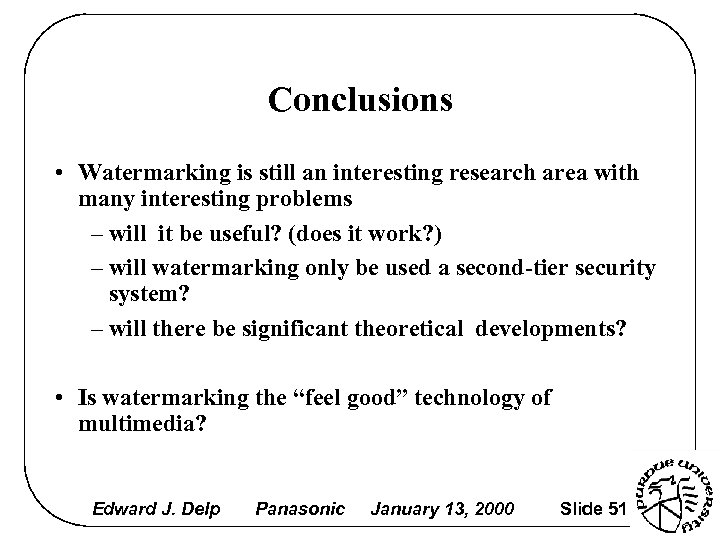

Conclusions • Watermarking is still an interesting research area with many interesting problems – will it be useful? (does it work? ) – will watermarking only be used a second-tier security system? – will there be significant theoretical developments? • Is watermarking the “feel good” technology of multimedia? Edward J. Delp Panasonic January 13, 2000 Slide 51

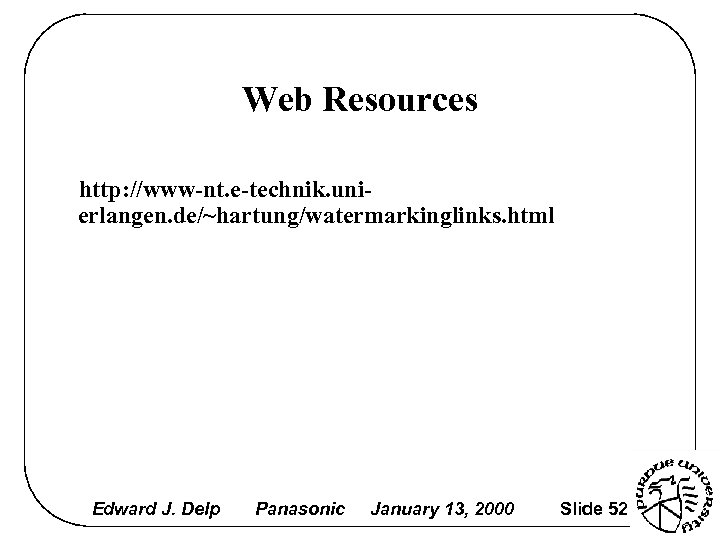

Web Resources http: //www-nt. e-technik. unierlangen. de/~hartung/watermarkinglinks. html Edward J. Delp Panasonic January 13, 2000 Slide 52

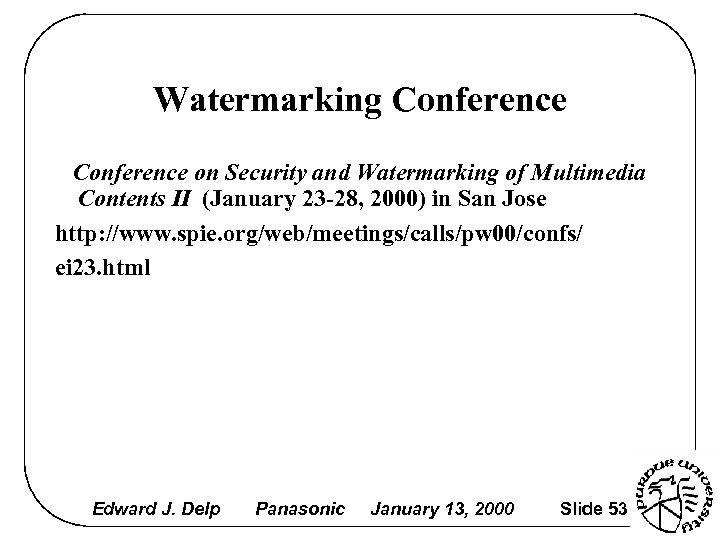

Watermarking Conference on Security and Watermarking of Multimedia Contents II (January 23 -28, 2000) in San Jose http: //www. spie. org/web/meetings/calls/pw 00/confs/ ei 23. html Edward J. Delp Panasonic January 13, 2000 Slide 53

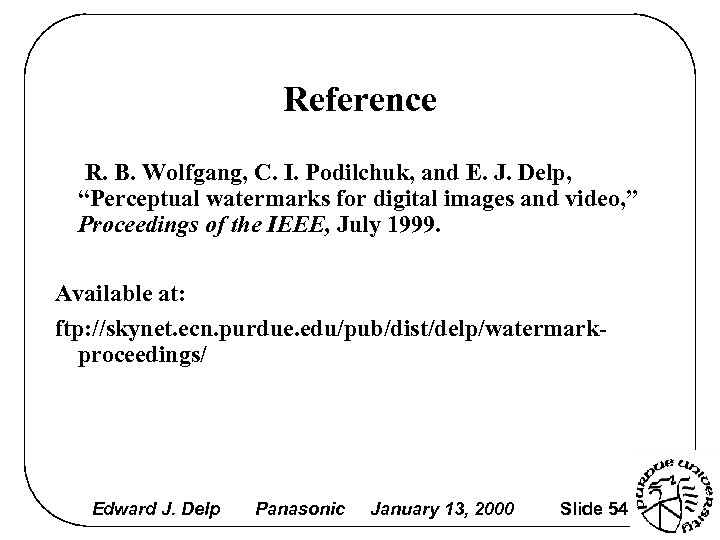

Reference R. B. Wolfgang, C. I. Podilchuk, and E. J. Delp, “Perceptual watermarks for digital images and video, ” Proceedings of the IEEE, July 1999. Available at: ftp: //skynet. ecn. purdue. edu/pub/dist/delp/watermarkproceedings/ Edward J. Delp Panasonic January 13, 2000 Slide 54
