Water treatment in container – with guarantee for quality and performance EUROWATER Our World is Water

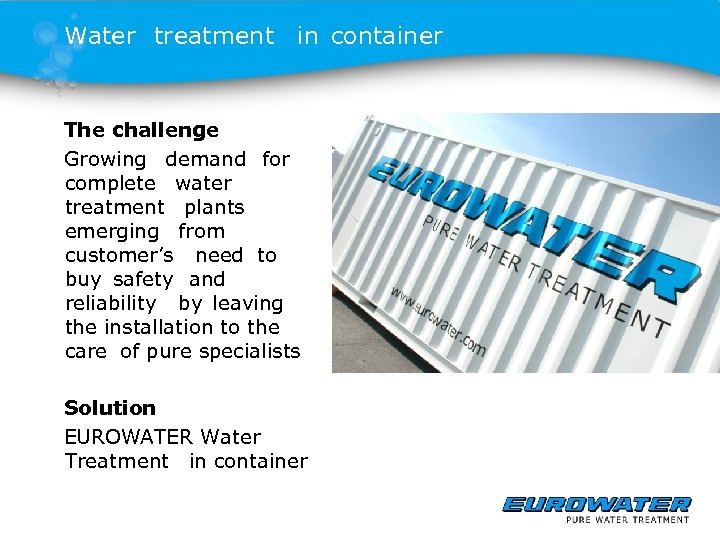

Water treatment in container The challenge Growing demand for complete water treatment plants emerging from customer’s need to buy safety and reliability by leaving the installation to the care of pure specialists Solution EUROWATER Water Treatment in container

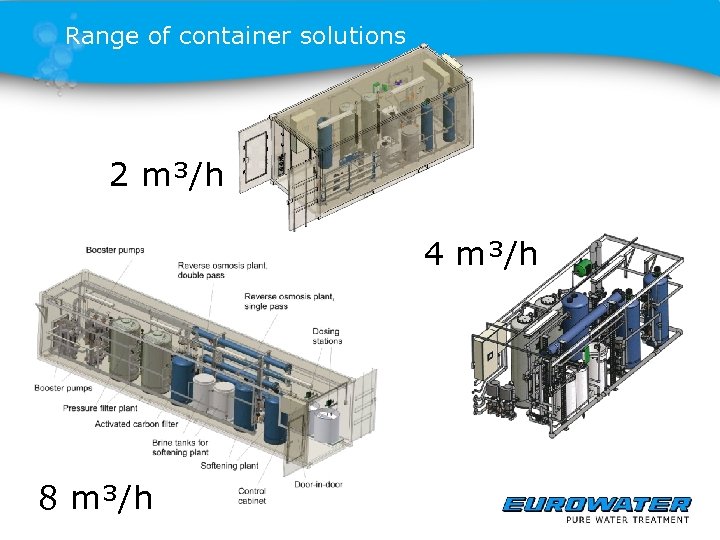

Range of container solutions 2 m³/h 4 m³/h 8 m³/h

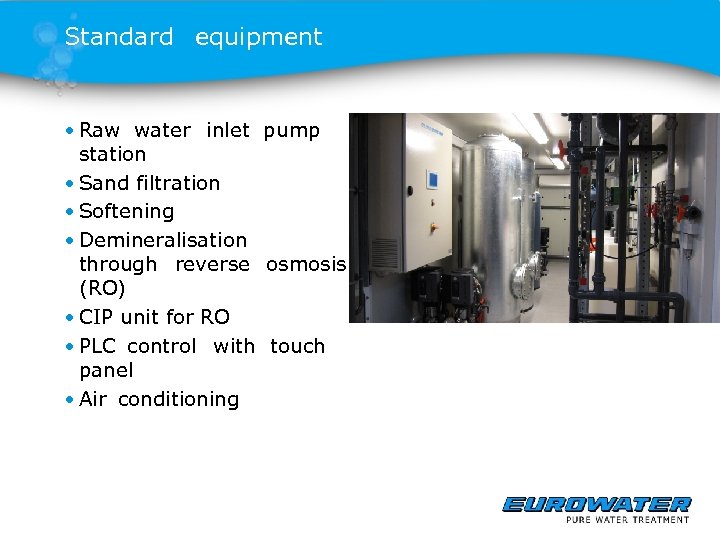

Standard equipment • Raw water inlet pump station • Sand filtration • Softening • Demineralisation through reverse osmosis (RO) • CIP unit for RO • PLC control with touch panel • Air conditioning

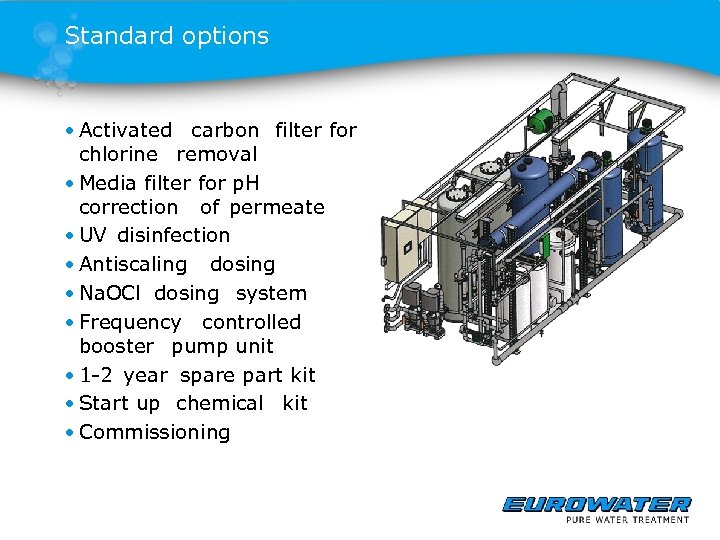

Standard options • Activated carbon filter for chlorine removal • Media filter for p. H correction of permeate • UV disinfection • Antiscaling dosing • Na. OCl dosing system • Frequency controlled booster pump unit • 1 -2 year spare part kit • Start up chemical kit • Commissioning

High quality product from EUROWATER… … Well-tested equipment and accessories • Based on EUROWATER standard product programme … International and well reputated suppliers • Grundfos Pumps, frequency converters , dosing pumps • Georg Fischer (+GF+) Valves , pilot valves , fittings , pipes (website ) • Danfoss Pilot valves , pressure transmitters • Hilti Pipe and other supports • Siemens PLC and touch panel • Rittal Controle box cabinet • Dow Chemical Membranes , ion exchange resin

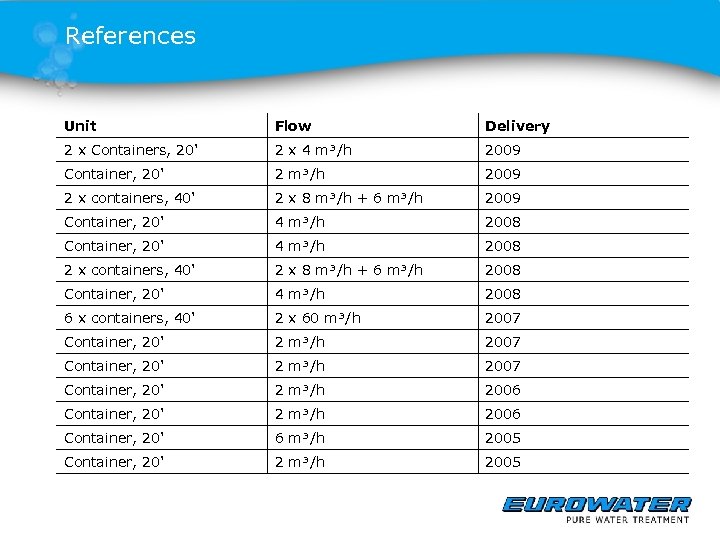

References Unit Flow Delivery 2 x Containers, 20' 2 x 4 m³/h 2009 Container, 20' 2 m³/h 2009 2 x containers, 40' 2 x 8 m³/h + 6 m³/h 2009 Container, 20' 4 m³/h 2008 2 x containers, 40' 2 x 8 m³/h + 6 m³/h 2008 Container, 20' 4 m³/h 2008 6 x containers, 40' 2 x 60 m³/h 2007 Container, 20' 2 m³/h 2006 Container, 20' 6 m³/h 2005 Container, 20' 2 m³/h 2005

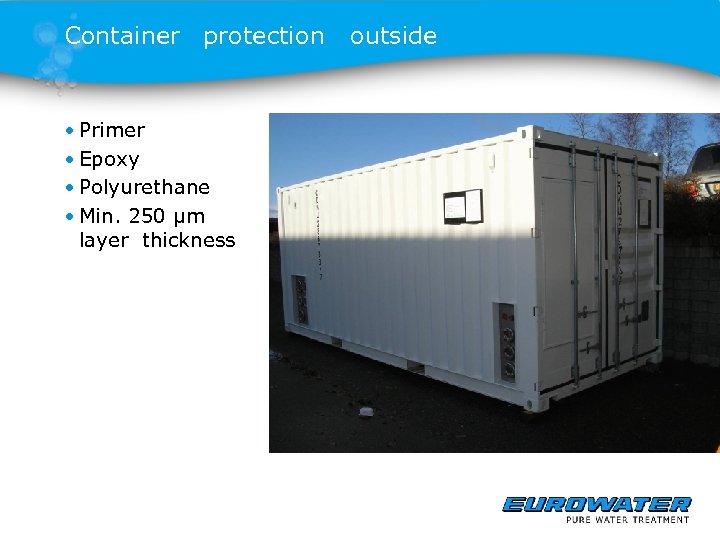

Container protection • Primer • Epoxy • Polyurethane • Min. 250 µm layer thickness outside

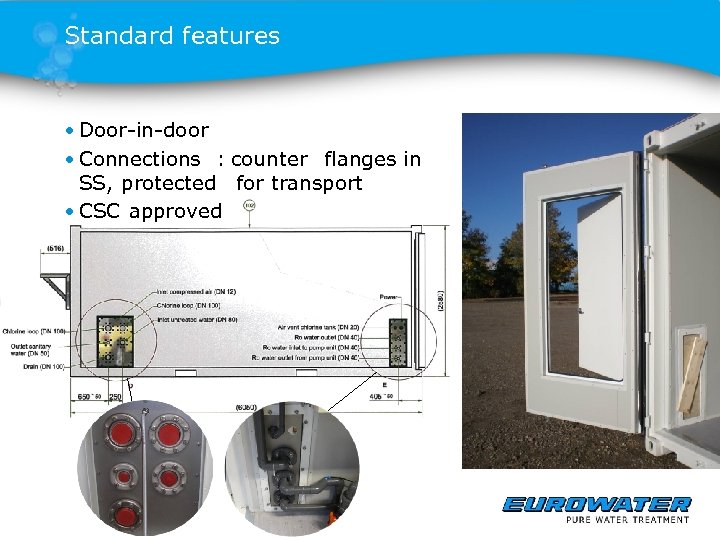

Standard features • Door-in-door • Connections : counter flanges in SS, protected for transport • CSC approved

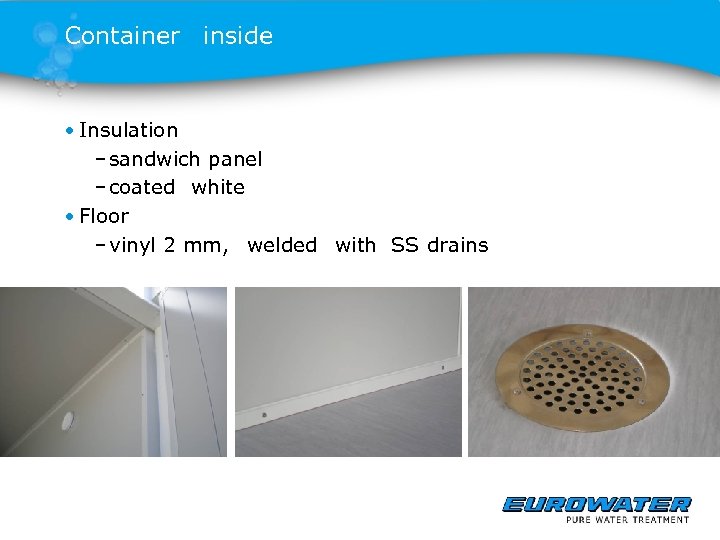

Container inside • Insulation – sandwich panel – coated white • Floor – vinyl 2 mm, welded with SS drains

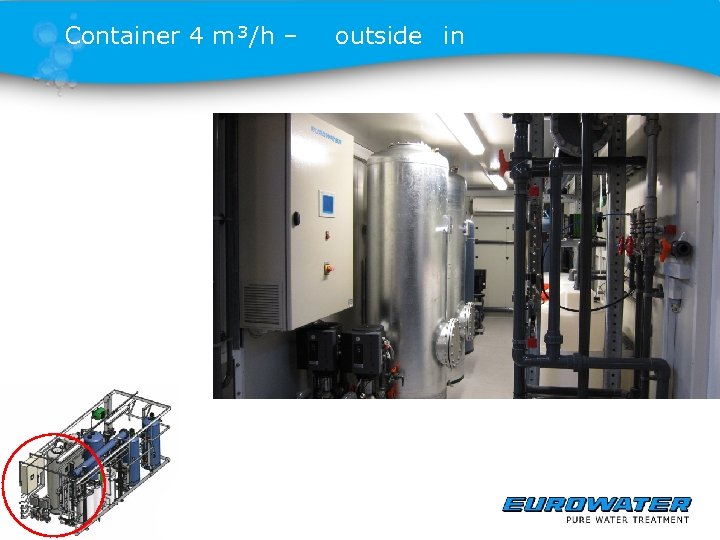

Container 4 m³/h – outside in

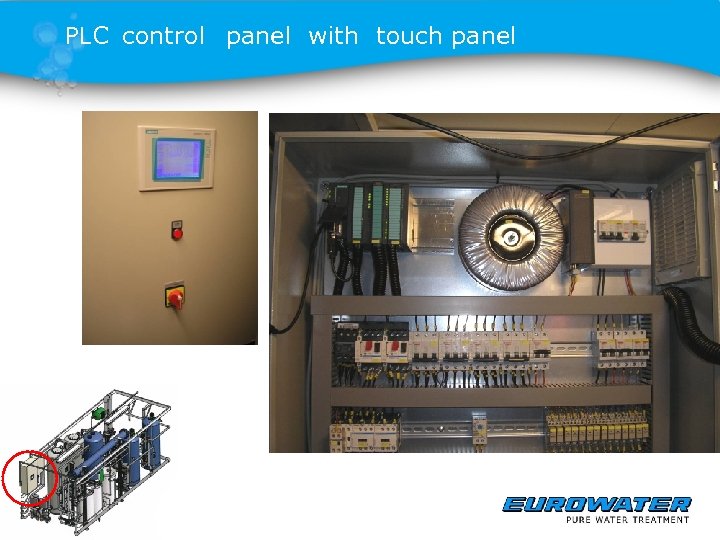

PLC control panel with touch panel

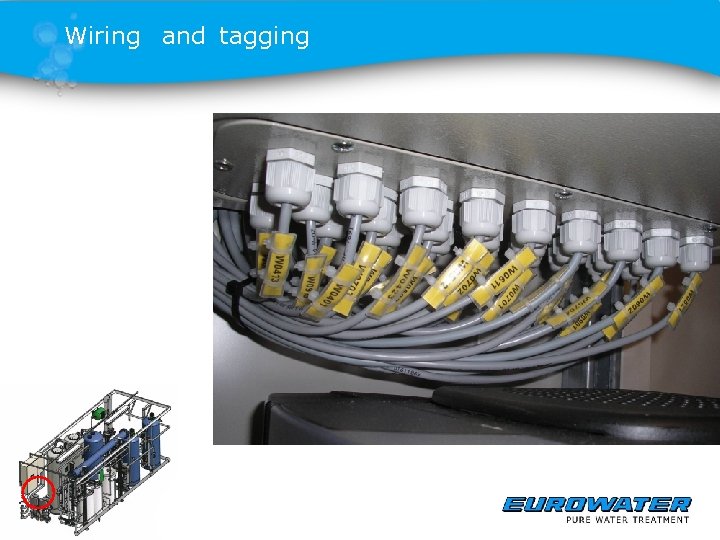

Wiring and tagging

Connections

Instrumentation – easy accessible

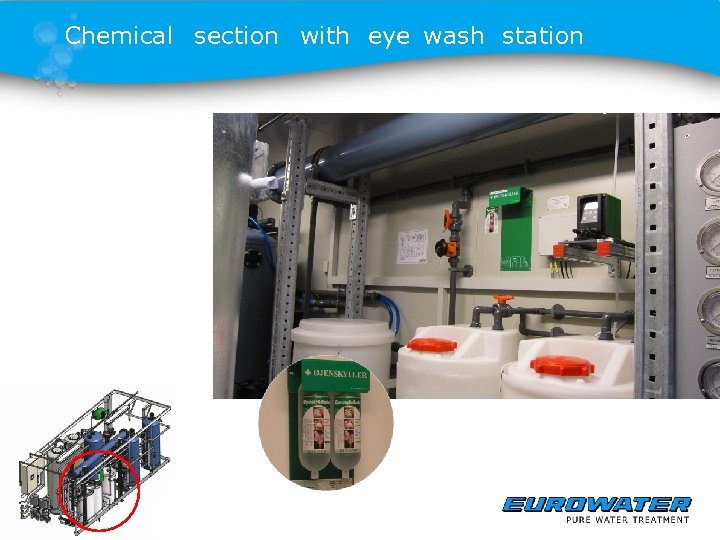

Chemical section with eye wash station

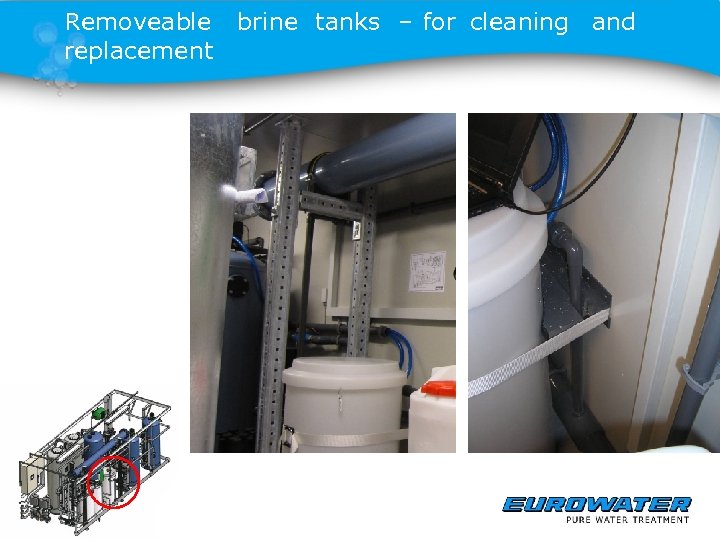

Removeable brine tanks – for cleaning and replacement

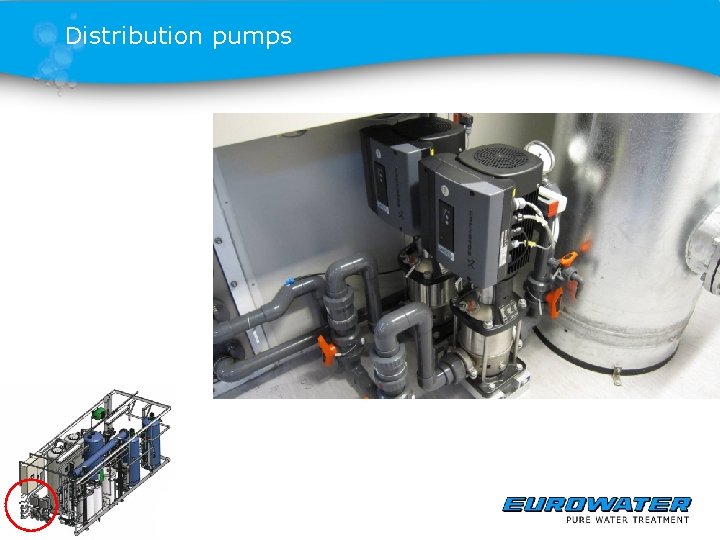

Distribution pumps

Reference • 2 x 40 feet containers • 2 x 8 m³/h demineralised water • Power plant in Asia • Cooling water , boiler water , drinking water

Reference

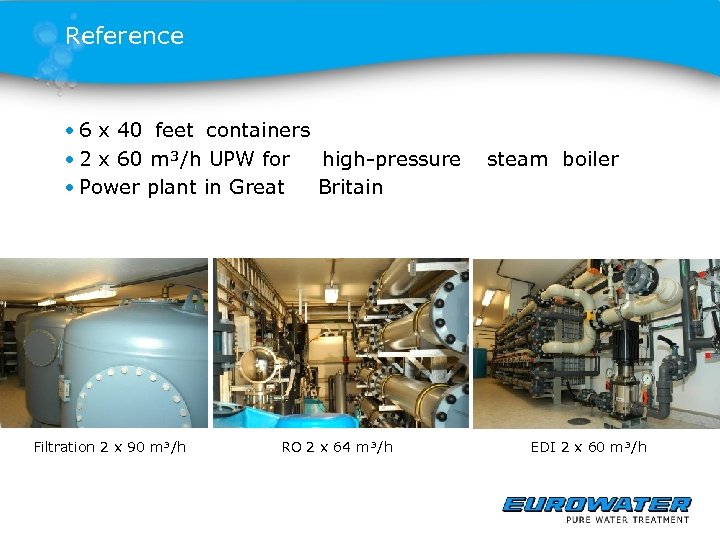

Reference • 6 x 40 feet containers • 2 x 60 m³/h UPW for high-pressure • Power plant in Great Britain Filtration 2 x 90 m³/h RO 2 x 64 m³/h steam boiler EDI 2 x 60 m³/h

More information • EUROWATER is an international manufacturer of water treatment equipment with subsidiary companies and dealers in more than 30 countries. • EUROWATER also offers a large fleet of rental water treatment plants : filtration, softening , demineralisation , mixed-bed , UV – frame-mounted or in container! • www. eurowater. com
