Warm Touch Product Introduction î Feb 16 2009

Warm Touch Product Introduction î Feb. 16, 2009 îVersion 0. 01

What is Warm Touch? n. Warm Touch is an All-in-One display device which is used as an instore sign to present constantly changing, computer generated, full motion video, photo-realistic graphics, text, and animation. It is a dynamic venue as opposed to static billboards and posters. AOpen provide two different product lines to meet different application scenario. Product Line Panel Size Chassis M/B Solution Accessories Standard 19”W Plastic ATOM solution Stand VESA Hole for anyone VESA mounting KIT Customization >15” (Design Ready) & other panel sizes Metal n Flash Card Media Player Bar code reader, Credit card reader, Thermal printer, etc. n Mini-ITX M/B

Standard Warm Touch WT 19 P

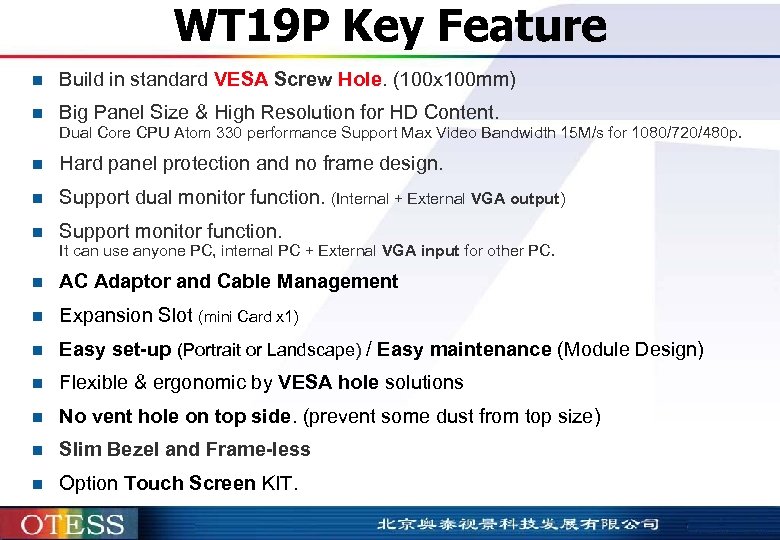

WT 19 P Key Feature n Build in standard VESA Screw Hole. (100 x 100 mm) n Big Panel Size & High Resolution for HD Content. Dual Core CPU Atom 330 performance Support Max Video Bandwidth 15 M/s for 1080/720/480 p. n Hard panel protection and no frame design. n Support dual monitor function. (Internal + External VGA output) n Support monitor function. It can use anyone PC, internal PC + External VGA input for other PC. n AC Adaptor and Cable Management n Expansion Slot (mini Card x 1) n Easy set-up (Portrait or Landscape) / Easy maintenance (Module Design) n Flexible & ergonomic by VESA hole solutions n No vent hole on top side. (prevent some dust from top size) n Slim Bezel and Frame-less n Option Touch Screen KIT.

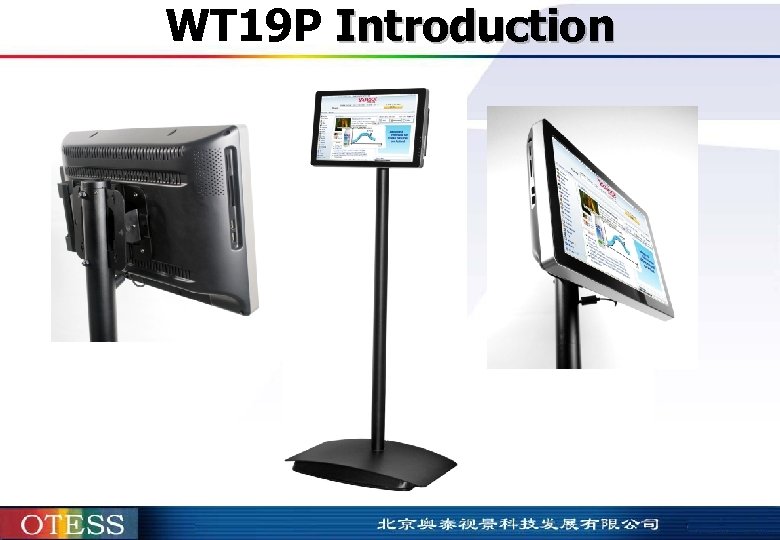

WT 19 P Introduction DC Jack, VGA out, USBx 2 Audio, RJ 45, Monitor VGA in

WT 19 P Introduction

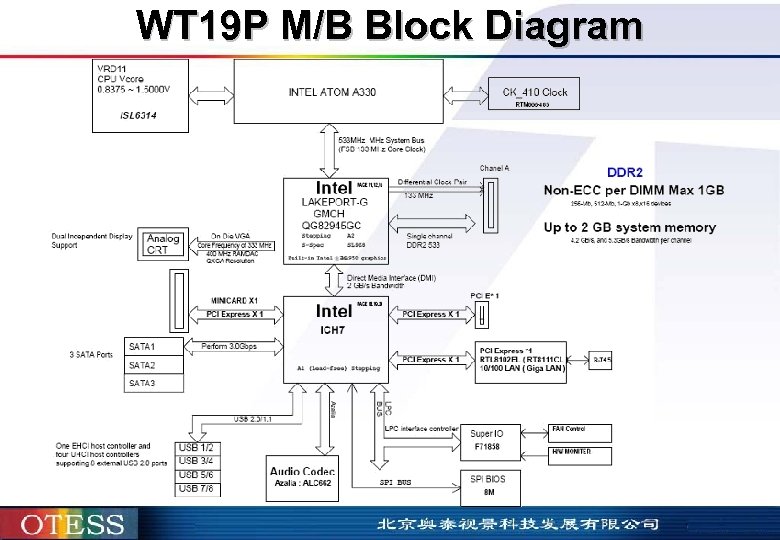

WT 19 P M/B Block Diagram

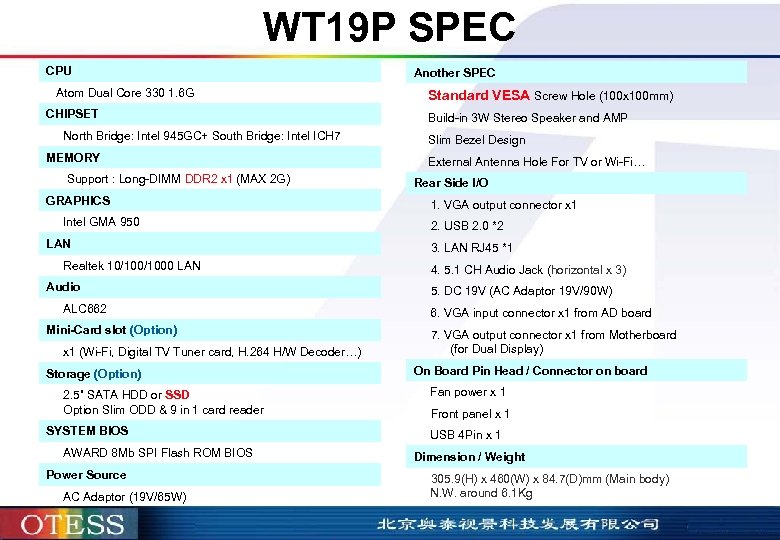

WT 19 P SPEC CPU Atom Dual Core 330 1. 6 G CHIPSET North Bridge: Intel 945 GC+ South Bridge: Intel ICH 7 MEMORY Support : Long-DIMM DDR 2 x 1 (MAX 2 G) GRAPHICS Intel GMA 950 LAN Realtek 10/1000 LAN Audio ALC 662 Mini-Card slot (Option) x 1 (Wi-Fi, Digital TV Tuner card, H. 264 H/W Decoder…) Storage (Option) 2. 5” SATA HDD or SSD Option Slim ODD & 9 in 1 card reader SYSTEM BIOS AWARD 8 Mb SPI Flash ROM BIOS Power Source AC Adaptor (19 V/65 W) Another SPEC Standard VESA Screw Hole (100 x 100 mm) Build-in 3 W Stereo Speaker and AMP Slim Bezel Design External Antenna Hole For TV or Wi-Fi… Rear Side I/O 1. VGA output connector x 1 2. USB 2. 0 *2 3. LAN RJ 45 *1 4. 5. 1 CH Audio Jack (horizontal x 3) 5. DC 19 V (AC Adaptor 19 V/90 W) 6. VGA input connector x 1 from AD board 7. VGA output connector x 1 from Motherboard (for Dual Display) On Board Pin Head / Connector on board Fan power x 1 Front panel x 1 USB 4 Pin x 1 Dimension / Weight 305. 9(H) x 460(W) x 84. 7(D)mm (Main body) N. W. around 6. 1 Kg

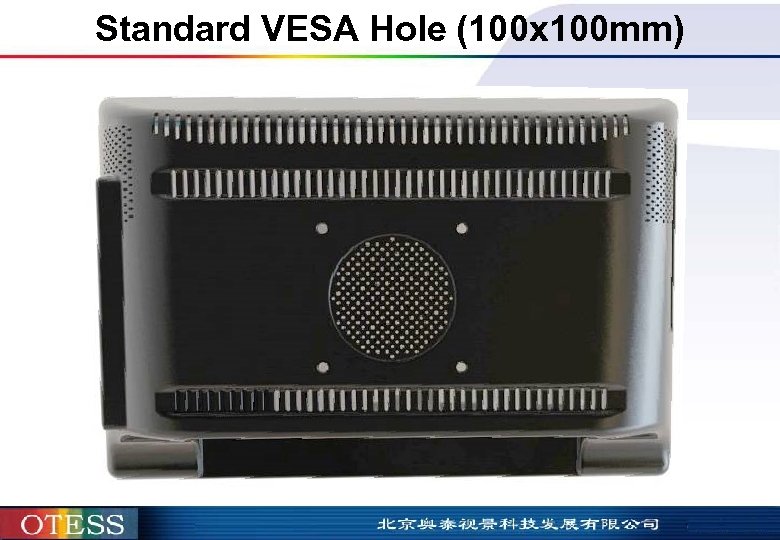

Standard VESA Hole (100 x 100 mm)

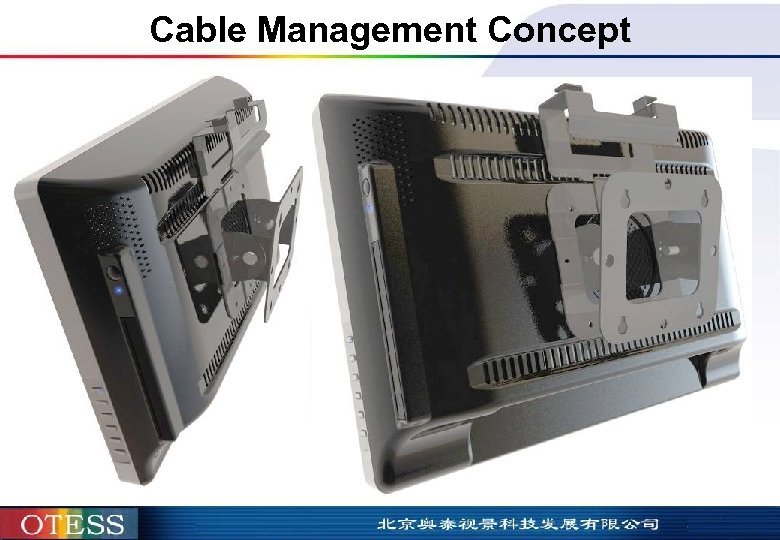

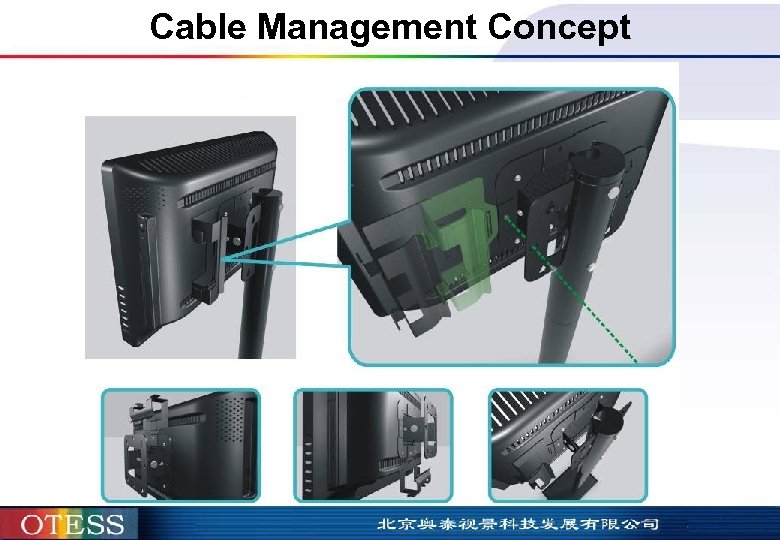

Cable Management Concept

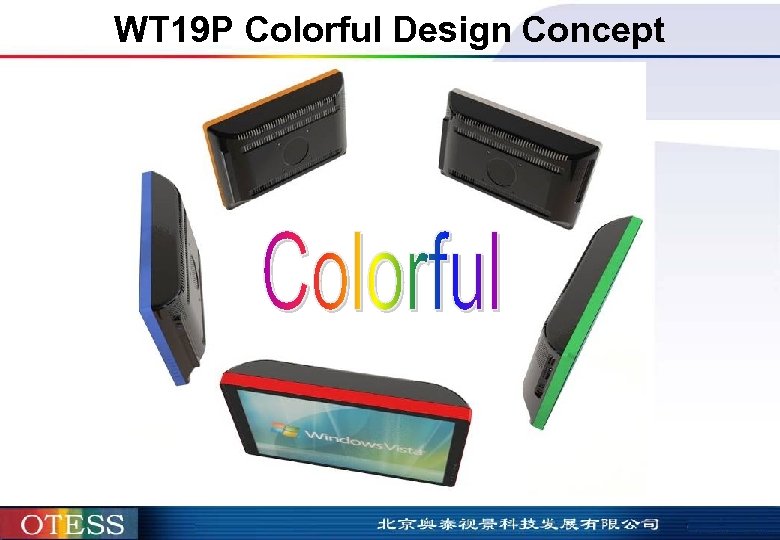

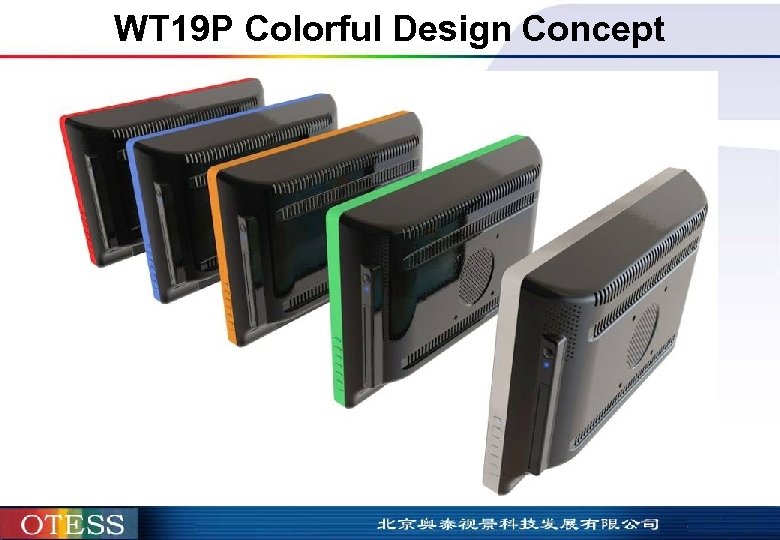

WT 19 P Colorful Design Concept

Warm Touch User Scenario (VESA Hole Solutions)

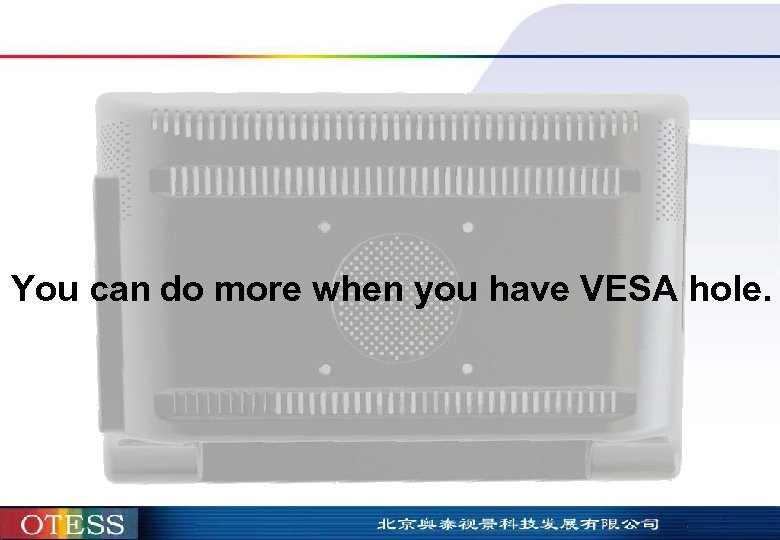

You can do more when you have VESA hole.

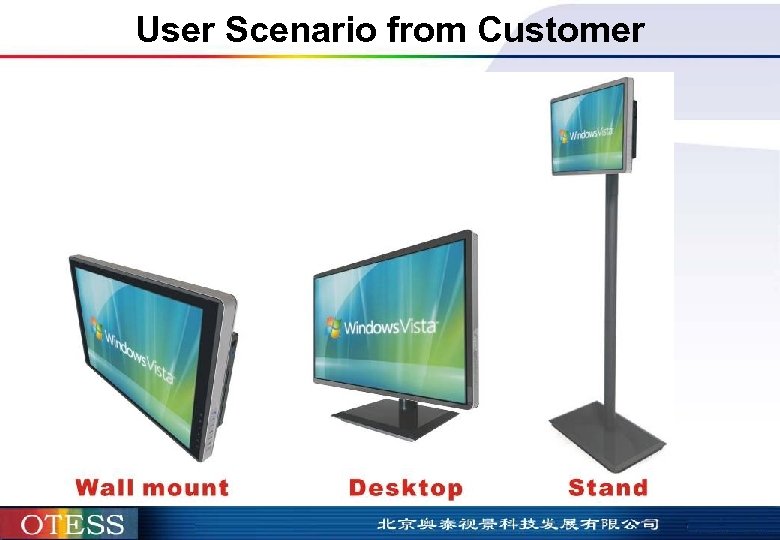

User Scenario from Customer

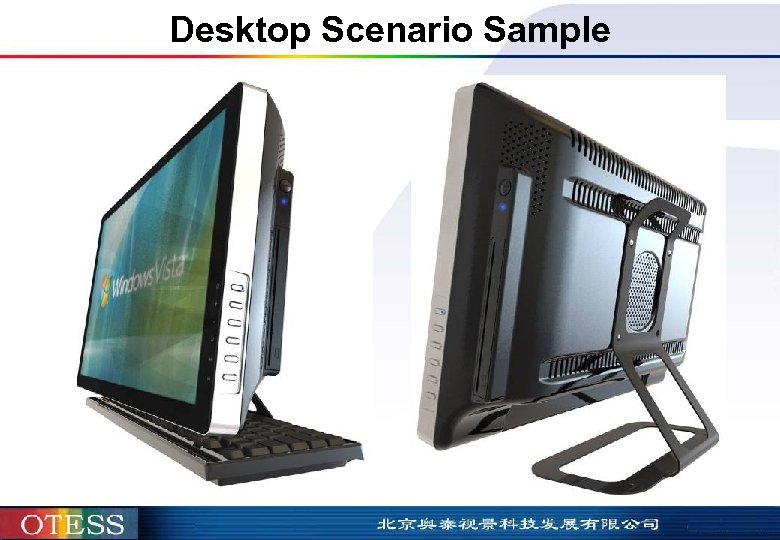

Desktop Scenario Sample

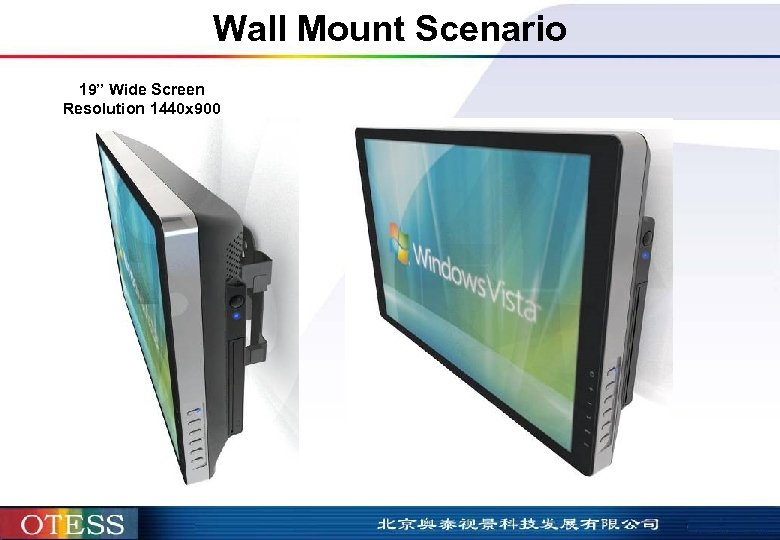

Wall Mount Scenario 19” Wide Screen Resolution 1440 x 900

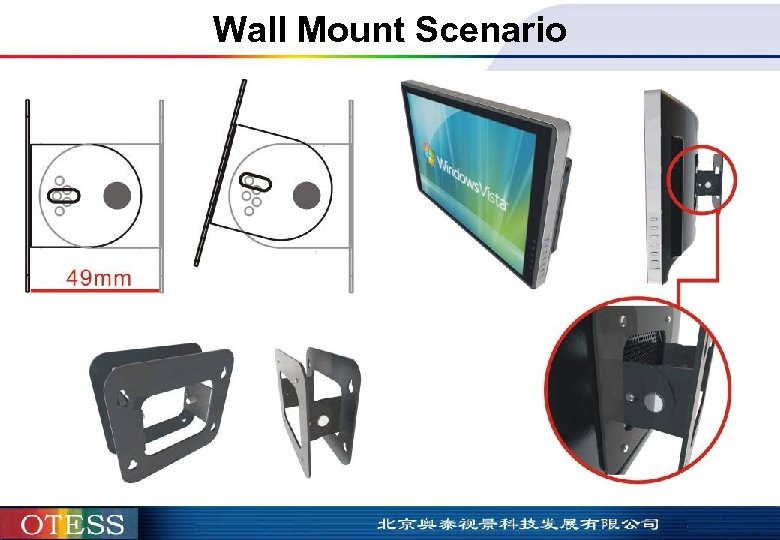

Wall Mount Scenario

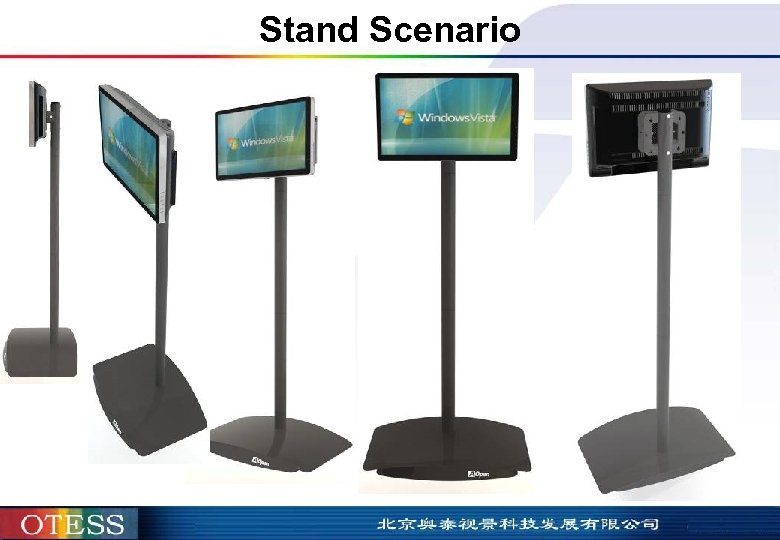

Stand Scenario

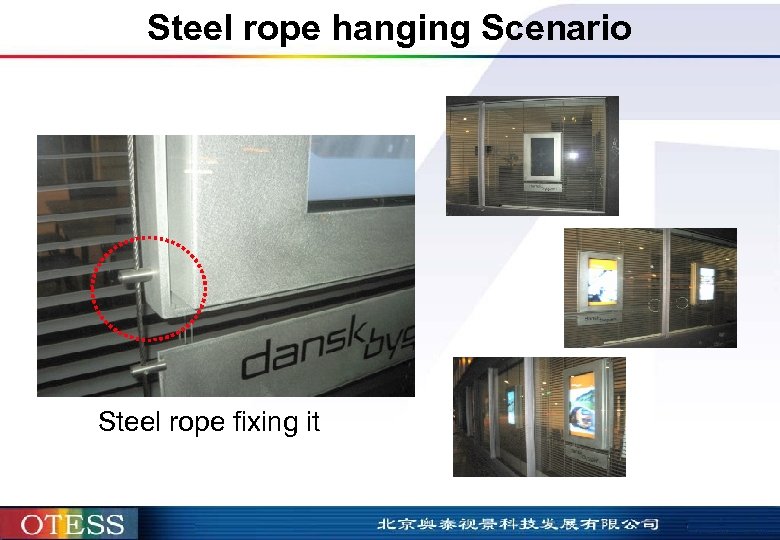

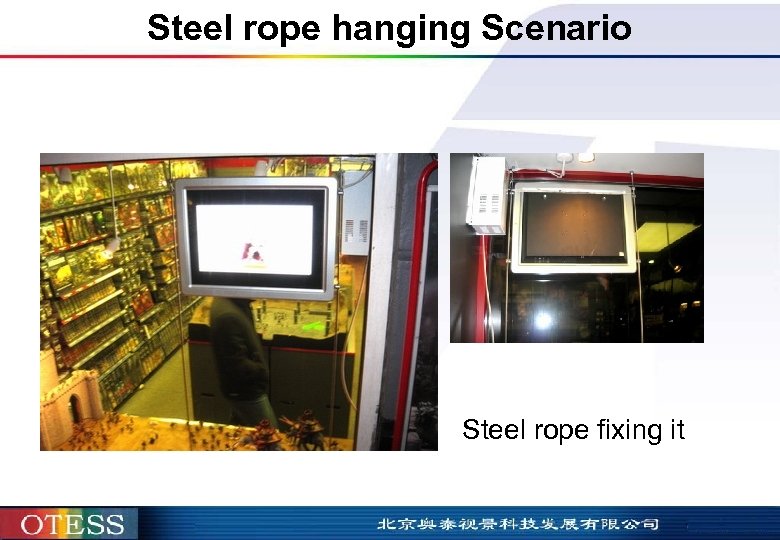

Steel rope hanging Scenario Steel rope fixing it

Ceiling Telescopic Scenario

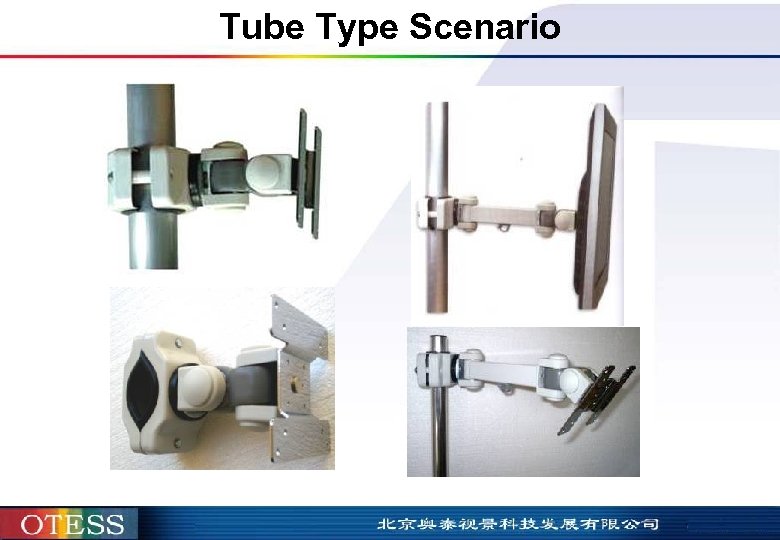

Tube Type Scenario

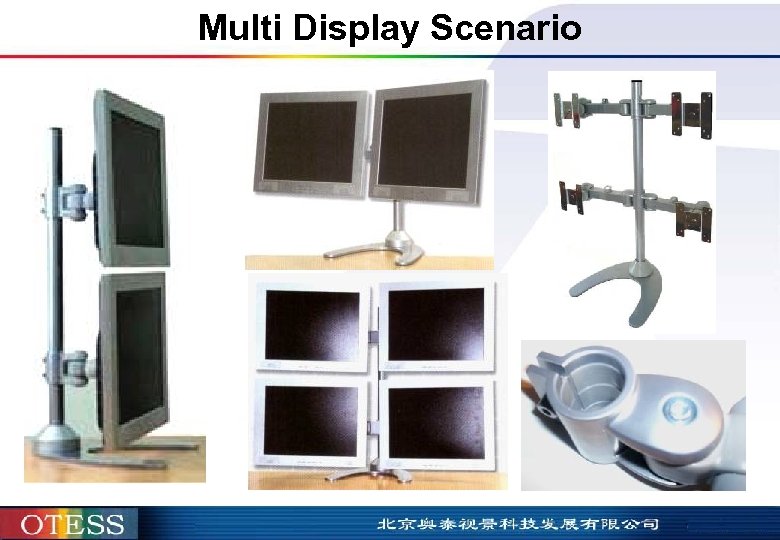

Multi Display Scenario

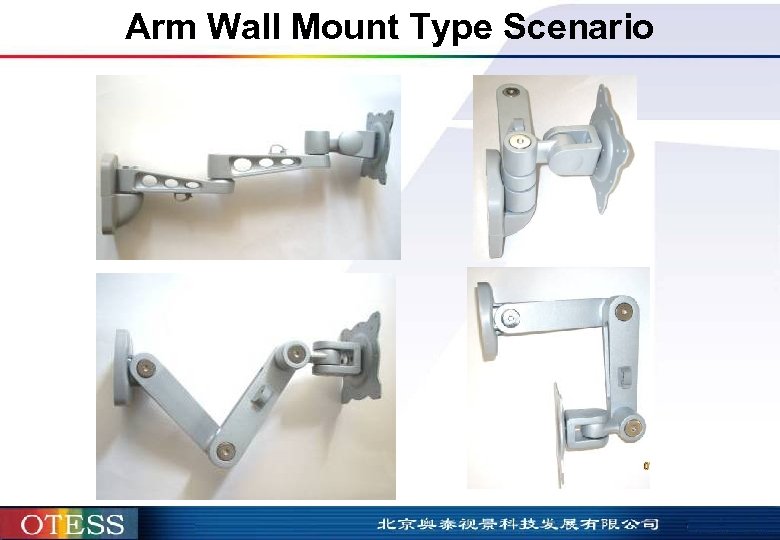

Arm Wall Mount Type Scenario

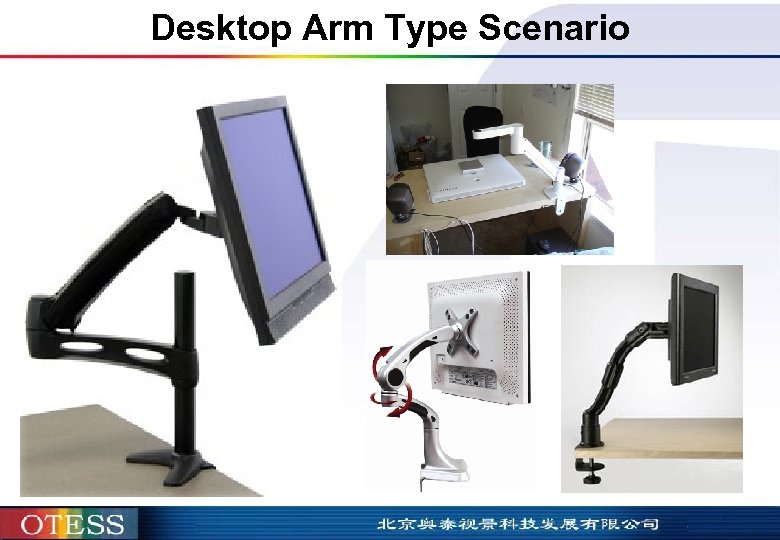

Desktop Arm Type Scenario

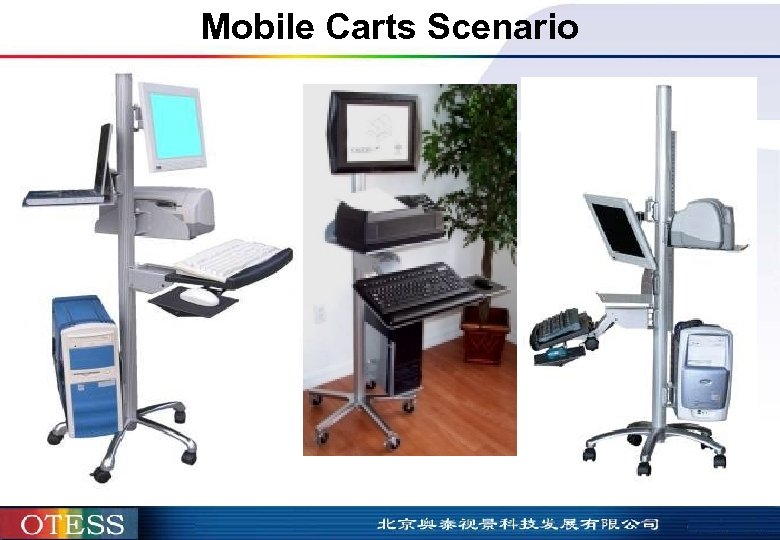

Mobile Carts Scenario

Warm Touch Customization

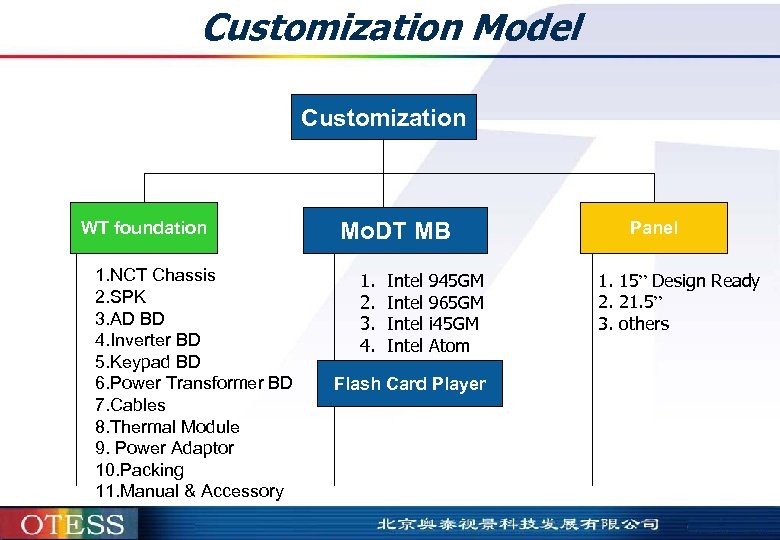

Customization Model Customization WT foundation 1. NCT Chassis 2. SPK 3. AD BD 4. Inverter BD 5. Keypad BD 6. Power Transformer BD 7. Cables 8. Thermal Module 9. Power Adaptor 10. Packing 11. Manual & Accessory Mo. DT MB 1. 2. 3. 4. Intel 945 GM 965 GM i 45 GM Atom Flash Card Player Panel 1. 15” Design Ready 2. 21. 5” 3. others

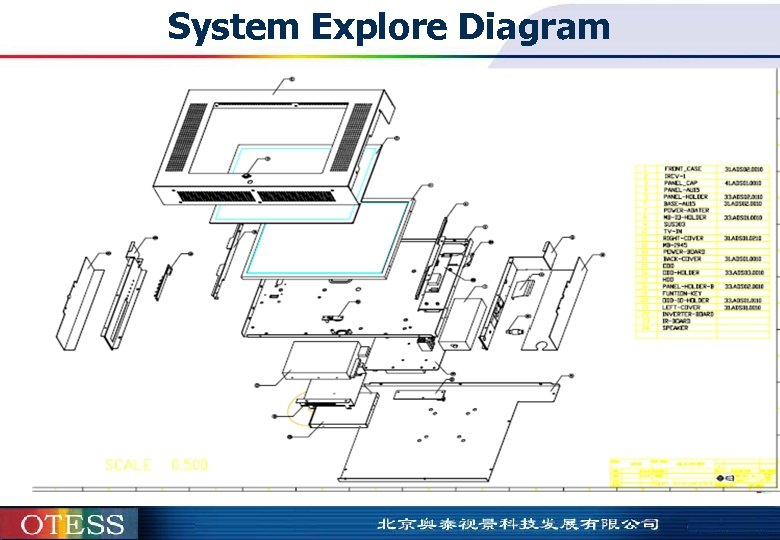

System Explore Diagram

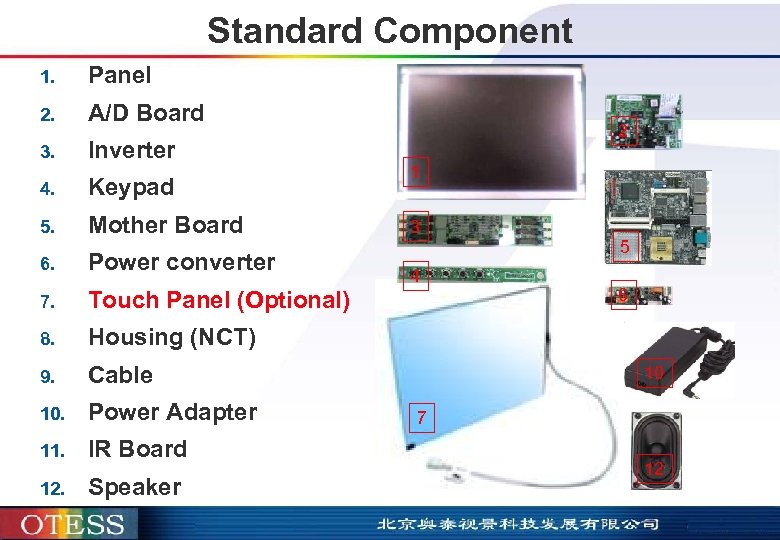

Standard Component 1. Panel 2. A/D Board 3. Inverter 4. Keypad 5. Mother Board 6. Power converter 7. Touch Panel (Optional) 8. Housing (NCT) 9. Cable 10. Power Adapter 11. IR Board 12. Speaker 2 1 3 4 5 6 10 7 12

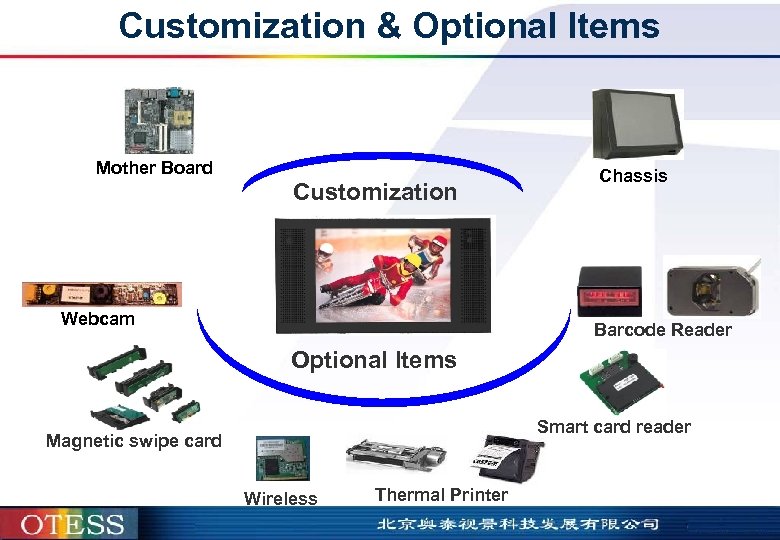

Customization & Optional Items Mother Board Customization Webcam Chassis Barcode Reader Optional Items Smart card reader Magnetic swipe card Wireless Thermal Printer

Customization Process & Client & Concept Discussion & Specification Define & Design & Prototype & Engineering Verification / Certification Open & Share & Process Design & Product Engineering CAD / Prototyping / Product Engineers & Pilot Run & Manufacturing Process Design / Pilot & MP Plant & Scale up & Troubleshooting and Logistics Service & Troubleshooting Warehousing and logistics / Analytical Lab & Warehousing and Logistics

WT 150 System Specifications AUO 15” panel i 945 GMT mother board Support fanless solution (with fanless cooler) Touch screen (option) Wireless LAN (option) AAD 150 housing (VESA FDMI) 439. 9 x 311. 9 x 65. 8 (mm) /SPK 2 Wx 2 AD board, power board, inverter board, switch board, MB adapter I/O Port: 1394 Port x 1 LCD panel Resolution - 1024 x 768 Pixel pitch - 0. 297 mm H x 0. 297 mm Brightness: 350 nits View angle(H/V/): 130 /120 Contrast ratio: 500: 1 Response time: 12 ms Mother board CPU: with fan: Core 2 Duo Txxxx (Yonoh) / Celeron M 4 xx CPU Fanless: Core Solo (Yonah) and Celeron M (4 xx) Processor 667 MHz Socket M <27 W Chipset: Intel 945 GM+ICH 7 M Main Memory : Dual Channel DDRII 667/533/400 SO DIMM : x 2 SO DIMM Type : 256/512 MB & 1 GB Max Memory : 4 GB Graphics: Intel GMA 950 LAN: 10/1000 support Audio: 7. 1 Channel and HD Audio CODEC USB: USB 2. 0 Port x 8 IEEE 1394: 2 ports Expansion Slots: Mini PCI x 1 PCI Express (PCIe x 1) x 1 RJ 45 LAN Port x 1 Audio jack x 1 PS/2 KB x 1 PS/2 MS x 1 Adapter jack x 1 USB 2. 0 x 4 S-video X 1(multi-TV) On Board I/O Connector: Serial ATA II x 2 IDE ATA 100 x 1 4 -pin 5 V Output x 1 (for Hard Disk / Optical Drive) CPU FAN x 1 System FAN x 1 Front Panel x 1 Front Audio x 1 IEEE 1394 x 1 CD_IN x 1 USB x 2 (supports USB port x 4) BIOS: Award Pn. P 4 Mb Flash ROM BIOS AC Adapter: 135 W 100~240 VAC/19 V DC output Touch screen: Option 15” 4 -Wire Resistive Analog Touch Panel USB interface controller Wireless: Option 802. 11 b/g, Mini PCI interface, external antenna Storage bay: 3. 5”/2. 5” internal HDD bay x 1 Slot-in Slim ODD bay x 1 Fanless solution schedule: ES: Feb. ’ 08 PD: Mar. ‘ 08

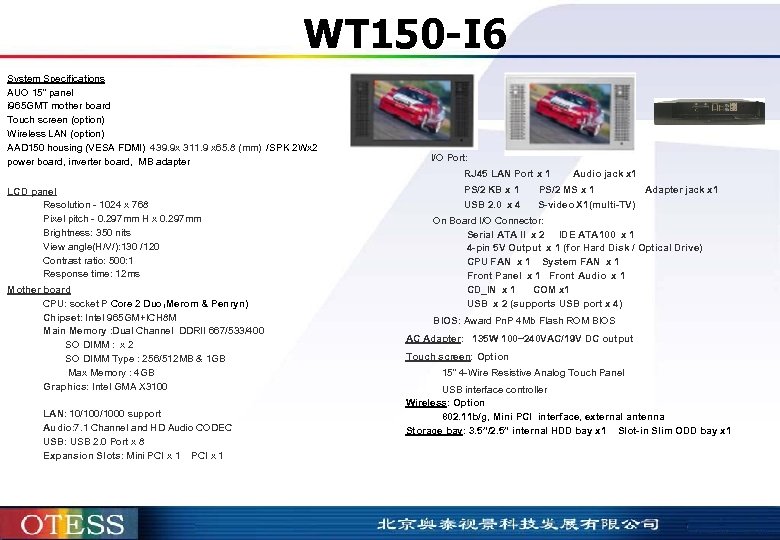

WT 150 -I 6 System Specifications AUO 15” panel i 965 GMT mother board Touch screen (option) Wireless LAN (option) AAD 150 housing (VESA FDMI) 439. 9 x 311. 9 x 65. 8 (mm) /SPK 2 Wx 2 power board, inverter board, MB adapter I/O Port: RJ 45 LAN Port x 1 LCD panel Resolution - 1024 x 768 Pixel pitch - 0. 297 mm H x 0. 297 mm Brightness: 350 nits View angle(H/V/): 130 /120 Contrast ratio: 500: 1 Response time: 12 ms Mother board CPU: socket P Core 2 Duo Merom & Penryn) Chipset: Intel 965 GM+ICH 8 M Main Memory : Dual Channel DDRII 667/533/400 SO DIMM : x 2 SO DIMM Type : 256/512 MB & 1 GB Max Memory : 4 GB Graphics: Intel GMA X 3100 ( LAN: 10/1000 support Audio: 7. 1 Channel and HD Audio CODEC USB: USB 2. 0 Port x 8 Expansion Slots: Mini PCI x 1 Audio jack x 1 PS/2 KB x 1 PS/2 MS x 1 USB 2. 0 x 4 Adapter jack x 1 S-video X 1(multi-TV) On Board I/O Connector: Serial ATA II x 2 IDE ATA 100 x 1 4 -pin 5 V Output x 1 (for Hard Disk / Optical Drive) CPU FAN x 1 System FAN x 1 Front Panel x 1 Front Audio x 1 CD_IN x 1 COM x 1 USB x 2 (supports USB port x 4) BIOS: Award Pn. P 4 Mb Flash ROM BIOS AC Adapter: 135 W 100~240 VAC/19 V DC output Touch screen: Option 15” 4 -Wire Resistive Analog Touch Panel USB interface controller Wireless: Option 802. 11 b/g, Mini PCI interface, external antenna Storage bay: 3. 5”/2. 5” internal HDD bay x 1 Slot-in Slim ODD bay x 1

WT 22 System Specifications AUO 22”W panel i 45 GMT mother board Touch screen (option) Wireless LAN (option) AAD 220 housing (VESA FDMI) WXHXD (mm) TBD /SPK (TBD) power board, inverter board, MB adapter LCD panel Resolution - 1920 x 1080 Pixel pitch - 0. 248 mm H x 0. 248 mm Brightness: 300 nits View angle(H/V/): 178 /178 Contrast ratio: 1000: 1 Response time: 5 ms Mother board CPU: socket P Penryn Qual Core/ Dual Core/ Celeron® Chipset: GM 45+ICH 9 M Main Memory : Dual Channel DDRII 667/800 SO DIMM : x 2 Max Memory : 4 GB LAN: 10/1000 support Audio: 7. 1 Channel and HD Audio CODEC USB: USB 2. 0 Port x 8 Expansion Slots: Mini cards x 2 ? ? I/O Port: RJ 45 LAN Port x 1 HDMI x 1 Audio jack x 1 e. SATA x 1 USB 2. 0 x 4 On Board I/O Connector: Serial ATA II x 3 4 -pin 5 V Output x 1 (for Hard Disk / Optical Drive) CPU FAN x 1 System FAN x 1 Front Panel x 1 Front Audio x 1 COM x 1 USB x 2 (supports USB port x 4) BIOS: Award Pn. P 4 Mb Flash ROM BIOS AC Adapter: 135 W 100~240 VAC/19 V DC output Touch screen: Option 22” Resistive or SAW Touch Panel (TBD) USB interface controller Wireless: Option 802. 11 b/g, Mini PCI interface, external antenna Storage bay: 3. 5”/2. 5” internal HDD bay x 1 Slot-in Slim ODD bay x 1

Thank You!

Backup

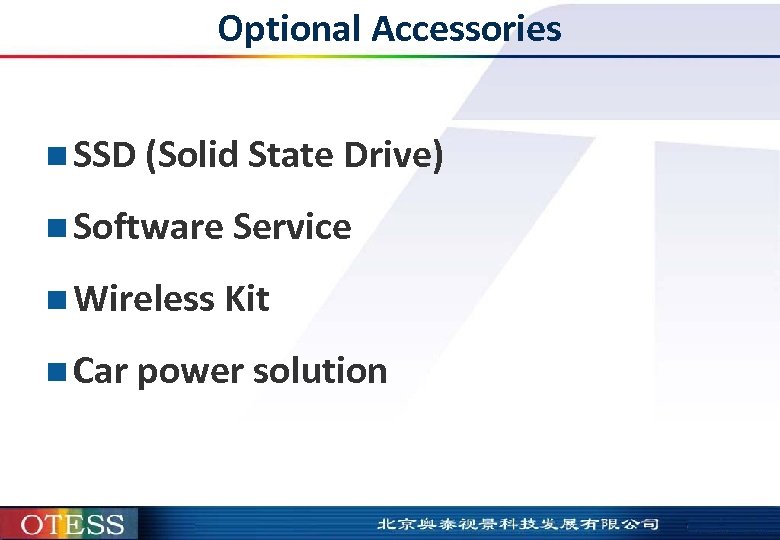

Optional Accessories n SSD (Solid State Drive) n Software Service n Wireless Kit n Car power solution

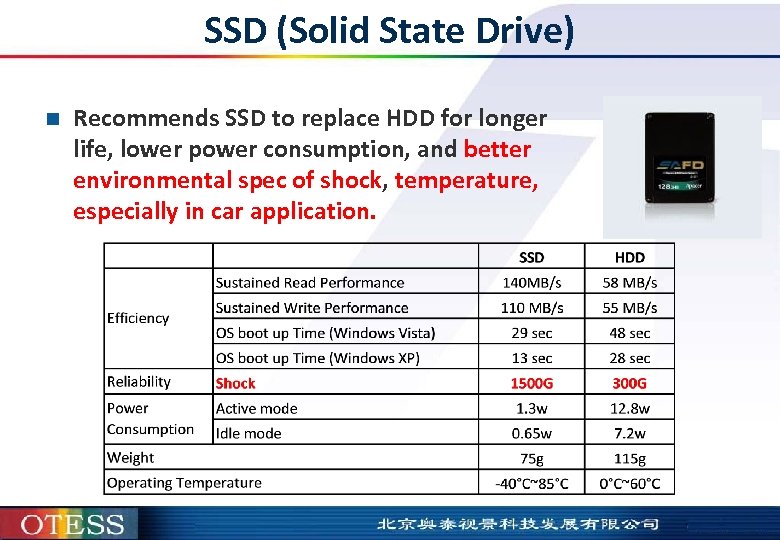

SSD (Solid State Drive) n Recommends SSD to replace HDD for longer life, lower power consumption, and better environmental spec of shock, temperature, especially in car application.

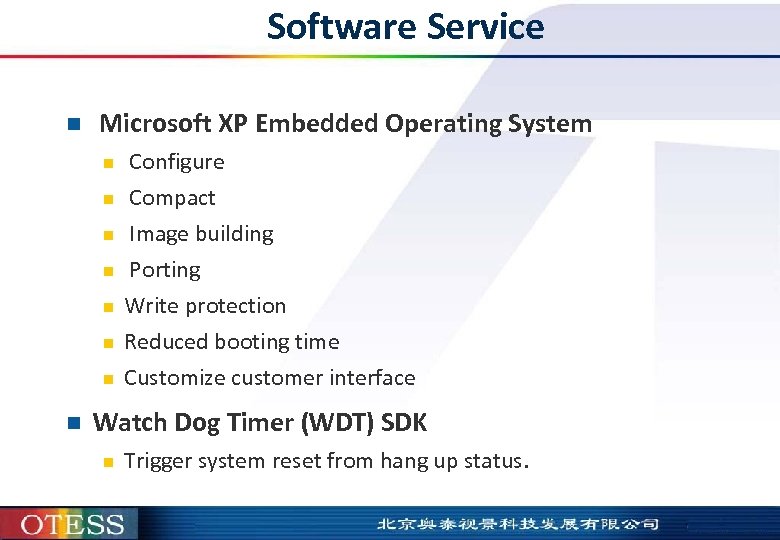

Software Service n Microsoft XP Embedded Operating System n n n n Configure Compact Image building Porting Write protection Reduced booting time Customize customer interface Watch Dog Timer (WDT) SDK n Trigger system reset from hang up status.

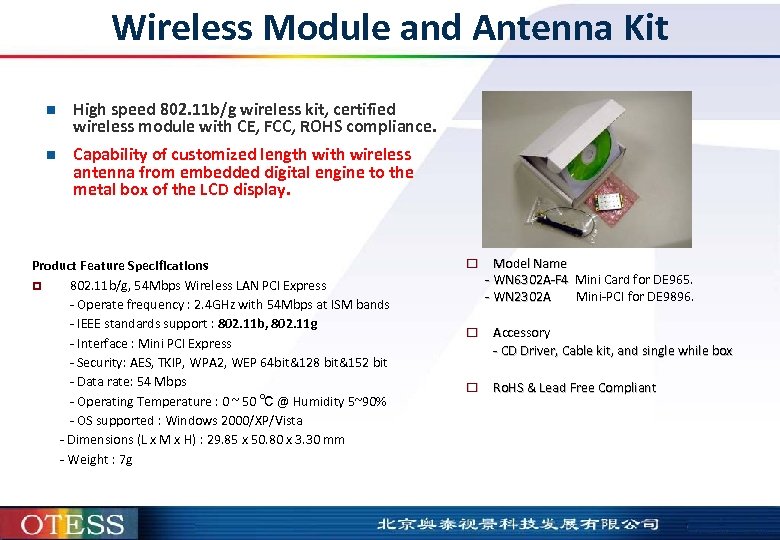

Wireless Module and Antenna Kit n High speed 802. 11 b/g wireless kit, certified wireless module with CE, FCC, ROHS compliance. n Capability of customized length wireless antenna from embedded digital engine to the metal box of the LCD display. Product Feature Specifications p 802. 11 b/g, 54 Mbps Wireless LAN PCI Express - Operate frequency : 2. 4 GHz with 54 Mbps at ISM bands - IEEE standards support : 802. 11 b, 802. 11 g - Interface : Mini PCI Express - Security: AES, TKIP, WPA 2, WEP 64 bit&128 bit&152 bit - Data rate: 54 Mbps - Operating Temperature : 0 ~ 50 ℃ @ Humidity 5~90% - OS supported : Windows 2000/XP/Vista - Dimensions (L x M x H) : 29. 85 x 50. 80 x 3. 30 mm - Weight : 7 g ¨ Model Name - WN 6302 A-F 4 Mini Card for DE 965. - WN 2302 A Mini-PCI for DE 9896. ¨ Accessory - CD Driver, Cable kit, and single while box ¨ Ro. HS & Lead Free Compliant

Car Power Solution n Type 1 DC to DC module (DC 24 V in for Bus or Truck) - Output voltage: DC 19 V - Peak up to 80 W - n Input voltage: DC 24 V (range: 22. 8 to 25. 2 V) Dimension: L 100 mm x W 45 mm x H 30 mm Type #2 DC to DC module (DC 12 V in for normal) - Input voltage: DC 12 V (range: 11 to 13. 6 V) - Output voltage: DC 19 V
