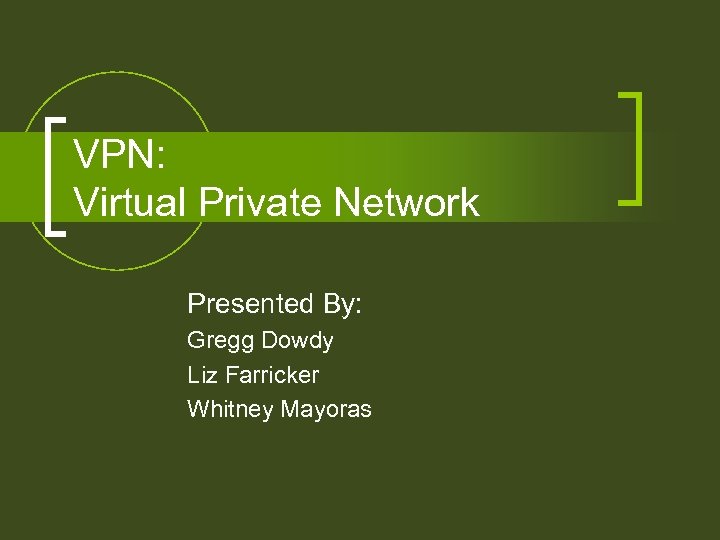

VPN: Virtual Private Network Presented By: Gregg Dowdy Liz Farricker Whitney Mayoras

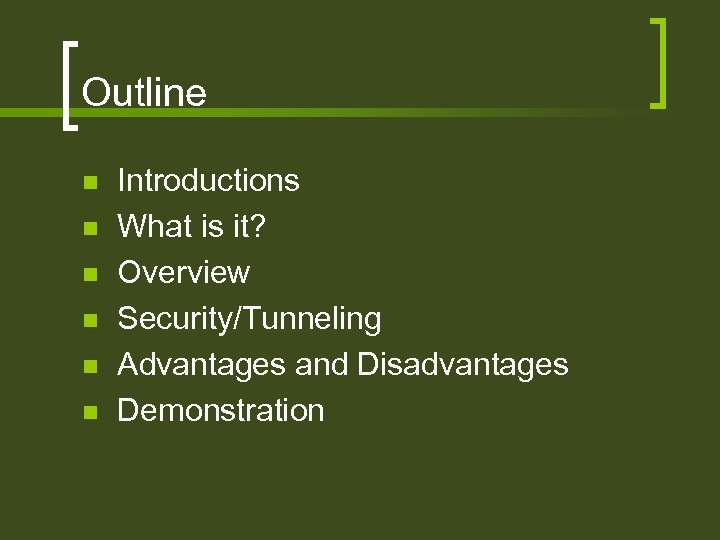

Outline n n n Introductions What is it? Overview Security/Tunneling Advantages and Disadvantages Demonstration

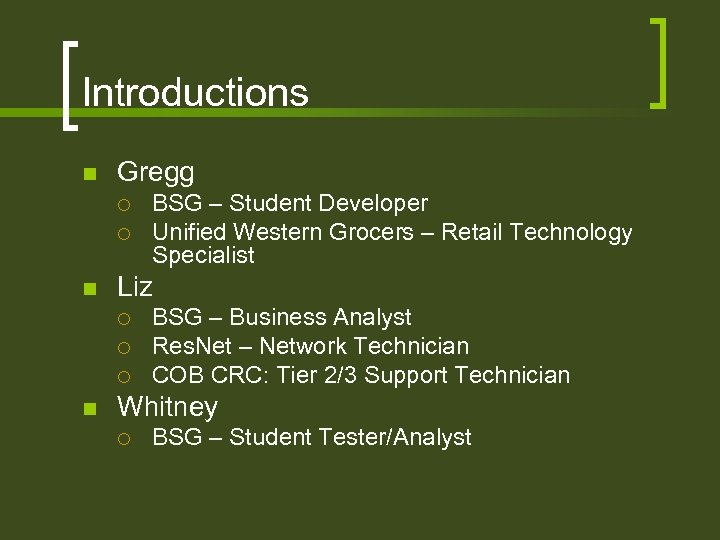

Introductions n Gregg ¡ ¡ n Liz ¡ ¡ ¡ n BSG – Student Developer Unified Western Grocers – Retail Technology Specialist BSG – Business Analyst Res. Net – Network Technician COB CRC: Tier 2/3 Support Technician Whitney ¡ BSG – Student Tester/Analyst

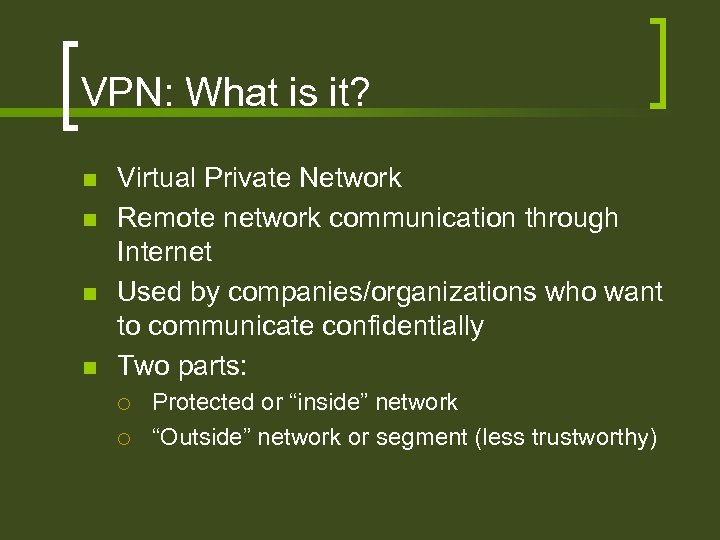

VPN: What is it? n n Virtual Private Network Remote network communication through Internet Used by companies/organizations who want to communicate confidentially Two parts: ¡ ¡ Protected or “inside” network “Outside” network or segment (less trustworthy)

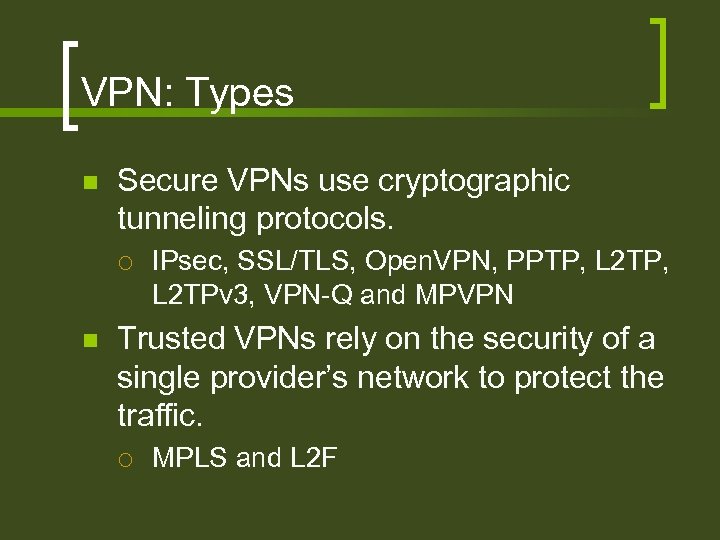

VPN: Types n Secure VPNs use cryptographic tunneling protocols. ¡ n IPsec, SSL/TLS, Open. VPN, PPTP, L 2 TPv 3, VPN-Q and MPVPN Trusted VPNs rely on the security of a single provider’s network to protect the traffic. ¡ MPLS and L 2 F

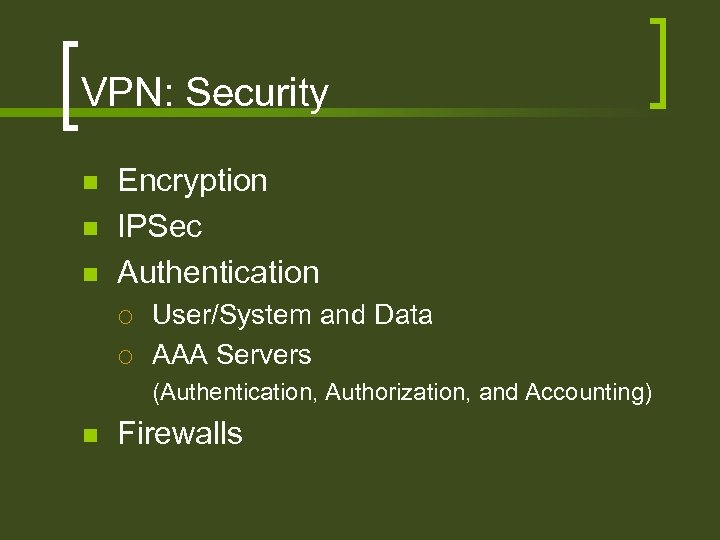

VPN: Security n n n Encryption IPSec Authentication ¡ ¡ User/System and Data AAA Servers (Authentication, Authorization, and Accounting) n Firewalls

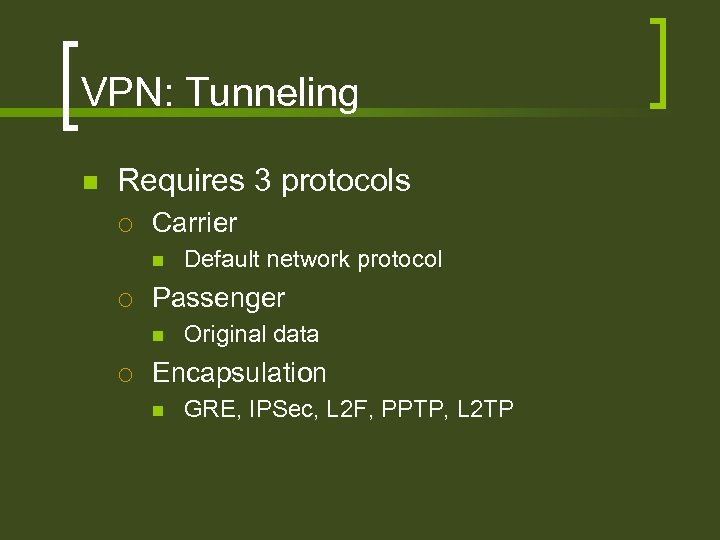

VPN: Tunneling n Requires 3 protocols ¡ Carrier n ¡ Passenger n ¡ Default network protocol Original data Encapsulation n GRE, IPSec, L 2 F, PPTP, L 2 TP

VPN: Encapsulation Figure 1

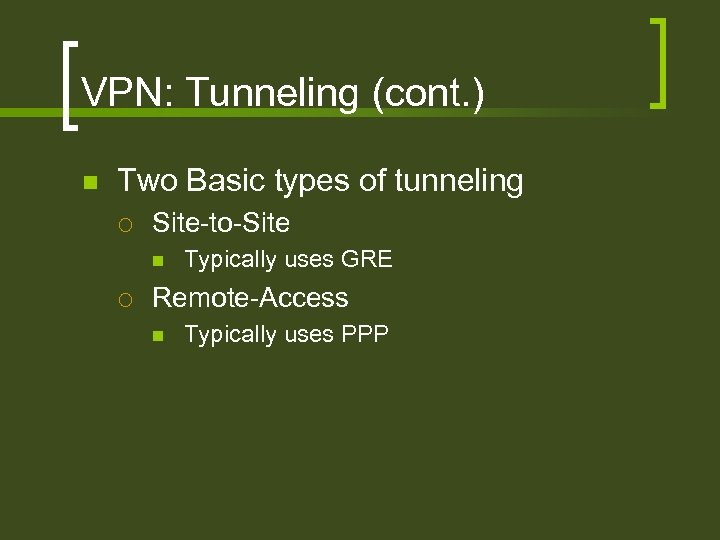

VPN: Tunneling (cont. ) n Two Basic types of tunneling ¡ Site-to-Site n ¡ Typically uses GRE Remote-Access n Typically uses PPP

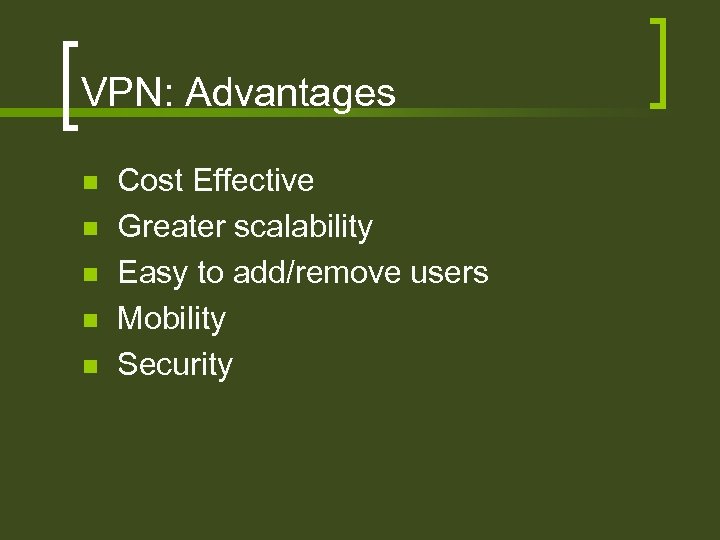

VPN: Advantages n n n Cost Effective Greater scalability Easy to add/remove users Mobility Security

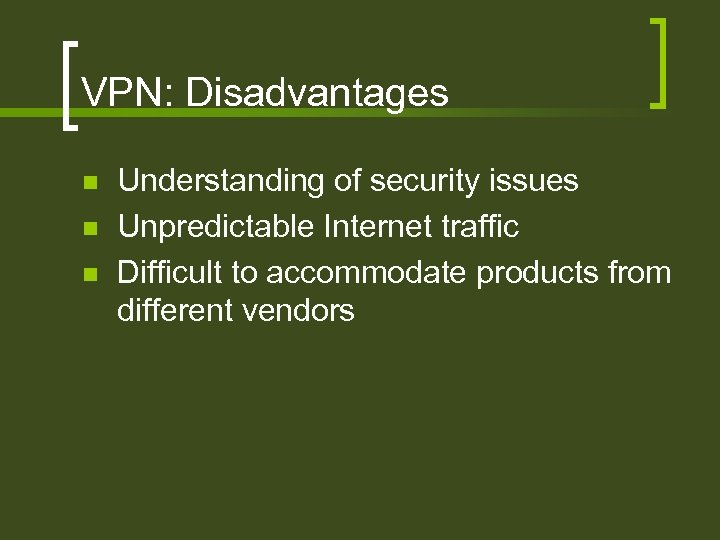

VPN: Disadvantages n n n Understanding of security issues Unpredictable Internet traffic Difficult to accommodate products from different vendors

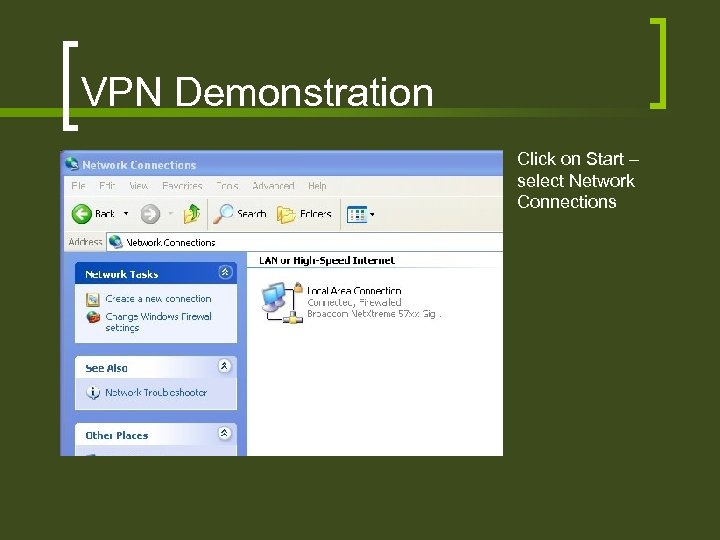

VPN Demonstration Click on Start – select Network Connections

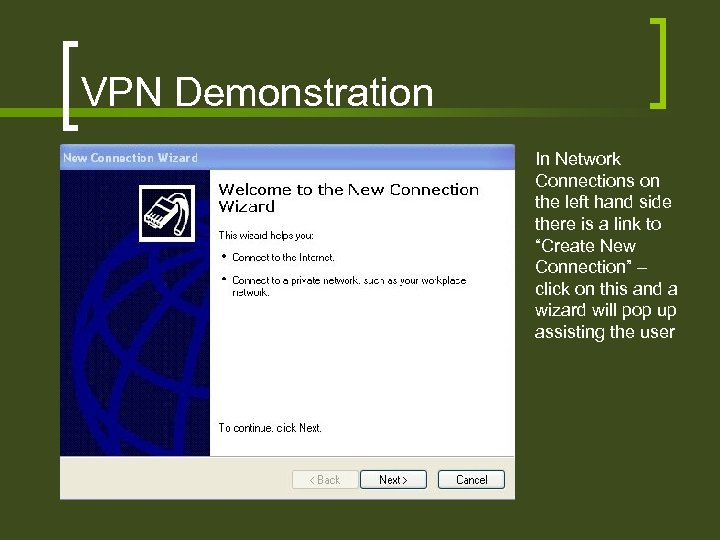

VPN Demonstration In Network Connections on the left hand side there is a link to “Create New Connection” – click on this and a wizard will pop up assisting the user

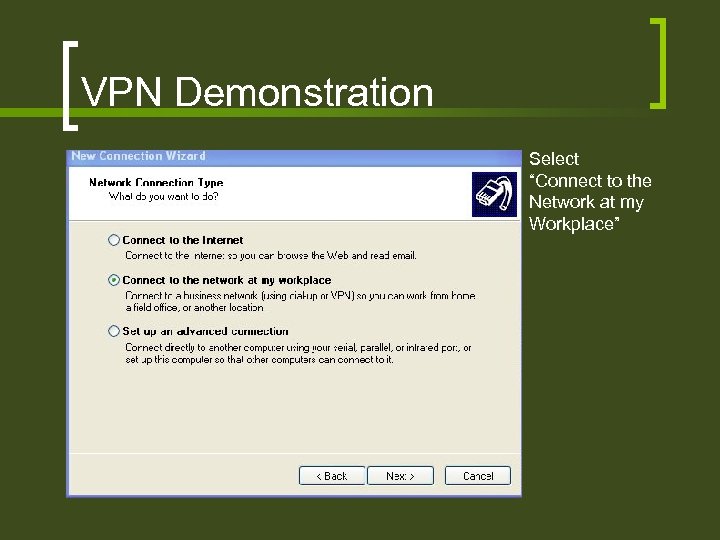

VPN Demonstration Select “Connect to the Network at my Workplace”

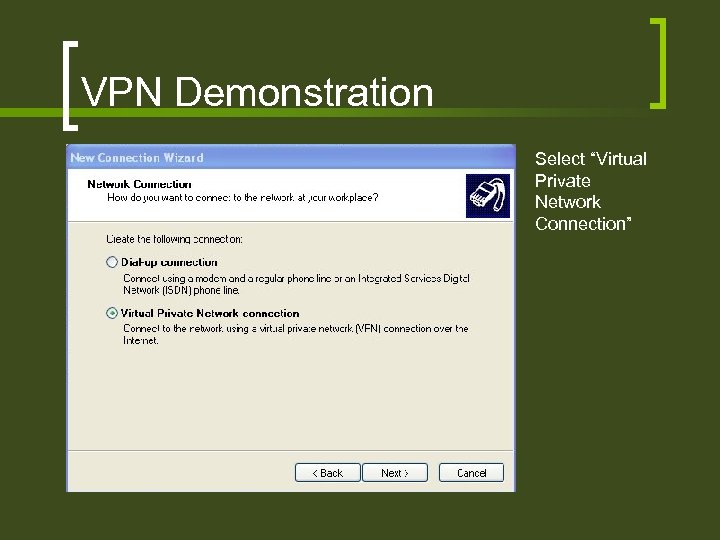

VPN Demonstration Select “Virtual Private Network Connection”

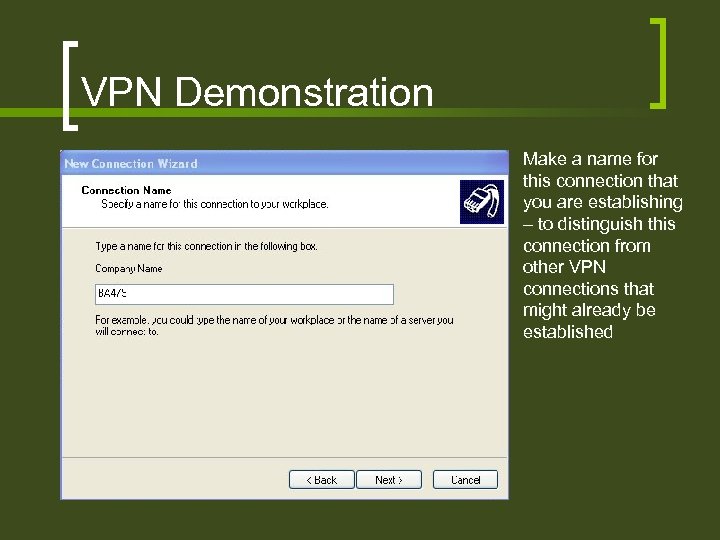

VPN Demonstration Make a name for this connection that you are establishing – to distinguish this connection from other VPN connections that might already be established

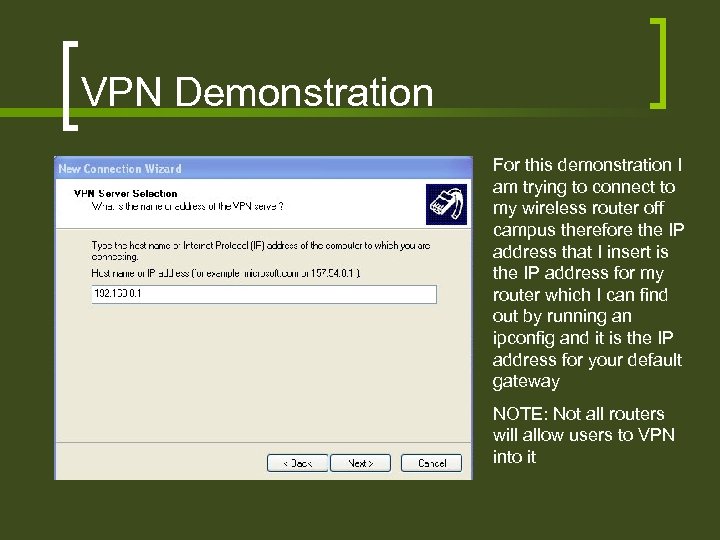

VPN Demonstration For this demonstration I am trying to connect to my wireless router off campus therefore the IP address that I insert is the IP address for my router which I can find out by running an ipconfig and it is the IP address for your default gateway NOTE: Not all routers will allow users to VPN into it

VPN Demonstration Personal preference as to whether or not you want other users to be able to use this VPN connection on this computer

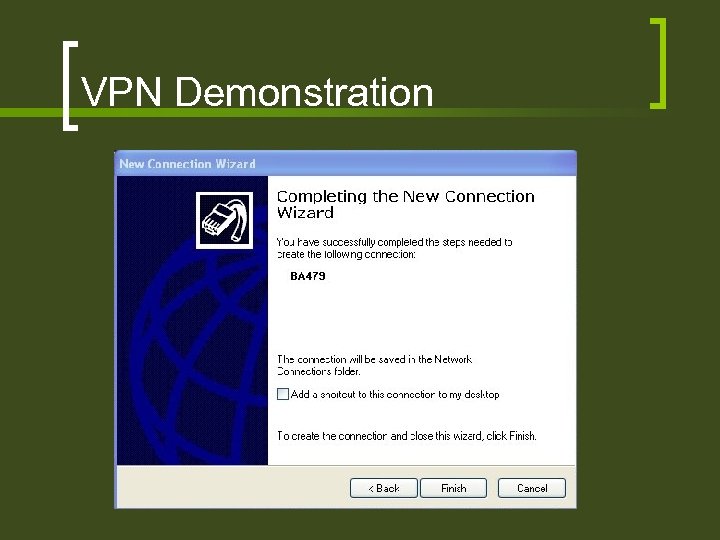

VPN Demonstration

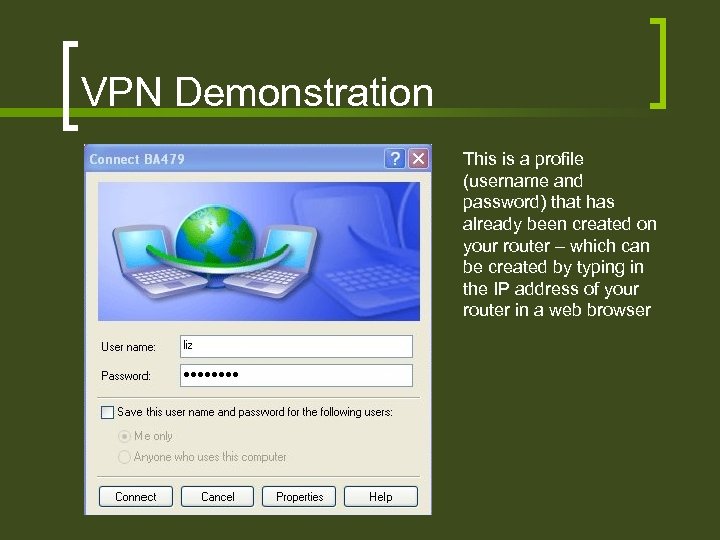

VPN Demonstration This is a profile (username and password) that has already been created on your router – which can be created by typing in the IP address of your router in a web browser

VPN Demonstration

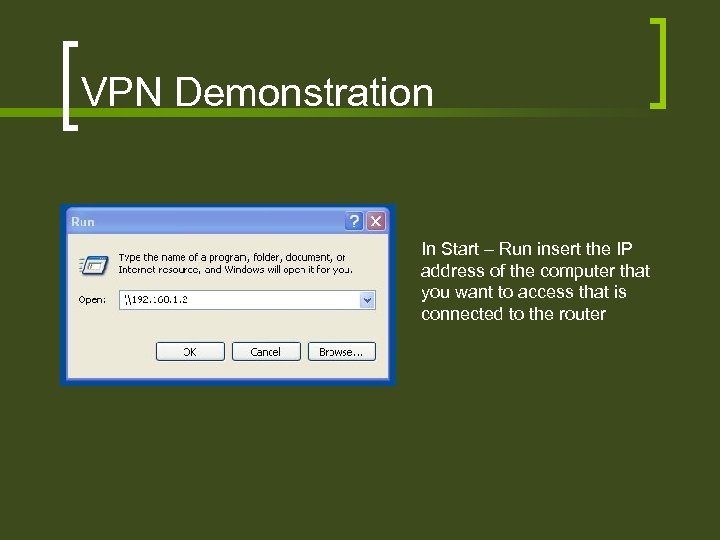

VPN Demonstration In Start – Run insert the IP address of the computer that you want to access that is connected to the router

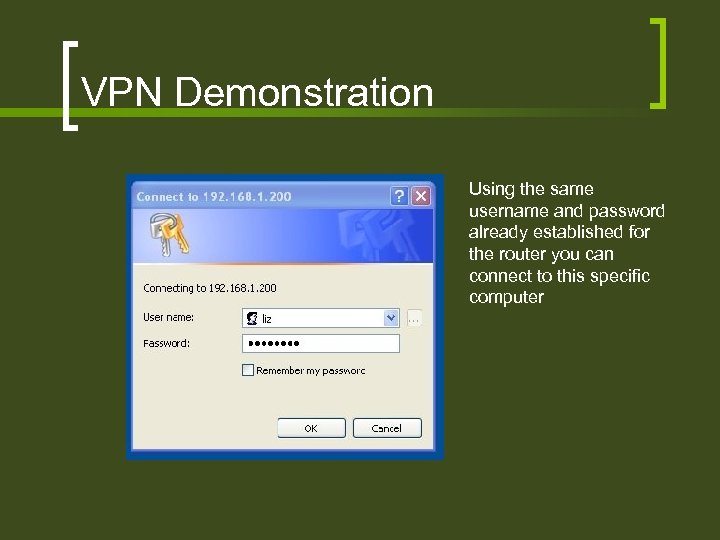

VPN Demonstration Using the same username and password already established for the router you can connect to this specific computer

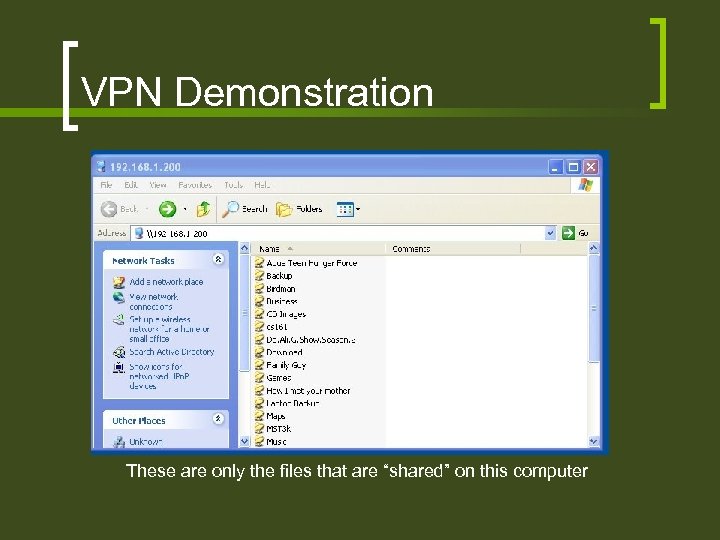

VPN Demonstration These are only the files that are “shared” on this computer

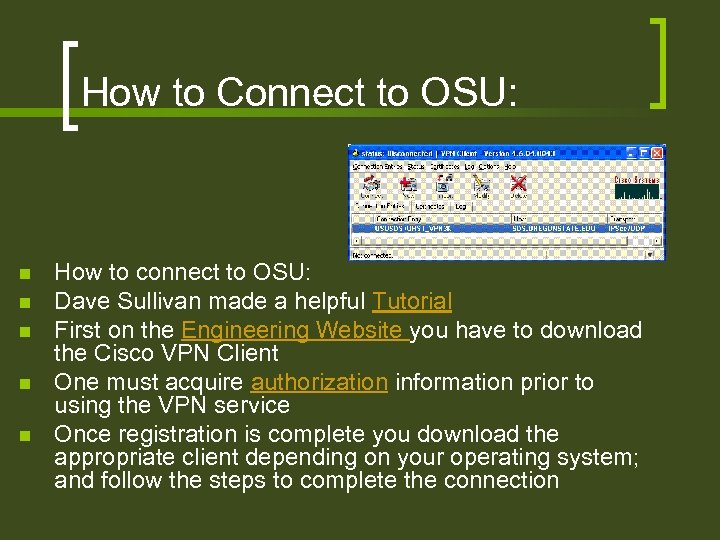

How to Connect to OSU: n n n How to connect to OSU: Dave Sullivan made a helpful Tutorial First on the Engineering Website you have to download the Cisco VPN Client One must acquire authorization information prior to using the VPN service Once registration is complete you download the appropriate client depending on your operating system; and follow the steps to complete the connection
