VOEvent An Information Infrastructure for Immediate Astronomical Events

VOEvent An Information Infrastructure for Immediate Astronomical Events Roy Williams roy@caltech. edu NVO co-director

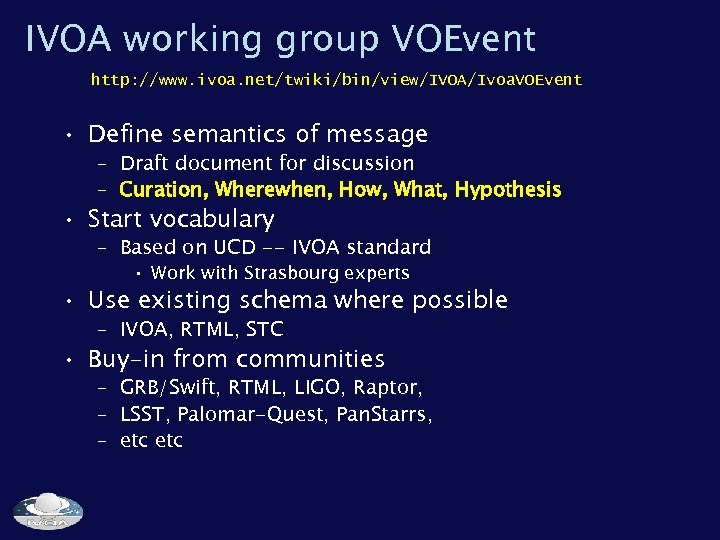

IVOA working group VOEvent http: //www. ivoa. net/twiki/bin/view/IVOA/Ivoa. VOEvent • Define semantics of message – Draft document for discussion – Curation, Wherewhen, How, What, Hypothesis • Start vocabulary – Based on UCD -- IVOA standard • Work with Strasbourg experts • Use existing schema where possible – IVOA, RTML, STC • Buy-in from communities – GRB/Swift, RTML, LIGO, Raptor, – LSST, Palomar-Quest, Pan. Starrs, – etc

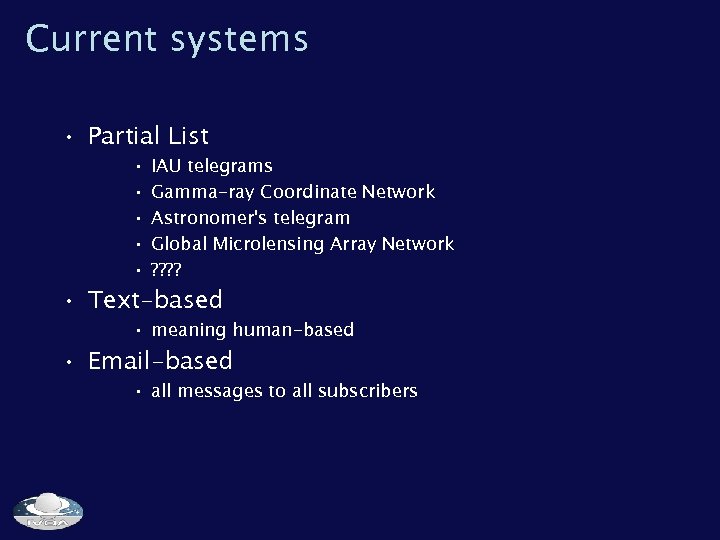

Current systems • Partial List • • • IAU telegrams Gamma-ray Coordinate Network Astronomer's telegram Global Microlensing Array Network ? ? • Text-based • meaning human-based • Email-based • all messages to all subscribers

Proposed system • Curation • from IVOA curation schema, from Dublin Core • When, Where • STC? Simple? • How • instrument state • What – different schema for different instruments – RTML • exactly what was seen – different schema for different instruments • Hypothesis • probability list of: – supernova, comet, asteroid, . . . – how can we make this list?

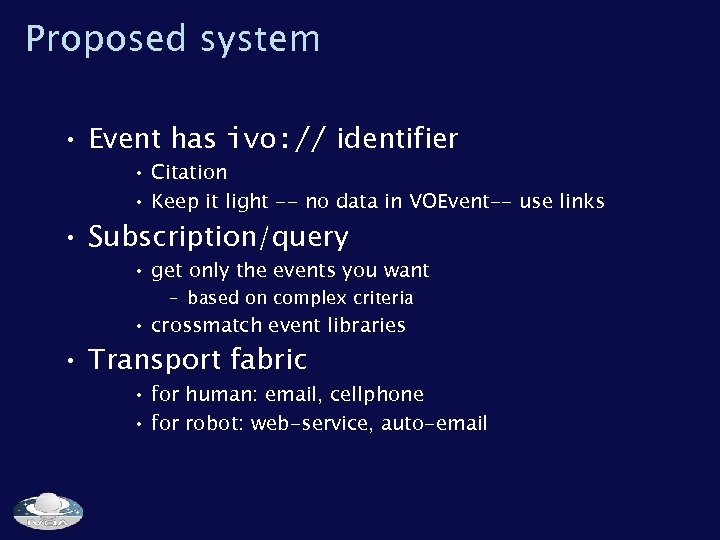

Proposed system • Event has ivo: // identifier • Citation • Keep it light -- no data in VOEvent-- use links • Subscription/query • get only the events you want – based on complex criteria • crossmatch event libraries • Transport fabric • for human: email, cellphone • for robot: web-service, auto-email

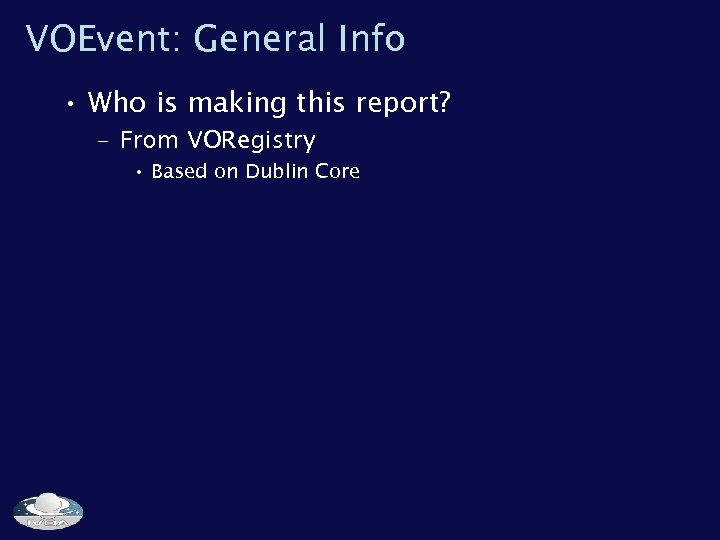

VOEvent: General Info • Who is making this report? – From VORegistry • Based on Dublin Core

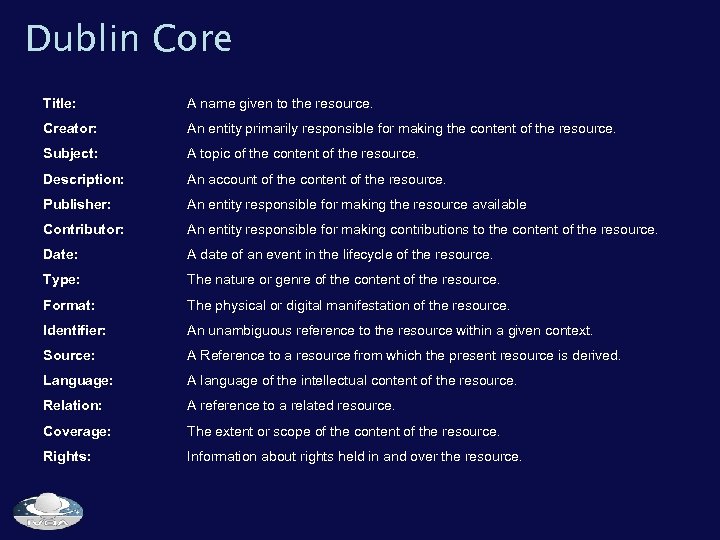

Dublin Core Title: A name given to the resource. Creator: An entity primarily responsible for making the content of the resource. Subject: A topic of the content of the resource. Description: An account of the content of the resource. Publisher: An entity responsible for making the resource available Contributor: An entity responsible for making contributions to the content of the resource. Date: A date of an event in the lifecycle of the resource. Type: The nature or genre of the content of the resource. Format: The physical or digital manifestation of the resource. Identifier: An unambiguous reference to the resource within a given context. Source: A Reference to a resource from which the present resource is derived. Language: A language of the intellectual content of the resource. Relation: A reference to a related resource. Coverage: The extent or scope of the content of the resource. Rights: Information about rights held in and over the resource.

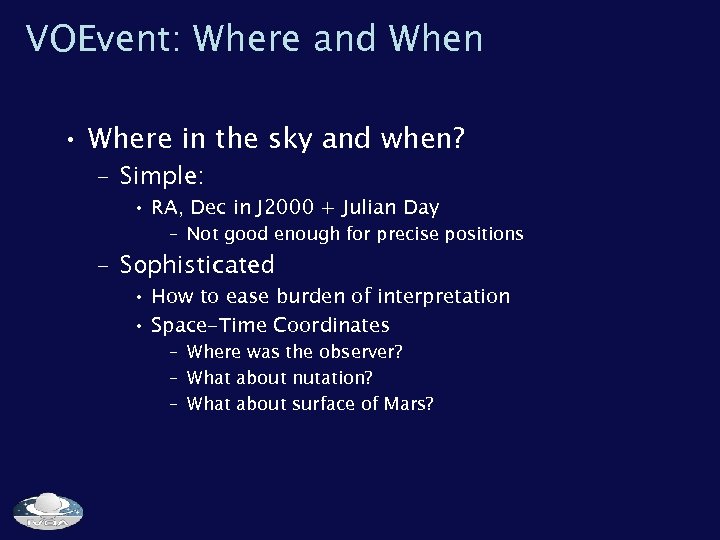

VOEvent: Where and When • Where in the sky and when? – Simple: • RA, Dec in J 2000 + Julian Day – Not good enough for precise positions – Sophisticated • How to ease burden of interpretation • Space-Time Coordinates – Where was the observer? – What about nutation? – What about surface of Mars?

VOEvent: How • How was the event detected? – Instrument description: which is in there? • “Used Gunn R filter” • “Used My. Special filter” • Camera darks and flats files at http: //…. • “Dome didn’t open until 3 am” – Instrument-specific for accurate info

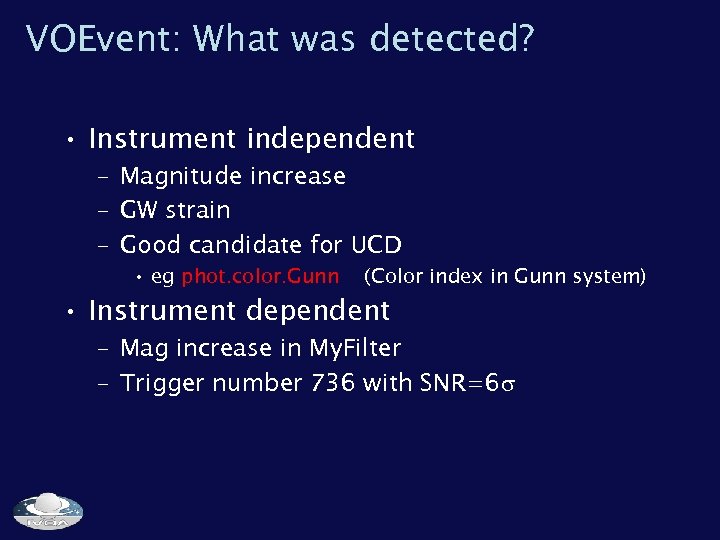

VOEvent: What was detected? • Instrument independent – Magnitude increase – GW strain – Good candidate for UCD • eg phot. color. Gunn (Color index in Gunn system) • Instrument dependent – Mag increase in My. Filter – Trigger number 736 with SNR=6

VOEvent: Classification • What do we think happened? – How to build ontology?

Event Vocabulary • Astronomer’s telegram – Radio, Millimeter, Sub-Millimeter, Far-Infra-Red, Optical, Ultra-Violet, X-ray, Gamma Ray, >Ge. V – Request for Observations, A Comment, – AGN, Asteroids, Binaries, Black Holes, Comets, Cosmic Rays, Cataclysmic Variables, Globular Clusters, Gamma-Ray Bursts, Meteors, Microlensing Events, Neutron Stars, Novae, Planets (minor), Pulsars, Quasars, Soft Gamma-ray Repeaters, Solar System Objects, The Sun, Supernovae, Supernova Remnants, Transients, Variables, Stars • UCD – IR, UV, X-ray, gamma, mm, opt, radio – Each in categories • em. line. Brgamma Bracket gamma line • em. UV. 100 -200 nm Ultraviolet between 100 and 200 nm • em. X-ray. soft Soft X-ray • IAU Telegram – Outbursts Of Unusual Variable Stars, Features On Planetary Surfaces

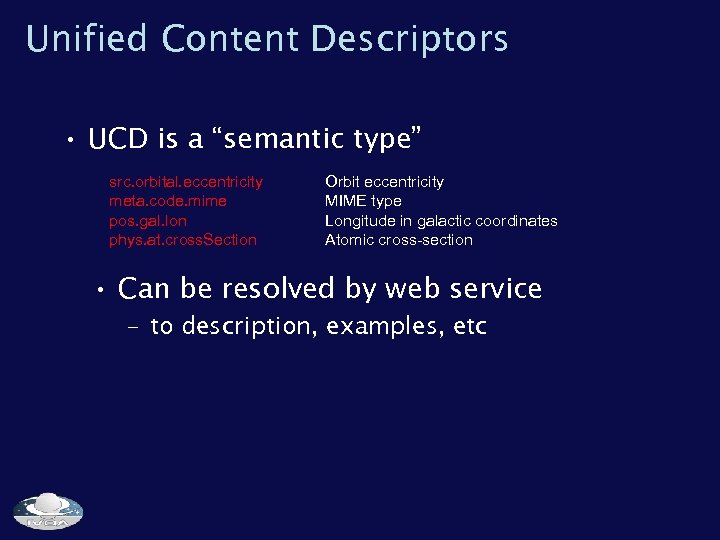

Unified Content Descriptors • UCD is a “semantic type” src. orbital. eccentricity meta. code. mime pos. gal. lon phys. at. cross. Section Orbit eccentricity MIME type Longitude in galactic coordinates Atomic cross-section • Can be resolved by web service – to description, examples, etc

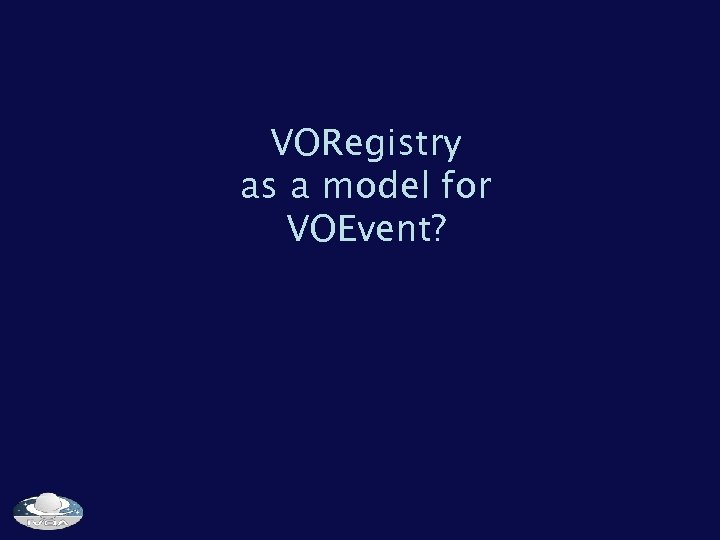

VORegistry as a model for VOEvent?

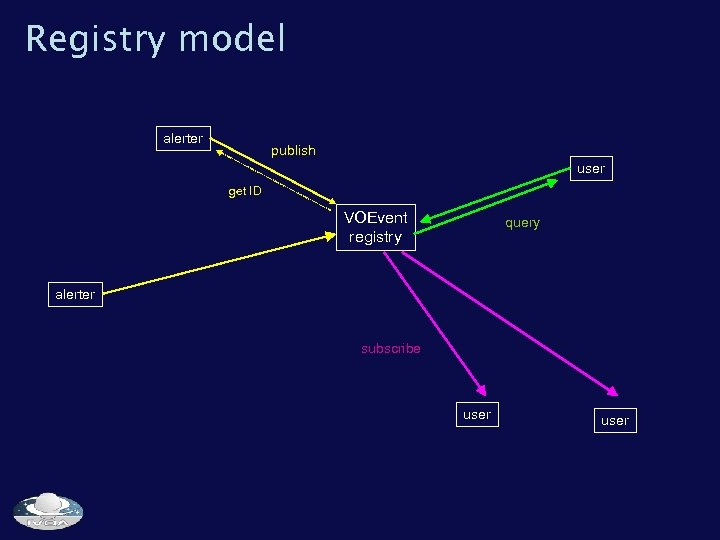

Registry model alerter publish user get ID VOEvent registry query alerter subscribe user

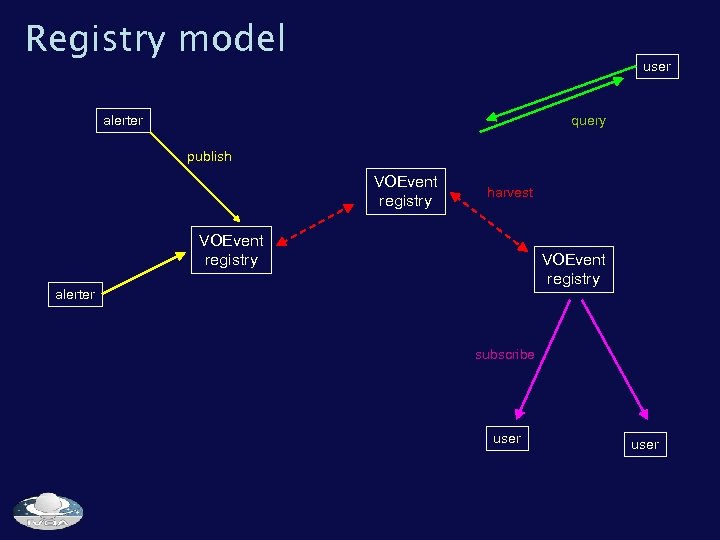

Registry model user alerter query publish VOEvent registry harvest VOEvent registry alerter subscribe user

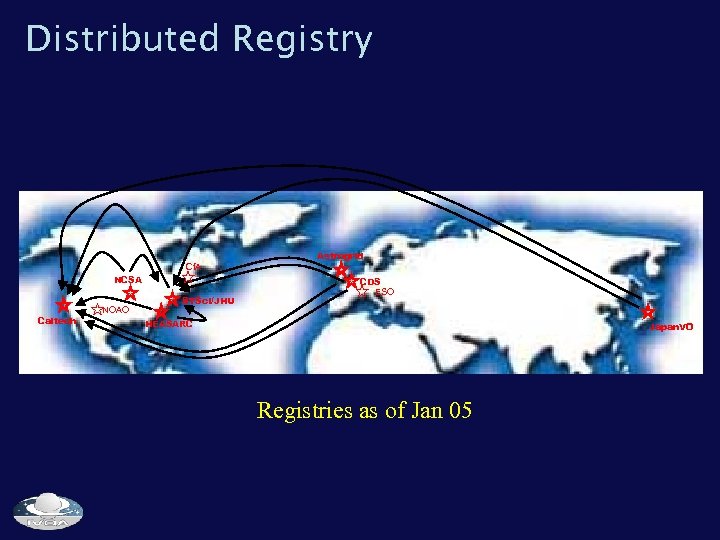

Distributed Registry Astrogrid Cf. A NCSA Caltech NOAO STSc. I/JHU CDS ESO HEASARC Japan. VO Registries as of Jan 05

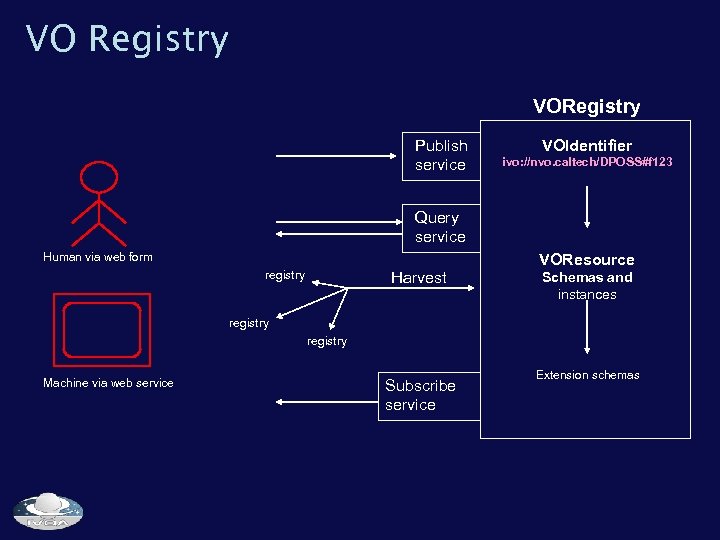

VO Registry VORegistry Publish service VOIdentifier ivo: //nvo. caltech/DPOSS#f 123 Query service Human via web form VOResource registry Harvest Schemas and instances registry Machine via web service Subscribe service Extension schemas

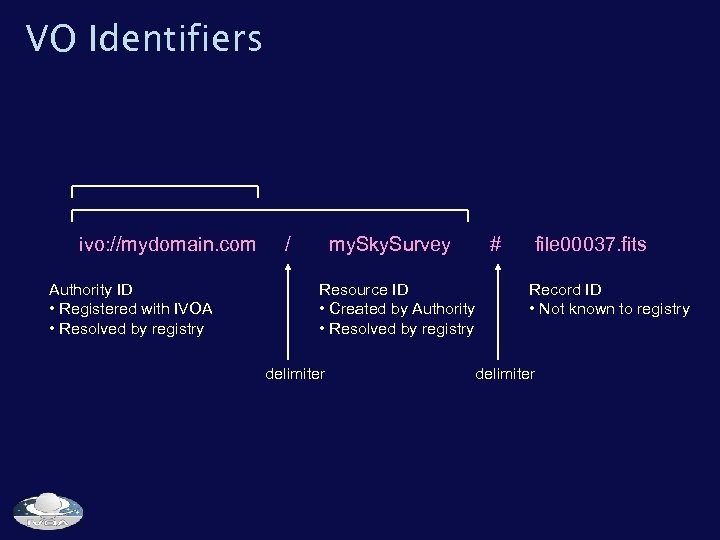

VO Identifiers ivo: //mydomain. com Authority ID • Registered with IVOA • Resolved by registry / my. Sky. Survey Resource ID • Created by Authority • Resolved by registry delimiter # file 00037. fits Record ID • Not known to registry delimiter
