Virtualization Presented by Micro. Age
Programme Introduction to Micro. Age – Maria Fiore Business Development Manager Micro. Age Canada Disaster Recovery – – James Drover HP Canada Philipp Loosli Director of Professional Services Micro. Age Q & A © 2006 Micro. Age
Micro. Age at a glance Canada’s leading network of independently owned systems integrators and valueadded resellers Over 40 locations across Canada, many in operation since 1981 Specializing in multi-vendor turnkey solutions: hardware + software + technical & professional services Vast experience in SME & public sector © 2006 Micro. Age
Micro. Age Delivers IT Solutions Industry-leading IT products IT consulting Procurement planning Training Technical support Flexible leasing/financing options © 2006 Micro. Age
Micro. Age: your trusted business technology partner Highly qualified local IT personnel Proven experience and IT knowledge breadth and depth Strength of national network Commitment to customer service excellence © 2006 Micro. Age
Run With Confidence James Drover Master ASE: SAN Architect HP Canada © 2008 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice

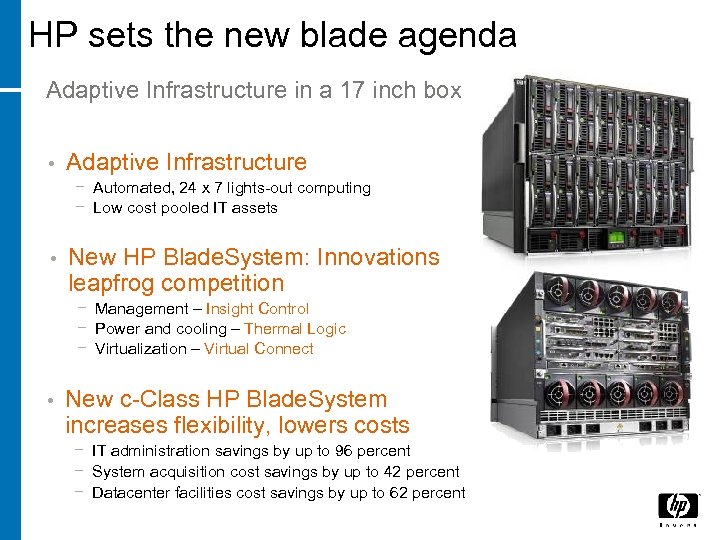

HP sets the new blade agenda Adaptive Infrastructure in a 17 inch box • Adaptive Infrastructure − Automated, 24 x 7 lights-out computing − Low cost pooled IT assets • New HP Blade. System: Innovations leapfrog competition − Management – Insight Control − Power and cooling – Thermal Logic − Virtualization – Virtual Connect • New c-Class HP Blade. System increases flexibility, lowers costs − IT administration savings by up to 96 percent − System acquisition cost savings by up to 42 percent − Datacenter facilities cost savings by up to 62 percent
HP Blade. System portfolio A full range of 2 P and 4 P blades Workstation blades Server blades Storage blades Interconnect choices for LAN, SAN and scale-out clusters Virtual Connect LAN Ethernet NICs SAN Fibre Channel Infini. Band 4 X DDR h h h Unified management h Choice of power Complete services Assessment Implementation Support HP Confidential – NDA Required

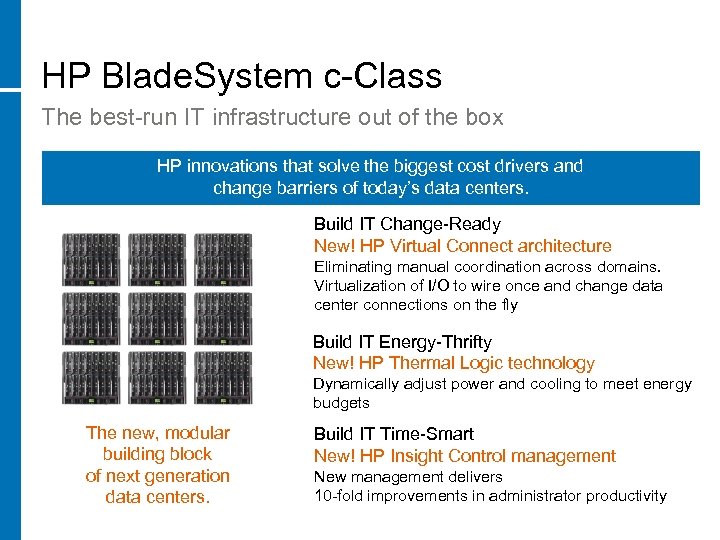

HP Blade. System c-Class The best-run IT infrastructure out of the box HP innovations that solve the biggest cost drivers and change barriers of today’s data centers. Build IT Change-Ready New! HP Virtual Connect architecture Eliminating manual coordination across domains. Virtualization of I/O to wire once and change data center connections on the fly Build IT Energy-Thrifty New! HP Thermal Logic technology Dynamically adjust power and cooling to meet energy budgets The new, modular building block of next generation data centers. Build IT Time-Smart New! HP Insight Control management New management delivers 10 -fold improvements in administrator productivity
Similarities and differences between c 7000 and c 3000 • • Same blades and network options Run same OS and applications Supports Virtual Connect, Thermal Logic, Insight Control Both become killer platforms when combined with virtualization • Lowest cost per blade • 208 V power – single & three phase power • 16 blade bays; 8 high-speed network bays • Lowest total cost • 110 V or 220 V single phase power; Optional DC power (phase 2) • 8 blade bays; 4 high-speed network bays • DVD drive • Local KVM
All-in-One infrastructure for storage, servers and everything else Right-sized to fit just right • Rack or tower • 4 -8 storage or server blades • Built to be virtual Zero-cable storage expansion and data protection • Bladed tape • Bladed DAS • Bladed NAS • Bladed SAN No special power or cooling required • Plugs in the wall or UPS o • Rated to 36 C • Save 30% on power, use less AC Useful, hassle-free tools to manage your way • Just like regular servers or storage • KVM, DVD or remotely • Simple, single package software
Standardize across multiple sites or grow with the business Central, data center infrastructure Small site infrastructure Small office Branch location Back-up site
No compromise compatibility • Run the same OS and business applications • Mix and match the same storage or server blades • Same useful LCD • Connect to your same networks and SAN üHP Virtual Connect üHP Thermal Logic • architecture technology üHP Insight Control üHP Non. Stop management midplane • Rely on the same choice of switches and modules Same Onboard Administrator management
Secure your business with less effort with the HP Storage. Works All-in-One storage blade File serving (NAS) Shared application storage (i. SCSI SAN) Data protection Unified management with server blades • Hides storage complexity • Built-in snapshots and backup • Blade. System advantages of cost, time, energy and easier change • Automatic problem notification and remote administration • SAN capability with standard TCP/IP network • Best practice toolkit is like having a ‘storage expert in the box’
Ai. O SB 600 c Blade Storage Solution Shared storage, file serving & easy management in the enclosure Clients Legacy Exchange/SQL Server Public LAN Mail and database migration File serving (CIFS, NFS) Exchange Server SQL Server VMWare (DNS, A/D) VMWare (Virtual Server) Replication LAN/ WAN Block Access (i. SCSI) c 3000 enclosure D 2 D blade SB 40 c Ai. O SB 600 c (1 TB) SB 40 c Tape backup Snapshots
HP Ultrium 448 c Tape Blade Integrated data protection solution for enclosures not connected into a storage area network (SAN). Who needs a tape blade? − c-Class customers not in a SAN • Direct attach data protection solution − Remotes sites with c 3000 • Typically remotes sites and branch offices − BL 480 c customers • First blade server with 4 hard drives
HP now has an extensive bladed and external data protection portfolio 1 Connect to existing storage infrastructure SAN Interconnects Virtual Connect 2 Portfolio of external storage Storage. Work EVA/MSA 3 + Pro. Liant Storage Server Integrated, zero-cable DAS or shared storage expansion SB 40 C DAS 1 2 3 4 Ai. O Storage Blade 4 Internal and external data protection portfolio 5 Versatile solutions for small sites Data center in a box Add up to 1 TB of shared storage Universal drives Tape blade Solution validation LTO Tape Blade External autoloaders 6 NAS or i. SCSI Simplified operations
Gb. E 2 c Layer 2/3 and c 3000— A simple network solution for small sites • Replace your router and switch with one HP Blade. System Gb. E 2 L 2/3 interconnect module • VLAN capable switch and router • Simply connect the HP Gb. E 2 module to your Cable or DSL modem, and you are on the Internet! HP Blade. System c 3000
Hardware and Software Solutions
And we help you simplify integration with new Blade. System Solution Blocks HP Solution Blocks Solution Block Toolkits Citrix JDEdwards Microsoft Oracle Sage SAP VMware and more … Multiple solutions in one box
Example VMware disaster recovery Solution Block • Build a virtual machine cluster at each site • Connect the sites via the Internet • Use the Ai. O shared storage blades at each site, and replicate data between sites for low-cost disaster recovery VMware cluster Data replication between Site 1 Storage. Works Ai. O SB 600 c Storage Blade Site 2
HP and Microsoft Front. Line partnership: HP and Microsoft Front. Line partnership Unique 20+ year Front. Line partnership 22, 000+ Microsoft-trained professionals The majority of Microsoft purchased servers are from HP 16 M+ Exchange seats deployed by HP Services 22 Master Title © 2008 Hewlett-Packard Development Company, L. P. HP Solution Block Customer Presentation: | Customer Presentation Copyright/Privacy message
HP and Microsoft Front. Line partnership: Expertise HP is the only partner to be named Microsoft’s “Global Enterprise Partner of the Year" 4 times (2000, 2003, 2005, and 2007). HP is the largest Microsoft Gold Partner with nearly 200 HP sites enrolled worldwide Microsoft chose HP Services to manage, operate, and administer the www. microsoft. com infrastructure 23 Master Title © 2008 Hewlett-Packard Development Company, L. P. HP Solution Block Customer Presentation: | Customer Presentation Copyright/Privacy message
Multi Level Virtualization Enterprise Virtual Array Virtual Connect FLEX 10 VMWare, Microsoft, Citrix
Why blades cost less to buy from the start 8 blades Save $669 2 x power cables 3 x Ethernet cables 4 x Fibre Channel cables on cables 8 standard servers 16 x power cables 27 x Ethernet cables 20 x Fibre Channel cables Save $5, 188 Ethernet switch/router L 3 ~$1799 Ethernet switch/router L 3 ~$4987 on interconnects Avg. FC switch ~$5999 Avg. FC switch ~$7999 4 power supplies Save ~$1, 417 per server 16 power supplies 6 fans 32 fans 2 port HBA ~$600 Server Costs 2 port HBA ~$1200 Save $17, 193 on HP Blade. System with 8 server blades
Software support and combination hardware and software support options HP Open. View HP Critical Service HP Serviceguard • Software Updates Software Support • • HP and selected third parties Rights to new versions Product & document updates • Software updates selected third parties Software tech assistance • 9 x 5 or 24 x 7 • 2 hr response Support Plus 24 • HW 4 hr response • Software tech assistance • 2 hr response • 13 x 5 or 24 x 7 coverage • Support planning HW 4 hr response • Proactive services • Software tech assistance • Change management • HP-UX HP Proactive 24 Service • HP Pro. Liant Essentials Named tech account team 2 hr response • 6 hr CTR HW • Service account manager • Software tech assistance • Support planning • • System Health Check Immediate response for critical problems • SW update • Remote diagnosis • 24 x 7 coverage • SW updates • Remote diagnosis • 24 x 7 coverage
Technology for better business outcomes
Webinar presented by Philipp Loosli Micro. Age
Customer case study: Corey Craig Group Presented by Philipp Loosli Micro. Age SE Atlantic Region © 2006 Micro. Age
Case Study: Corey Craig Group, Moncton NB © 2006 Micro. Age
Corey Craig Group - Overview • Executive offices (HQ) • Operations offices • 31 Tim Hortons stores • 4 Wendy’s restaurants • 2 Shell gas stations/convenience stores • 1 Holiday Inn Express hotel • Other real estate holdings © 2006 Micro. Age
IT Network Infrastructure Assessment for CCG Pain Point: Office Connectivity © 2006 Micro. Age

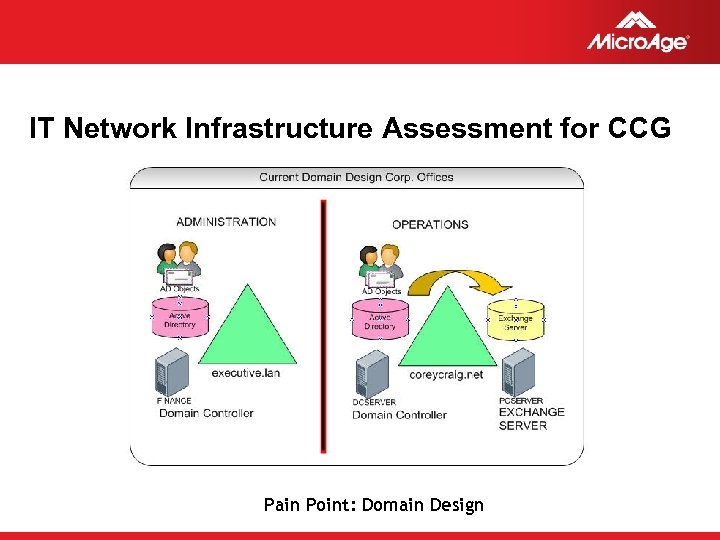

IT Network Infrastructure Assessment for CCG Pain Point: Domain Design © 2006 Micro. Age
IT Network Infrastructure Assessment for CCG Pain Point: Disaster Recovery Plan © 2006 Micro. Age
Panic Server Room Network Security Domain Controller IT Documentation Power Distribution Unit (PDU) Warehouse Server Warm Spare Cable Concept Backup… Call for help Corporate Identity (CI) Mail Server Application Server UPS Battery Backup © 2006 Micro. Age
Objectives for new IT Infrastructure • Server and Storage Consolidation (HP Blade System) • Server and Data Availability through Virtualization • Interconnect all Offices securely • Connect all Tim stores securely to HQ • Implement Corporate Backup Solution • Design Mobility Concept for Laptops and Handhelds • Allow for 25% of HW and 40% of Storage Growth • Centralize IT with full remote ADM capability © 2006 Micro. Age
Proposed Solution © 2006 Micro. Age
CCG Server Infrastructure with HP Blades © 2006 Micro. Age
CCG Server Room Network Security VMware ESX 3. 5 i Server APP Server on VM 1 DC II on VM 2 Domain Controller BES Server on VM 3 Exchange Server Storage Server Cable Concept Backup Tape Blade UPS Battery Backup for 30 min © 2006 Micro. Age

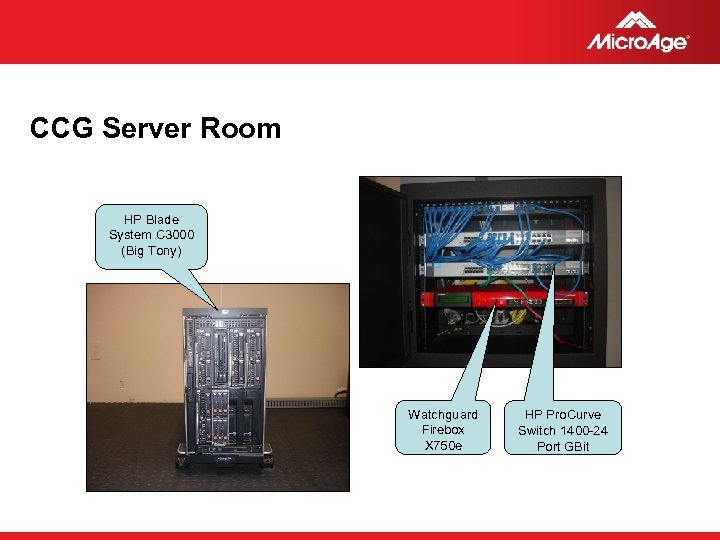

CCG Server Room HP Blade System C 3000 (Big Tony) Watchguard Firebox X 750 e HP Pro. Curve Switch 1400 -24 Port GBit © 2006 Micro. Age

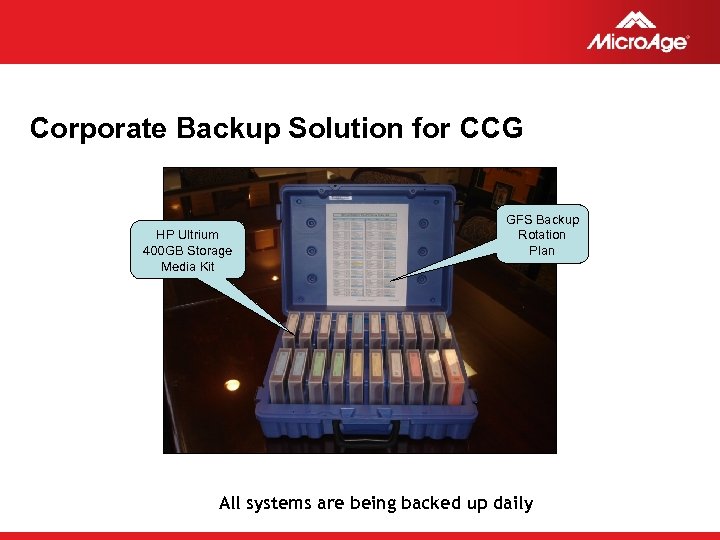

Corporate Backup Solution for CCG HP Ultrium 400 GB Storage Media Kit GFS Backup Rotation Plan All systems are being backed up daily © 2006 Micro. Age
Customer Feedback Jonathan Talbot-Kelly, CCG President • Secure communication amongst the entire group • DR Plan and reliable backup solution • Overall increase of productivity • Flexible, adaptive Infrastructure to address strategy • Decreased TCO for yearly IT Maintenance • 100% data access from anywhere in the world • Driving on latest HP technology © 2006 Micro. Age
