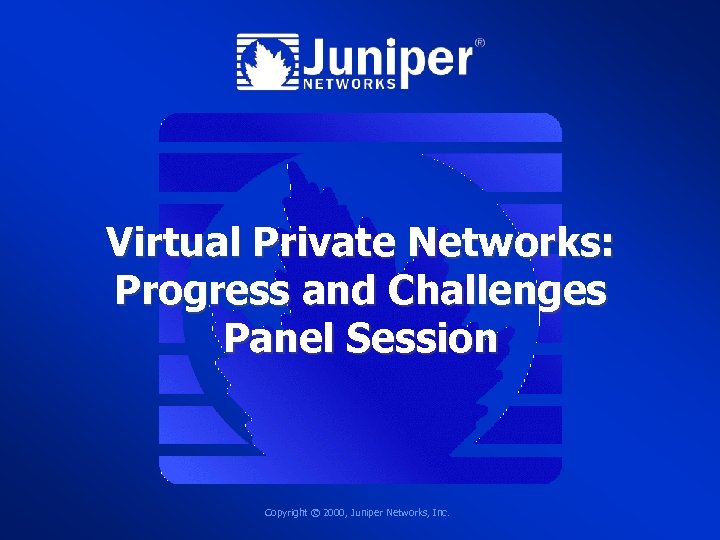

Virtual Private Networks: Progress and Challenges Panel Session Copyright © 2000, Juniper Networks, Inc. Virtual Private Networks: Progress and Challenges Panel Session Copyright © 2000, Juniper Networks, Inc.

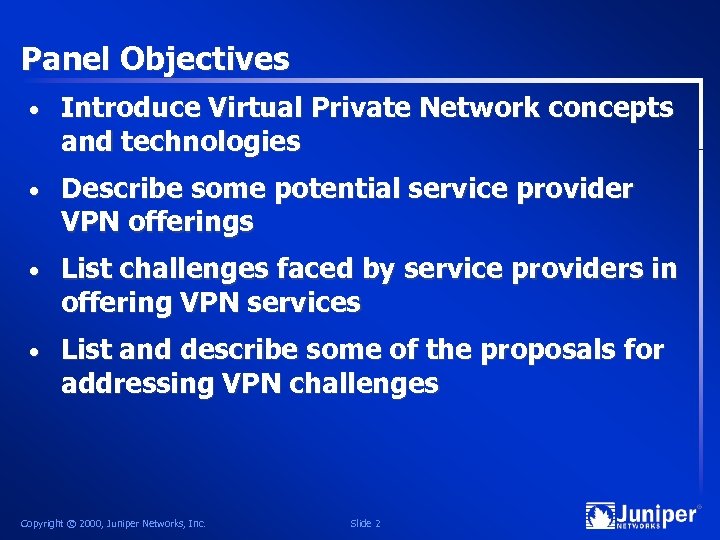

Panel Objectives • Introduce Virtual Private Network concepts and technologies • Describe some potential Panel Objectives • Introduce Virtual Private Network concepts and technologies • Describe some potential service provider VPN offerings • List challenges faced by service providers in offering VPN services • List and describe some of the proposals for addressing VPN challenges Copyright © 2000, Juniper Networks, Inc. Slide 2

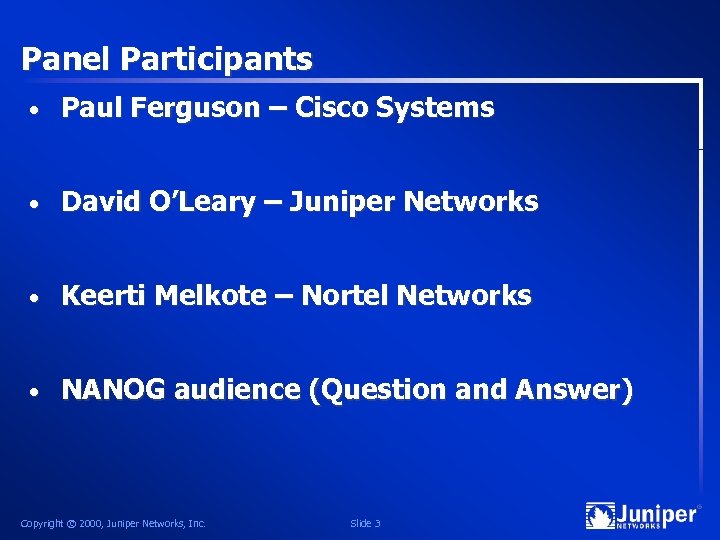

Panel Participants • Paul Ferguson – Cisco Systems • David O’Leary – Juniper Networks Panel Participants • Paul Ferguson – Cisco Systems • David O’Leary – Juniper Networks • Keerti Melkote – Nortel Networks • NANOG audience (Question and Answer) Copyright © 2000, Juniper Networks, Inc. Slide 3

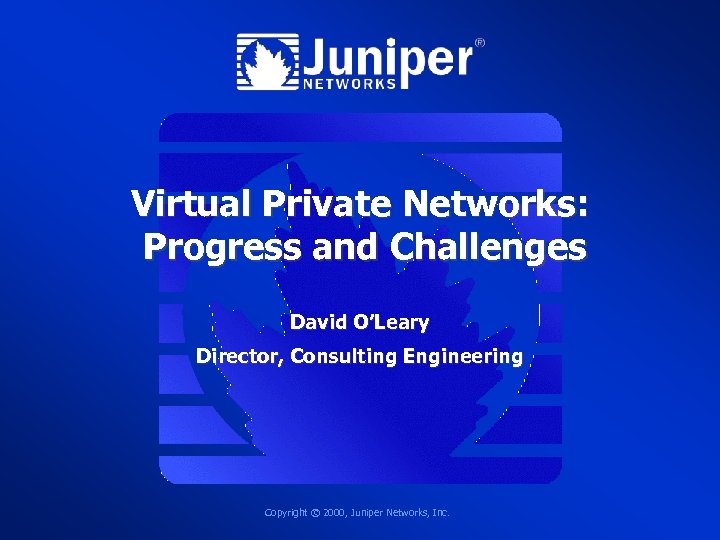

Virtual Private Networks: Progress and Challenges David O’Leary Director, Consulting Engineering Copyright © 2000, Virtual Private Networks: Progress and Challenges David O’Leary Director, Consulting Engineering Copyright © 2000, Juniper Networks, Inc.

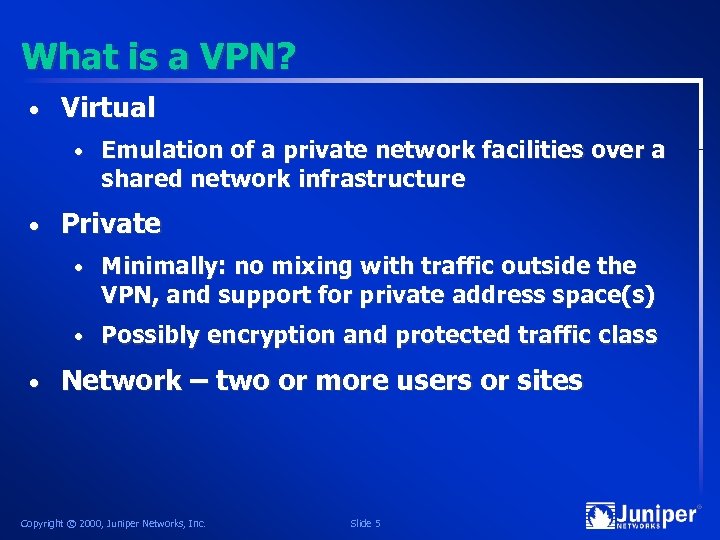

What is a VPN? • Virtual • • Emulation of a private network facilities What is a VPN? • Virtual • • Emulation of a private network facilities over a shared network infrastructure Private • • • Minimally: no mixing with traffic outside the VPN, and support for private address space(s) Possibly encryption and protected traffic class Network – two or more users or sites Copyright © 2000, Juniper Networks, Inc. Slide 5

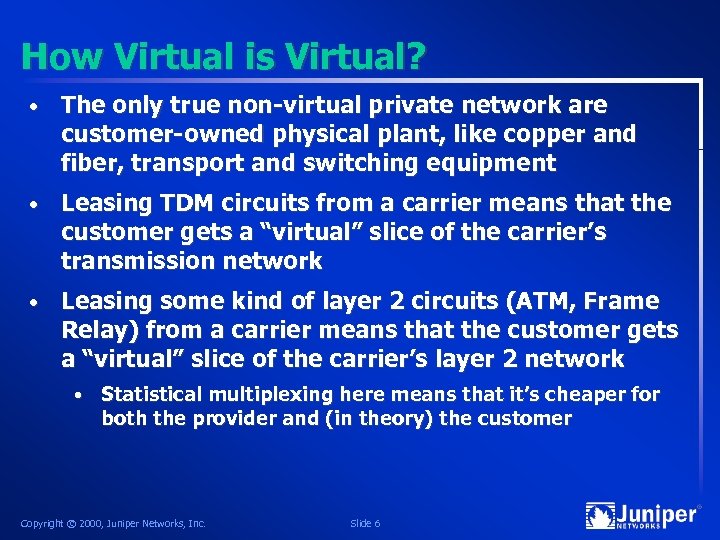

How Virtual is Virtual? • The only true non-virtual private network are customer-owned physical How Virtual is Virtual? • The only true non-virtual private network are customer-owned physical plant, like copper and fiber, transport and switching equipment • Leasing TDM circuits from a carrier means that the customer gets a “virtual” slice of the carrier’s transmission network • Leasing some kind of layer 2 circuits (ATM, Frame Relay) from a carrier means that the customer gets a “virtual” slice of the carrier’s layer 2 network • Statistical multiplexing here means that it’s cheaper for both the provider and (in theory) the customer Copyright © 2000, Juniper Networks, Inc. Slide 6

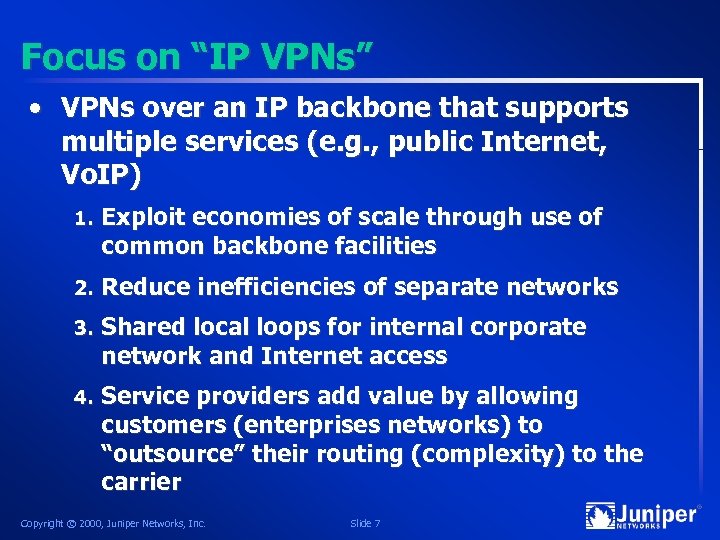

Focus on “IP VPNs” • VPNs over an IP backbone that supports multiple services Focus on “IP VPNs” • VPNs over an IP backbone that supports multiple services (e. g. , public Internet, Vo. IP) 1. Exploit economies of scale through use of common backbone facilities 2. Reduce inefficiencies of separate networks 3. Shared local loops for internal corporate network and Internet access 4. Service providers add value by allowing customers (enterprises networks) to “outsource” their routing (complexity) to the carrier Copyright © 2000, Juniper Networks, Inc. Slide 7

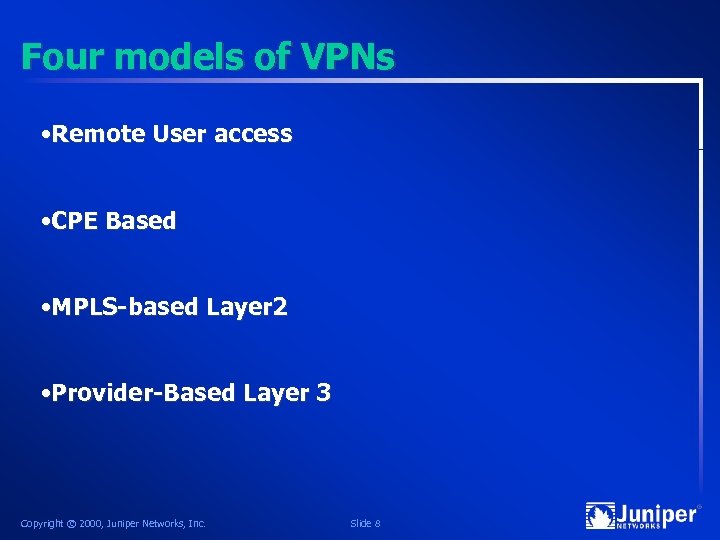

Four models of VPNs • Remote User access • CPE Based • MPLS-based Layer Four models of VPNs • Remote User access • CPE Based • MPLS-based Layer 2 • Provider-Based Layer 3 Copyright © 2000, Juniper Networks, Inc. Slide 8

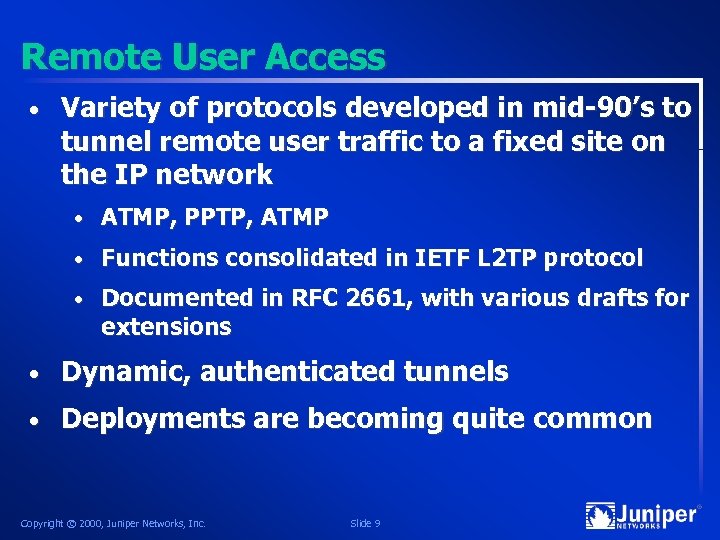

Remote User Access • Variety of protocols developed in mid-90’s to tunnel remote user Remote User Access • Variety of protocols developed in mid-90’s to tunnel remote user traffic to a fixed site on the IP network • ATMP, PPTP, ATMP • Functions consolidated in IETF L 2 TP protocol • Documented in RFC 2661, with various drafts for extensions • Dynamic, authenticated tunnels • Deployments are becoming quite common Copyright © 2000, Juniper Networks, Inc. Slide 9

CPE Based VPNs • Tunnels configured between CPE devices • • • Options are CPE Based VPNs • Tunnels configured between CPE devices • • • Options are GRE, IPSEC, IP-in-IP, PPTP, L 2 TP Topology of the VPN is configured into the CPE devices The provider does not have to do anything to their network (they may not even know it is happening) • • VPN traffic may be marked and prioritized The service provider may bundle and manage the CPE devices used to create the VPN service • Provides “value add” beyond best effort Internet connectivity • This model is already being aggressively deployed by providers around the world Copyright © 2000, Juniper Networks, Inc. Slide 10

CPE Based VPNs Tradeoffs • Provider network configuration • • • Potentially no more CPE Based VPNs Tradeoffs • Provider network configuration • • • Potentially no more than required for Internet access Co. S or managed service adds provider complexity Customer (CPE) configuration • • Every tunnel is a separate virtual interface that must be configured, including for routing Scalability • Provider network – excellent • Customer – depends on number of tunnels and routing topology/complexity Copyright © 2000, Juniper Networks, Inc. Slide 11

Layer-2 VPNs • A subscriber leases VCs between the sites that need to be Layer-2 VPNs • A subscriber leases VCs between the sites that need to be connected • • The subscriber and provider think of these VCs as “dumb” pipes not at all involved in Layer 3 issues such as routing, packet filtering, etc. • • Topologies are hub and spoke, full or partial mesh Subscriber outsources the Layer 3 management to the provider in a “Managed Router” service Mature support for commitments about service (e. g. , bandwidth, availability, etc. ) • At least in the business/SLA sense • Virtual Circuit model eases capacity planning Copyright © 2000, Juniper Networks, Inc. Slide 12

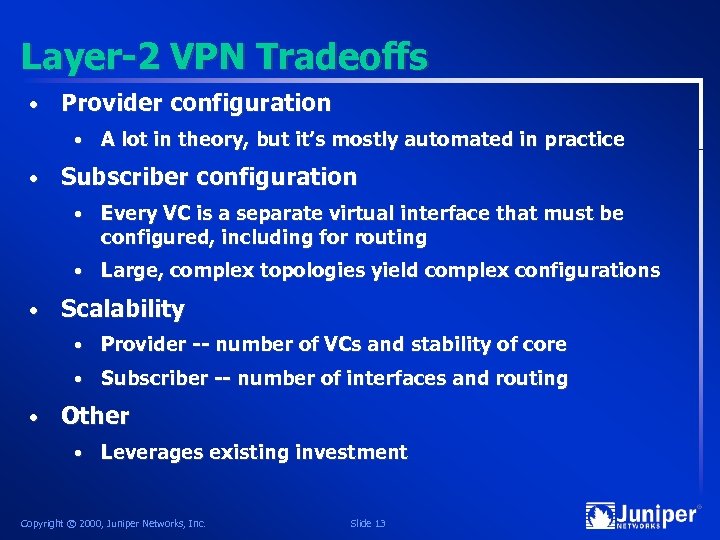

Layer-2 VPN Tradeoffs • Provider configuration • • A lot in theory, but it’s Layer-2 VPN Tradeoffs • Provider configuration • • A lot in theory, but it’s mostly automated in practice Subscriber configuration • • • Every VC is a separate virtual interface that must be configured, including for routing Large, complex topologies yield complex configurations Scalability • • • Provider -- number of VCs and stability of core Subscriber -- number of interfaces and routing Other • Leverages existing investment Copyright © 2000, Juniper Networks, Inc. Slide 13

MPLS-Based Layer-2 VPNs • Looks identical to “traditional layer 2 VPNs” from the subscriber MPLS-Based Layer-2 VPNs • Looks identical to “traditional layer 2 VPNs” from the subscriber perspective • Provider carries the layer 2 circuits over an IP/MPLS backbone • Provides the ability for multiple services (public IP, private IP, Vo. IP, etc) over a single access circuit Copyright © 2000, Juniper Networks, Inc. Slide 14

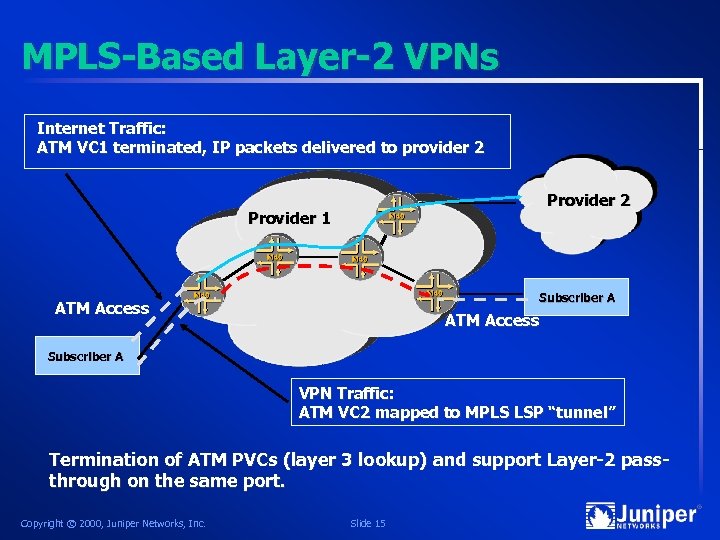

MPLS-Based Layer-2 VPNs Internet Traffic: ATM VC 1 terminated, IP packets delivered to provider MPLS-Based Layer-2 VPNs Internet Traffic: ATM VC 1 terminated, IP packets delivered to provider 2 Provider 1 Subscriber A ATM Access Subscriber A VPN Traffic: ATM VC 2 mapped to MPLS LSP “tunnel” Termination of ATM PVCs (layer 3 lookup) and support Layer-2 passthrough on the same port. Copyright © 2000, Juniper Networks, Inc. Slide 15

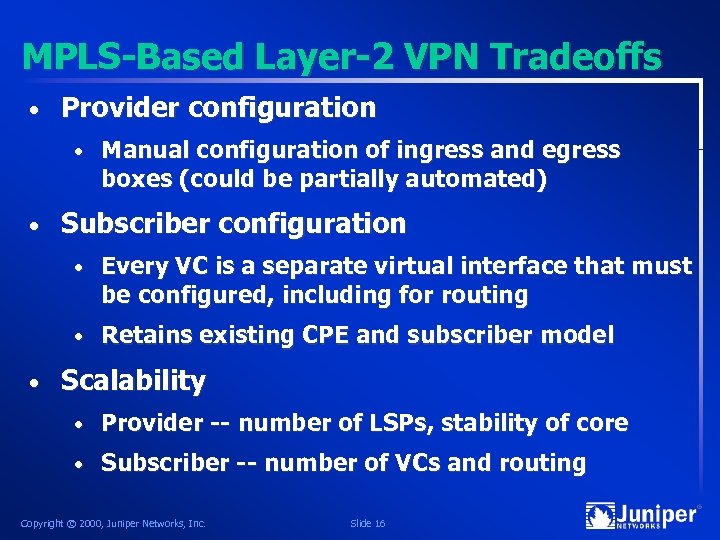

MPLS-Based Layer-2 VPN Tradeoffs • Provider configuration • • Manual configuration of ingress and MPLS-Based Layer-2 VPN Tradeoffs • Provider configuration • • Manual configuration of ingress and egress boxes (could be partially automated) Subscriber configuration • • • Every VC is a separate virtual interface that must be configured, including for routing Retains existing CPE and subscriber model Scalability • Provider -- number of LSPs, stability of core • Subscriber -- number of VCs and routing Copyright © 2000, Juniper Networks, Inc. Slide 16

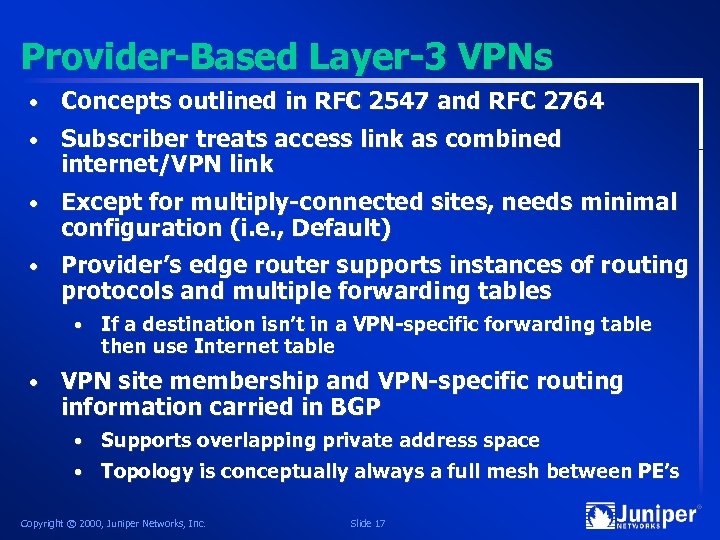

Provider-Based Layer-3 VPNs • Concepts outlined in RFC 2547 and RFC 2764 • Subscriber Provider-Based Layer-3 VPNs • Concepts outlined in RFC 2547 and RFC 2764 • Subscriber treats access link as combined internet/VPN link • Except for multiply-connected sites, needs minimal configuration (i. e. , Default) • Provider’s edge router supports instances of routing protocols and multiple forwarding tables • • If a destination isn’t in a VPN-specific forwarding table then use Internet table VPN site membership and VPN-specific routing information carried in BGP • Supports overlapping private address space • Topology is conceptually always a full mesh between PE’s Copyright © 2000, Juniper Networks, Inc. Slide 17

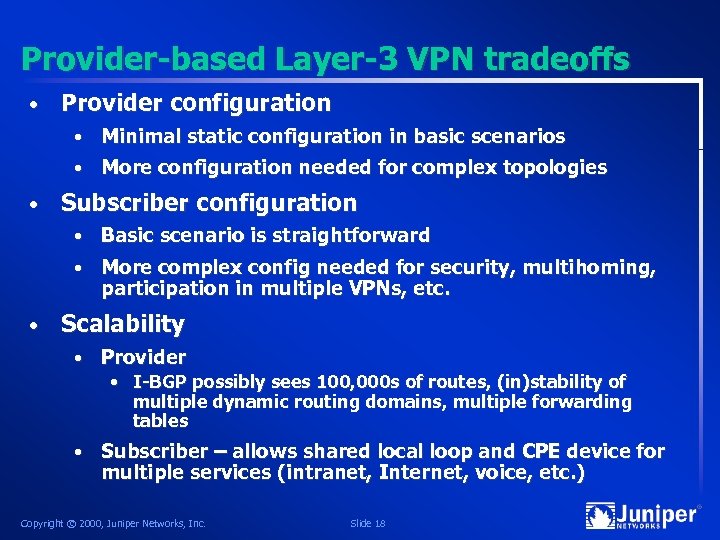

Provider-based Layer-3 VPN tradeoffs • Provider configuration • • • Minimal static configuration in Provider-based Layer-3 VPN tradeoffs • Provider configuration • • • Minimal static configuration in basic scenarios More configuration needed for complex topologies Subscriber configuration • • • Basic scenario is straightforward More complex config needed for security, multihoming, participation in multiple VPNs, etc. Scalability • Provider • I-BGP possibly sees 100, 000 s of routes, (in)stability of multiple dynamic routing domains, multiple forwarding tables • Subscriber – allows shared local loop and CPE device for multiple services (intranet, Internet, voice, etc. ) Copyright © 2000, Juniper Networks, Inc. Slide 18

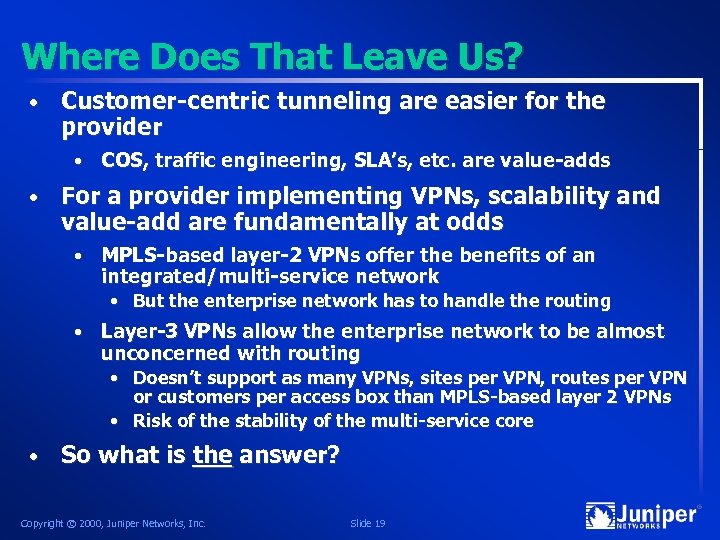

Where Does That Leave Us? • Customer-centric tunneling are easier for the provider • Where Does That Leave Us? • Customer-centric tunneling are easier for the provider • • COS, traffic engineering, SLA’s, etc. are value-adds For a provider implementing VPNs, scalability and value-add are fundamentally at odds • MPLS-based layer-2 VPNs offer the benefits of an integrated/multi-service network • But the enterprise network has to handle the routing • Layer-3 VPNs allow the enterprise network to be almost unconcerned with routing • Doesn’t support as many VPNs, sites per VPN, routes per VPN or customers per access box than MPLS-based layer 2 VPNs • Risk of the stability of the multi-service core • So what is the answer? Copyright © 2000, Juniper Networks, Inc. Slide 19

Where Does That Leave Us? (cont. ) • The answer is: it depends • Where Does That Leave Us? (cont. ) • The answer is: it depends • Some subscribers may require the ability to outsource routing • • • Layer 3 VPNs or MPLS-based layer 2 VPNs where “managed services” are provided and a device at the customer’s premises converts from pure IP to some number of layer 2 virtual circuits Some subscribers may be capable of doing their own routing • • MPLS-based layer 2 VPNs offer scalability for broad deployment as well as stability with less coupling Range of hybrid solutions is probably likely • Remote access user VPNs • CPE-based VPNs • MPLS-based layer 2 VPNs • Layer 3 VPNs Copyright © 2000, Juniper Networks, Inc. Slide 20

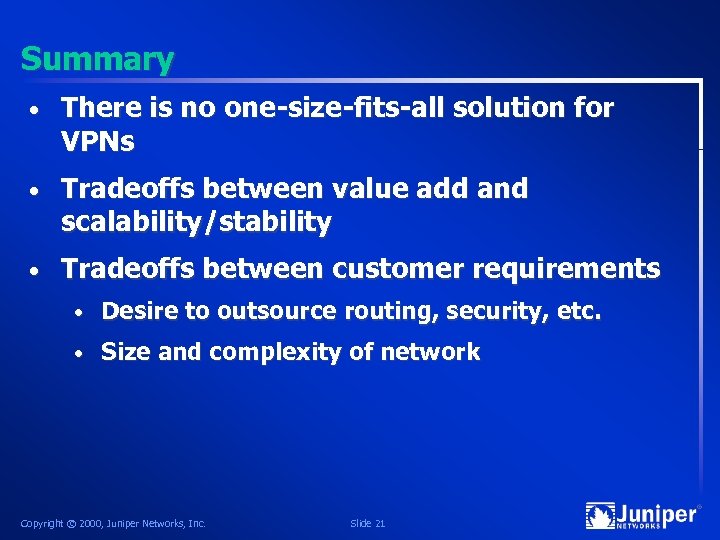

Summary • There is no one-size-fits-all solution for VPNs • Tradeoffs between value add Summary • There is no one-size-fits-all solution for VPNs • Tradeoffs between value add and scalability/stability • Tradeoffs between customer requirements • Desire to outsource routing, security, etc. • Size and complexity of network Copyright © 2000, Juniper Networks, Inc. Slide 21
