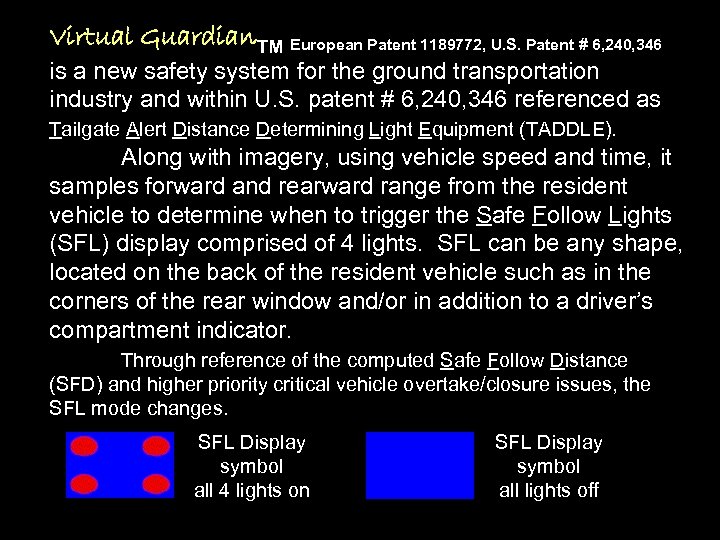

Virtual Guardian. TM European Patent 1189772, U. S. Patent # 6, 240, 346 is a new safety system for the ground transportation industry and within U. S. patent # 6, 240, 346 referenced as Tailgate Alert Distance Determining Light Equipment (TADDLE). Along with imagery, using vehicle speed and time, it samples forward and rearward range from the resident vehicle to determine when to trigger the Safe Follow Lights (SFL) display comprised of 4 lights. SFL can be any shape, located on the back of the resident vehicle such as in the corners of the rear window and/or in addition to a driver’s compartment indicator. Through reference of the computed Safe Follow Distance (SFD) and higher priority critical vehicle overtake/closure issues, the SFL mode changes. SFL Display symbol all 4 lights on SFL Display symbol all lights off

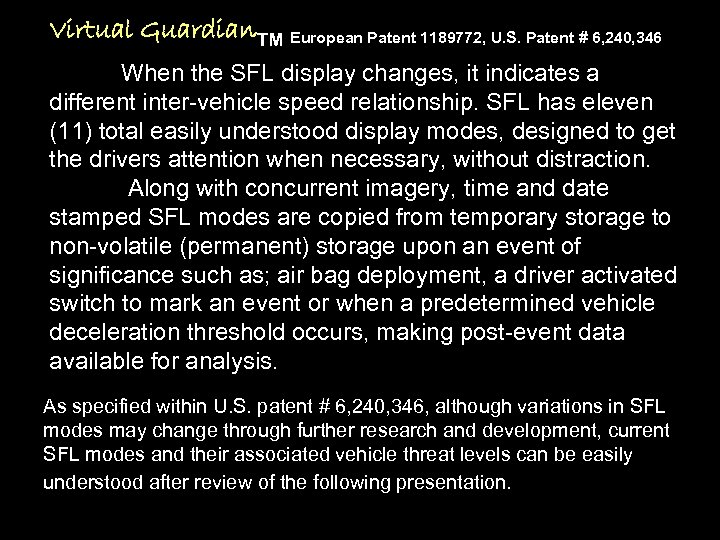

Virtual Guardian. TM European Patent 1189772, U. S. Patent # 6, 240, 346 When the SFL display changes, it indicates a different inter-vehicle speed relationship. SFL has eleven (11) total easily understood display modes, designed to get the drivers attention when necessary, without distraction. Along with concurrent imagery, time and date stamped SFL modes are copied from temporary storage to non-volatile (permanent) storage upon an event of significance such as; air bag deployment, a driver activated switch to mark an event or when a predetermined vehicle deceleration threshold occurs, making post-event data available for analysis. As specified within U. S. patent # 6, 240, 346, although variations in SFL modes may change through further research and development, current SFL modes and their associated vehicle threat levels can be easily understood after review of the following presentation.

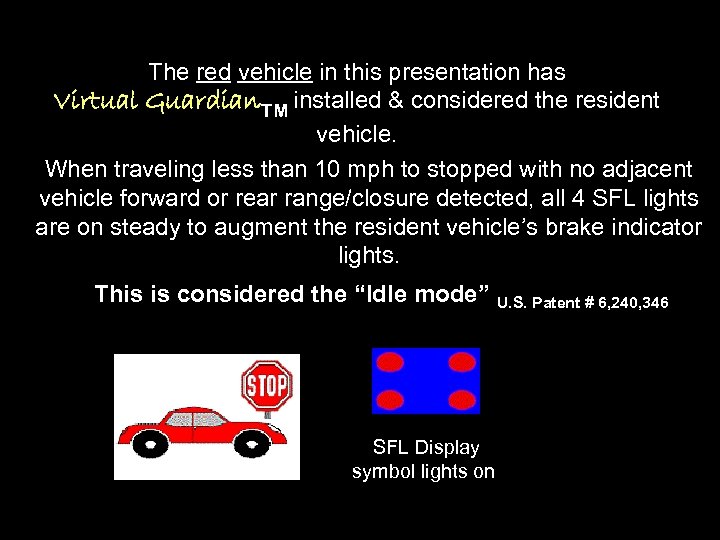

The red vehicle in this presentation has Virtual Guardian. TM installed & considered the resident vehicle. When traveling less than 10 mph to stopped with no adjacent vehicle forward or rear range/closure detected, all 4 SFL lights are on steady to augment the resident vehicle’s brake indicator lights. This is considered the “Idle mode” U. S. Patent # 6, 240, 346 SFL Display symbol lights on

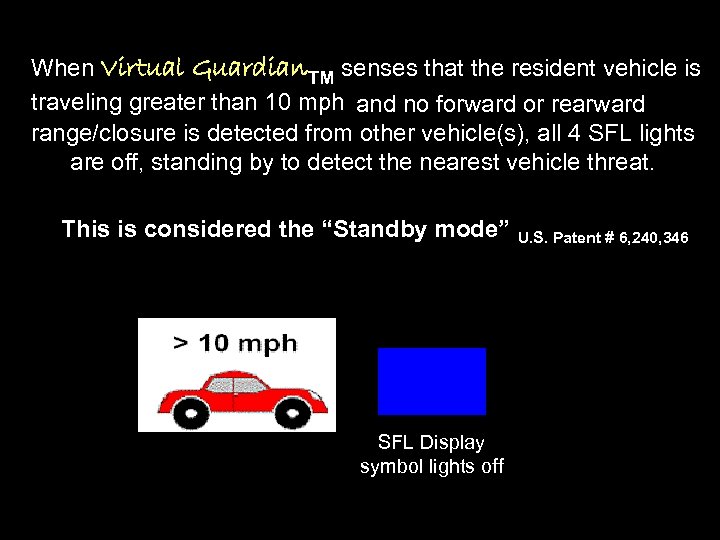

When Virtual Guardian. TM senses that the resident vehicle is traveling greater than 10 mph and no forward or rearward range/closure is detected from other vehicle(s), all 4 SFL lights are off, standing by to detect the nearest vehicle threat. This is considered the “Standby mode” U. S. Patent # 6, 240, 346 SFL Display symbol lights off

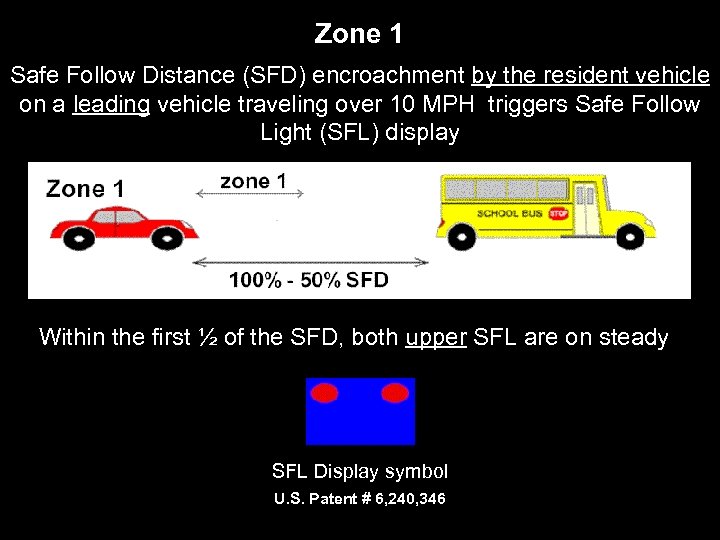

Zone 1 Safe Follow Distance (SFD) encroachment by the resident vehicle on a leading vehicle traveling over 10 MPH triggers Safe Follow Light (SFL) display Within the first ½ of the SFD, both upper SFL are on steady SFL Display symbol U. S. Patent # 6, 240, 346

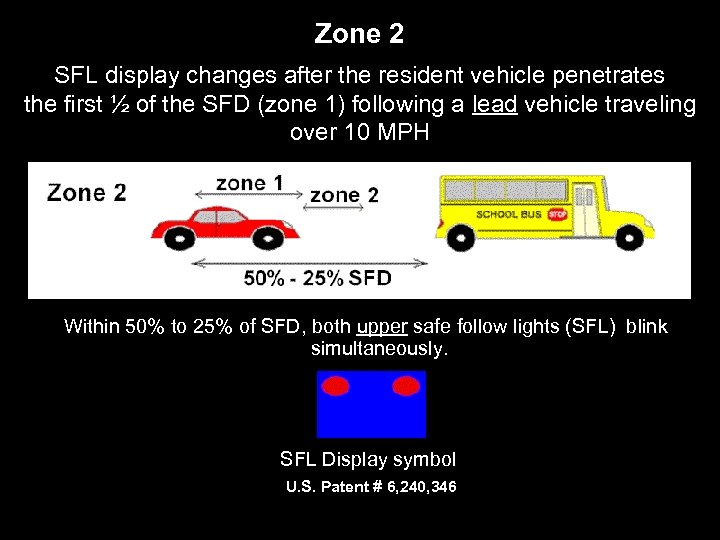

Zone 2 SFL display changes after the resident vehicle penetrates the first ½ of the SFD (zone 1) following a lead vehicle traveling over 10 MPH Within 50% to 25% of SFD, both upper safe follow lights (SFL) blink simultaneously. SFL Display symbol U. S. Patent # 6, 240, 346

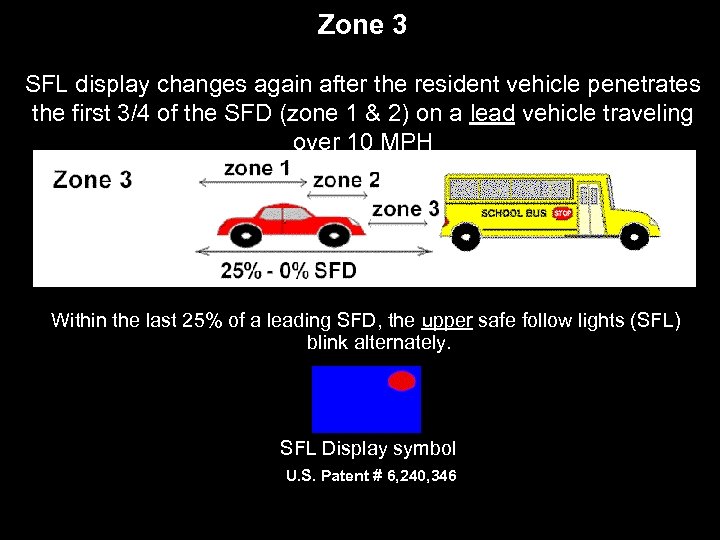

Zone 3 SFL display changes again after the resident vehicle penetrates the first 3/4 of the SFD (zone 1 & 2) on a lead vehicle traveling over 10 MPH Within the last 25% of a leading SFD, the upper safe follow lights (SFL) blink alternately. SFL Display symbol U. S. Patent # 6, 240, 346

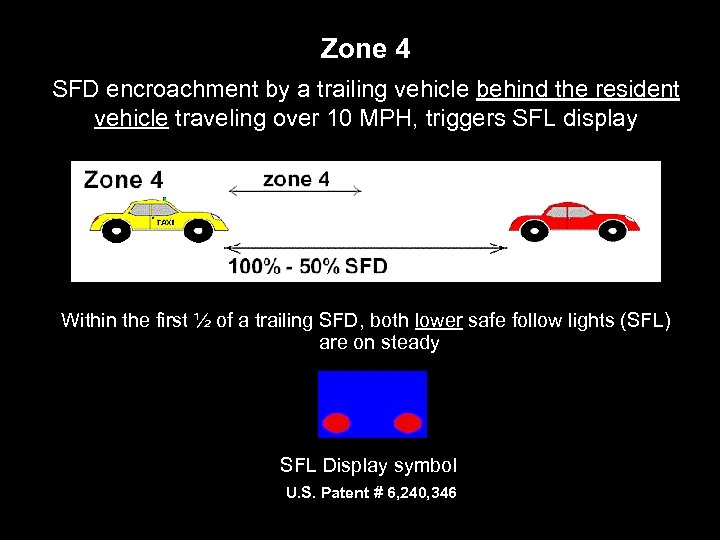

Zone 4 SFD encroachment by a trailing vehicle behind the resident vehicle traveling over 10 MPH, triggers SFL display Within the first ½ of a trailing SFD, both lower safe follow lights (SFL) are on steady SFL Display symbol U. S. Patent # 6, 240, 346

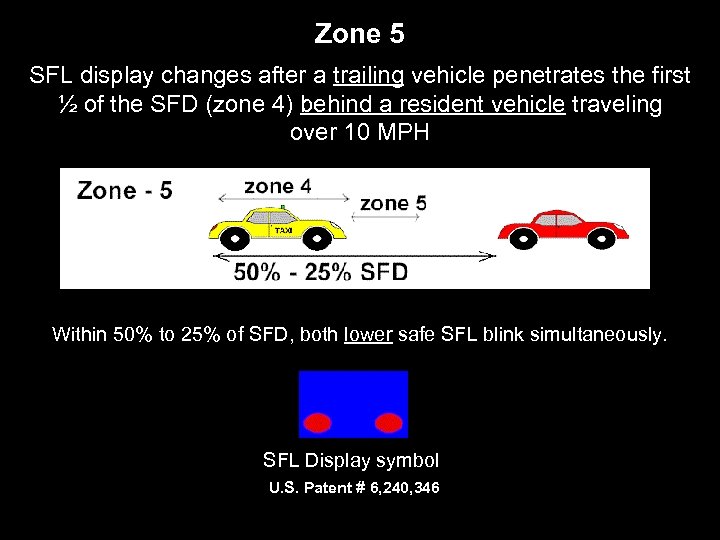

Zone 5 SFL display changes after a trailing vehicle penetrates the first ½ of the SFD (zone 4) behind a resident vehicle traveling over 10 MPH Within 50% to 25% of SFD, both lower safe SFL blink simultaneously. SFL Display symbol U. S. Patent # 6, 240, 346

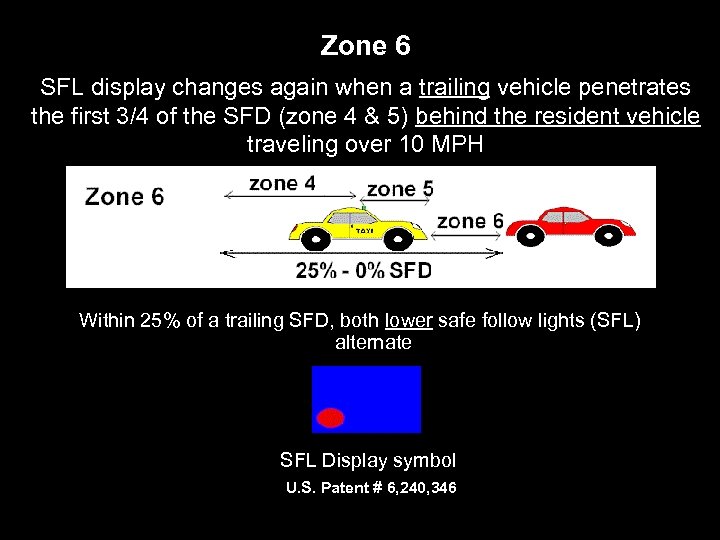

Zone 6 SFL display changes again when a trailing vehicle penetrates the first 3/4 of the SFD (zone 4 & 5) behind the resident vehicle traveling over 10 MPH Within 25% of a trailing SFD, both lower safe follow lights (SFL) alternate SFL Display symbol U. S. Patent # 6, 240, 346

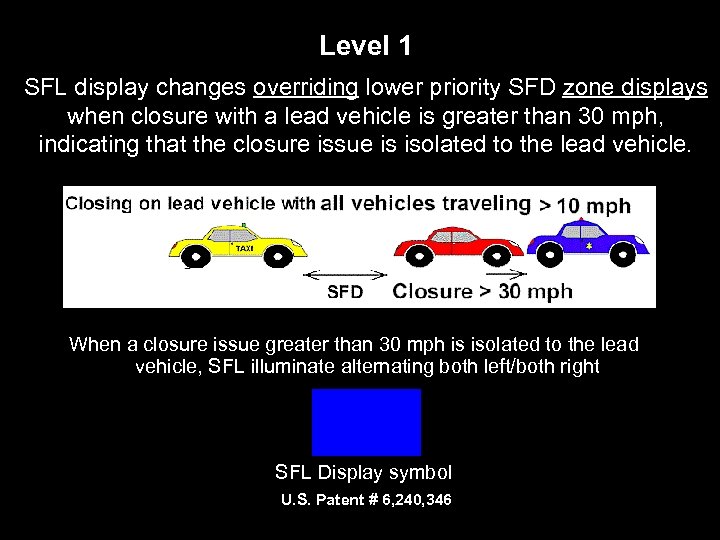

Level 1 SFL display changes overriding lower priority SFD zone displays when closure with a lead vehicle is greater than 30 mph, indicating that the closure issue is isolated to the lead vehicle. When a closure issue greater than 30 mph is isolated to the lead vehicle, SFL illuminate alternating both left/both right SFL Display symbol U. S. Patent # 6, 240, 346

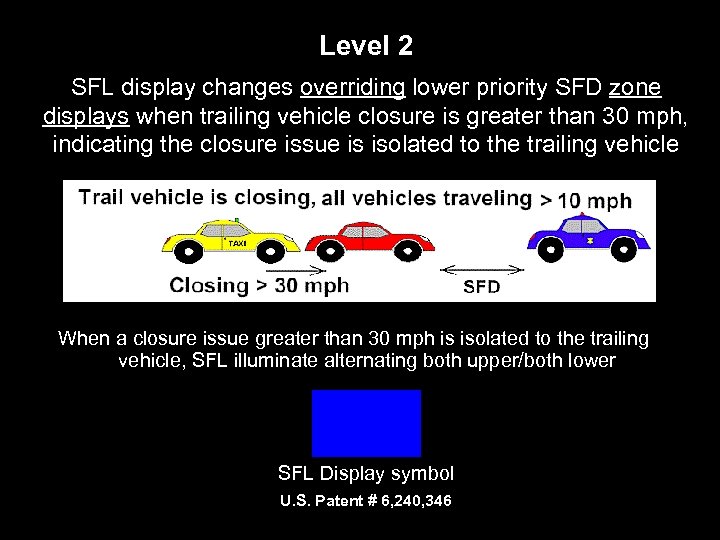

Level 2 SFL display changes overriding lower priority SFD zone displays when trailing vehicle closure is greater than 30 mph, indicating the closure issue is isolated to the trailing vehicle When a closure issue greater than 30 mph is isolated to the trailing vehicle, SFL illuminate alternating both upper/both lower SFL Display symbol U. S. Patent # 6, 240, 346

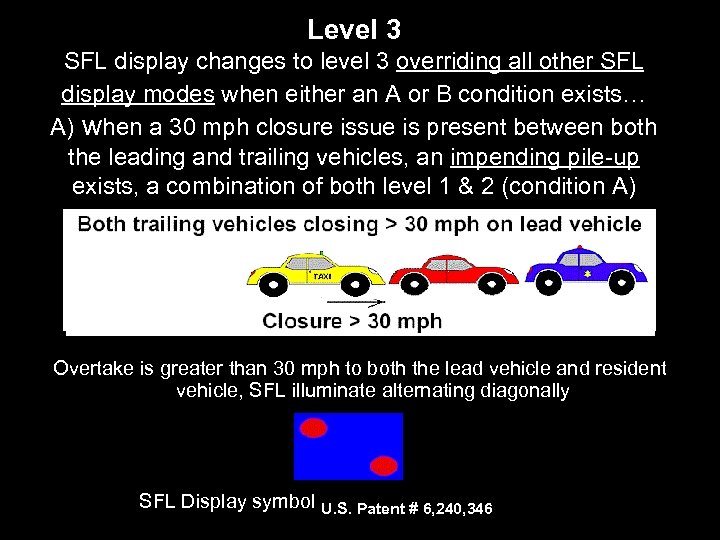

Level 3 SFL display changes to level 3 overriding all other SFL display modes when either an A or B condition exists… A) when a 30 mph closure issue is present between both the leading and trailing vehicles, an impending pile-up exists, a combination of both level 1 & 2 (condition A) Overtake is greater than 30 mph to both the lead vehicle and resident vehicle, SFL illuminate alternating diagonally SFL Display symbol U. S. Patent # 6, 240, 346

Level 3 (continued) or SFL display also changes to level 3 overriding all other SFL display modes when… B) a 30 mph closure issue exists upon a vehicle traveling less than 10 mph to stopped (condition B) When overtake is greater than 30 mph on any vehicle traveling slower than 10 mph to stopped, SFL illuminate alternating diagonally SFL Display symbol U. S. Patent # 6, 240, 346

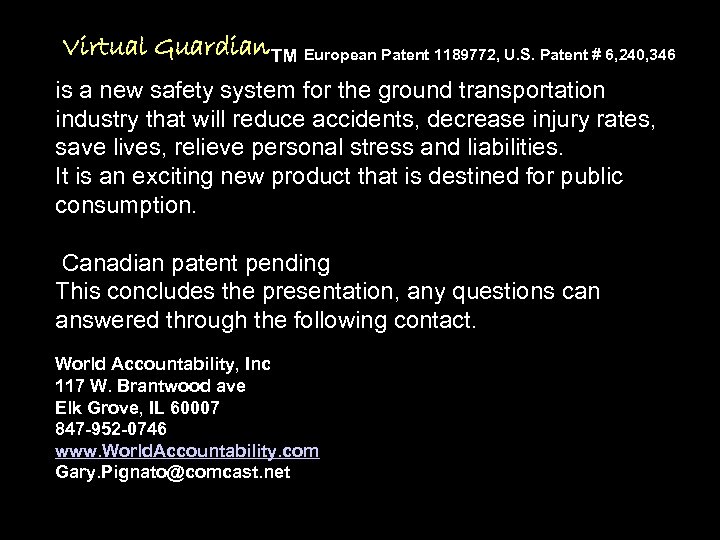

Virtual Guardian. TM European Patent 1189772, U. S. Patent # 6, 240, 346 is a new safety system for the ground transportation industry that will reduce accidents, decrease injury rates, save lives, relieve personal stress and liabilities. It is an exciting new product that is destined for public consumption. Canadian patent pending This concludes the presentation, any questions can answered through the following contact. World Accountability, Inc 117 W. Brantwood ave Elk Grove, IL 60007 847 -952 -0746 www. World. Accountability. com Gary. Pignato@comcast. net
