VIEWTM MLAV 9500 -CS Digital AV Encoder VIEWTM VL 9300 -CS Digital AV Decoder 3/18/2018 AVo. IPTM

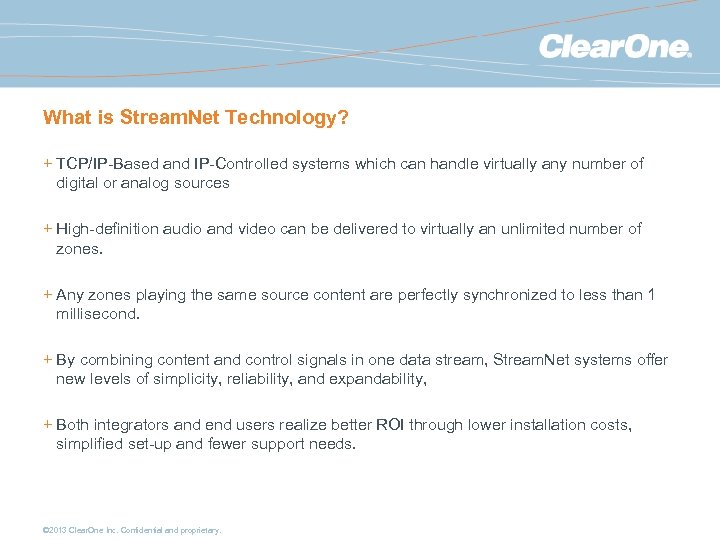

What is Stream. Net Technology? + TCP/IP-Based and IP-Controlled systems which can handle virtually any number of digital or analog sources + High-definition audio and video can be delivered to virtually an unlimited number of zones. + Any zones playing the same source content are perfectly synchronized to less than 1 millisecond. + By combining content and control signals in one data stream, Stream. Net systems offer new levels of simplicity, reliability, and expandability, + Both integrators and end users realize better ROI through lower installation costs, simplified set-up and fewer support needs. © 2013 Clear. One Inc. Confidential and proprietary.

VIEWTM Encoder and Decoder Overview An MLAV 9500 -CS Digital Encoder at each AV source and a VL 9300 -CS Digital Decoder at each display enables distribution of high-definition content over the network to virtually an unlimited number of displays, without additional control components. + The Power of One – VIEW components installed at each source or display endpoint provides the flexibility to scale by one to virtually unlimited + Flexibility – MLAV 9500 -CS is compatible with rack or surface mountings. The compact form factor of the VL 9300 -CS can be attached directly to the back of a display + Compatibility – Fully HDCP compliant and ready to configure with HDMI at full 1080 p resolution © 2013 Clear. One Inc. Confidential and proprietary.

Features/Benefits + MLAV 9500 -CS Digital Encoder > > > > Full HD 1080 p Compressed video encoding DVI Input – HDMI input using DVI-HDMI adapter Rack-mount and surface-mount compatible Unmatched source compatibility HDCP compliant / HDCP diagnostics Source control using IR, RS-232 and CEC + VL 9300 -CS Digital Decoder > > > > Full HD 1080 p DVI Output - HDMI output using DVI-HDMI adapter Complete media room control capabilities Analog and digital (HDMI) audio outputs SD and HD video decoding HDCP compliant/ HDCP diagnostics Po. E operation (with separate splitter) © 2013 Clear. One Inc. Confidential and proprietary.

Connections + VL 9300 -CS Back and Bottom Panels. > Power and Ethernet connections on both sides for mounting options – cannot be used simultaneously. © 2013 Clear. One Inc. Confidential and proprietary.

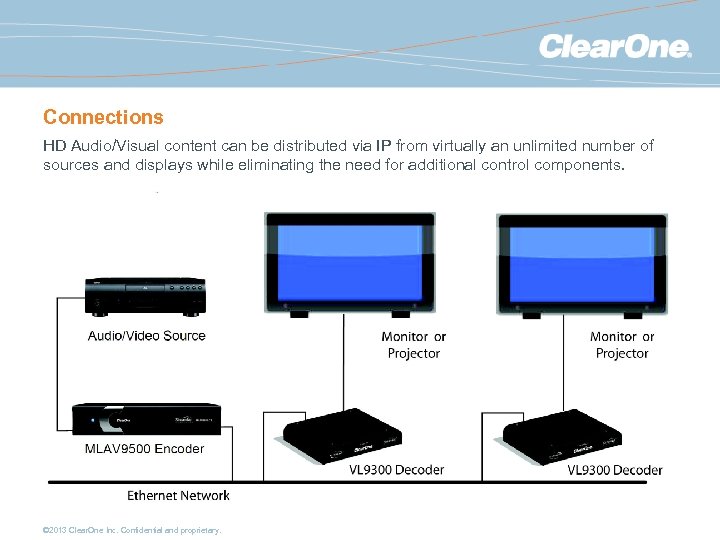

Connections HD Audio/Visual content can be distributed via IP from virtually an unlimited number of sources and displays while eliminating the need for additional control components. © 2013 Clear. One Inc. Confidential and proprietary.

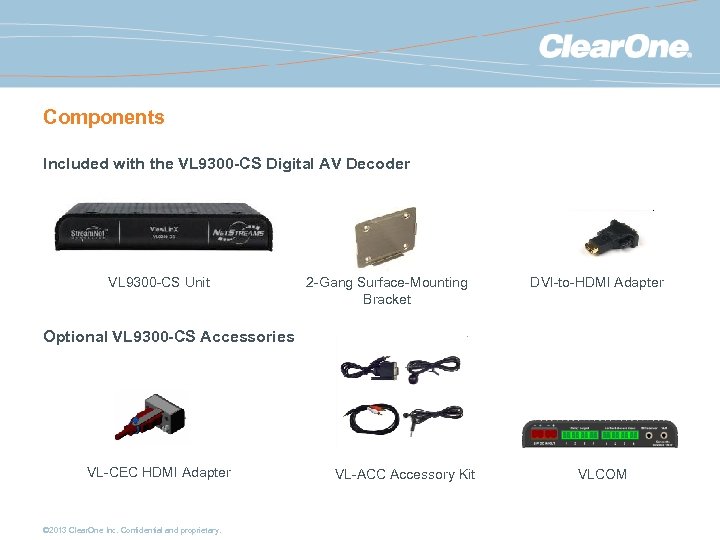

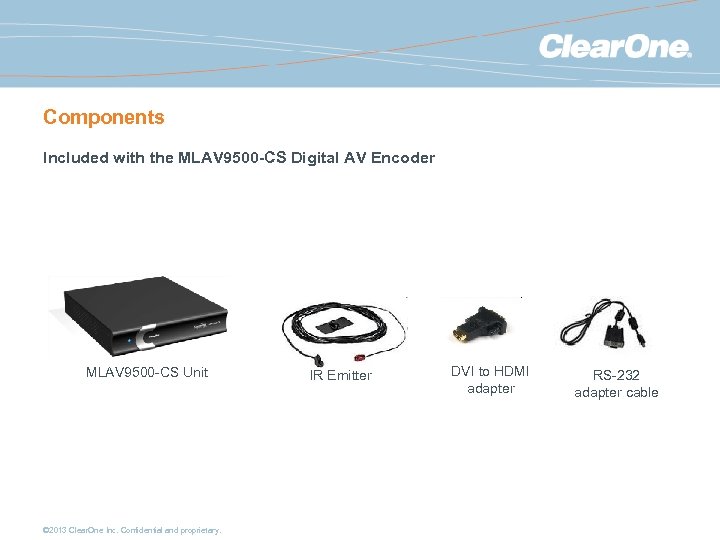

Components Included with the VL 9300 -CS Digital AV Decoder VL 9300 -CS Unit 2 -Gang Surface-Mounting Bracket DVI-to-HDMI Adapter Optional VL 9300 -CS Accessories VL-CEC HDMI Adapter © 2013 Clear. One Inc. Confidential and proprietary. VL-ACC Accessory Kit VLCOM

Specifications – MLAV 9500 -CS Supported Video Formats 1080 p, 1080 i, 720 p, 480 p, 576 i, 480 i Supported VESA Formats 1280 x 768, 1024 x 768, 800 x 600, 640 x 480 Ethernet Connection One RJ 45 10/1000 Mb Power Input Connector One 2 -pin 5 mm Phoenix-style connector, 10‑ 28 VDC Compliance Ro. HS compliant Power Consumption Less than 10 W at 10 -28 VDC External Dimensions (W x H x D) 8. 66” x 1. 73” x 8. 97” (220 mm x 44 mm x 228 mm) Weight 3. 21 lbs. (1. 46 kg) © 2013 Clear. One Inc. Confidential and proprietary.

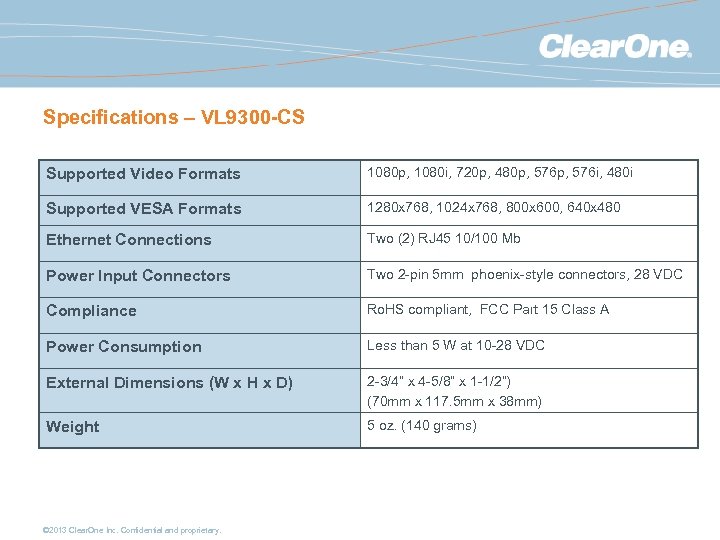

Specifications – VL 9300 -CS Supported Video Formats 1080 p, 1080 i, 720 p, 480 p, 576 i, 480 i Supported VESA Formats 1280 x 768, 1024 x 768, 800 x 600, 640 x 480 Ethernet Connections Two (2) RJ 45 10/100 Mb Power Input Connectors Two 2 -pin 5 mm phoenix-style connectors, 28 VDC Compliance Ro. HS compliant, FCC Part 15 Class A Power Consumption Less than 5 W at 10 -28 VDC External Dimensions (W x H x D) 2 -3/4” x 4 -5/8” x 1 -1/2”) (70 mm x 117. 5 mm x 38 mm) Weight 5 oz. (140 grams) © 2013 Clear. One Inc. Confidential and proprietary.

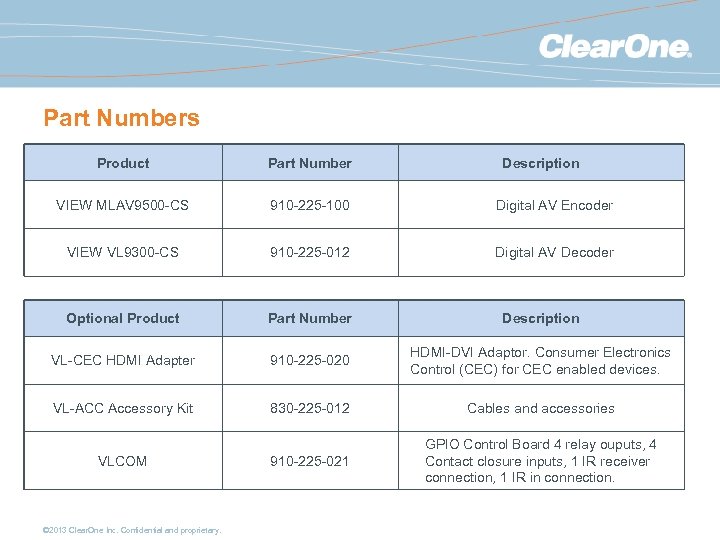

Part Numbers Product Part Number VIEW MLAV 9500 -CS 910 -225 -100 Digital AV Encoder VIEW VL 9300 -CS 910 -225 -012 Digital AV Decoder Optional Product Part Number Description VL-CEC HDMI Adapter 910 -225 -020 HDMI-DVI Adaptor. Consumer Electronics Control (CEC) for CEC enabled devices. VL-ACC Accessory Kit 830 -225 -012 Cables and accessories 910 -225 -021 GPIO Control Board 4 relay ouputs, 4 Contact closure inputs, 1 IR receiver connection, 1 IR in connection. VLCOM © 2013 Clear. One Inc. Confidential and proprietary. Description

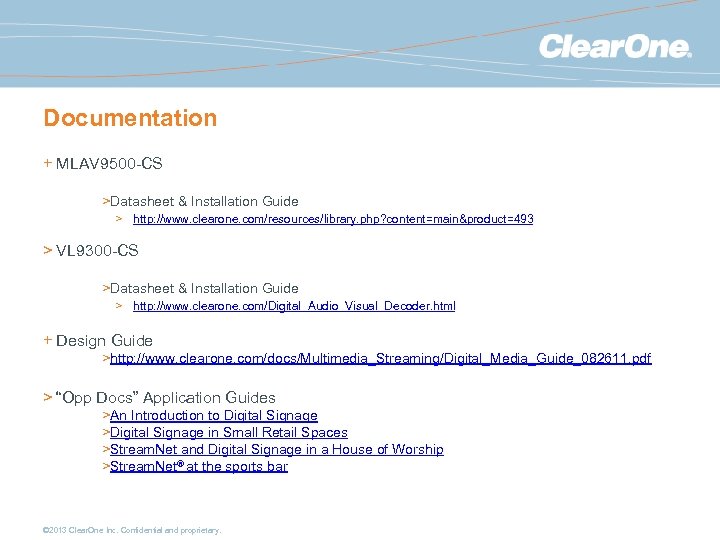

Documentation + MLAV 9500 -CS >Datasheet & Installation Guide > http: //www. clearone. com/resources/library. php? content=main&product=493 > VL 9300 -CS >Datasheet & Installation Guide > http: //www. clearone. com/Digital_Audio_Visual_Decoder. html + Design Guide >http: //www. clearone. com/docs/Multimedia_Streaming/Digital_Media_Guide_082611. pdf > “Opp Docs” Application Guides >An Introduction to Digital Signage >Digital Signage in Small Retail Spaces >Stream. Net and Digital Signage in a House of Worship >Stream. Net® at the sports bar © 2013 Clear. One Inc. Confidential and proprietary.

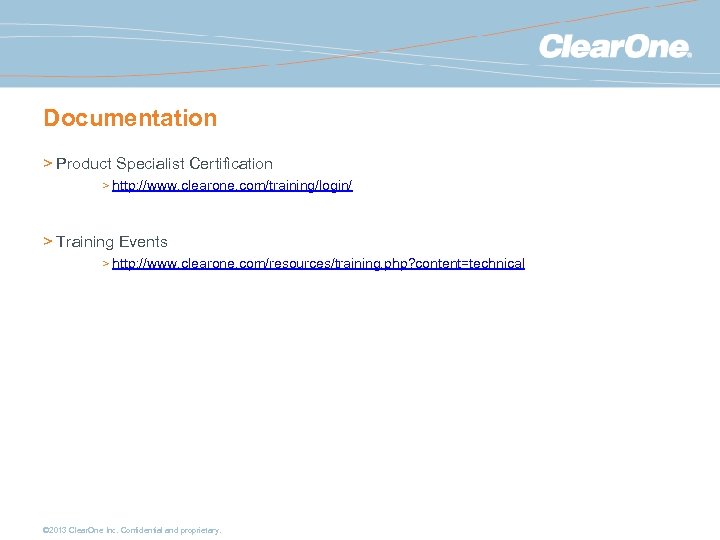

Documentation > Product Specialist Certification > http: //www. clearone. com/training/login/ > Training Events > http: //www. clearone. com/resources/training. php? content=technical © 2013 Clear. One Inc. Confidential and proprietary.

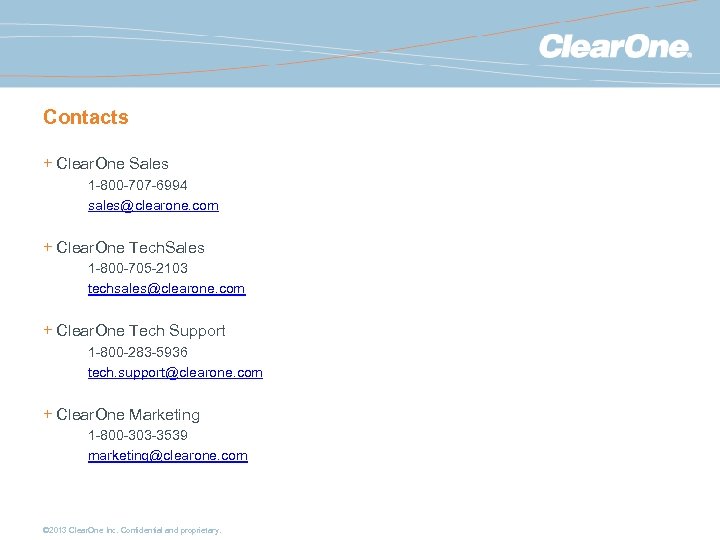

Contacts + Clear. One Sales 1 -800 -707 -6994 sales@clearone. com + Clear. One Tech. Sales 1 -800 -705 -2103 techsales@clearone. com + Clear. One Tech Support 1 -800 -283 -5936 tech. support@clearone. com + Clear. One Marketing 1 -800 -303 -3539 marketing@clearone. com © 2013 Clear. One Inc. Confidential and proprietary.
