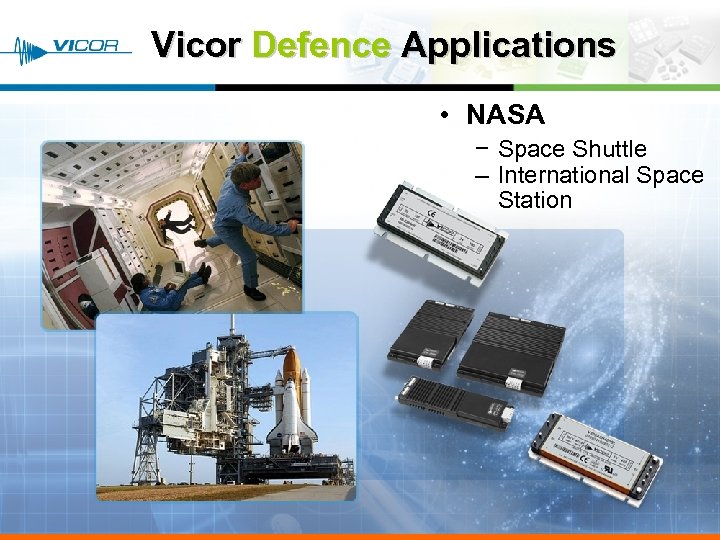

Vicor Defence Applications • NASA − Space Shuttle – International Space Station Vicor © 2009

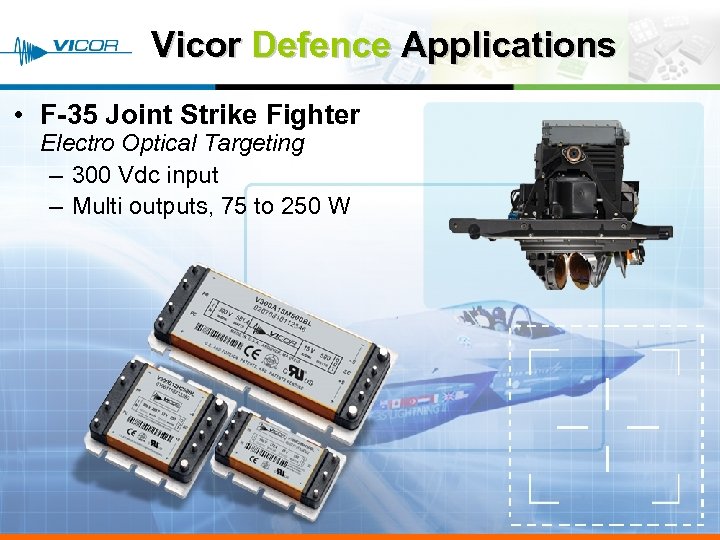

Vicor Defence Applications • F-35 Joint Strike Fighter Electro Optical Targeting – 300 Vdc input – Multi outputs, 75 to 250 W Vicor © 2009

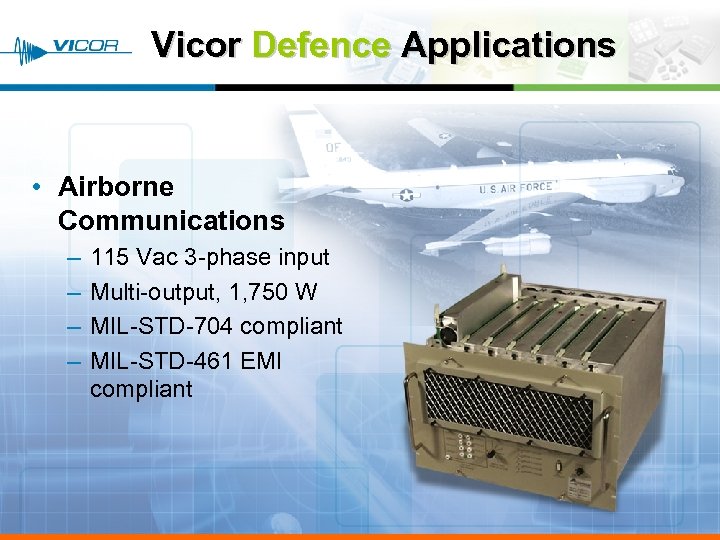

Vicor Defence Applications • Airborne Communications – – 115 Vac 3 -phase input Multi-output, 1, 750 W MIL-STD-704 compliant MIL-STD-461 EMI compliant Vicor © 2009

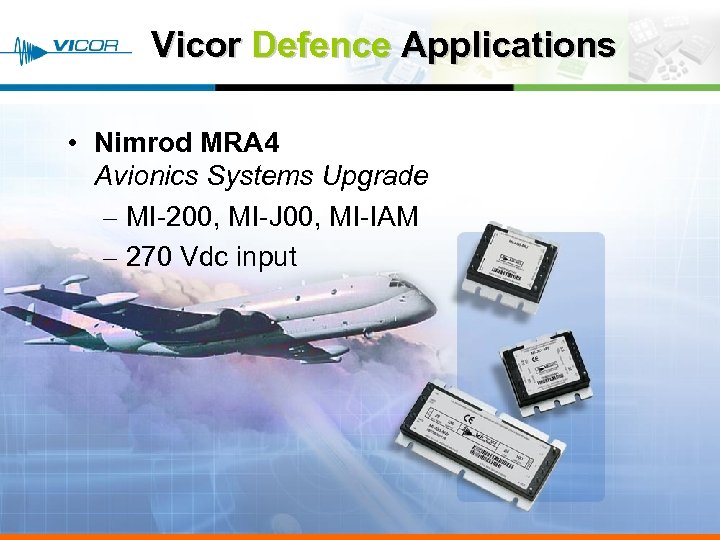

Vicor Defence Applications • Nimrod MRA 4 Avionics Systems Upgrade – MI-200, MI-J 00, MI-IAM – 270 Vdc input Vicor © 2009

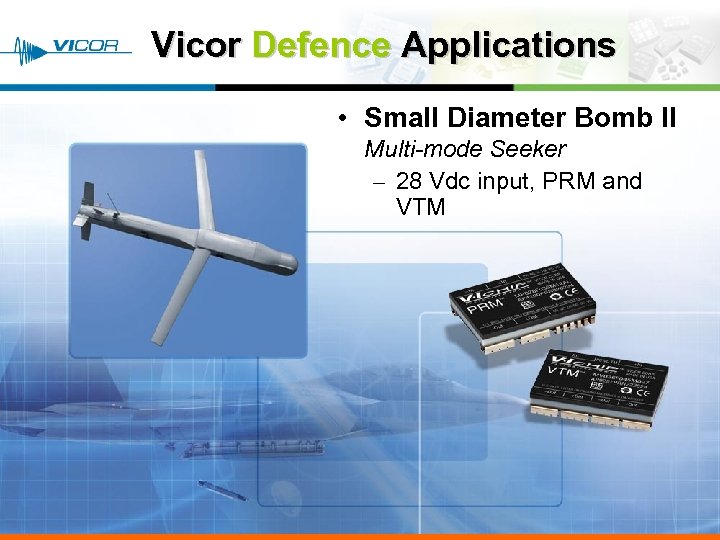

Vicor Defence Applications • Small Diameter Bomb II Multi-mode Seeker – 28 Vdc input, PRM and VTM Vicor © 2009

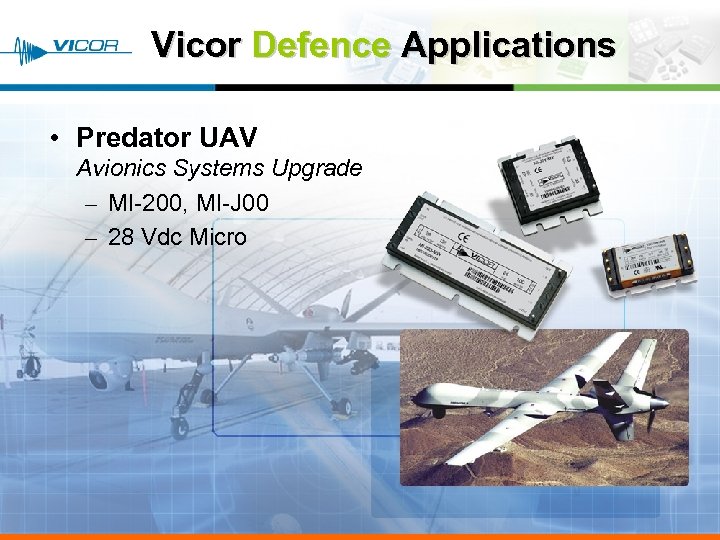

Vicor Defence Applications • Predator UAV Avionics Systems Upgrade – MI-200, MI-J 00 – 28 Vdc Micro Vicor © 2009
Vicor Defence Applications • Unmanned Air Vehicle Scan. Eagle – Ground Controls – 230 Vac input – +/-12 V, 24 Vdc outputs – 200 W Vicor © 2009
Vicor Defence Applications • Global Hawk Flight Control Systems – MI-200, 28 Vdc input – MI-IAM, MIL-STD-461 Filter Vicor © 2009

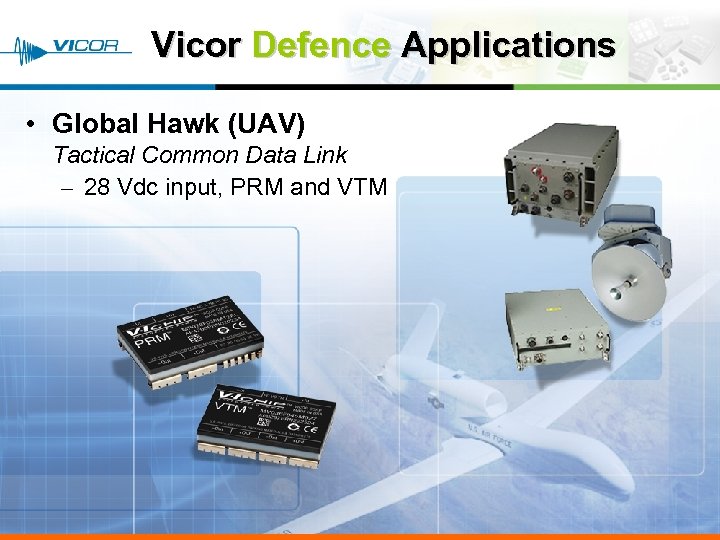

Vicor Defence Applications • Global Hawk (UAV) Tactical Common Data Link – 28 Vdc input, PRM and VTM Vicor © 2009

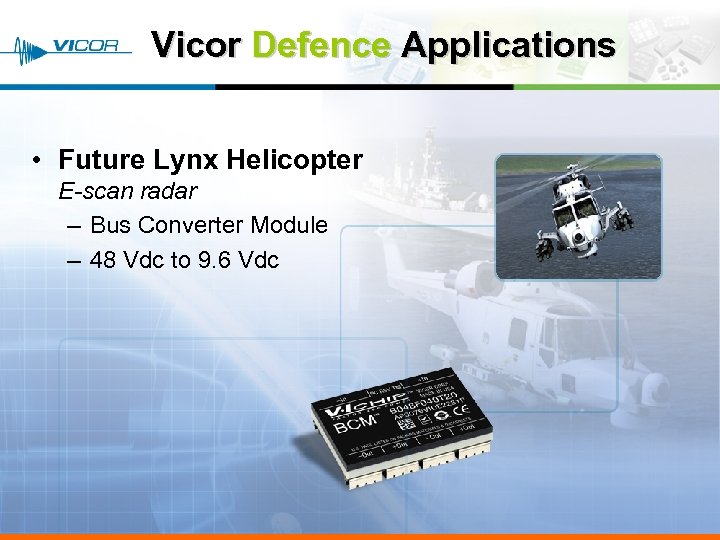

Vicor Defence Applications • Future Lynx Helicopter E-scan radar – Bus Converter Module – 48 Vdc to 9. 6 Vdc Vicor © 2009
Vicor Defence Applications • Stand-off Missile – 300 Vdc input – 28 Vdc output – 500 W Vicor © 2009

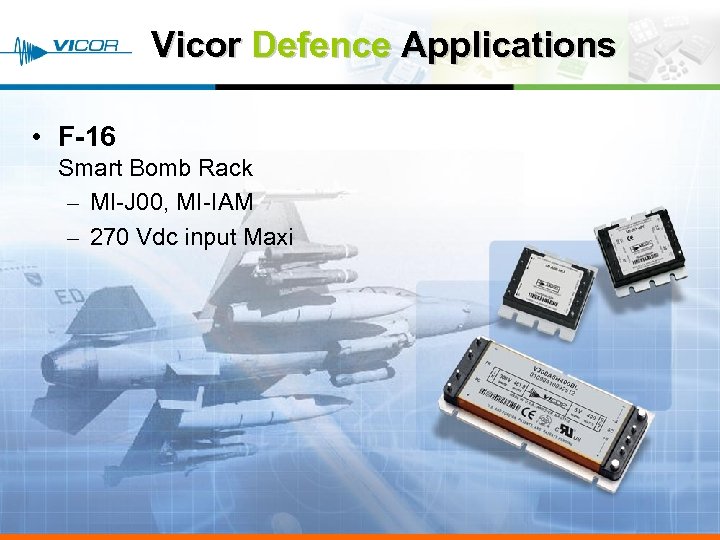

Vicor Defence Applications • F-16 Smart Bomb Rack – MI-J 00, MI-IAM – 270 Vdc input Maxi Vicor © 2009

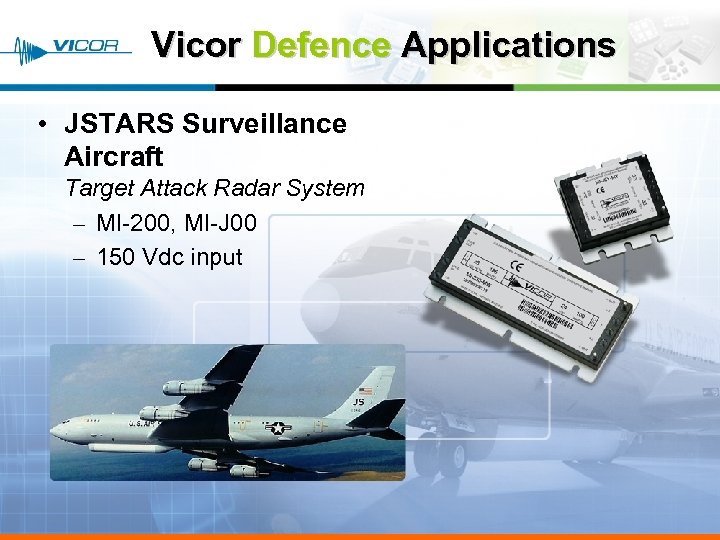

Vicor Defence Applications • JSTARS Surveillance Aircraft Target Attack Radar System – MI-200, MI-J 00 – 150 Vdc input Vicor © 2009

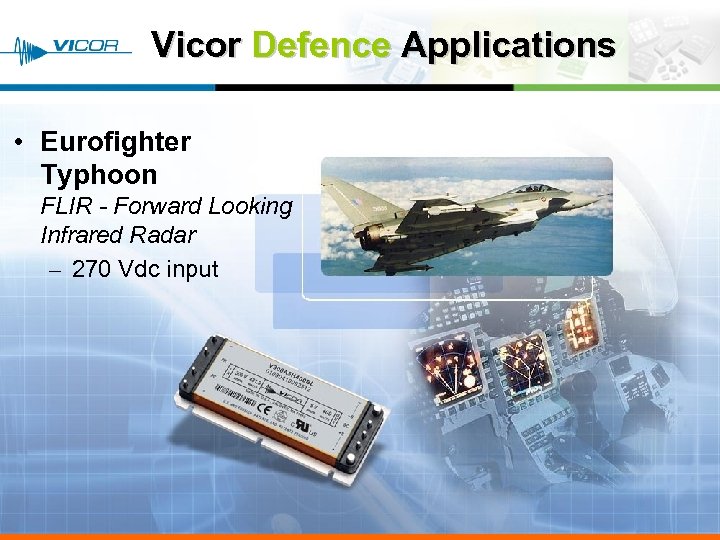

Vicor Defence Applications • Eurofighter Typhoon FLIR - Forward Looking Infrared Radar – 270 Vdc input Vicor © 2009

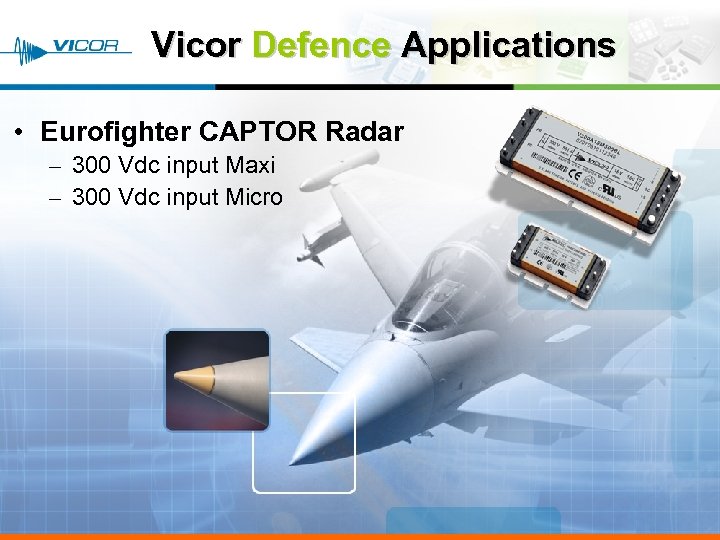

Vicor Defence Applications • Eurofighter CAPTOR Radar – 300 Vdc input Maxi – 300 Vdc input Micro Vicor © 2009
Vicor Defence Applications • F/A-18 Radar Warning Receiver – 270 Vdc input Mini – 270 Vdc input Micro Vicor © 2009

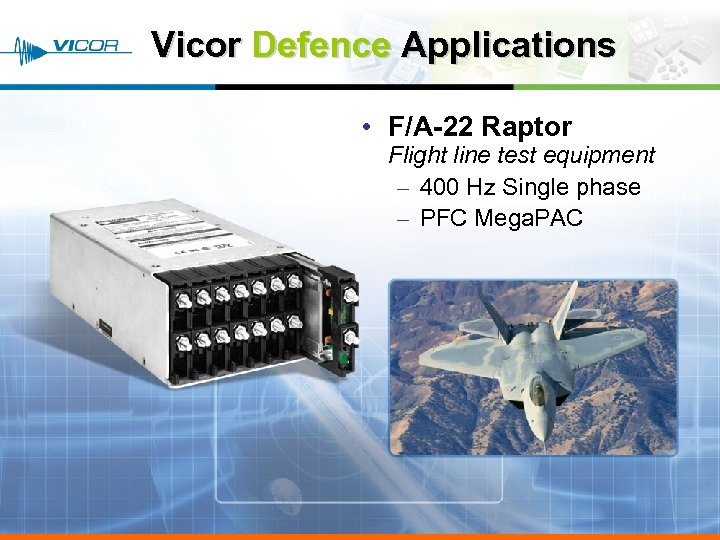

Vicor Defence Applications • F/A-22 Raptor Flight line test equipment – 400 Hz Single phase – PFC Mega. PAC Vicor © 2009

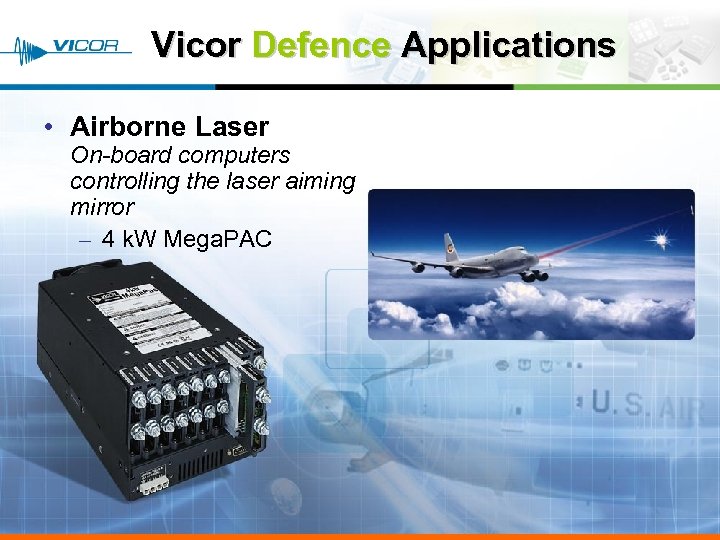

Vicor Defence Applications • Airborne Laser On-board computers controlling the laser aiming mirror – 4 k. W Mega. PAC Vicor © 2009

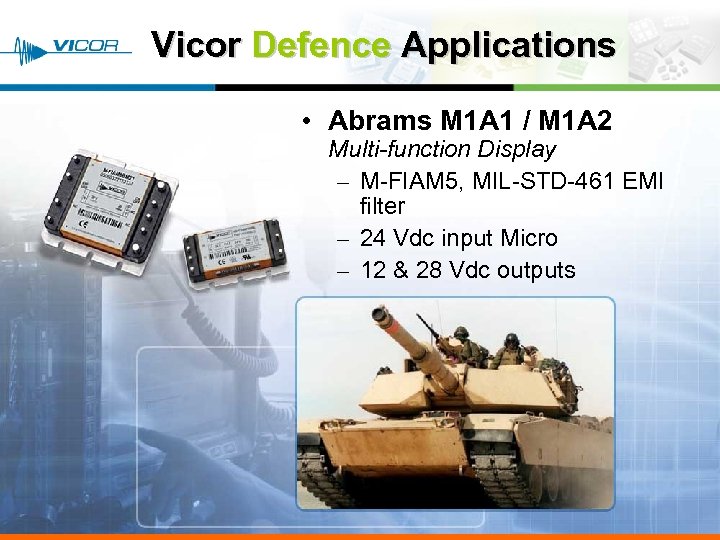

Vicor Defence Applications • Abrams M 1 A 1 / M 1 A 2 Multi-function Display – M-FIAM 5, MIL-STD-461 EMI filter – 24 Vdc input Micro – 12 & 28 Vdc outputs Vicor © 2009

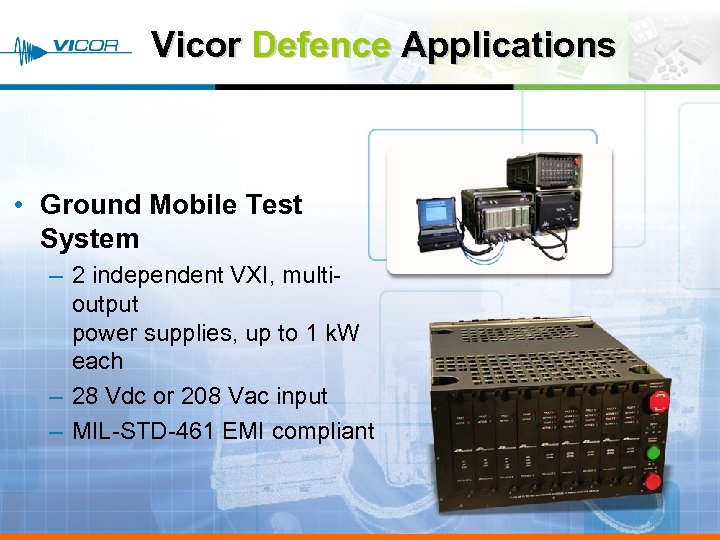

Vicor Defence Applications • Ground Mobile Test System – 2 independent VXI, multioutput power supplies, up to 1 k. W each – 28 Vdc or 208 Vac input – MIL-STD-461 EMI compliant Vicor © 2009

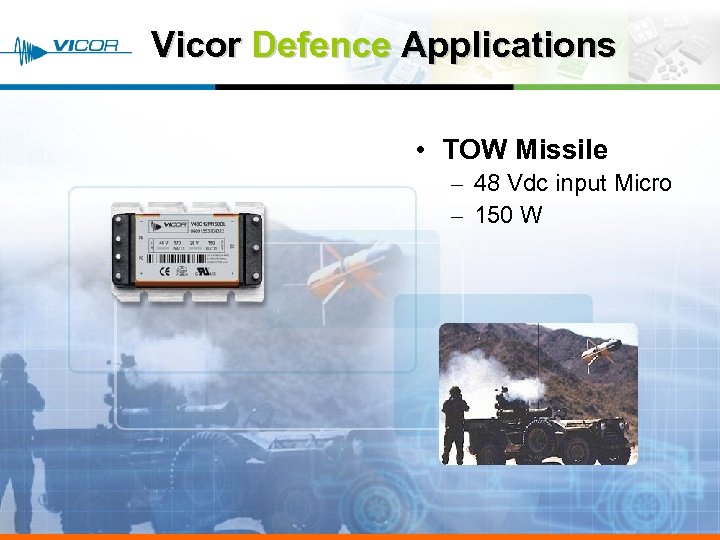

Vicor Defence Applications • TOW Missile – 48 Vdc input Micro – 150 W Vicor © 2009
Vicor Defence Applications • TOW Targeting System – M-FIAM 5, MIL-STD-461 Filter – 28 Vdc input Maxi Vicor © 2009

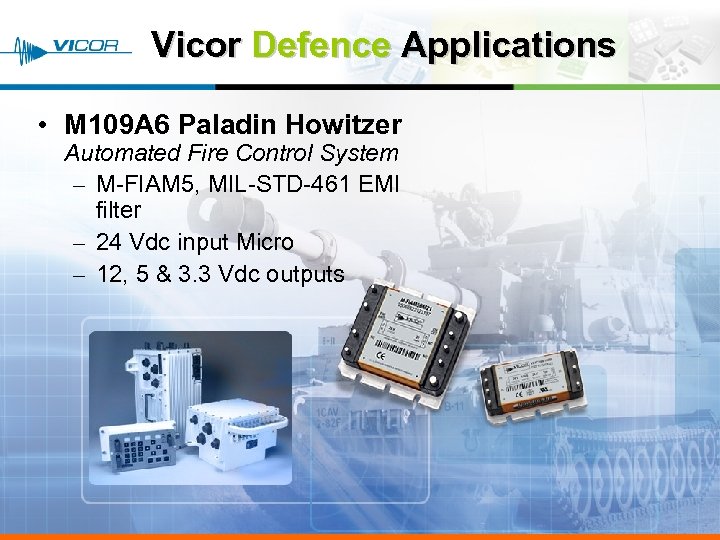

Vicor Defence Applications • M 109 A 6 Paladin Howitzer Automated Fire Control System – M-FIAM 5, MIL-STD-461 EMI filter – 24 Vdc input Micro – 12, 5 & 3. 3 Vdc outputs Vicor © 2009
Vicor Defence Applications • Joint Tactical Radio System (JTRS) – 28 Vdc input Micro Vicor © 2009

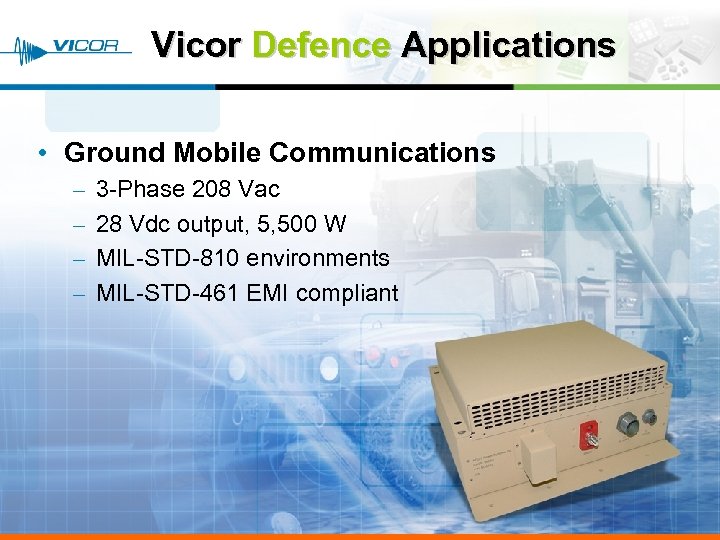

Vicor Defence Applications • Ground Mobile Communications – – 3 -Phase 208 Vac 28 Vdc output, 5, 500 W MIL-STD-810 environments MIL-STD-461 EMI compliant Vicor © 2009

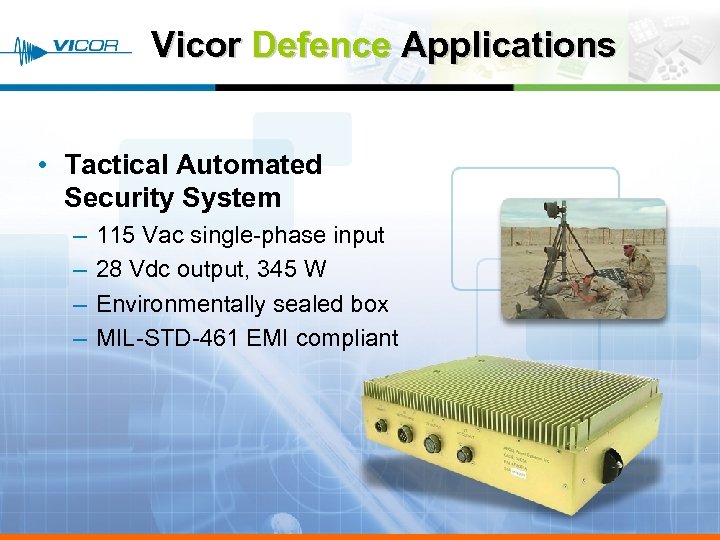

Vicor Defence Applications • Tactical Automated Security System – – 115 Vac single-phase input 28 Vdc output, 345 W Environmentally sealed box MIL-STD-461 EMI compliant Vicor © 2009

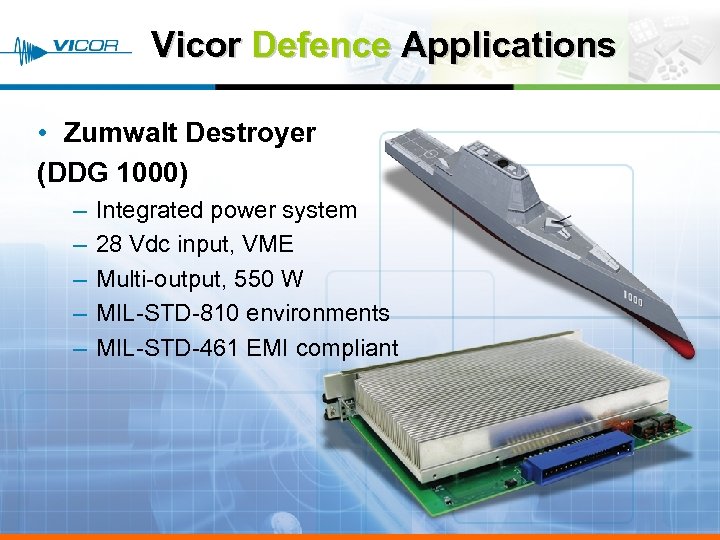

Vicor Defence Applications • Zumwalt Destroyer (DDG 1000) – – – Integrated power system 28 Vdc input, VME Multi-output, 550 W MIL-STD-810 environments MIL-STD-461 EMI compliant Vicor © 2009

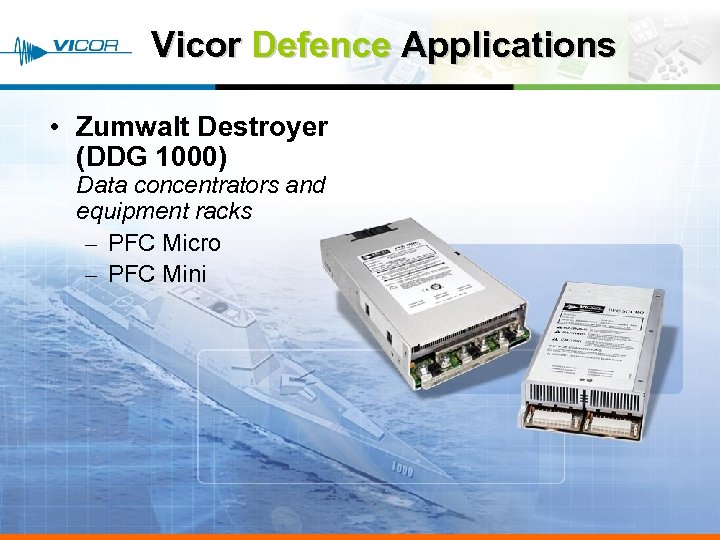

Vicor Defence Applications • Zumwalt Destroyer (DDG 1000) Data concentrators and equipment racks – PFC Micro – PFC Mini Vicor © 2009
Vicor Defence Applications • Hunt Class Warship Rugged Multi-Function Console – 28 Vdc input Maxi – 28 Vdc input Micro Vicor © 2009

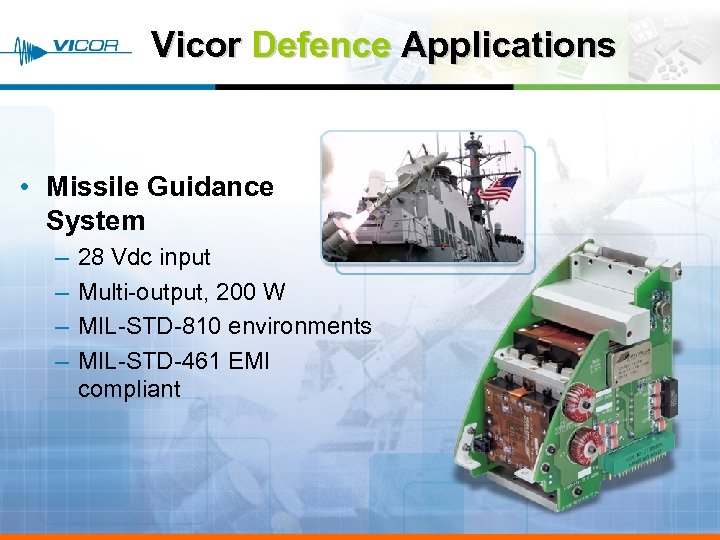

Vicor Defence Applications • Missile Guidance System – – 28 Vdc input Multi-output, 200 W MIL-STD-810 environments MIL-STD-461 EMI compliant Vicor © 2009

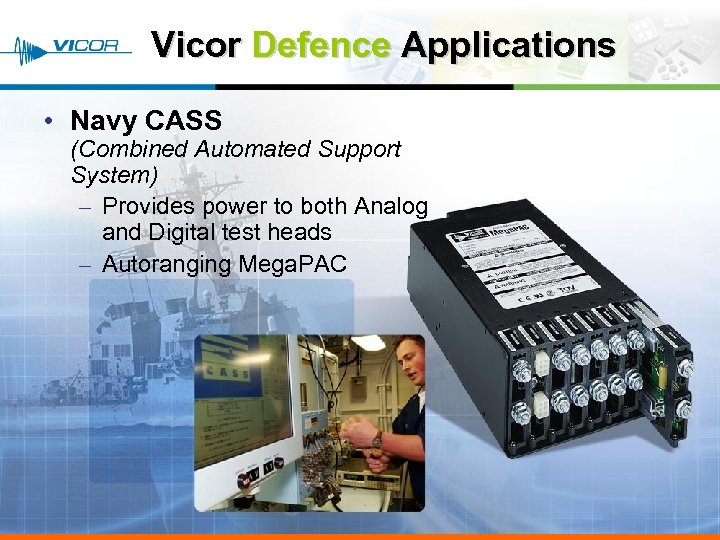

Vicor Defence Applications • Navy CASS (Combined Automated Support System) – Provides power to both Analog and Digital test heads – Autoranging Mega. PAC Vicor © 2009

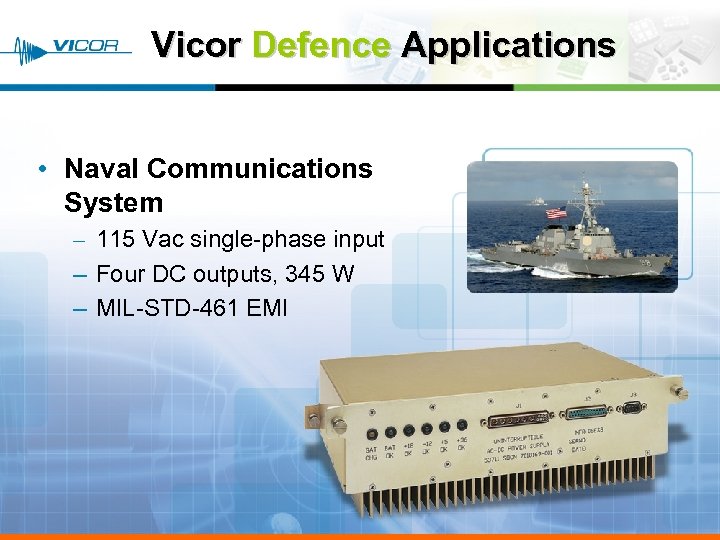

Vicor Defence Applications • Naval Communications System – 115 Vac single-phase input – Four DC outputs, 345 W – MIL-STD-461 EMI Vicor © 2009

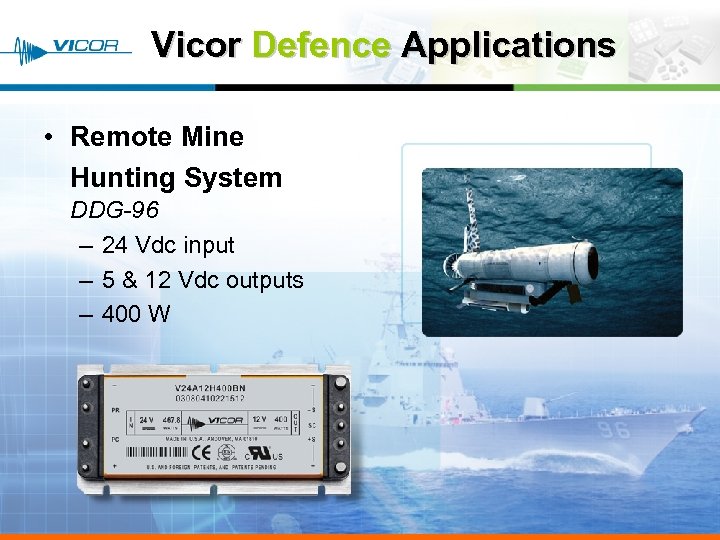

Vicor Defence Applications • Remote Mine Hunting System DDG-96 – 24 Vdc input – 5 & 12 Vdc outputs – 400 W Vicor © 2009

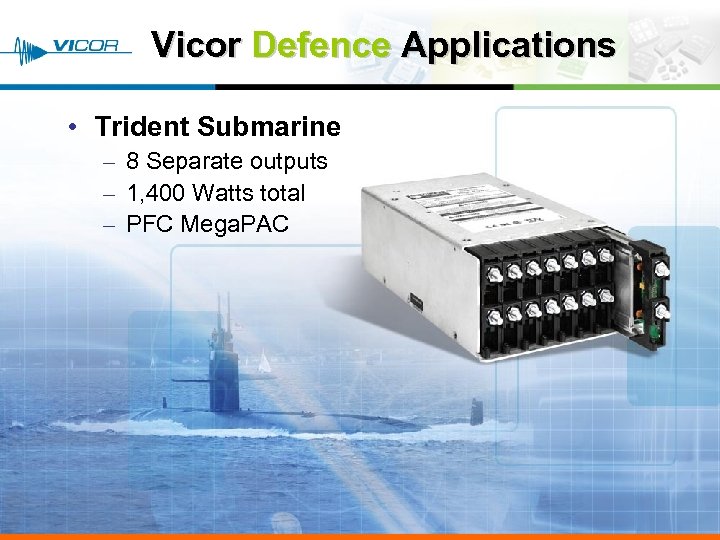

Vicor Defence Applications • Trident Submarine – 8 Separate outputs – 1, 400 Watts total – PFC Mega. PAC Vicor © 2009

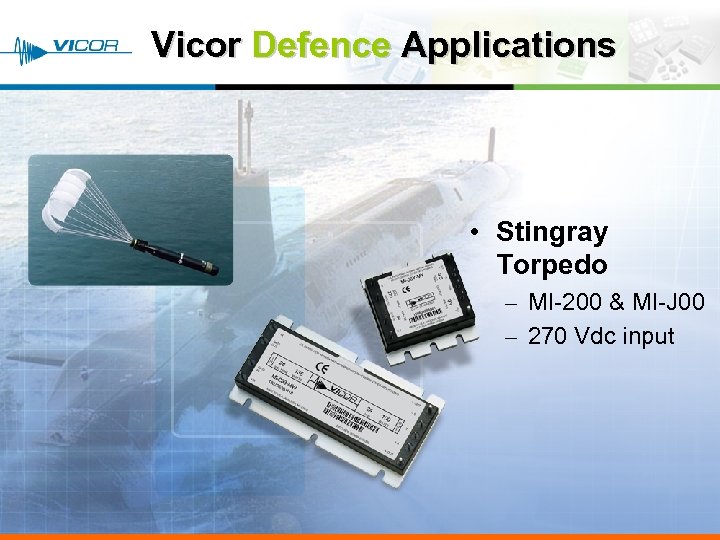

Vicor Defence Applications • Stingray Torpedo – MI-200 & MI-J 00 – 270 Vdc input Vicor © 2009
Vicor Defence Applications • Virginia Class Nuclear Submarine – MI-AIM, AC to DC switcher – MI-200, MI-J 00 – 165 Vdc input Vicor © 2009
