Vice – Presidency for Strategic Planning and Supervision Statistical Centre Of Iran Data Capture Vice – Presidency for Strategic Planning and Supervision Statistical Centre Of Iran Data Capture Technology Statistical Centre Of IRAN Presented by : MS. SOMAYE AHANGAR

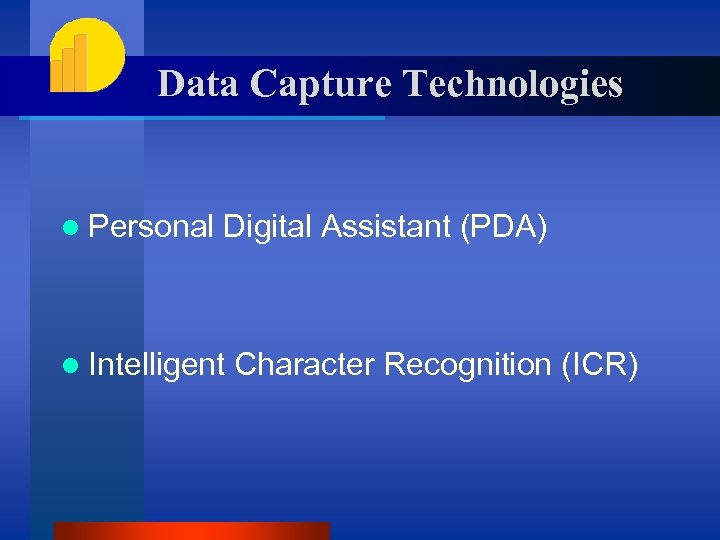

Data Capture Technologies l Personal Digital Assistant (PDA) l Intelligent Character Recognition (ICR) Data Capture Technologies l Personal Digital Assistant (PDA) l Intelligent Character Recognition (ICR)

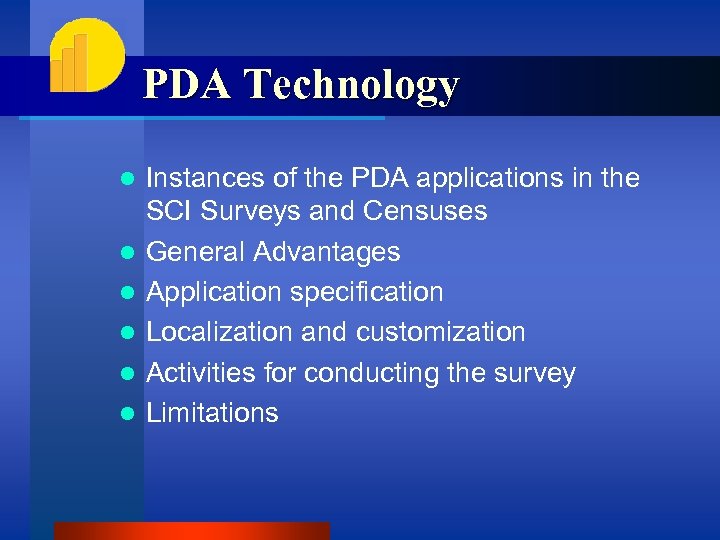

PDA Technology l l l Instances of the PDA applications in the SCI Surveys PDA Technology l l l Instances of the PDA applications in the SCI Surveys and Censuses General Advantages Application specification Localization and customization Activities for conducting the survey Limitations

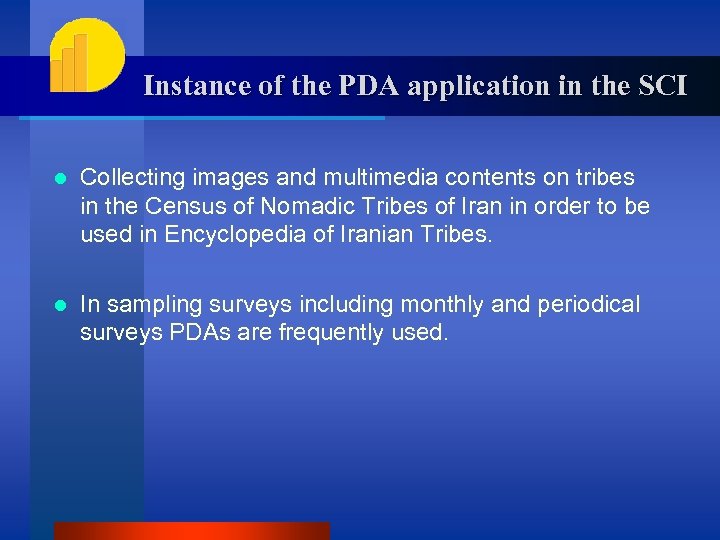

Instance of the PDA application in the SCI l Collecting images and multimedia contents Instance of the PDA application in the SCI l Collecting images and multimedia contents on tribes in the Census of Nomadic Tribes of Iran in order to be used in Encyclopedia of Iranian Tribes. l In sampling surveys including monthly and periodical surveys PDAs are frequently used.

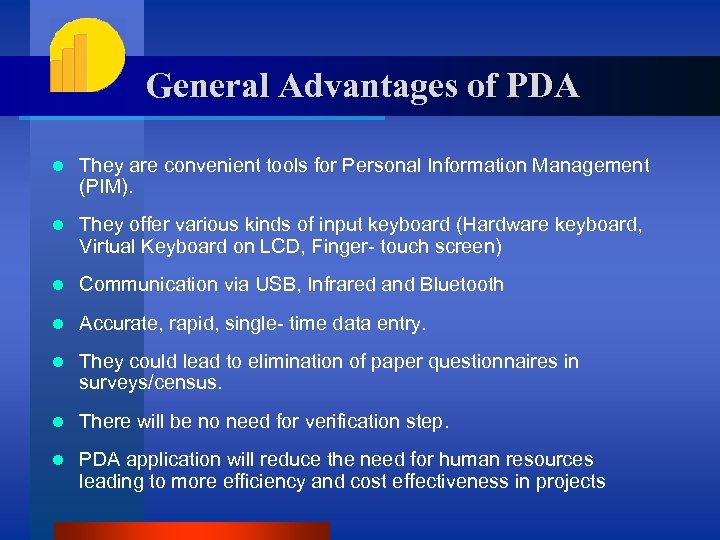

General Advantages of PDA l They are convenient tools for Personal Information Management (PIM). General Advantages of PDA l They are convenient tools for Personal Information Management (PIM). l They offer various kinds of input keyboard (Hardware keyboard, Virtual Keyboard on LCD, Finger- touch screen) l Communication via USB, Infrared and Bluetooth l Accurate, rapid, single- time data entry. l They could lead to elimination of paper questionnaires in surveys/census. l There will be no need for verification step. l PDA application will reduce the need for human resources leading to more efficiency and cost effectiveness in projects

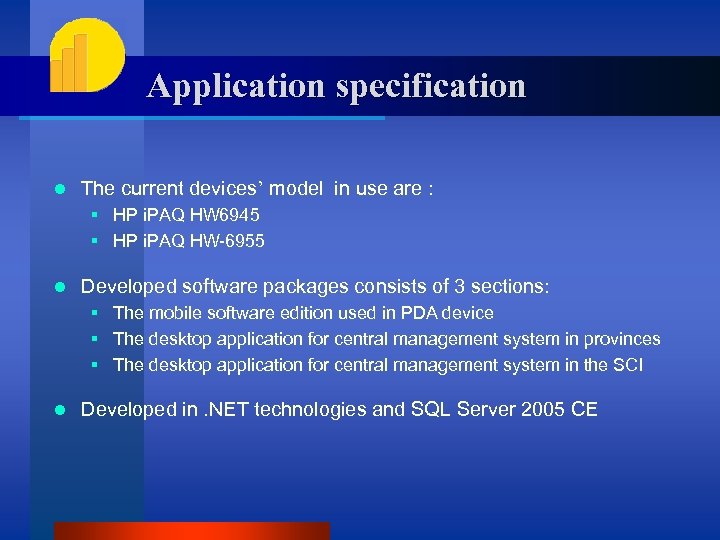

Application specification l The current devices’ model in use are : § HP i. Application specification l The current devices’ model in use are : § HP i. PAQ HW 6945 § HP i. PAQ HW-6955 l Developed software packages consists of 3 sections: § The mobile software edition used in PDA device § The desktop application for central management system in provinces § The desktop application for central management system in the SCI l Developed in. NET technologies and SQL Server 2005 CE

Localization and customization l Application of GPS devices to take spatial Information l Assignment Localization and customization l Application of GPS devices to take spatial Information l Assignment of sample working scopes to enumerators in monthly survey is dynamic. It should be mentioned that this dynamic process may causes some problems and concerns. l Measuring and evaluating spent time in each place under enumeration. l Simultaneous error validations to maintain data consistency. l Flexible navigation tool enabling browsing between different pages for filling their blank fields. l Possibility of data transmission thought internet

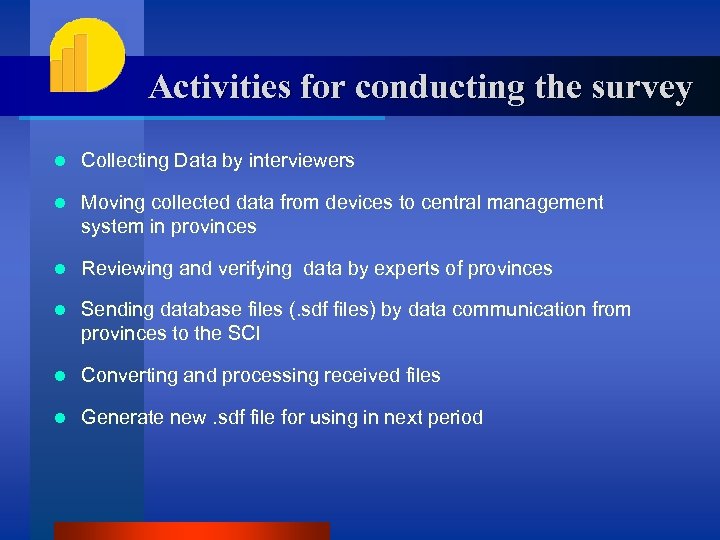

Activities for conducting the survey l Collecting Data by interviewers l Moving collected data Activities for conducting the survey l Collecting Data by interviewers l Moving collected data from devices to central management system in provinces l Reviewing and verifying data by experts of provinces l Sending database files (. sdf files) by data communication from provinces to the SCI l Converting and processing received files l Generate new. sdf file for using in next period

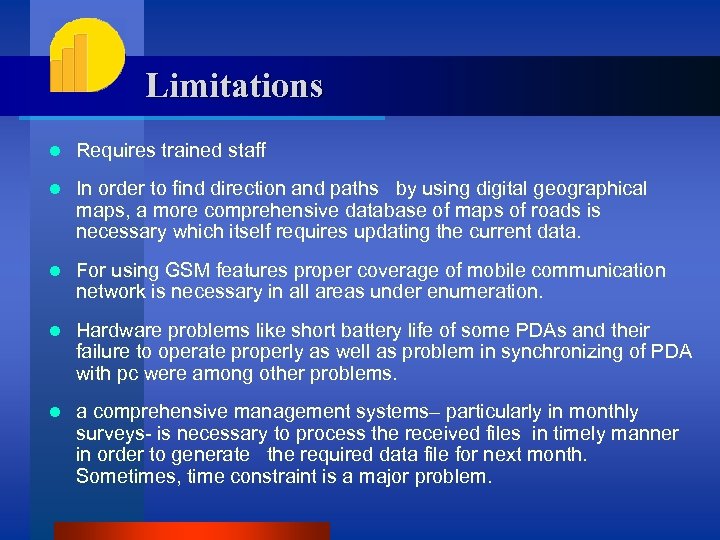

Limitations l Requires trained staff l In order to find direction and paths by Limitations l Requires trained staff l In order to find direction and paths by using digital geographical maps, a more comprehensive database of maps of roads is necessary which itself requires updating the current data. l For using GSM features proper coverage of mobile communication network is necessary in all areas under enumeration. l Hardware problems like short battery life of some PDAs and their failure to operate properly as well as problem in synchronizing of PDA with pc were among other problems. l a comprehensive management systems– particularly in monthly surveys- is necessary to process the received files in timely manner in order to generate the required data file for next month. Sometimes, time constraint is a major problem.

ICR Technology l l l l Overview Top Operational Reasons Accuracy ICR Stages Instances ICR Technology l l l l Overview Top Operational Reasons Accuracy ICR Stages Instances of the ICR usages in the SCI Surveys and Censuses Application specification and consideration The Strength Points using ICR in the SCI

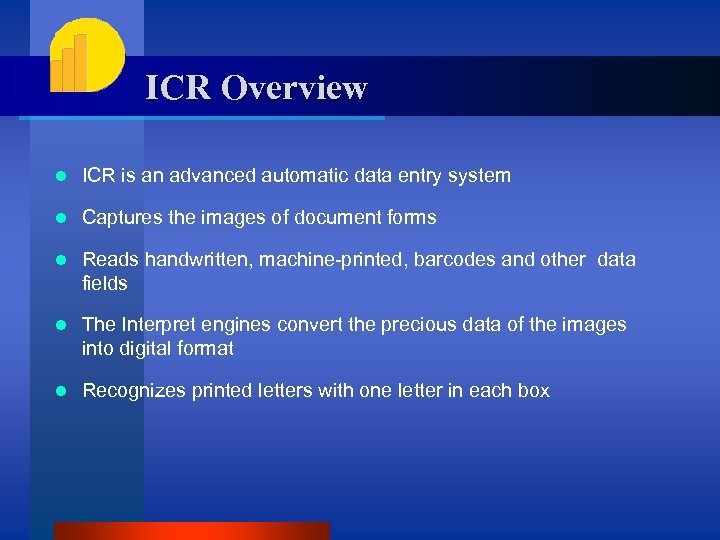

ICR Overview l ICR is an advanced automatic data entry system l Captures the ICR Overview l ICR is an advanced automatic data entry system l Captures the images of document forms l Reads handwritten, machine-printed, barcodes and other data fields l The Interpret engines convert the precious data of the images into digital format l Recognizes printed letters with one letter in each box

Top Operational Reasons l Cost effectiveness l Improved accuracy l Shorter cycle time l Top Operational Reasons l Cost effectiveness l Improved accuracy l Shorter cycle time l Improved work distribution (skill, location) l Audit trails and reporting and tracking tools l Data privacy

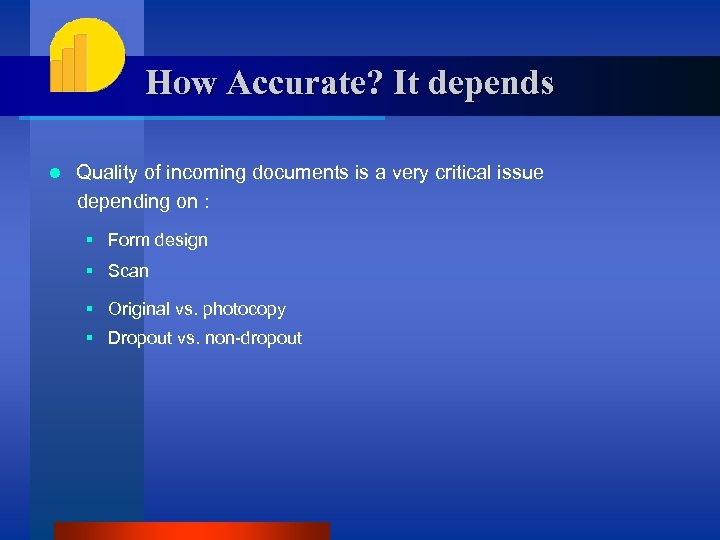

How Accurate? It depends l Quality of incoming documents is a very critical issue How Accurate? It depends l Quality of incoming documents is a very critical issue depending on : § Form design § Scan § Original vs. photocopy § Dropout vs. non-dropout

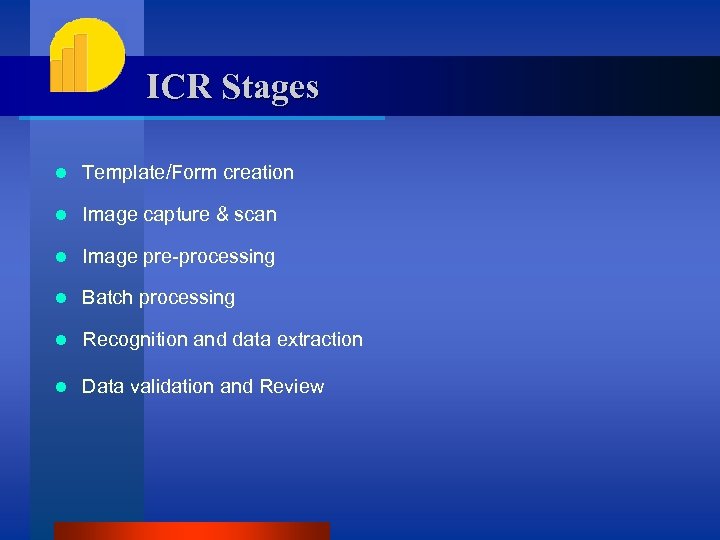

ICR Stages l Template/Form creation l Image capture & scan l Image pre-processing l ICR Stages l Template/Form creation l Image capture & scan l Image pre-processing l Batch processing l Recognition and data extraction l Data validation and Review

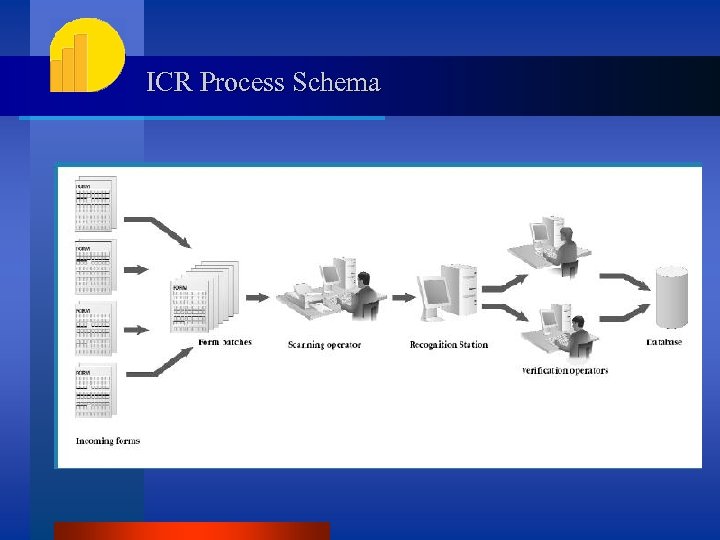

ICR Process Schema ICR Process Schema

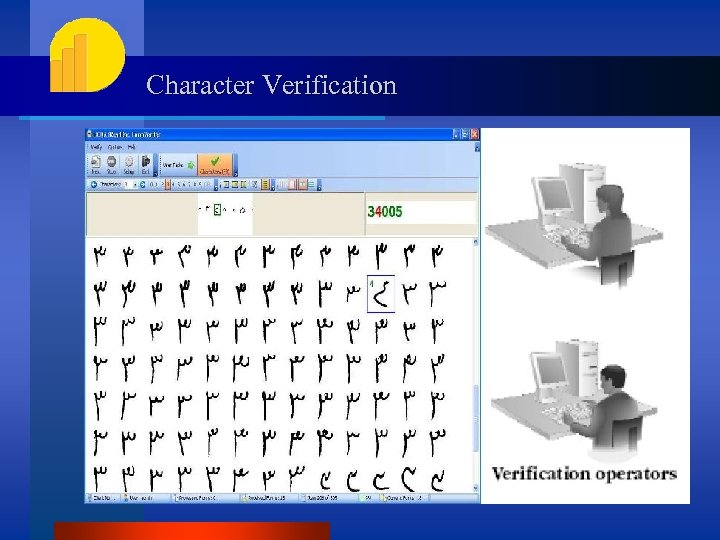

Character Verification Character Verification

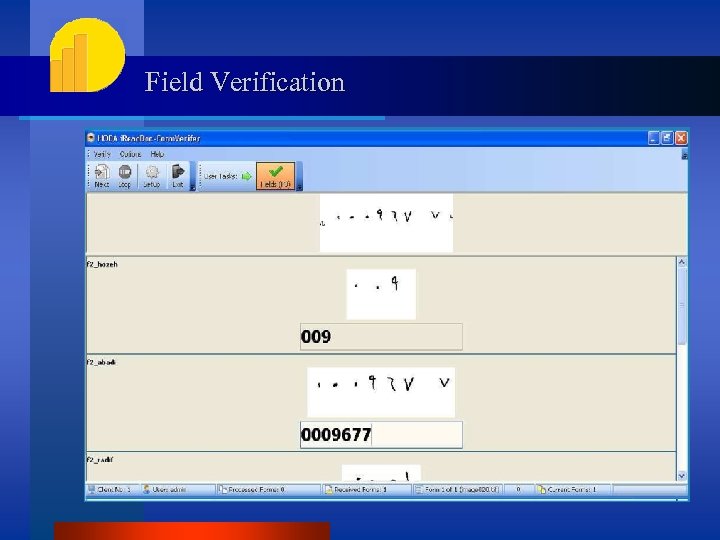

Field Verification Field Verification

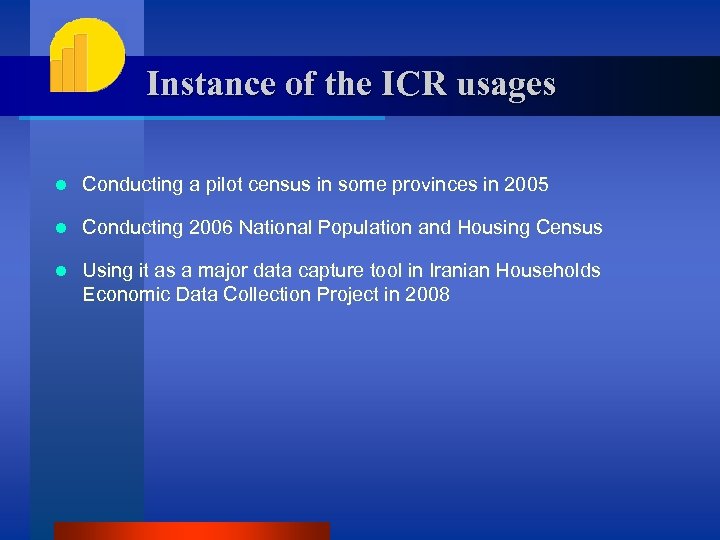

Instance of the ICR usages l Conducting a pilot census in some provinces in Instance of the ICR usages l Conducting a pilot census in some provinces in 2005 l Conducting 2006 National Population and Housing Census l Using it as a major data capture tool in Iranian Households Economic Data Collection Project in 2008

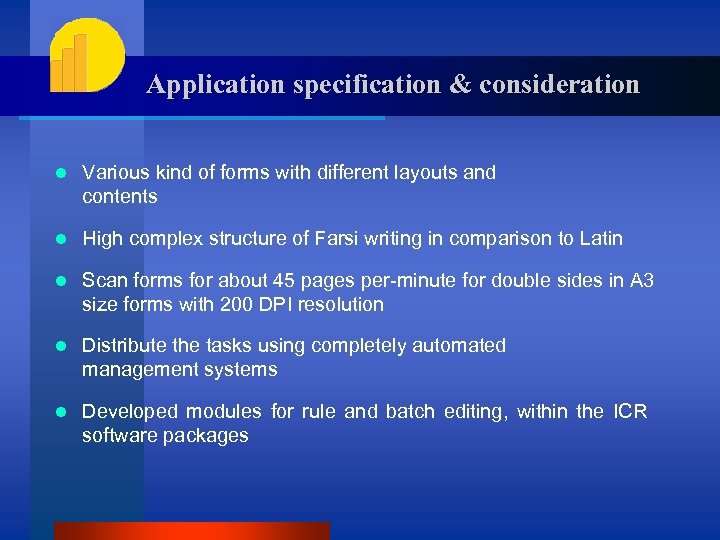

Application specification & consideration l Various kind of forms with different layouts and contents Application specification & consideration l Various kind of forms with different layouts and contents l High complex structure of Farsi writing in comparison to Latin l Scan forms for about 45 pages per-minute for double sides in A 3 size forms with 200 DPI resolution l Distribute the tasks using completely automated management systems l Developed modules for rule and batch editing, within the ICR software packages

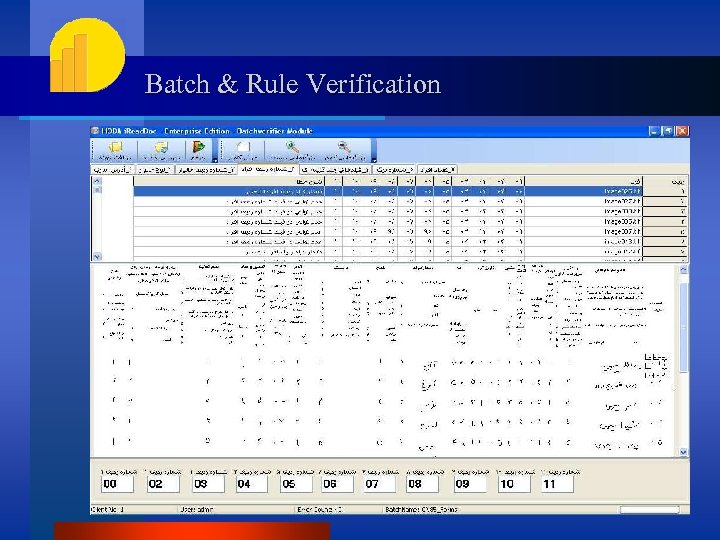

Batch & Rule Verification Batch & Rule Verification

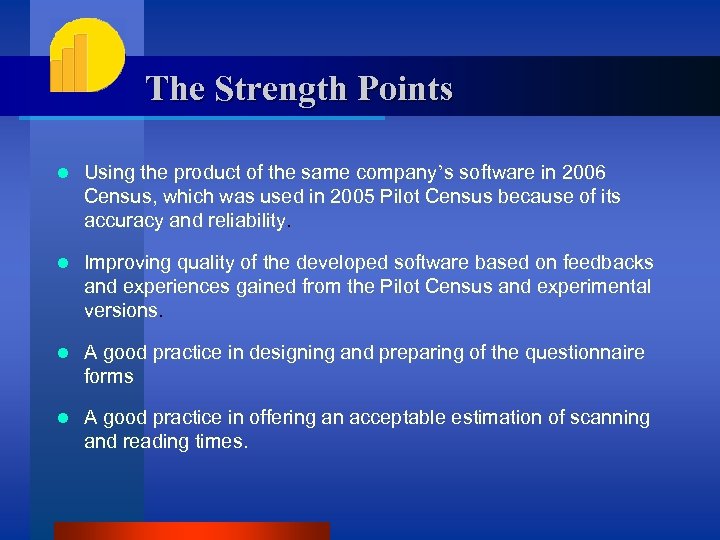

The Strength Points l Using the product of the same company’s software in 2006 The Strength Points l Using the product of the same company’s software in 2006 Census, which was used in 2005 Pilot Census because of its accuracy and reliability. l Improving quality of the developed software based on feedbacks and experiences gained from the Pilot Census and experimental versions. l A good practice in designing and preparing of the questionnaire forms l A good practice in offering an acceptable estimation of scanning and reading times.
